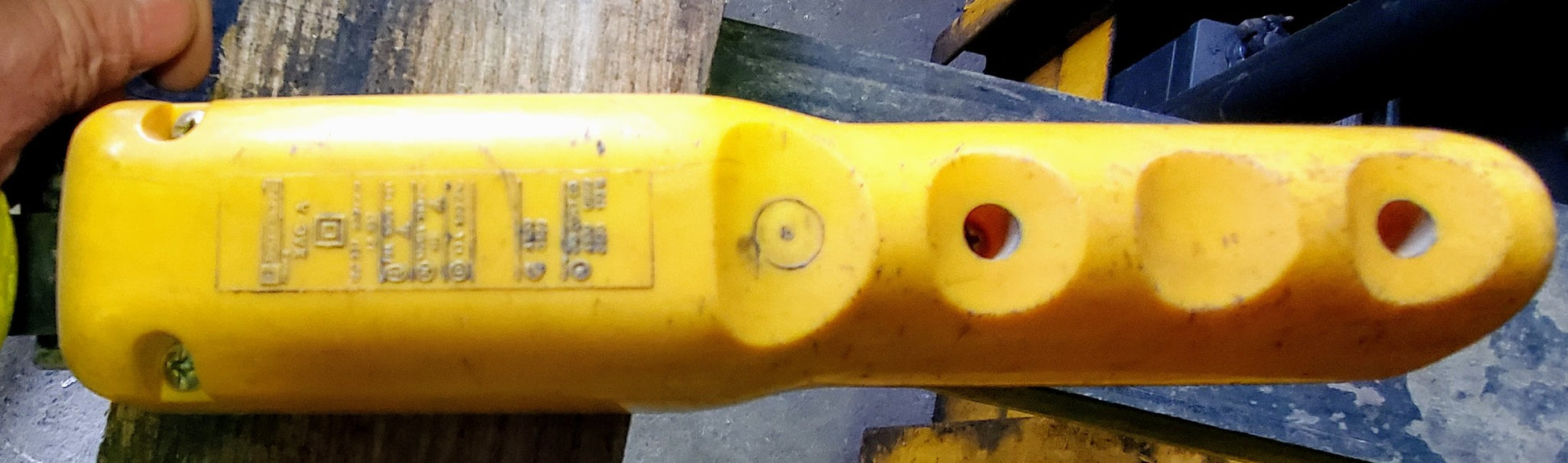

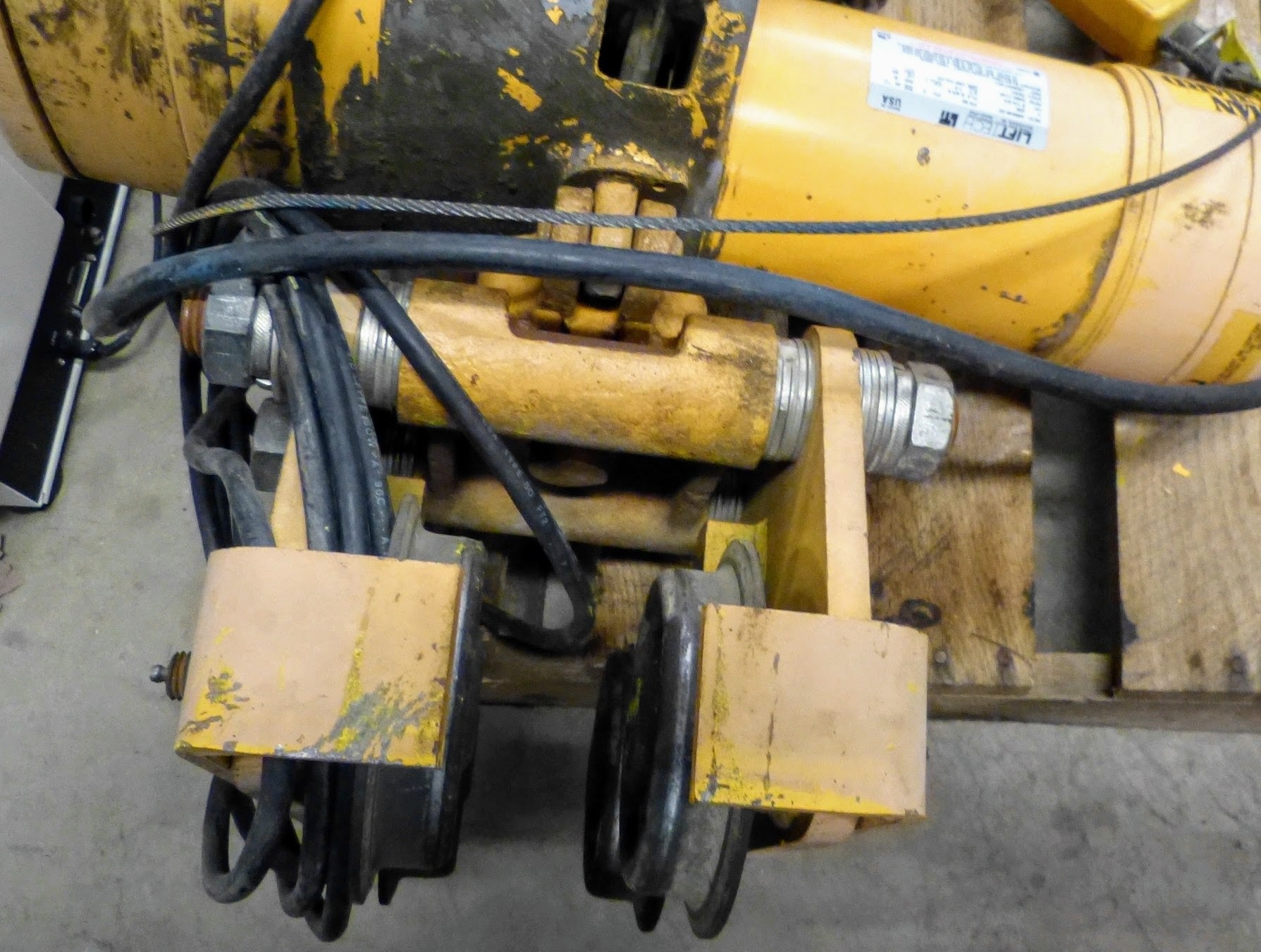

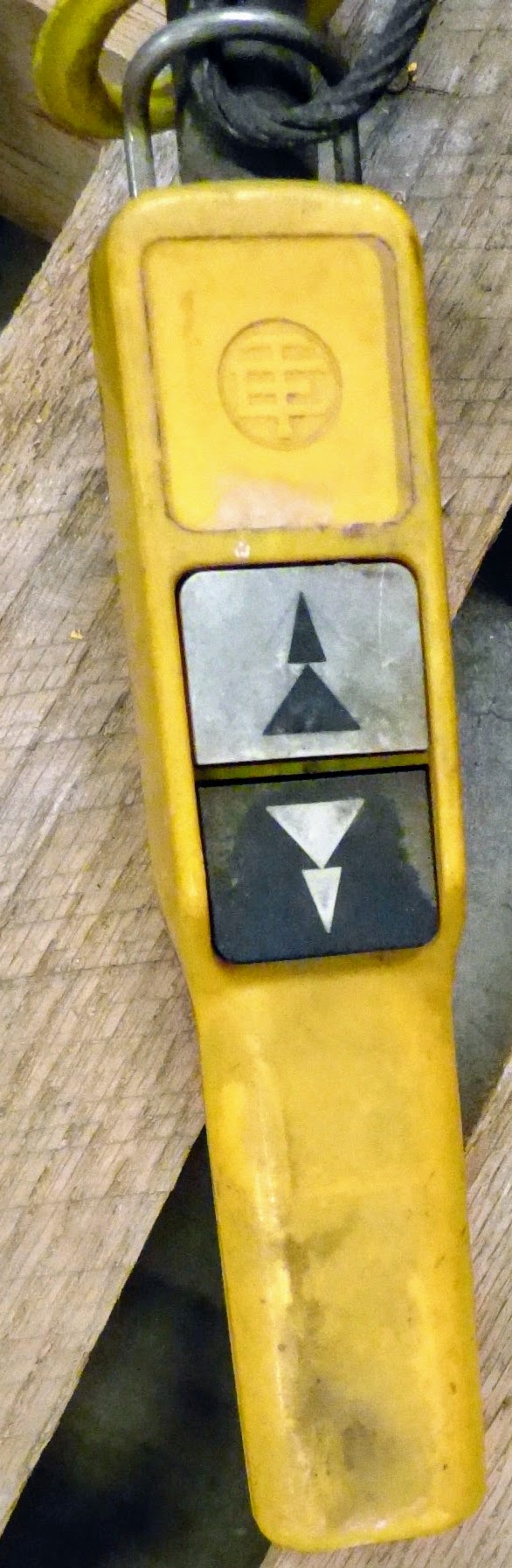

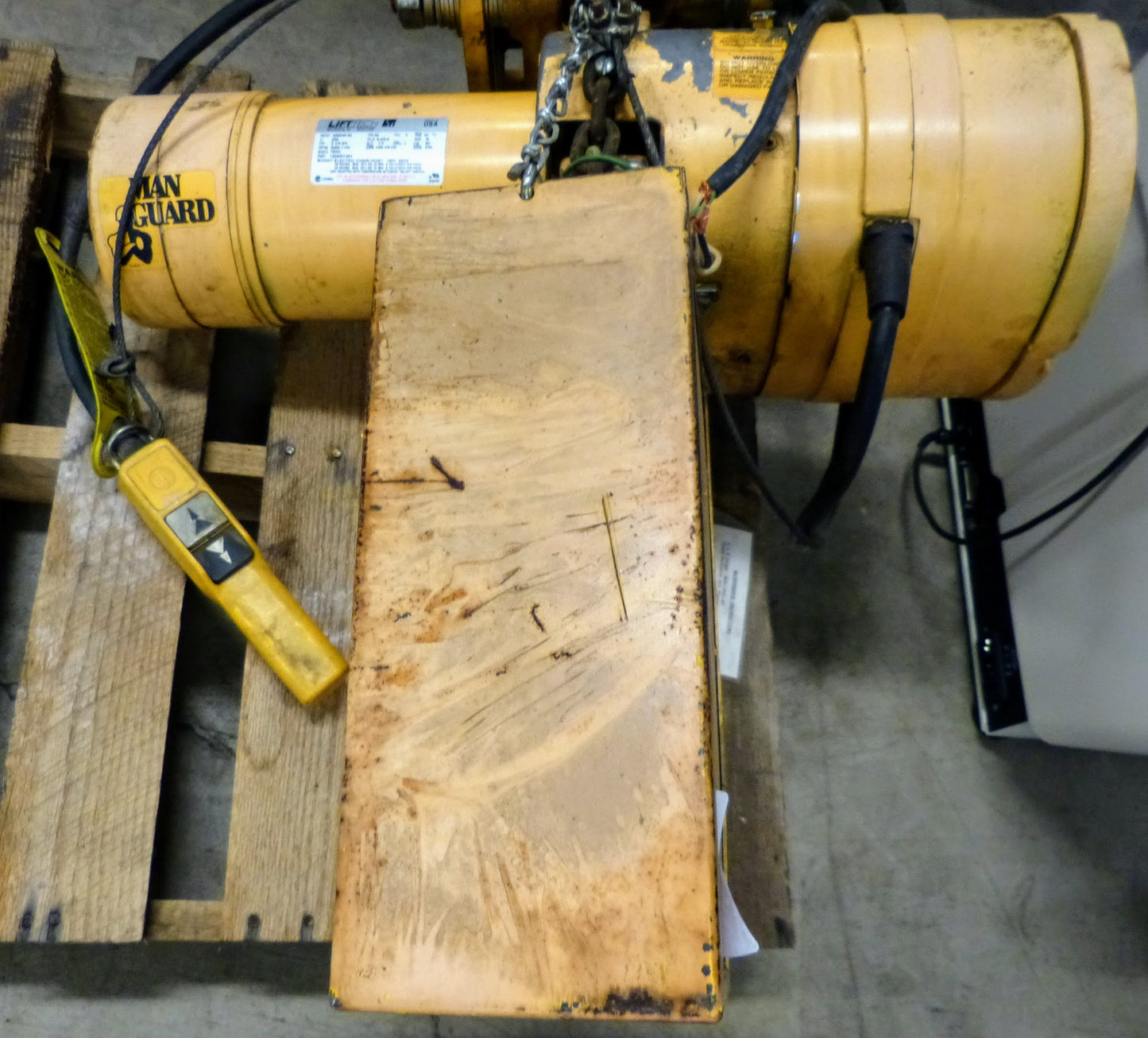

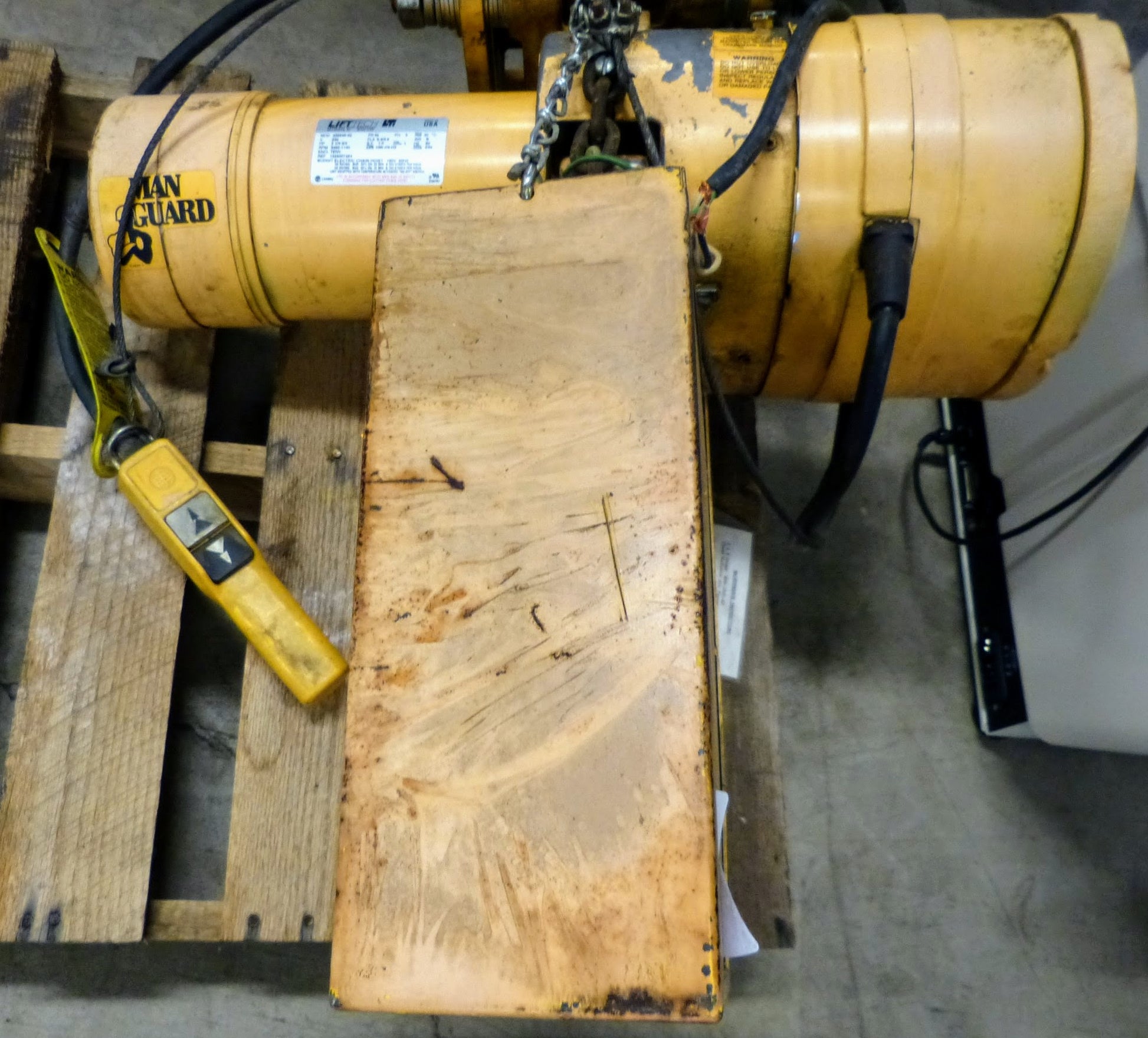

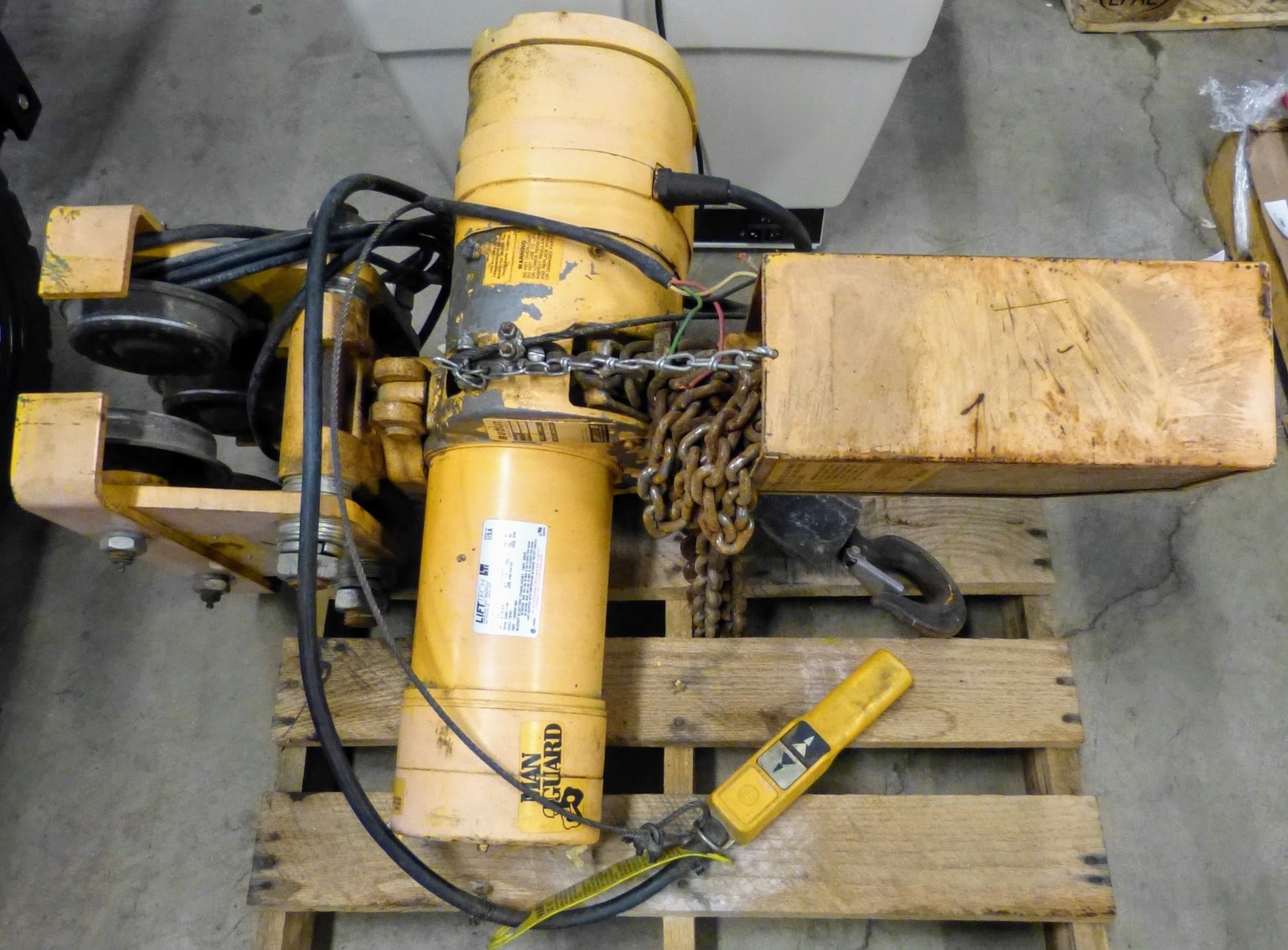

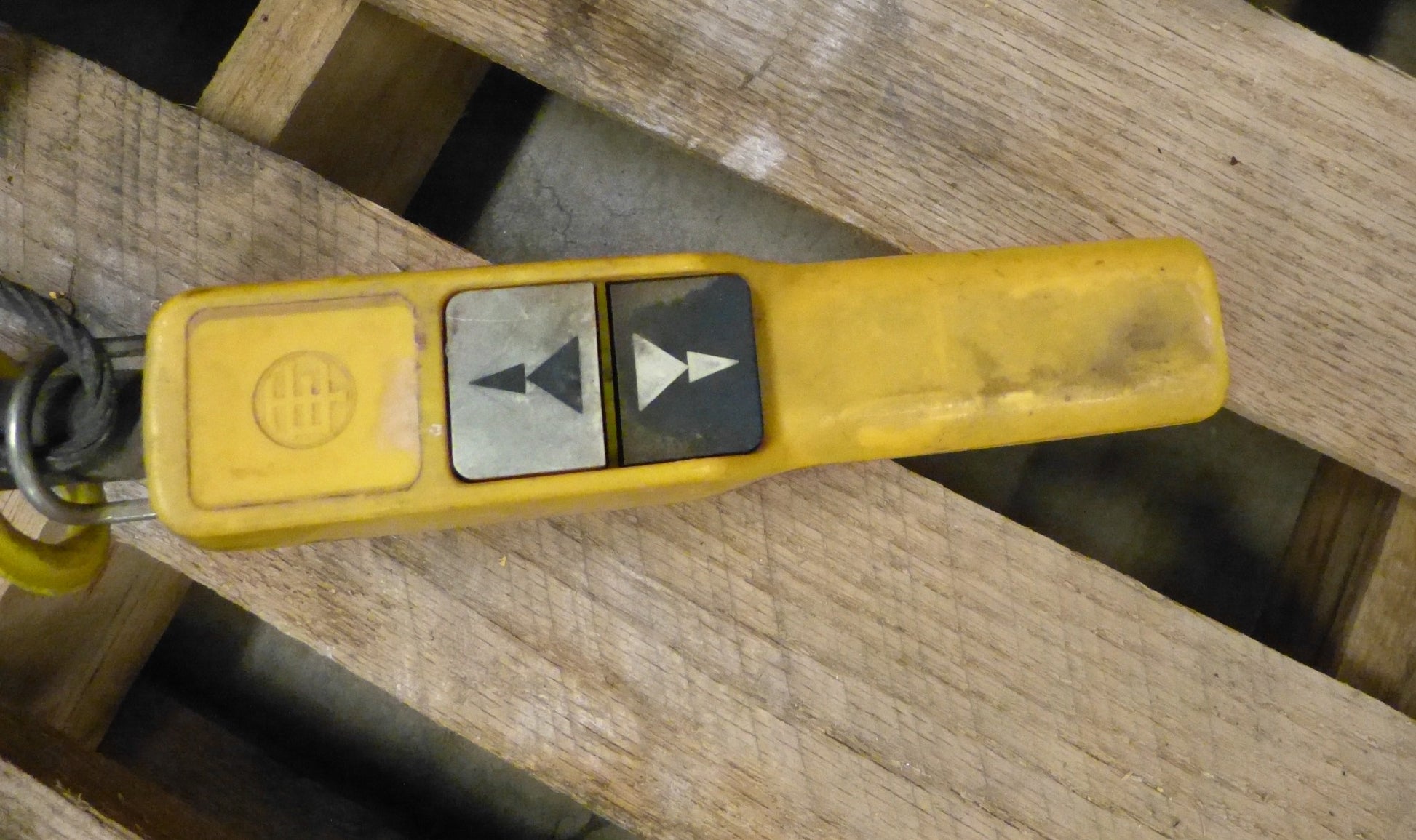

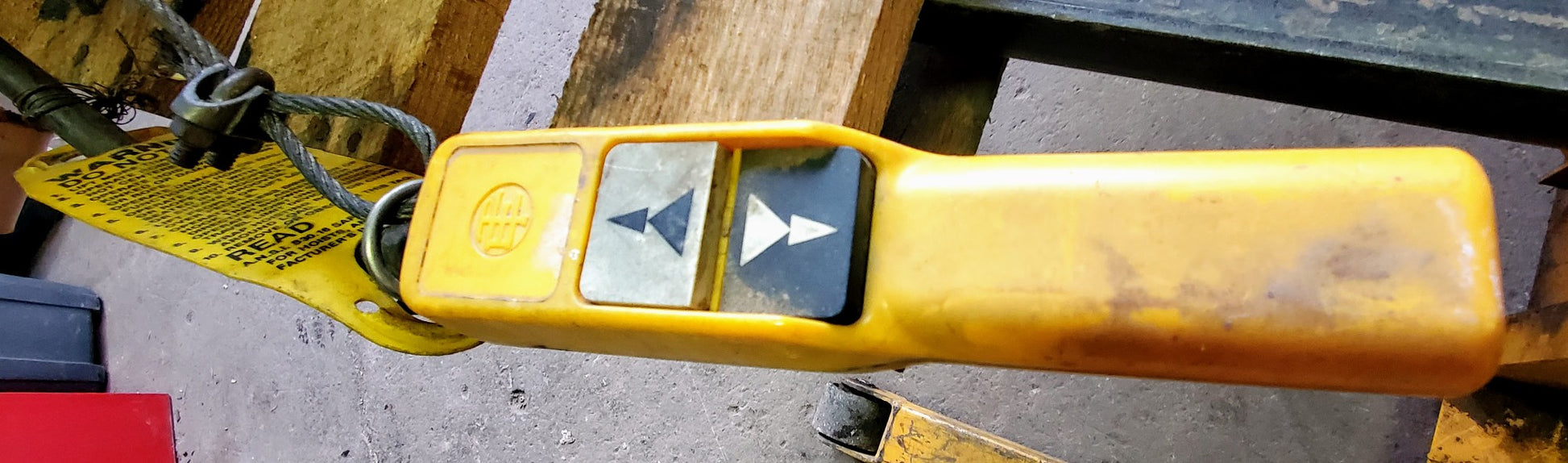

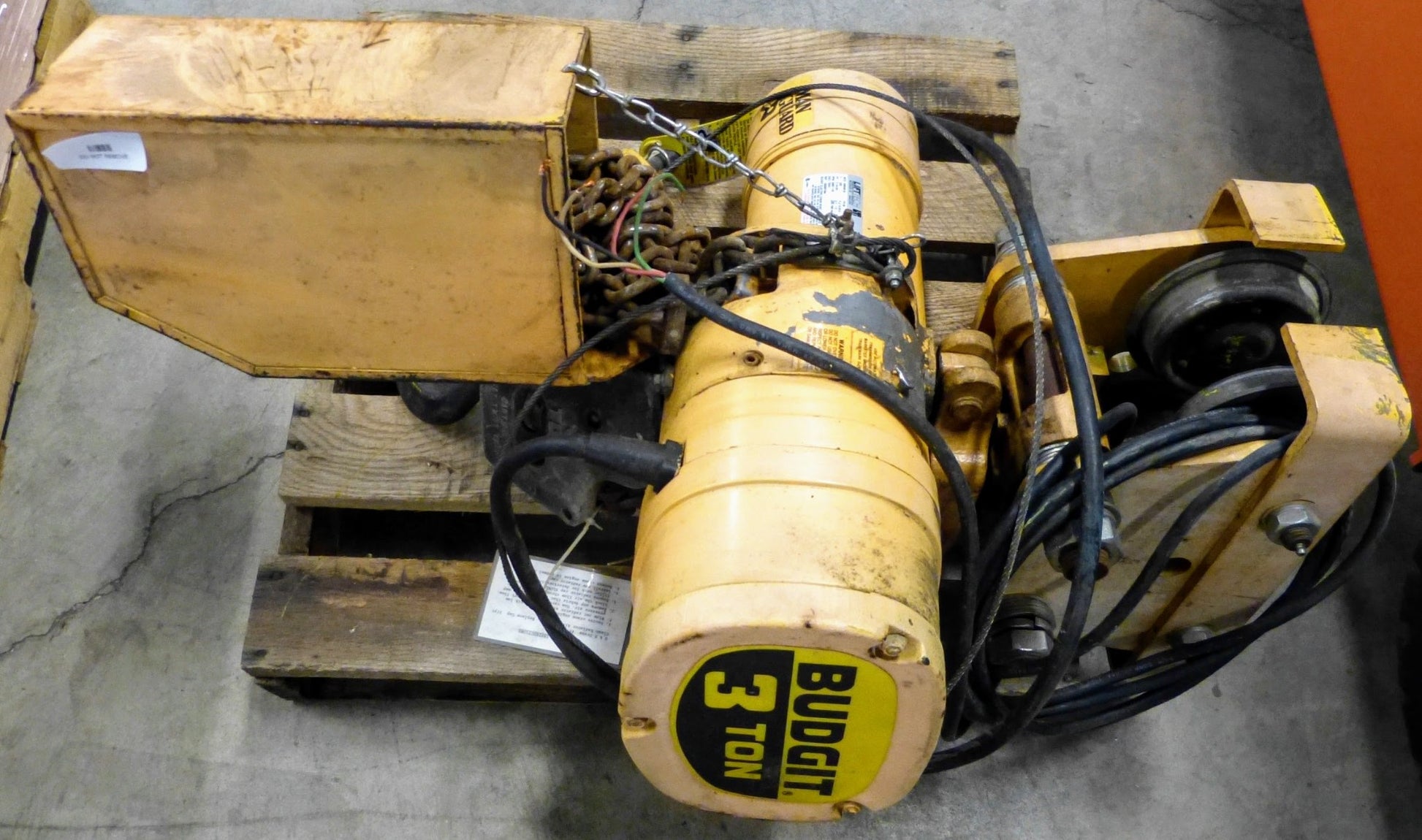

This listing is for a Perfect Operational Condition YALE LIFTTECH BUDGIT MAN-GUARD 3-PHASE 3TON CHAIN HOIST with IBEAM PUSH TROLLEY MOUNT & HAND REMOTE as can be seen in the pictures.
IMPORTANT: THIS IS A HEAVY DUTY CHAIN HOIST WHICH DEMANDS 3 PHASE POWER, WILL NOT WORK ON REGULAR 220 VOLT 1 PHASE POWER!
THIS YALE LIFTTECH BUDGIT MAN-GUARD 3-PHASE 3TON CHAIN HOIST with IBEAM PUSH TROLLEY MOUNT IS IN EXCELLENT OPERATIONAL CONDITION. CAME FROM A UNIVERSITY SHOP AND HAS ALWAYS BEEN VERY WELL MAINTAINED ACCORDING TO OSHA REGULATIONS, SOMETHING THAT ONLY UNIVERSITIES AND BIG CORPORATIONS CAN DO SO NO DISAPPOINTMENT HERE.
ALSO LOOKS GOOD AS CAN BE SEEN IN THE PICTURES.
Feel free to check this Lift Tech Chain Hoist's Technical Specifications by GOOGLING this link: https://www.budgithoist.com/pdf/budgit-electric-ch...
This is a unique opportunity to buy a more than US$ 7.500,00 new unit for a fraction of the cost which will last a lifetime.
YALE LIFTTECH BUDGIT 3 Ton 6000 Lb Electric Chain Hoist 20' Lift 10/3 FPM 230/460V

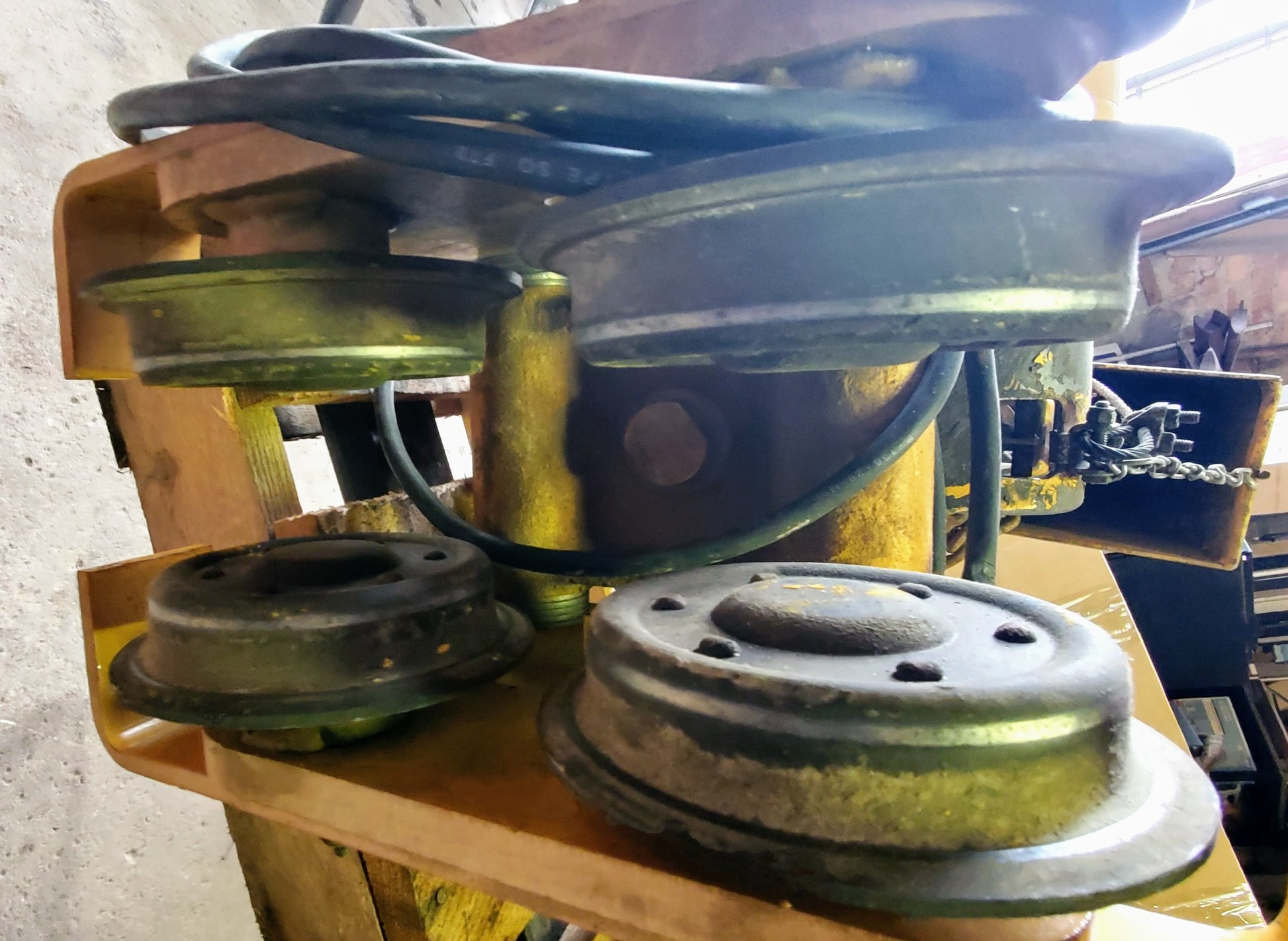

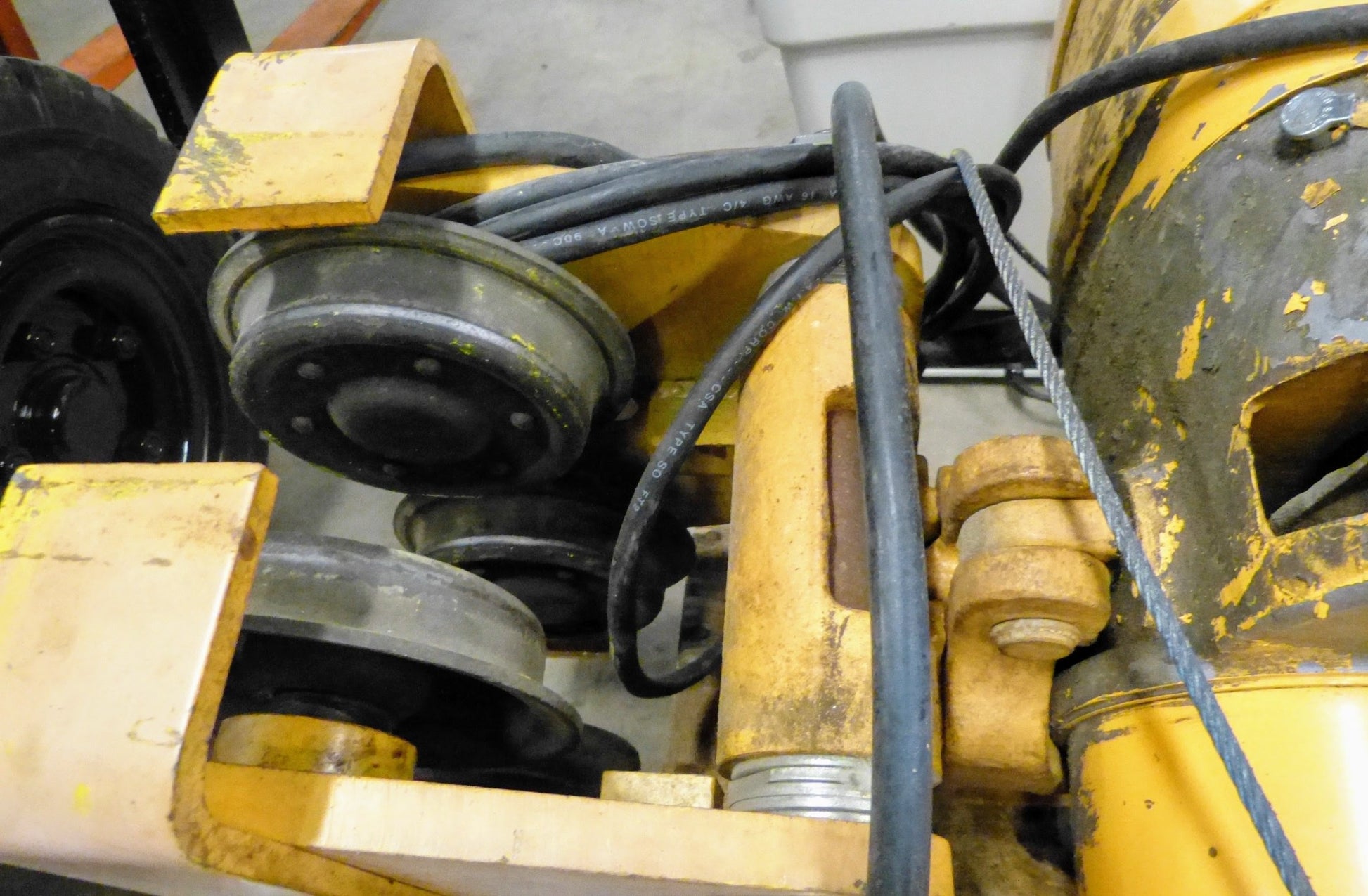

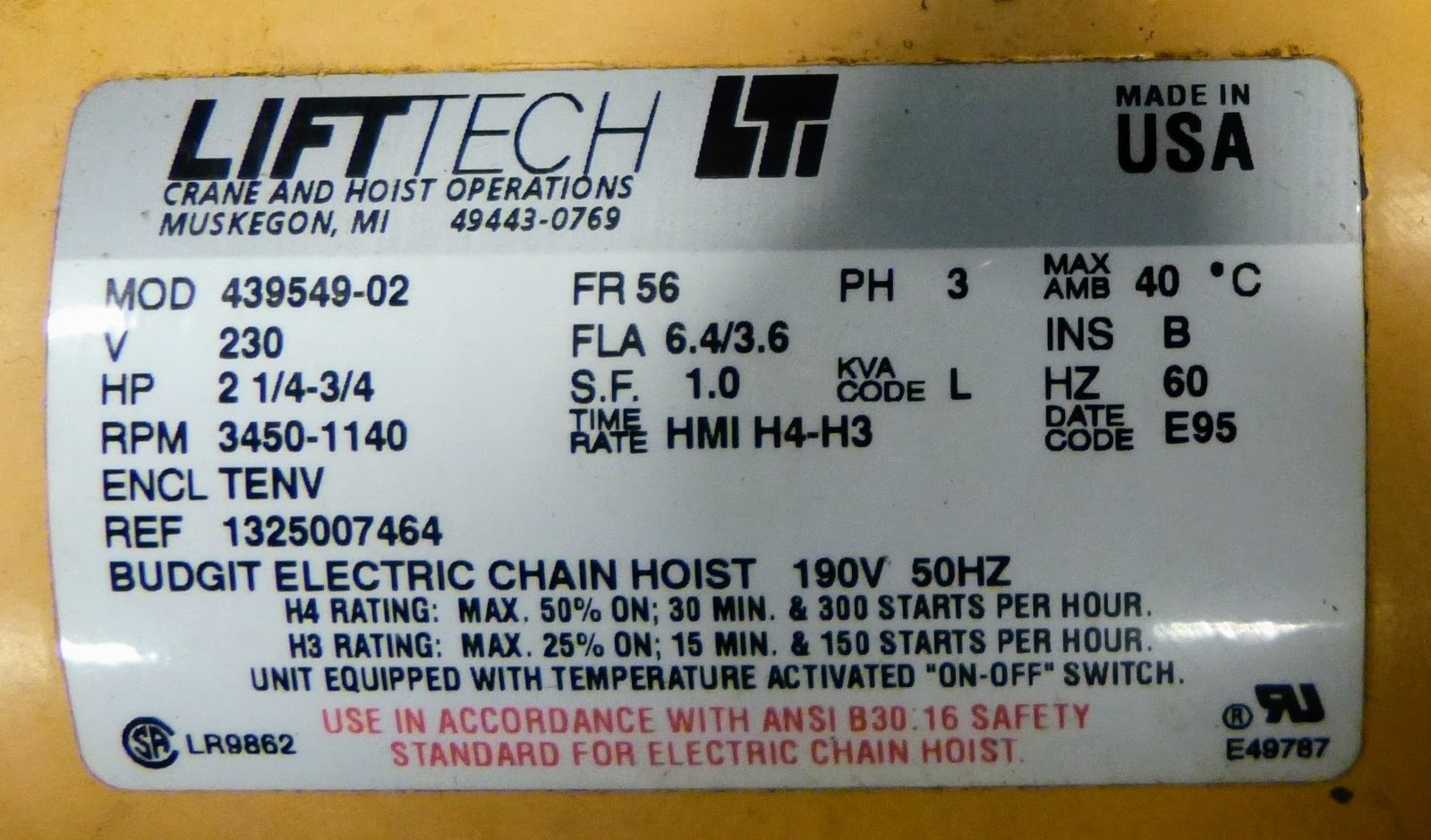

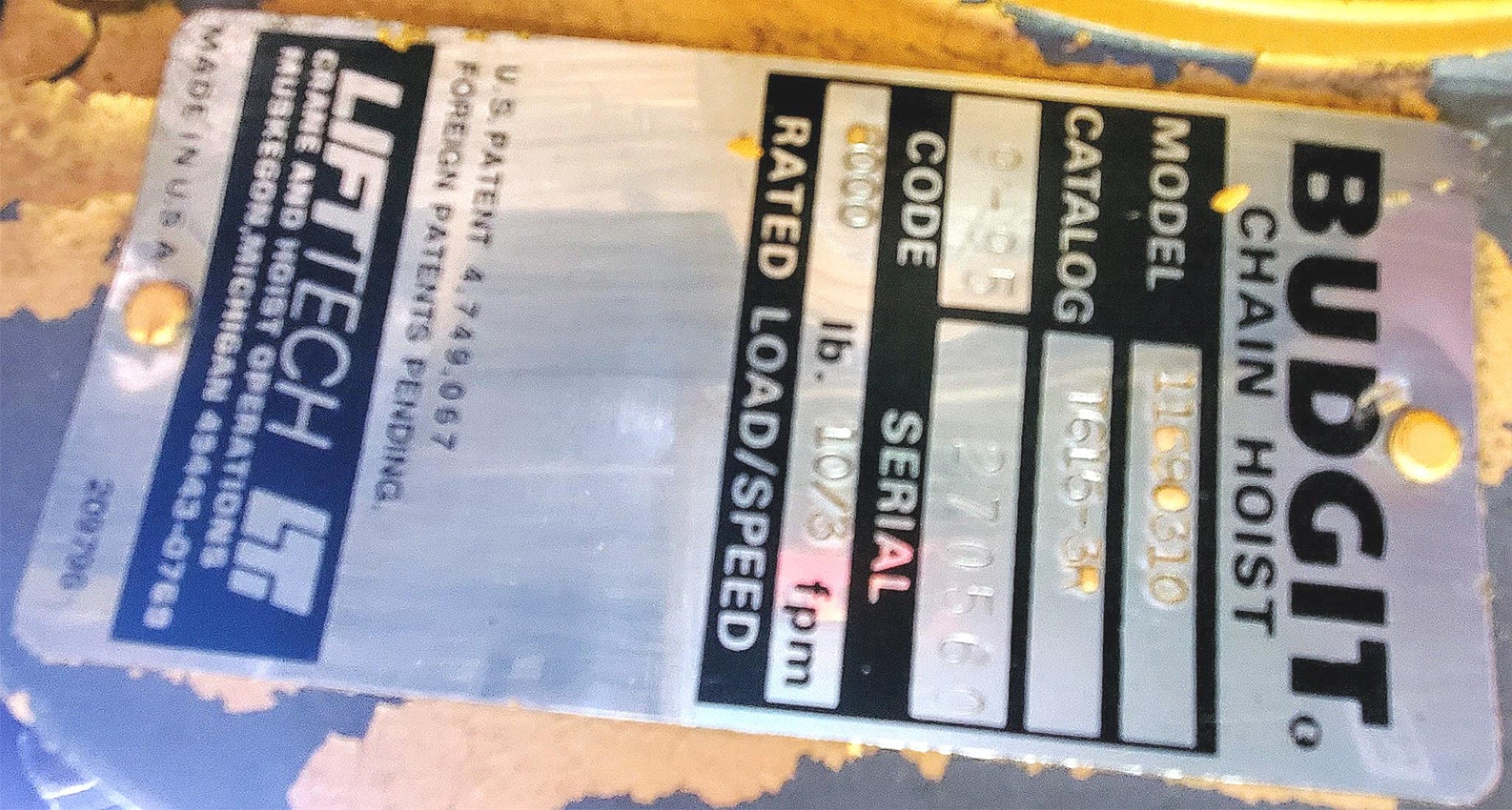

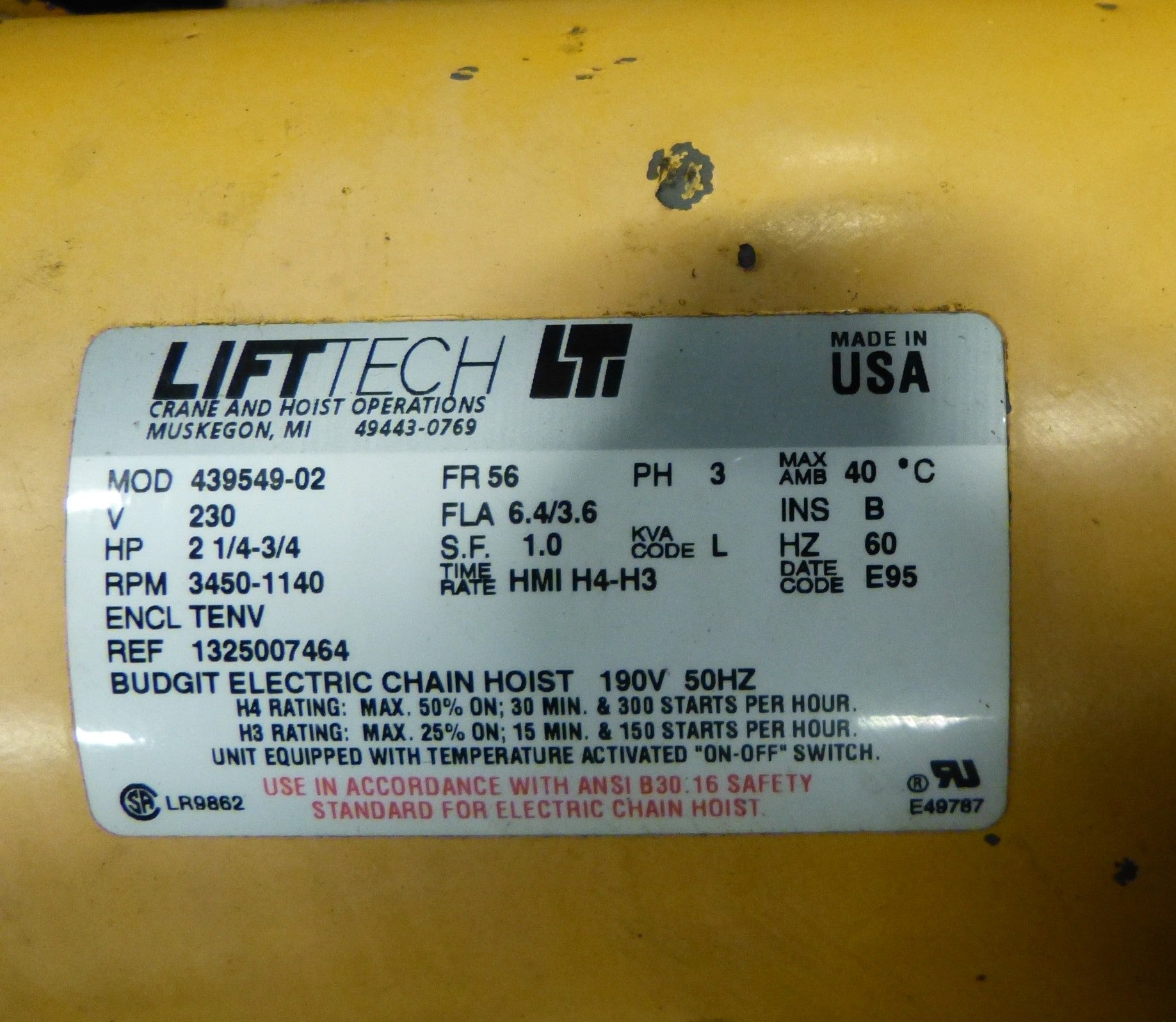

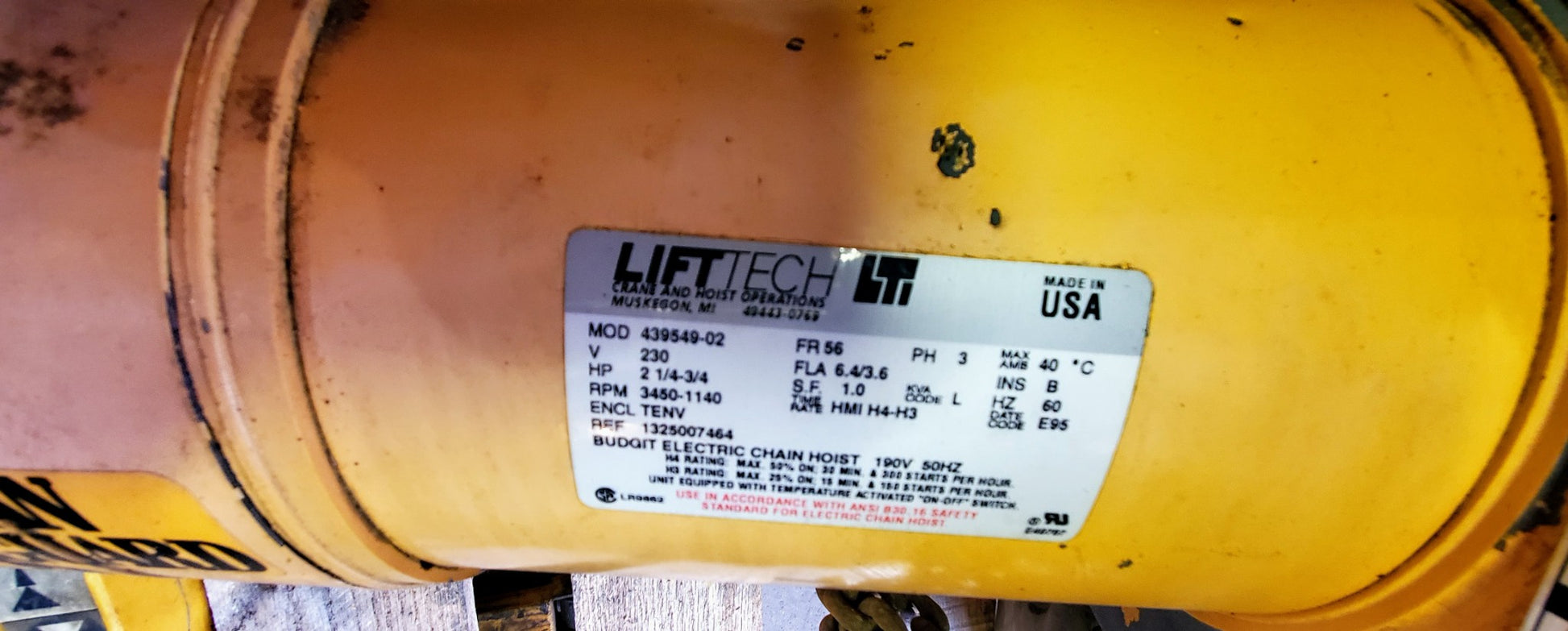

Manufacturer: Yale Lifttech Budgit Hoist, Capacity: 3-Ton, Lift: 20 Feet (Triple Reeved), Hoist Speed: 10 FPM, Suspension: Universal Push Trolley for I-Beam flange width 2.3" to 8.6”, Pendant Drop: 16 Feet, Lift HP: 2-1/2, Headroom: 26-5/16”, Voltage: 230/460 Three Phase, Weight: 271 Pounds. MODEL: 11690310 / CATALOG: 1615-3R / CODE: 6000
RATED LOAD SPEED: 10/3 FPM

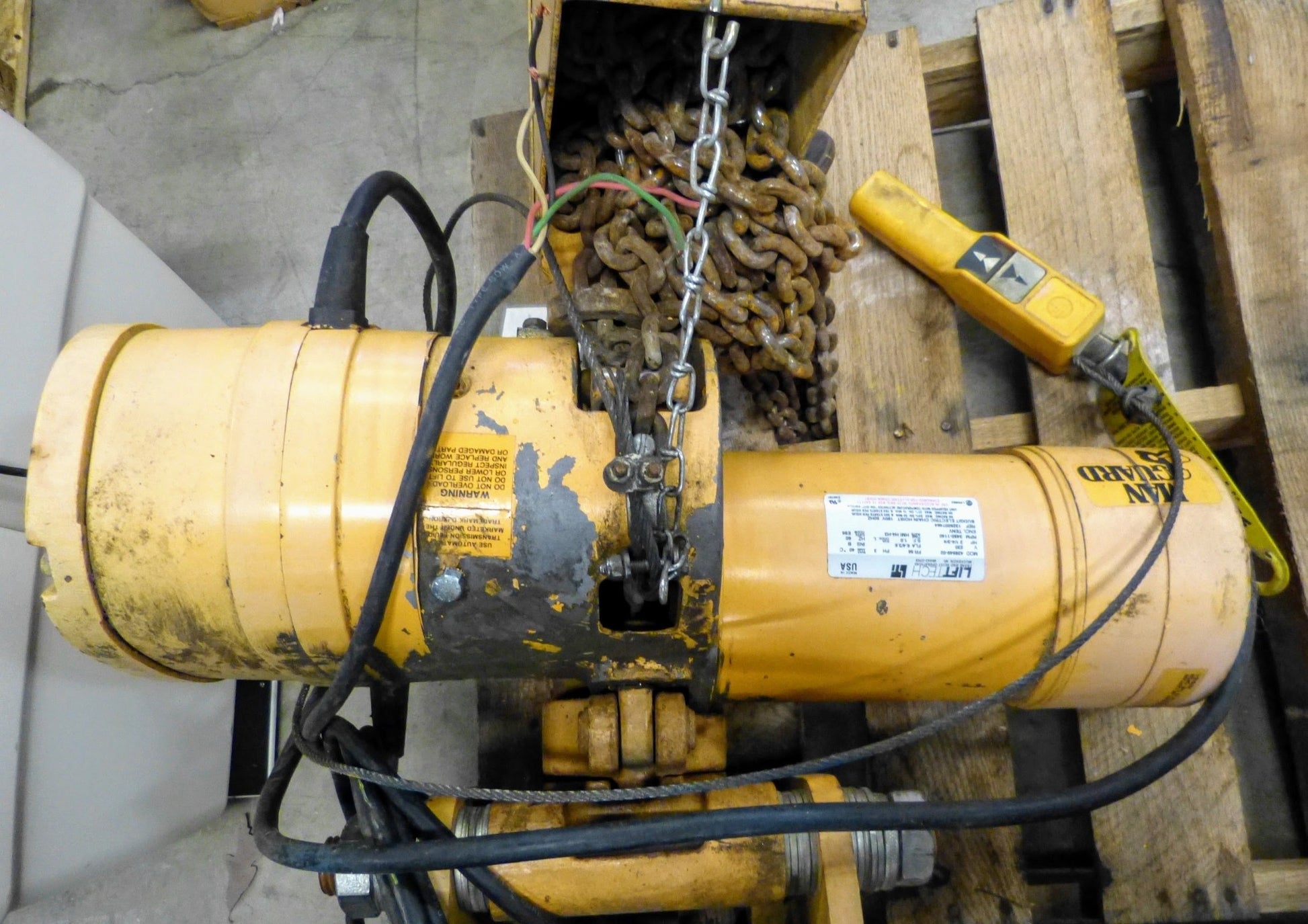

*Brand New Units Do not come standard with a chain container so this is another Added Bonus, this one DOES INLCUDE A CHAIN CONTAINER.

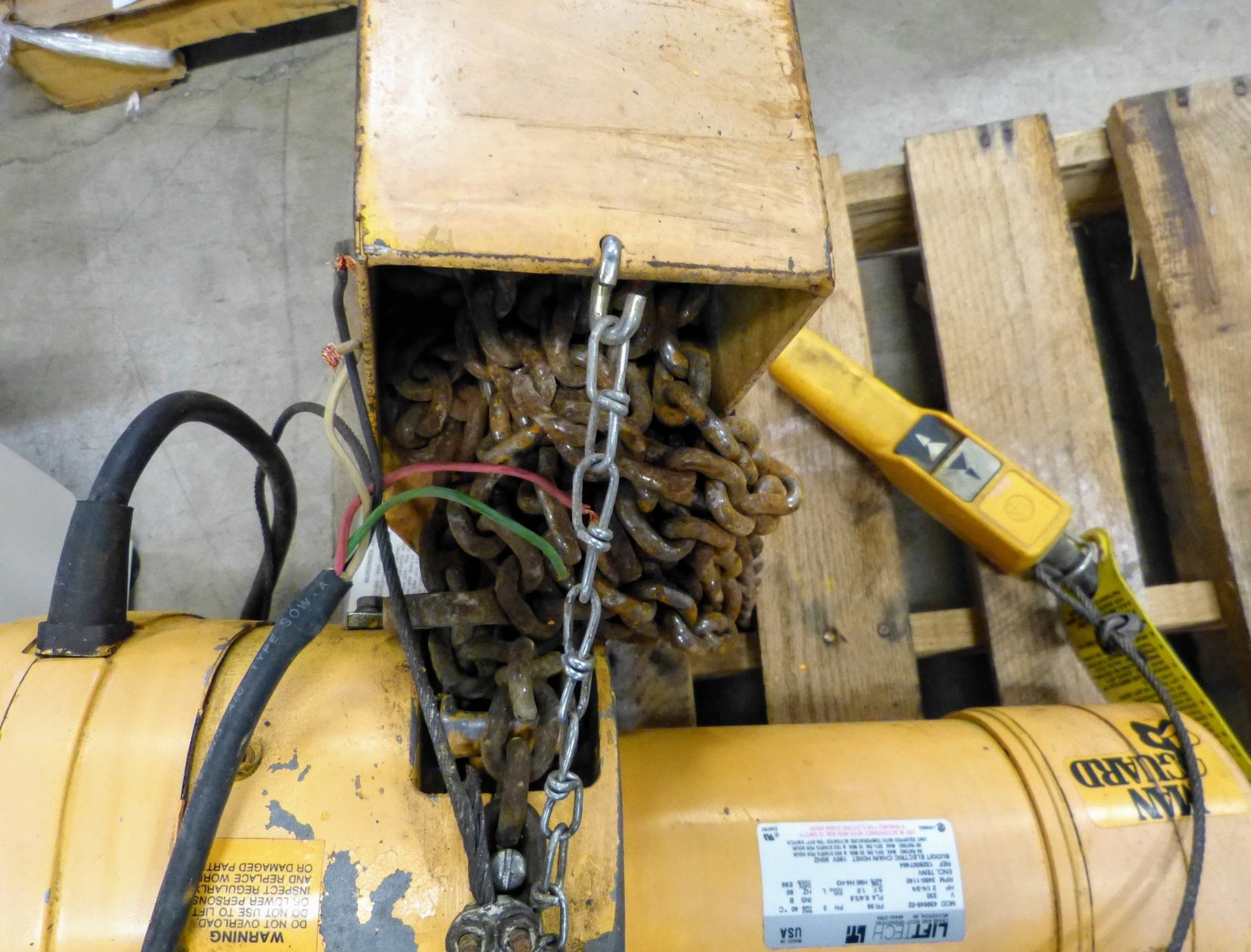

* This BUDGIT 3 TON CHAIN HOIST does include the BONUS CHAIN CONTAINER as can be seen in the pictures which costs another $1.000 from factory
* Also includes BONUS MAN-GUARD OVERLOAD CLUTCH
- Only on 3 TON Rated YALE LIFTTECH BUDGIT Hoist come with Three-Reduction gearing for Heavy Duty Smooth Safety Flow.
- Only on 3 TON Rated YALE LIFTTECH BUDGIT Hoist loads, the chain is Triple Reeved (Three Parts of Chain).

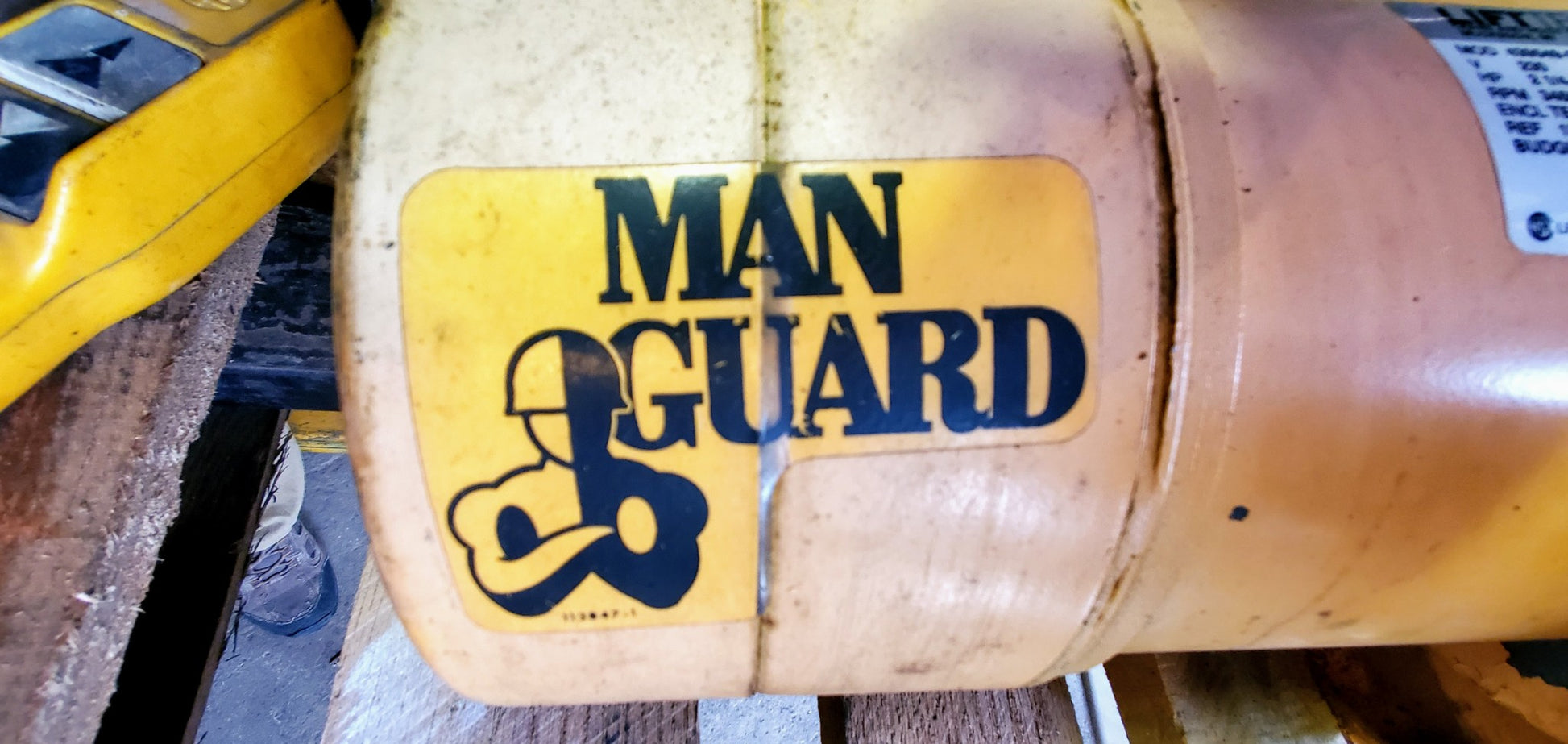

- DOES INCLUDE BONUS MAN-GUARD OVERLOAD CLUTCH. Budgit Electric Hoists having a MAN-GUARD label on the sides of the electrical compartment cover are equipped with an overload clutch that is designed to help guard against excessive overloads. The clutch is built into the load brake gear. It is a cone-friction clutch that connects the first reduction gear (load brake gear) to the load brake output pinion shaft. A belleville disc spring provides clutch pressure between the gear and its cone shaped gear center. An excessive overload causes the load brake gear to rotate without turning the gear center and output pinion shaft. The clutch is located between the load brake and the motor, thus allowing both load brake and motor brake to function in their normal manner.
- DOES INCLUDE UPPER AND LOWER LIMIT STOPS!
- DOES INCLUDE OVERLOAD CLUTCH OPERATION!

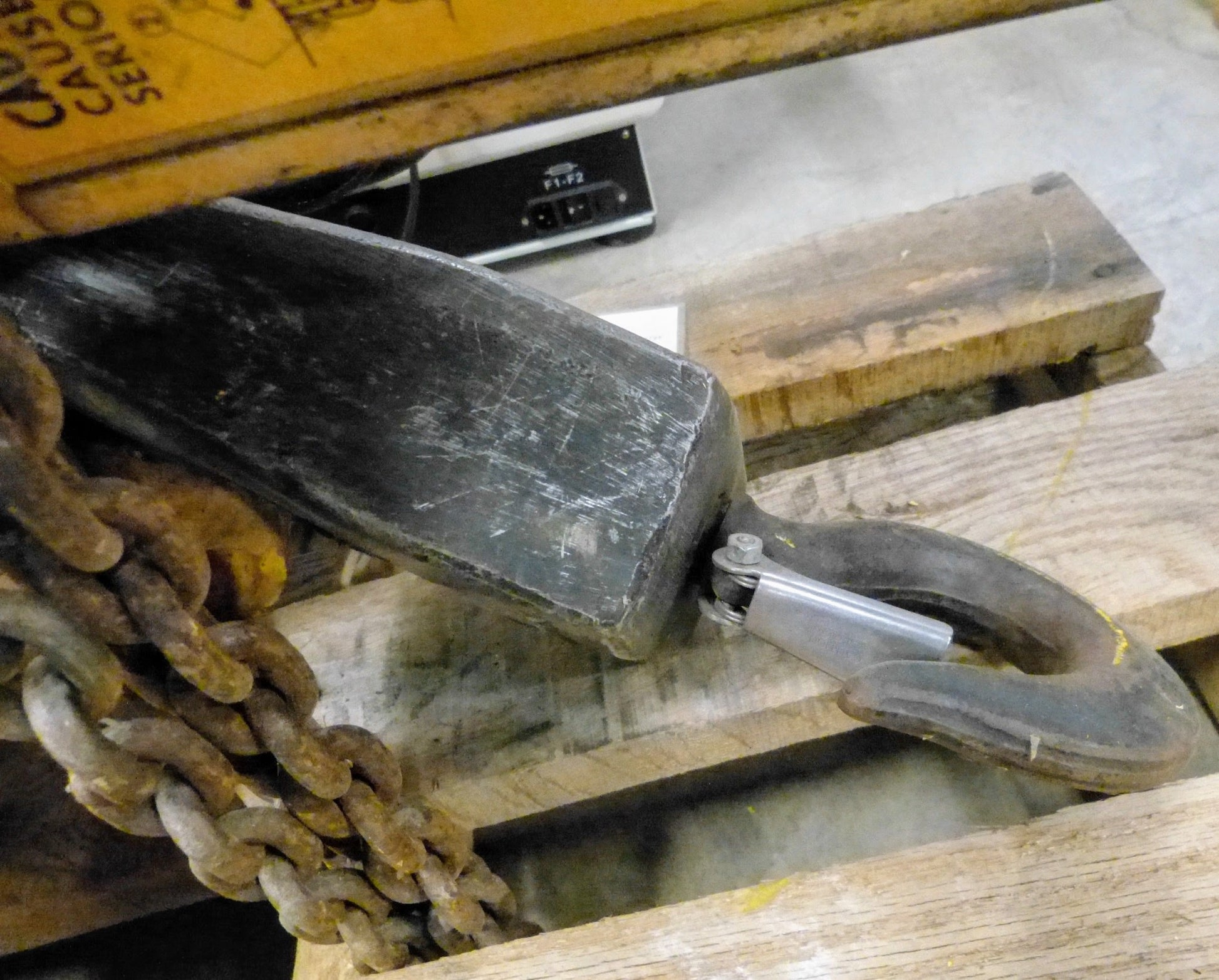

- UPPER AND LOWER LIMIT STOPS. A lower block and chain operated limit stop is provided to guard against overtravel of load in either raising or lowering direction, which can cause damage to hoist. When highest position is reached, limit actuator on the load chain, above the lower block, trips the limit lever. When lowest position is reached, a limit actuator on the tail end of load chain trips the limit lever. The limit lever is connected to a limit switch that automatically stops the hoist motor.
- OVERLOAD CLUTCH OPERATION. The overload clutch is factory preset at assembly so that the hoist will lift its full rated load but will refuse to lift overloads within a range of 110 percent rated load to 180 percent rated load.
Please feel free to ask any questions you may have BEFORE committing to buy and we'll get respond PROMPTLY.
Description
We will ship it on a pallet. We'll cardboard & wrap the unit to the pallet.
FREE COMMERCIAL CONTINENTAL USA Shipping cost is to a business with a dock or forklift.
If you need a liftgate service add $75
If you need residential service add $75
If you need inside delivery add $75
If you prefer to pick it up at the Freight Terminal then shipping is also FREE SHIPPING. The Freight carrier will also help load it up onto your truck or SUV and will also dispose of the pallet and packaging material.
Please let us know so we can invoice your shipment accordingly.
Stock # 210603
