Automatic operations from sterilization to drying are carried out with an interactive key input system.
Model 510
Operating Temperature Range (Sterilization)
105deg.C to 128deg.C
Max. Operational Pressure
0.2 MPa
Internal capacity
47L

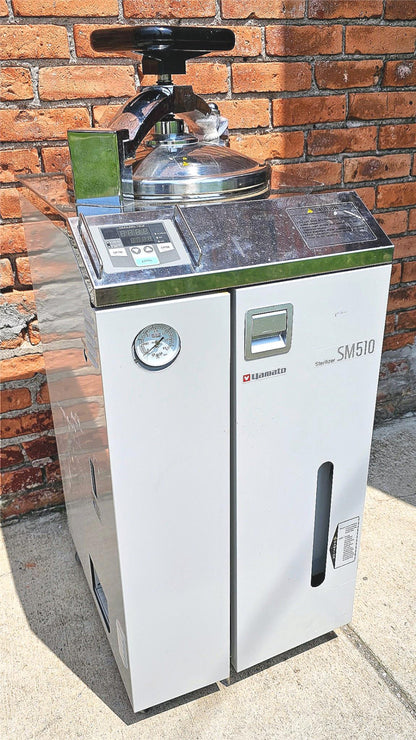

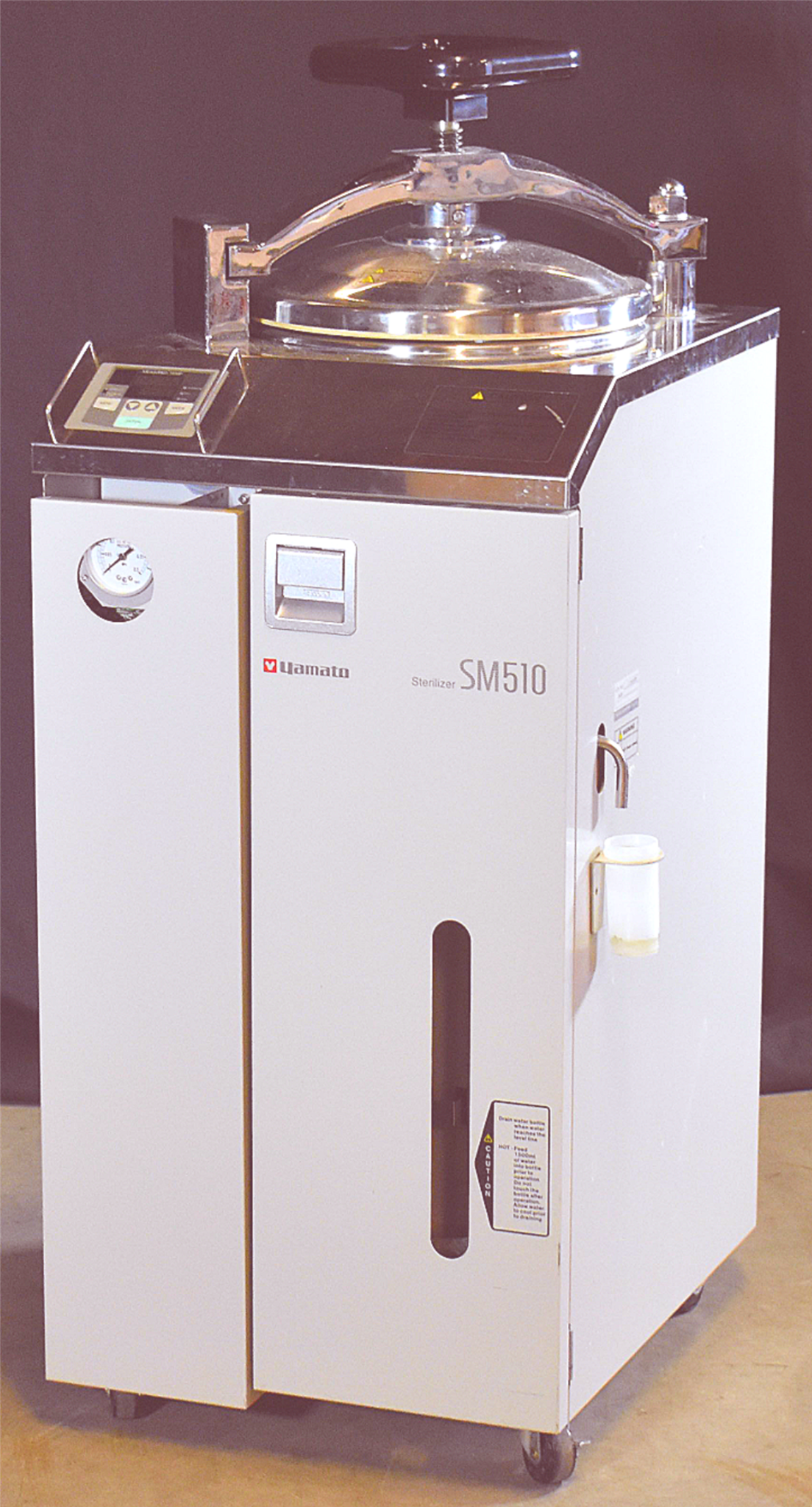

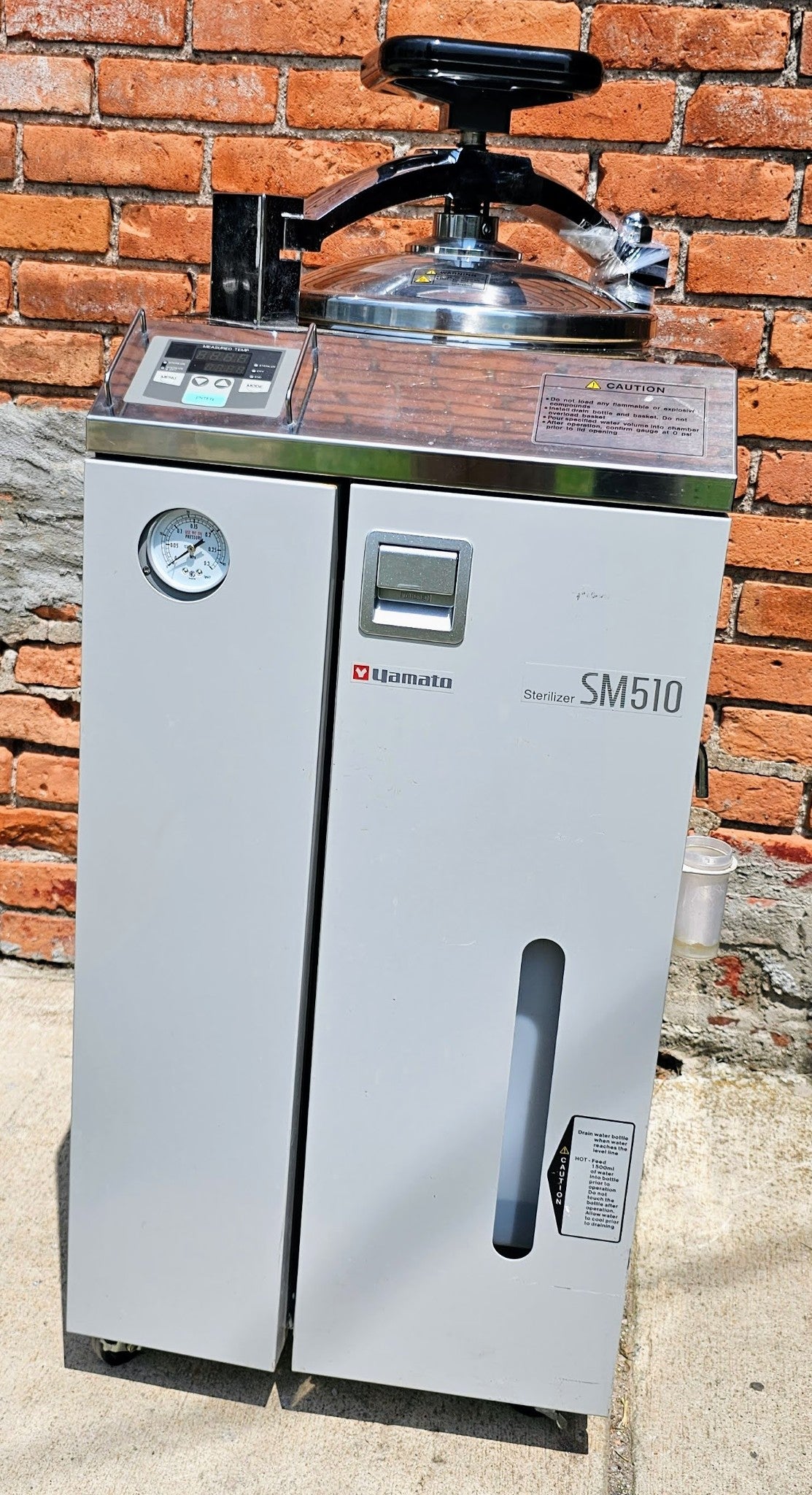

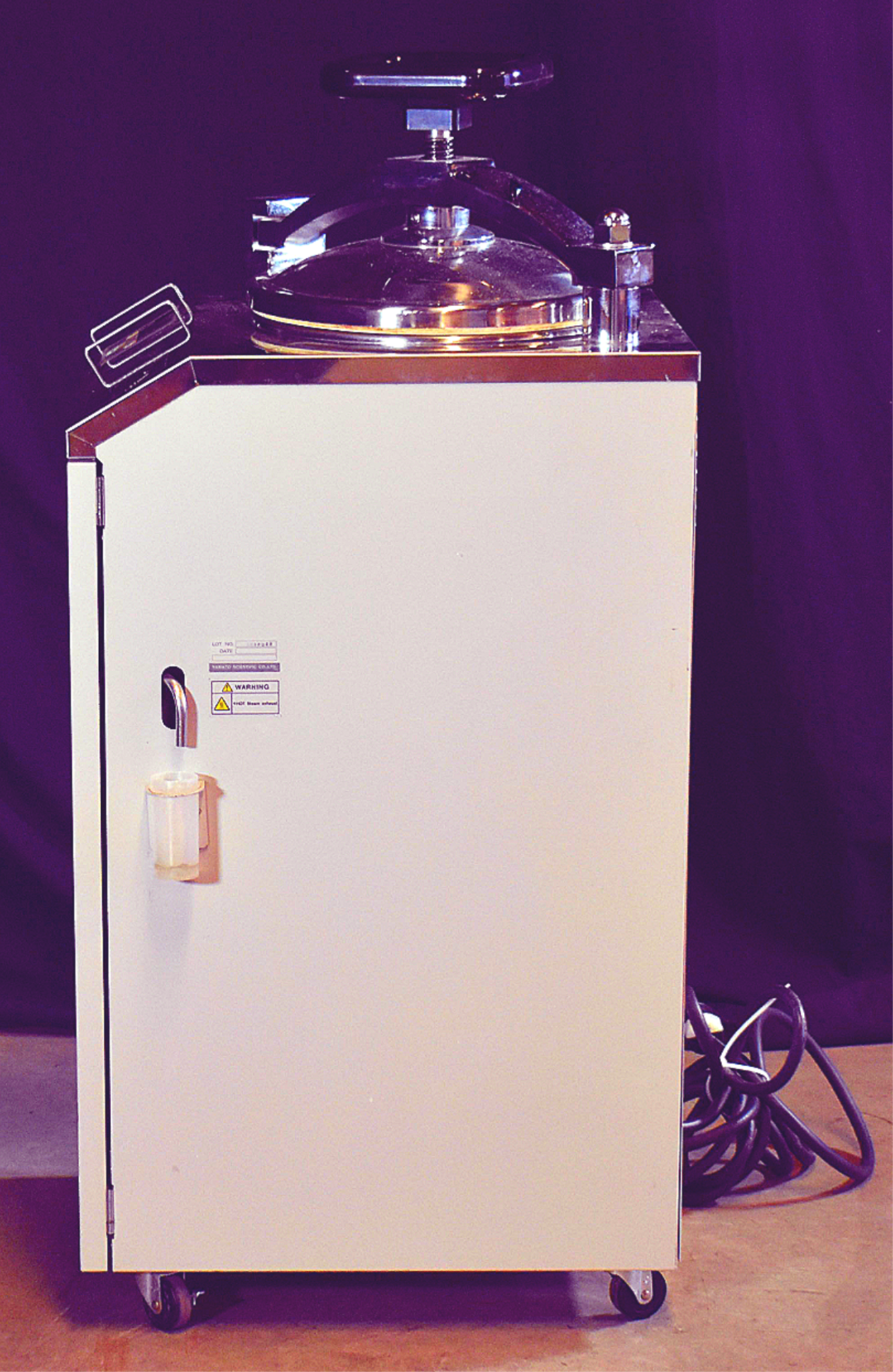

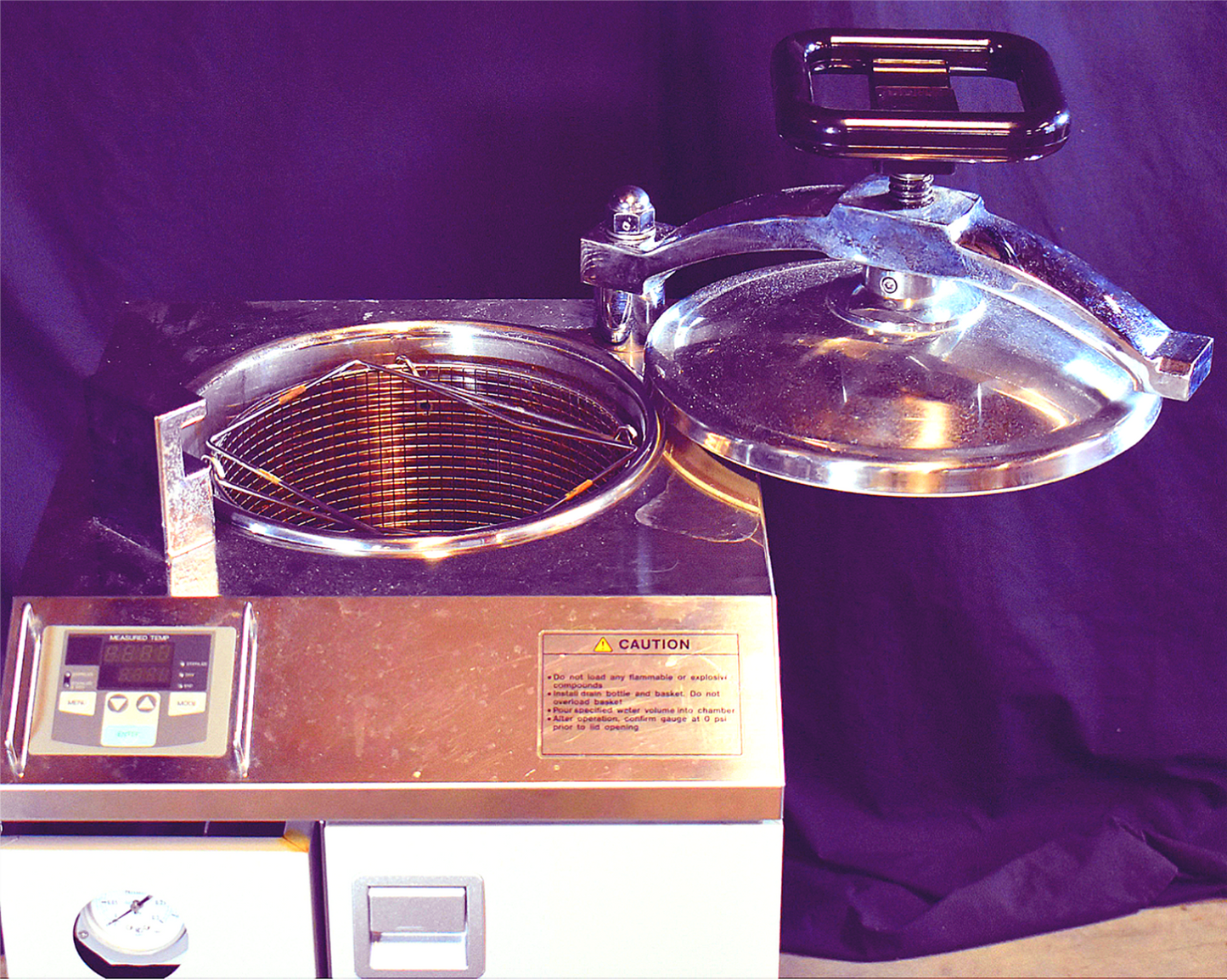

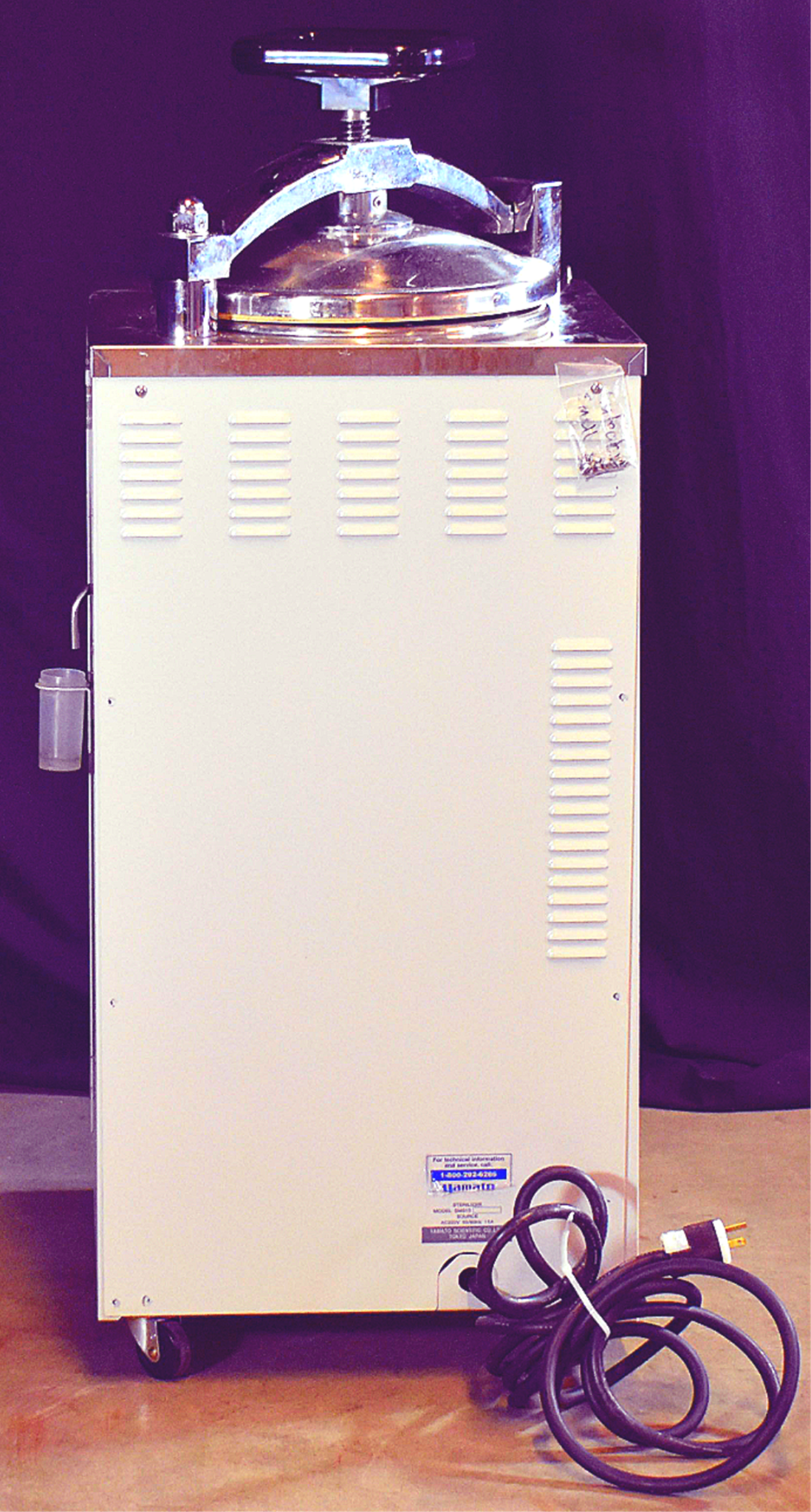

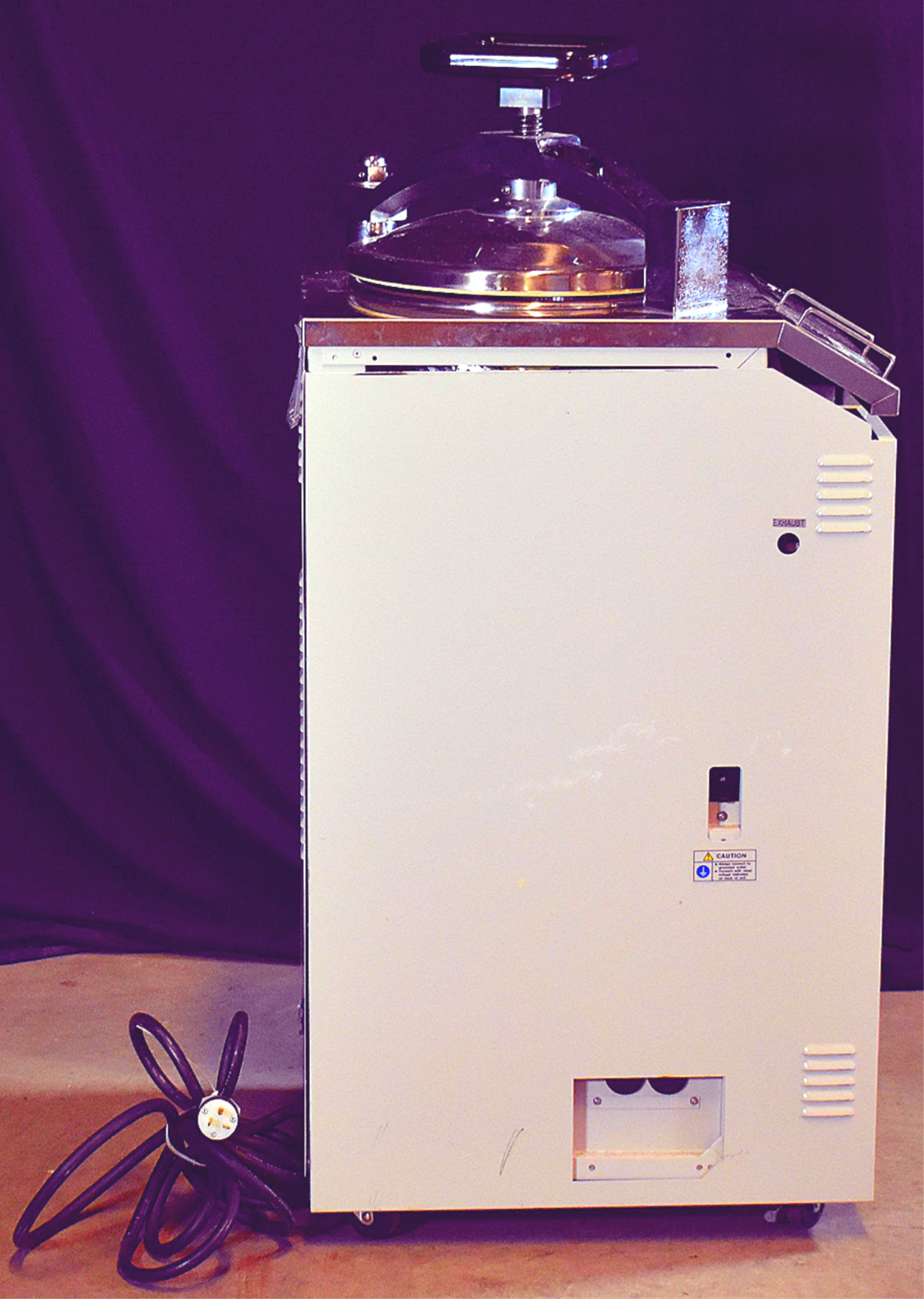

This model is an automatic high-pressure steam sterilizer with an interactive key input system, which makes it possible to sterilize and dry instruments or clothes used in research or examination of medicine, medical treatment, food, etc. with the utmost safety. Automatic operations from sterilization to drying are carried out with an interactive key input system.

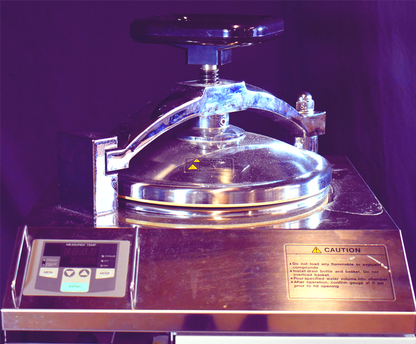

With an interactive key input system, the conditions are memorized. With a single key press, everything is done automatically from air exhausting to sterilization and dry.
Setting for hours and continuous operation are available.
Possible to sterilize media also.

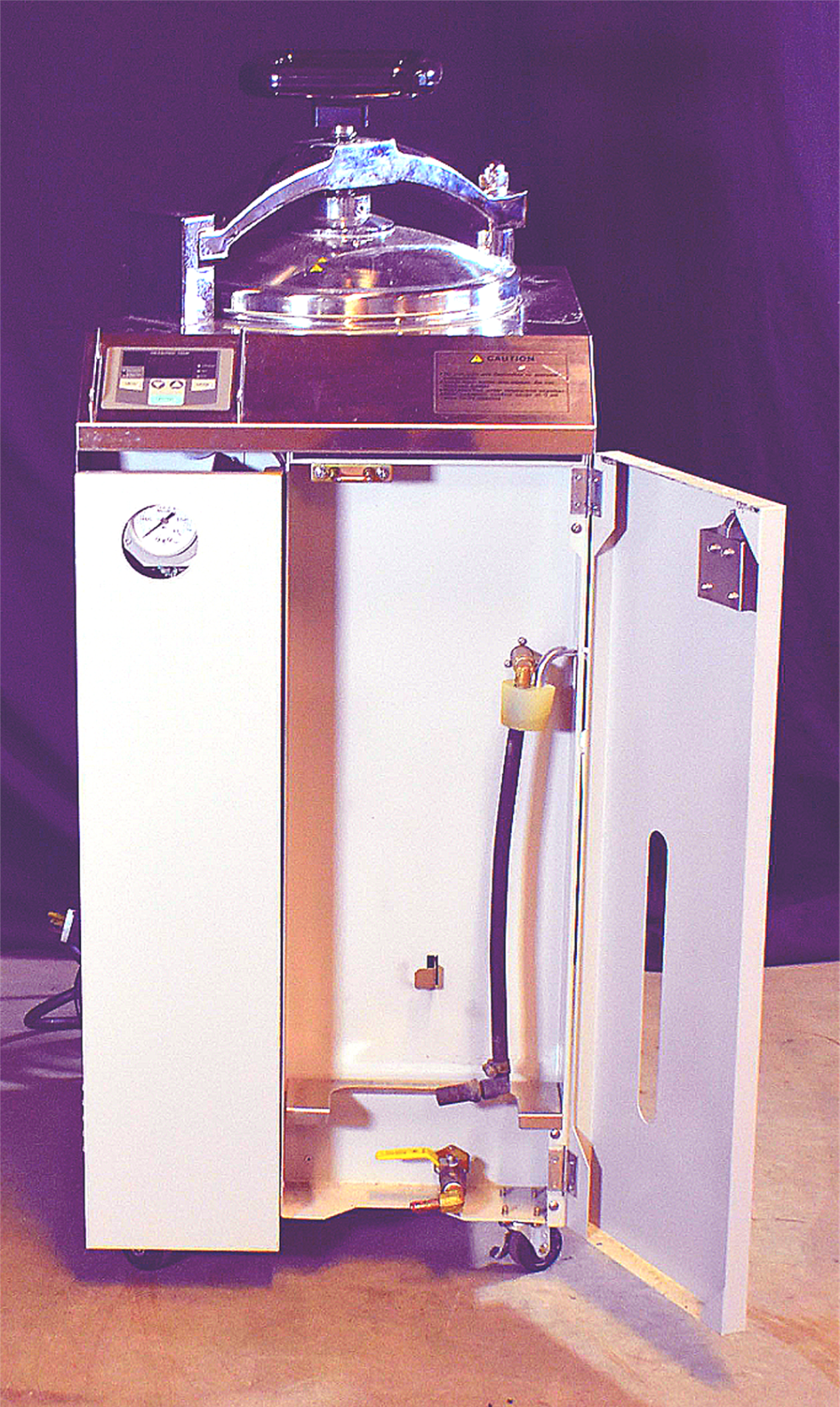

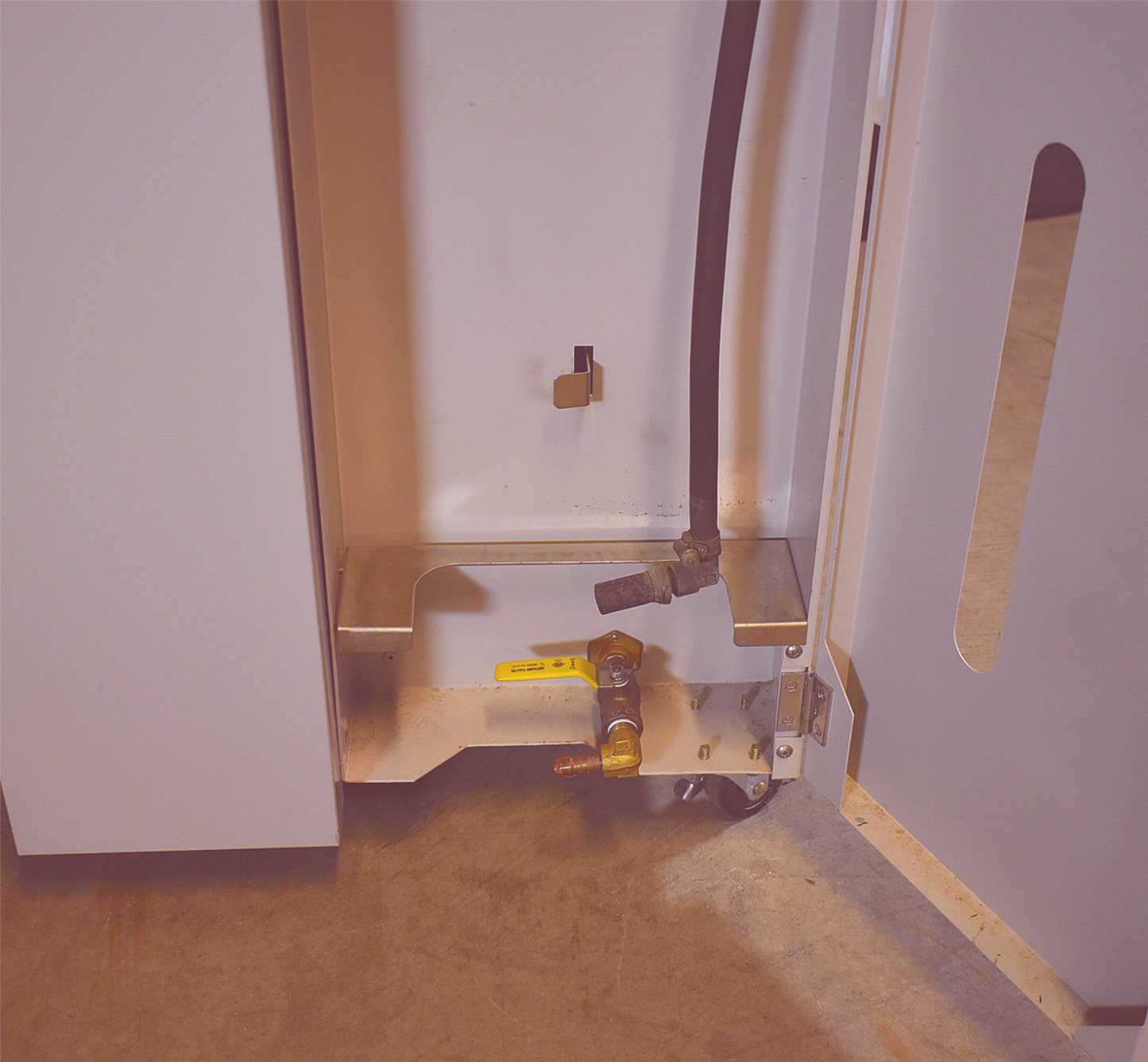

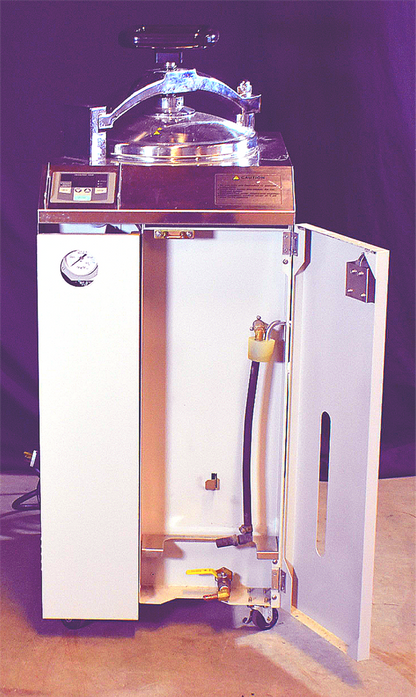

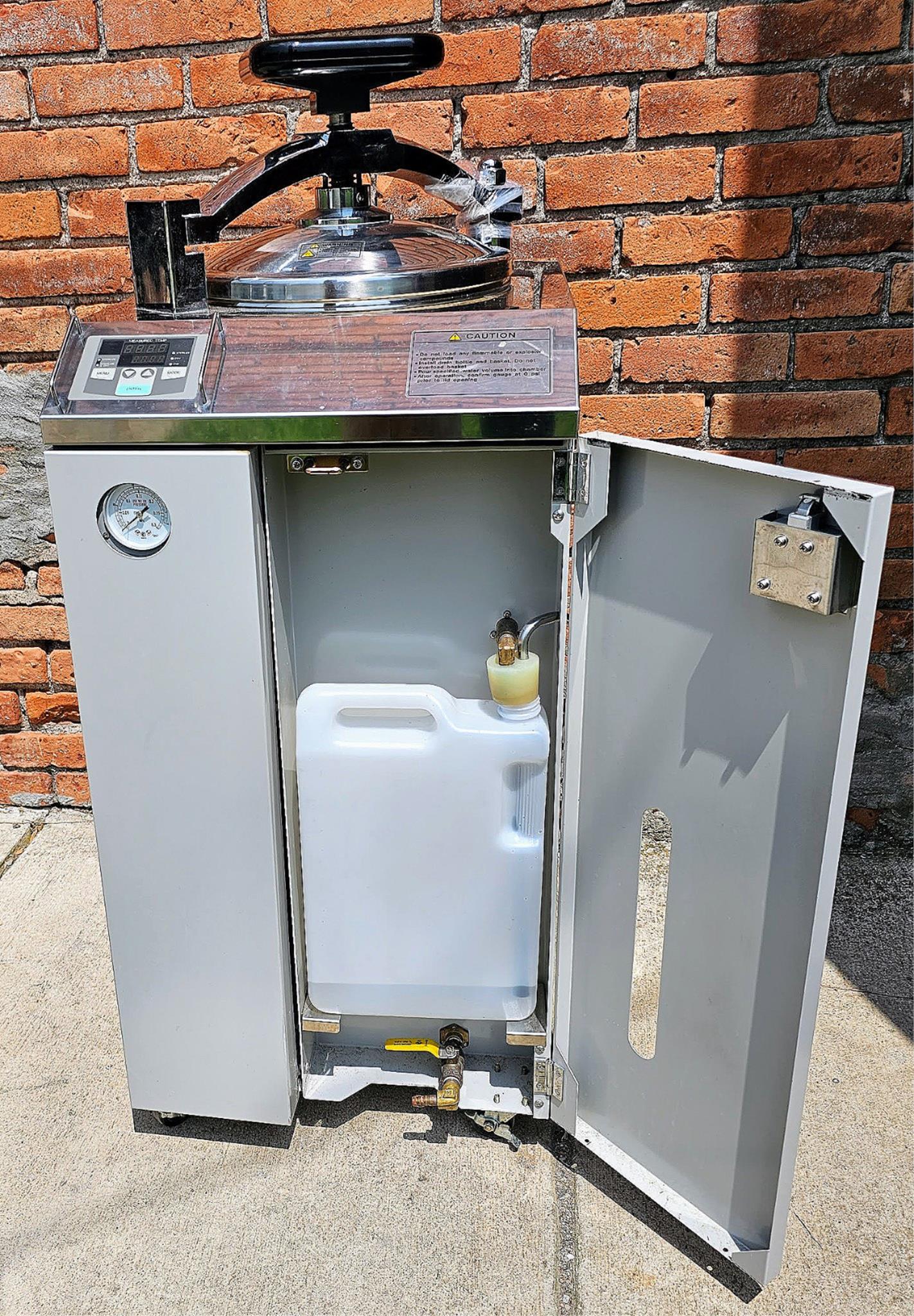

Safety measures are enriched, including self-diagnosis function and a prevention device for misplacement of drain-bottles.
Specifications

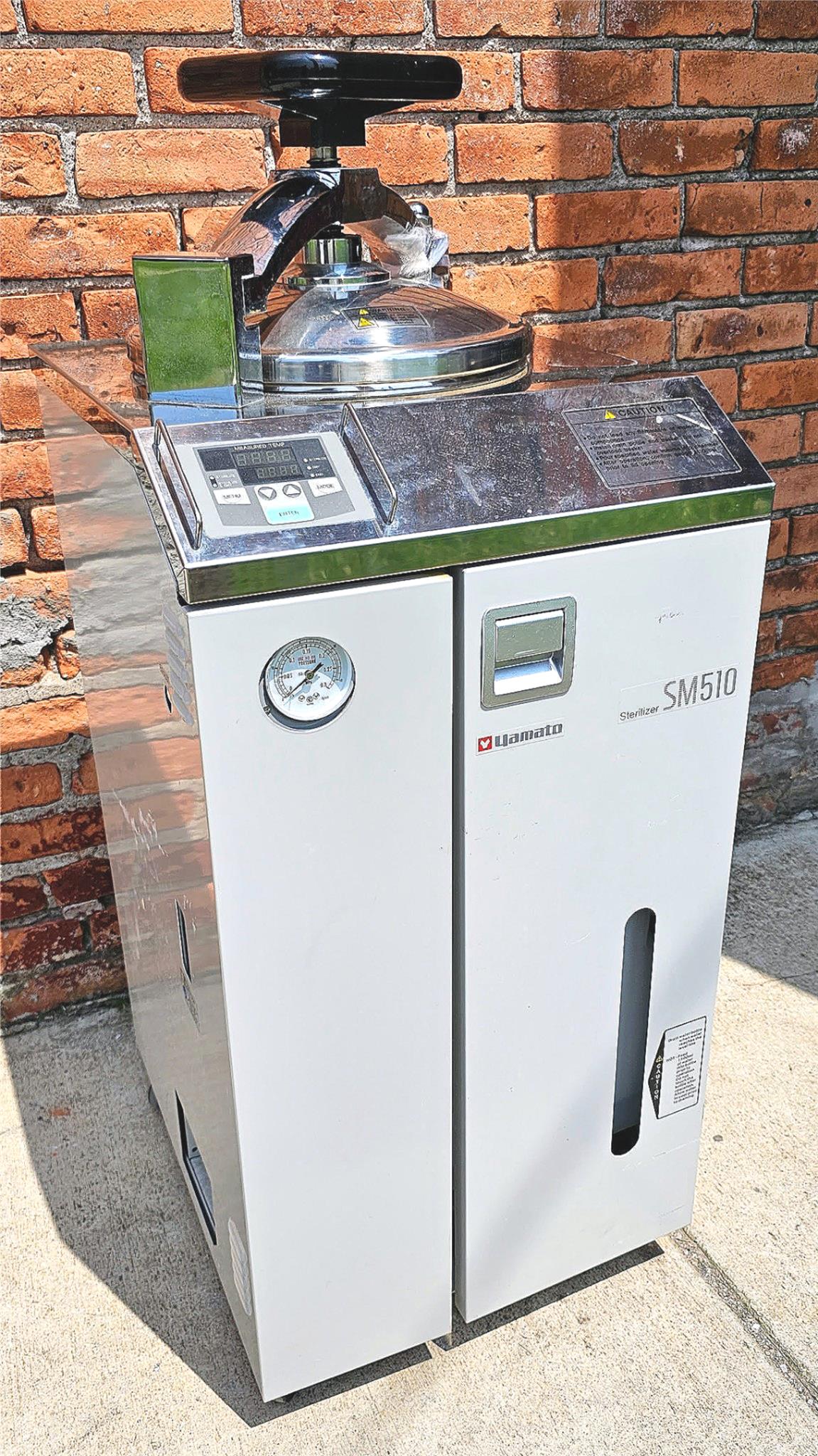

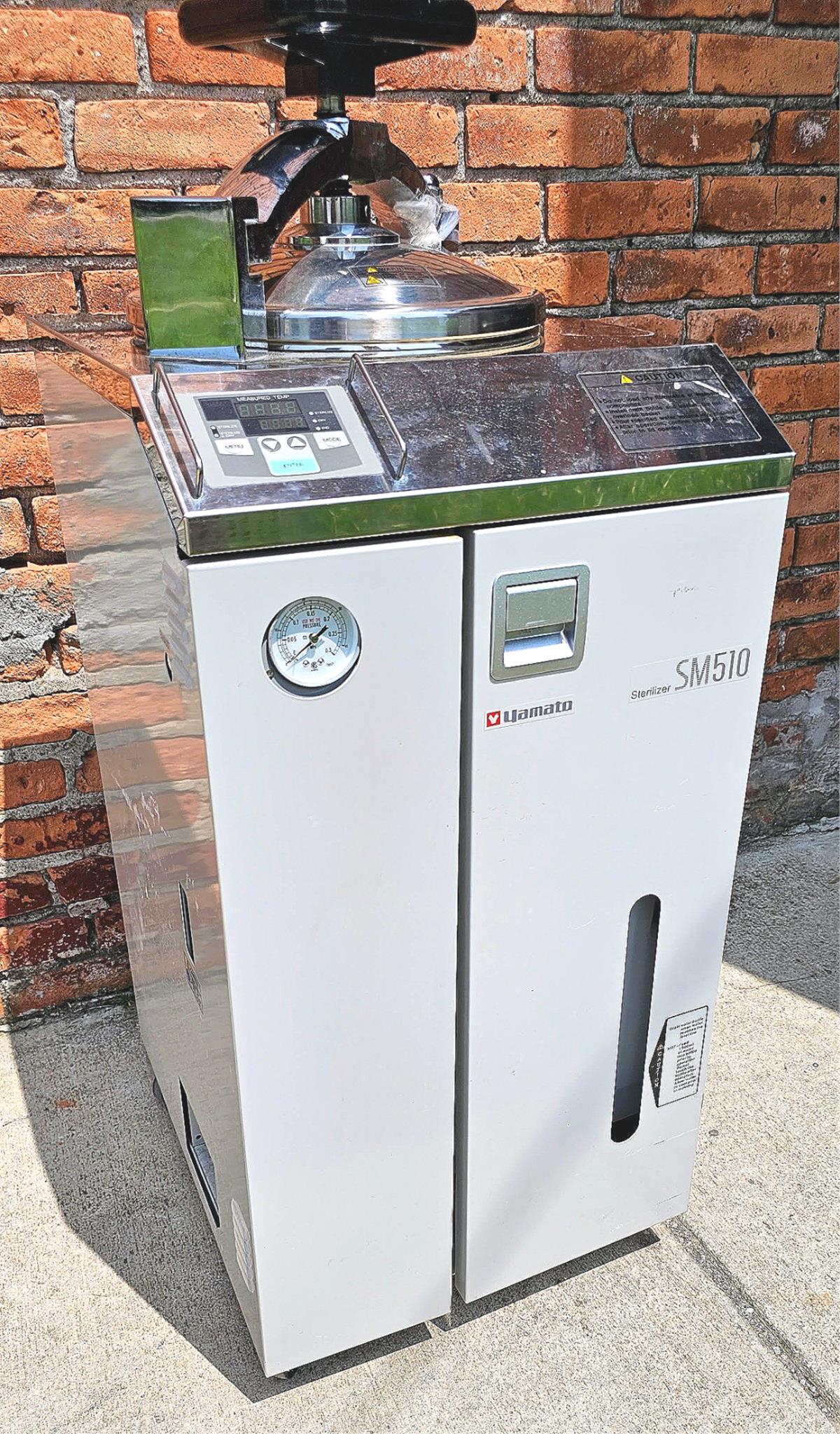

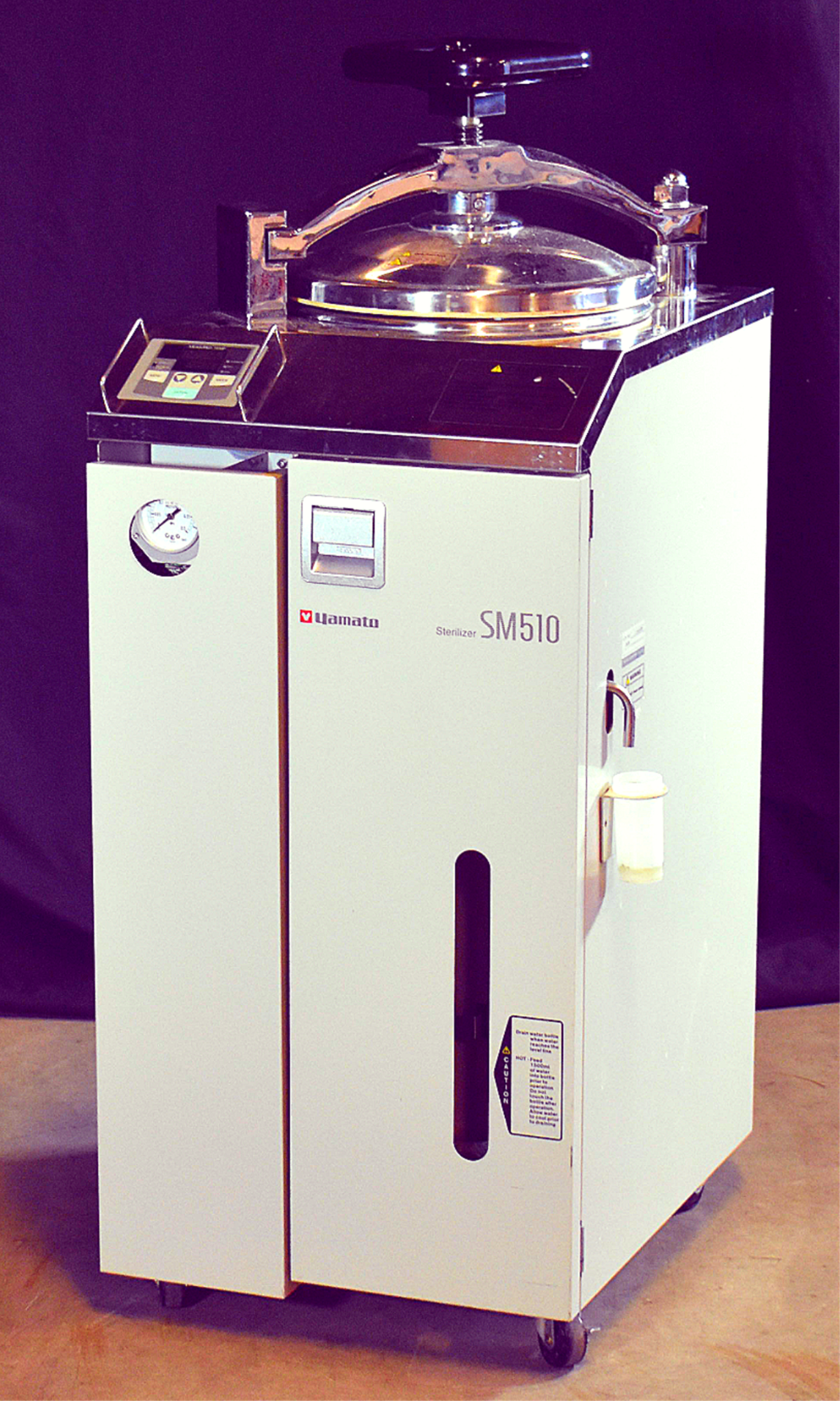

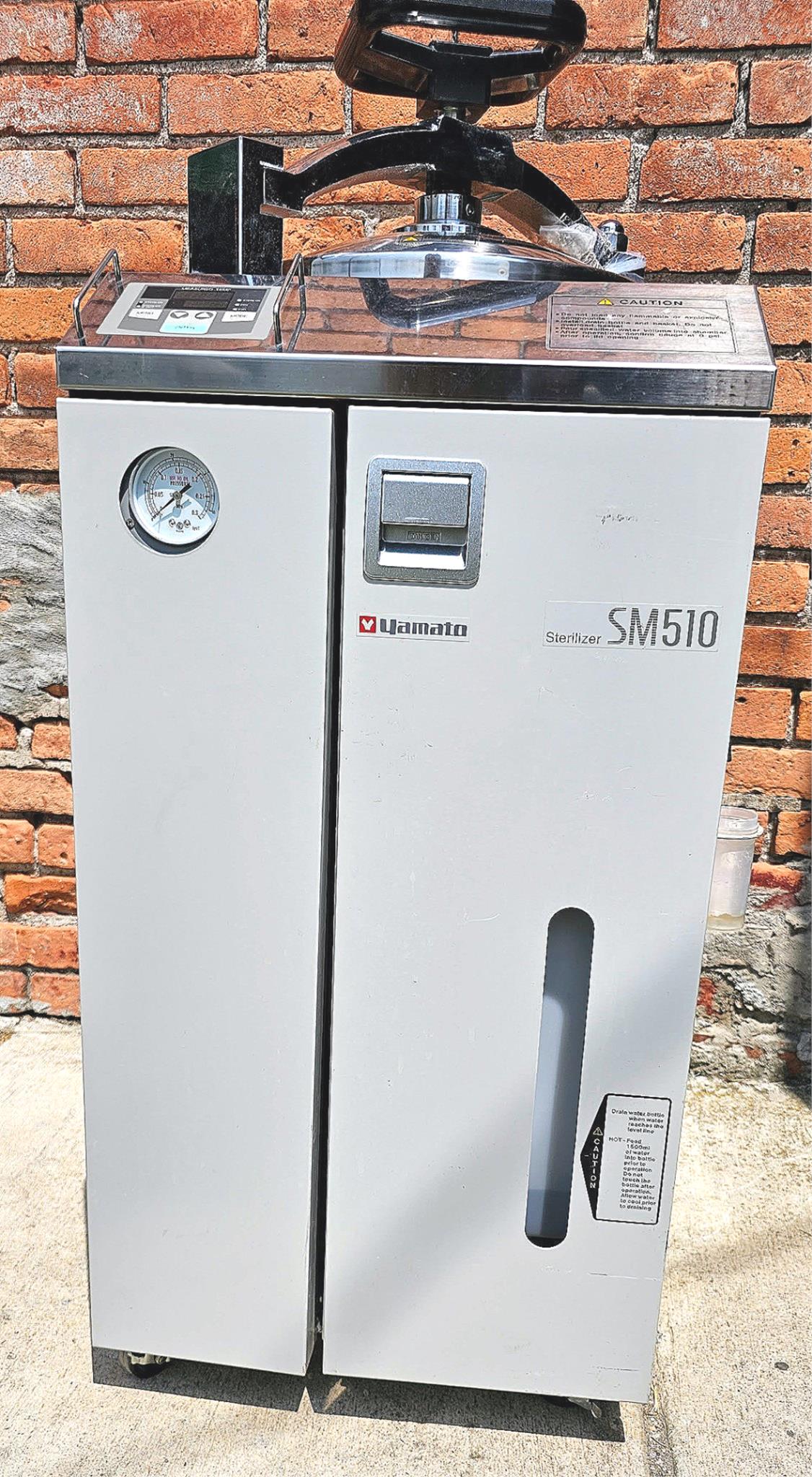

Model SM510
Performance
System Automatic high pressure steam sterilizer
Temp. setting range Sterilization 105 to 128deg.C
Drying 150 to 180deg.C
Maximum operational pressure 0.18MPa 0.2MPa
Components
Interior Material Stainless steel
Heater Sterilization 2.0kW
Drying 1.5kW

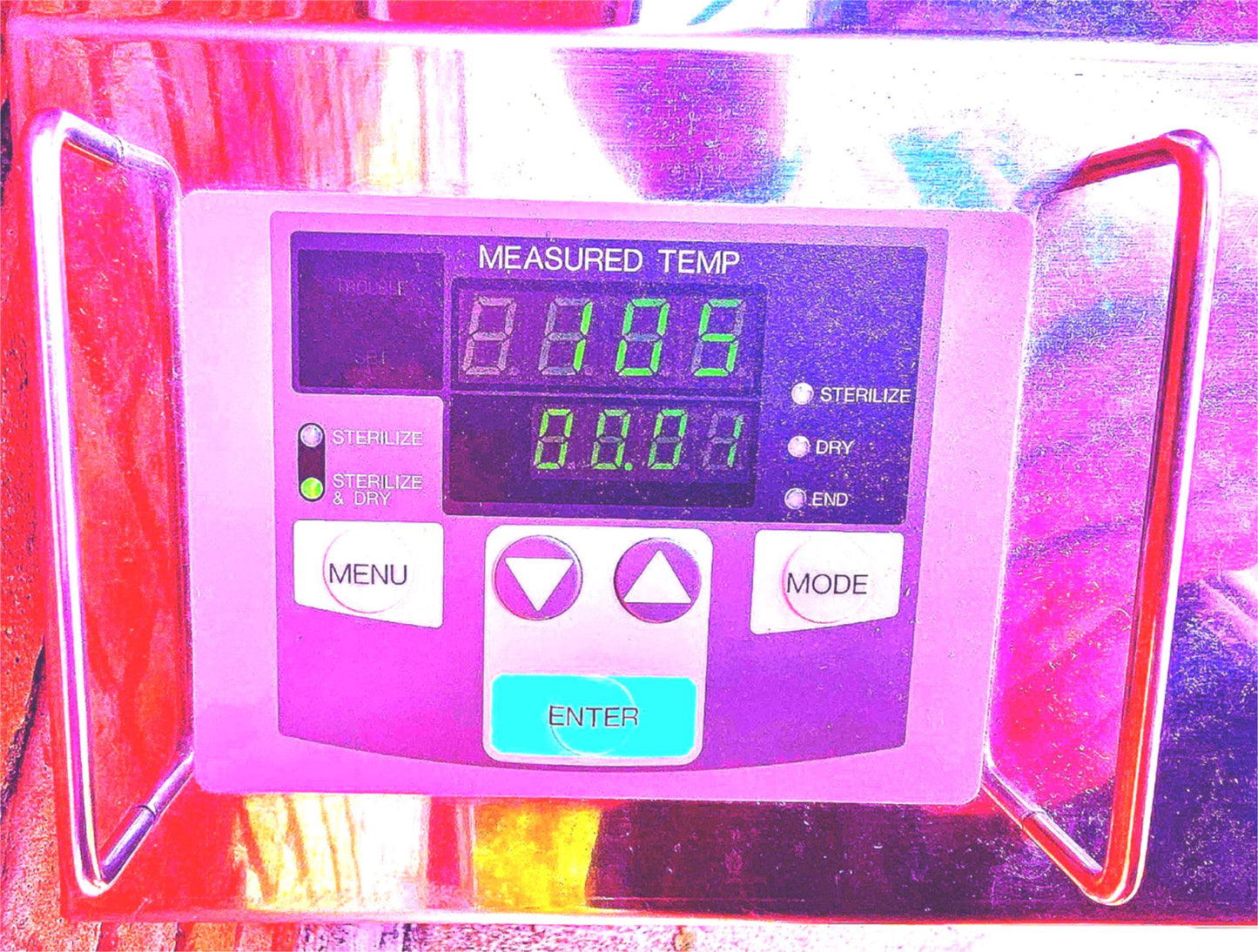

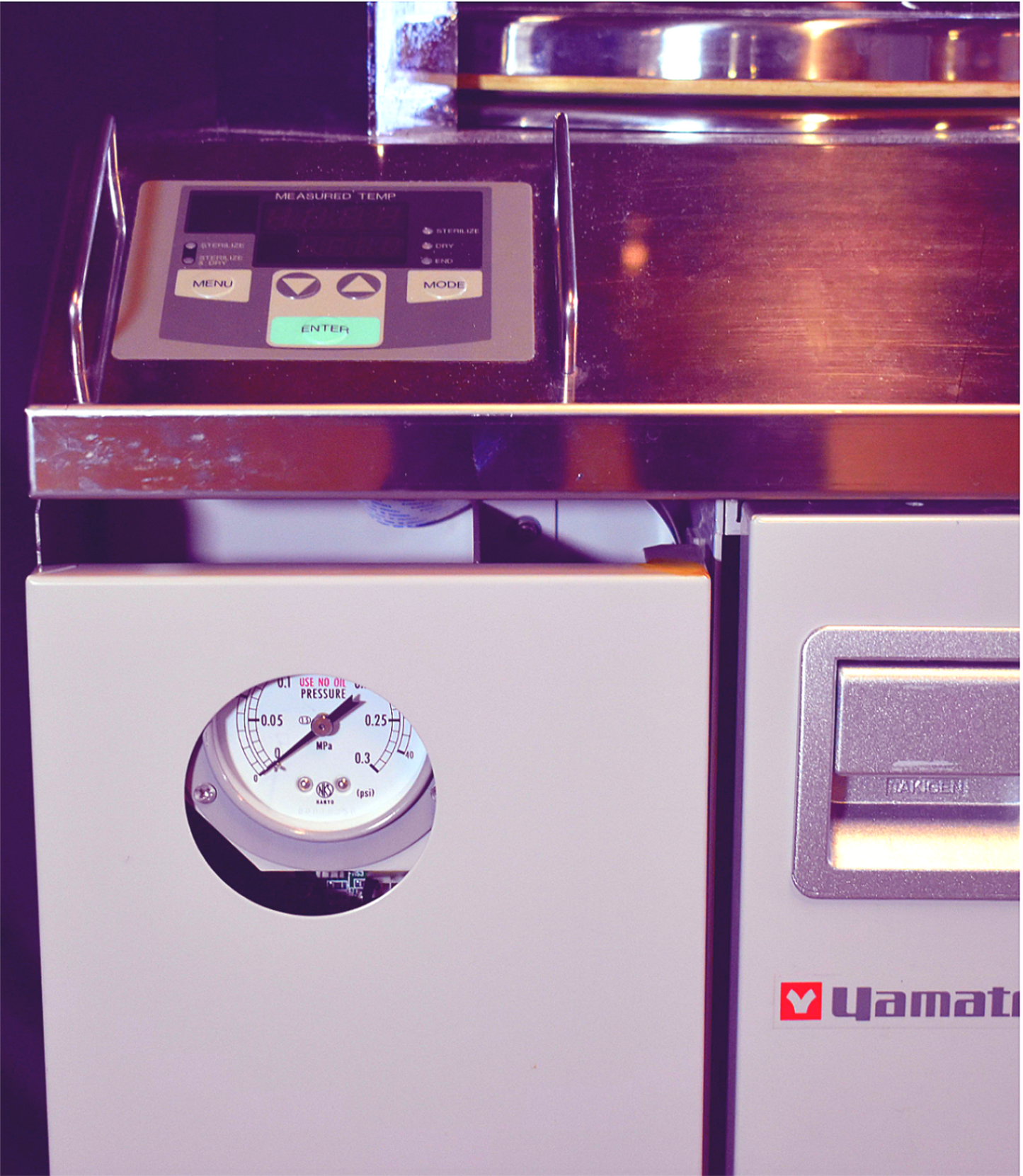

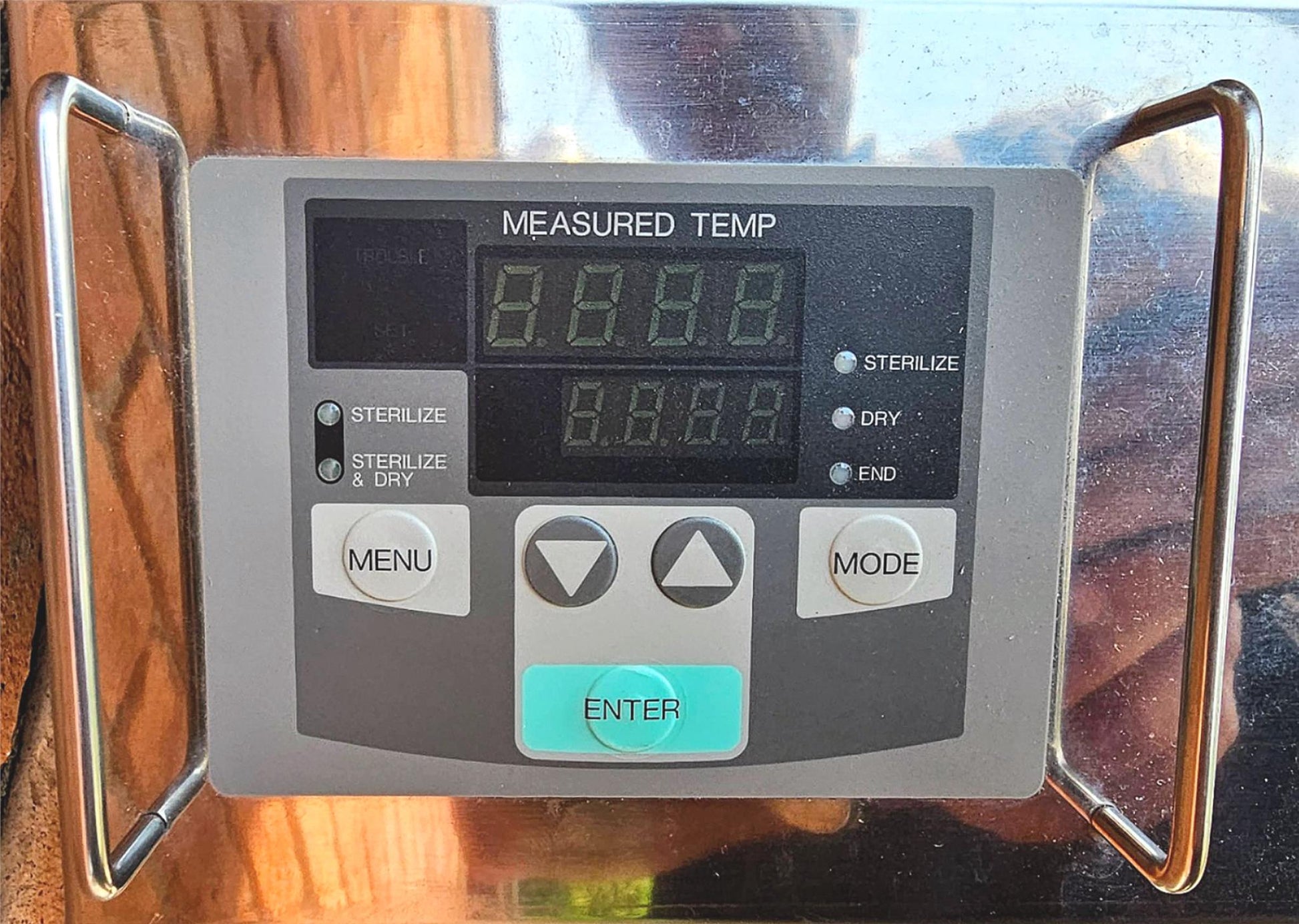

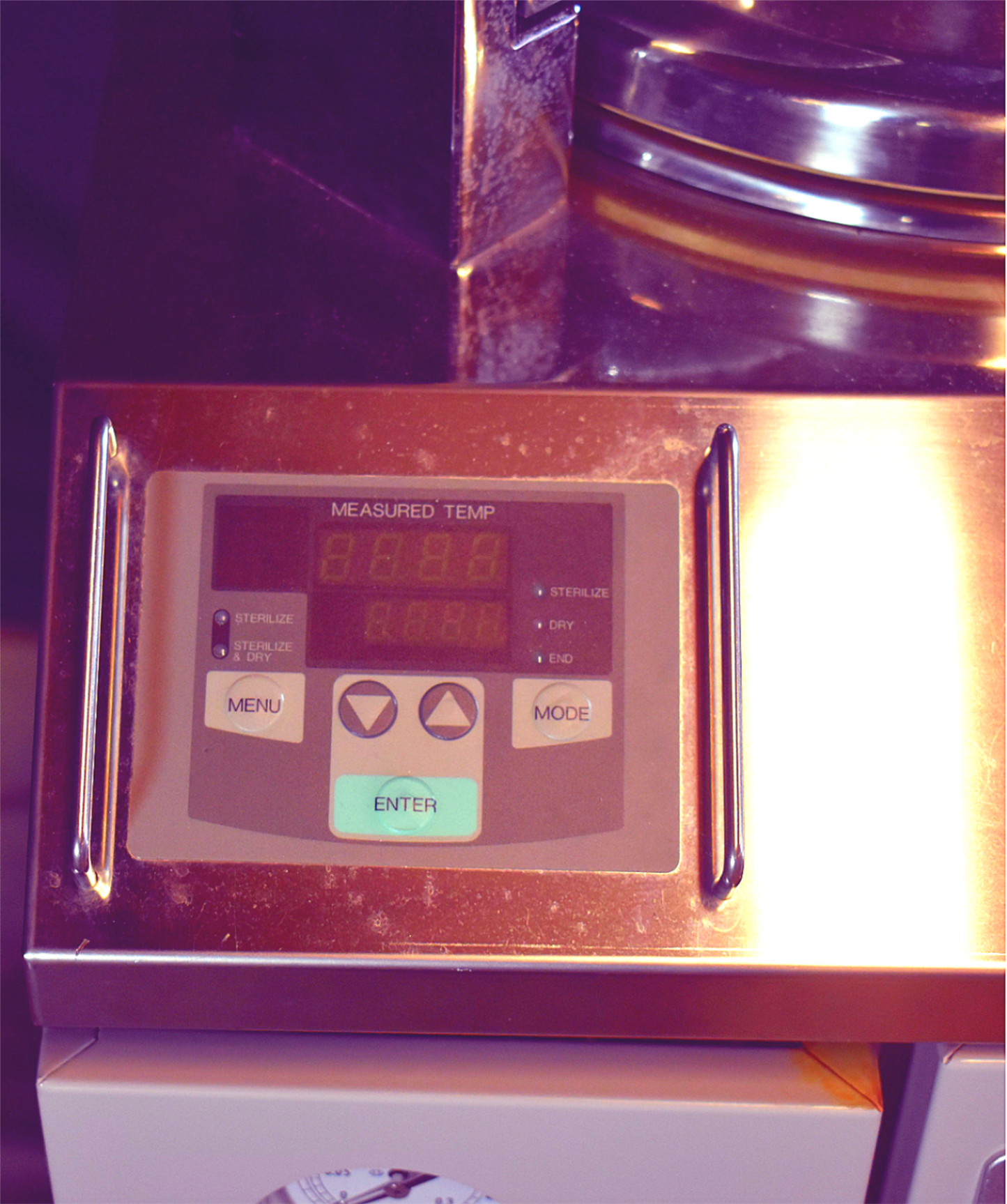

Controller
Temp. controller PlD control by micro processor
Temp. setting method Digital setting by UP/DOWN key
Temp display method Digital display by green LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Min. division 1 min. or 1 Hrs.
Safe Device
Safety countermeasures Self diagnosis functions (Sensor, Heater, SSR, Main relay, Low water), Over pressure safety valve, Electric leakage breaker
Standard
Effective internal dimensions(mm) 300(Dia.)×665(Depth)
External dimensions(W×D×Hmm) 440×530×1,088
Effective (gross) capacity (51) liters

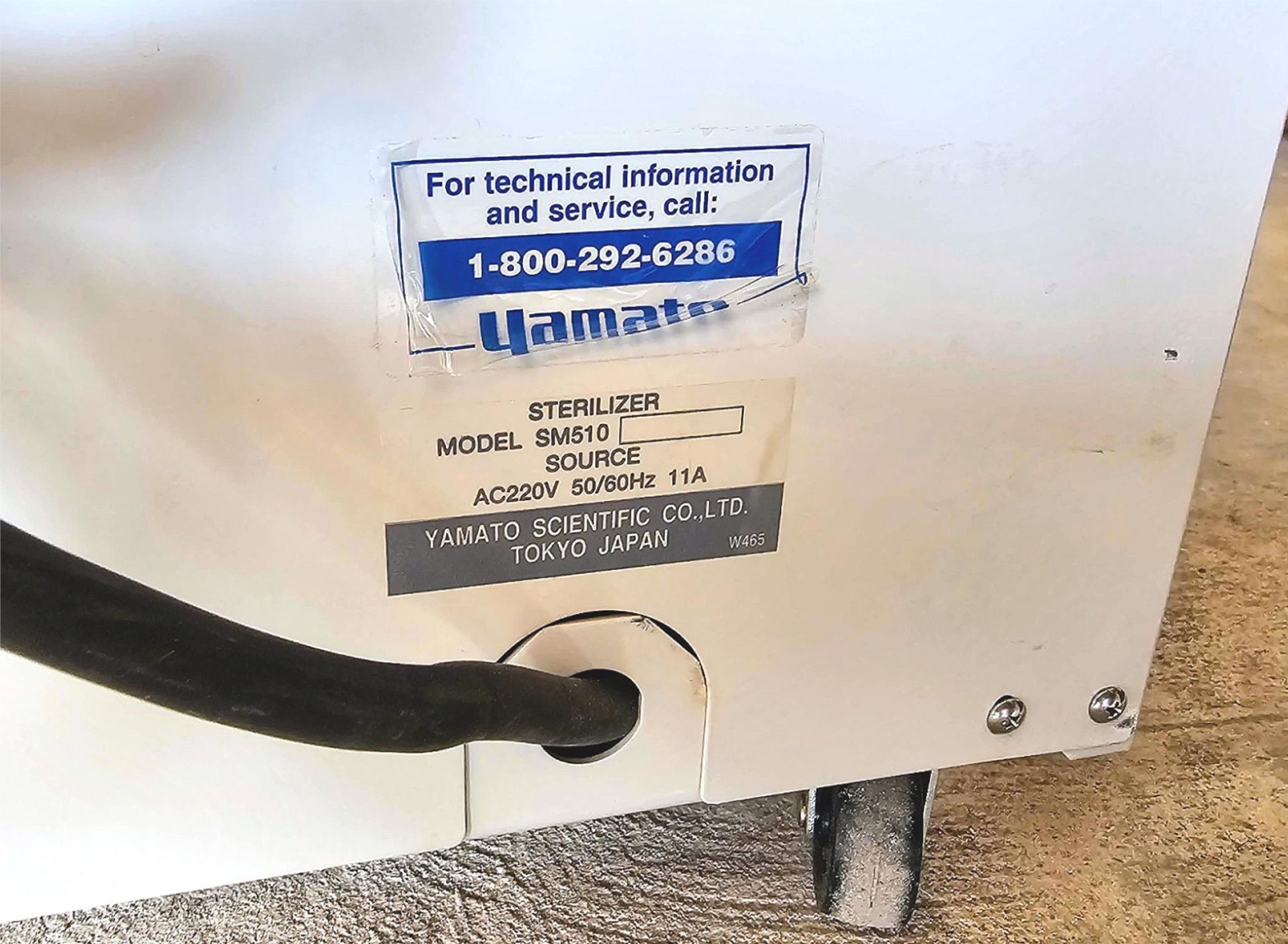

Power source 50/60Hz 200/220V, single phase,
12A/10.9A
Approx. 170lbs / 85 kg
