WARRANTY VACUMED 17056 METABOLIC SIMULAT CALIBRAT SPEEDCONTROL MANUAL WATCHVIDEO

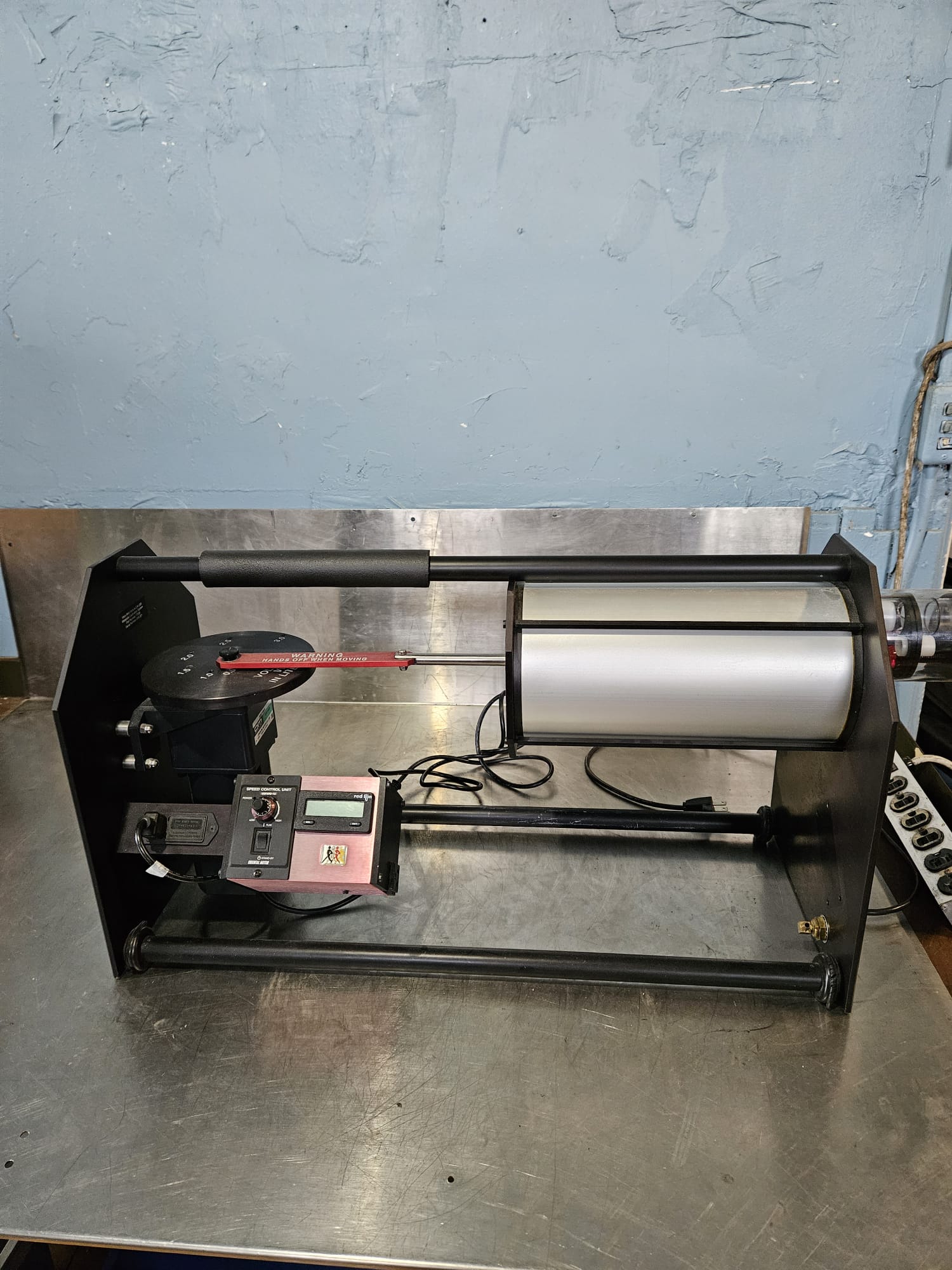

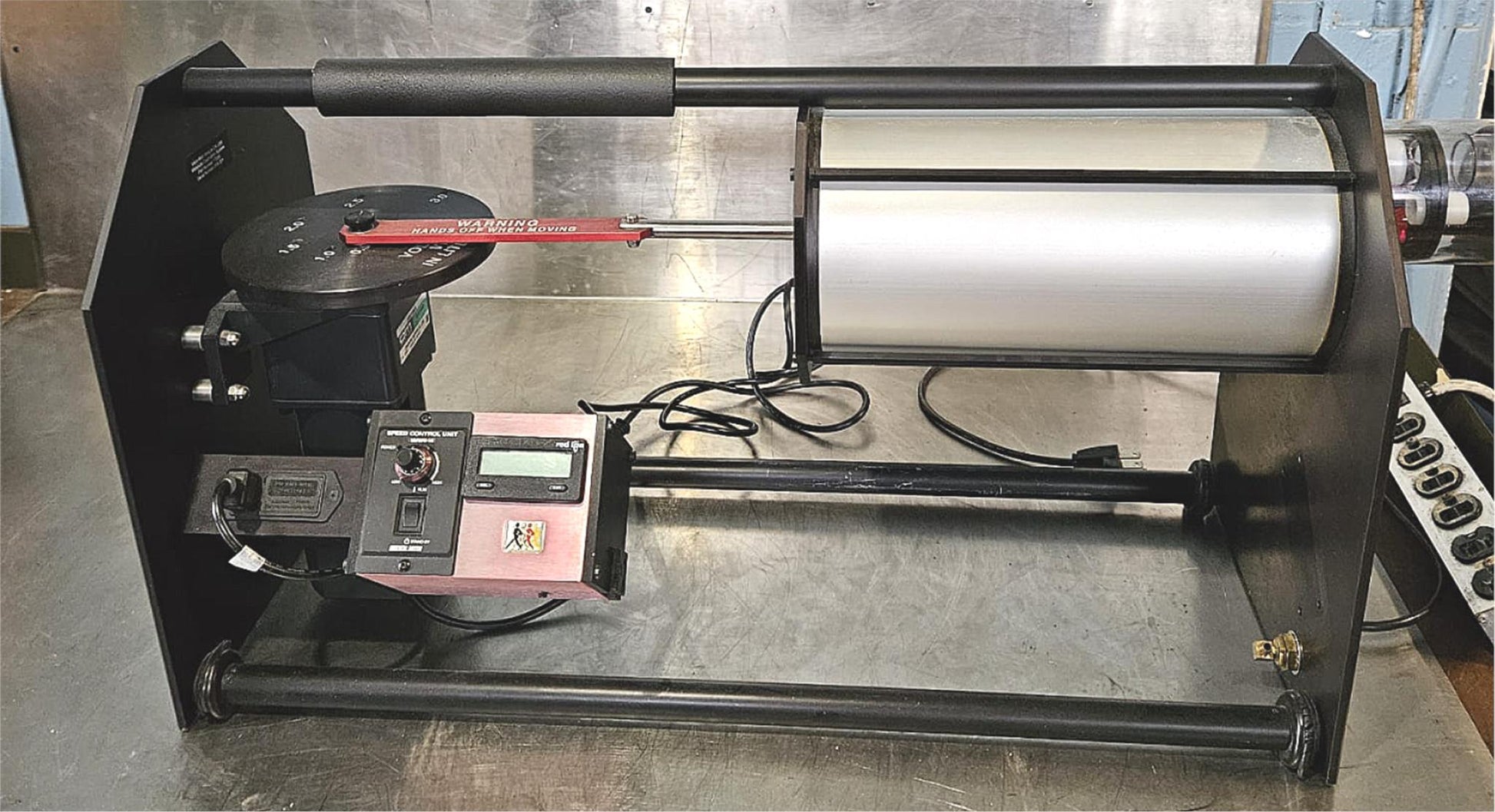

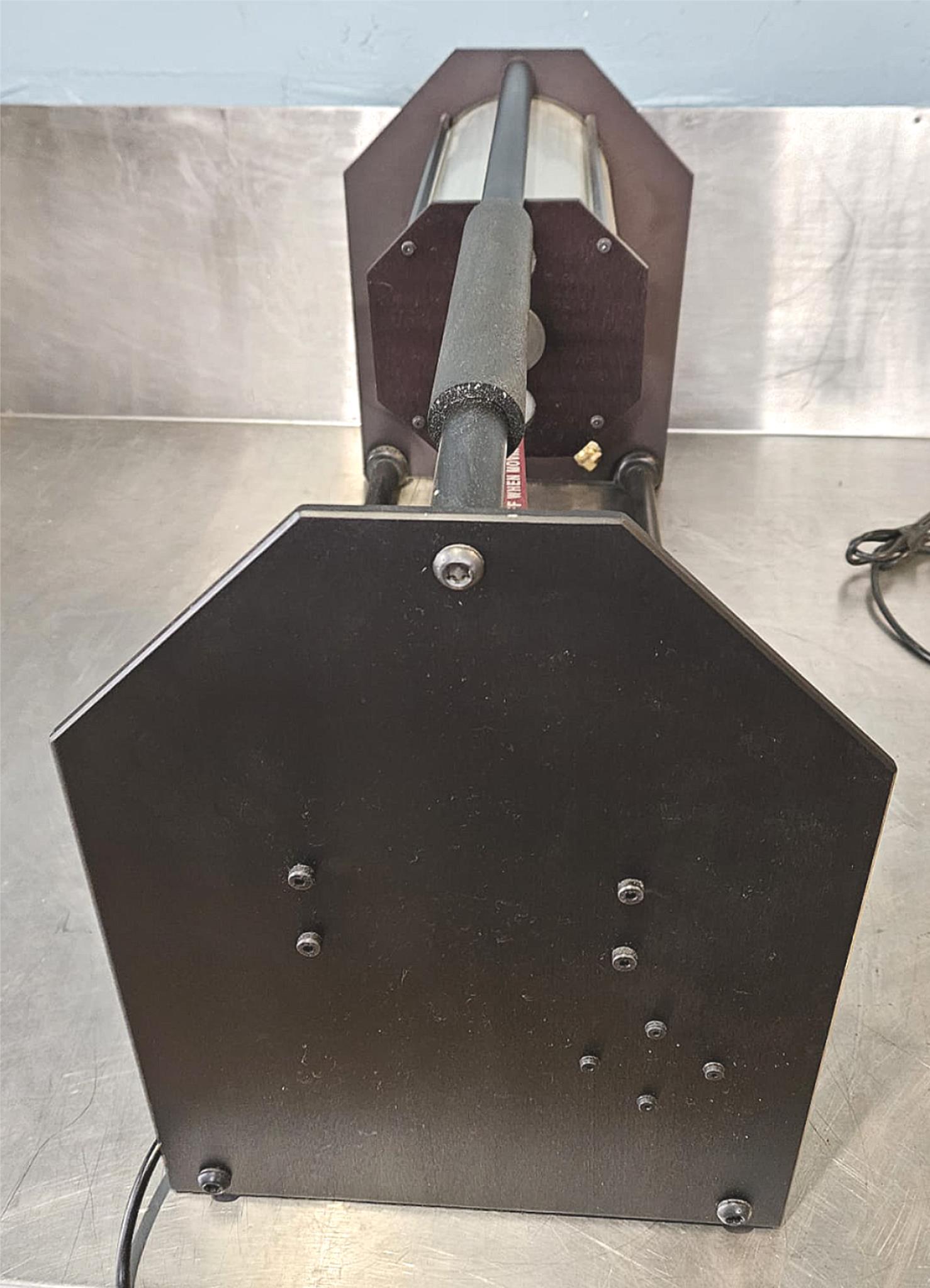

This listing is for a Great Operational & Cosmetic Condition VACU-MED 17056 METABOLIC SIMULATOR CALIBRATION SPEED CONTROLLER SYSTEM as can be WATCHED IN THE VIDEO and also seen in the pictures.

We will also include the Operational Manual for this unit as a BONUS!!!

FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING THE FOLLOWING LINK: https://www.youtube.com/watch?v=k18uUPc530E

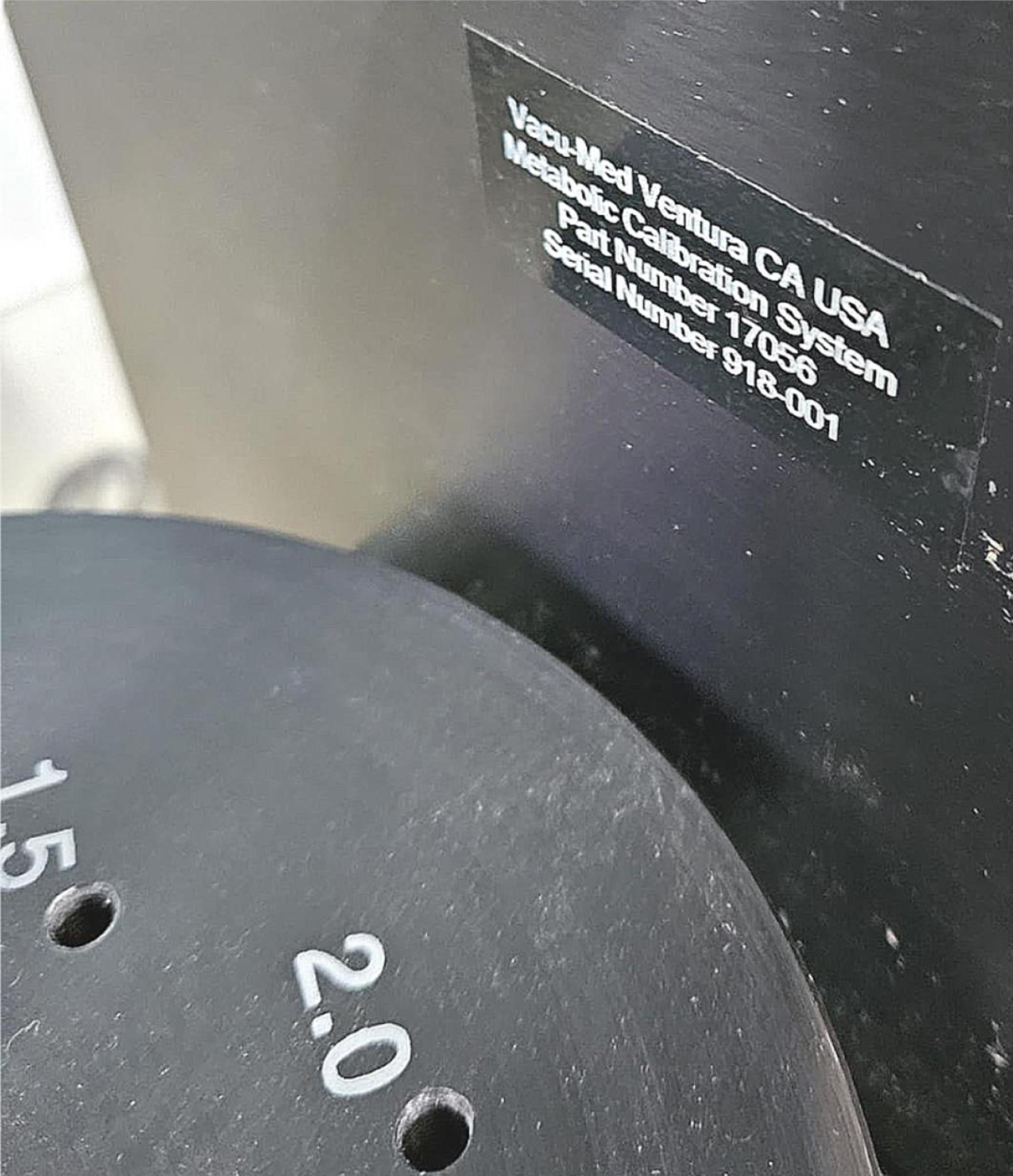

Vacu-Med Metabolic Calibration System Metabolic/Mass Flow Controller System Qty:1

Manufacturer: Vacu-Med

Model: Metabolic Calibration System

Type: Metabolic/Mass Flow Controller System

Condition: This item is in EXCELLENT OPERATIONAL & COSMETIC condition, that's why we are able to offer a 90-DAY-WARRANTY on this VACU-MED METABOLIC MASS FLOW CALIBRATION CONTROL SYSTEM.

FREE USA SHIPPING ALSO!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

vacumed.com/zcom/product/Product.do?compid=27&prodid=8220

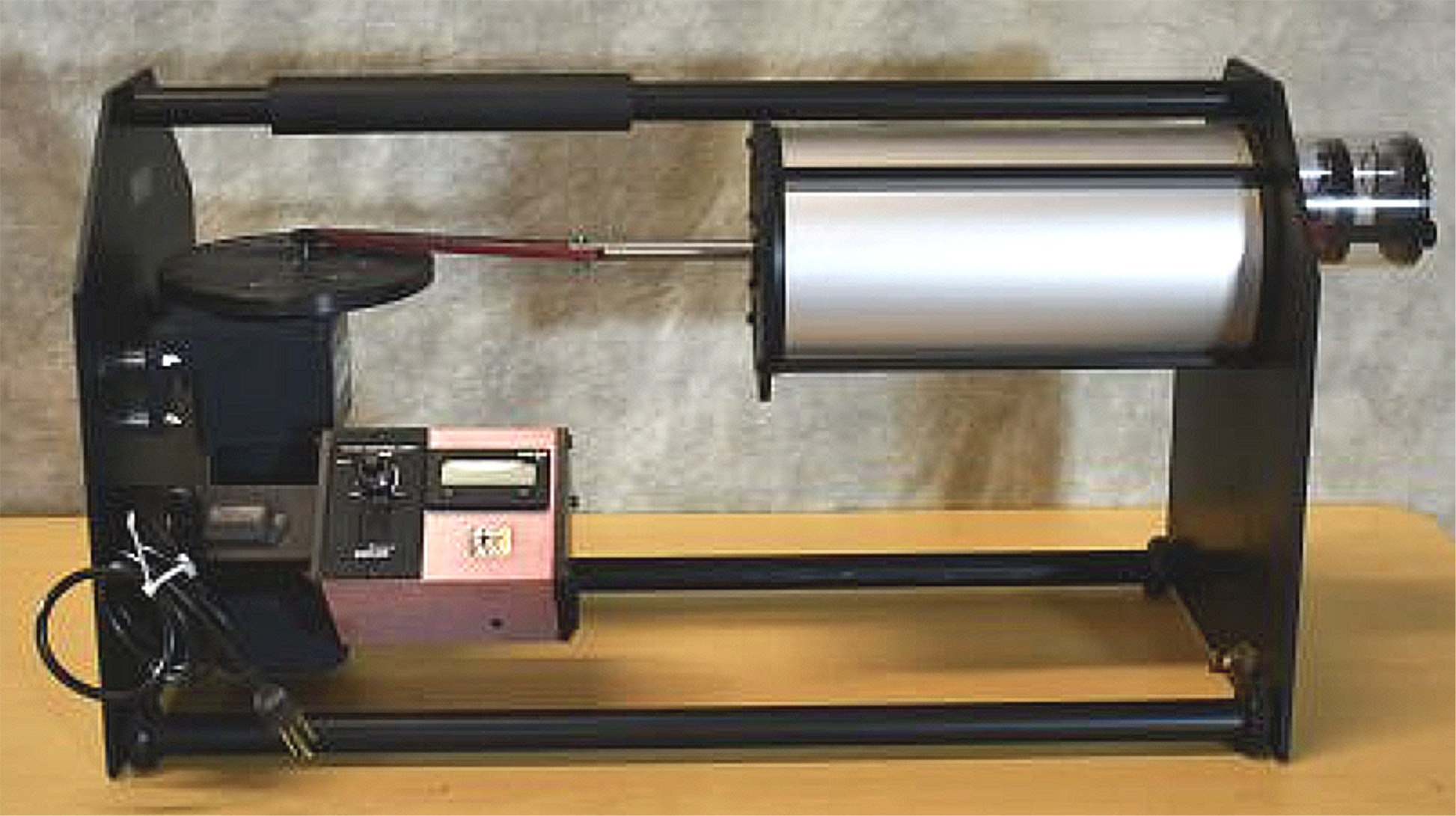

Metabolic Calibration uses the principle of mass preservation to create known VO2 and VCO2. The principle of mass preservation dictates that the chosen mass flow of CO2 and O2 remains unchanged regardless of the ventilatory dilution (i.e. the minute ventilation that delivers it into the system under calibration).

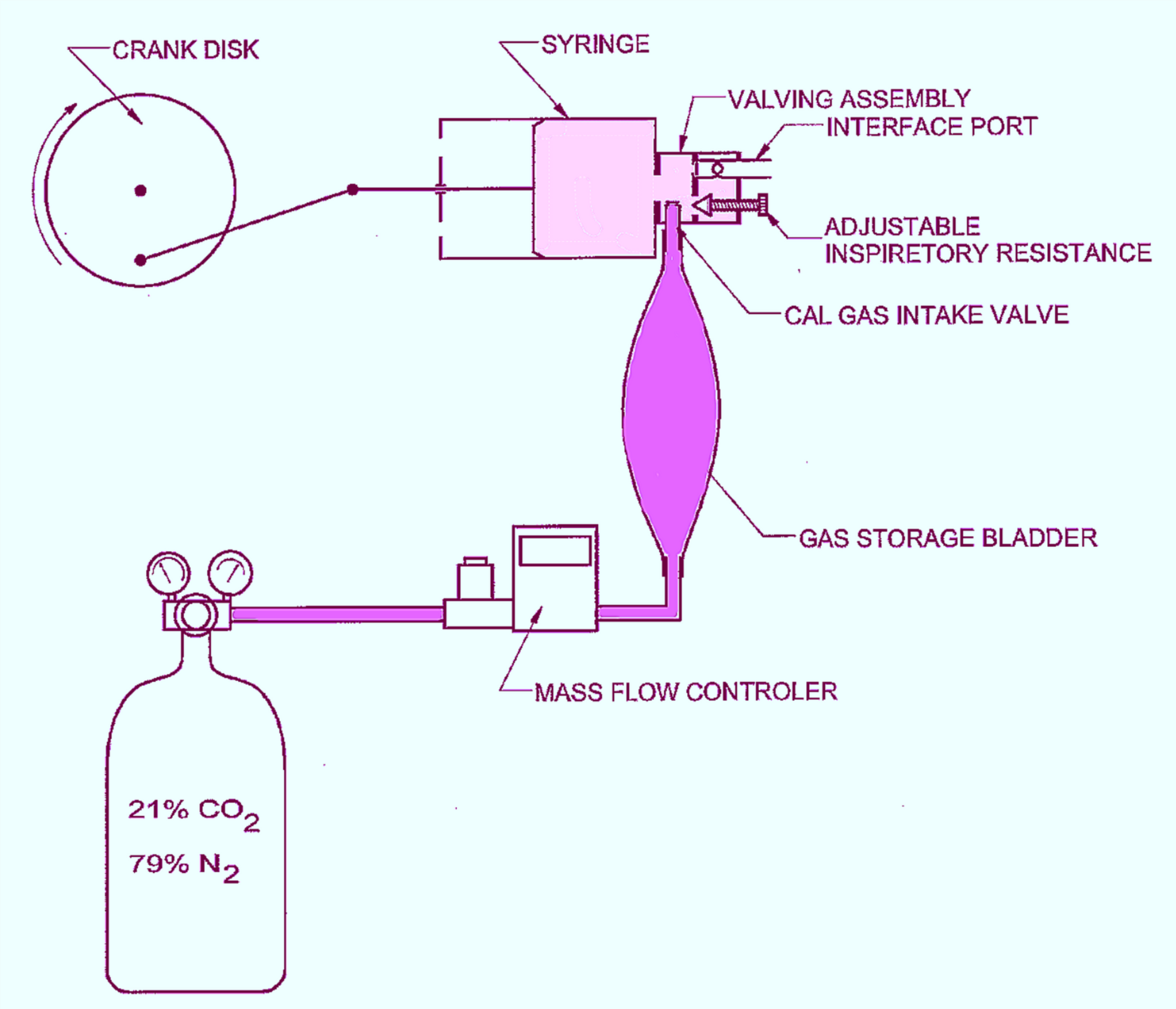

This top of the line metabolic calibration gas titration device consists of a Mass Flow Controller capable of delivering any set point flow of this gas (~21%CO2, 79%N2) within a range of 0 - 20 liters/min STPD and a Set Point Module (SPM) which enables selection of desired mass flows.

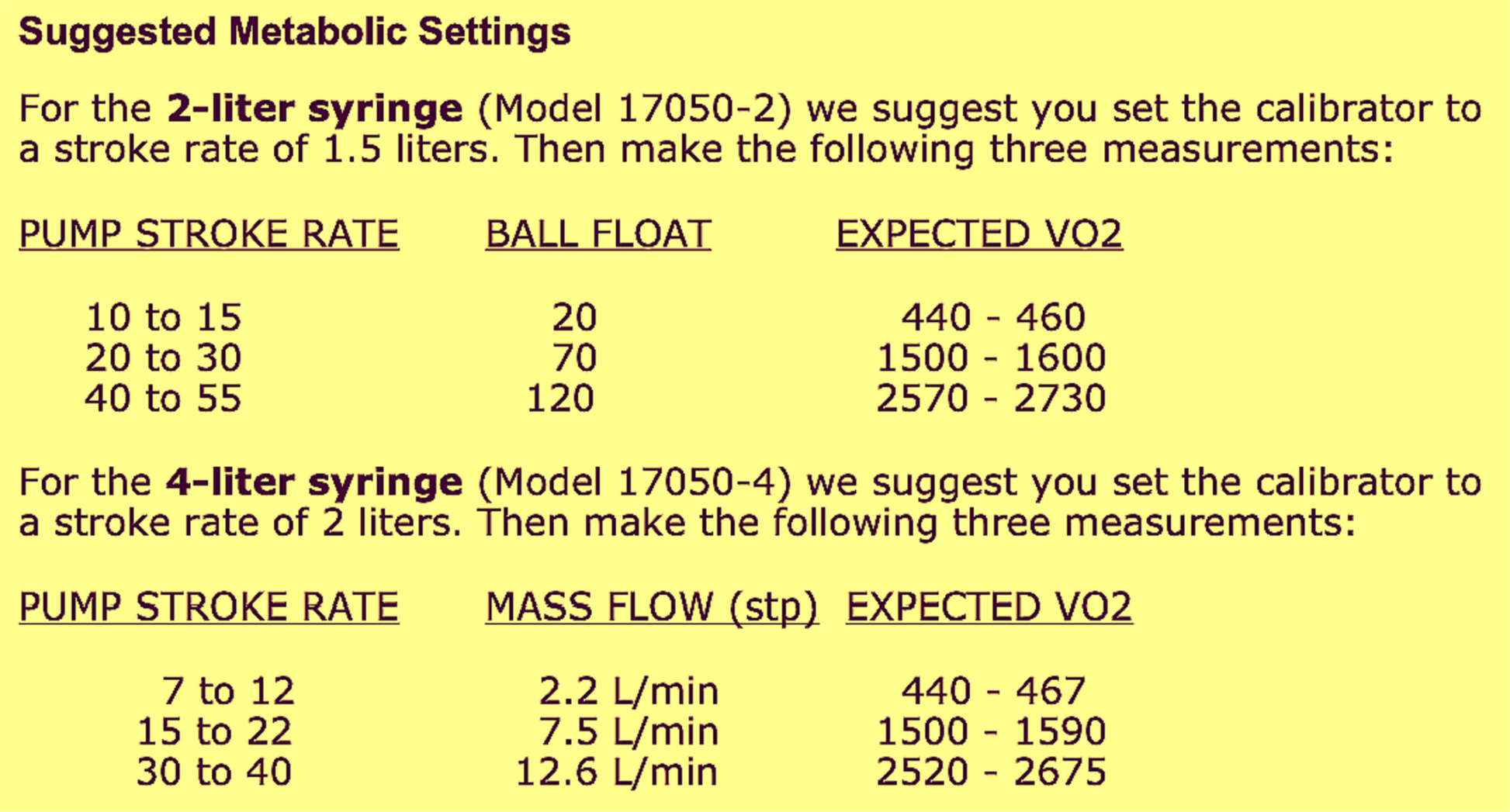

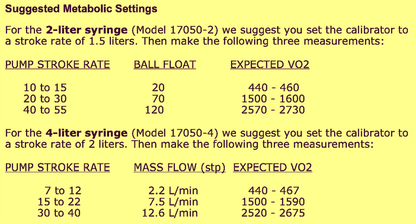

Four switch-selected VO2 settings are 1, 2, 3 and 4 liters per minute of VO2 and VCO2. (Model 17057 has additional 5 and 6 liter settings) The exact value will depend on physical parameters, such as barometric pressure, air temperature and relative humidity. The provided O2CAL.xls spreadsheet software enable precise determination of the selected metabolic rate and the percentage error of the metabolic measurement system being calibrated.

The remaining two positions of the rotary switch correspond to a Zero flow setting and a continuous 10-turn potentiometer-operated selection of any desired mass flow from zero to 4 L/min.

Metabolic Calibration accuracy is +/-1% VO2 & VCO2.

Most flow sensors are typically calibrated with a fixed volume manual syringe, but little is known about the performance of that flow sensor over the whole physiological range.

This device includes a mass flow controller to produce precise Metabolic Calibration gas mixtures to verify VO2 and VCO2. It provides highest accuracy and ease of adjustment.

So how does this affect the accuracy of your ventilation measurements (and ultimately VO2) when you have calibrated the flow sensor at some unknown manual stroke speed, then use the sensor for low-flow pediatric or resting measurements, or high flow VO2max measurements?

What this device can be used for:

Produce an exact, simulated VO2 and VCO2 to verify the overall accuracy of a metabolic measurement system and its software.

Check the accuracy of any flow / volume measurement device.

Simulate breathing at rates from 6 to 80 breaths per minute.

Check the effects of various gas mixtures on a flow sensor.

Specifications

Model 17056 Stroke Volume Accuracy: +/-1/2%

Model 17057 Stroke Volume Accuracy between 600cc to 6000cc +/- 1/2%

between 300cc and 600cc +/- 1 to 2 %

Not recommended below 300cc

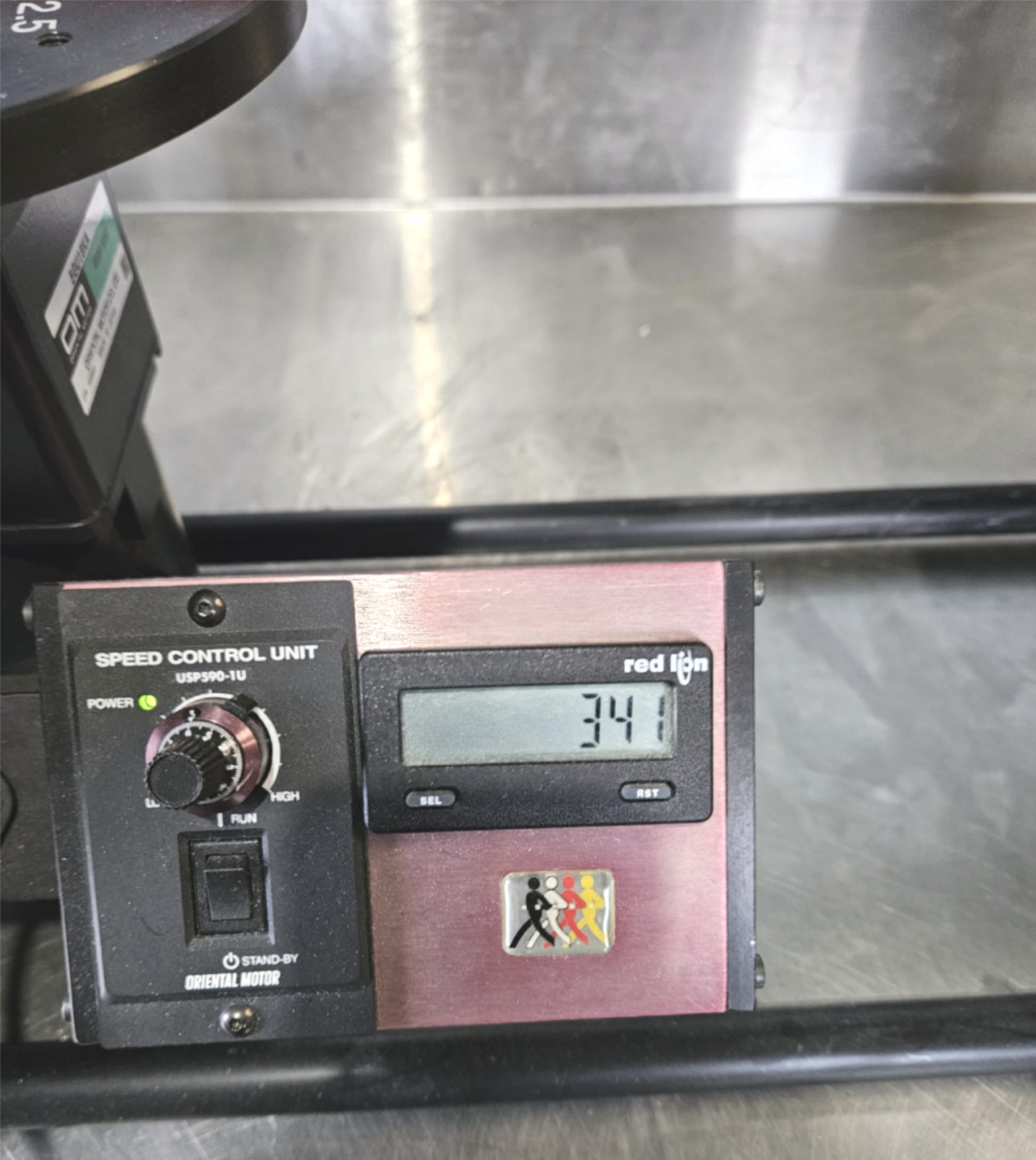

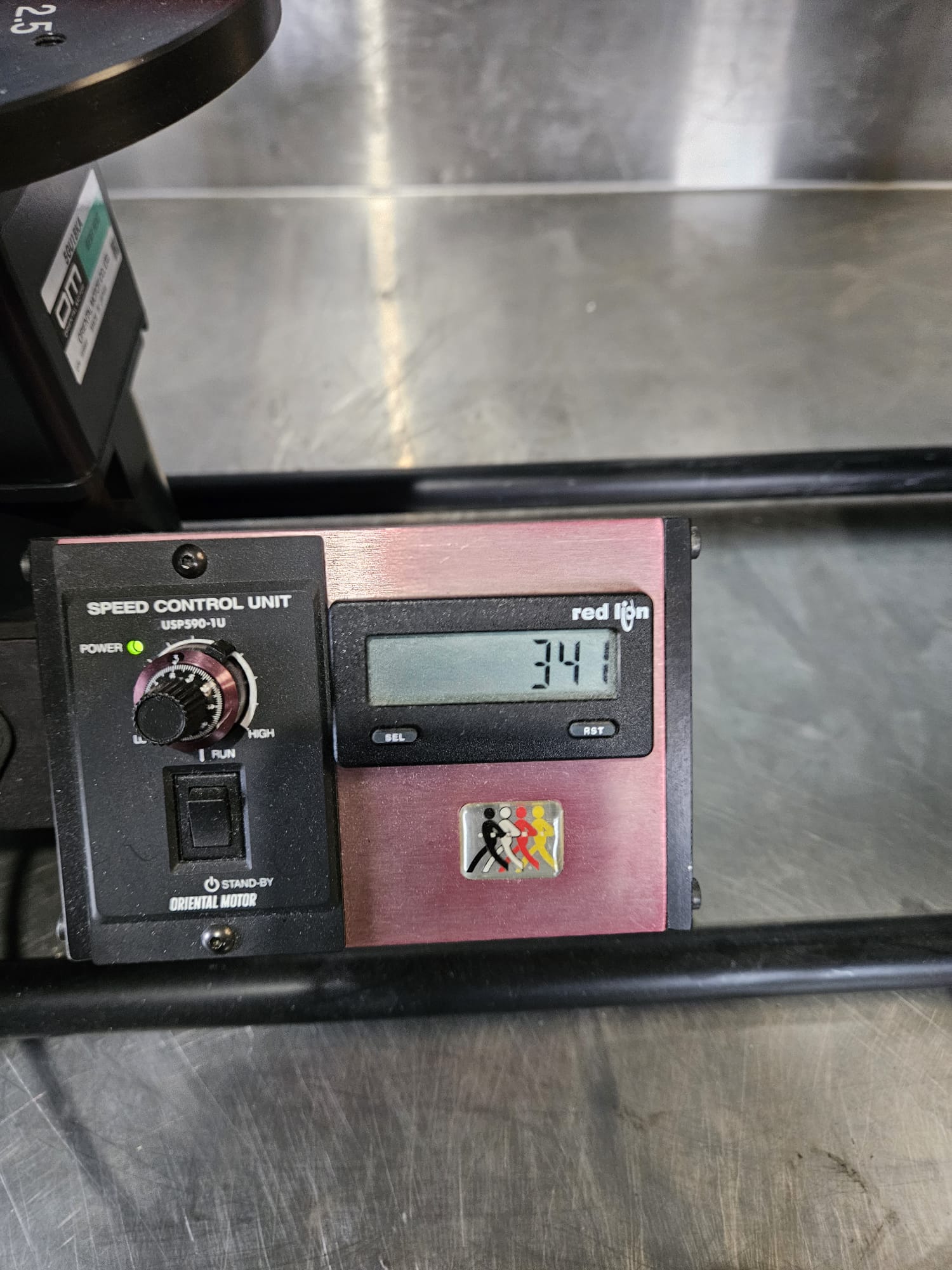

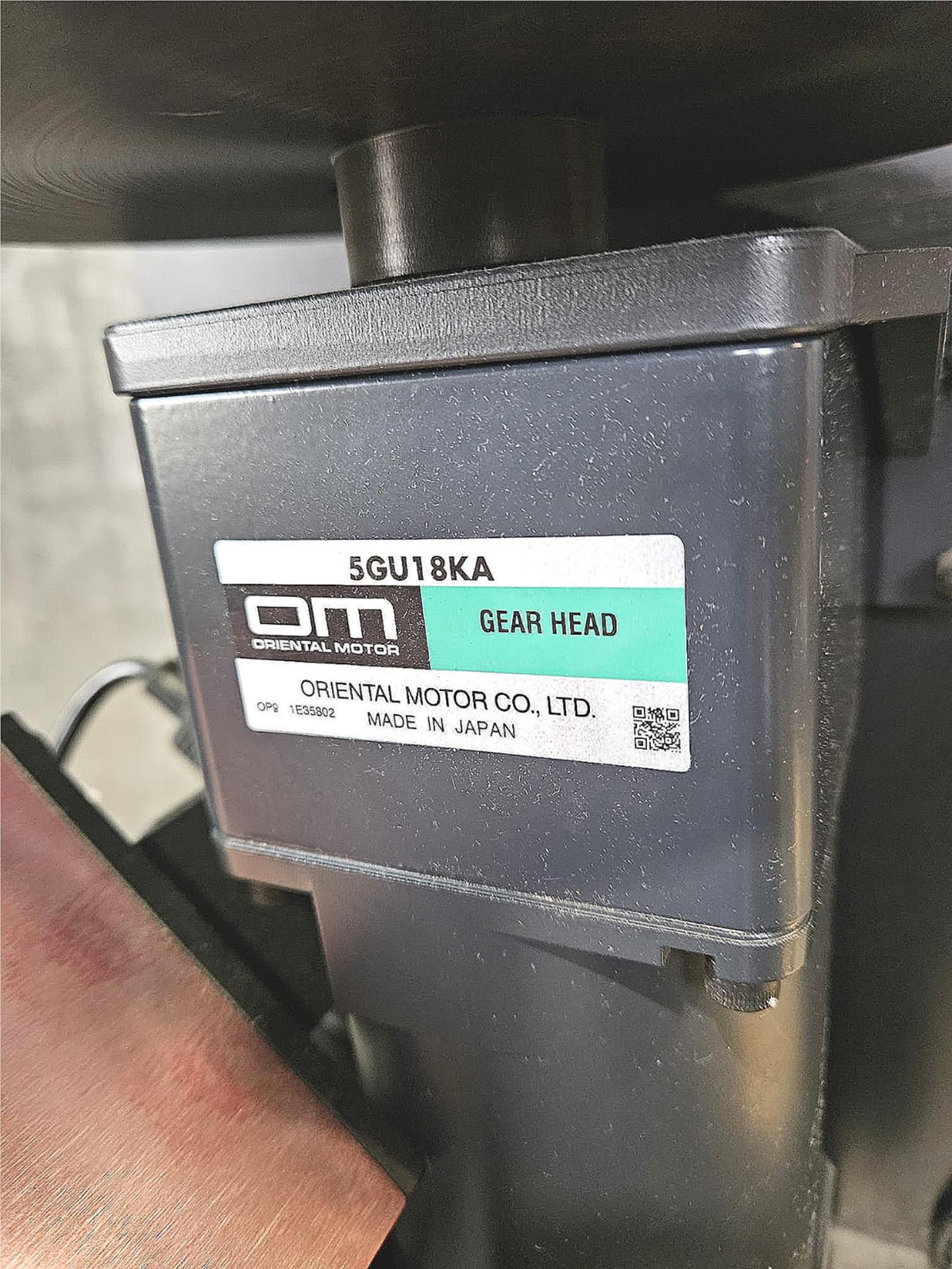

Motor speed is continuously variable from approx. 6 to 80 strokes per minute.

Digital Display: Breaths per minute

Mass and volumetric flow of calibration gas

Barometric Pressure

Temperature

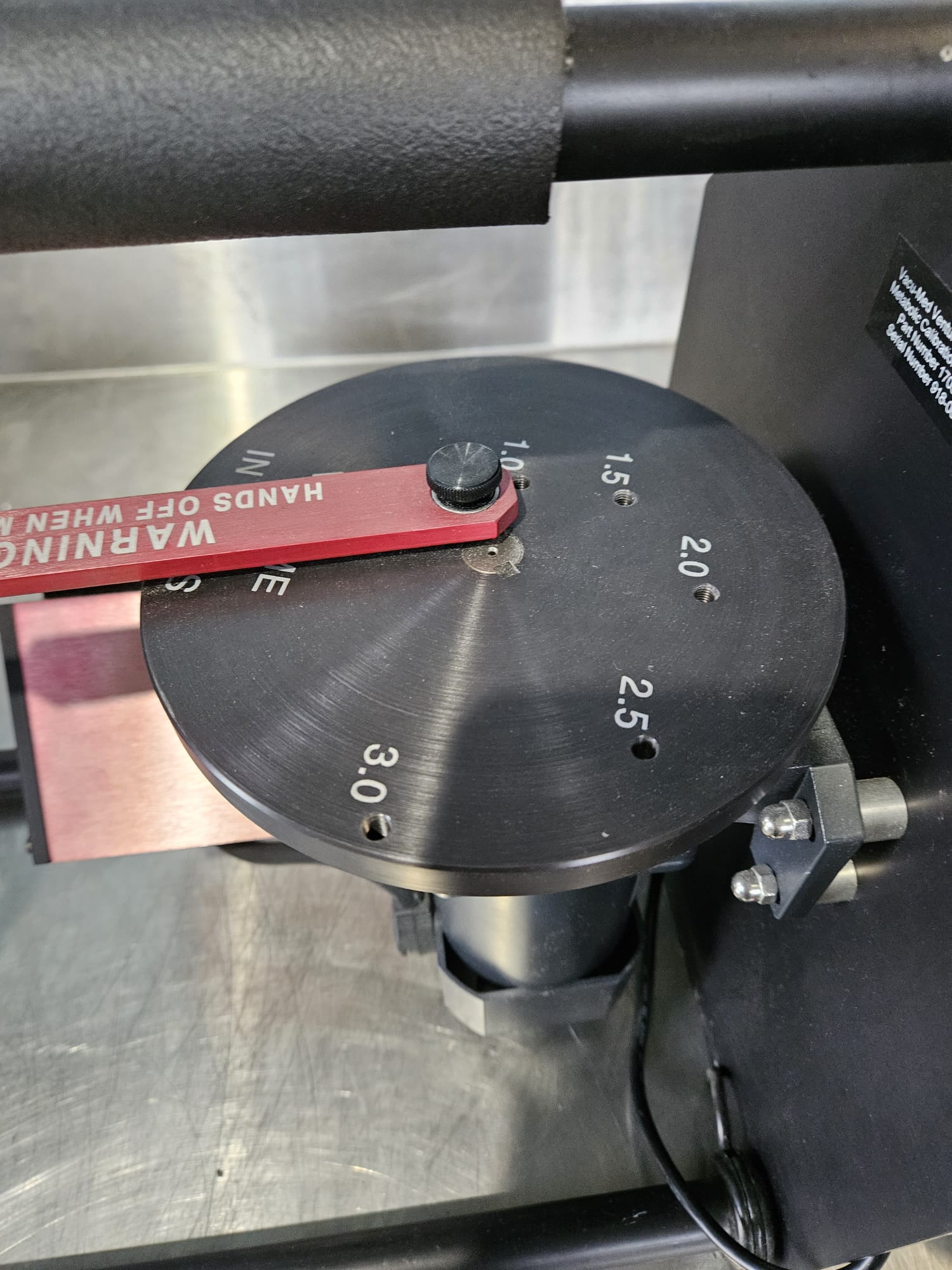

Stroke Volume for model 17056 (Preset stops)

0.5, 1.0, 1.5, 2.0, 2.5, and 3.0 liters

Stroke volume for model 17056-4L

1.0, 1.5, 2.0, 2.5, 3.0, 3.0, 4.0 liters

Stroke volume for model 17057

1.0, 2.0, 3.0, 4.0, 5.0 liters

(Other volume settings available on special order)

#17056 Size: 12" (31cm) wide x 16" (41cm) high x 29" (74cm) long

Voltage: 110 / 220 VAC (Specify)

Weight: Approx 40 pounds (18 kg)

A Metabolic Calibration gas containing 20.9% CO2, balance N2, is required.

Included is an Excel file that allows you to make the required BTPS/STPD corrections automatically and print a calibration report.

Other possible uses of this device:

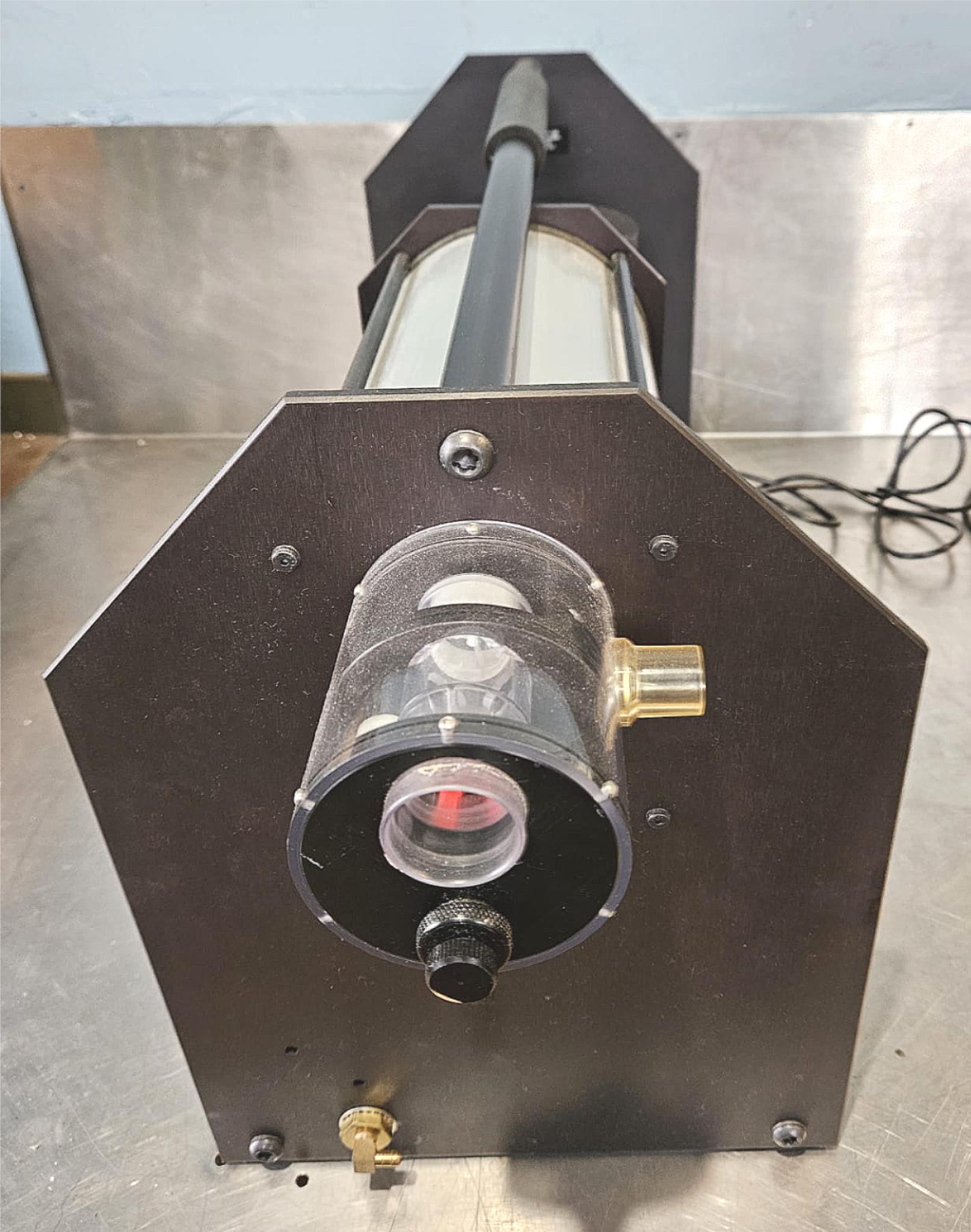

This variable speed motor-driven calibration syringe will check the accuracy and repeatability of any flow sensor over the range from 3 to 240 L/min of VE.

Produce any mixture of two gases and

change that mixture on-the-fly.

(Dilution formula available from VacuMed)

Generate custom low-O2 mixtures for

simulated high altitude training.

Quality Control of flow/volume sensing devices

If you want to read more about Metabolic Calibration, click on "Dr. Andrew's Corner" and check out references 1 and 2.

Please check all pictures and if you have any questions, please feel free to ask, we'll respond immediately!

PRODUCT IS LIVE AND IN STOCK AT OUR ANN ARBOR, MI WAREHOUSE.

Please inquire if you would like more pictures or information. Please view pictures - what is pictured is what is sold. This item is sold in is working condition.

Please review all photos before you purchase this product or contact us with any questions you may have.
