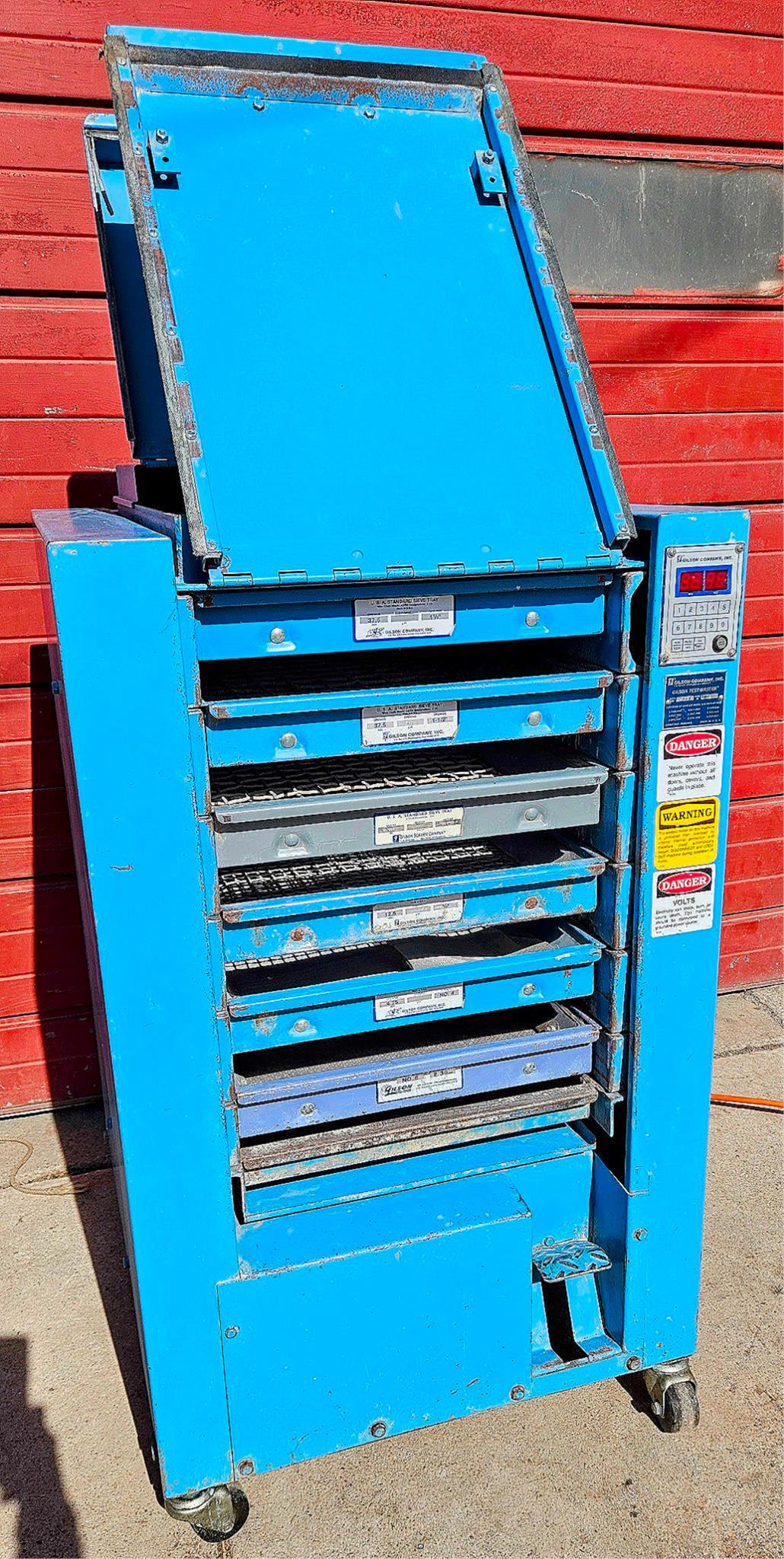

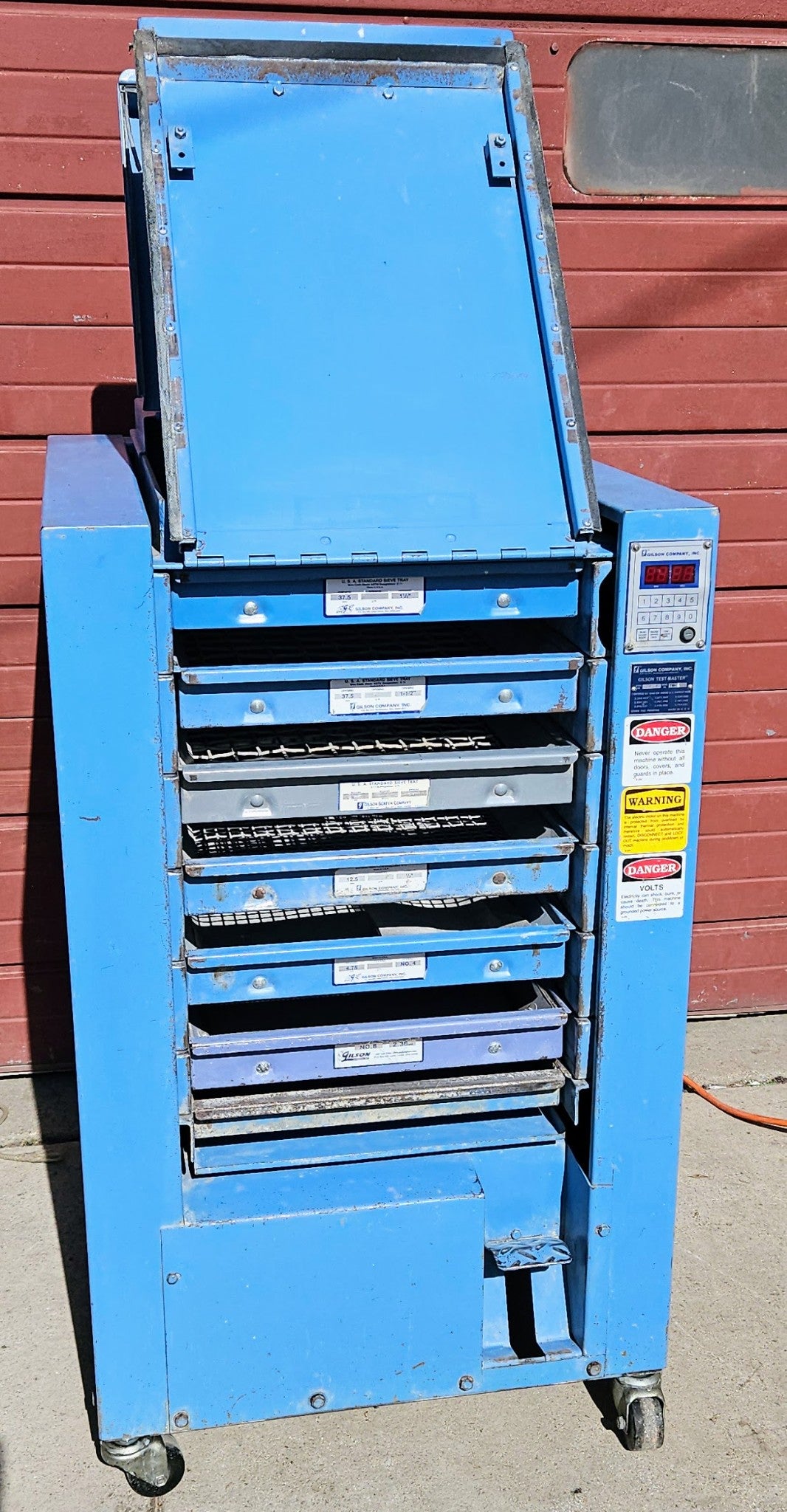

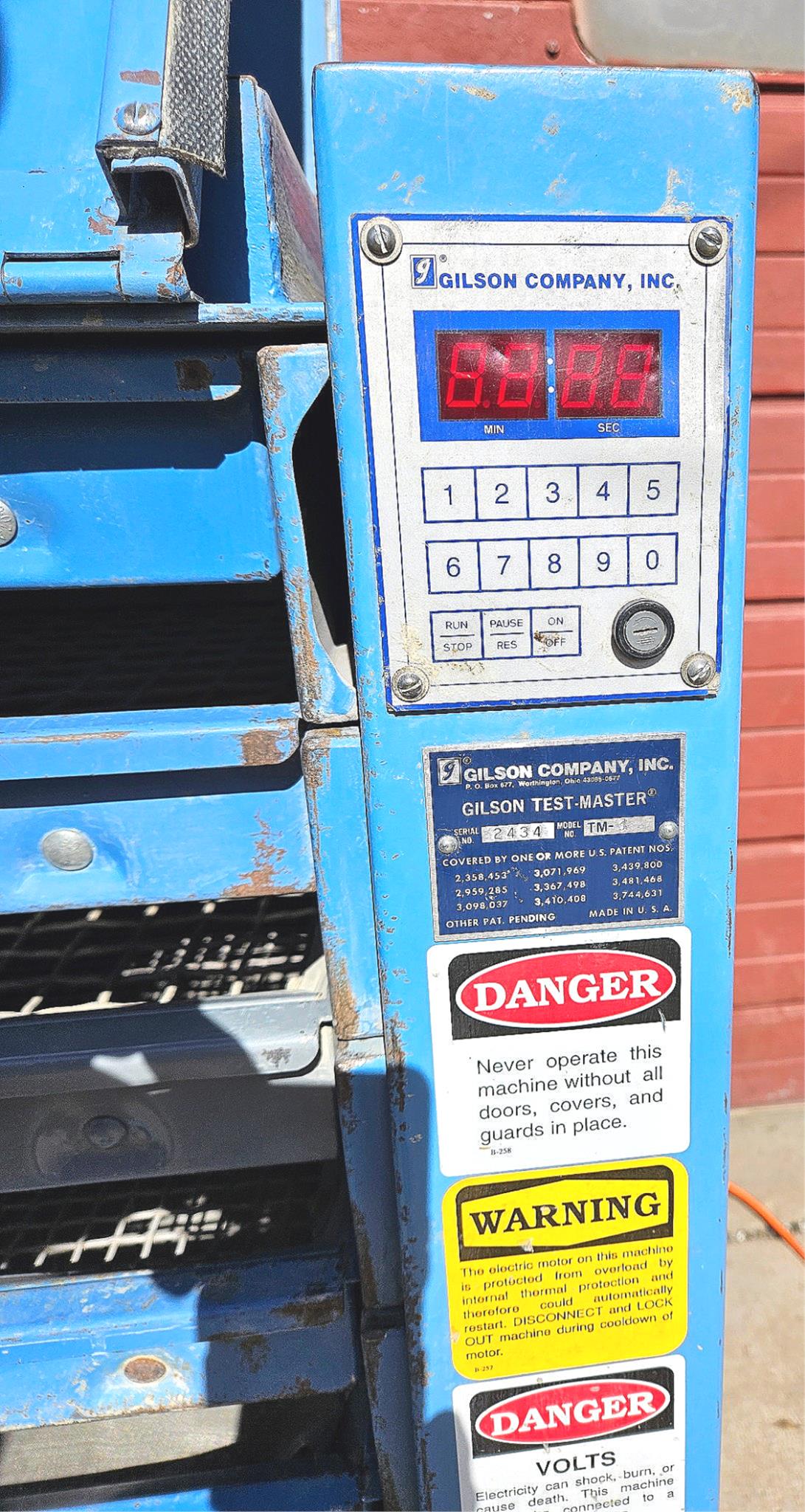

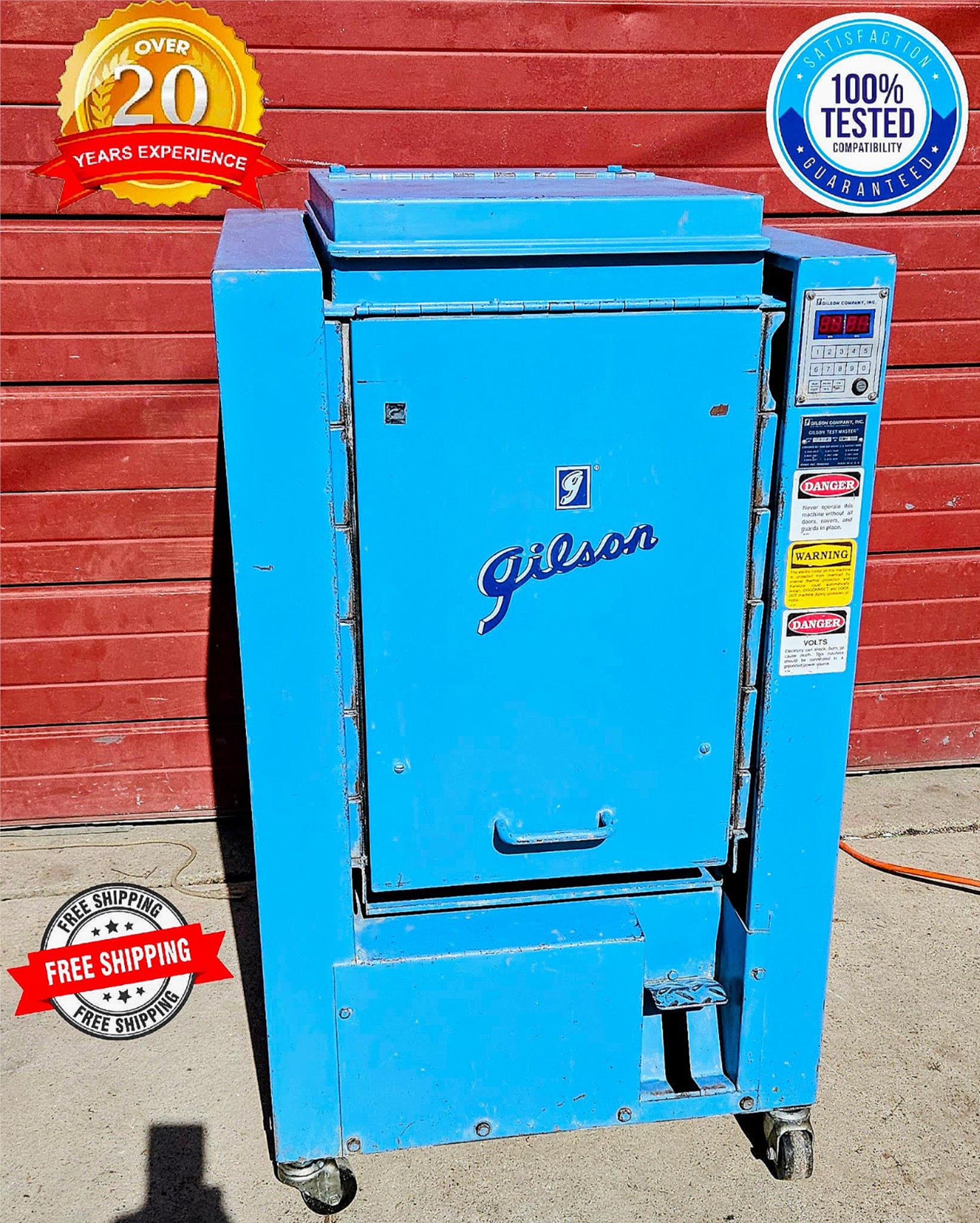

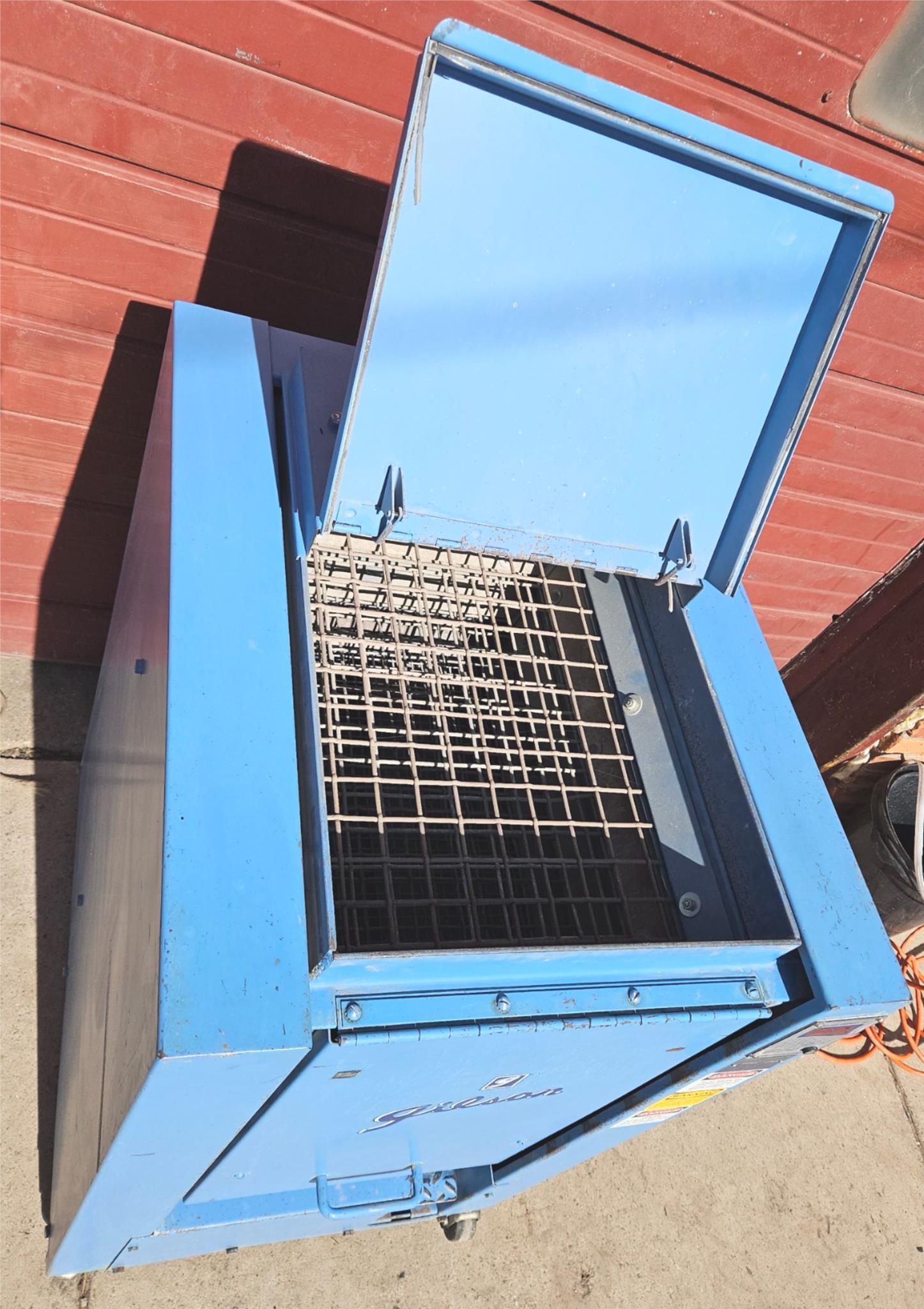

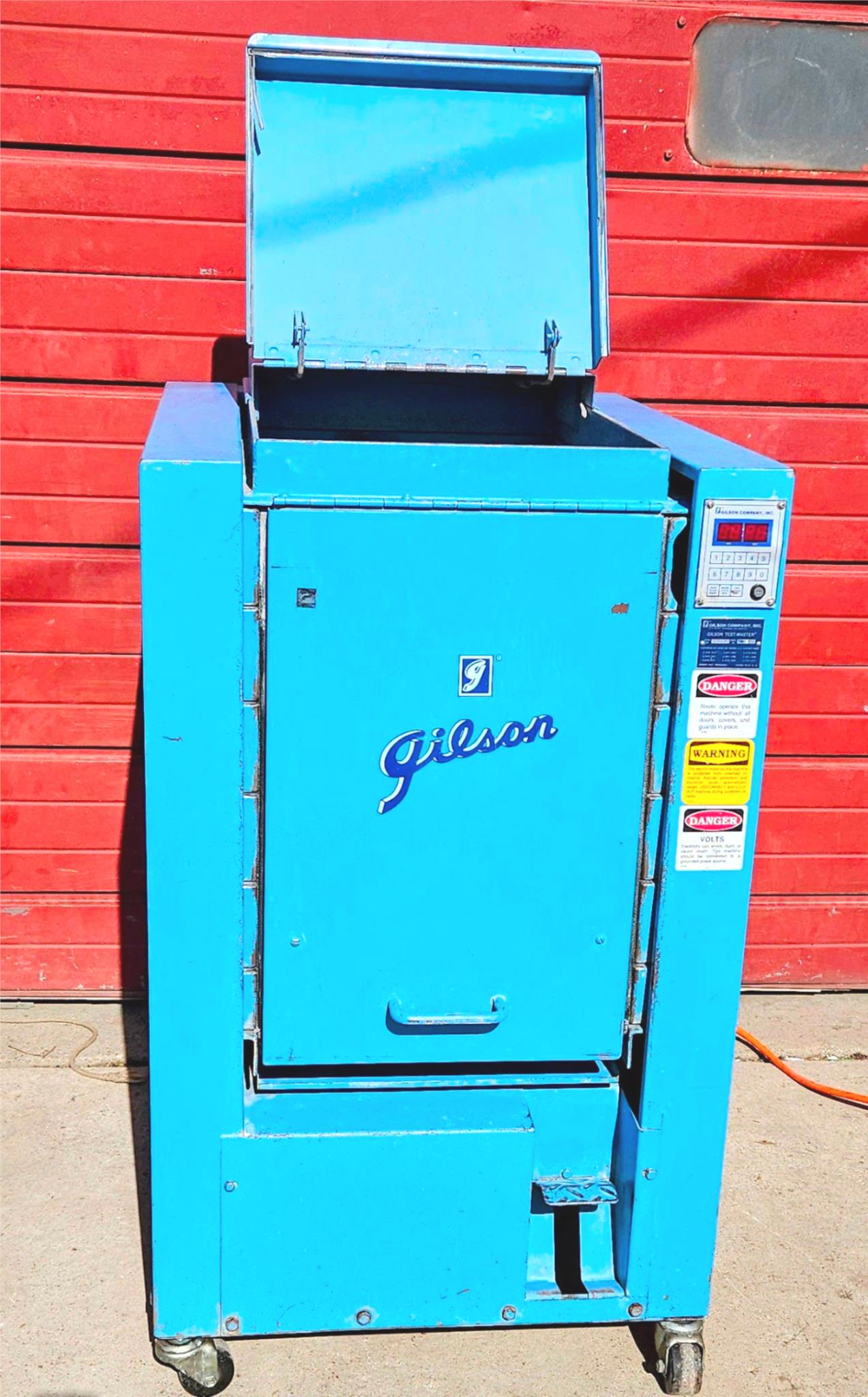

You are bidding on an Excellent Operational & Cosmetic Condition: GILSON TEST-MASTER TM TESTING SCREEN INDUSTRIAL SIEVE MACHINE as can be WATCHED IN THE VIDEO and also seen in the pictures!
IMPORTANT: The unit came as a Surplus from a Federal University lab, has been fully tested and that's why we offer a 90-DAY-WARRANTY condition on this unit!!!
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/shorts/soEr9hw4DaY

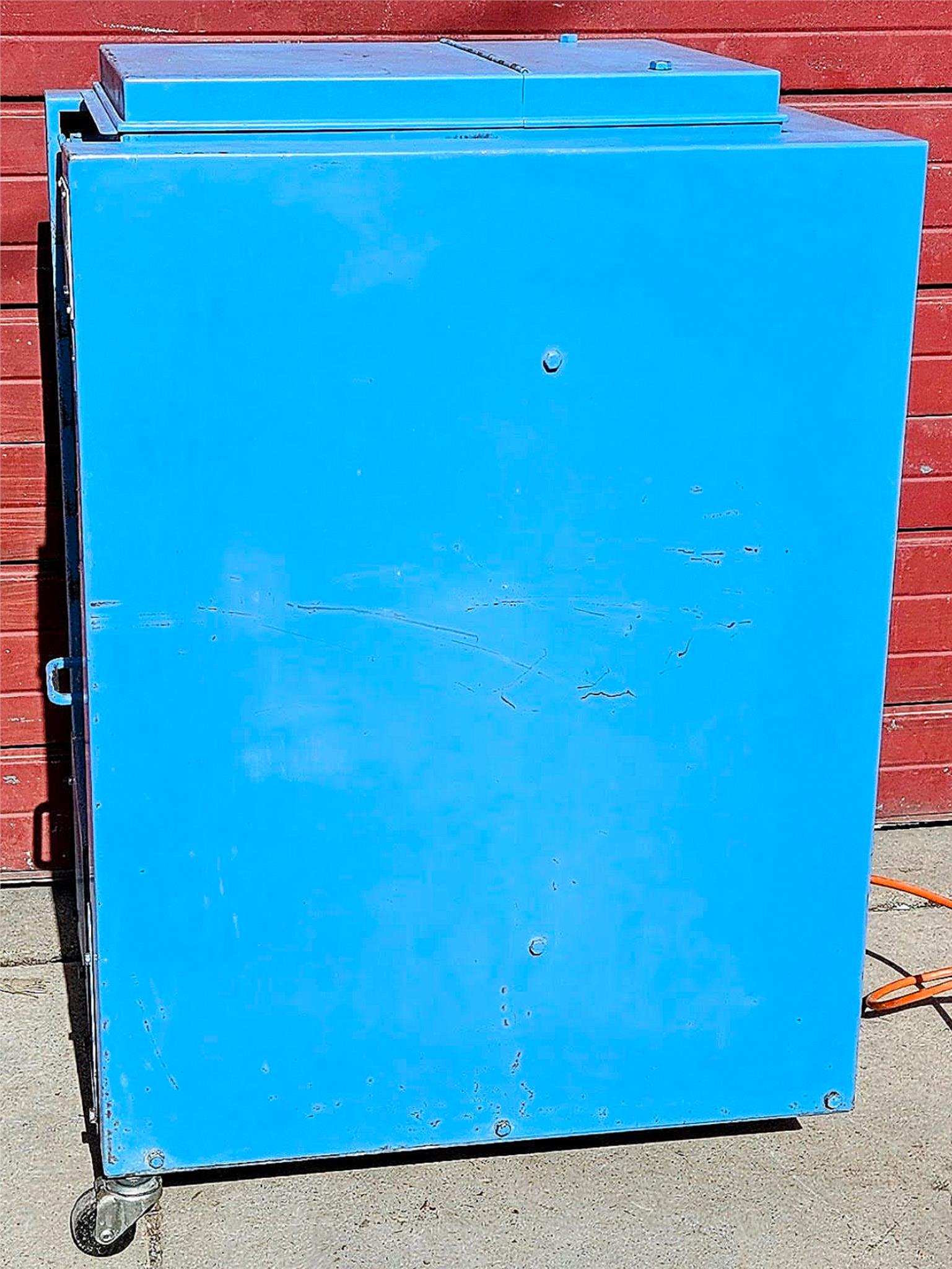

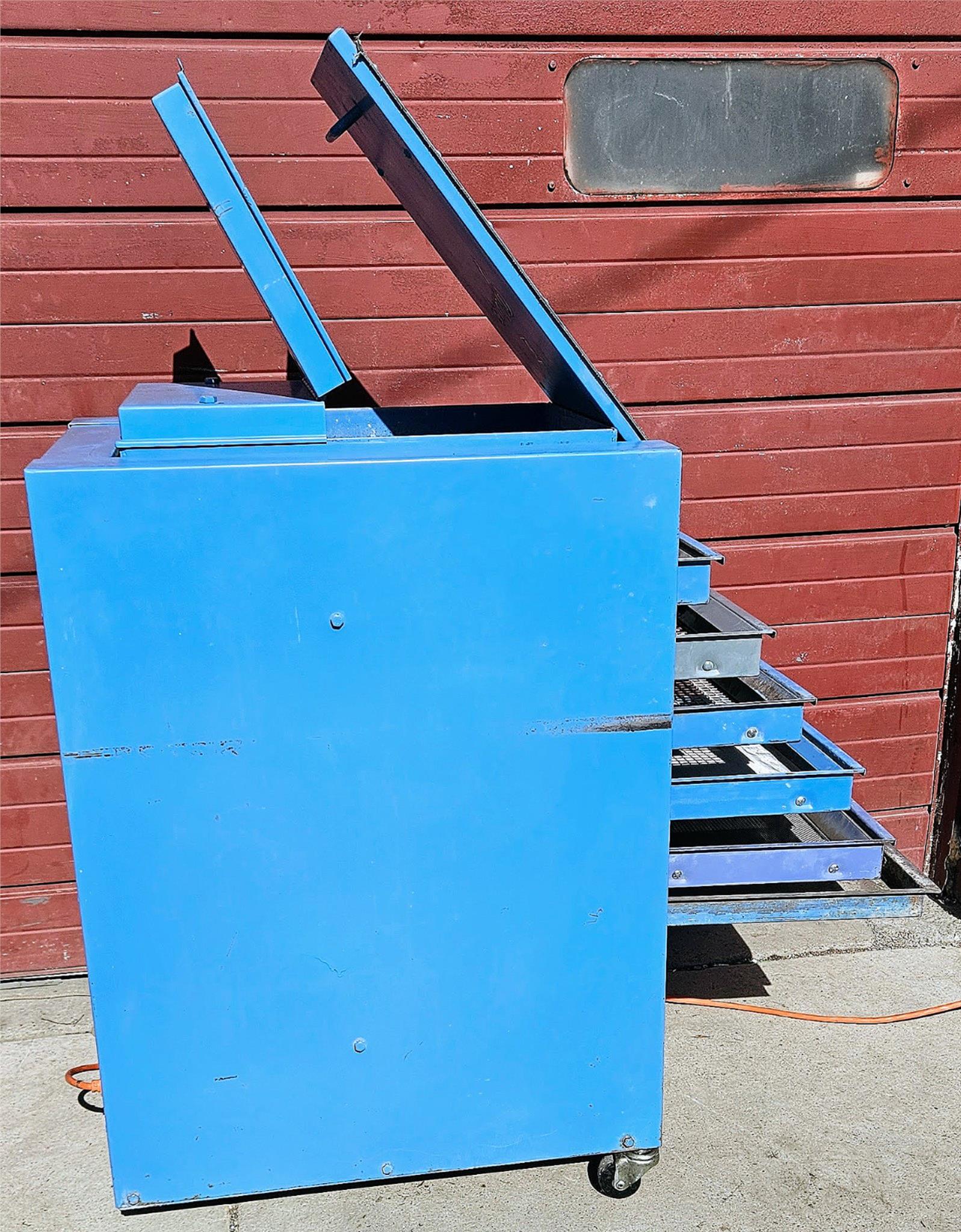

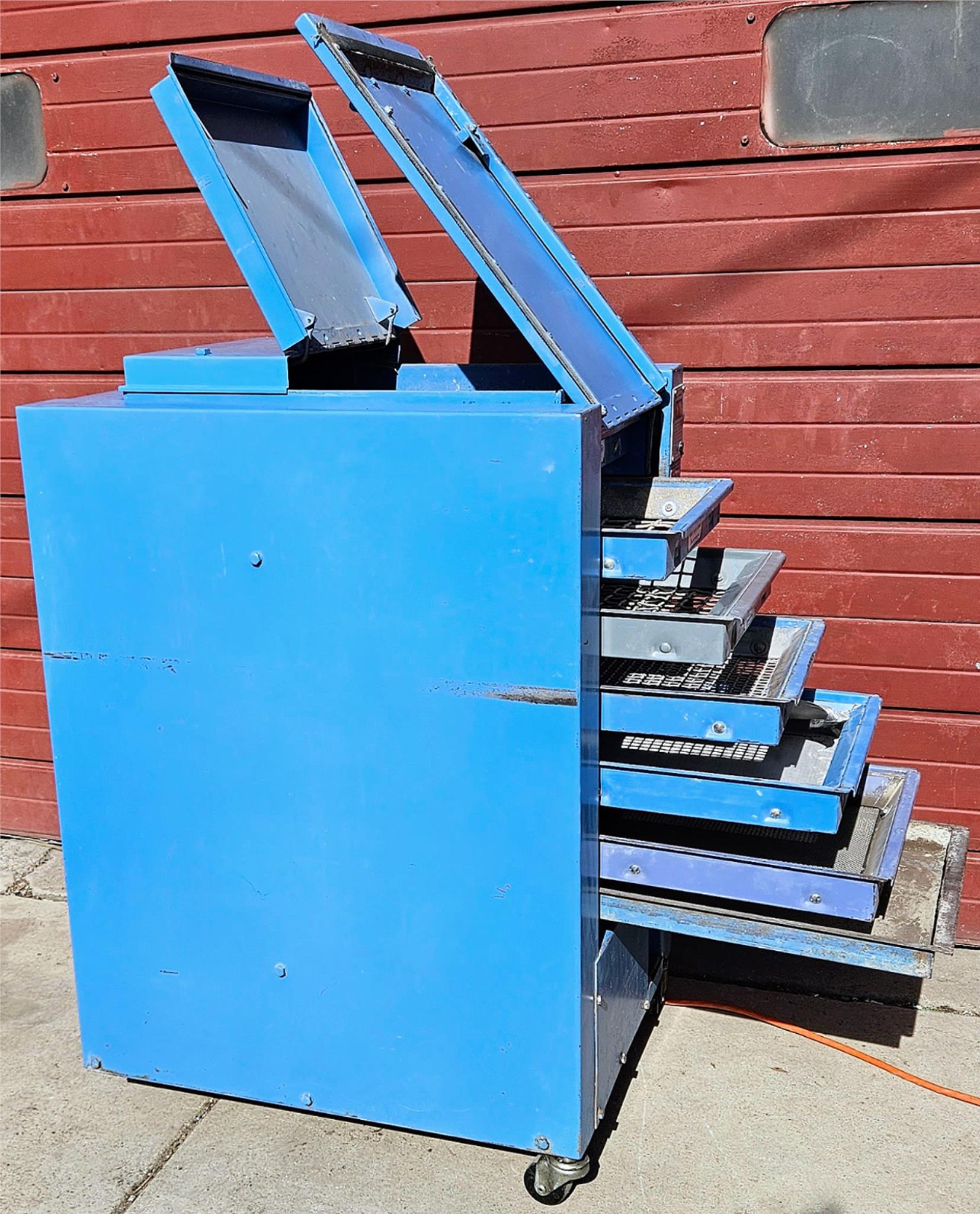

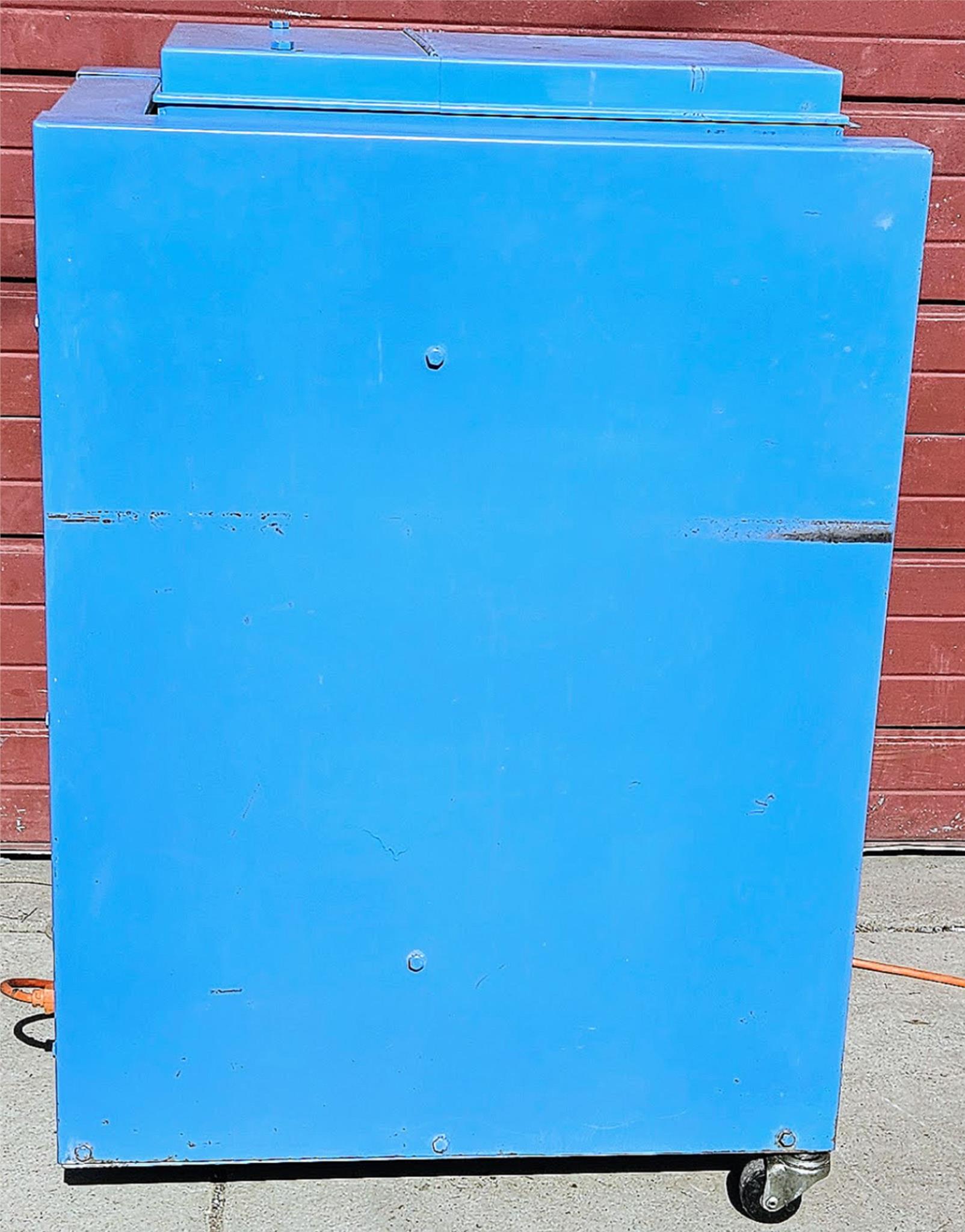

Before we took the pictures we decided to install casters so as to make it easy to move it around. We will ship it with the Feet!
Description:

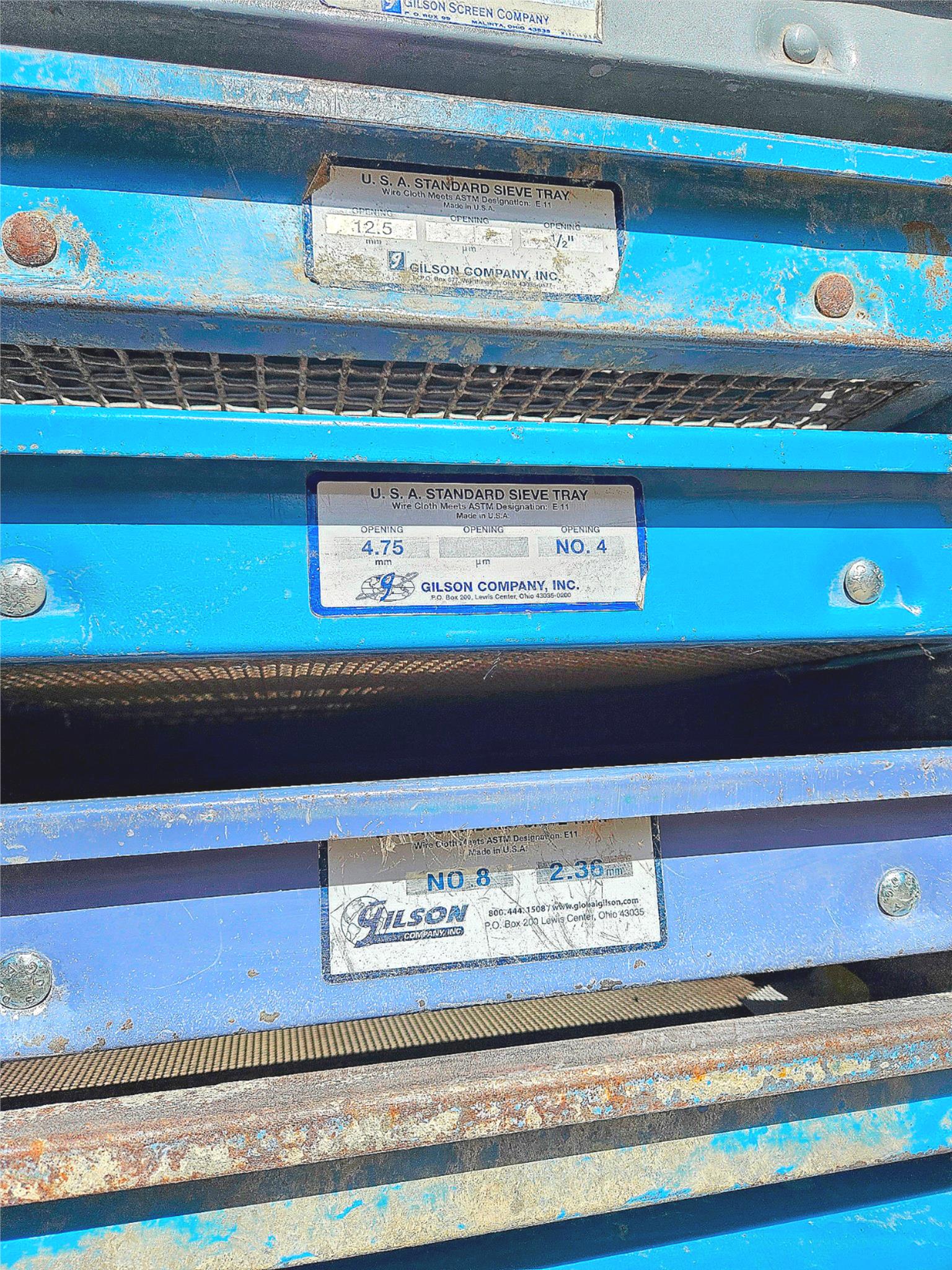

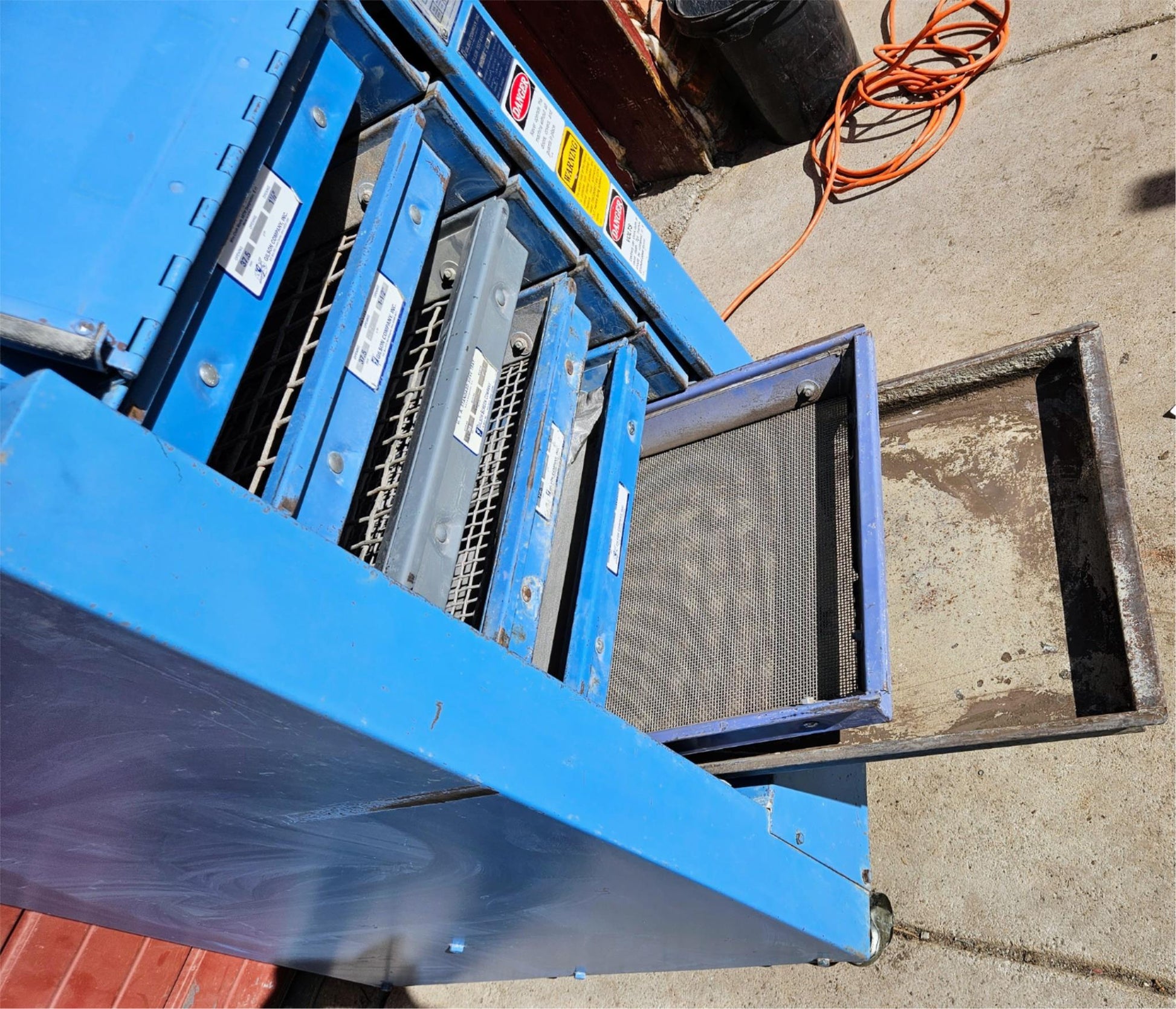

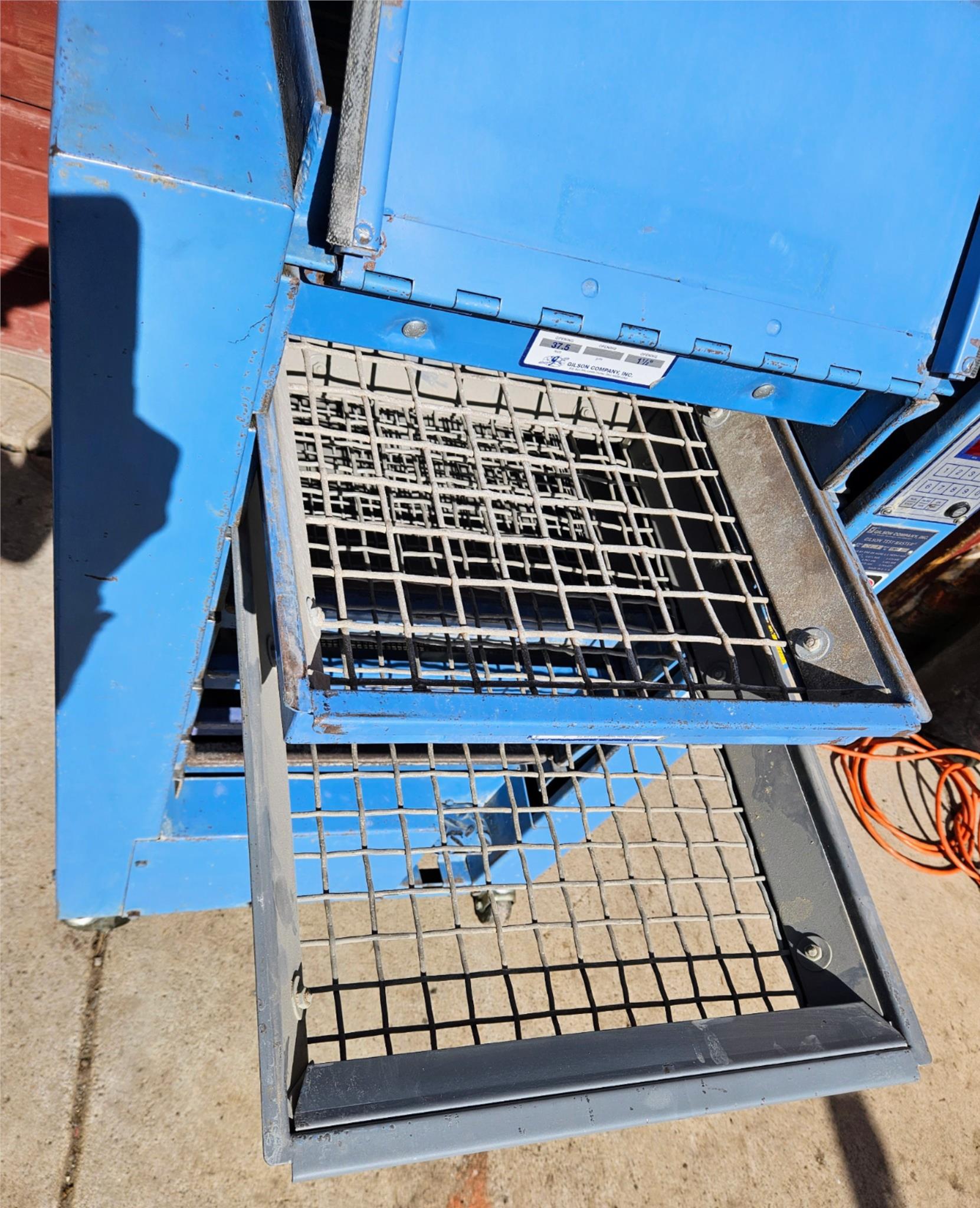

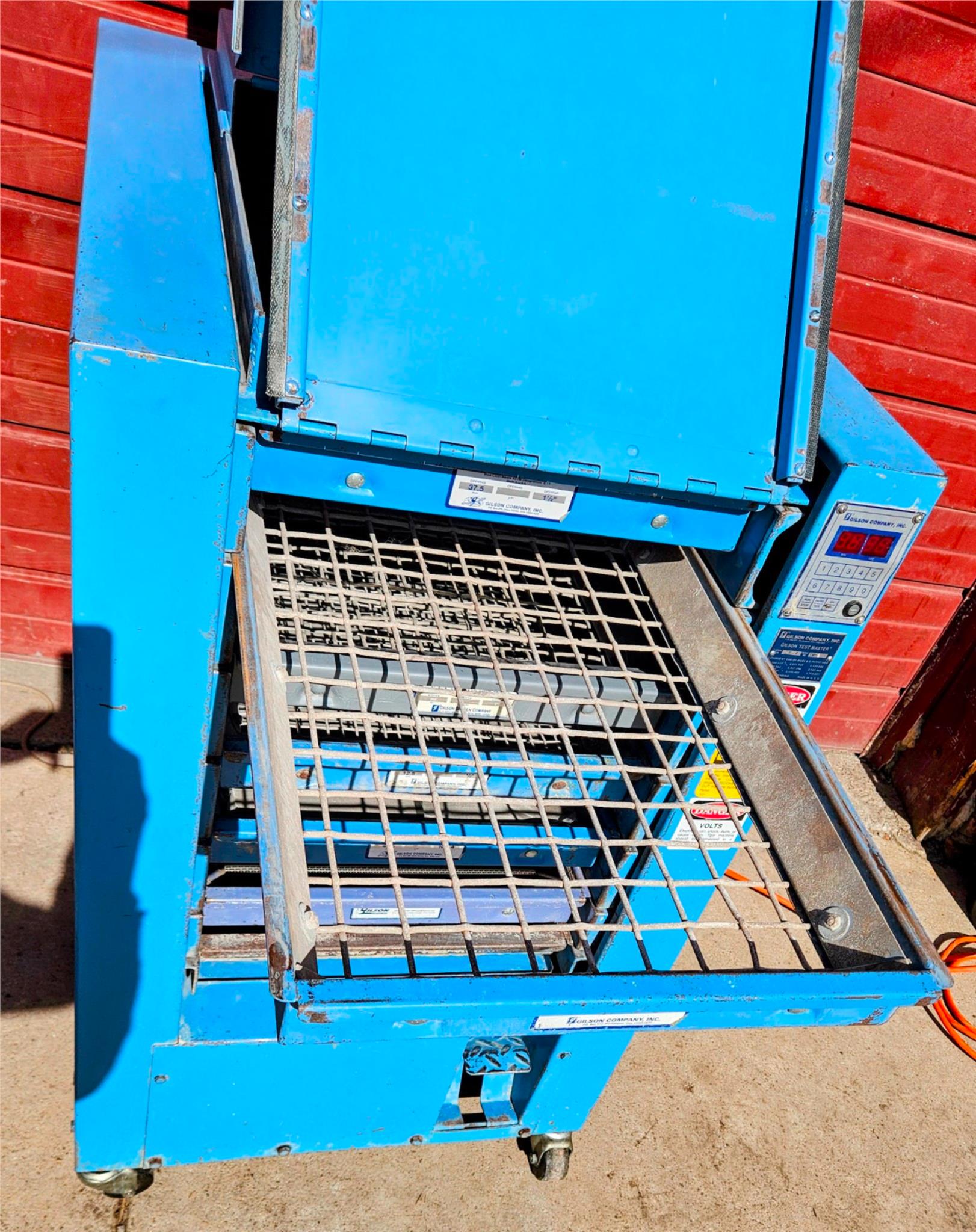

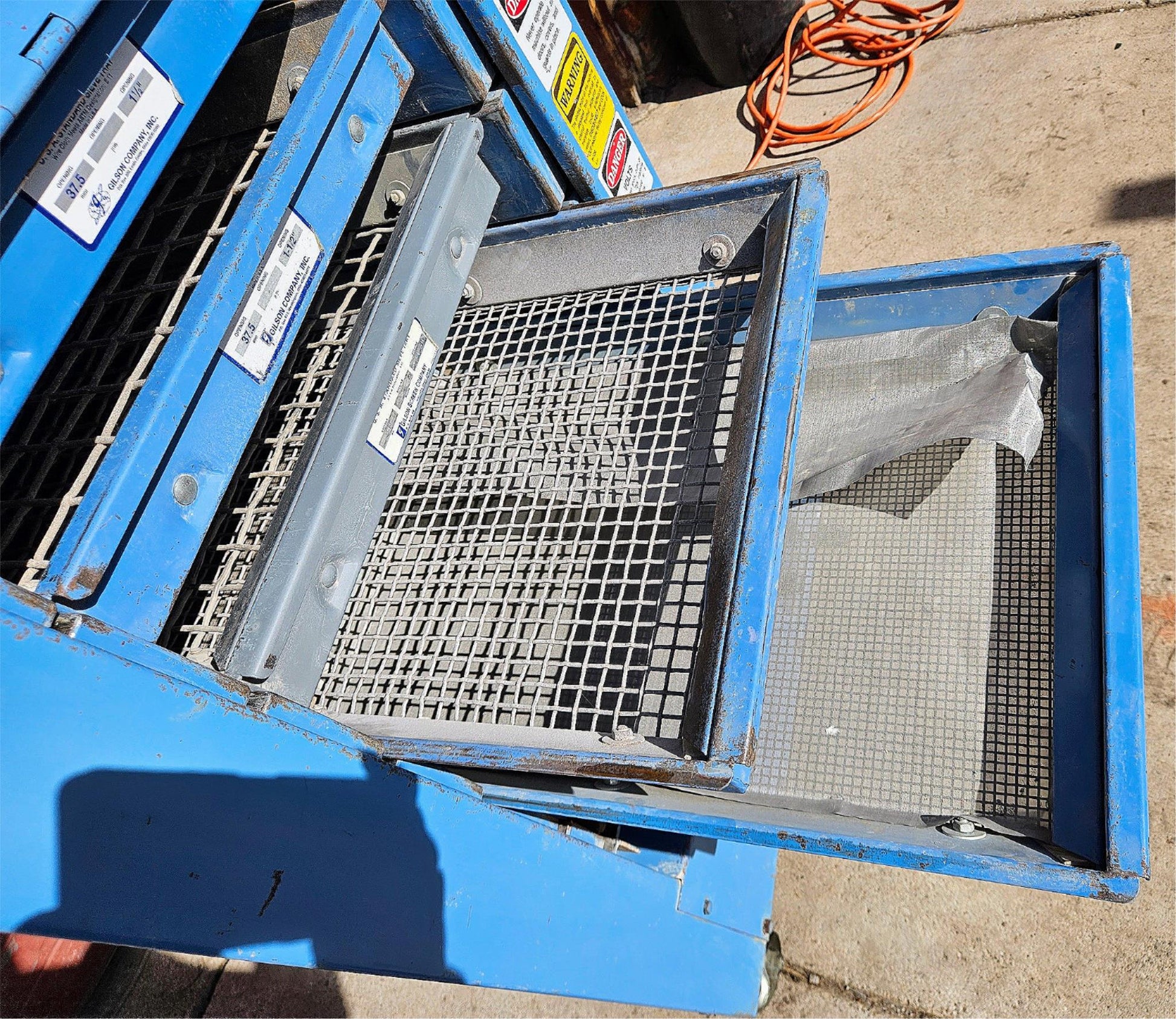

- Dimension of Trays 17.75 x 26.25 x 2.625in (451 x 667 x 67mm), WxDxH

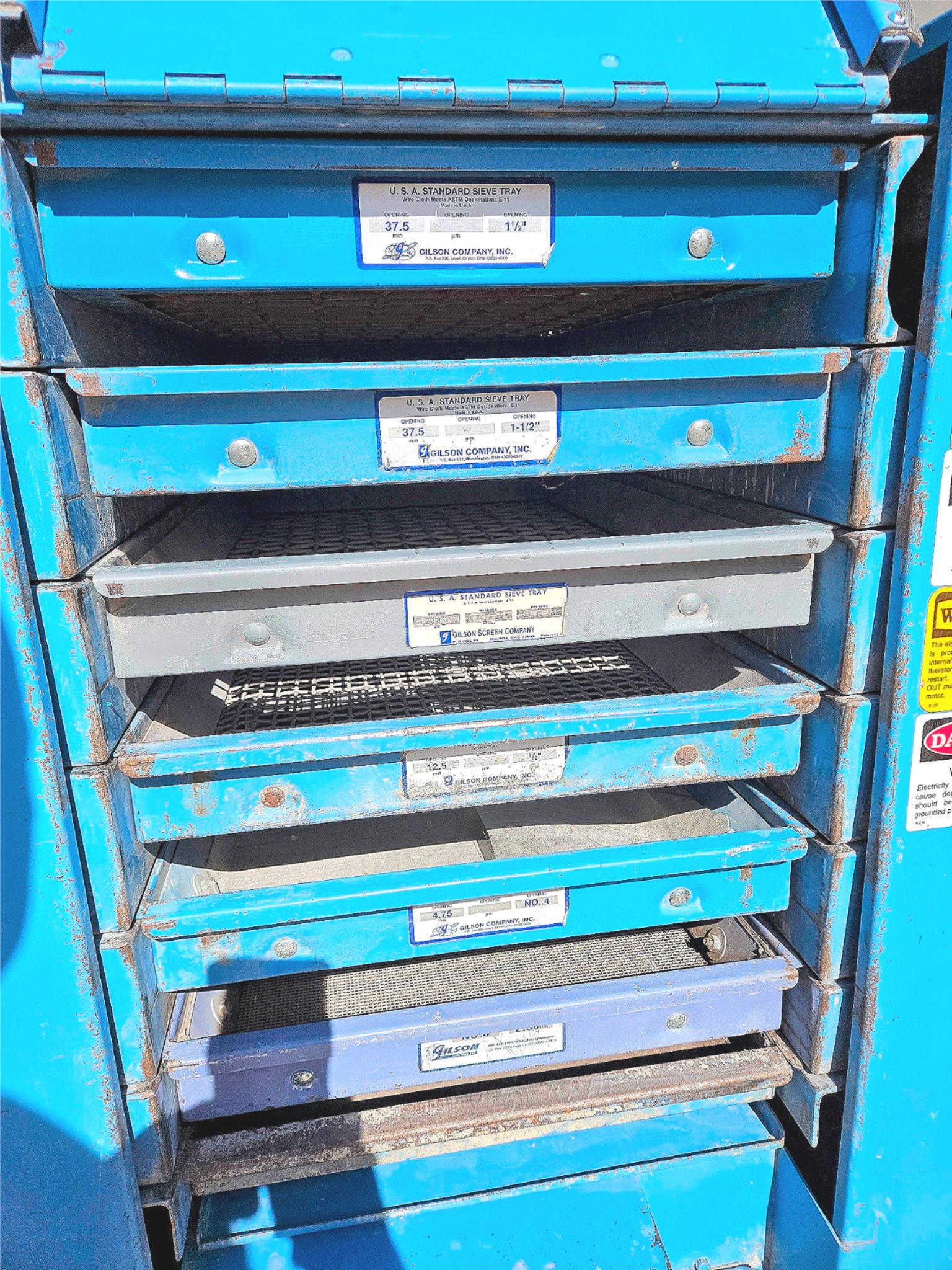

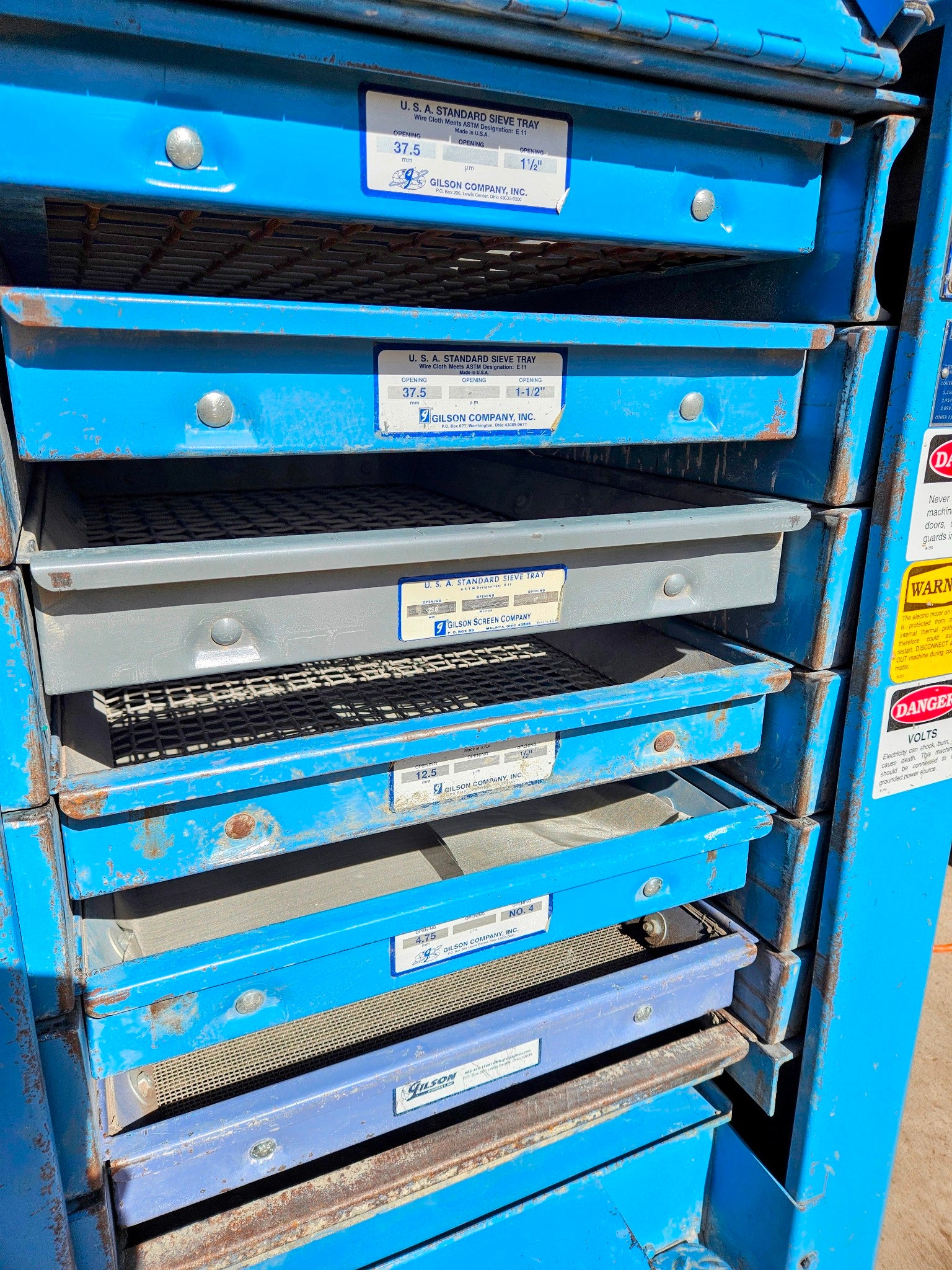

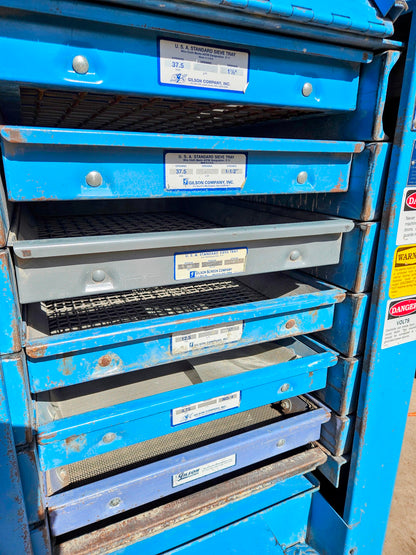

- Number of Trays: 7

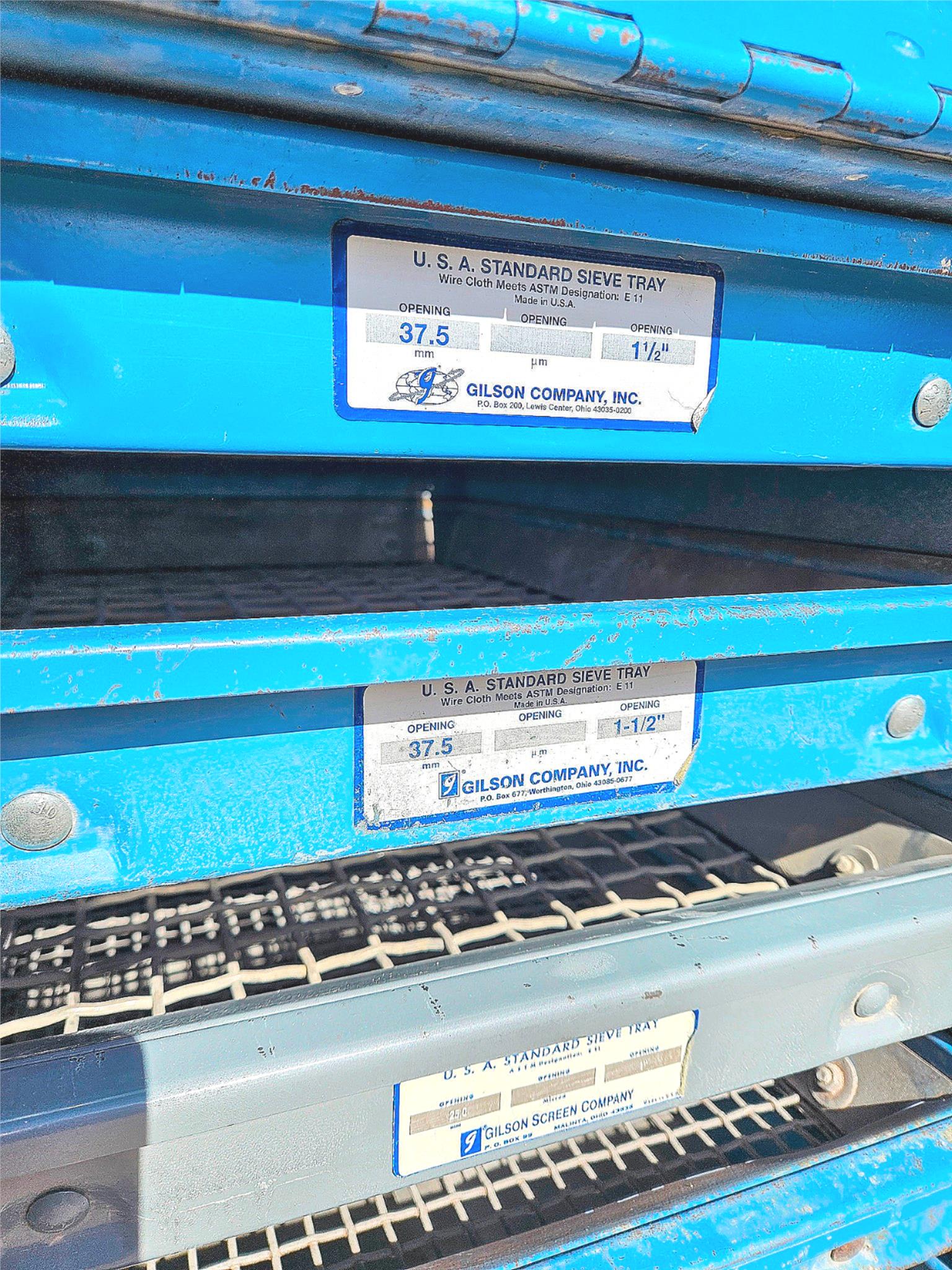

- Two Number 1.5 / 37.5mm Sieve Trays
- One Number 0.5 / 1.5mm Sieve Tray
- One Number 8 / 2.36mm Sieve Tray
- One Number 4 / 4.75mm Sieve Tray
- One Number 1 / 25mm Sieve Tray
- One Bottom Deposit Tray without Sieve

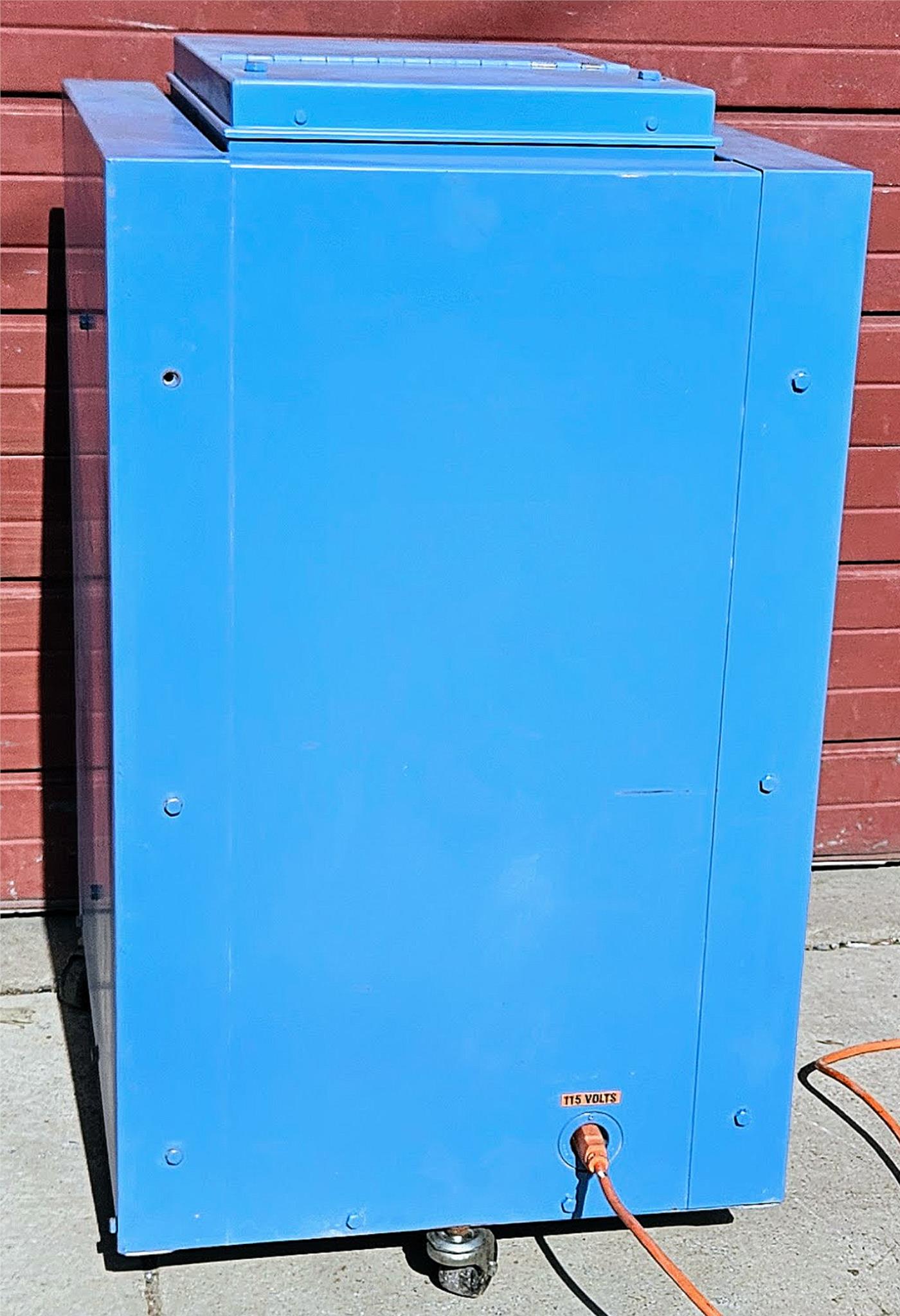

- Electrical requirements: 115 VAC
Gilson testing screens are ideal for particle size determinations on large samples of aggregate, slag, ores, and many other coarse materials. Batch sizes up to one cubic foot (0.028m³) or more can be processed into six fractions in as little as three to five minutes, depending on material type. Vibration and amplitude characteristics are fixed at optimum settings for mineral aggregates in the 4" (101mm) to No.4 (4.75mm) size range, but options and accessories are available to optimize machine performance when testing finer samples or special materials. The standard testing screen can be used to process material all the way down to No.200 (75µm) if less efficient separations are acceptable.
These testing screens are available in two variations of clamping mechanism: a manually-operated, screw-type clamping handle, which is more economical, but slightly more labor-intensive for continuous use; and, a quick-acting hydraulic pump system used to clamp the screen trays in place. Trays are quickly secured and released using the same single handle. This more efficient model is recommended for labs with a steady workload of particle size testing.

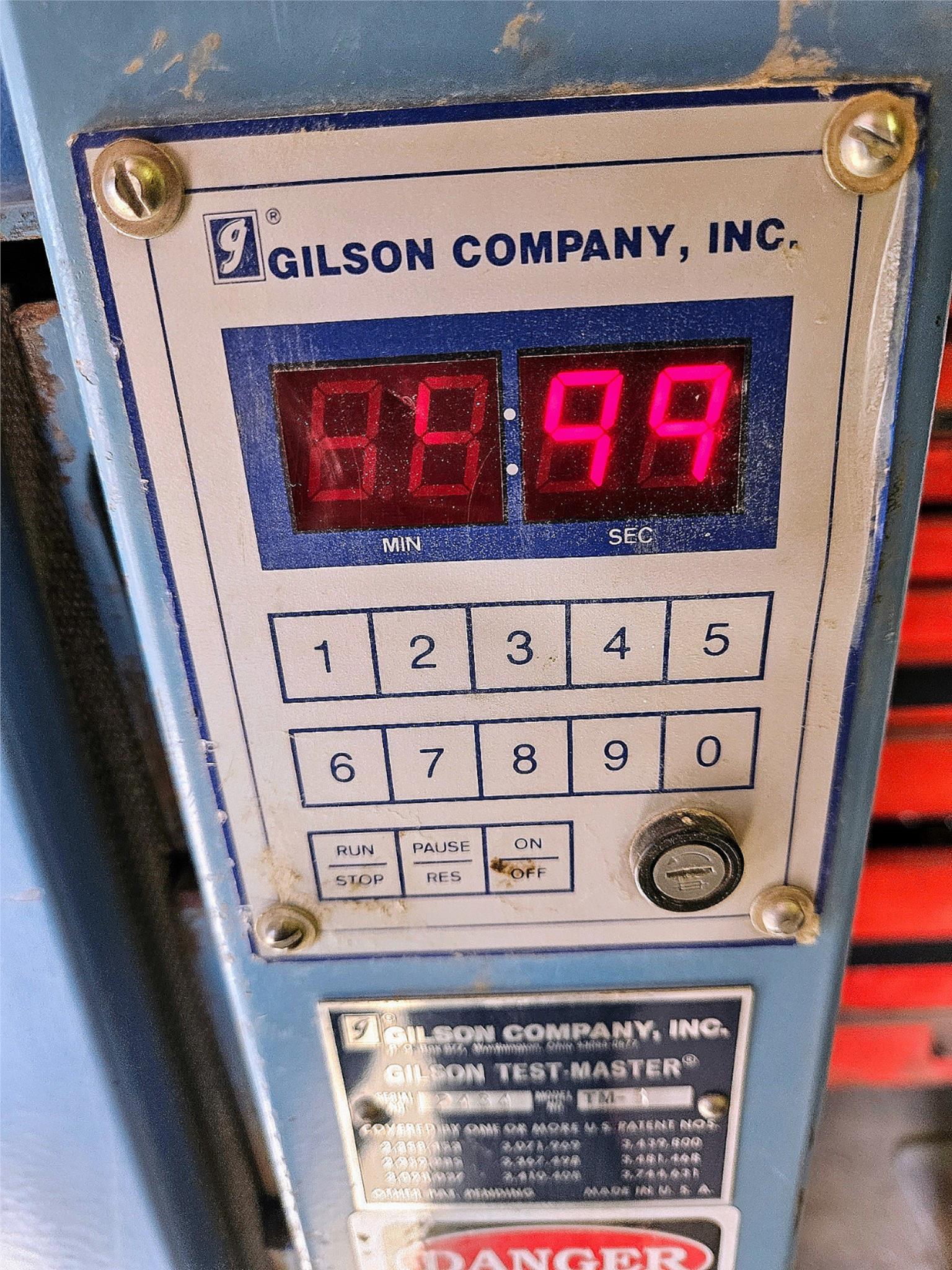

Both models use an enclosed drive mechanism for added safety. The powerful 1/2hp capacitor-type motor is operated through a starting switch with built-in overload protection. Gilson testing screens are designed to be mounted to a solid, rigid floor system. Securing with anchor bolts to a concrete floor is recommended. Dimensions for anchor bolt placement are available upon request. Overall Dimensions: 23" x 31" x 43" (584 x 787 x 1,092mm), W x D x H.
Gilson testing screens are sold without screen trays or dust pans, which need to be purchased separately for operation. Specify sizes when ordering. In both models, the dust pan may optionally be placed on the bottom shelf of the unit.
Screen Trays for the Testing Screens feature a generous 14.75" x 22.75" (375 x 578mm), 2.33ft³ (0.22m³) clear screen area. Optional dustpan configurations can be ordered for increased capacity, reduced dust output, or dispensing of fines directly into outside bag or container. Other accessories to facilitate sample handling, dust and noise control and separation performance are listed separately.
These models feature 6-tray slots and a bottom shelf, which allows for up to 6 trays and a dust pan to be used. Order screen trays and dust pans separately.
This unit weighs about 350 lbs.
Condition: This item is has been 100% tested and is working Perfectly, that is why we can offer a 90-DAY-WARRANTY.
FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WITH A DOCK OR A FORKLIFT TO UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (DOESN'T HAVE A DOCK or FORKLIFT or IF IT IS TO BE DELIVERED AT A RESIDENTIAL ADDRESS, FARM, CHURCH OR SCHOOL) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE.
Tiengo cuenta de SKYPE, conta te-me via el nombre: itibas usando SKYPE sin costo algun.
Thank you so much for checking our listing out, for over 20 years we have strived to offer the best customer satisfaction ever, I guess our feedback rating proves that, what better than that can we show!!!
COSMETIC NOTES: VERY GOOD cosmetic condition as can be seen in the pictures.
Stock # 251403
