VINTAGE NaCl SODIUM CHLORIDE PRISM & VACUUM MOUNT INFRARED SPECTROMETER FREESHIP

You are bidding on a Vintage Condition NaCl SODIUM CHLORIDE PRISM & VACUUM MOUNT INFRARED SPECTROMETER as can be seen in the pictures.

 Make sure to check online information on this  by GOOGLING the following link: //utsic.utoronto.ca/spectroscopy-beyond-the-visible-spectrum-the-sodium-chloride-prism/

Information in Italics taken from the WEB below:

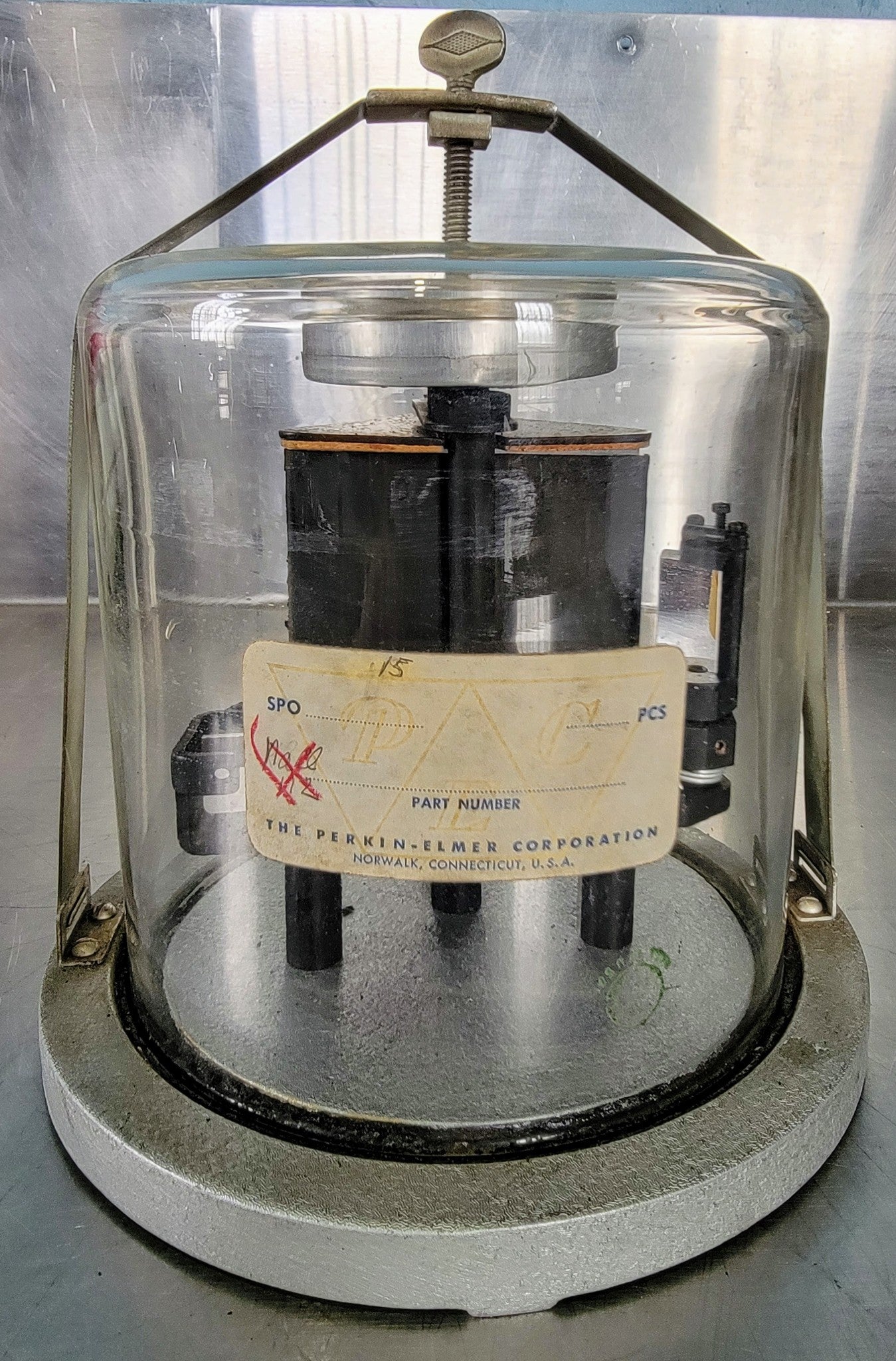

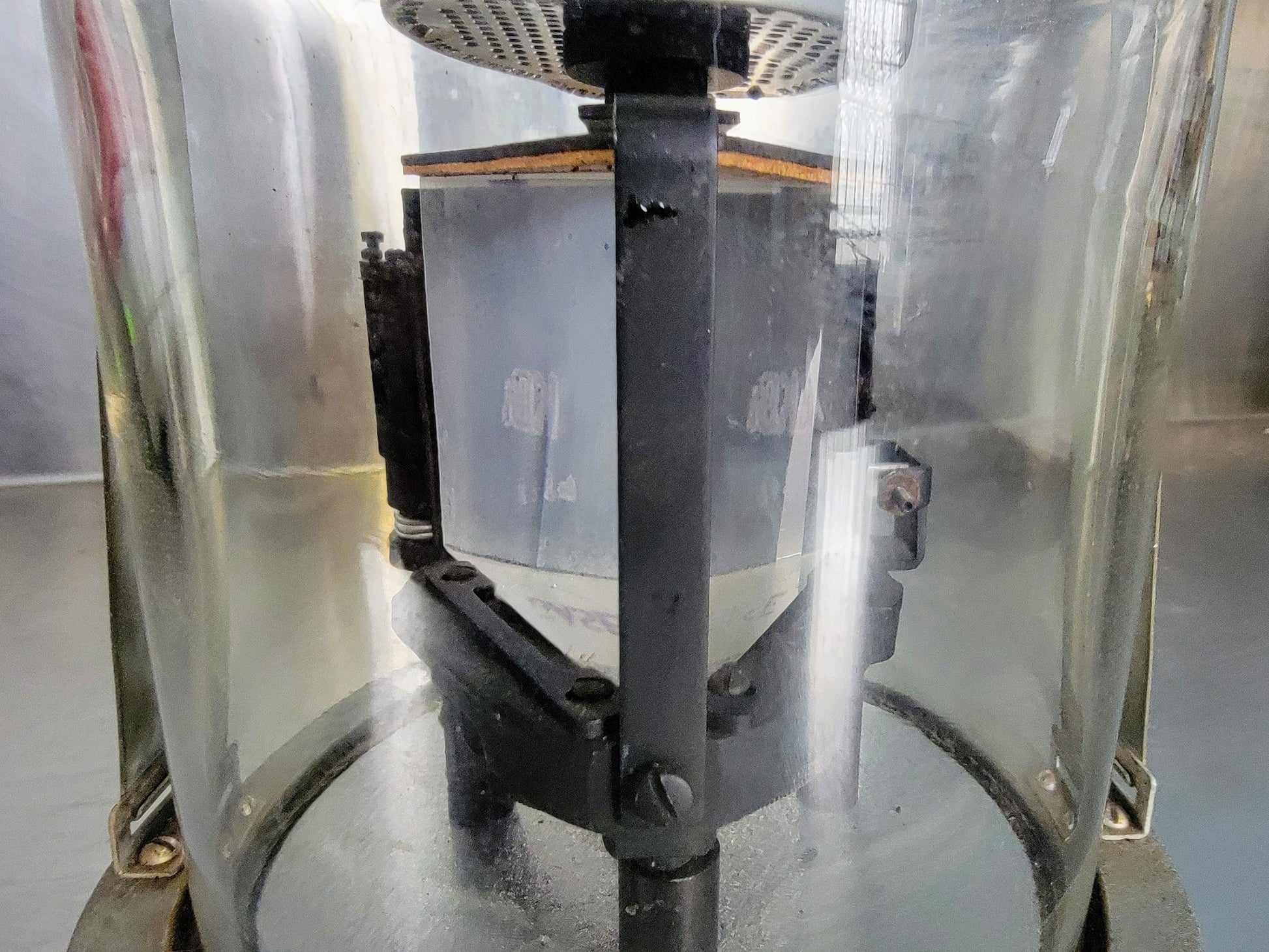

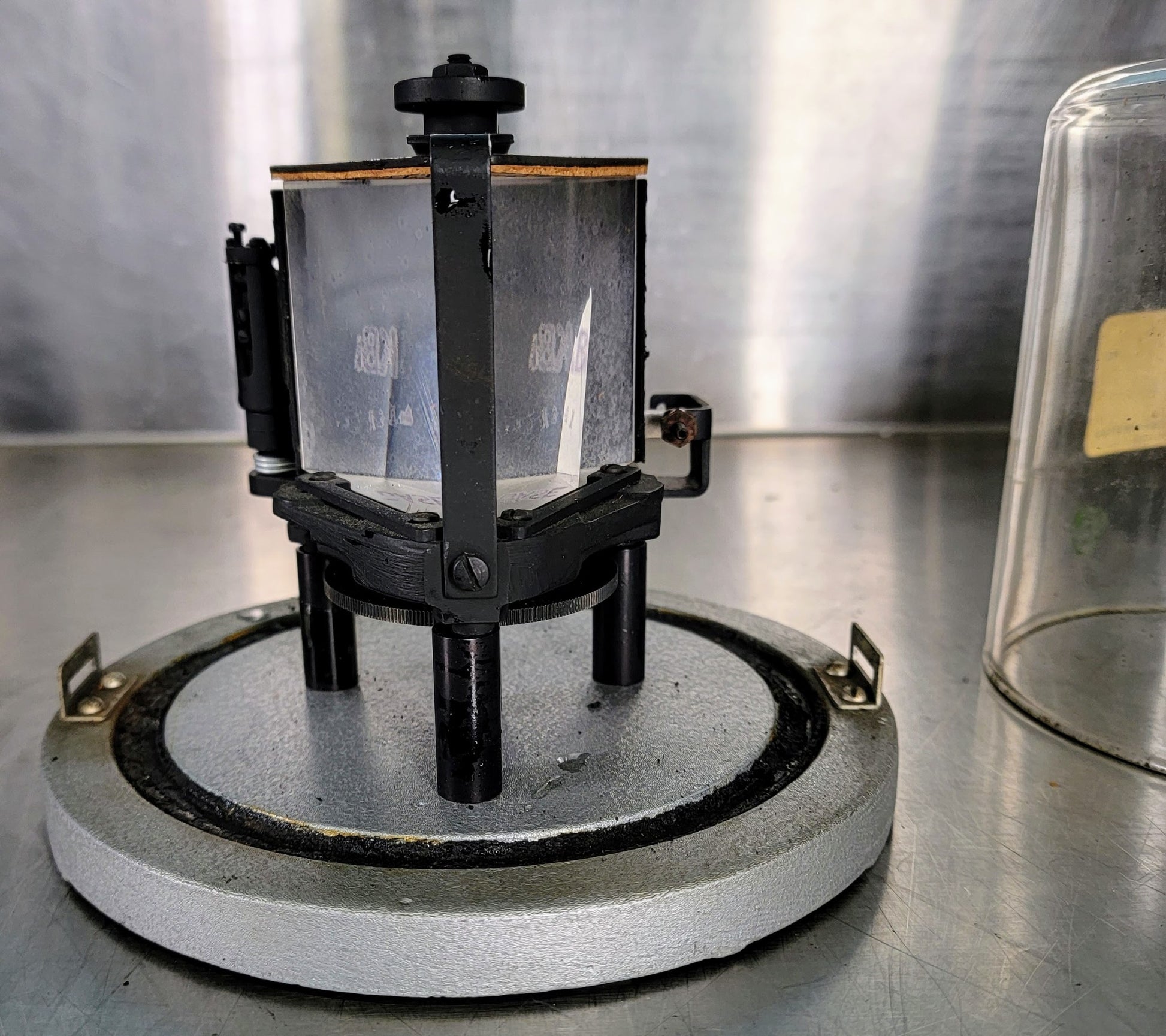

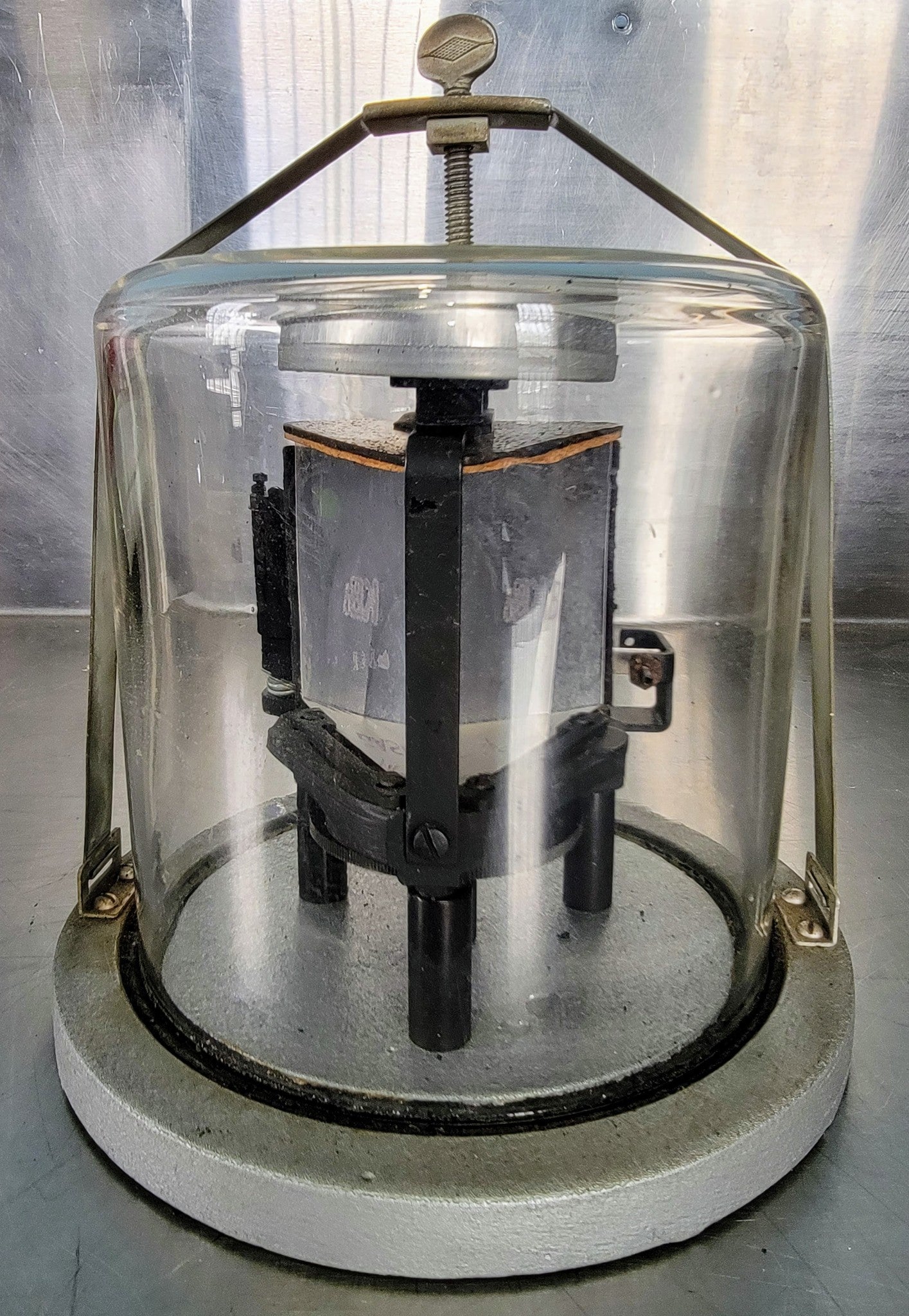

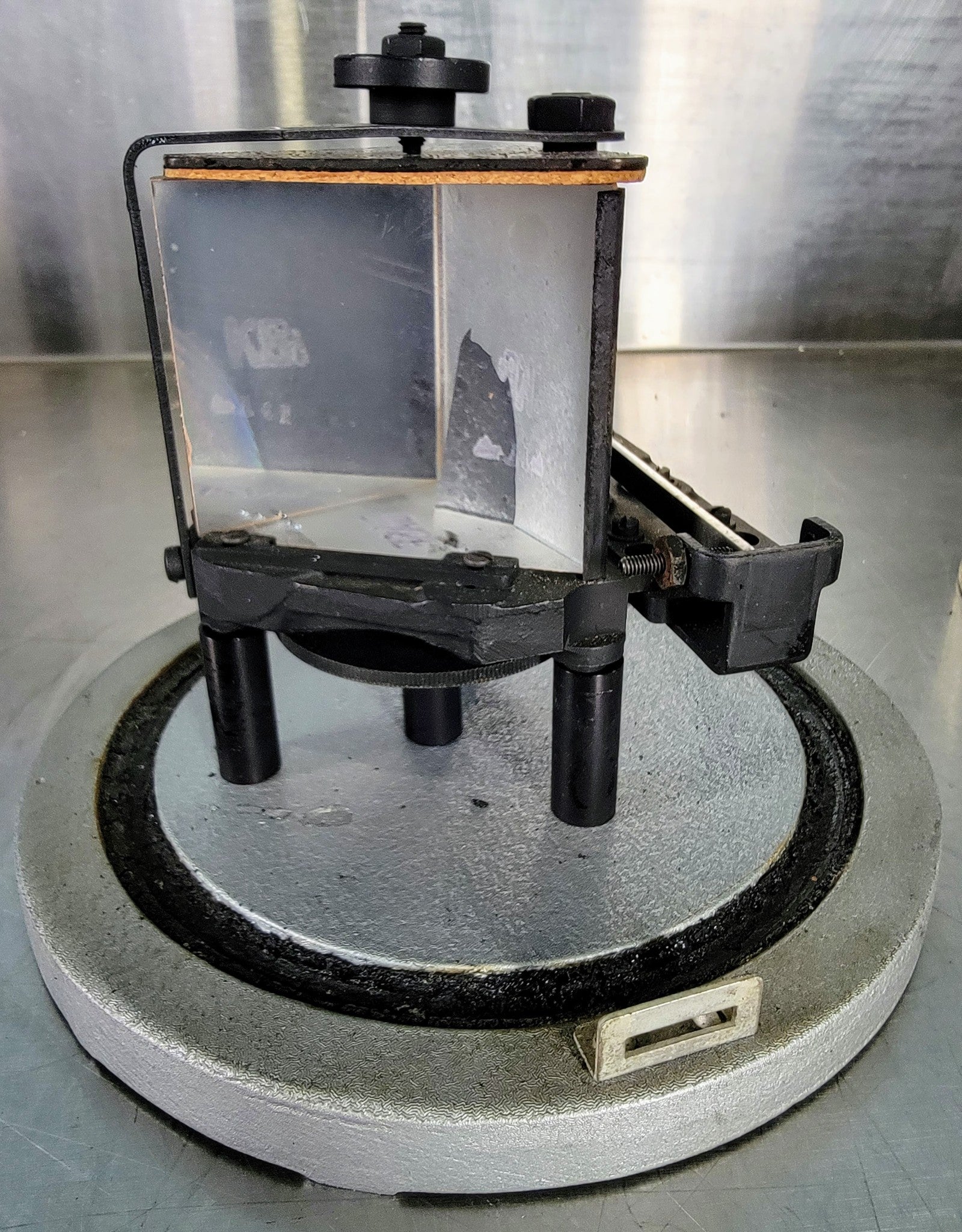

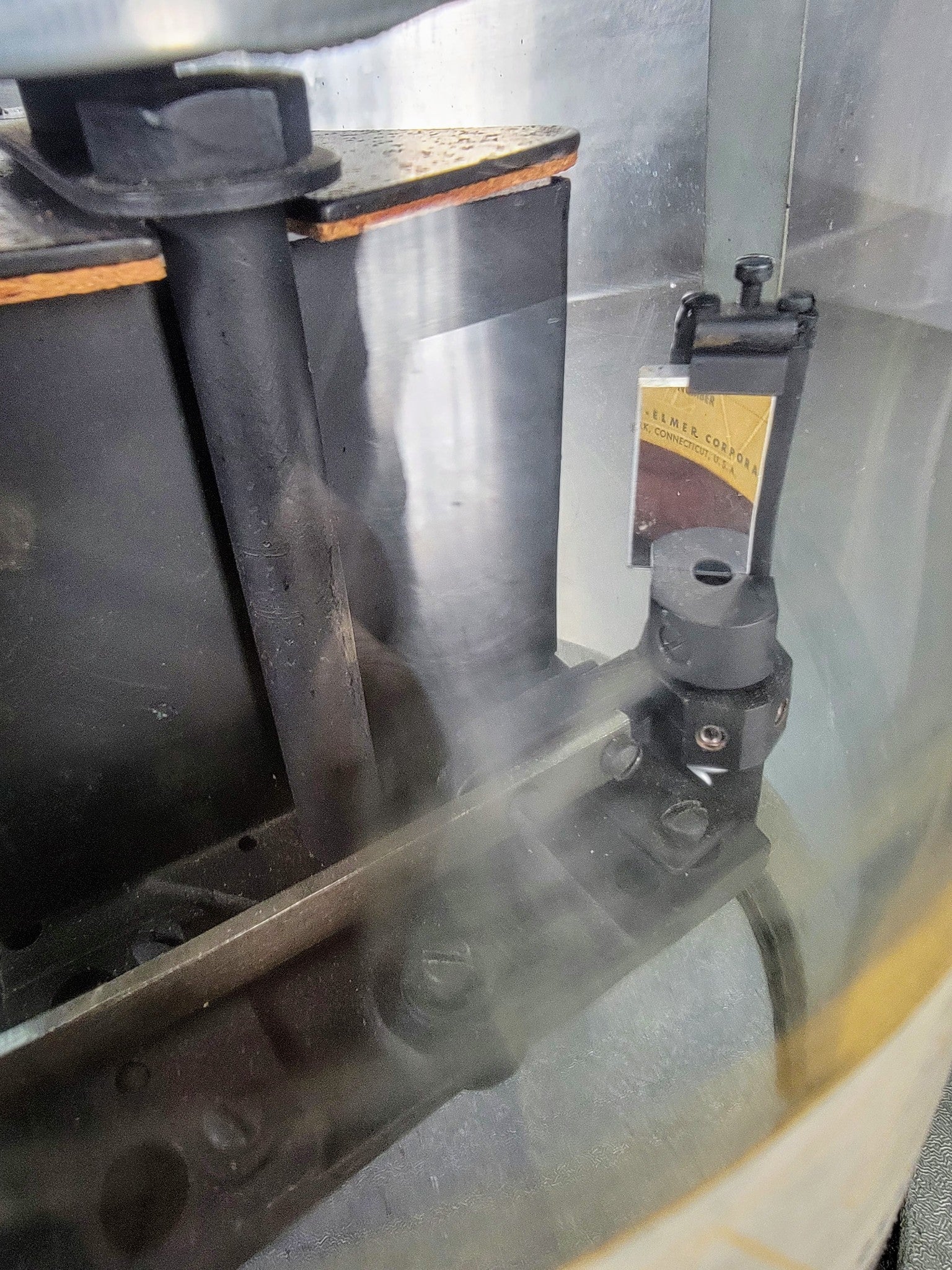

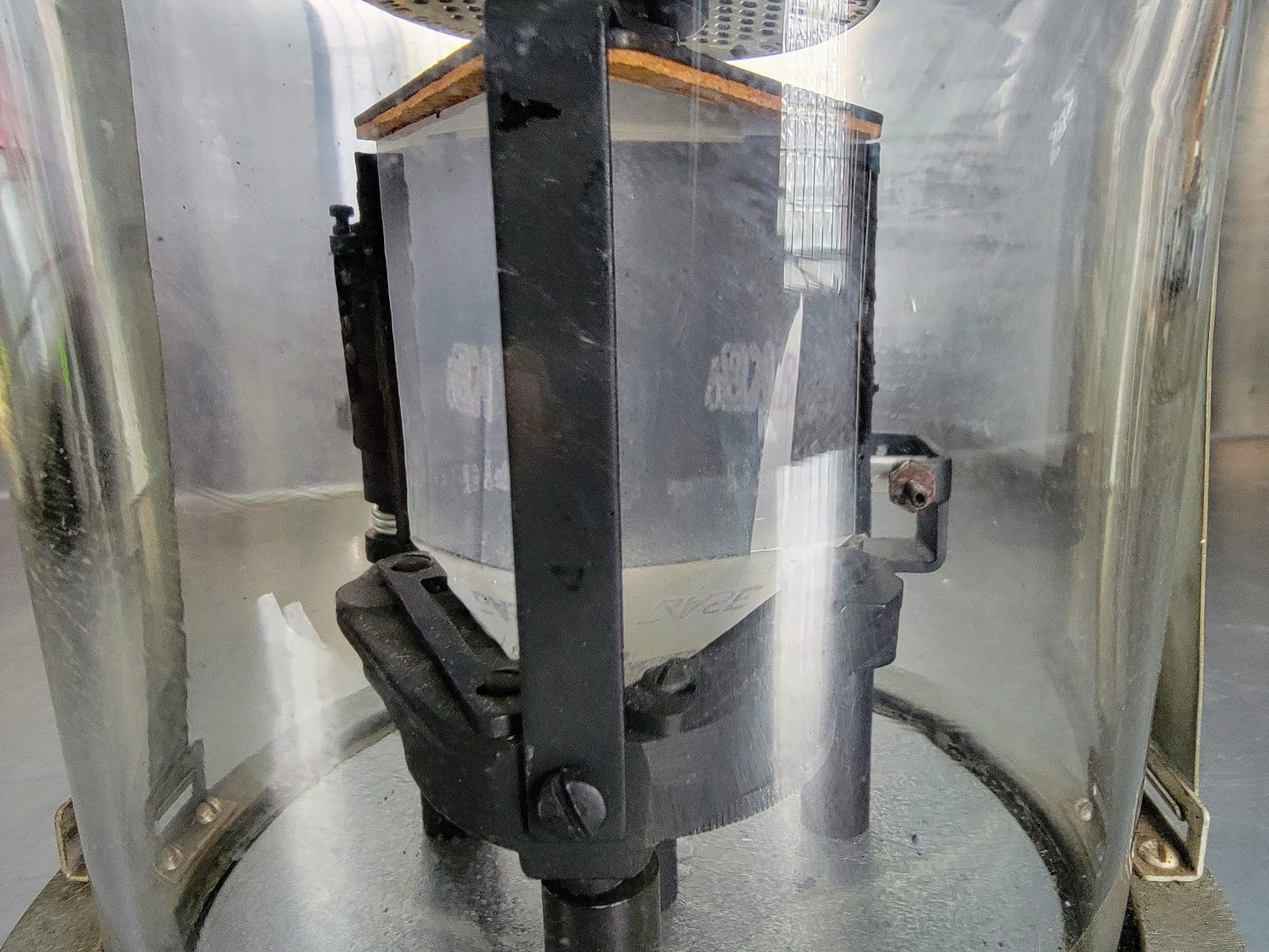

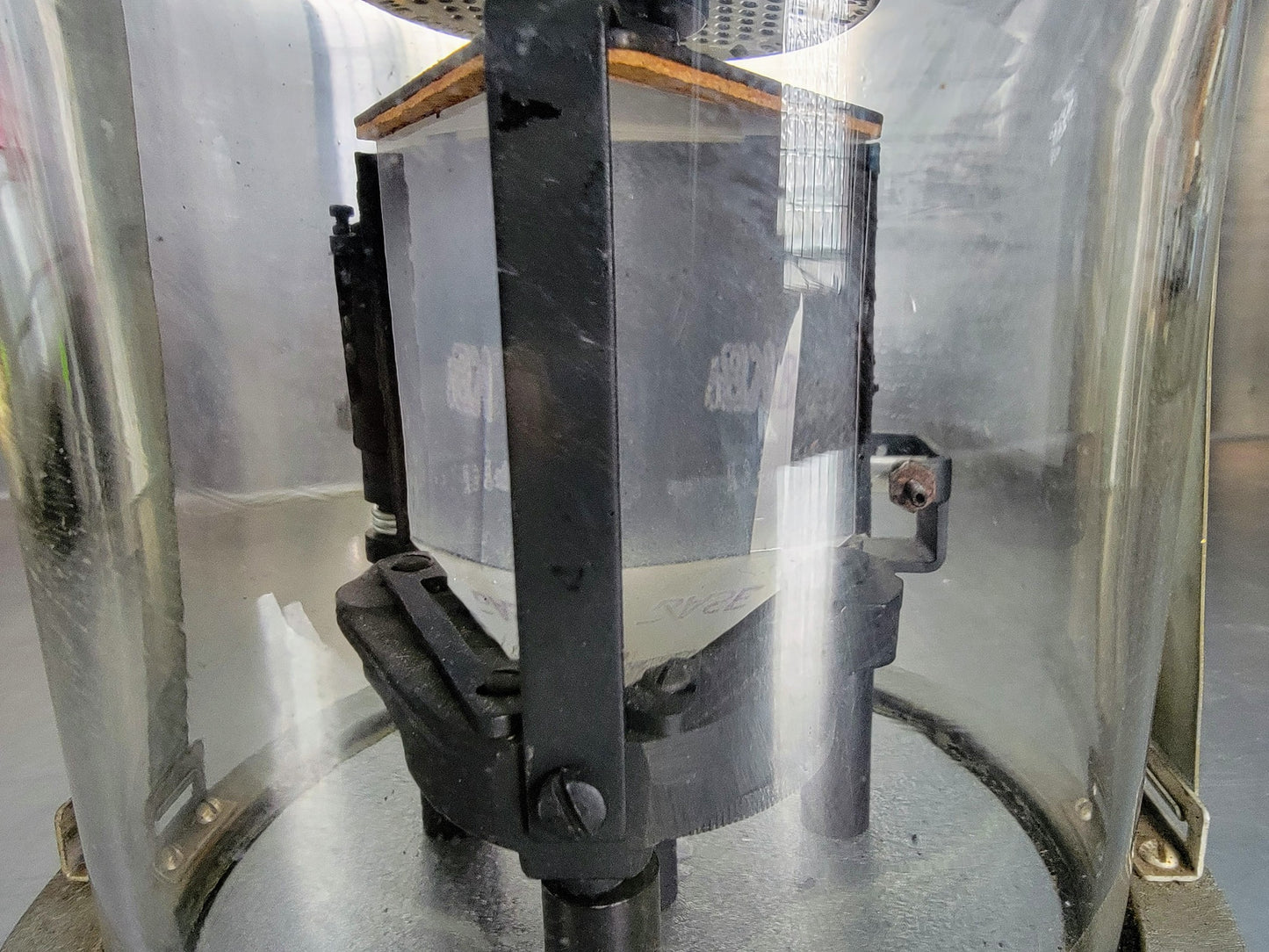

"3 inch NaCl SODIUM CHLORIDE PRISM in a vacuum glass dome and mount, with mirror, Approximately 9 inches x 7 inches.

Weighs about 10 lbs. Used for spectroscopy at a University physics lab.

PERKIN ELMER Vintage SODIUM CHLORIDE PRISM 127-1157 Scientific Test Instrument

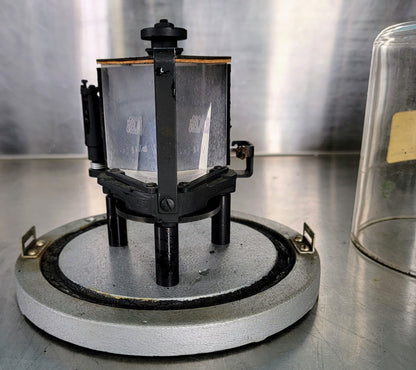

 is a triangular prism made from a colourless, translucent substance which came to us from the Physics Department. It stands with one of its triangular faces on a stand affixed to a round wooden base. A removable glass lid encloses the instrument.

 Few scientific instruments are as famous as the glass triangular prism. Experiments using a prism to refract light, which flourished beginning in the early modern period, have been repeated in countless classrooms and museum exhibits, and are even referenced on a Pink Floyd album cover.

 Isaac Newton used two such prisms in the experimentum crucis described in his Opticks (1704): one to refract white light and produce the colours of the rainbow, and another to recombine the colours into white light. Newton’s experiment demonstrated that the prism doesn’t transform the white light into coloured light; rather, it reveals the colours of which white light is composed. This is ultimately the basis of spectroscopy in both chemistry and astronomy (although modern spectroscopic analysis generally uses a grate to diffract white light rather than a prism to refract it). Nineteenth-century chemists found that substances emit characteristic variations on the visible light spectrum when heated. When astronomers compared these spectra to those emitted by distant objects in space, they could determine which chemical elements were present in the bodies they observed.

 used with a PerkinElmer Model 12 infrared spectrometer. (The model number I had copied down belongs to the spectrometer, not the prism itself, so they were evidently meant to be used together.) These articles identified it as a prism made not of glass, but of sodium chloride (NaCl) – salt. If I had known about NaCl prisms, the glass lid would have been a dead giveaway: since water dissolves salt, these prisms need to be covered when they’re not in use. Like their glass forebears, NaCl prisms are used to make visible what is normally invisible, but the target in this case is not the colours that compose white light.

By the mid-twentieth century, salt crystals had become an crucial element in experiments that allowed spectroscopy to be extended beyond the visible spectrum. A crystal of rock salt will absorb visible light rather than refracting it, which makes it useless for spectroscopy as we usually think of it. But rock salt doesn’t absorb infrared light, that is, light with a wavelength slightly greater than the red end of the visible spectrum. This means that NaCl lenses can be used to filter out visible light from infrared, and NaCl prisms can be used to refract infrared energy and produce a characteristic spectrum, just as glass prisms do for visible light. In short experiments with NaCl prisms allowed spectroscopy to be extended to points on the electromagnetic spectrum beyond visible light, an application that optical researchers in the seventeenth century could scarcely have imagined.

Chemical discoveries: prisms and infrared spectroscopy at the University of Toronto

Once I had determined what the instrument was, I turned my attention to its provenance. My research led mostly to dead ends; I found no record of any department in the university purchasing a NaCl prism. Again, scientific journals held the key. In 1958, two scholars from the Department of Chemistry described their experiments involving a PerkinElmer Model 12 spectrometer and a NaCl prism in The Journal of Chemical Physics. A graduate student named Ken Cashion and his supervisor Dr. John Polanyi devised an apparatus that used the prism to refract the infrared energy emitted during a chemical reaction between hydrogen and chlorine gas. This reaction produces molecules of hydrogen chloride (HCl) and, by measuring the infrared emissions, these chemists were able to detect how the new HCl molecules were moving. Dr. Polanyi, now an emeritus professor, kindly provided this picture of Ken Cashion sitting operating the apparatus they constructed for these experiments.

According to the display, these experiments demonstrated that such a chemical reaction can produce stable molecules, which is crucial for certain microorganisms that bind with atmospheric nitrogen. The sodium chloride prism, then, has helped chemists to understand not only how inanimate substances react, but also how living organisms interact with their chemical environment. While the exact provenance of the NaCl prism in our collection remains unclear, at least we know what it represents in the history of science at the University of Toronto.

The experiments of Cashion, Polanyi and Allen were by no means as simple as shining a pencil of light through a prism. The PerkinElmer infrared spectrometer is an imposing instrument which requires much more expertise than Newton’s experimentum crucis. Yet each of these discoveries is a manifestation of the power of a simple geometric shape, the triangular prism. The history of prism experiments in the twentieth century lends further support to the sentiments of Robert Grosseteste, a medieval scholar of mathematics and optics, who claimed that “the diligent investigator of natural phenomena can give the causes of all natural effects . . . by the rules nad roots and foundations given from the power of geometry.” (Quoted in Amelia Carolina Sparavigna, “Reflection and Refraction in Robert Grosseteste’s De Lineis, Angulis et Figuris,” arXiv e-prints, History and Philosophy of Physics [2013]: 11.) Chemists in the twentieth century presumably didn’t share Grosseteste’s optimism about the power of geometry alone to reveal nature’s secrets, but they did not lose sight of the power of a geometric shape to make the invisible visible.

Inside a vacuum glass dome and mount, with mirror, 9 inches x 7 inches. Weighs about 10 lbs. Used for spectroscopy at a University physics lab.

PERKIN ELMER Vintage SODIUM CHLORIDE PRISM 127-1157 Scientific Test Instrument Vacuum mount"

Stock # 221003
