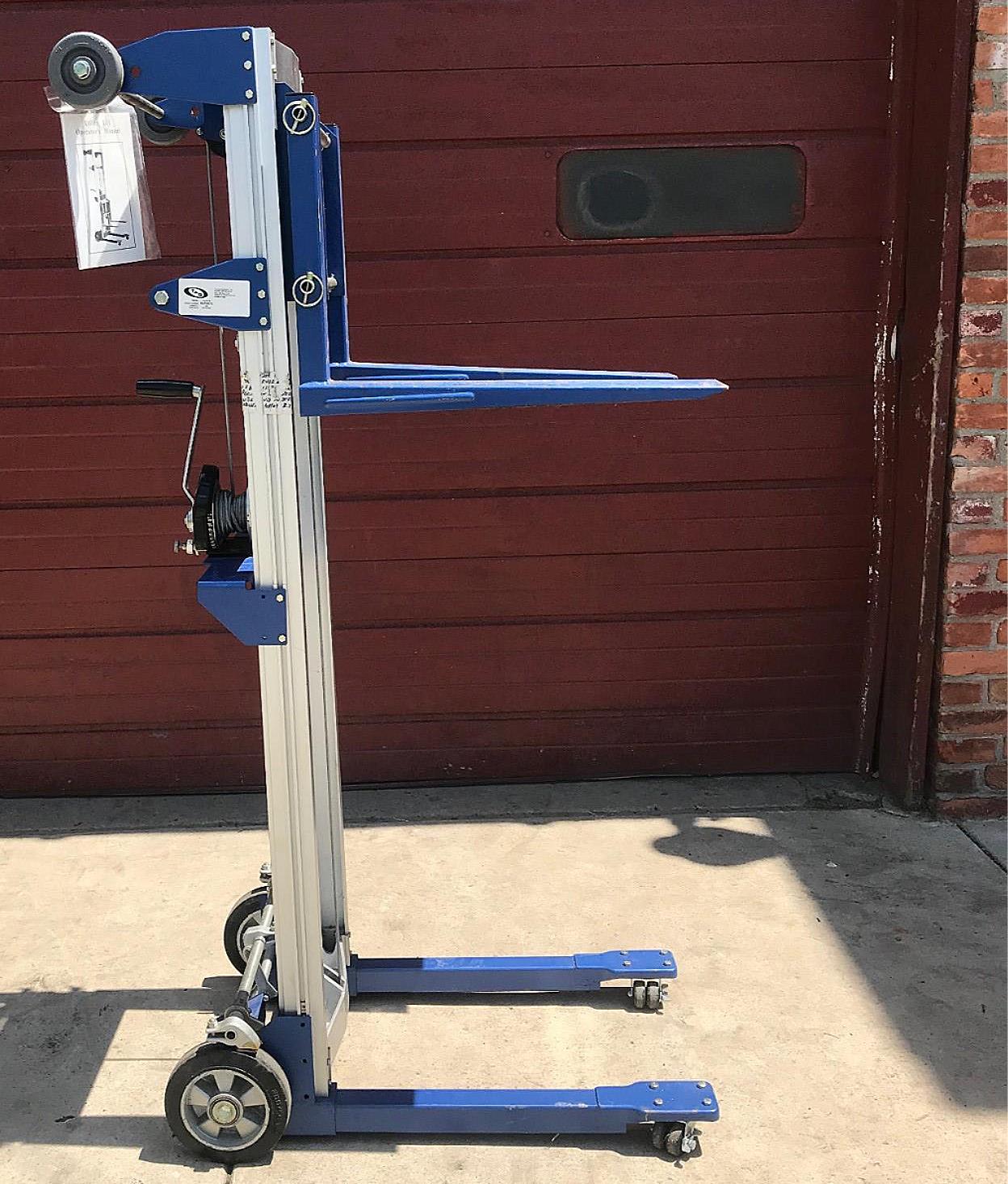

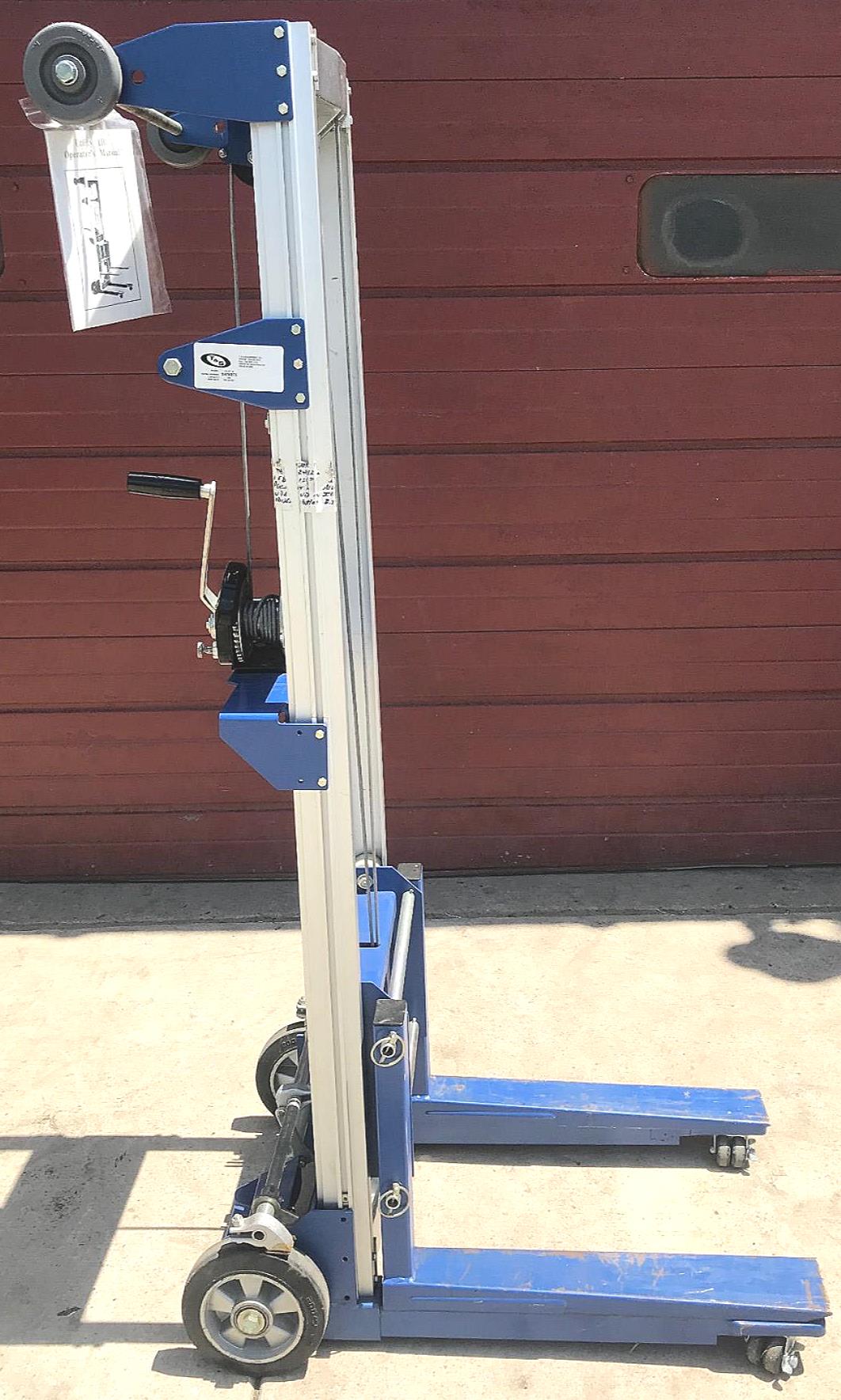

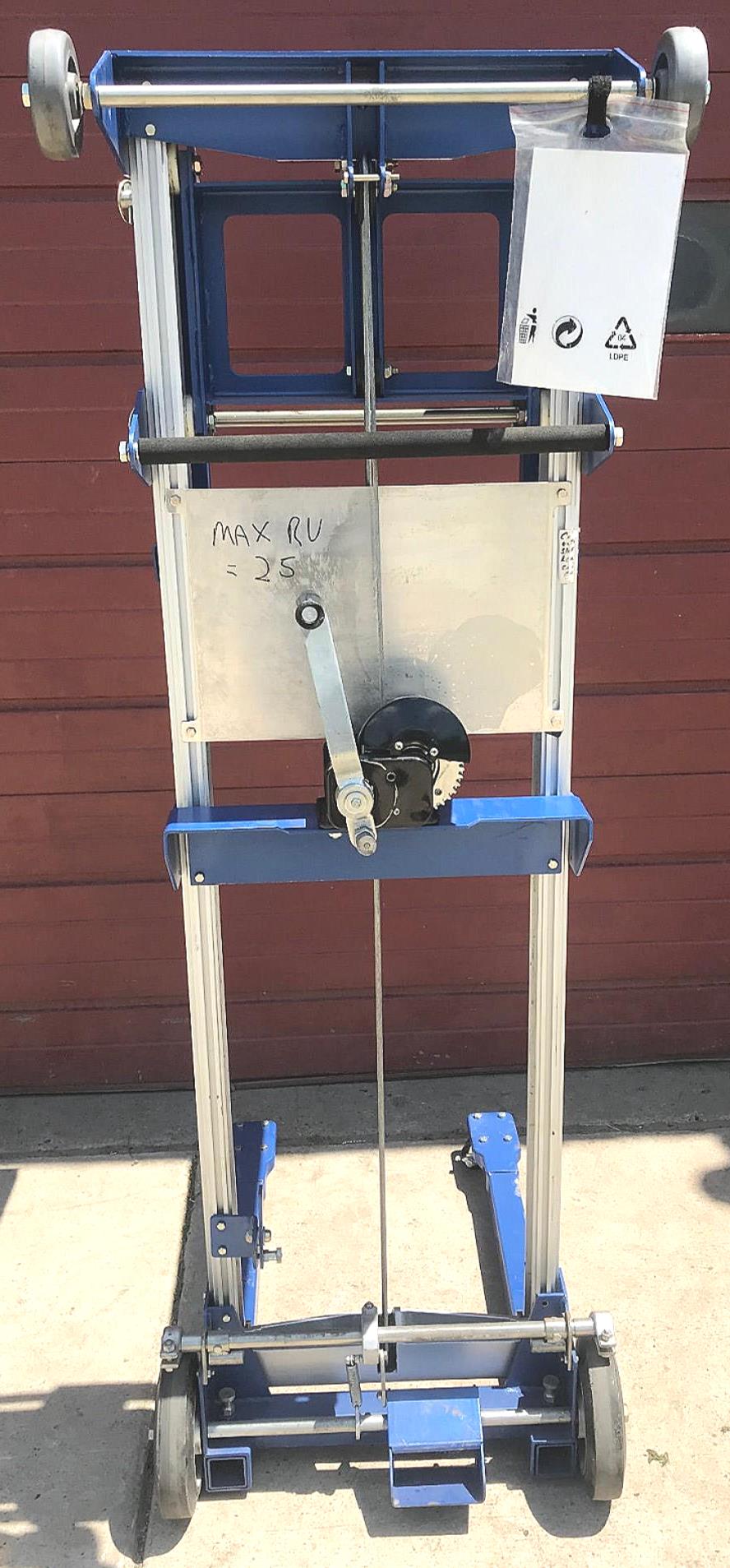

VESTIL T&S A-LIFT-R FIXED STRADDLE HAND WINCH LIFT MANUAL FORKLIFT FREE SHIPPING

Product features

Lightweight portable lifts are great for hundreds of applications

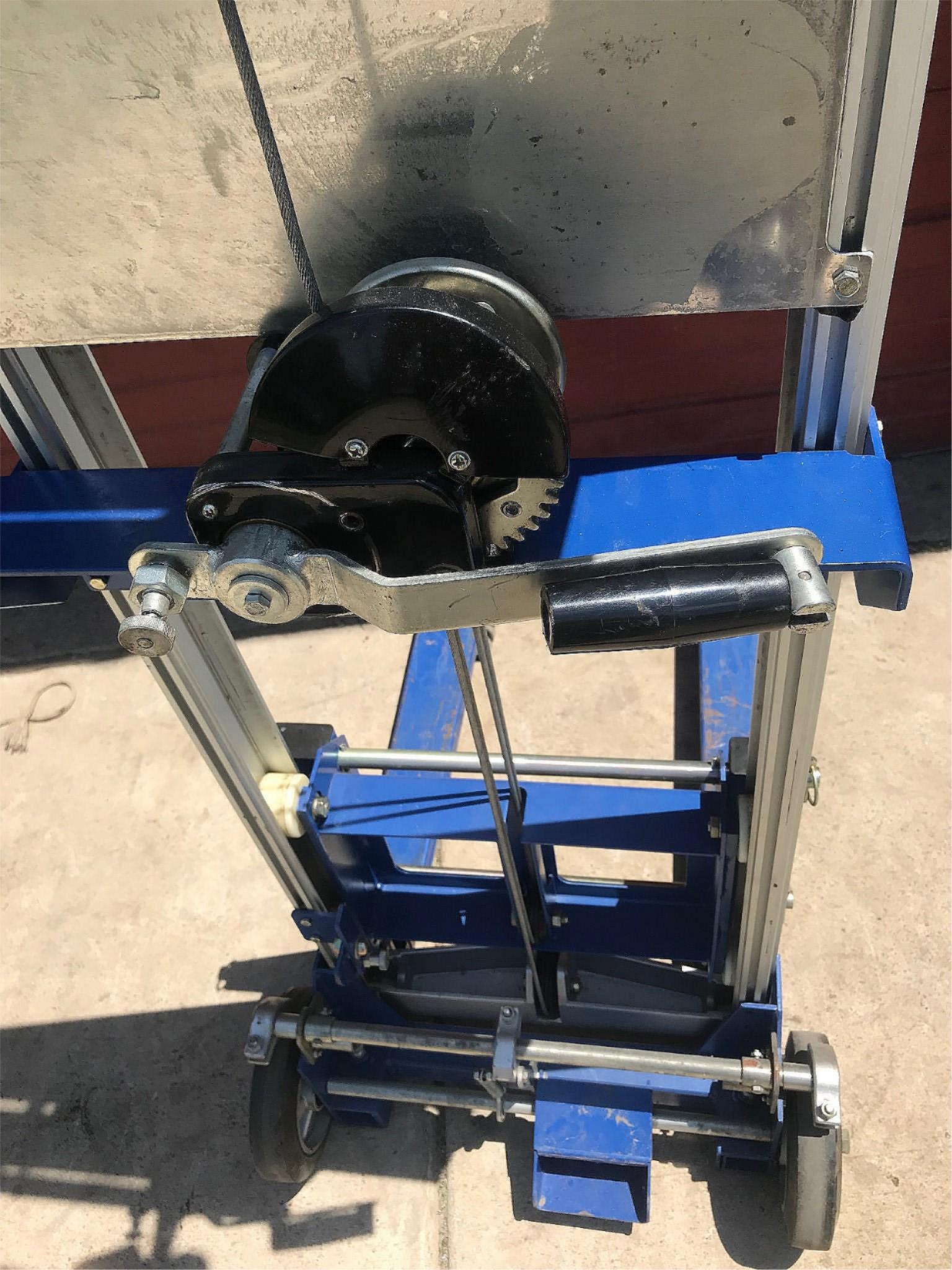

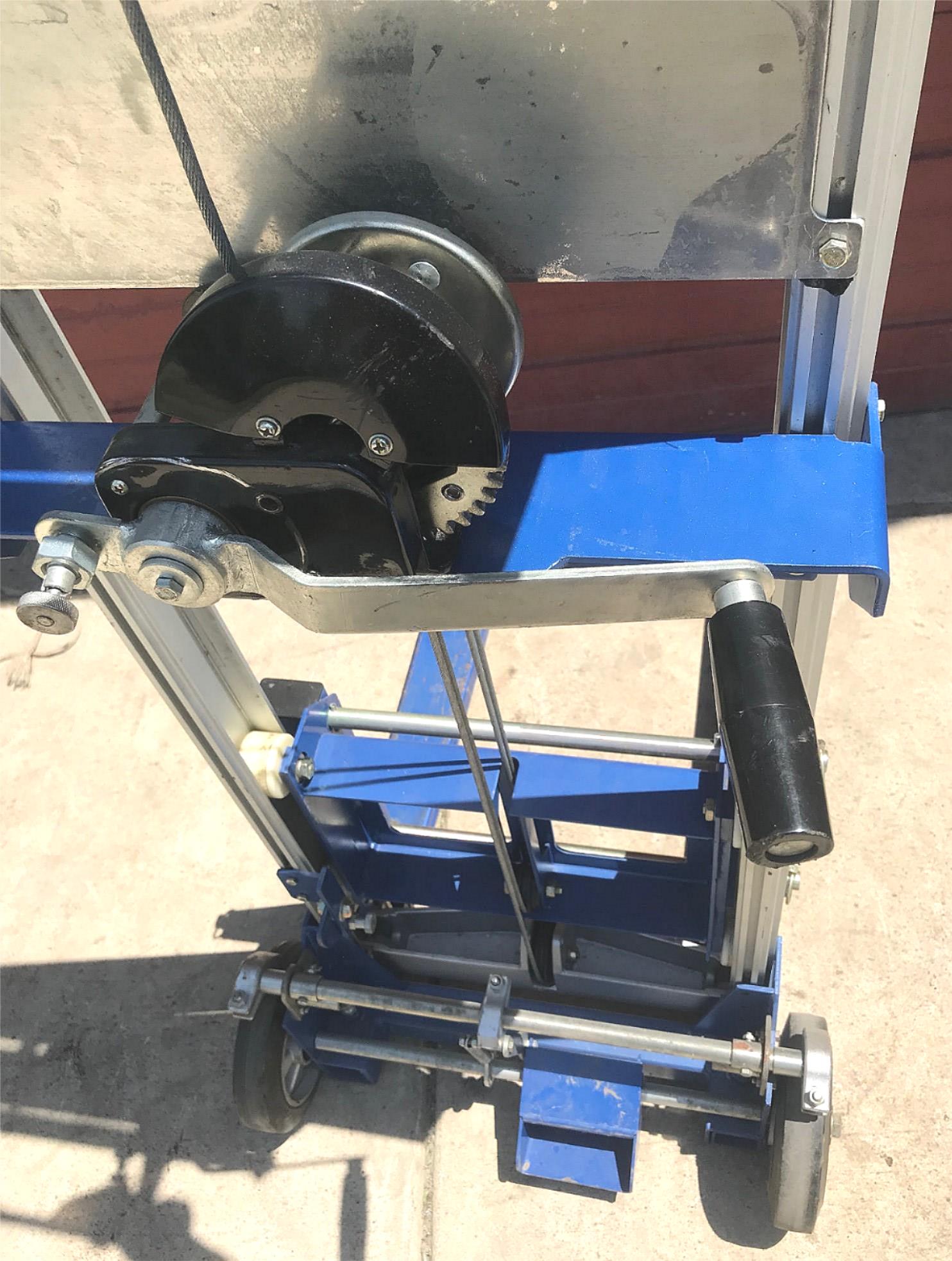

Manual cable winch easily raises and lowers forks

Counterbalance weight design keeps unit from tipping with heavy loads

Hold-down device secures carriage during transport

Product description

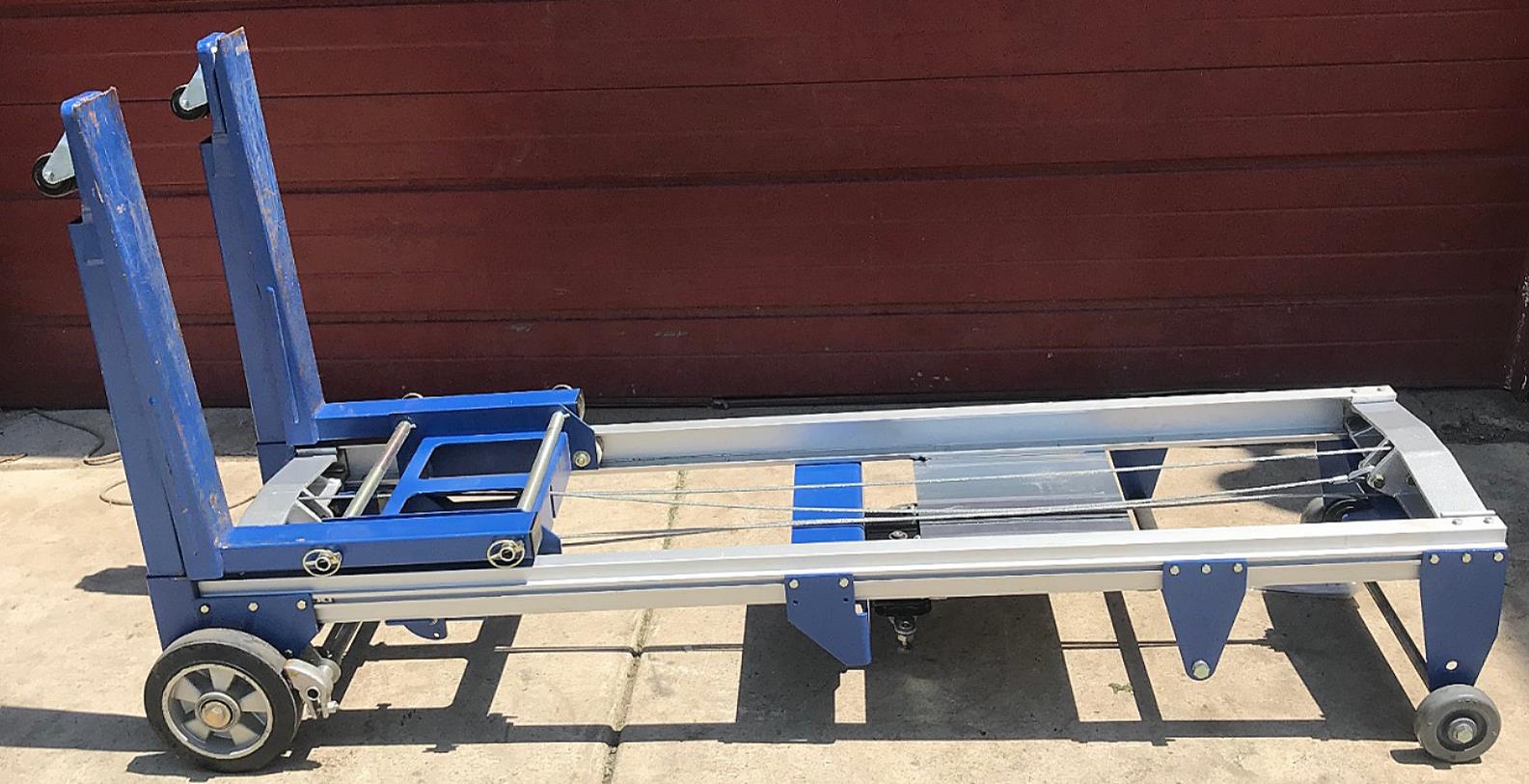

The Vestil A-LIFT-R standard hand winch lift truck can be used to transport a pallet of goods, and it has a steel and aluminum frame, a hand-crank winch, six wheels, and two steel forks that can be raised or lowered to an optimal height for loading or unloading. The hand-crank winch has a reversible handle that can be used to raise or lower the forks by 1 inch with each complete revolution. A pivoting latch secures the fork carriage for transport. The forks can be inverted to adjust the service range. The two front wheels measure 2 inches in diameter and swivel for maneuverability. The two rear wheels measure 8 inches in diameter. A foot brake keeps the lift truck from rolling. Two loading wheels near the top of the frame allow the lift truck to be loaded into a truck bed for transport. This material lift has a load capacity of 500 lb., weighs 136 lb., and measures 68 x 24 x 35 inches (H x W x D). (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) It has a service range of 23-1/2 to 68-7/8 inches high with the forks up and 3-1/2 to 47-1/4 inches high with the forks down. Each fork measures 1-3/4 x 4 x 22 inches (H x W x D). The width between the forks is 13 inches. The outside fork width is 21-1/2 inches. This product is intended for use in professional and industrial environments.

Material lifts typically comprise a vertical metal frame and two forks that can support a pallet of goods and that can be raised or lowered to an optimal, ergonomic height for loading or unloading. The forks may be controlled with a hand crank or a foot pump, and they can sometimes be inverted to adjust the service range. Wheels allow the material lift to be rolled for moving materials. Some material lifts have special wheels on the frame can that enable it to be loaded into a delivery truck for transport. Material lifts can be used in warehouses, storerooms, shipping facilities, and other industrial environments.

Product details

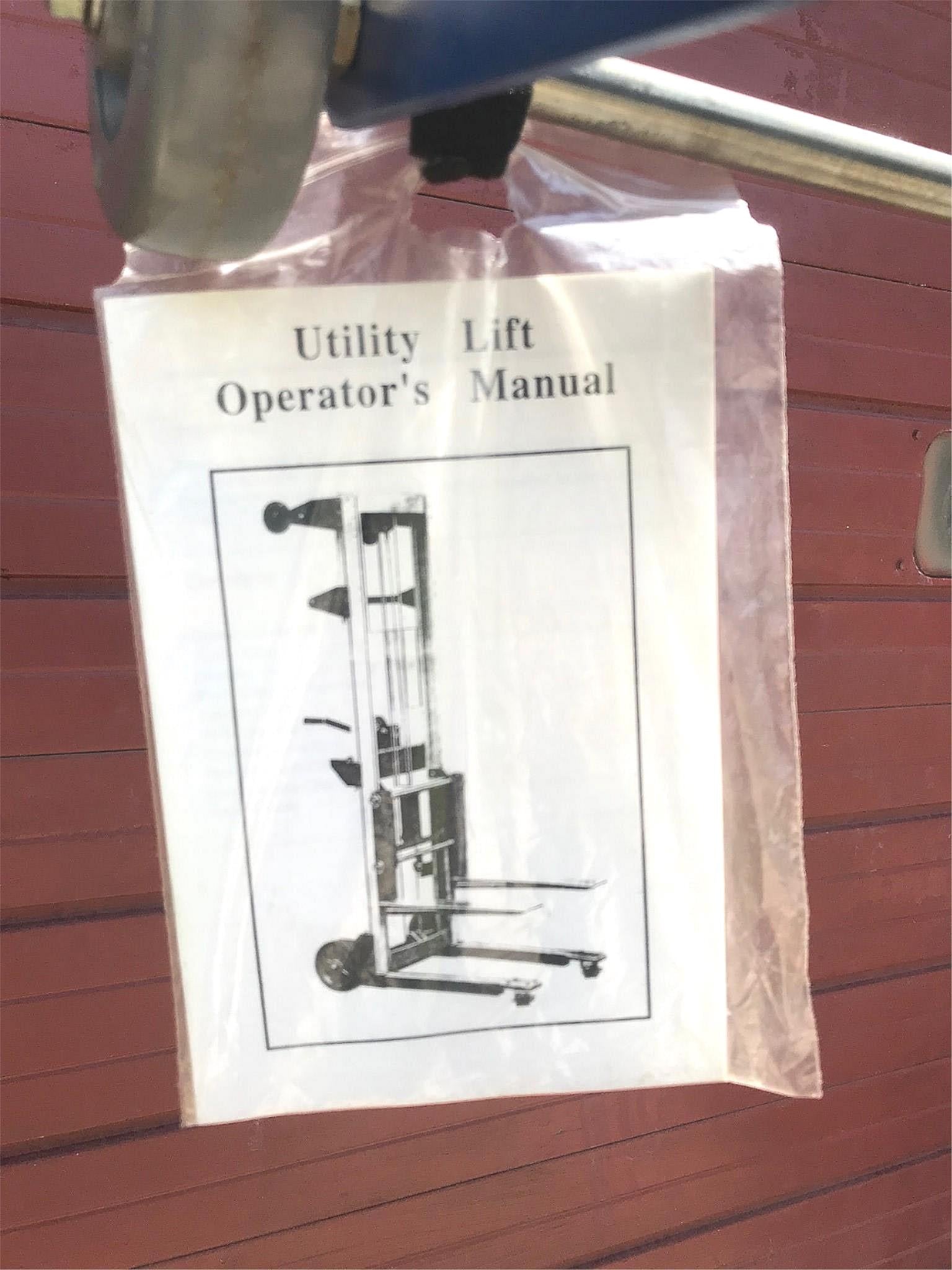

User Manual [946kb PDF]

Product Dimensions: 24 x 24 x 68 inches ; 136 pounds

Shipping Weight: 136 pounds (View shipping rates and policies)

ASIN: B0027Y76VI

Item model number: A-LIFT-R

Vestil A-LIFT-R Fixed Straddle Hand Winch Lift Truck, 35" Length, 25" Width, 67-1/2" Height, 500 lbs Capacity

Specifications for this item

Part Number A-LIFT-R

UPC 691215002219

Brand Name Vestil

EAN 0691215002219

Height 67.50  inches

Item Weight 136.0  pounds

Length 35  inches

Material Aluminum/Steel

Maximum Height 67  inches

Minimum Height 47  inches

Model Number A-LIFT-R

Number of Items 1

Size L

UNSPSC Code 24101649

Width 25  inches

Package Quantity 1

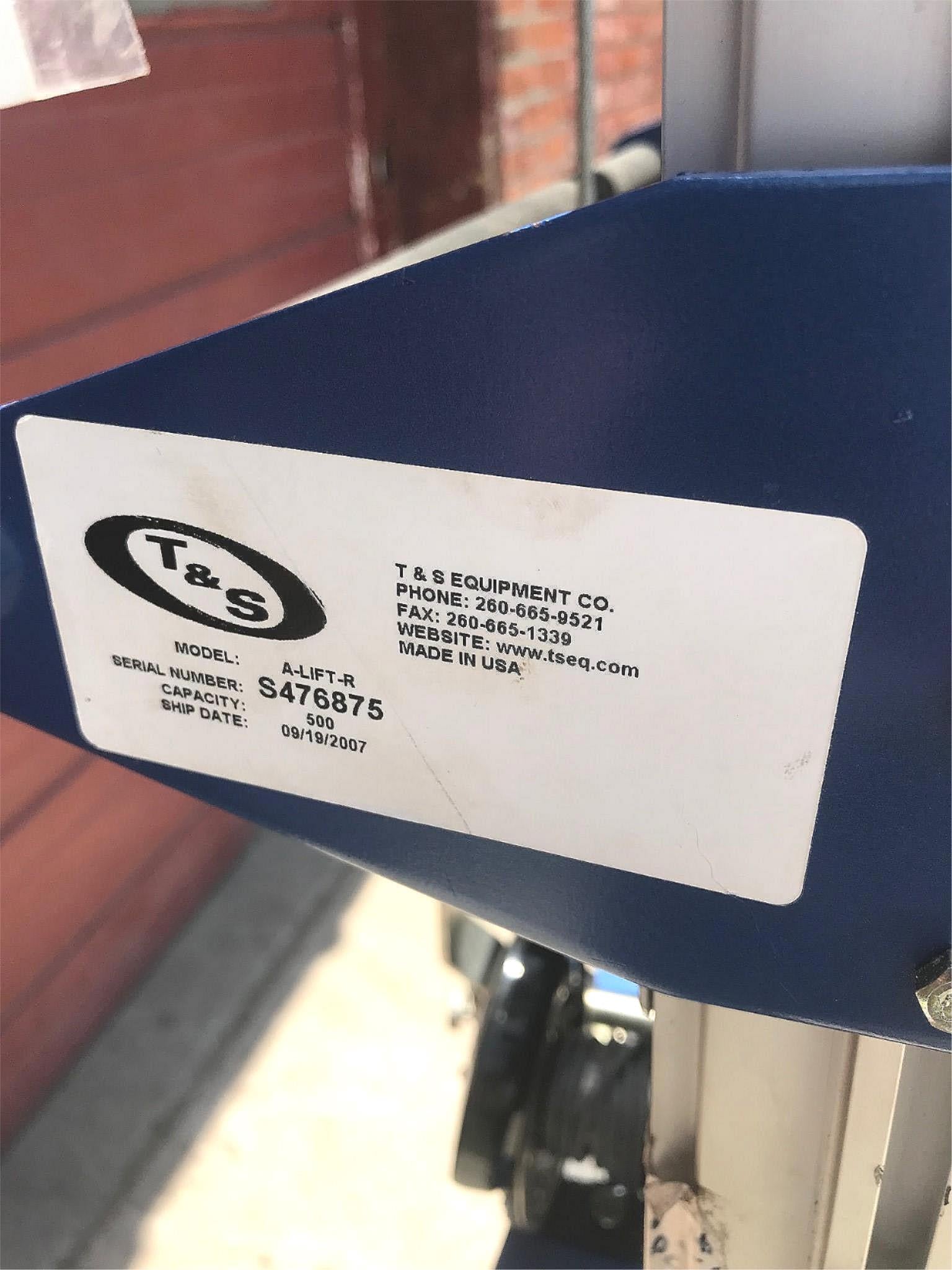

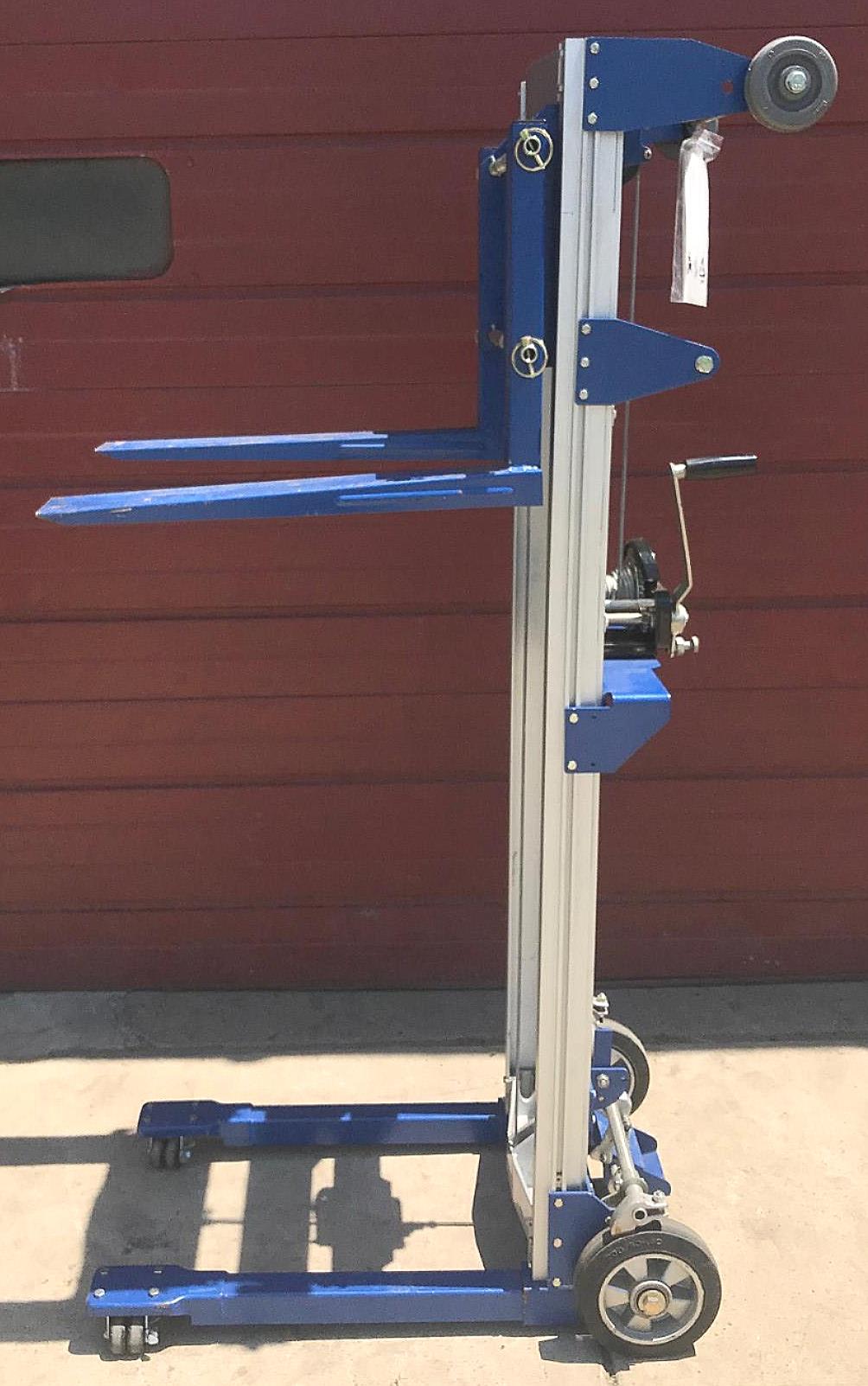

This Vestil A-LIFT-R Fixed Straddle Hand Winch Lift is in EXCELENT OPERATIONAL CONDITION with normal cosmetic wear as can be seen in the pictures.

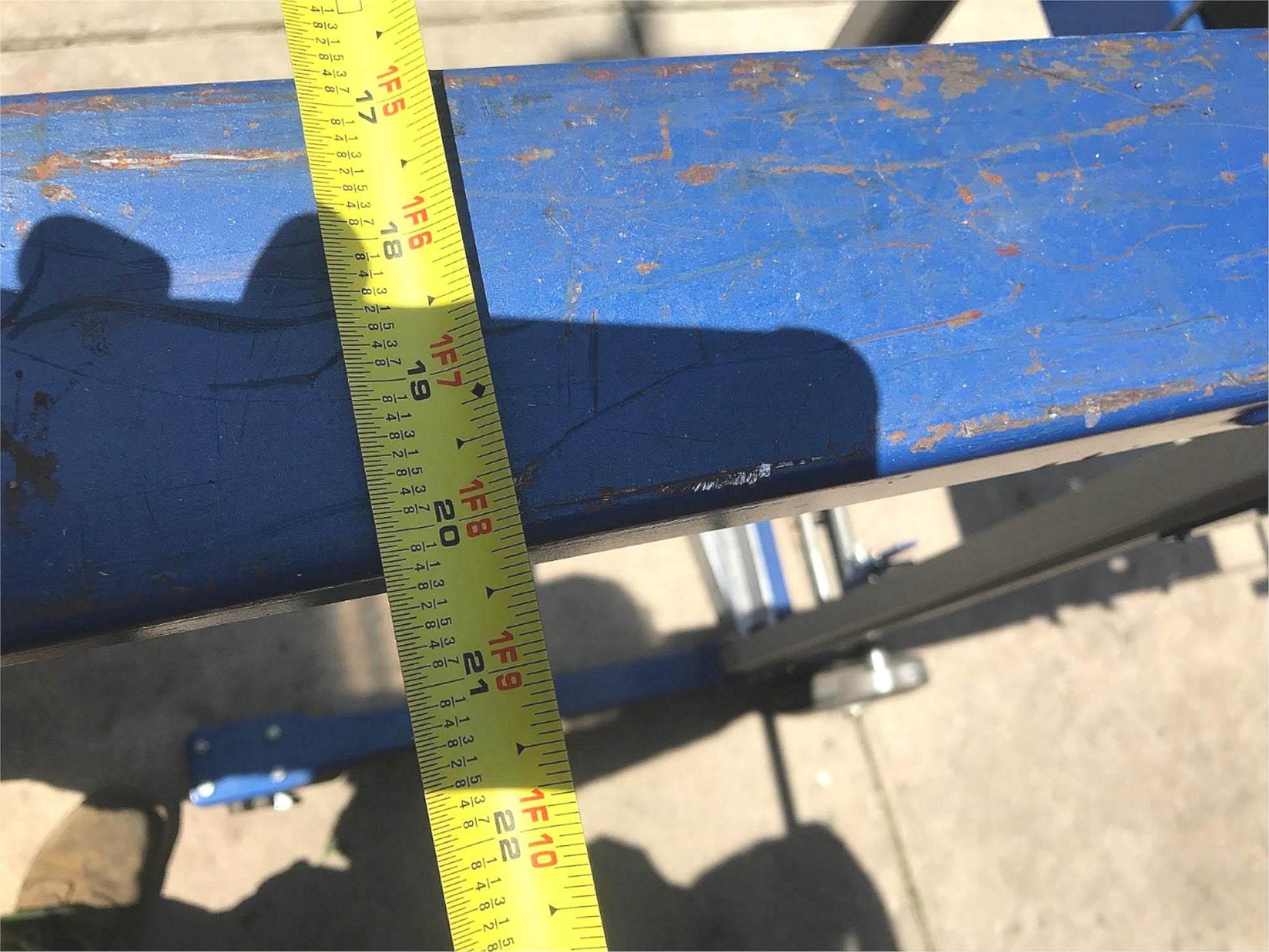

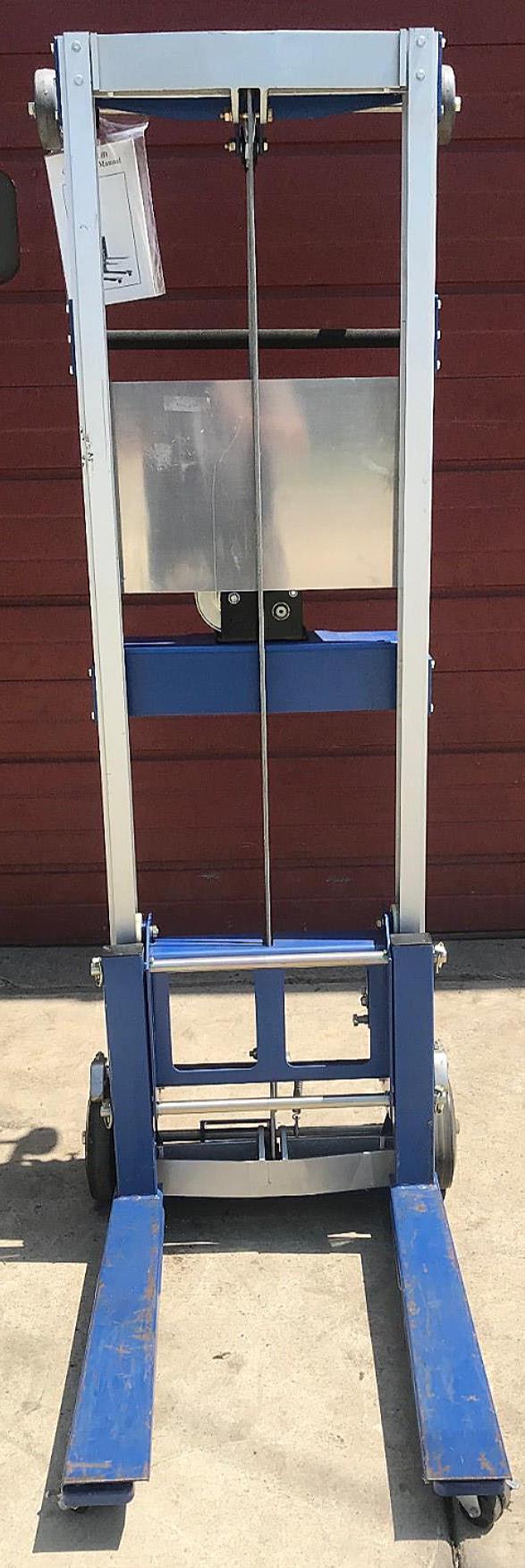

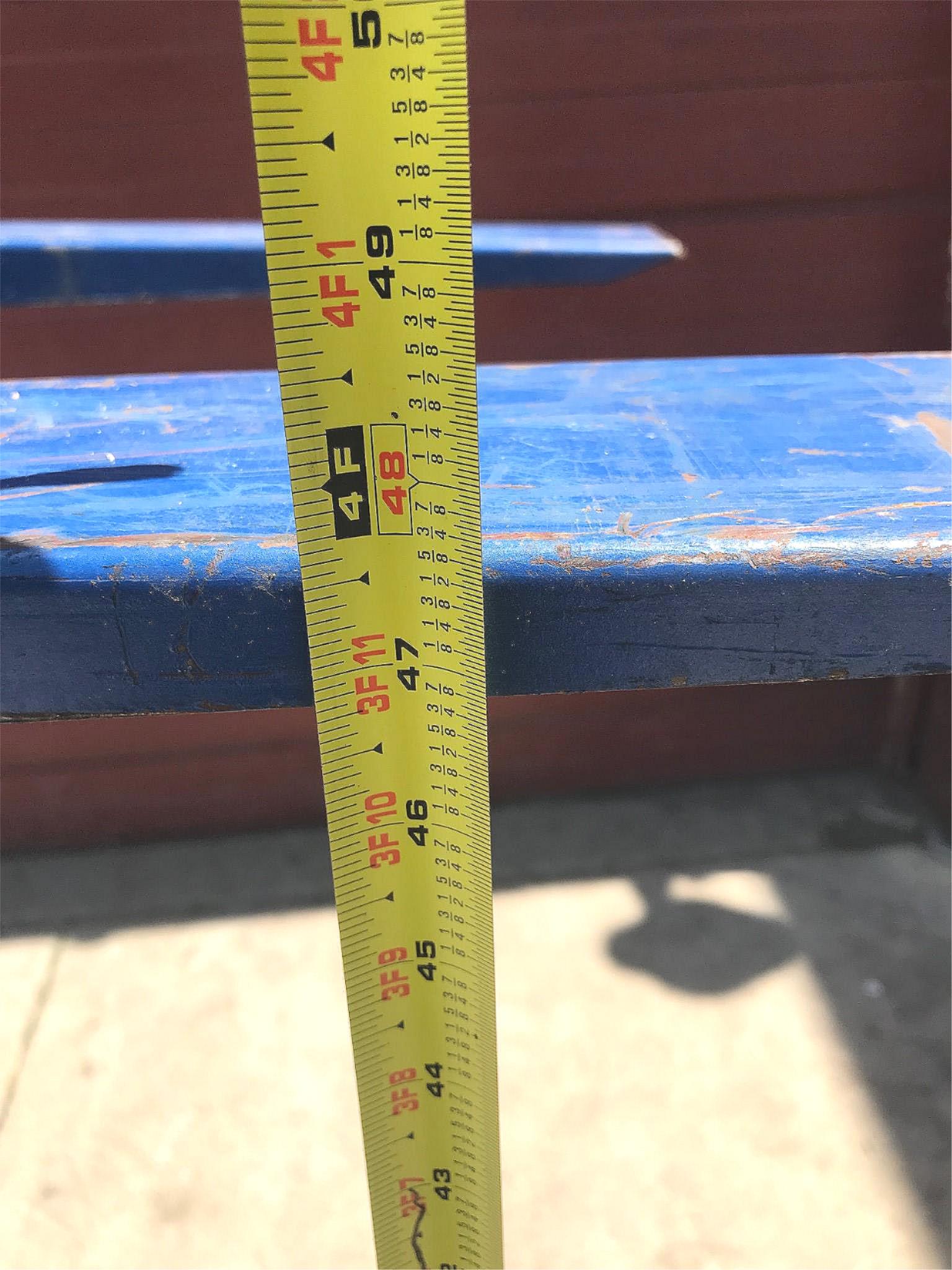

Please see the photos for more detail.

Testing

We have tested this unit and can guarantee that the condition is exactly as described.
