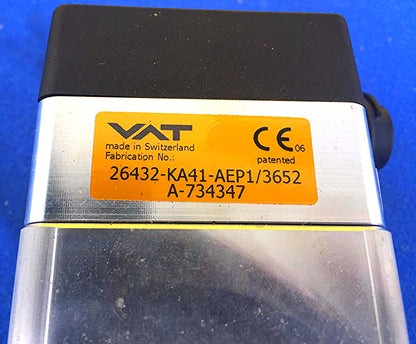

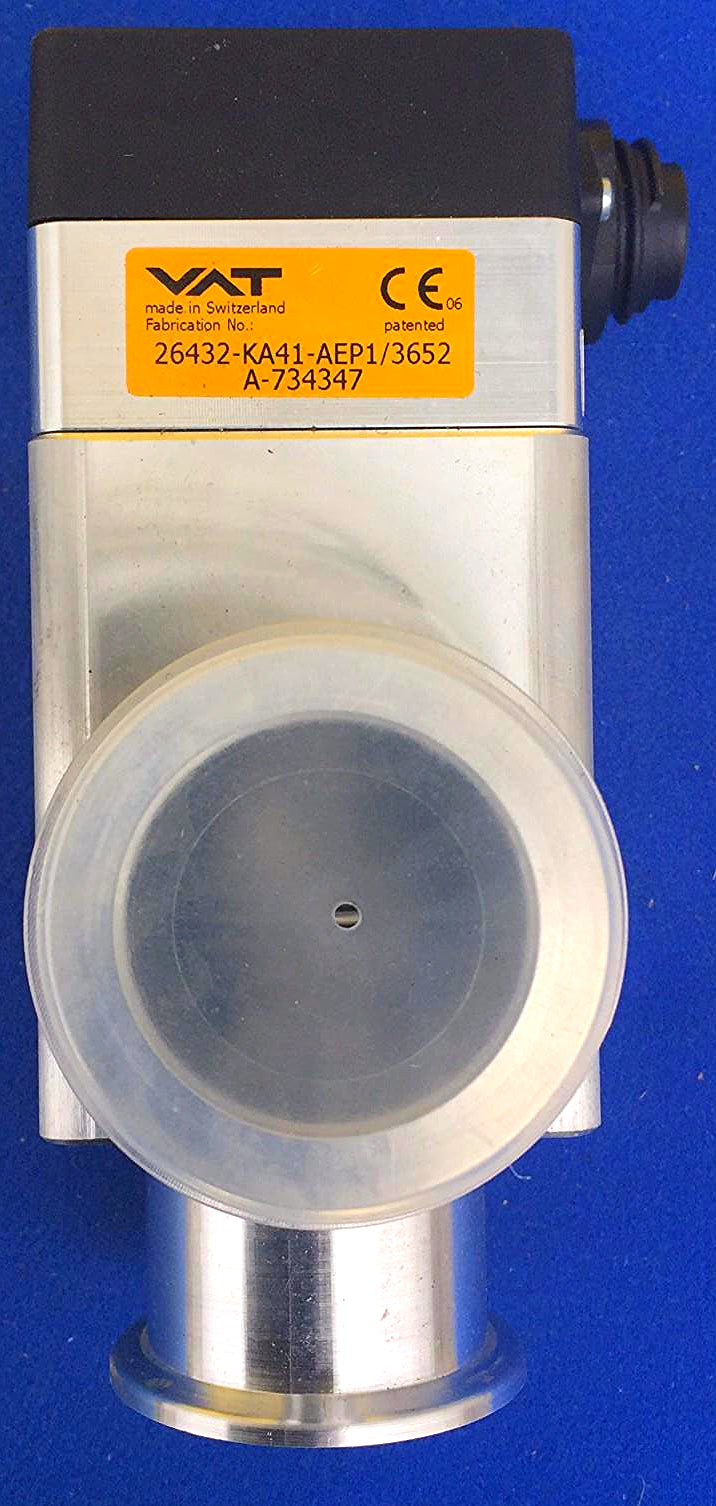

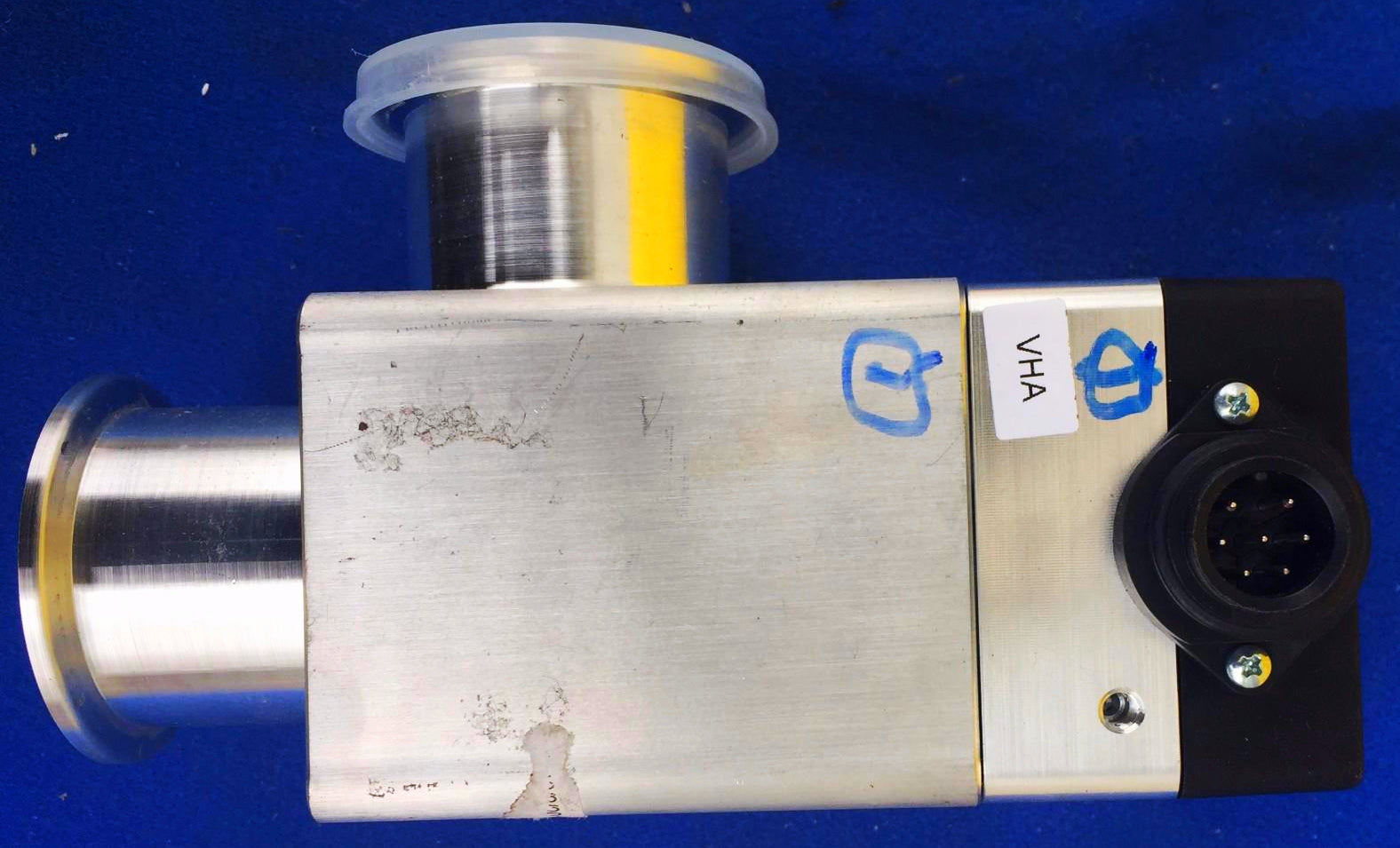

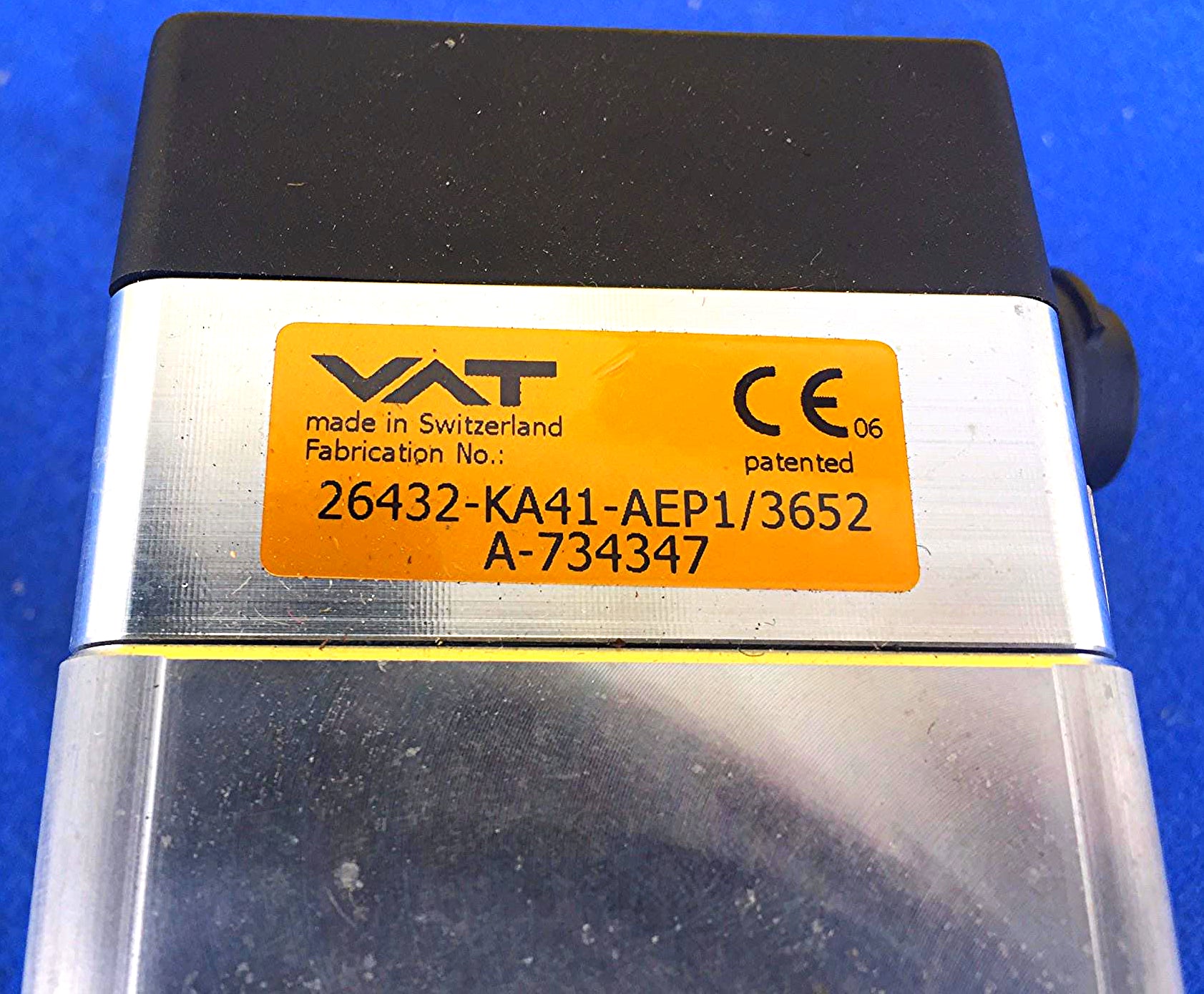

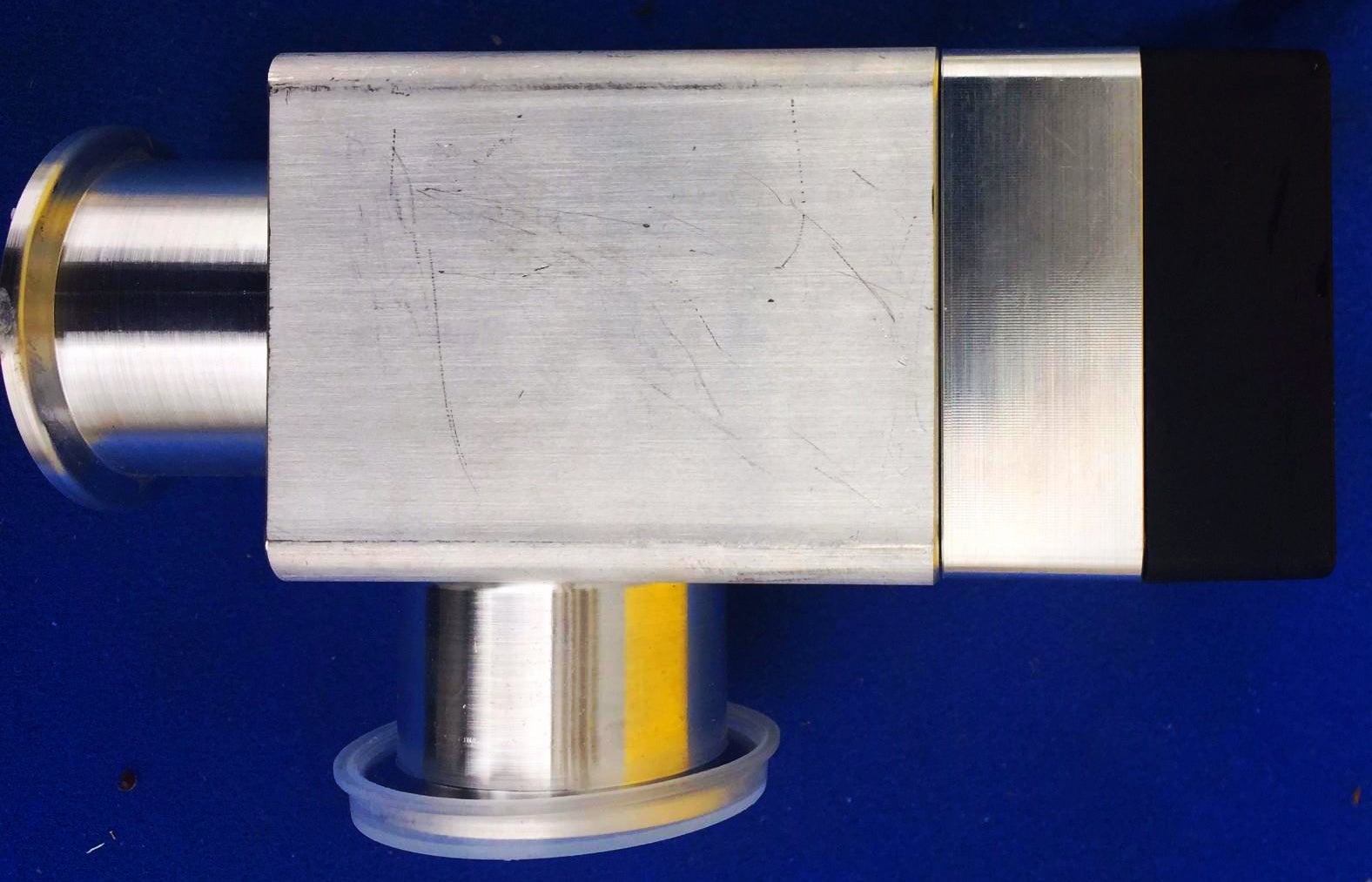

VAT 26432-KA41-AEP1/3652 A-737347 HV VACUUM ANGLE VALVE FREE SHIPPING
VAT 26432-KA41-AEP1/3652 A-737347 HV VACUUM ANGLE VALVE FREE SHIPPING
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Taxes included.
This listing is for a GREAT OPERATIONAL CONDITION VAT 26432-KA41-AEP1/3652 A-737347 HV VACUUM ANGLE VALVE with PNEUMATIC ACTUATOR as can be Seen in the Pictures.
Please feel free to check all Technical Specifications on this VAT 26432-KA41-AEP1/3652 A-737347 HV VACUUM ANGLE VALVE by clicking HERE!!!
Product Description
Specifications Table
Inside Diameter (ID) in mm (inches) 40 (1 1/2")
Flange ISO-KF (compatible with ISO 2861 T1)
Body Material Aluminum
Actuator Pneumatic actuator with position indicator with solenoid valve single acting closing spring
Solenoid Yes
Position Indicator Yes
Pressure Min 1•10-8 mbar
Pressure Max 5.0 bar (abs)
Molecular flow conductance ls-1 45.0
Max. differential pressure (closed position in bar) 5
Max. pressure on seat side during opening in bar 1.0
Valve body temperature max. in °C 150.0
Actuator temperature max. in °C 120.0
Position indicator temperature max. in °C 80.0
Weight in kg/lbs 1.1 / 2.43
This item ships usually the next day after payment.
