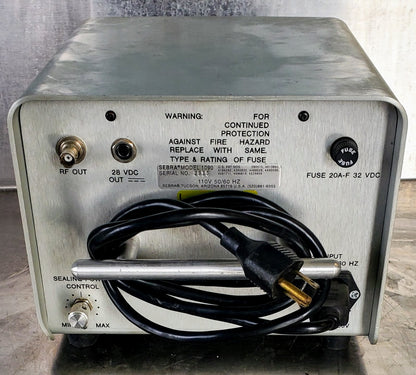

VANTE SEBRA 1090 HAND-HELD SMALL TUBE SEALER SYSTEM 90DAYWARRANTY WATCHVIDEO

You are bidding on a Perfect Operational Condition VANTE SEBRA HAND-HELD SMALL TUBE SEALER SYSTEM as can be WATCHED IN THE VIDEO and also seen in the pictures!

WE WILL ALSO INCLUDE A COPY OF THE 1105 OPERATION MANUAL!

Feel free to watch a video of this VANTE SEBRA 1090 HAND-HELD SMALL TUBE SEALER working by clicking the following link: https://www.youtube.com/watch?v=ozRs7YpJW34

Watch another video from the Manufacturer about how the Model 1105 Hand Held Sealing Head tube sealer operates by clicking the following link: https://www.youtube.com/watch?v=TvOId28EfMo

This unit has been fully tested and will Last a Lifetime, that's why we're comfortable offering a 90 DAY WARRANTY!

The VANTE SEBRA HAND-HELD TUBE SEALER SYSTEM has a small footprint making it ideal for rotation of a vast array of tubing in pharmaceutical and clinical applications.

DESCRIPTION BELOW WAS TAKEN FROM MANUFACTURER'S DATA SHEET WHICH YOU CAN FIND BY GOOGLING THE FOLLOWING LINK: https://vantebiotech.com/mfg-equipment/vante-3120-...

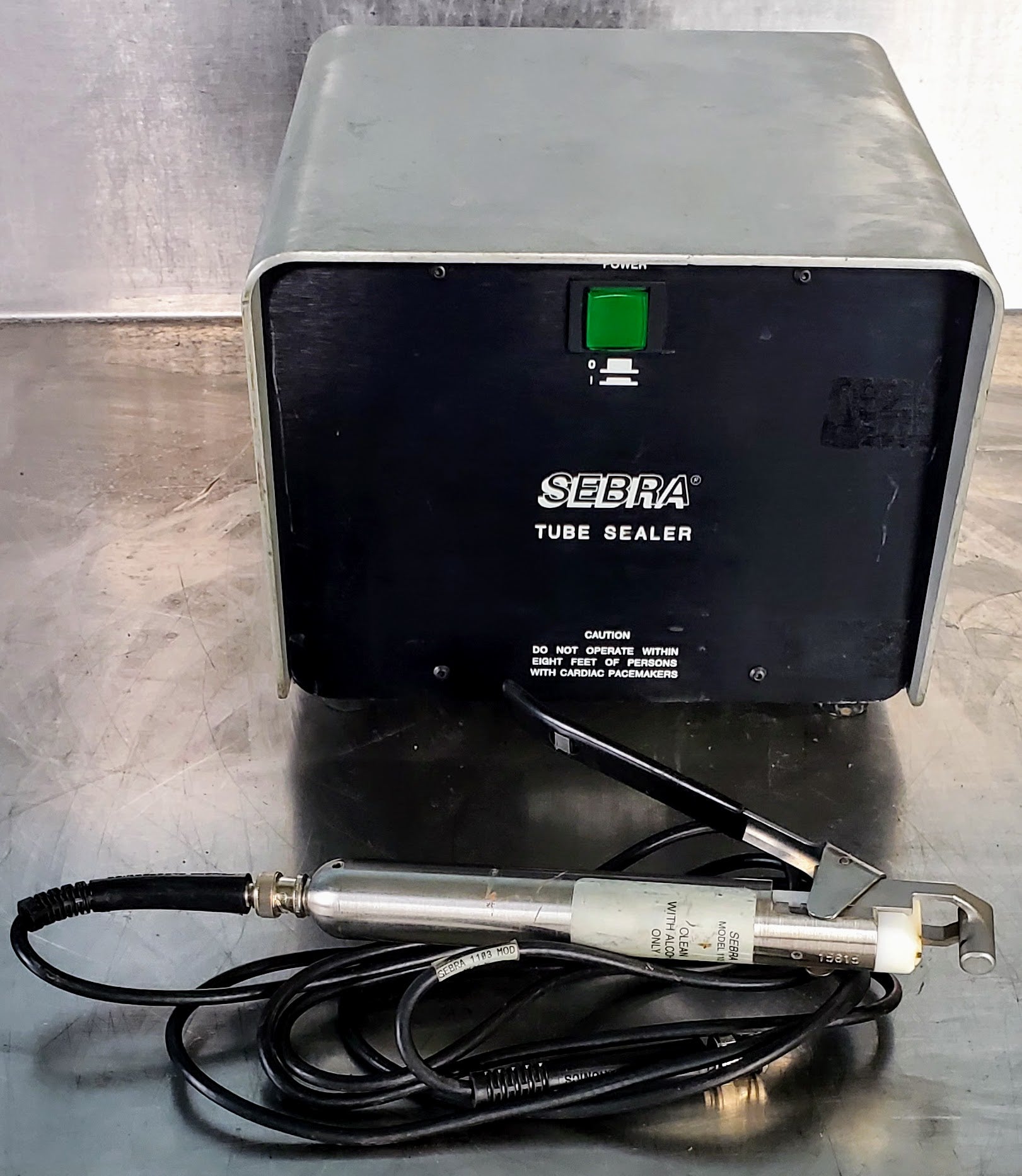

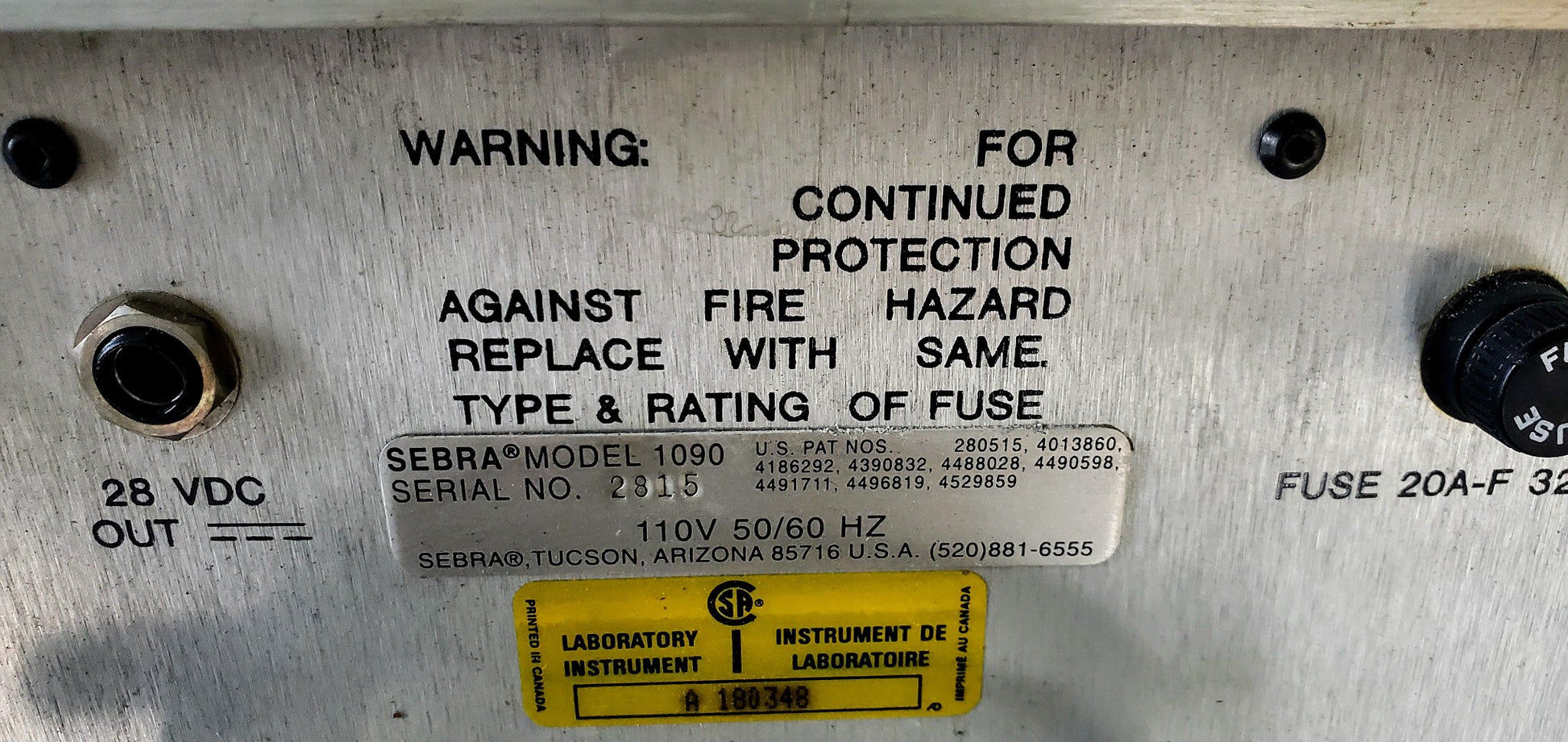

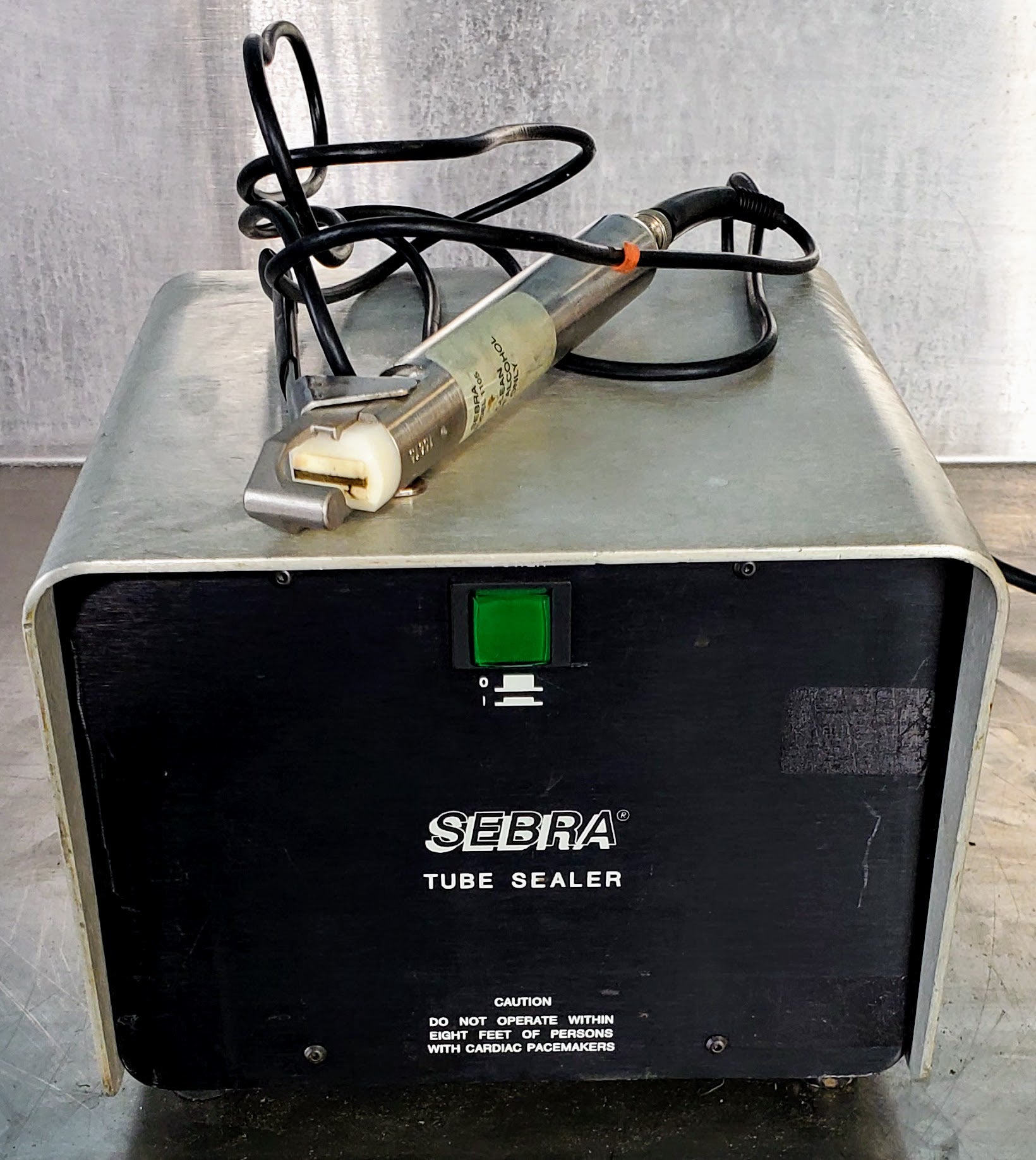

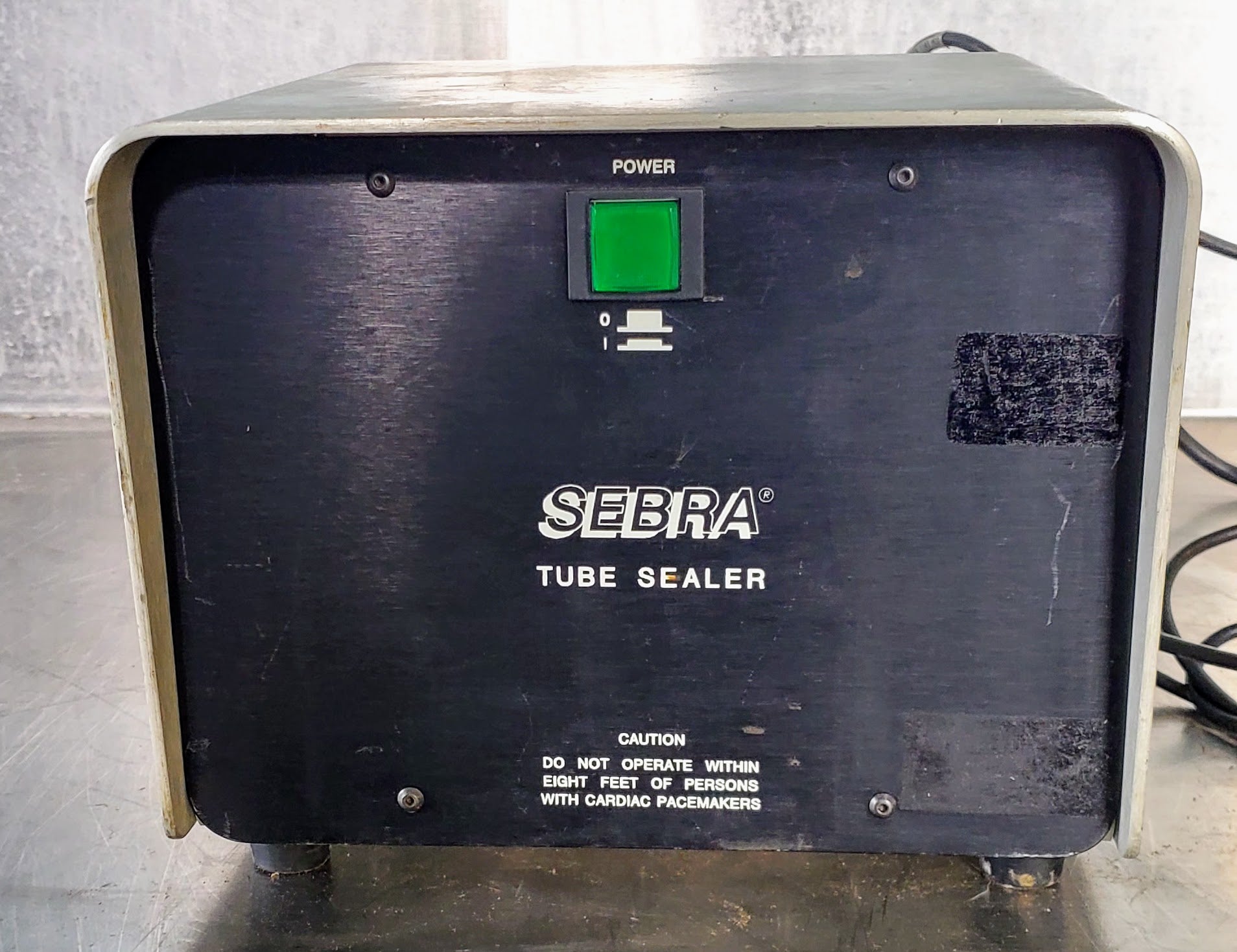

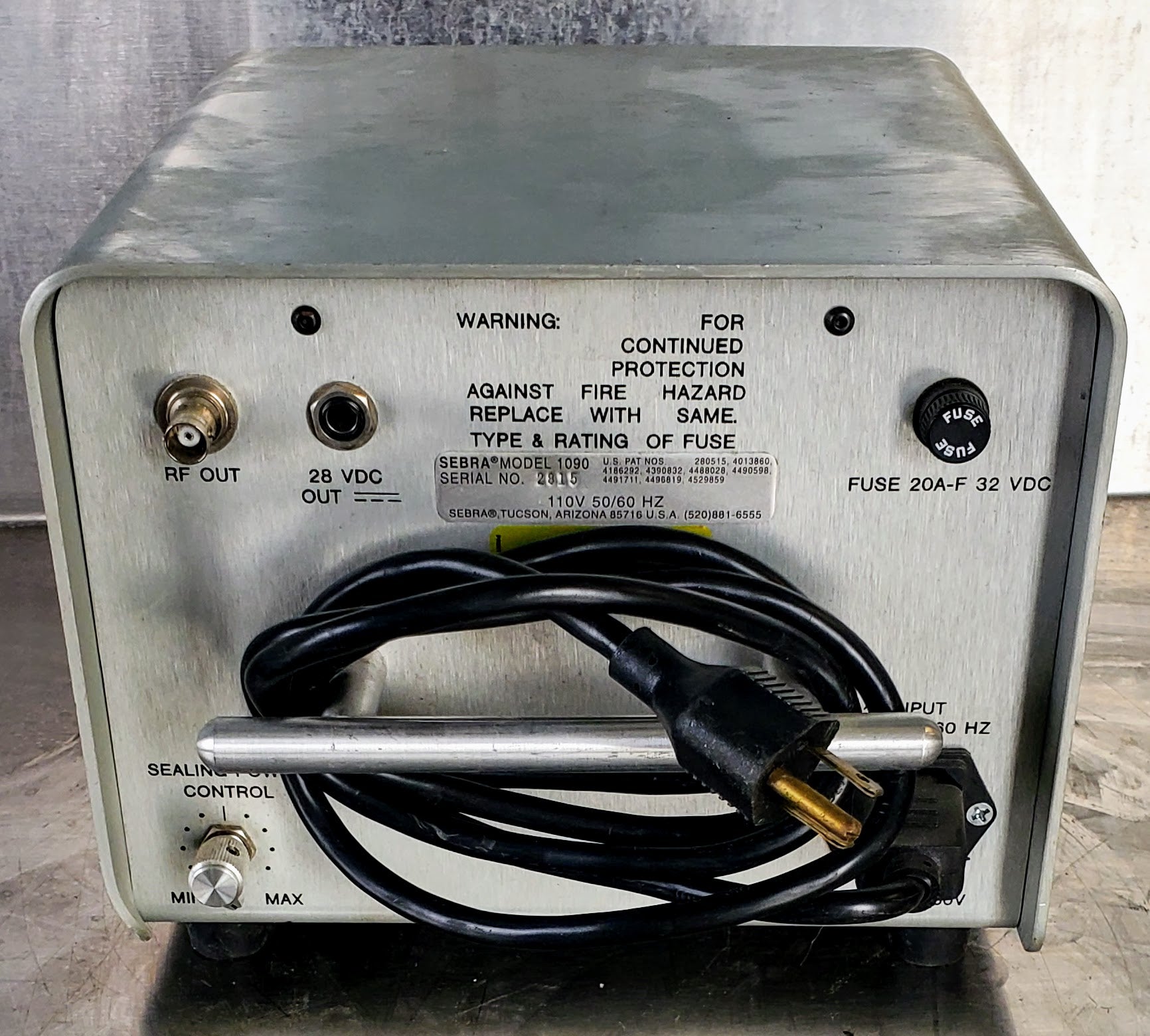

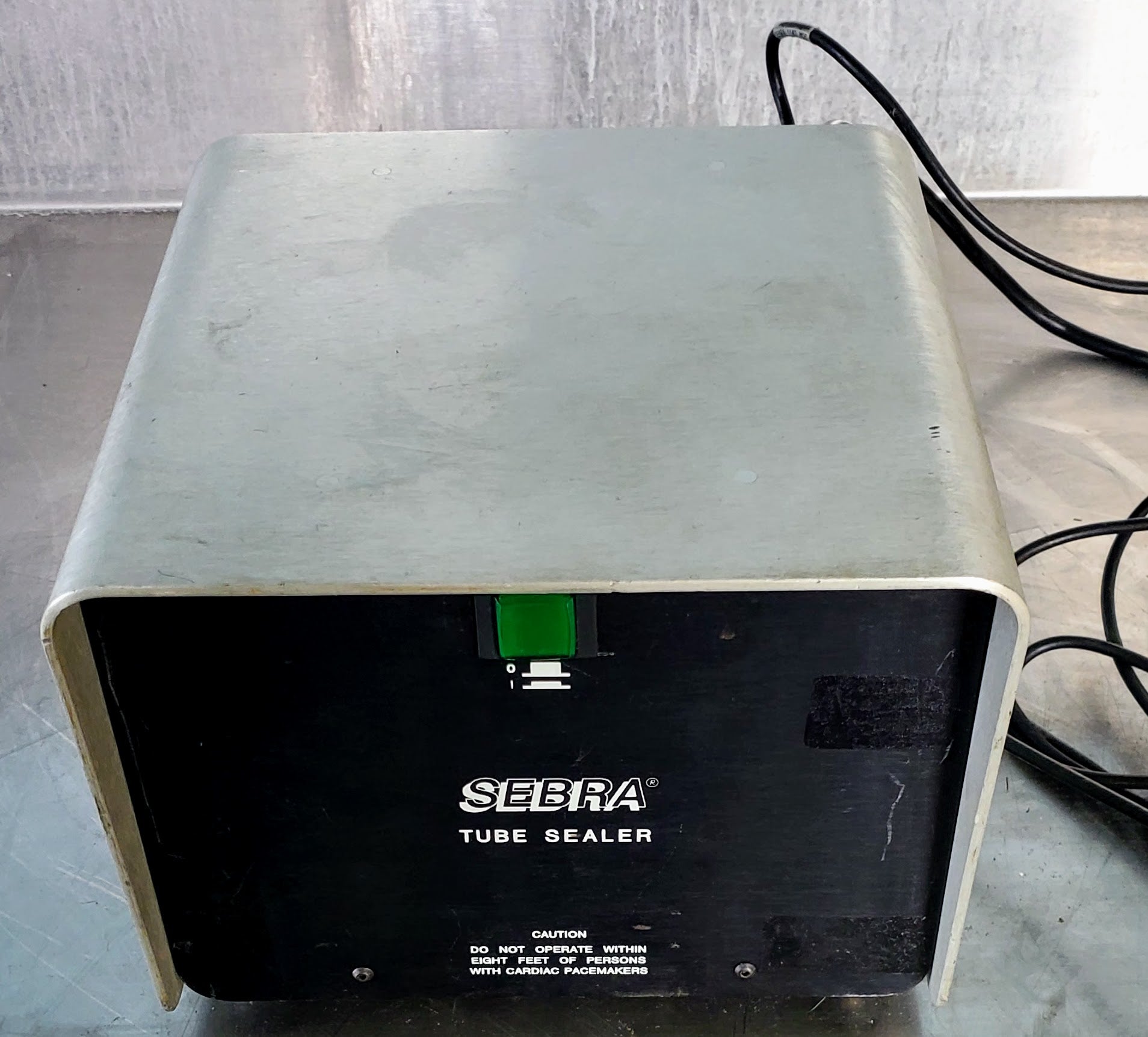

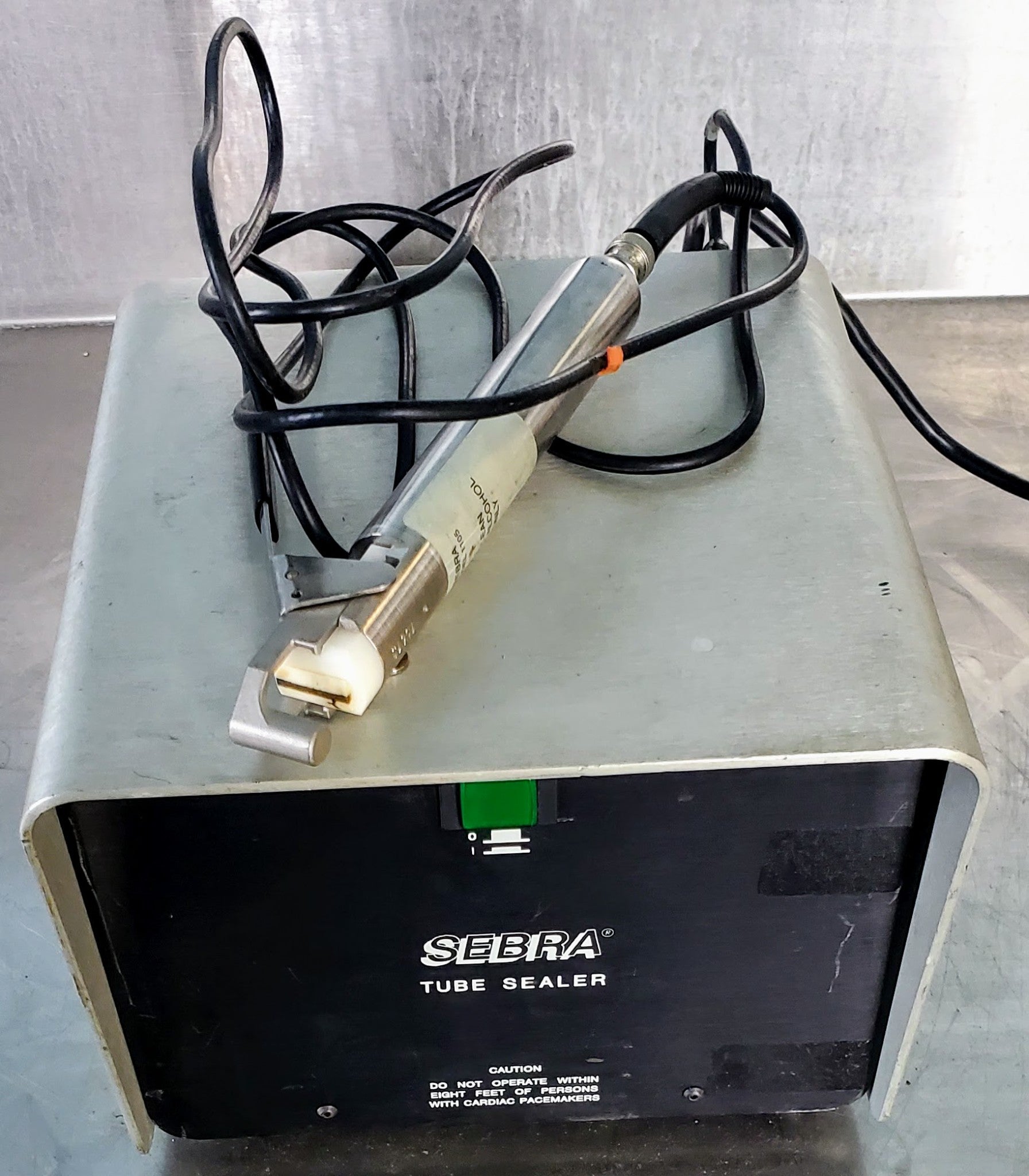

The Vante Tube Sealing System – Hand-Held Versatile provides flexibility in sealing, powering a hand-held head ideal for media processing, lab and sampling applications. The system consists of a 1090 RF power source and a model 1105 small sealing head. This system provides flexibility in sealing, powering either a segmenting or hand-held sealing head. The durable, compact design is easy to use and leaves more room in the work area. CE marked and TUV approved. Available 100-230 VAC 50/60 Hz outlet.

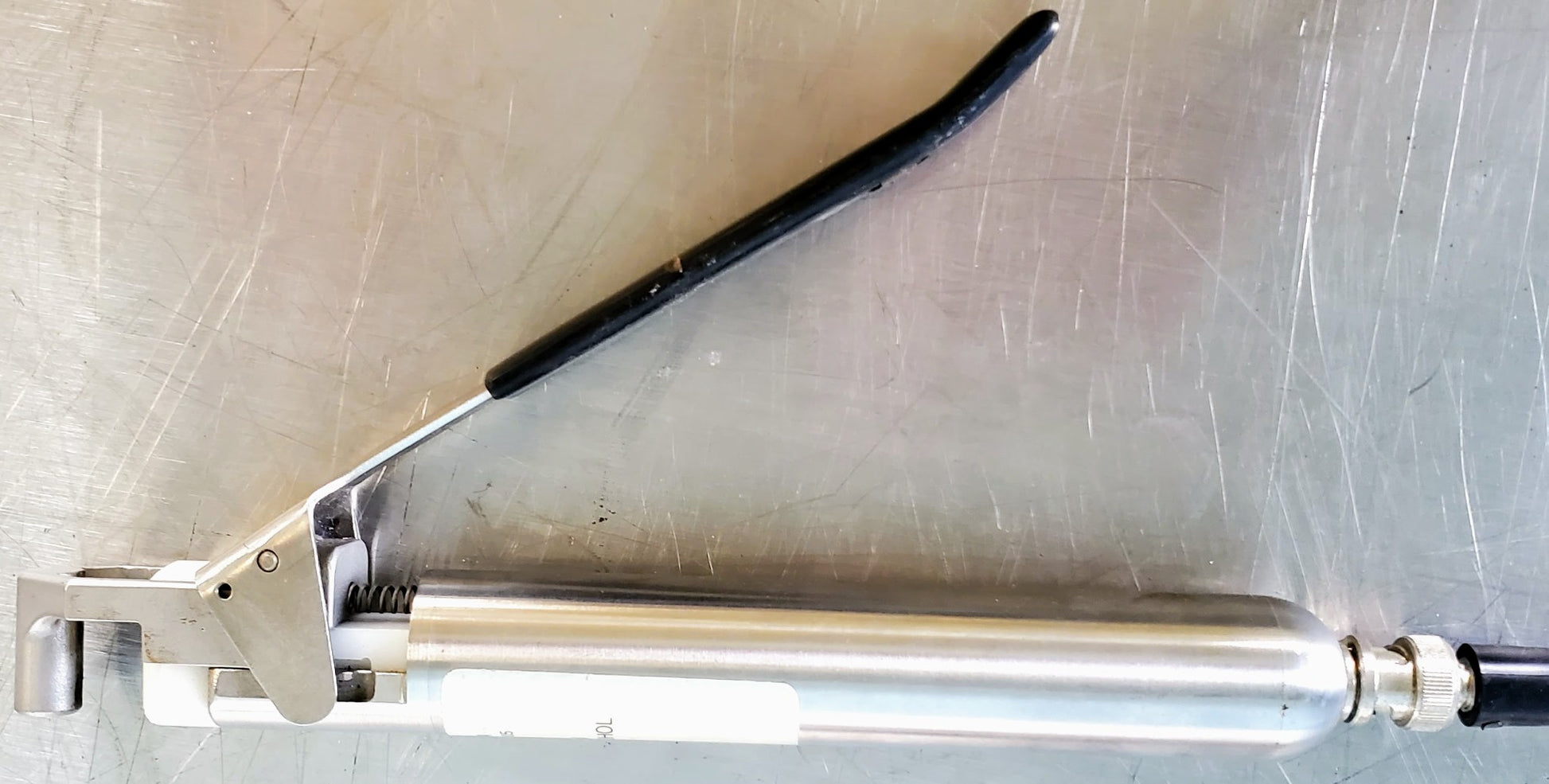

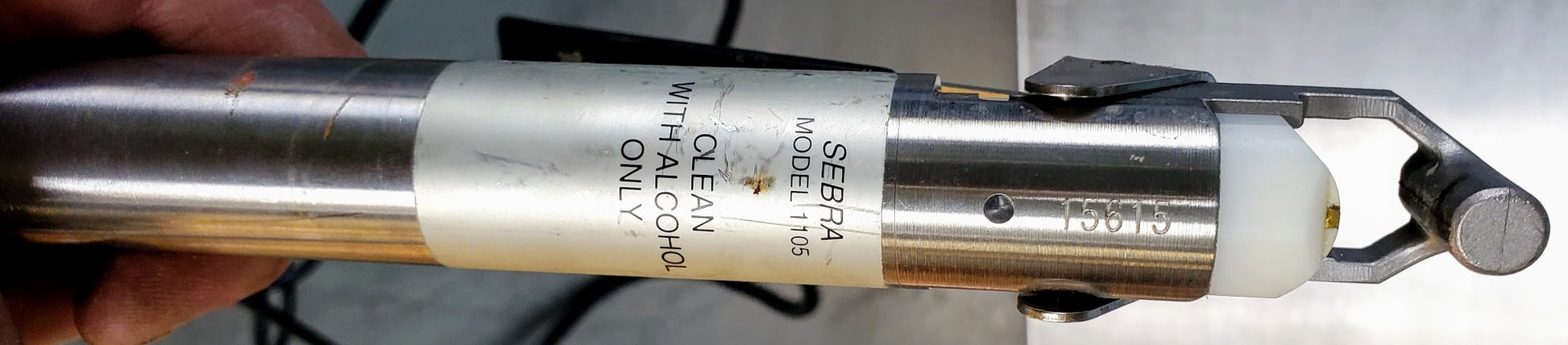

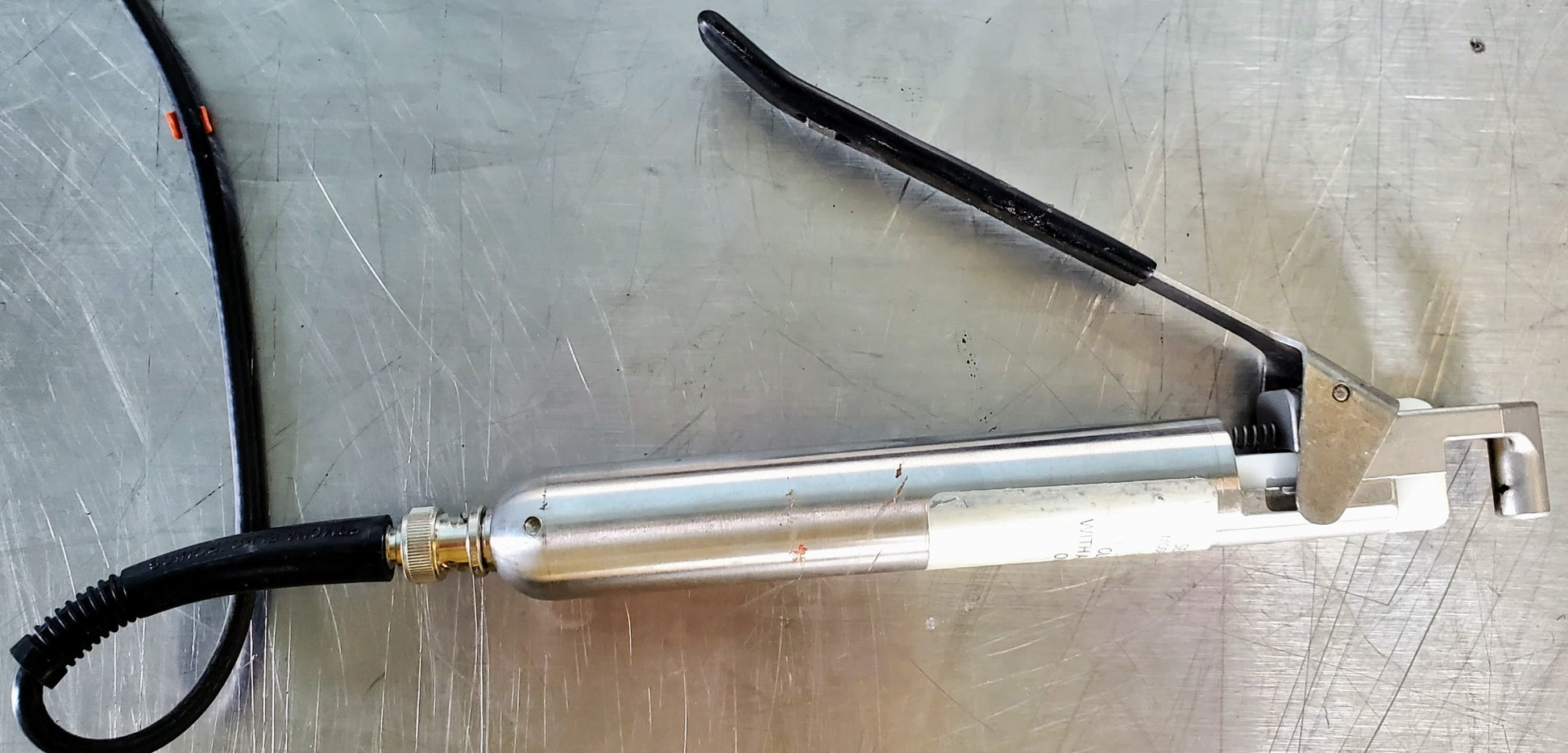

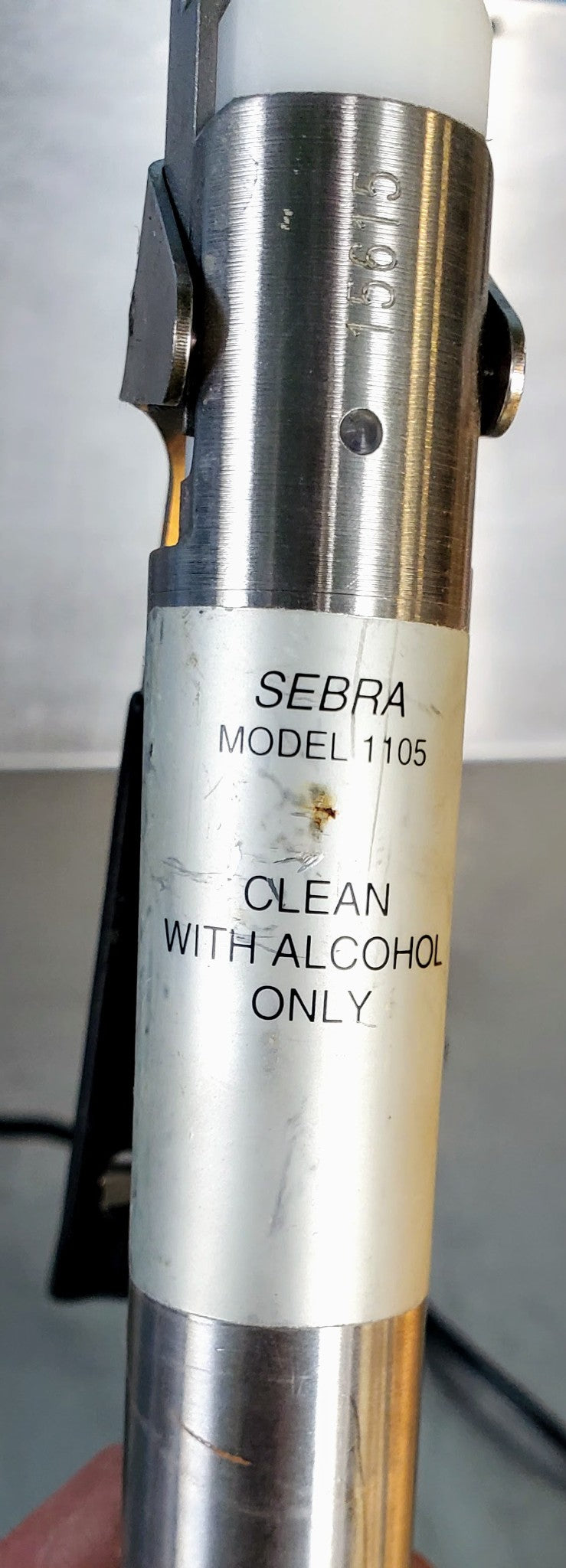

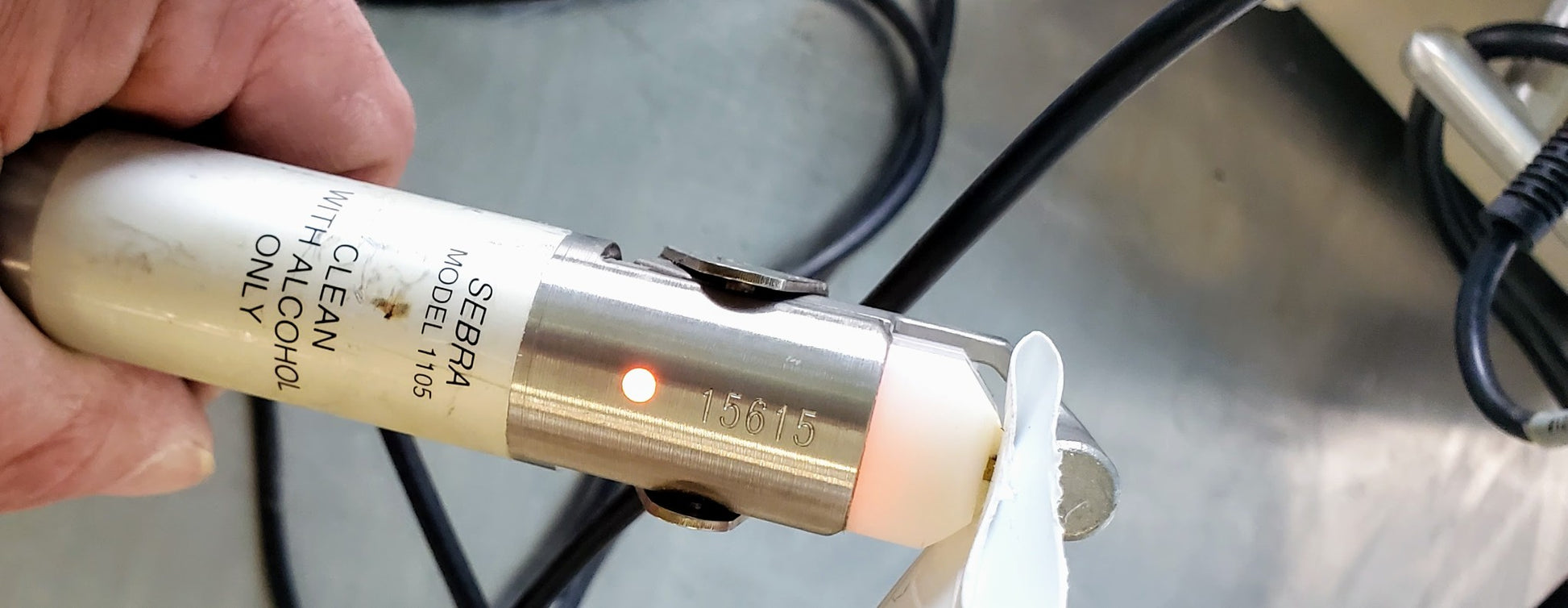

Model 1105 Hand Held Sealing Head Hand-held, manually-activated unit consisting of the RF jaw/tube assembly, ground jaw and lever. Compresses tubing between the RF and ground jaws while Power Source applies RF energy. Recommended Tubing: All tubing sizes Applications/Bag Sets: Segmenting, component processing, apheresis units, cell wash tubing, leuko-reduction, stem cell and progenitor cell processing, manufacturing cryoprecipitate.

The Vante® SEBRA® Model 1105 Hand-Held Sealing Head ("the Sealing Head") is part of a system that employs radio frequency (RF) to make uniform, quality seals on a variety of tubing sizes. A Vante® SEBRA® Power Source (Model *1100, *1090, *2100, 2380, *2390, *2490, or 2600) provides RF power to the Sealing Head and controls RF power and sealing time.

The manually activated Sealing Head forms a seal with its jaws in such a way as to make segment separation easy and uniform. The Sealing Head is equipped with a splashguard for operator protection from inadvertent contact with blood and/or blood products in the unlikely event of tubing rupture.

The Model 1105 Hand-Held Sealing Head is part of a system and cannot be used by itself iindependently. When used in conjunction with this 1090 Vante® SEBRA® radio frequency (RF) generator, it is the instrument used to make seals on tubing or bags made of RF reactive thermoplastic materials typically used in blood banks, blood processing facilities and transfusion centers. Tubing or bags utilized in the collection and handling of blood and blood products are typically made from thermoplastic vinyl, namely polyvinylchloride, (PVC) or ethylene vinyl acetate (EVA), and it is this application for which this product is specifically intended.

THEORY OF OPERATION

The physical properties of PVC plastic tubing (and other RF-reactive thermo- plastic materials) cause it to dielectrically heat at a molecular level in the presence of RF energy. This energy causes the plastic to soften due to the friction of the vibrating molecules. In this softened condition, the plastic becomes weldable because the molecules are free to intermingle under the application of external forces, such as compression. If allowed to cool while the forces are applied, the material will be permanently reshaped.

The Sealing Head receives a controlled amount of RF energy from the generator while mechanically compressing the tubing across its diameter during the dielectric sealing and forming process. When the energy is removed and the tubing is allowed to cool under compression, a permanent seal is produced.

SPECIFICATIONS

The Sealing Head will perform effectively when used in a typical blood bank, blood processing facility or transfusion center environment. Variations in actual environmental conditions of the facility and/or the level of contamination and/or moisture on the ground and RF jaws and/or tubing exterior may affect actual performance. Users are advised that when temperature and humidity conditions seem less than what might be considered comfortable for humans, it is best to slow the rate of repetitive sealing, to be certain the Sealing Head and tubing are clean and dry, and to frequently check the quality of seal being produced.

The unique remote thin wall sealing head clamps and hangs from tubing for convenient use with manifold systems.

FEATURES:

Durable compact design

Operates within an eight foot radius of power source

Power adjusts automatically to accomodate different sizes of tubing*

Produces wise tear seals for quick disconnect

BENEFITS:

Easy to operate

Fast and reliable

No compressed air required

Versatile

Ideal for biopharmaceutical manufacturing and media processing

Handles heavy duty demands

> Full 90 Day Warranty
