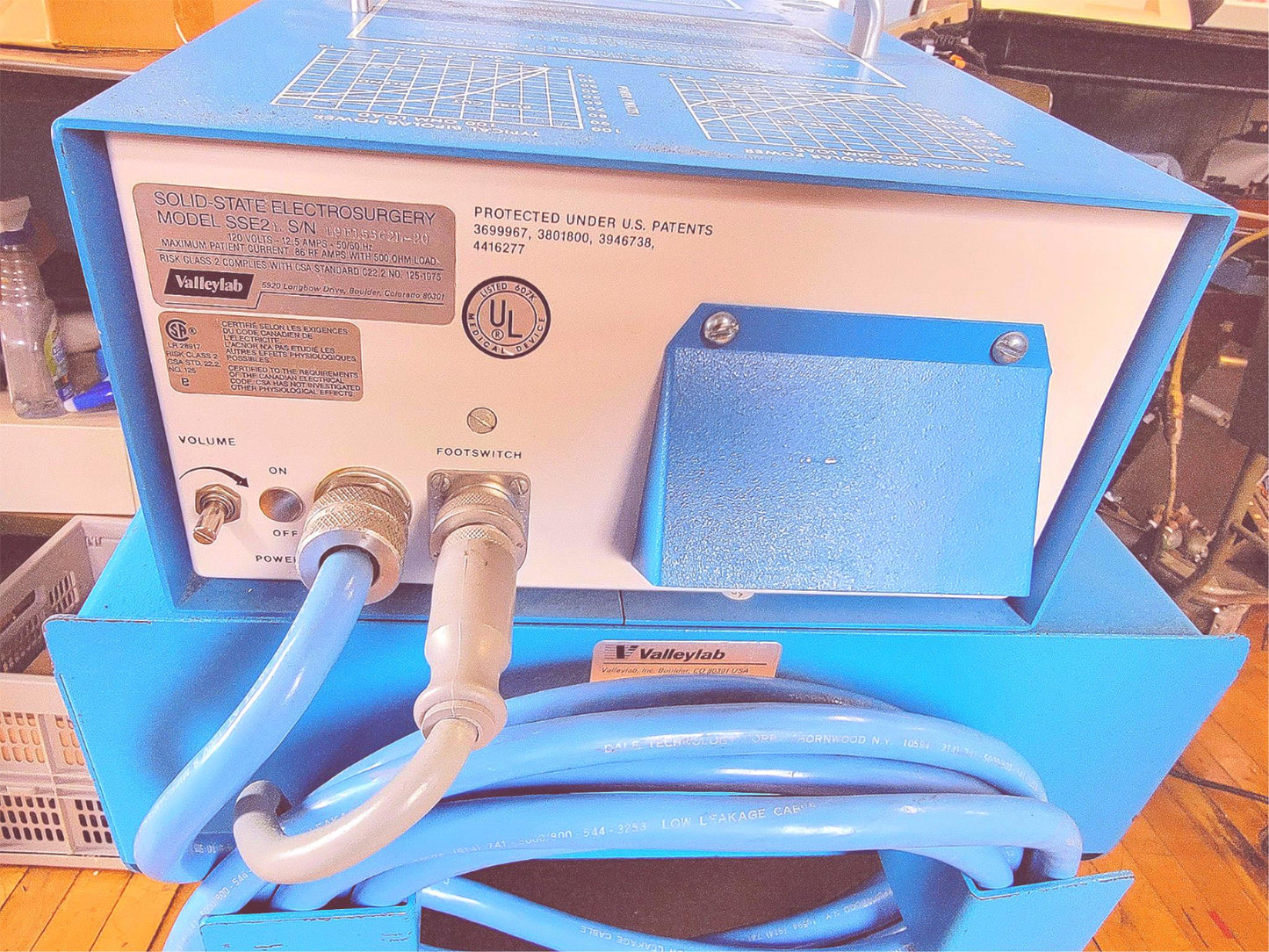

VALLEYLAB SSE2 ELECTROSURGICAL GENERATOR FOOT REMOTE w/POSSIBLE CART WATCH VIDEO

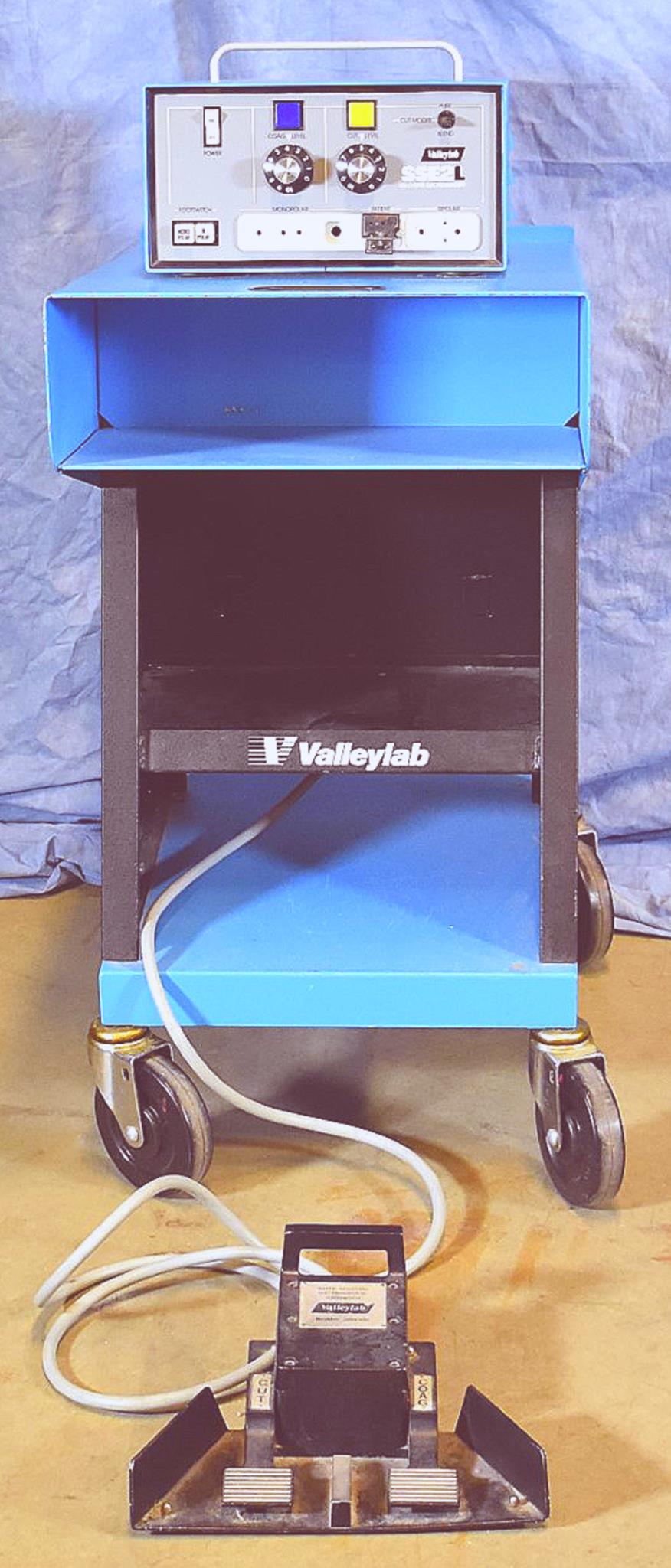

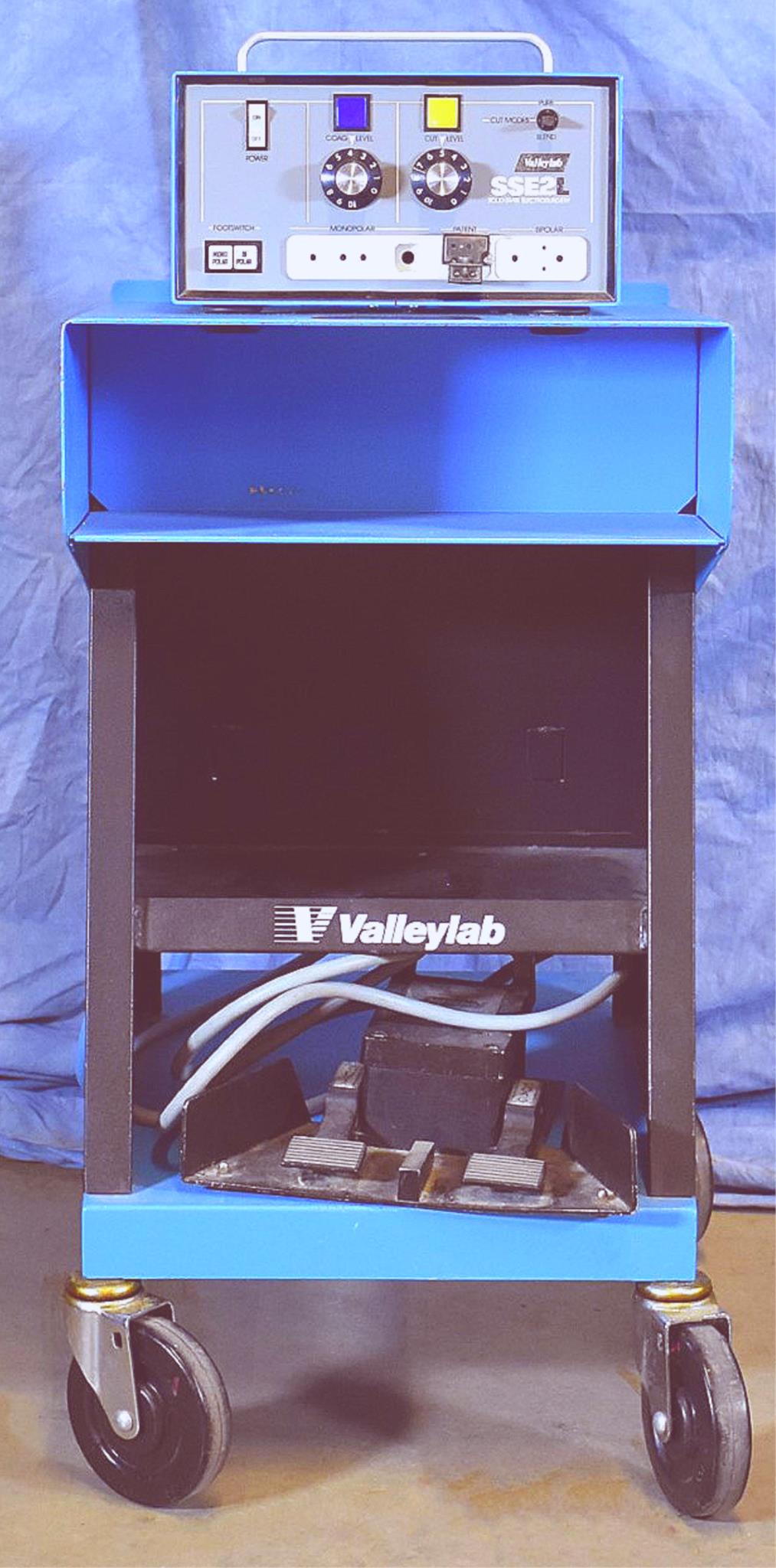

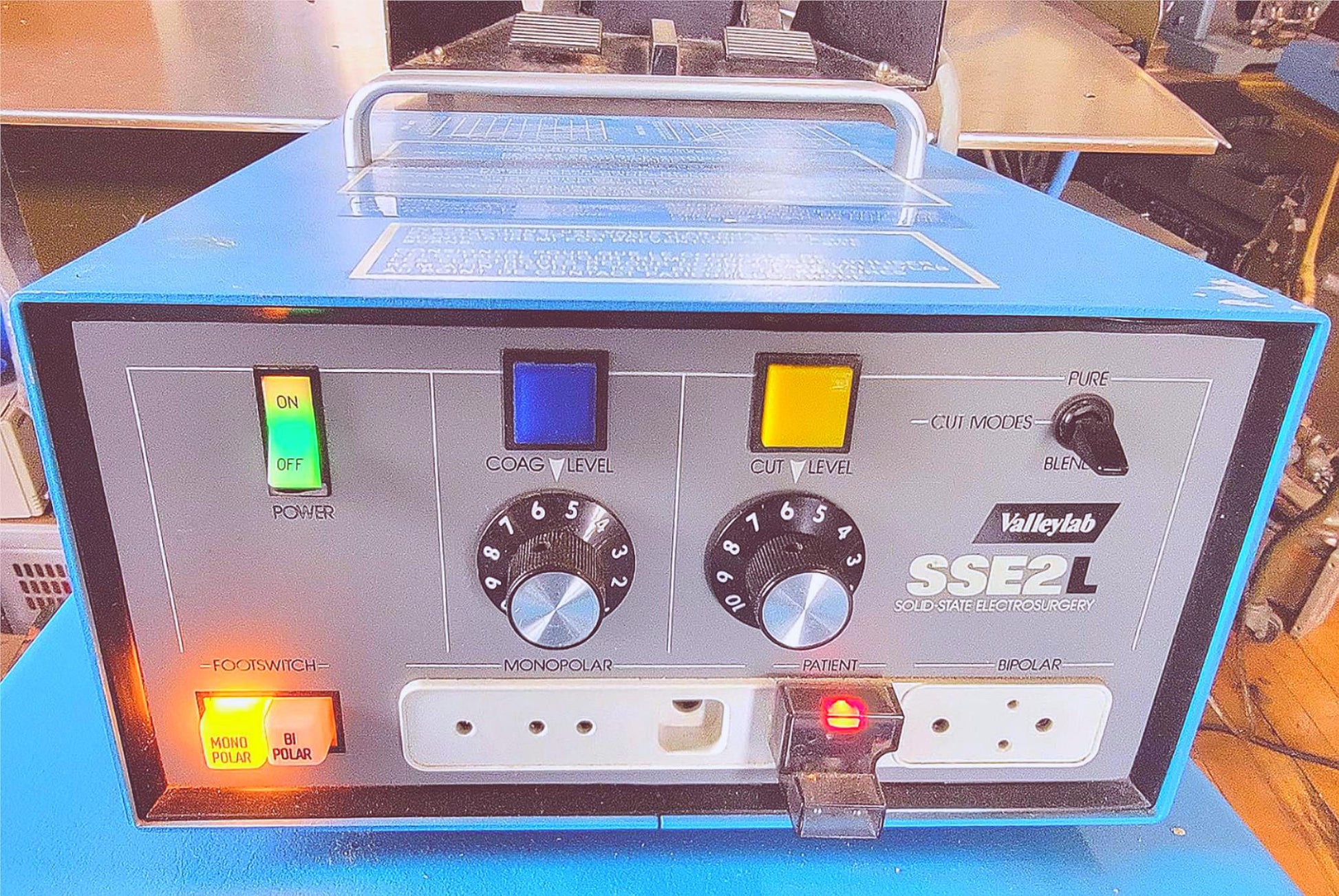

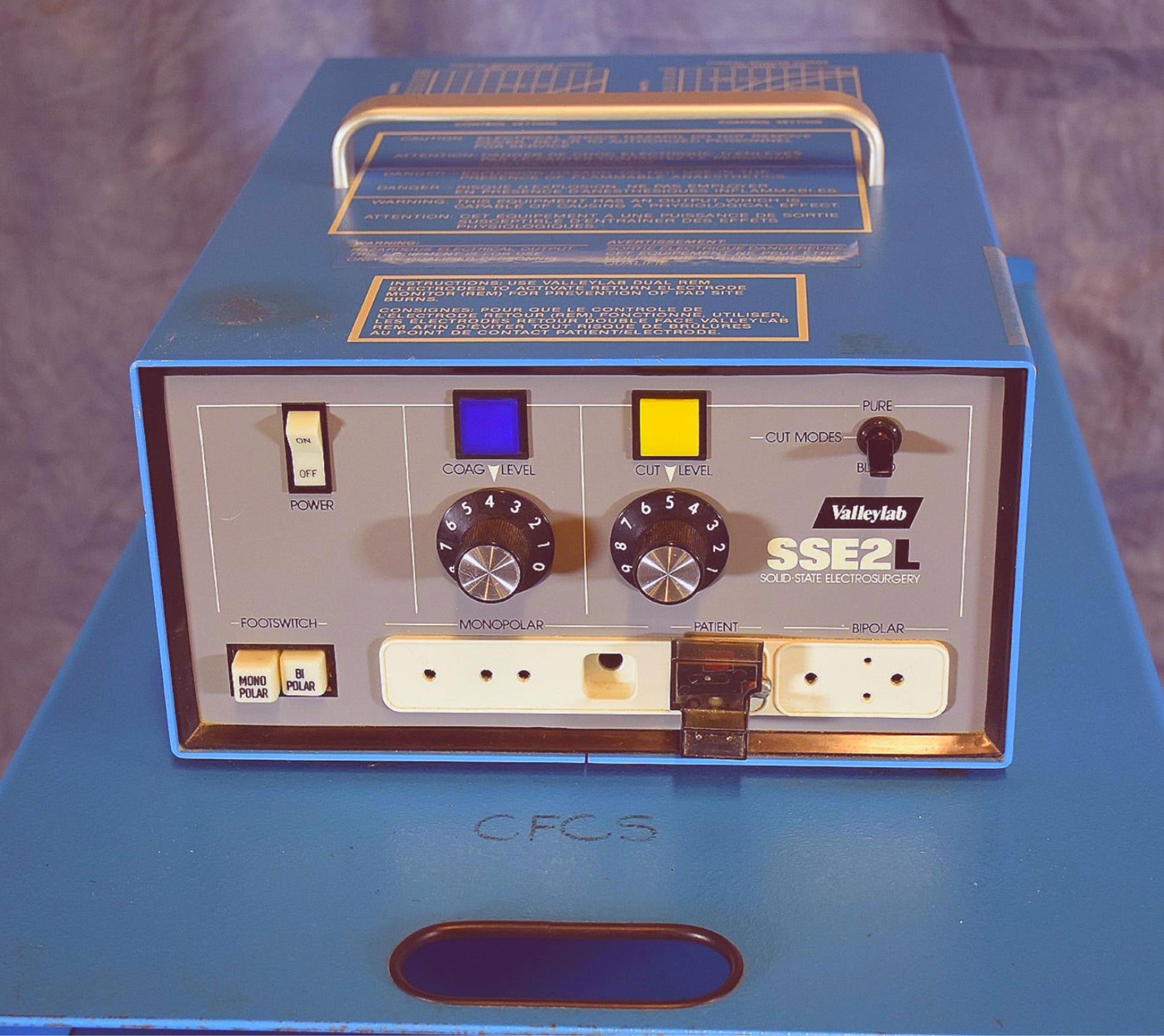

This listing is for a Guaranteed TESTED and in Wonderful Operational & Cosmetic Condition VALLEYLAB SSE2 R-8006 ELECTROSURGICAL GENERATOR with FOOT REMOTE & POSSIBLE CART as can be seen in the pictures.

FEEL FREE TO WATCH A VIDEO OF THIS UNIT POWERING UP BY CLICKING THE FOLLOWING LINK: https://www.youtube.com/shorts/ckwp6WH1hkk

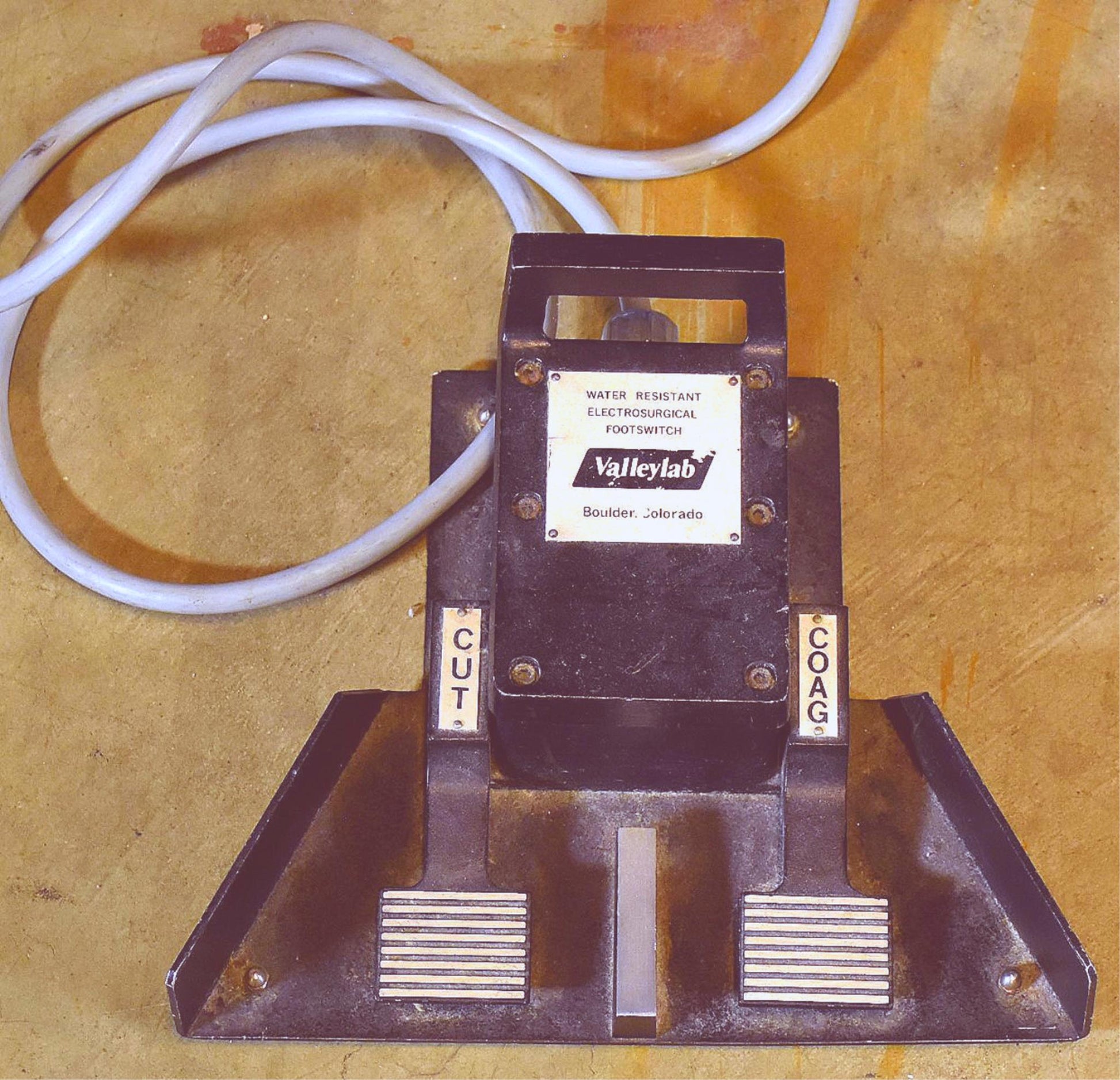

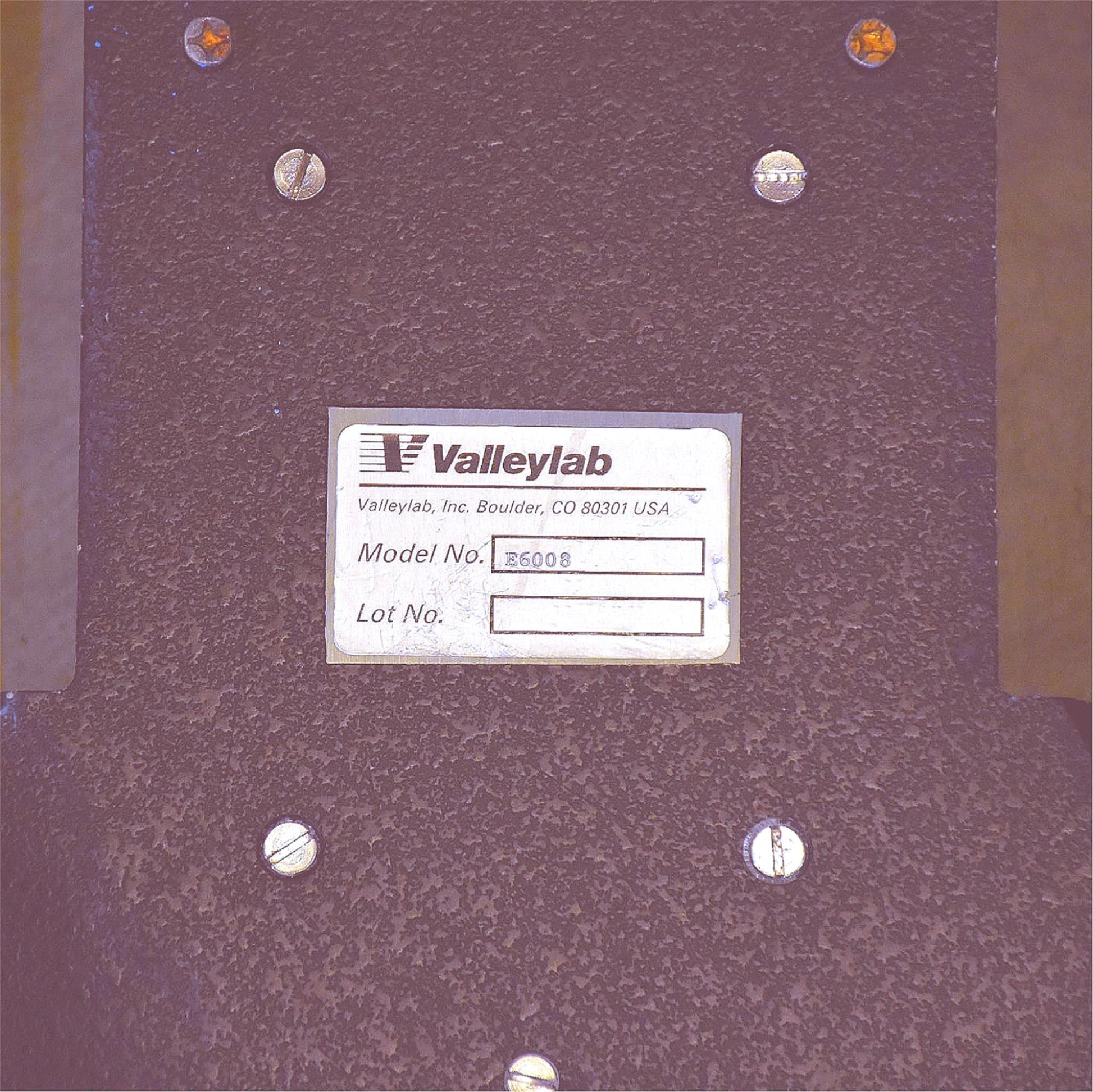

- DOES INCLUDE THE FOOT REMOTE SHOWN IN THE PICTURES, IT IS MODEL E-6008

IMPORTANT: FREE USA SHIPPING ONLY FOR THE UNIT ITSELF AND THE FOOT PEDAL BUT NOT THE CART!!!

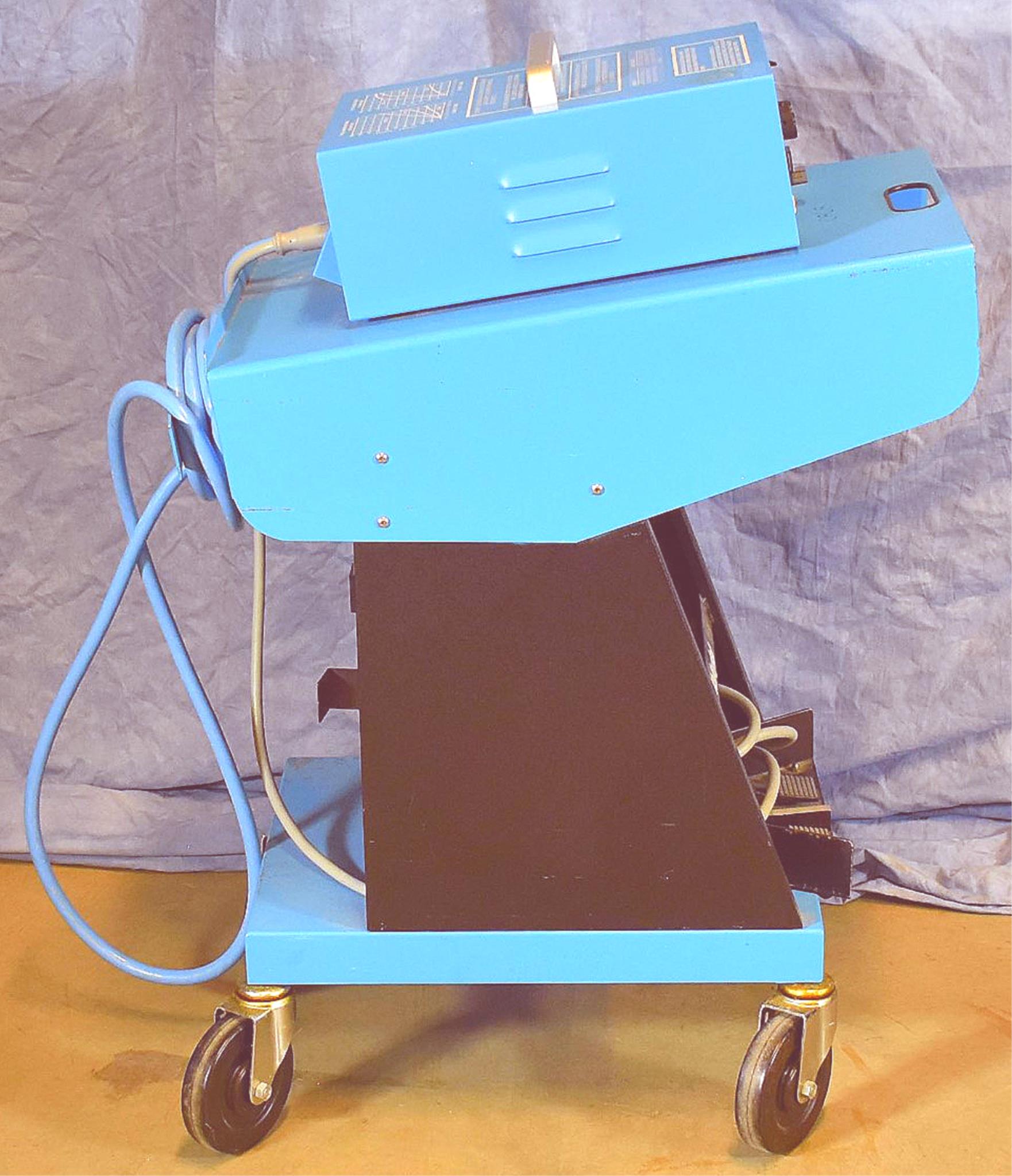

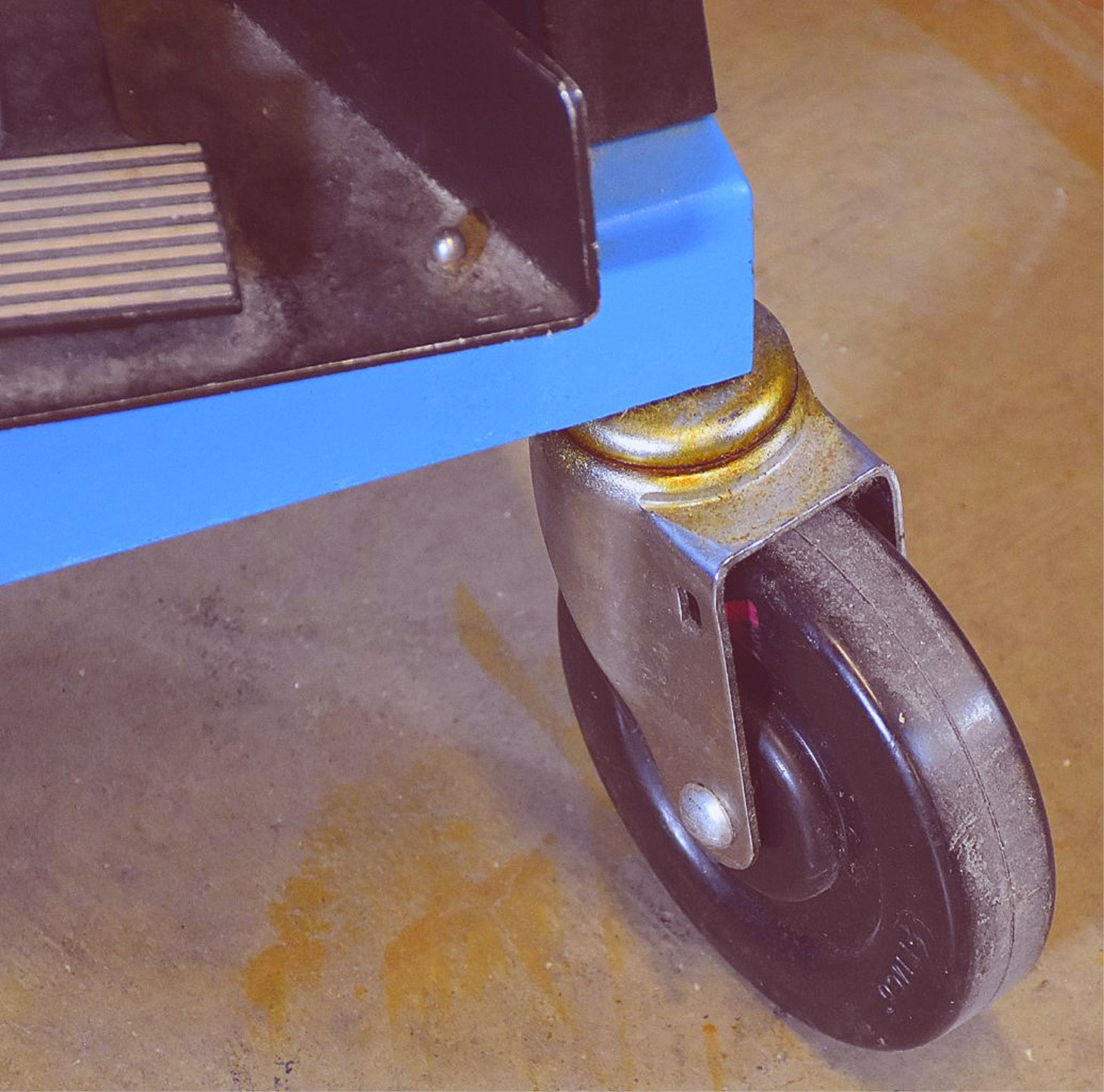

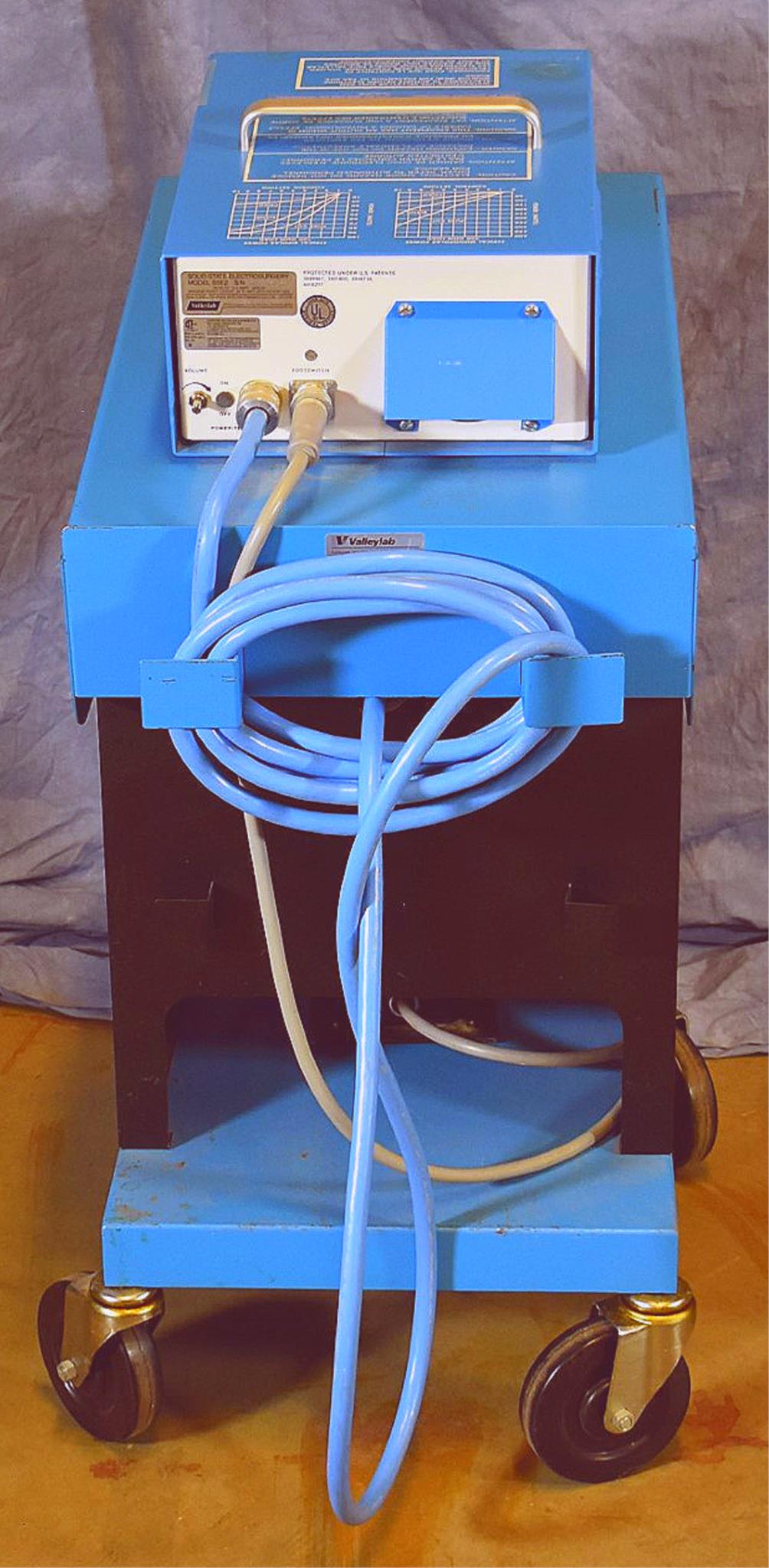

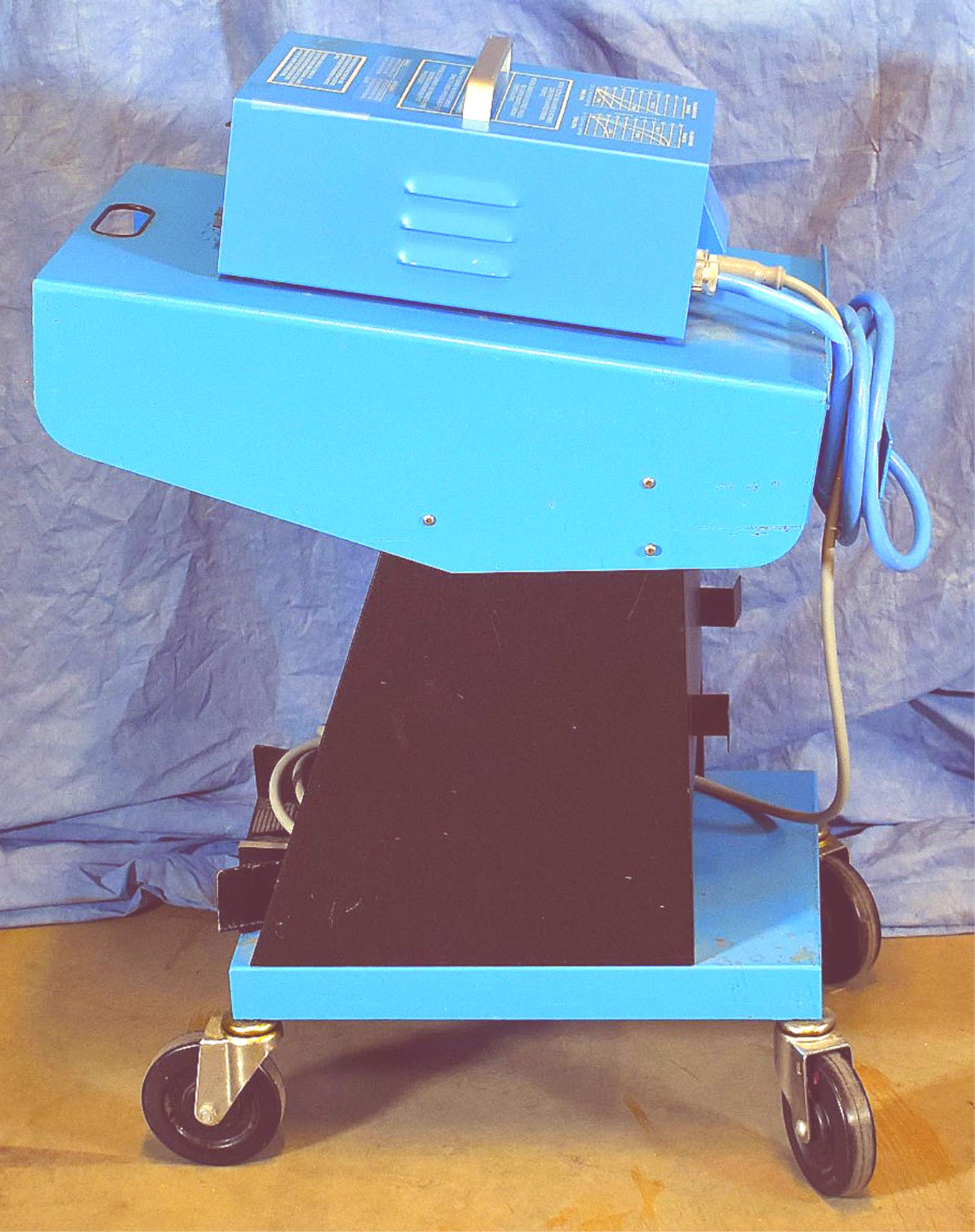

NEVERTHELESS THE ORIGINAL CART SHOWN IN THE PICTURE CAN BE SHIPPED IF BUYER PAYS US$200 FOR FREIGHT SHIPPING.

WE CAN ALSO SHIP IT INTERNATIONALLY BUT WITHOUT THE CART EVEN IF BUYER WANTS TO PAY EXTRA! BUYER WILL RECEIVE ONLY THE UNIT ITSELF AND THE REMOTE IF TO BE SHIPPED INTERNATIONALLY VIA USPS EXPRESS MAIL INTERNATIONAL, NOT THE CART!

This VALLEYLAB SSE2 ELECTROSURGICAL GENERATOR with FOOT REMOTE has been fully tested and is working perfectly and that's why we offer a 90-DAY-WARRANTY on this unit!!!

TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:

somatechnology.com/Electrosurgical-Units/Valleylab-SSE2L.aspx

Valleylab SSE2L Features

The Valleylab SSE2L ESU is a general-purpose electrosurgical generator intended for the use in an operating room. The SSE2L electrosurgical unit has both monopolar and bipolar output connections. The monopolar output is intended for use with a patient return electrode and is designed for electrosurgical cutting and fulguration. Its voltage waveforms, CUT, BLEND, and COAG are intended for smooth cutting, cutting with an increased degree of hemostasis, and fulguration with a minimum of cutting. The Monopolar output is powerful enough for all common procedures including transurethral resections. The bipolar output power may be controlled by either CUT or COAG controls.

Optionally available with a “low power option”.

3 Electrically independent outputs for hand-switched monopolar, footswtiched monopolar, and hand or foot-switched bipolar operation.

Offers a wide range of surgical capabilities.

Valleylab SSE2L Specifications

Dimensions

Height: 7.6” (19.3 cm)

Width: 11.6” (29.5 cm)

Depth: 16.6” (42.2 cm)

Weight: 32.5 lbs (14.7 kg)

Output Waveforms

CUT: 500 KHz ± 10 KHz sinusoid with 65% 120 Hz modulation.

COAG: Pulse modulated 450 KHz damed sinusoid; Burst duration 7.0 usec nominally; Burst repetition 20 KHz ± 2 KHz.

BLEND: 500 KHz sinusoid with increased amplitude bursts at 50 usec intervals.

Output Power Control

CUT/BLED and COAG output power is essentially linear with control rotation from settings of (1) to (10).

Output Interaction

The maximum power available from any non-activated output must not exceed 20W for monopolar outputs and 3 W for Bipolar output. Non-activated power must be measured into a 500 ohm load for monopolar outputs and 100 ohm load for bipolar output.

Output Isolation

Line frequency source leakage current ≤ 0.2μA rms

Line frequency sink leakage current ≤ 150μA rms

RF patient leakage ≤150Ma RM

Line ground leakage current (50/60 Hertz)

Unit off: ≤10 μA rms

Unit on: ≤ 30μA rms

If ground is disconnected unit automatically switches off. Reset by switching on.

Output Isolation

Line frequency source leakage current ≤ 0.2μA rms

Line frequency sink leakage current ≤ 150μA rms

RF patient leakage ≤150Ma RM

Line ground leakage current (50/60 Hertz)

Unit off: ≤10 μA rms

Unit on: ≤ 30μA rms

If ground is disconnected unit automatically switches off. Reset by switching on.

Monopolar Output Characteristics

Pure Cut: 2380 V; 375 W ± 25 W; Crest Factor: 2.1 ± 0.2

Blend: 2440 V; 250 W ± 25 W; Crest Factor: 2.6 ± 0.2

Coag: 4070 V; 125 W ± 15 W; Crest Factor: 7.6 ± 0.5

Bipolar Output Characteristics

Pure Cut: 625 V; 90 W + 15, - 20 W; Crest Factor: 2.1 ± 0.2

Blend: 640 V; 85 W + 15, - 20 W; Crest Factor: 2.2 ± 0.2

Coag: 1100 V; 25 W + 5, - 10 W; Crest Factor: 7.5 ± 0.5

Line Regulation

For settings used for most electrosurgical procedures, i.e., settings which produce 0-200 watts in cut and blend and 0-75 watts in coag, with line voltages varying between 100 and 130 volts, power will not vary by more than ± 25 watts in cut and blend, and ± 17 watts in coag.

TÜV SÜD 0123

Manufacturer: Liebel-Flarsheim Company LLC

We received this unit from a Federal University, we did power it up and it DOES work PERFECTLY!!!

IMPORTANT: We offer a 90-DAY-WARRANTY on this unit BECAUSE it HAS BEEN FULLY TESTED and DOES WORK Perfectly!!!

Used and in excellent working order

FREE USA SHIPPING!!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 220709
