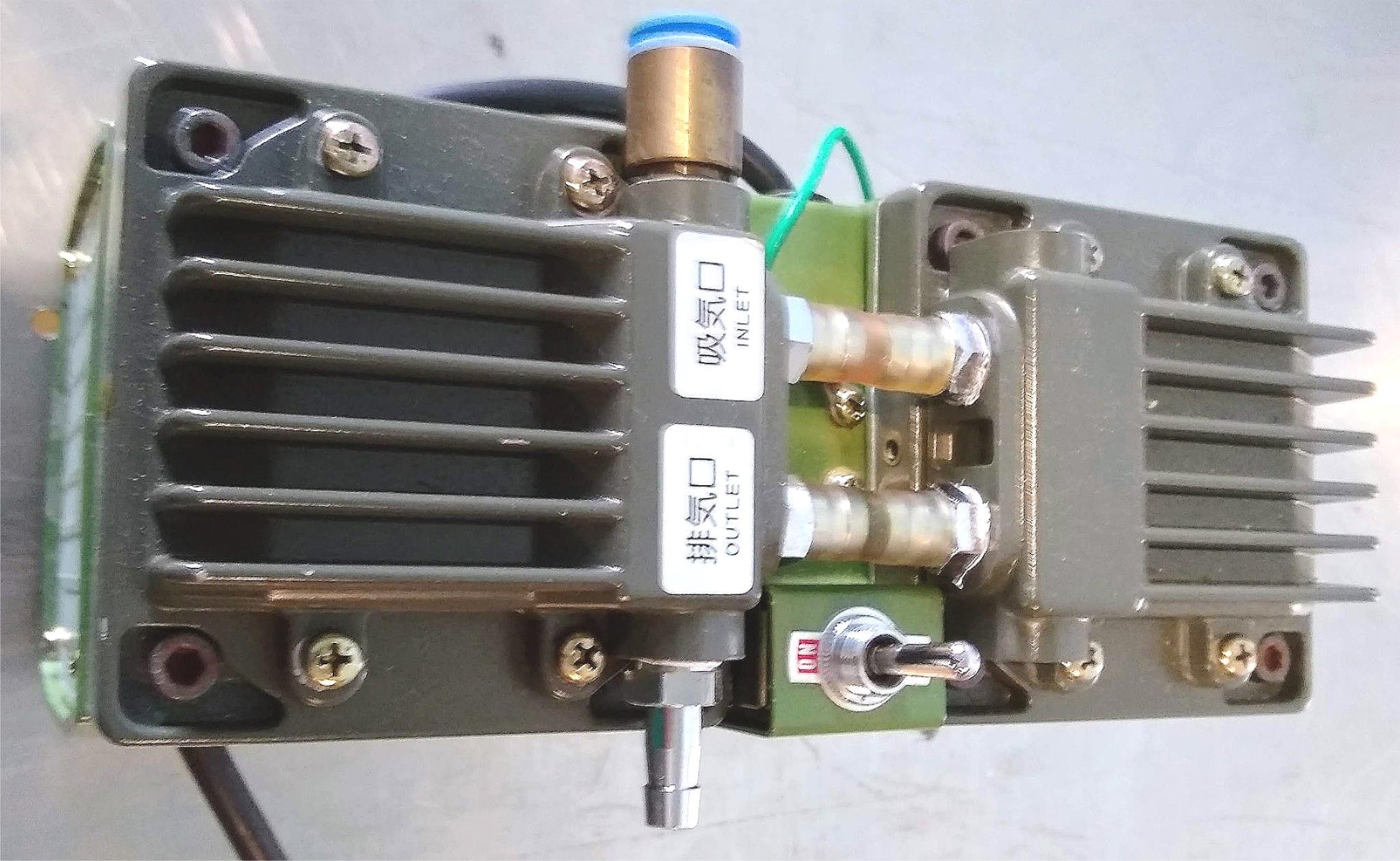

This is a vacuum pump that evacuates by the reciprocating motion of a rubber thin film (diaphragm).
Simple structure and easy handling. DA series is a standard type.
Features and Cautions on use
Diaphragm type pump creates vacuum by reciprocate movement of rubber diaphragms.
Pump structure makes Oil-free environment and maintenance easy.
Various pumping speed and two/single stages are selectable depends on your required pressure and pumping volume.

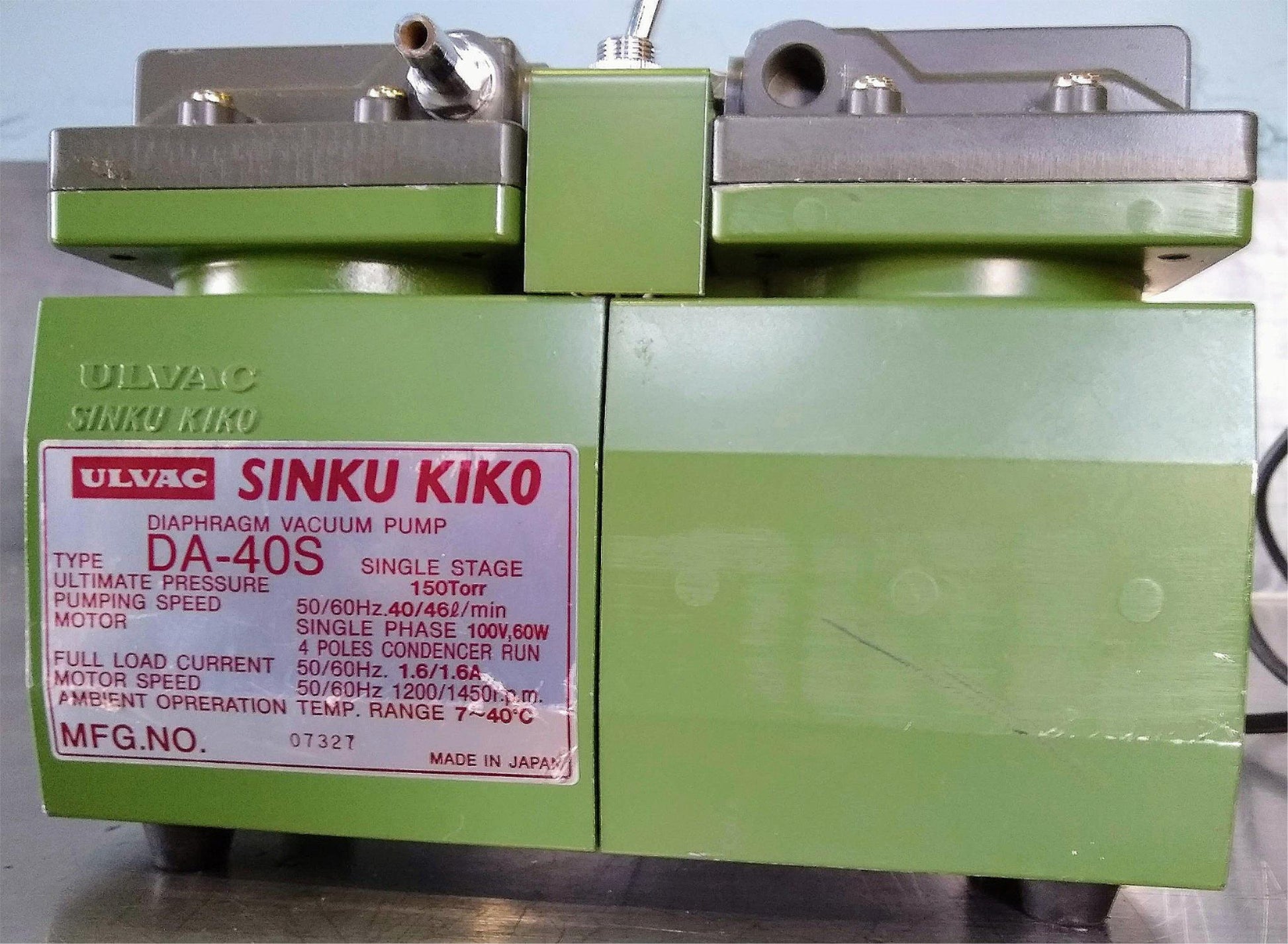

Specification
Single Stage 150 Torr
50Hz / 60Hz
Actual Pumping Speed: 40-46L L/min
Ultimate Pressure: Pa 21.3×103 / kPa -80 #1
Motor Output: 200 W
Weight: 16 Lbs (8 kg)

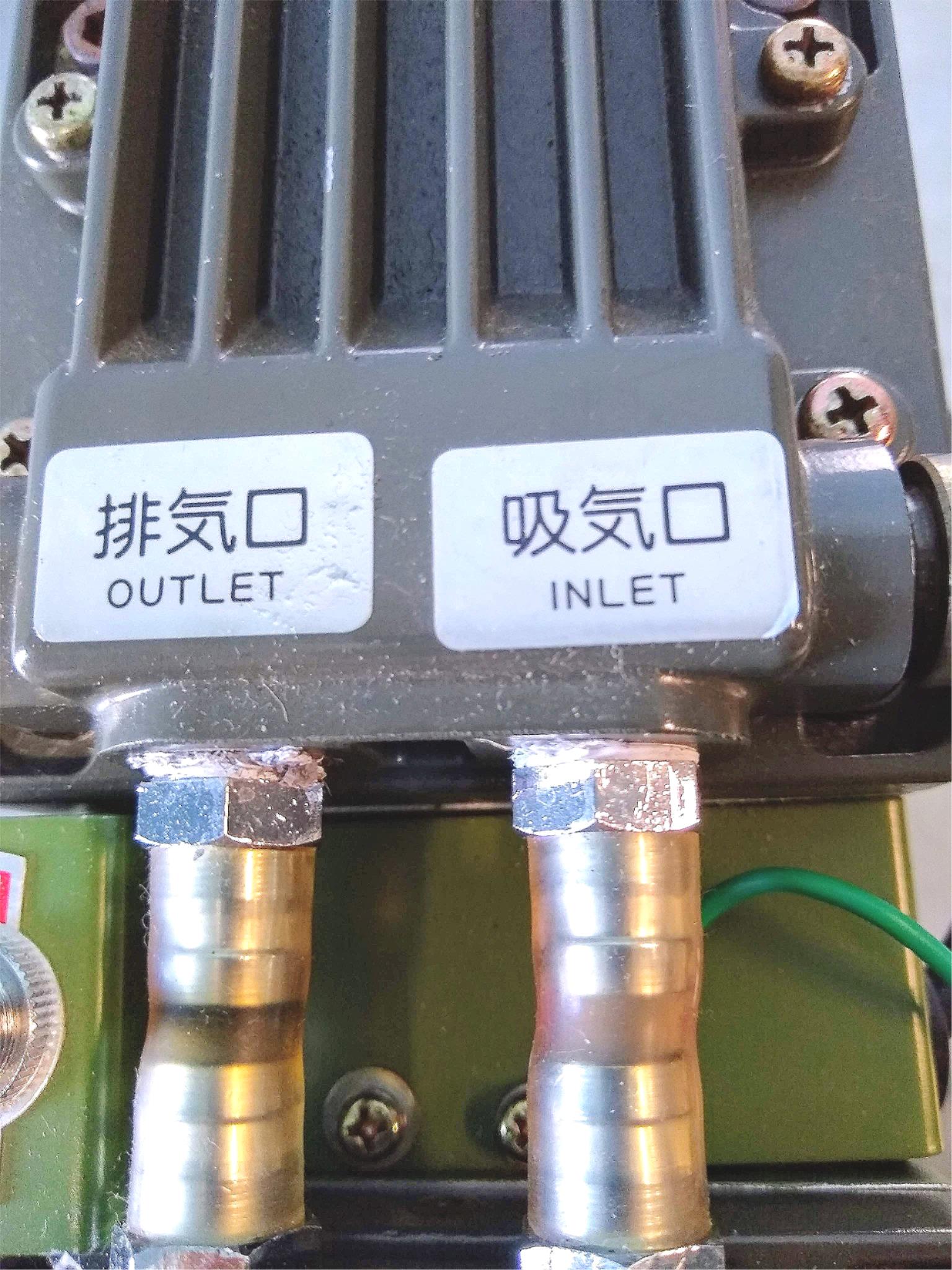

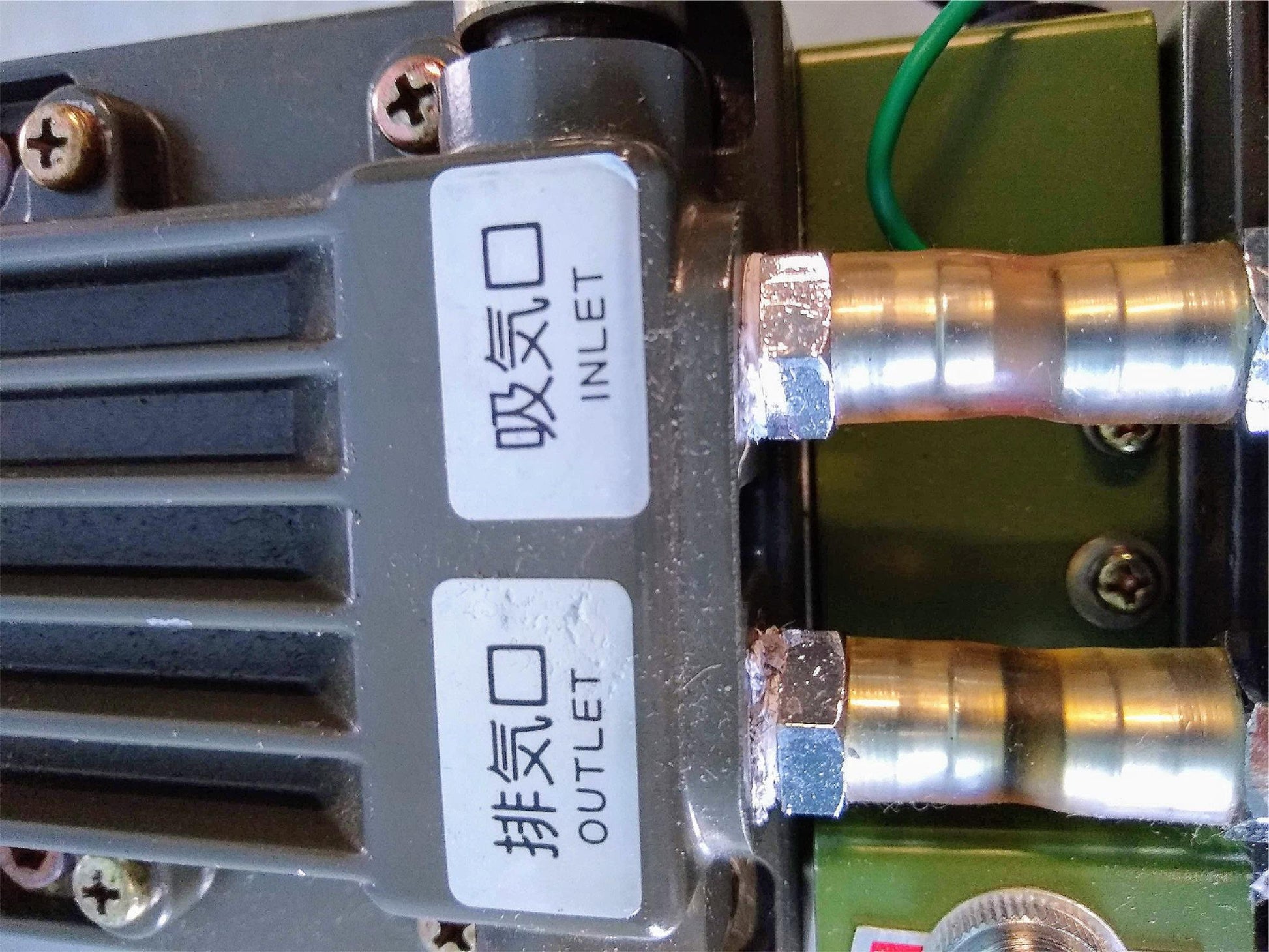

Inlet, Outlet port diameter mm: O.D.φ9 × I.D.φ5 (Rc 1/4)
Ambient temperature: 7～40 ℃
Overall dimensions mm: 212(W) × 278(L) × 224.5(H)
Voltage: Single phase, 100V
