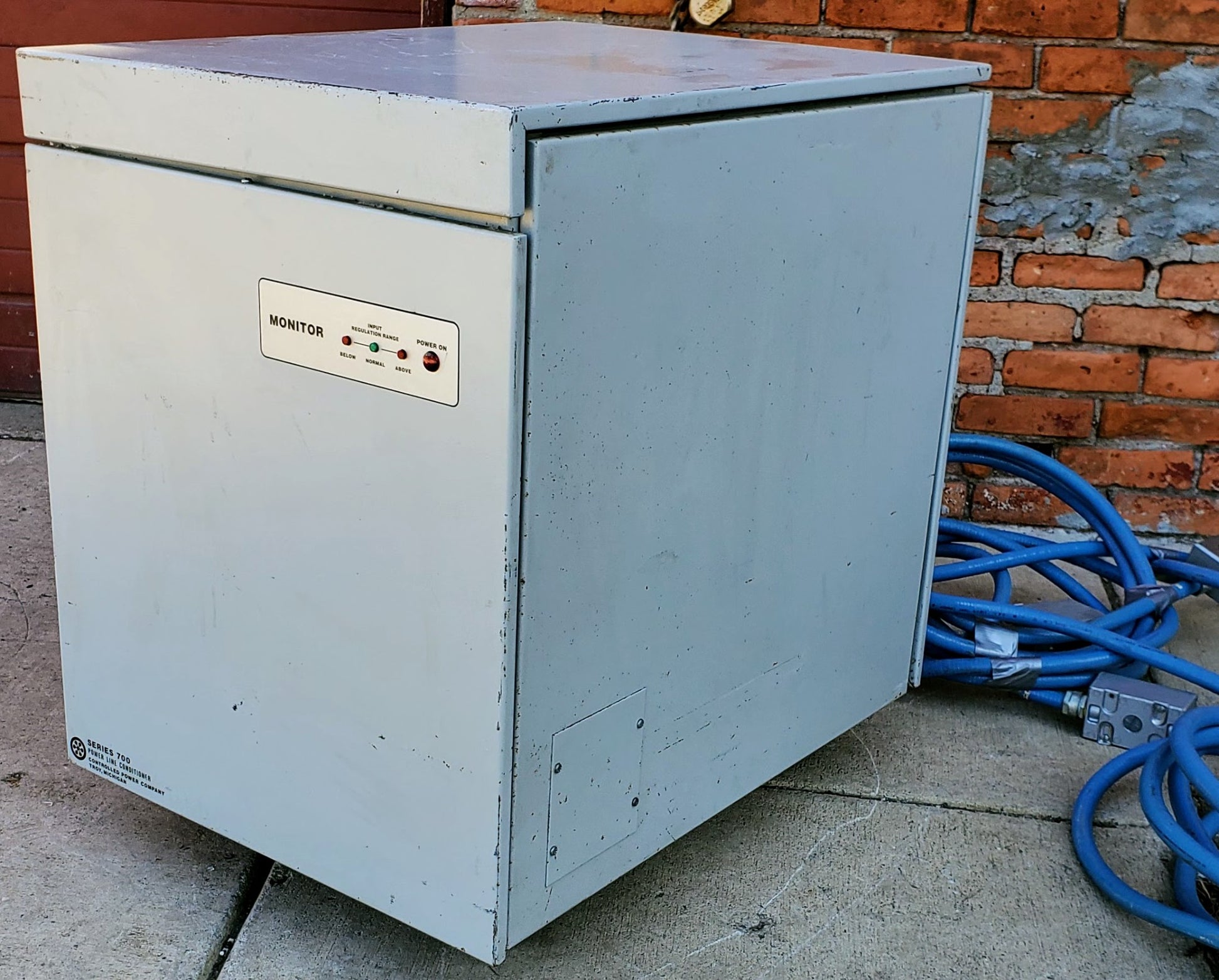

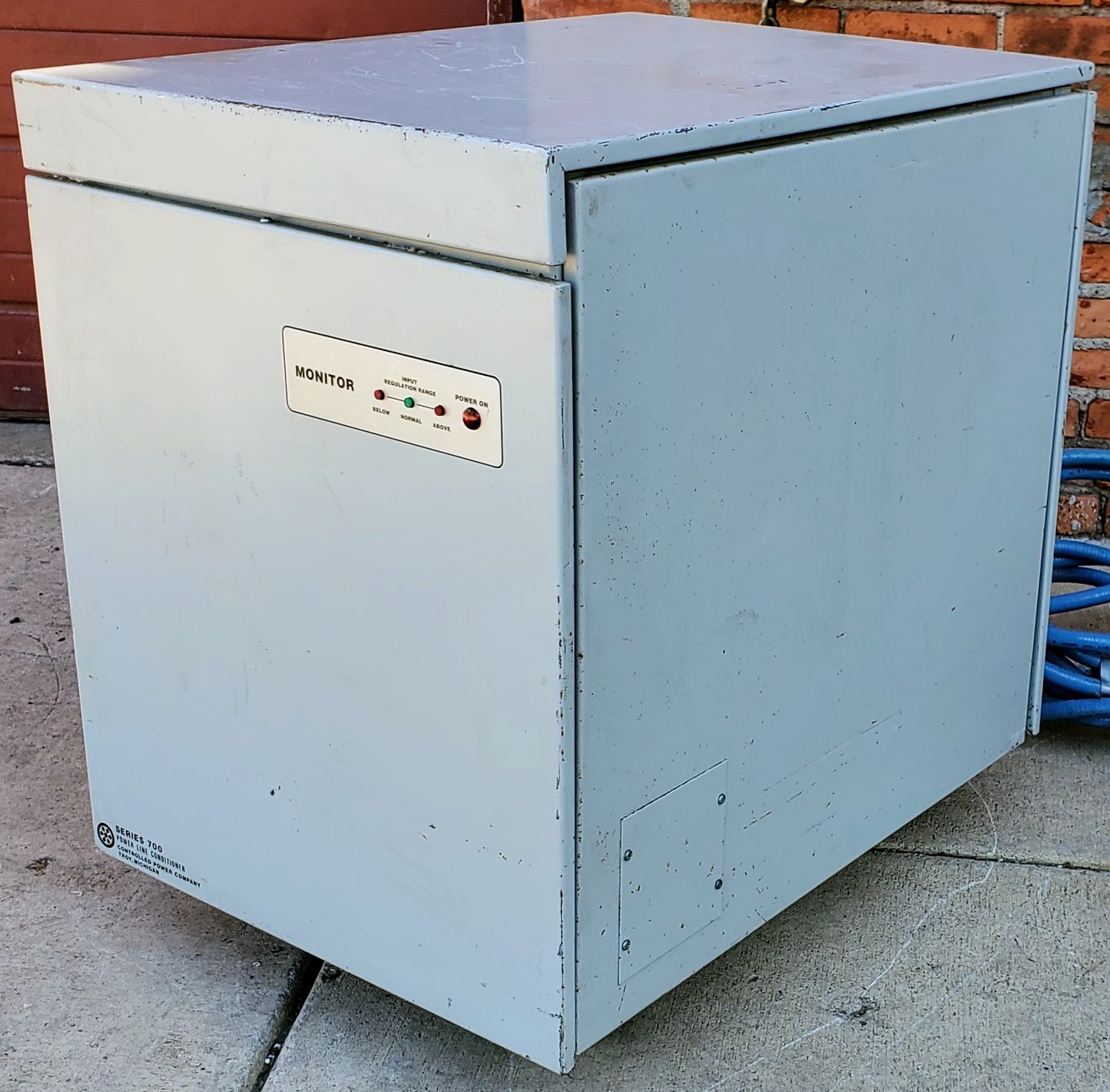

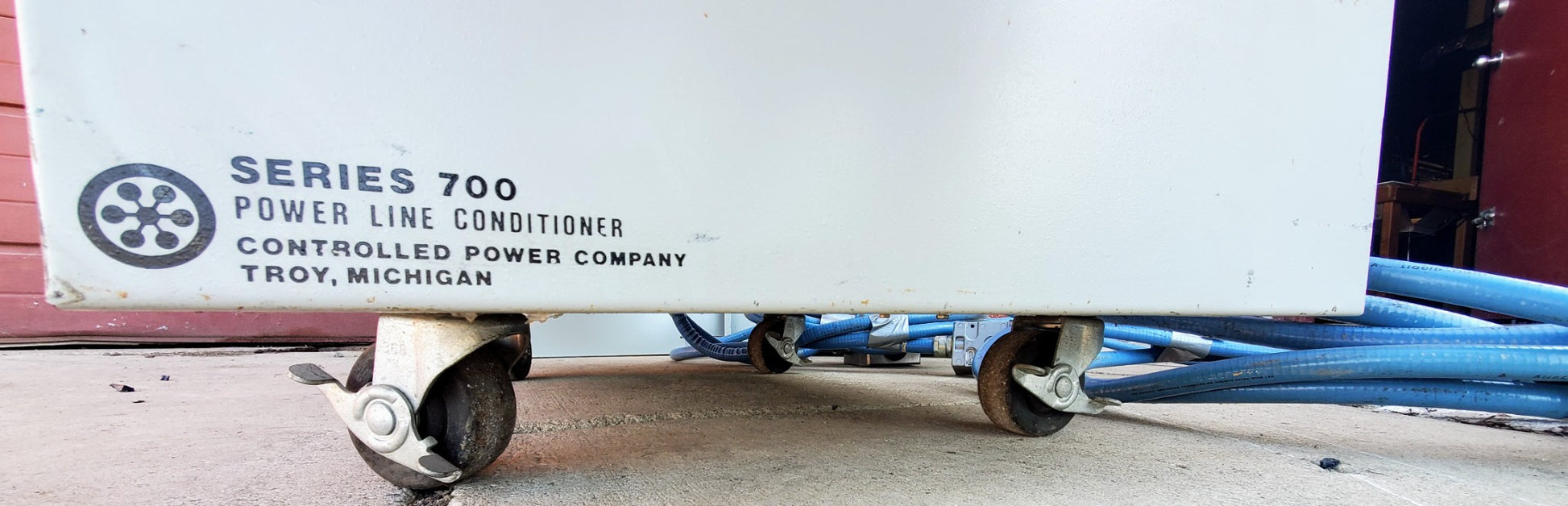

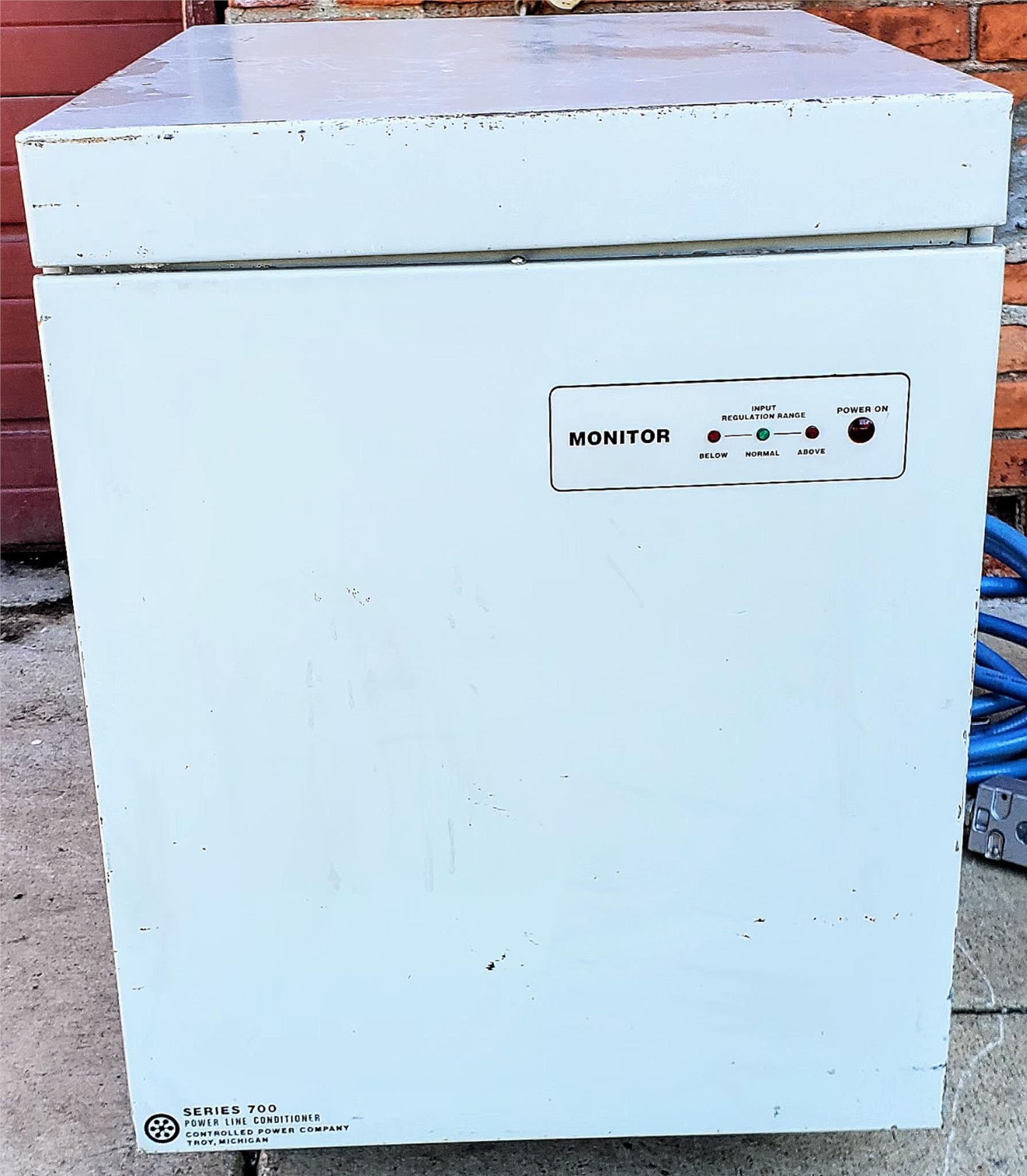

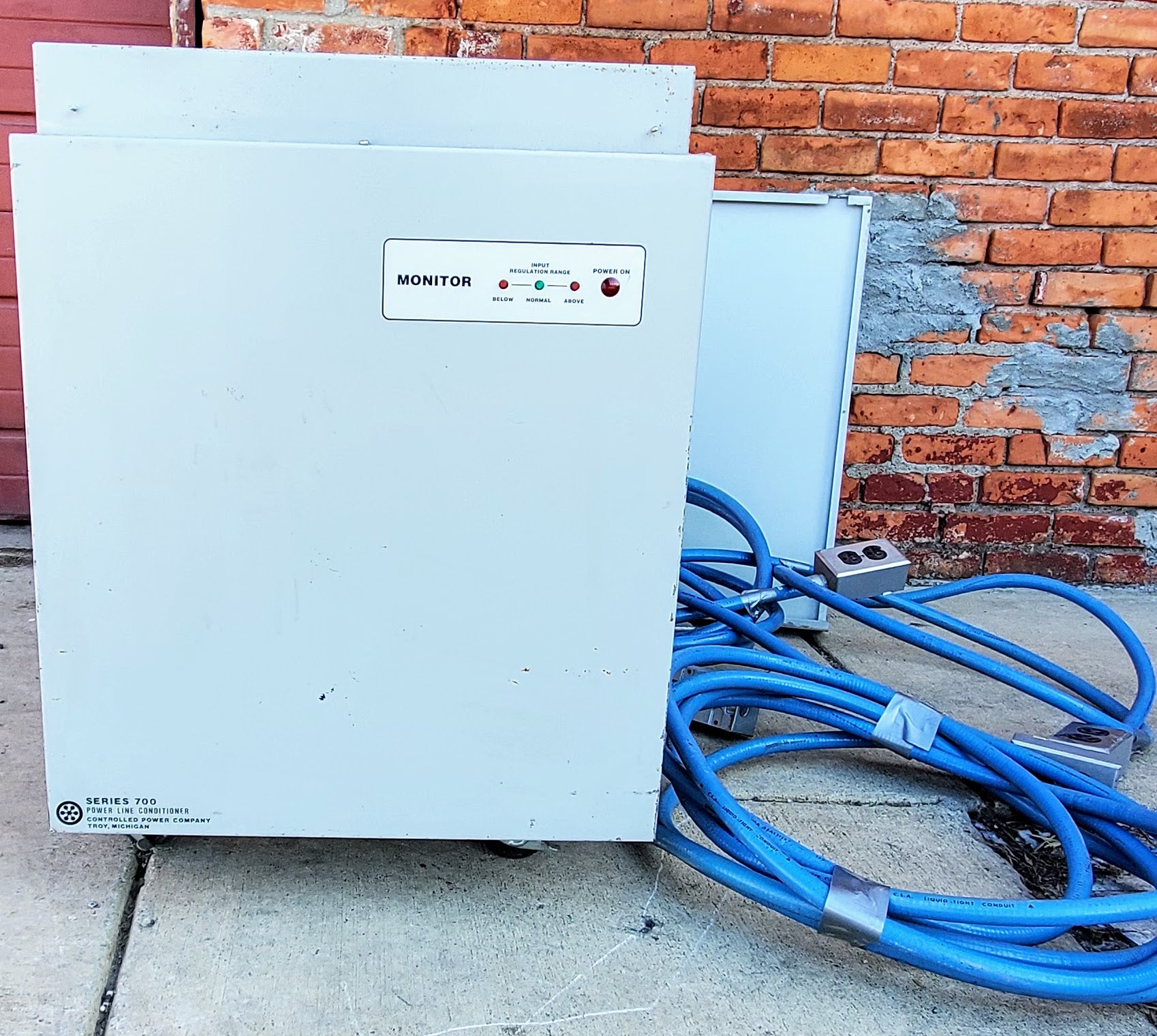

Series 700F Power Processor
(8.0kVA)
Power Conditioning Voltage Regulators
Description:
The Series 700 is a rear access, tap switching, power conditioning voltage regulator which features a small footprint, high efficiency design, triple-shielded isolation transformer, tight output voltage regulation to ± 3%, and optional power quality monitoring.
Provides fast, accurate regulation within one cycle, without over- or under-shoot.

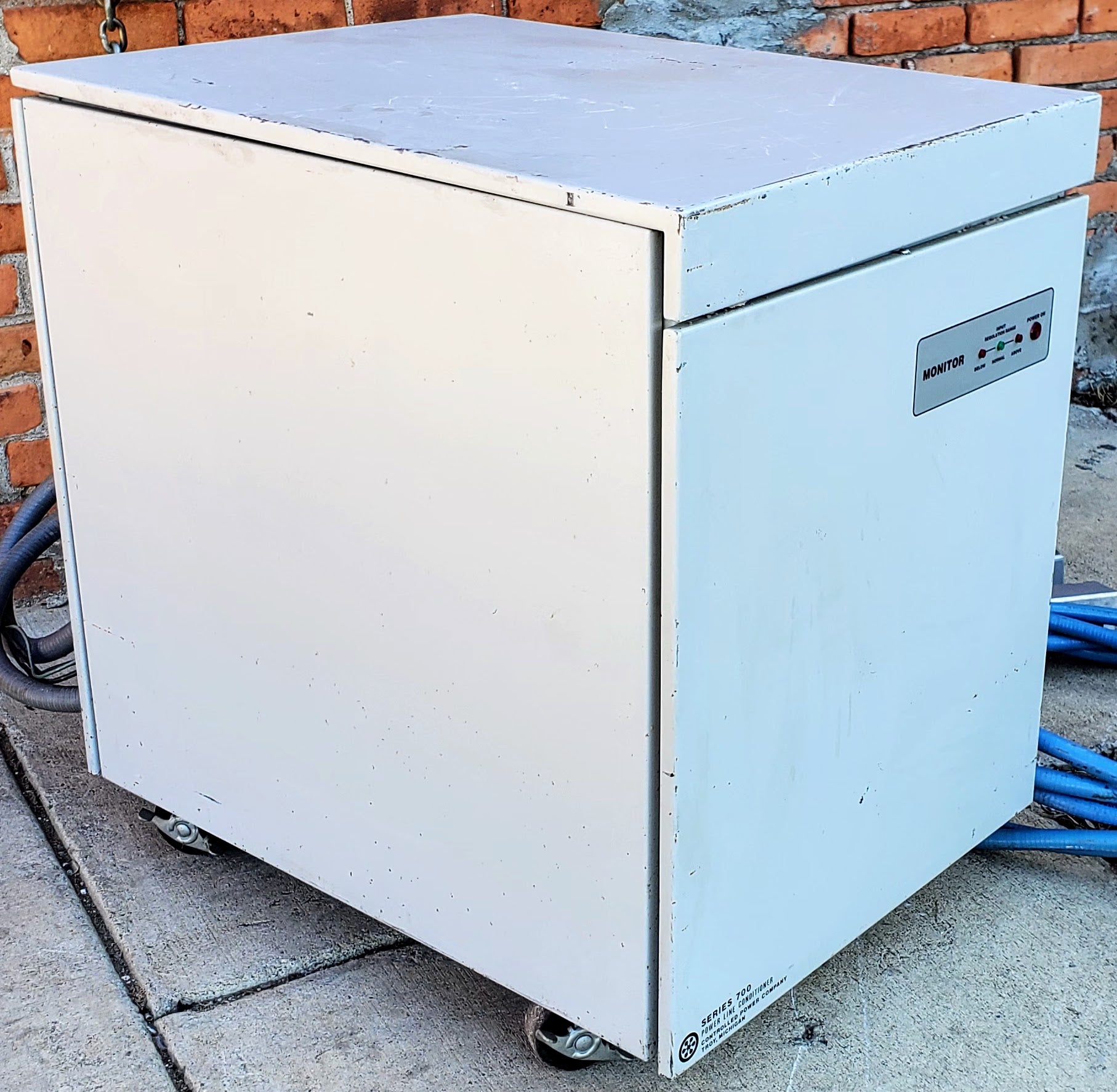

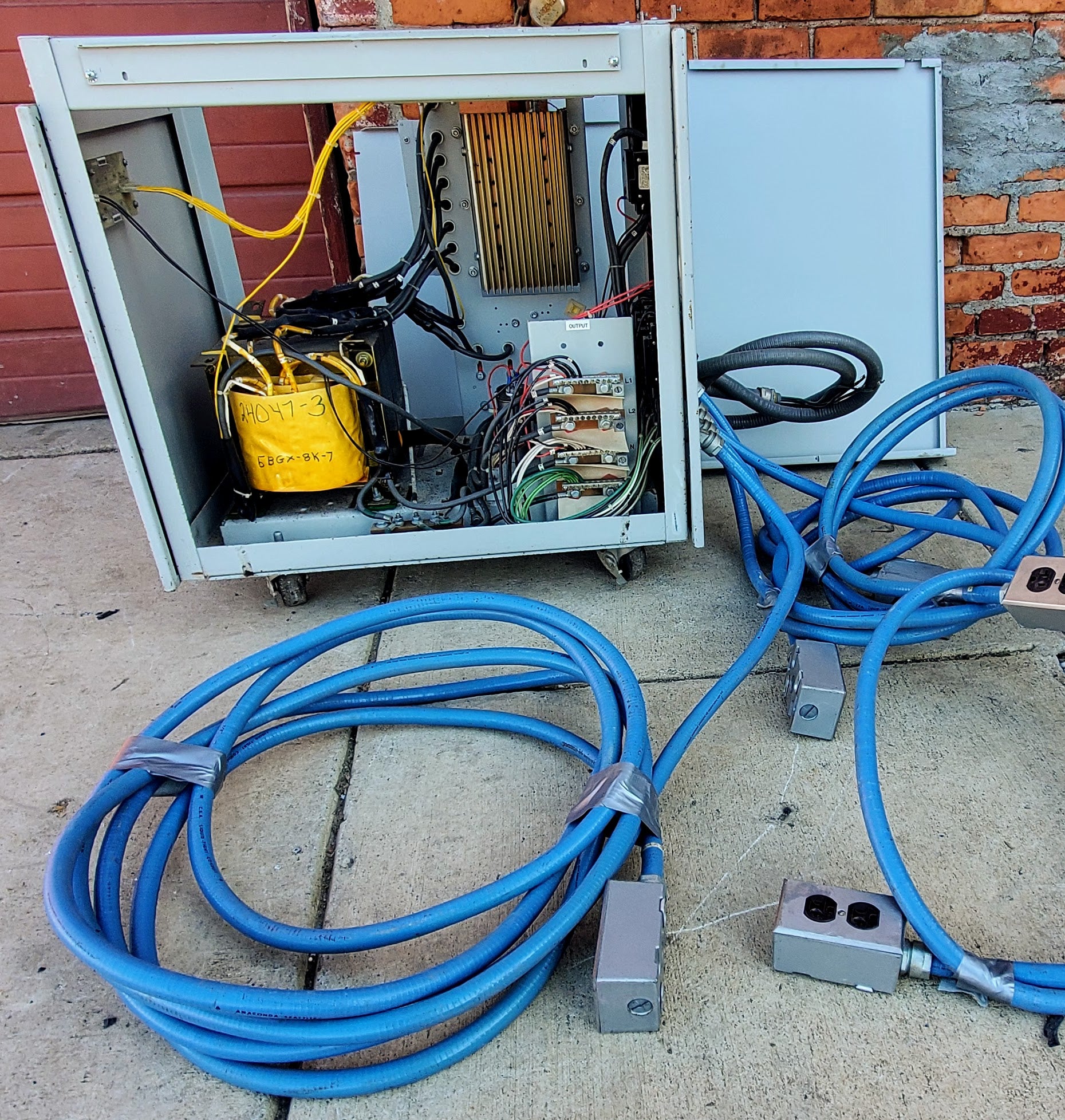

With a unique rear access cabinet design, left, right, and rear access are not required for system installation, operation or service.
The verification testing required is recognized and accepted by most of the U.S., as well as other countries, and not exclusive to the hospital market.
With an input nominal voltage of 208V it is provided on a floor-mounting channel.
One Phase Size
Rear access only! All installation, operation, maintenance, and testing can occur from the rear of the unit — no side or front access required

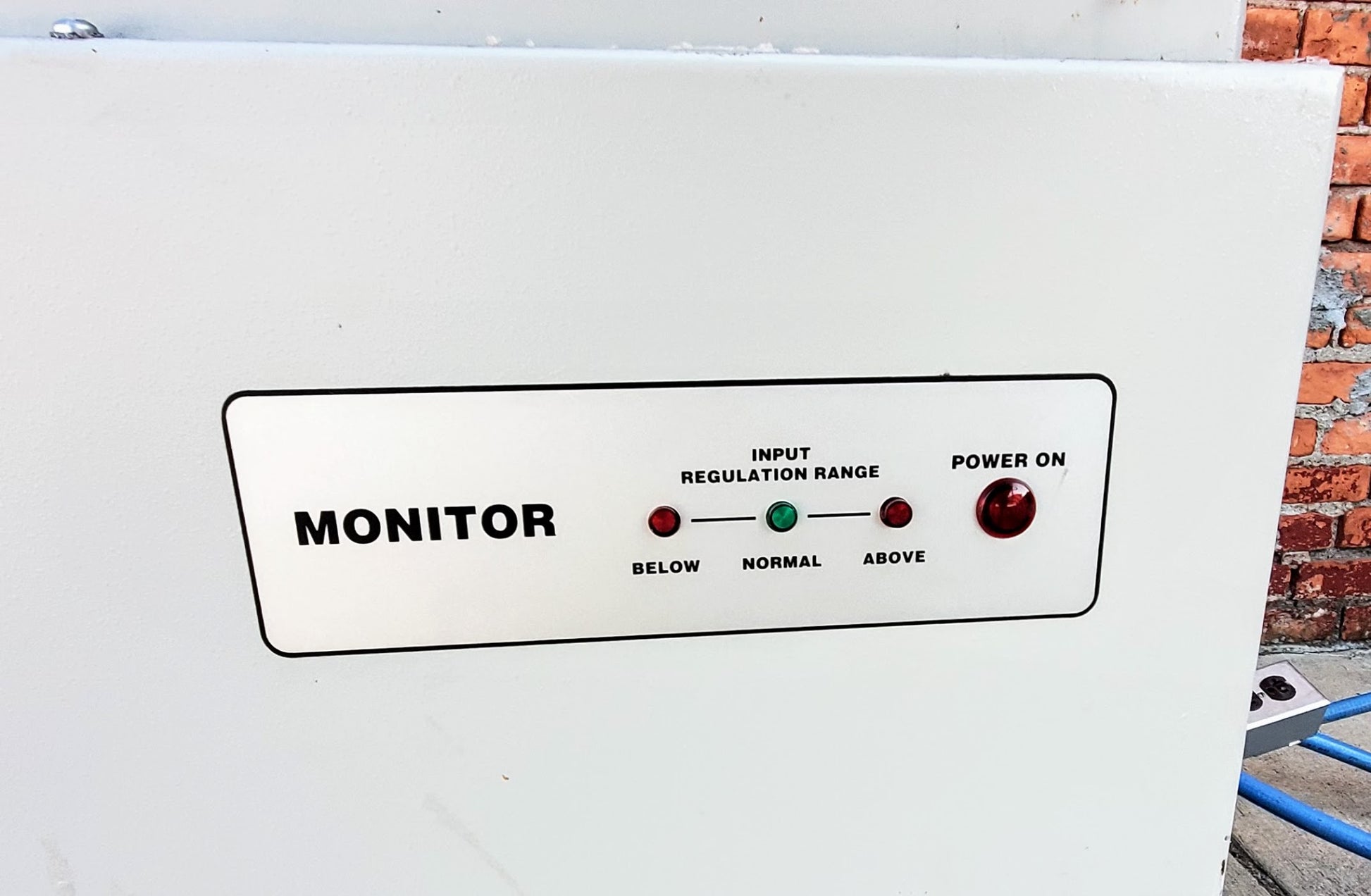

Microprocessor-controlled for tight voltage regulation, accuracy, and stability.
Precisely maintains correct voltage to ± 3% within 1 cycle, and maintains regulation during extended brownouts
Extended input regulation range
Low output impedance transformer minimizes voltage distortion and sags commonly associated with high surge currents
Shielded isolation transformer provides a noise-free ground, attenuates voltage spikes and transients, and re-establishes the N-G bond
Maintains system isolation, voltage transformation, and power conditioning
Superior compatibility with dynamic loads
Increased surge capability, provides full-time power conditioning
High-efficiency design results in lower operating cost

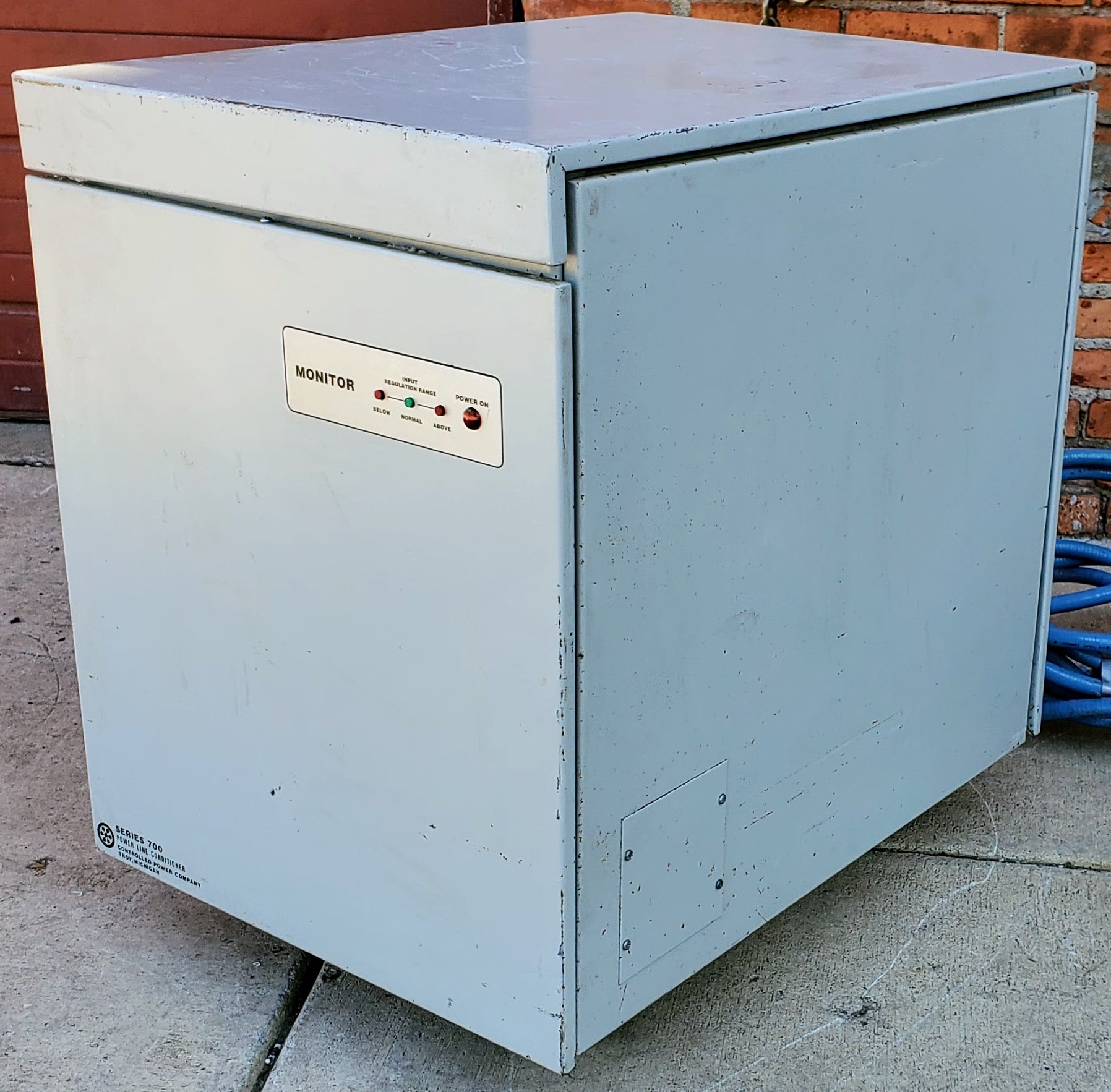

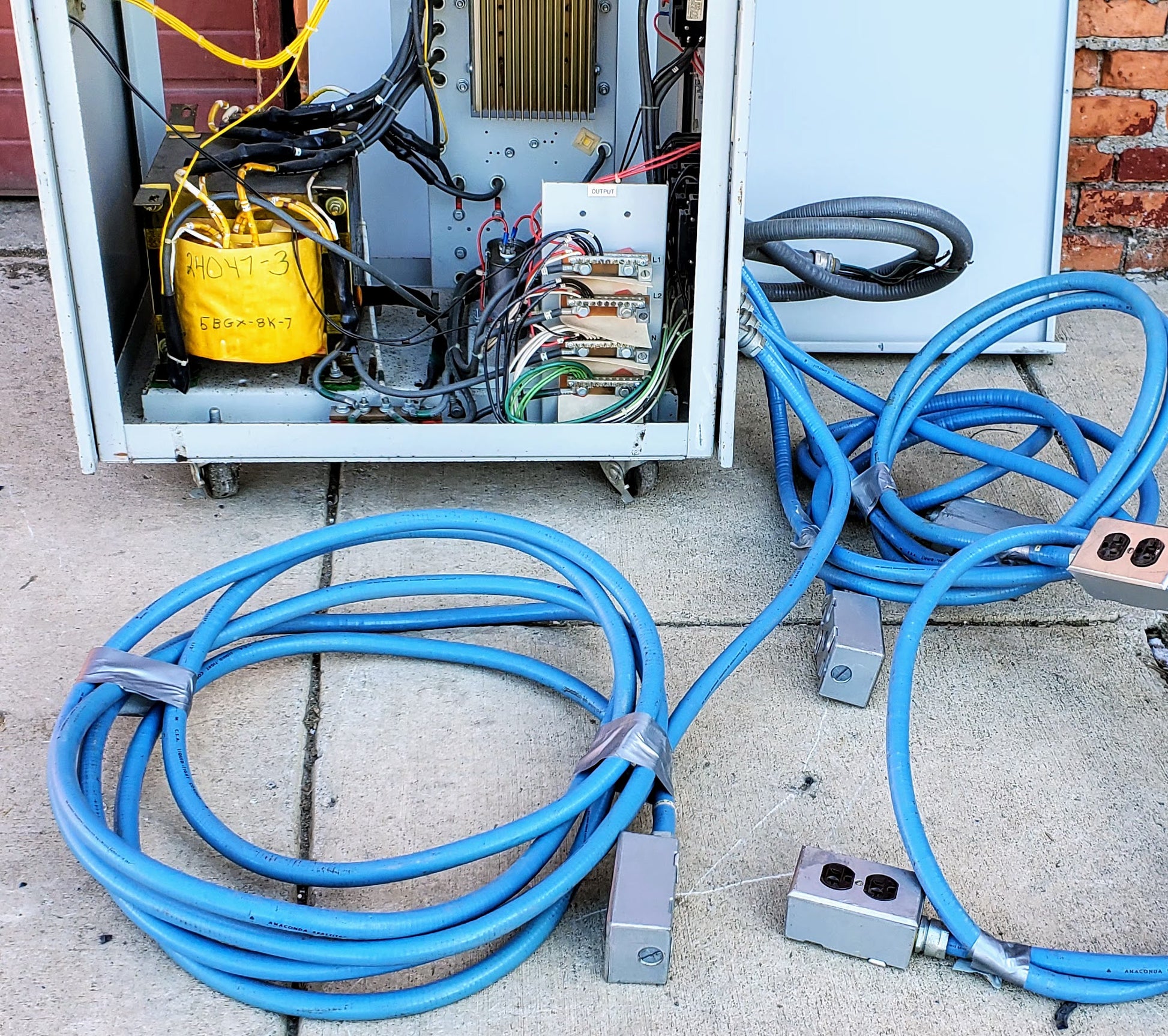

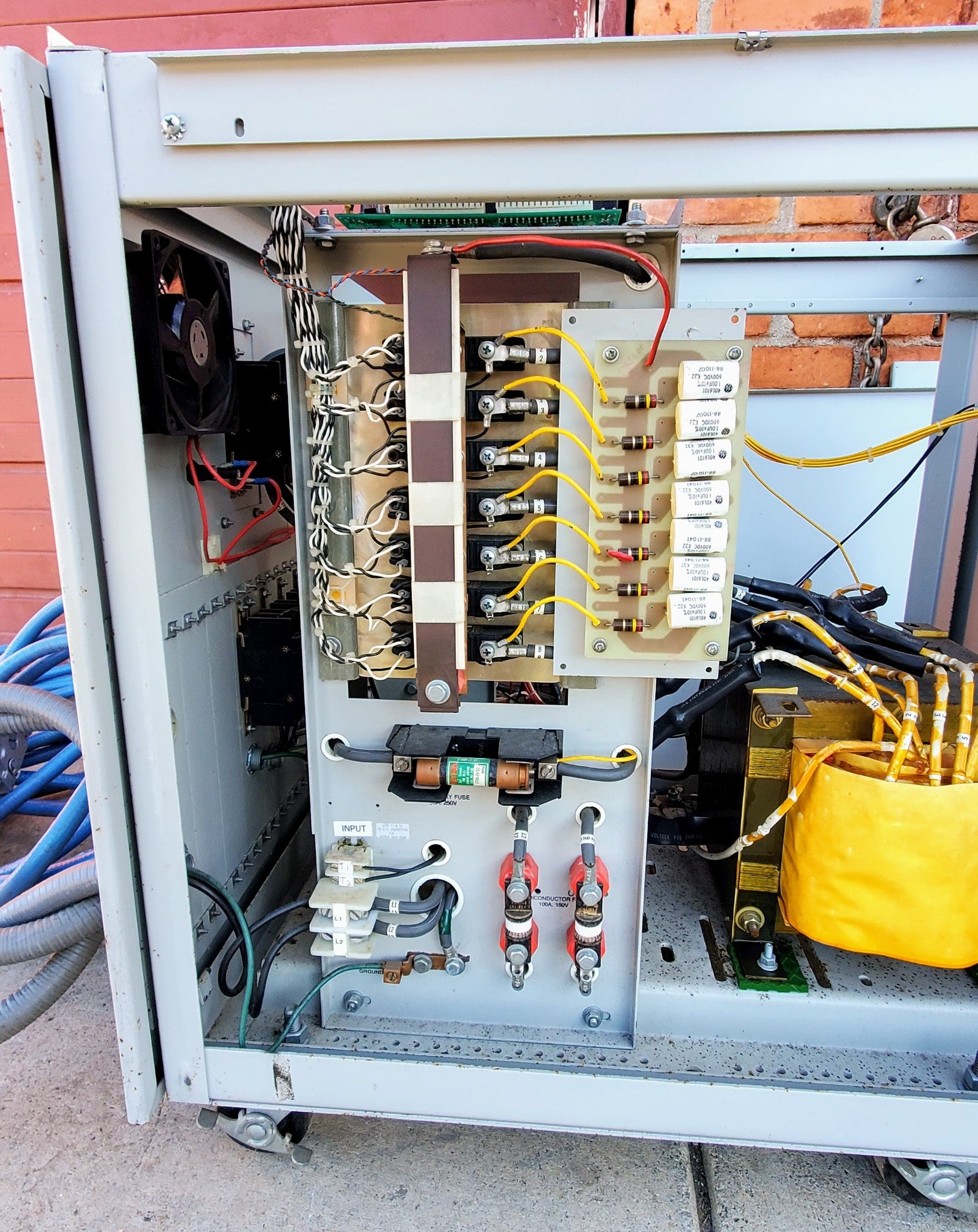

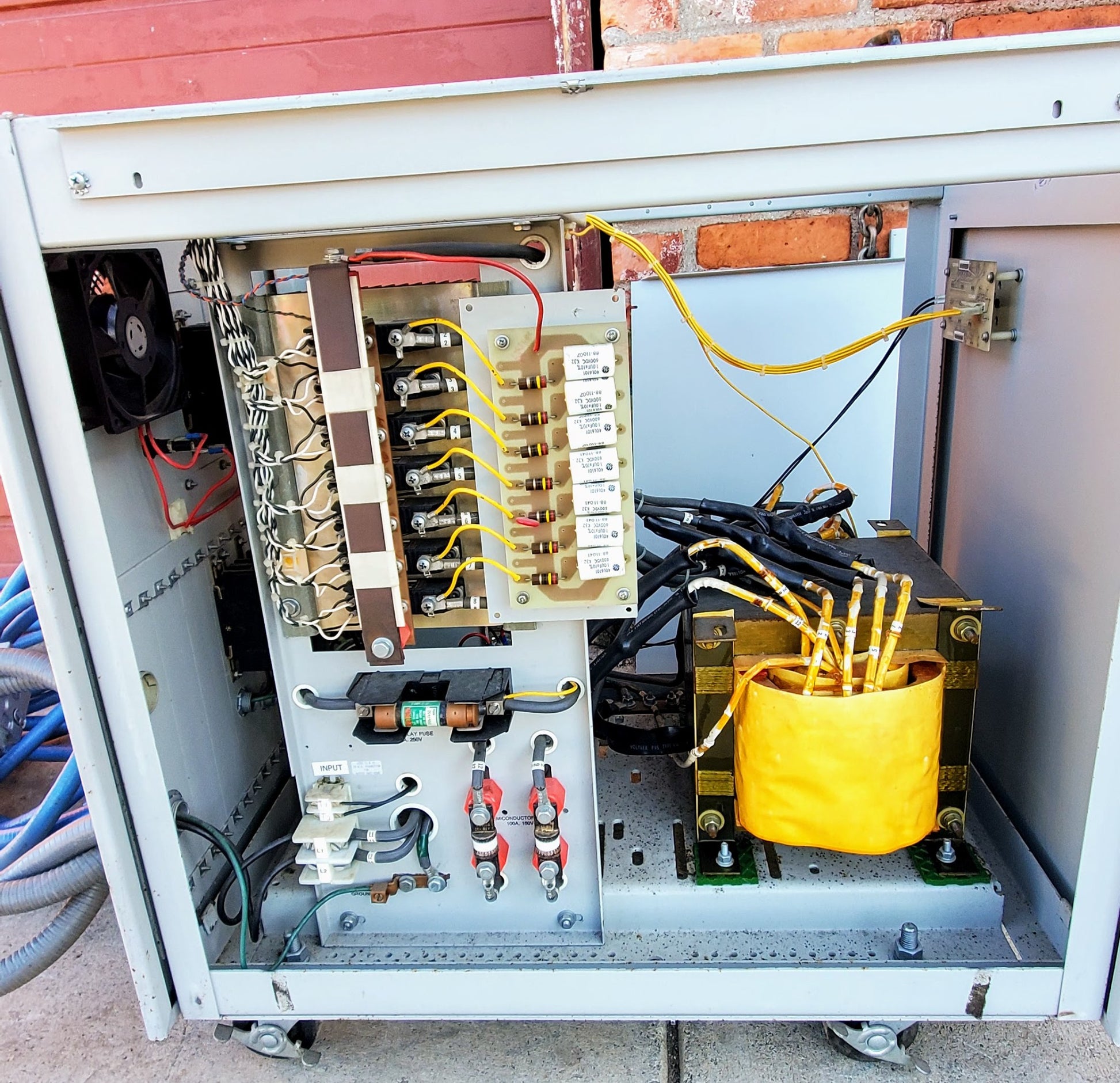

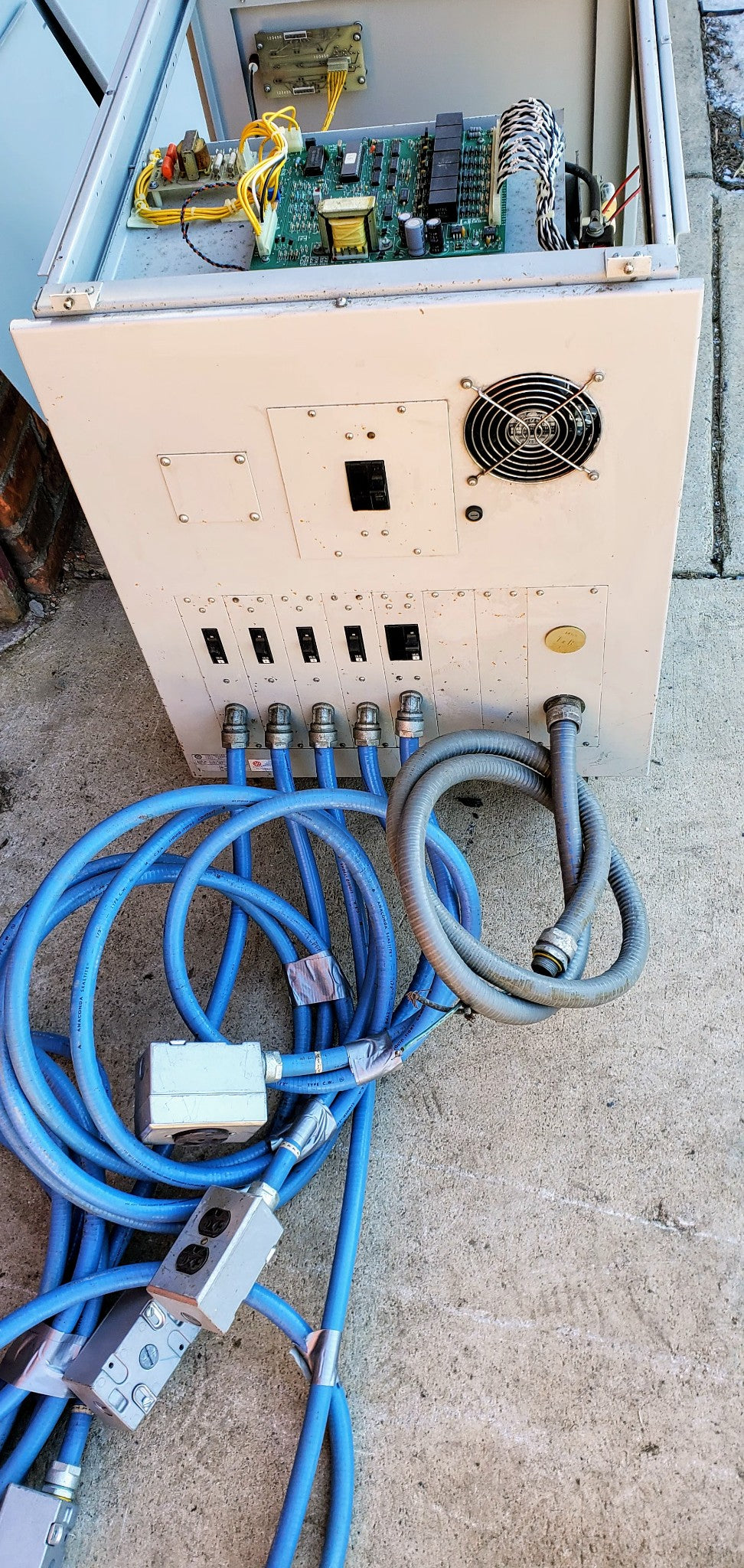

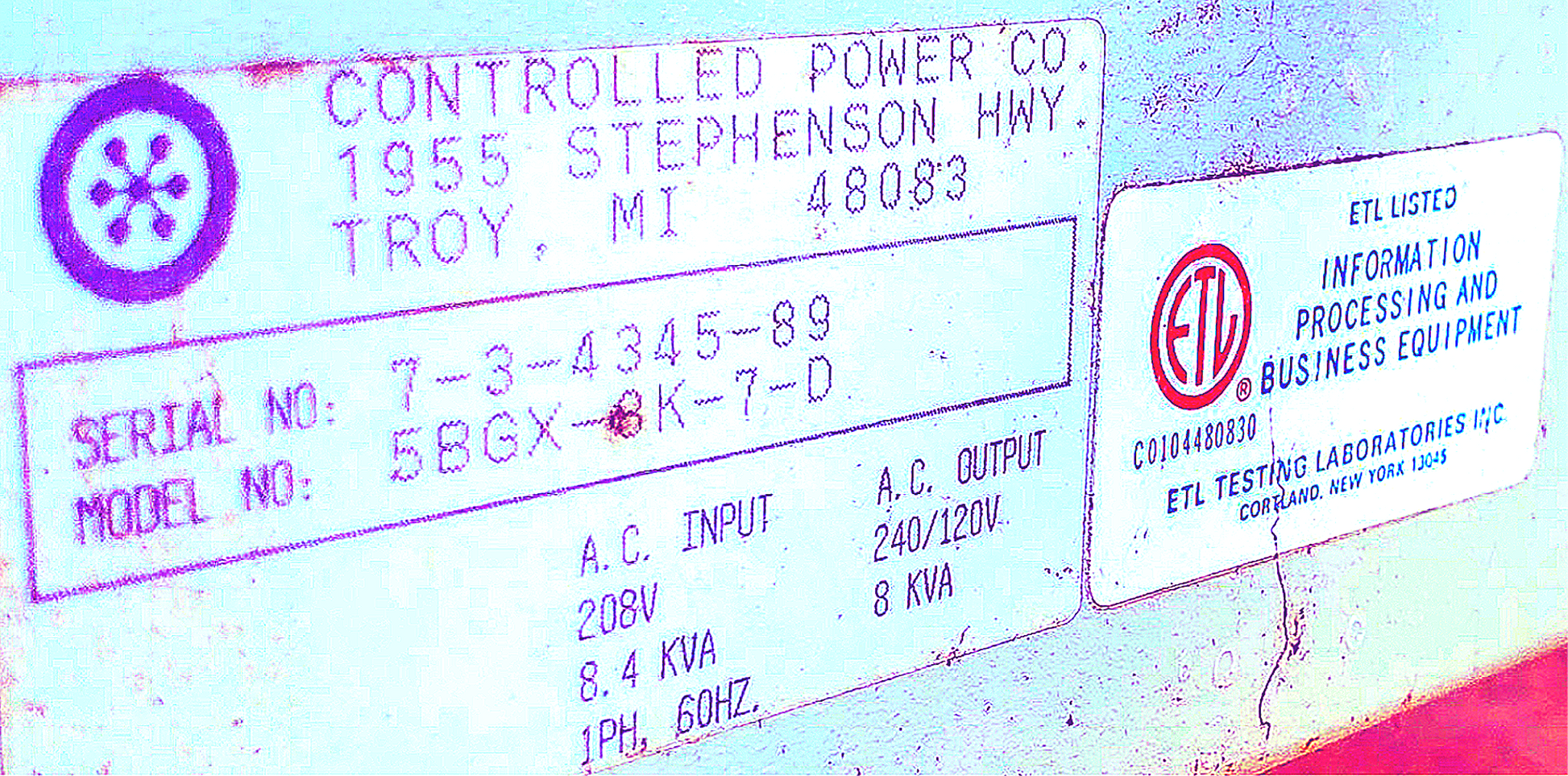

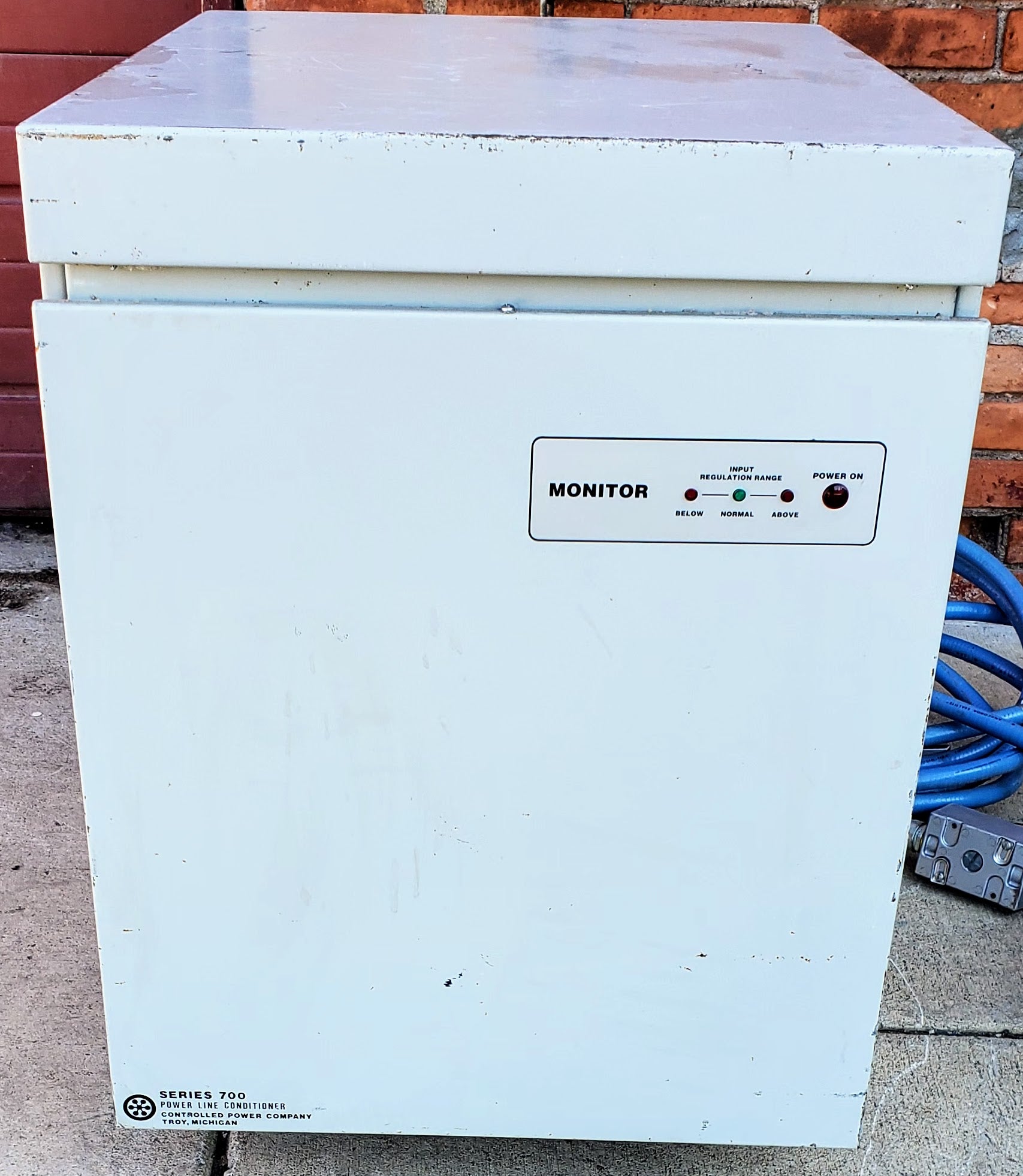

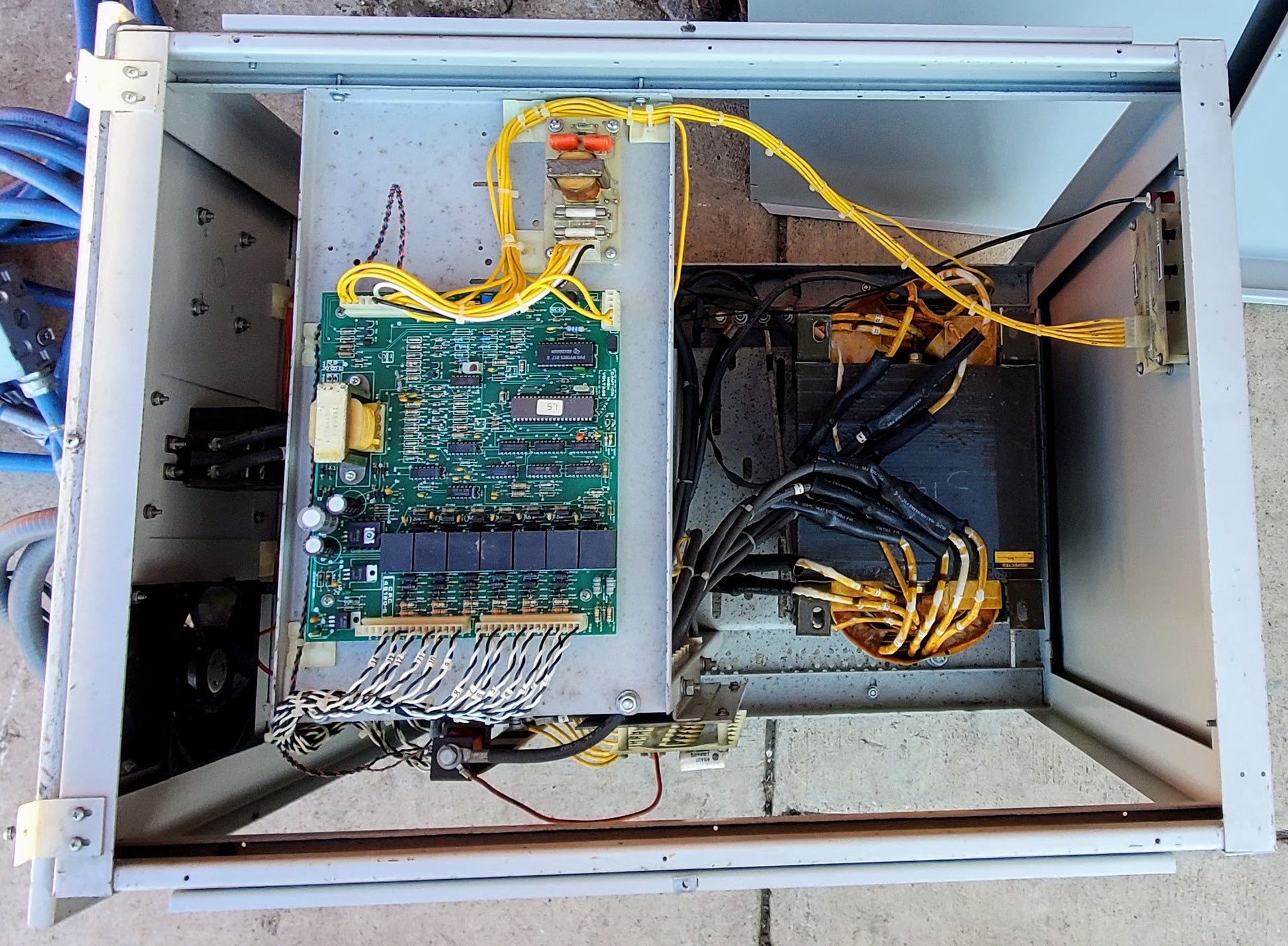

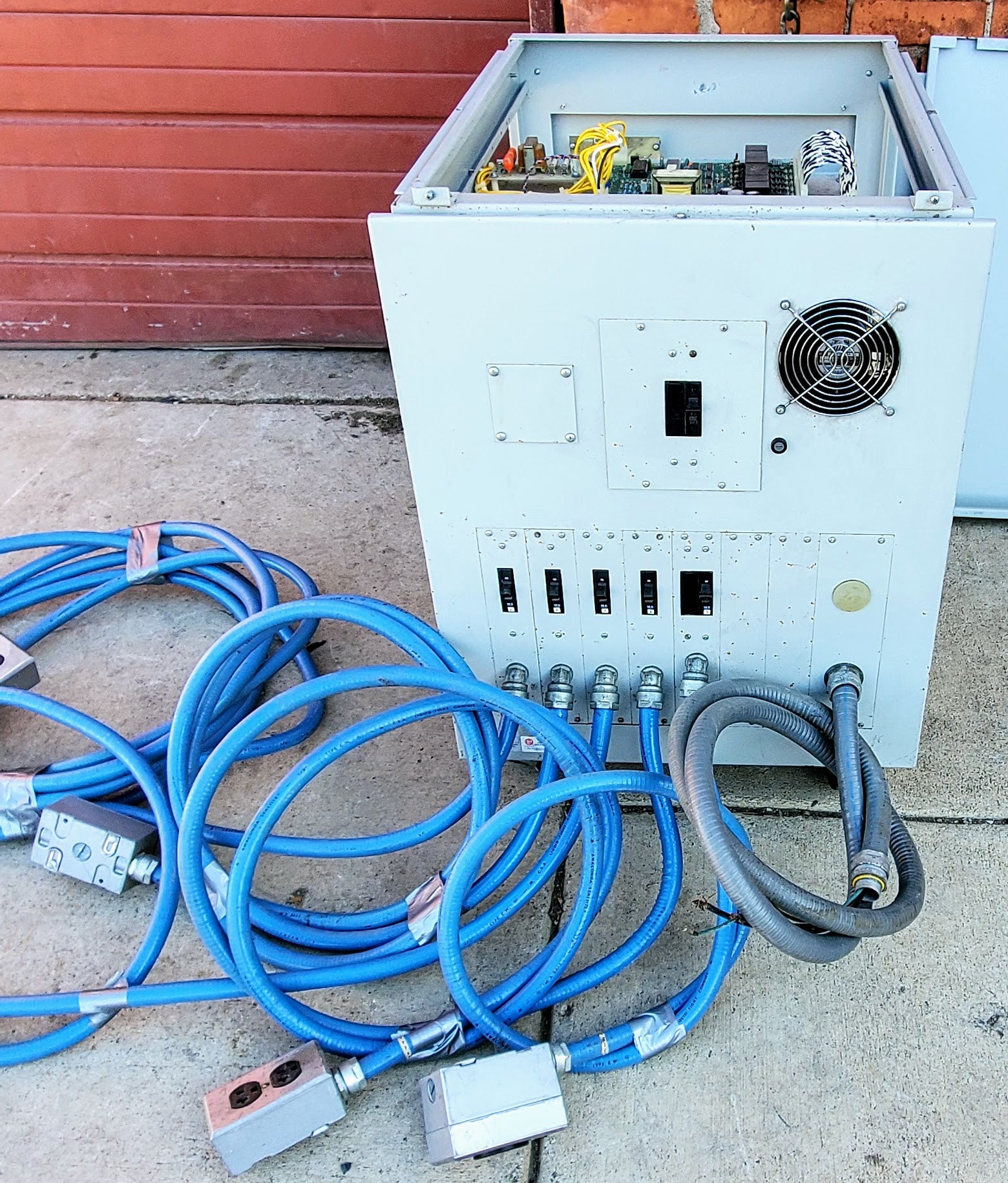

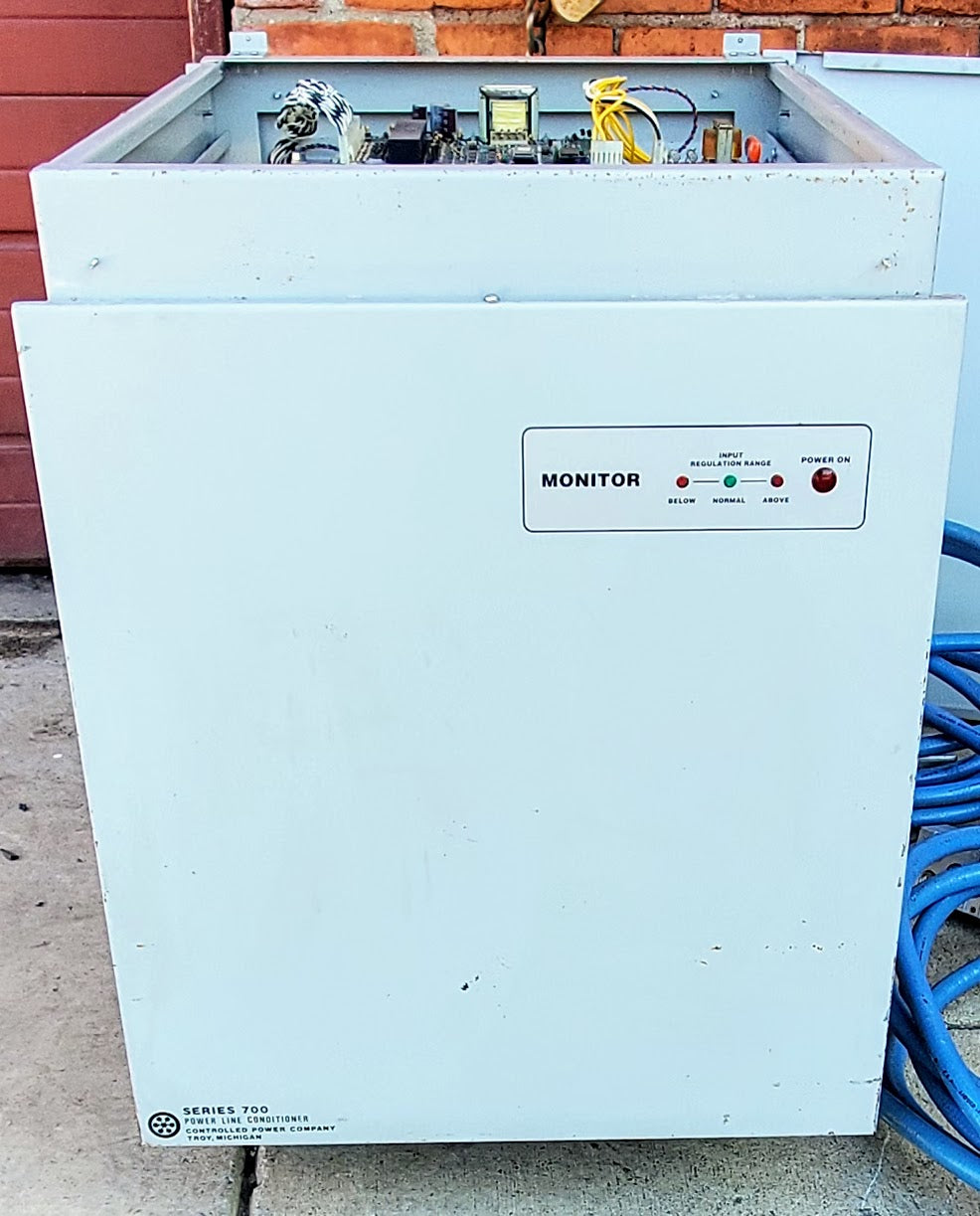

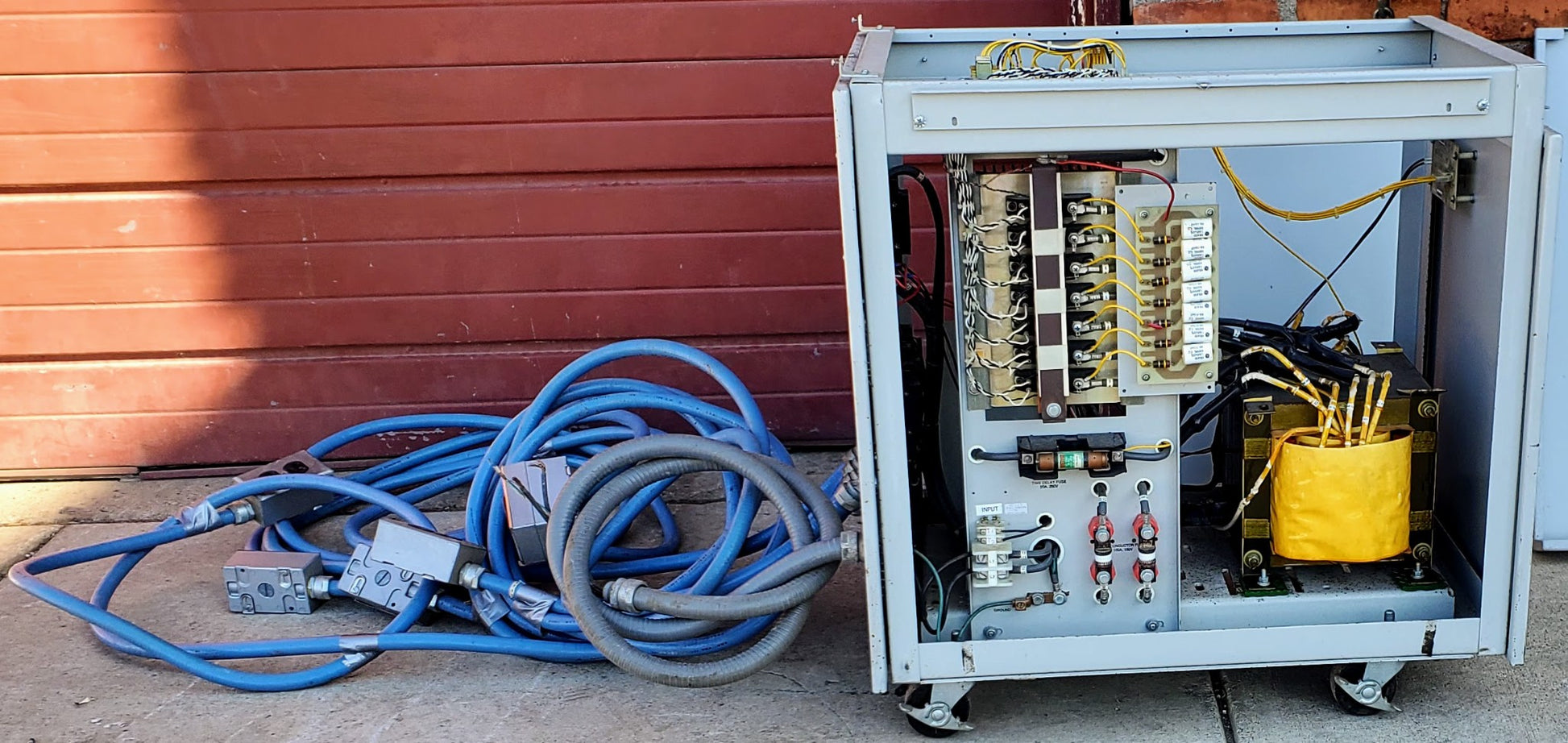

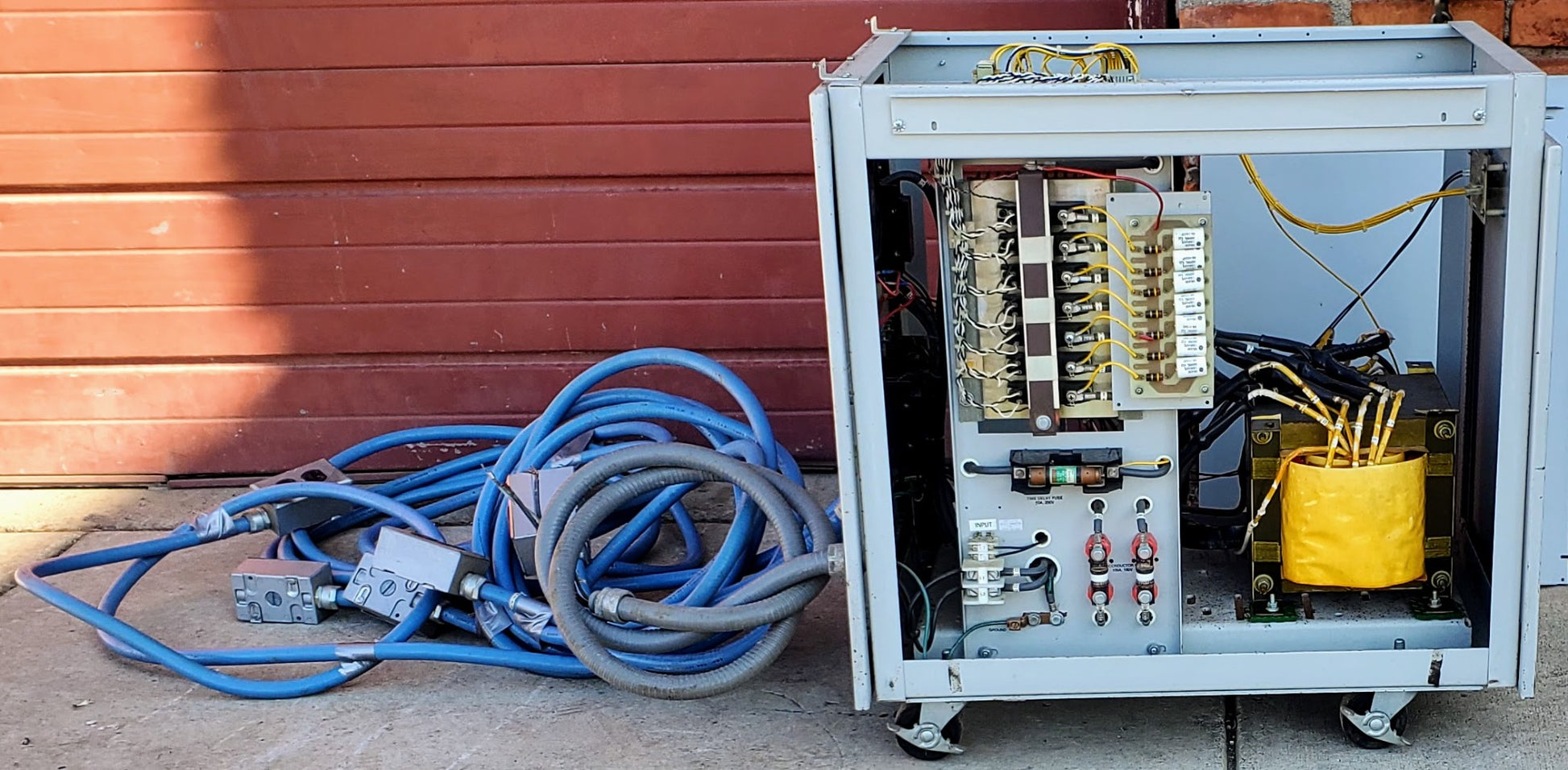

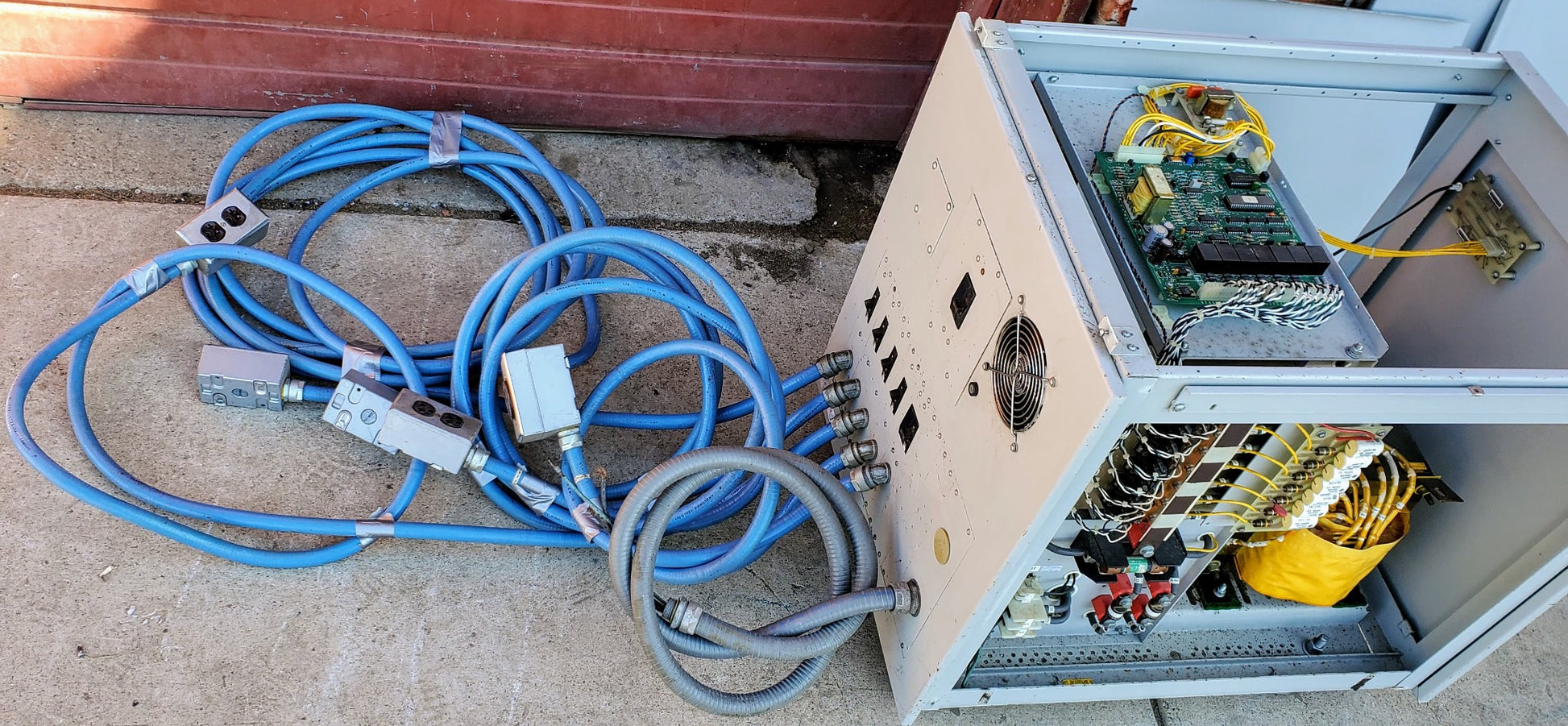

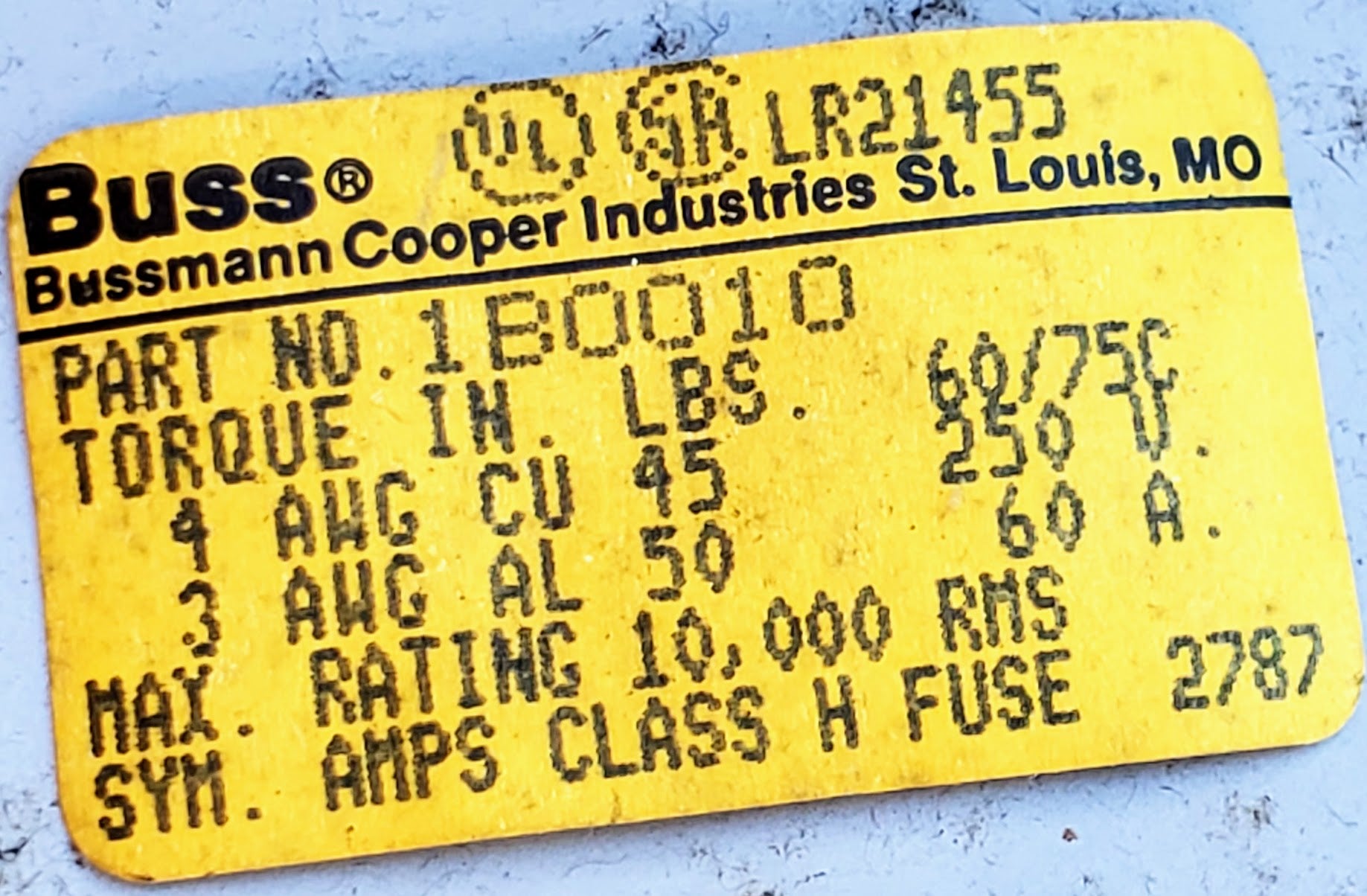

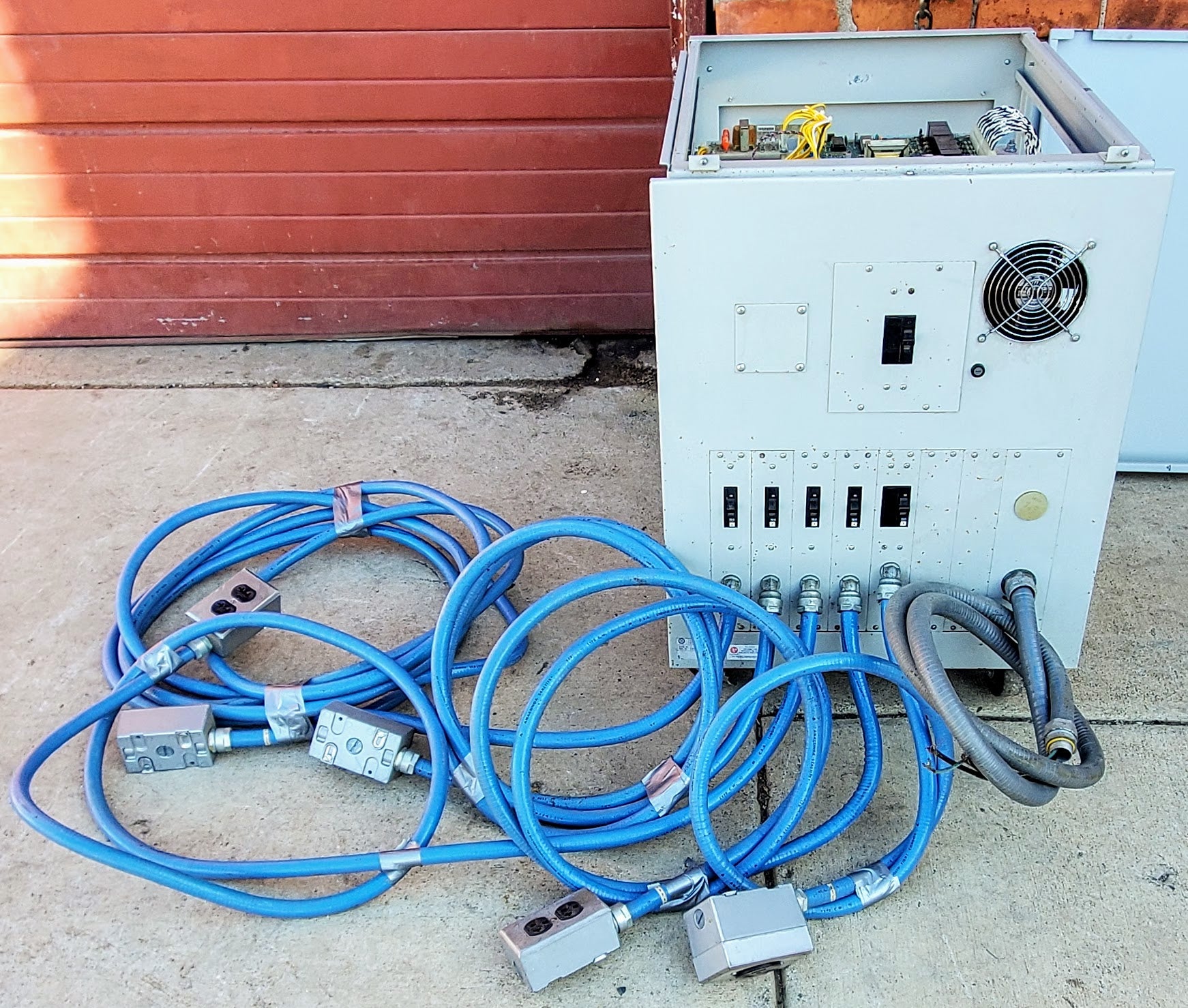

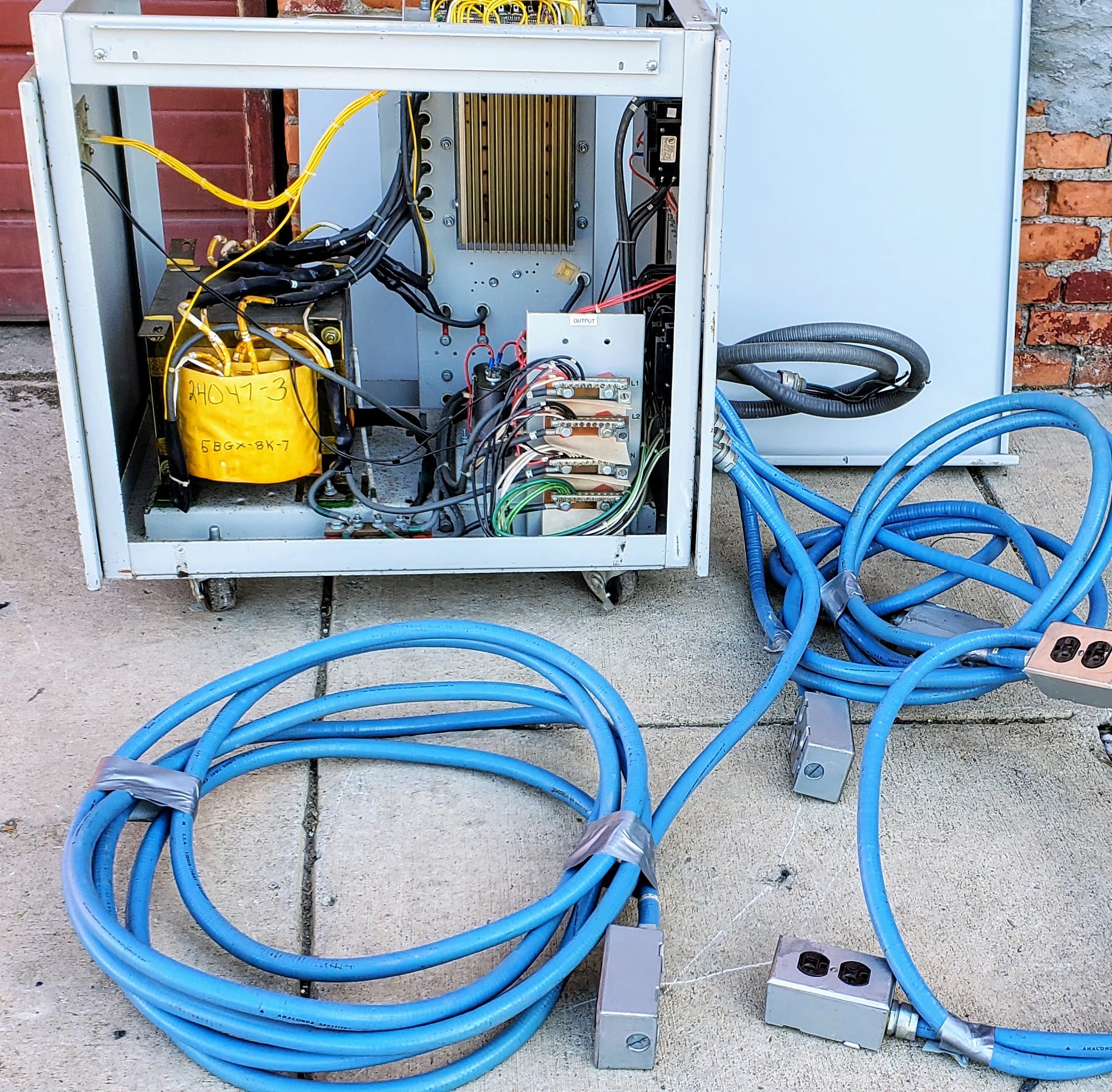

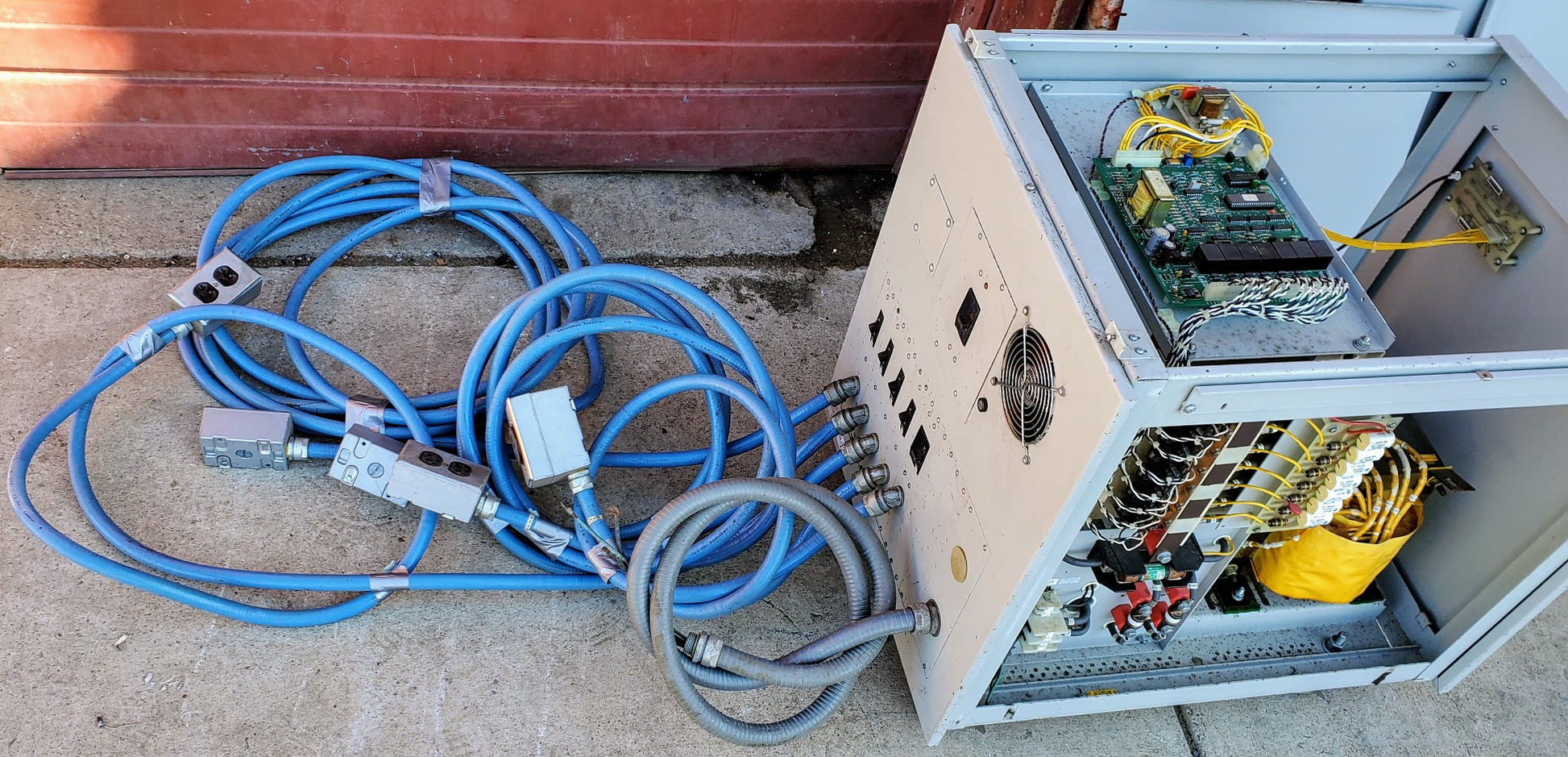

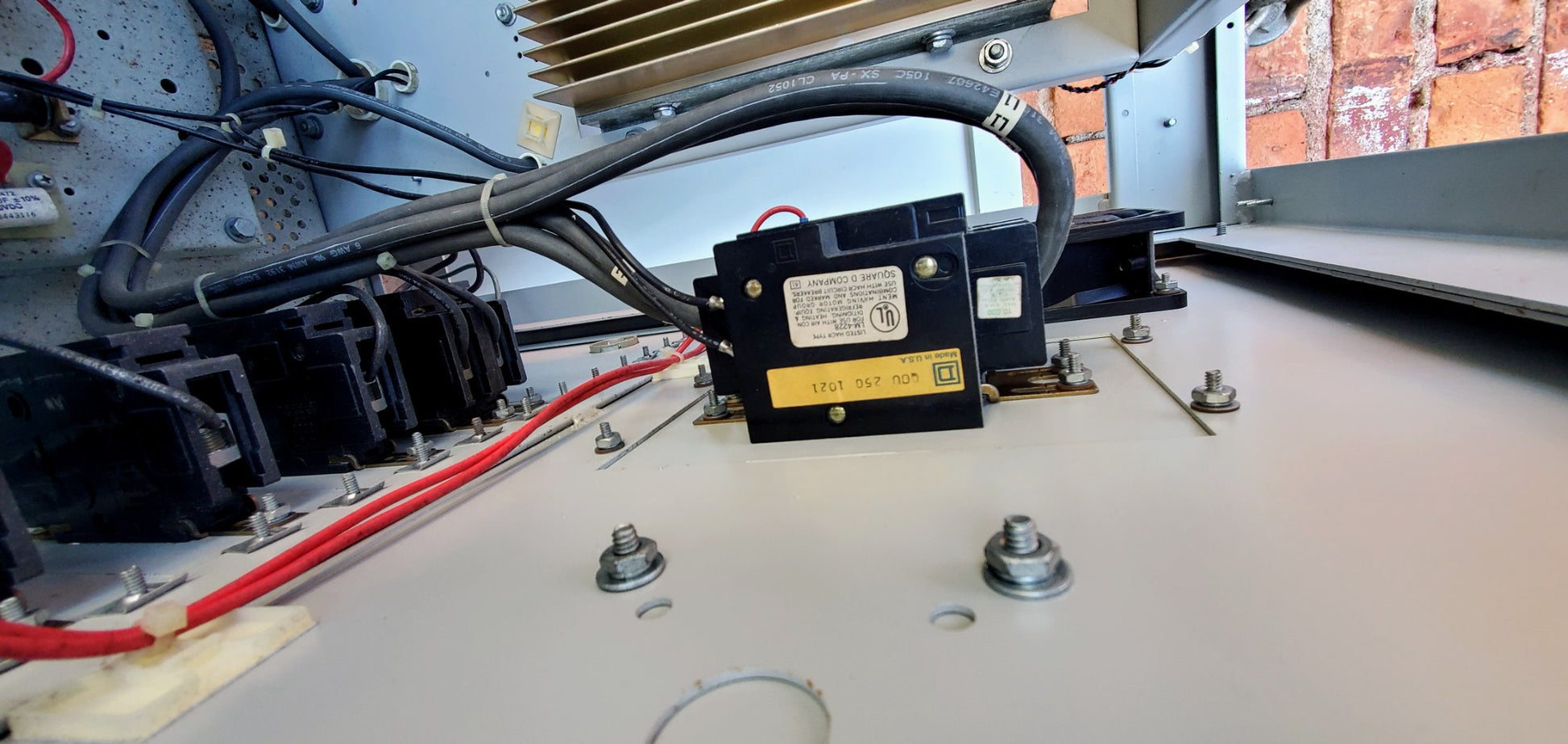

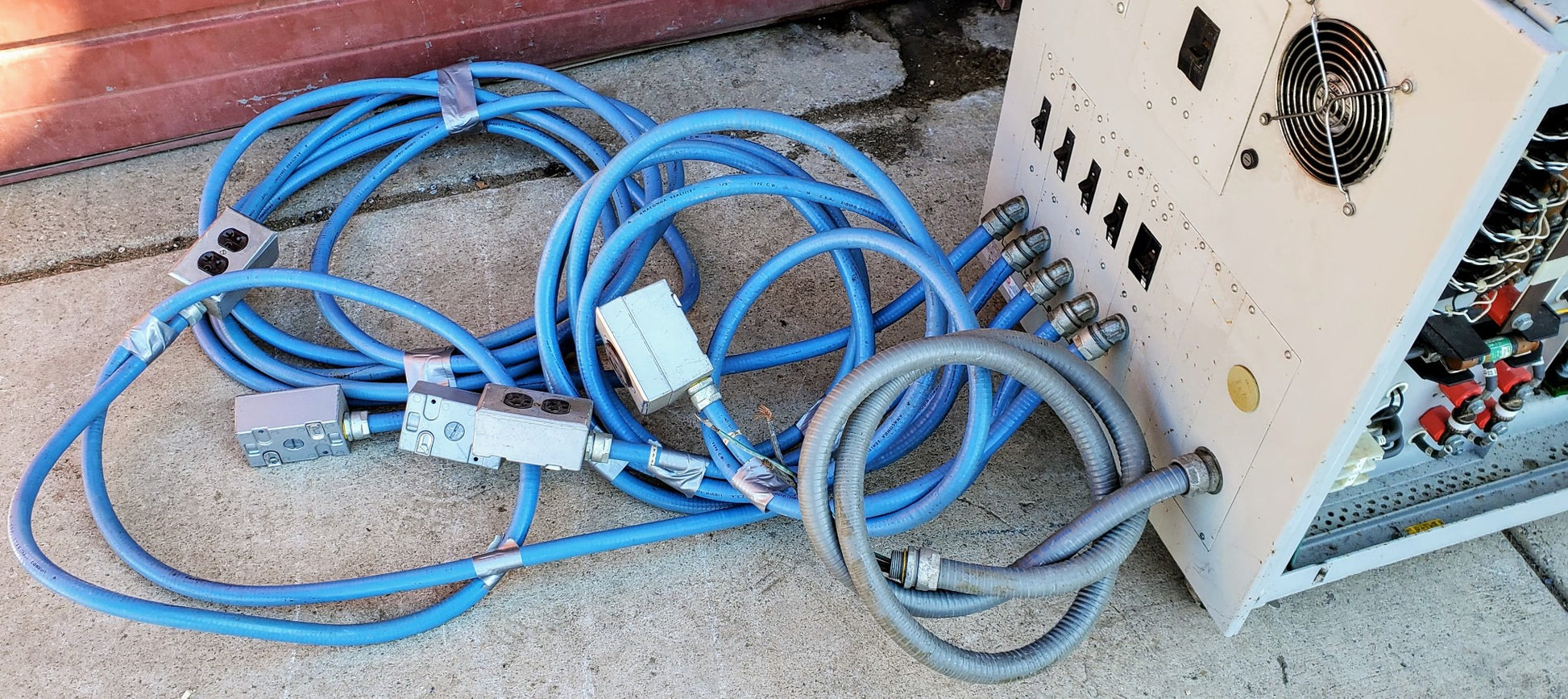

Five output circuit breakers can be selected as shown in the pictures.
trystar.com/wp-content/uploads/700A-Power-Processor-Brochure.pdf
If you are concerned about the effects of voltage
stability to your equipment, consider the Series
700A Power Processor, which is a solid-state,
automatic voltage regulator that guards against
both high and low voltage conditions.
The Series 700A Power Processor corrects
voltage deviations of wide input to within the safe
operating limits recommended by CBEMA standards, while addressing the concerns of standards
such as IEEE 1159, P1433, P1654, and ANSI
C62.41 which define power anomalies, occurrences, and impact on operations.

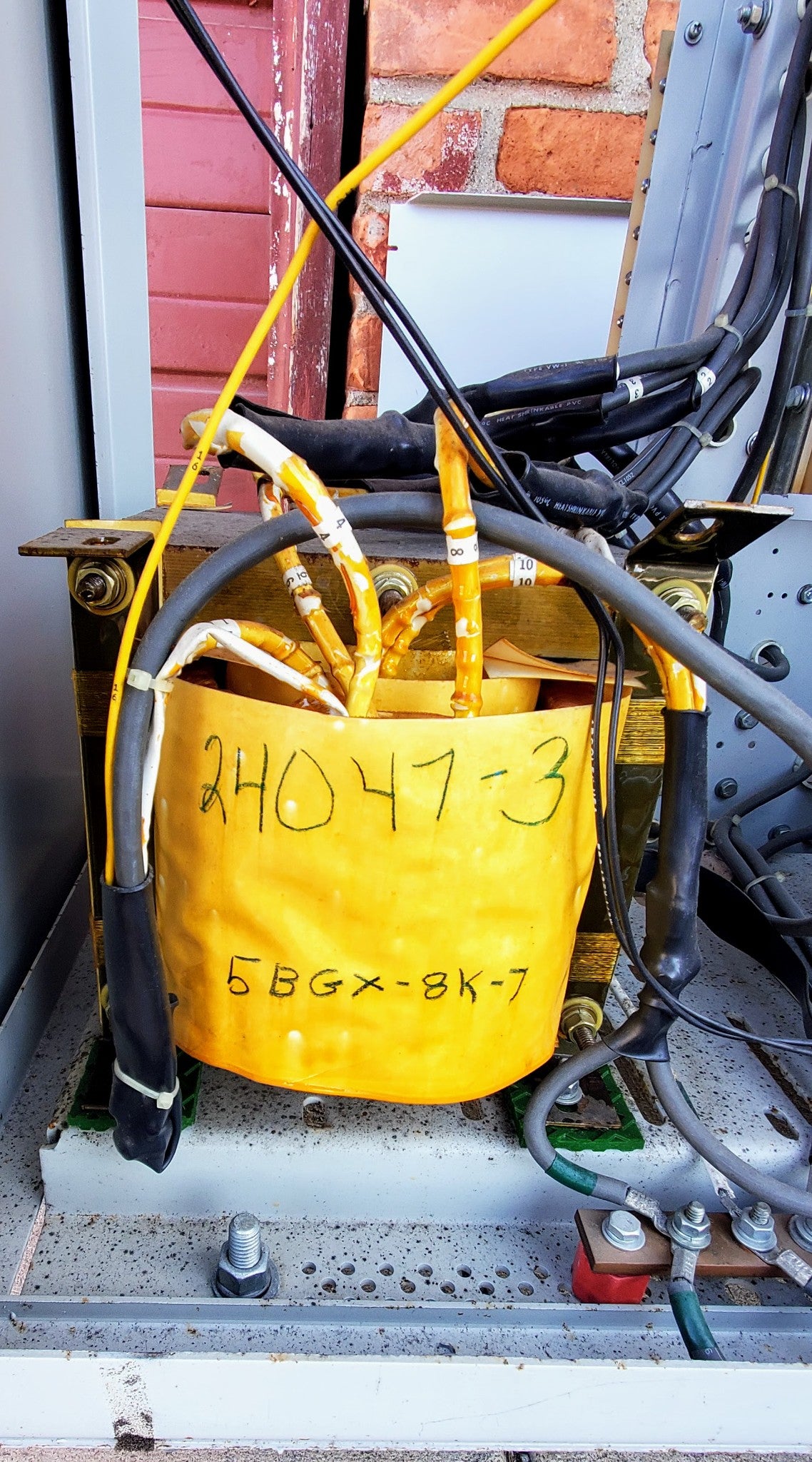

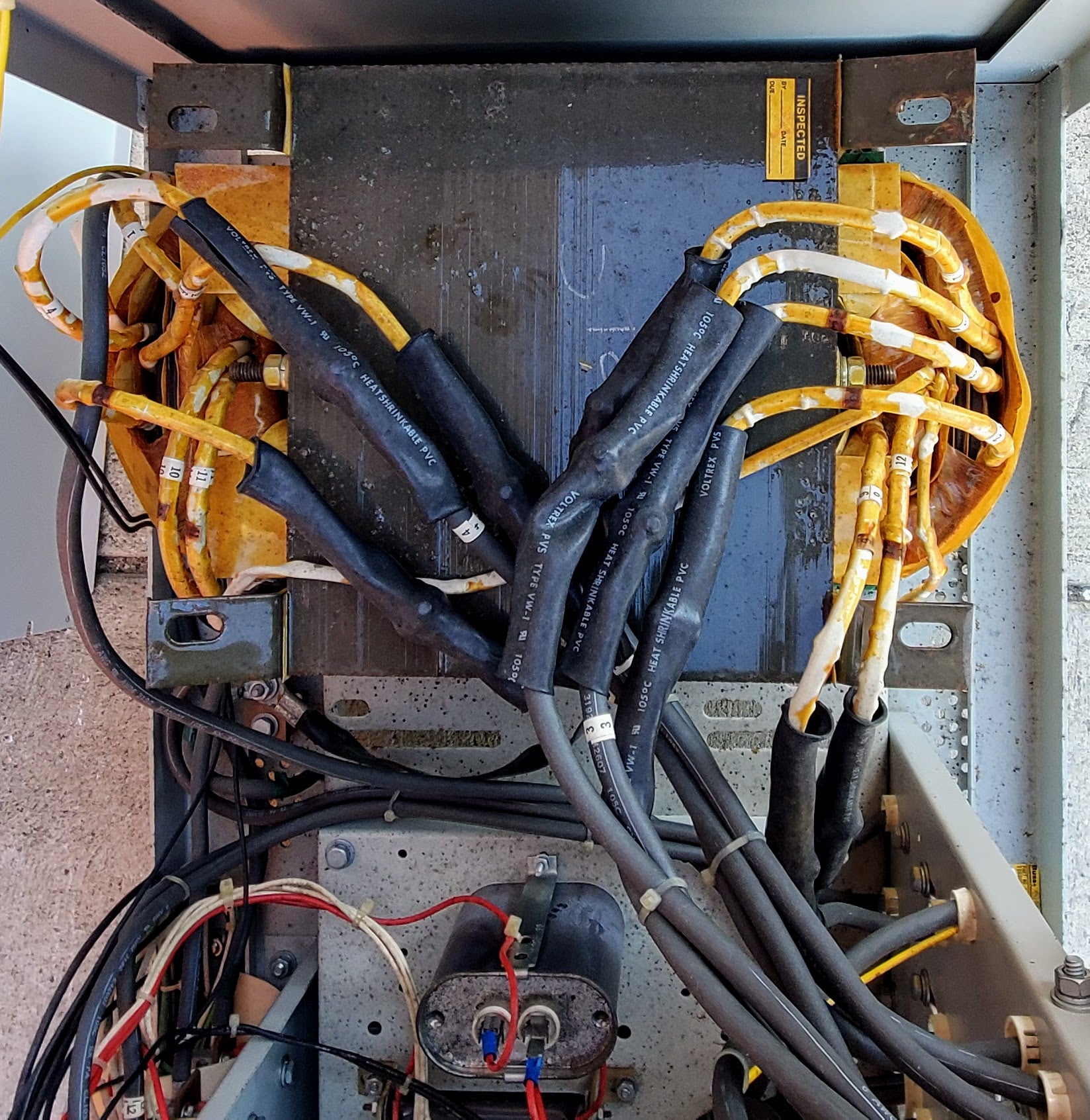

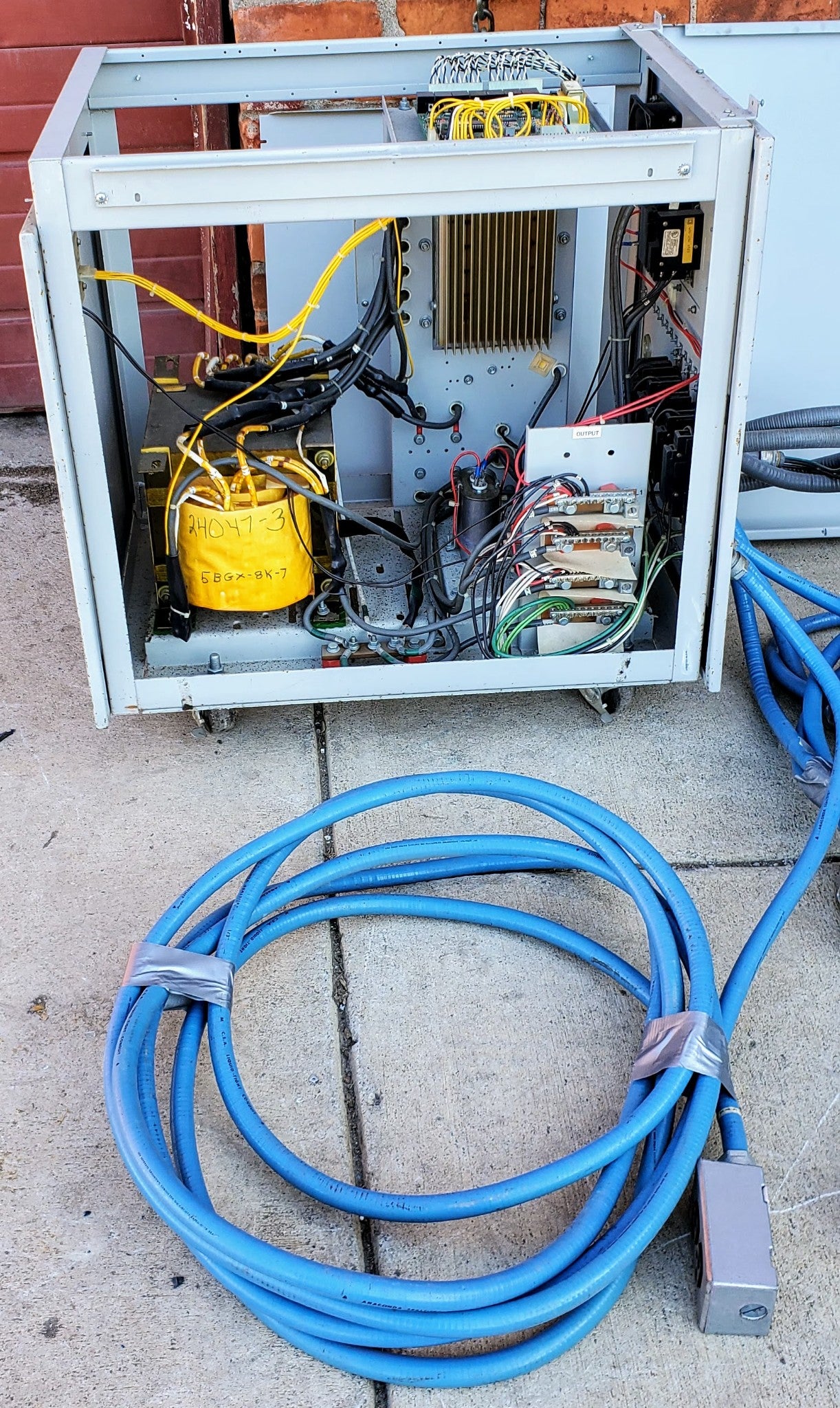

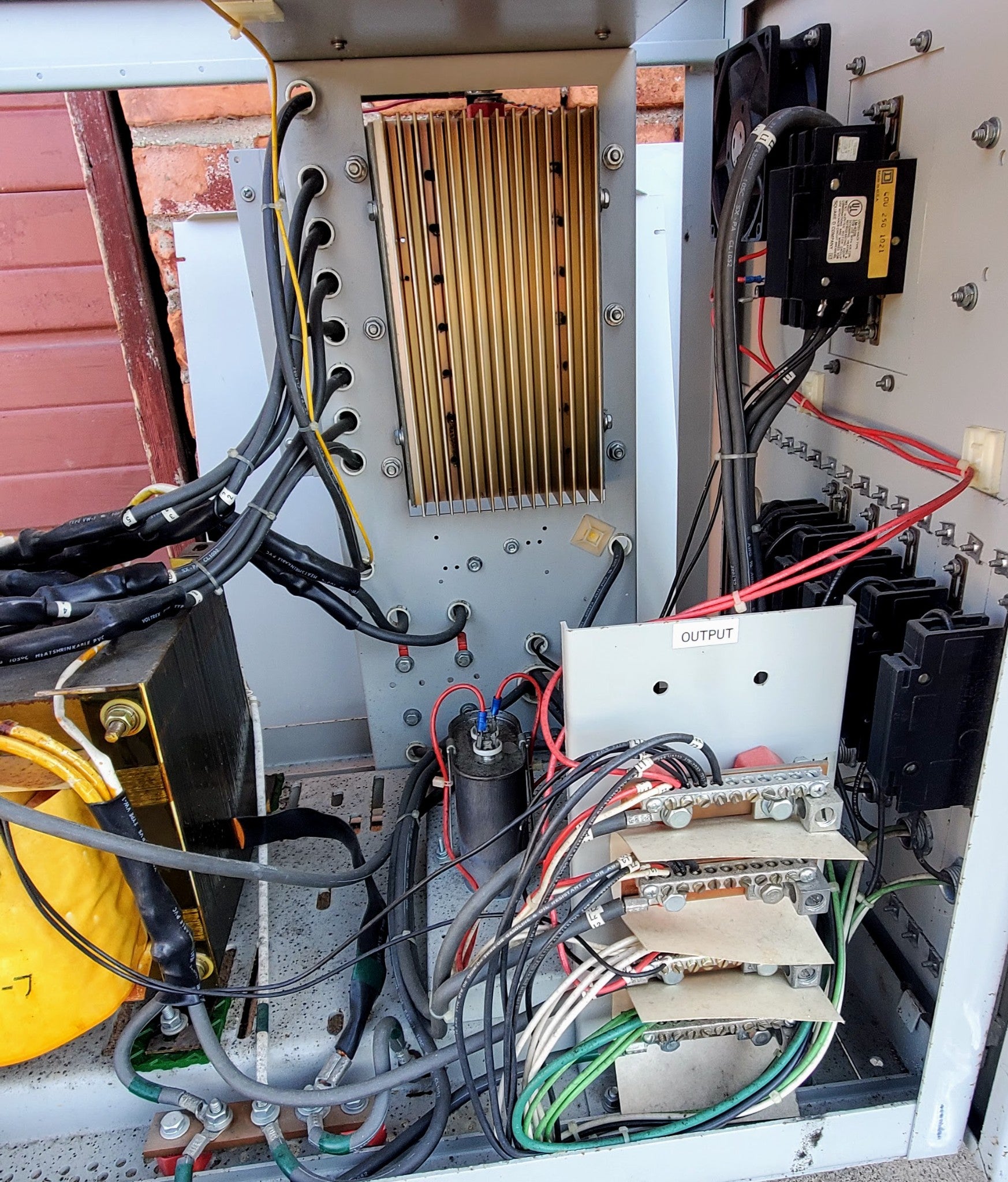

The Series 700 Power Processor consists of an allcopper, multiple-tapped, triple-shielded isolation transformer.
In conjunction with the electrostatic shields, the low output
impedance of the transformer assures computer-grade
performance with excellent noise and transient attenuation.
For each of the 7 taps per phase, independently-controlled
inverse parallel electronic switches provide tight regulation.
Linear devices are used for line synchronization, which
prevents phase shift errors normally associated with simple
current transformer zero current crossing acquisition
circuits. The microprocessor-control accurately selects the
correct tap to maintain the output, typically at 2.5% of
nominal, and corrects for voltage disturbances within one
cycle. Digital processing provides fast and accurate
regulation without over- or under-shoot.

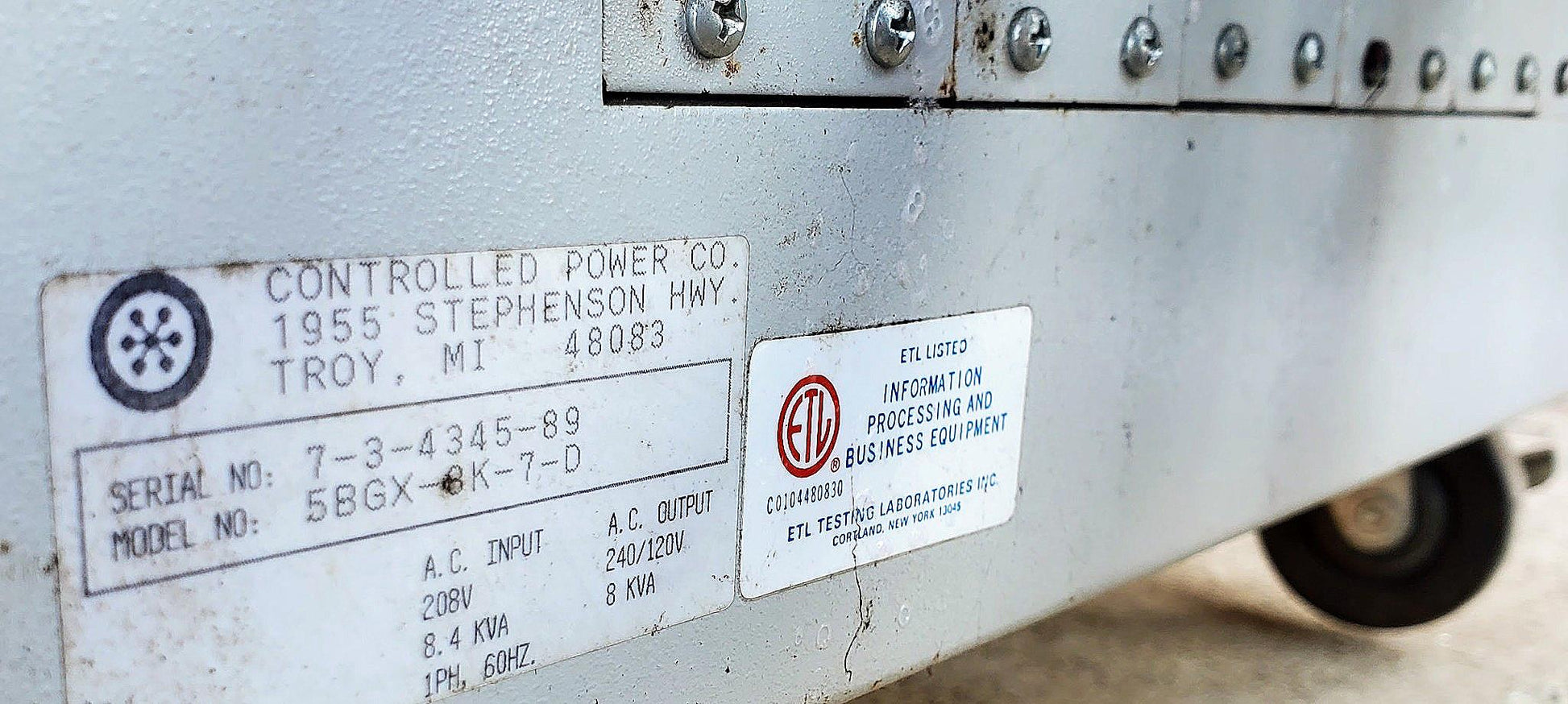

MODEL NUMBER
5**X-8K-7D
kVA RATING 8
INPUT VOLTAGE 208/240
OUTPUT VOLTAGE 120/208
WEIGHT (LBS)364
The Distribution Panel for a 5 - 30 kVA is 14"W x 10.5"H.
CABINET ENCLOSURE (INCHES): 21.5W x 29D x 30H
BTU 810
