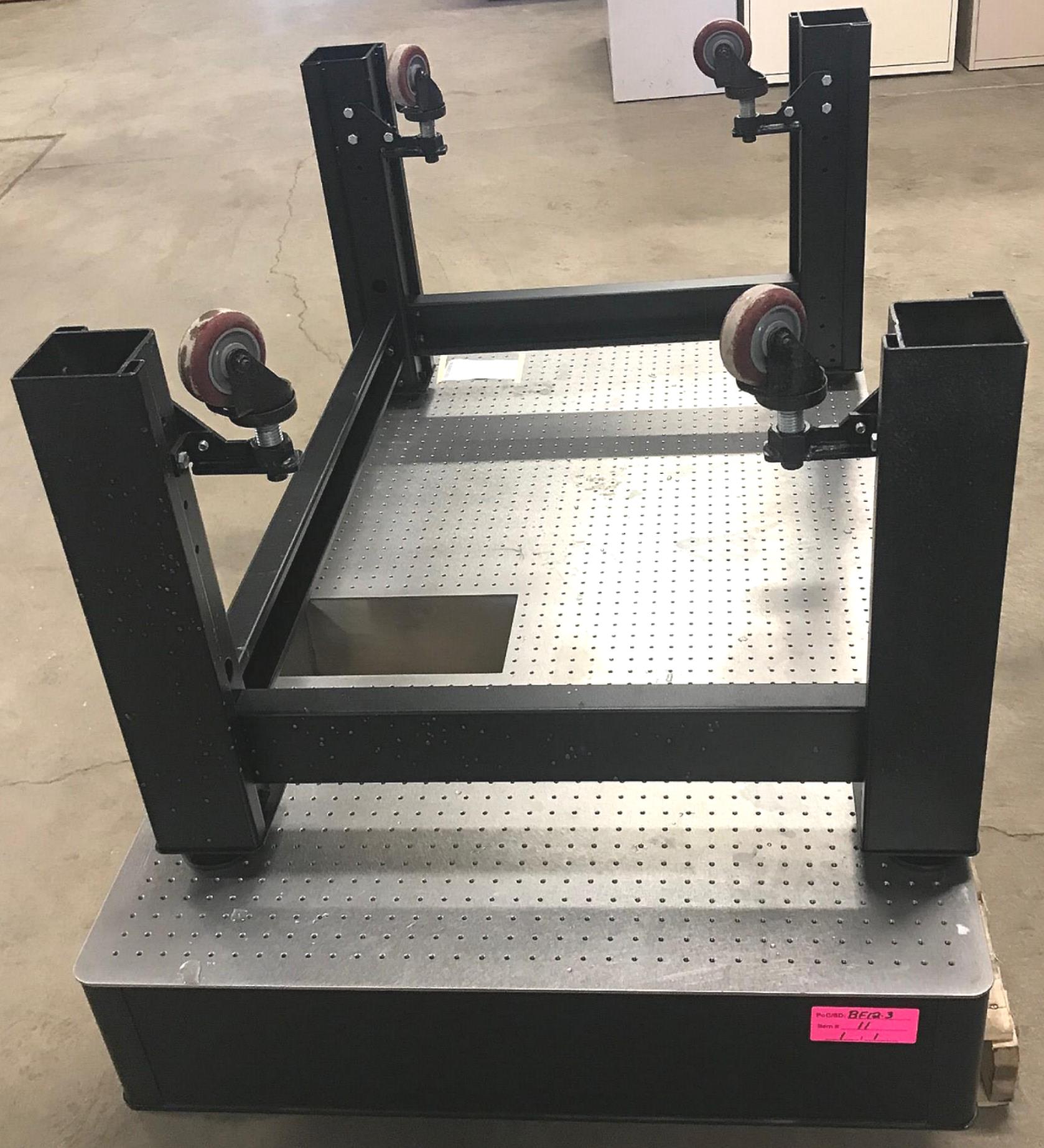

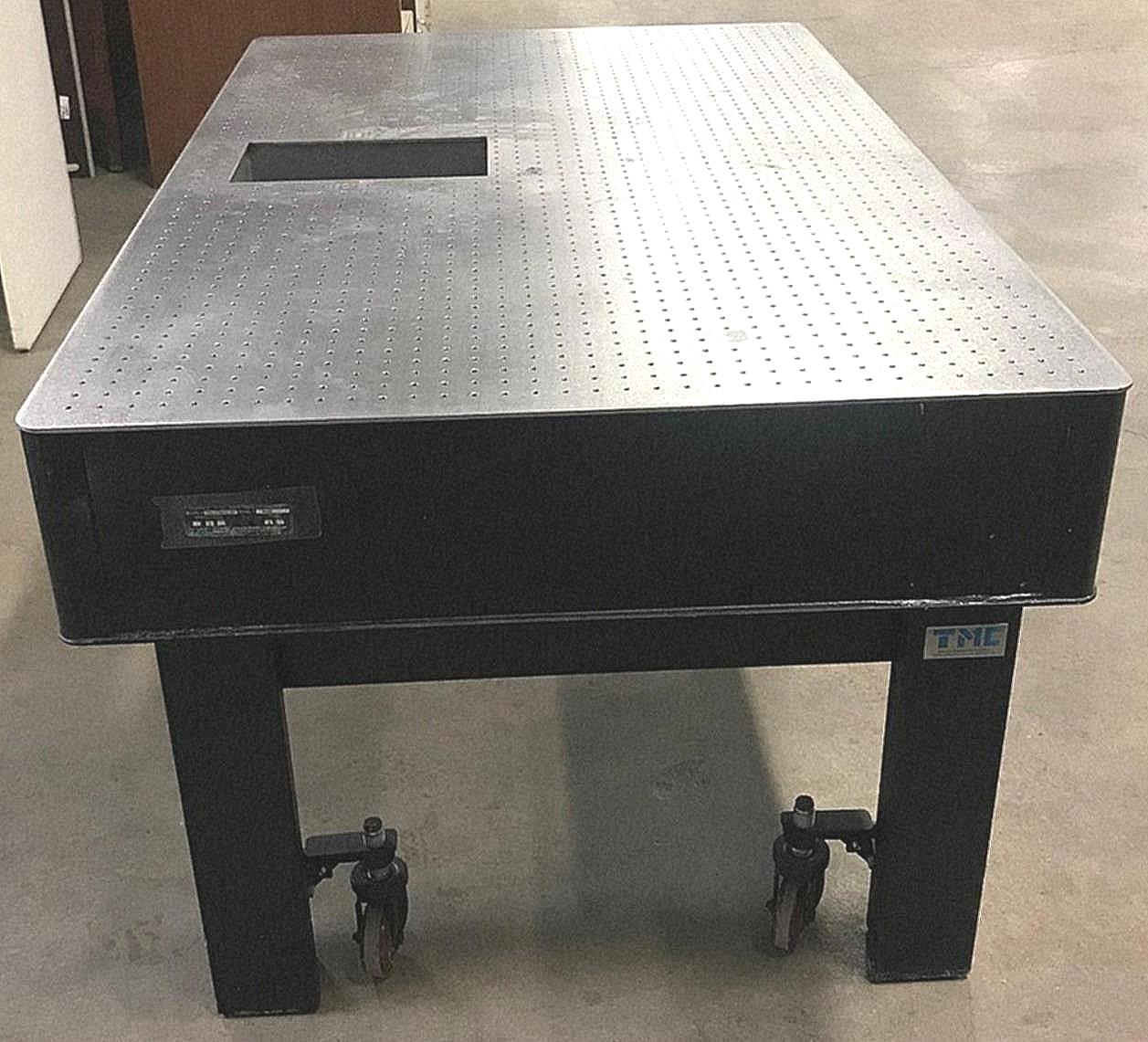

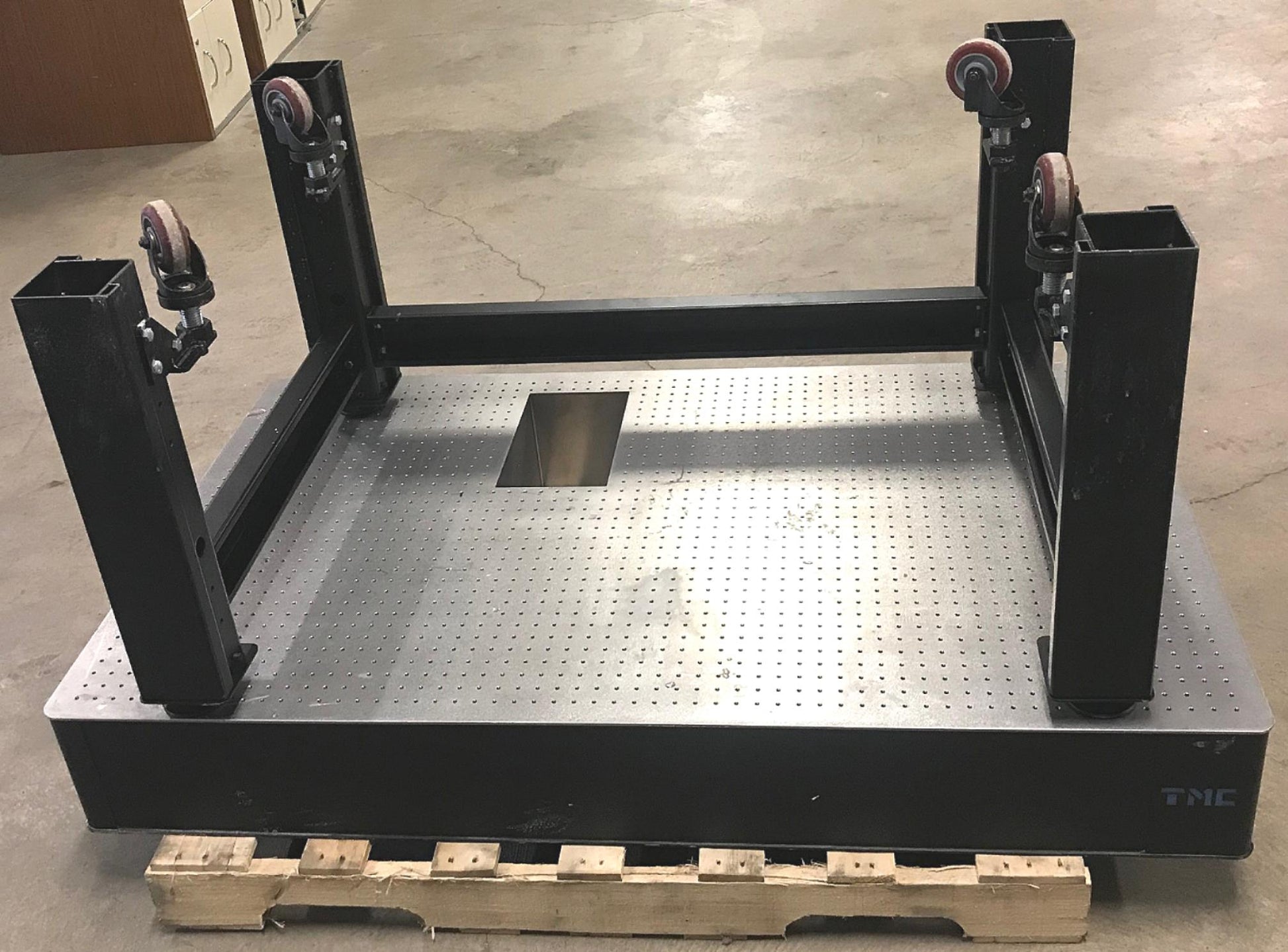

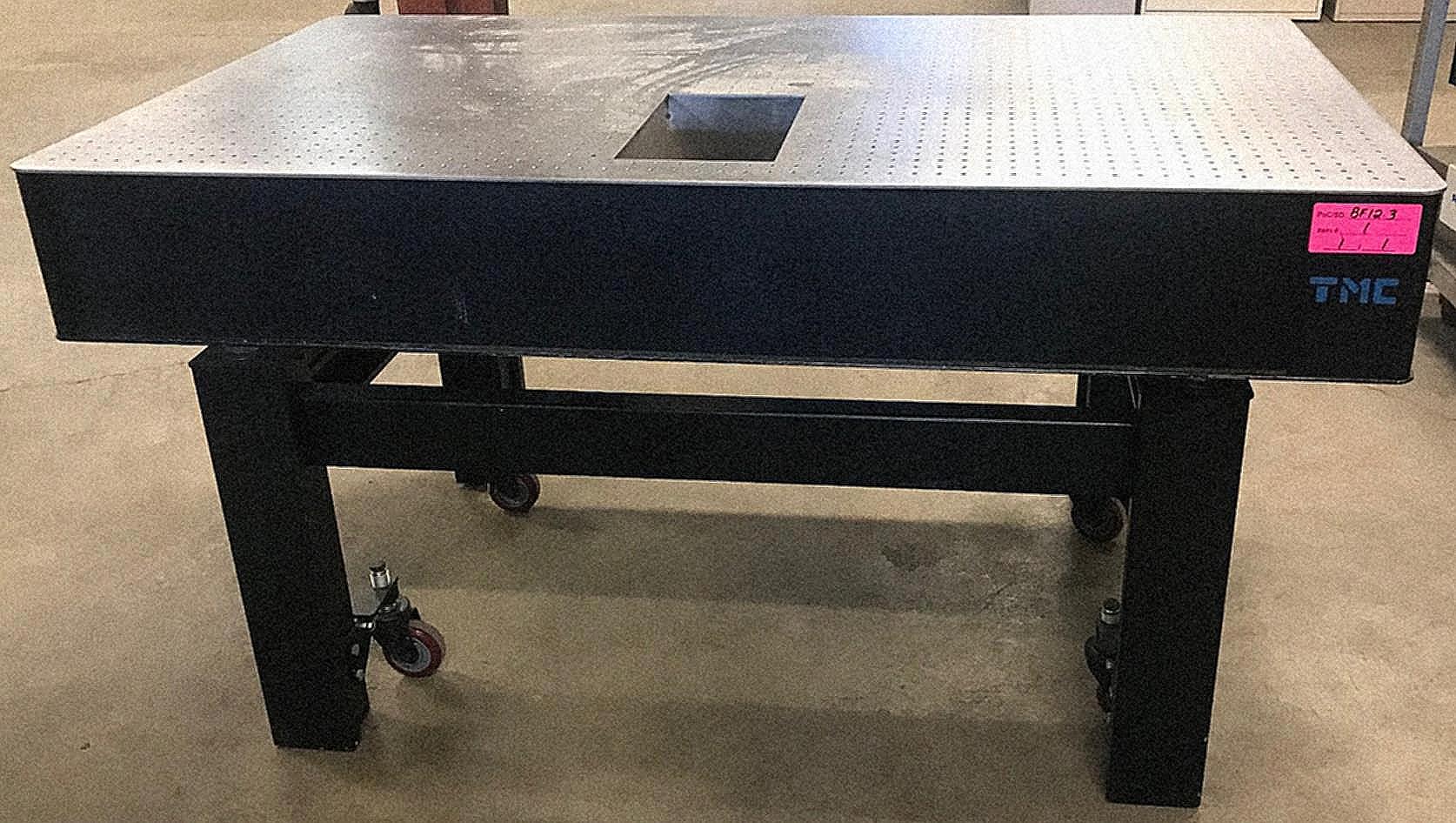

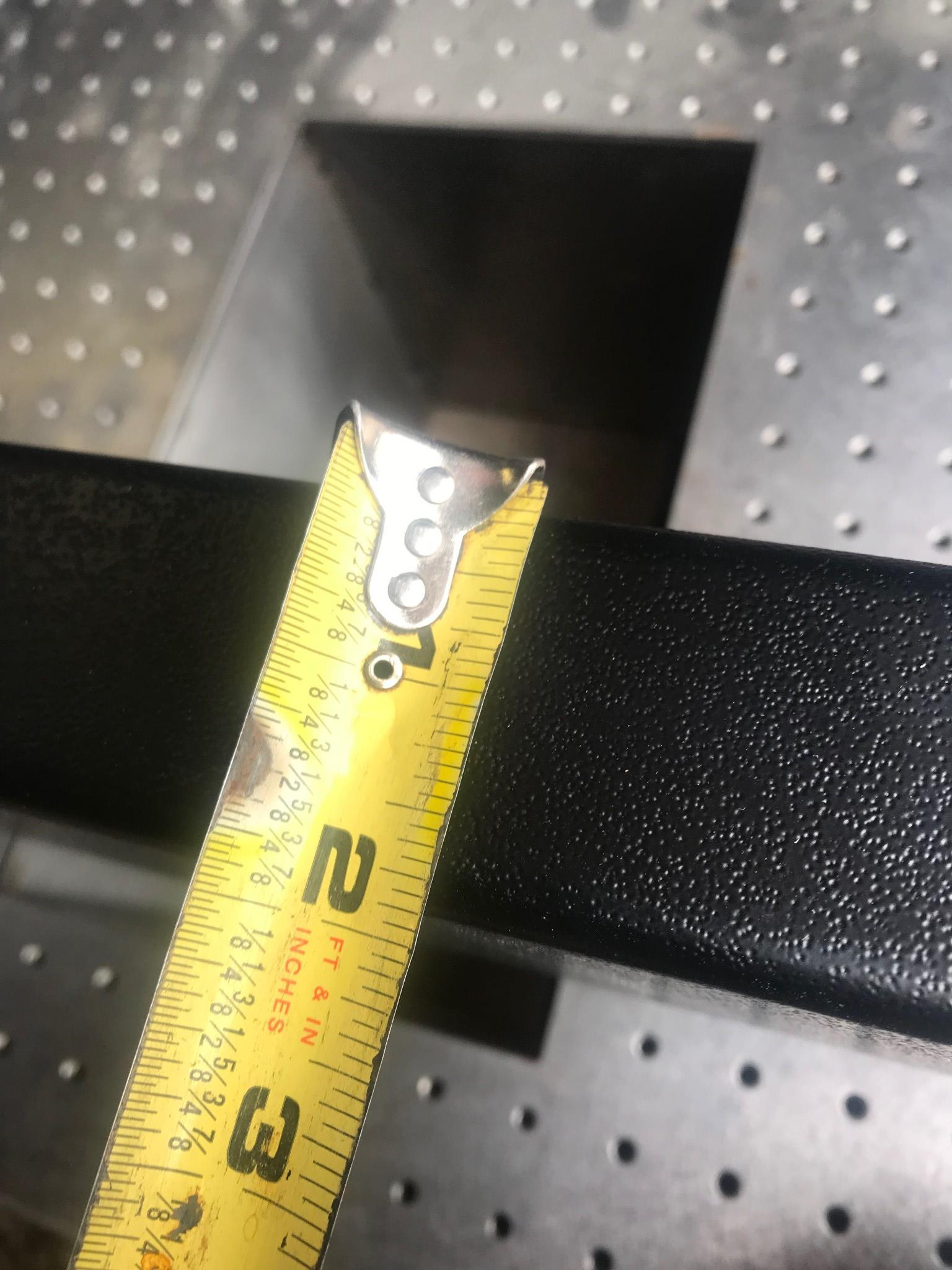

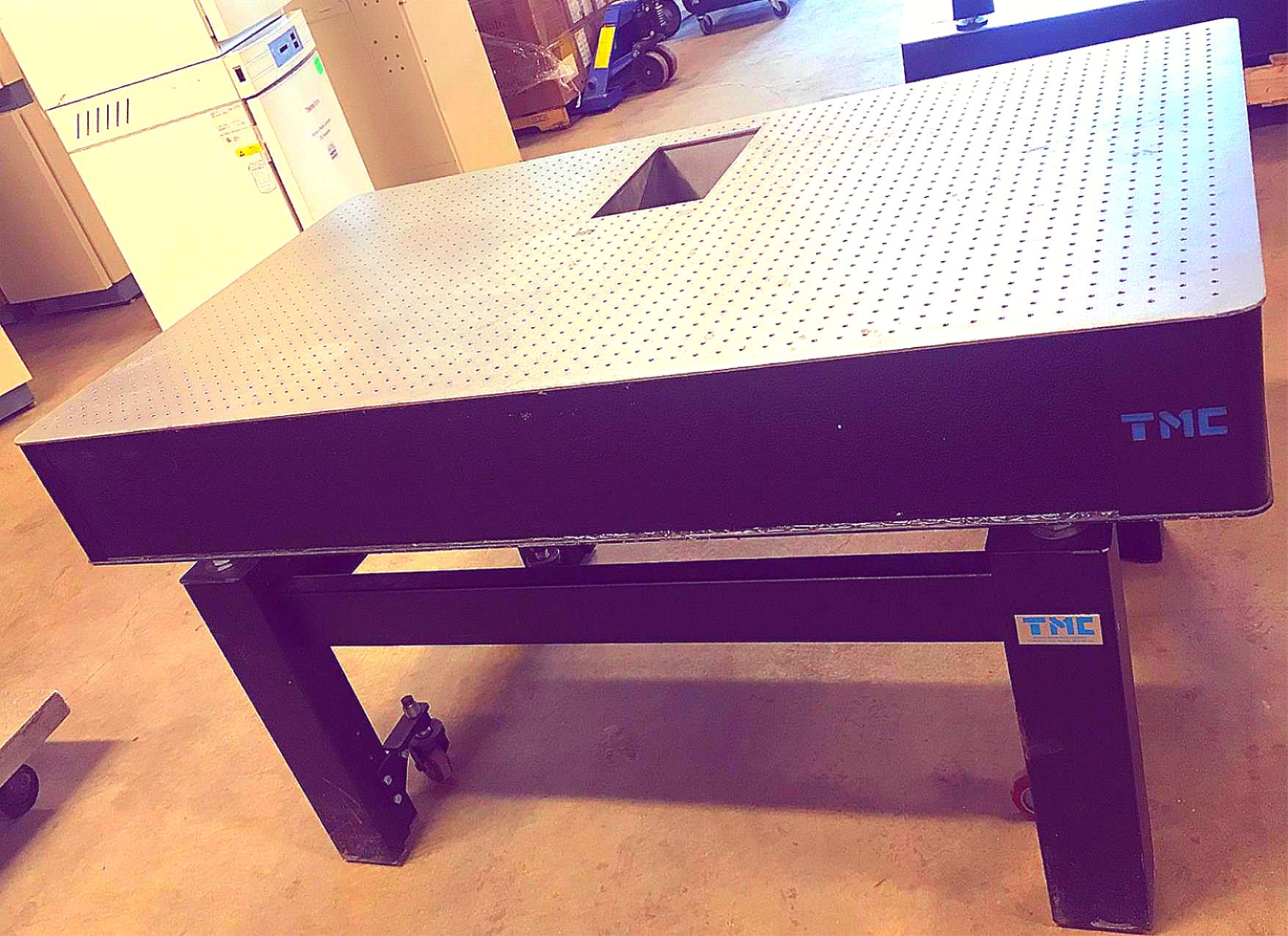

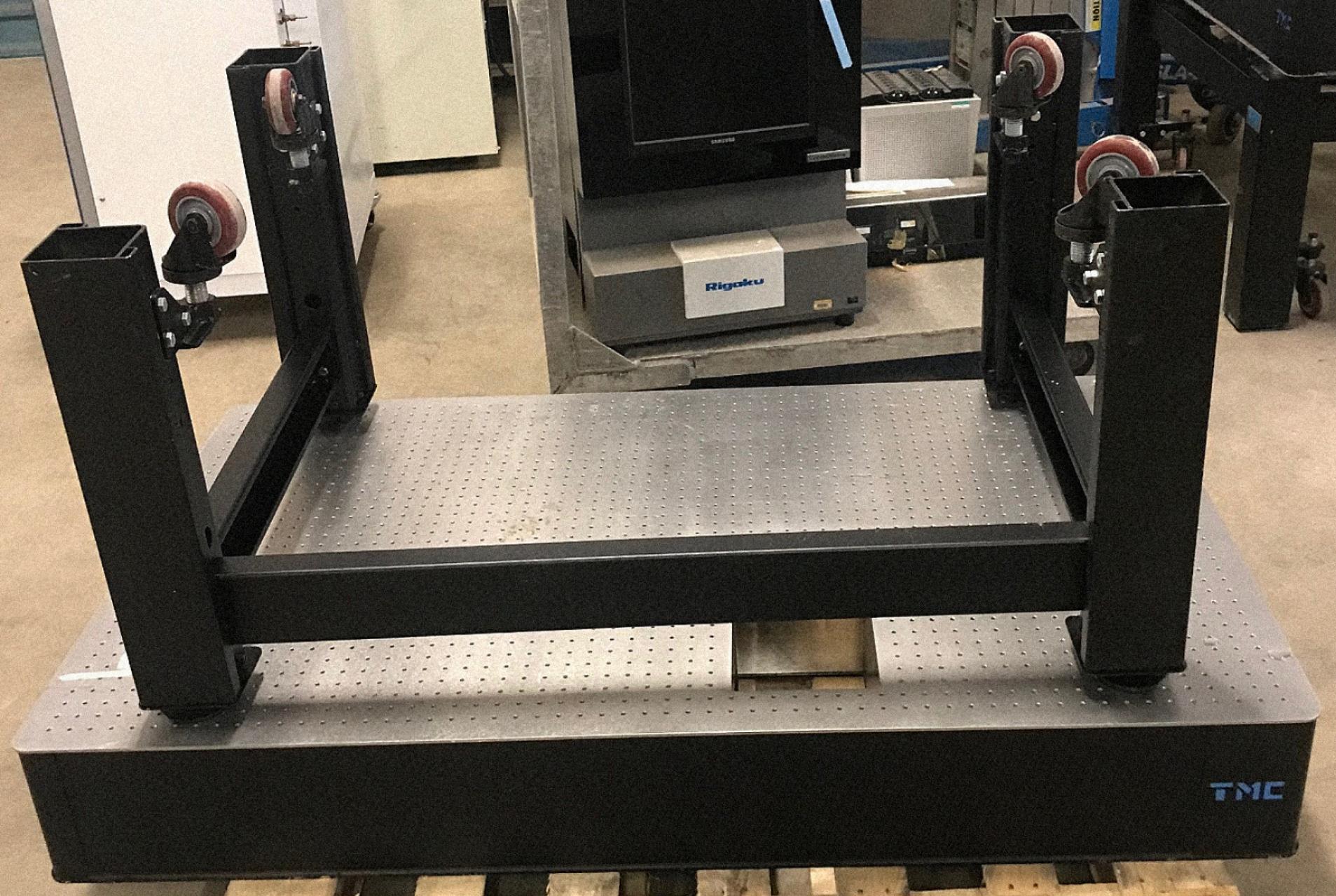

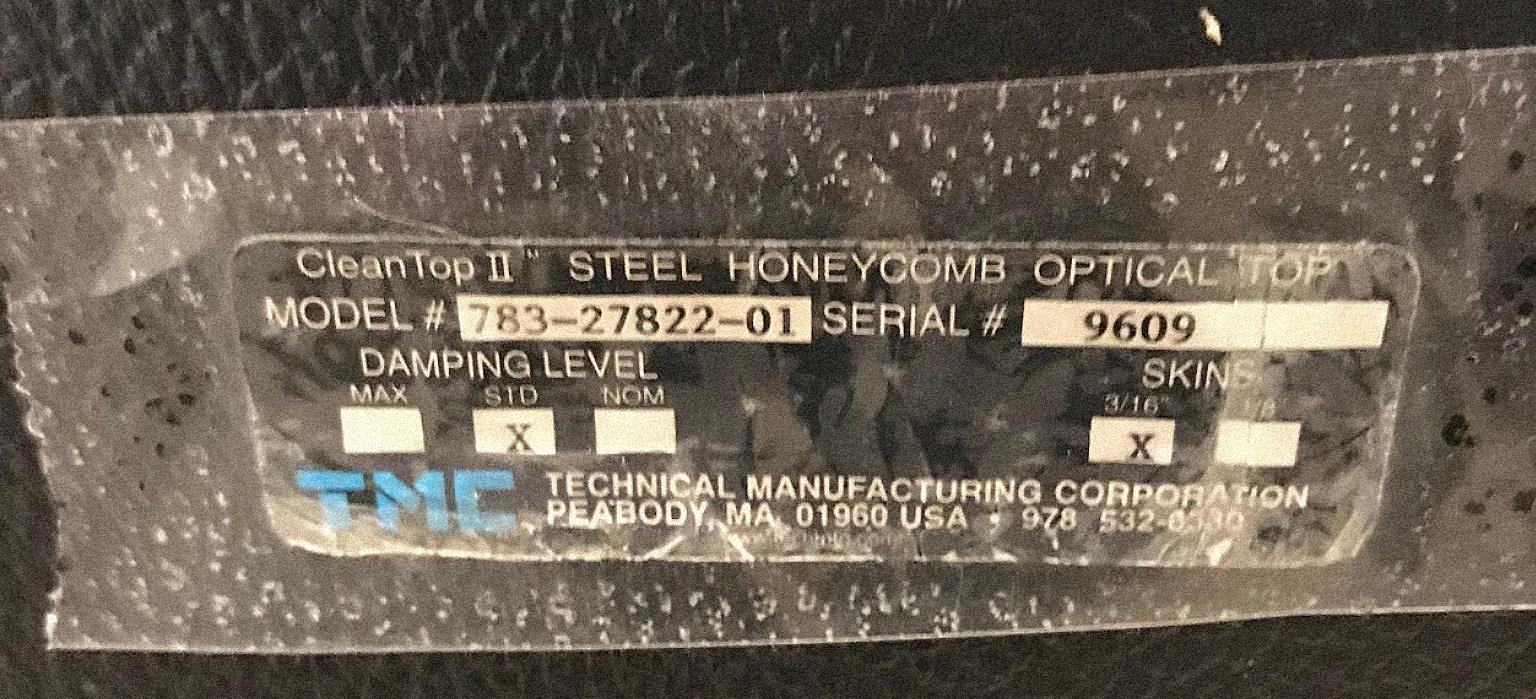

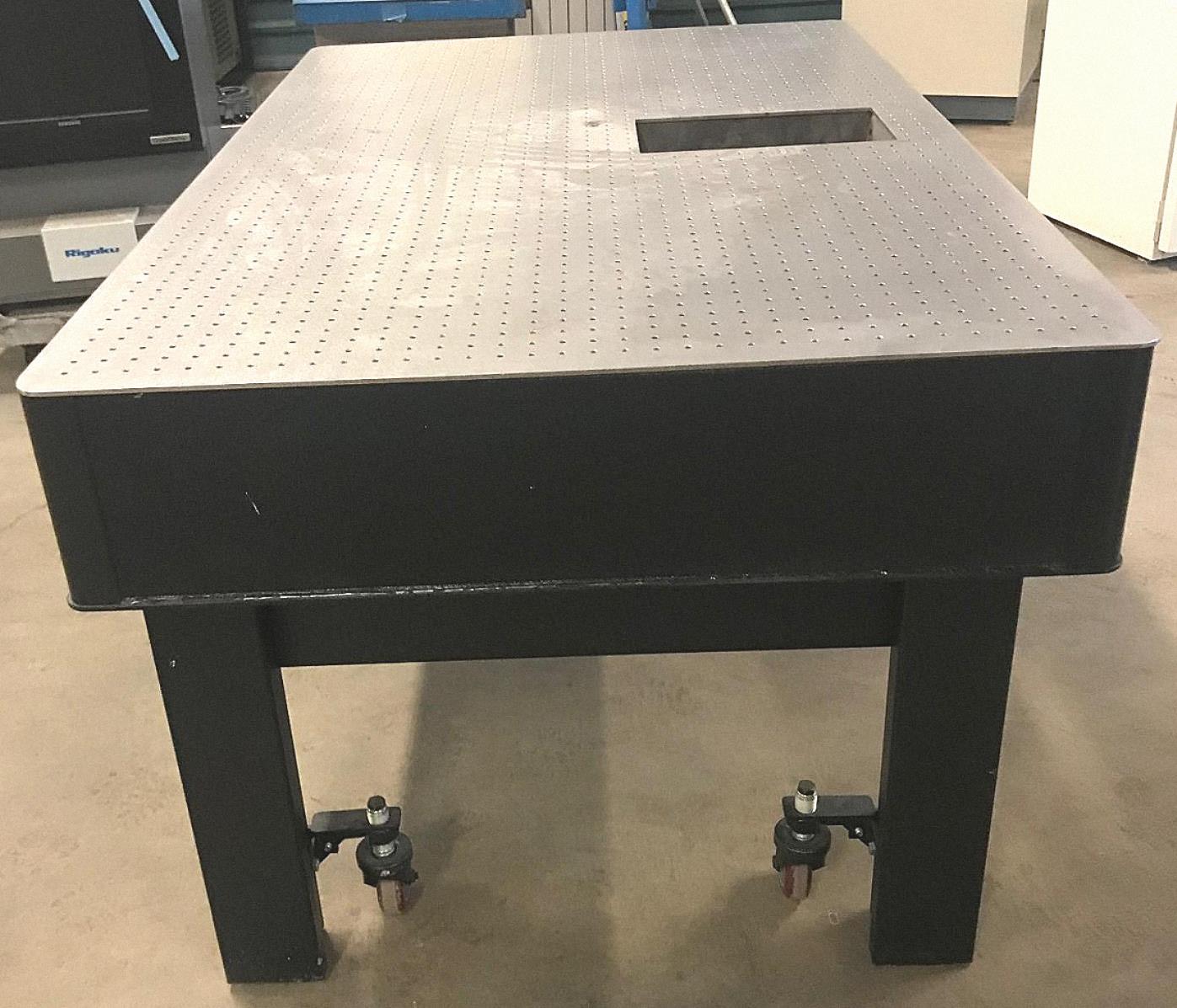

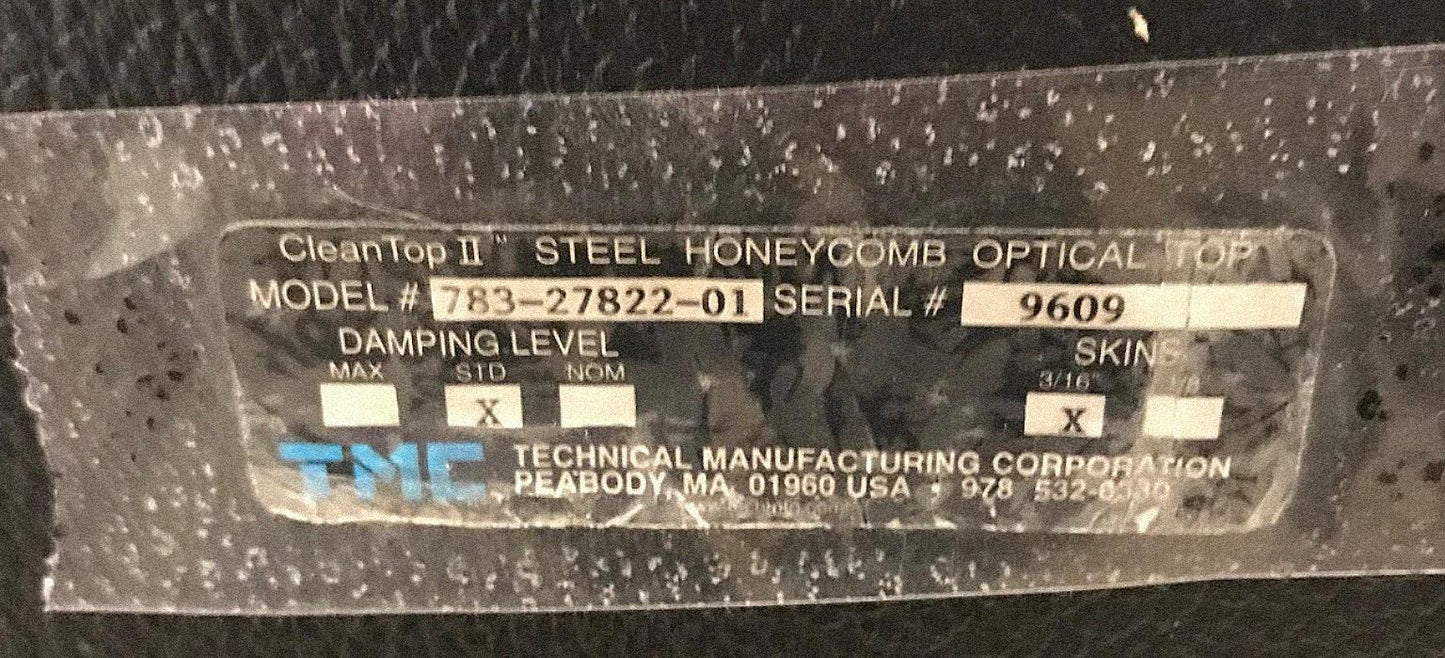

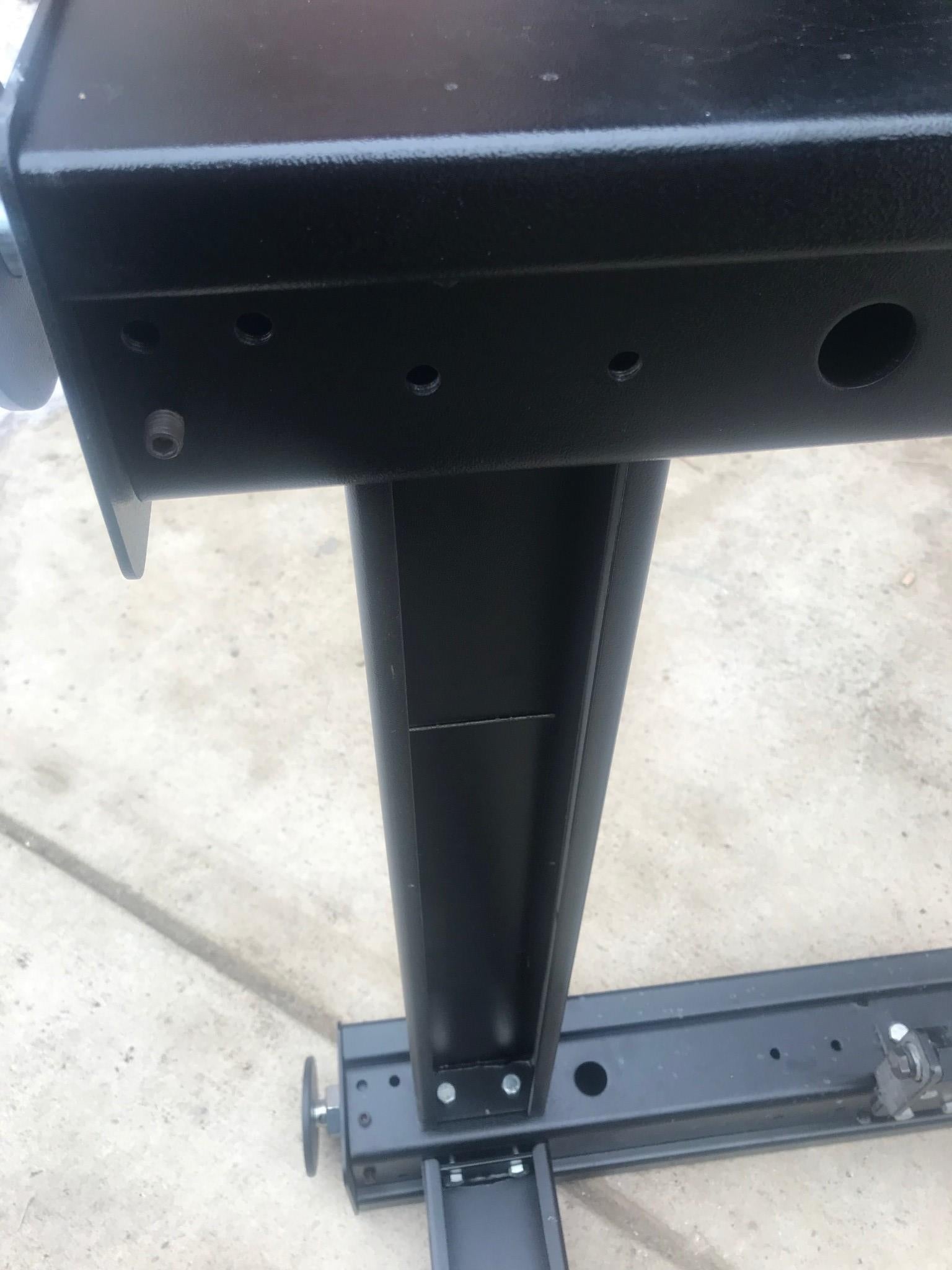

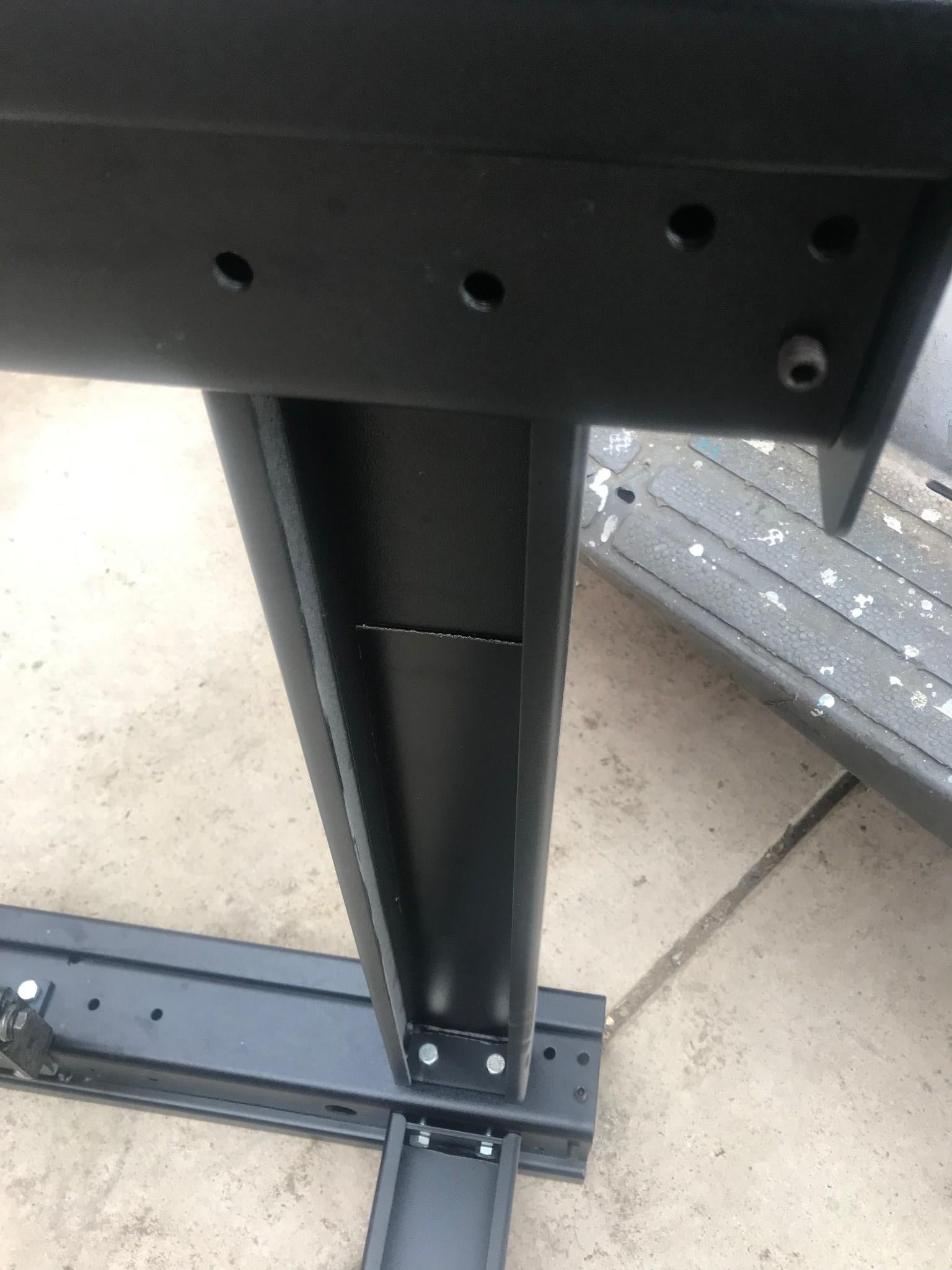

CleanTopTM Optical Top
Serial Number: 9609
●Model Number: 783-27822-01
783 Scientific Grade
Standard structural damping

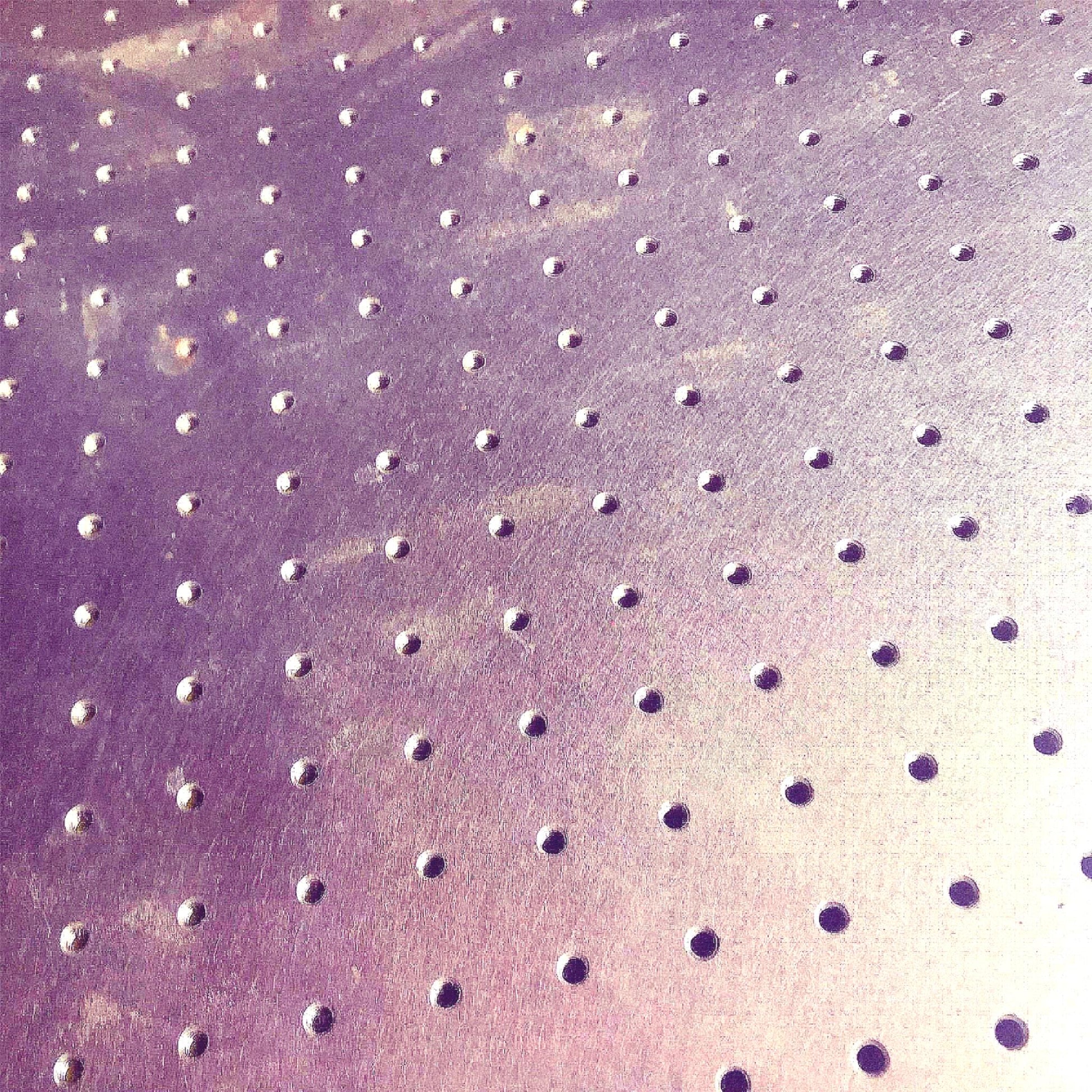

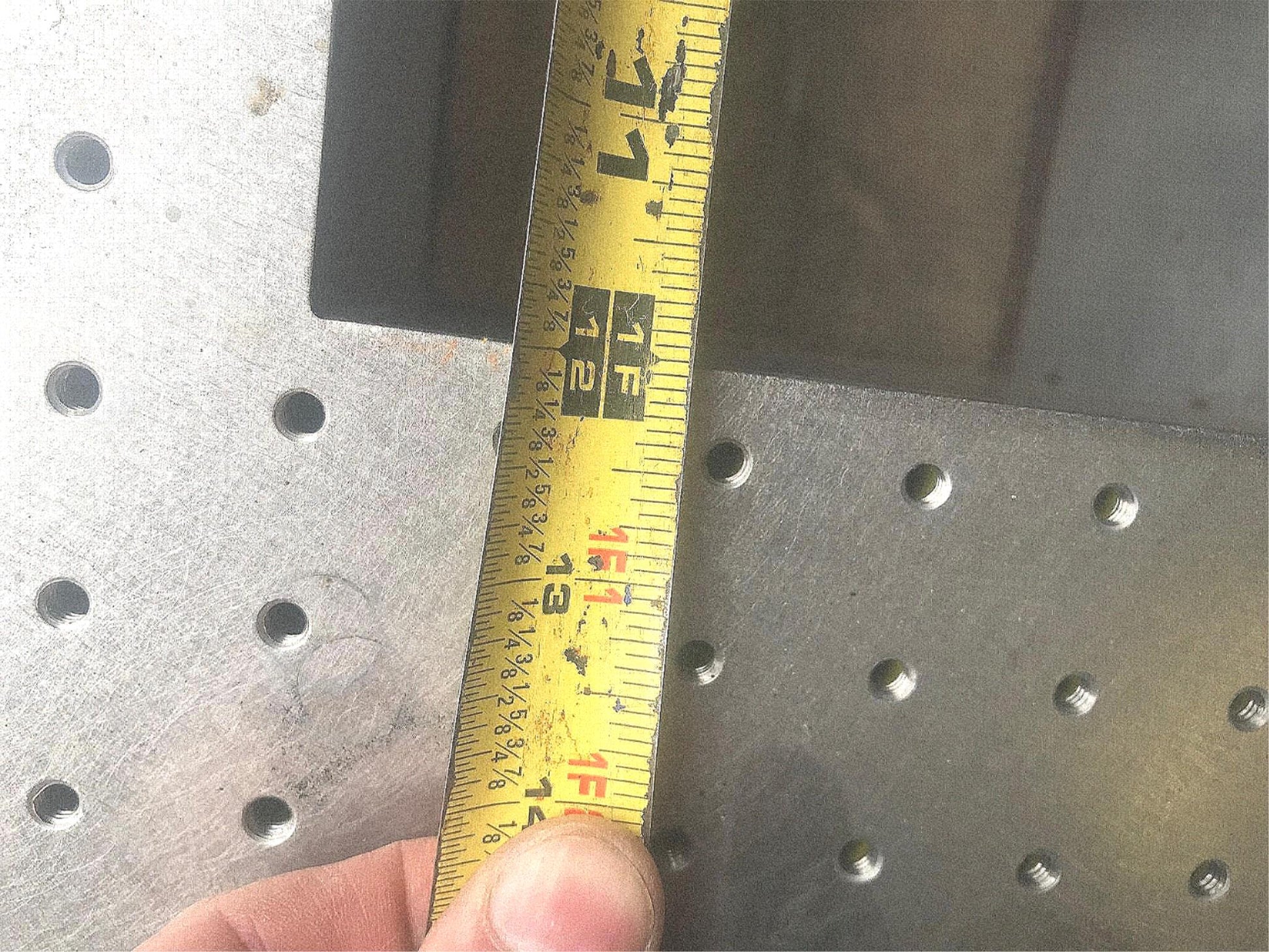

Hole Pattern - 1 in. centers
Threads - 1/4-20
Special Through-Holes and Ports

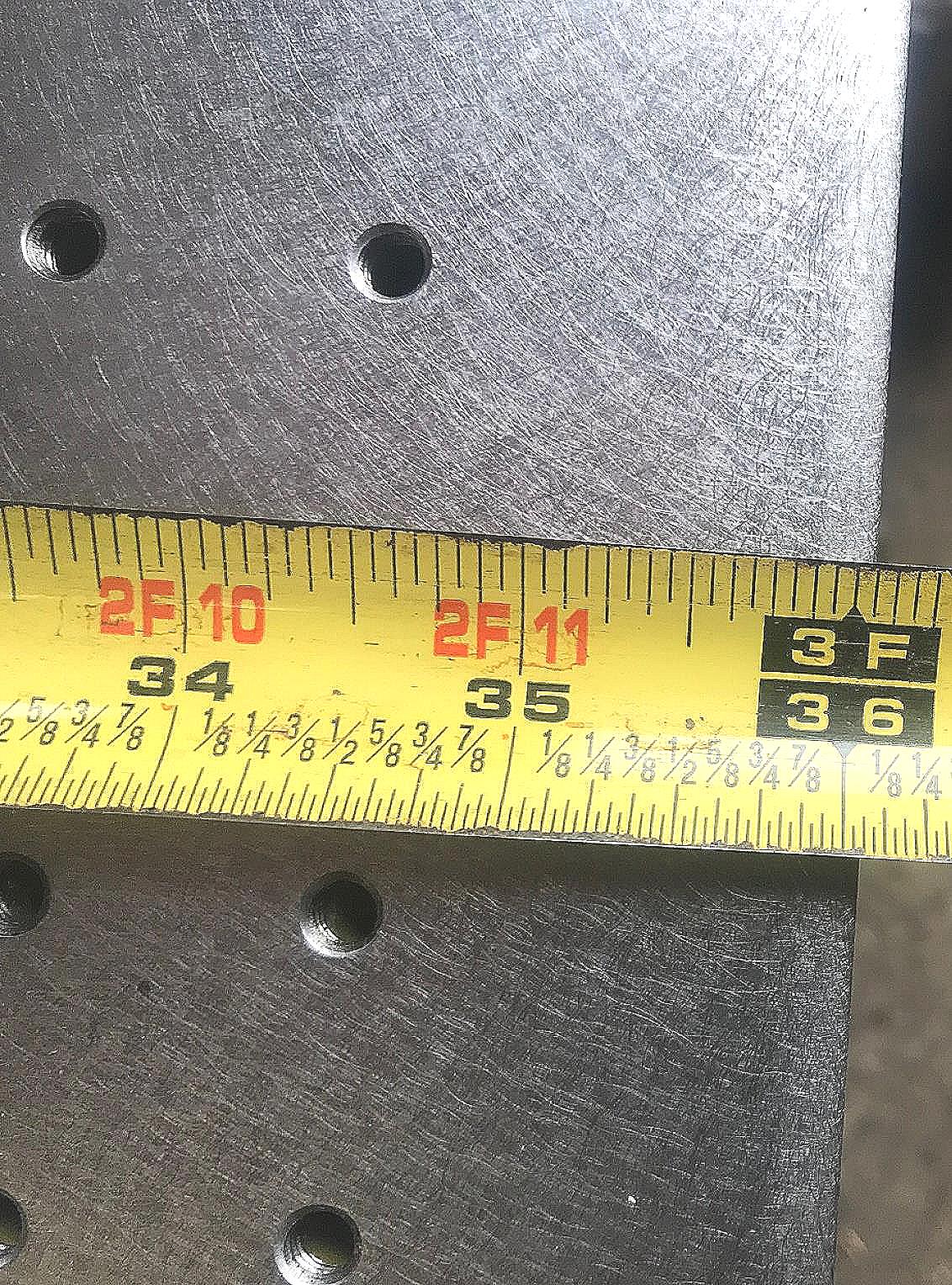

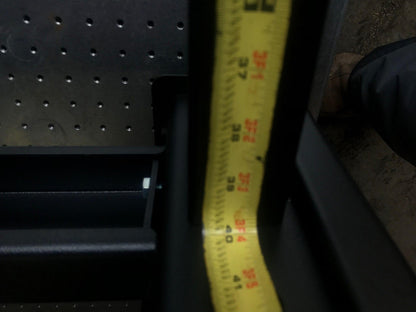

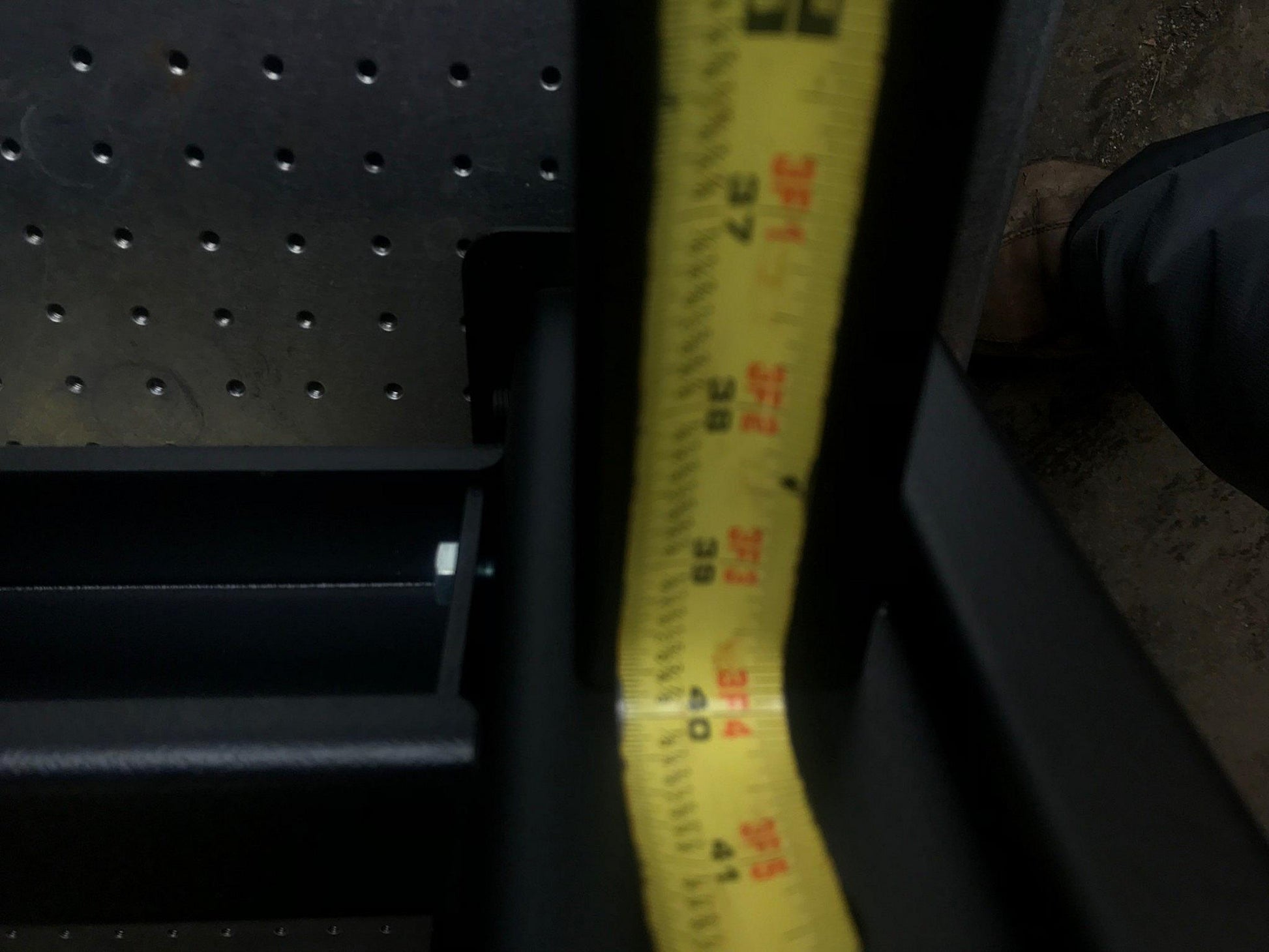

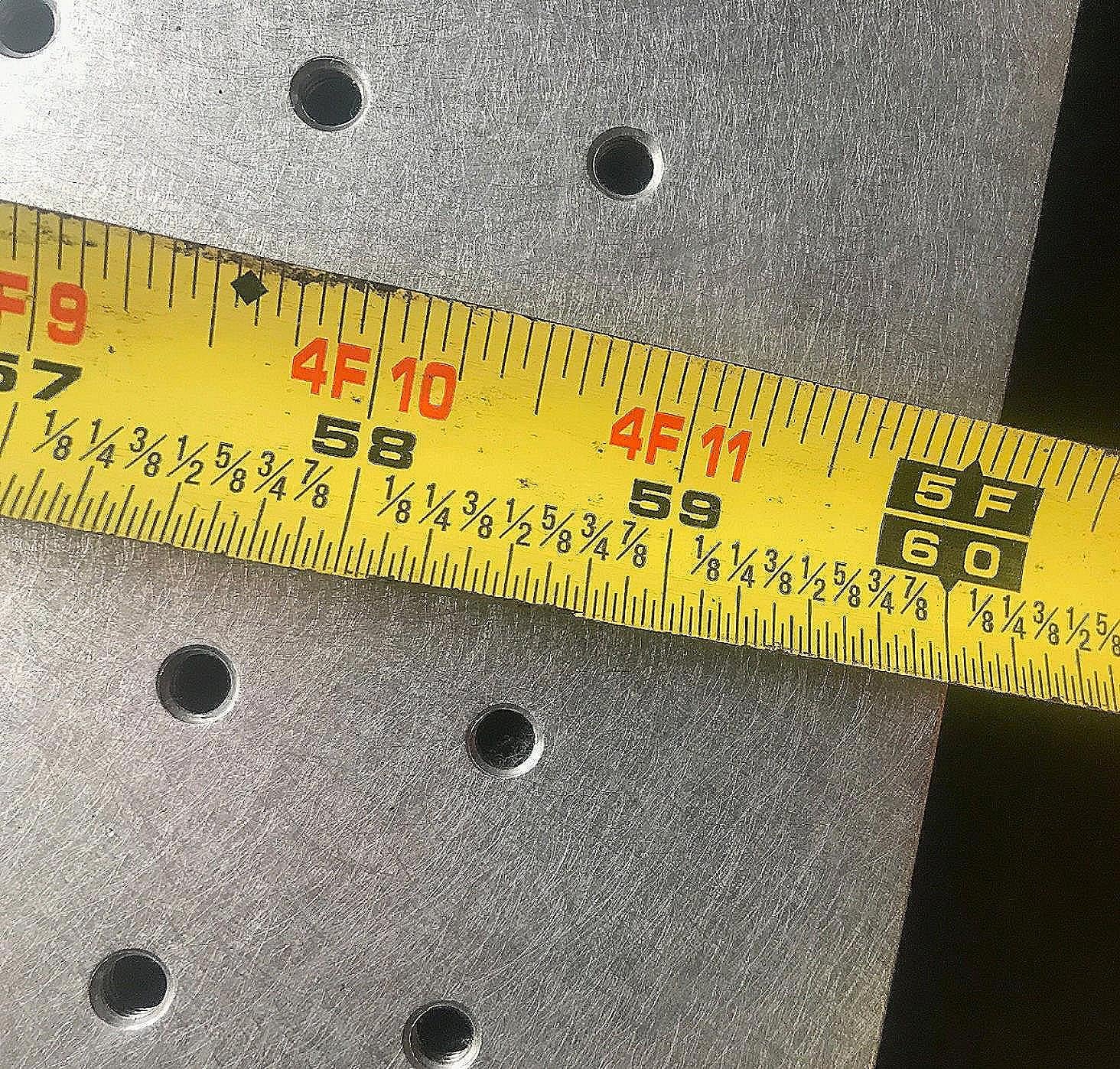

36" x 60" Inches / 3' x 5' Feet / 0.9 Meter x 1.5 Meter

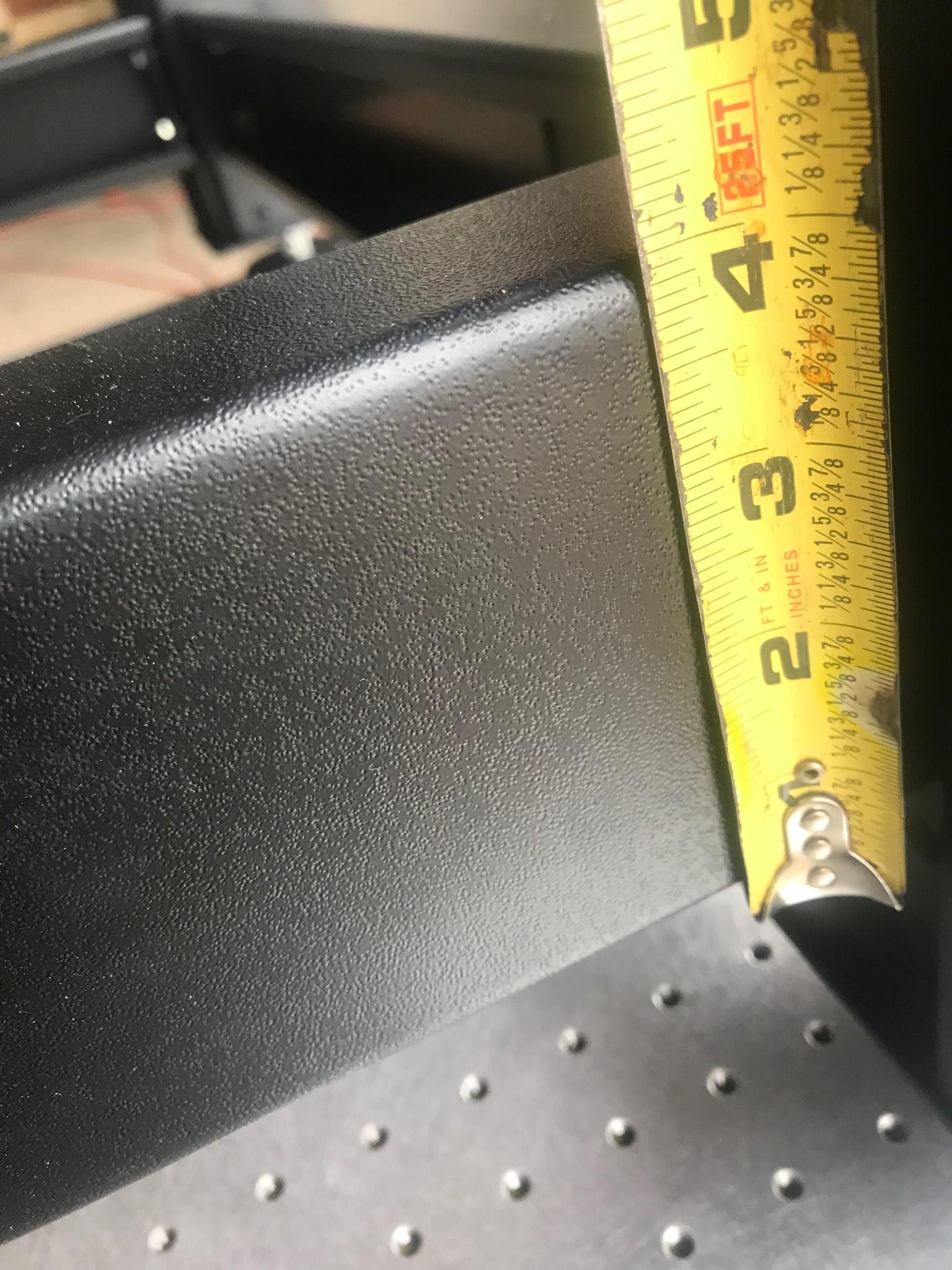

8 in. Thick (200 mm)

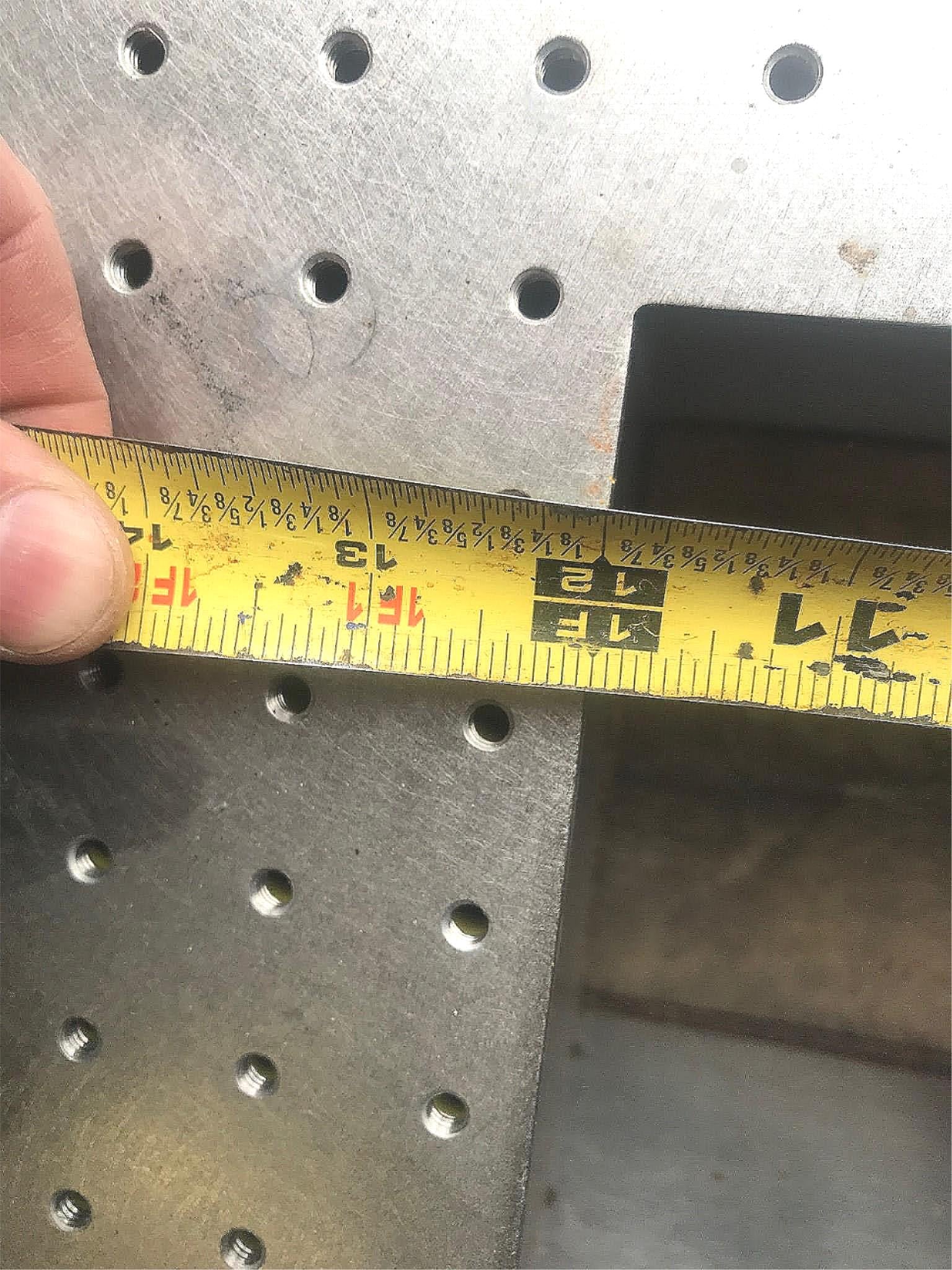

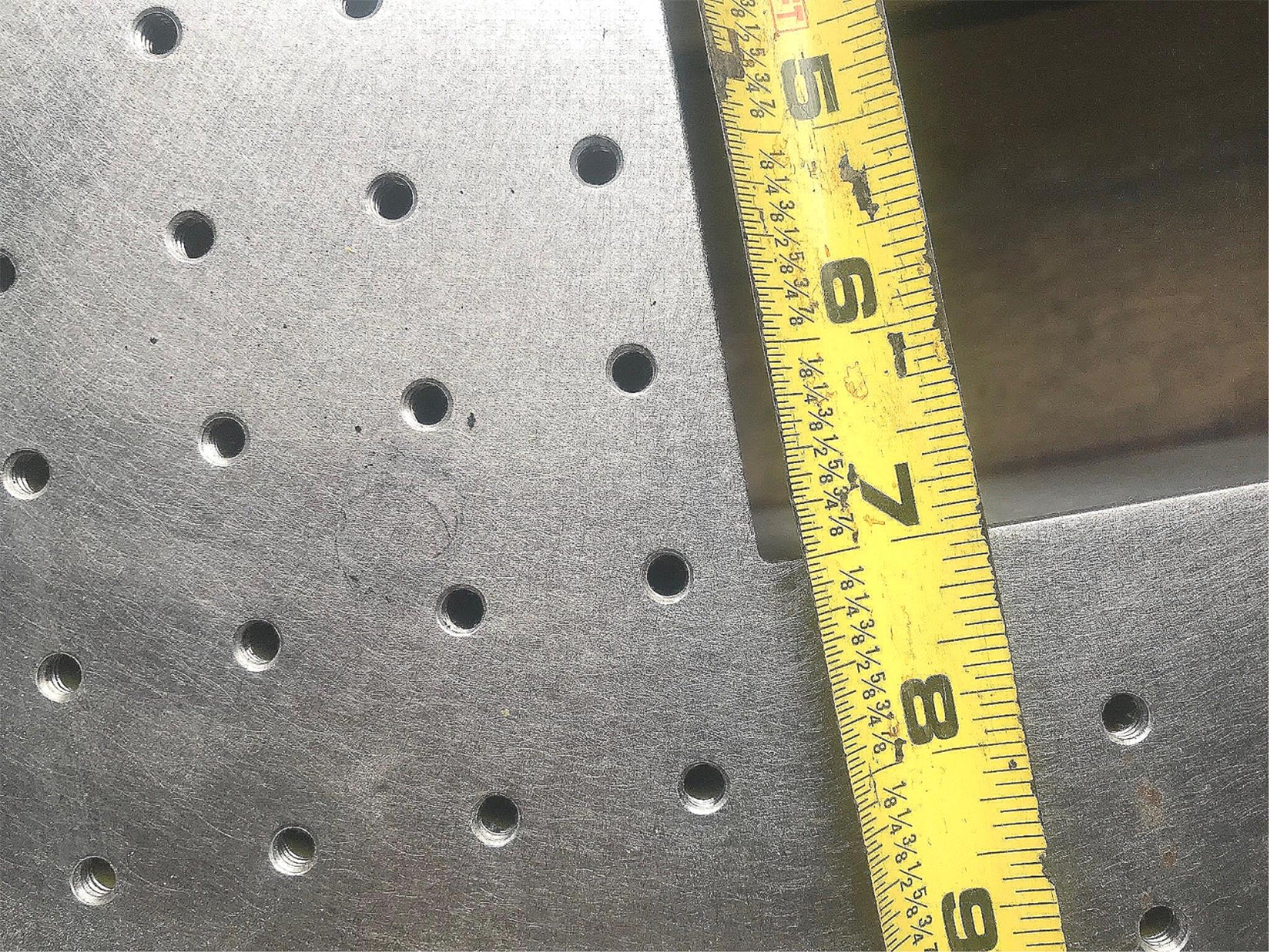

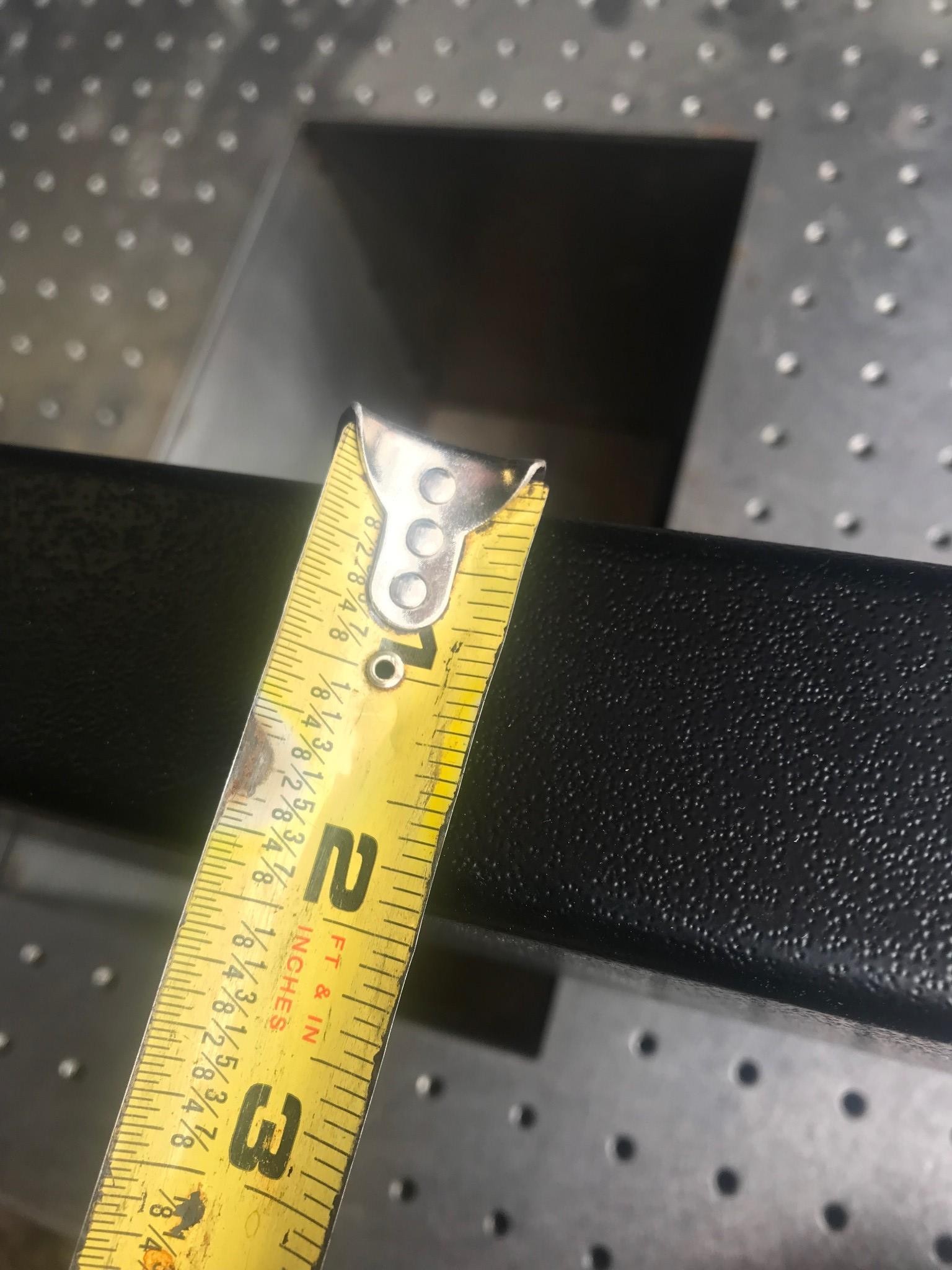

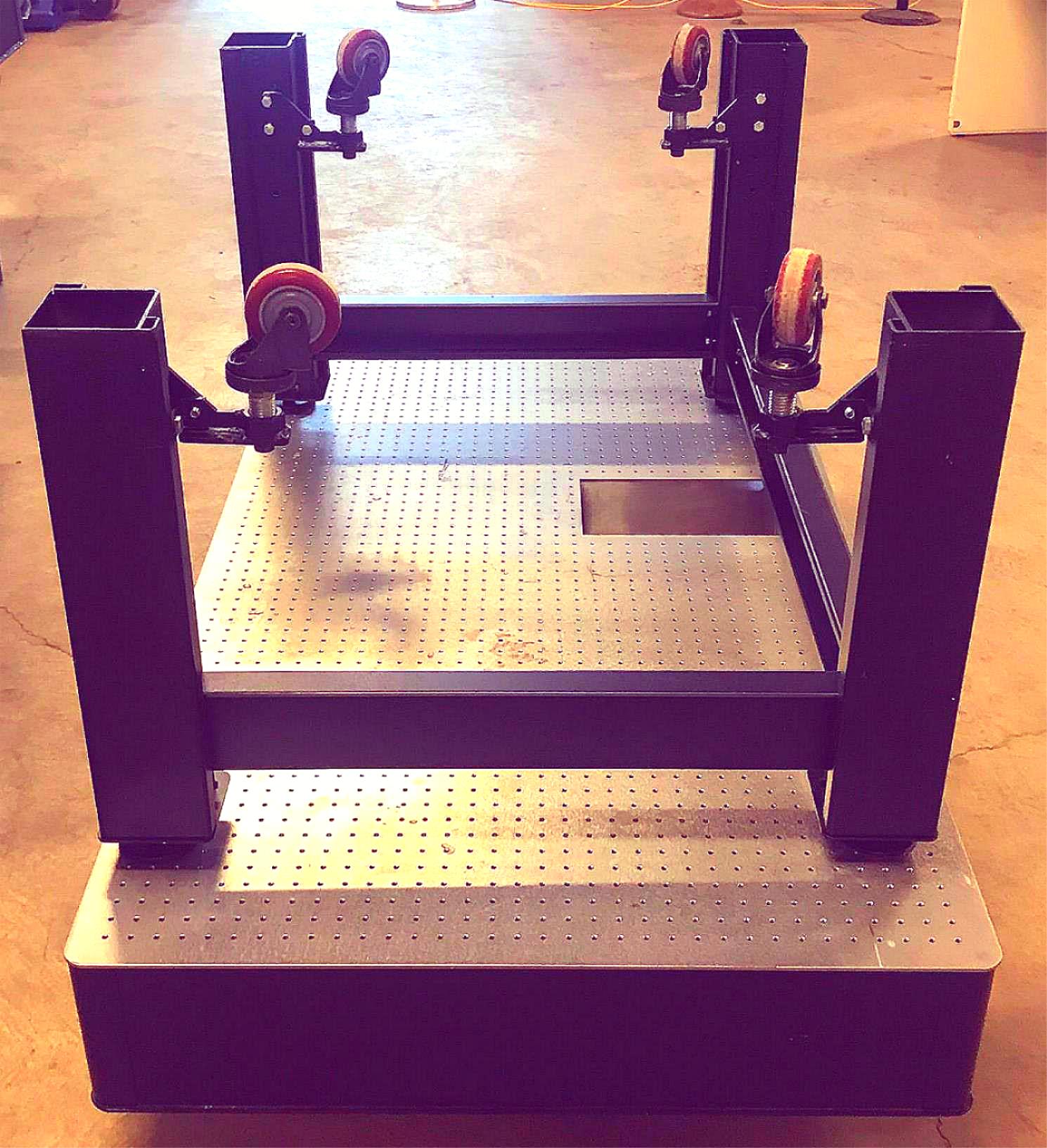

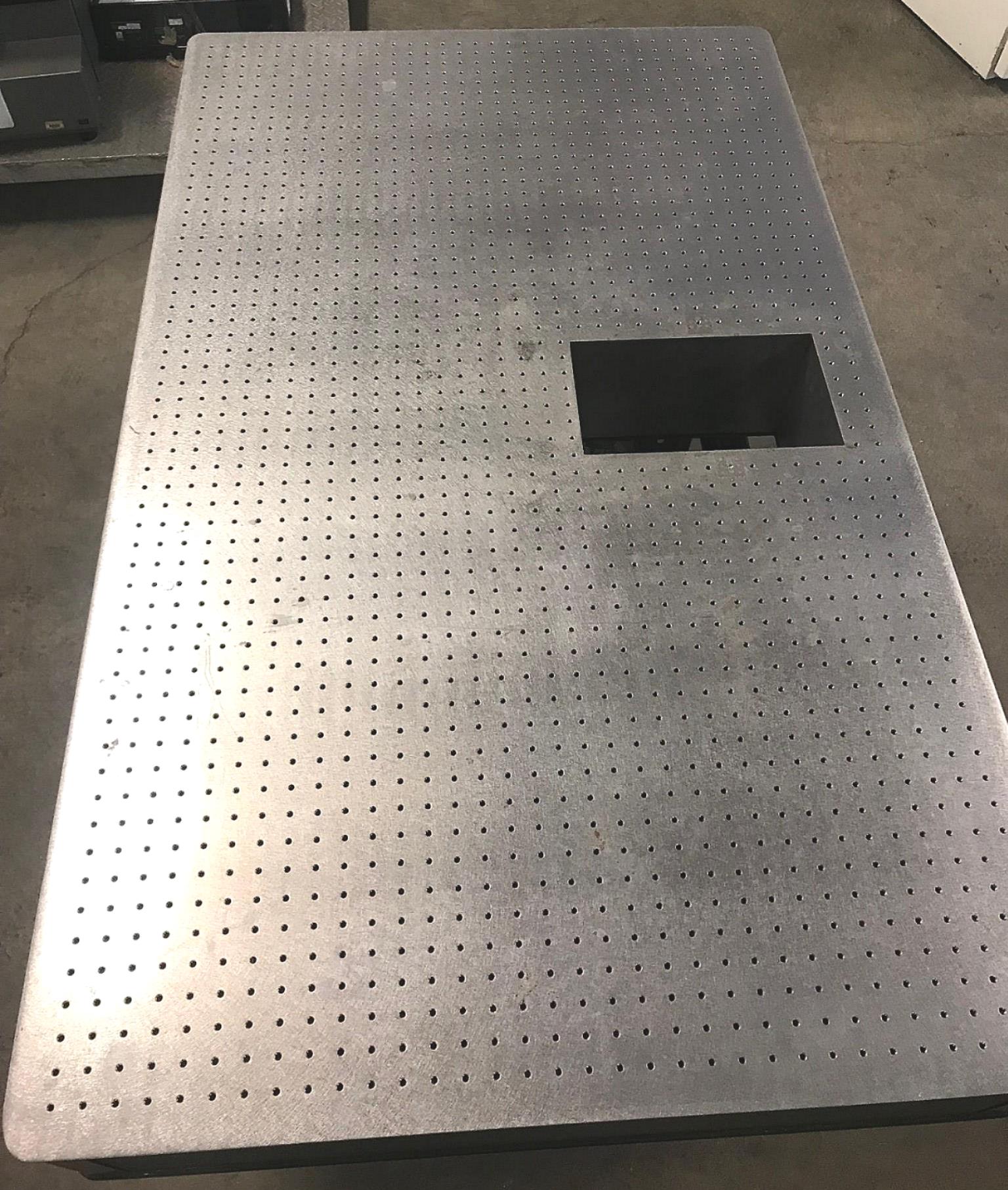

TMC's new 2,000-watt laser machining center coupled with our capacity to punch, drill, shear, form, and weld steel made this custom rectangular through-hole inclusion seen on this table.
Research Grade CleanTop® provides the ultimate in optical top performance.
Unmatched in the industry, Research Grade performance combines the smallest cell-size and highest core density with the unique CleanTop® design, all-steel construction, and the highest level of structural damping commercially available.
Research Grade CleanTops are recommended for the most demanding applications including interferometers, holography, and ultra-fast lasers, as well as the most severe floor vibration environments.
For the best overall vibration control, consider combining this top with a STACIS® iX support, a hybrid air/piezoelectric, 2-stage vibration cancellation system.
Features
• Maximum Structural Damping – Research Grade
• CleanTop individual nylon cups under each tapped hole are airtight (25mm)
Specifications
Core: Steel honeycomb, closed-cell, 0.010 in. thick foil
Core shear modulus: 275,000 psi Core cell size: <0.5 in.2
Core density: 13.3 lb/ft3 (230 kg/m3) Flatness: 7 0.005 in. (0.13 mm)
Top skin: 430 series ferromagnetic stainless steel, 3/16 in. thick (5 mm)

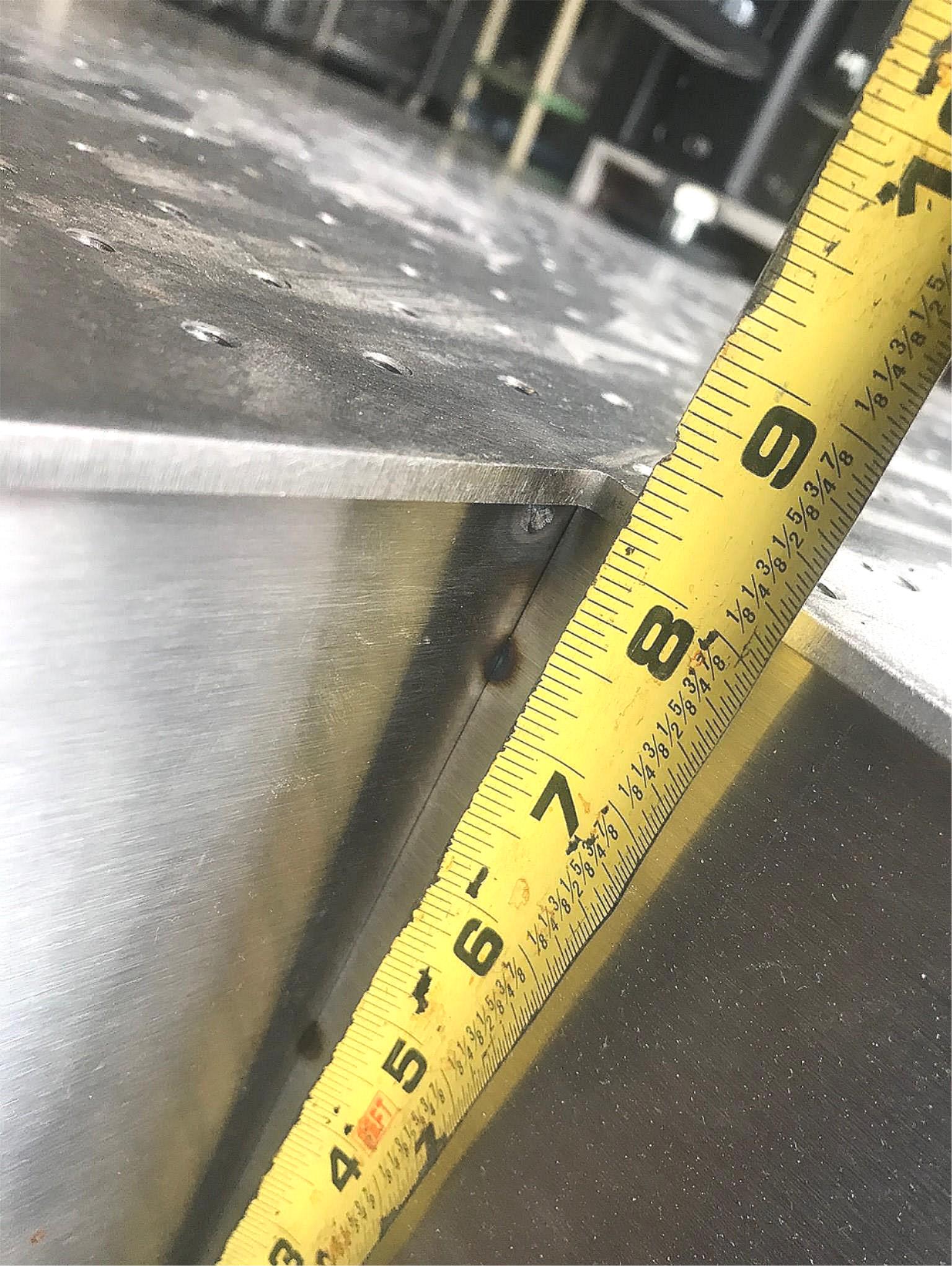

Sidewalls: Damped, formed steel channel, vinyl covered
Tapped holes: Backed by 1 in. (25 mm) long CleanTop nylon cups
Rounded Corners
CleanTop® Tops include user-friendly 1-in. radiused rounded corners as a standard feature.
Weight Factor (WF) (approx.);
0.225 lb/in.2
Area x WF Total Weight
(0.016 kg/cm2)
