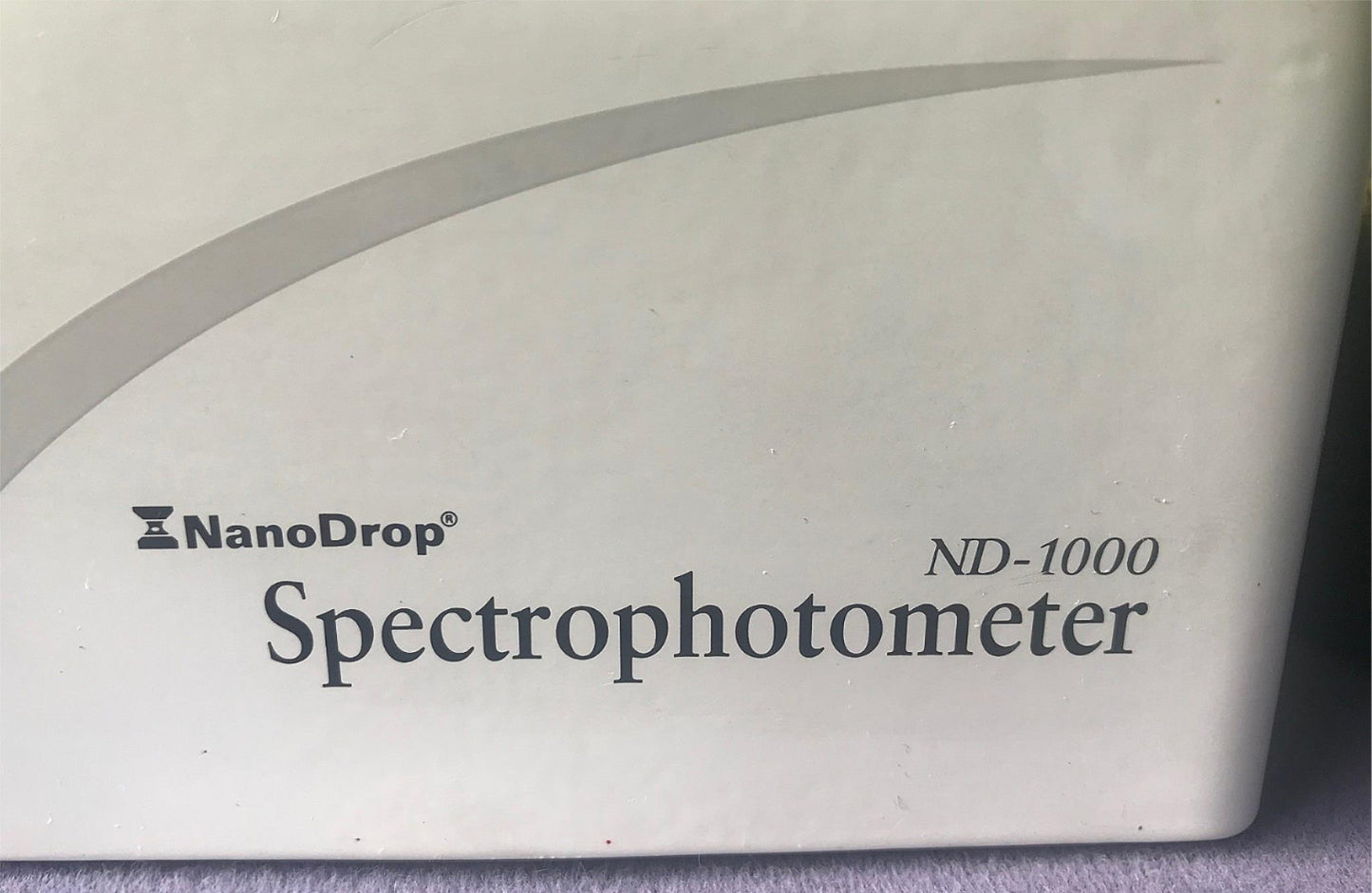

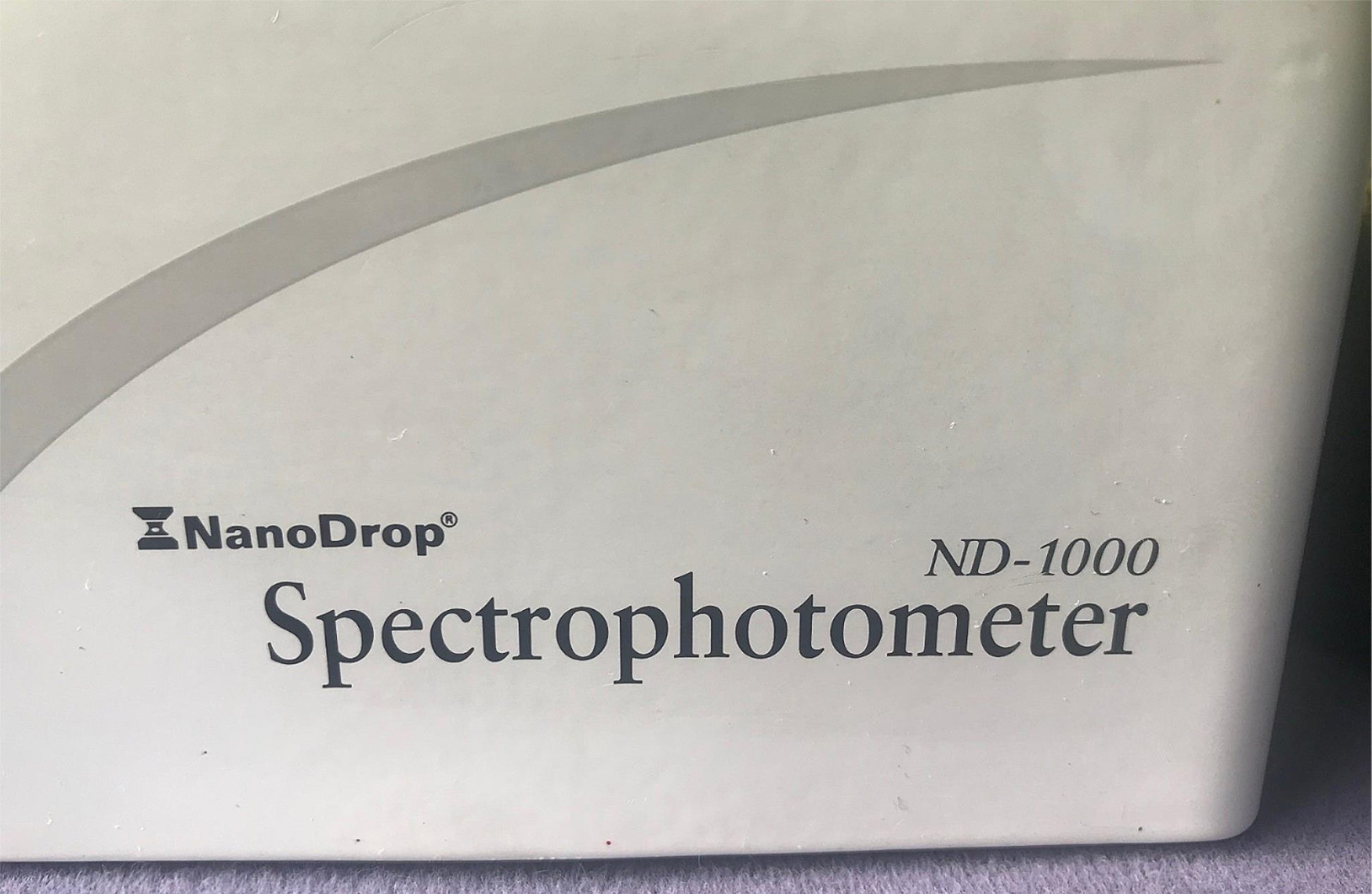

THERMO NANODROP ND-1000 SPECTROPHOTOMETER UV/VIS 100%Test 90day WARRANTY

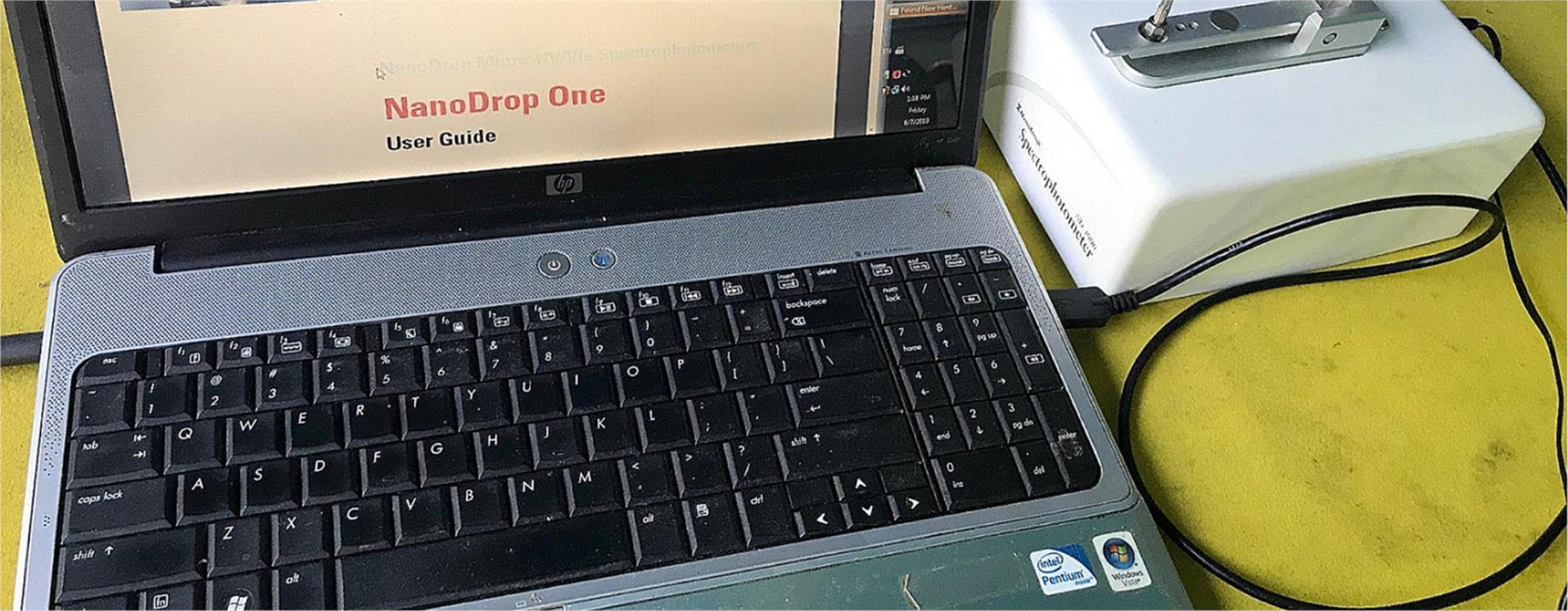

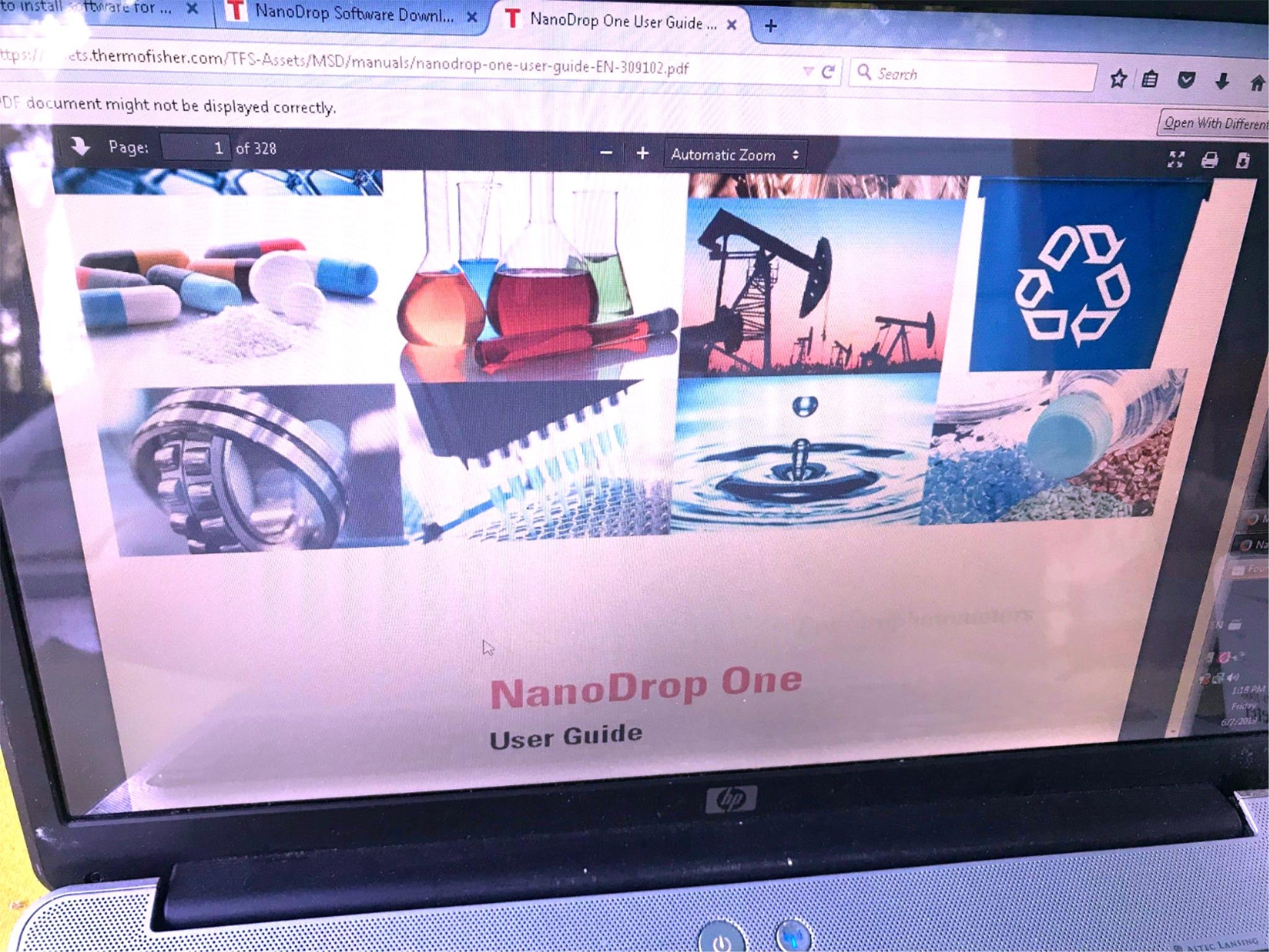

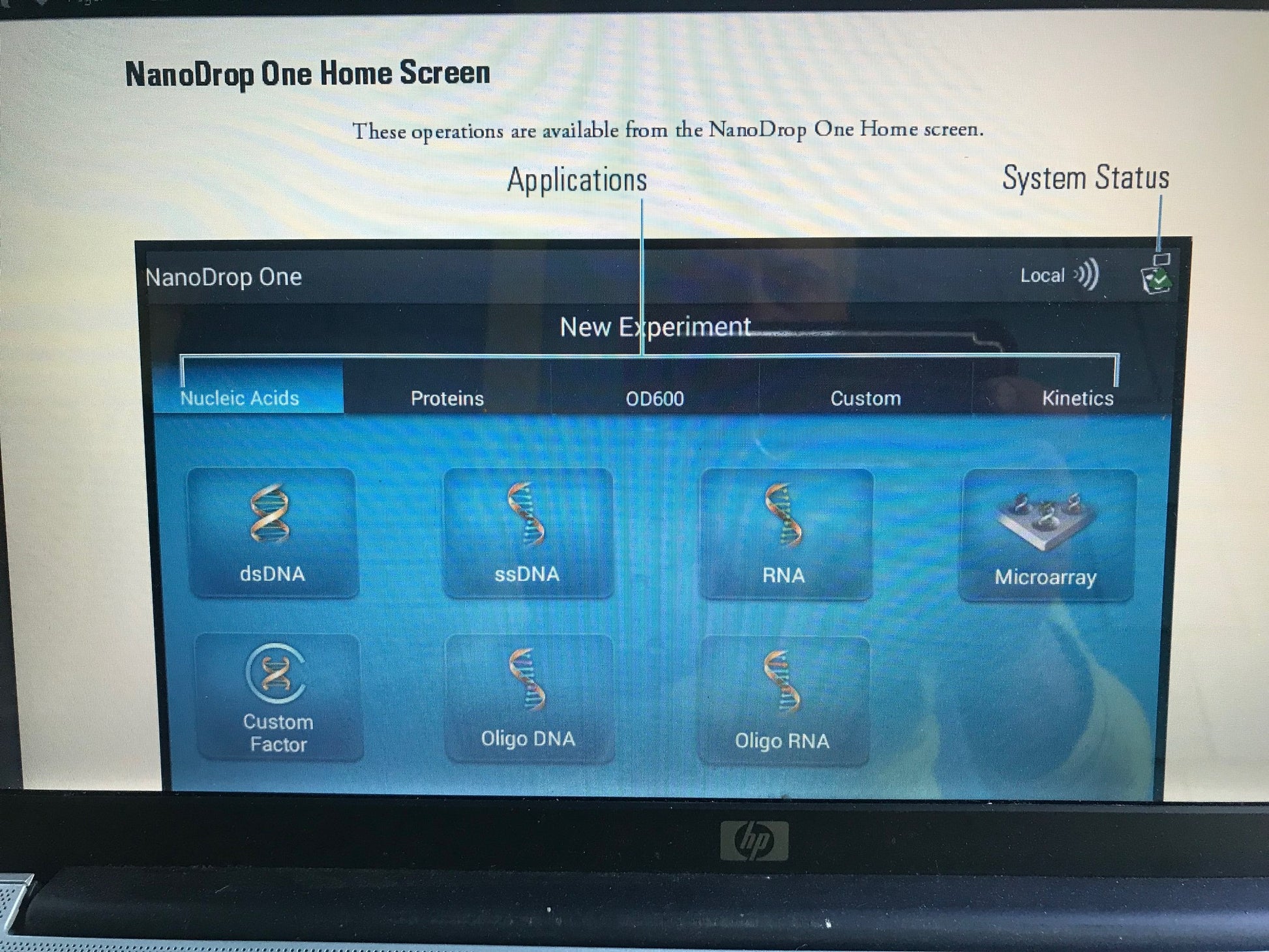

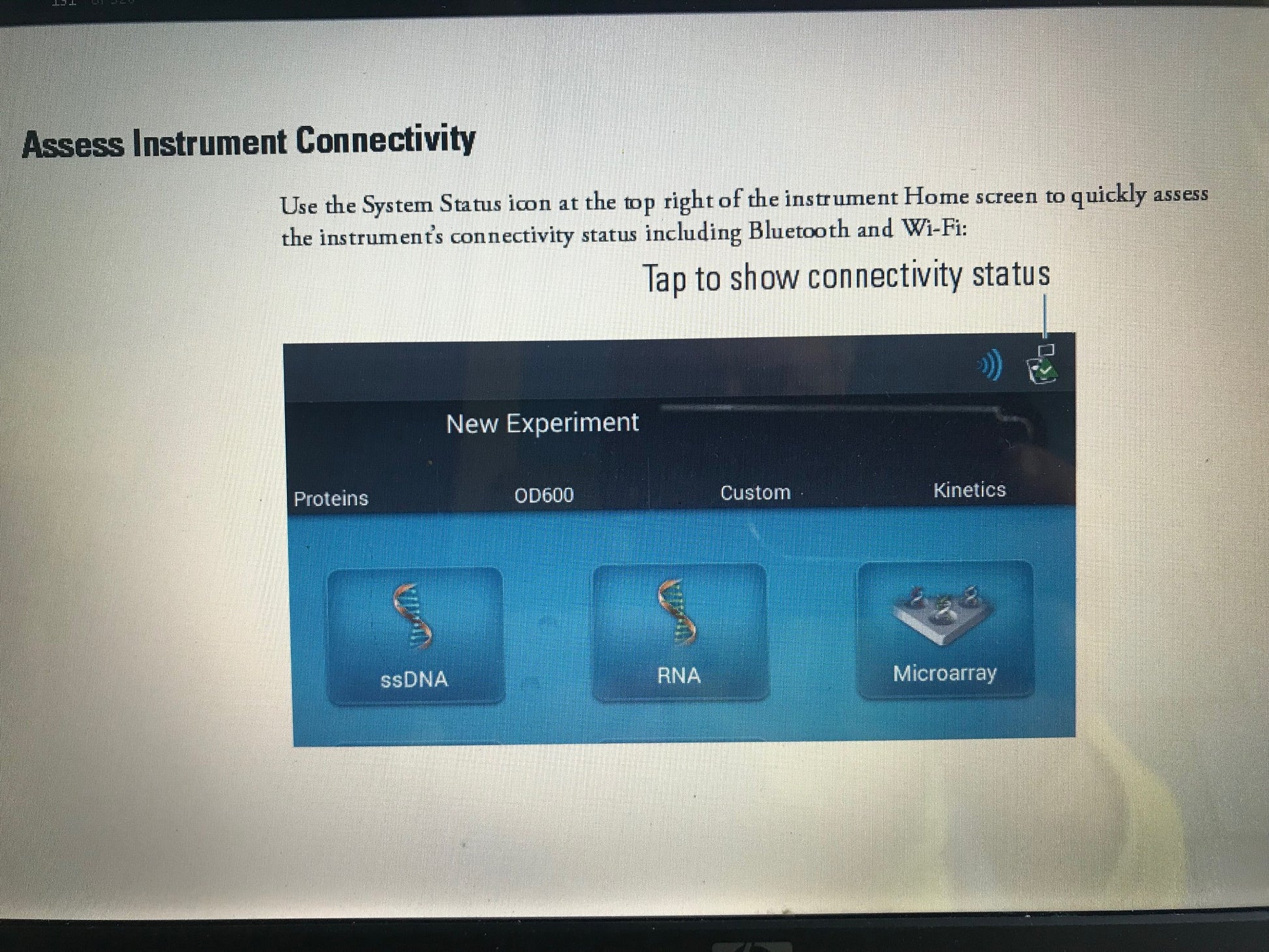

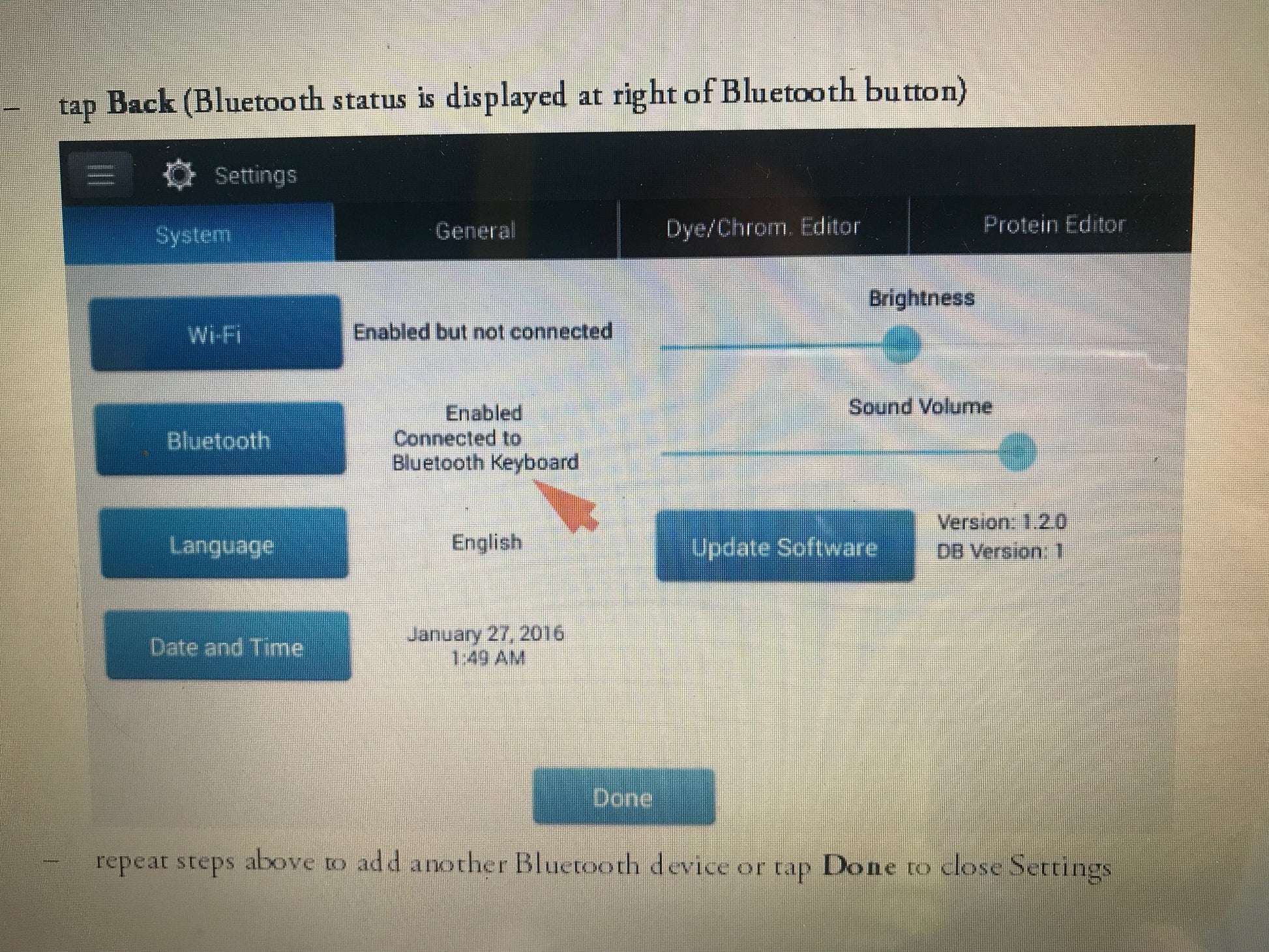

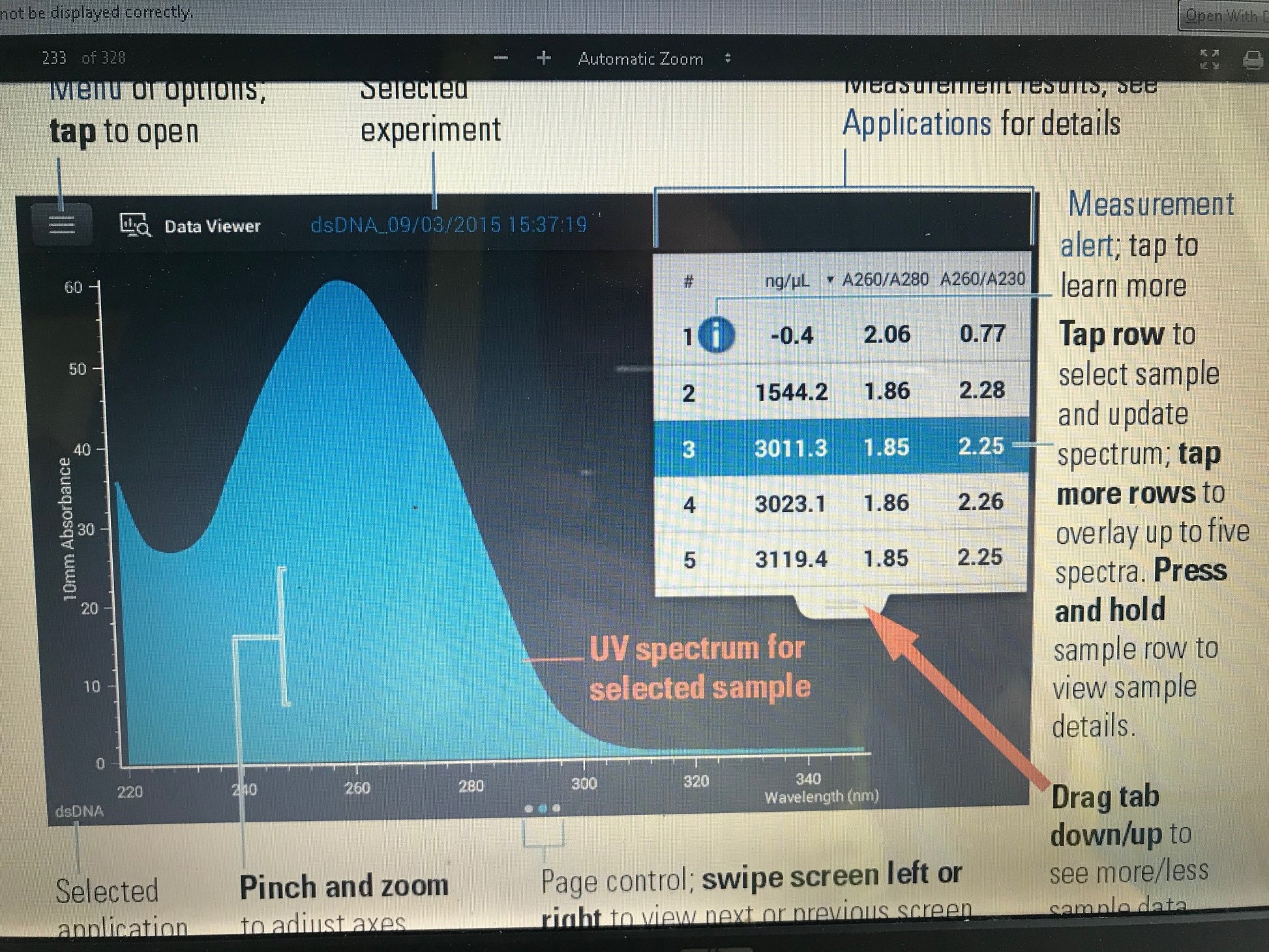

IMPORTANT: LAPTOP PICTURED IS NOT INCLUDED IN THIS SALE,  IT'S JUST PICTURED TO SHOW HOW THIS UNIT OPERATES.

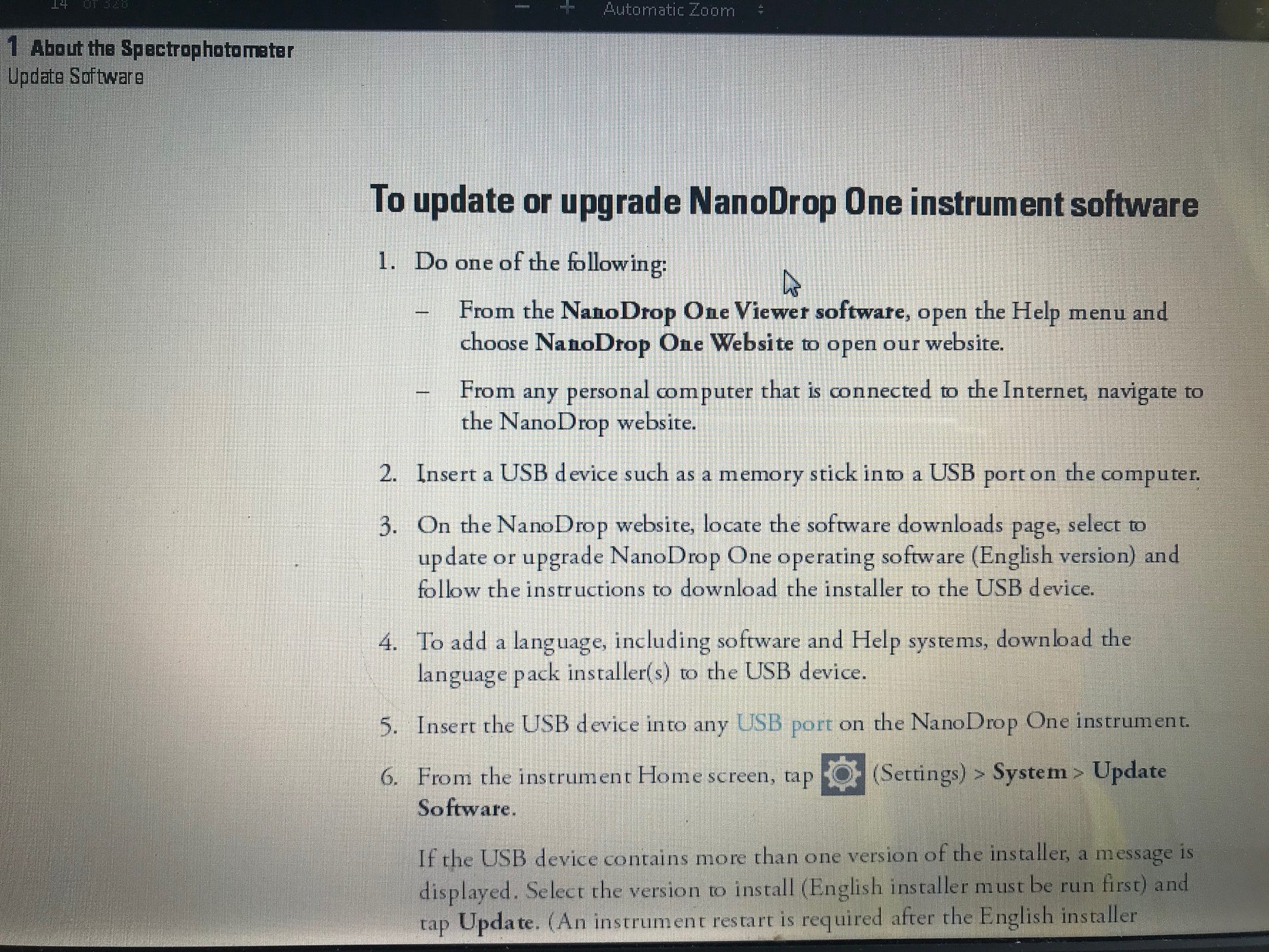

Software is not included but can be downloaded online from Thermo Scientific at the following online link: thermofisher.com/us/en/home/industrial/spectroscopy-elemental-isotope-analysis/molecular-spectroscopy/ultraviolet-visible-visible-spectrophotometry-uv-vis-vis/uv-vis-vis-instruments/nanodrop-microvolume-spectrophotometers/nanodrop-software-download.html

90 days return warranty for US buyers.

1. Overview

Instrument Description

The NanoDrop® ND-1000 is a full-spectrum (220-750nm) spectrophotometer that measures 1 ul samples with high accuracy and reproducibility. It utilizes a patented sample retention technology that employs surface tension alone to hold the sample in place. This eliminates the need for cumbersome cuvettes and other sample containment devices and allows for clean up in seconds. In addition, the ND-1000 has the capability to measure highly concentrated samples without dilution (50X higher concentration than the samples measured by a standard cuvette spectrophotometer).

Operation

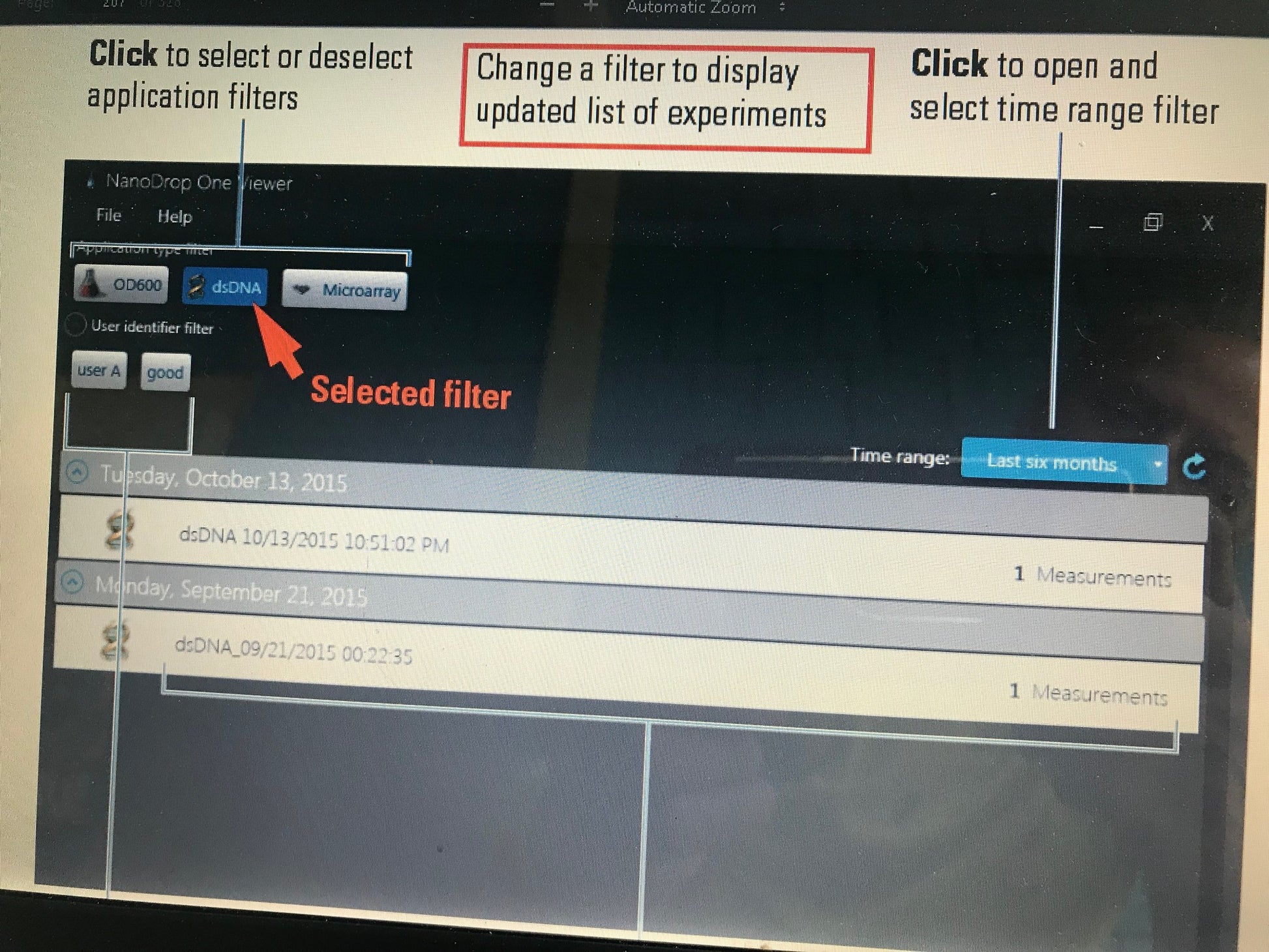

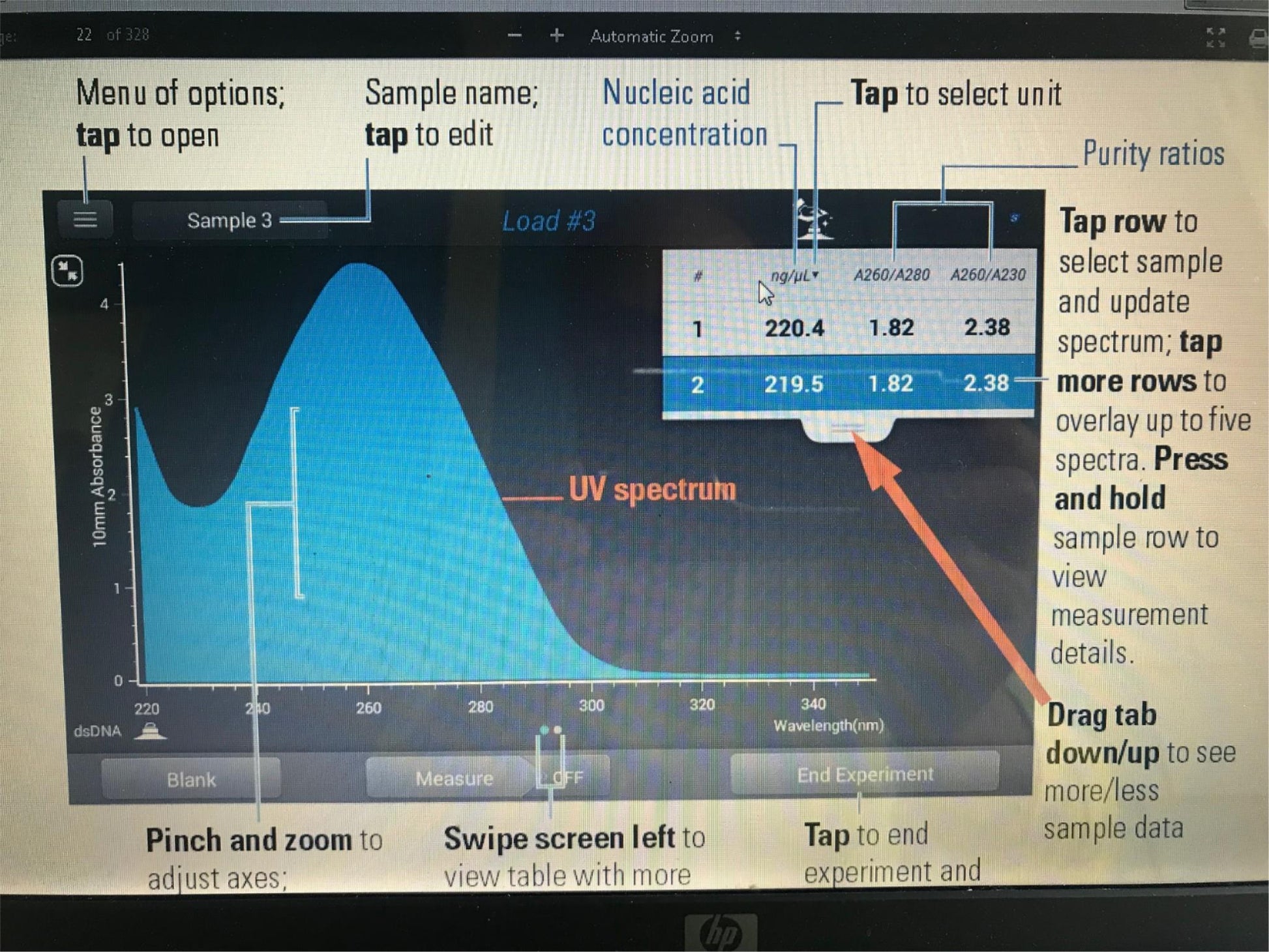

A 1 ul sample is pipetted onto the end of a fiber optic cable (the receiving fiber). A second fiber optic cable (the source fiber) is then brought into contact with the liquid sample causing the liquid to bridge the gap between the fiber optic ends. The gap is controlled to both 1mm and 0.2 mm paths. A pulsed xenon flash lamp provides the light source and a spectrometer utilizing a linear CCD array is used to analyze the light after passing through the sample. The instrument is controlled by special software run from a PC, and the data is logged in an archive file on the PC.

Applications

UV/VIS spectrophotometry is simple for samples as small as 1 ul using the NanoDrop® ND-1000 Spectrophotometer. The small sample requirement and ease of use make the NanoDrop® ND-1000 Spectrophotometer ideally suited for measuring:

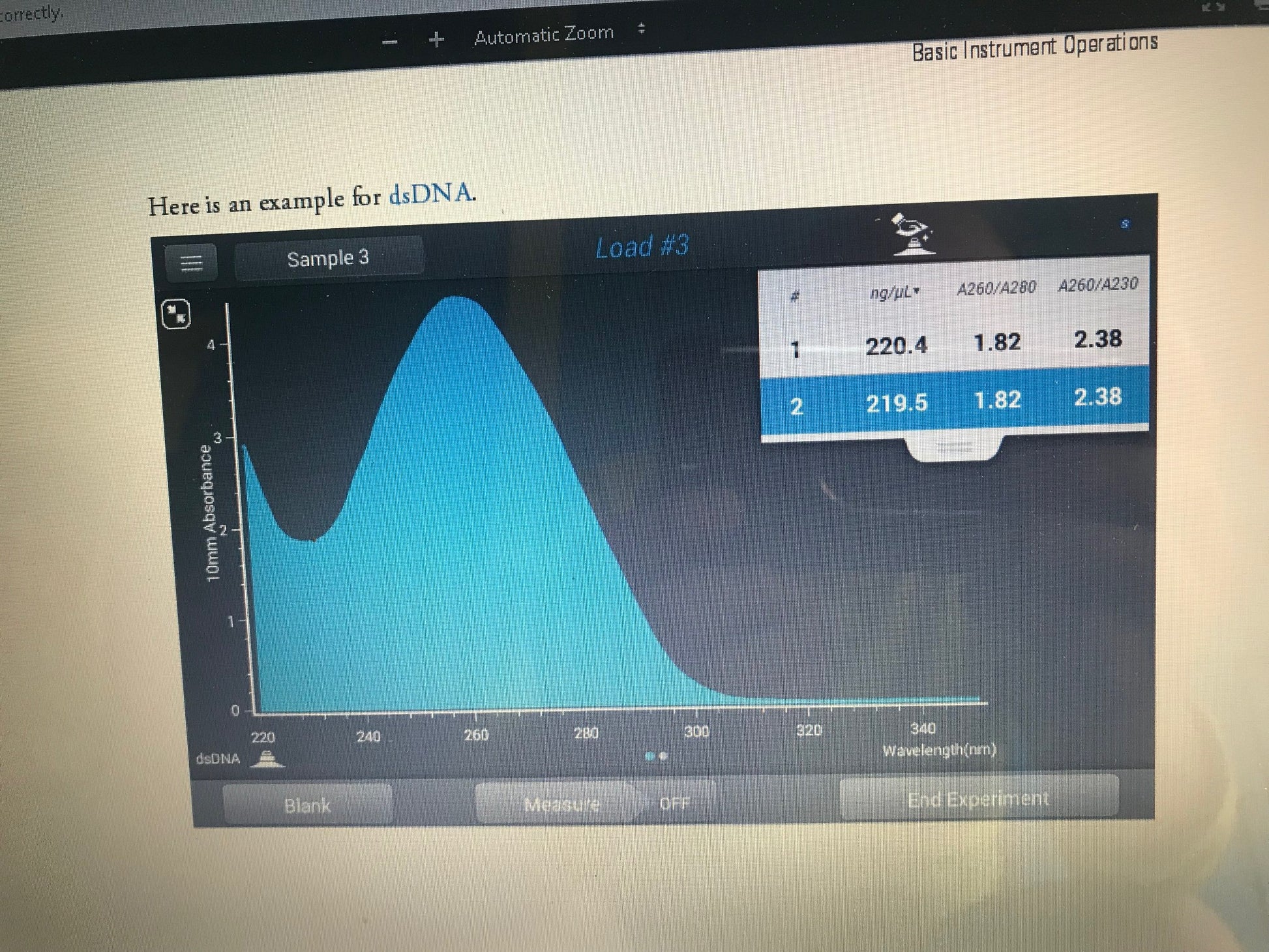

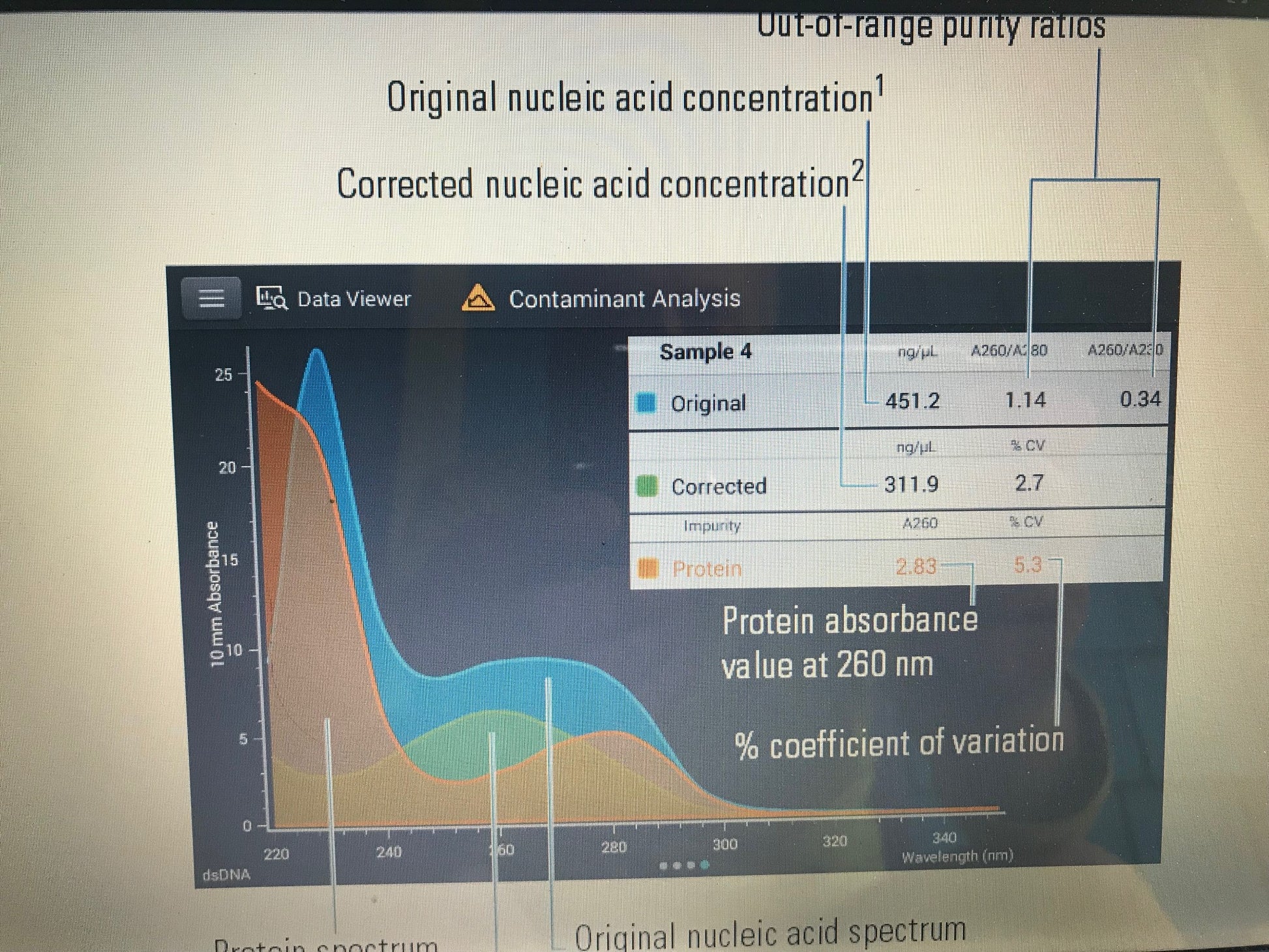

• Nucleic acid concentration and purity of nucleic acid samples up to 3700 ng/ul (dsDNA) without dilution

• Fluorescent dye labeling density of nucleic acid microarray samples

• Purified protein analysis (A280) up to 100 mg/ml (BSA)

• Expanded spectrum measurement and quantitation of fluorescent dye labeled proteins, conjugates, and

metalloproteins

• Bradford Assay analysis of protein

• BCA Assay analysis of protein

• Lowry Assay analysis of protein

• Cell density measurements

• General UV-Vis spectrophotometry

Package Quantity 1
