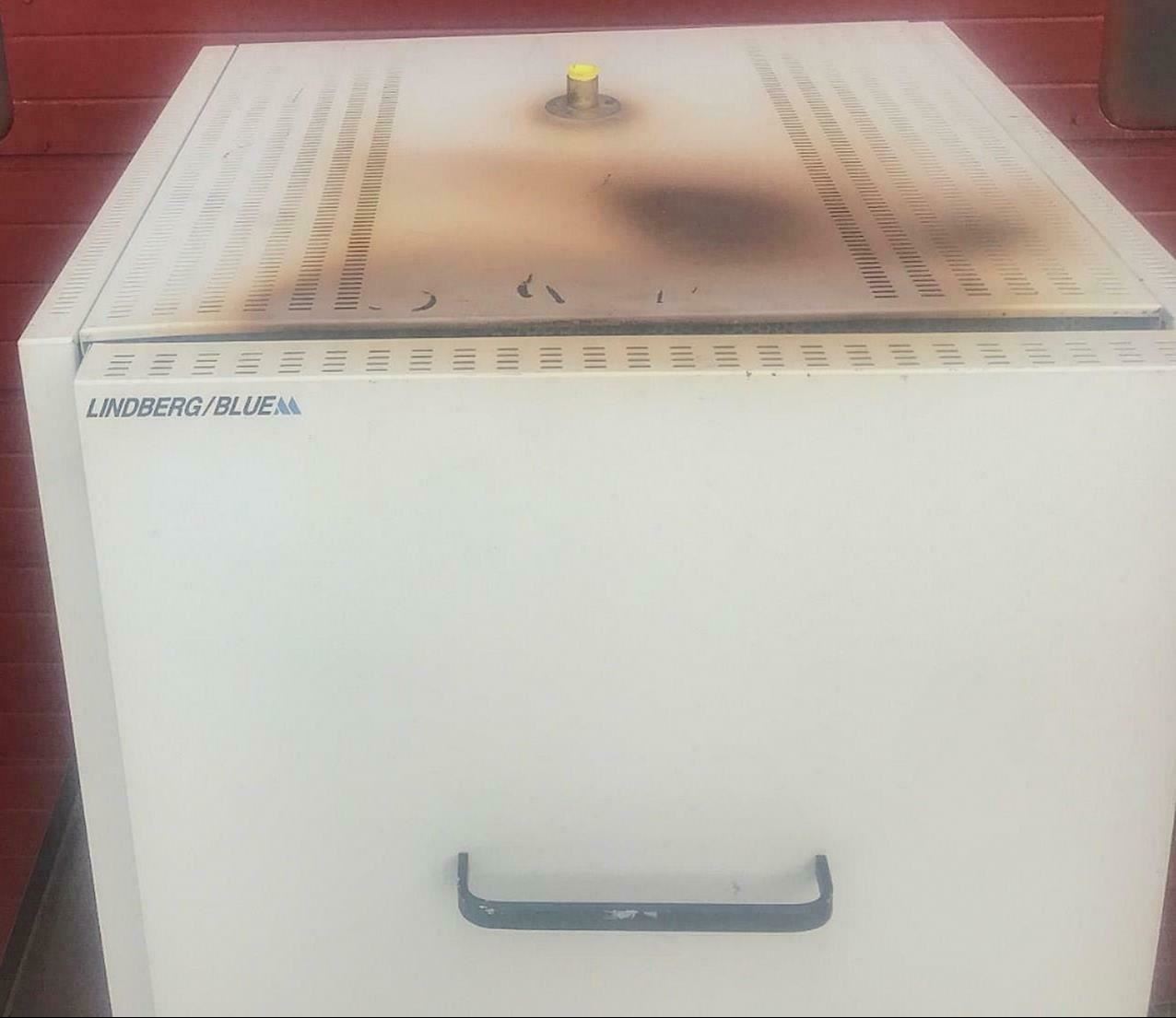

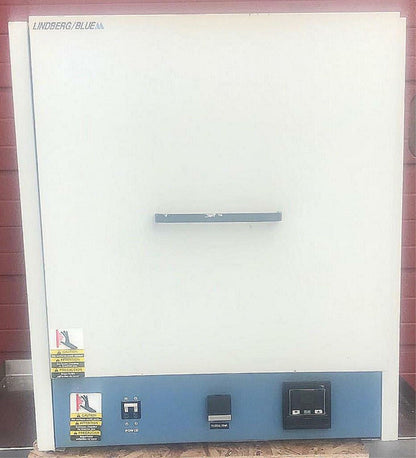

THERMO LINDBERG BLUE M BF51842PBC BOX FURNACE 55 Liter 25AMP 208Volt WATCH VIDEO

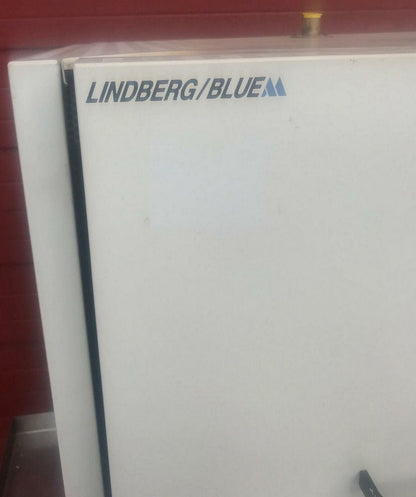

Thermo Scientific Lindberg/Blue M 55.3L D2 OTC LGO Box Furnace

● Serial Number: W14E-218014-WE

Product Details

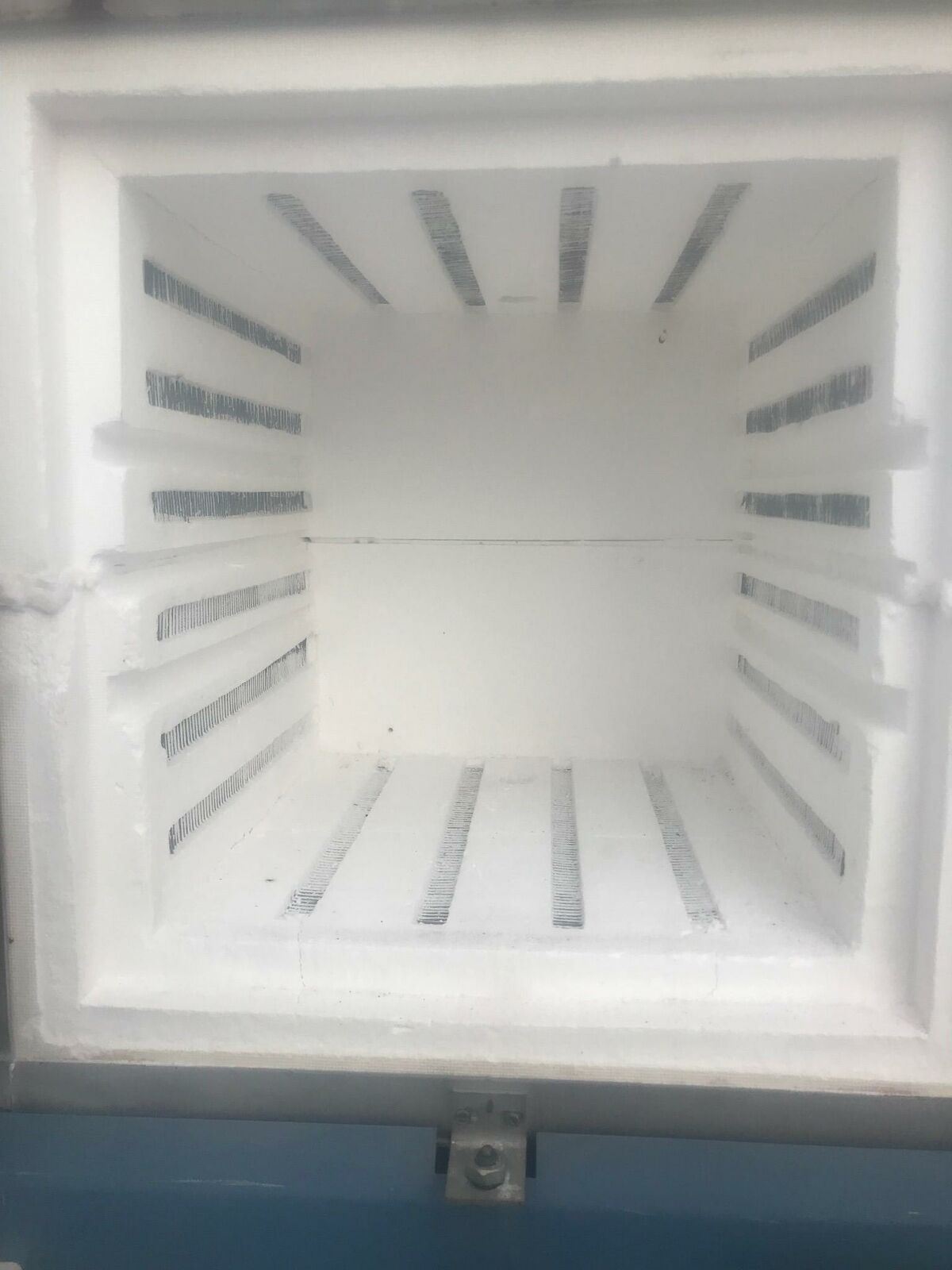

Thermo Scientific LGO Series Box Furnaces feature the latest technical advances in heating elements, insulation and temperature control, all integrated into a self-contained cabinet. Furnaces feature patented LGO (light gauge overbend) heating elements and Moldatherm insulation for efficient and economical transfer of heat to the chamber, with low exterior temperatures.

Programmable with 25 stored programs with 500 segments per program. Each segment includes one ramp and one dwell, so you can program up to 500 ramp/dwell cycles.

The ramp is used to vary the heat-up or cool-down rate to your specified setpoint. The furnace will then dwell (hold the temperature) at a set level for a specified time.

Controller can repeat the whole program up to 999 times

Program patterns can be based on either time or rate

A large 5-digit LED display shows actual temperature

LCD display provides trend recording function, graphic prompts, configurable display data, and custom messages set by the customer.

Selectable self-tuning PID control (proportional, integral, derivative) provides optimum thermal process and prevents overshoot

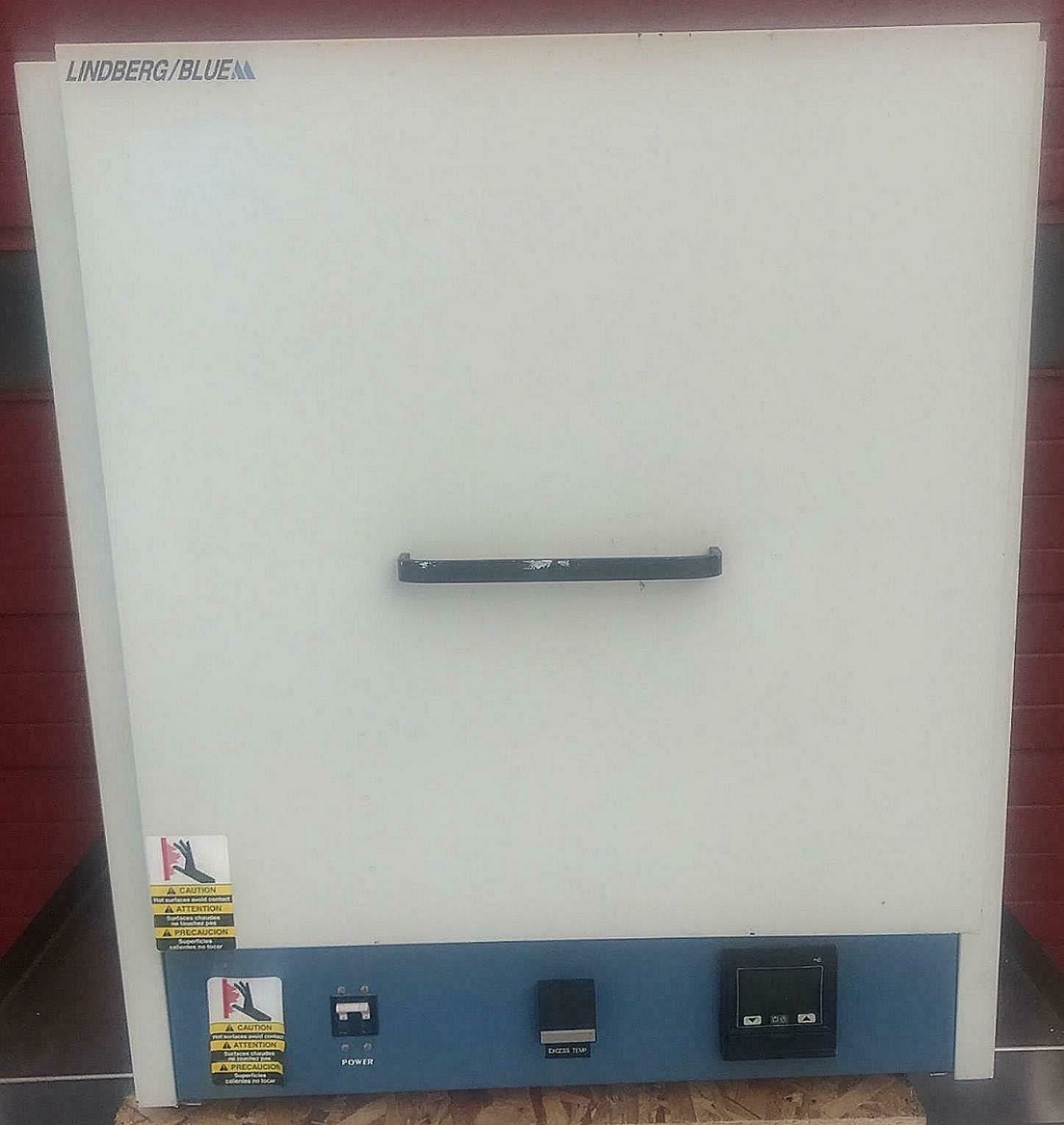

Control panel designed for easy access and maintenance

Main power ON/OFF switch on control panel

Adjustable high-limit overtemperature protection

Can be configured to display temperature in either °C or °F

Variable heat-up rate eliminates thermal shock to materials with quick heat-up and cool-down rates

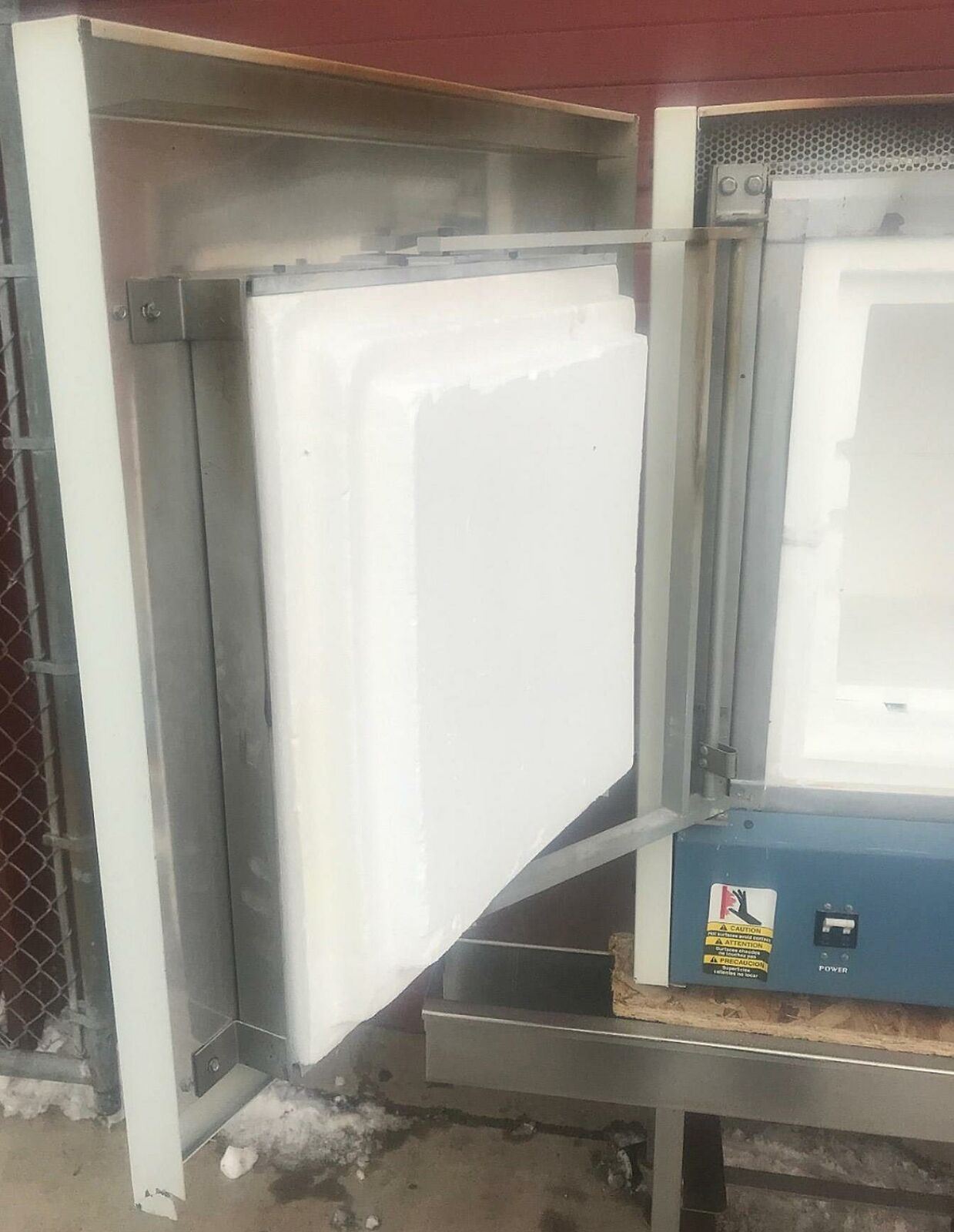

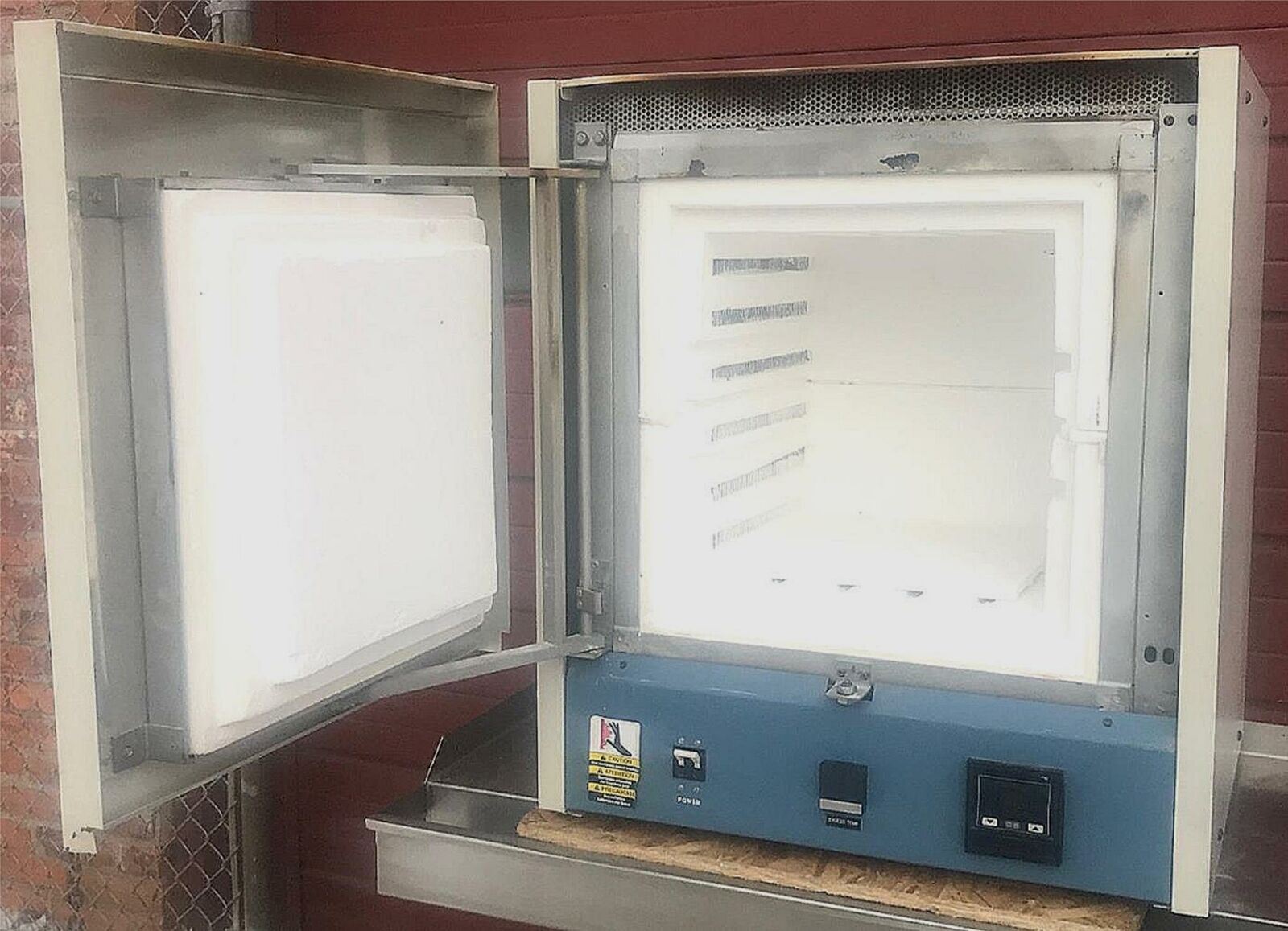

Side-hinge door for convenient operation and full chamber access

Air vent (1in. dia., top) and air inlet (1/4-inch Male Pipe Thread, rear) for inert atmosphere exchange; will experience some leakage at door

Self-tuning, digital instrumentation for precise temperature setpoint and display

Platinel II thermocouple for long-term stability

Safety door switch to interrupt power to heating element when door is opened; protects heating element and minimizes exposure to end-user

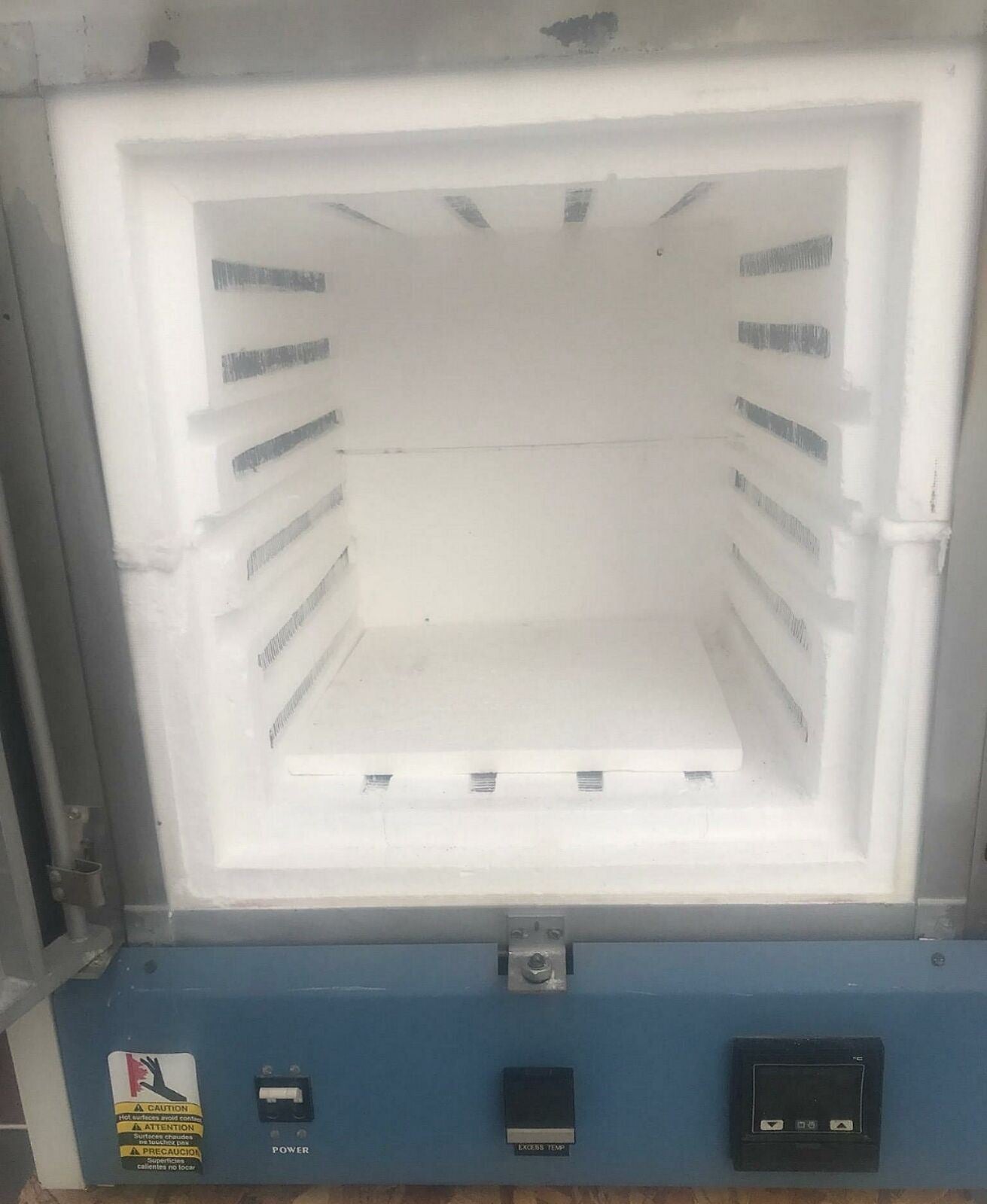

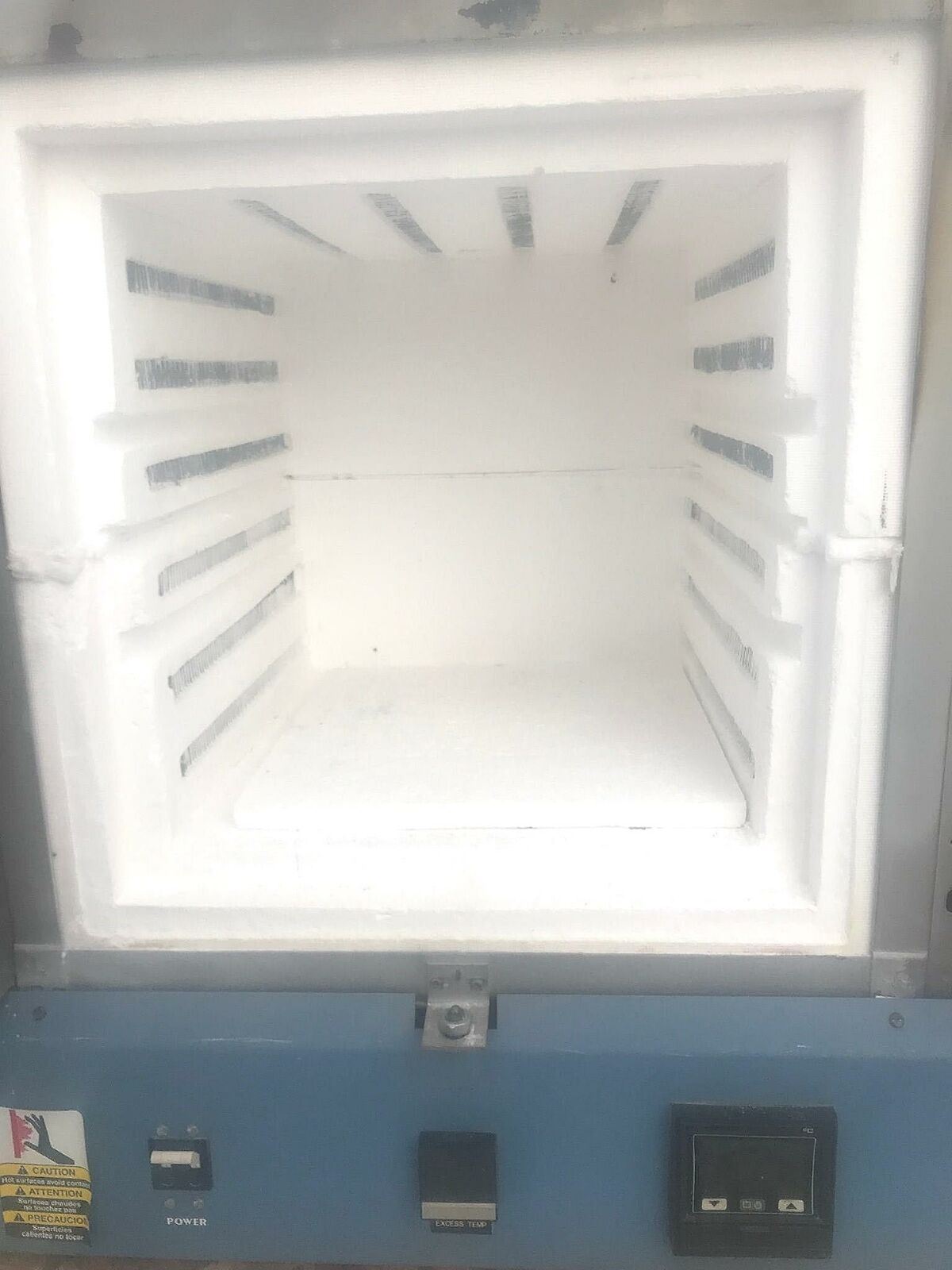

Three shelf positions; 1 two-part shelf included with furnace

Moldatherm hearthplate supports load and prevents damage due to spillage

NOTE: Furnace must be hard wired

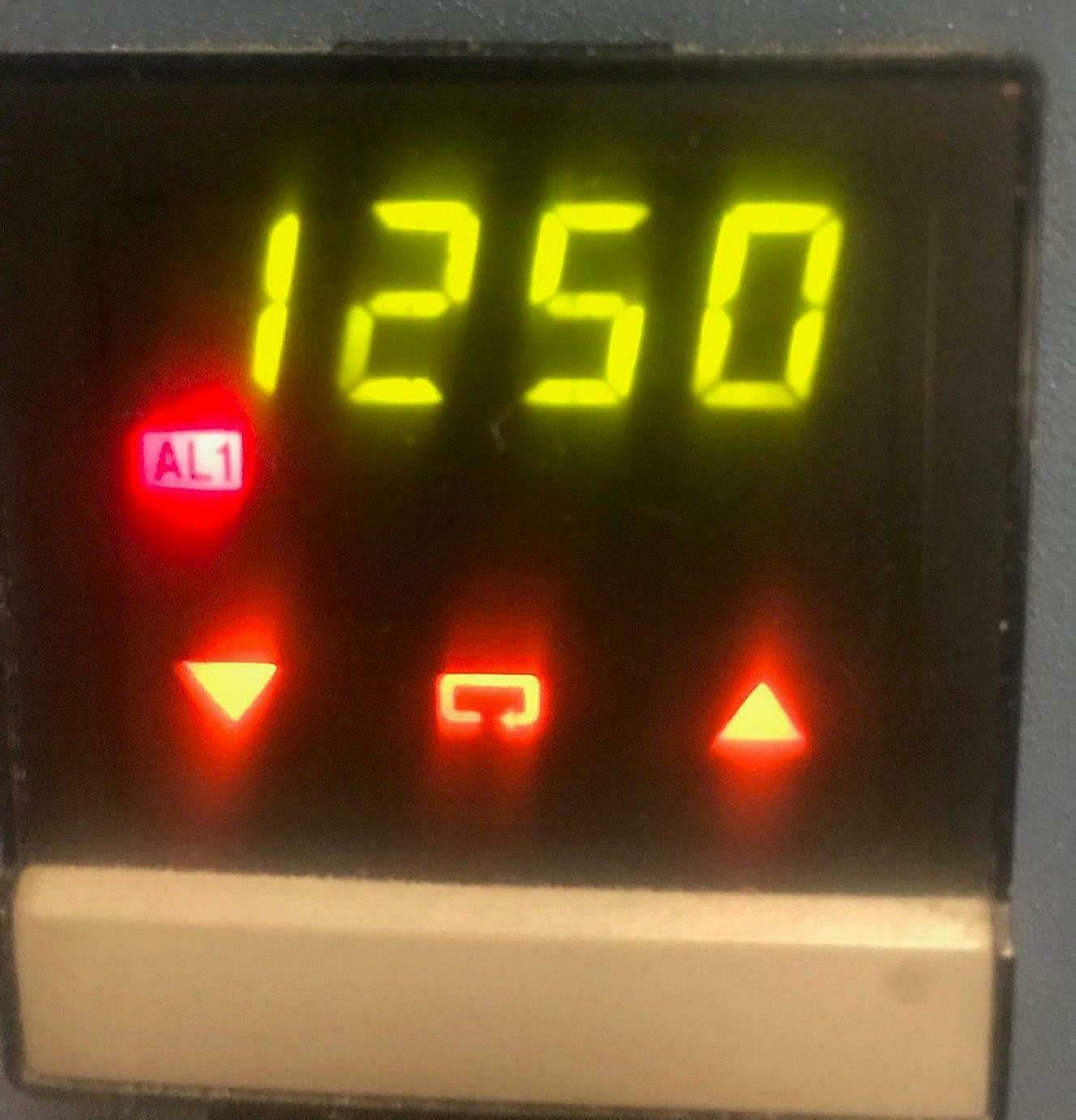

Adjustable digital overtemperature control (OTC)

OTC - Protects furnace and load in the event of primary control circuit failure

OTC - Overrides main controller and shuts off power to furnace if high limit is reached

OTC - Manual reset required for safety

OTC - Operates via magnetic contacts through signal from independent thermocouple

Thermo Fisher Scientific BF51800 Series is a family of ultra lightweight,

economical, laboratory box furnaces. The low thermal mass Moldatherm®

insulation/heating element provides fast duty cycles, energy conservation, and

efficient programming. Refer to Table 1. “BF51800 Series Moldatherm Box

Furnaces” for specifications.

Features and Benefits

• Controlled heat-up rate eliminates thermal shock to materials.

• Quick heat-up and cool-down rates.

• Four chamber sizes.

• Energy efficient Moldatherm insulation suitable for high interior-exterior

temperature differential. The unit is rated for a maximum operating

temperature of 1100 °C.

• Resists attack from most corrosive agents and can be used in atmospheres

other than air.

• Side-hinge door for convenient operation.

• Air vent, standard.

• Atmosphere inlet port standard.

• 16 segment programmable temperature controller.

• Digital instrumentation for precise temperature setpoint and display.

Microprocessor capable of automatically optimizes control parameters during furnace operation.

• Main power ON/OFF switch on control panel.

• Safety interlock switch automatically interrupts power to heating element when door is opened.

This feature protects heating element and eliminates operator's exposure to electrical shock.

• Type K thermocouple.
