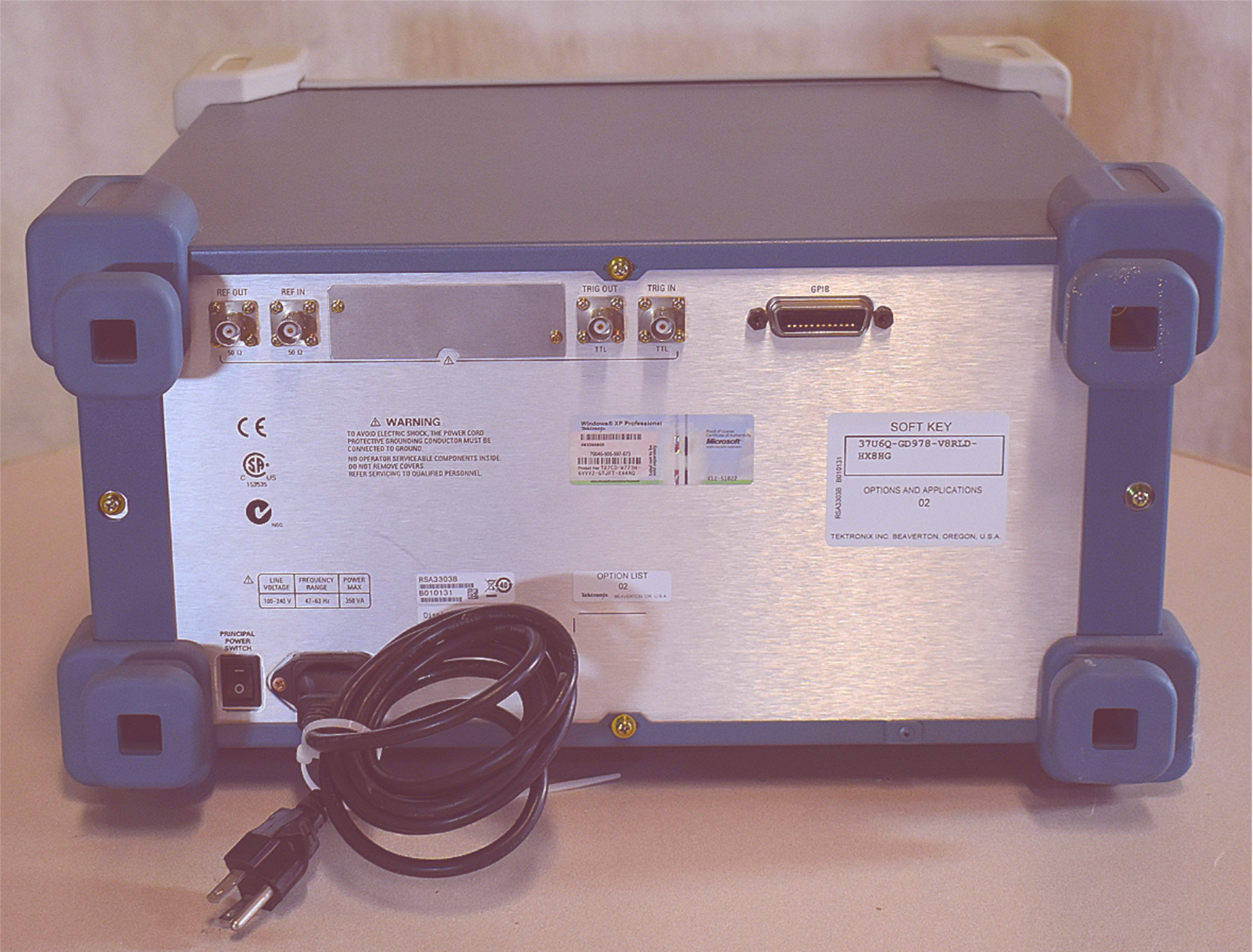

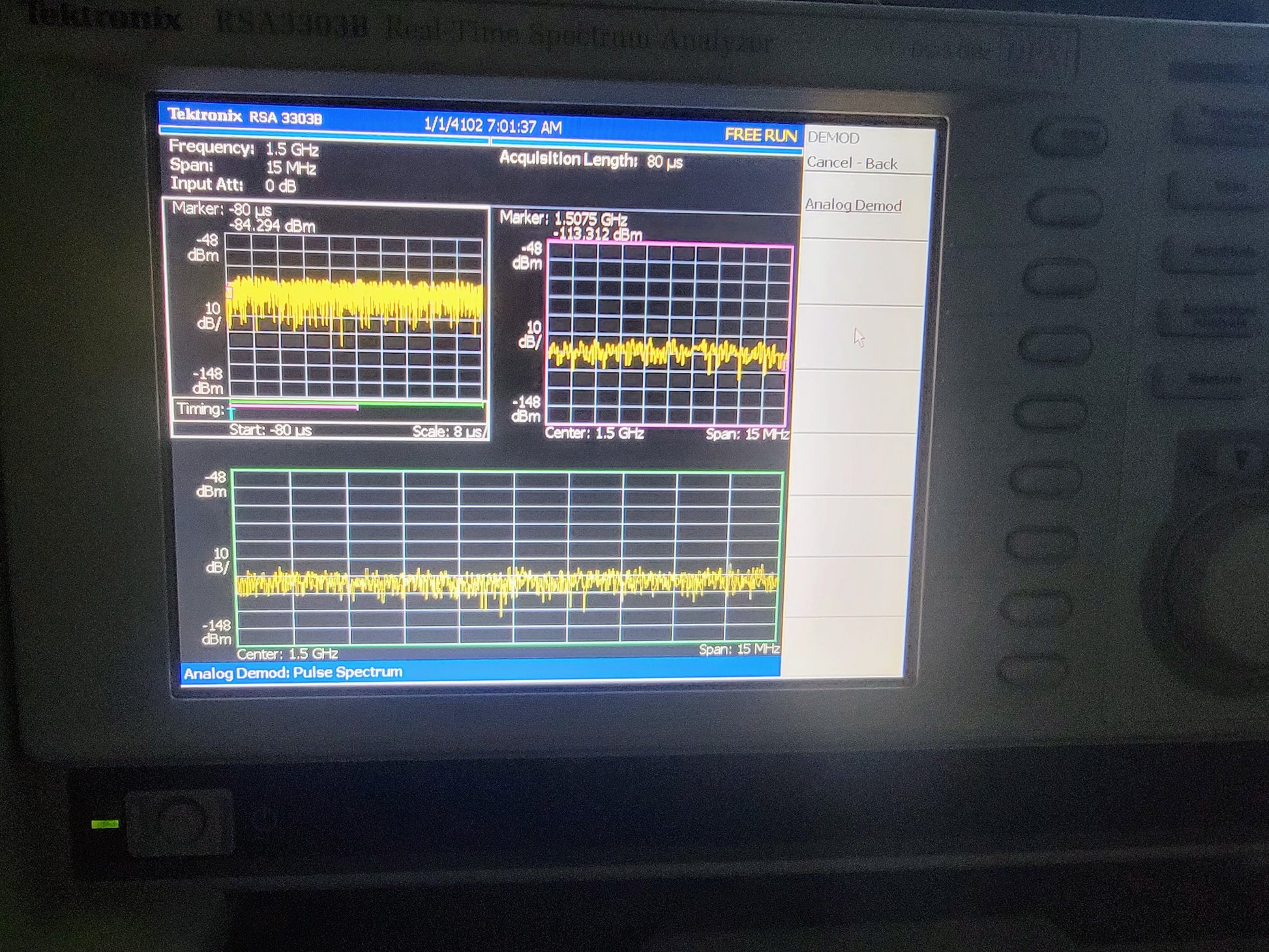

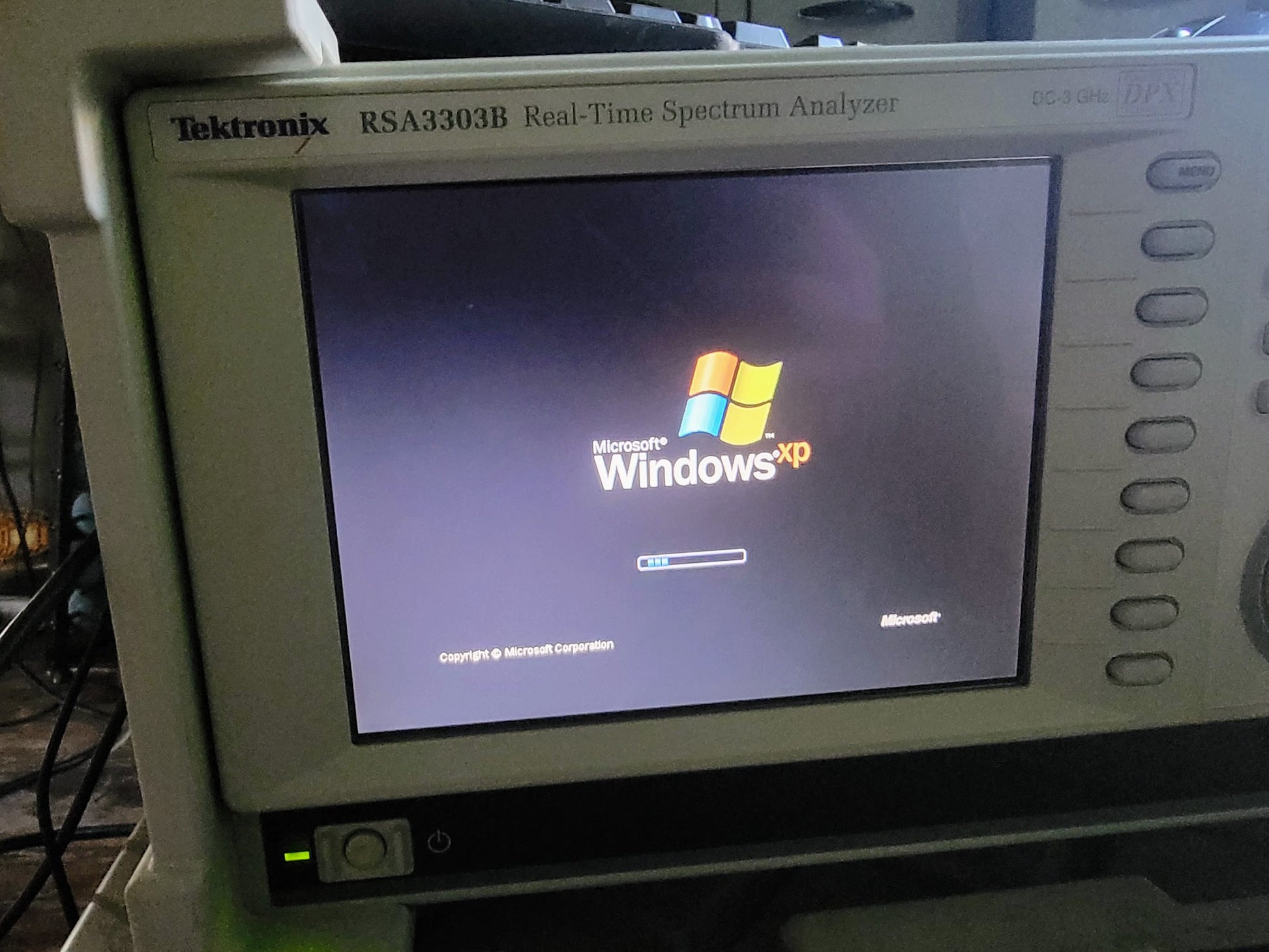

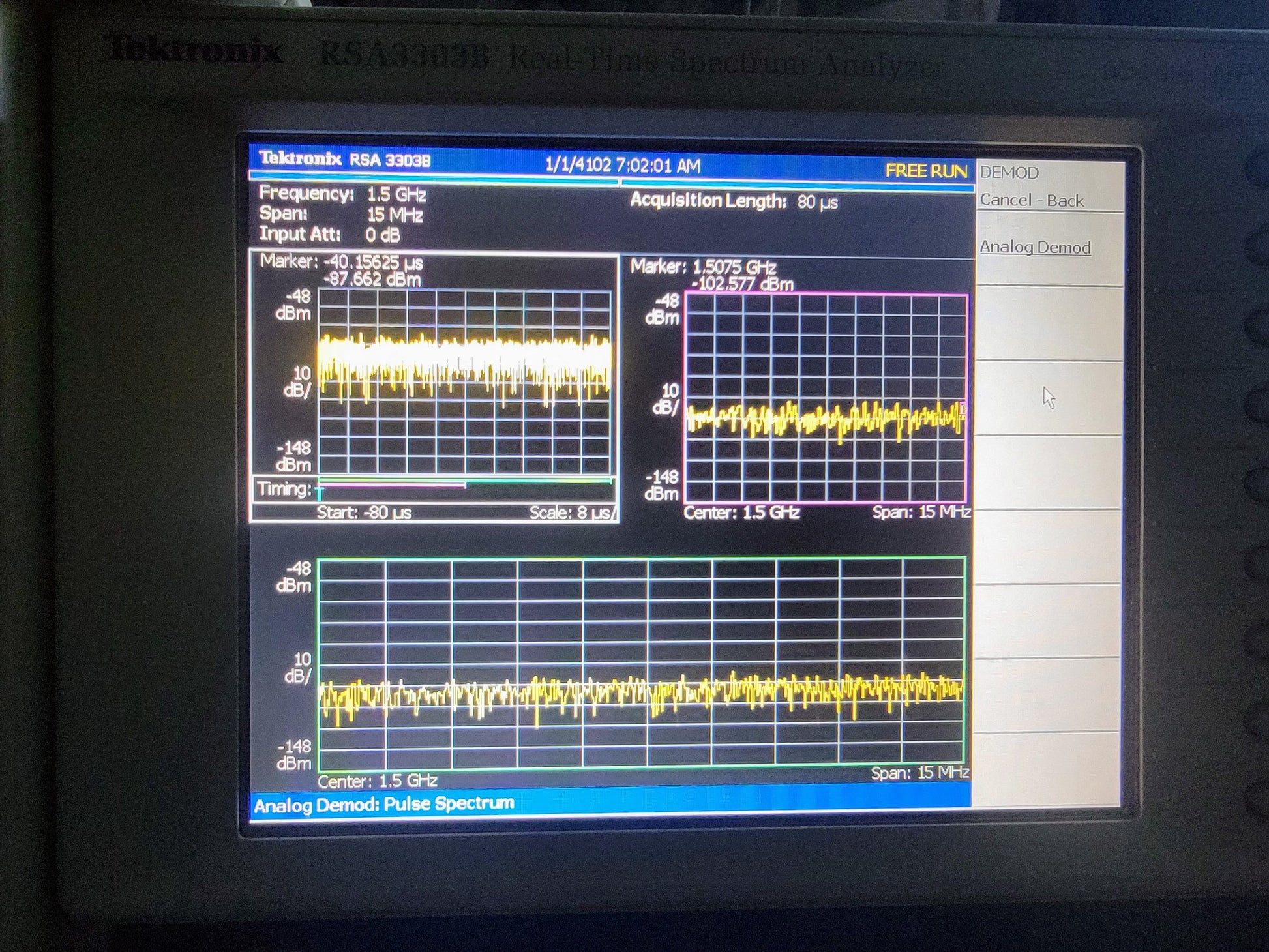

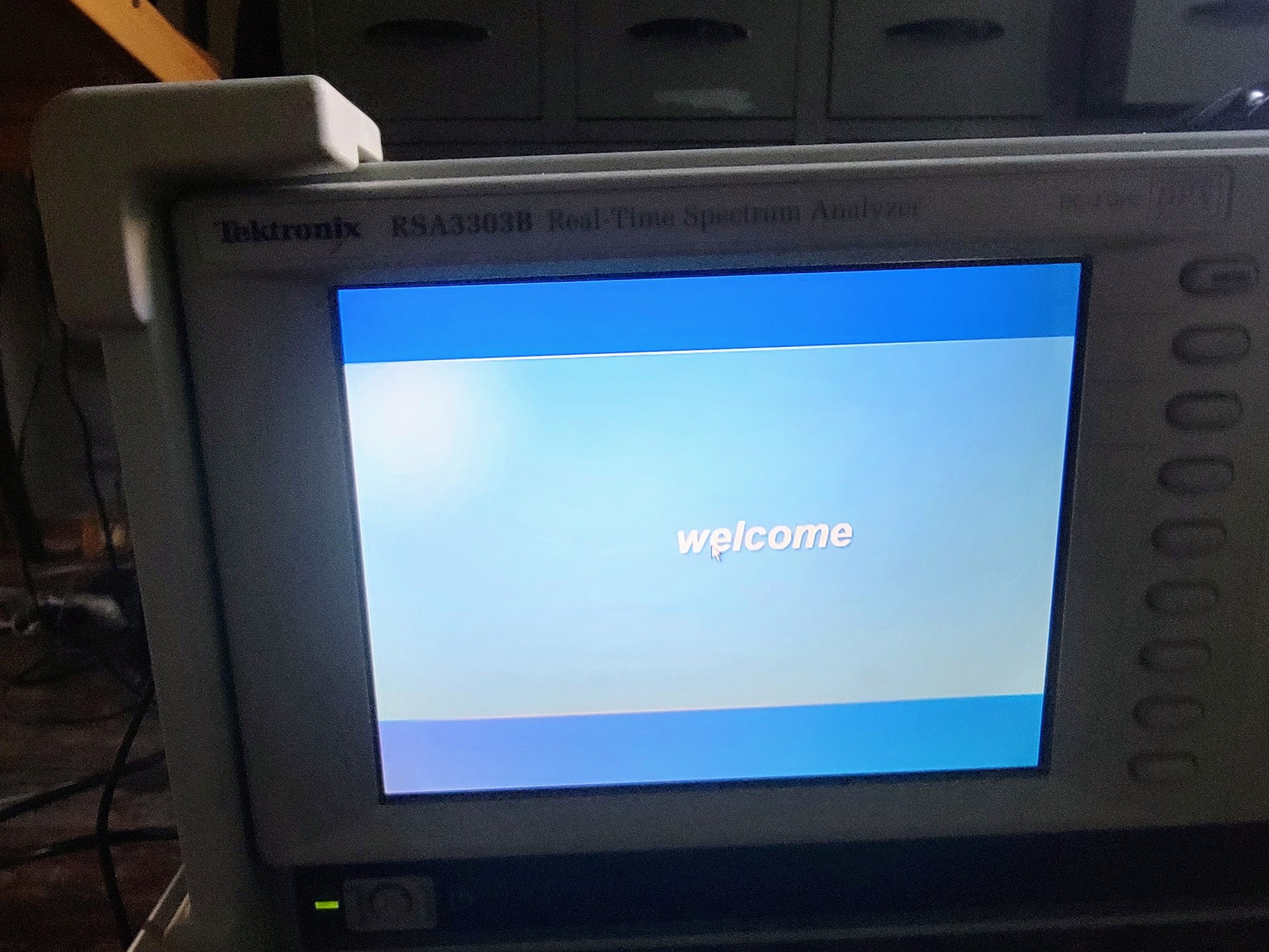

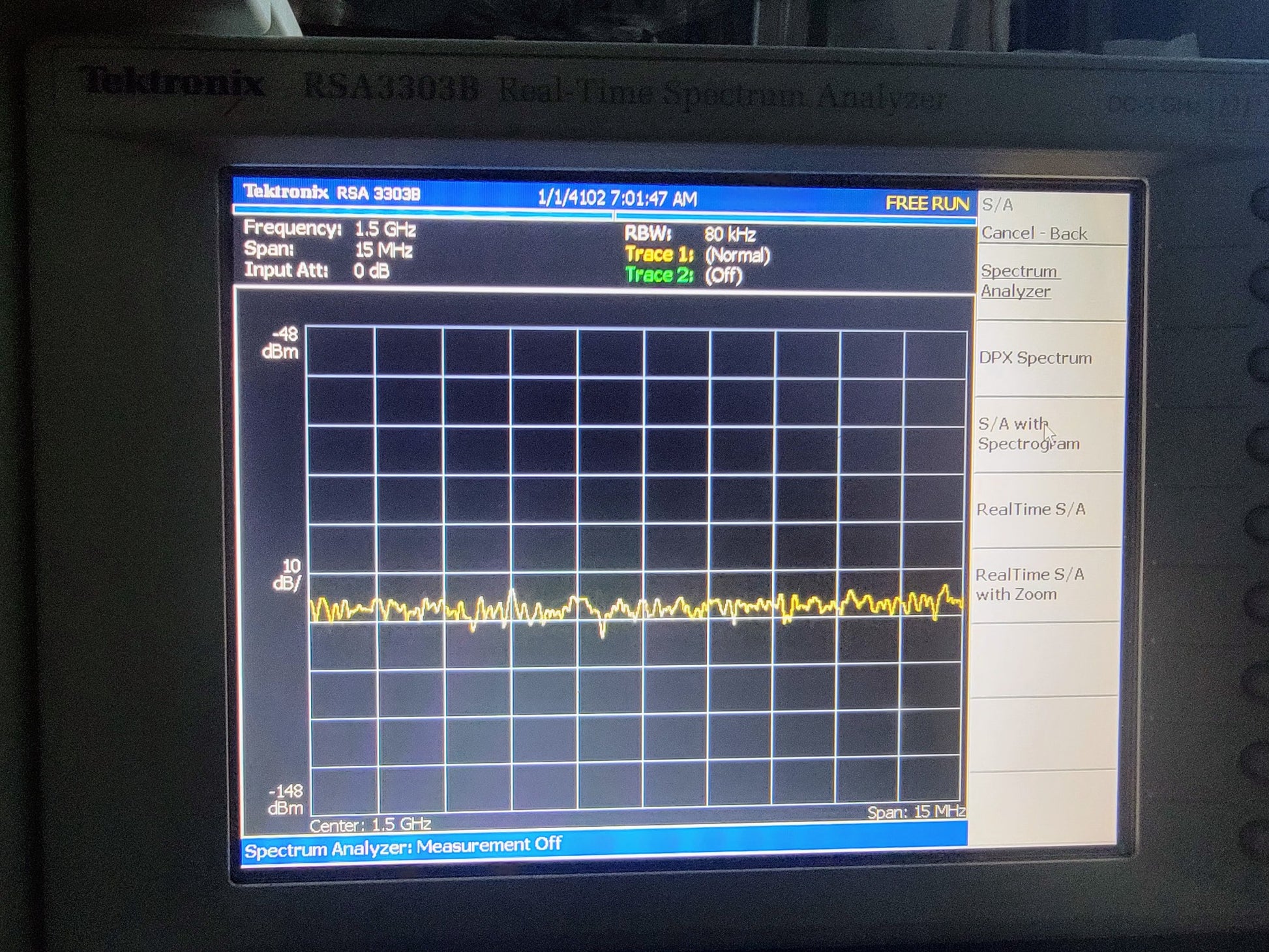

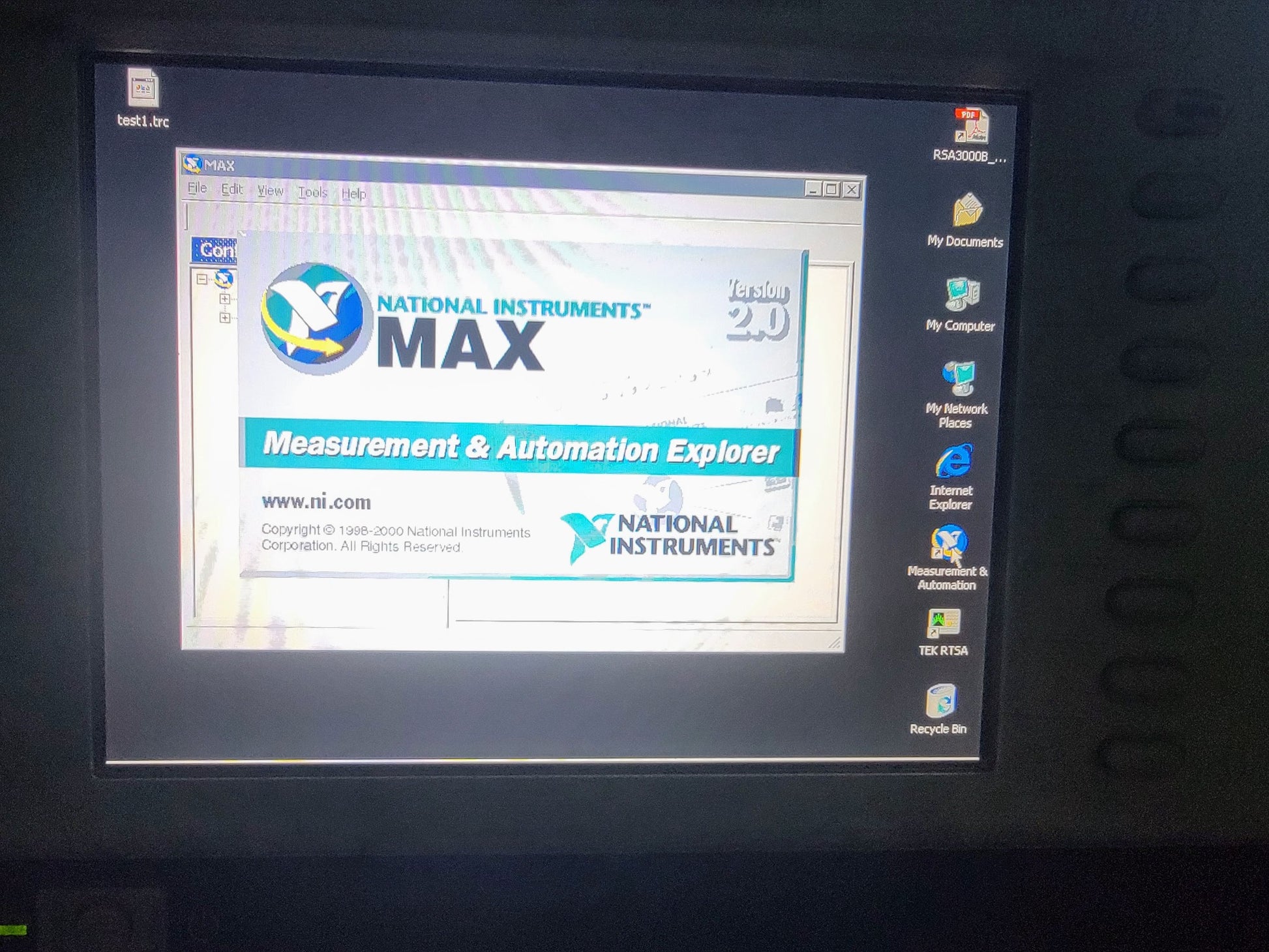

This listing is for a 100% Tested and in Perfect Operational Condition TEKTRONIX RSA3303B REAL TIME SPECTRUM ANALYZER DC to 3GHz as can be WATCHED IN THE VIDEO and also seen in the pictures.
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING: https://www.youtube.com/watch?v=PIr2jCjISY8
Please check all pictures and if you have any questions, please feel free to ask, we'll respond promptly!
FULLY TESTED, WORKING PERFECTLY THAT'S WHY WE OFFER A 90-DAY-WARRANTY!!!
TECHNICAL INFORMATION IN ITALICS BLUE BELOW WAS TAKEN FROM THE WEB:
w140.com/tekwiki/wiki/RSA3303
Key Features: Tektronix RSA3303B

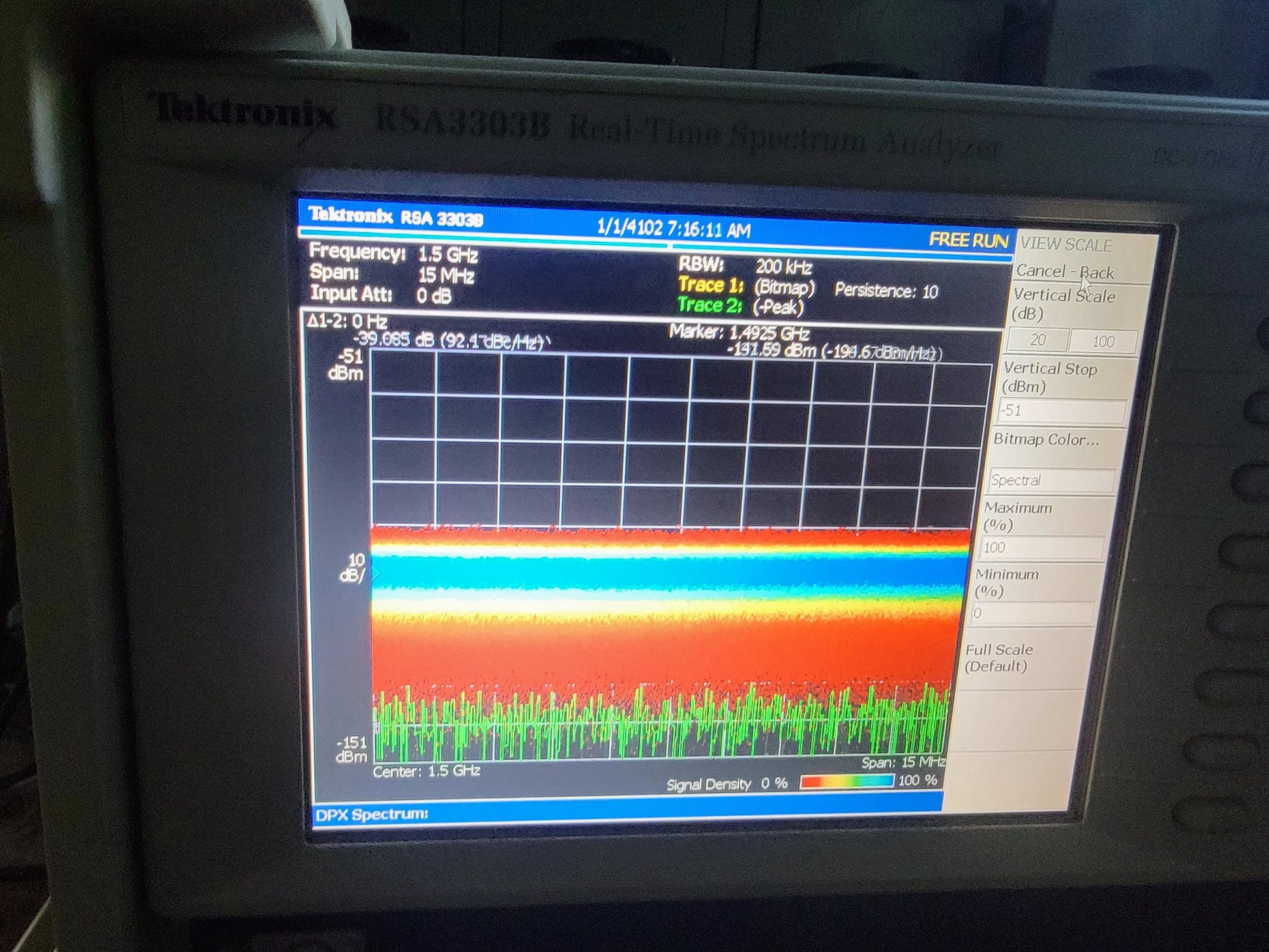

The RSA3303B is a portable Real-time Spectrum Analyzer (RSA) meant for lab or production line use with a frequency range of DC to 3 GHz is capable of capturing continuous, intermittent, or random signals. With Digital phosphor spectrum processing (DPX) this RSA provides the user the ability to view time-varying RF signals with color-graded displays based on frequency. For offline spectral analysis, .iqt and .tiq waveform data files can be offloaded to RSAVu Real-Time Spectrum Analyzer Software running on a PC.
This RSA is capable of performing spectrum analysis of power, ACPR, C/N, OBW, EBW, and spurious signals. Analog modulation analysis is possible with AM, PM, FM, ASK, and FSK signals. Additionally, this RSA can perform digital modulation analysis from BPSK to 256QAM (with option 21 of the RSAVu software), time characteristics analysis including pulse measurements, constellation analysis, EVM analysis, AM/AM and AM/PM distortion analysis, RFID analysis, signal source analysis, and CCDF analysis.
Key Specifications
Frequency Range DC to 3 GHz
Max Capture BW 15 MHz
RF Input impedance 50 Ω
Maximum Safe RF Input Power +30 dBm ±0.2 V (RF Band) ±5 V (Baseband) ±5 V (IQ input), RF Attn ≥10 dB
Input RF/Baseband Attenuator 0 dB to 50 dB (2 dB step at <3.5 GHz, 10 dB step at ≥3.5 GHz)
Input IQ Input Attenuator 0 dB to 30 dB (10 dB step)
Dynamic Range (Spurious Free) –70 dBc/15 MHz
Reference Level Range –50 dBm to +30 dBm (1 dB step) (RF); –30 dBm to +20 dBm (5 dB step) (Baseband); –10 dBm to +20 dBm (5 dB step) (IQ Inputs)
Resolution Bandwidth per Span (1 Hz to 10 MHz) Span > 2 GHz: 100 kHz min; to Span 100 Hz: 1 Hz min
IQ Inputs (Opt 03) 20 MHz BW Differential
Minimum Signal Duration for 100% POI ≤41 µsec
Trigger Types Level, Free run, External, and Freq. Mask Trigger (Opt. 02)
Ext Trigger Threshold Levels –1.5 to +1.5 V settable
Displayed Average Noise at 1 GHz –150 dBm/Hz (Preamp off)
Phase Noise at offsets from 1 GHz 10 kHz: –108 dBc/Hz, 1 MHz: –133 dBc/Hz, 10 MHz: –136 dBc/Hz
Display 8.4 inch color TFT
Storage 20 GB hard drive and diskette drive (either a 3.5-inch 2HD (1.44 MB) or 2DD (720 KB)
Weight (all options) 20 kg (44 lbs)
Power & Dissipation (fully loaded) 90–250 V, 47–63 Hz, 350 W max; the principal power switch in at the lower left corner of the rear panel, while the front panel power switch allows ON or STANDBY modes
Operating environment +10 °C to +40 °C, 20% to 80% rH (no condensation); Altitude ≤3000 m (9842 ft)
Connections
Front panel inputs/outputs are: RF IN N connector (50Ω, +30 dBm max); PreAmp Pwr LEMO S-series connector (Preamp power connector) .
Rear panel inputs/outputs: REF OUT/IN BNC connectors (50Ω); I+/I- INPUT BNC connectors (50Ω, when using one connector as a single-ended input terminate the other end in 50Ω, Opt. 03 only); Q+/Q- INPUT BNC connectors (50Ω, when using one connector as a single-ended input terminate the other end in 50Ω, Opt. 03 only); TRIG OUT/IN BNC connectors (50Ω); GPIB connector (IEEE 488.2); and US Power Plug (115 V nominal).

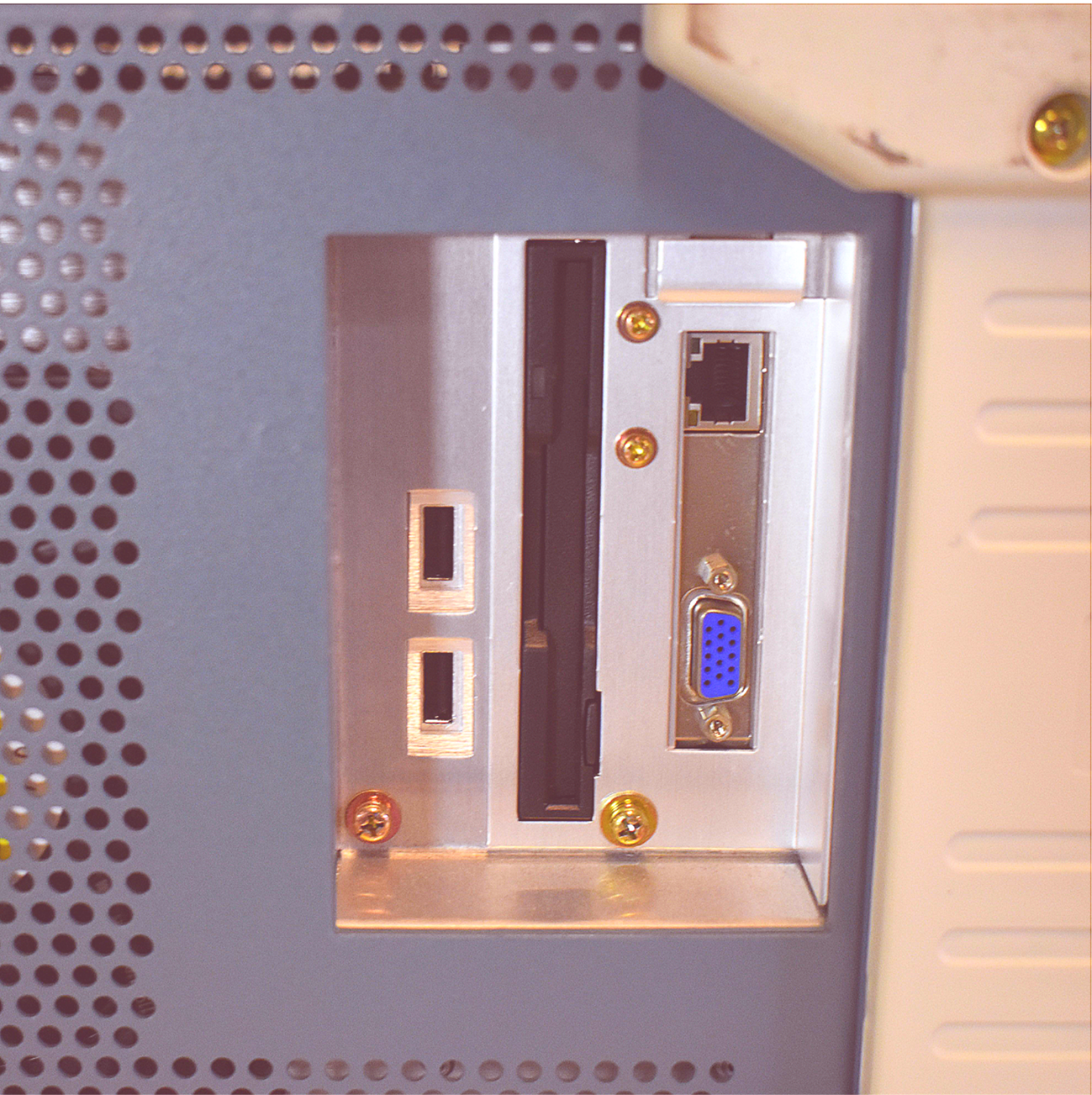

Side panel inputs/outputs: LAN Ethernet connector (10/100BASE-T), VGA Connector, and 2 X USB connectors (USB 1.1).
User Manual can be found online by Googling the following link: trs-rentelco.com/Specs-Manuals/TEK_RSA3303B_Manual.pdf
tek.com/en/spectrum-analyzers/rsa3000/rsa3303b-manual/rsa3000b-series
