TEKTRONIX 2247A OSCILLOSCOPE MANUAL & K212 PORTABLE INSTRUMENT CART FREESHIPPING

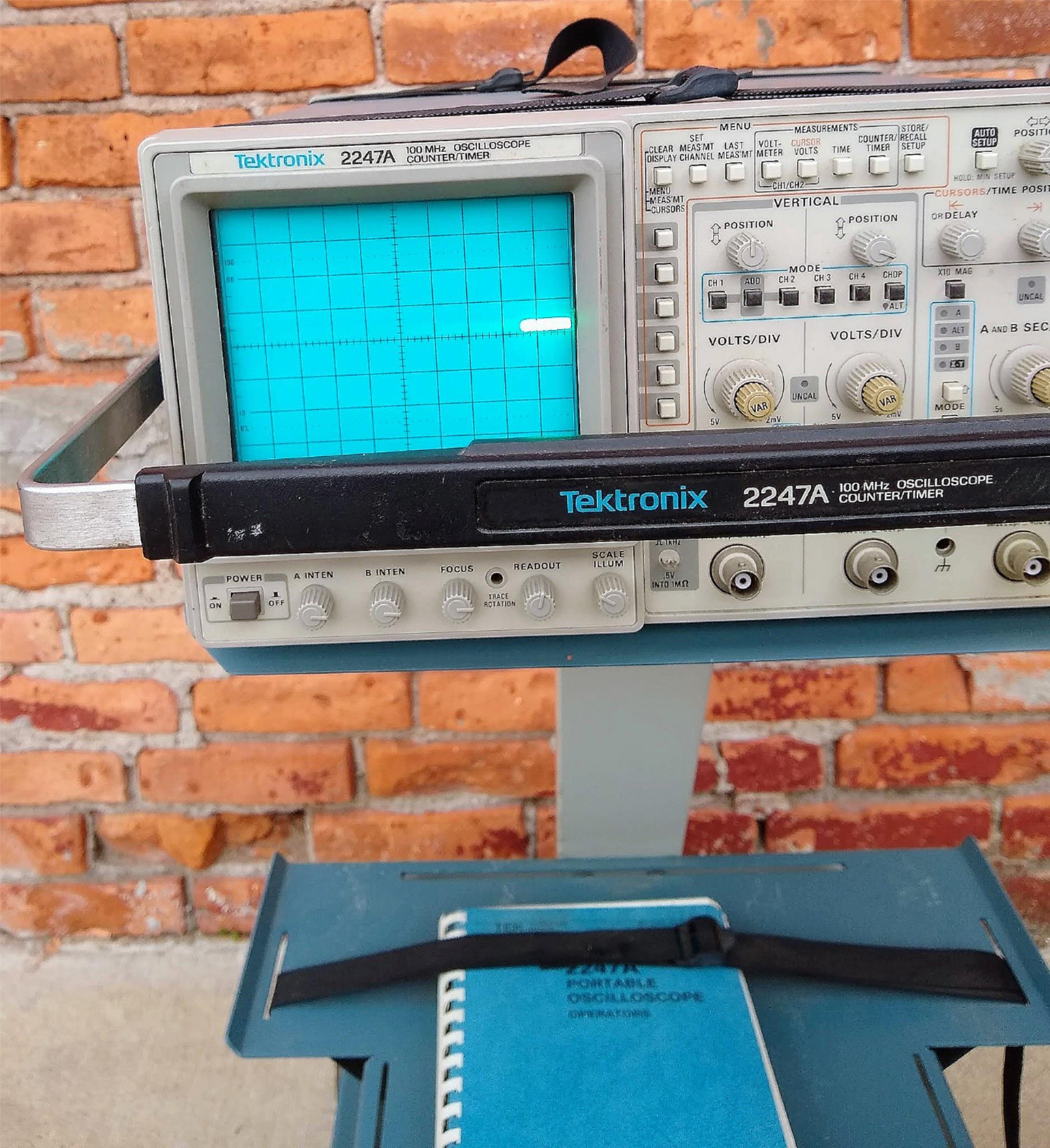

You are bidding on a USED condition TEKTRONIX 2247A OSCILLOSCOPE with MANUAL & K212 PORTABLE INSTRUMENT CART as you can see from the pictures.

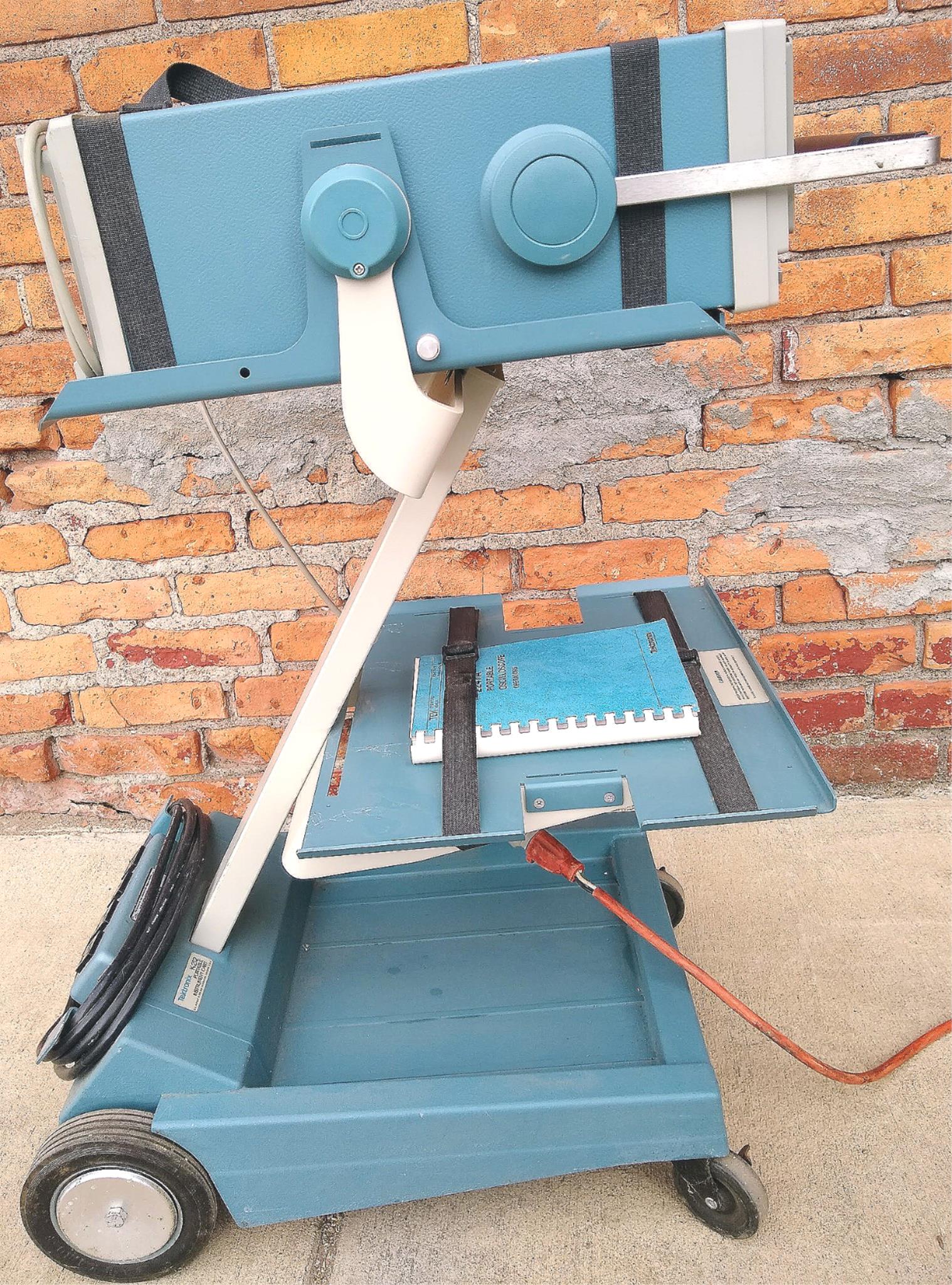

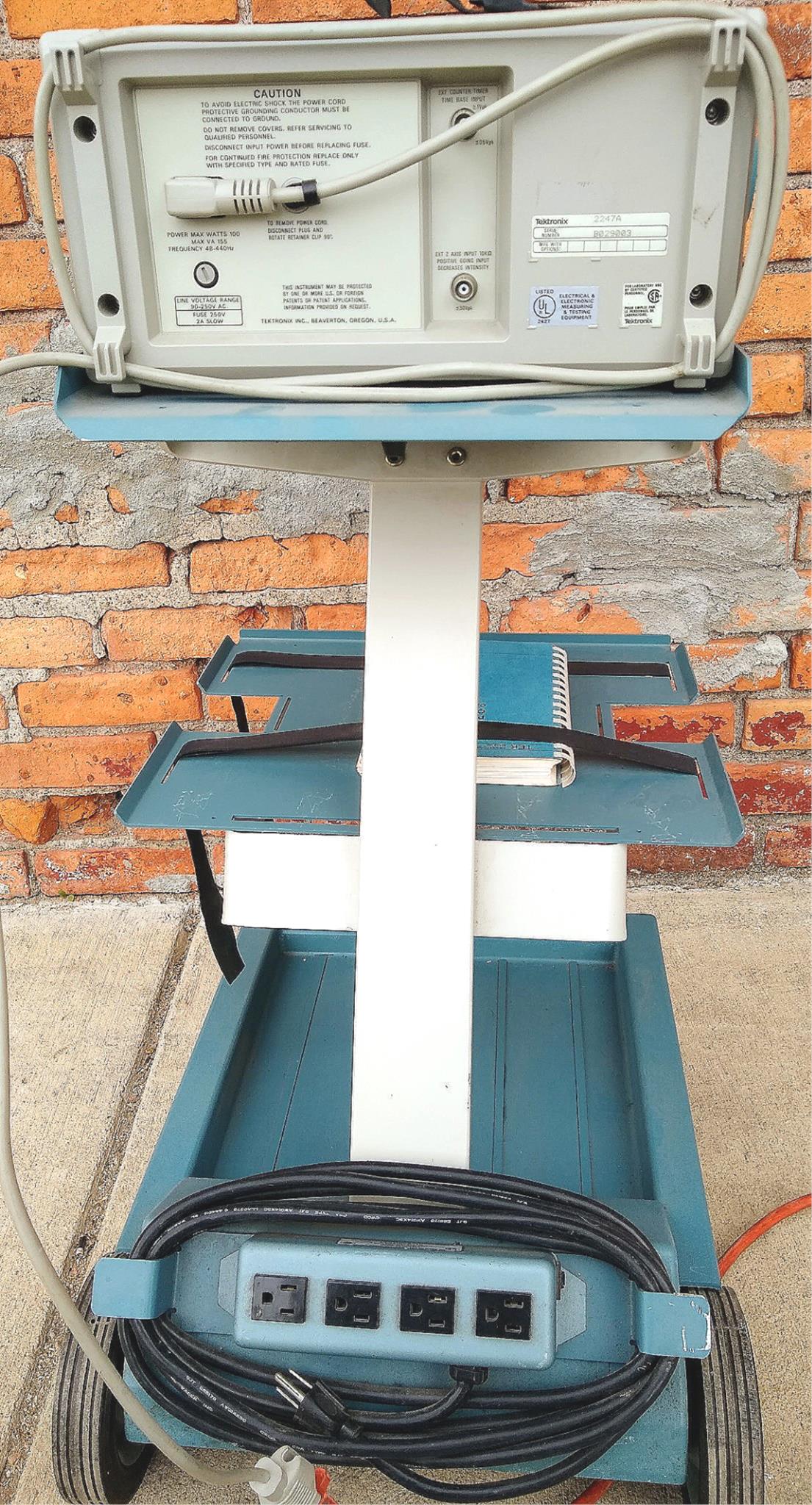

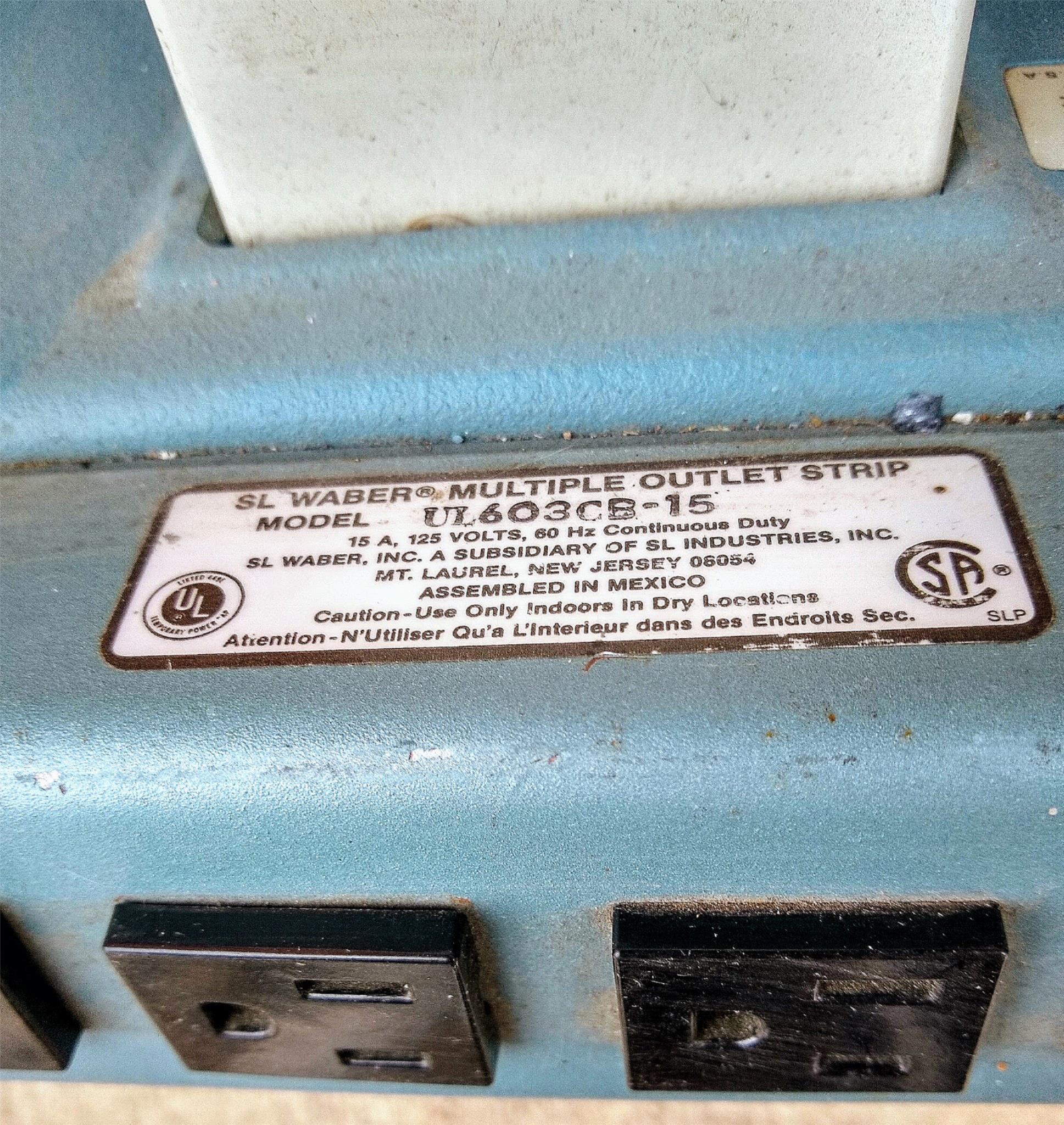

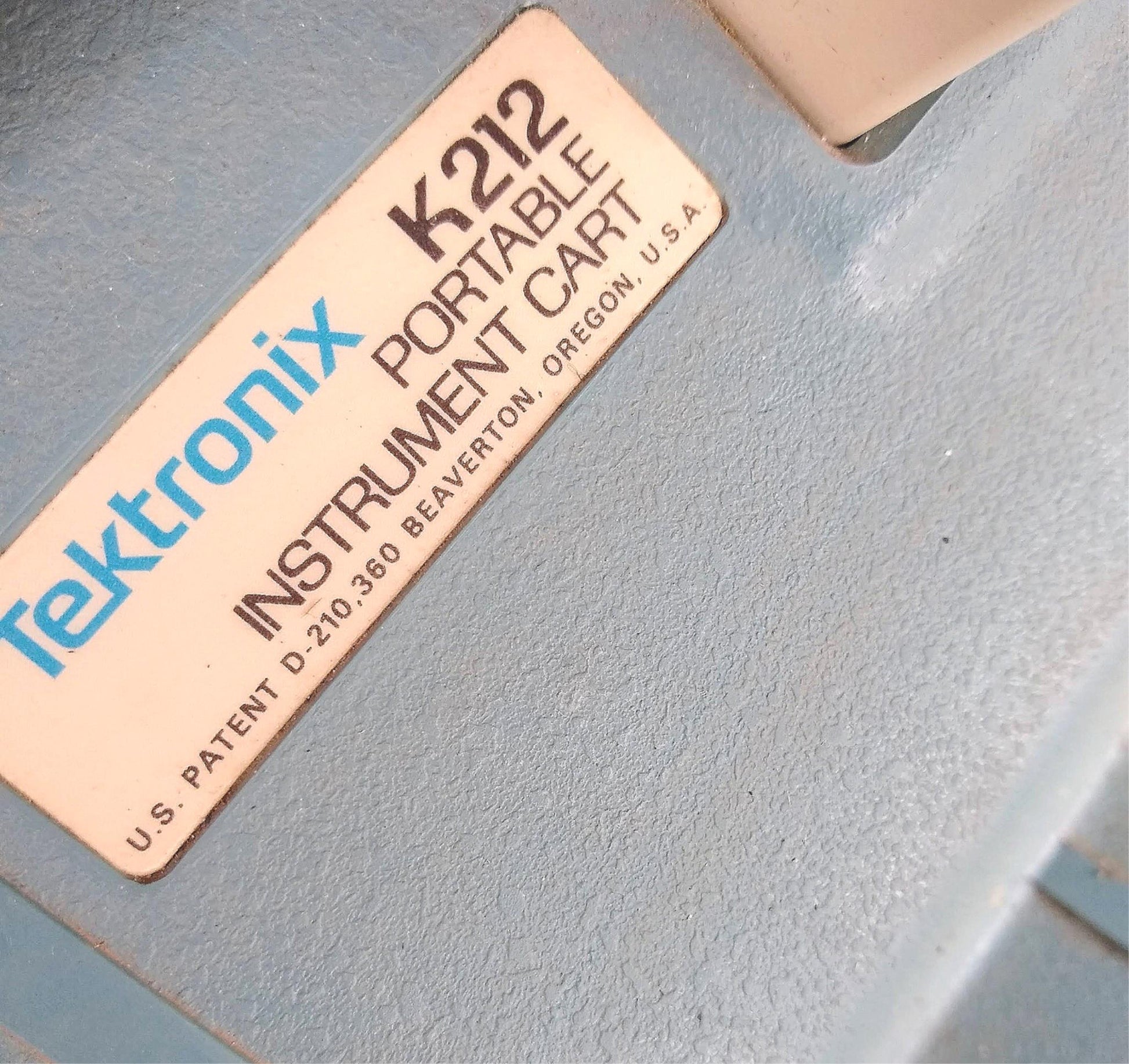

INCLUDES THE ORIGINAL K212 TEKTRONIX CART SHOWN IN THE PICTURES ONLY FOR CONTINENTAL US SHIPMENT.

IMPORTANT: THE CART WILL NOT BE INCLUDED IF SHIPPED VIA THE EBAY INTERNATIONAL GLOBAL SHIPPING PROGRAM DUE TO THE SIZE AND WEIGHT LIMITATION! CART IS ONLY INCLUDED FOR CONTINENTAL USA SHIPPING: HAWAII, PUERTO RICO & ALASKA ALSO WILL NOT RECEIVE THIS CART UNLESS BUYER PAYS FOR THE EXTRA SHIPPING COST!

Item Description / Product Information

Want a working, fully function potable scope? This is the one you are looking for! This 2247A from Tektronix has all the features you need, 100Mhz, dual traces, dual time base, delayed sweep, advanced trigger system, external trig, ......

This oscilloscope cleaned and checked out in all modes. Scope has been performance tested and is working perfectly.

This scope has dual traces with dual time bases, different amplitude on CH1/CH2 with A, A+B sweep.

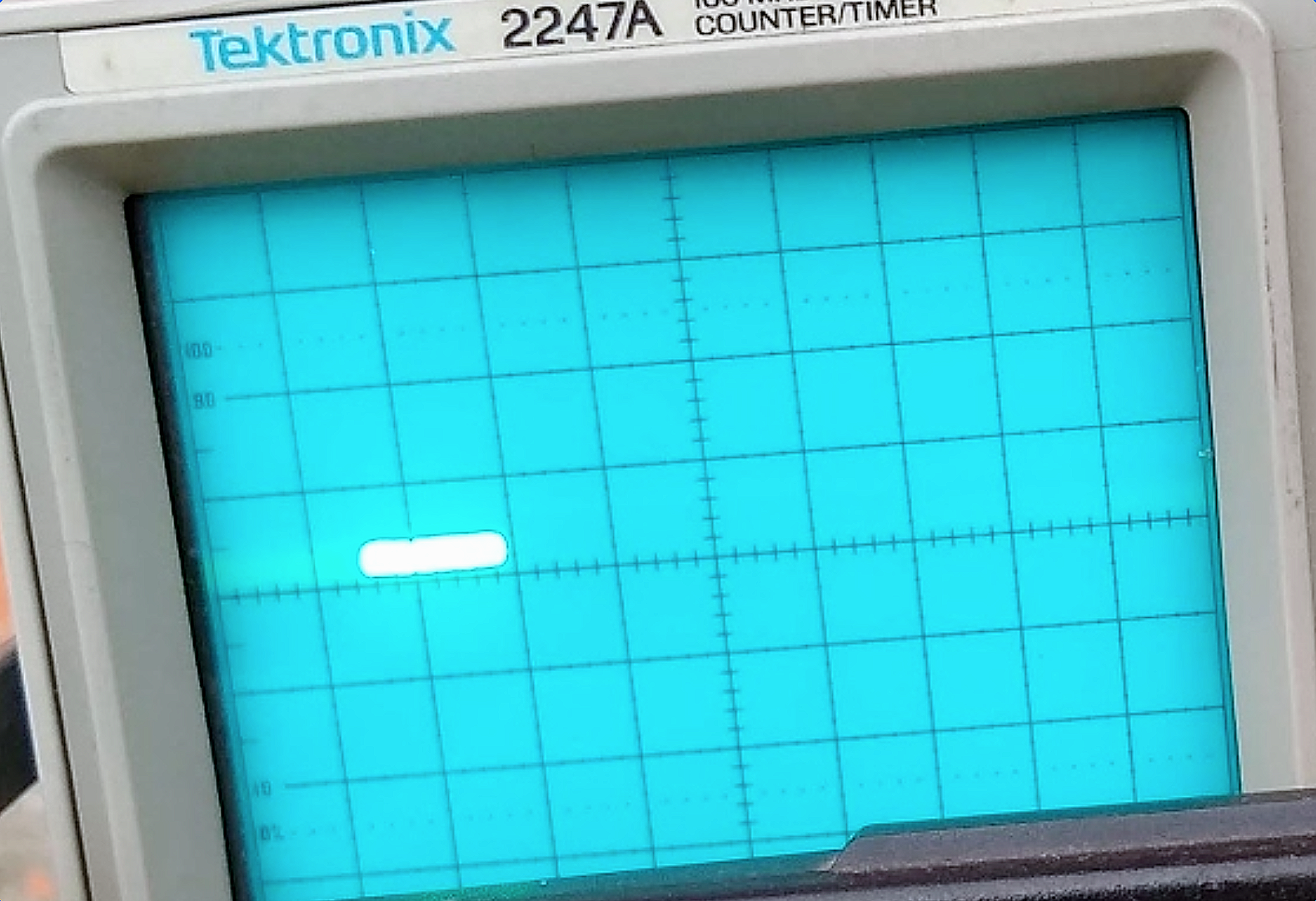

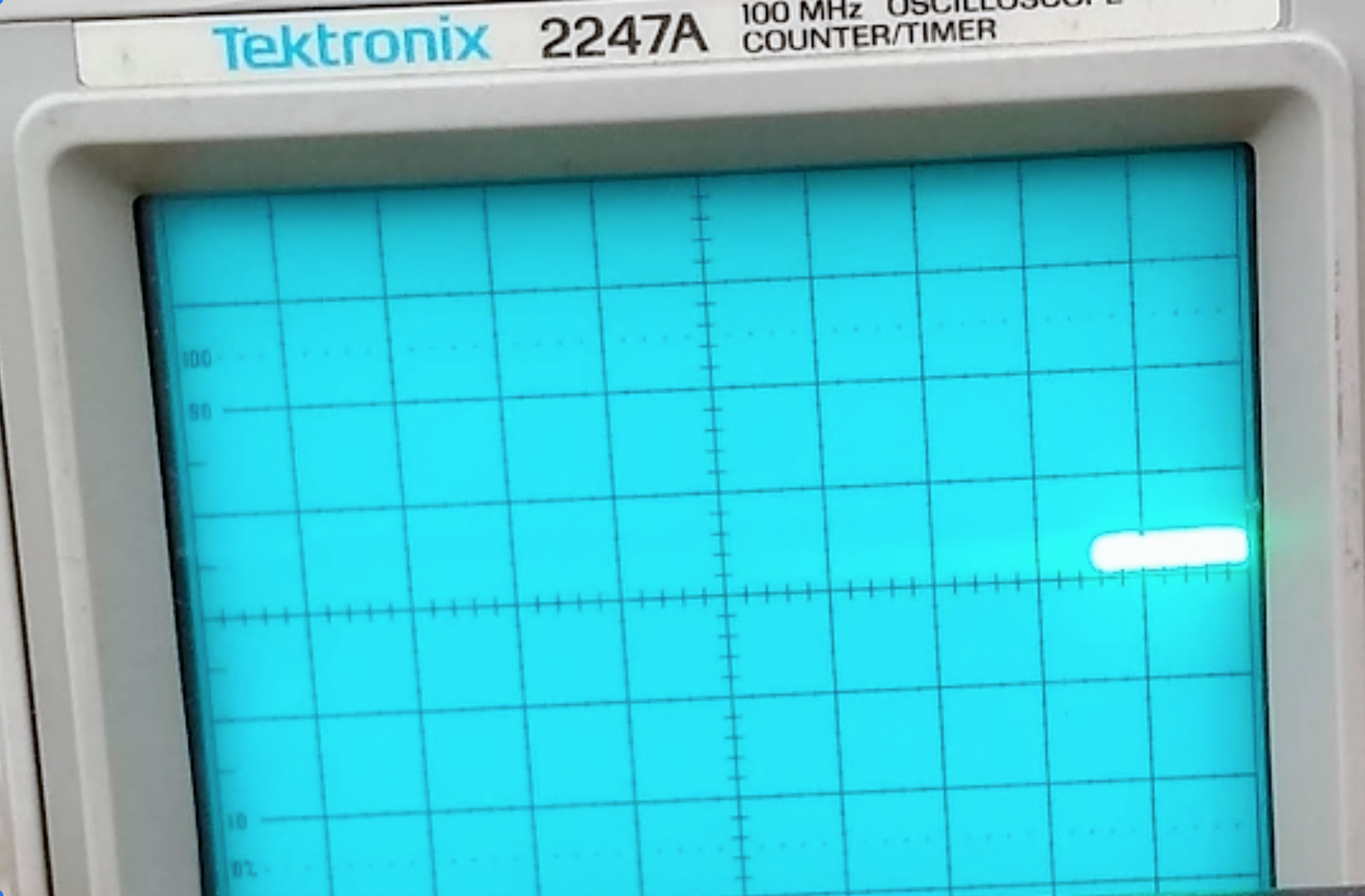

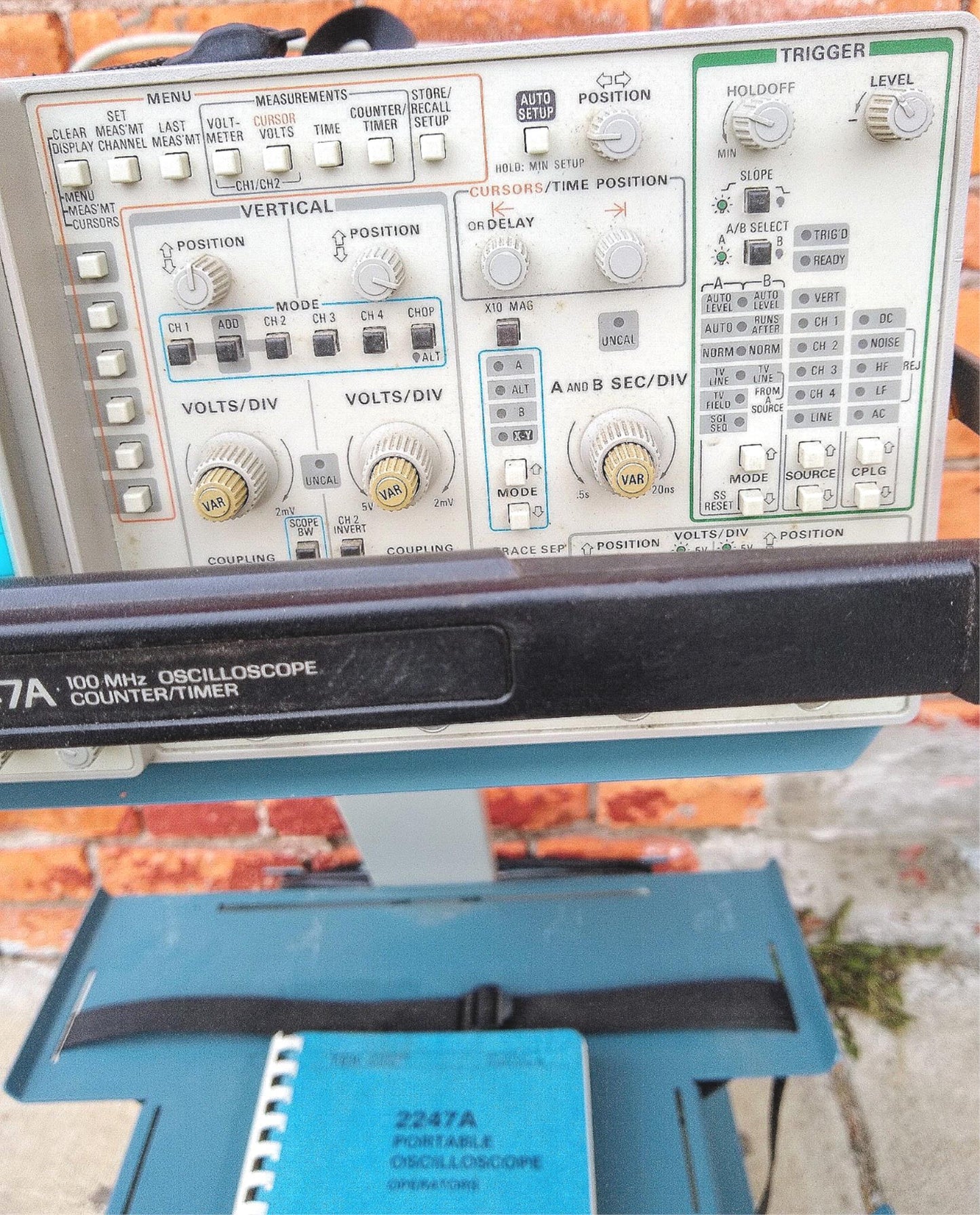

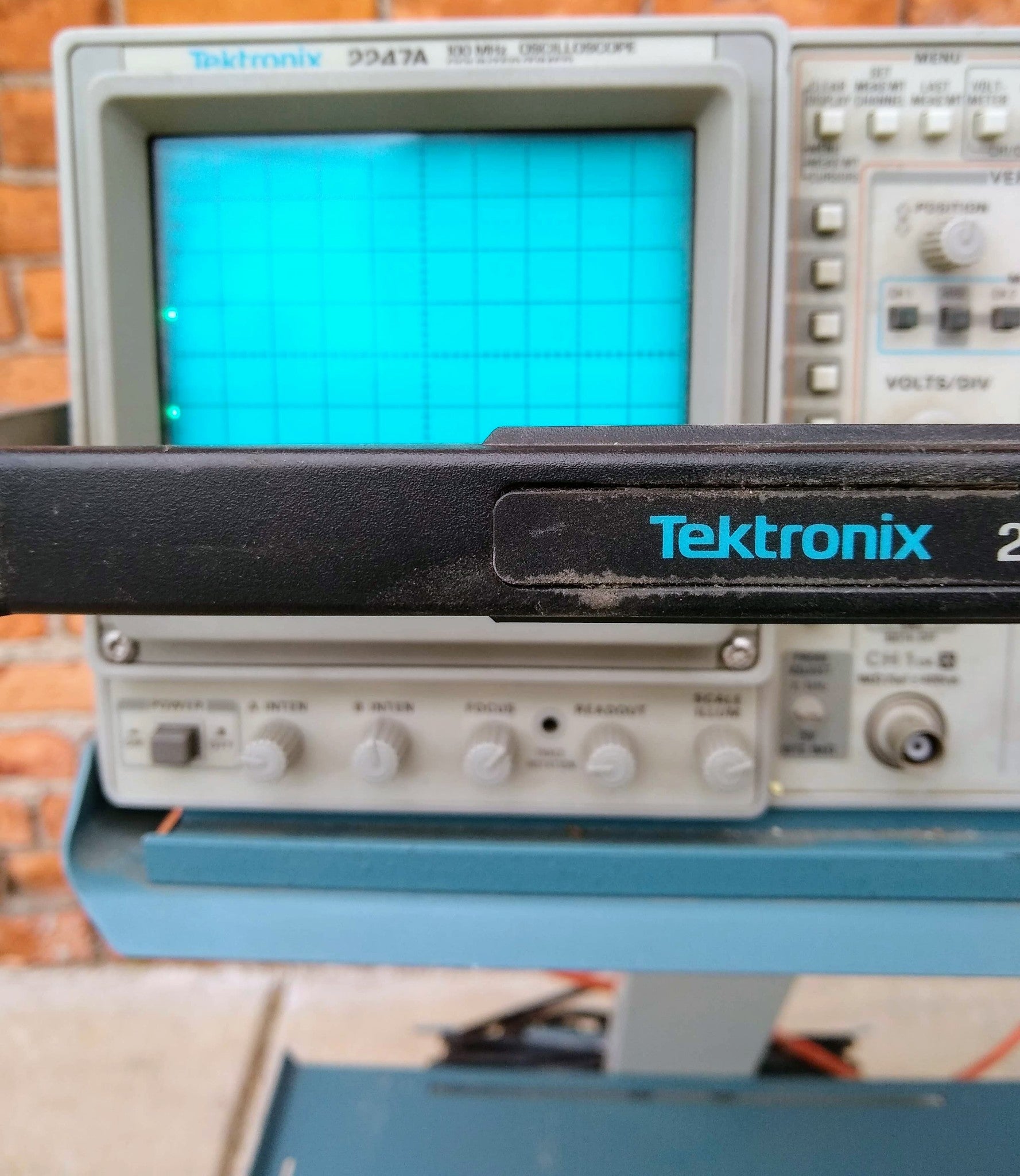

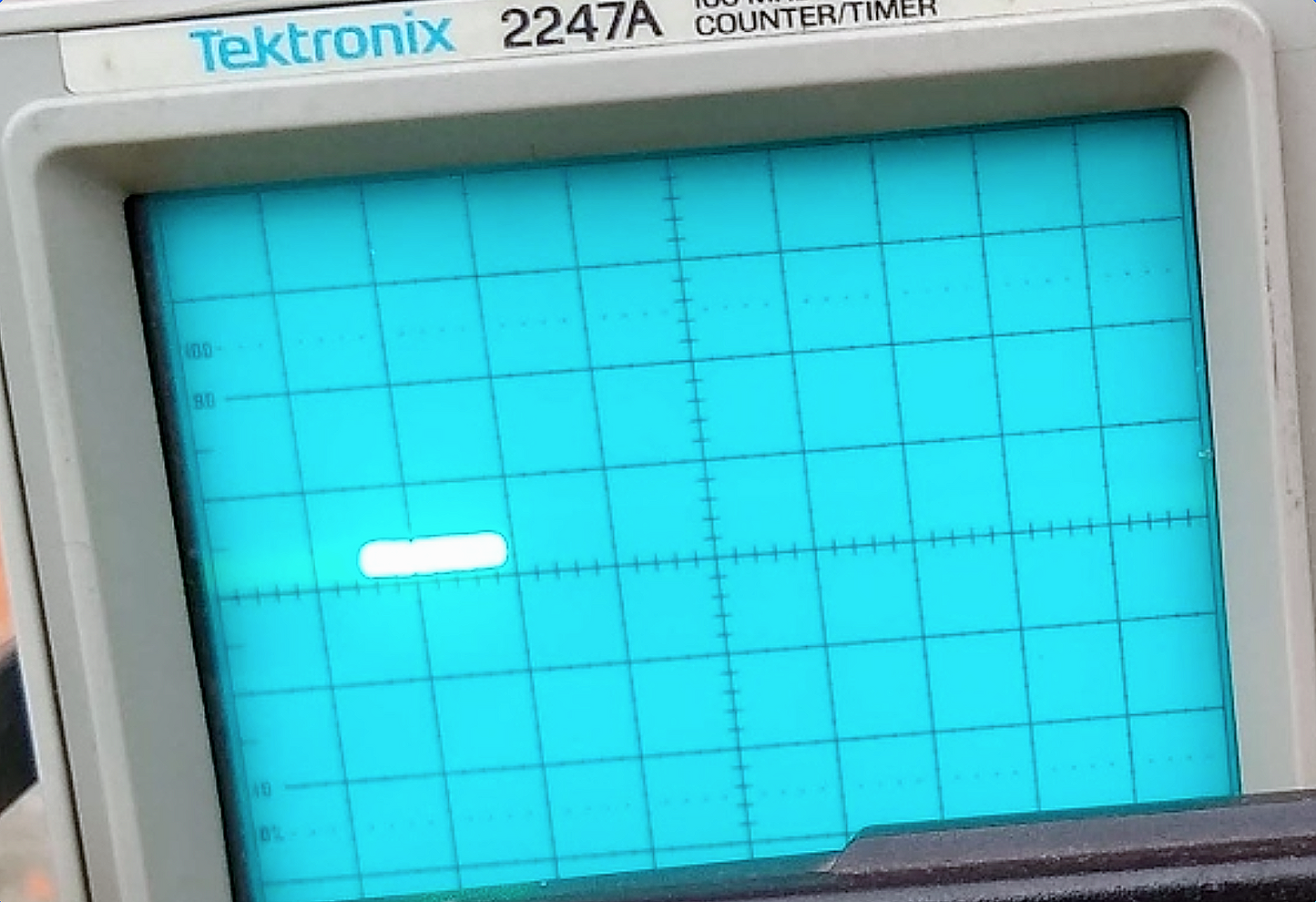

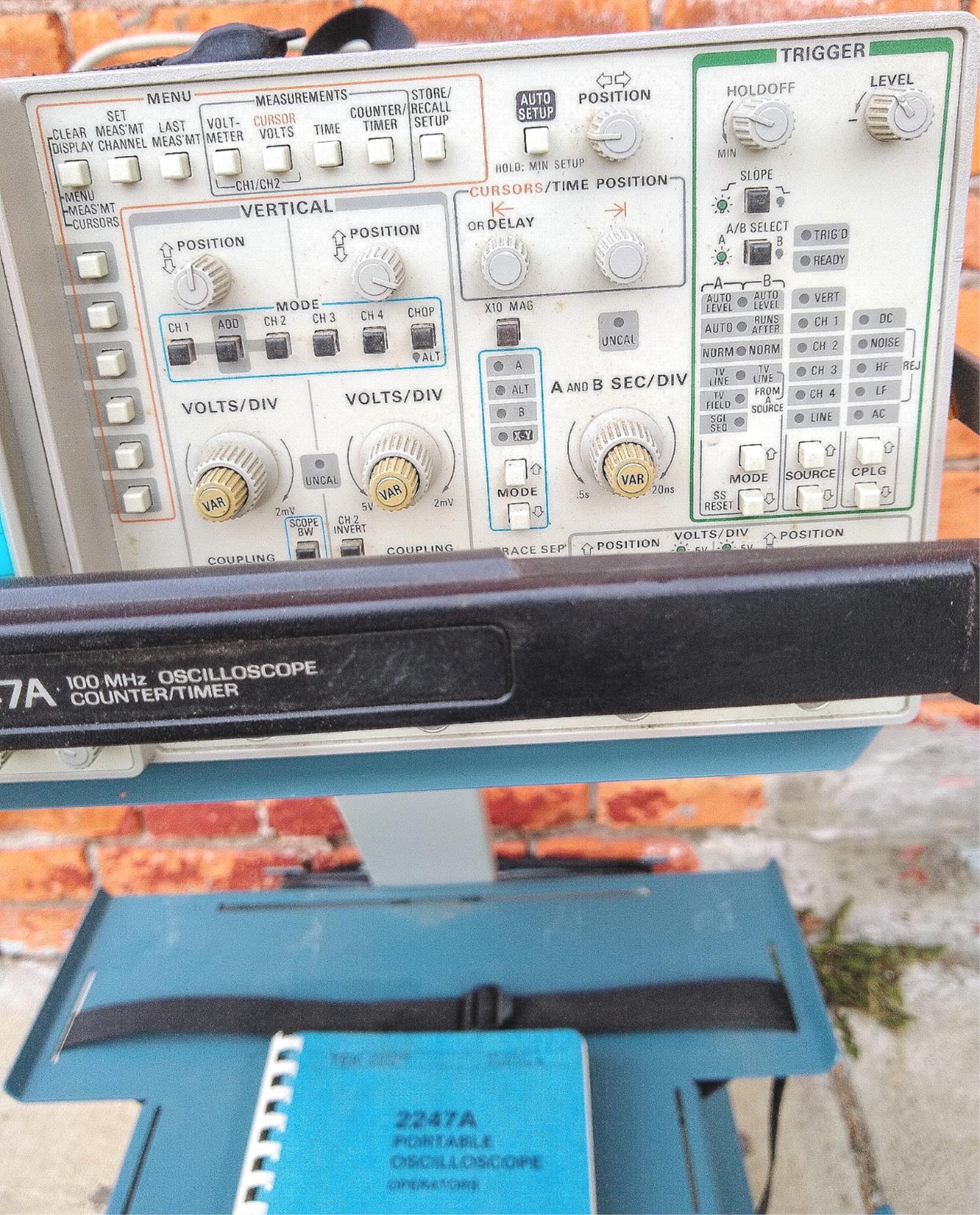

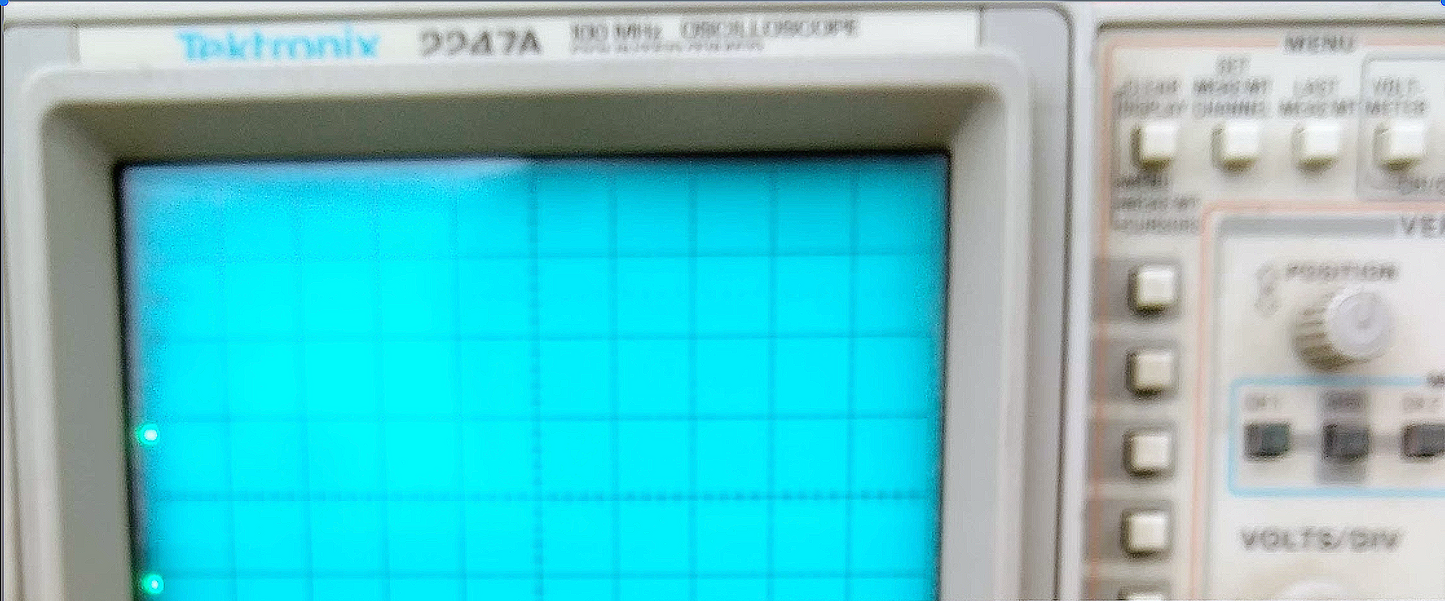

This scope operates with a bright trace and plenty of brightness in reserve; no burn spots. All controls/buttons operated normally, very smooth without any intermittent problem and operate normally, measurement is within specifications.

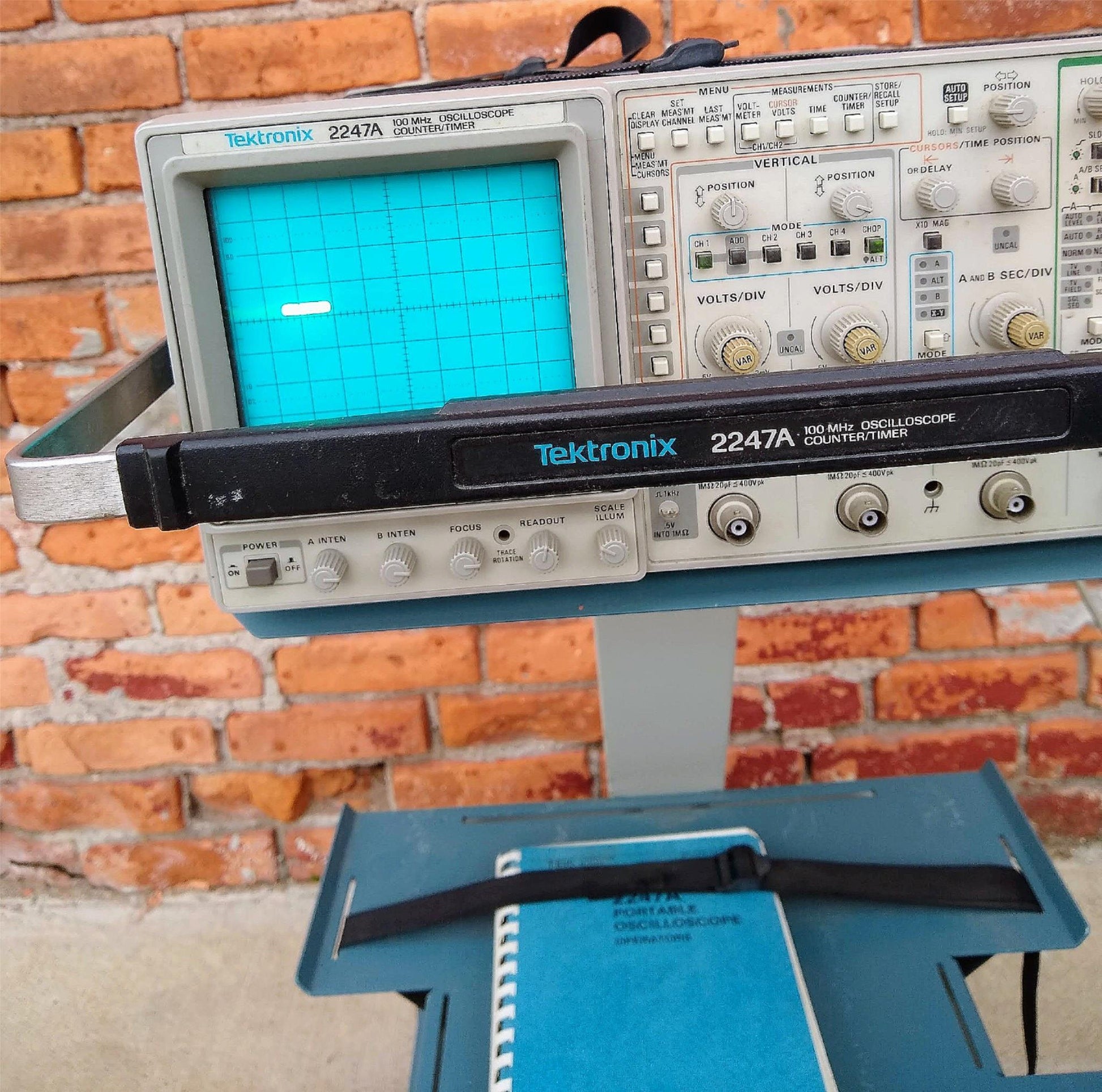

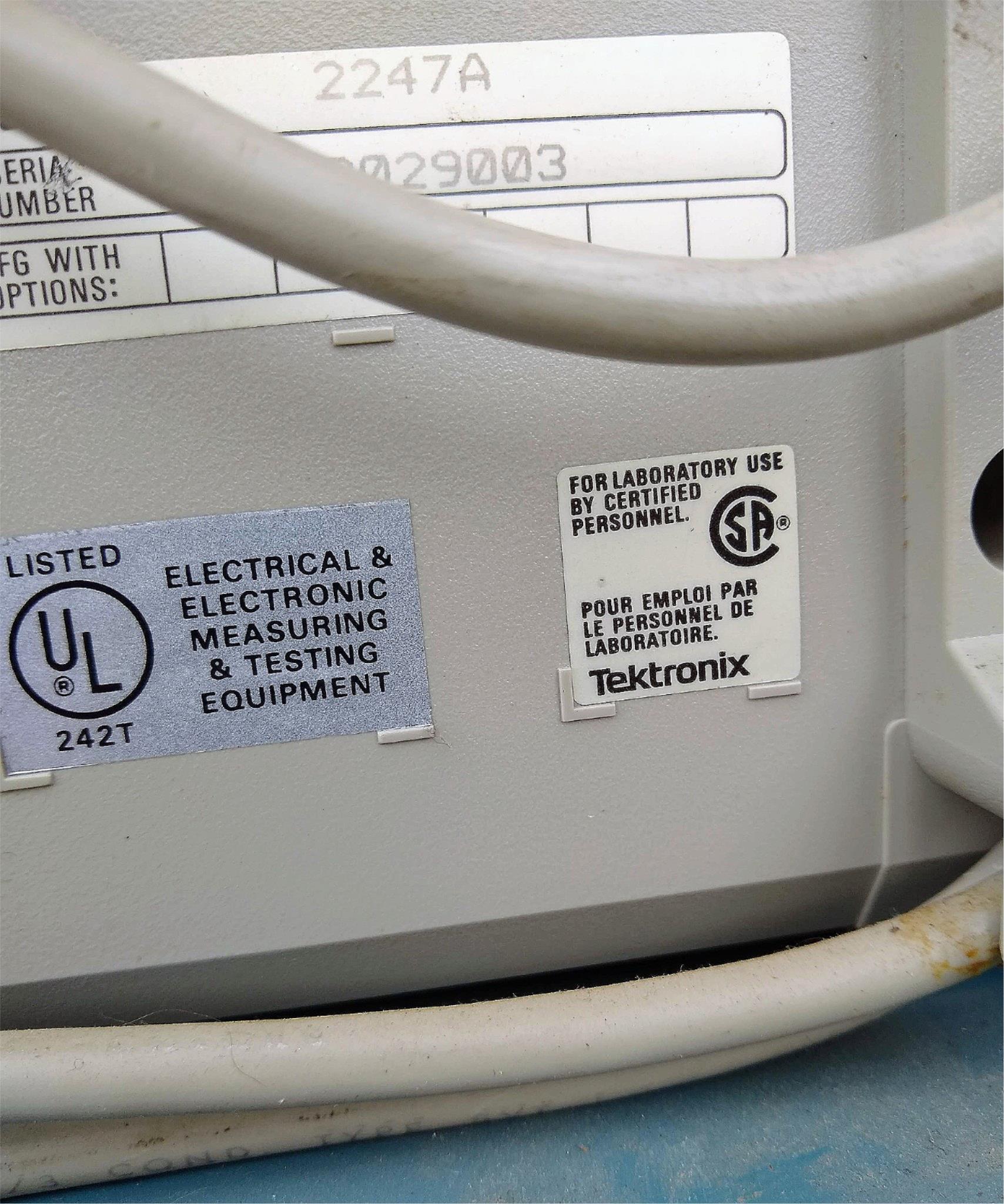

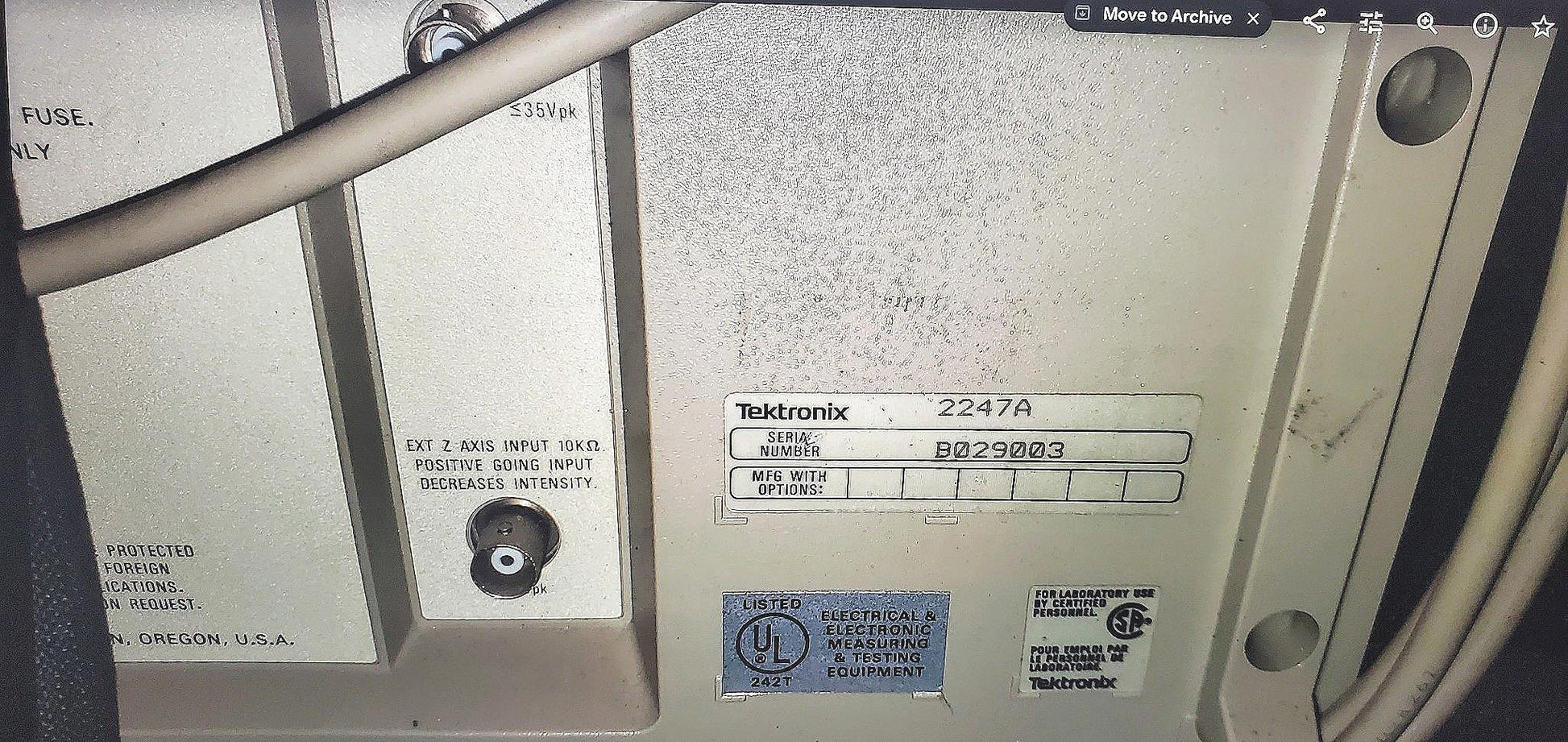

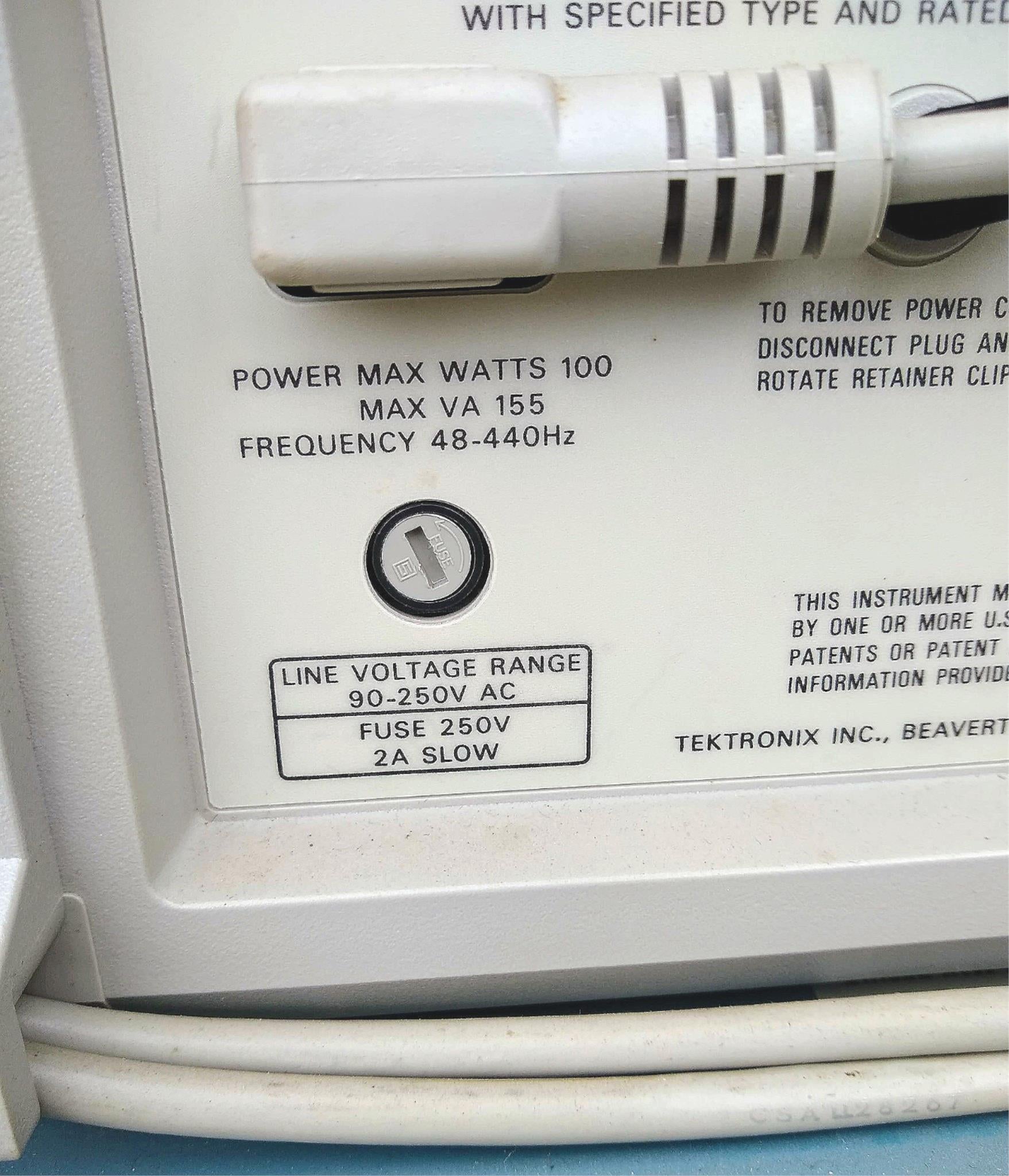

Photos are of the actual instrument you will receive and show it's overall good operating/physical condition. It does has some small scratch on case and normal wearing.

FEEL FREE TO CHECK MANUFACTURER's DATA SHEET BY GOOGLING THE FOLLOWING LINK: https://www.valuetronics.com/pub/media/vti/datashe...

This manual contains information to check performance, adjust, and service the 2247A oscilloscope GOOGLING the following link below: https://download.tek.com/manual/2247A_Service.pdf

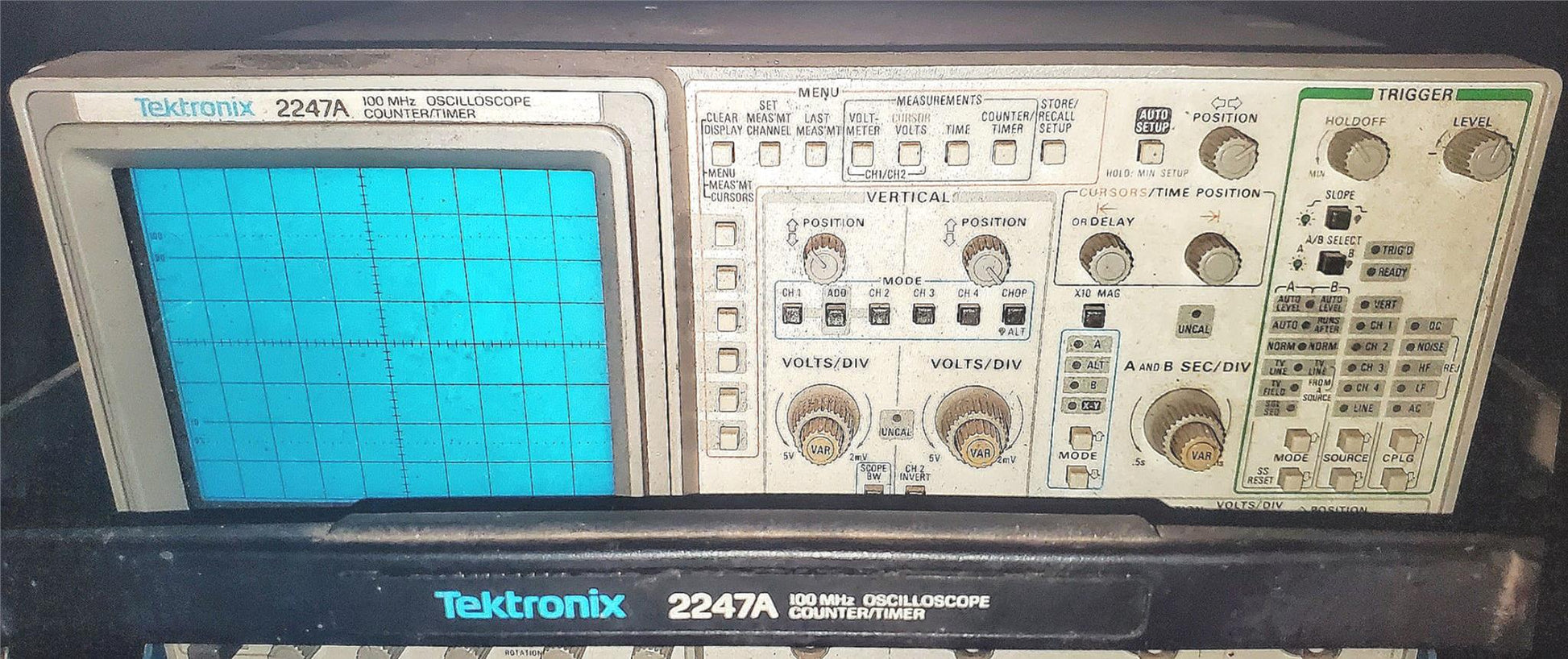

2247A Tektronix Analog Oscilloscope

The 2247A is a 100 MHz analog oscilloscope from Tektronix. Measure voltage or current signals over time in an electronic ciruit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.

Channels 4

Frequency 100 MHz

Additional Features:

Form Factor: Benchtop

Bandwidth: 100 MHz

Rise time: 3.5 ns

Number of Channels: 4 ch

Channel-Channel Isolation: 34 dB

Min. Vertical Sensitivity: 2 mV/div

Maximum Vertical Sensitivity: 5 V/div

Accuracy: 2 %

Input Coupling: AC,DC,GND

Input Impedance: 1 MOhm

Maximum Input Voltage: 400 V(DC+p)

The Tektronix 2247A oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

IMPORTANT: THE CART WILL NOT BE INCLUDED IF SHIPPED VIA THE EBAY GLOBAL SHIPPING PROGRAM DUE TO THE SIZE AND WEIGHT LIMITATION!

What is included:

Tektronix 2237A Oscilloscope

Manual

Power cord

DESCRIPTION

The Tektronix 2247A was the industry standard in 100MHz portable oscilloscopes for many years and this instrument is ready to go to work for you.

Tektronix 2247A Features :

100 MHz Bandwidth, Dual Channel.

Vertical Sensitivity - 5 mV/div. to 50 V/div.

Vertical Modes - Ch. 1, Ch. 2, Add, Alt., Chop, Ch. 2 Invert.

Full-Range Calibrated Delayed Time Base with Precision Delay Time Control.

Horizontal Sweep Speeds: .5 s/div. to .05 ms/div. (With x10 Mag.)

Horizontal Modes - A, MIX, A INTEN, BYou are bidding on a refurbished Tektronix 465B Dual Channel 100 Mhz Oscilloscope. Serial number B029003.

The Tektronix 465B was the industry standard in 100MHz portable oscilloscopes for many years.

Also included is a complete Operators/Maintenance manual .

All controls operate normally and calibration is within specifications.

Photos show it's overall condition as well as it's operation with dual traces, complex wave forms, dual time base, and operation in "X-Y" mode with a curve tracer for testing transistors, diodes, capacitors, resistors, and many other components.

MADE IN THE USA!!!

This used TEKTRONIX 2247A OSCILLOSCOPE, MANUAL & K212 PORTABLE INSTRUMENT CART is owned by EACH PROJECT Inc. and stored at our facility in Ann Arbor, MI.

Stock # 210704
