Thank you for checking out this TASCAM DA-302.

Information Below was taken from Manufacturer's original website about this TEAC TASCAM DA-302:

To meet the requirements of professional applications, the DA-302 is provided with the following functions.

... A variety of dubbing modes (normal/high speed/pro- gram/append)

... Dual recording

... Continuous recording/playback (with more than one deck) possible

... Tape duplication using more than one deck

... Subcode data recording/editing

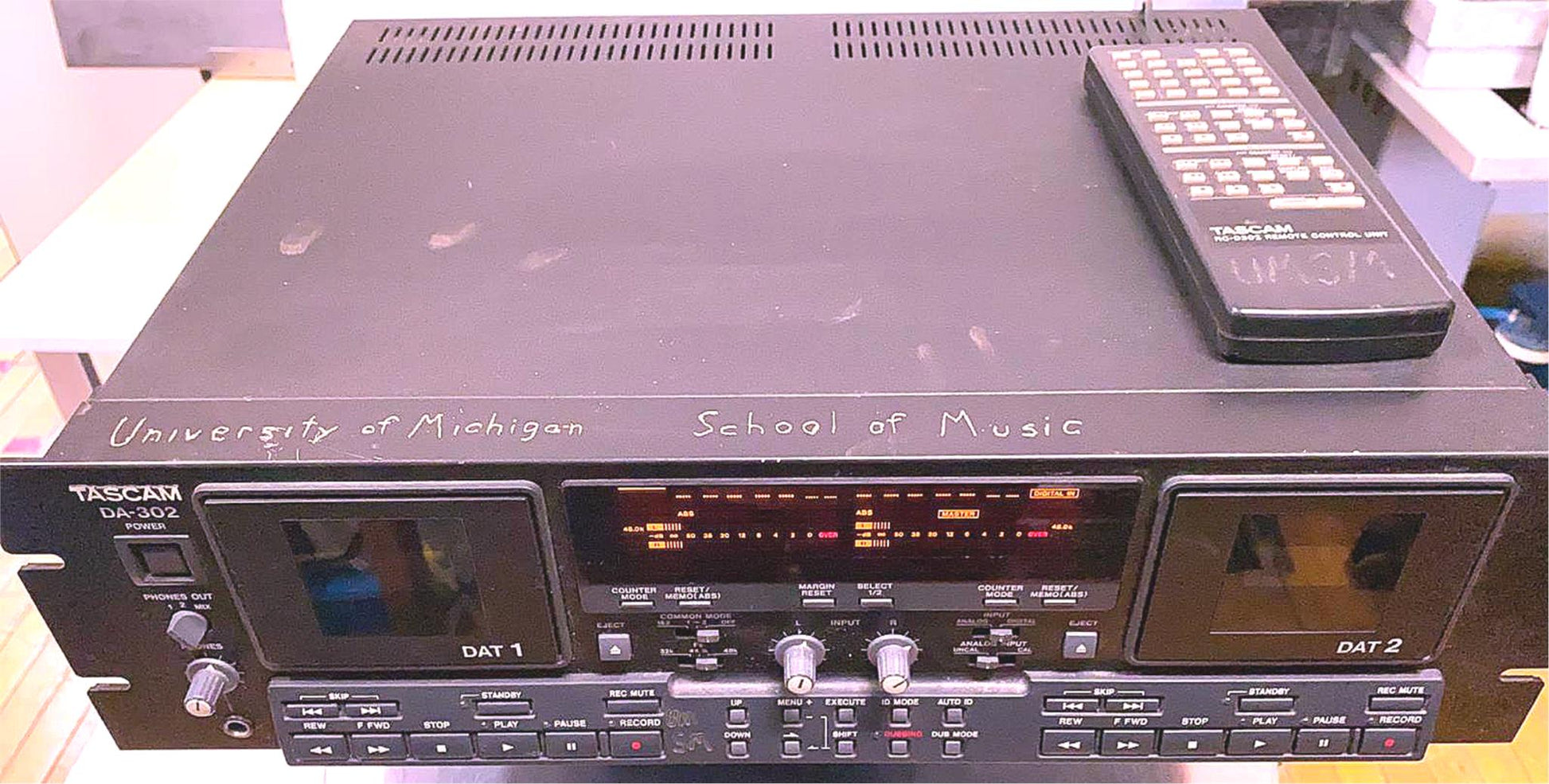

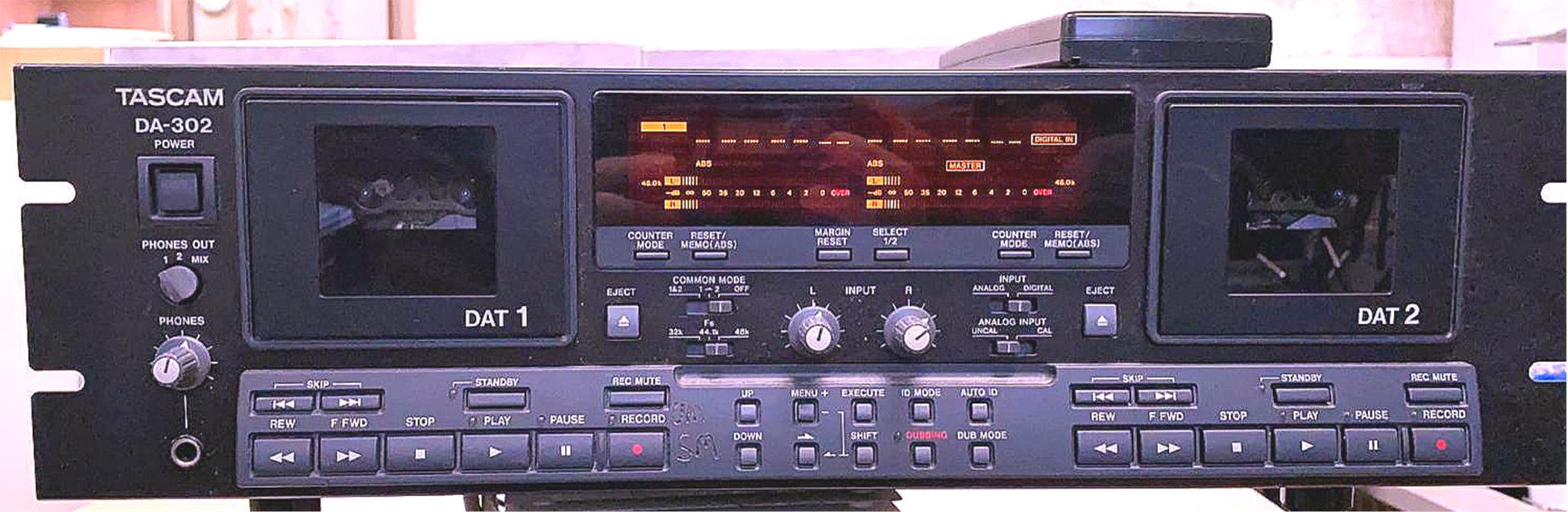

The TEAC TASCAM DA-302 Dual Digital Audio Tape Deck is the world's only dual DAT recorder, bringing the convenience of a dual cassette deck to the DAT format.

The main advantages to the DA-302 are in DAT duplication, long play/record applications, or live production with multiple sources.

The DA-302 can duplicate DATs at 2X, offering tremendous time savings when making back-ups, or distribution copies. Time code and 24 bit DATs can be duplicated at 1x, offering a substantial savings over purchasing two time code DATs or two 24 bit DAT recorders.

For long play or long record applications, multiple DA-302s can be linked. This allows each well to engage sequentially for automated playback or recording.

Also, each DAT in the DA-302 can act independently, allowing one source to play, and another to record. This is ideal for use in shows, allowing one DAT to play back sound cues while the other records the show. Or, both DATs can be used in playback simultaneously for feeding independent sources to two different zones, or even for overlaying cues.

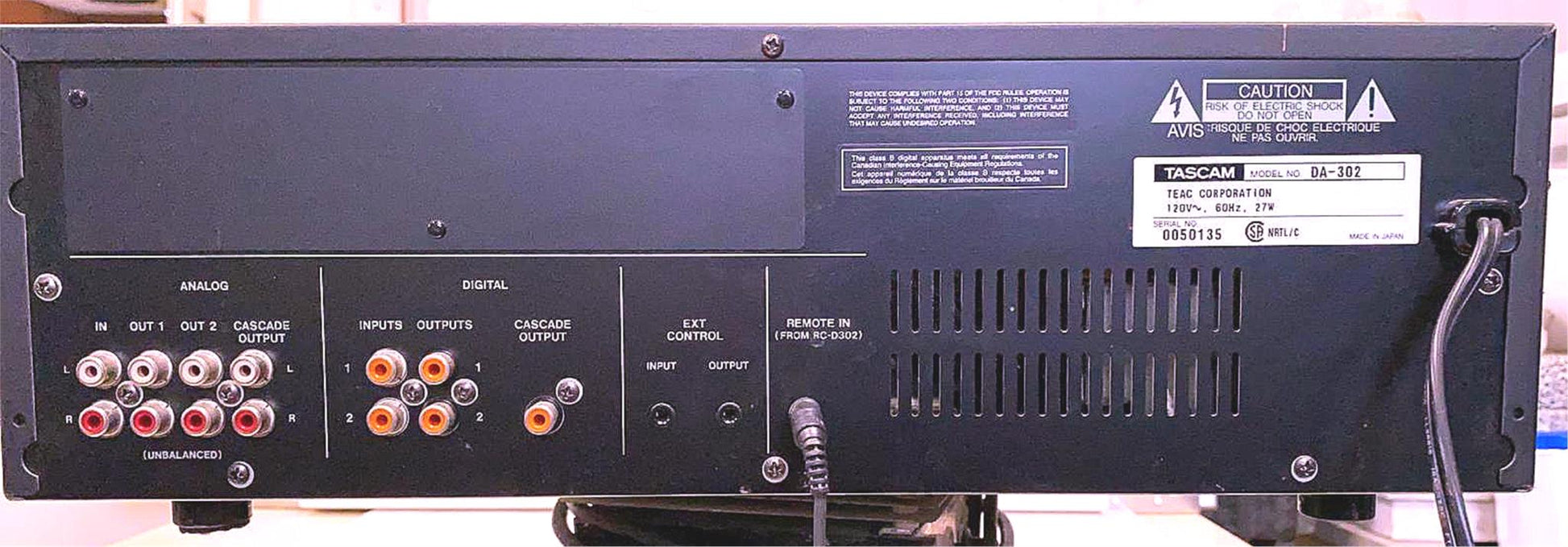

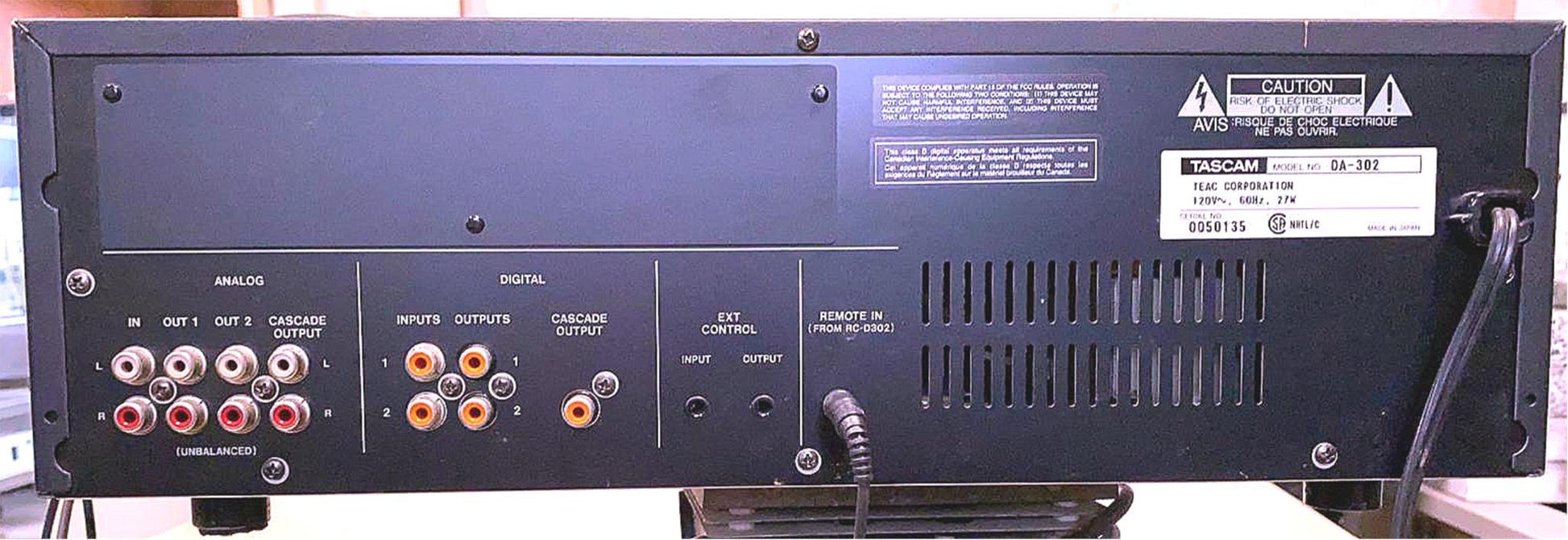

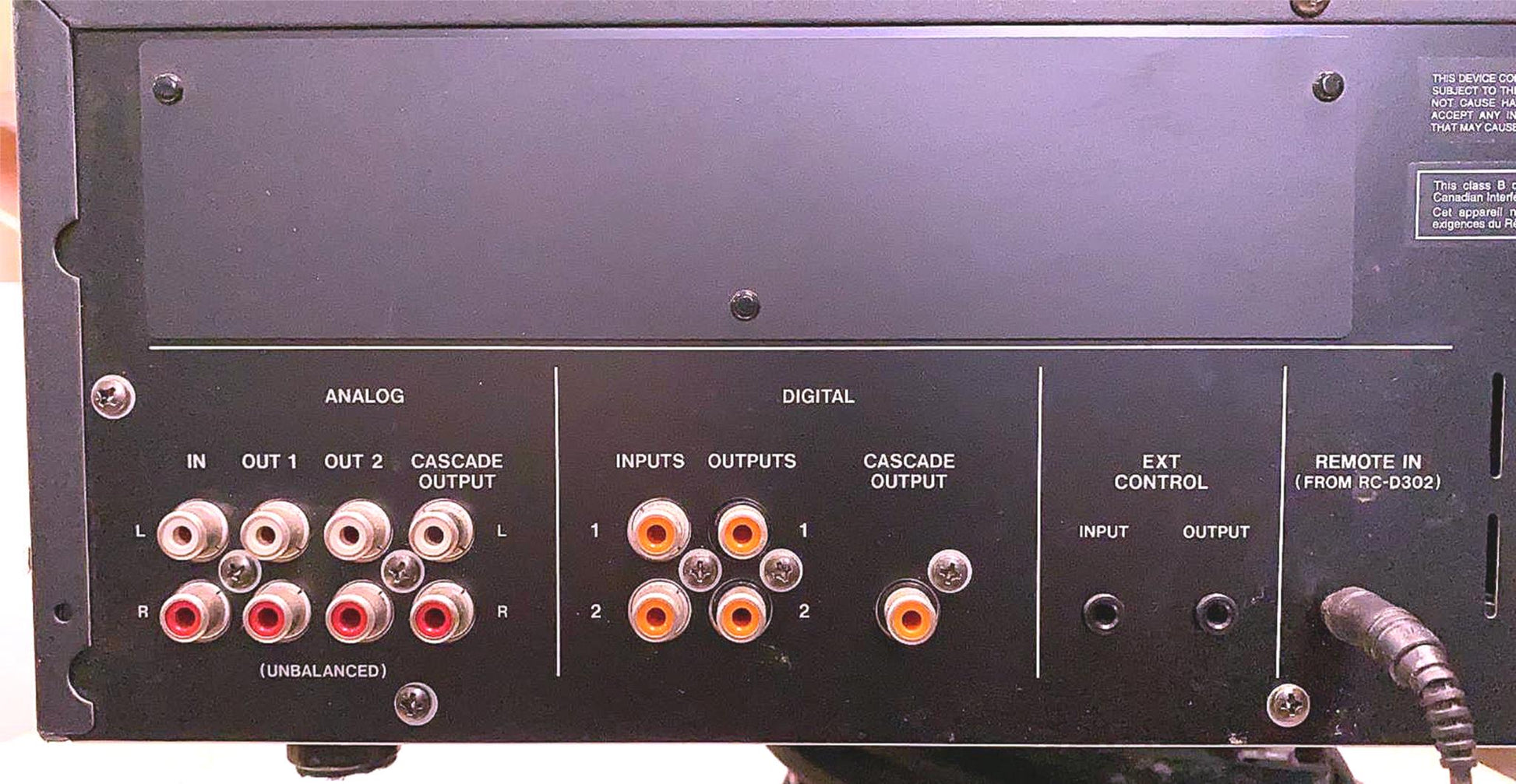

The DA-302 offers unbalanced RCA analog I/O. The input is common, but the outputs are separate.

Independent digital in and out are provided on digital coax ports that can output SPDIF or AES/EBU signals. If balanced ports are desired, the optional LA-D302 will offer XLR balanced ports for the analog in and independent outs.

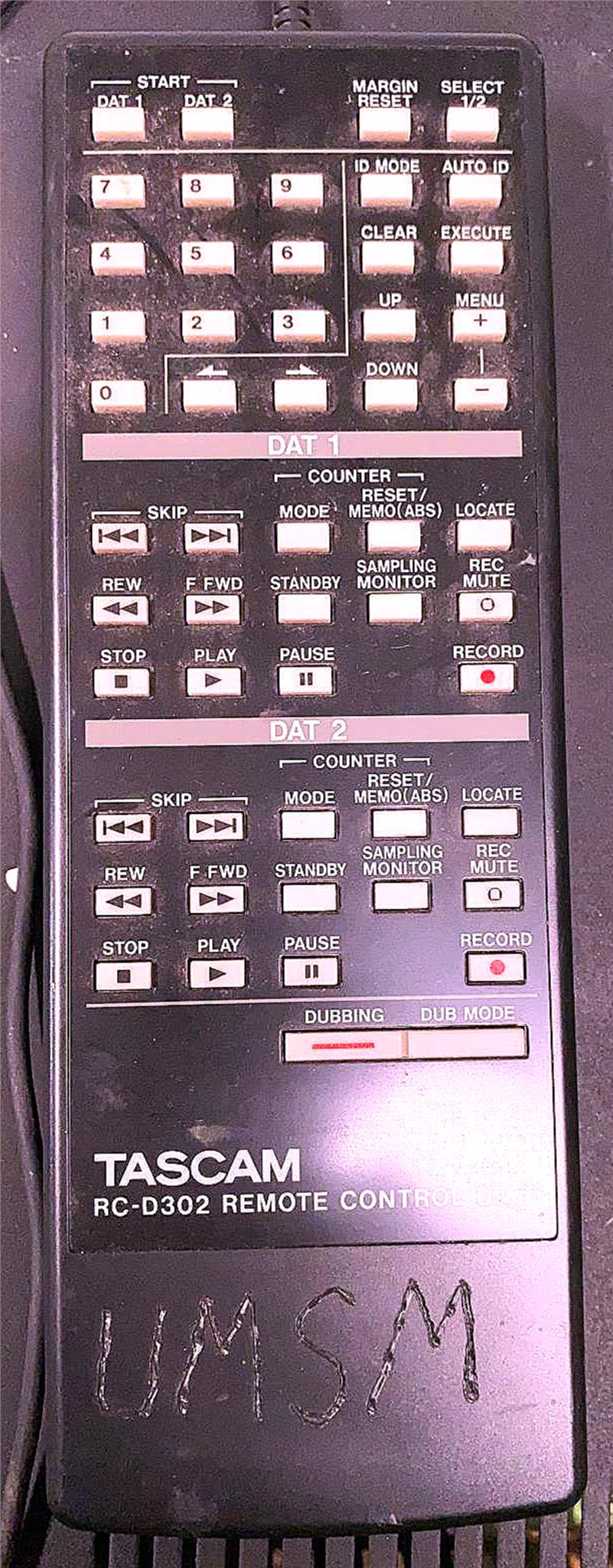

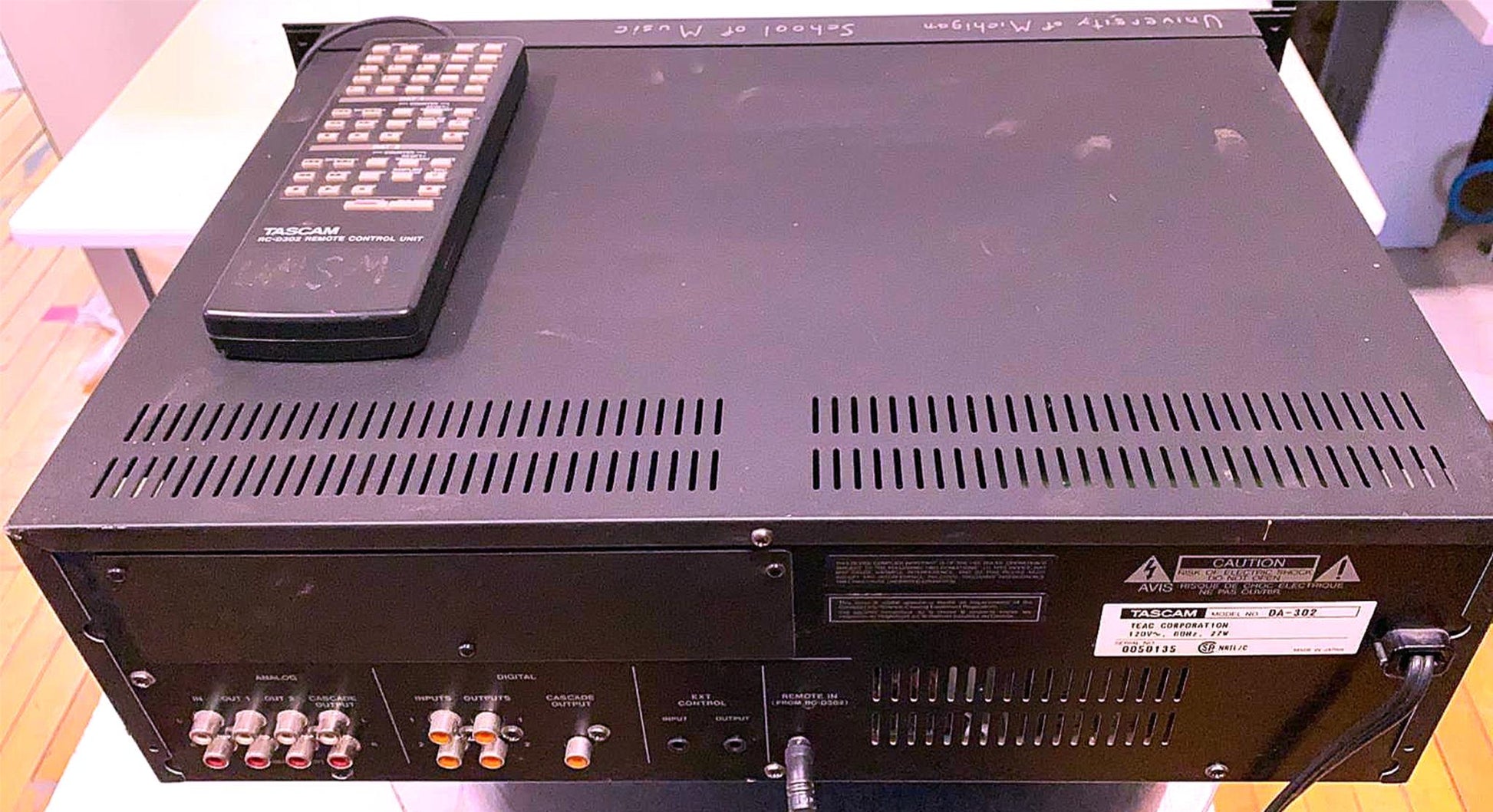

The RC-D302 wired remote is included with the DA-302.

Country: Japan

Manufacturer / Brand: TEAC; Tokyo

Brand



Tascam

Year: 1999 Category: Sound/Video Recorder and/or Player

Semiconductors (the count is only for transistors) Semiconductors present.

Main principle Audio-Amplification

Wave bands - without

Details Special Tape or Cassette-Format

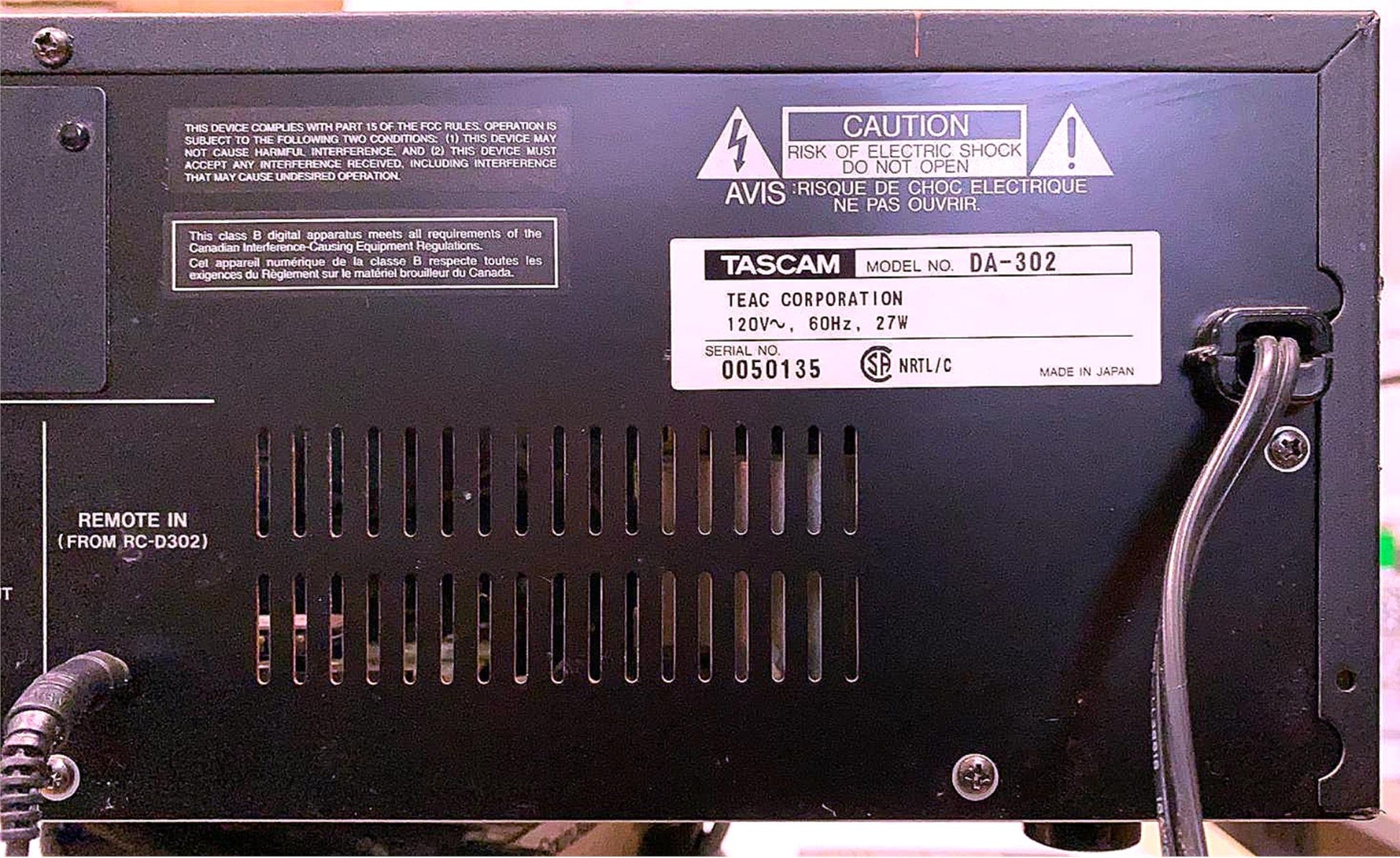

Power type and voltage Alternating Current supply (AC) / 240 Volt

Loudspeaker - For headphones or amp.

Power out

from Radiomuseum.org Model: Tascam DA-302 - TEAC; Tokyo

Material Metal case

Shape Rack

Dimensions (WHD) 482 x 151 x 353 mm / 19 x 5.9 x 13.9 inch

Notes

Format : Rotary head digital audio tape deck

Tape Speed : 8.15 mm/sec. (SP: Recording/playback) 12.225 mm/sec. (only for playback) 16.3 mm/sec. (SP: Double speed dubbing, LP: 4 times normal speed dubbing) 4.075 mm/sec. (LP: Recording/playback)

Recording Time : 120 minutes (SP: With a 120-minute tape) 240 minutes (LP: With a 120-minute tape)

Fast Winding/Rewinding Time : Approx. 60 seconds (with a 120- minute tape)

Channels : Stereo 2 channels

Quantization : 16-bit linear (SP), 12-bit non-linear (LP)

Error Correction Method : Doubled Reed Solomon code

Sampling Rates : 48 kHz (recording/playback) 44.1 kHz (recording/playback) 32 kHz (recording/playback)

Emphasis : 50 µsec./15 µsec (automatically applied in the Play mode)

Frequency Response : 20 – 20 kHz ± 0.5 dB (48 kHz/44.1 kHz) 20 – 14.5 kHz ± 0.8 dB (32 kHz) S/N : More than 89 dB

Dynamic Range : More than 89 dB

Total Harmonic Distortion : Less than 0.007% (SP), less than 0.07% (LP) (1 kHz for recording and playback, full-scale)

Channel Separation : More than 85 dB (1 kHz)

Wow and Flutter : Unmeasurable (less than ±0.001%)

Net weight (2.2 lb 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
