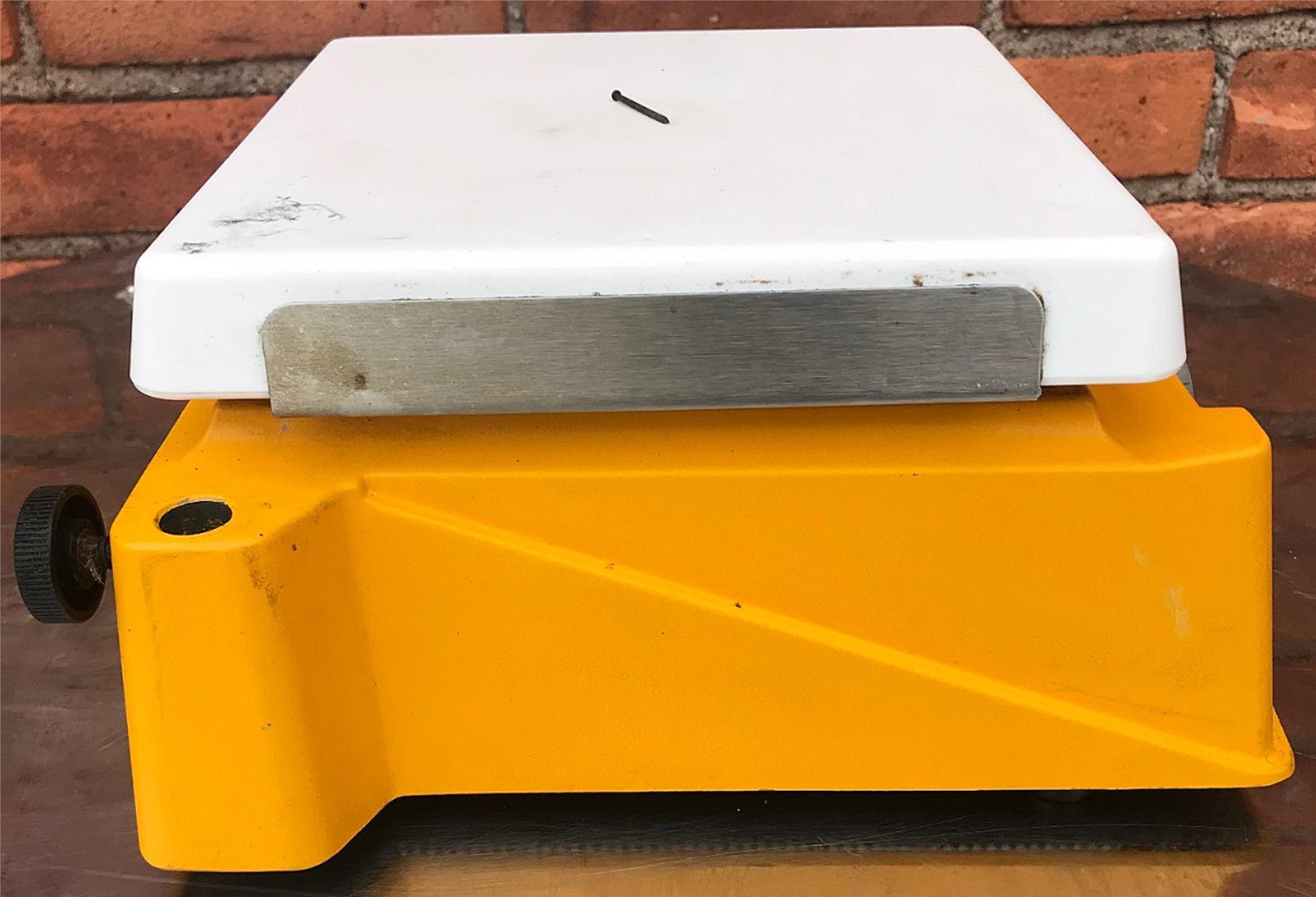

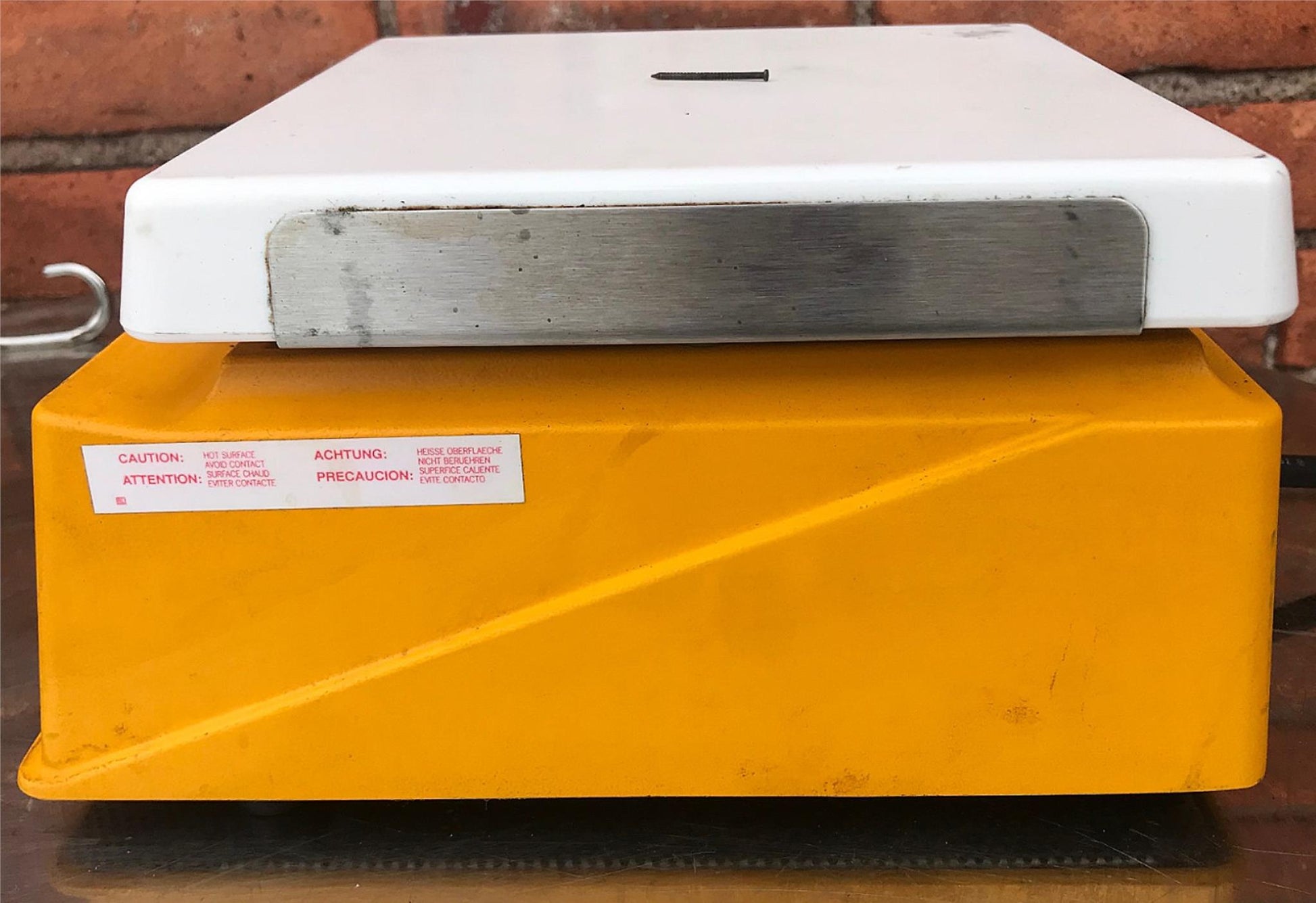

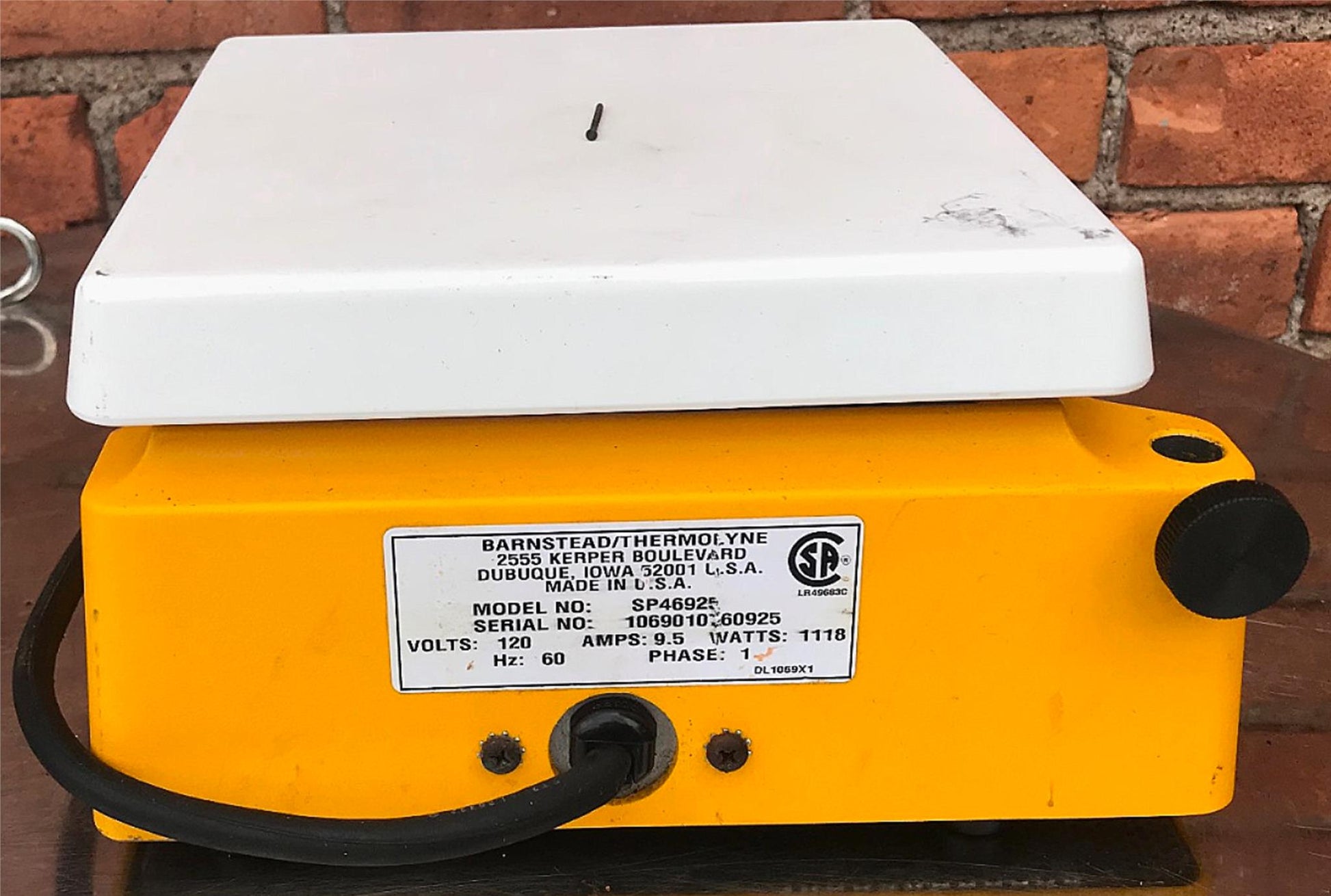

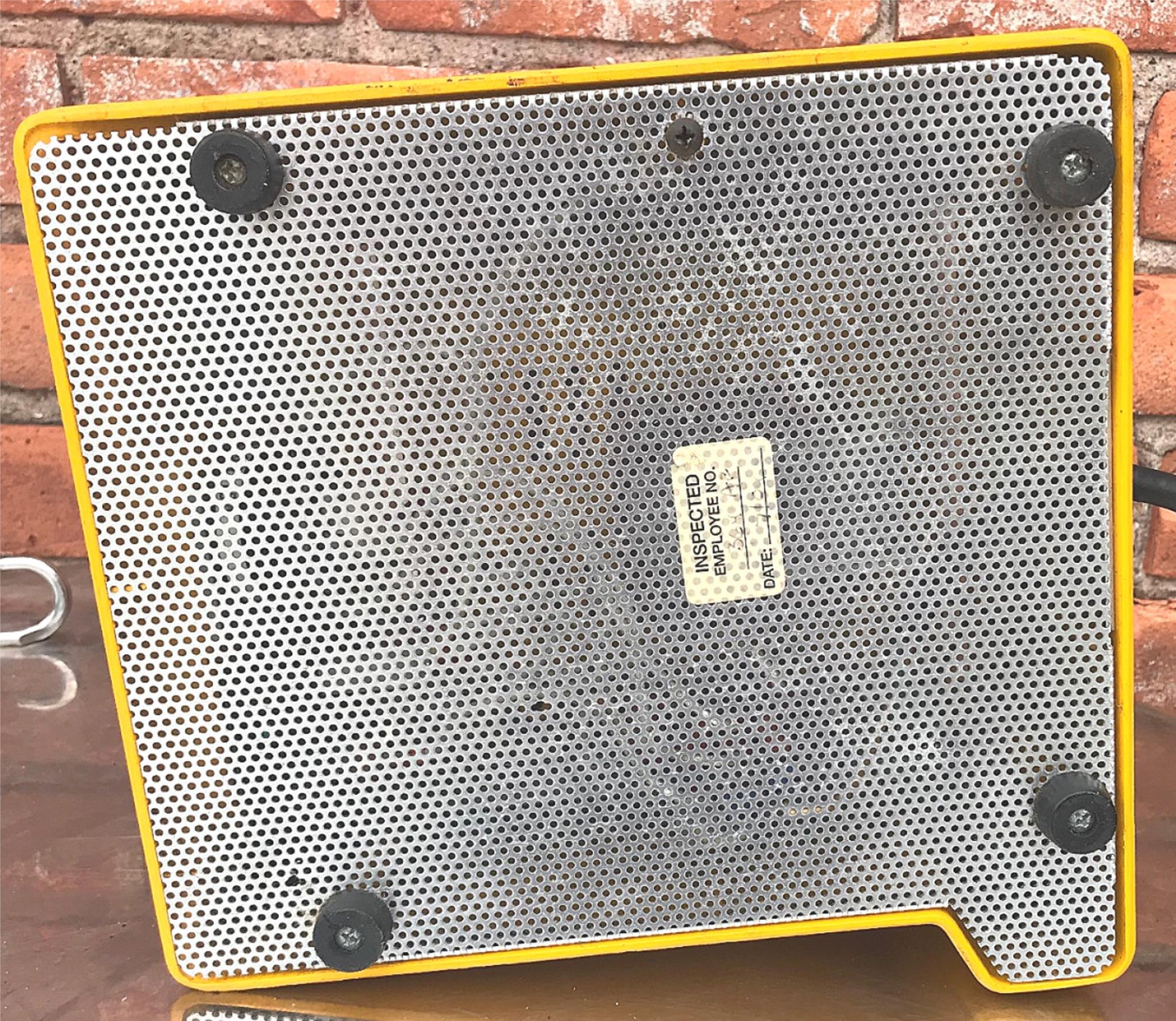

SYBRON THERMOLYNE CIMAREC 2 MODEL SP46925 HOT PLATE LAB 100%TESTED WATCH VIDEO

This listing is for a 100% TESTED and in GREAT OPERATIONAL Condition SYBRON THERMOLYNE CIMAREC 2 MODEL SP46925 HOT PLATE as can be WATCHED IN THE VIDEO and also seen in the pictures.

FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING PERFECTLY BY GOOGLING THE FOLLOWING LINK: https://www.youtube.com/watch?v=_CSHSmqqE04

Great OPERATIONAL condition as shown in the pictures, please check the many pictures available here.

This unit came from a Federal University and has ALWAYS been very well maintained, never submitted to a commercial laboratory's wear and tear.

FEEL FREE TO READ INSTRUCTION DATA TECHNICAL MANUAL FOR THIS SPECIFIC UNIT BY COPYING AND THEN GOOGLING THE FOLLOWING LINK: //pim-resources.coleparmer.com/instruction-manual/lt1073x1cimarec.pdf

Specifications below taken from Manufacturer's Weblink, we do not nor cannot be certain they are correct or not but you may also find it by GOOGLING the following weblink page on this equipment: //pim-resources.coleparmer.com/instruction-manual/lt1073x1cimarec.pdf

Intended Use

The Cimarec hot plates are general purpose heating de- vices intended for laboratory procedures requiring tem- peratures from 120°C to 370°C.

A vessel with a flat bottom is recommended for ideal heat transfer.

Do not use aluminum foil, metal containers, or vessels with a rim around the bottom as these could cause damage to the hot plate.

The control maintains a set temperature of the hot plate by turning the power on and off over short time intervals.

The greater the percentage of time the power is on, the higher the temperature.

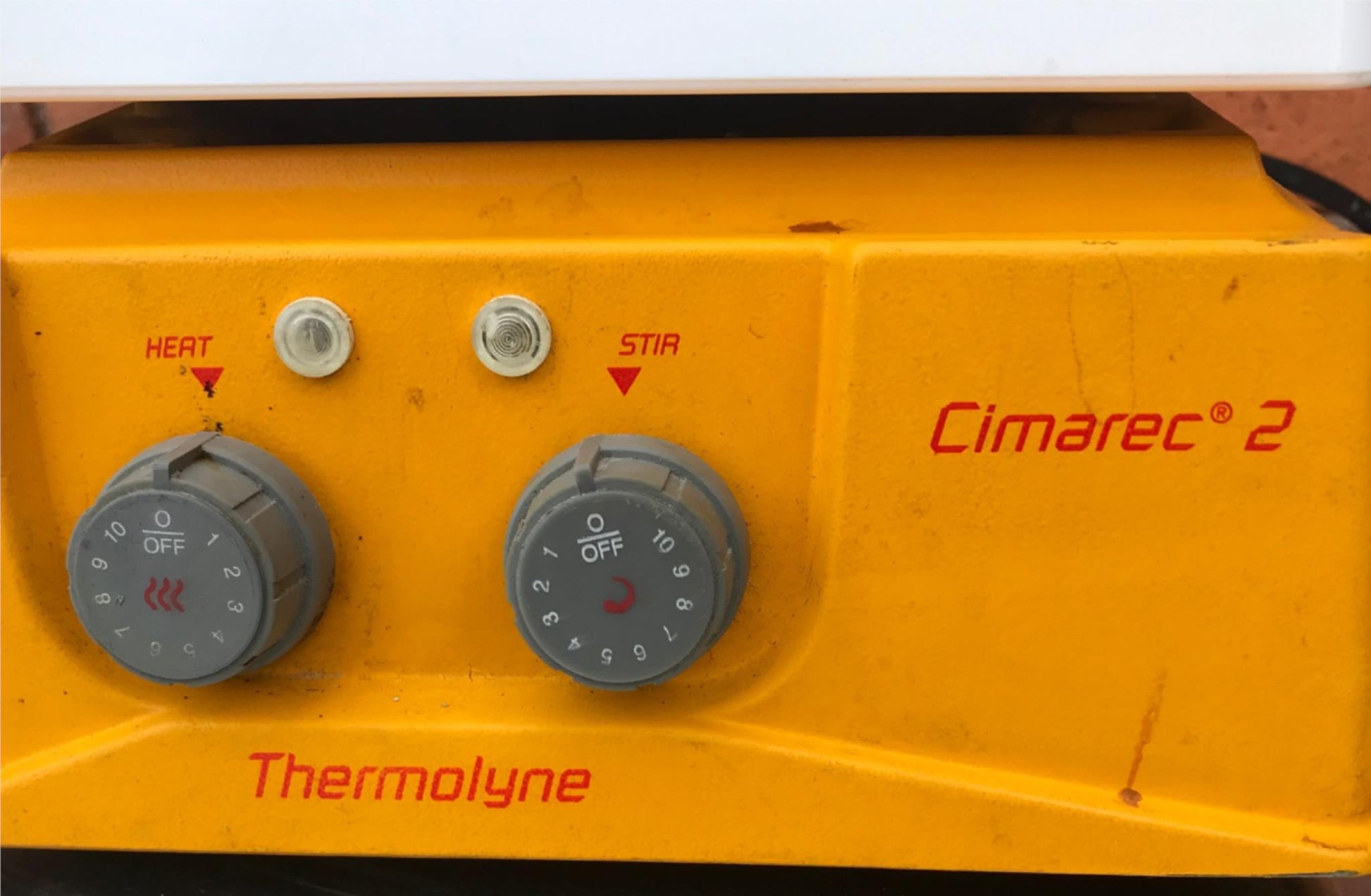

At the high position, power is on continu- ously and maximum temperature is obtained. From the “off” position, the knob may be turned either to the right or left.

For fast heat-up, turn the knob to high position. When the desired temperature is reached, reduce the setting to the point where the temperature will be maintained.

The pilot light is always on when the power is on.

Top Plate Size 7” x 7”

Voltage 120 (20 amp cord set)

Volts 120

Amps 13.5

Watts 1620

Freq. 60

Phase 1

Max. Temp. °F (°C) 700°F (370°C)This unit is in perfect working order and ready to be shipped.

100% Fully TESTED and in GREAT OPERATIONAL CONDITION.

Stock # 19104
