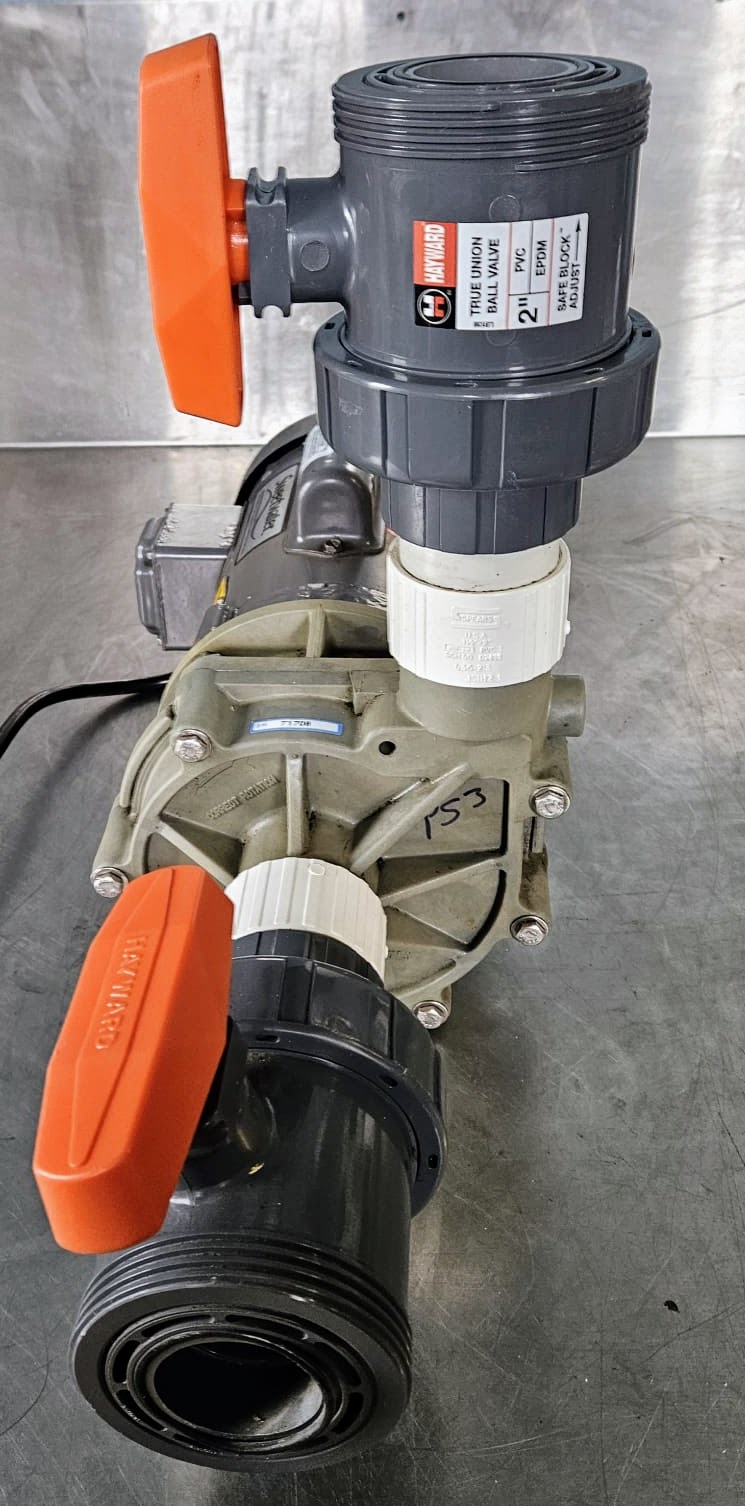

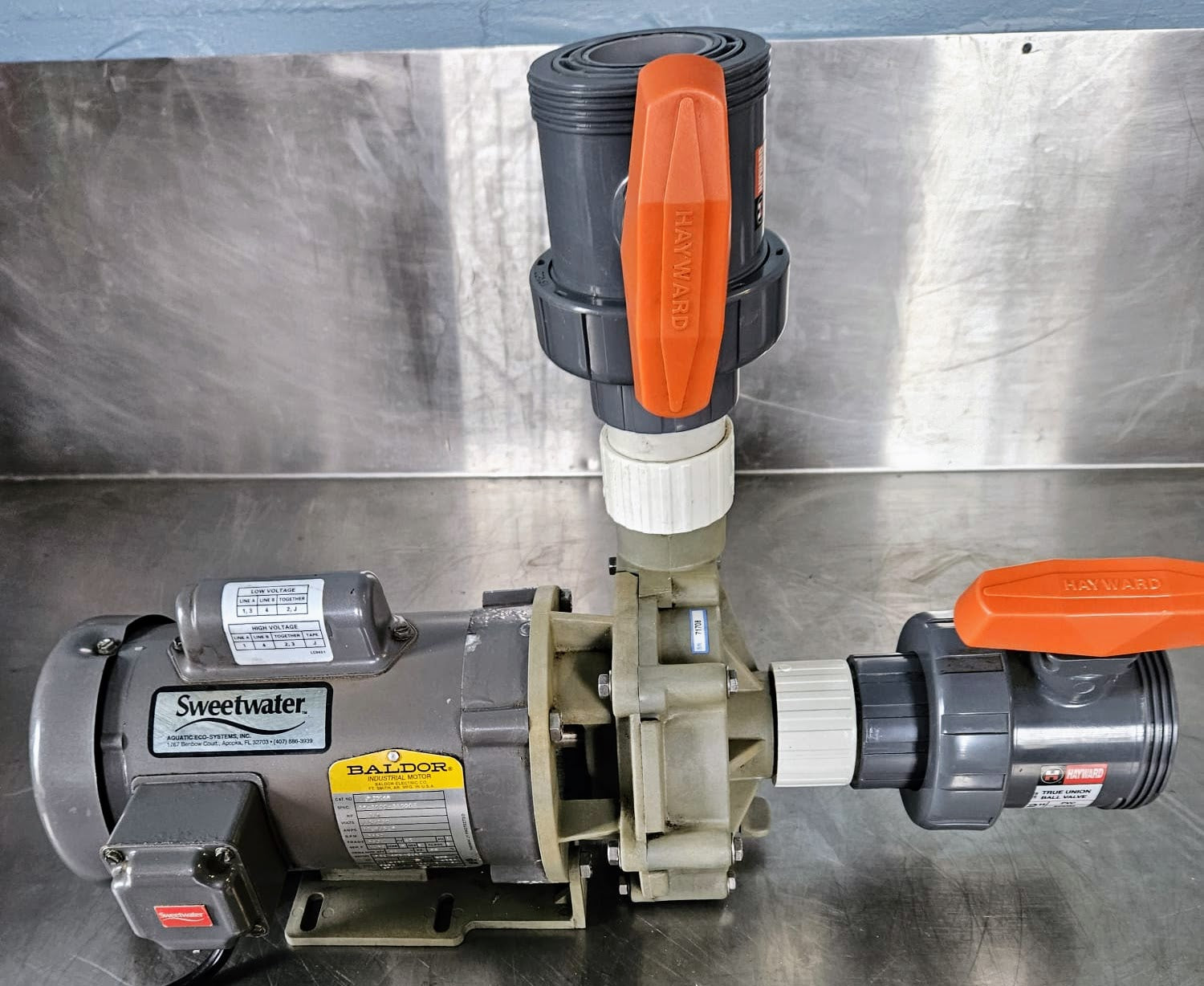

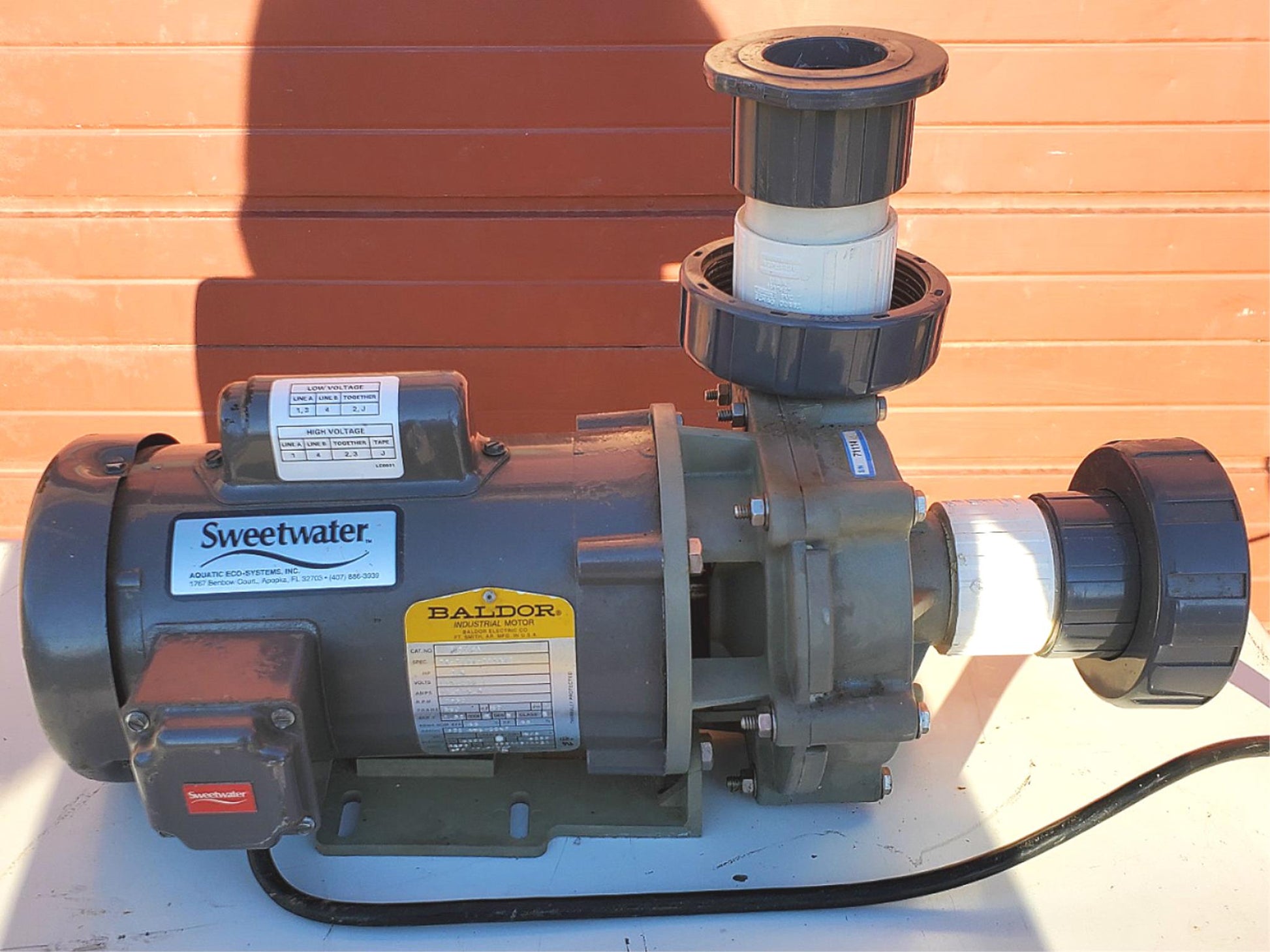

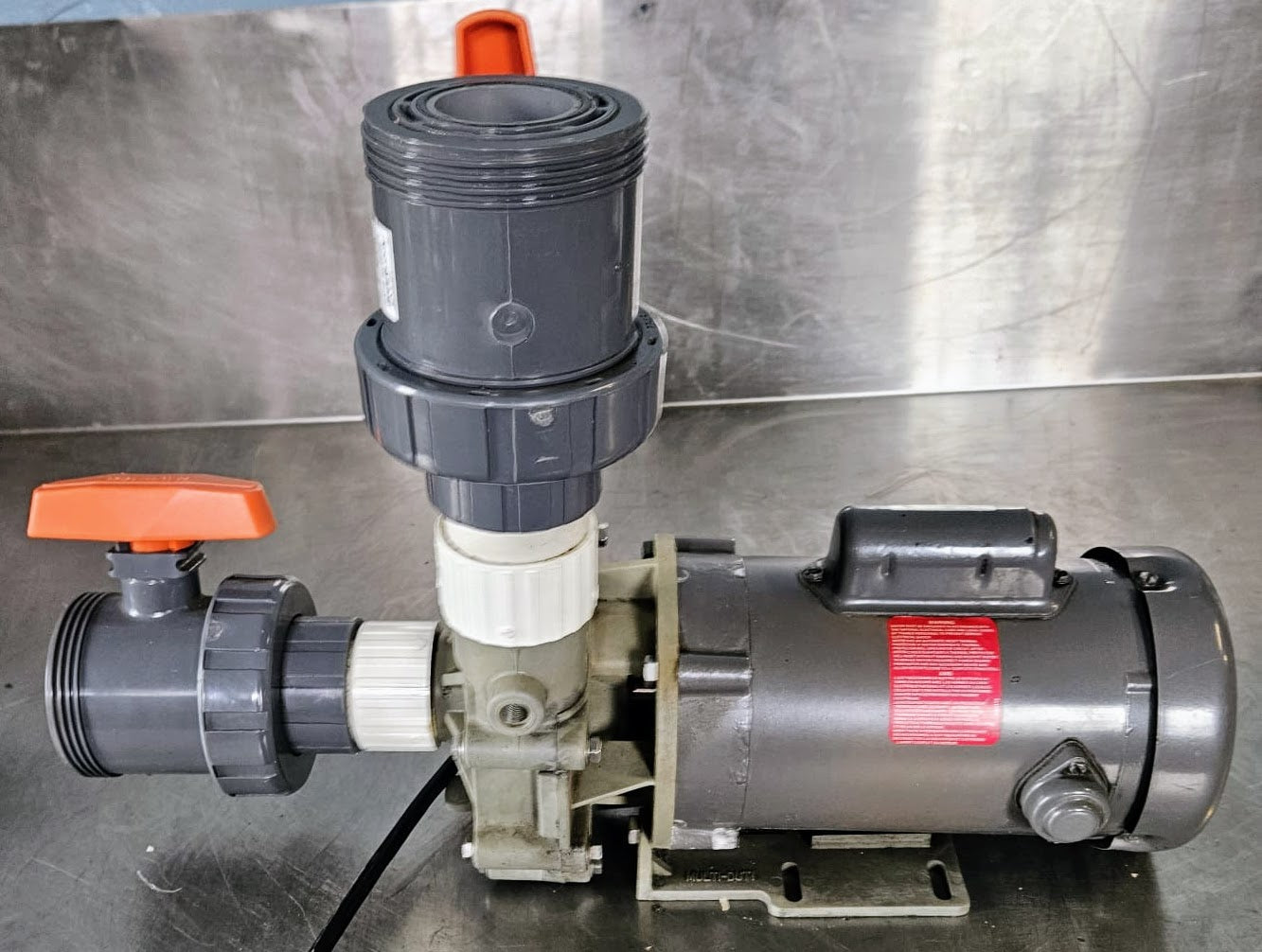

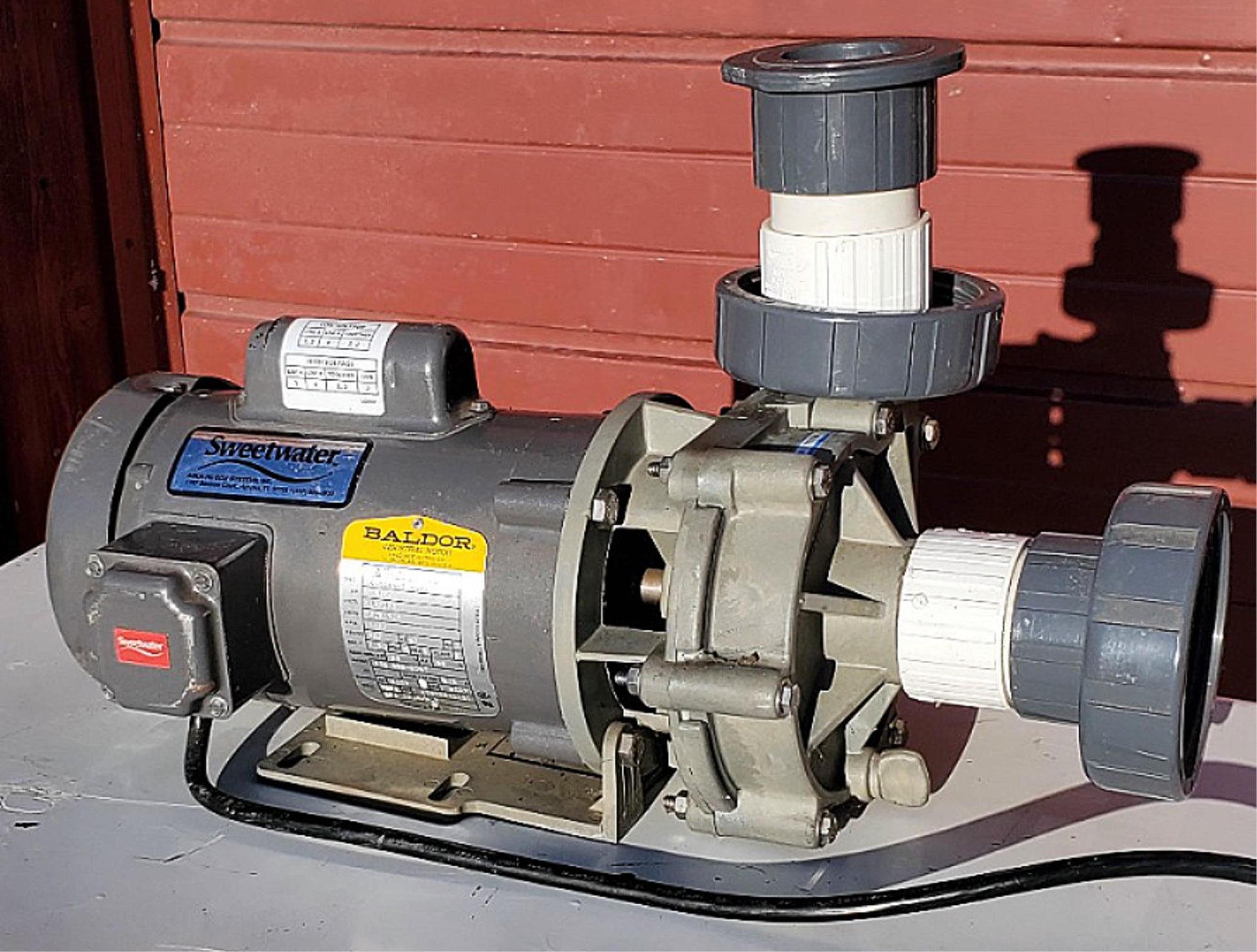

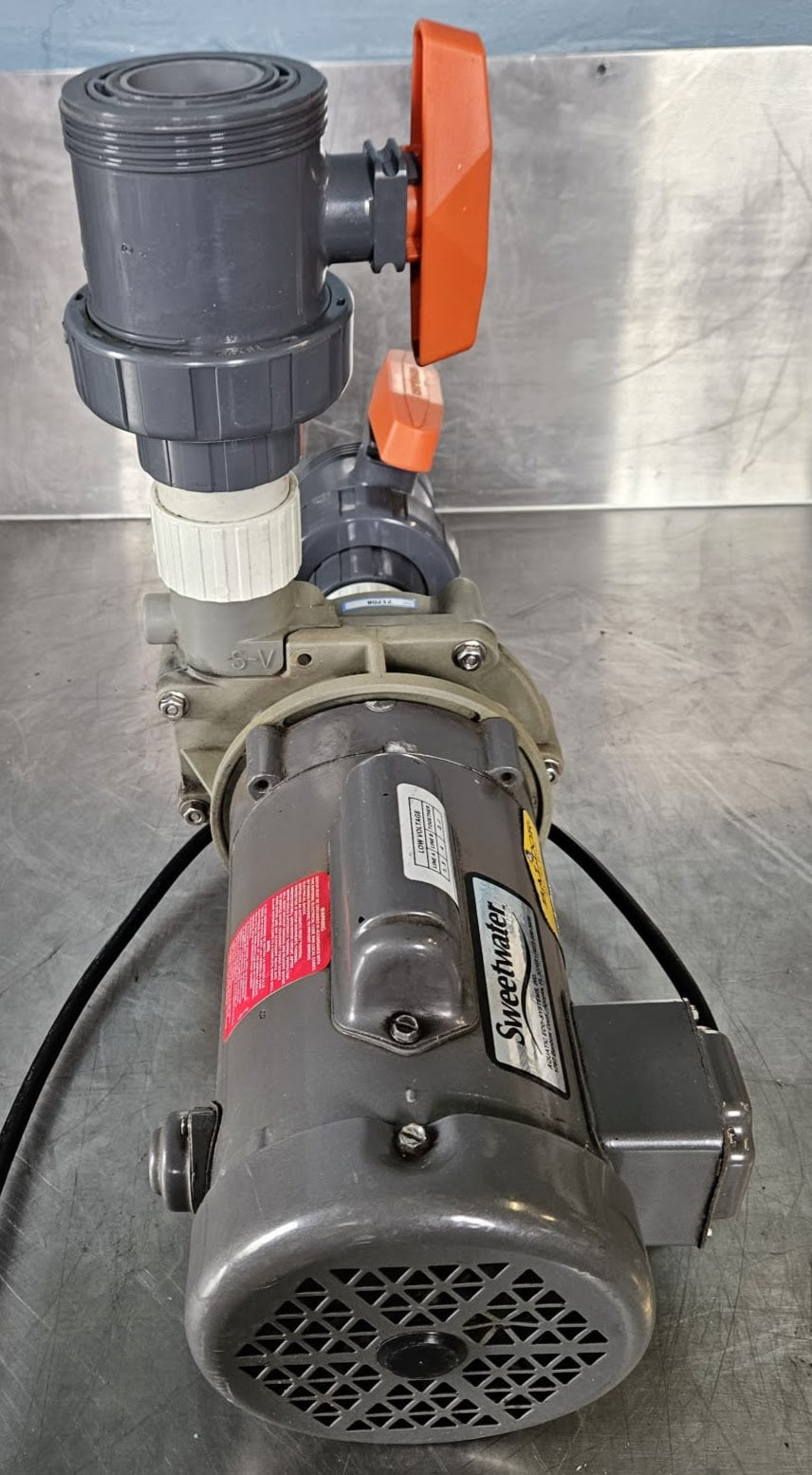

This listing is for a SWEETWATER PENTAIR HIGH EFFICIENCY WATER PUMP with BALDOR CAT JL3506A 3/4HP MOTOR FREE SHIPPING as can be WATCHED IN THE VIDEO and also seen in the pictures.
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING BY CLICKING THE FOLLOWING LINK: https://www.youtube.com/watch?v=OQ-TqZRjQ9c
UNIT CAME FROM A WORKING ENVIRONMENT, HAS BEEN FULLY TESTED AND THAT'S WHY WE WARRANTY IT FOR 90 DAYS!
Condition:
Fully Tested : in Excellent working condition.
Please check manufacturer's Specification Technical Data Sheet by GOOGLING the following link:
pentairaes.com/sweetwater-high-efficiency-pumps.html
And Also More, Please check manufacturer's Specification Technical Data Sheet by GOOGLING the following link: mrosupply.com/motors/ac-motors/pump-motors/26599_jl3506a_baldor/
Baldor Motor description
Typical Applications: Typical applications include operations where continuous or frequent duty is required.
Super-E single phase motors are designed to conserve energy over extended time periods.
Heavy gauge steel frames. Ball bearings. ISR (Inverter Spike Resistant)copper windings.
Low-loss electrical grade laminations steel.
JL3506A .75HP, 3450RPM, 1PH, 60HZ, 56J, 3424L, TEFC, F1

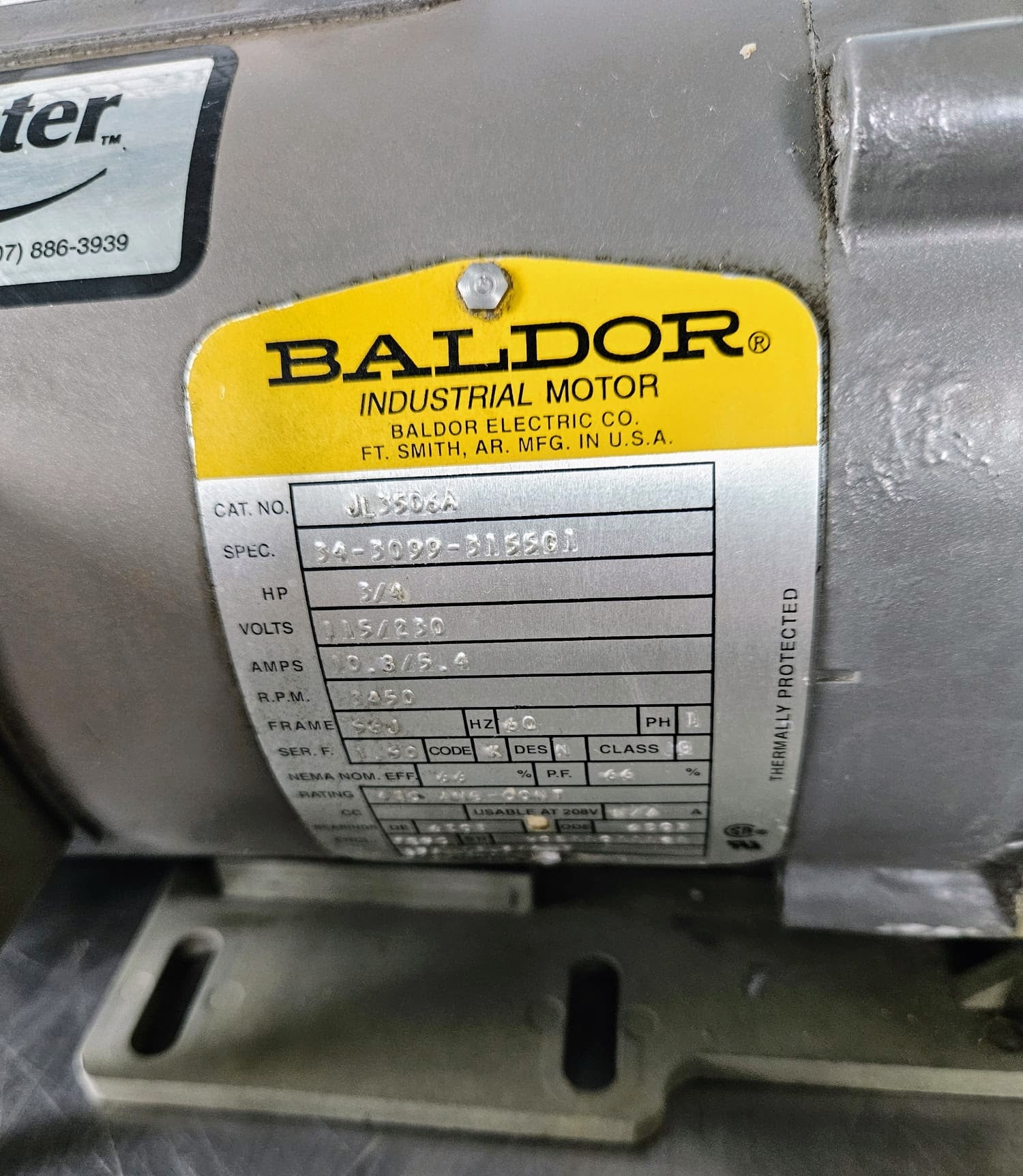

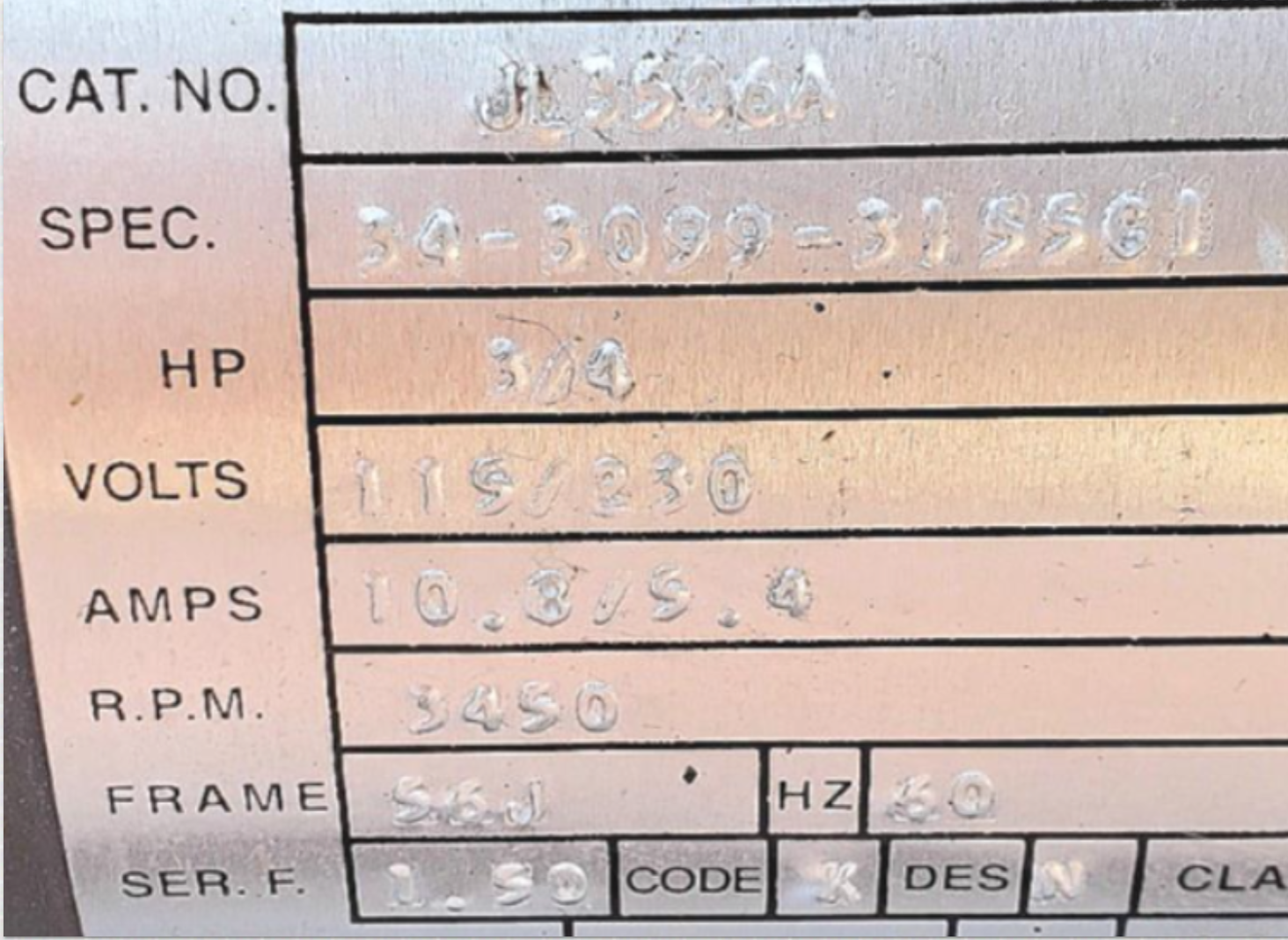

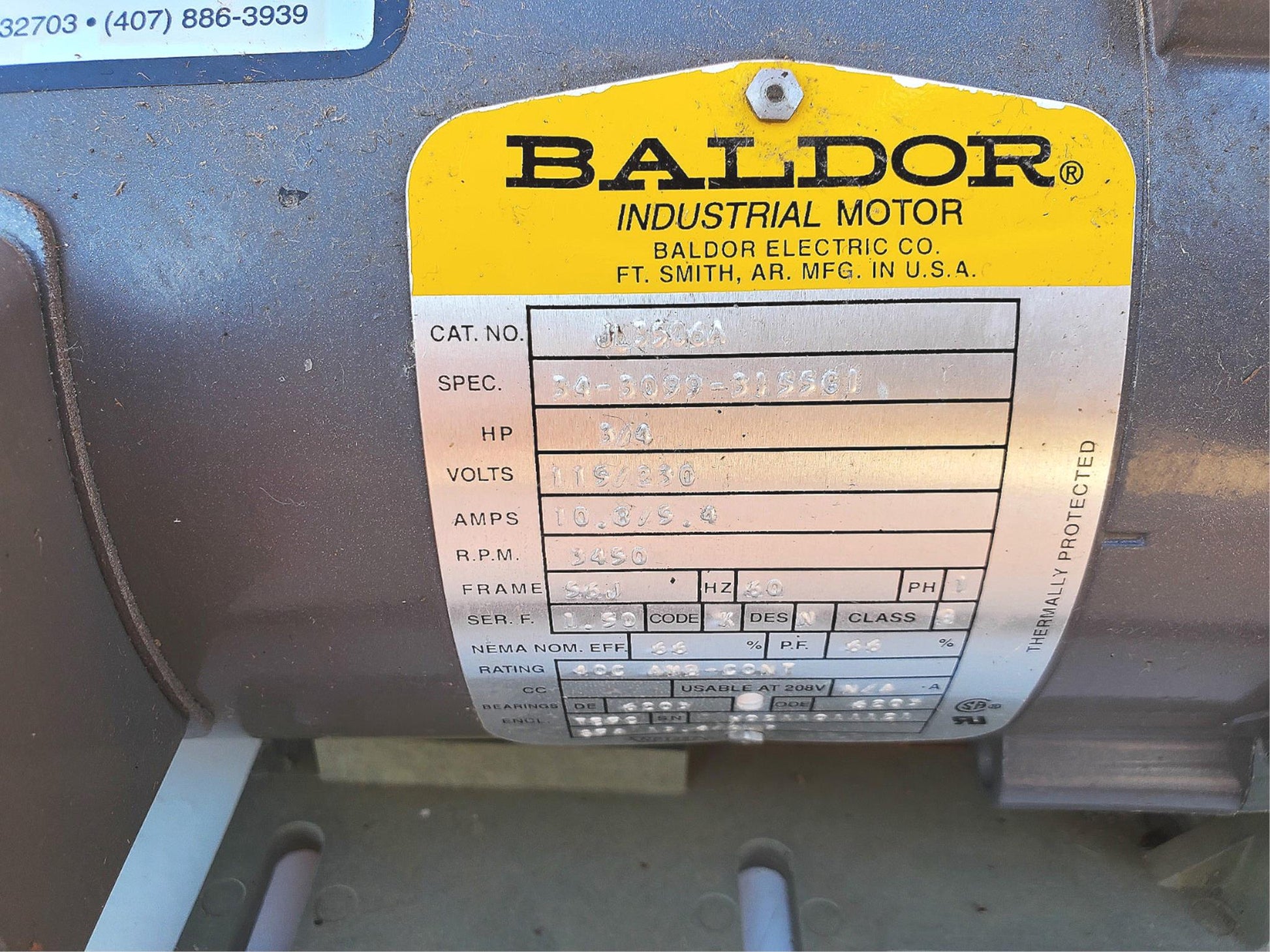

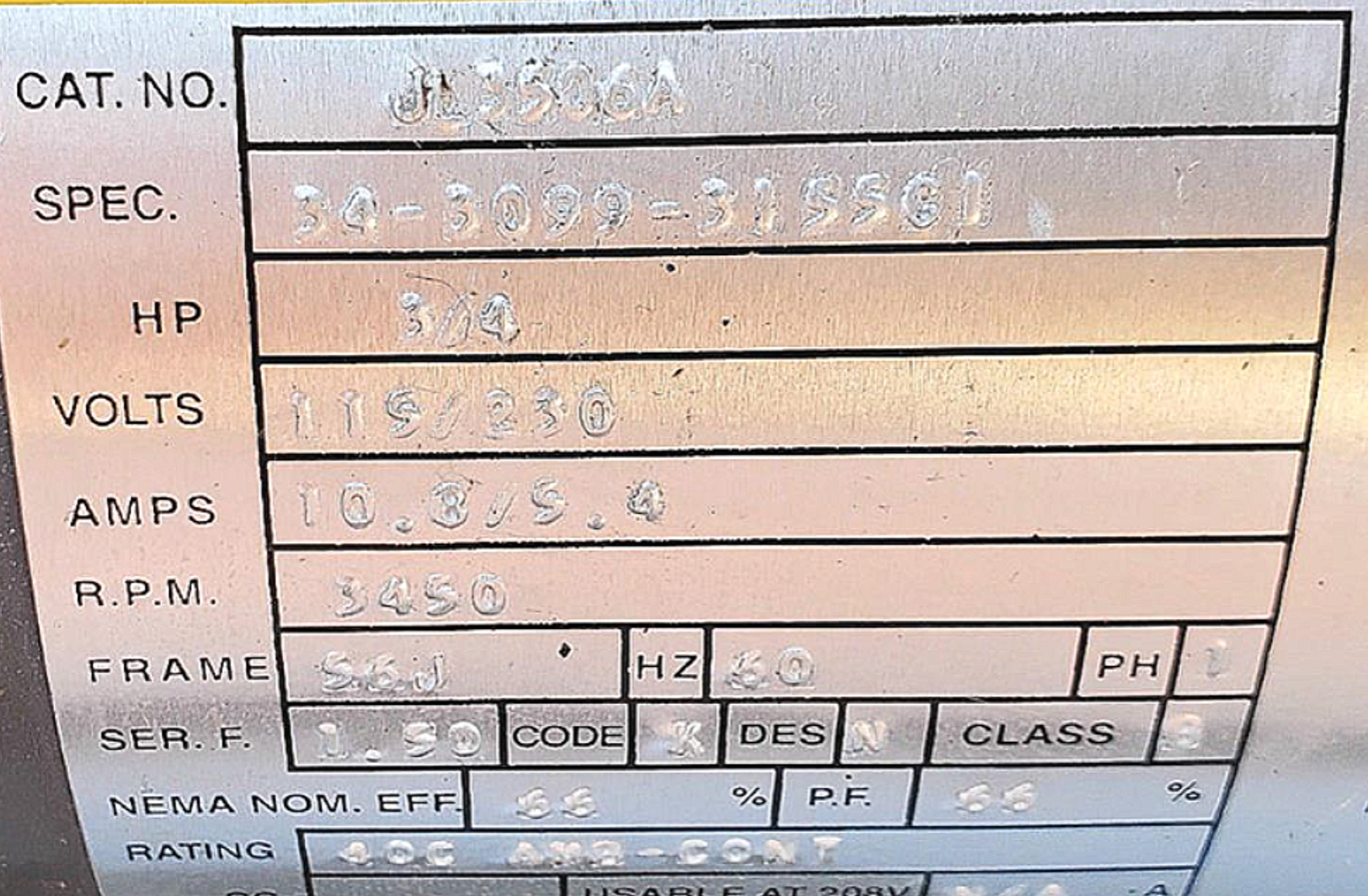

Nameplate No. NP1257L
CAT.NO. JL3506A
SPEC. 34-3099-3155G1
HP .75
VOLTS 115/230
AMP 10.8/5.4
RPM 3450
FRAME 56J HZ 60 PH 1
SER.F. 1.50 CODE K DES N CL B
NEMA-NOM-EFF 66 PF 66
RATING 40C AMB-CONT
CC USABLE AT 208V N/A
DE 6203 ODE 6203
ENCL TEFC SN
SFA 13.4/6.7
General Characteristics
Full Load Torque 1.15 LB-FT Start Configuration DOL
No-Load Current 3.7 Amps Break-Down Torque 3.98 LB-FT
Line-line Res. @ 25°C. 2.33 Ohms A Ph / 1.65 Ohms B Ph Pull-Up Torque 1.63 LB-FT
Temp. Rise @ Rated Load 75°C Locked-Rotor Torque 2.45 LB-FT
Temp. Rise @ S.F. Load 108°C Starting Current 31.2 Amps
Load Characteristics
% of Rated Load 25 50 75 100 125 150 S.F.
Power Factor 39 52 64 73 79 83 85
Efficiency 41.7 57.6 65.5 69.2 69.8 69.3 70.4
Speed (RPM) 3558 3536 3508 3479 3447 3410 3415
Line Amperes 3.78 4 4.4 4.91 5.61 6.37 6.31
Made In USA
Shipping Weight: 30 pounds
Stock # 232806
