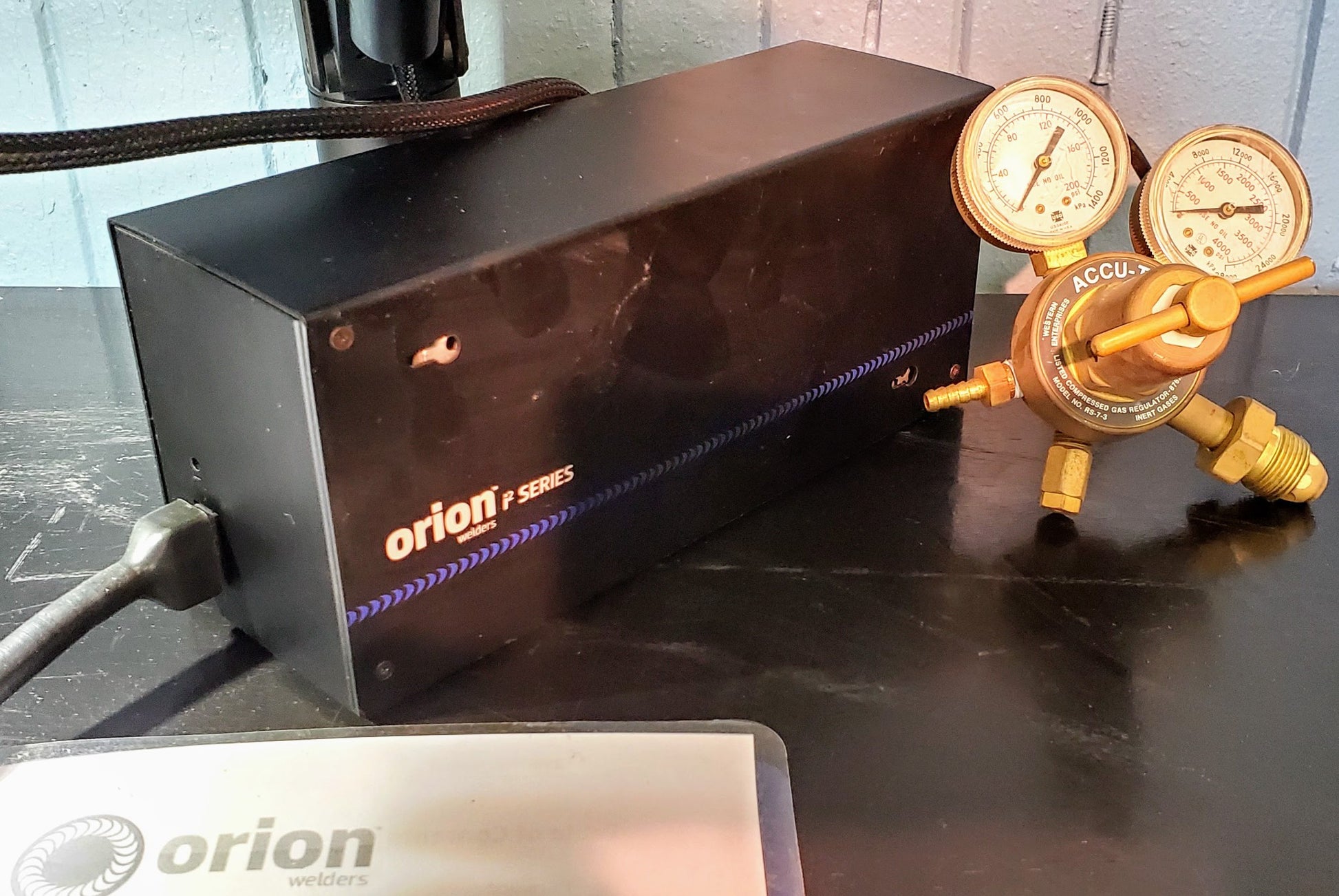

This listing is for a Used and in Great Condition SUNSTONE ORION PA250i2 Micro TIG Welder as can be WATCHED IN THE VIDEO and also seen in the pictures.
IMPORTANT: THIS IS THE ORION PA250i2 MODEL WHICH IS MUCH MORE EXPENSIVE THAN THE NORMAL MORE EASILY FOUND PA250i MODEL.
THE DIFFERENCE IS THAT THE PA250i2 IS CAPABLE OF WORKING WITH THE CNC TABLE, THE PHWH WELD HEAD AND OTHER ACCESSORIES AS SHOWN IN THE VIDEOs.

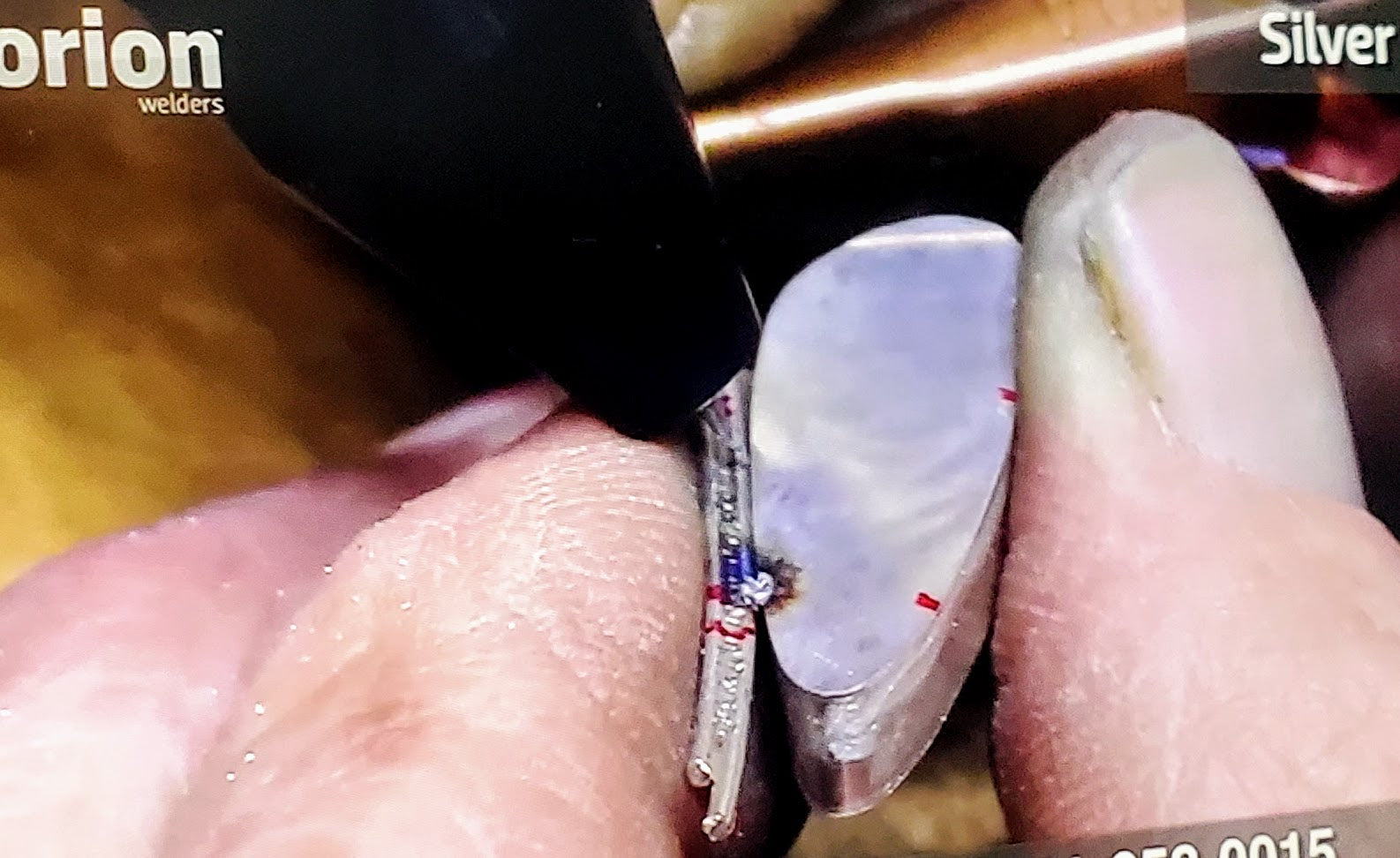

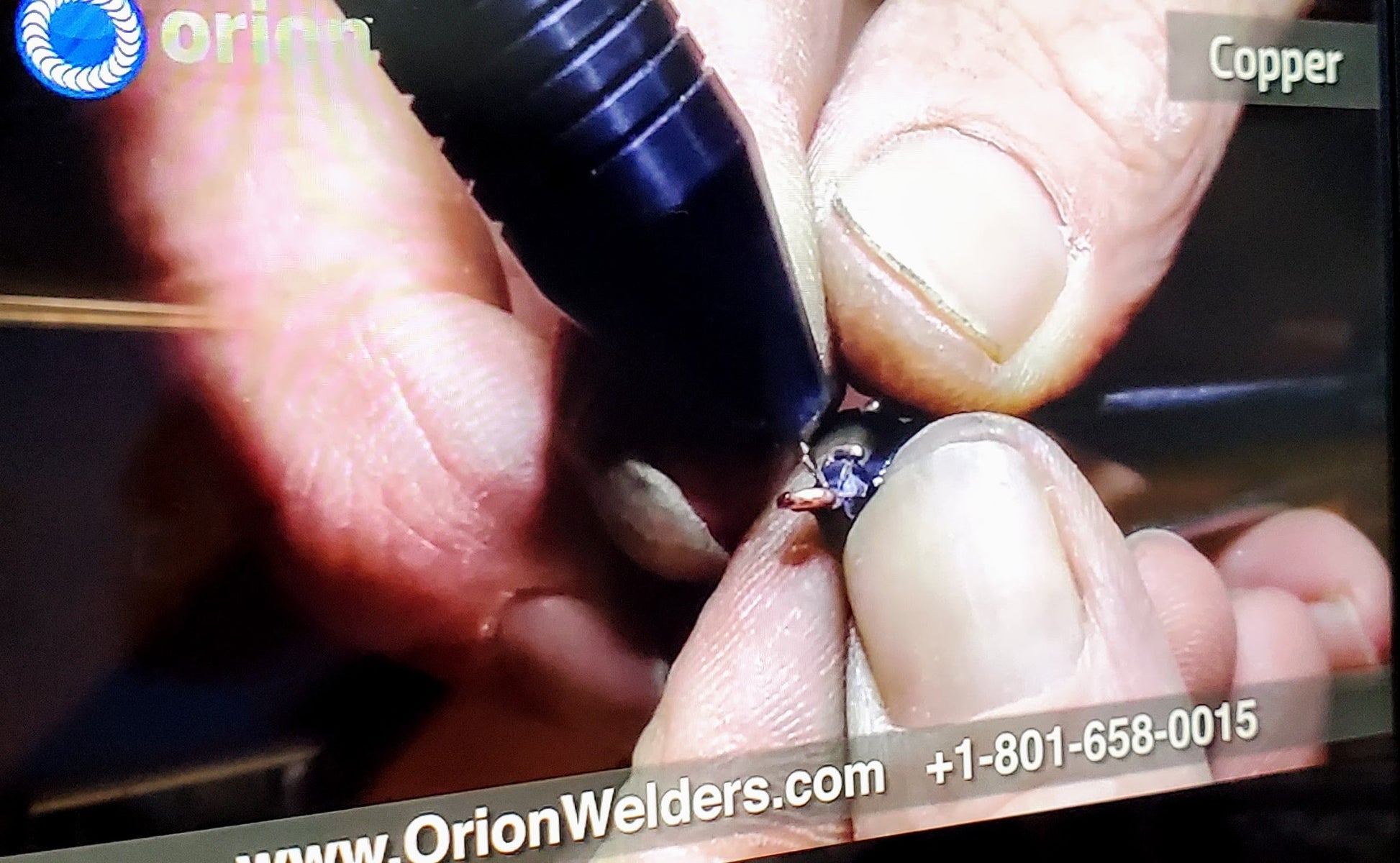

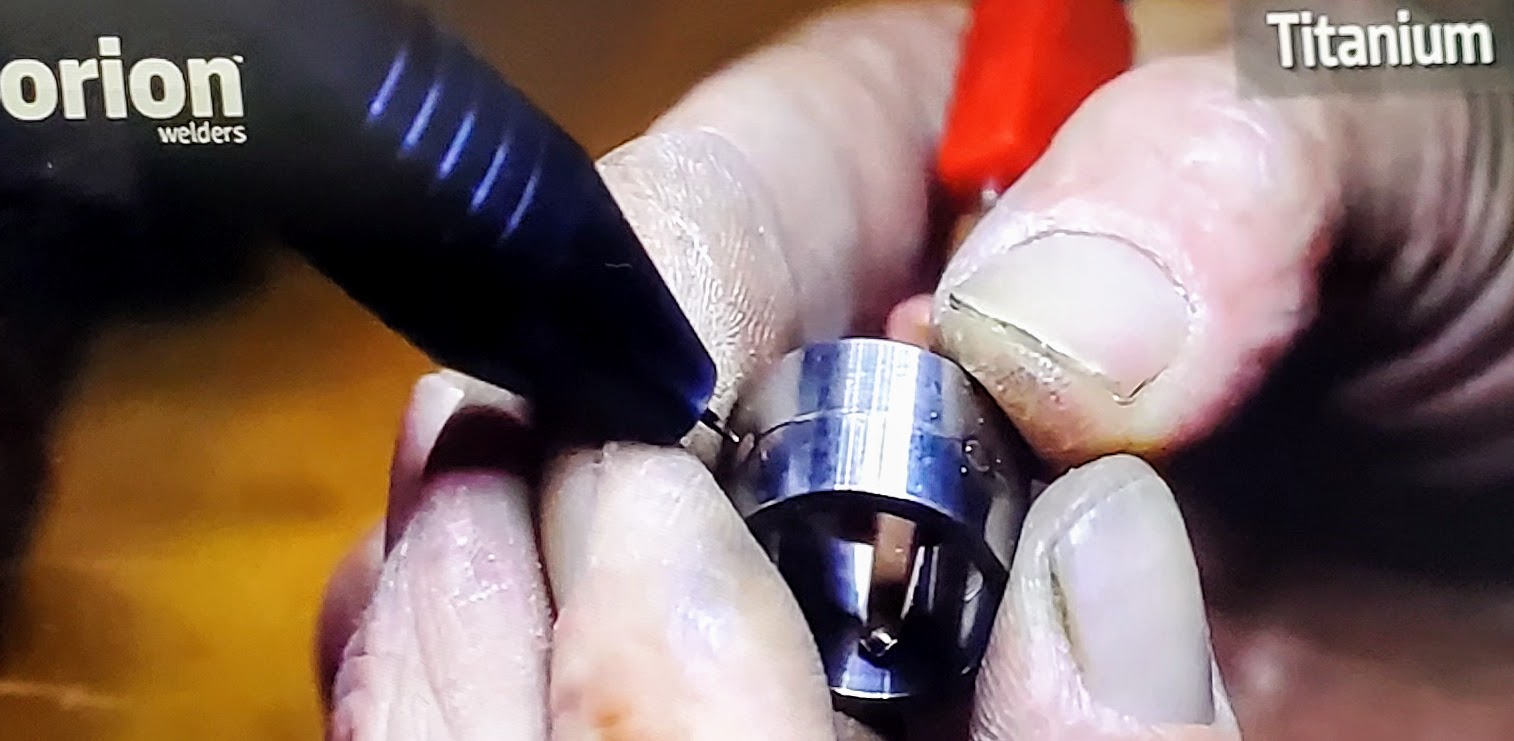

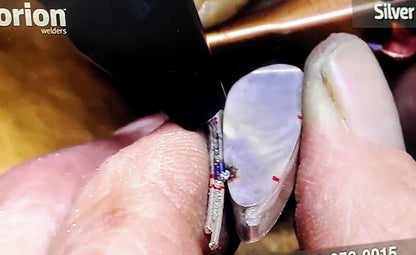

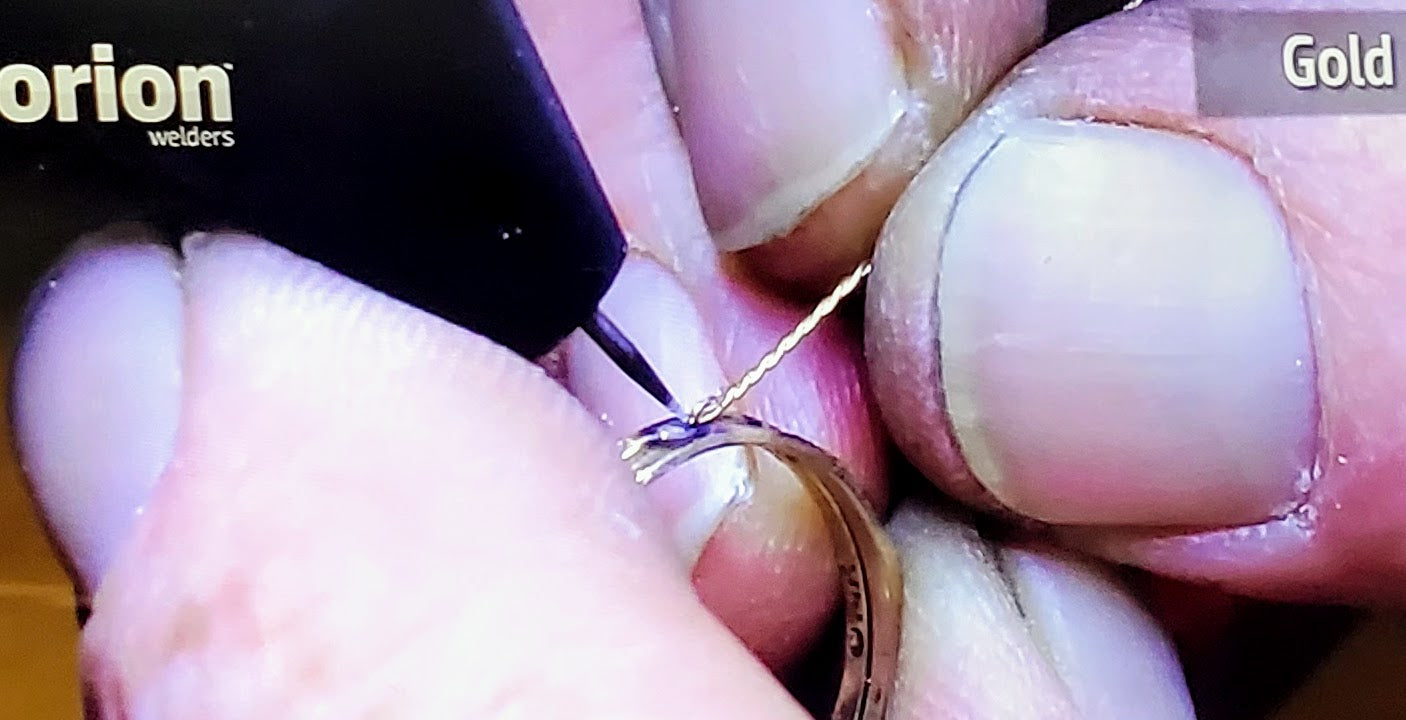

This unit came from a Federal University and is working perfectly. It has immense possibilities, welds pretty much all types of metal (Gold, Titanium, Bronze, Copper, Silver, etc...)
It is Guaranteed Working Perfectly as can be WATCHED IN THE VIDEO.
IMPORTANT: There is no Foot Pedal nor Welding Stylus as shown in the pictures. They can easily be purchased from the manufacturer ORION SUNSTONE or the many online retailers around the country.
FEEL FREE TO WATCH A VIDEO OF THIS SUNSTONE ORION PA250i2 Micro TIG Welder BY CLICKING THE FOLLOWING LINK: https://www.youtube.com/watch?v=haclXGORI7c
Feel Free to Check another video of how to QUICK SET UP this PA250i Micro TIG Welder by clicking: https://www.youtube.com/watch?v=UA39jLyPIBc&list=PLgxANEQzYmJ9L06I8naM73KfKXR_iuk5-&index=6
IMPORTANT: There is no foot pedal nor the Stylus Hand Piece, that's why this low price. We should receive them next week and then will increase the price of course.
Foot Remote is $50 and Stylus Hand Piece is $850, both brand new!

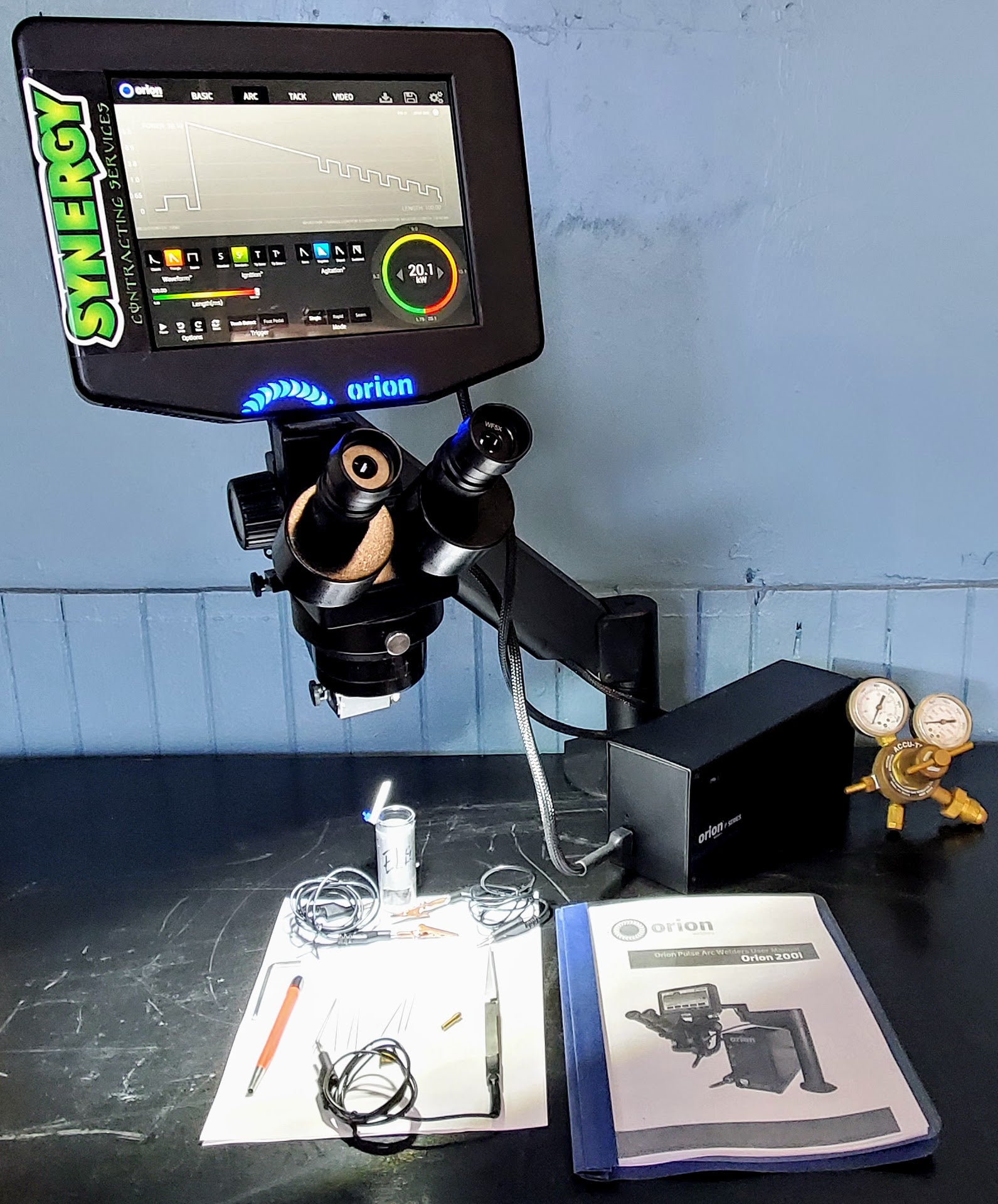

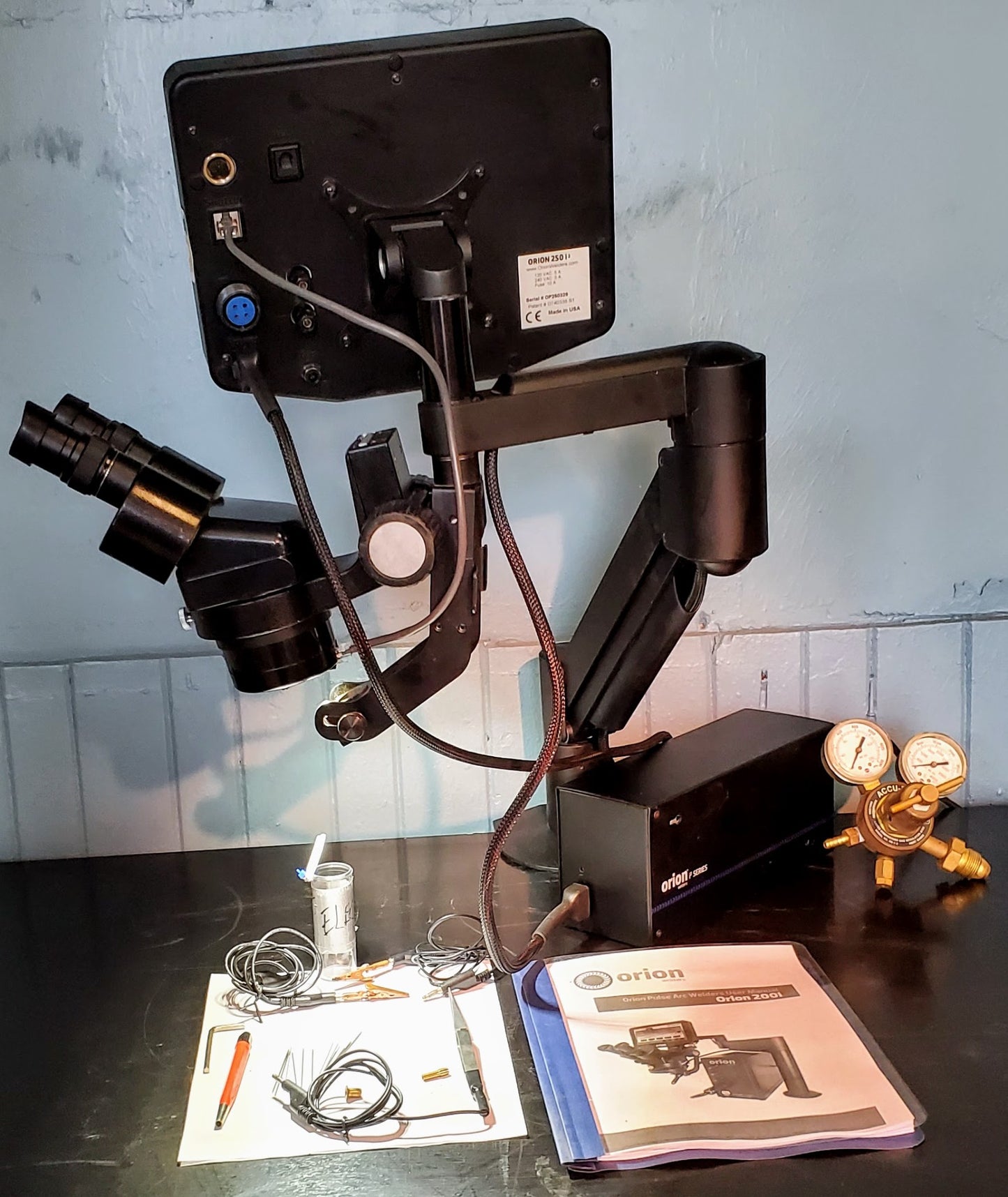

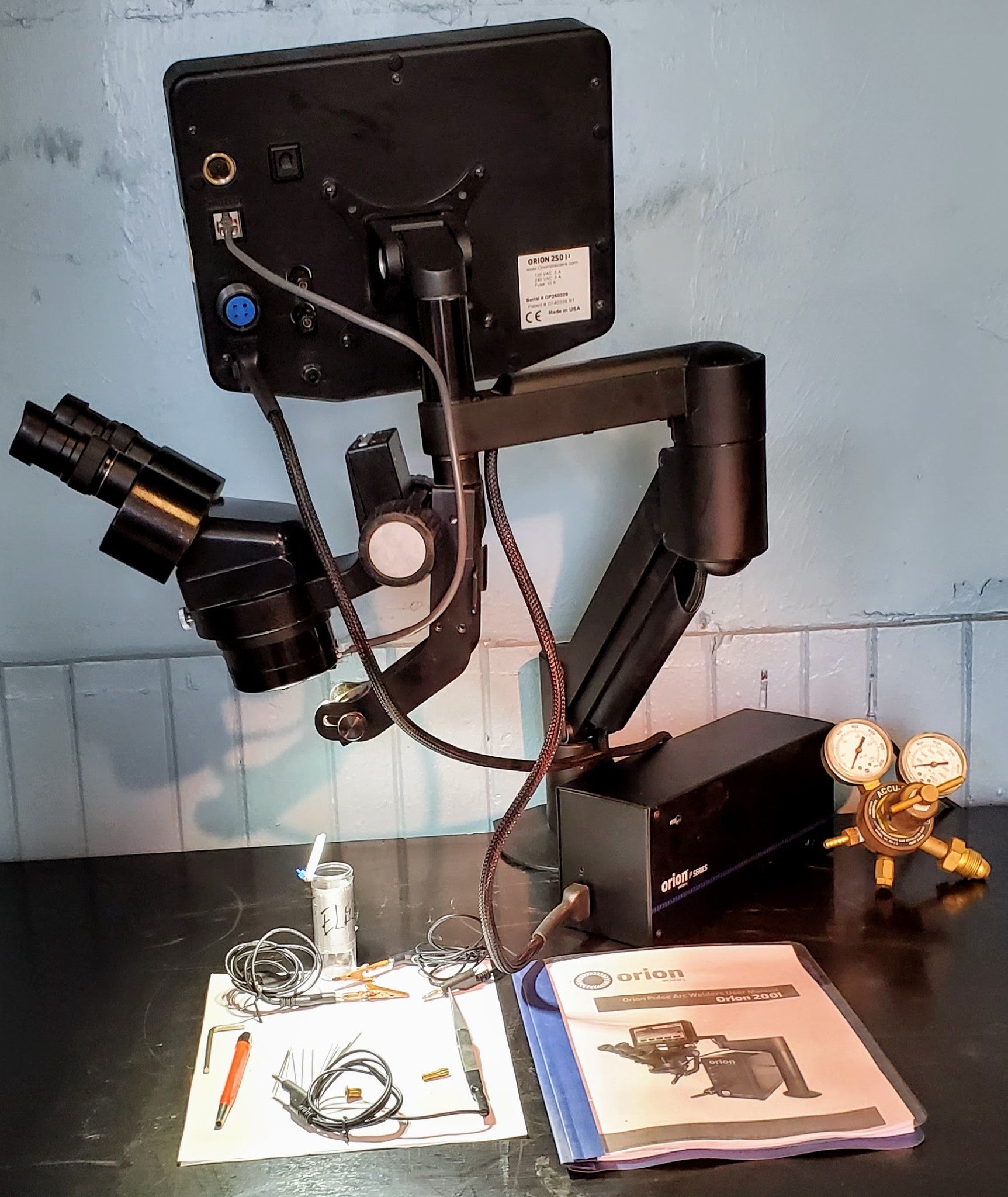

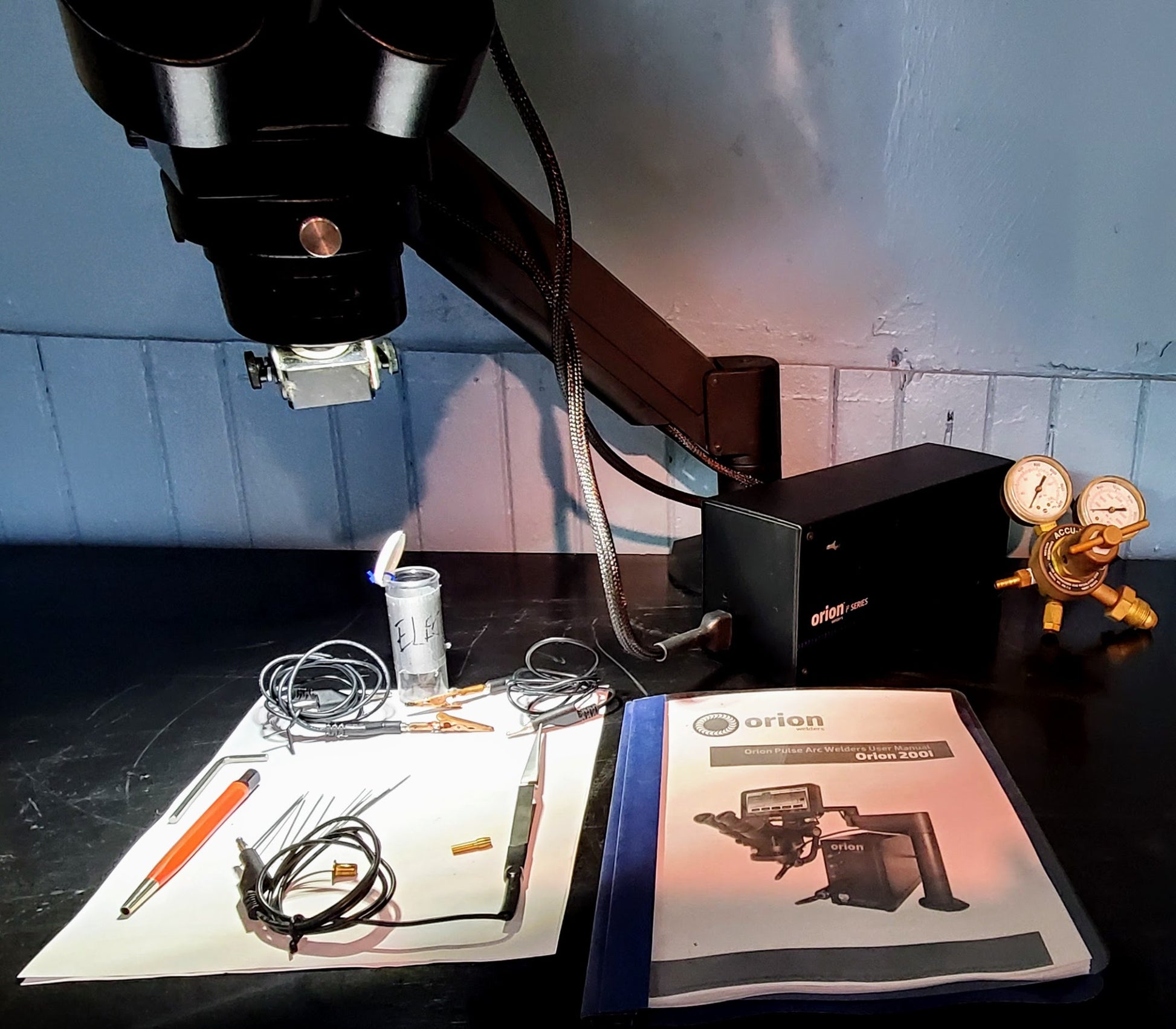

EVERYTHING YOU SEE IN THE PICTURES COMES WITH THIS OMEGA PA250i2 MICRO WELDING SYSTEM.
Every Omega Welding System includes the following items:
- Power Cord
- Alligator Grounding Clips (2 Count)
- Jump Ring Tweezer (1 Count)
- Tungsten Electrodes (5 - 1mm & 5 – 0.5mm)
- Shuttered Microscope (Mounted on Articulating Arm) (1 Count)
- Microscope Eye Covers (1 Set)
- Hex Wrench Set (Every Hex wrench used on the Orion included)
- Collet (For use with Orion Tungsten Electrodes)
Fiberglass Brush
(Used to clean blackness from weld area)
- SUNSTONE ORION PA250i2 Micro TIG Welder
A very small heat affected zone during weld
Ability to easily position welds exactly where you need them
The versatility of welding of very small, thin, and delicate metal parts

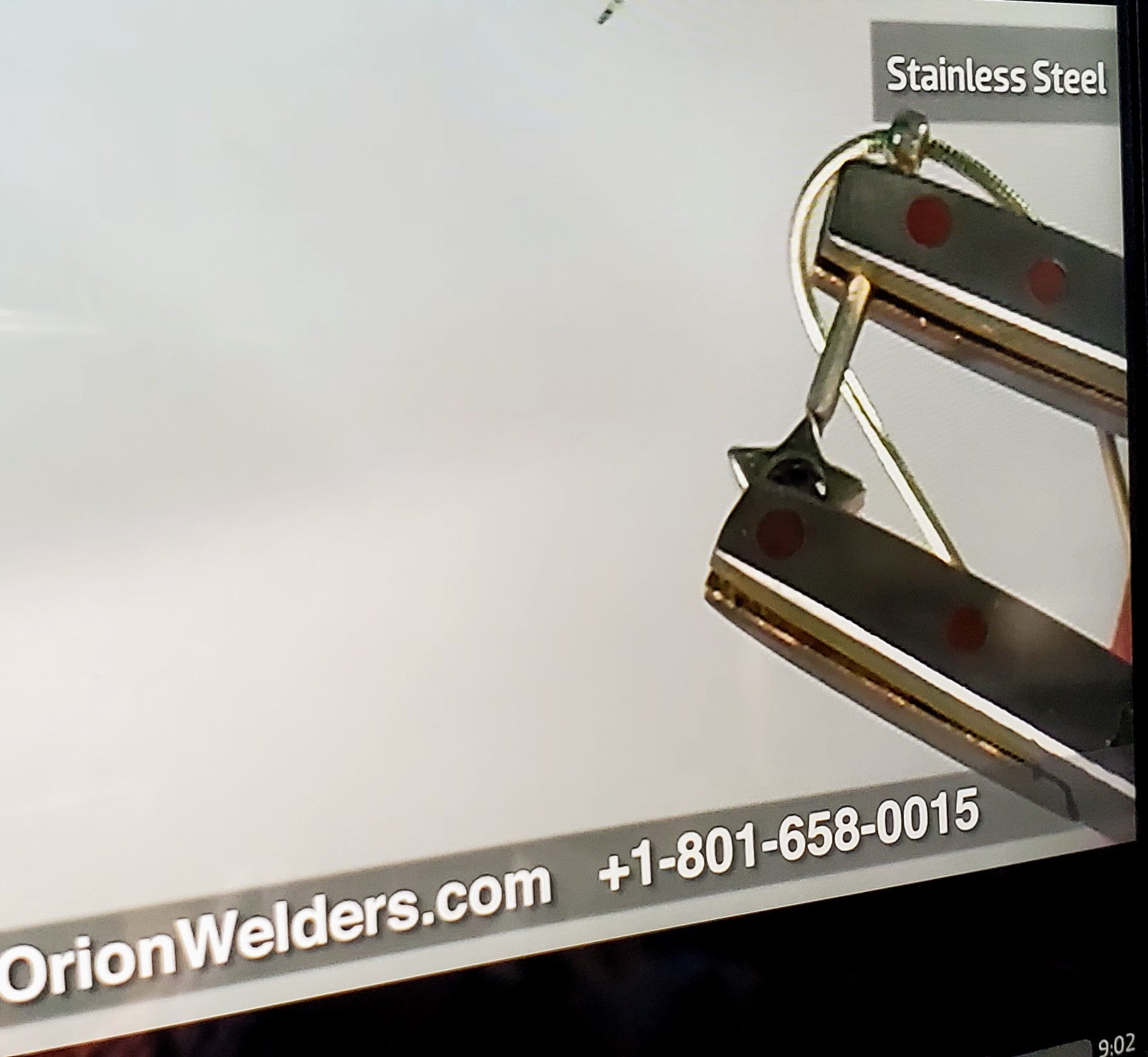

A wide range of metals that can be welded

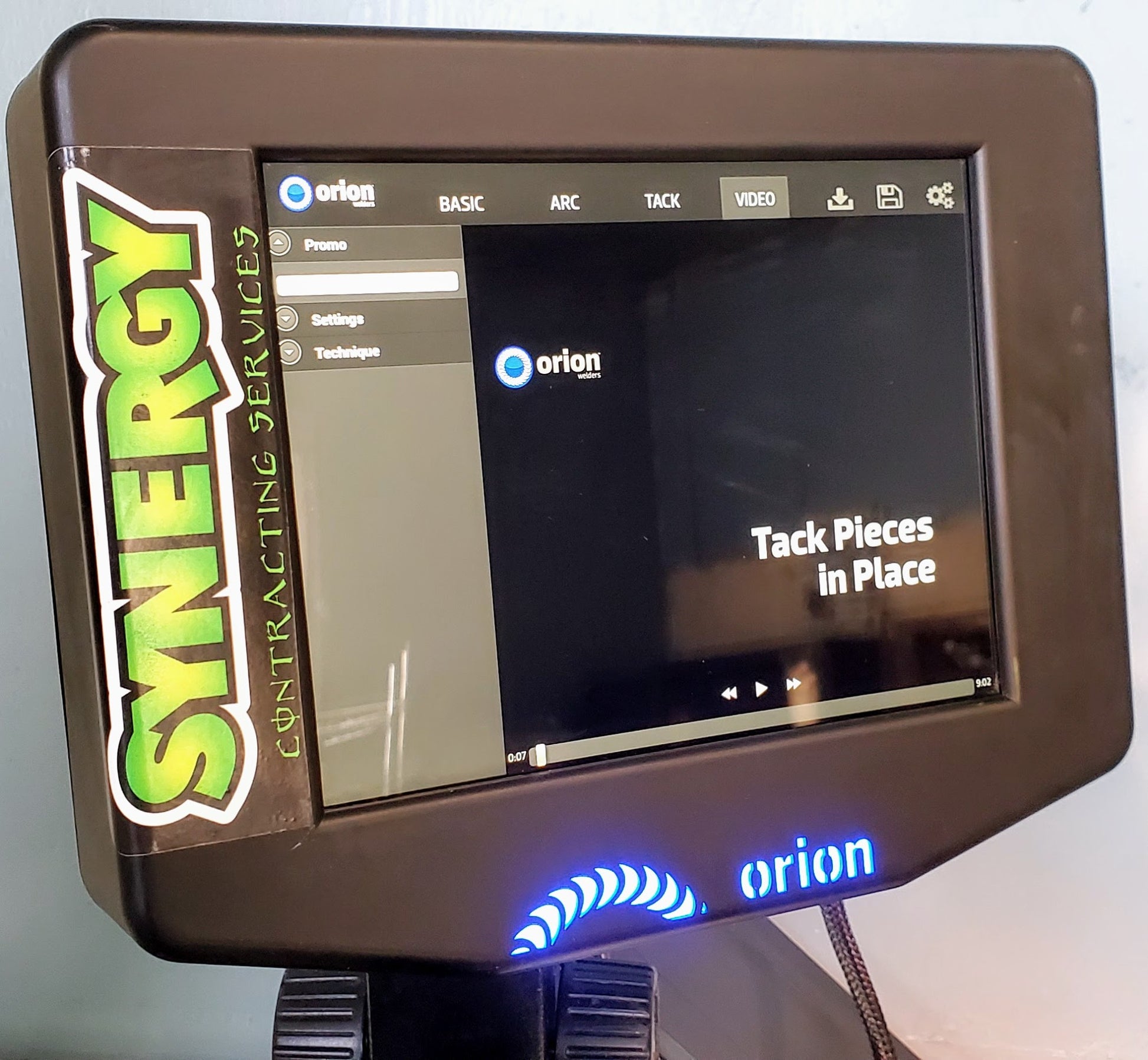

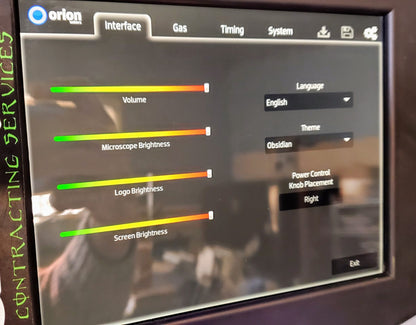

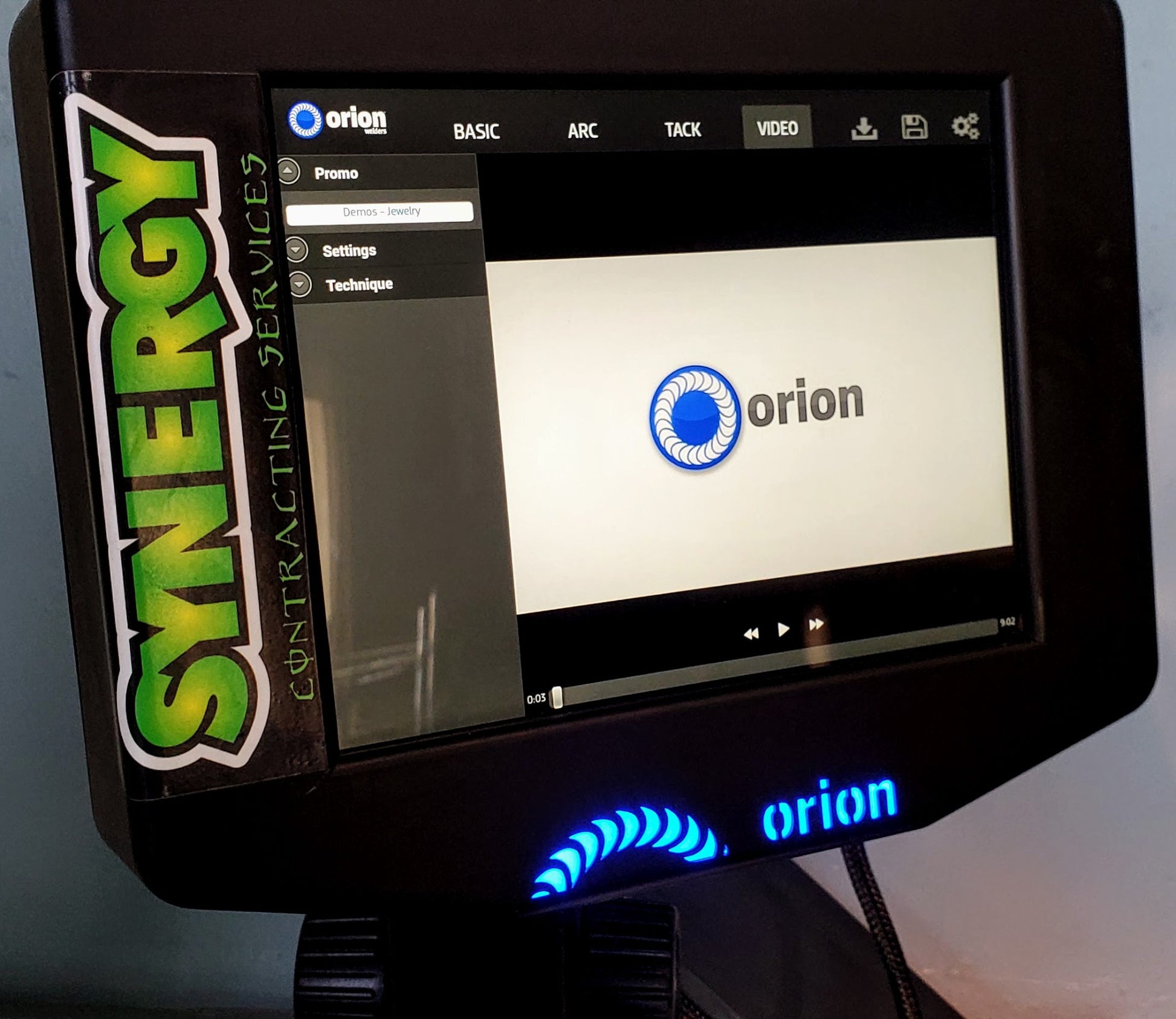

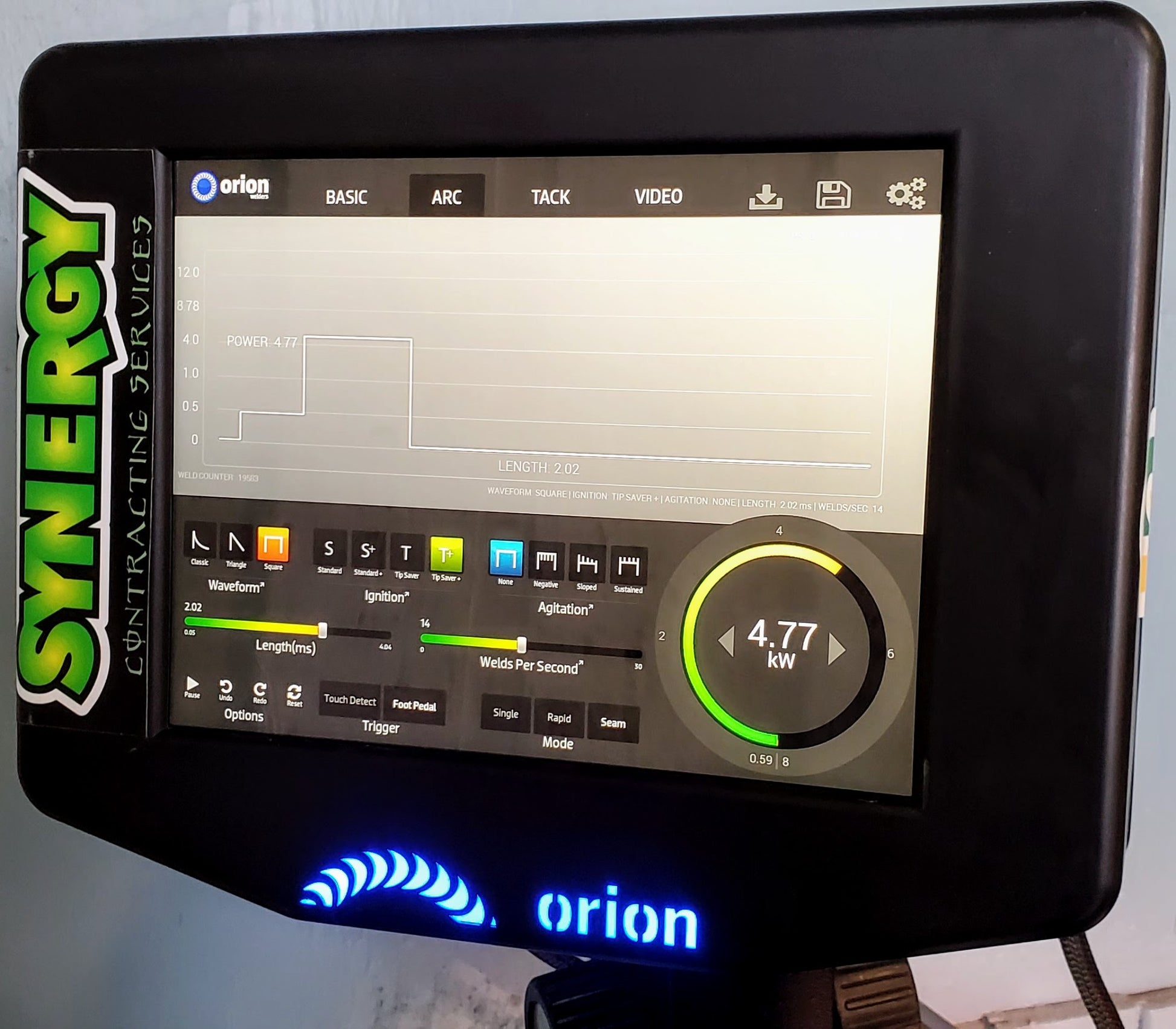

Simple and easy to use touch screen interface
High level of precision with microscope
Consistency and repeatability
A simplified repair process by eliminating soldering
Quality welds
Very low maintenance on machine
Small compact size designed to fit on and around any work bench.
Weight 33 lbs
The Orion 200i2 (Patent D740,338) is the most advanced micro tig welding product in the world.
It is packed with features that will simplify the welding needs of any jeweler, goldsmith, or silversmith.
Innovative features include: Pico weld mode for intricate welds as small as 0.01 Joules of energy, to achieve truly microscopic weld joints;
- user settings up to 200 joules of energy for large silver or platinum pieces;

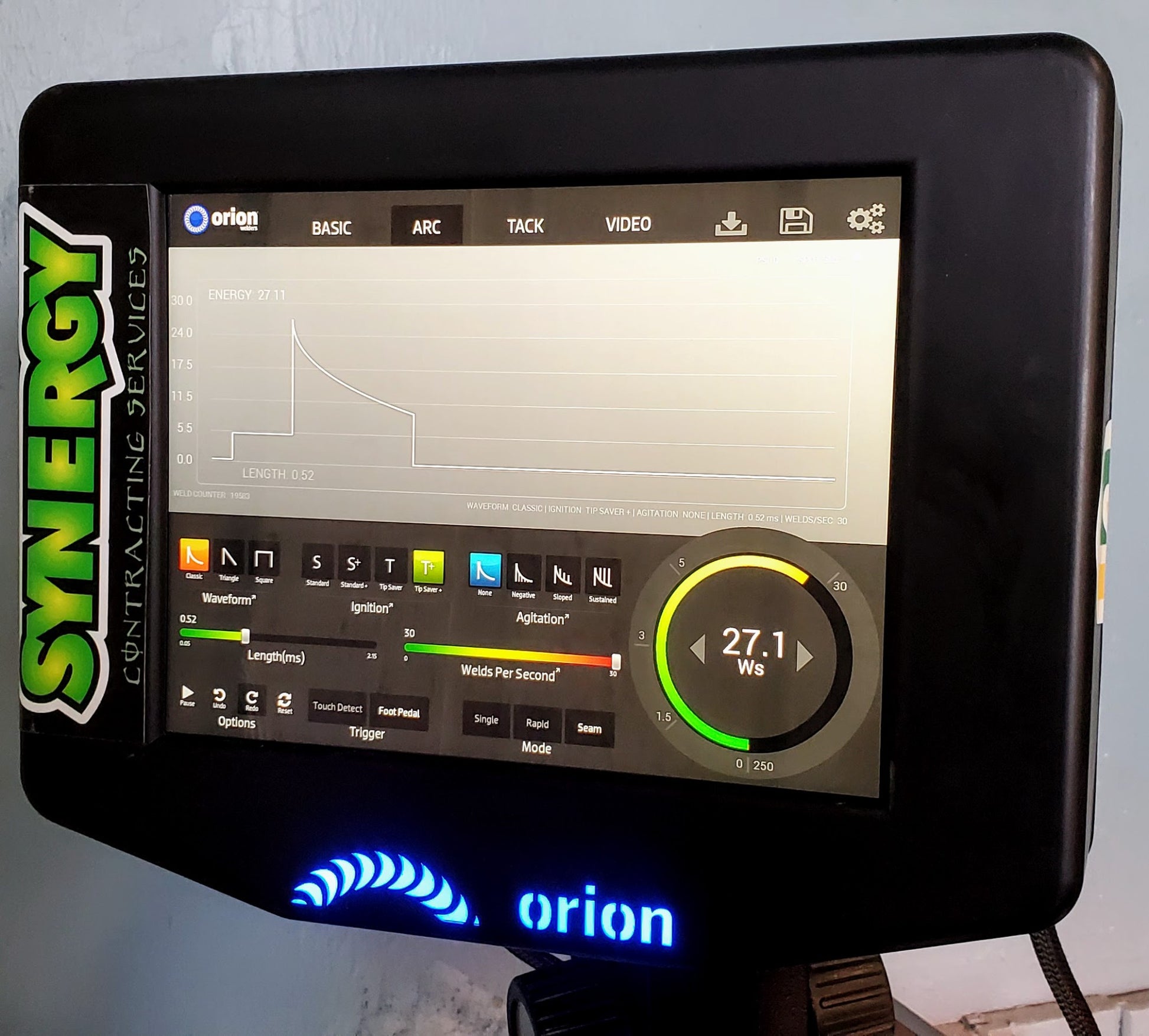

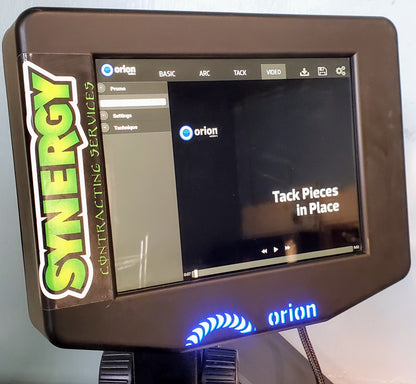

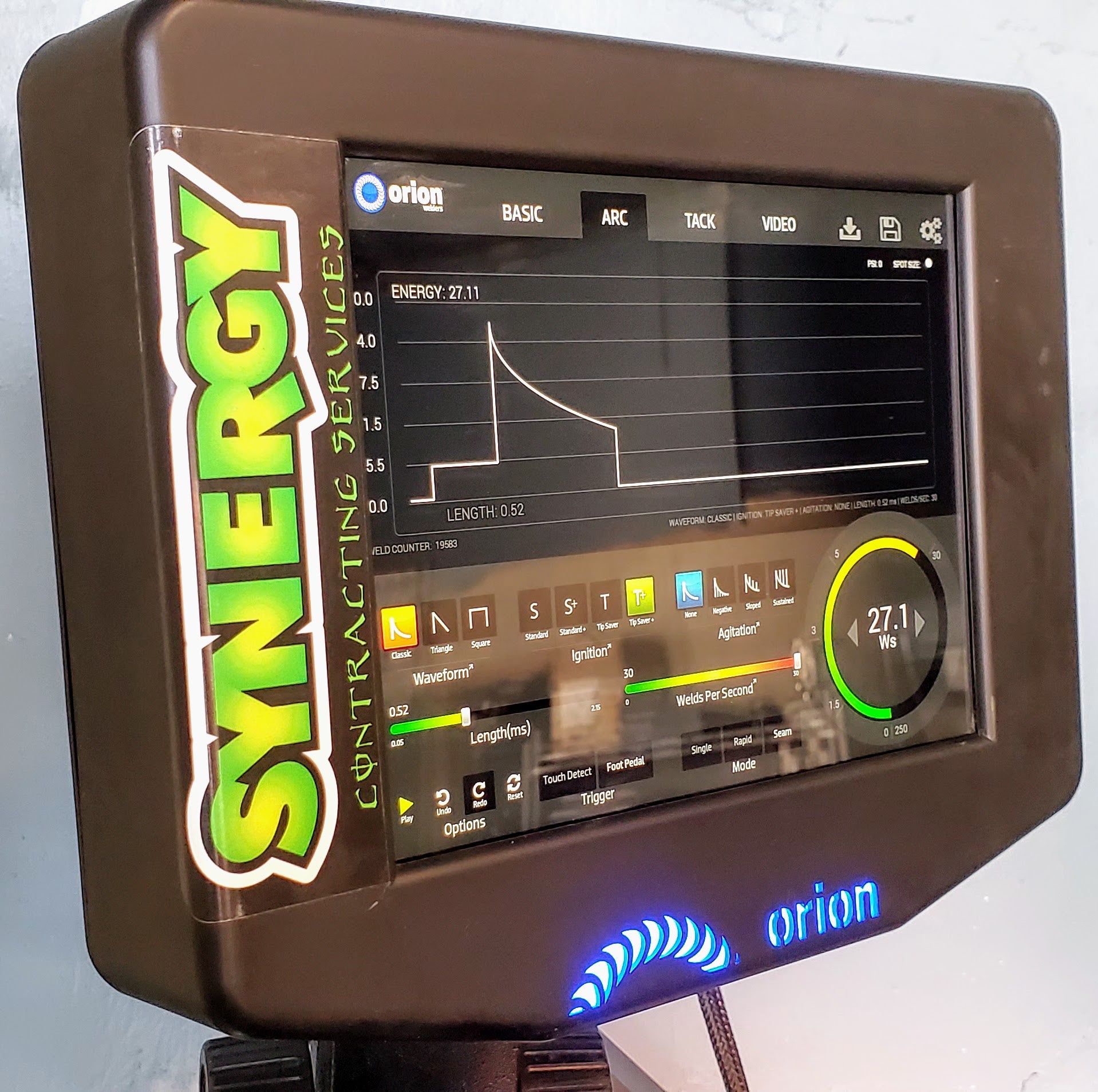

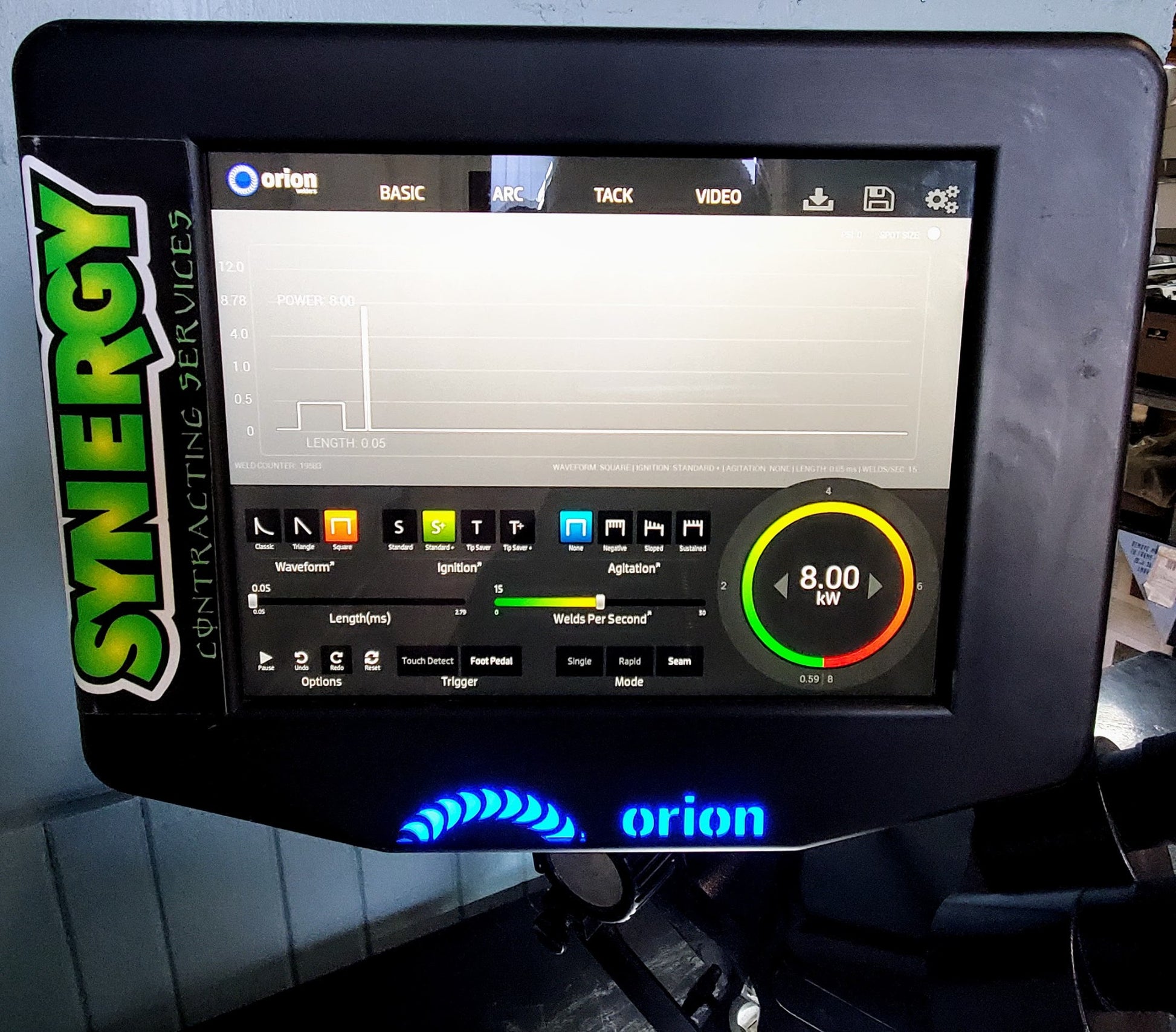

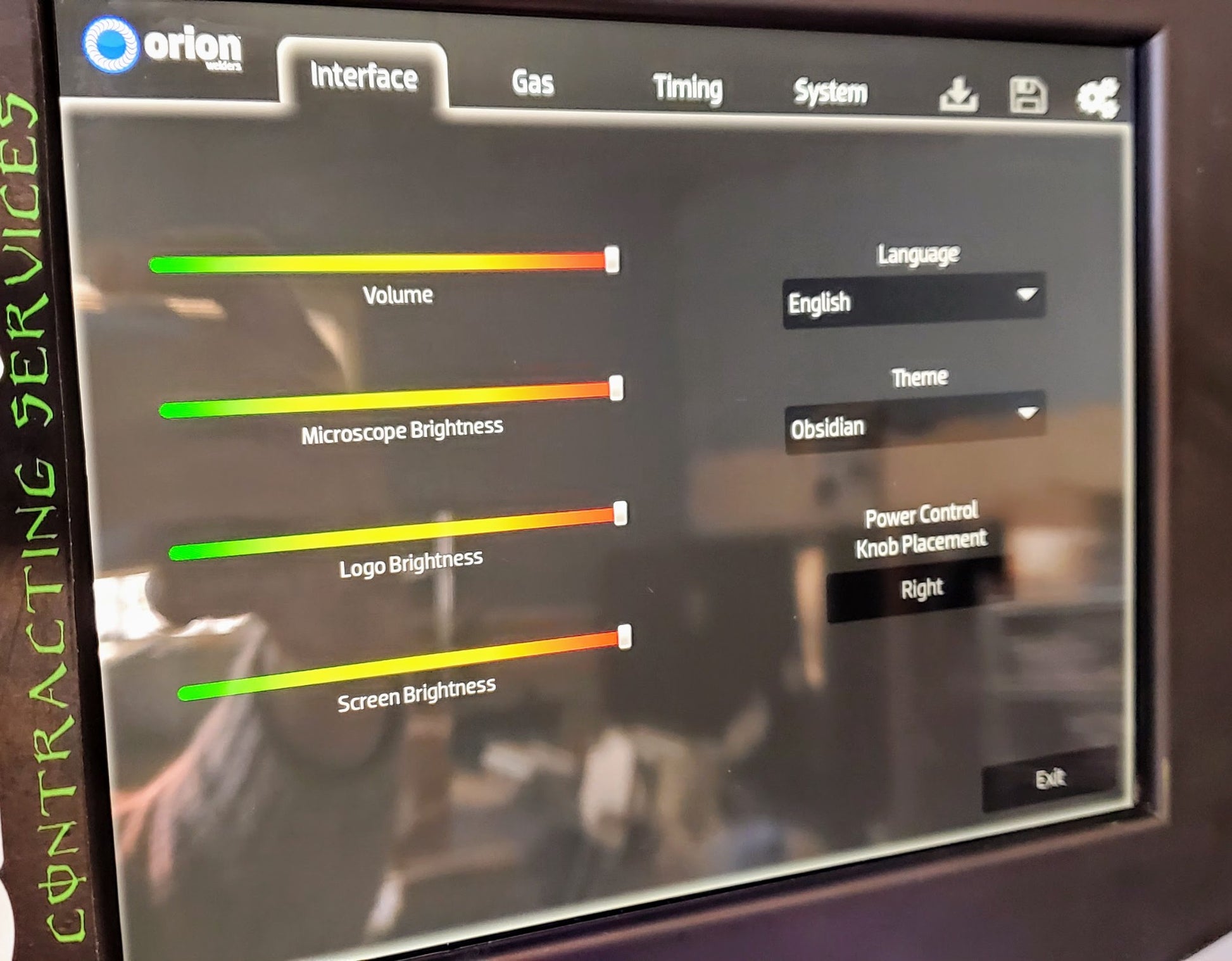

- a large 10” touch screen interface with one-touch access to all micro tig welding parameters; the ultimate space saving design;
- and 3 unique pulse shape wave form options to choose from: Classic Orion (for Orion users that have come to love welds produced by the Orion 150i), Triangle (for weld smoothing), and Square (laser like welding at a fraction of the cost).
The Orion 200i2 also introduces a patented feature—Seam mode—a revolutionary breakthrough in micro tig welding.
Seam mode allows users to mimic laser welding with weld speeds up to 30 welds per sec.
The patented Orion 200i2 is a full-featured, precision welder with the speed of a laser, paired with the versatility, power, and ease of pulse arc welding.

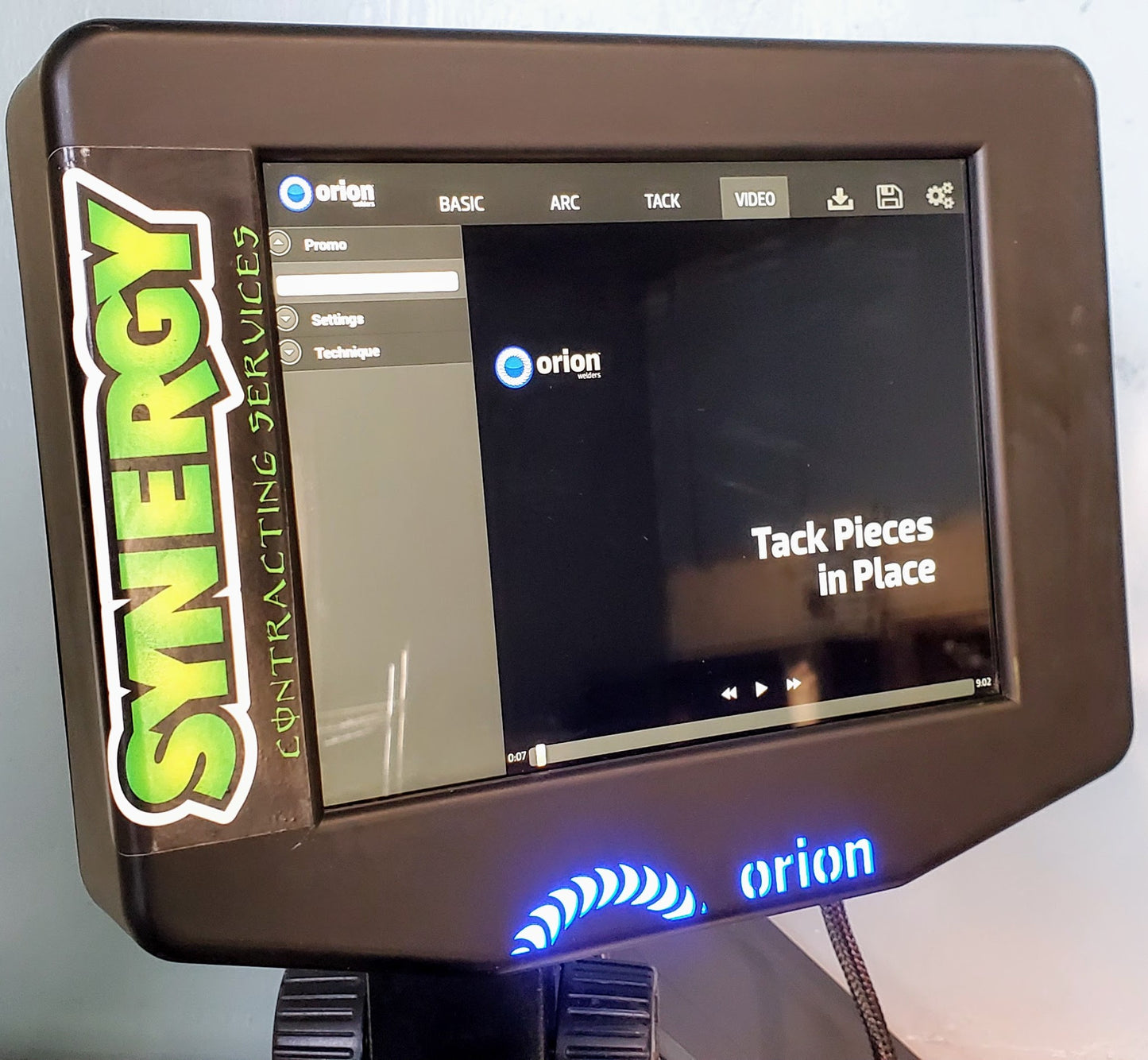

Display (Touch Screen): 10” Full
Languages: 20+
Welder (L x W x H): 4.9” x 4.9” x 27” (12.4 x 12.4x 68.5cm)
Weld Programs: 16
Save Settings Spaces: 1,000
CE Certificate: Yes

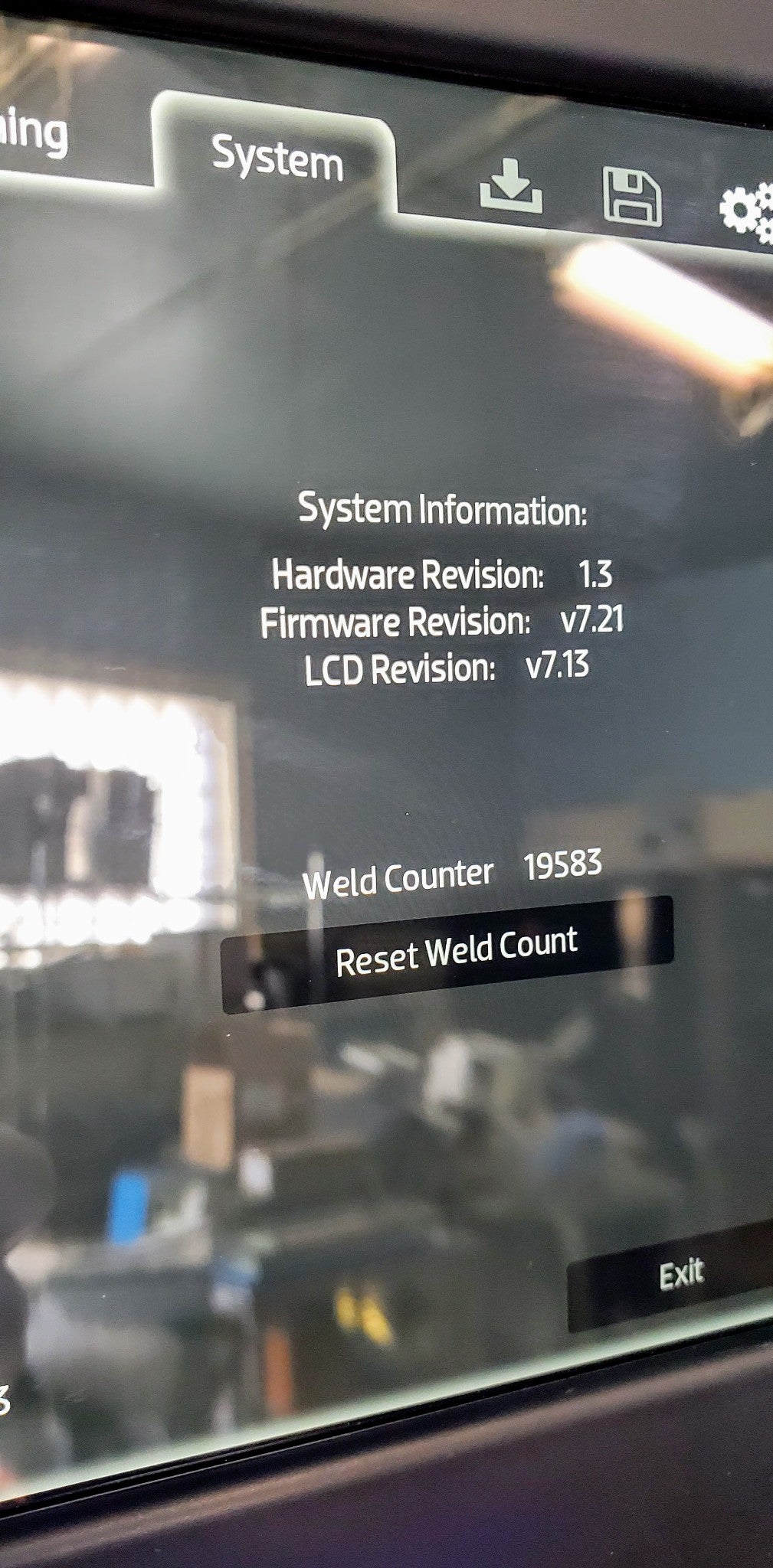

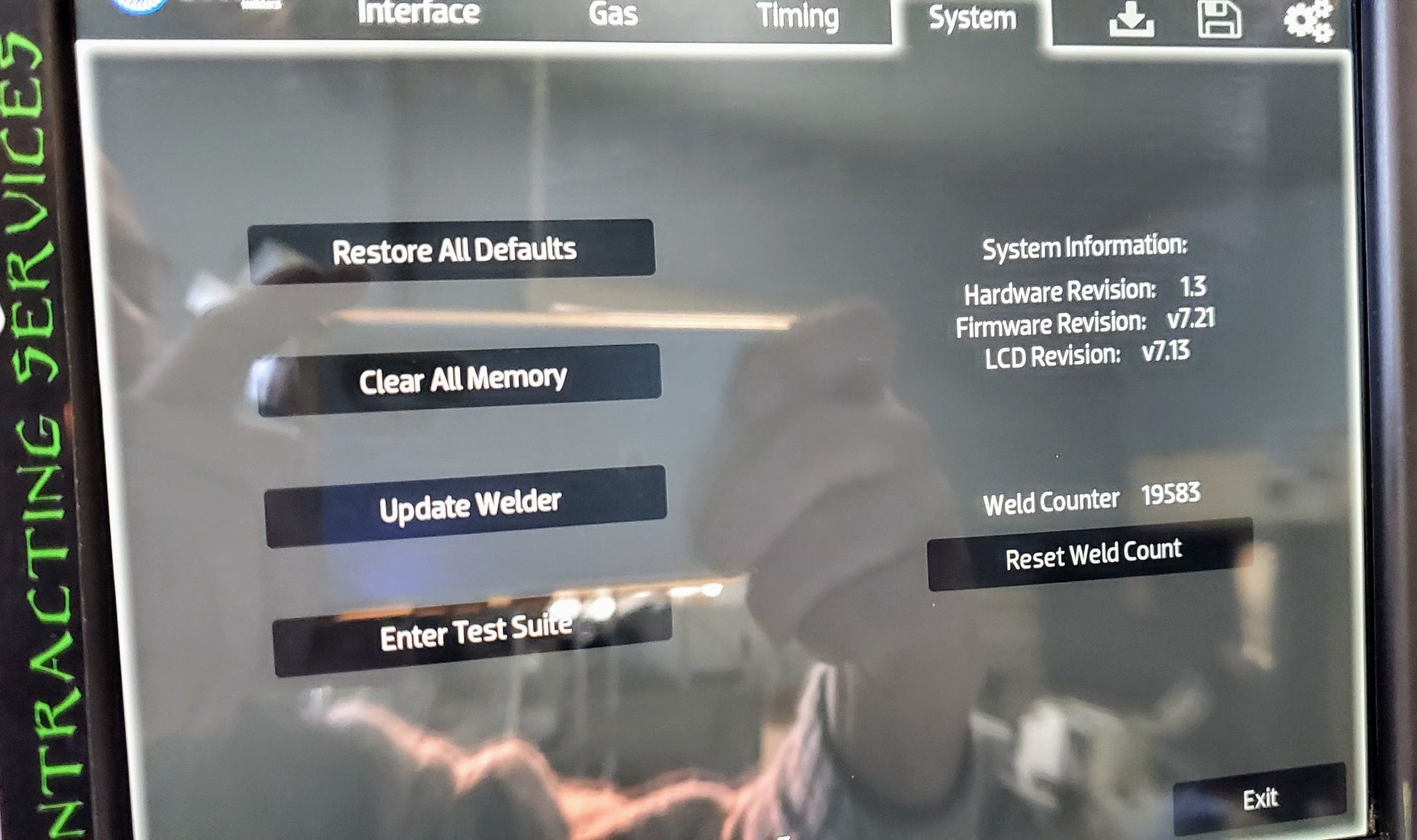

USB Upgradable Software: Yes
Pulse Arc Welding
Energy (min-max in Joules): 0.01 – 200
Current (min-max in Amps): 6 – 1000A
Power Settings: 20,000
Length (min-max): 0.1 – 100ms
Length Settings: 6,000
Weld Spot Diameter Range: ≈ 0.1 – 4.5mm
High Frequency Agitation: Multiple/Advanced
Pulse Shaping: Advanced
Max Welding Speed (Hz): 30Hz
Max Charging Time: 1.2s
Single Fire Mode: 1 weld/0.5 seconds
Rapid Fire Mode: 1 – 4 welds/sec (4Hz)
Seam Mode: 1-30 welds/sec (33Hz)
Pico Mode: Yes
Ultra Mode: Yes
Adaptive Weld Ignition: Yes
Arc Start Technology: Yes
Internal Weld Monitoring: Yes

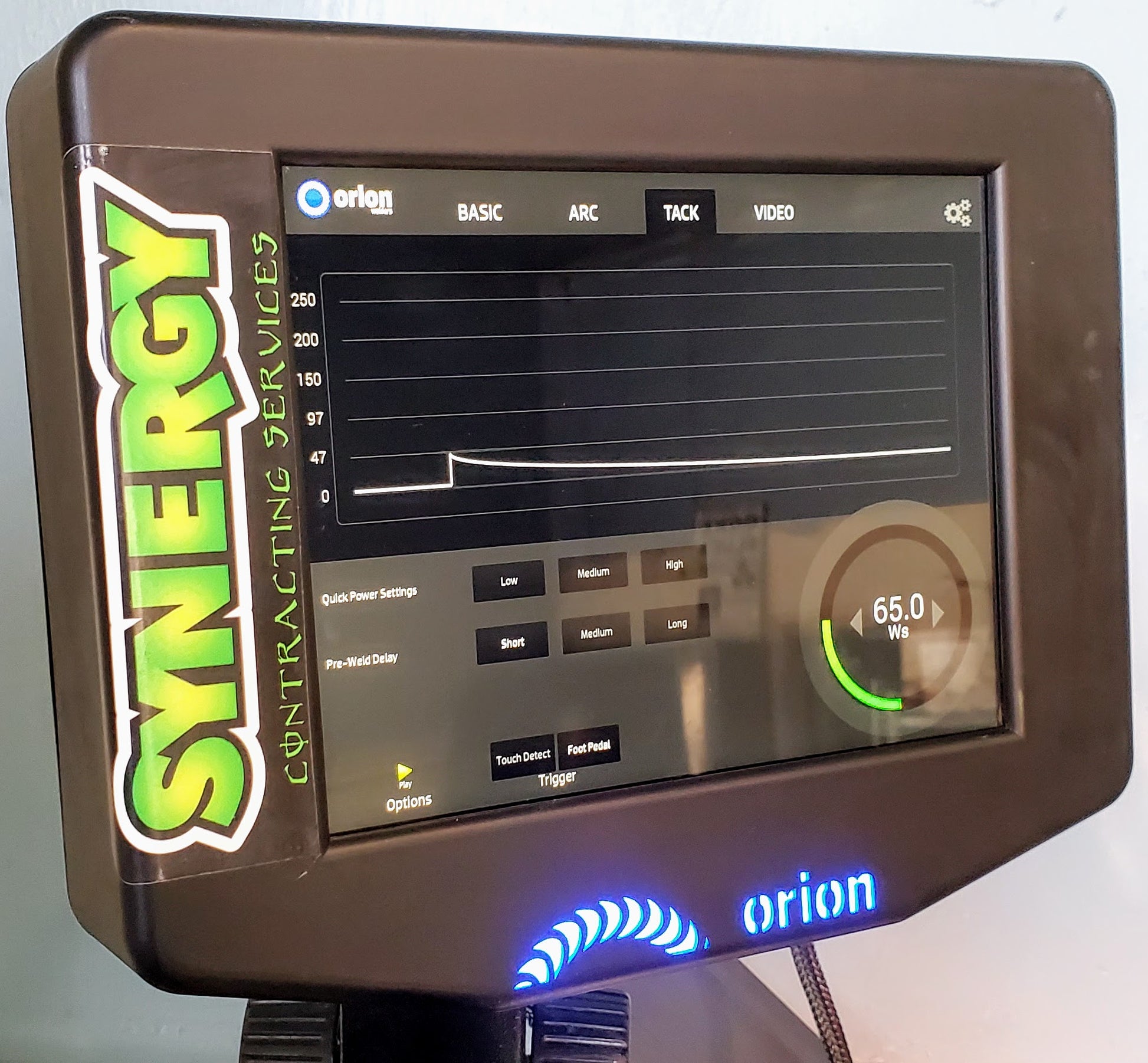

Tack Welding
Energy (min-max in Joules): 5 – 200
Peak Current (min-max in Amps): 4,000A
Power Settings: 20,000
Length (min-max): 60ms
Length Settings: 1

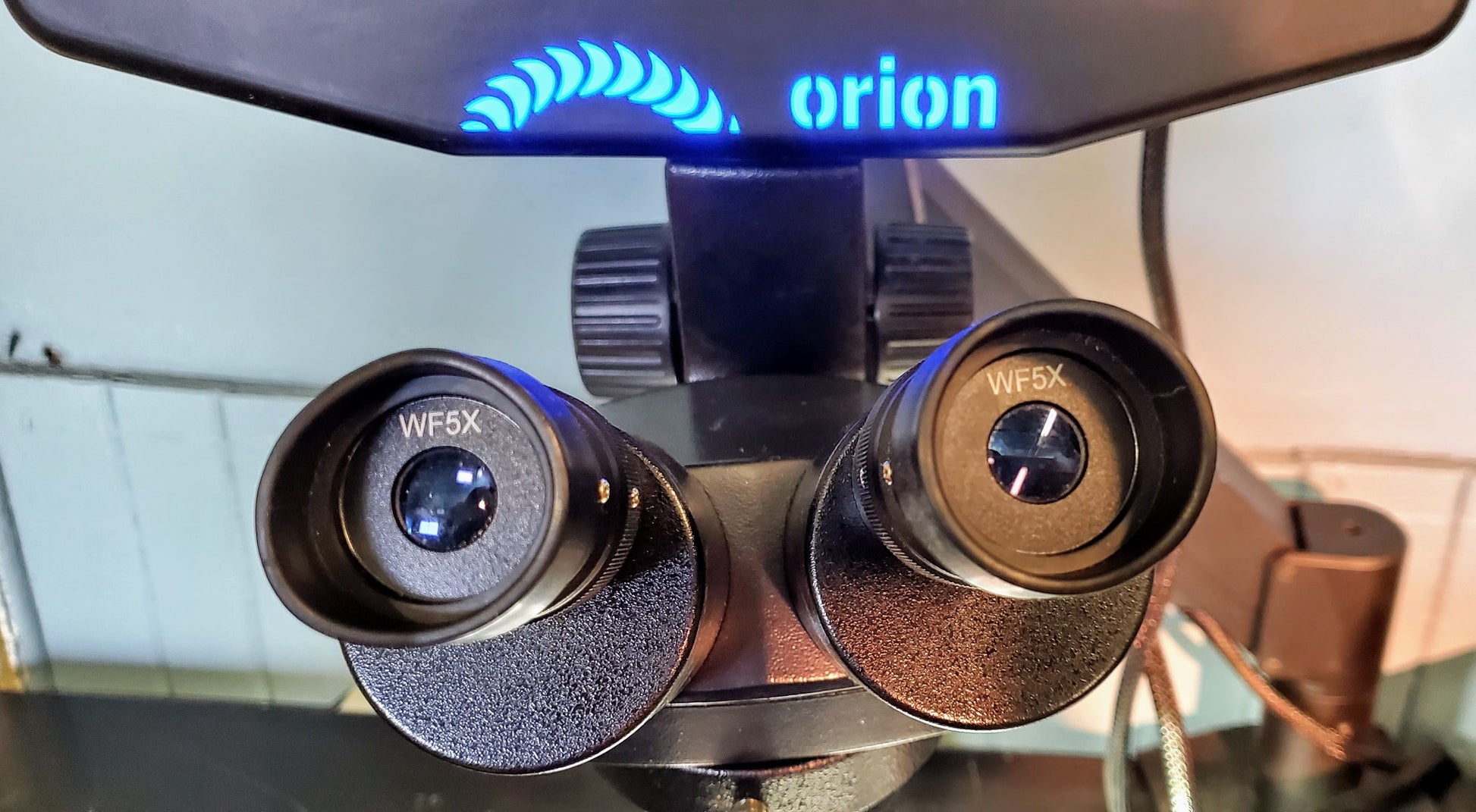

Microscope
Magnification: 5x
Vertical Stylus Working Space: ~110 mm
Automatic Eye Protection: Darkening Lens
UV Protection: > UV 16
IR Protection: > IR 16
Stock # 213001
