STRYKER 1020 BIG WHEEL HOSPITAL X-RAY CART IMAGING TRAUMA STRETCHER PAD FREESHIP

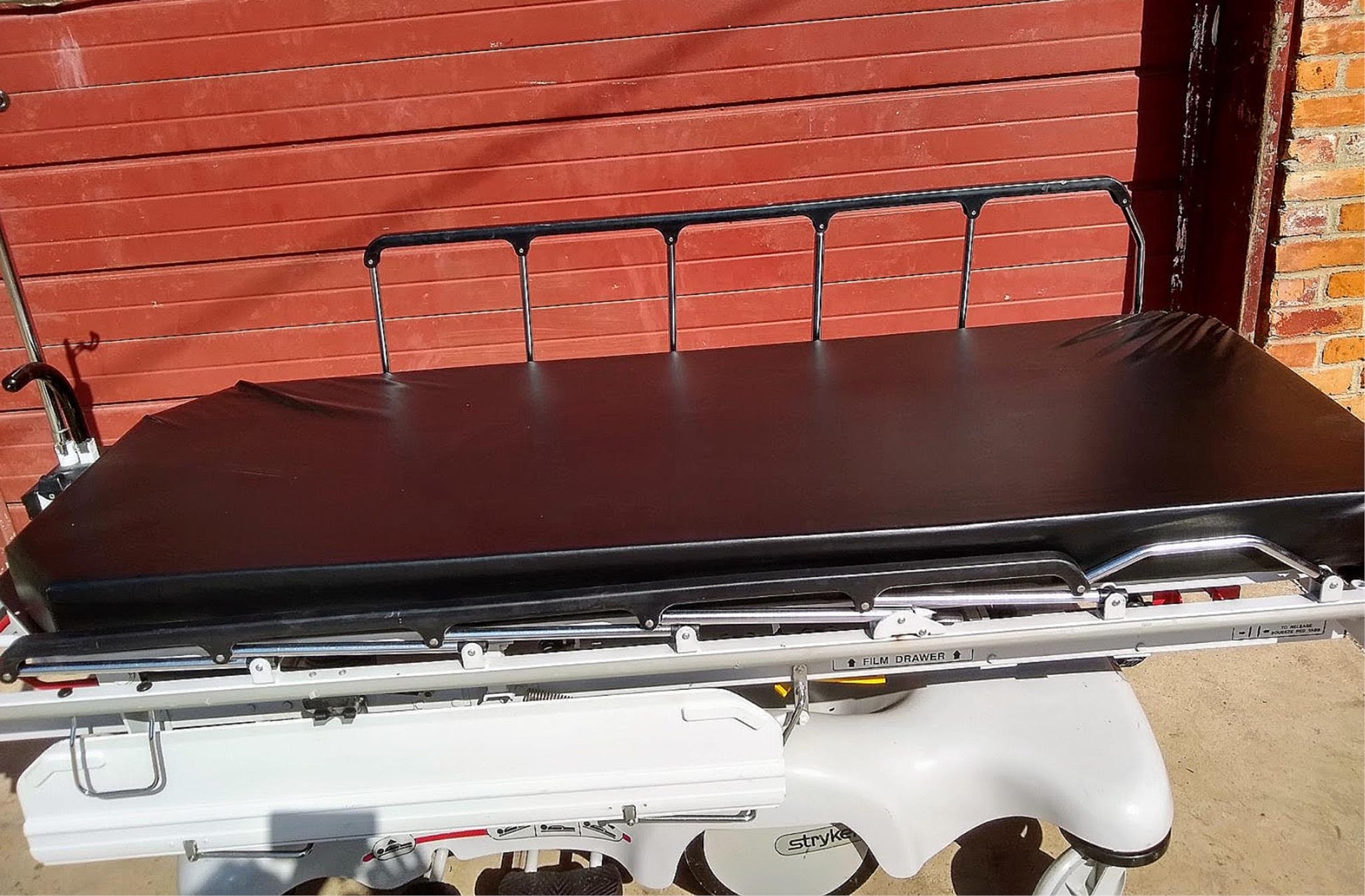

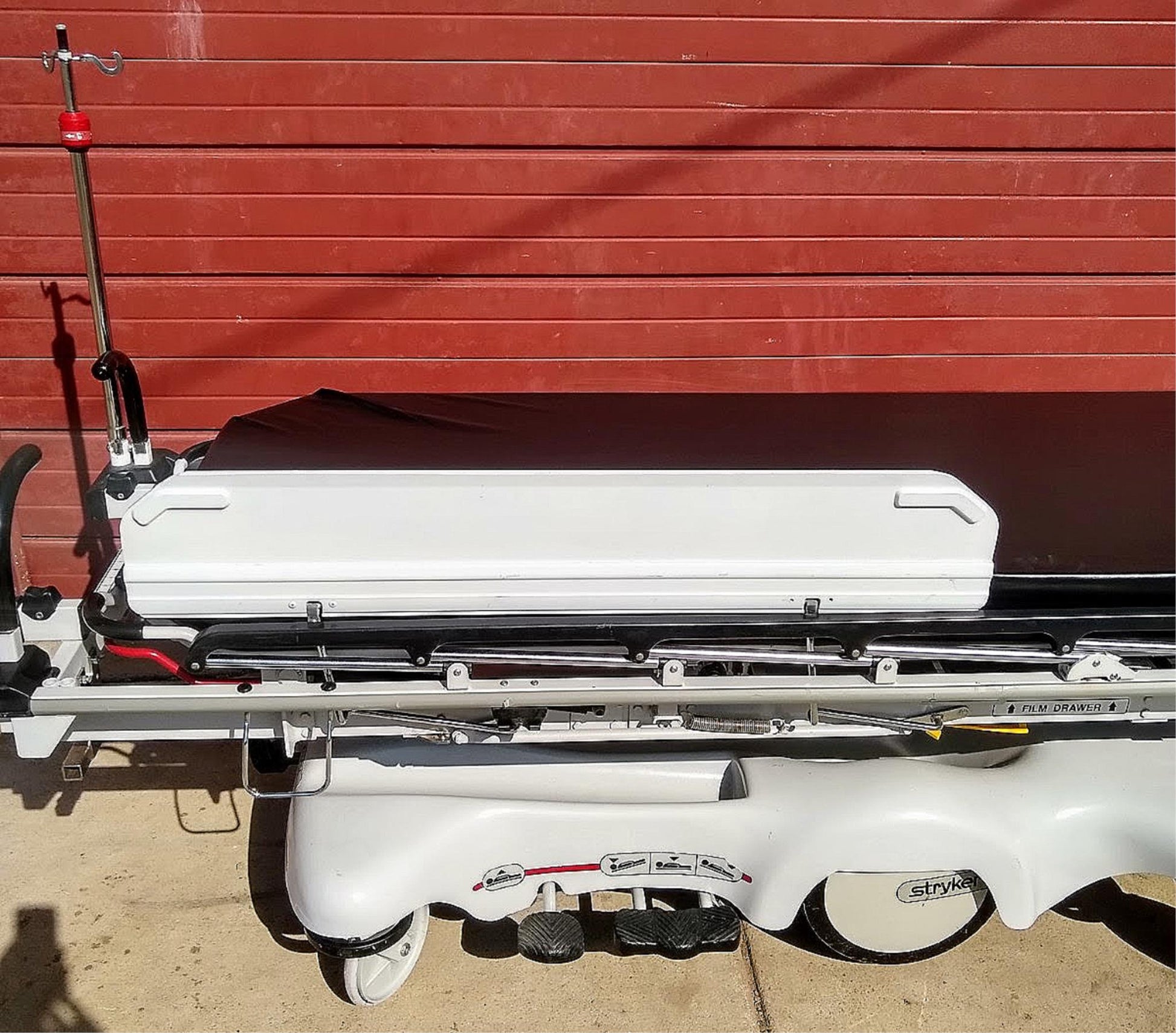

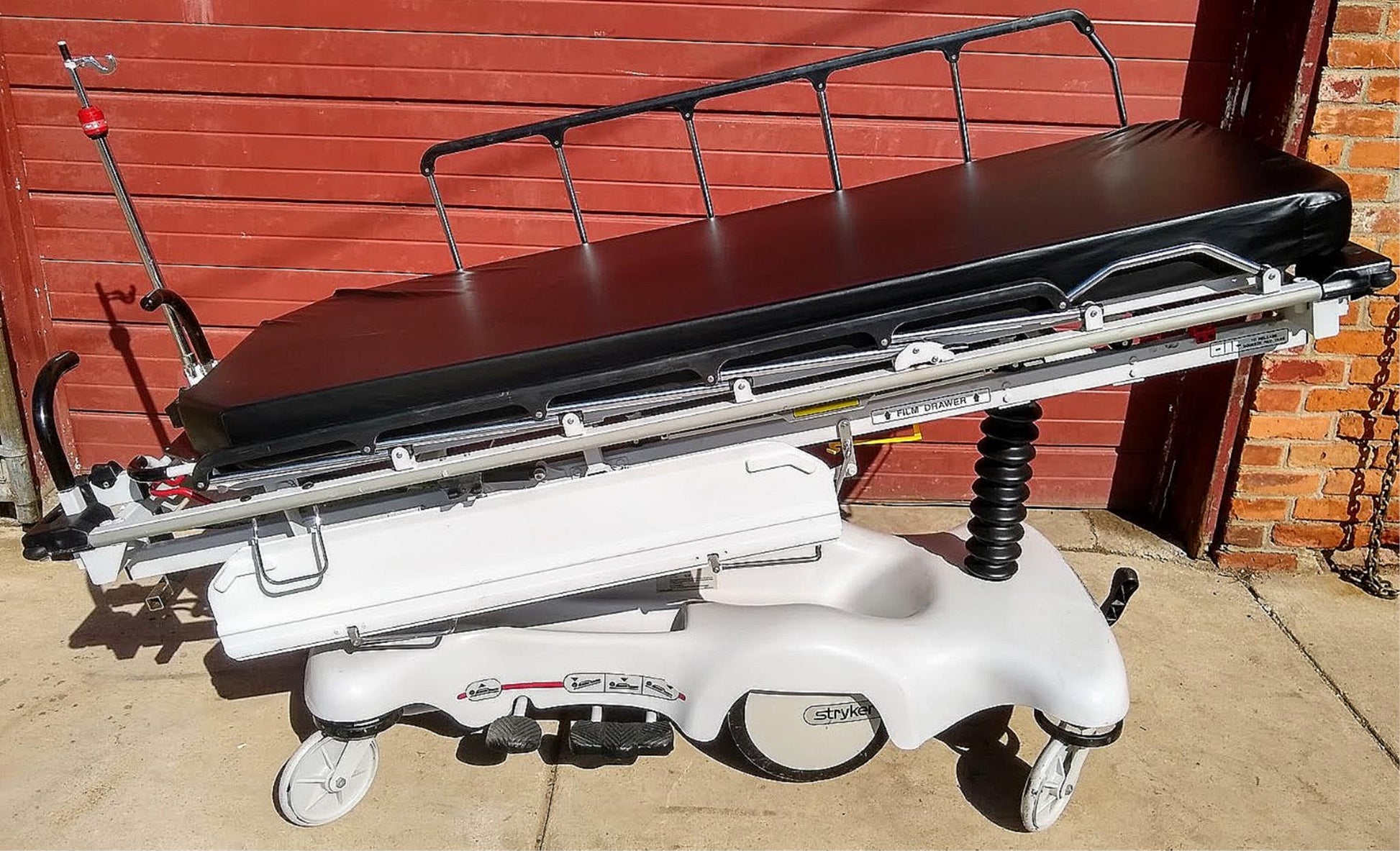

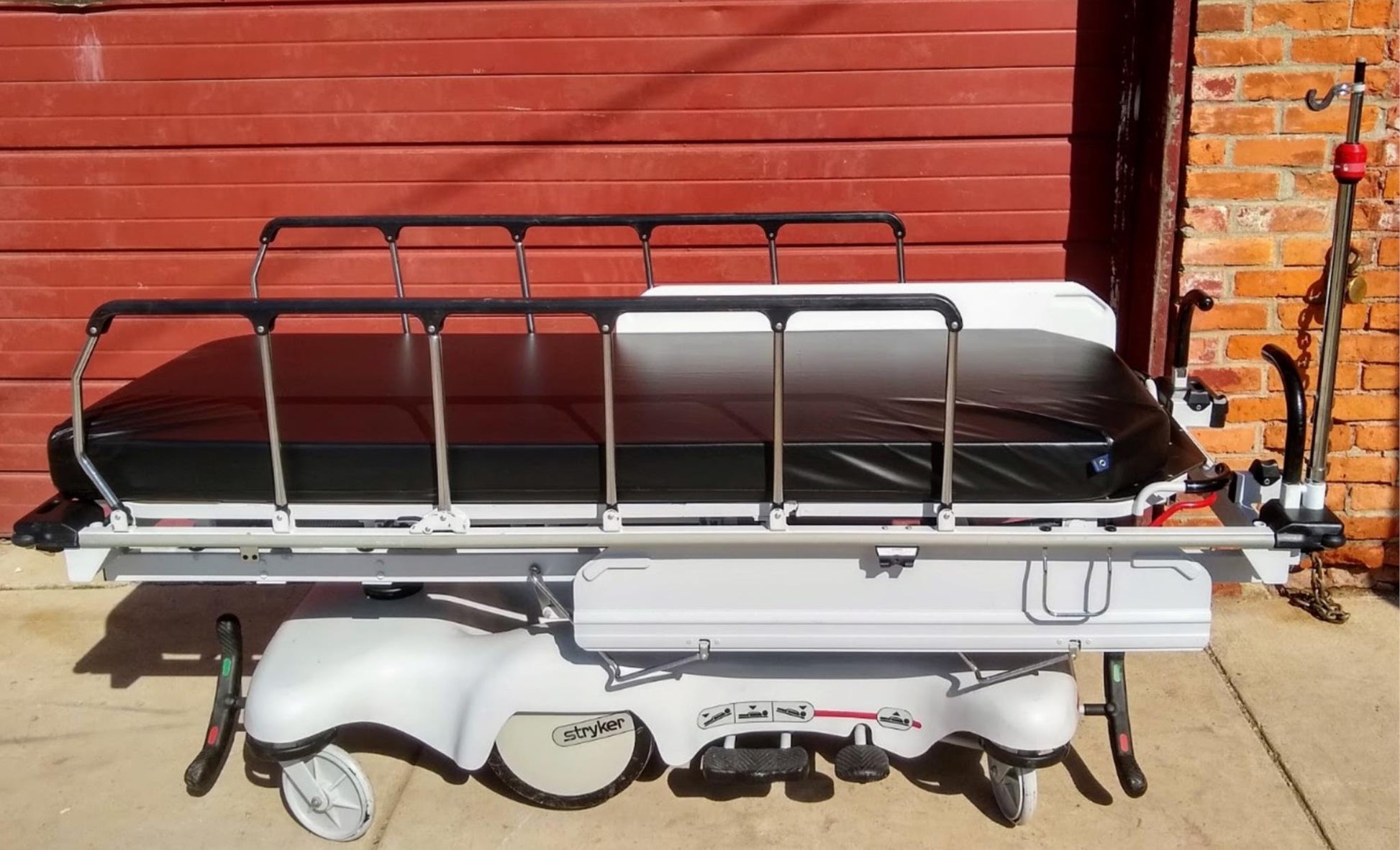

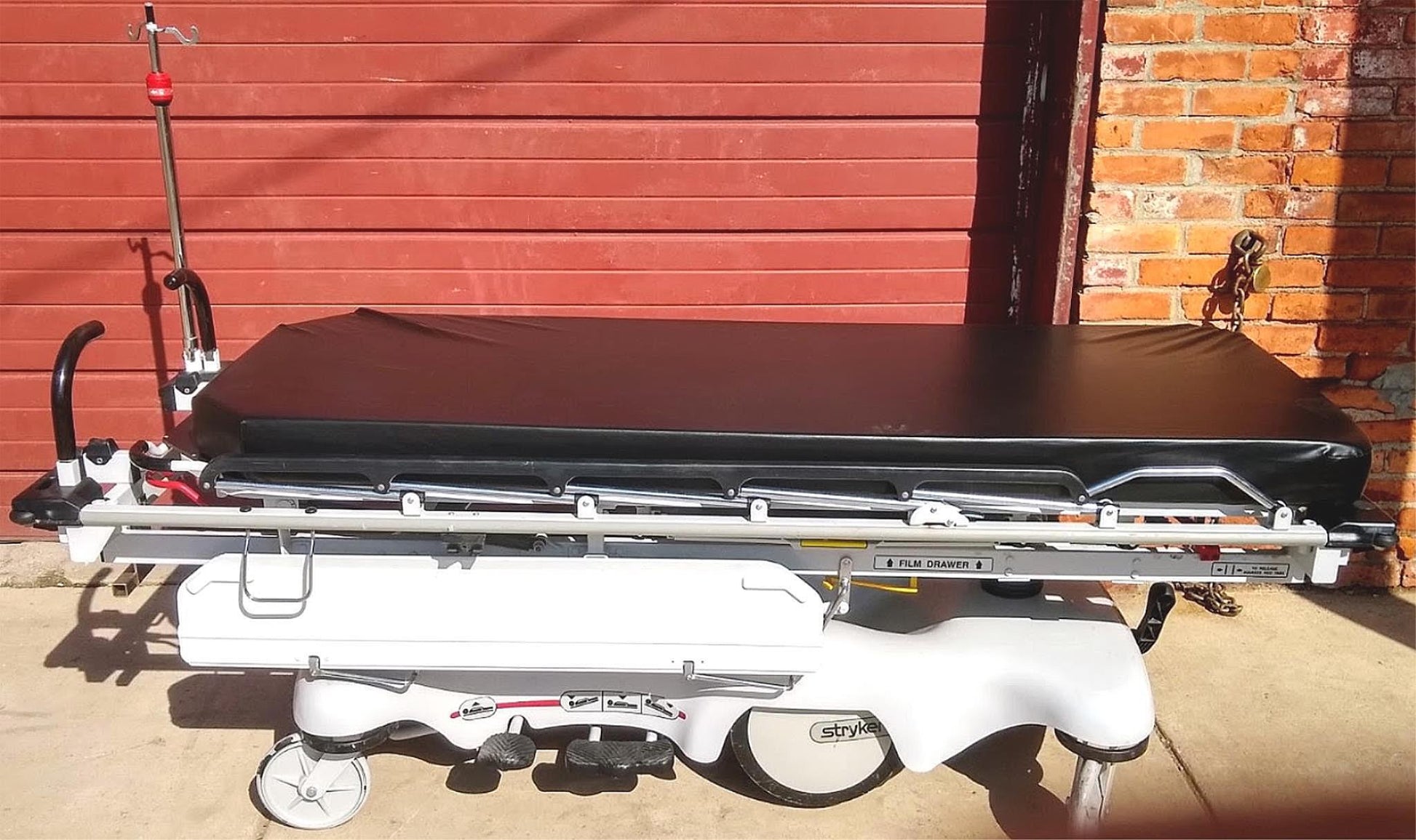

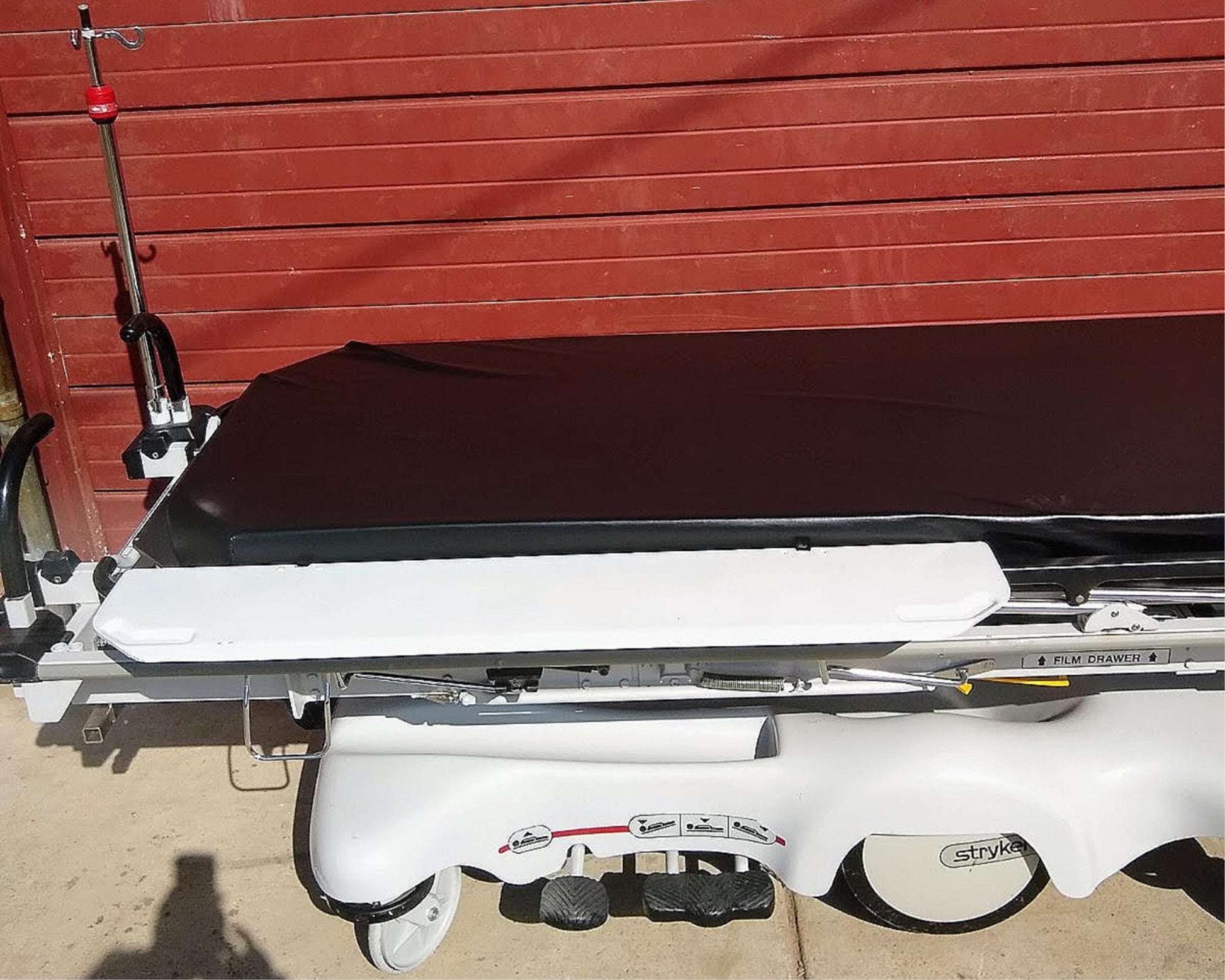

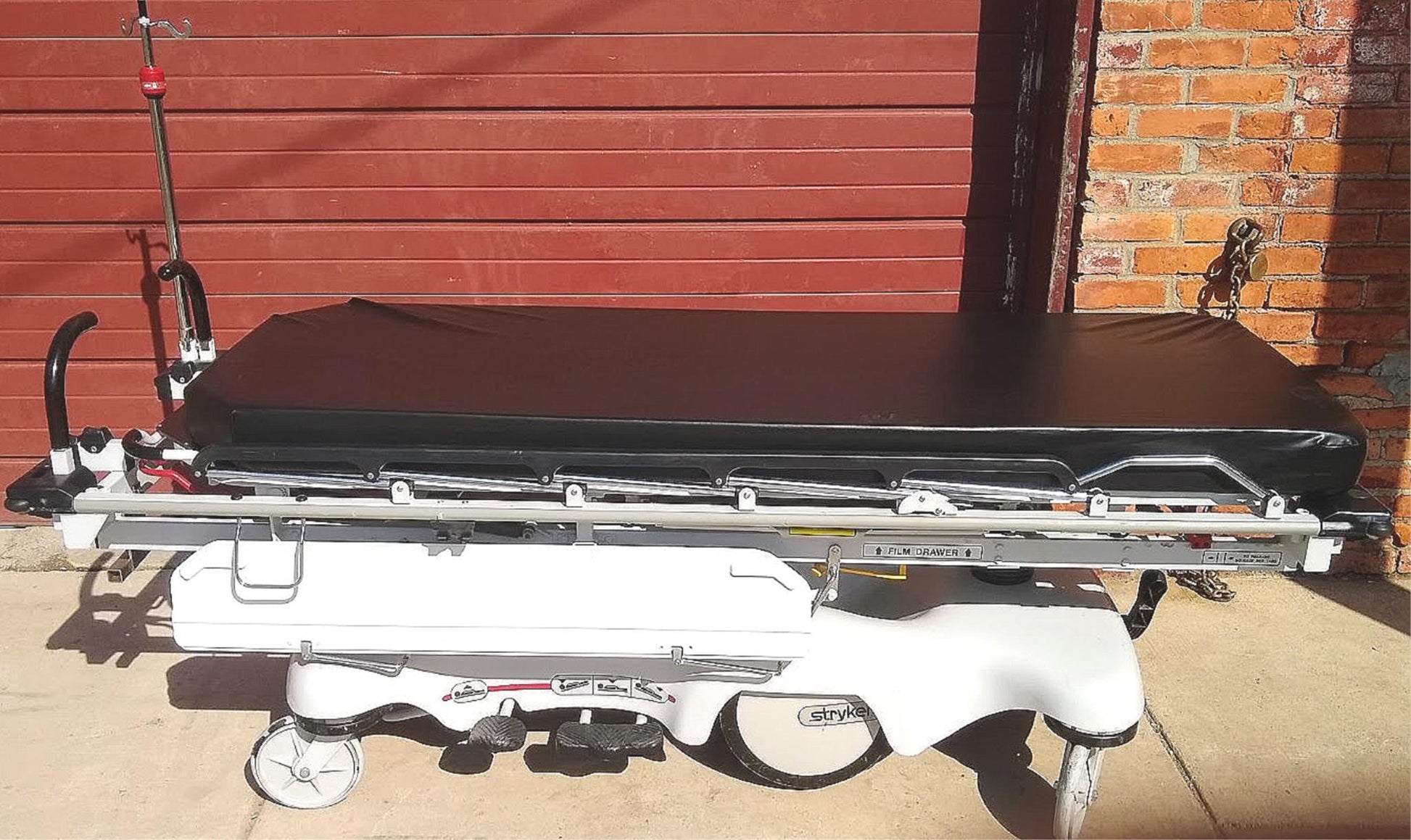

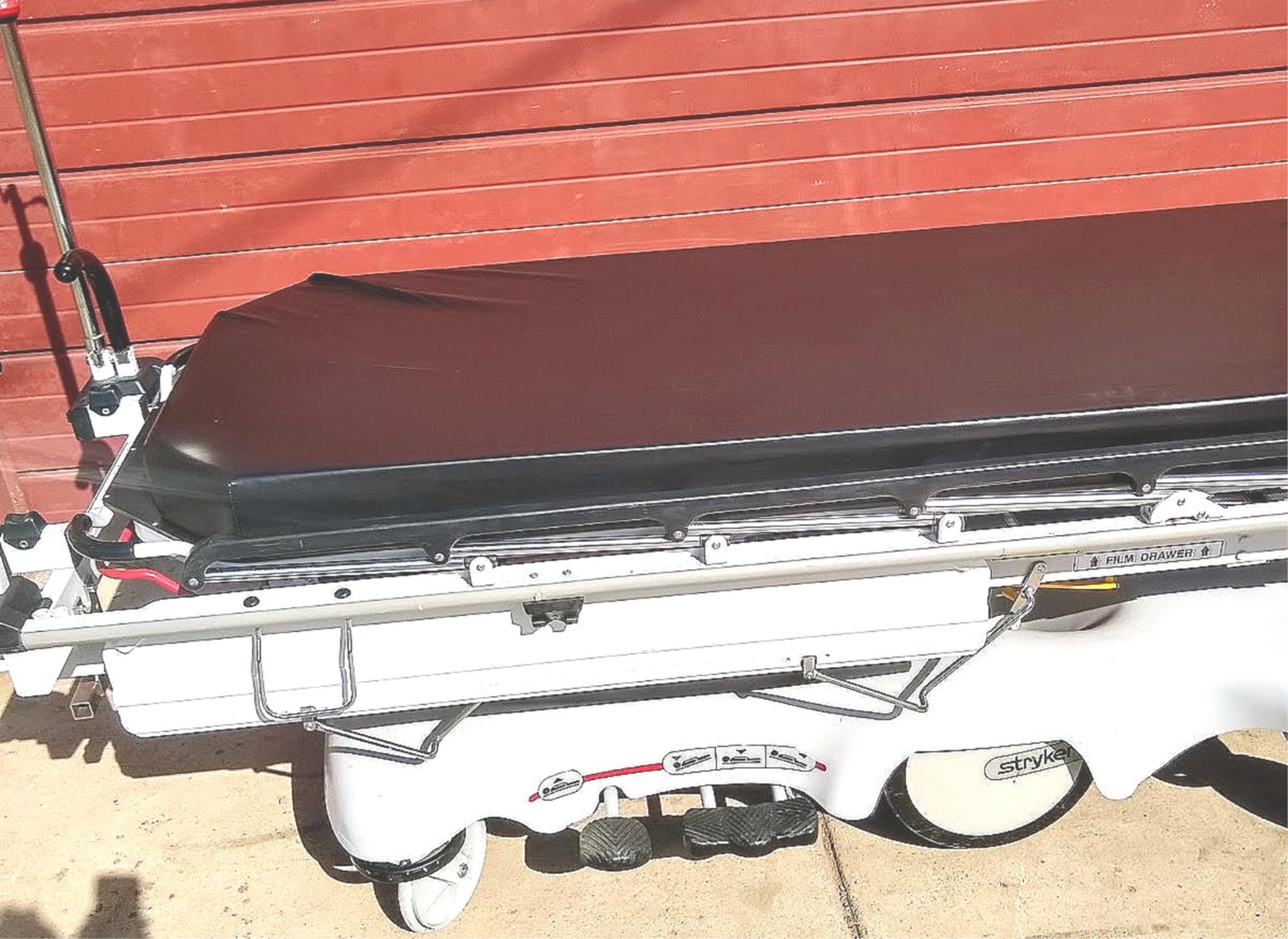

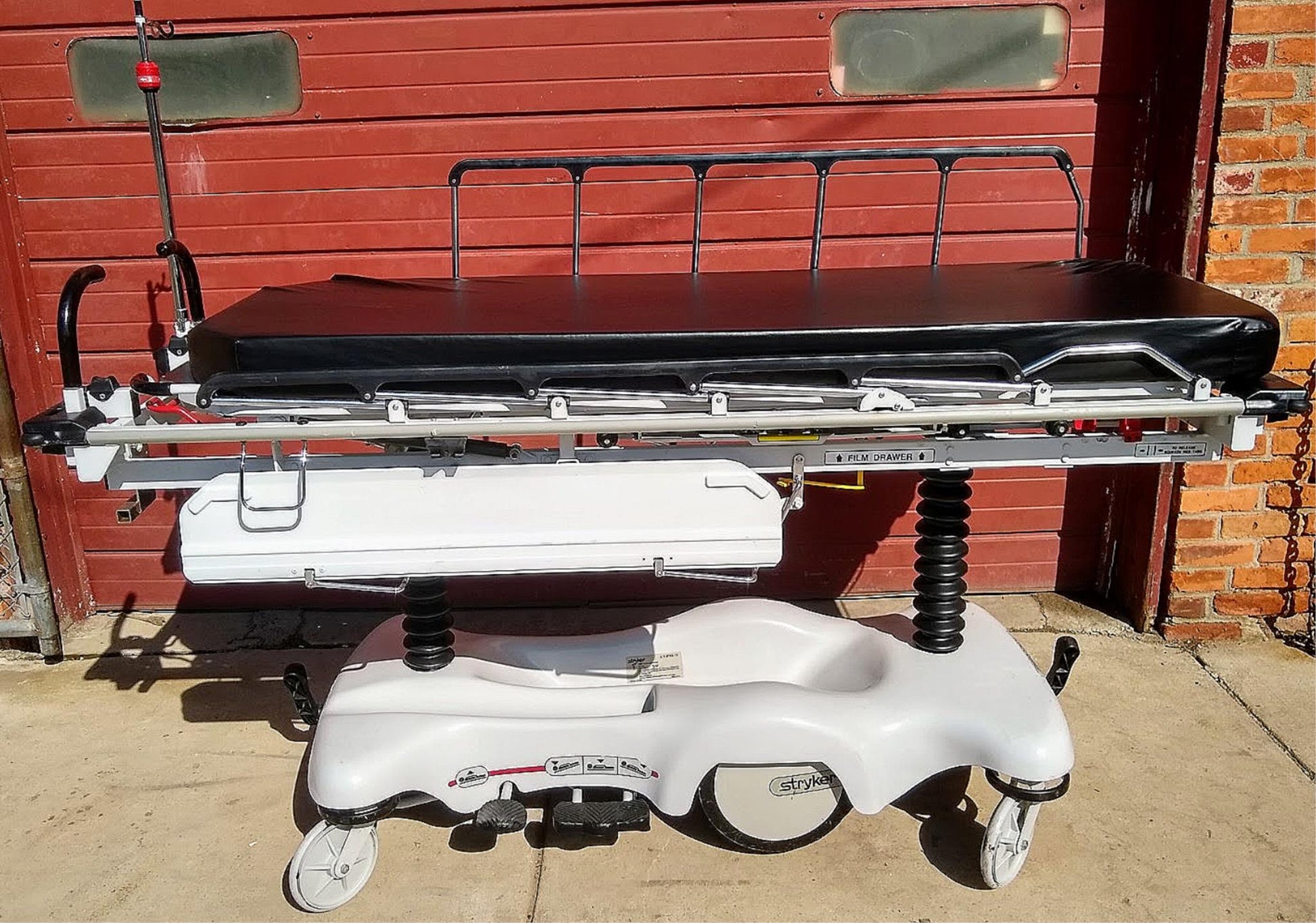

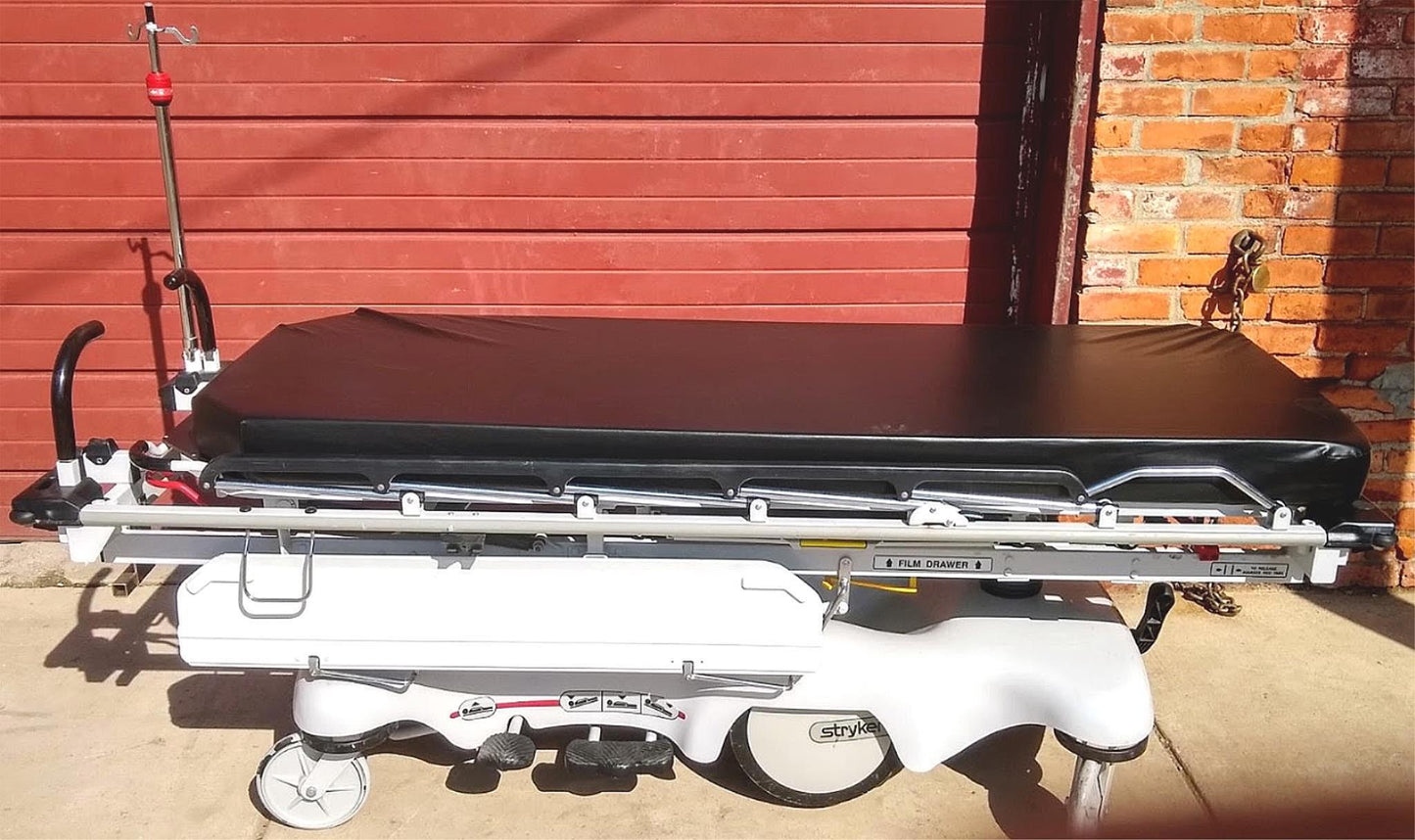

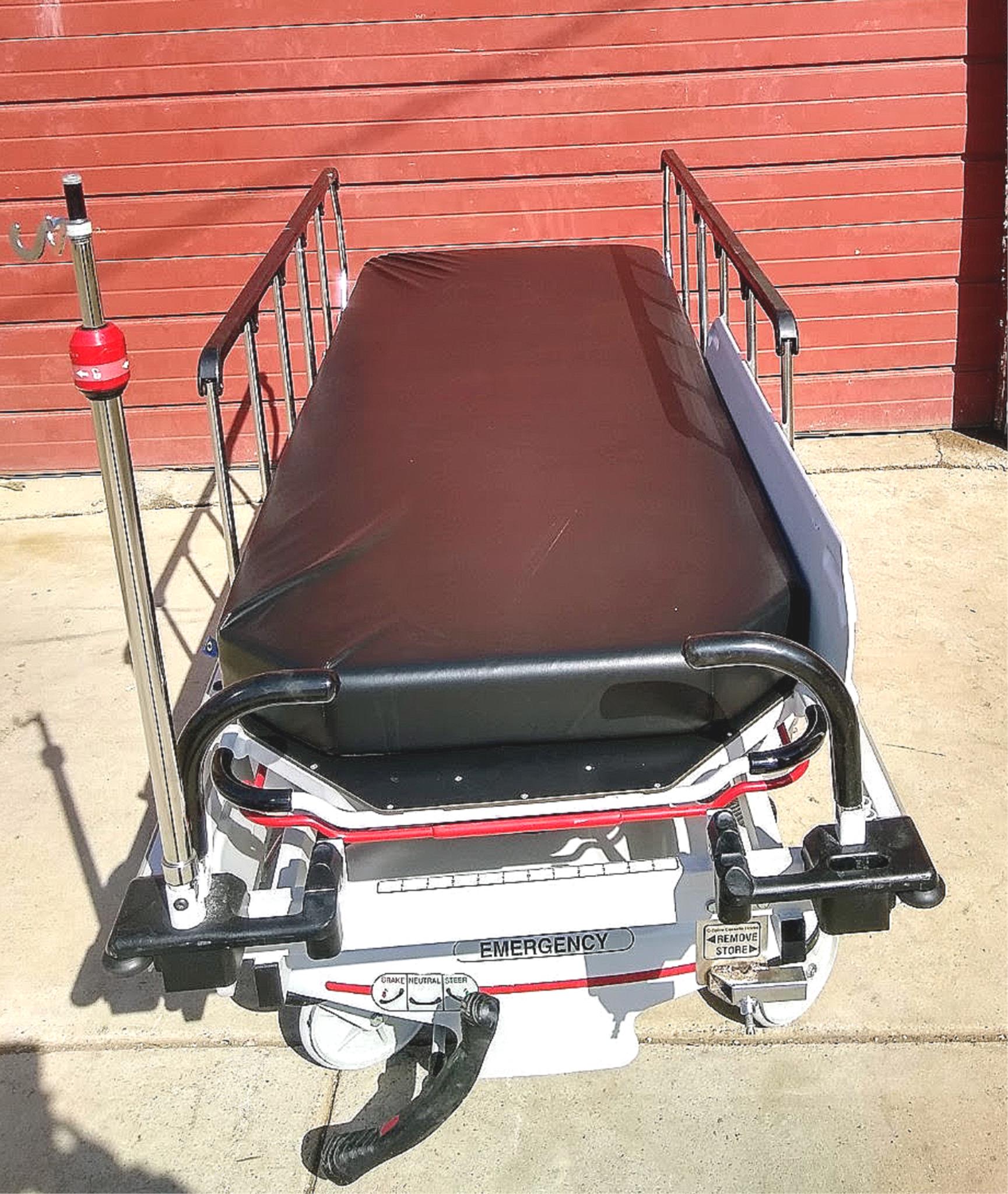

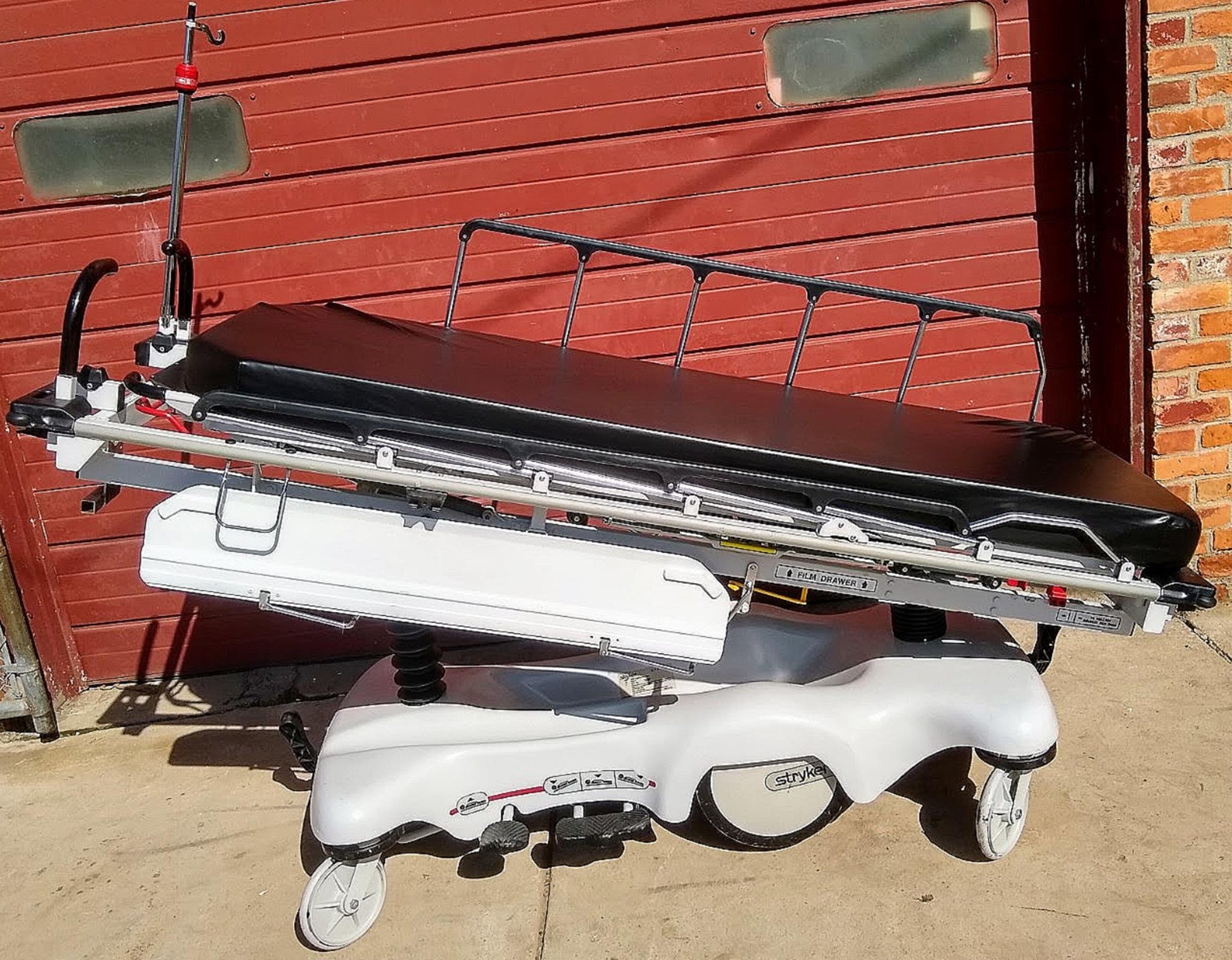

You are bidding on a used and in perfect operational condition: STRYKER 1020 BIG WHEEL HOSPITAL X-RAY CART IMAGING TRAUMA STRETCHER with MATRESS PAD as can be seen in the pictures!

There are many 1020 is the top level unit, there are other older units but none are the BIG WHEEL like this one, this is the only BIG WHEEL 1020 model ever made!

This STRYKER 1020 BIG WHEEL X-RAY TRAUMA STRETCHER HAS A 500 lbs CAPACITY, one of the strongest Stretchers you will find out there!!!

 ALSO COMES WITH INTELLEDRIVE as can be seen in the pictures.

This unit was recently removed from service and is in PERFECT OPERATIONAL condition.

FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!

IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (DOCK, or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.

MANUFACTURER's TECHNICAL DATA IN ITALICS BLUE BELOW ON THIS STRYKER 1220 WAS TAKEN FROM ONLINE SOURCE:

techweb.stryker.com/Stretcher/1020/0309/index.html

Stryker 1020 X-Ray Stretcher Imaging Stretcher Radi-opp Top C-Arm Stretcher

Excellent in an ER environment.

Stryker’s trauma stretcher provides a secure platform for assessing and tending to critically injured and immobile patients.

Its innovative design allows for full-length X-ray capability without having to transfer or reposition the patient.

The 1020 has a slide-out cassette tray allowing the caregiver to capture precise X-ray images without moving the patient.

It also has a 90° backrest providing the versatility to take images from a variety of positions.

Trendelenburg/Reverse Trendelenburg, Steer/Brake Controls at both ends.

Hydraulic Assist Back Rest Adjustable X-Ray Cassette Drawer IV Pole.

32 x 84 x 40hi/29low

84" long, 32" wide, 28" lowered and 41.5" tall raised.

250 Kg capacity, 500 LBS.

Key Features

Unilower pedal adjusts height as low as 22" for increased patient accessibility

The Stryker 1220 Trauma Stretcher includes a mattress pad. It is in excellent condition to proper operating specifications.

Note: IV Pole and Push Handles ARE included.

This 1220 DOES includes the Stryker Big Wheel feature which increases the caregiver's control and minimizes the risk of back injury.

The Big Wheel provides better mobility and ease of maneuverability. It allows for 50% less maximum startup force and 60% less turning effort.

The Zoom Motorized Drive feature eliminates pushing effort, which eases steering and turning corners. It is ideal for facilities with ramps, heavier patients, and long transports. It was designed to help reduce back injuries and improve productivity, as well as encourage proper ergonomic posture and leverage during transport. A manual override is available when power is unavailable.

FEATURES:

Wide patient surface.

Dual cylinder pneumatic backrest.

Unilower pedal adjusts height as low as 22" for increased patient accessibility.

Constant descent dual pedestal hydraulics.

Fiberesin backrest and stationary foot-end litter.

Glideaway siderails easily fold away.

Four corner IV receptacles.

Four-wheel, steel-ring brakes with dual end activators.

Three-sided foot control hydraulics.

Hands-free Trendelenburg.

Integrated patient transfer boards.

Omni Surface casters with wheel covers.

Pop-up push handles.

Dual-mounted collection device hooks.

Rubber bumpers.

Power washable.

Zoom Motorized Drive:

Battery powered.

Minimizes pushing effort.

Eases steering and turning corners.

Ideal for facilities with ramps, heavier patients, and long transports.

Stryker 1220 Trauma Stretcher Specifications

Weight Capacity: 500 lb (250 kg).

Overall Length: 84" (213 cm).

Overall Width:

Siderails Up: 34.5" (88 cm).

Siderails Down: 31" (76 cm).

Height Range (to litter top):

High:

Standard: 33" (84 cm).

Zoom: 36" (91 cm).

Low: 22" (56 cm).

Litter Positioning:

Backrest: 0 - 90°.

Knee Gatch: 0 - 30°.

Trendelenburg/Reverse Trendelenburg: +/- 15°.

Patient Surface: 31" x 76" (79 cm x 193 cm).

Transfer System: 8" x 42" (20 cm x 107 cm).

Siderails: 14" x 54" (36 cm x 137 cm).

Caster Diameter: 8" (20 cm).

UL Listed: Yes (UL2601).

Volts: 115 VAC charging system

Ampere Rating: 3.

Hospital Grade Plug: Yes.Litter-mounted oxygen bottle holder helps eliminate bending.

Sturdy GlidewayTM side rails disappear when stowed.

 Built-in slide board aids in patient transfers.

Tiengo cuenta de SKYPE, conta te-me via el nombre: itibas usando SKYPE sin costo algun.

Thank you so much for checking our listing out, for the past 13 years we have strived to offer the best customer satisfaction ever, I guess our feedback rating proves that, what better than that can we show!!!

COSMETIC NOTES: VERY GOOD cosmetic condition as can be seen in the pictures.

Stock 231403
