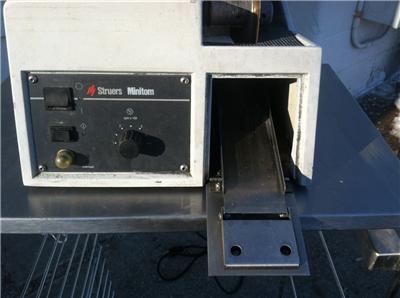

Important Note: As can be seen in the pictures, the coolant tank is not present with this unit. It actually is a very simple rectangular piece of metal, aluminum or even plastic so this tank be easily adapted or made. But if buyer wishes buyer will also easily find it online directly from Struers, their phone number in
Ohio is: 440 871-0071.

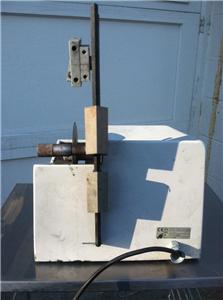

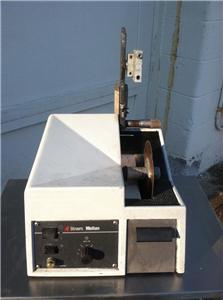

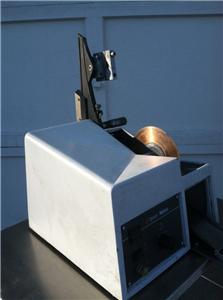

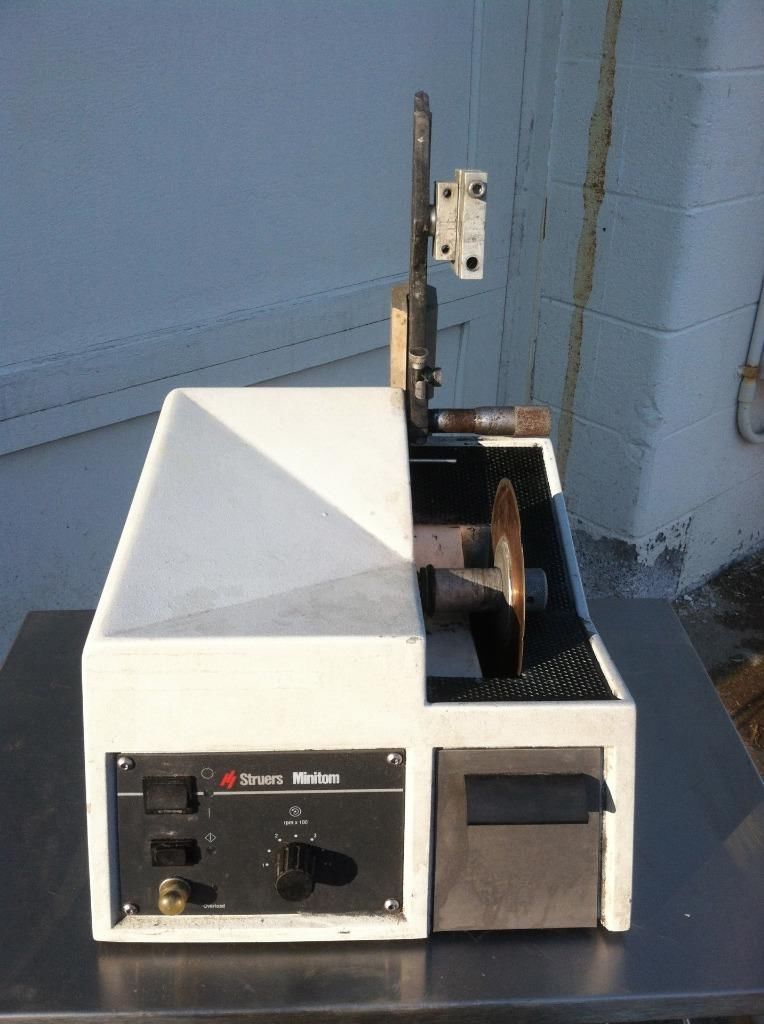

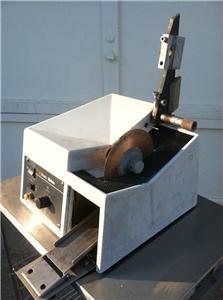

You are bidding on a used STRUERS MINITOM PRECISION CUT-OFF MACHINE AS YOU CAN SEE FROM THE PICTURES. THE BLADE NEEDS TO BE REPLACED BUT THE UNIT WORKS FLAWLESSLY, IT IS IN PERFECT OPERATIONAL CONDITION!
Description
Small, automatic precision cut-off machine for sectioning all materialographic and ceramic specimensStruers Minitom is very easy to operate, with fixation of the specimen and the setting of specimen size, cutting speed, and cutting pressure taking only a few minutes. The workpiece is fastened in a holder mounted on a movable arm. Minitom is a small, low-speed, precision cut-off machine for sectioning all types of materials. Maximum specimen size: 30 mm dia. The cutting speed is continuously variable and the motor is designed to ensure that the selected speed remains constant at any load.
Technical specifications Voltage: 100-240 V / 50-60 Hz Output: 38 W Motor shaft Speed: 100-420 rpm Diameter: 12.7 mm (1/2") Wheel diameter: 100-127 mm (4"-5") Specimen holder arm Balances specimen holder with workpieces up to 200 g in weight Weight 0-350 g, which is used to set the cutting pressure Axial movement: 0-25 mm Coolant tank Volume: 250 ml Dimensions Width: 280 mm Depth: 400 mm Height: 400 mm Weight: 8 kg Struers’ equipment is in conformity with the provisions of the applicable International Directives and their appurtenant Standards. (Please contact you local supplier for details) Specifications Cat. no. Minitom Low-speed precision cut-off machine. Complete with universal specimen holder (04436901) 04436216 and flange set 65 mm dia. as well as 42 mm dia. Cut-off wheels are ordered separately. 100-240 V / 50-60 Hz
ALL TECHNICAL INFORMATION CAN BE FOUND ONLINE AT: http://www.struers.com/resources/elements/12/191590/Minitom_brochure_English.pdf
This is in used Condition.
There are no operational flaws with this equipment, it works great. This is used, so it has some scuffs and wear as would be expected but the cosmetic condition is pretty good too as can be seen in the pictures, as explained above it needs a new blade which can easily be found online.
Made in the USA
Please review all photos before you purchase this product or contact us with any questions you may have.
We try to test everything to make sure it is working and will state the results of the test in the description. Some things we are unable to test and these items are sold “as-is”. There are no warranties which extend beyond the description on the face hereof. We do not sell filthy merchandise but we do not spend hours detailing every crack and crevice of every item, therefore a good cleaning may be in order when you receive a purchase. We will post an adequate number of pictures on an auction to give buyers a good sense of what they are bidding on, please examine the pictures closely.
DISCLAIMER: Regardless of the origin of the equipment, documentation provided or identification appearing upon the equipment, the equipment described and offered here is in no way certified for, recommended for, or offered for any specific use. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. The purchaser, by bidding on this equipment, indicates their acknowledgment of, and agreement to the terms of this disclaimer.
