STANCOR GIS - 1000 ISOLATION TRANSFORMER FREE SHIPPING

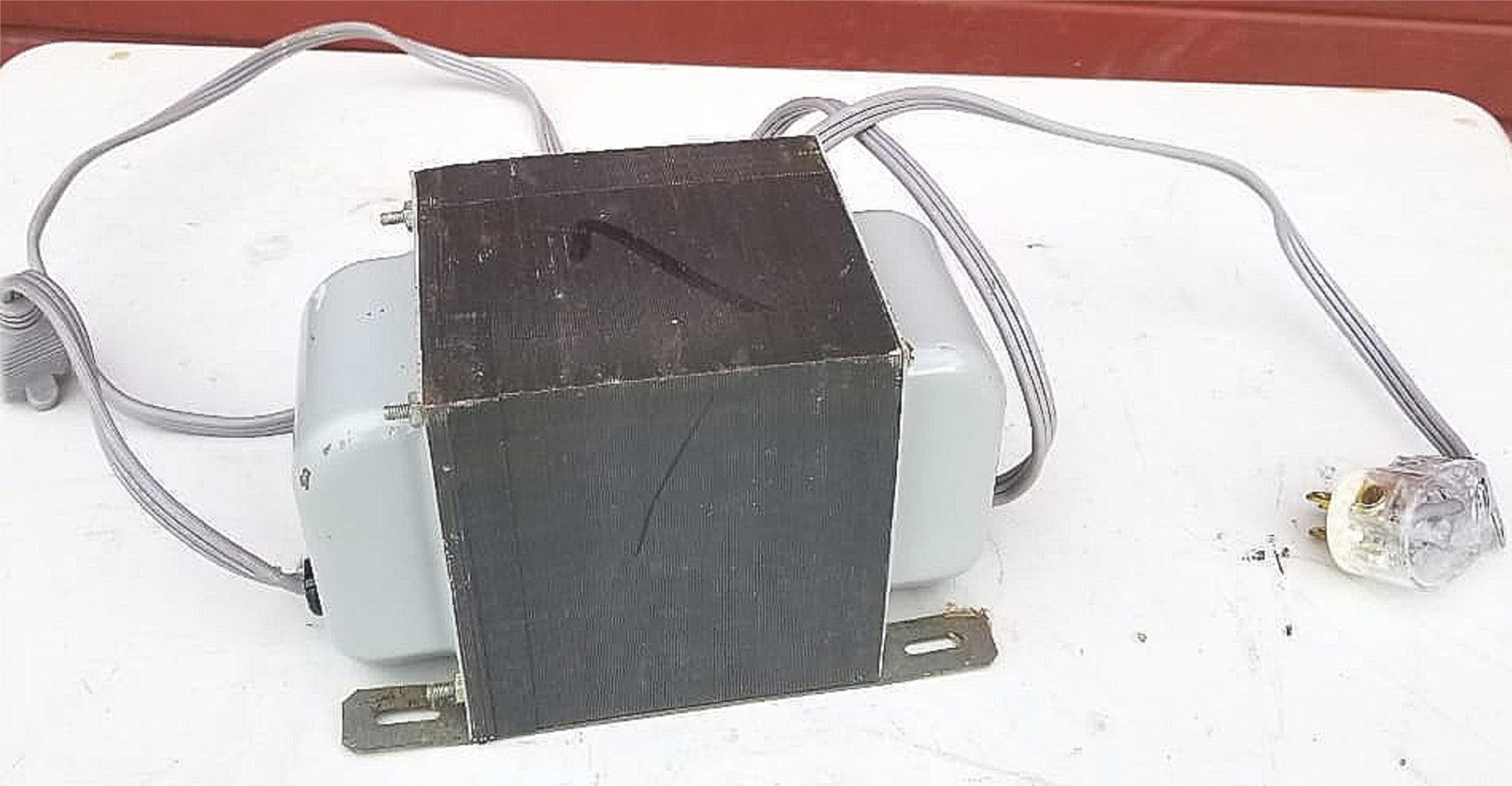

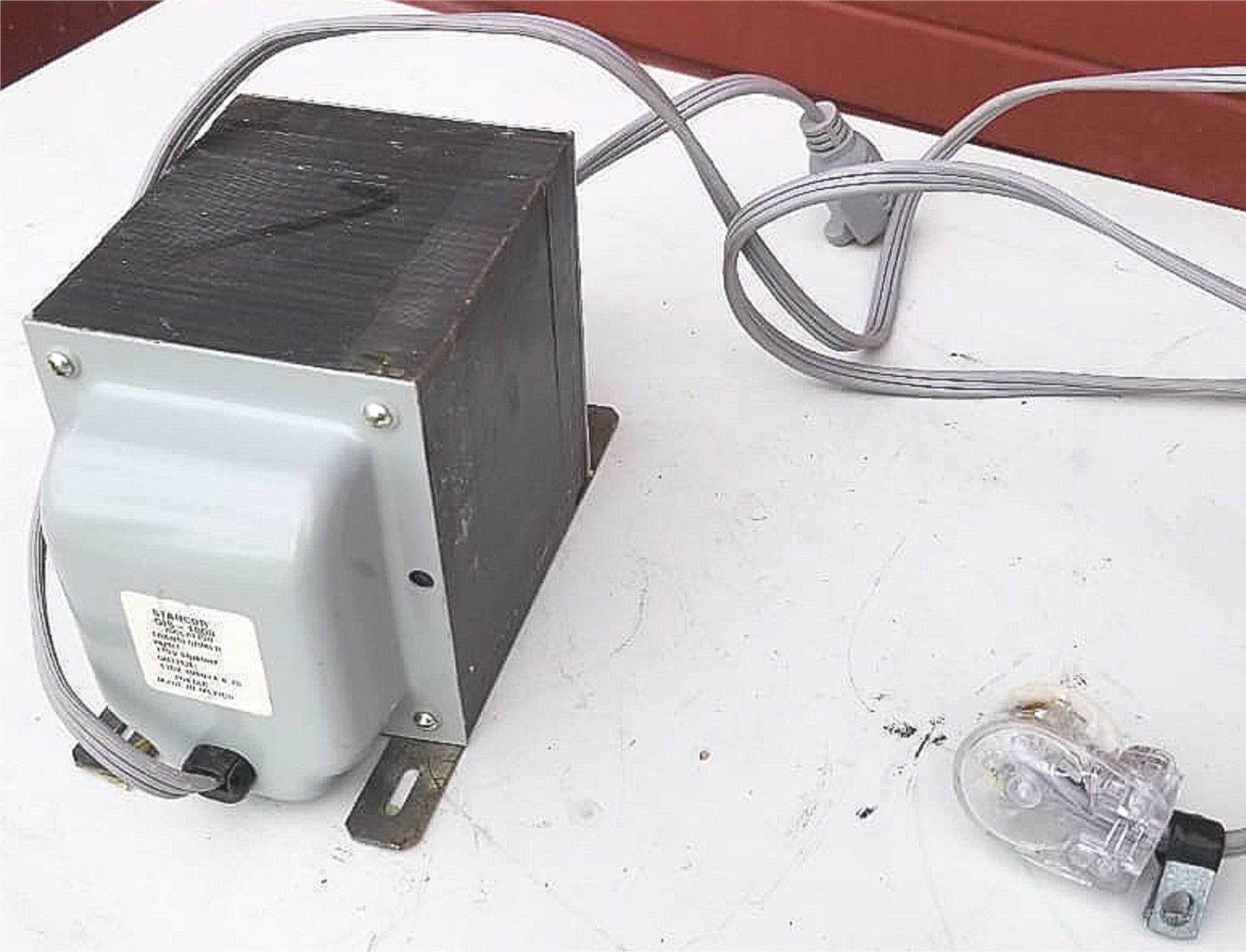

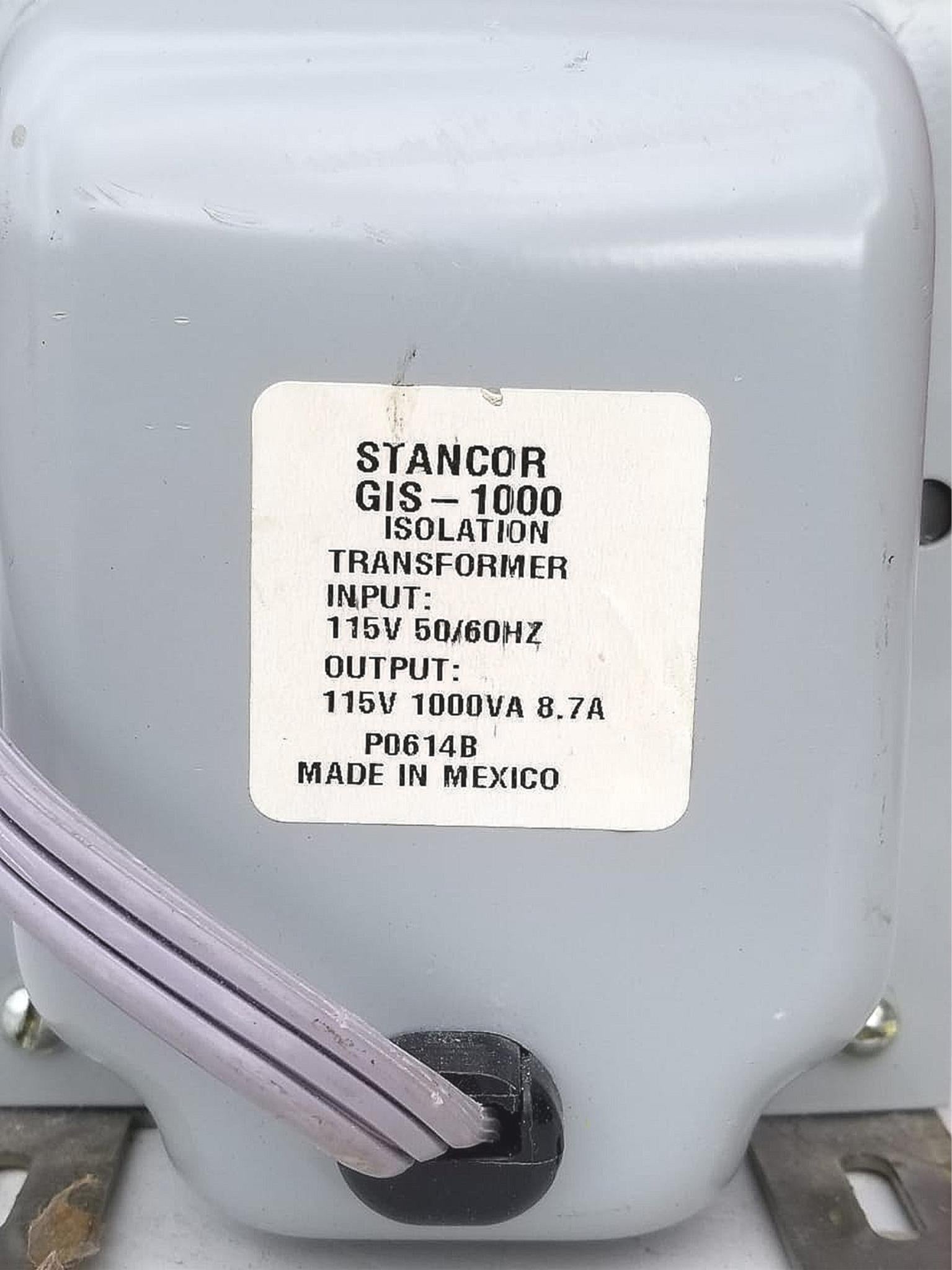

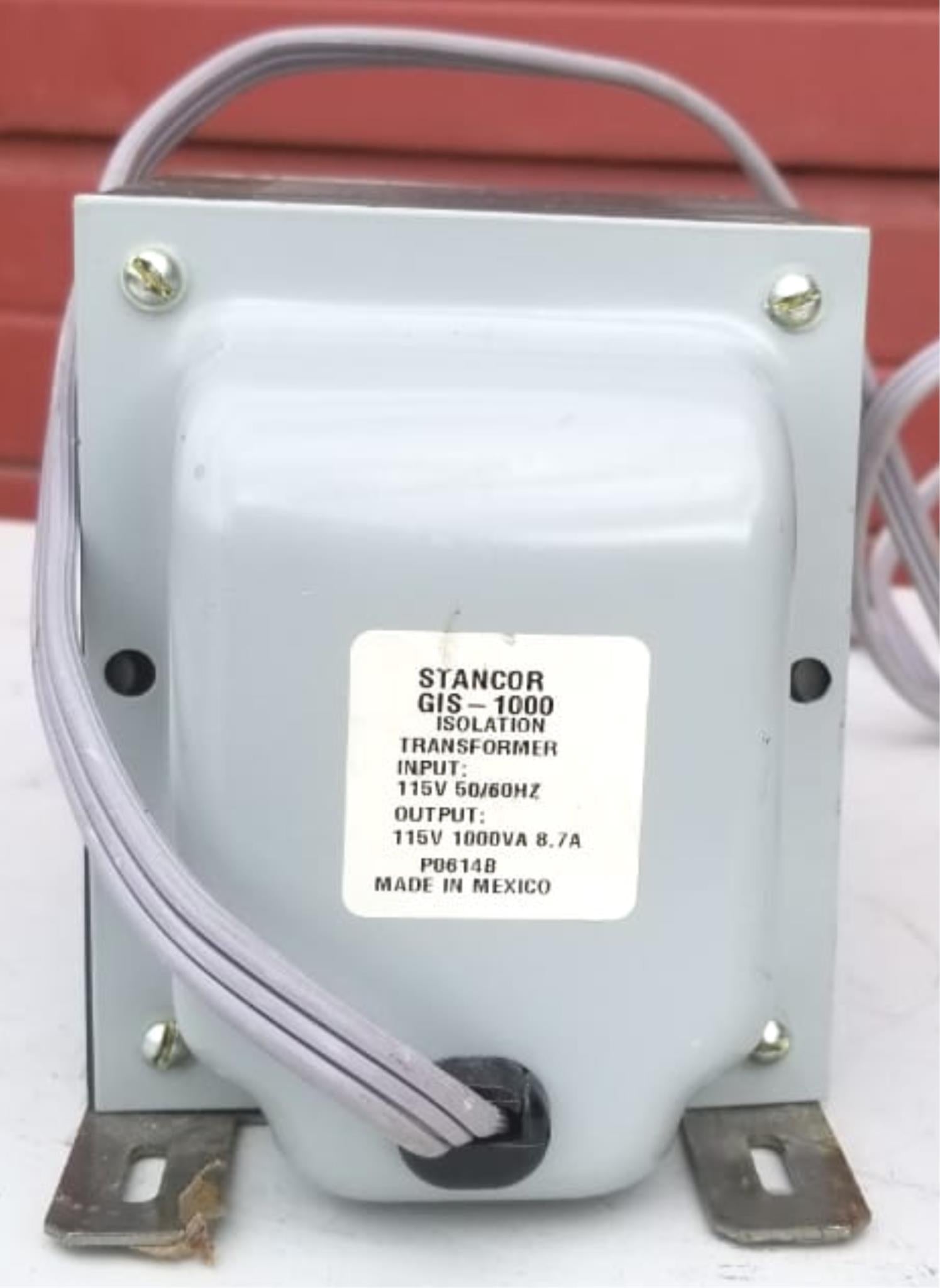

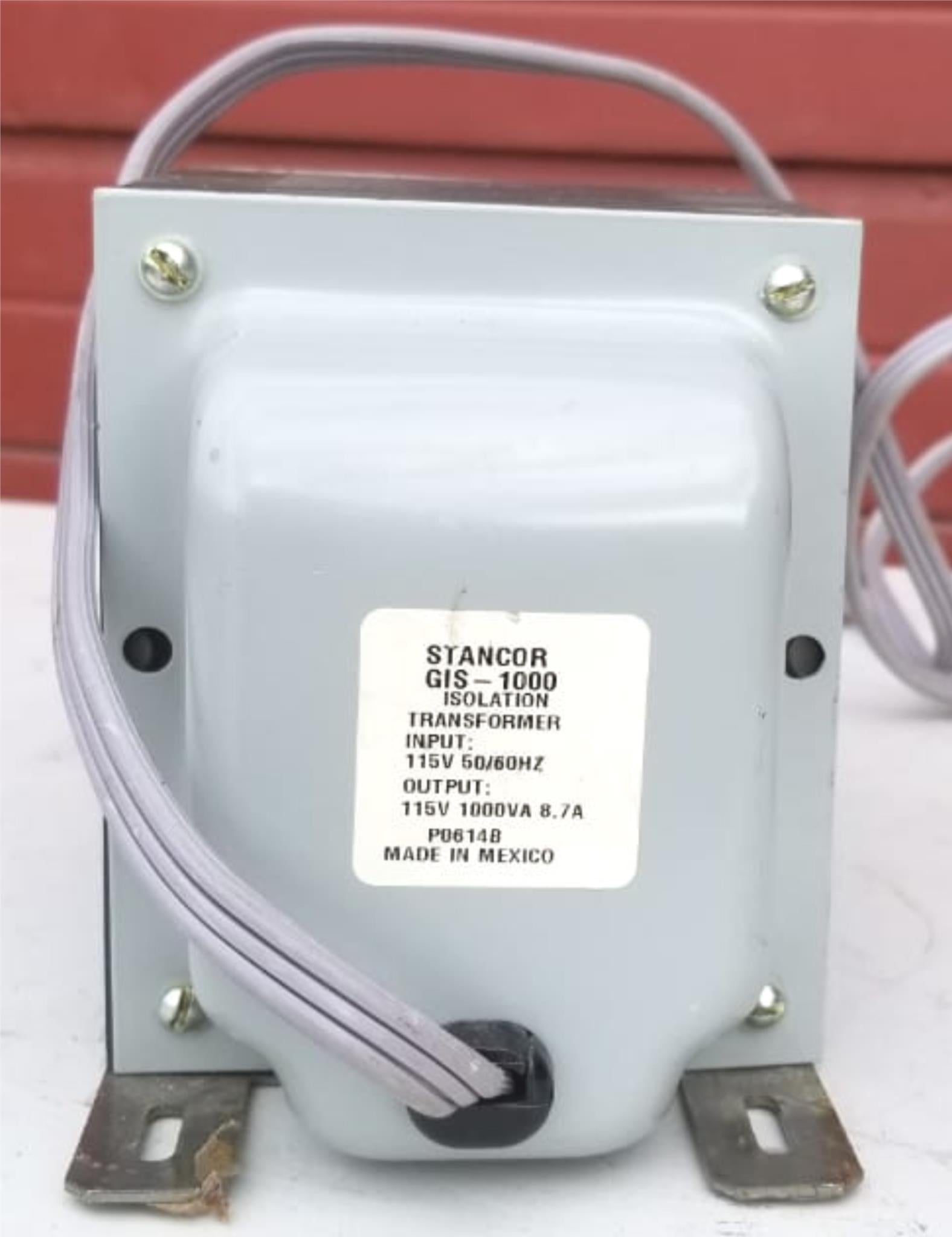

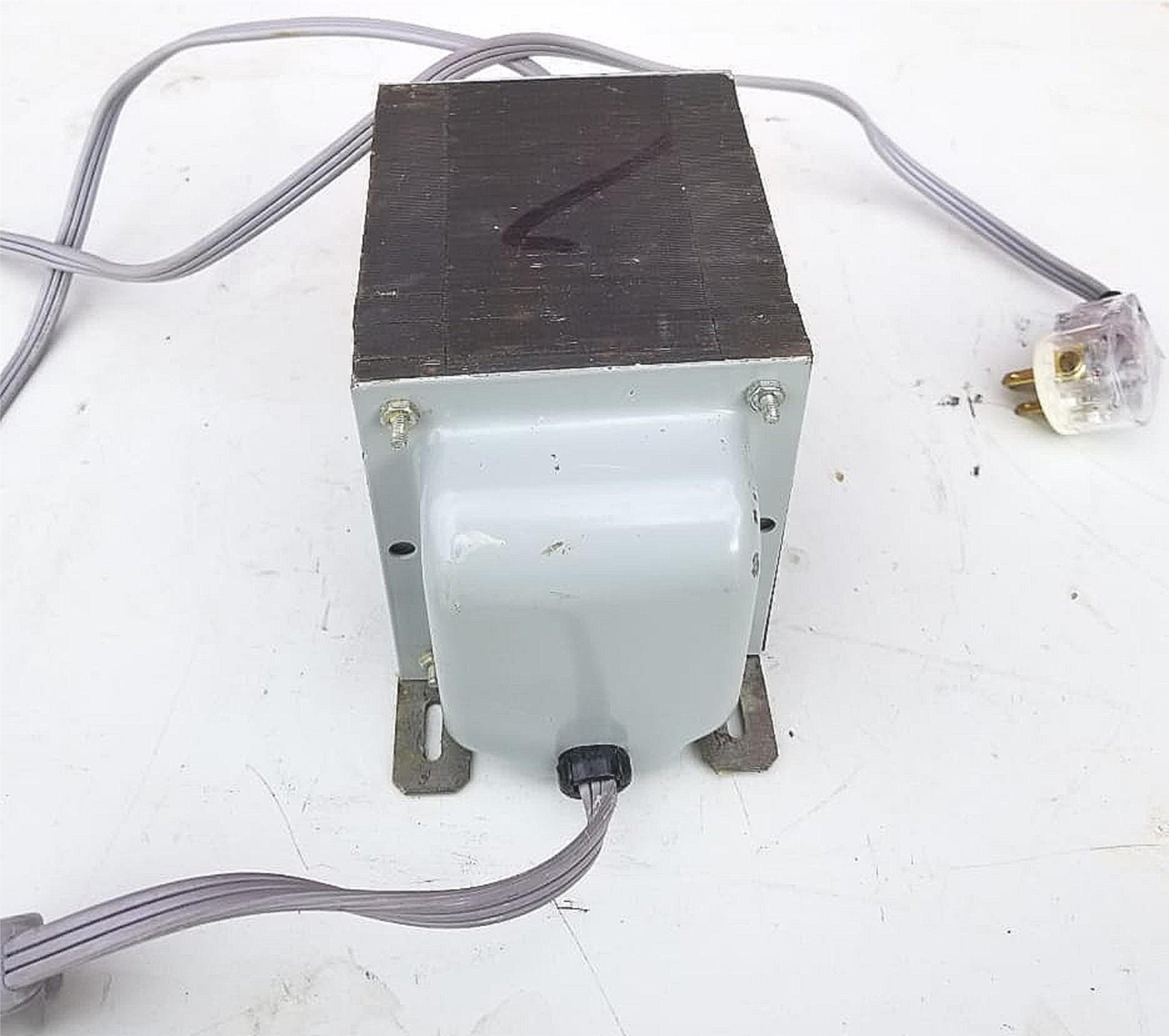

This listing is for a STANCOR GIS - 1000 ISOLATION TRANSFORMER as can be seen in the pictures.

THIS STANCOR GIS - 1000 ISOLATION TRANSFORMER has been fully tested and is working perfect GUARANTEED or your money back!!!

Please check manufacturer's Specification Technical Data Sheet by GOOGLING the following link: stancor.com/pdfs/install_sheets/0037-6206.pdf

Auto transformers have one winding that is tapped to achieve specific output voltage. They provide no electrical isolation in a circuit. Auto transformers are typically smaller than their isolation equivalent. Isolation transformers have two separate windings with an electrostatic shield between them to provide complete electrical isolation from the source. Auto/isolation transformers can be used in most countries by using an input adapter plug. Specifications. Input Cord Length: 51⁄2’ min. Output Cord Length:8" min. Operating Temperature: –40° to 105°C. Power Range: 15-1000 VA.

Features:

Three Conductor Line Cord and Receptacle — Some Items Available with Leadwires

GIS and GISD Series Have Electrostatic Shields Connected to Case, Core and to Third Conductor of Cord and Receptacle

El Laminations

Heavy-Duty Welded Plate Ensures Mounting Stability

All Primaries: 50/60 Hz

Applications:

Computer Protection

Dental Chairs

Electrical Appliances

Lab Test Equipment

Incubator Ovens

LED Signs

Office Copiers and Printers

Brand/Series : GIS Series

Capacity : 1000 VA

Configuration : Enclosed

Current, Secondary : 8.7 A

Dimensions : 4.38"W×5.38"H×8.13"D

Frequency : 50/60 Hz

Length, Cord : 5-1/2 ft. (Input), 8" (Output)

Mounting Hole Centers : 3.5, 6.5 "

Number of Outlets : 1

Phase : 1

Power, Rating : 1000 VA

Standards : UL Listed

Temperature, Operating : +105 °C

Termination : Cord and Plug

Type : Isolation

Voltage, Primary : 115 VAC

Voltage, Rating : 115 V

Voltage, Secondary : 115 VAC

Weight: 31 lbs

Stock: 2061
