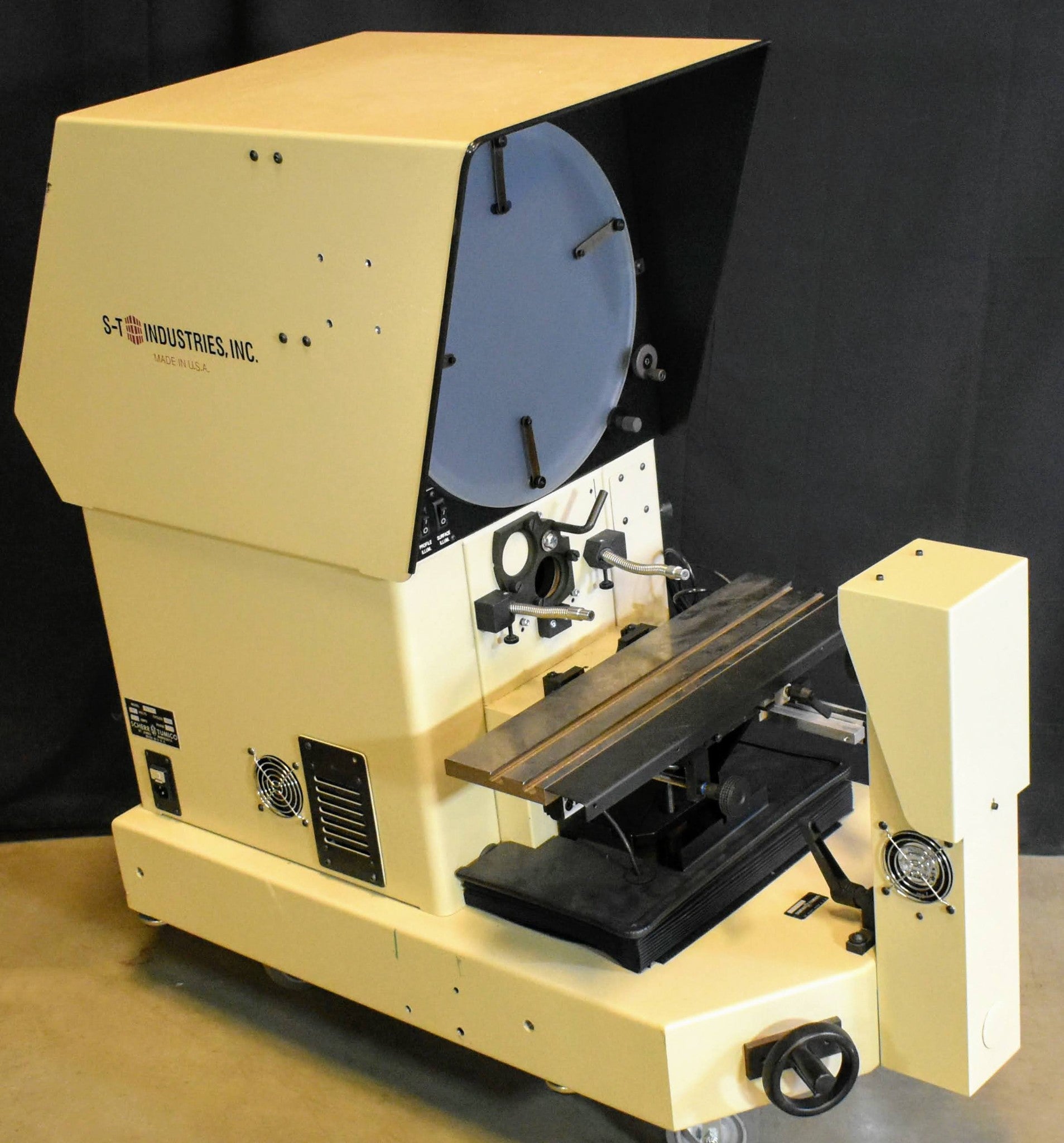

ST 20-3700 OPTICAL COMPARATOR with QUADRA-CHEK 200 90DAYWARR WATCHVIDEO FREESHIP

This listing is for a Great Operational Condition ST 20-3700 OPTICAL COMPARATOR w/ QUADRA-CHEK 200 as can be WATCHED IN THE VIDEO and also  seen in the pictures.

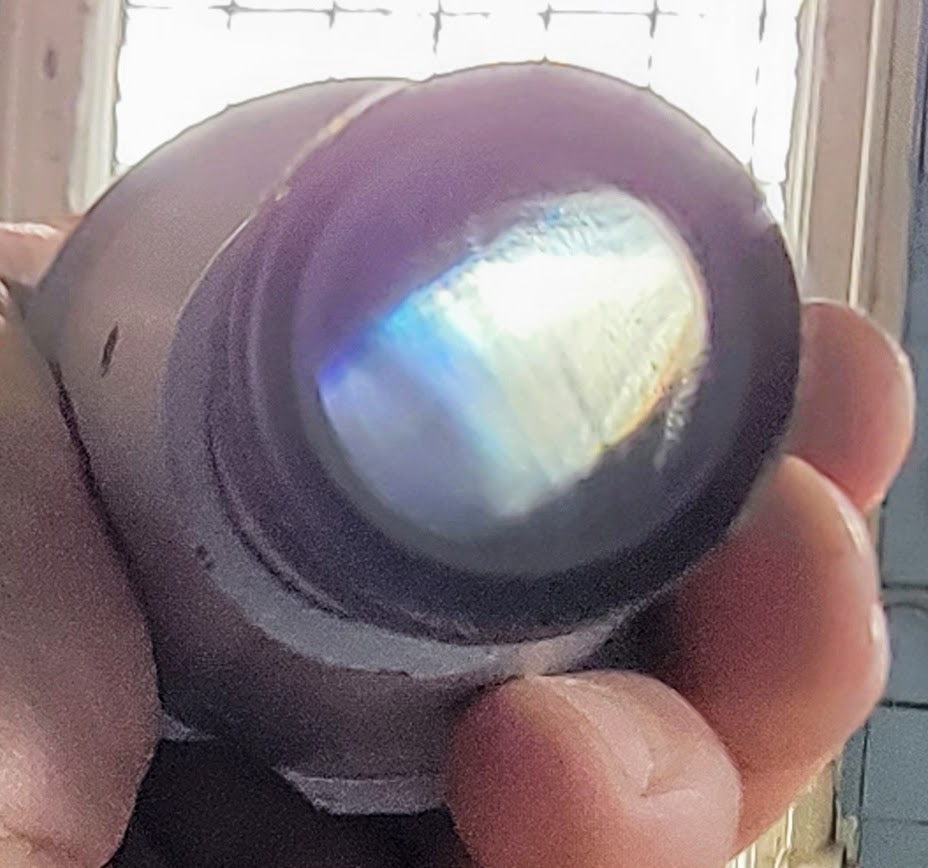

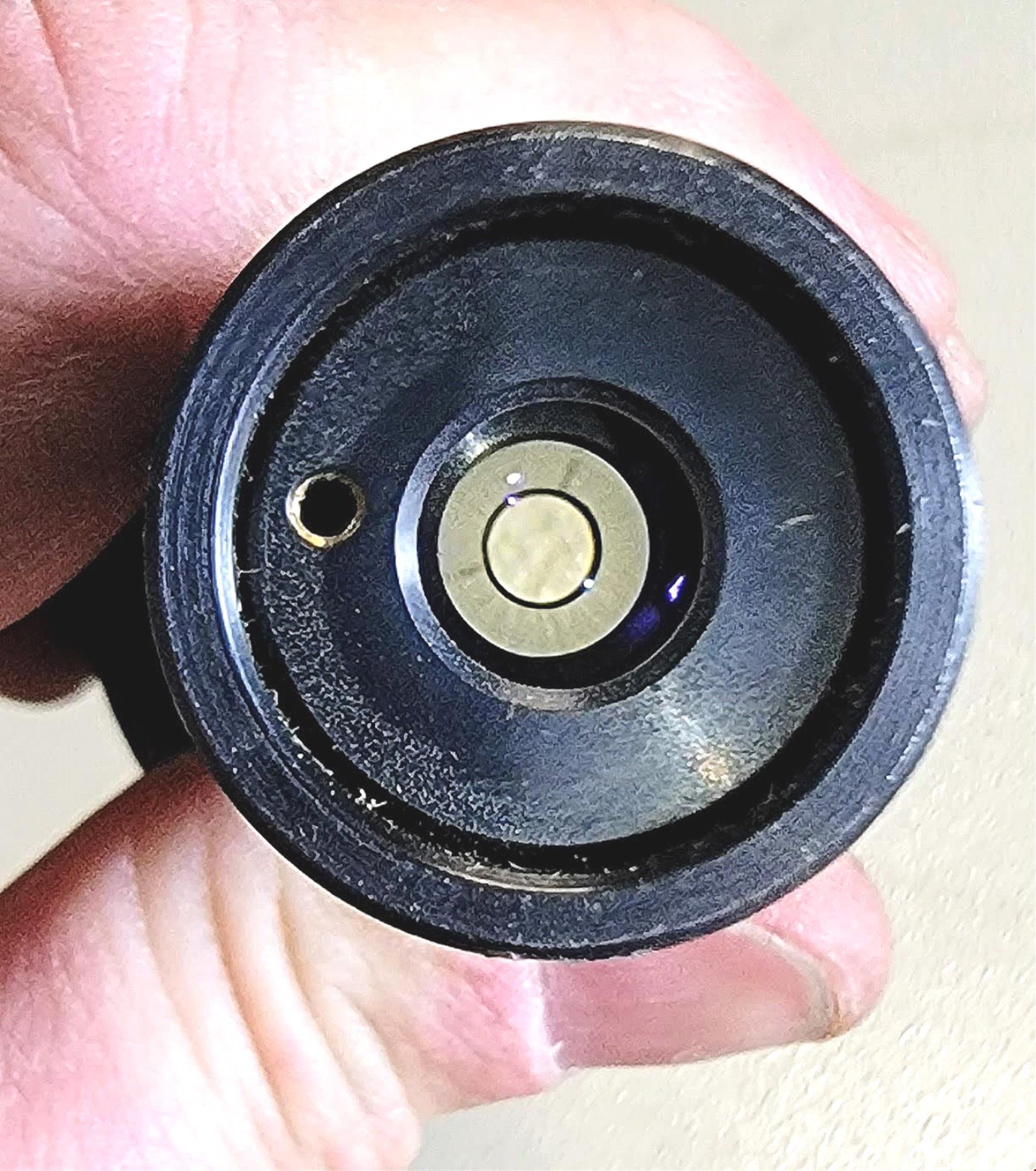

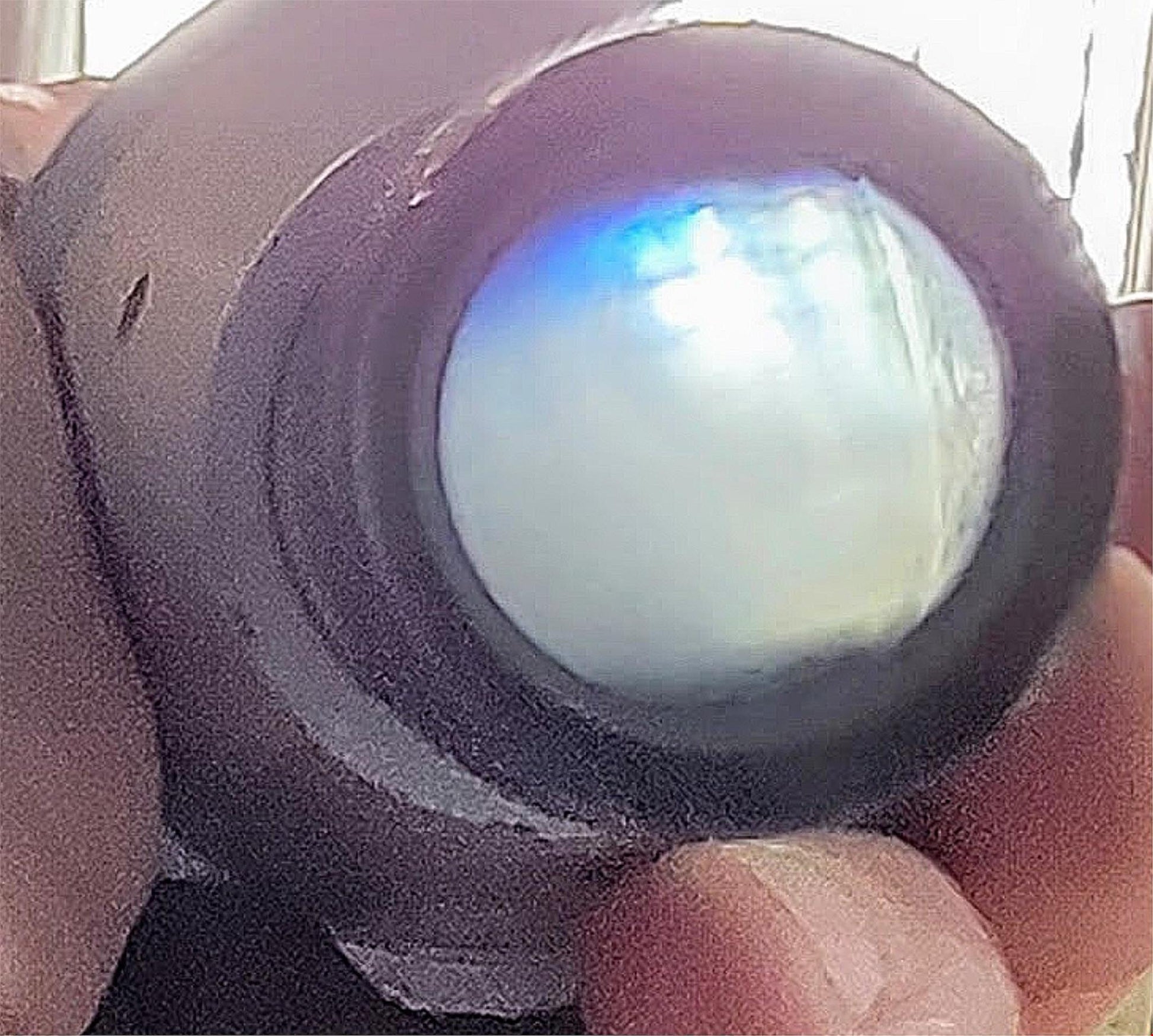

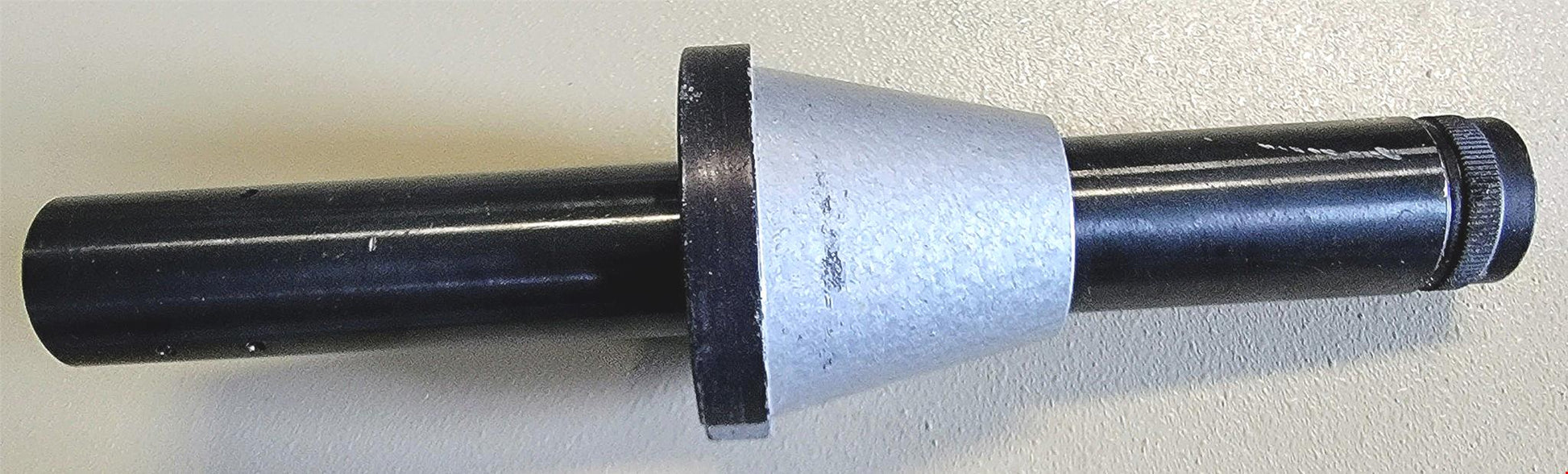

Comes with two Objective 20X & 50X Original ST Magnifying Lenses!!!!

OPERATIONAL MANUAL IS ALSO INCLUDED WITH THIS UNIT!!!

Buy here and save! 90-DAY-WARRANTY!!!

FEEL FREE TO WATCH A VIDEO OF THIS ST 20-3700 OPTICAL COMPARATOR w/ QUADRA-CHEK 200 WORKING BY CLICKING: https://www.youtube.com/watch?v=YfJyi79f3tQ

IMPORTANT: This ST 20-3700 OPTICAL COMPARATOR w/ QUADRA-CHEK 200 works Perfectly!

It DOES COME WITH TWO ORIGINAL ST 20X & the 50X MAGNIFYING LENS AS CAN BE WATCHED IN THE VIDEO AND ALSO SEEN IN THE PICTURES.

Description Specs below were taken from Manufacturer's website:

Feel free to check QUADRA CHECK 200's Technical Data Manual by GOOGLING the following link: //inspectionengineering.com/wp-content/uploads/2017/06/qc200_manual_eng.pdf

Details taken from Manufacturer online:

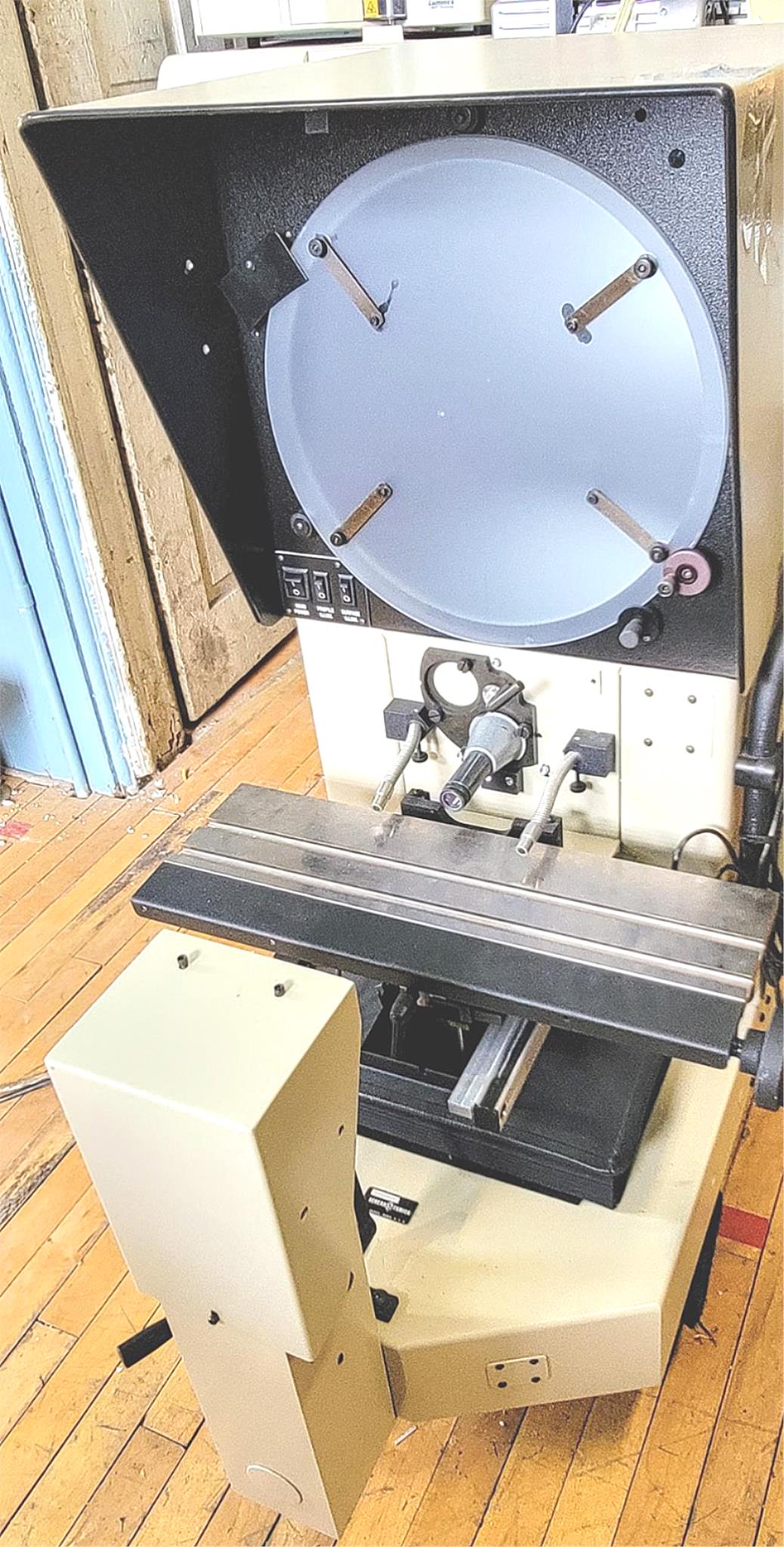

Optical Comparator 3700 Series ‐ Features

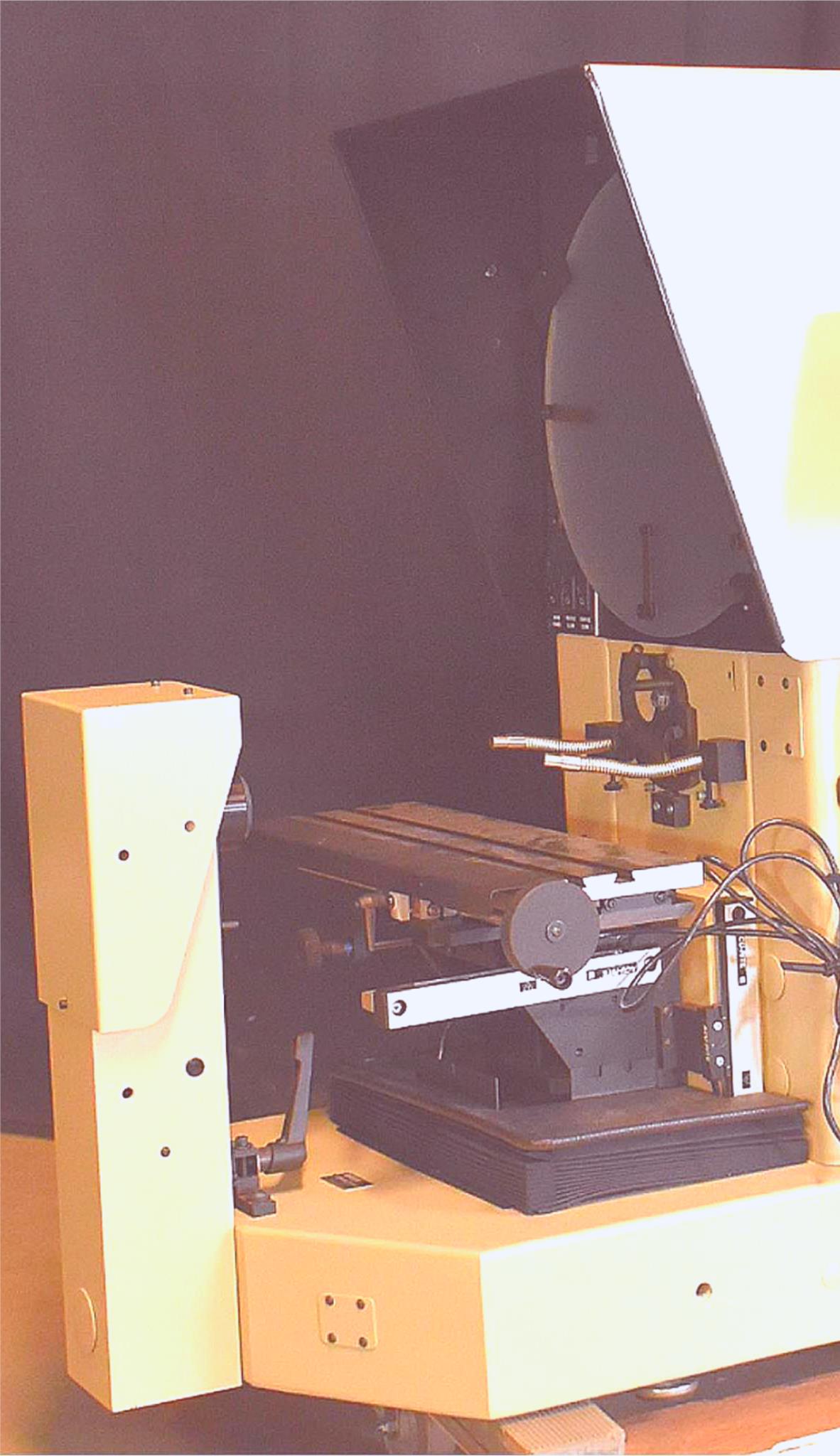

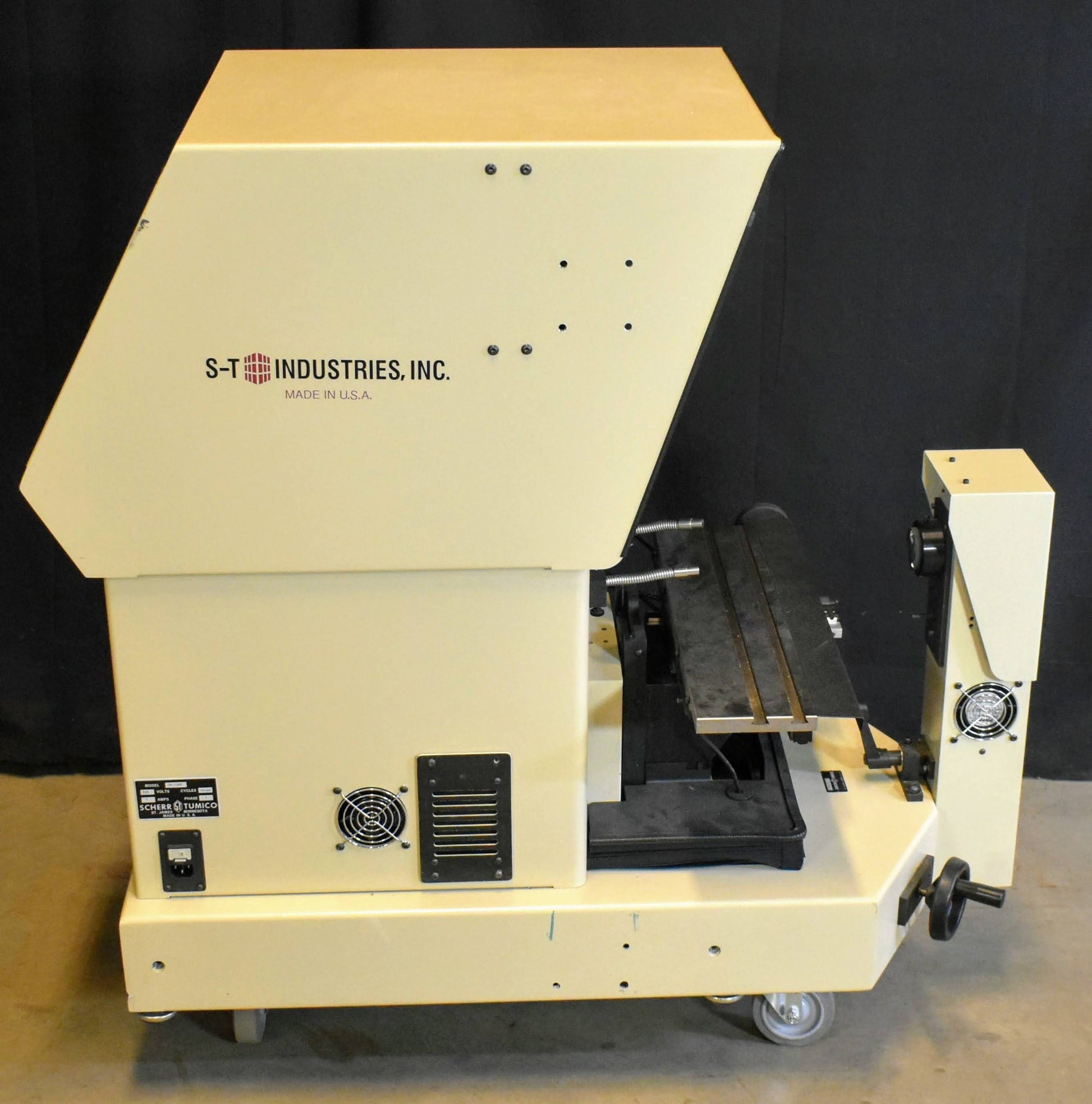

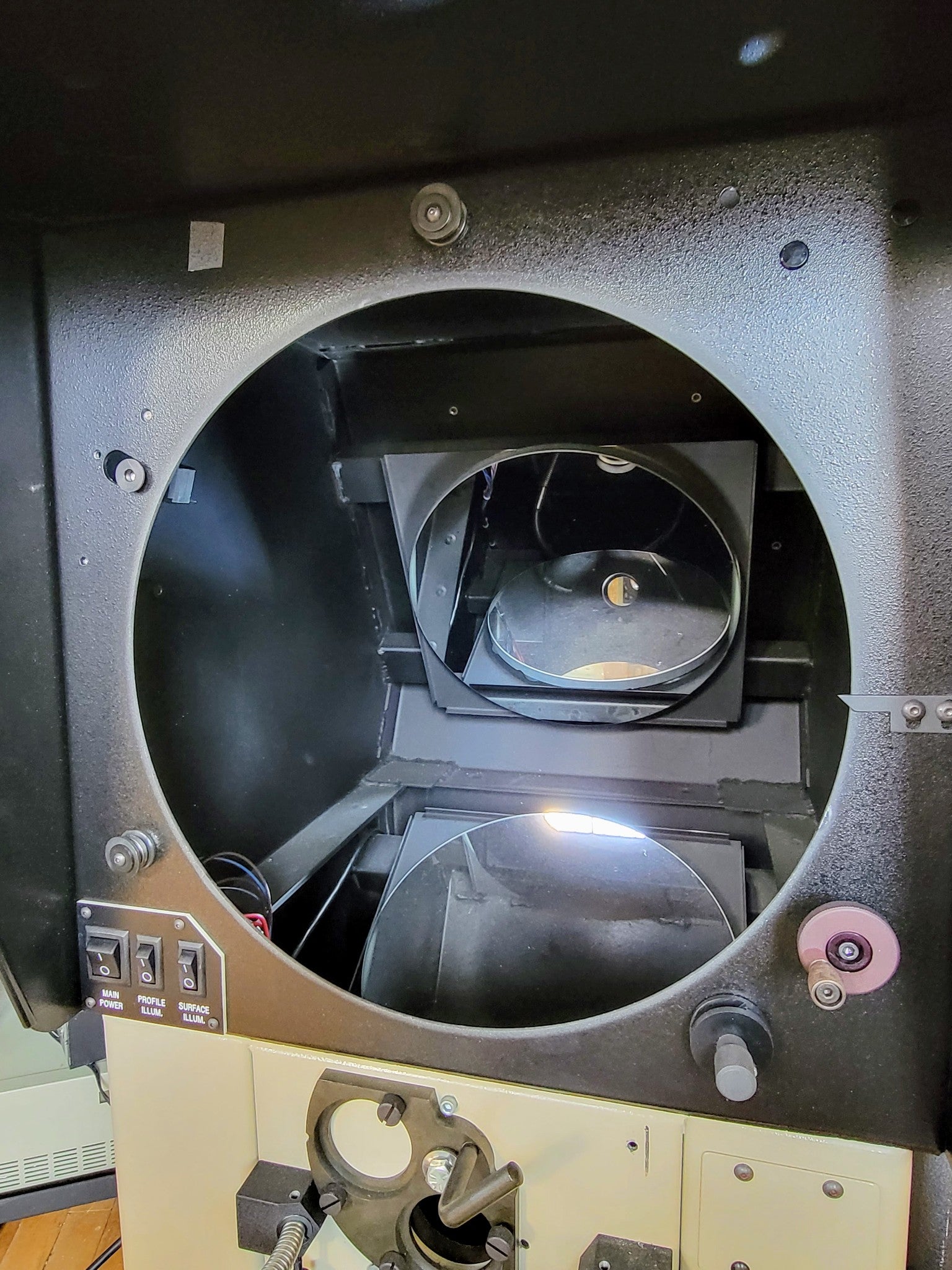

This is our top‐of‐the‐line 14" benchtop horizontal beam optical comparator. The 3700 is the ultimate system for load capacity and accuracy. It features an erect image and S‐T’s exclusive Gothic arch bearing ways which provide the best in accuracy and longevity.

Erect image.

High precision 6" x 12" measuring stage travel with .00005"/.001 mm resolution precision glass scales. Quick release with fine adjust on X‐axis. Optional 5" x 16" travel. 100‐lb load capacity.

Standard 2‐lens turret system.

Hardened steel, nickel‐plated workstage for long life and corrosion resistance.

Helix +/‐ 6° via lamphouse displacement.

Heavy‐duty all‐steel construction.

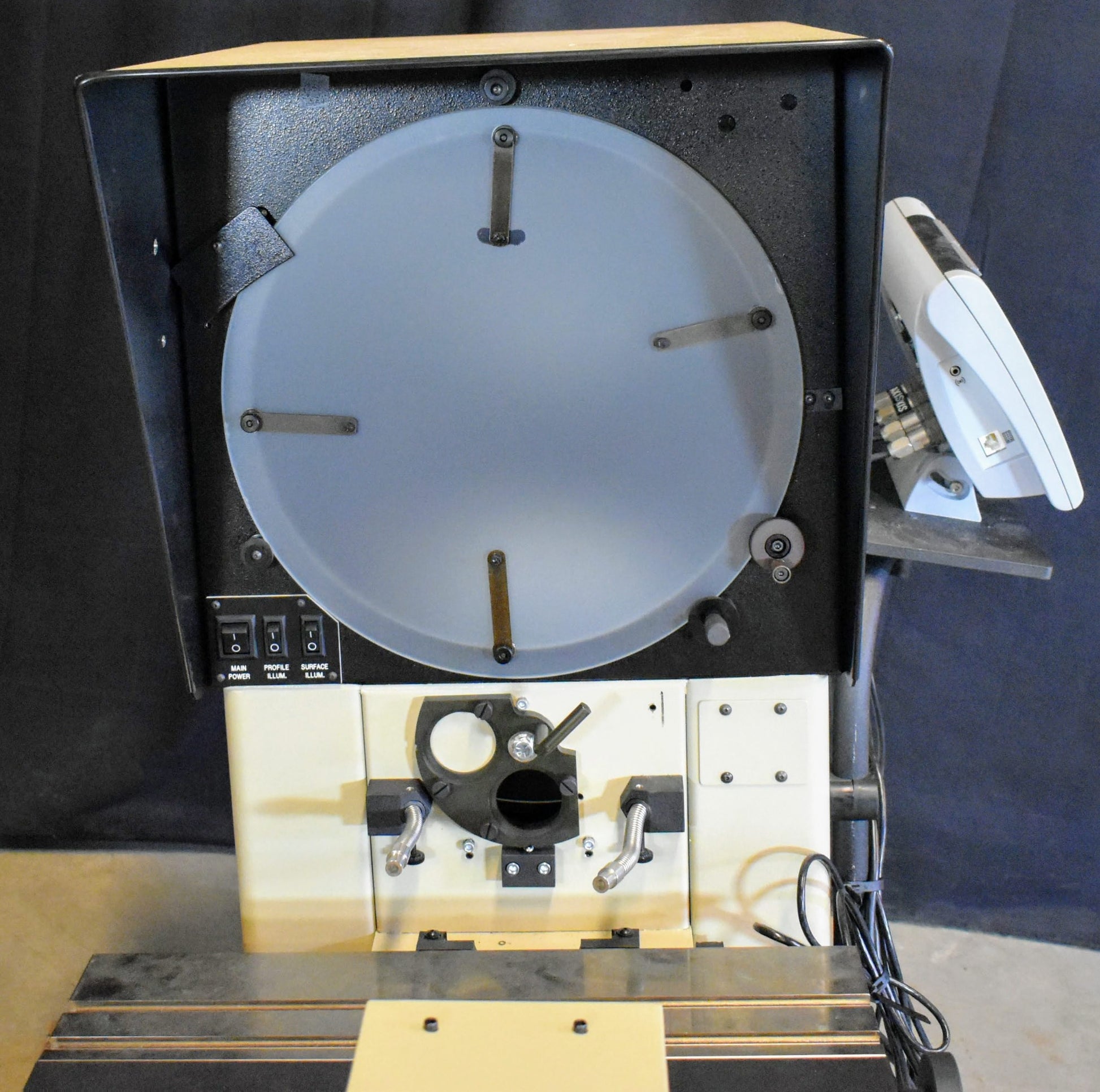

Fully useable 14" diameter screen.

Standard swingaway lamphouse.

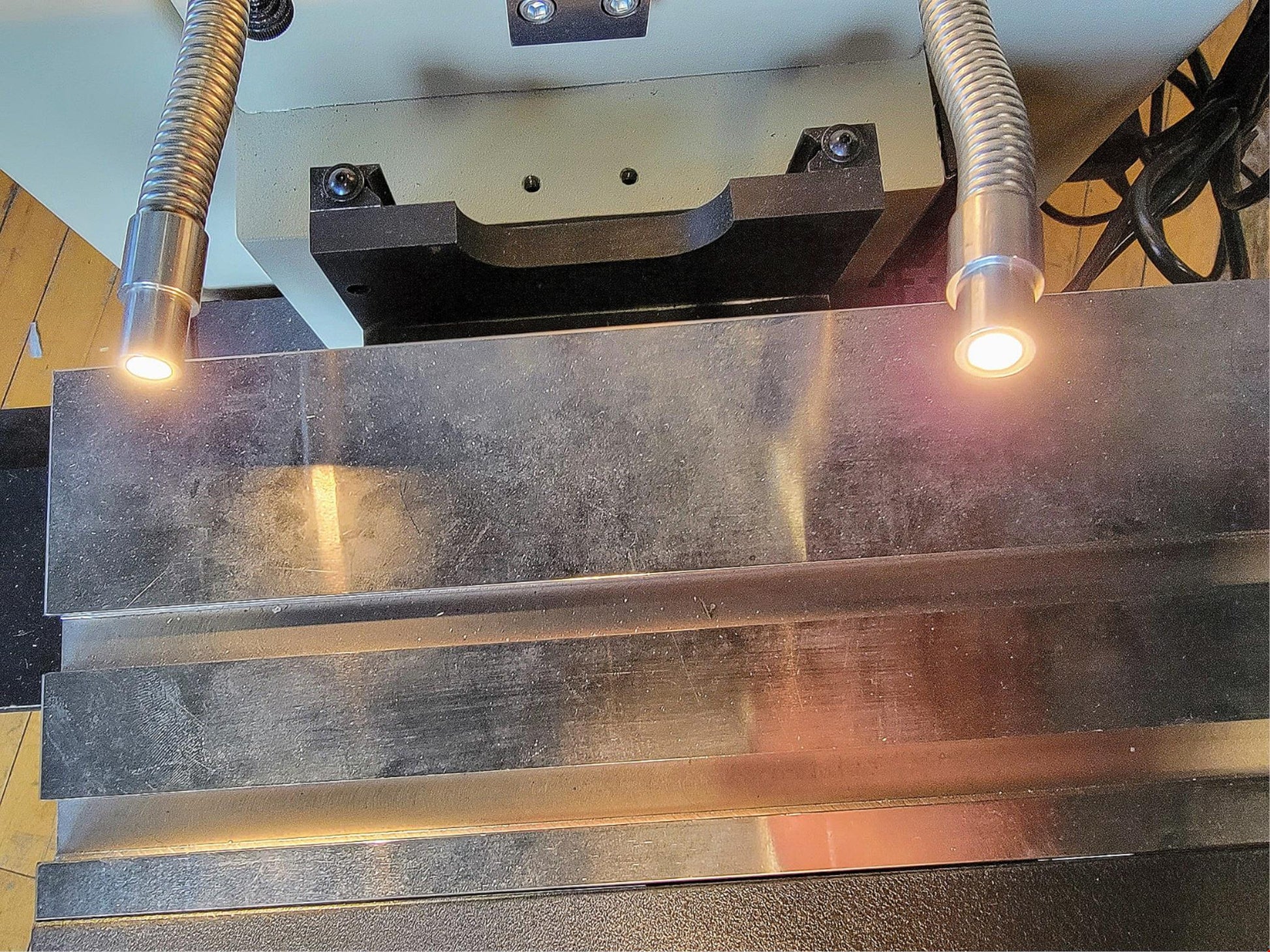

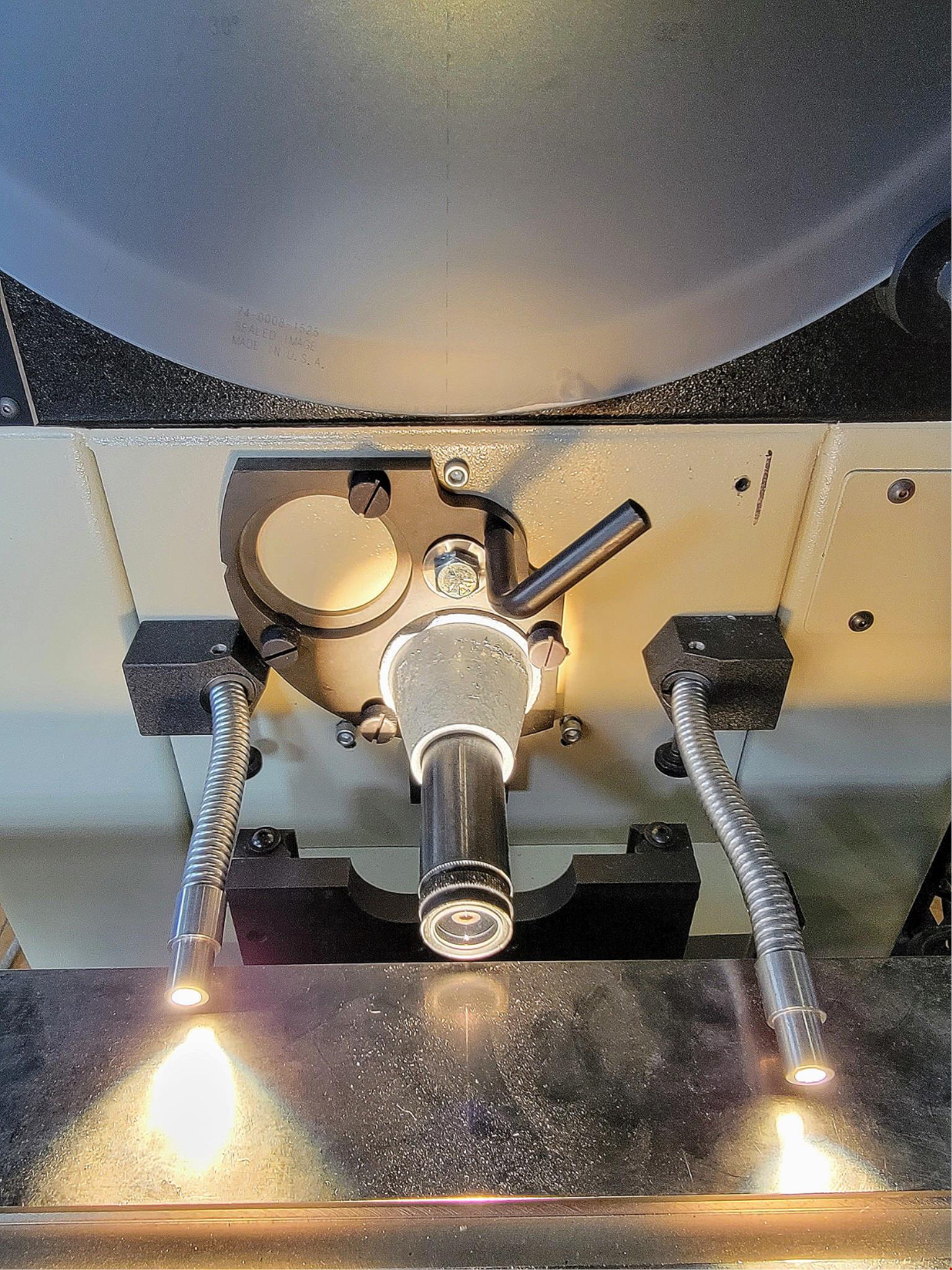

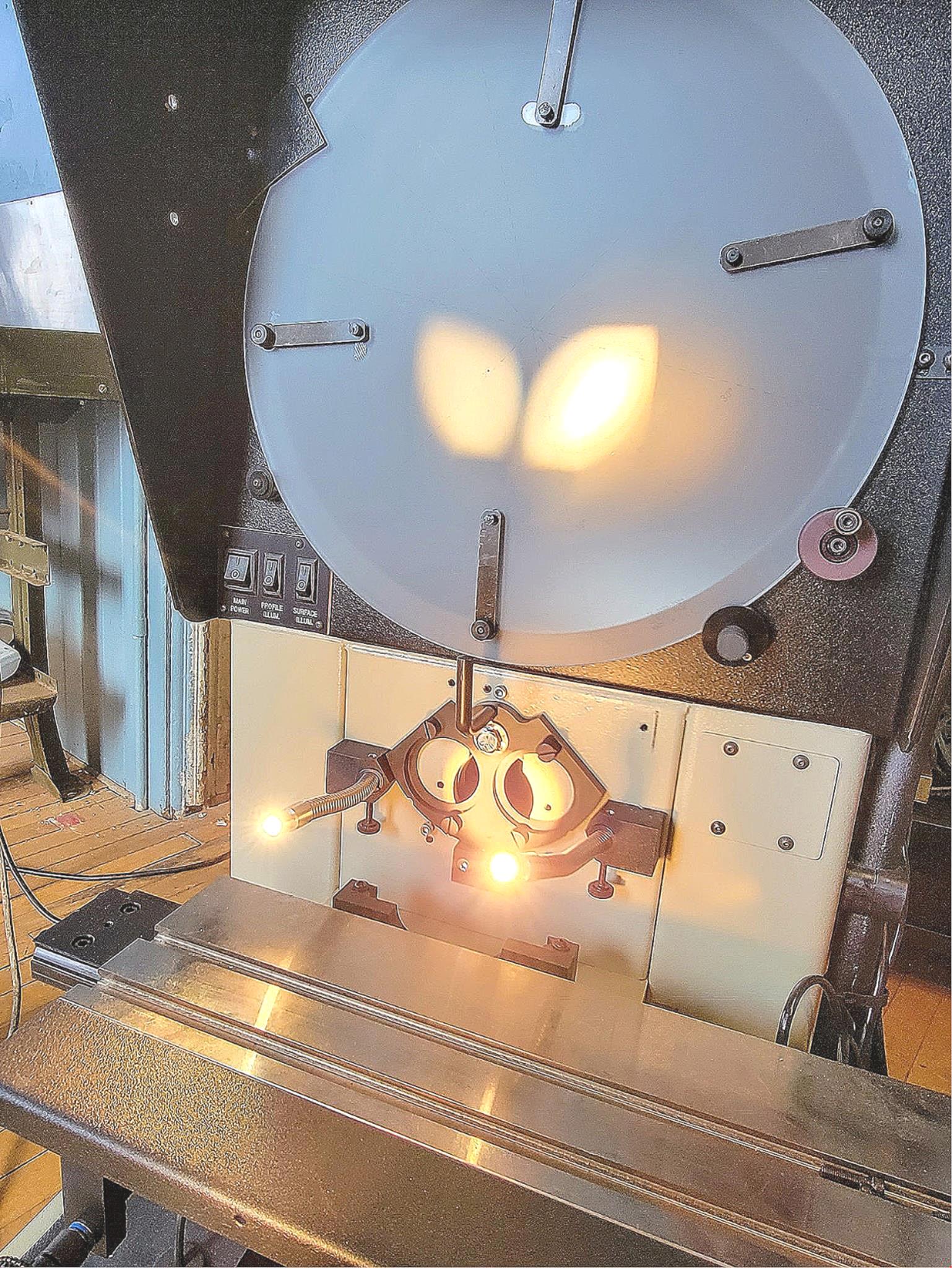

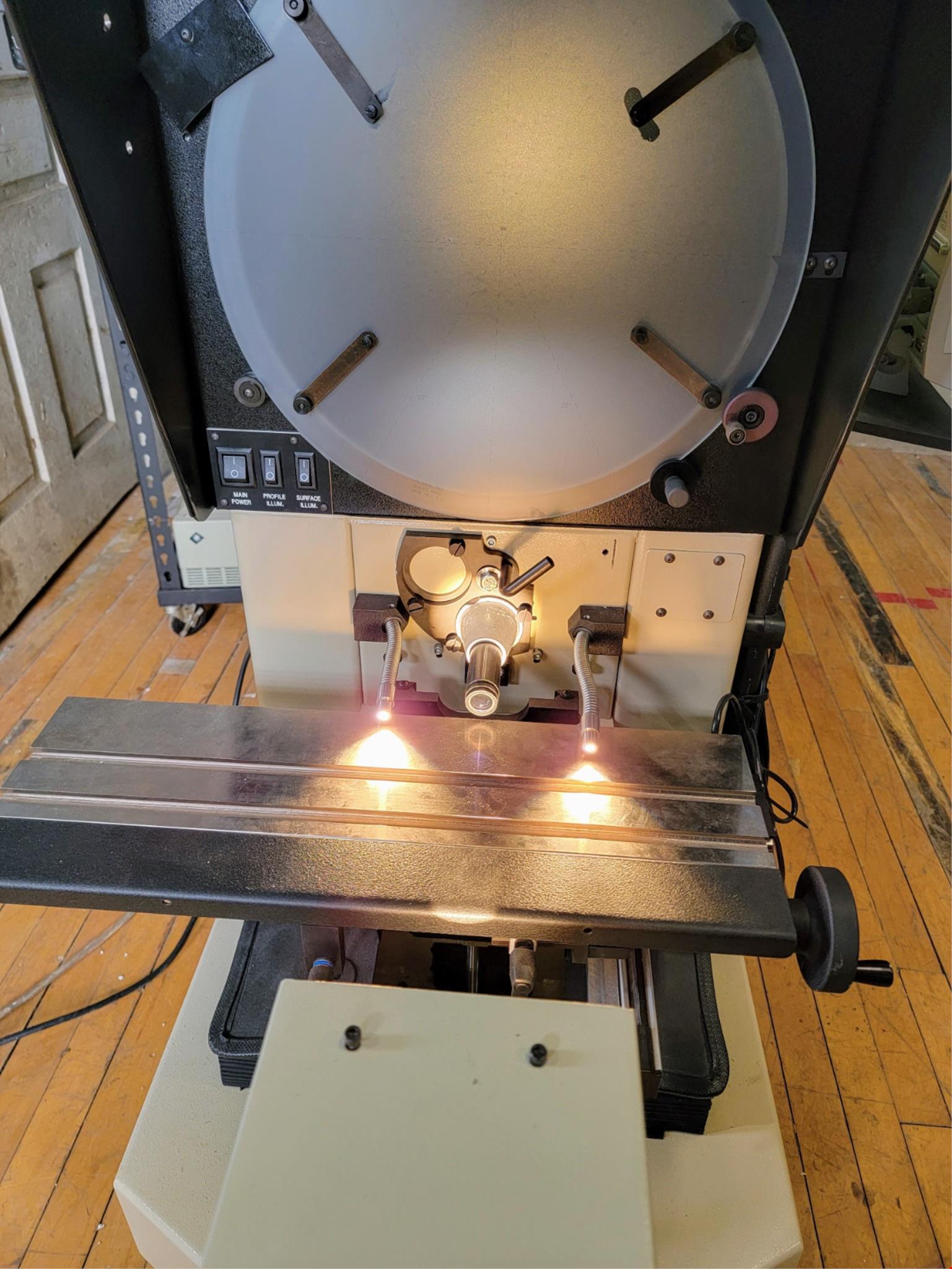

Duplex fiber optic surface illumination.

Digital screen protractor with readings to 1' or .01°.

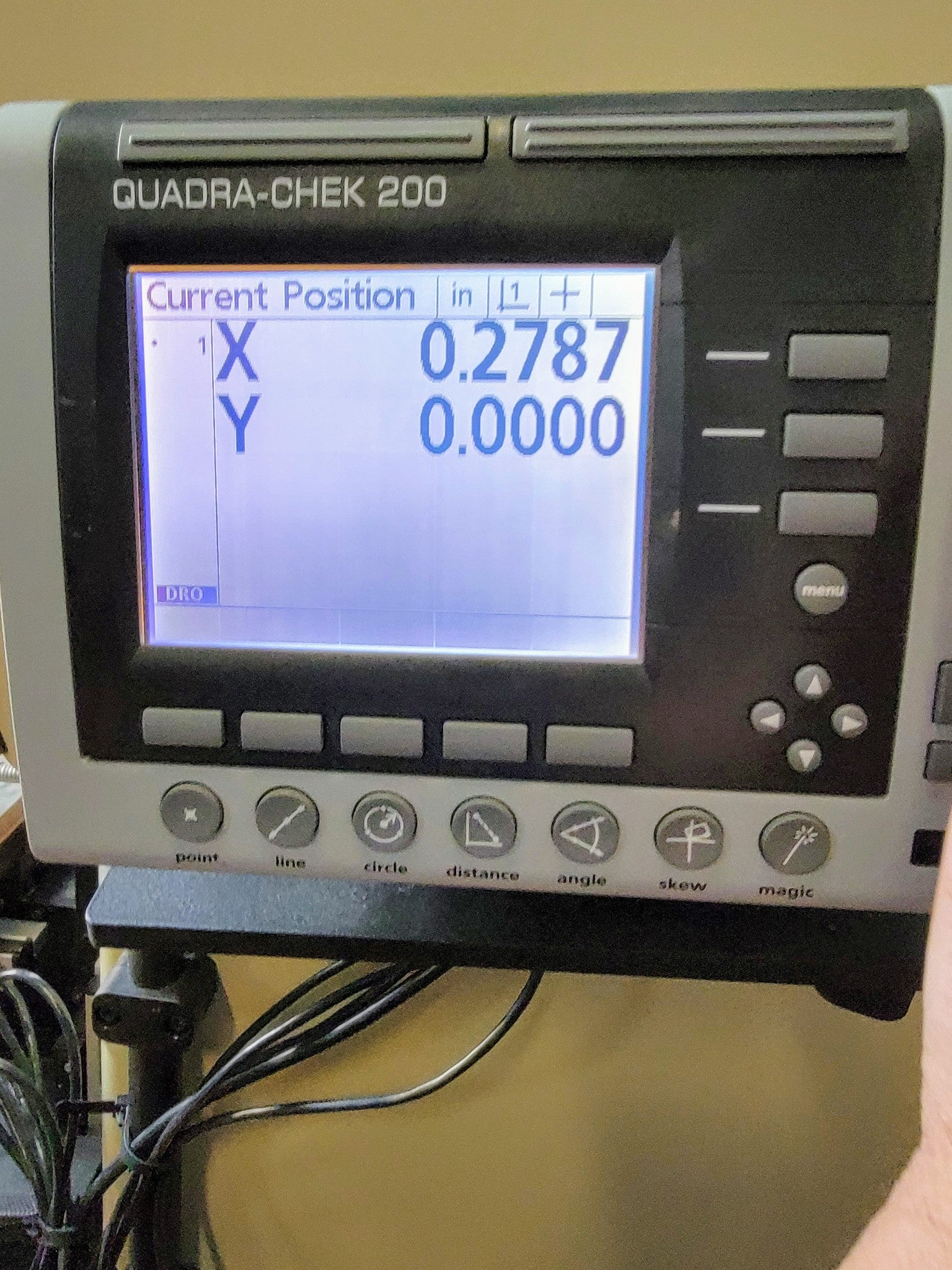

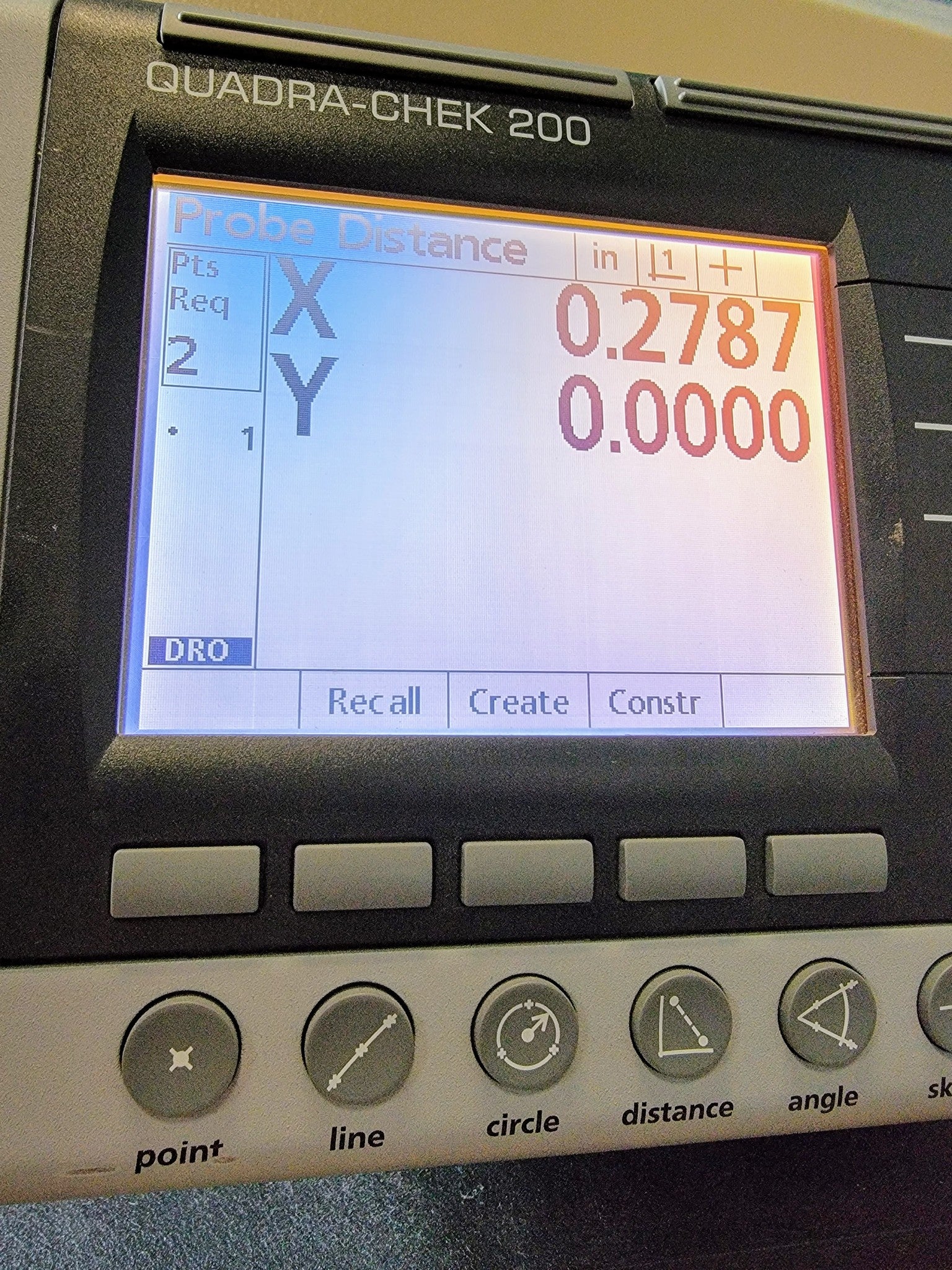

Digital Readout:

Optical Comparator 3700 Series - S-T Industries with Quadra-Chek 200

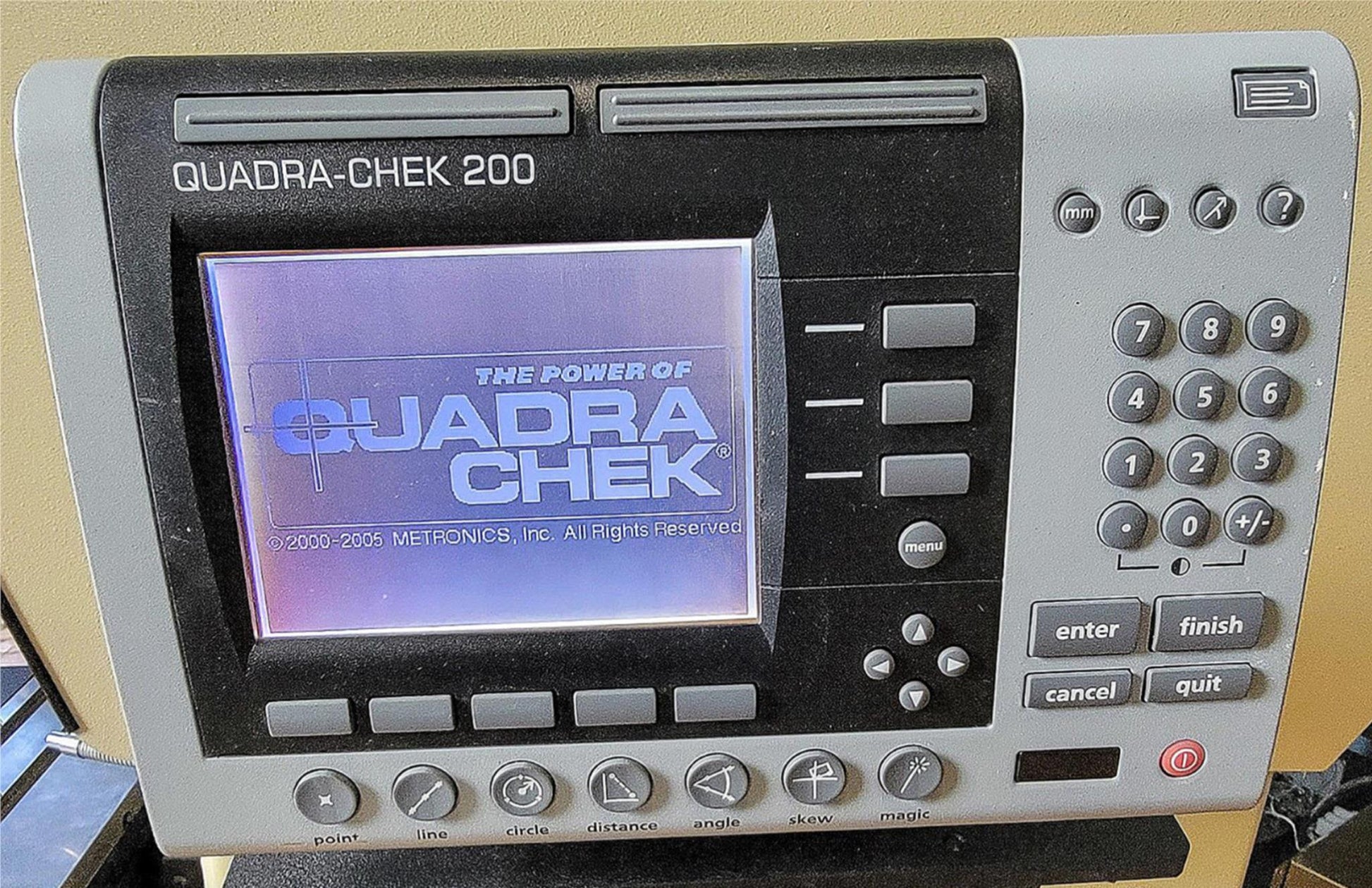

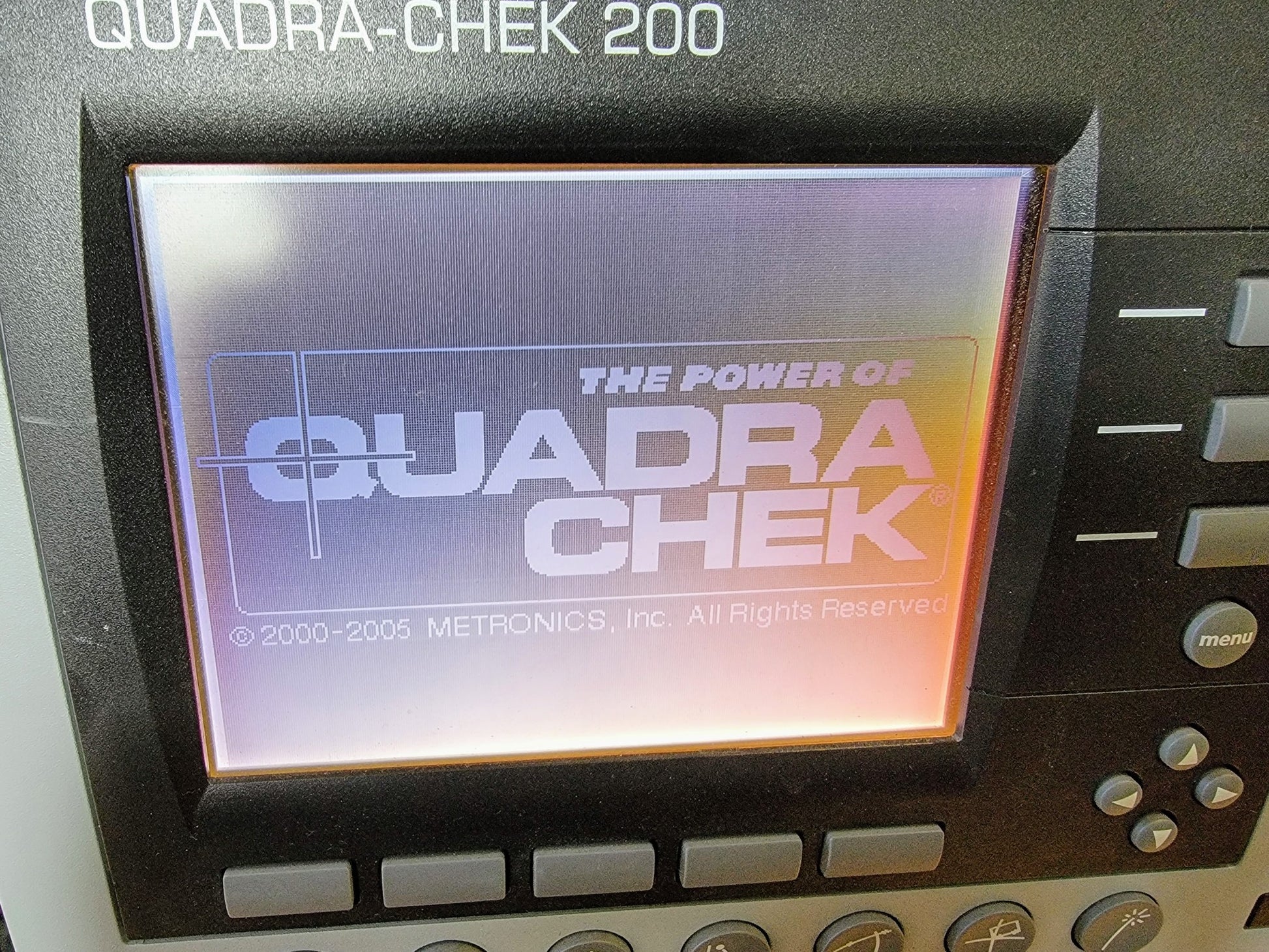

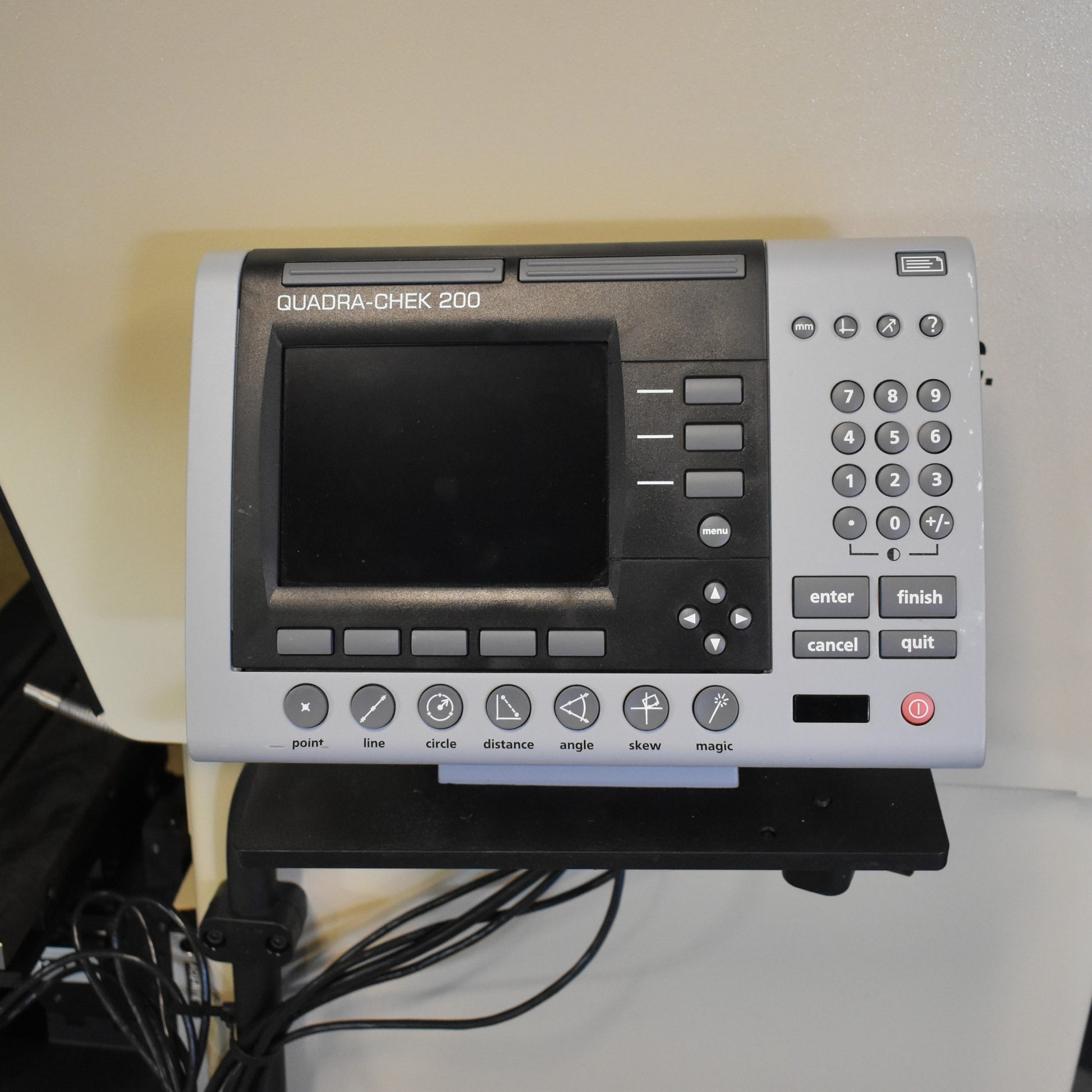

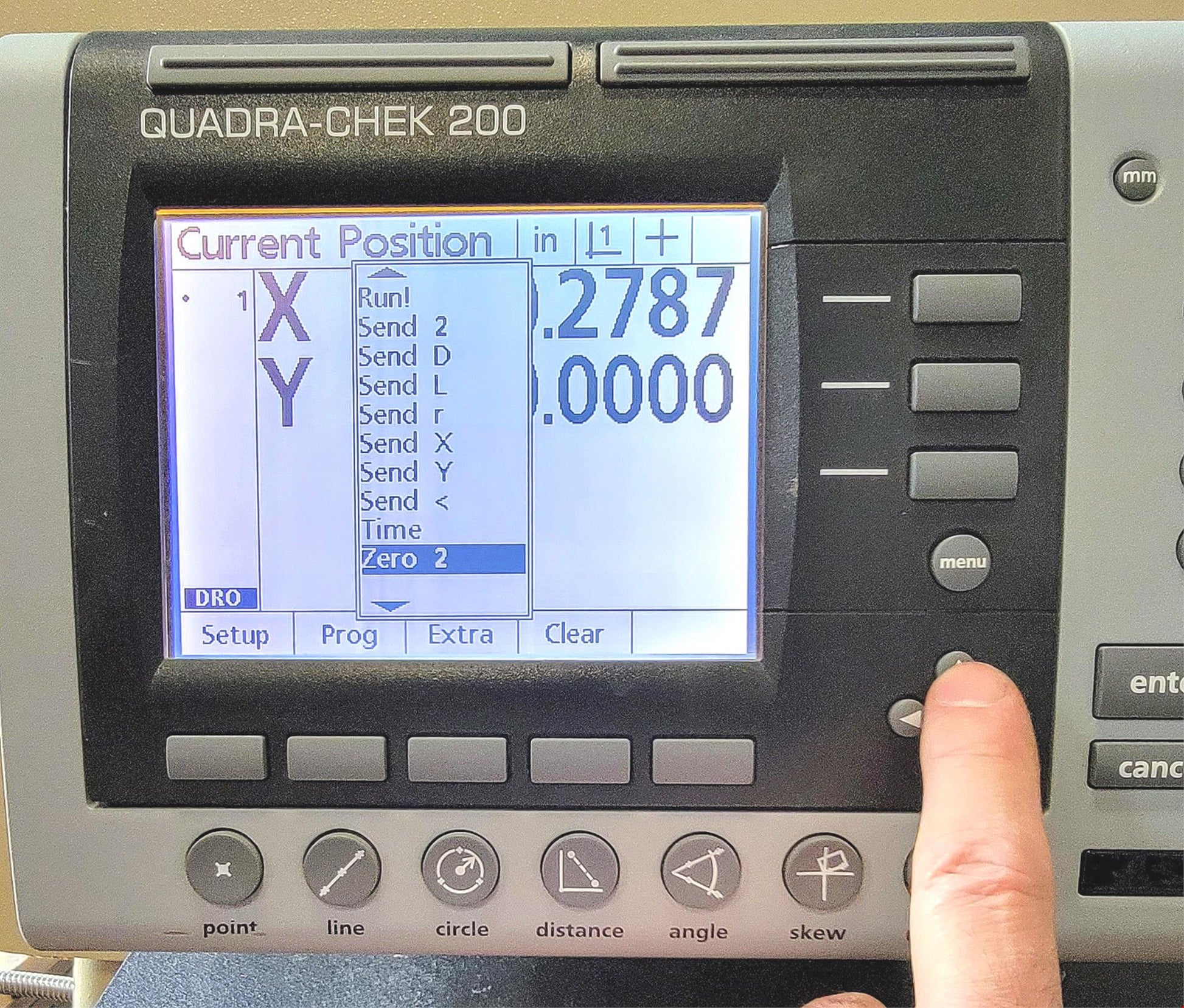

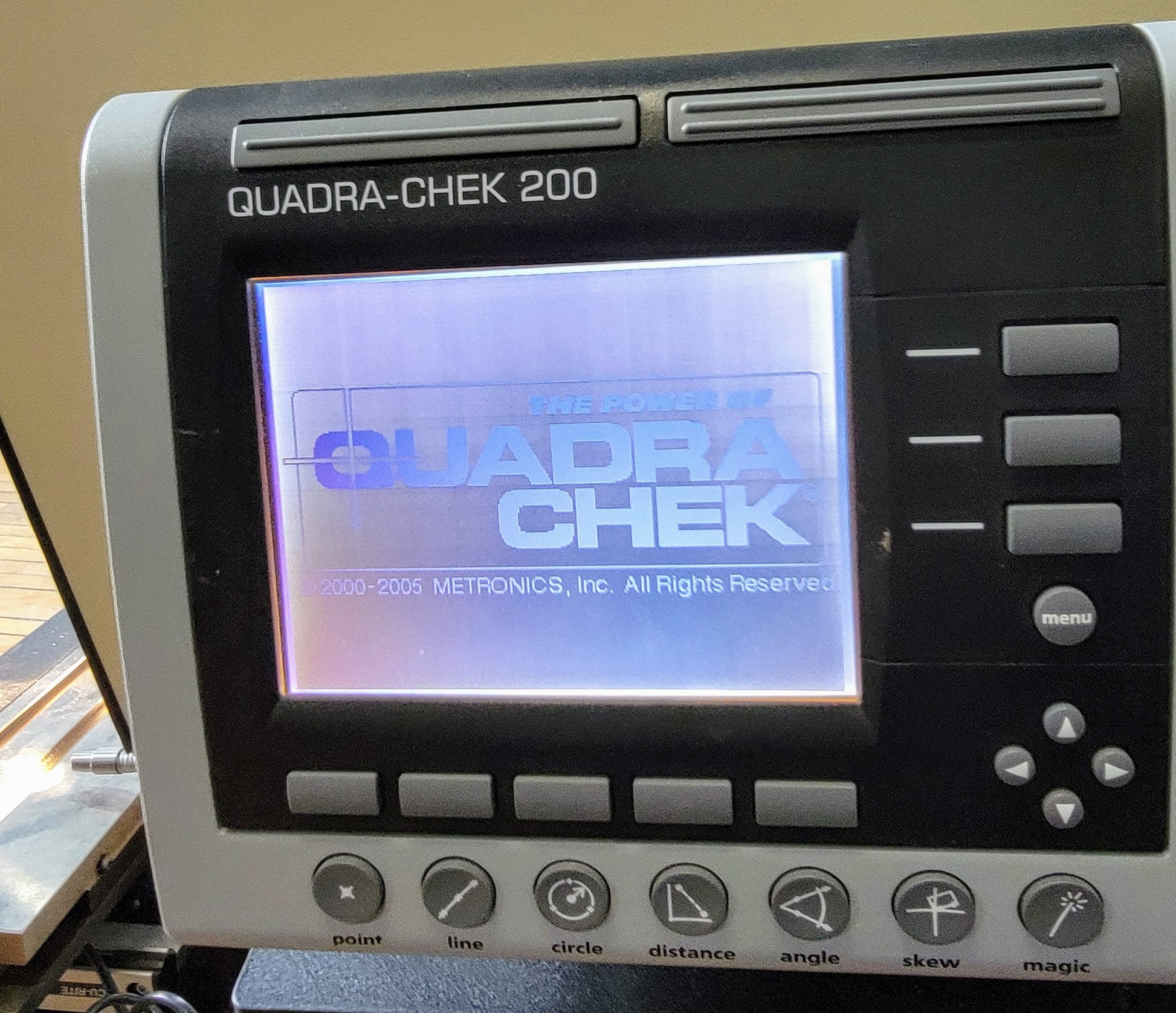

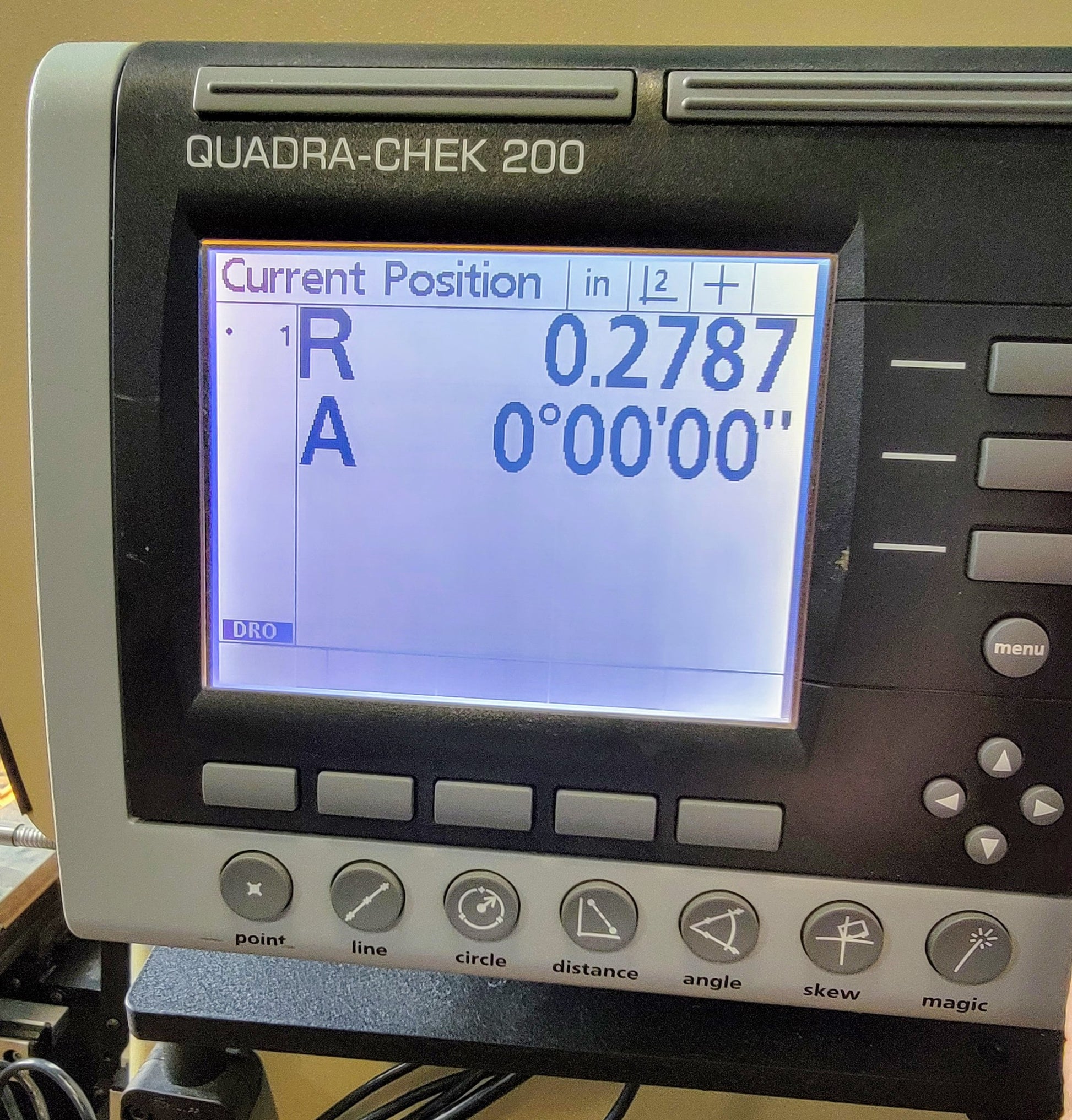

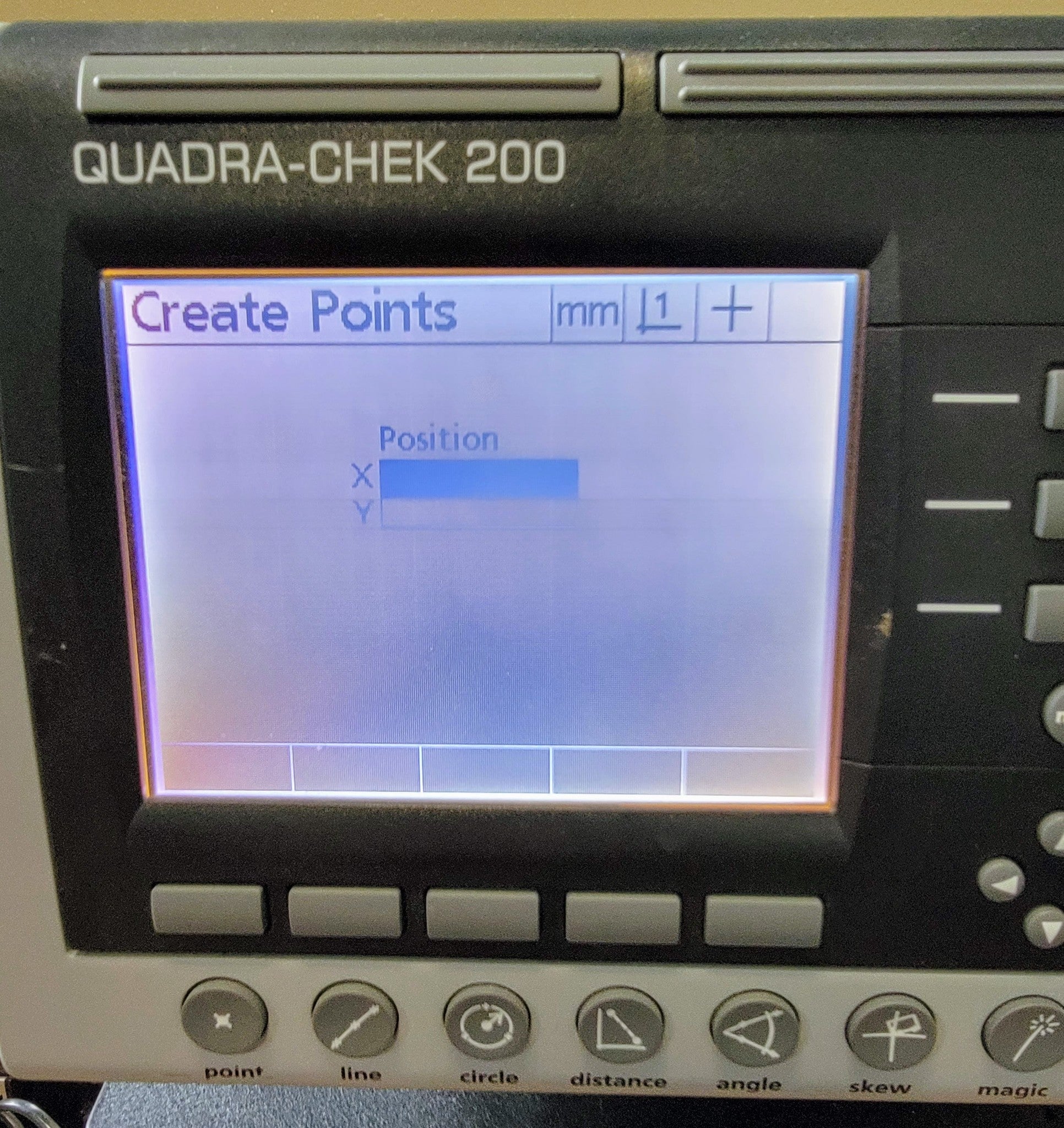

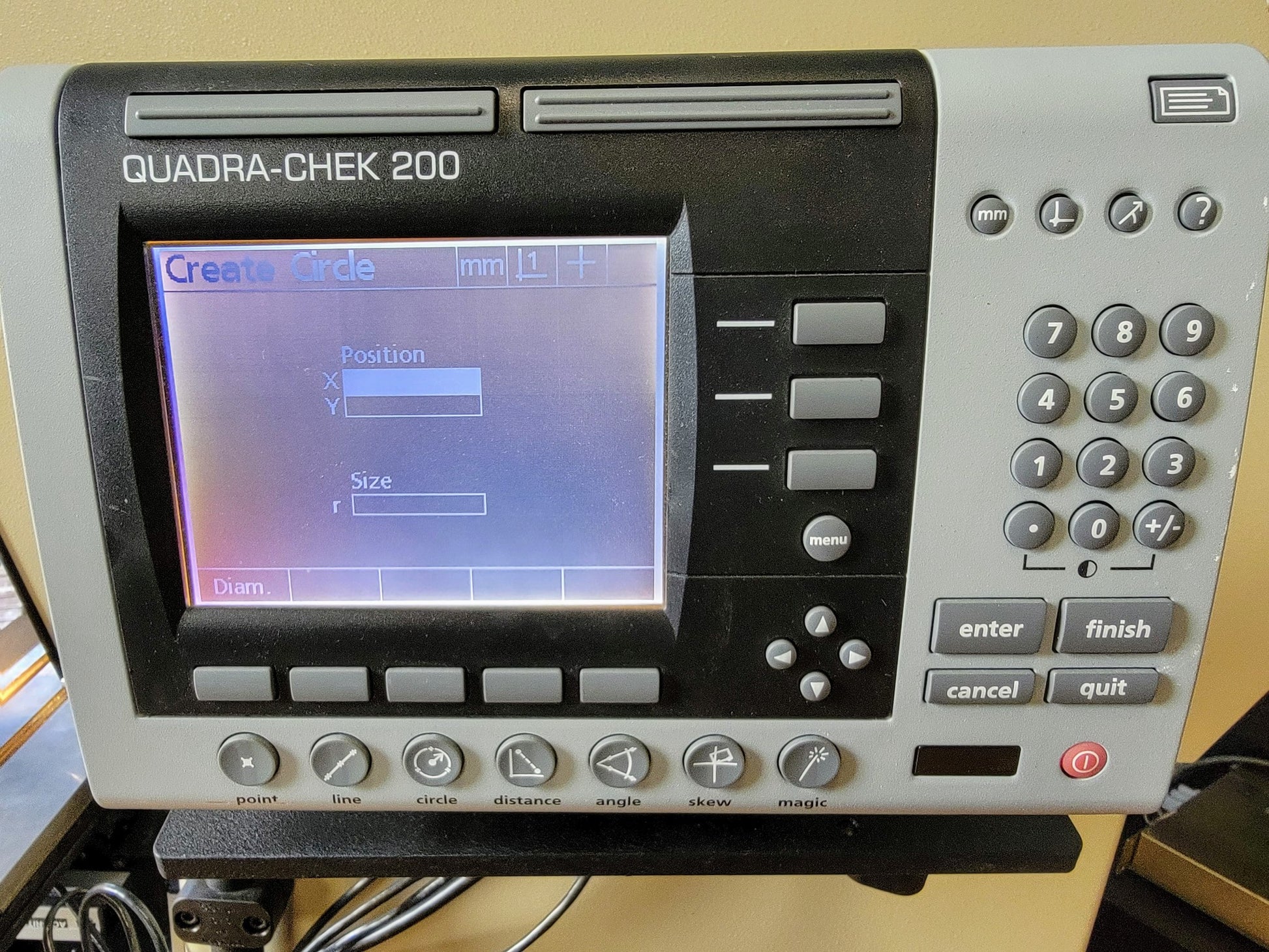

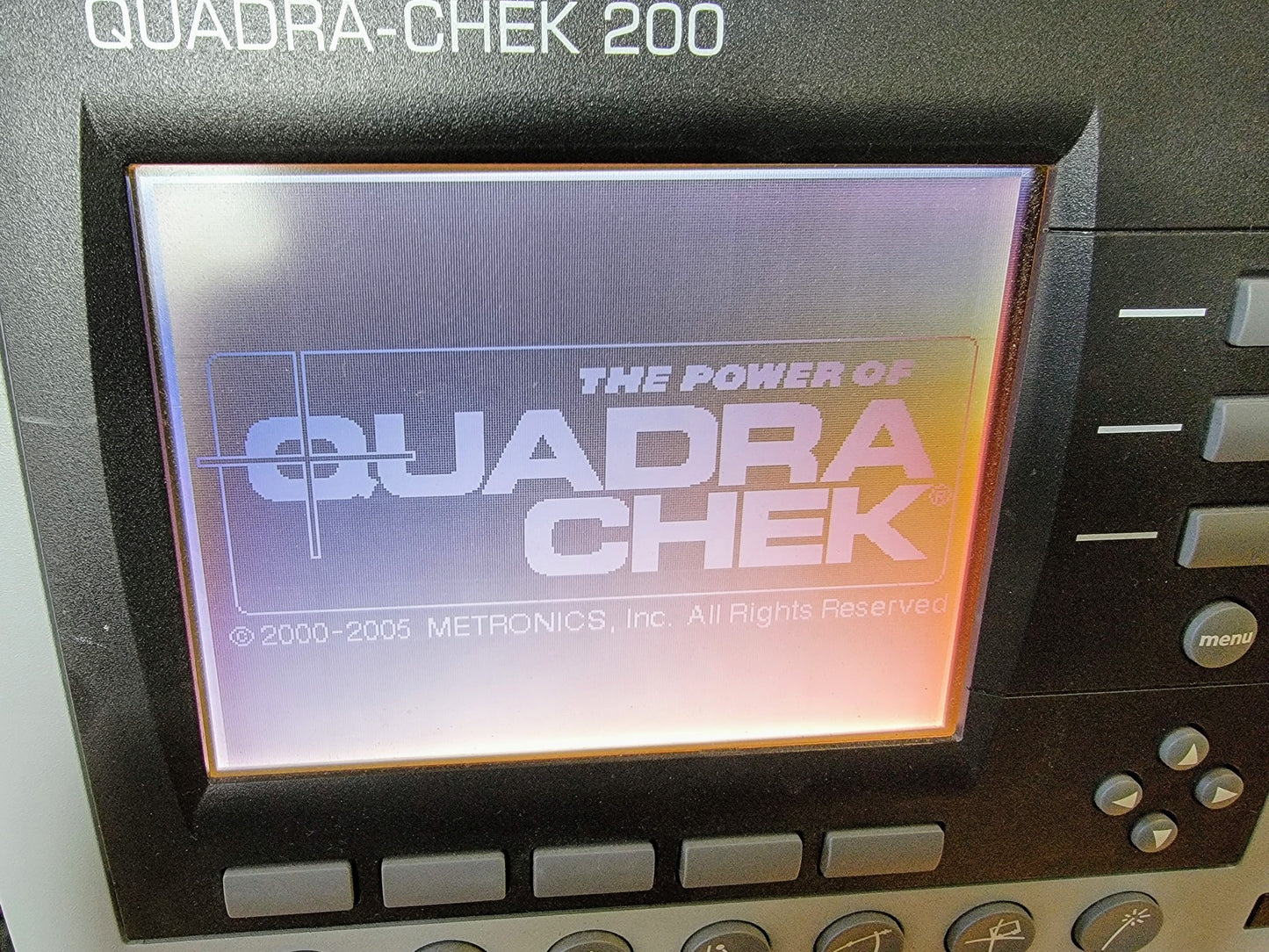

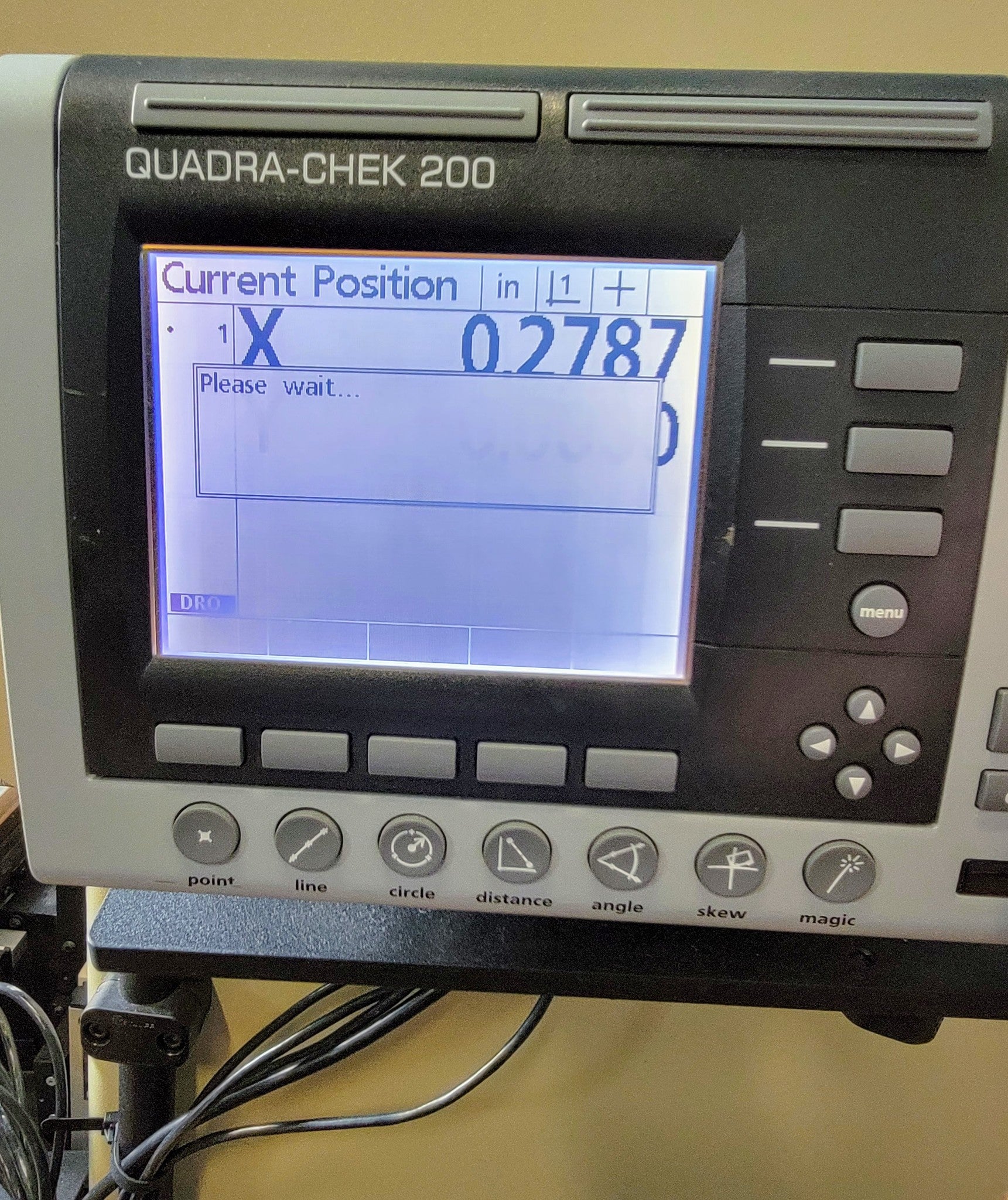

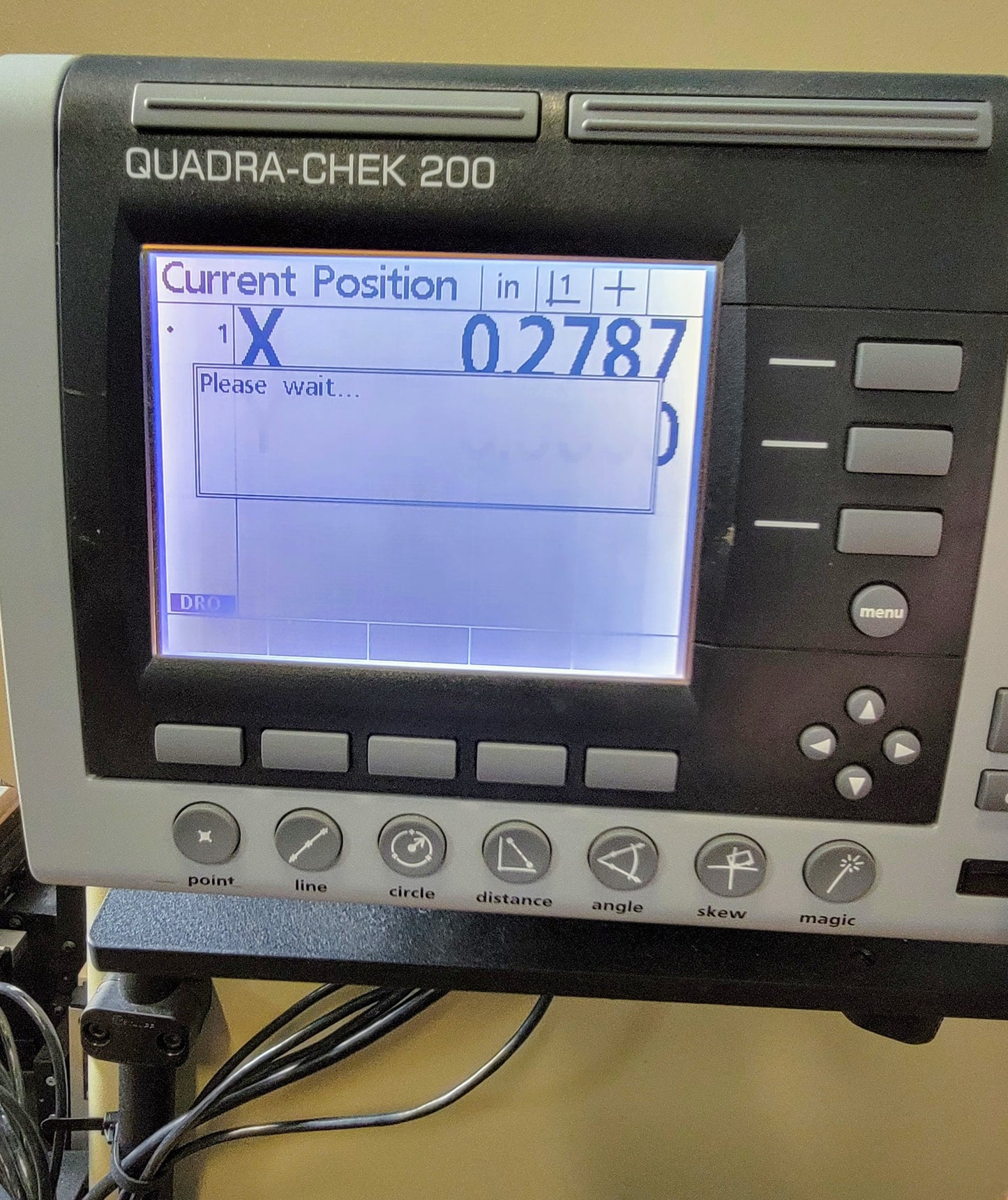

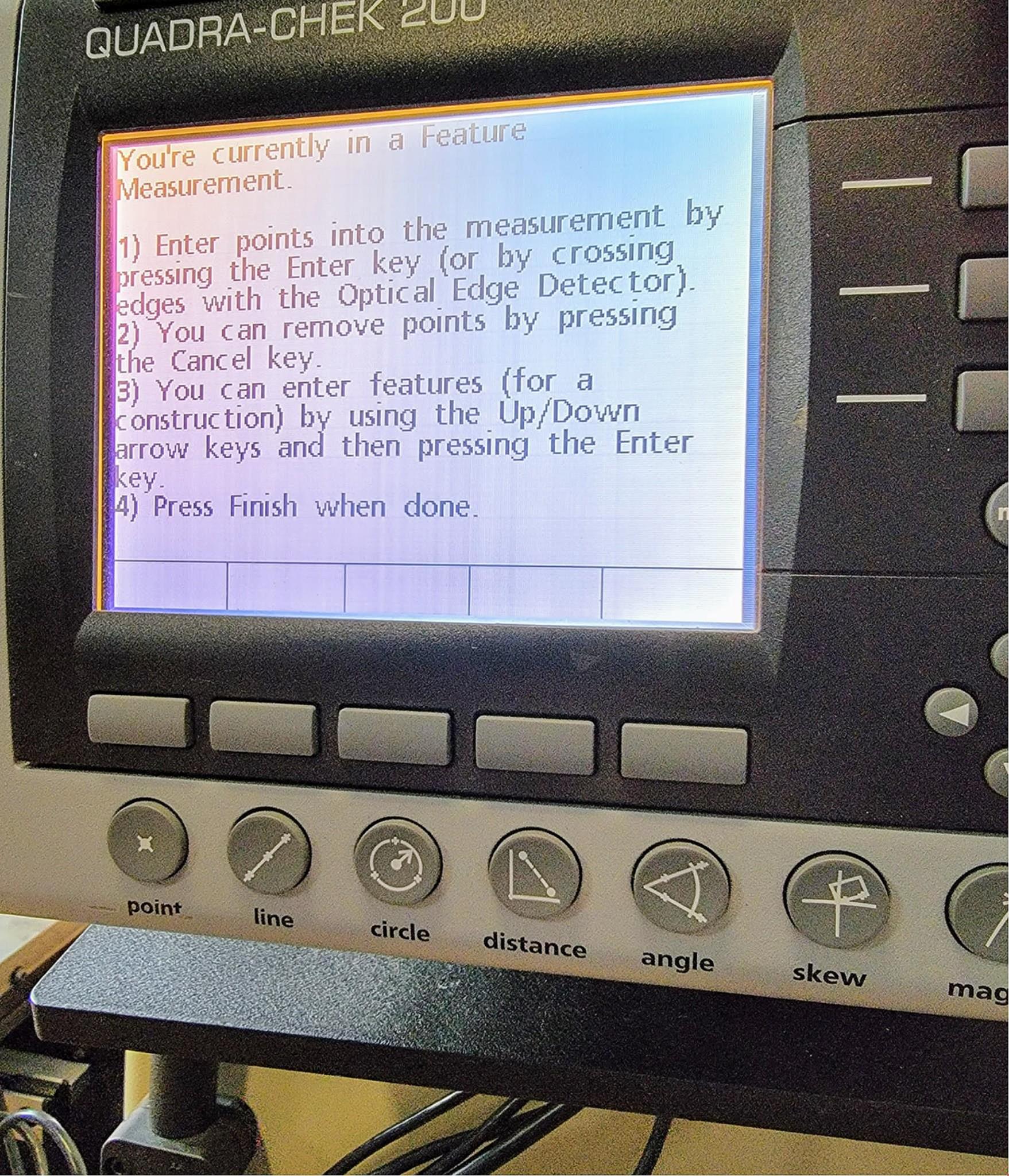

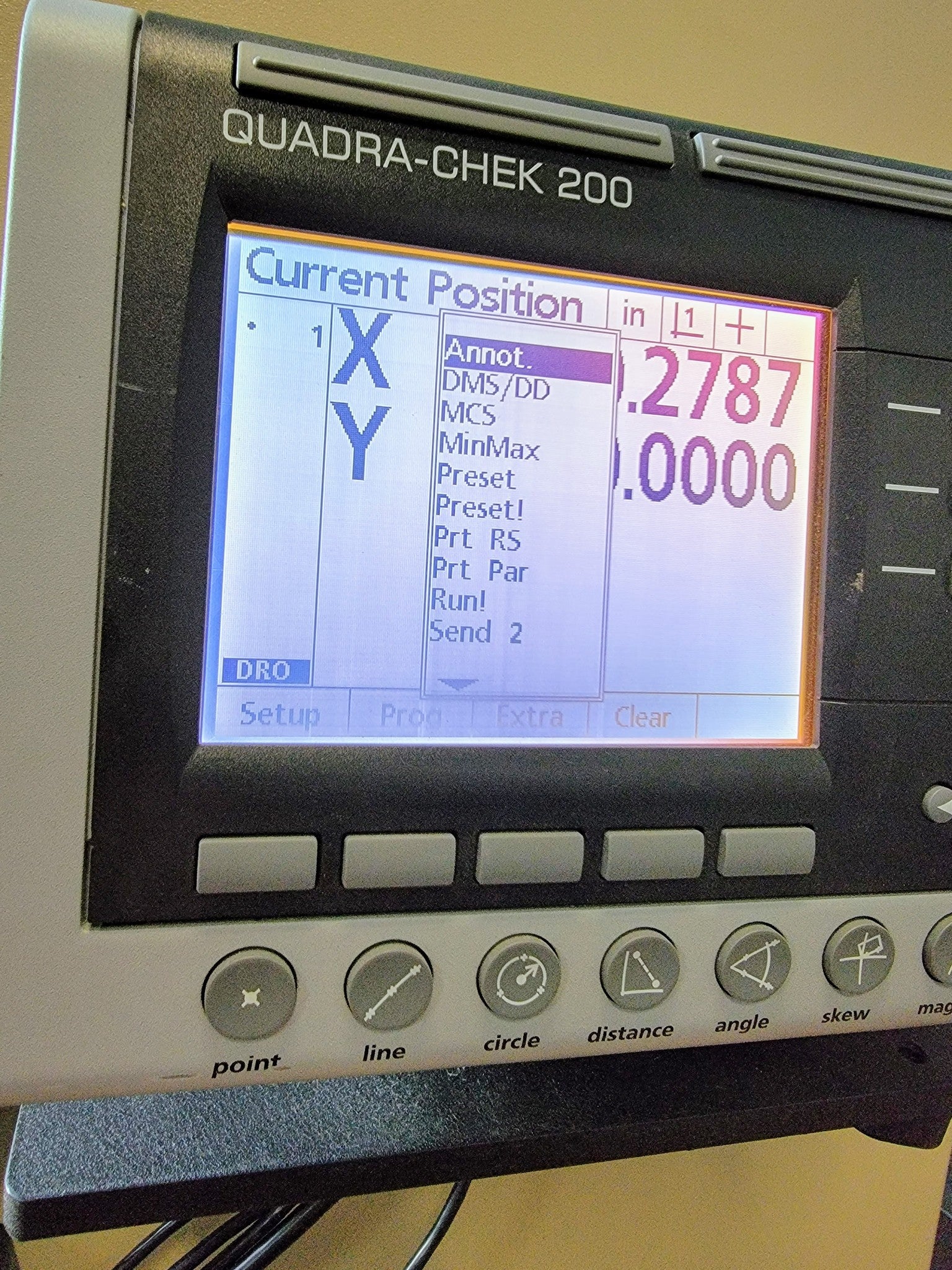

QC200's Digital readout combines the geometric functions with a high resolution video display to provide a unique and user‐friendly measuring solution.

Extremely Stable Heavy Steel Plate Construction, Bright Optics Offer Crip Screen Image.  Many Optional Features Available Online.

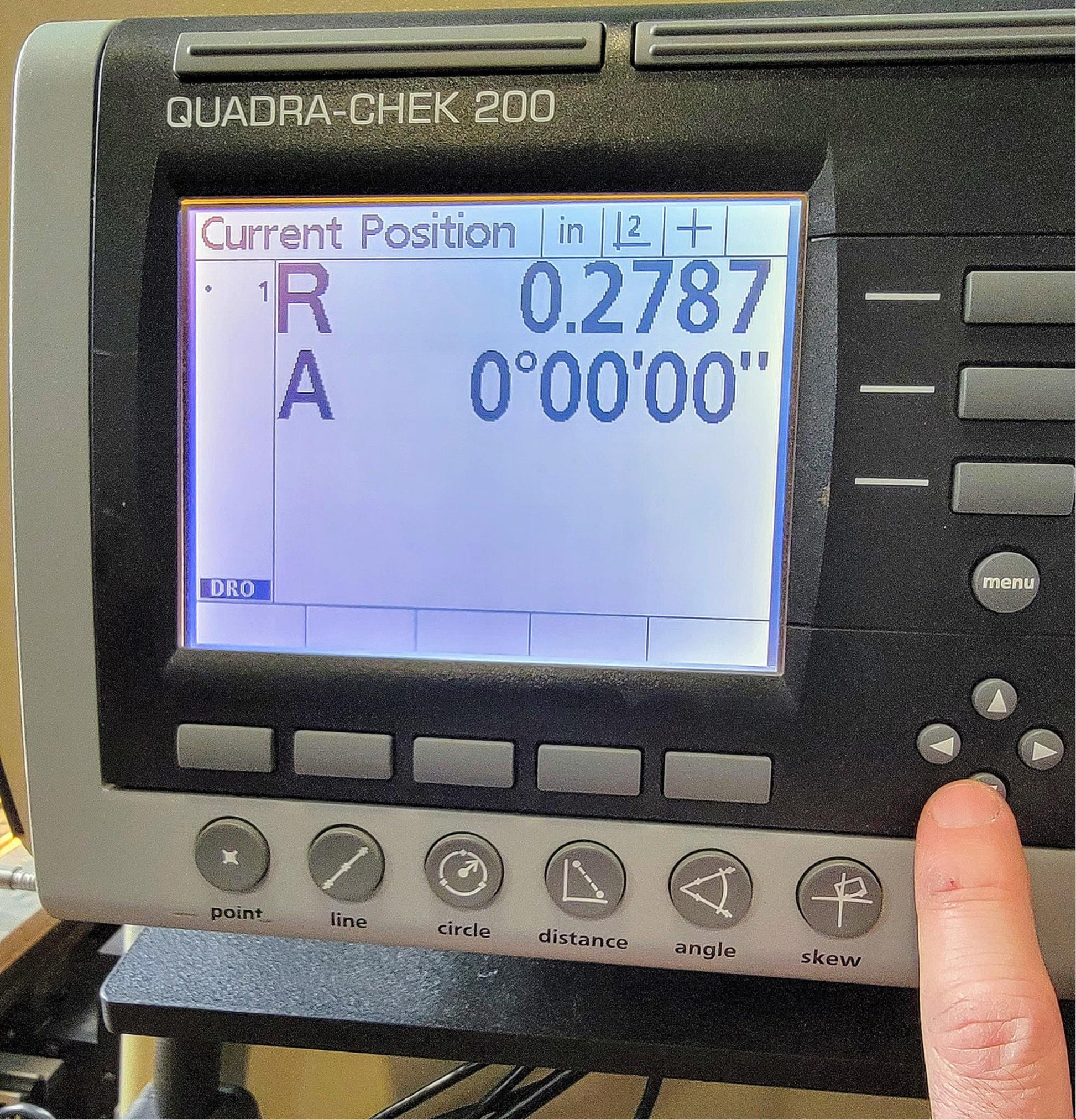

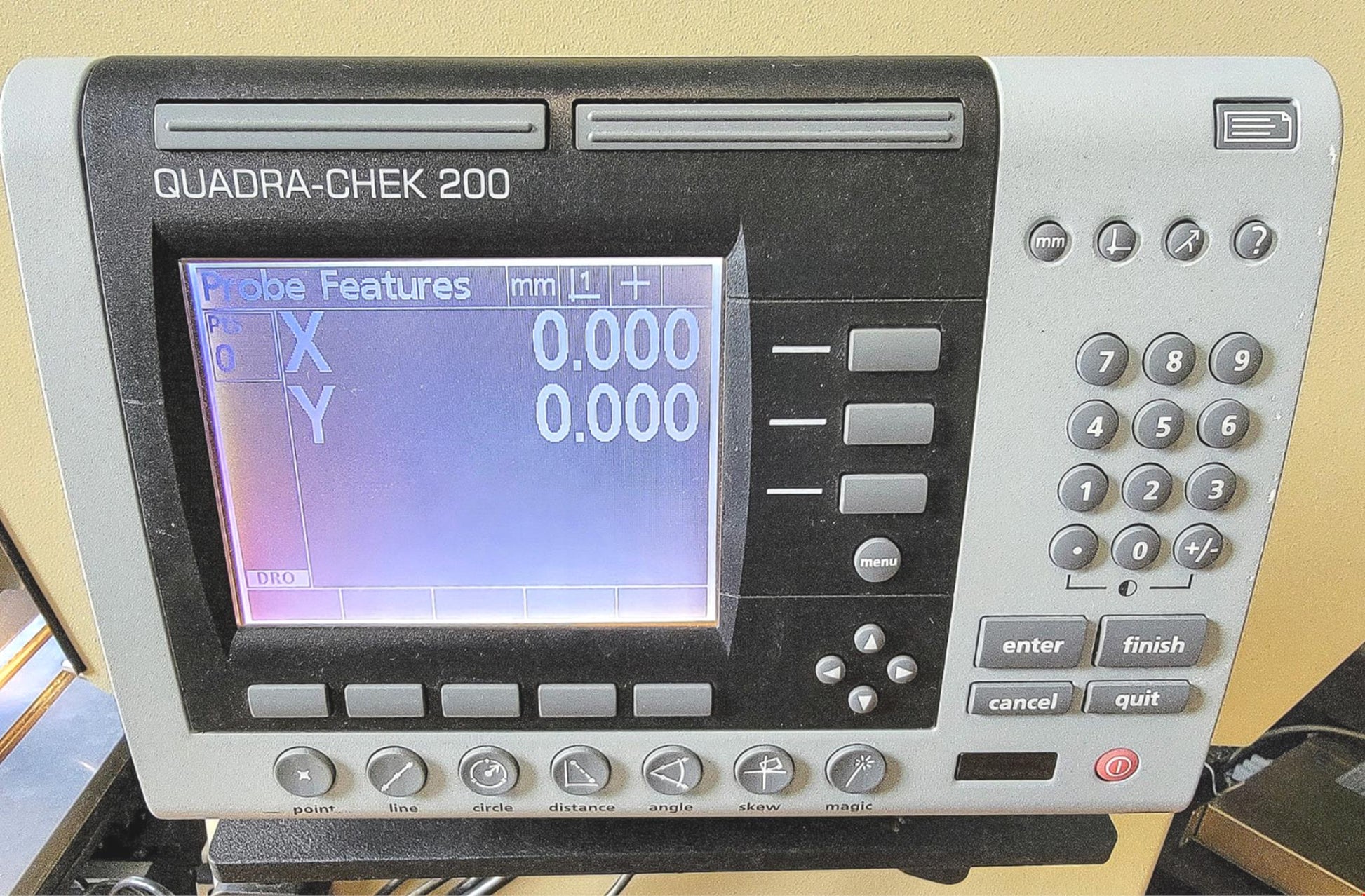

Quadra- Chek QC220 3 Axis Digital Microprocessor- "X" "Y" ("Q" Digital Screen Protractor)

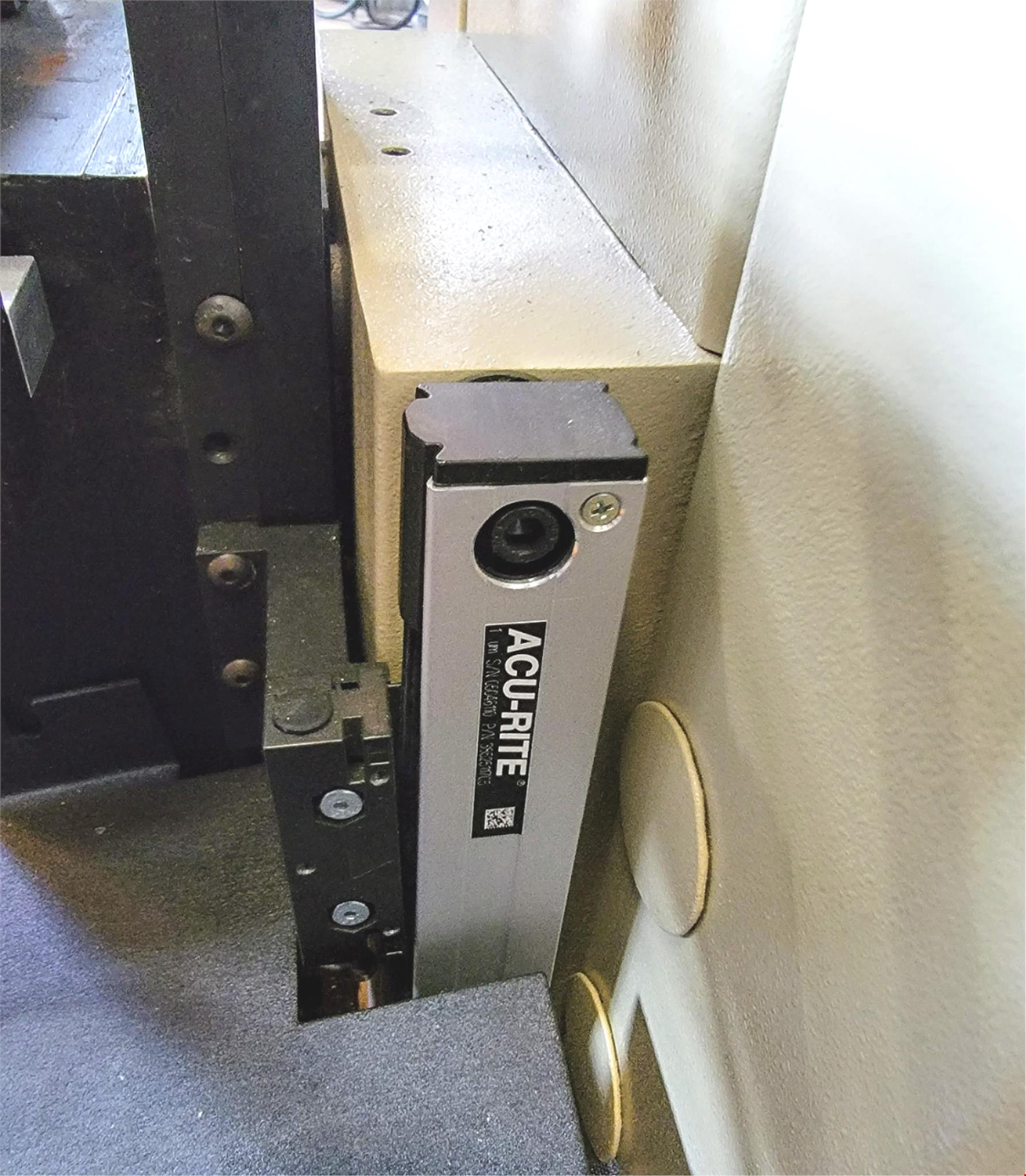

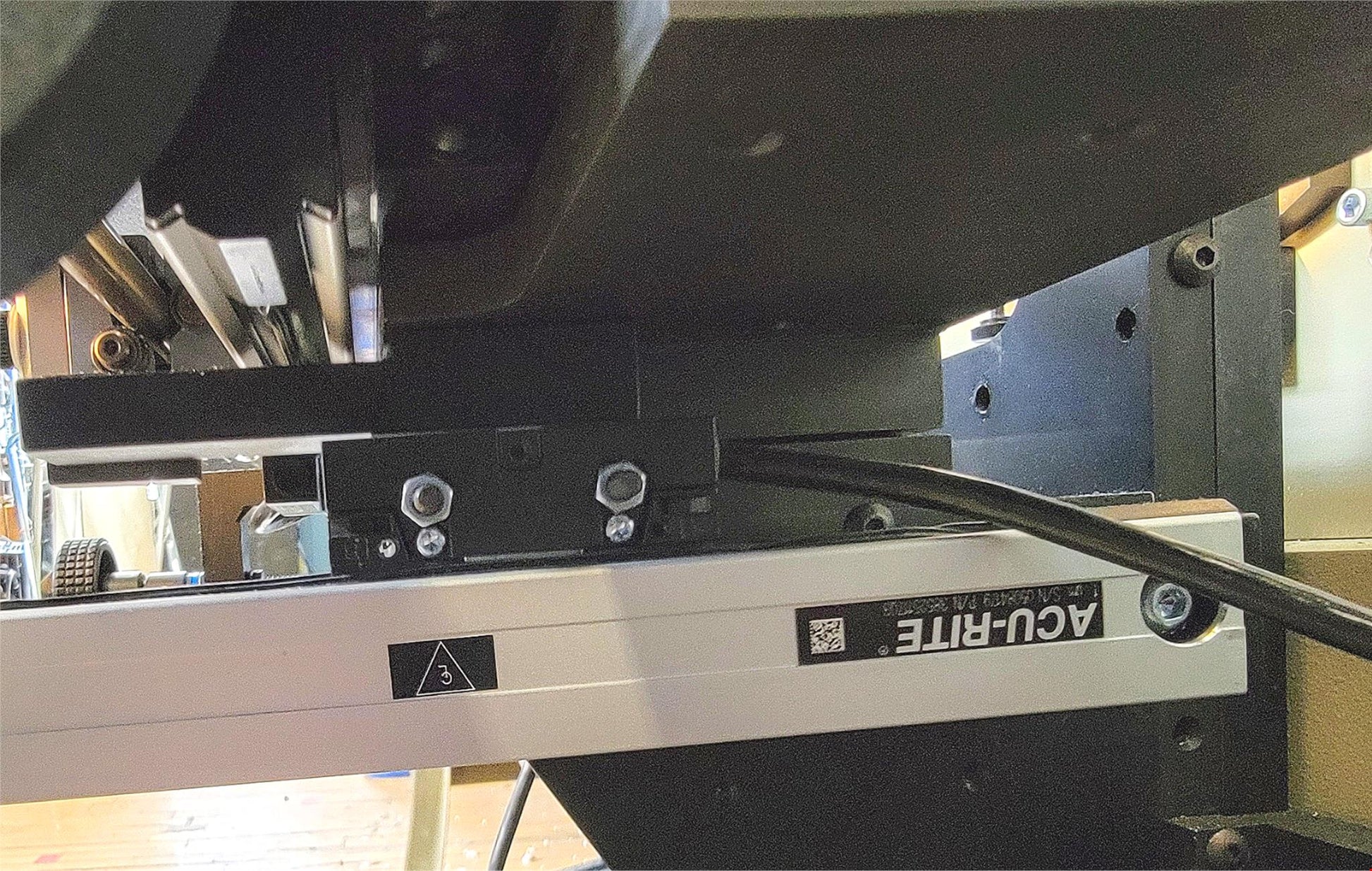

Acu- Rite Scales 1um' .00004" Resolution

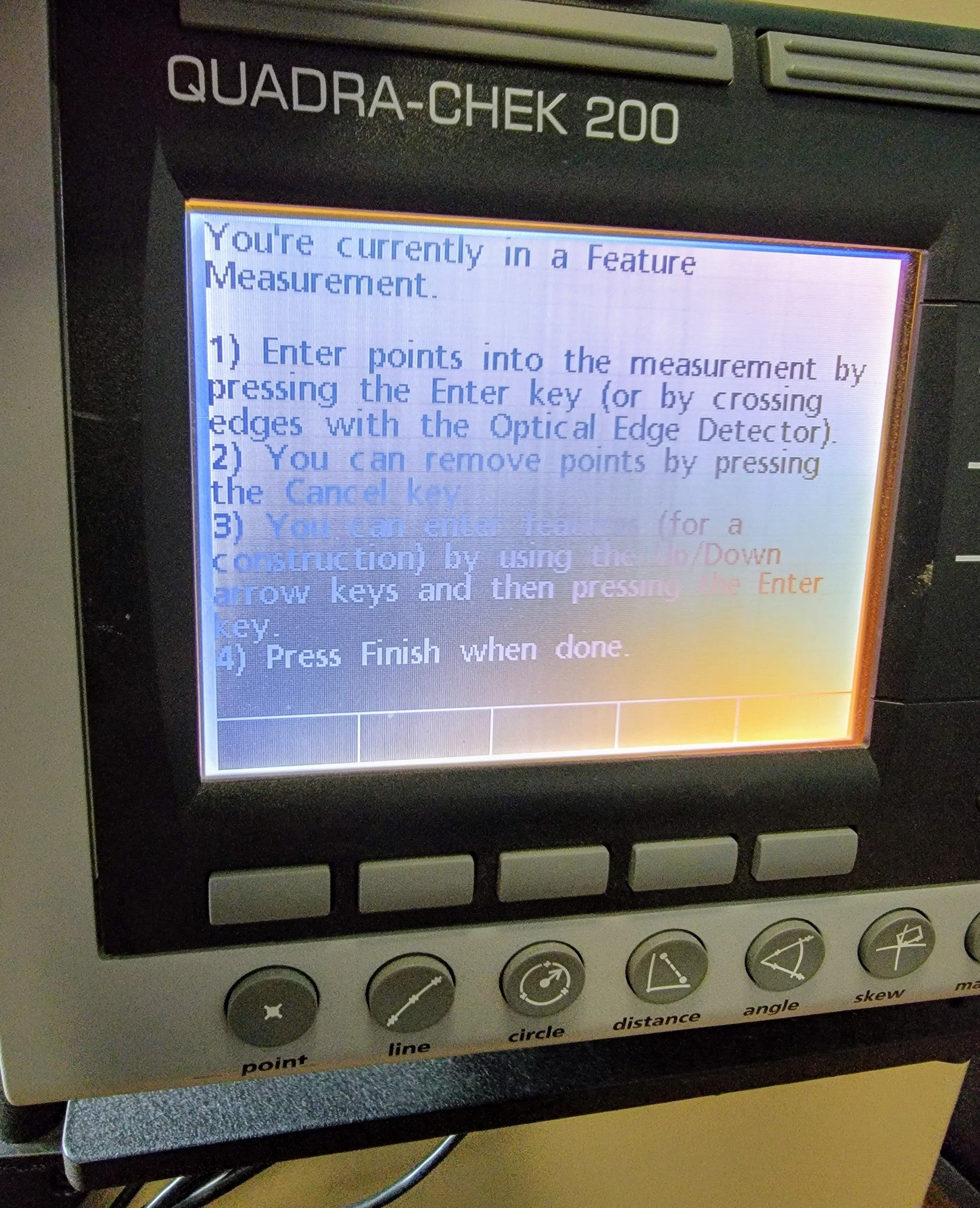

Edge Detection via Fiber Optic Cable on Swing Away Arm- (fully adjustable)

Corrected Screen Image

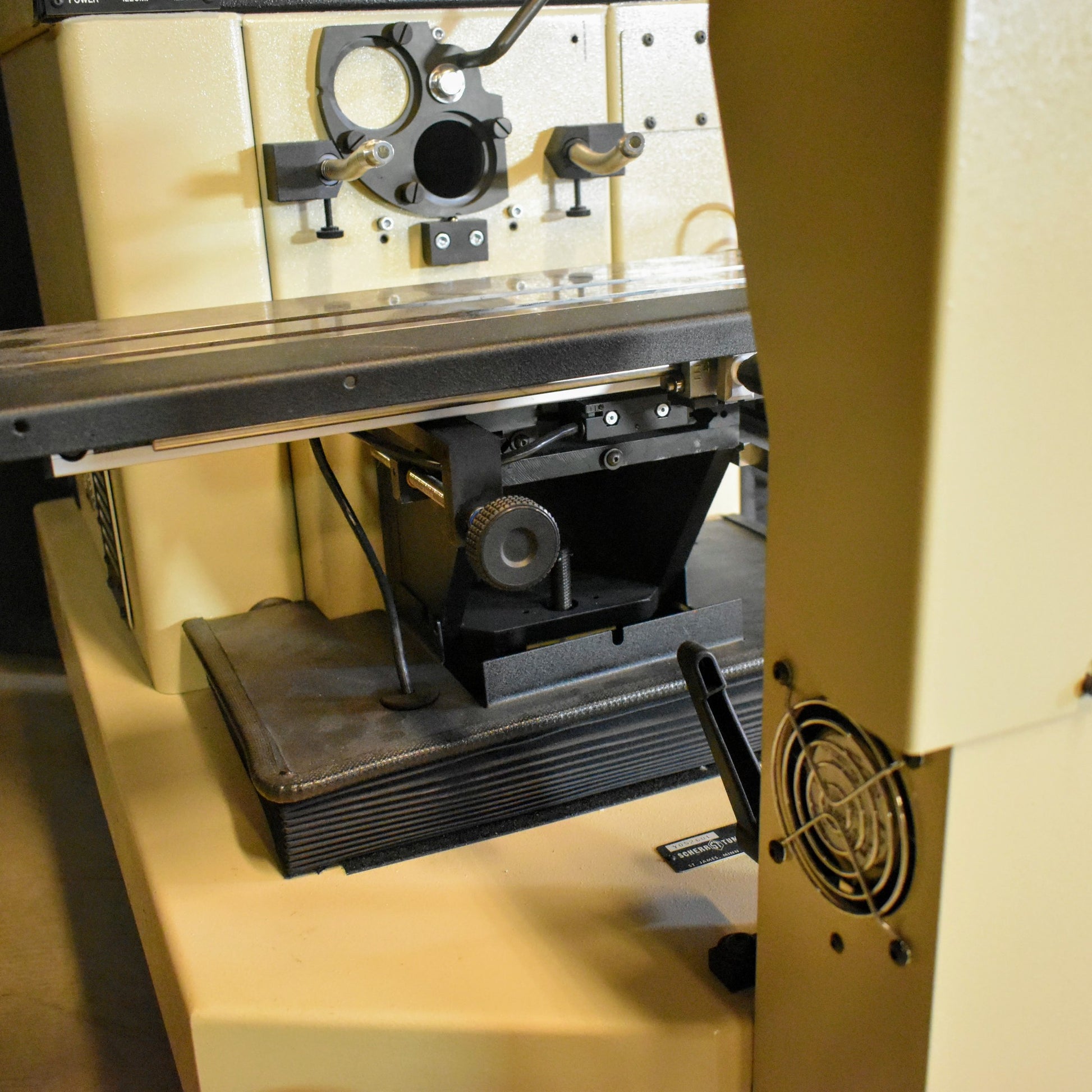

Stage; 20" X 5" Plated w/ Two Dovetail Slots For Available Accessories

Travel; "X" Axis- 12" w/ Quick Release Traverse (roller bearings)- "Y" Axis 5.5" (gear driven)

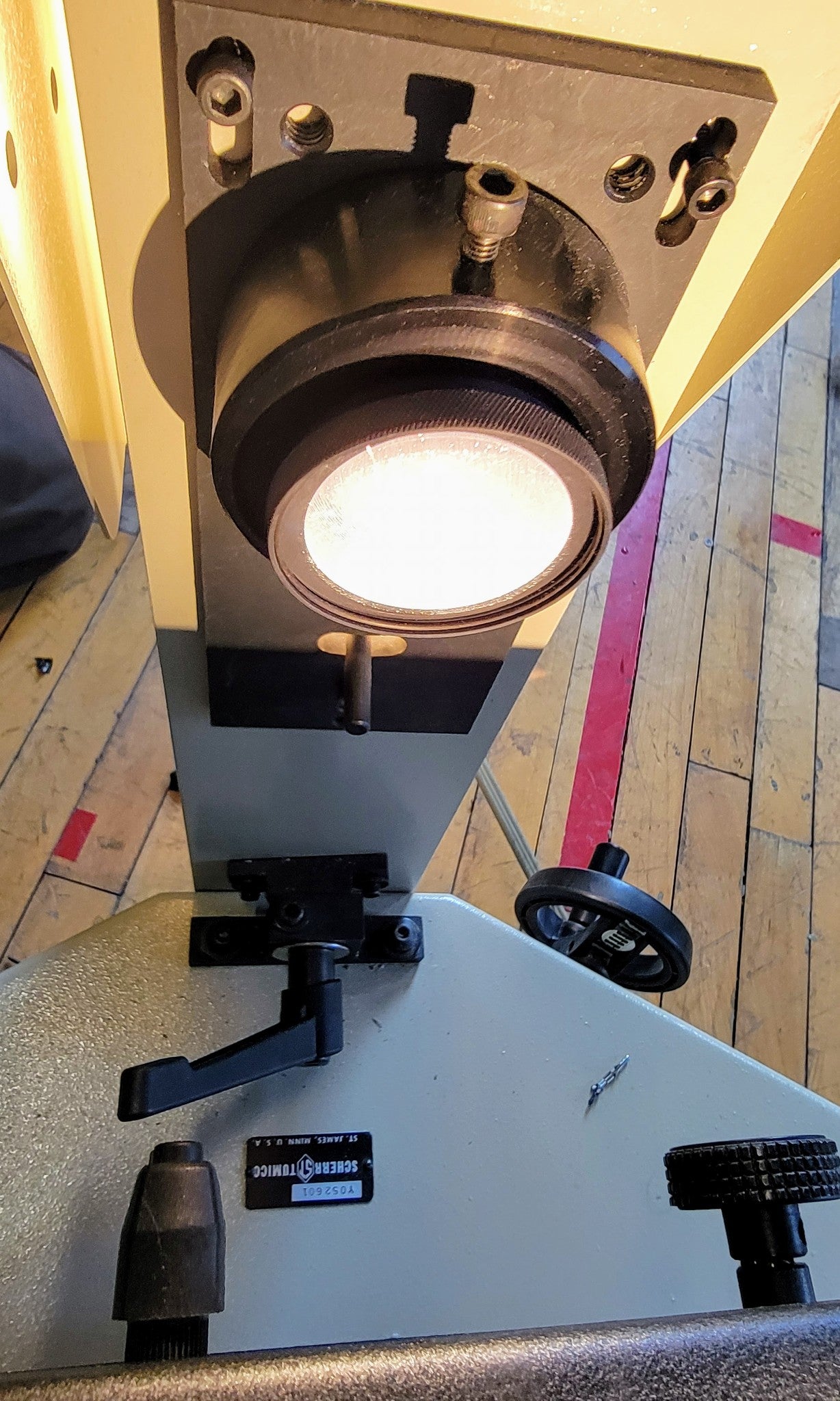

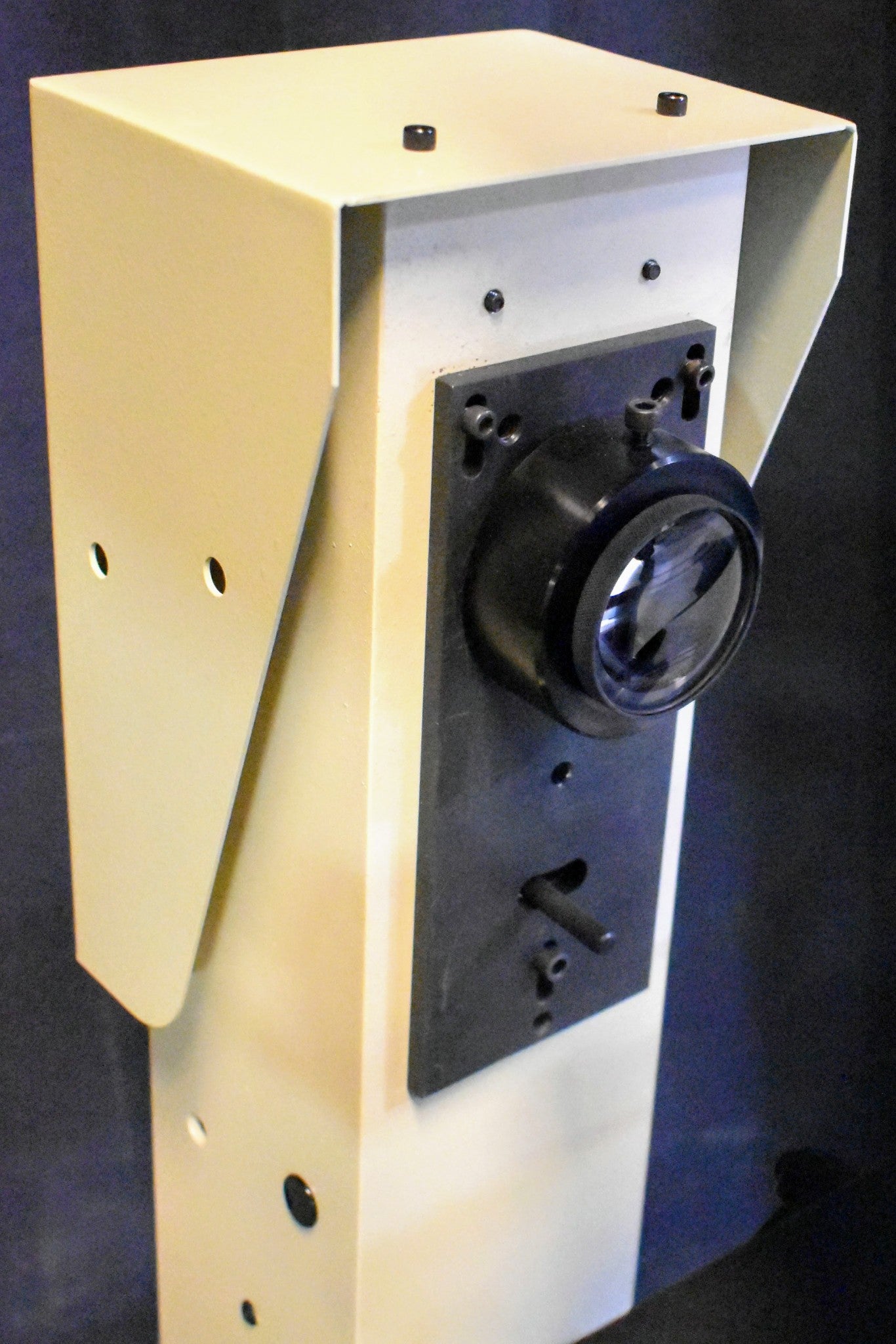

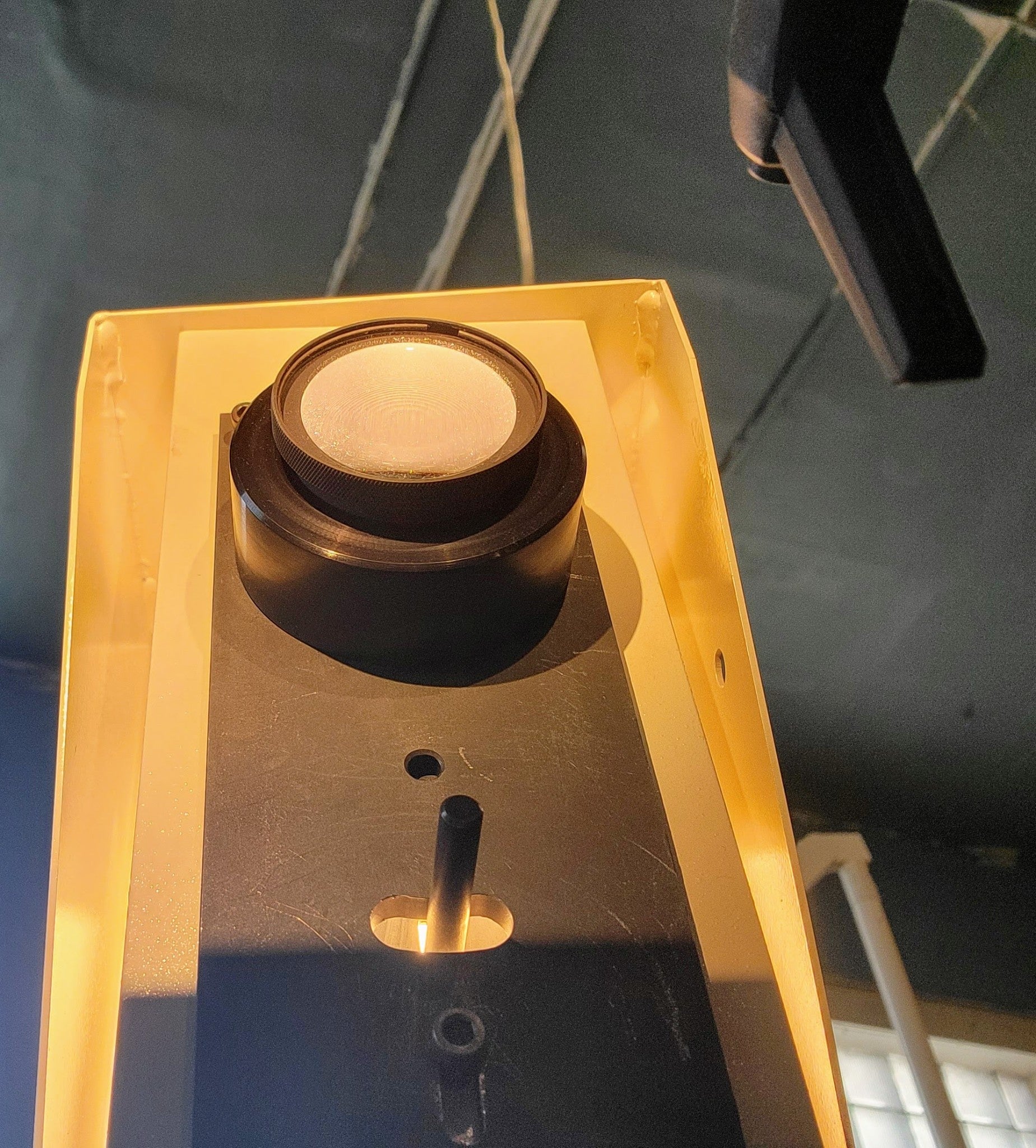

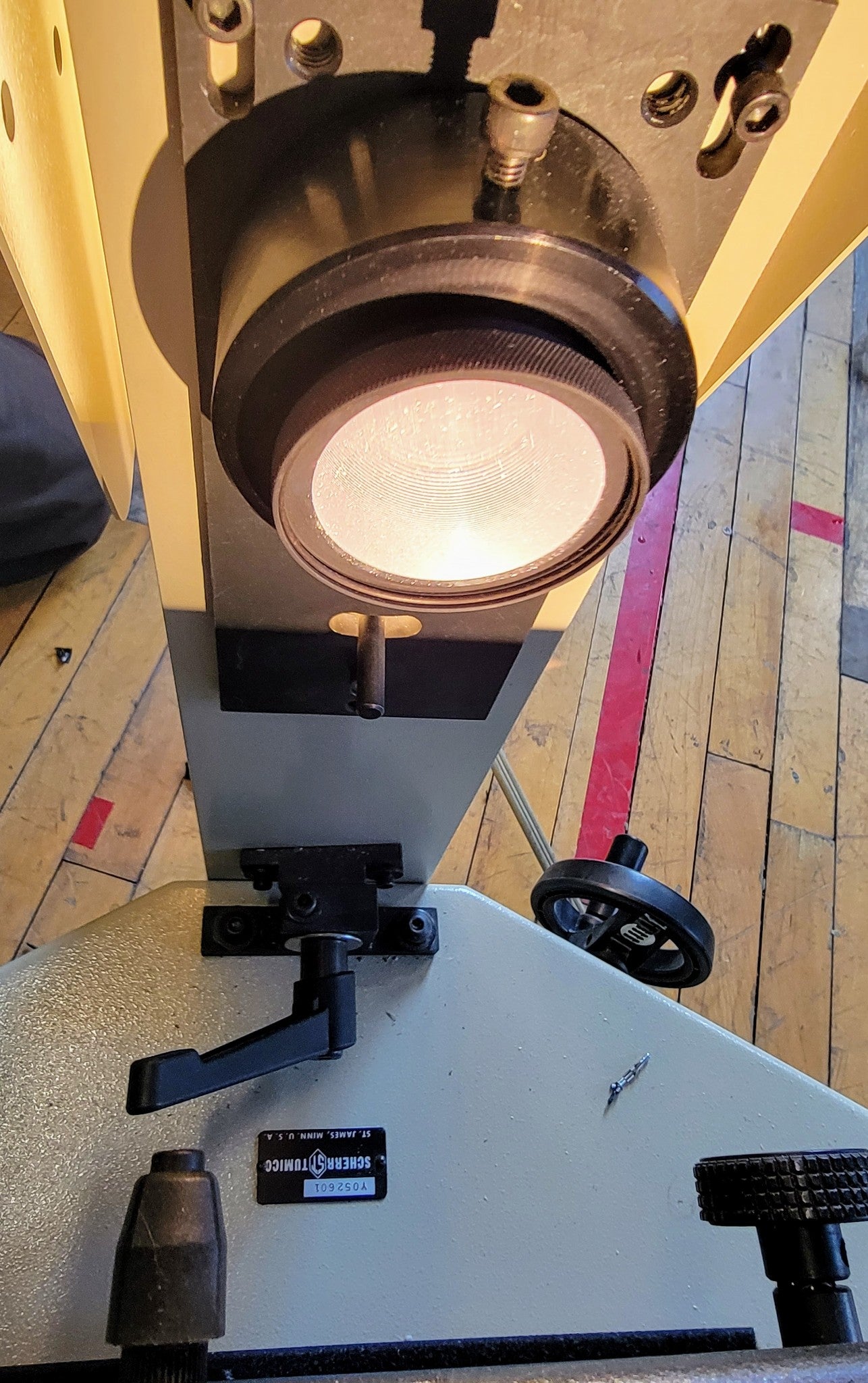

Swing Away Lamp House- (accommodates long parts which must be measured straight on rather than along their length)

Switches: New- Main Power, Projection, Surface Illumination

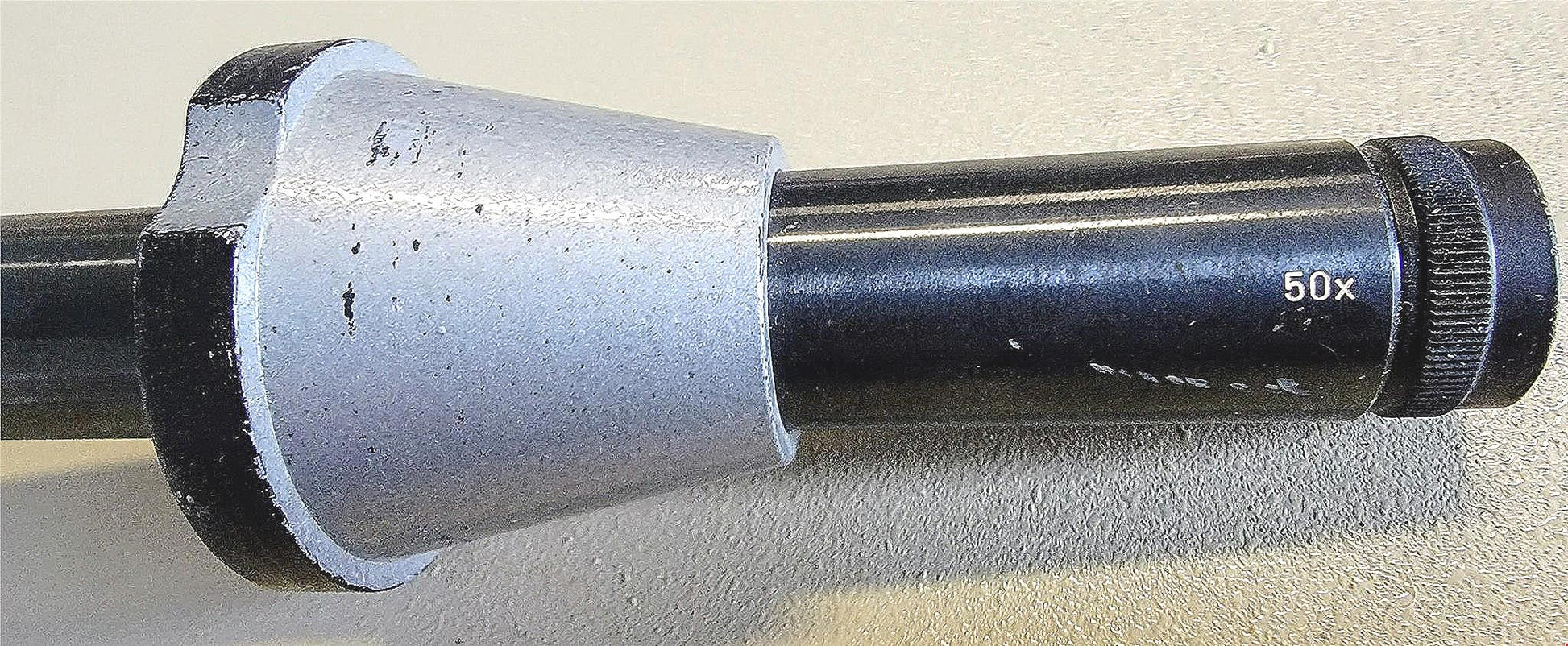

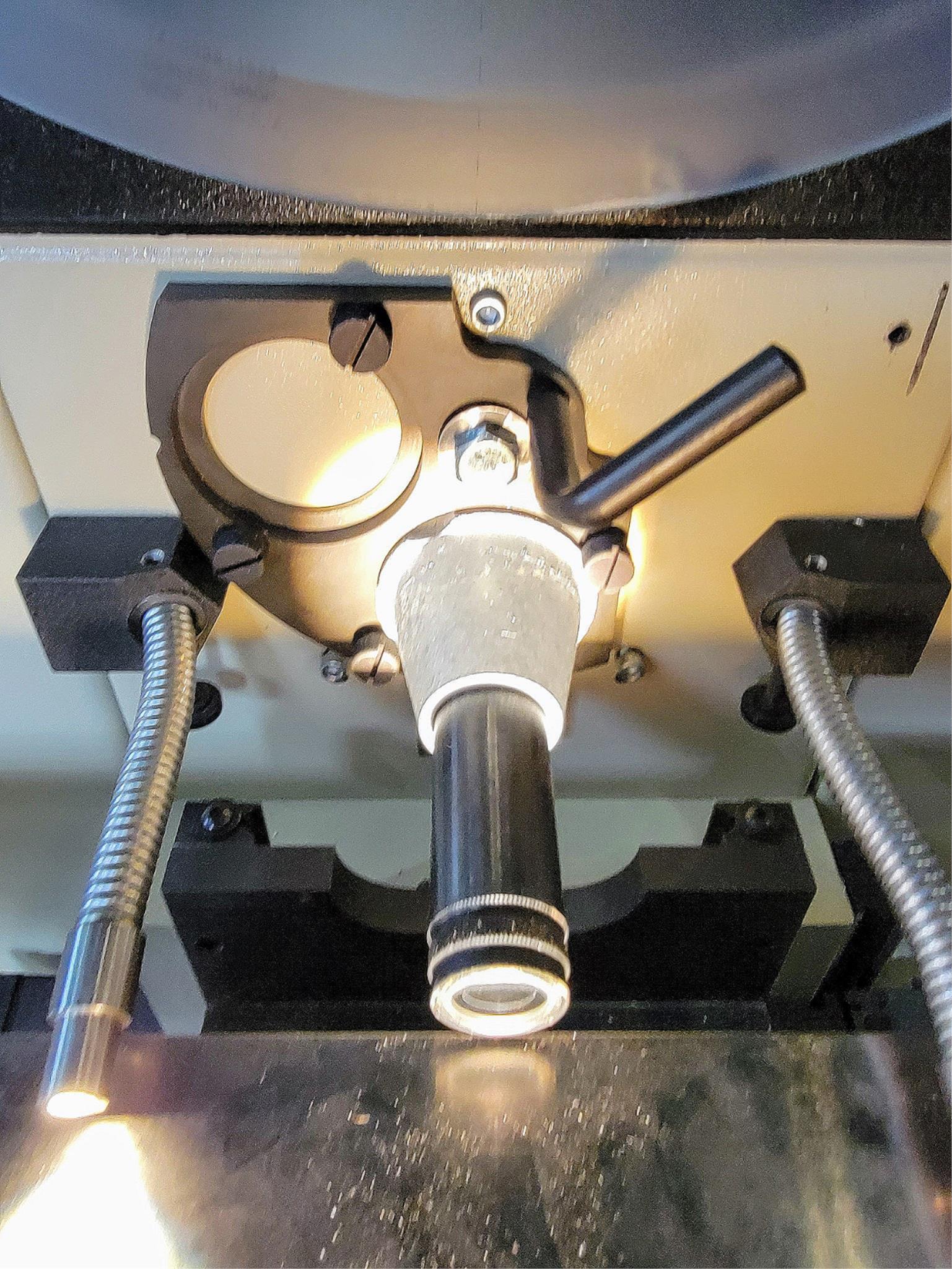

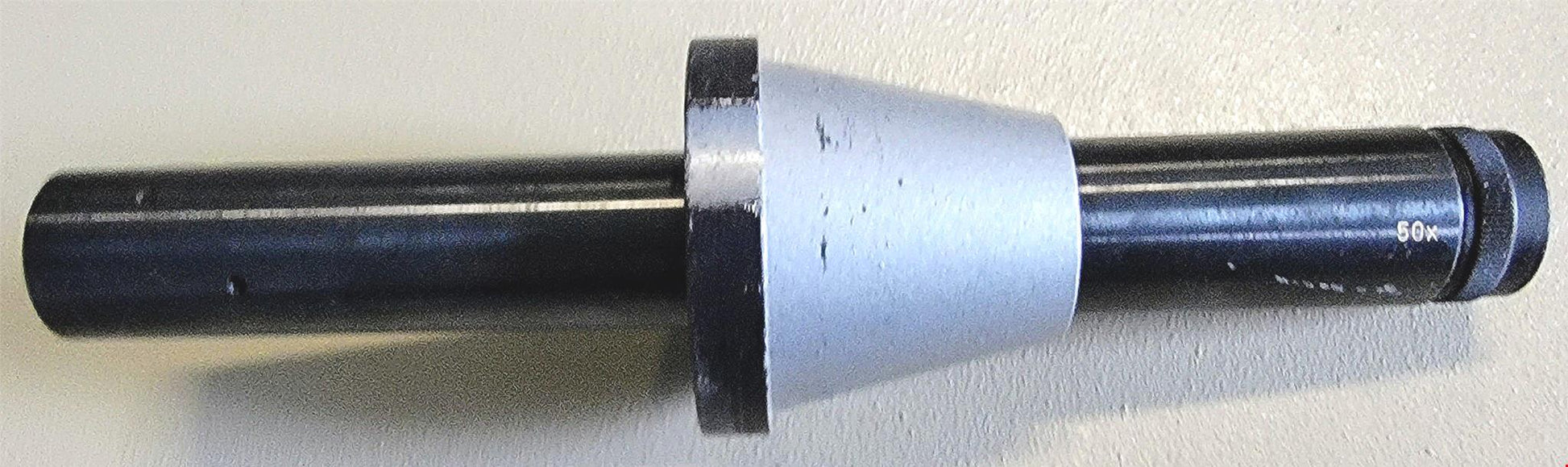

Two Position Lens Turret (allows quick change between lenses) for 20X & 50X Magnifications.

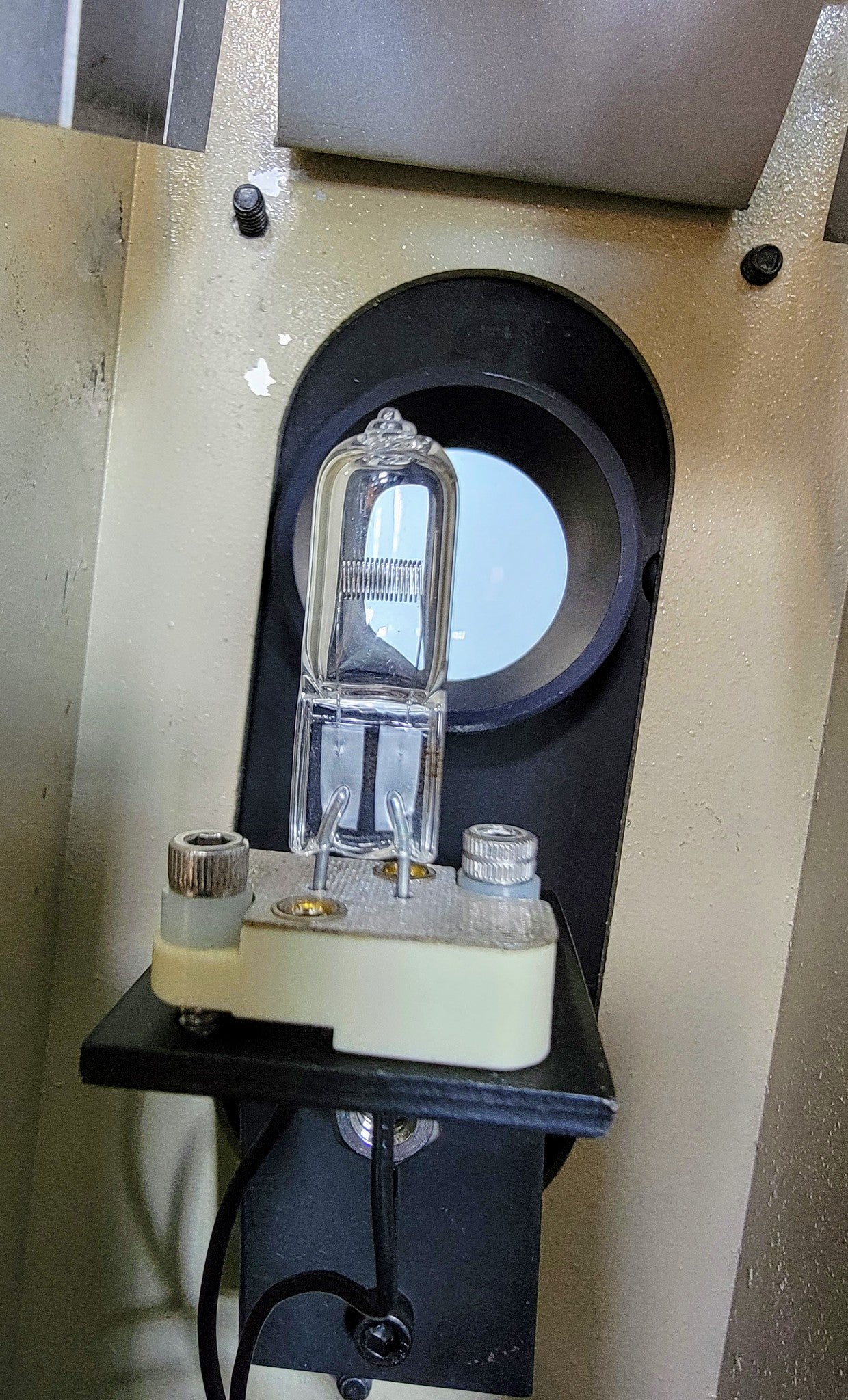

Lamps; Tungsten Halogen- Profile 150 Watt 24v. Dual Flexible Fiber Optics Surface Illum. 100 Watt 12v

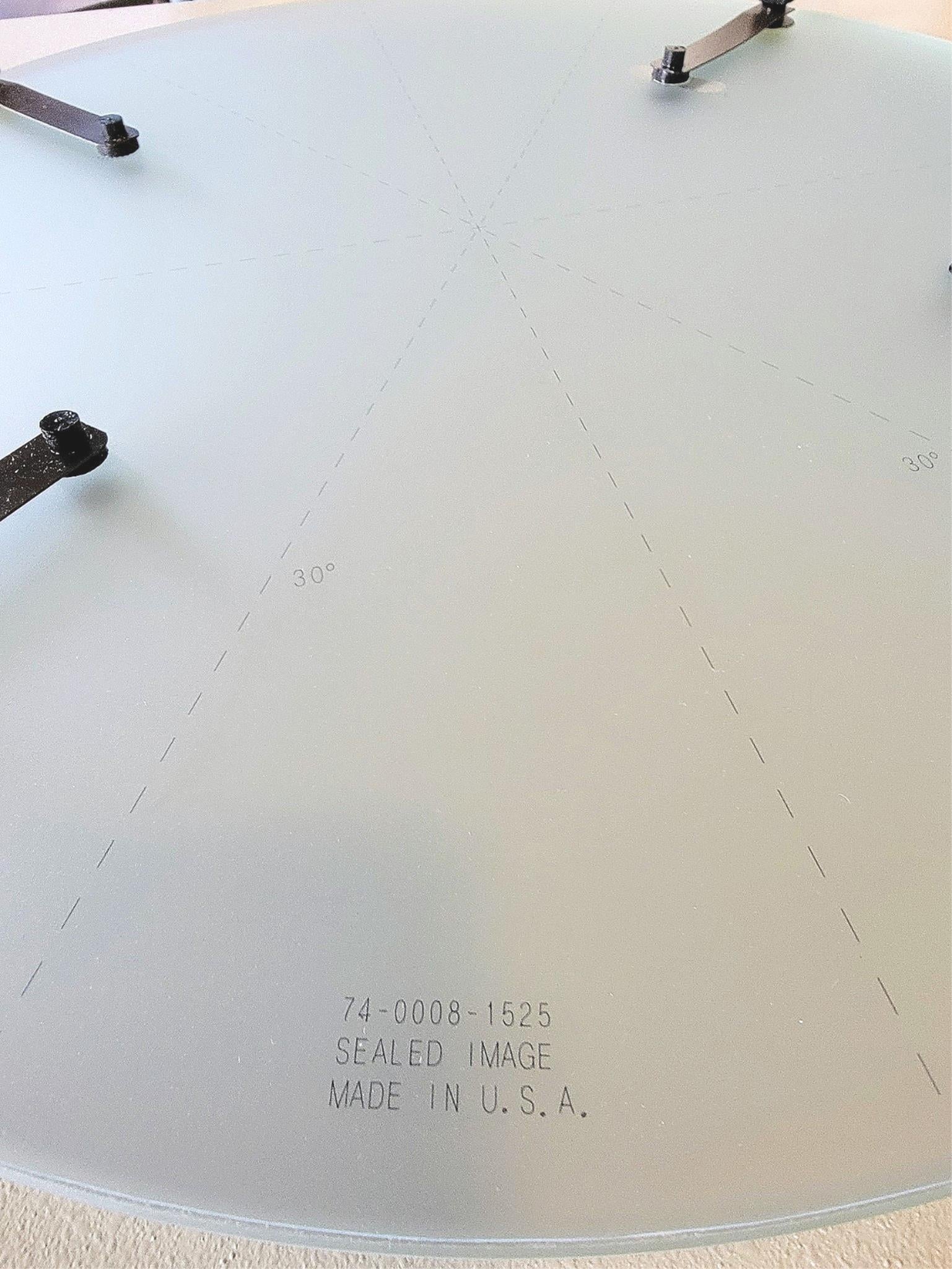

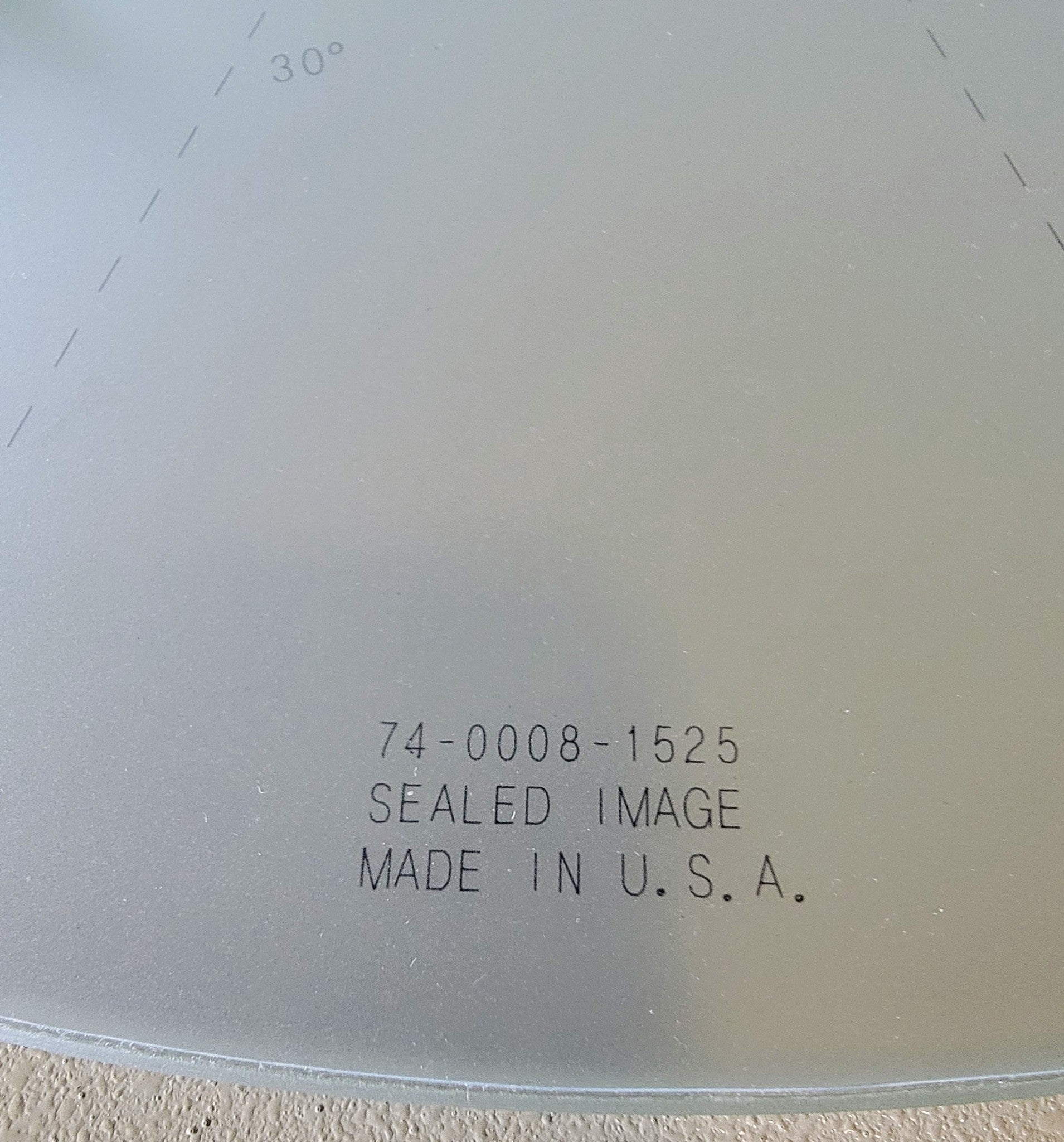

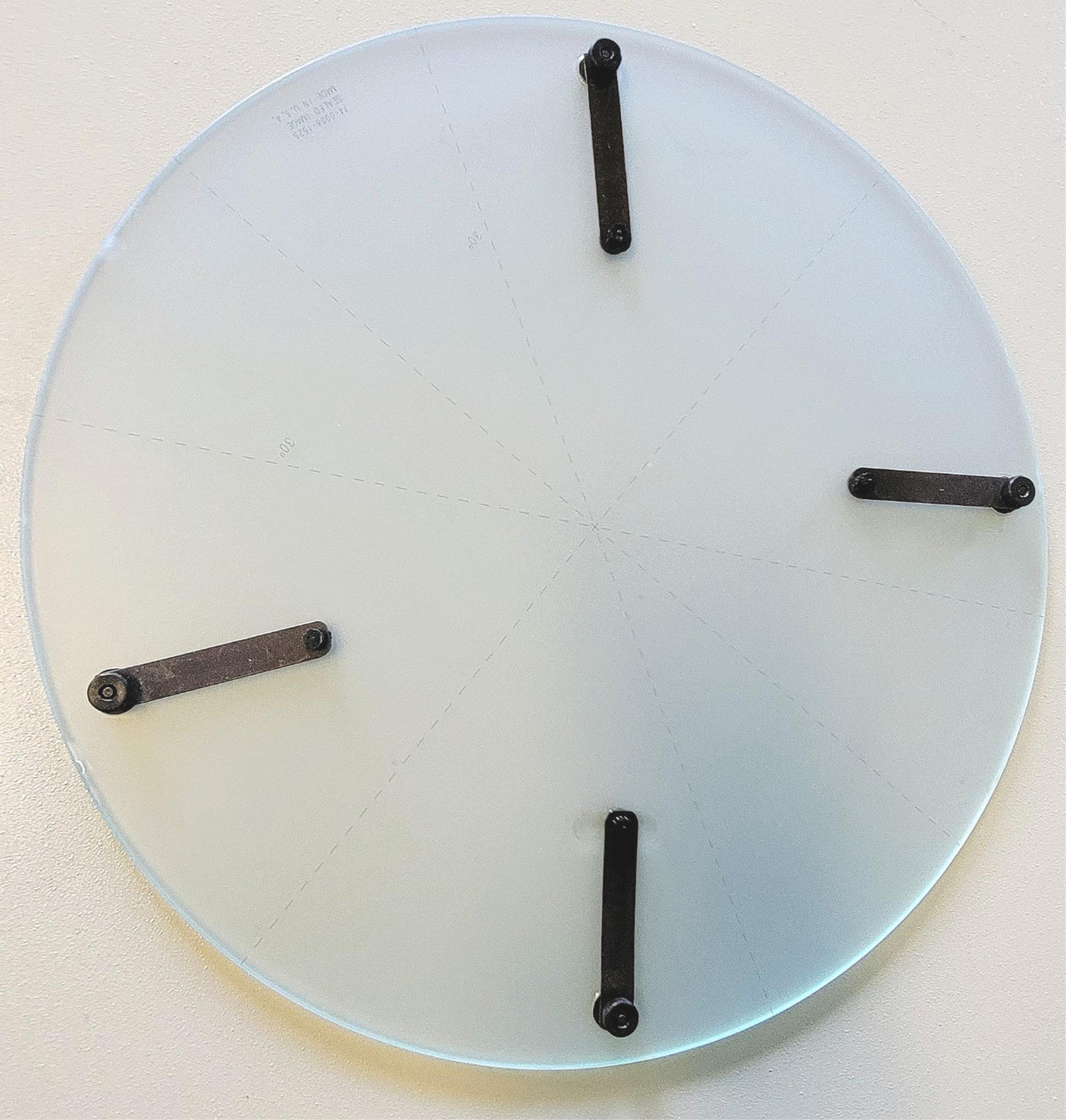

Screen; Standard Cross Hair- Glass

Operators Manual

- Spare Bulbs are Cheap and can easily be replaced

ITEM CONDITION Wonderful Operational Condition

INCLUDES Power Cord

Additional images are available upon request. All items can be viewed in person at our showroom in Toledo, OH.

STOCK # 222201
