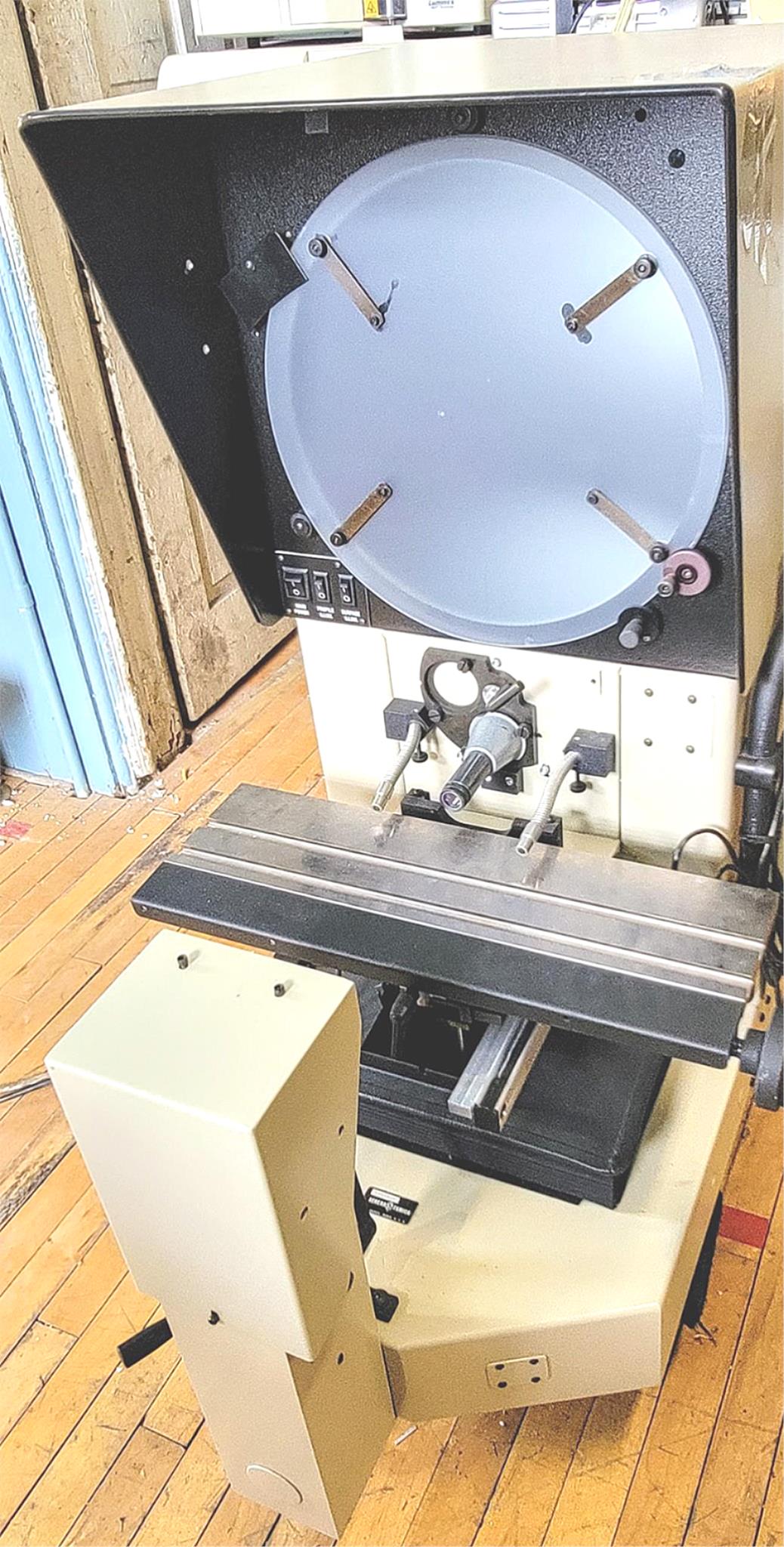

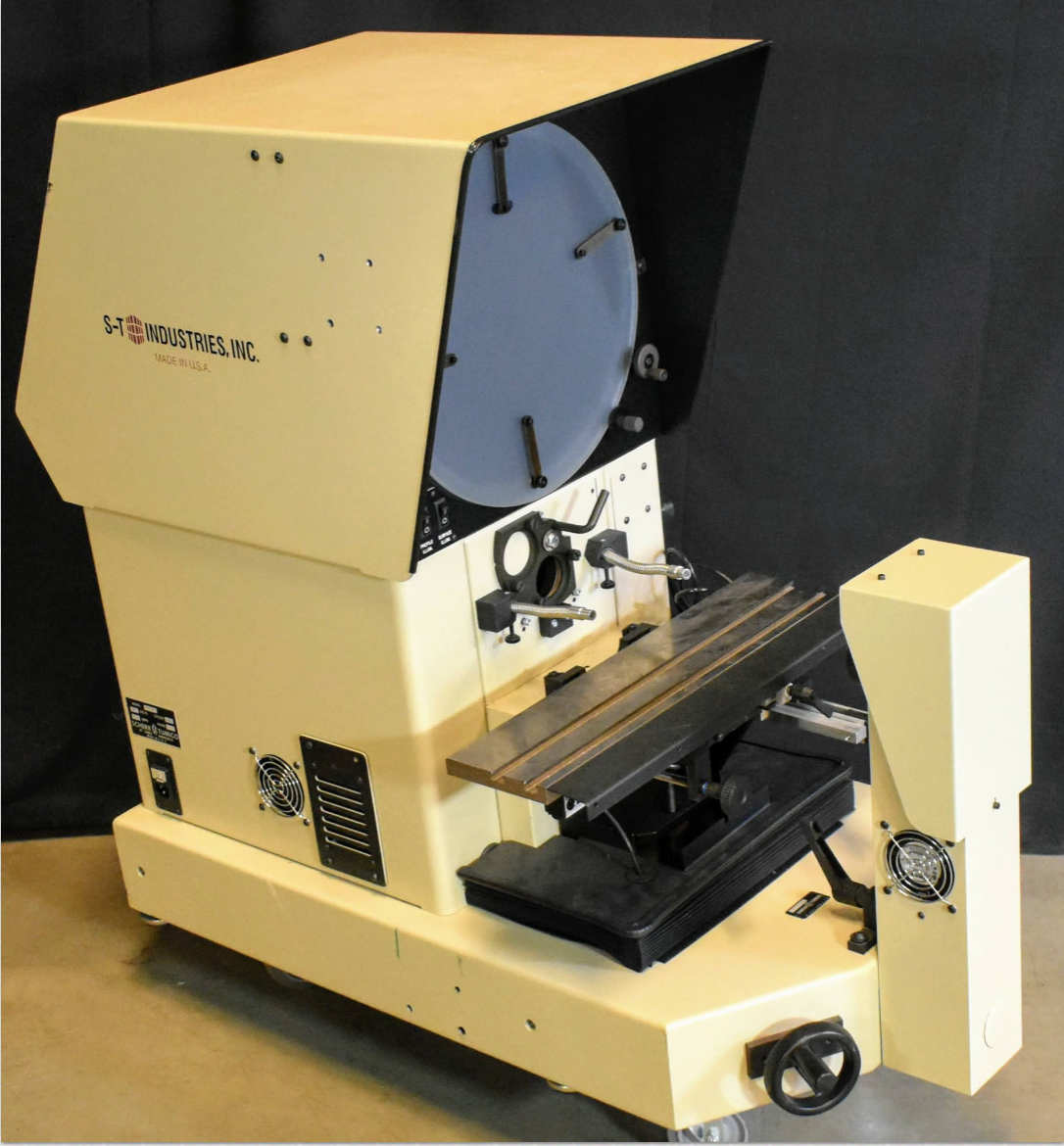

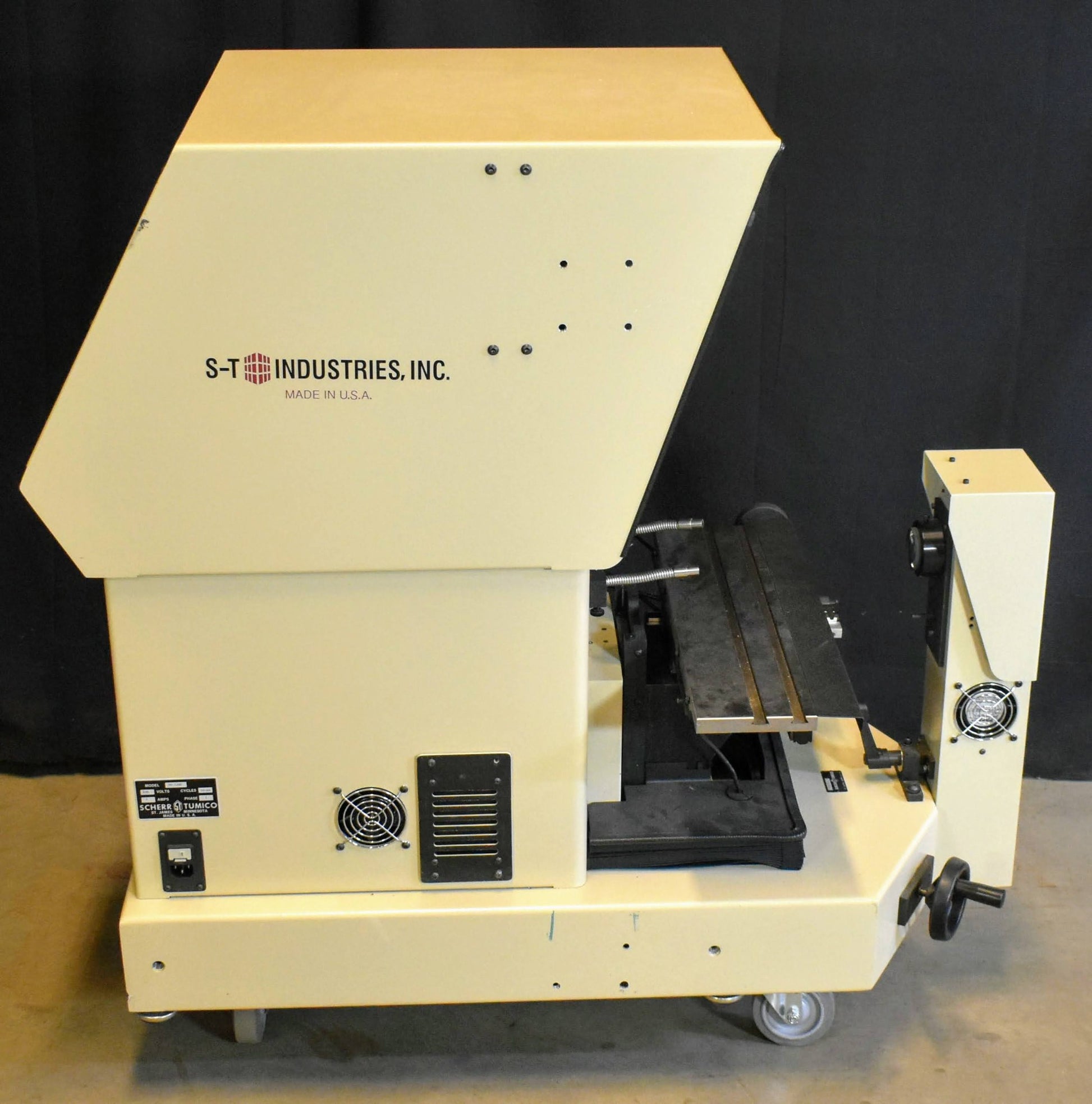

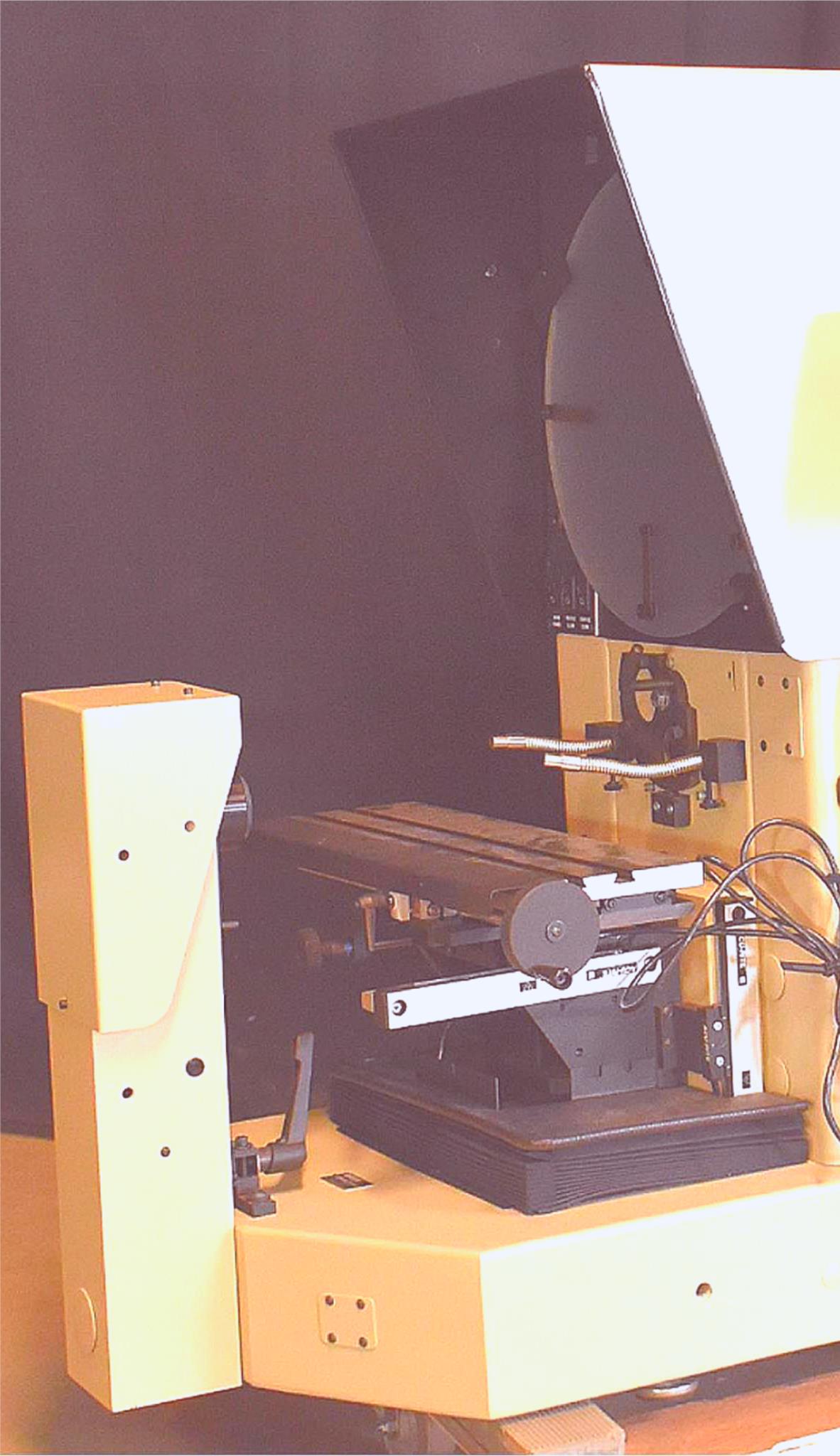

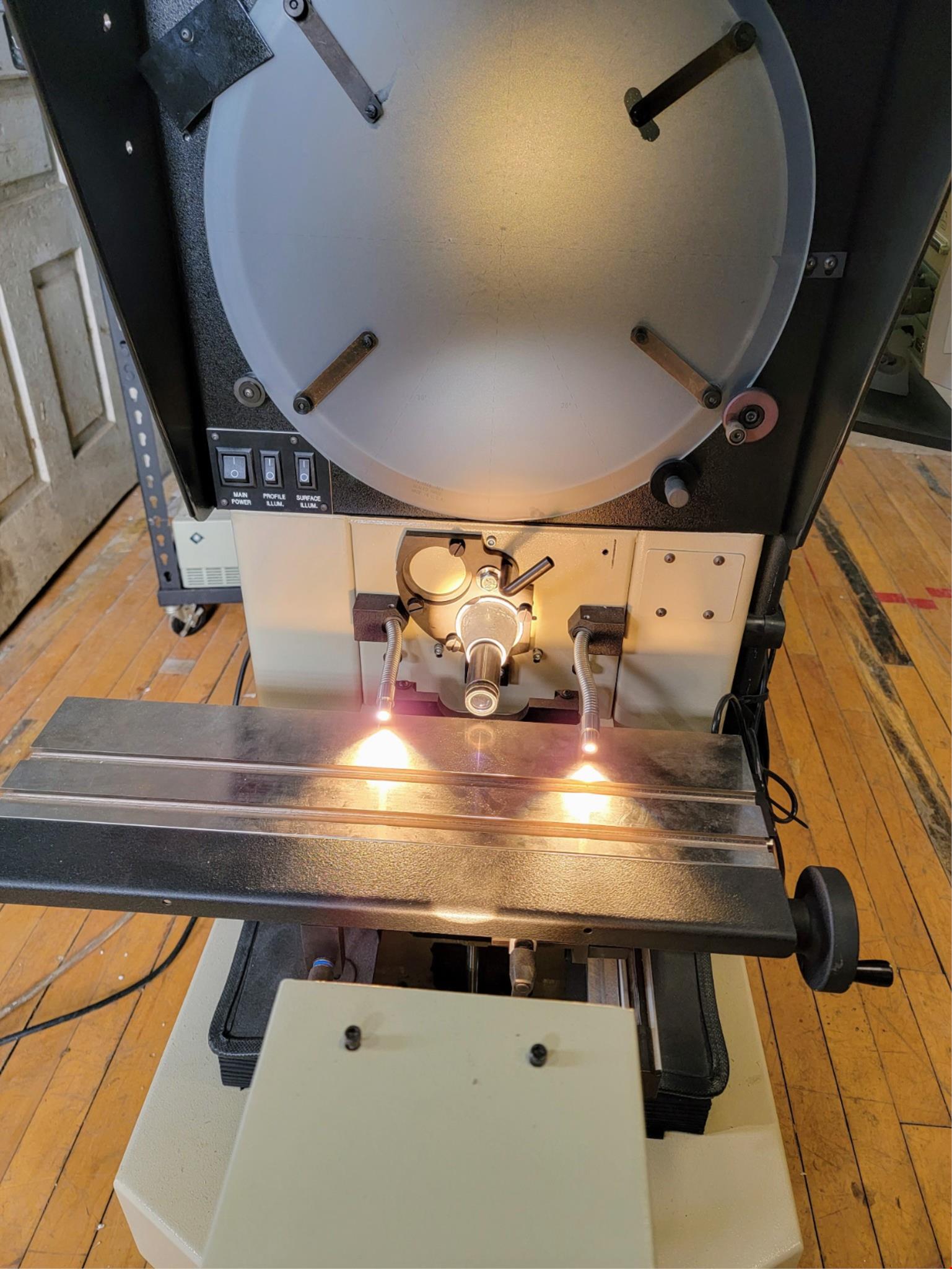

ST 20-3700 OPTICAL COMPARATOR 20x 50x OBJECTIVE LENS 90-DAY-WARRANTY FREE SHIP

This listing is for a ST 20-3700 OPTICAL COMPARATOR with 20x 50x OBJECTIVE LENSES as can be seen in the pictures.

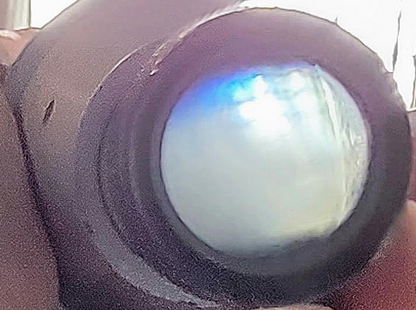

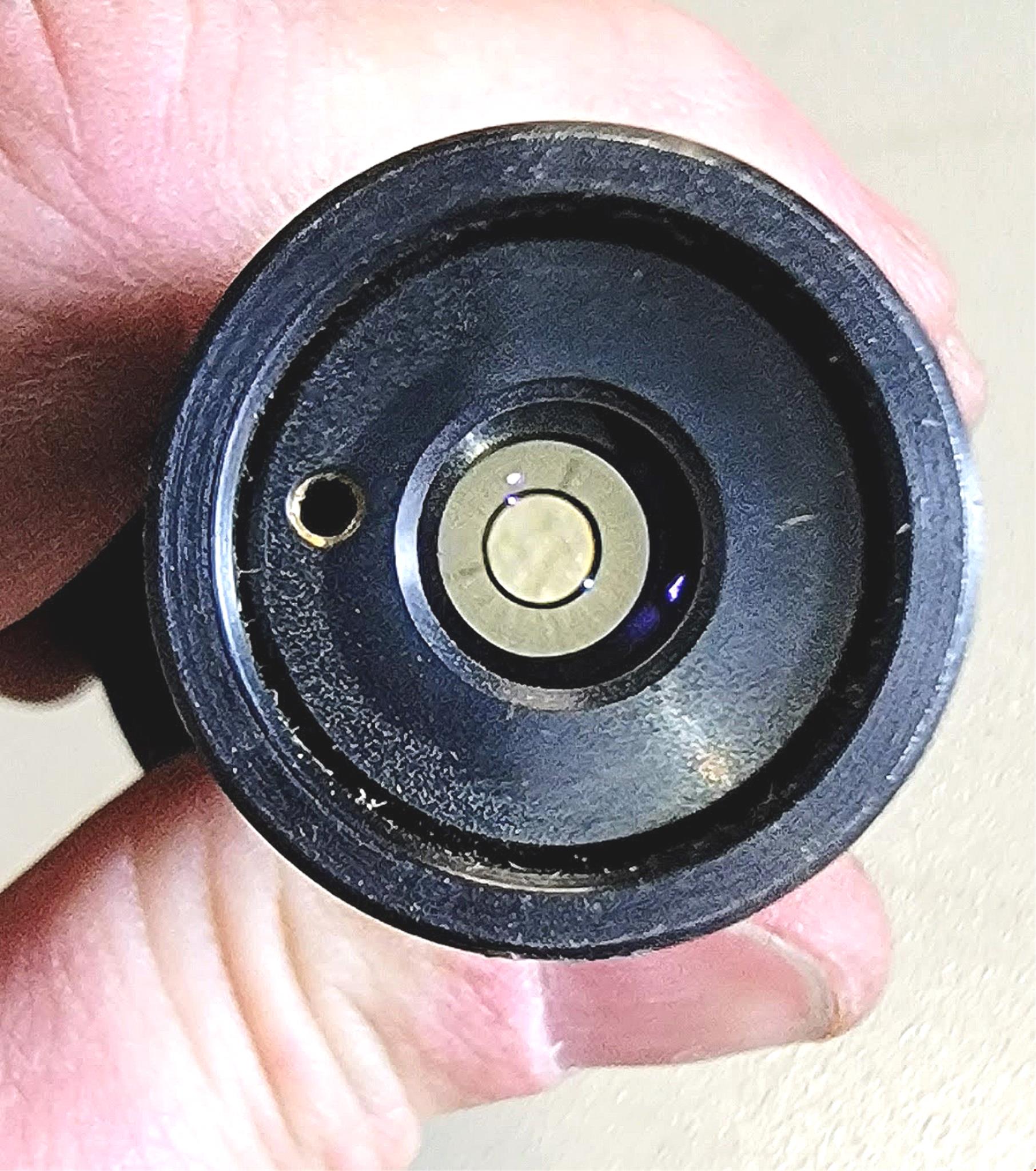

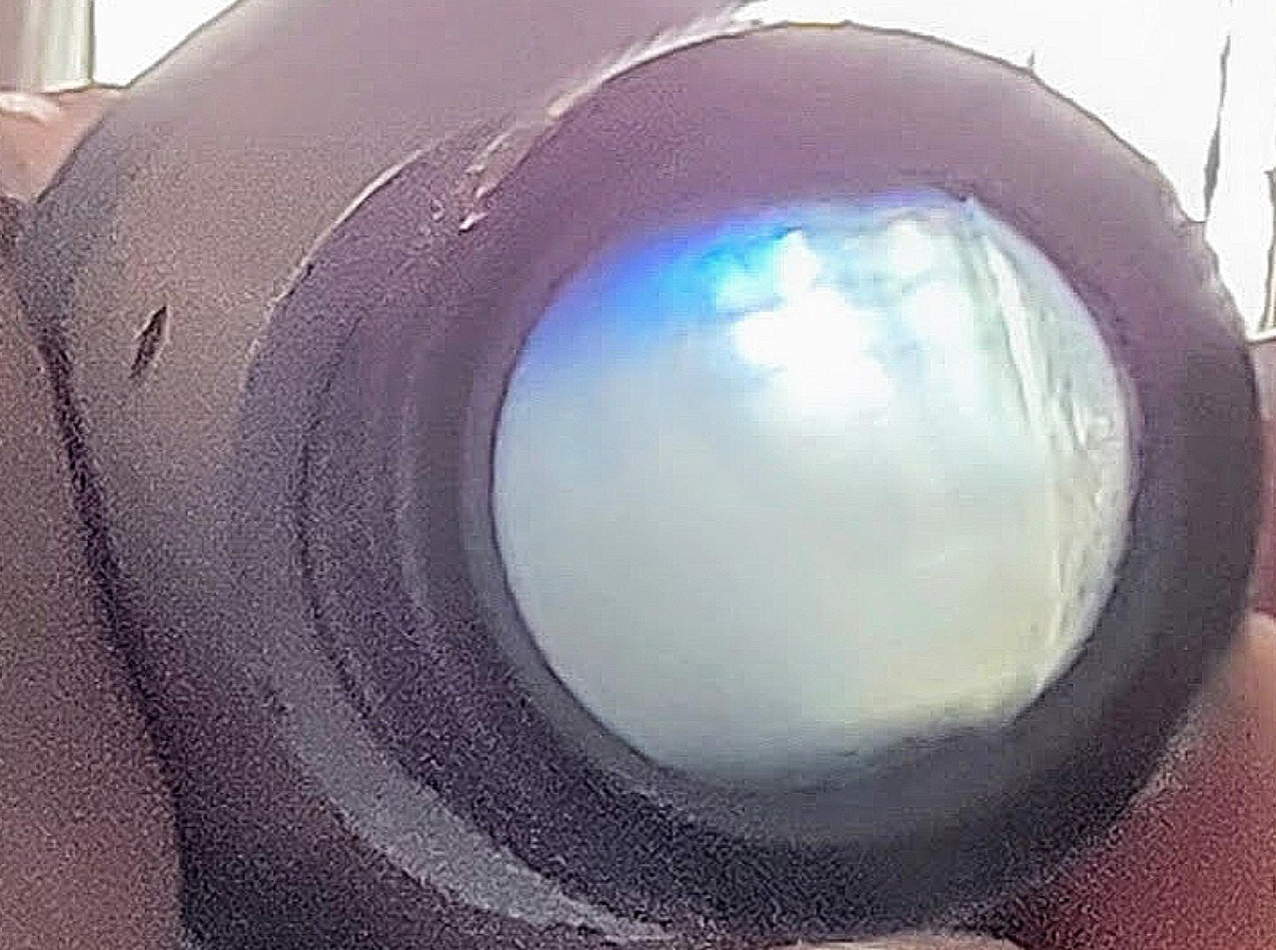

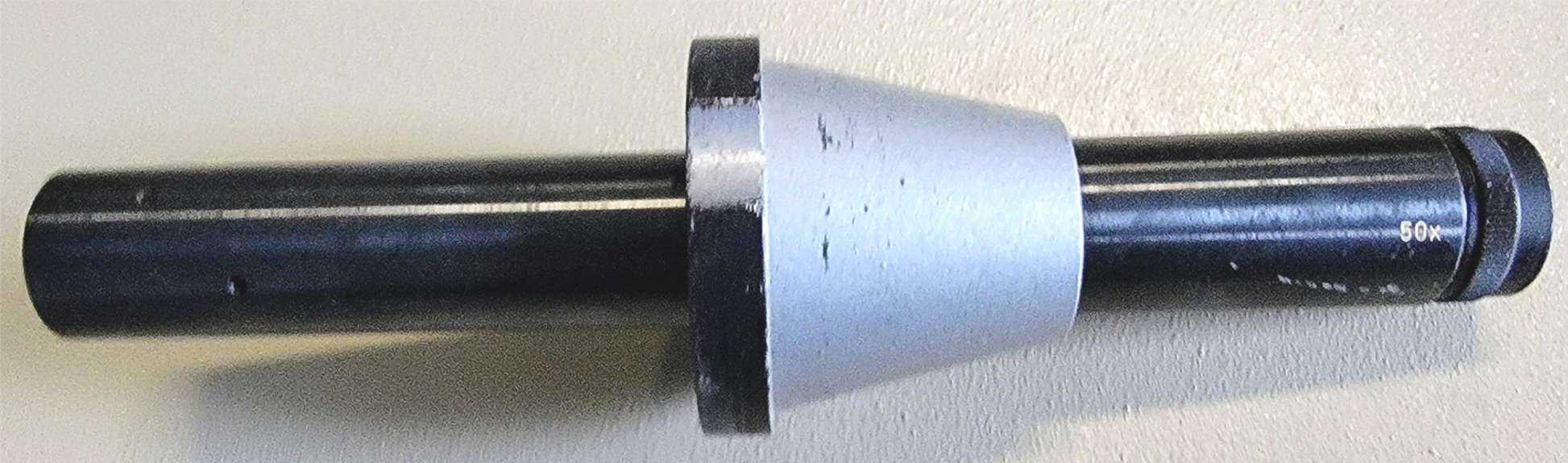

Comes with two Objective 20X & 50X Original ST Magnifying Lenses!!!!

OPERATIONAL MANUAL IS ALSO INCLUDED WITH THIS UNIT!!!

IMPORTANT: It DOES COME WITH TWO ORIGINAL ST 20X & the 50X MAGNIFYING LENS AS CAN BE WATCHED IN THE VIDEO AND ALSO SEEN IN THE PICTURES.

Optical Comparator 3700 Series ‐ Features

This is our top‐of‐the‐line 14" benchtop horizontal beam optical comparator. The 3700 is the ultimate system for load capacity and accuracy.

It features an erect image and S‐T’s exclusive Gothic arch bearing ways which provide the best in accuracy and longevity.

Erect image.

High precision 6" x 12" measuring stage travel with .00005"/.001 mm resolution precision glass scales. Quick release with fine adjust on X‐axis. Optional 5" x 16" travel. 100‐lb load capacity.

Standard 2‐lens turret system.

Hardened steel, nickel‐plated workstage for long life and corrosion resistance.

Helix +/‐ 6° via lamphouse displacement.

Heavy‐duty all‐steel construction.

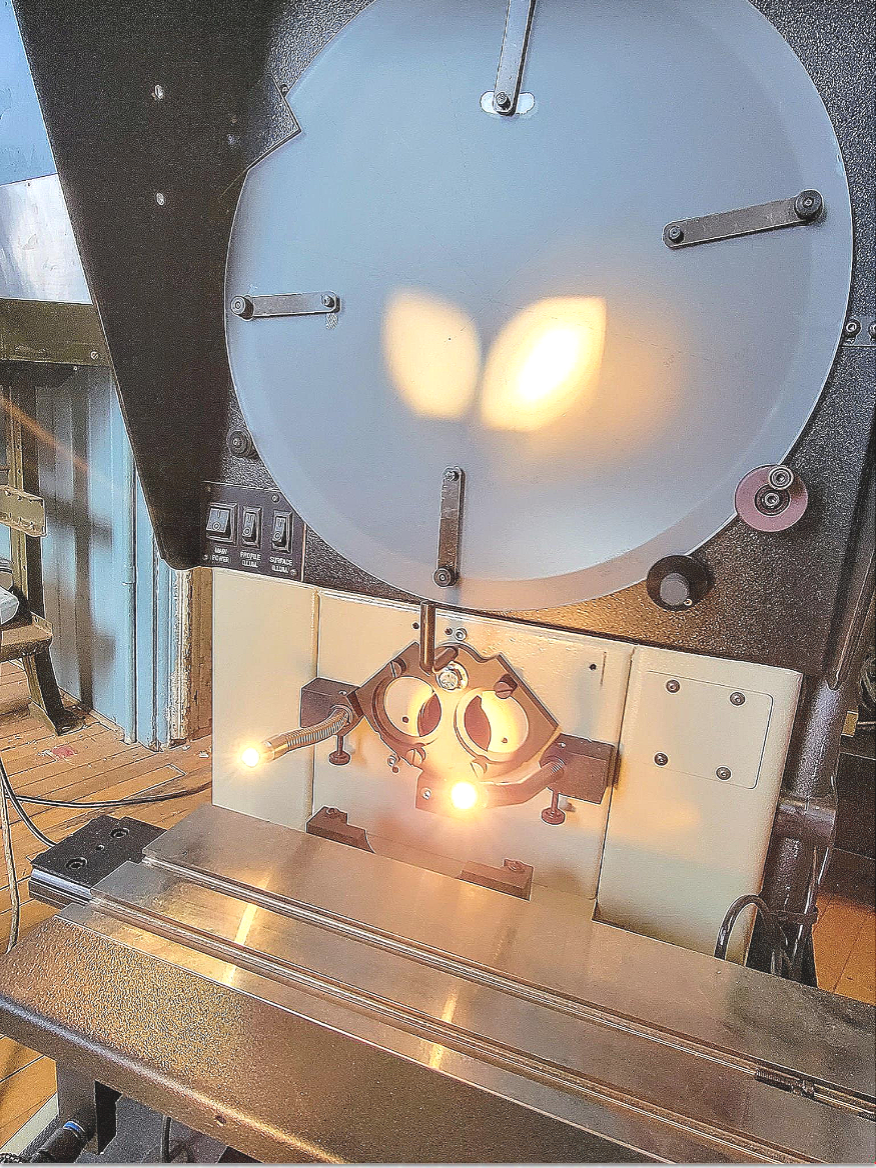

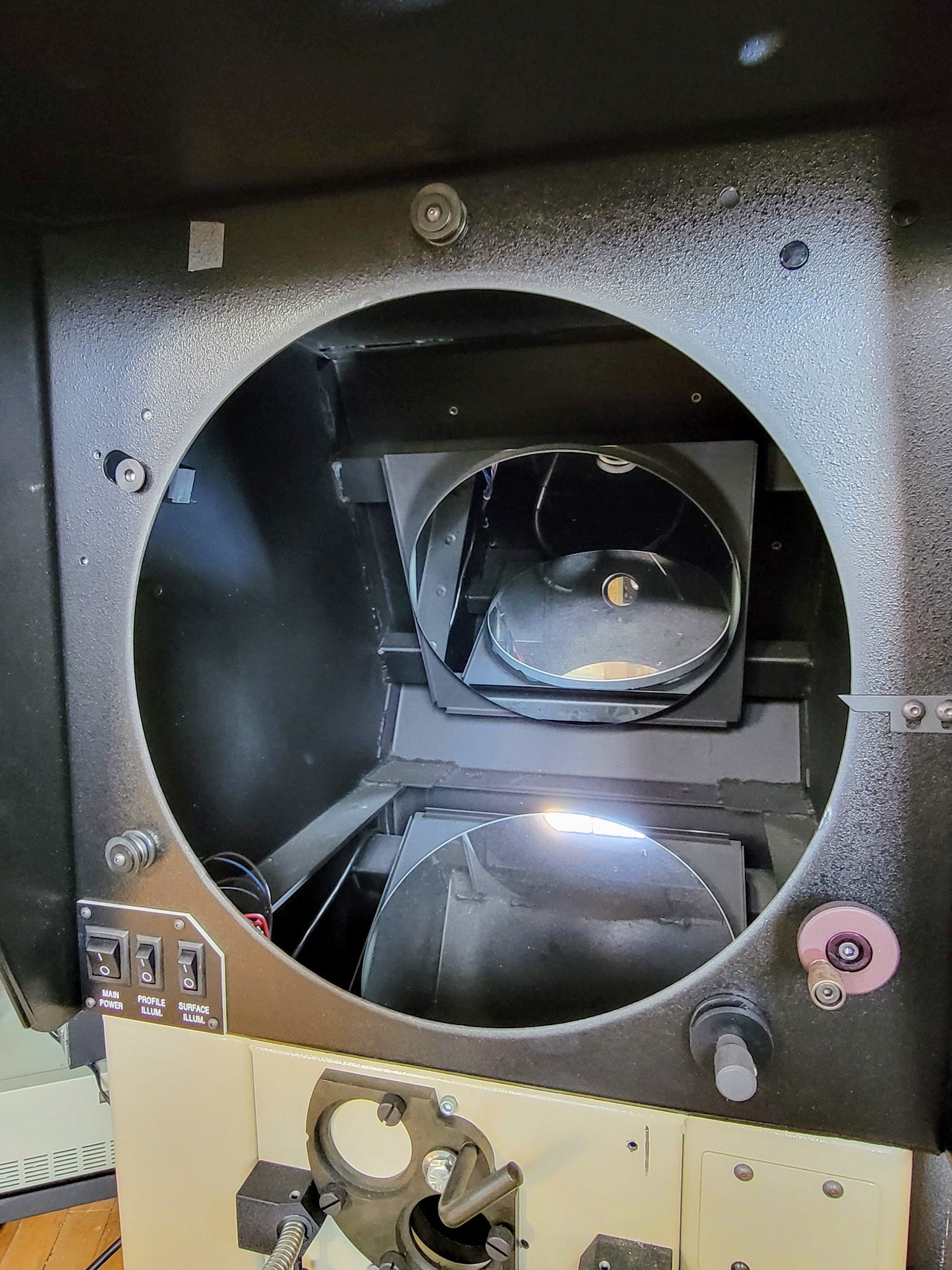

Fully useable 14" diameter screen.

Standard swingaway lamphouse.

Duplex fiber optic surface illumination.

Extremely Stable Heavy Steel Plate Construction, Bright Optics Offer Crip Screen Image.  Many Optional Features Available Online.

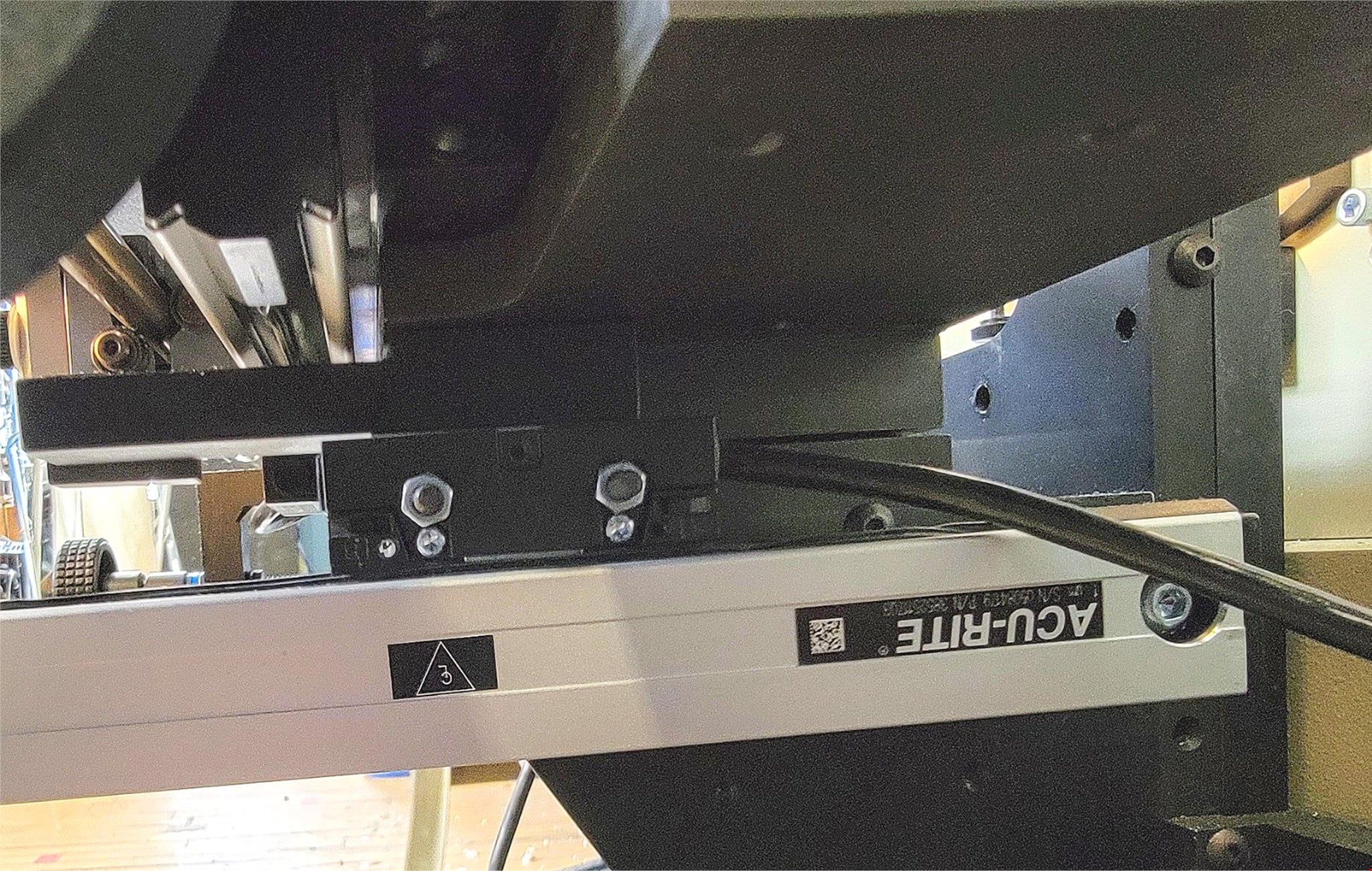

Acu-Rite Scales 1um' .00004" Resolution

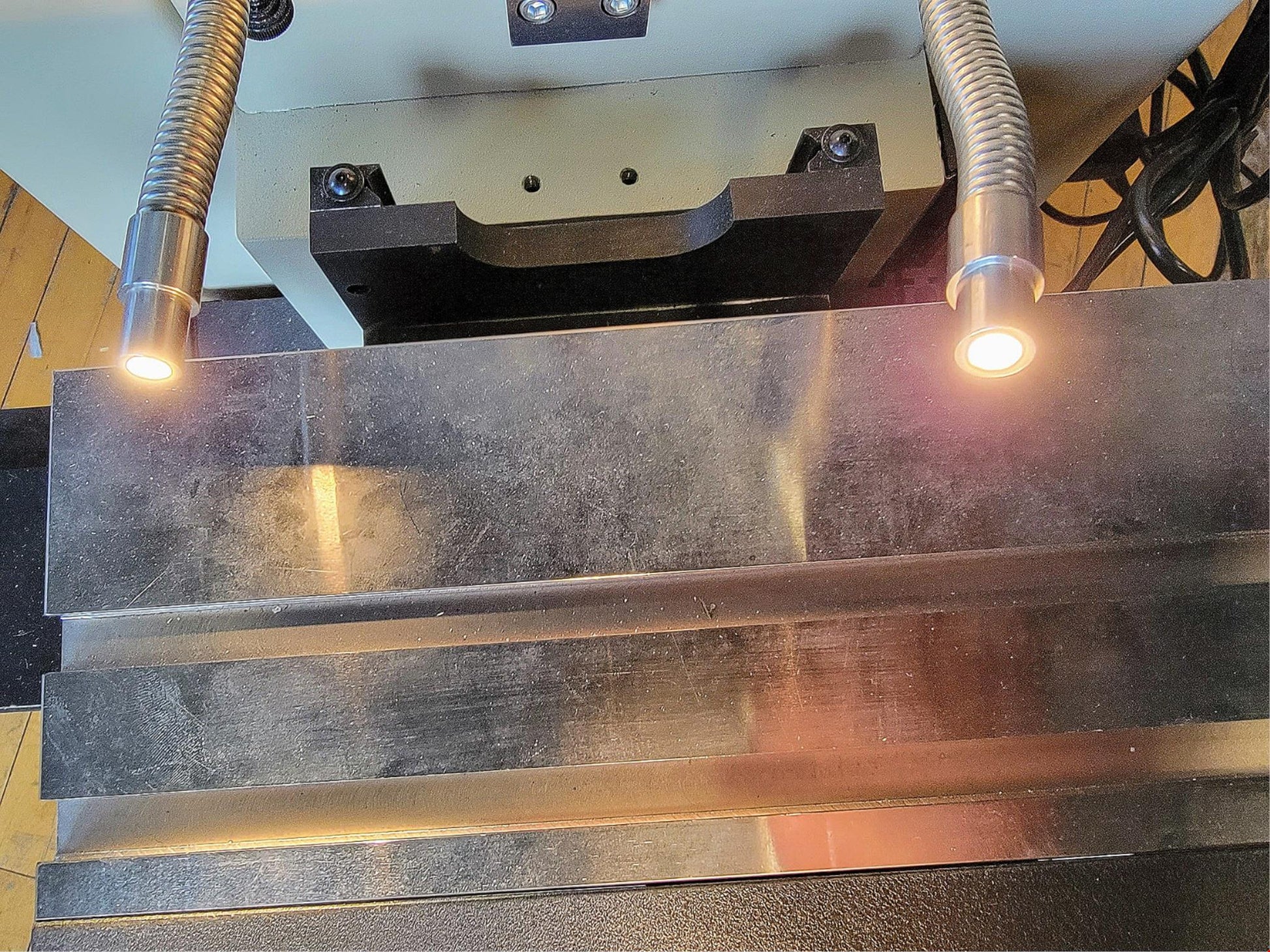

Edge Detection via Fiber Optic Cable on Swing Away Arm- (fully adjustable)

Corrected Screen Image

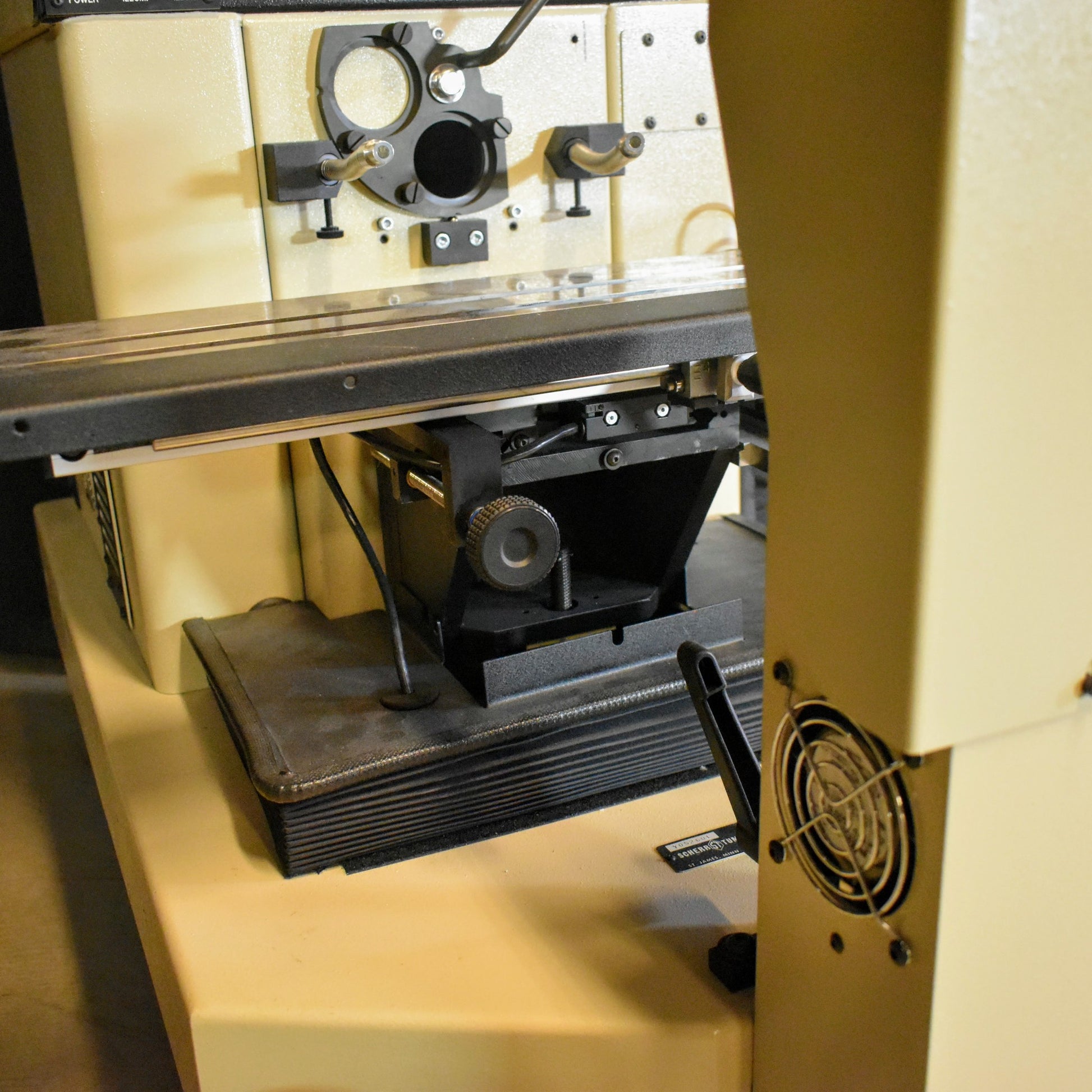

Stage; 20" X 5" Plated w/ Two Dovetail Slots For Available Accessories

Travel; "X" Axis- 12" w/ Quick Release Traverse (roller bearings)- "Y" Axis 5.5" (gear driven)

Swing Away Lamp House- (accommodates long parts which must be measured straight on rather than along their length)

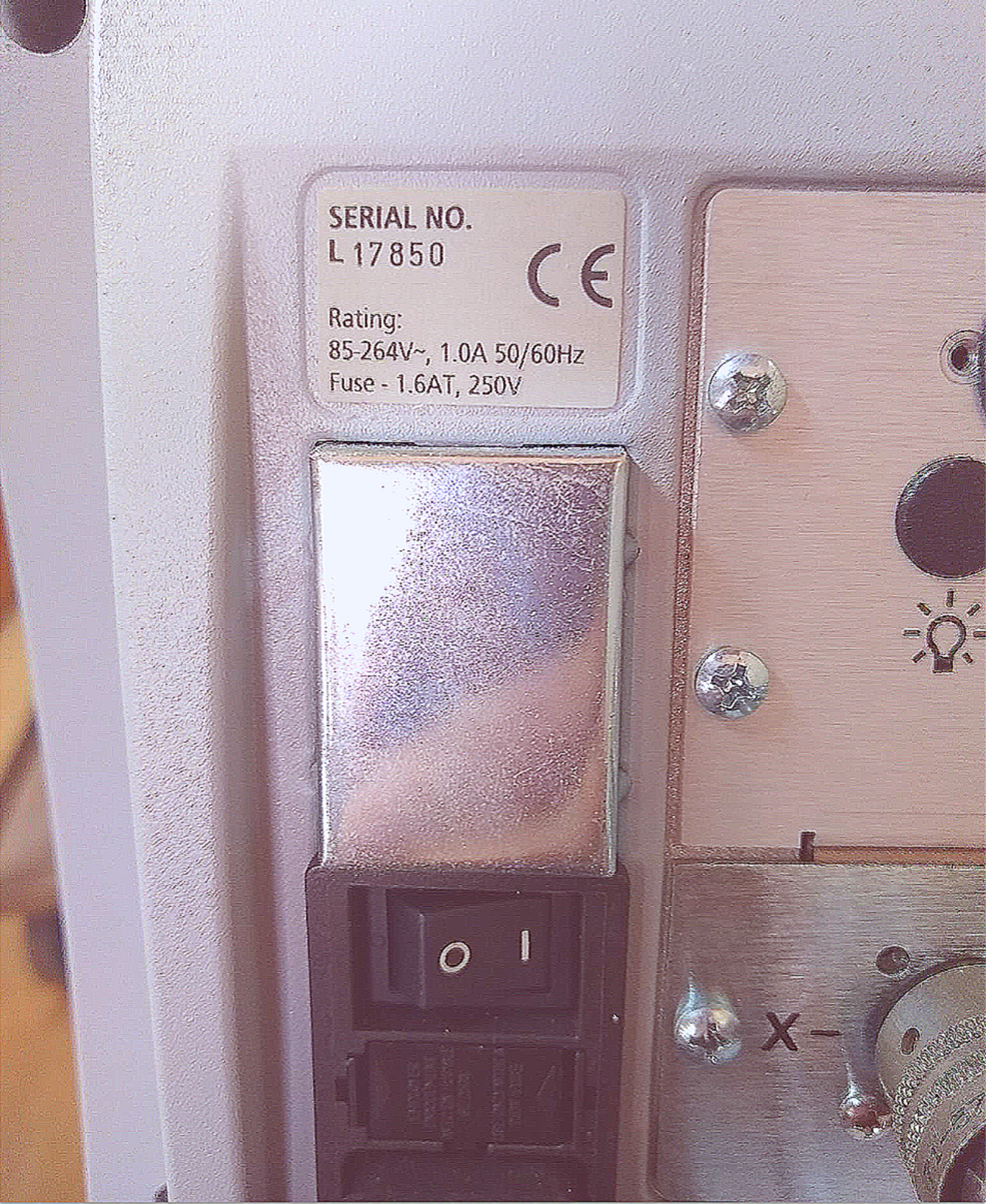

Switches: Main Power, Projection, Surface Illumination

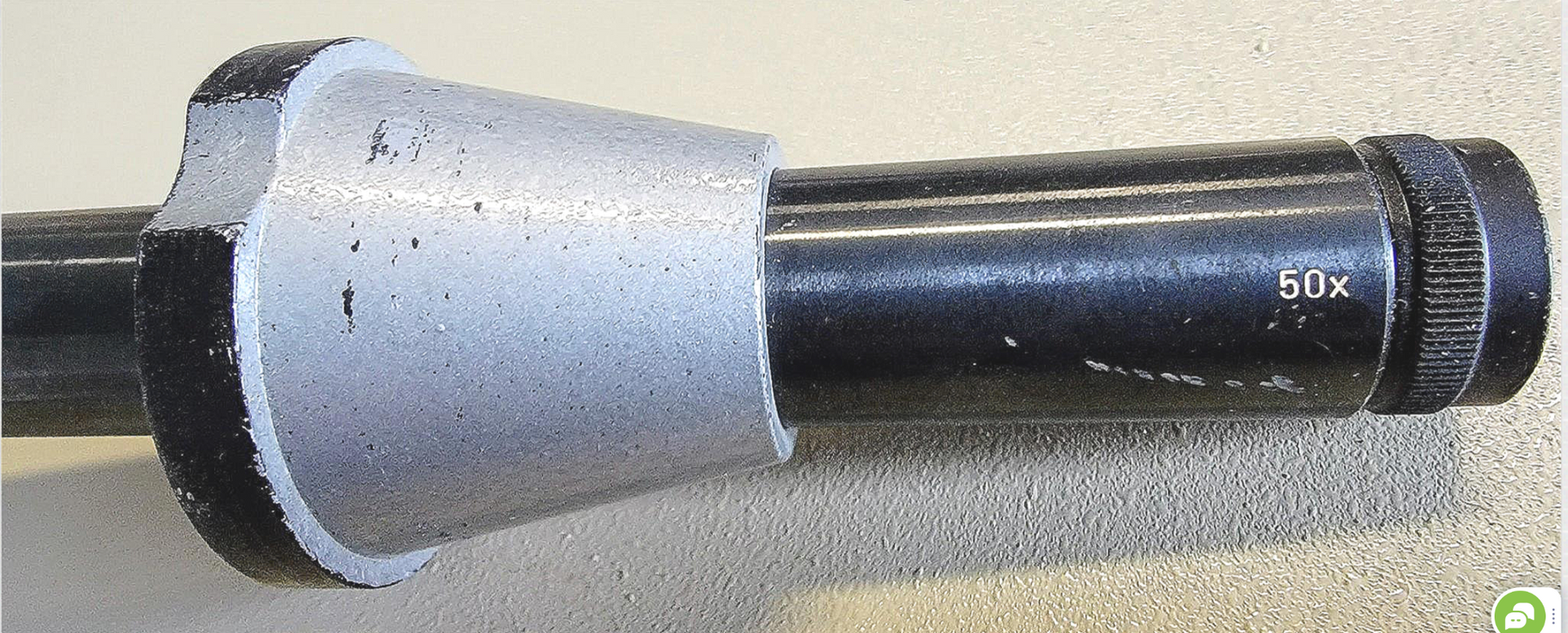

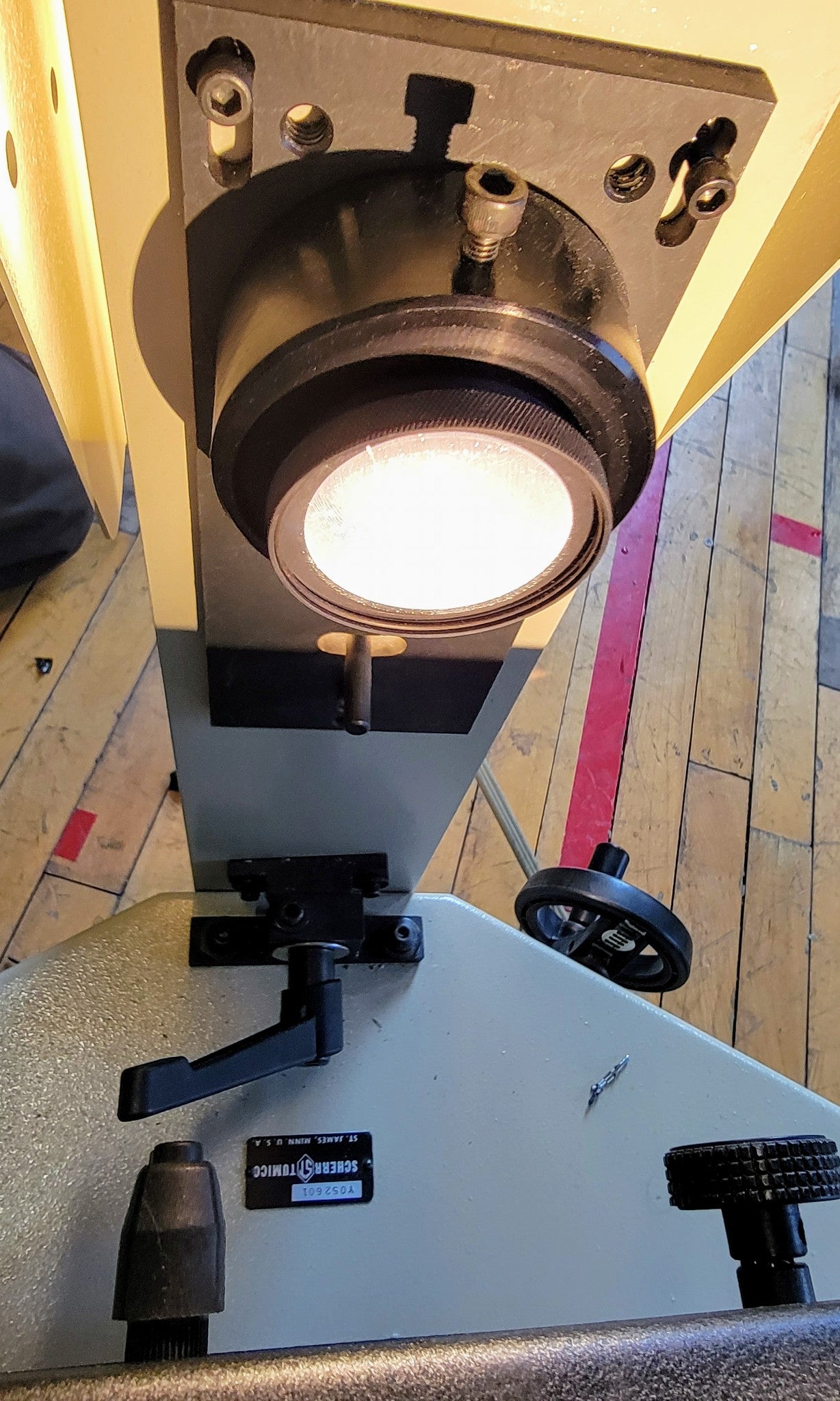

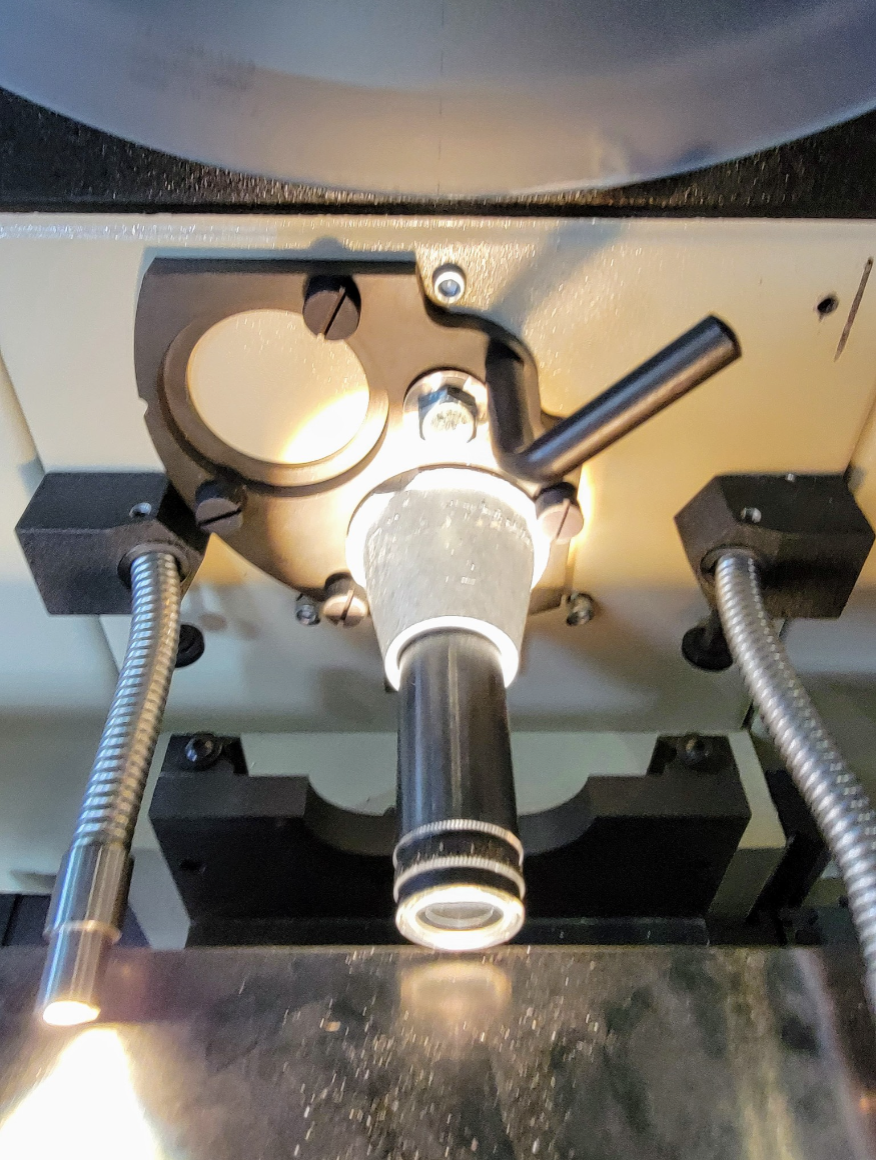

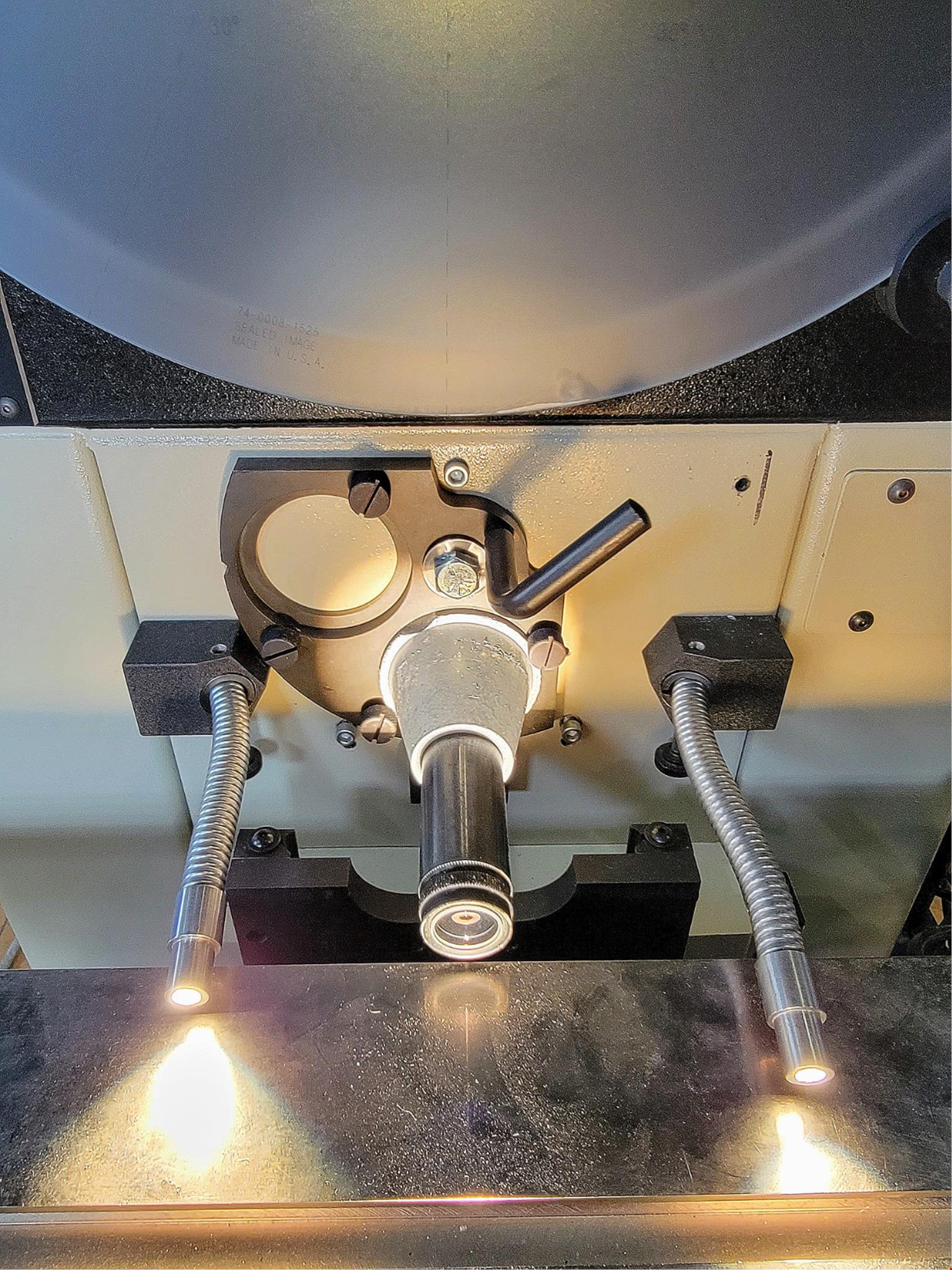

Two Position Lens Turret (allows quick change between lenses) for 20X & 50X Magnifications.

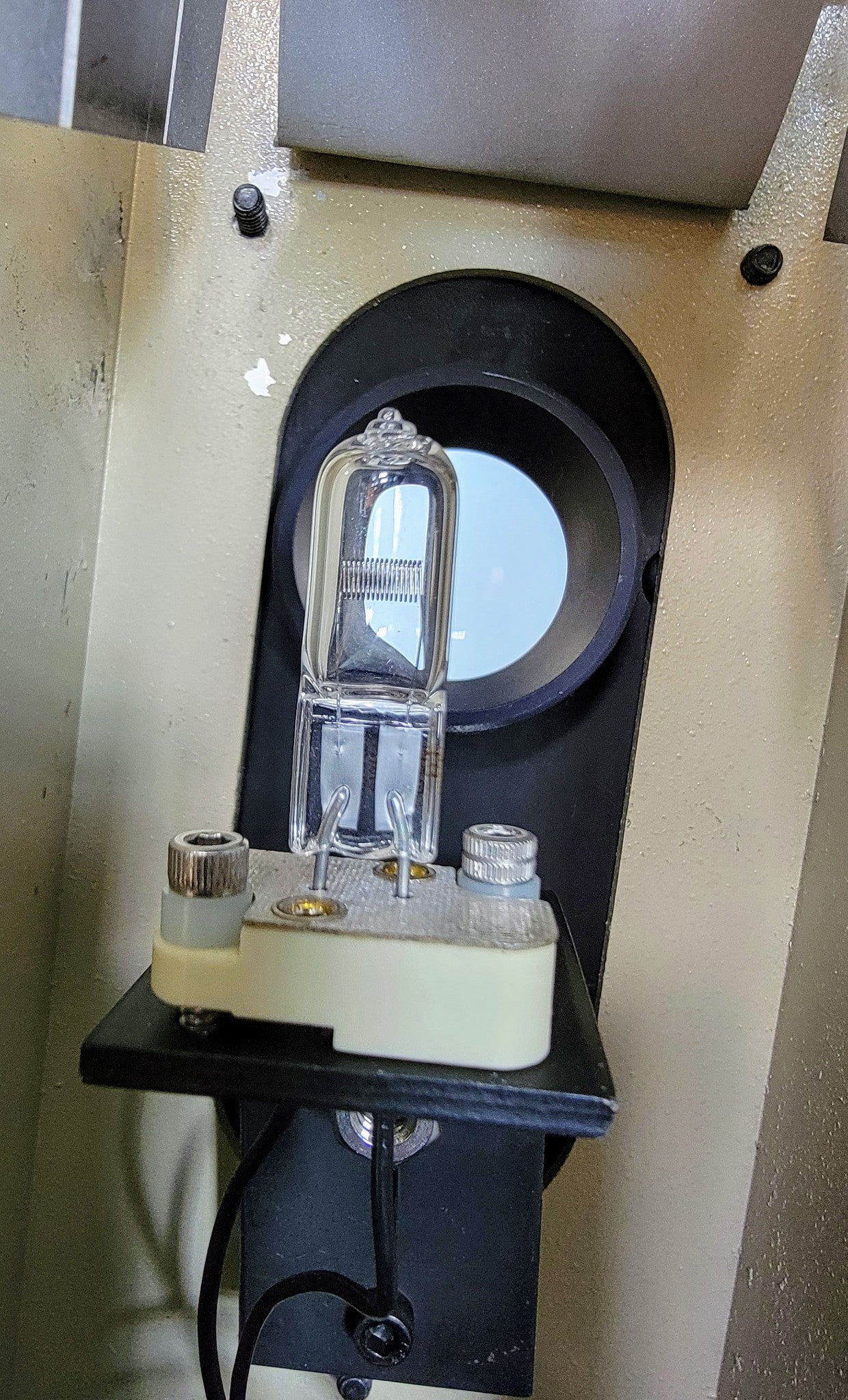

Lamps; Tungsten Halogen- Profile 150 Watt 24v. Dual Flexible Fiber Optics Surface Illum. 100 Watt 12v

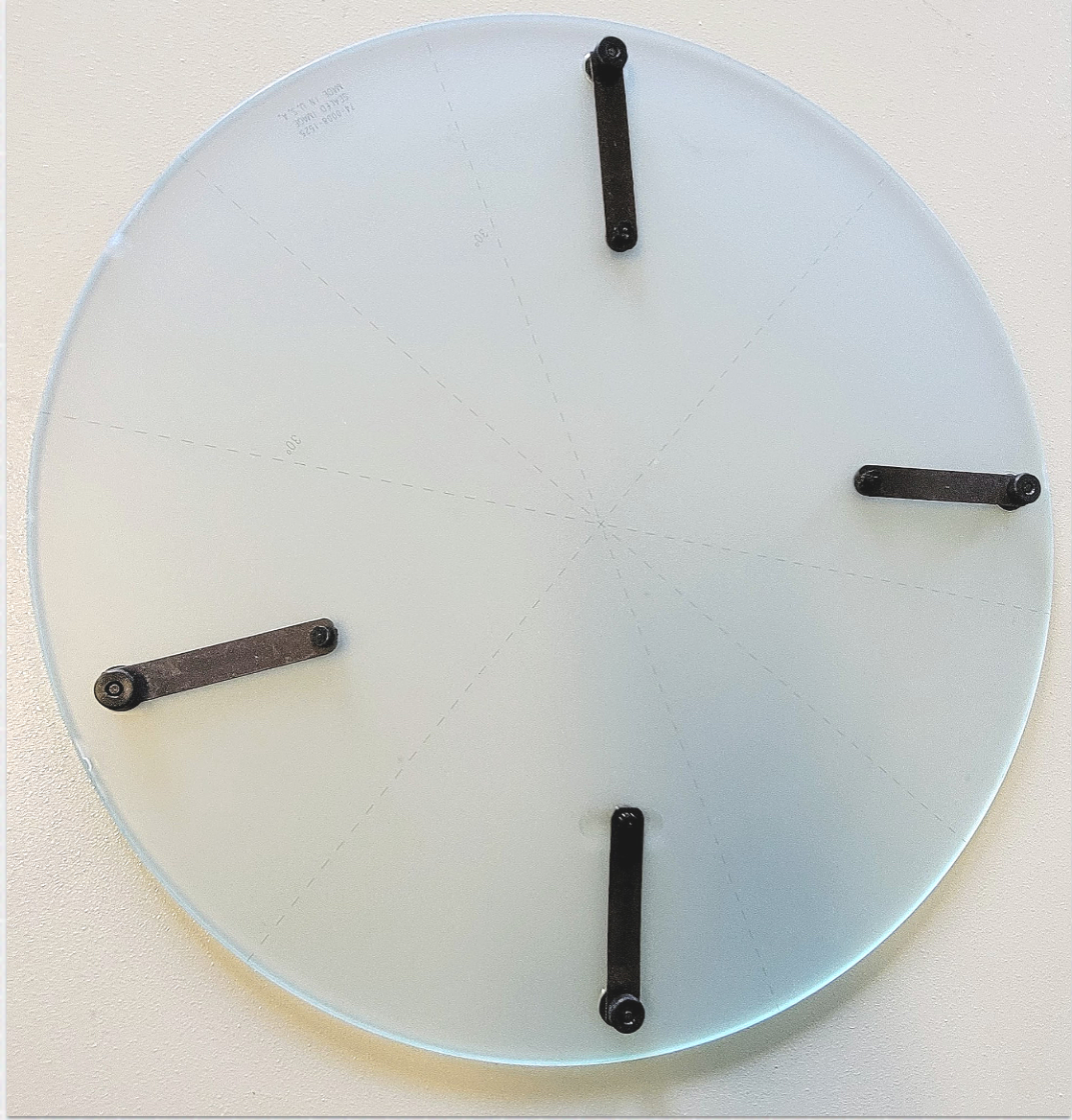

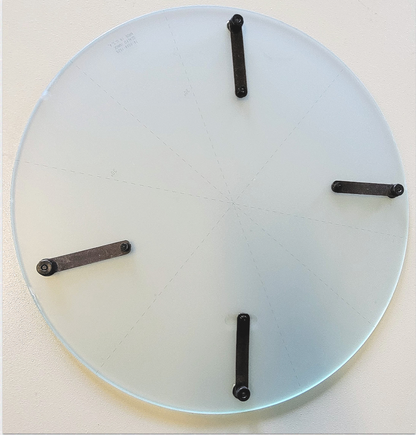

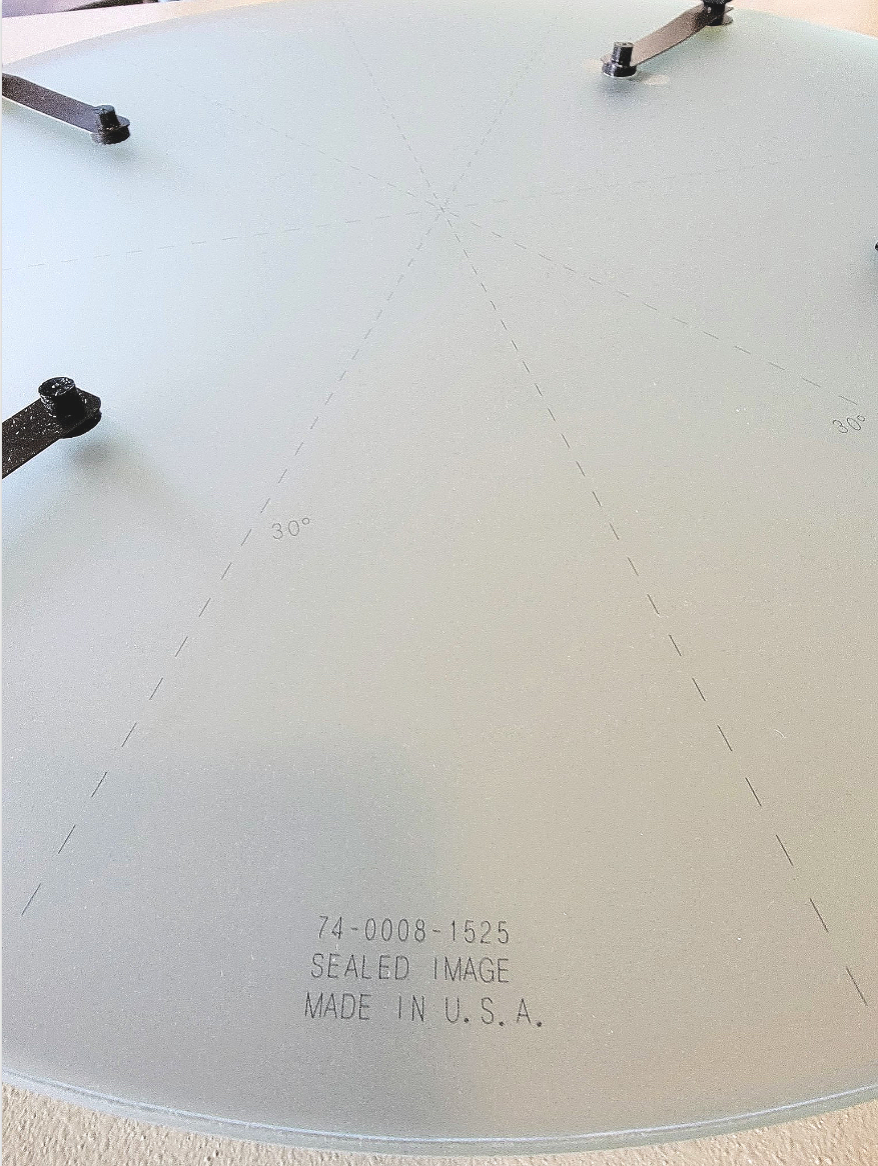

Screen; Standard Cross Hair- Glass

Operators Manual

- Spare Bulbs are Cheap and can easily be replaced

ITEM CONDITION Wonderful Operational Condition

INCLUDES Power Cord

Additional images are available upon request. All items can be viewed in person at our showroom in Toledo, OH.

STOCK # 222201
