SPECIAL & RARE EDWARDS 3PHASE RV5 ROTARY VANE VACUUM PUMP w/OIL FILTER FREE SHIP

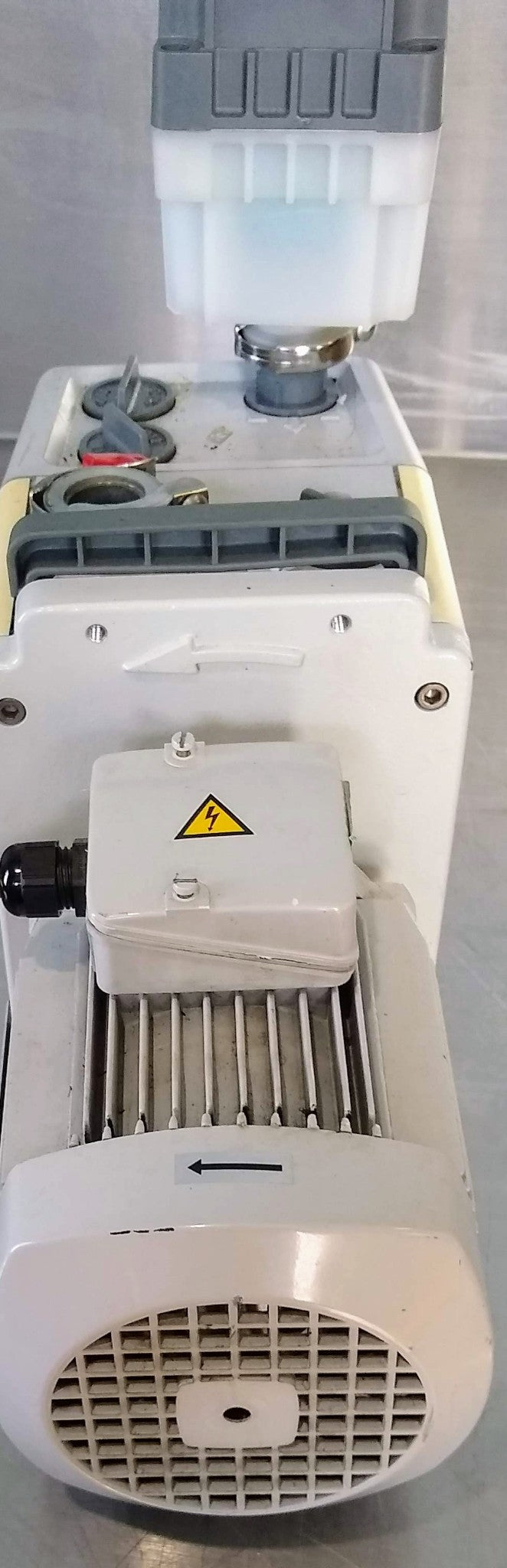

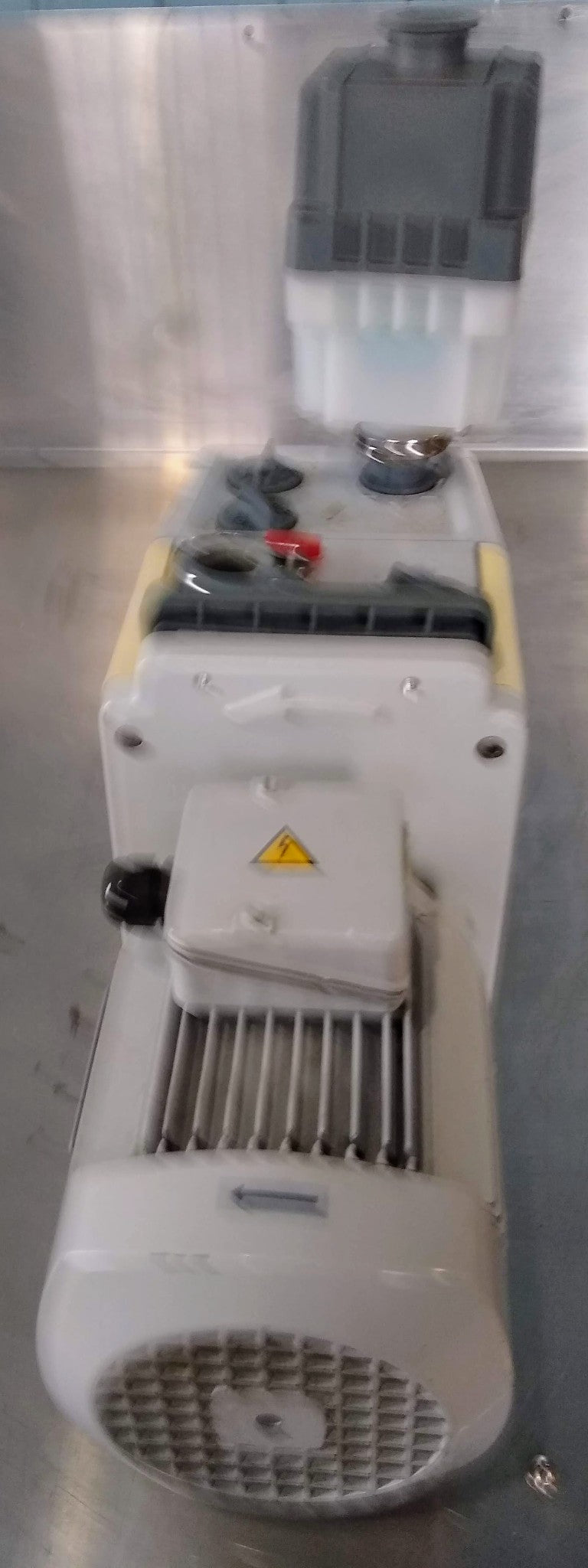

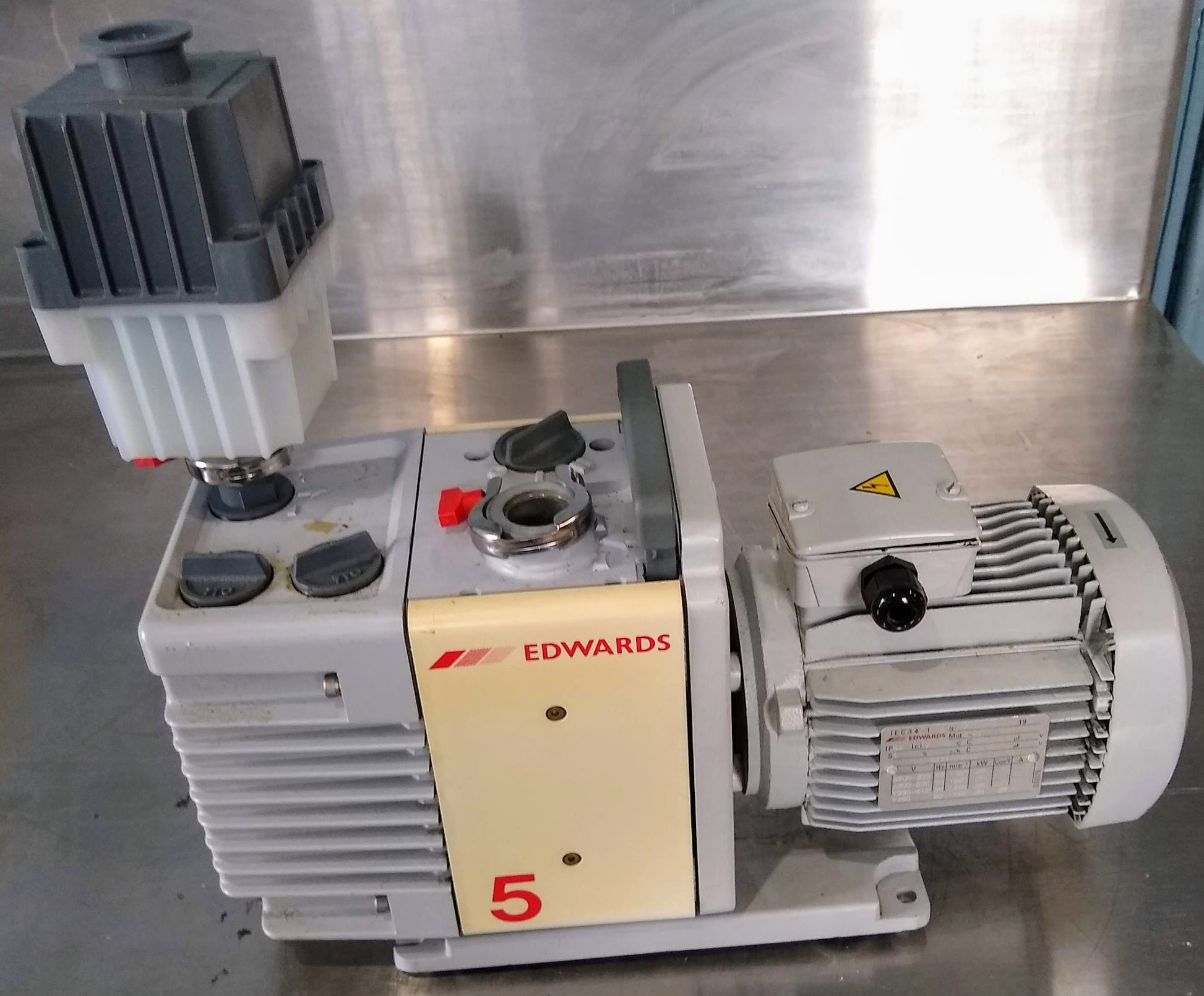

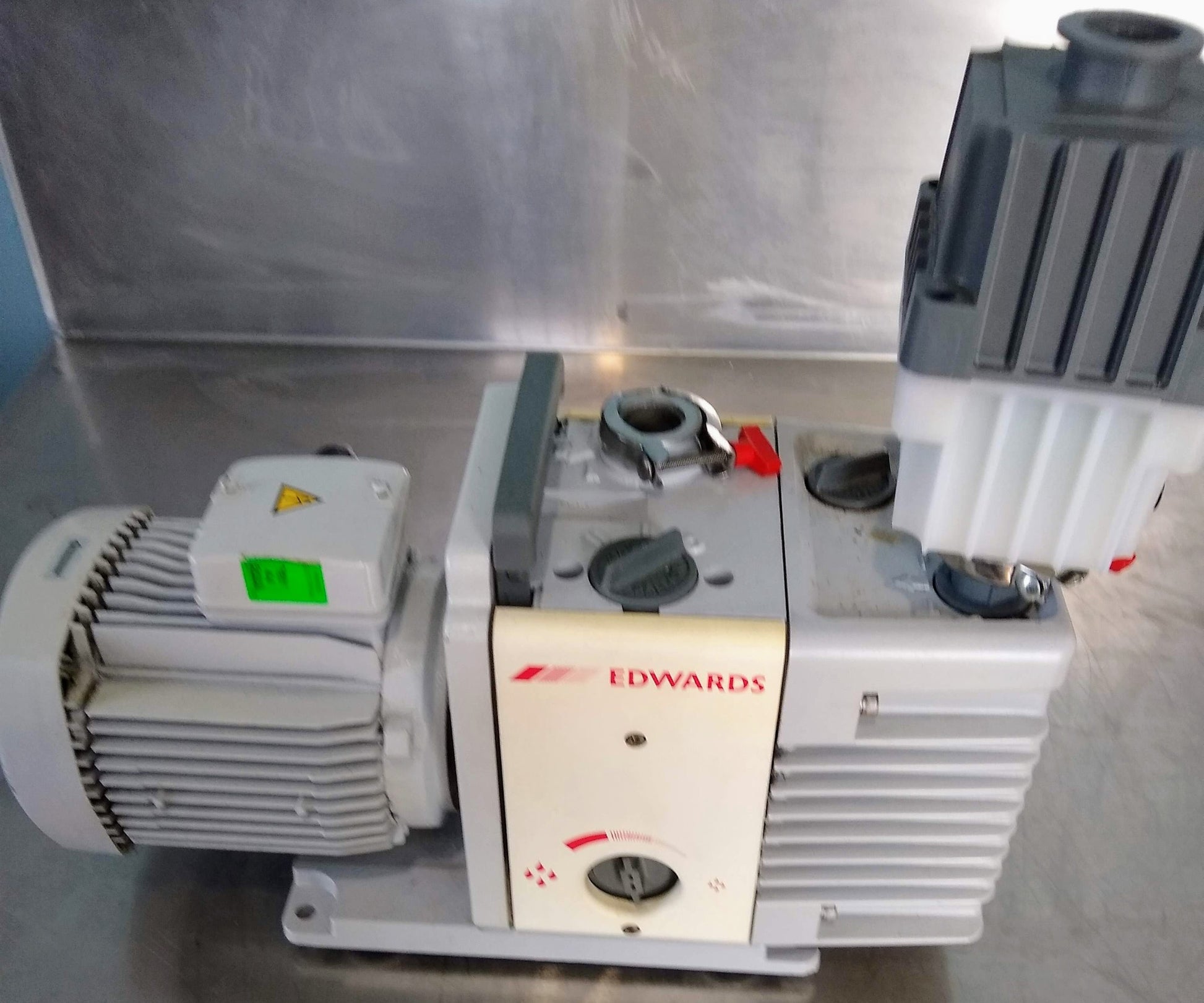

You are bidding on a WONDERFUL OPERATIONAL CONDITION EDWARDS 3PHASE RV5 ROTARY VANE VACUUM PUMP with OIL FILTER as can be seen in the pictures.

IMPORTANT: THIS IS A 3 PHASE EDWARDS UNIT. IT WILL NOT WORK ON 220 VOLT OUTLETS!!! THESE ARE EXTREMELY SILENT AND EFFICIENT PUMPS!!!

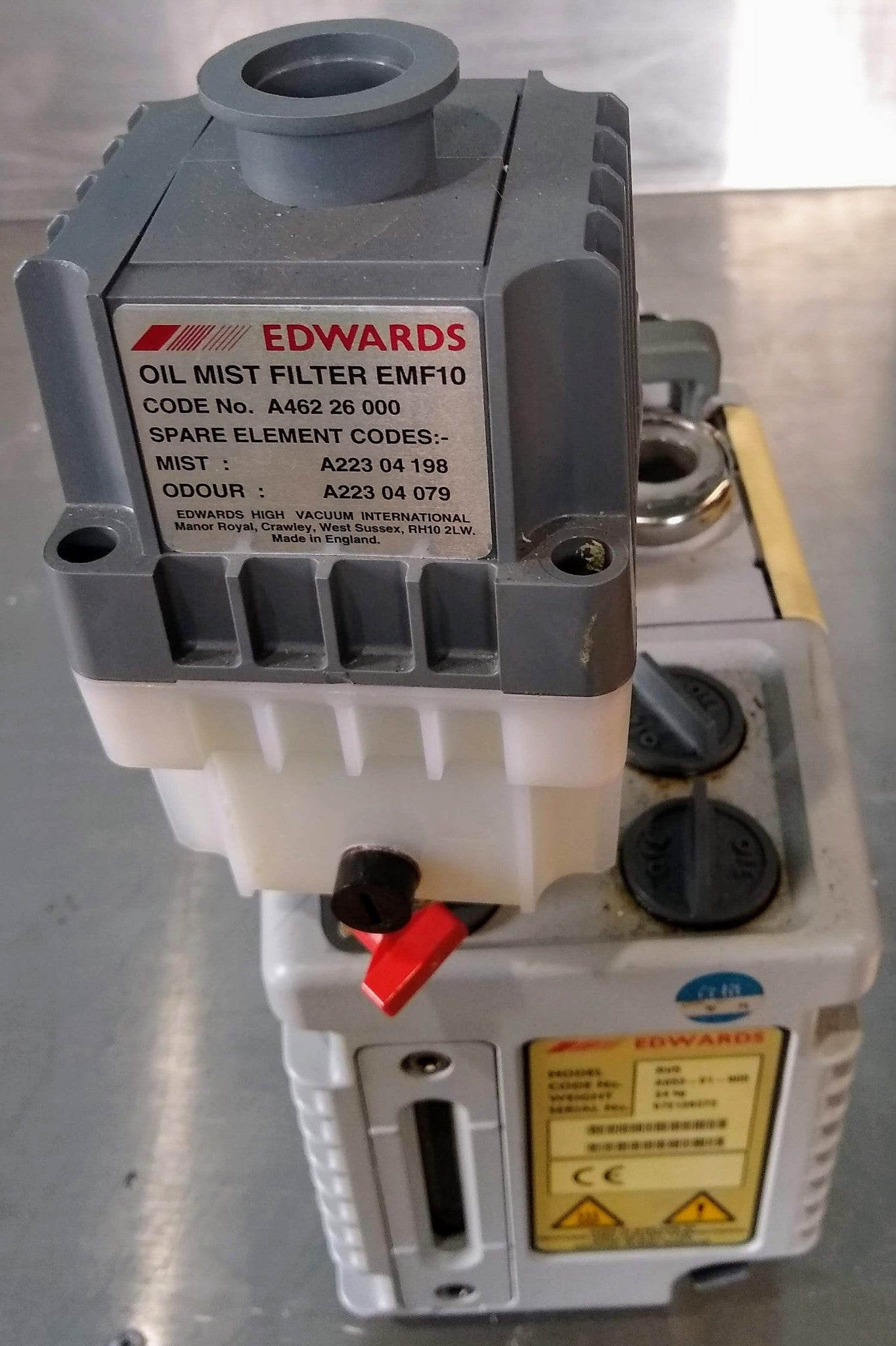

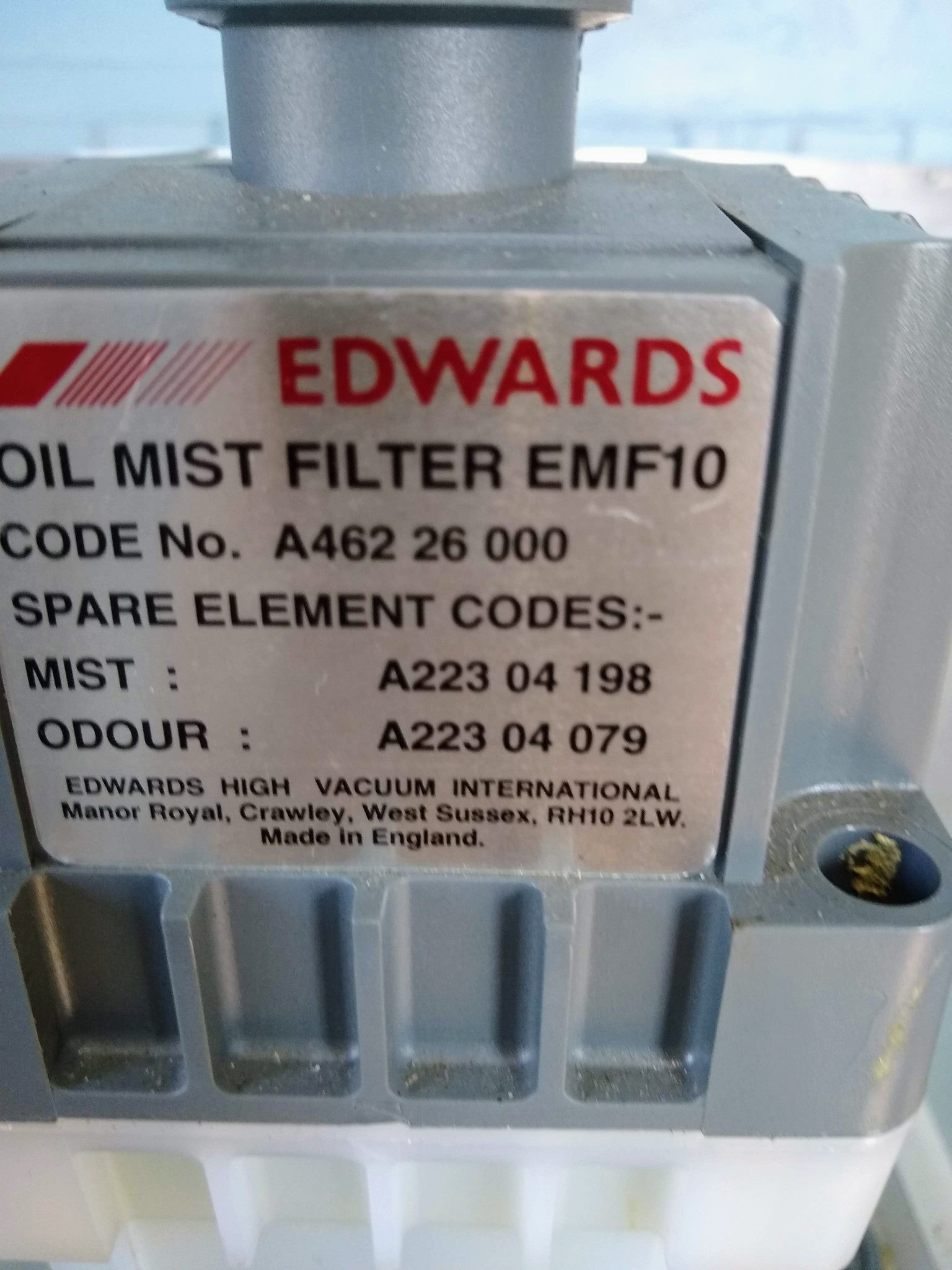

INCLUDES an EDWARDS EMF10 OIL FILTER as can be seen in the pictures (THESE FILTERS BY THEMSELVES SELL NEW FOR OVER US$ 350.00)

THIS UNIT IS IN EXCELLENT OPERATIONAL CONDITION AND THAT'S WHY WE OFFER A 90 DAY WARRANTY!!!

Feel free to check manufacturer's technical data on this special Edwards RV5 vaccum pump by GOOGLING the following link: https://shop.edwardsvacuum.com/products/a653019D

Description

IN GREAT COSMETIC & WORKING CONDITION as can be Watched in the Video and also seen in the pictures.

Product Description:

Edwards RV5 Rotary Vane Vacuum Pump (1ph Motor 115V, 50/60Hz)

These rugged vacuum pumps offer an excellent ultimate with good pumping speeds as well as superior vapour handling capabilities and quiet operation. Edwards RV series of vacuum pumps have become the industry standard with over 200,000 units sold. This success has been based on field proven design and reliability in a wide range of applications and environments.

High Vapour Handling:

Quicker Process

Superior Particulate Handling:

High Reliability

Fast Acting, Dependable Inlet Valve for Anti-Suck Back Protection:

Safe Process & Systems

Mode Selector & Two Position Gas Ballast:

Configured to Meet Your Vacuum Needs

Designed for Easy Maintenance:

No Unplanned Downtime

Quiet Running: Better Work Environment

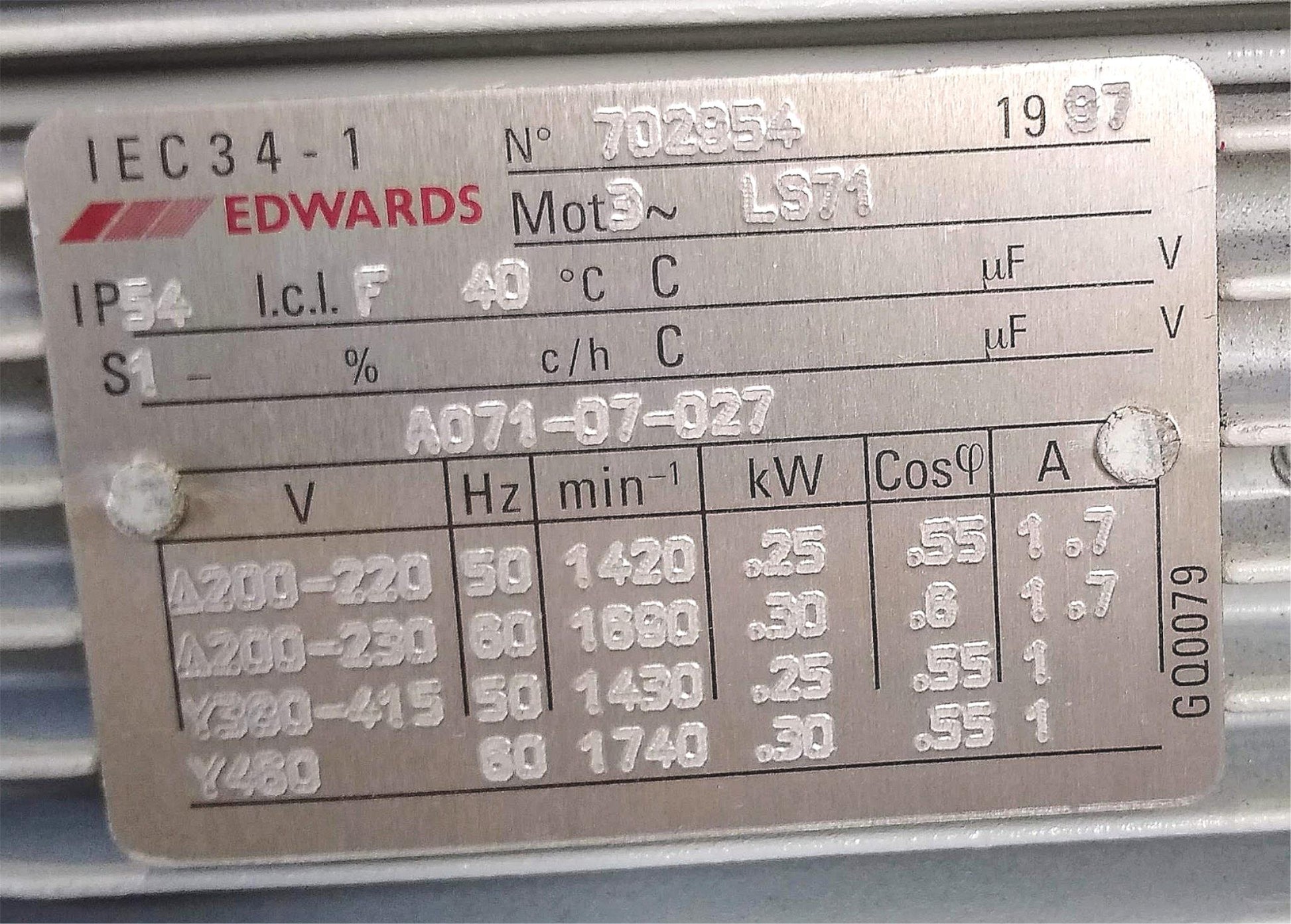

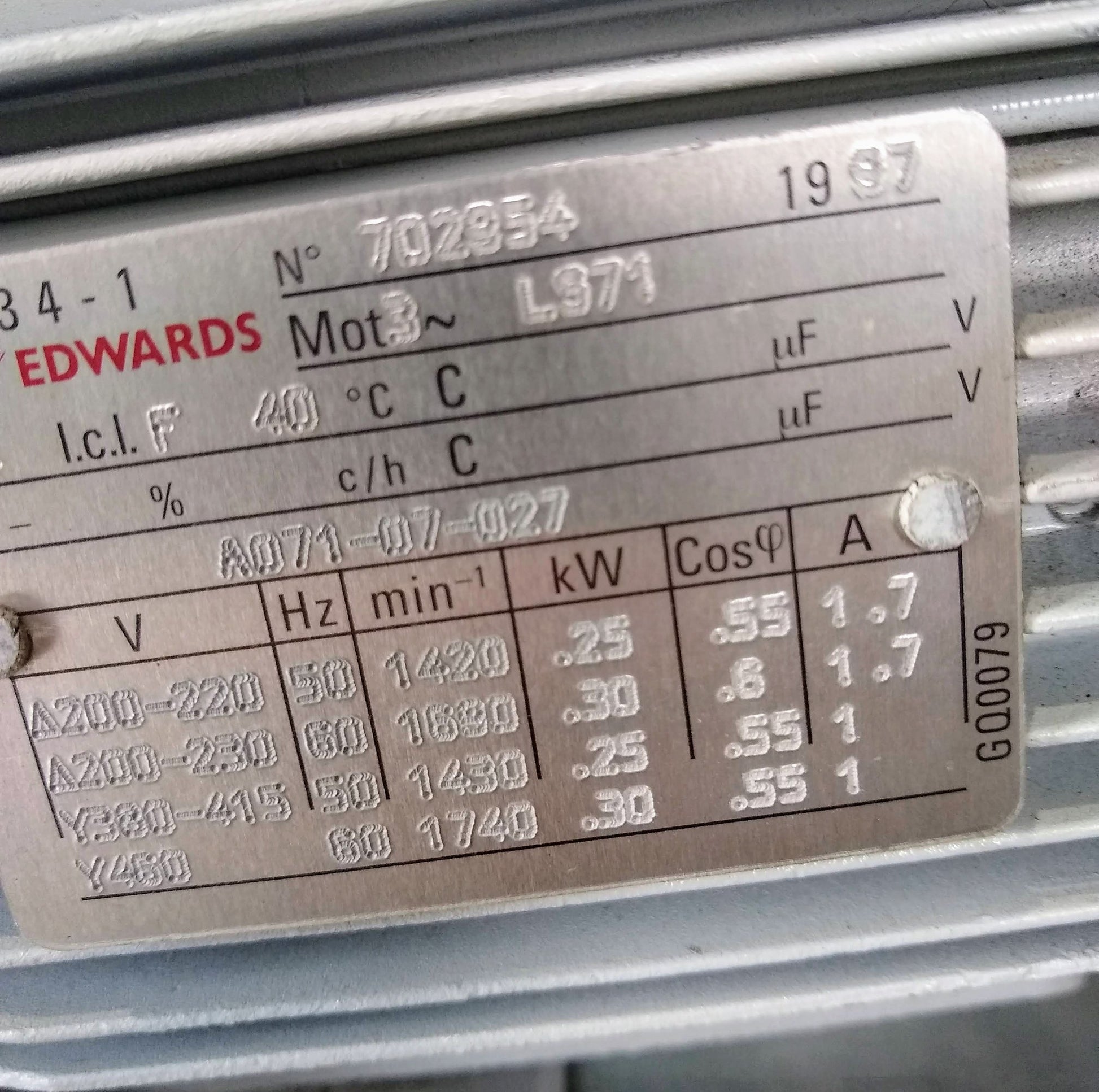

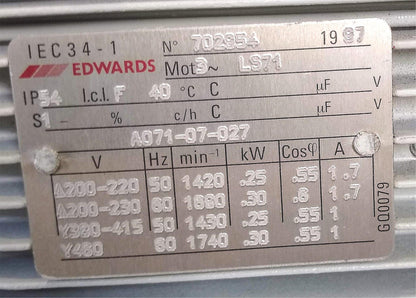

RV5 200-220/380-415V, 3-ph, 50Hz and 200-230/460V, 3-ph, 60Hz, Factory set to 380/460V

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With 400,000  units produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.

Technology

All our RV pumps are quiet.  Noise levels of 48 dBA 50Hz have been achieved by extensive work on the pump design,  drive train and motor.

The pumps have the unique ability to deliver excellent ultimate vacuum in both high vacuum and high throughput modes with or without gas ballast. This gives the user an unrivalled opportunity to select the optimum pumping performance without compromising the application.

The simple to use mode selector and accessible, three-position gas ballast control allow the pump to be reconfigured at any time, even when the pump is running.

In high vacuum mode, the RV pump is ideal for analytical instruments, electron microscopes, physics research, backing turbo pumps and leak detection applications. Configure the same pump in the high throughput mode, and it becomes suitable for distillation, laboratory furnaces, backing vapor pumps, solvent concentration, freeze drying and other drying applications.

Applications

Analytical instruments

Centrifuges, ultra-high speed

Coating

Degassing/curing - oil, epoxy resin

Distillation/extraction/filtration

Freeze drying

Furnaces

Gas bottle filling/emptying

Gel drying

Glove boxes, ovens

Laboratory bench top vacuum

Leak detectors, Helium

Load locks and transfer chambers

Refrigeration manufacture

Research and development

Rotary, centirfugal evaporators

Scanning electron microscopes - SEM

SEM/FIB (ion beam repair)

Solvent recovery

Surface science instruments

Turbomolecuar backing pumps

Features and Benefits

High reliability – generous lubrication of moving parts.

Safe process and systems – fast acting inlet valve for best in class anti‑suck back protection.

Configured to meet your vacuum needs – mode selector and three position gas ballast

No unplanned downtime – designed for easy maintenance.

Better work environment – quiet running and intrusive frequencies minimised.

Three position gas ballast allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled.

Universal motor to cover the widest possible voltage and frequency range from a single variant.

Smooth controlled inlet valve opening by oil pressure to eliminate pressure surges.

Rapid closing inlet valve within 0.4 seconds of pump stopping.

Technical Data

Displacement

  50Hz 5.8 m3h-1 / 3.4 ft3min-1

  60Hz 7.0 m3h-1 / 4.1 ft3min-1

Speed (Pneurop 6602)

  50Hz 5.1 m3h-1 / 3.0 ft3min-1

  60Hz 6.2 m3h-1 / 3.7 ft3min-1

Ultimate pressure 2.0 x 10-3 mbar / 1.5 x 10-3 Torr

Ultimate pressure GB I 3.0 x 10-2 mbar / 2.3 x 10-2 Torr

Ultimate pressure GB II 1.0 x 10-1 mbar / 7.5 x 10-2 Torr

Ultimate Pressure with Fomblin® 2.0 x 10-2 mbar / 1.5 x 10-2 Torr

Max inlet pressure for water vapour 50 mbar / 38 Torr

Max water vapour pumping rate – GB I 60 gh-1

Max water vapour pumping rate – GB II 220 gh-1

Max allowed outlet pressure 0.2 bar gauge / 2.8 psig

Max allowed inlet and gas ballast pressure 0.5 bar gauge / 7 psig

Motor power 50/60Hz 450 / 550W

Power connector 1-ph IEC EN60320 C13

Nominal rotation speed 50/60Hz 1500 / 1800rpm

Weight (without oil) 25 kg / 55 lb

Oil capacity min/max 0.42/0.7 litres

Recommended oil Ultragrade 19

Inlet flange NW25

Exhaust flange NW25

Noise level 48 dB(A) @ 50 Hz

Operating temperature range 12 – 40 °C

Stock # 211702
