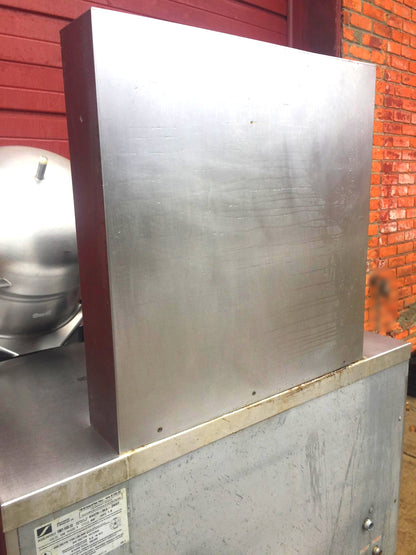

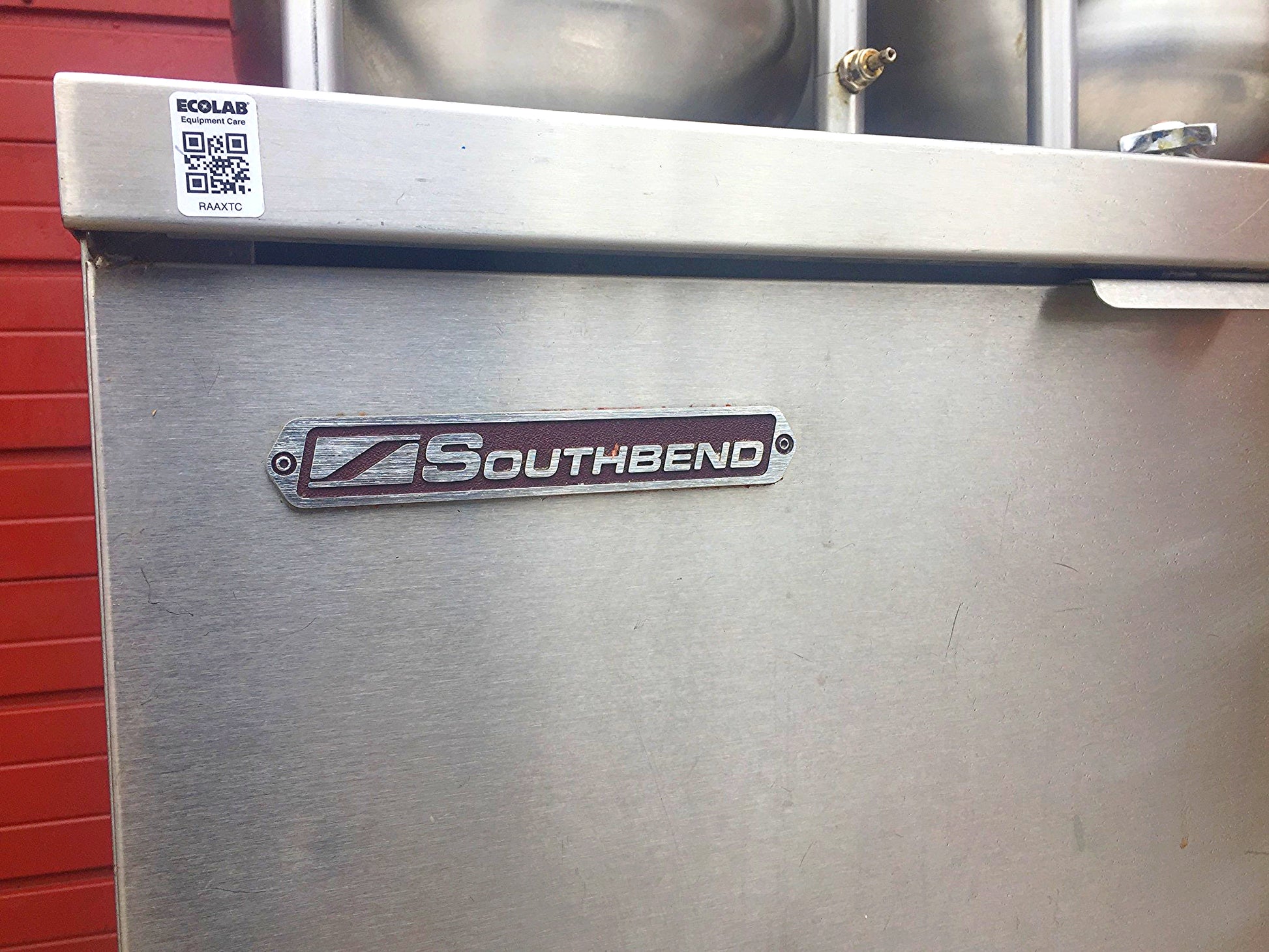

This listing is for a Great Cosmetic Condition and unknown Operational Condition SOUTHBEND GMT-10S-10 TWO 10 QUART KETTLE GAS STEAMER BOILER TILT JACKET STEAM as can be seen in the pictures.
We do not know how to test this unit and that is why it is being sold under an as is, no return condition.
Unit came from a university restaurant which closed down.
Approximate Dimensions are: 51" Wide x 60" Tall (5 Feet Tall)
Product Description below was taken from online site:
Convection Steamer, Electric, two compartments, 24", Cabinet Base, (6) 12"x20"x1" deep pan capacity total, 60 minute timer per compartment
Automatic blowdown, stainless steel interior and exterior finish, CSD-1 code, 24-KW, 115v/60, Standard

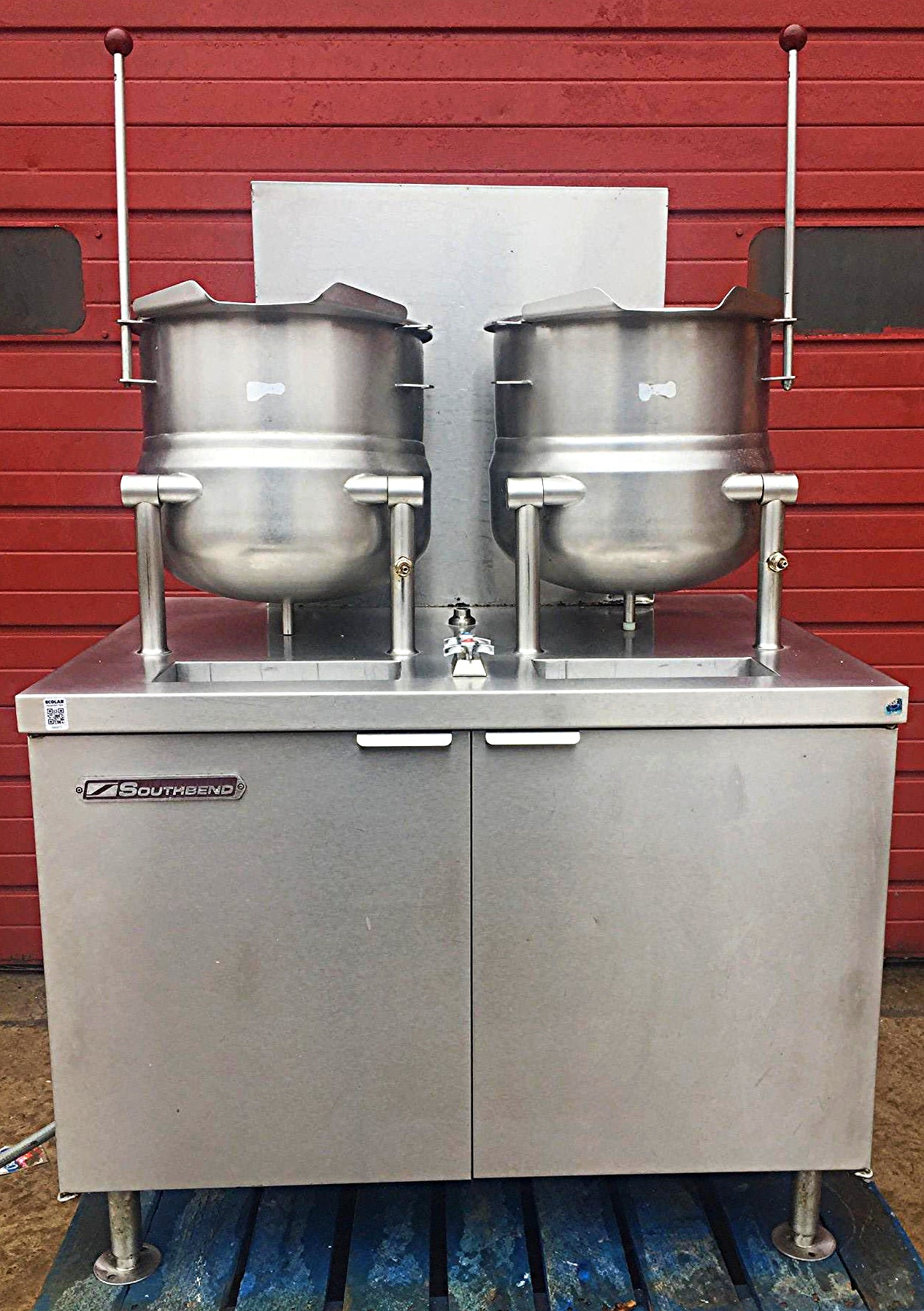

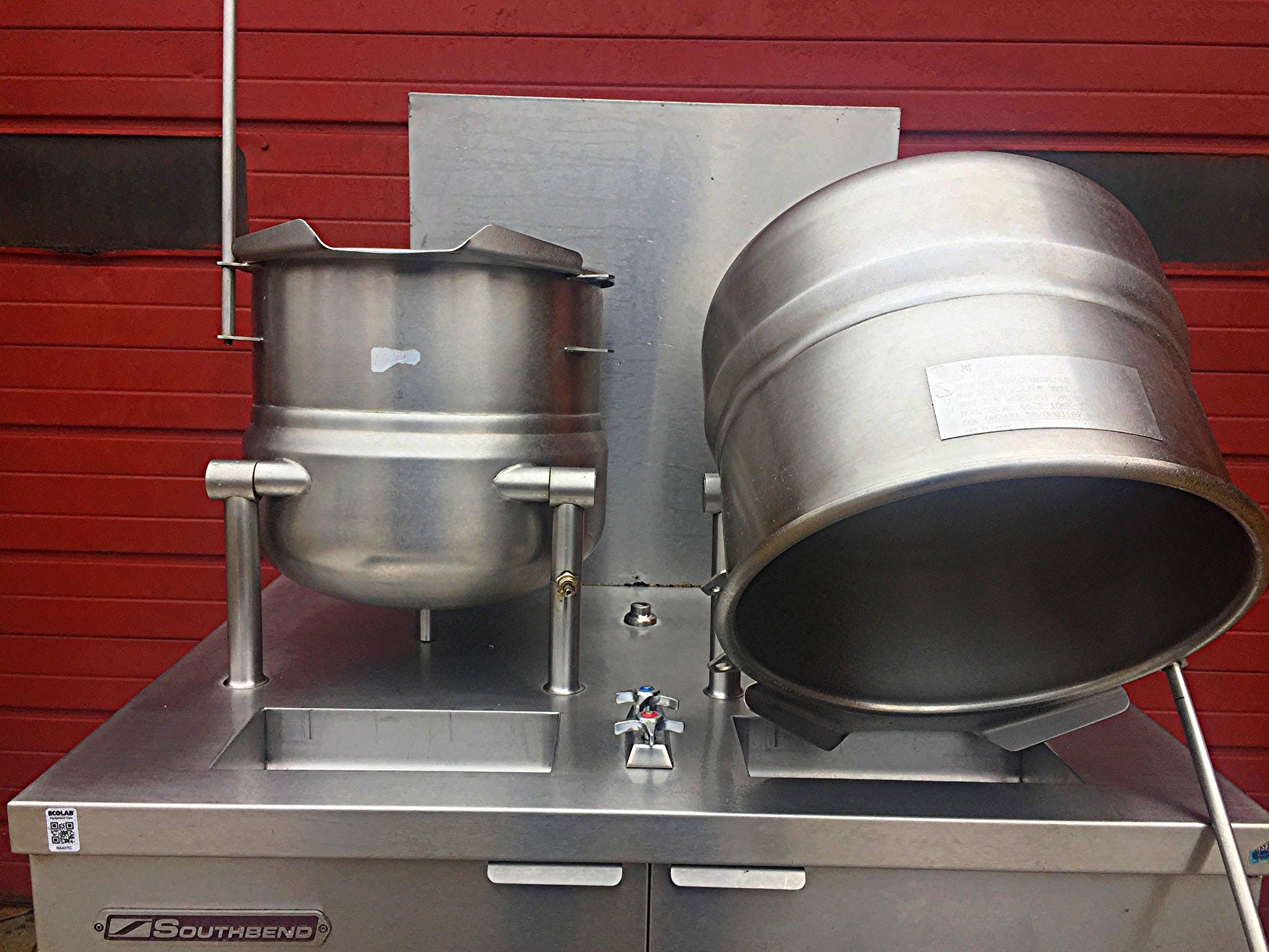

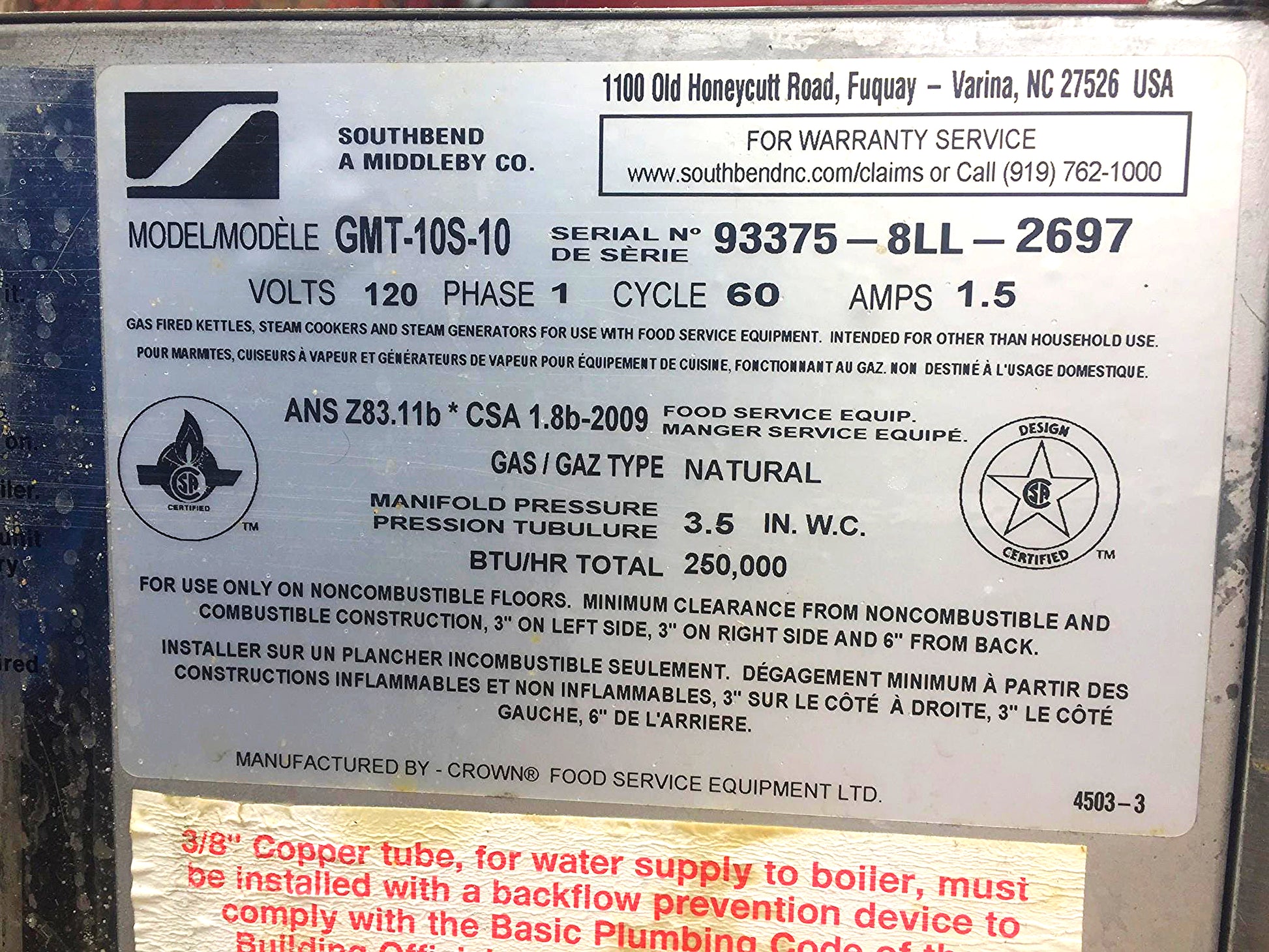

Unit is a SOUTHBEND GMT-10S-10, with two 10 quart stainless steel tilting steam jacketed kettles, with cabinet mounted gas steam boiler, per Bulletin 34Hd and as follows.

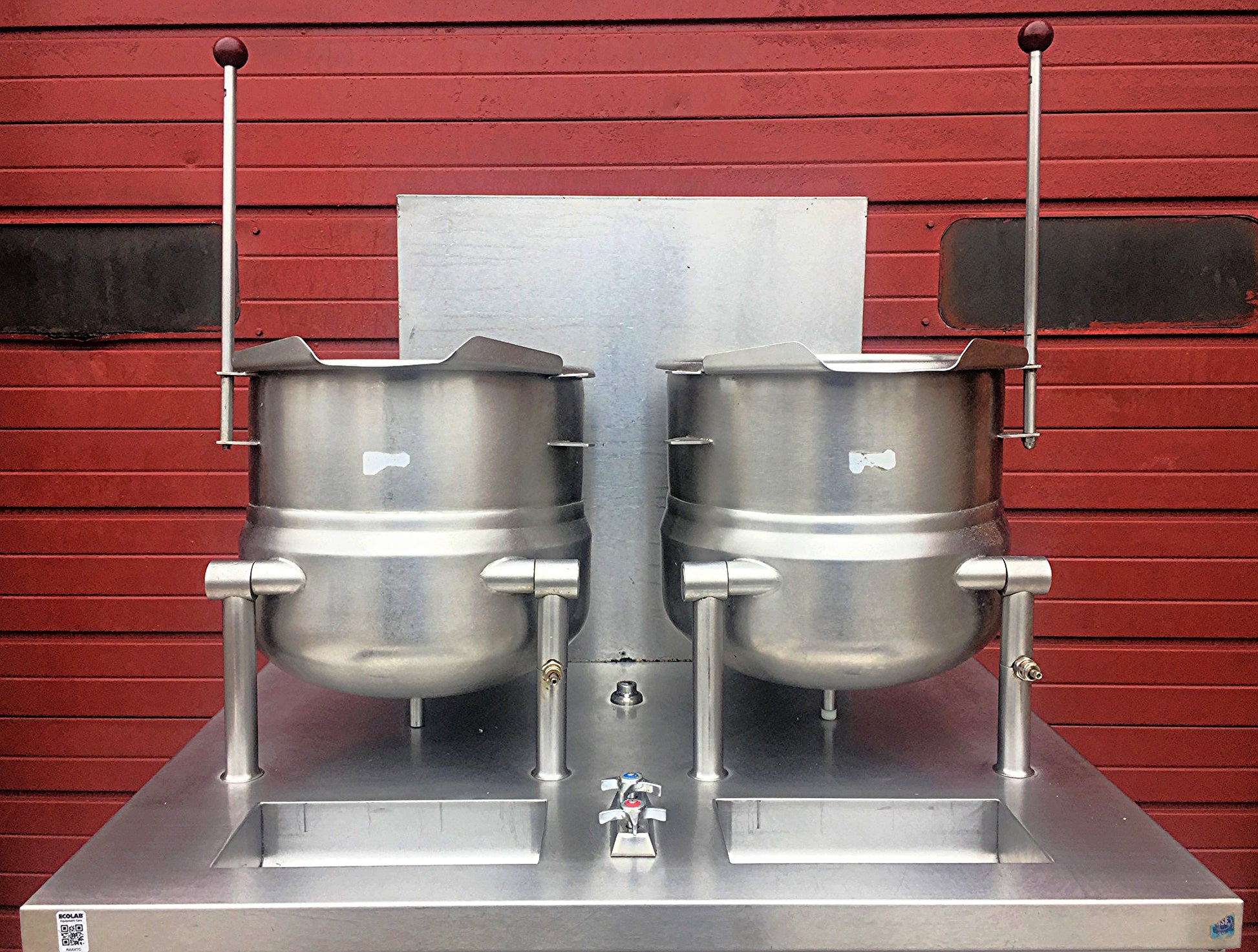

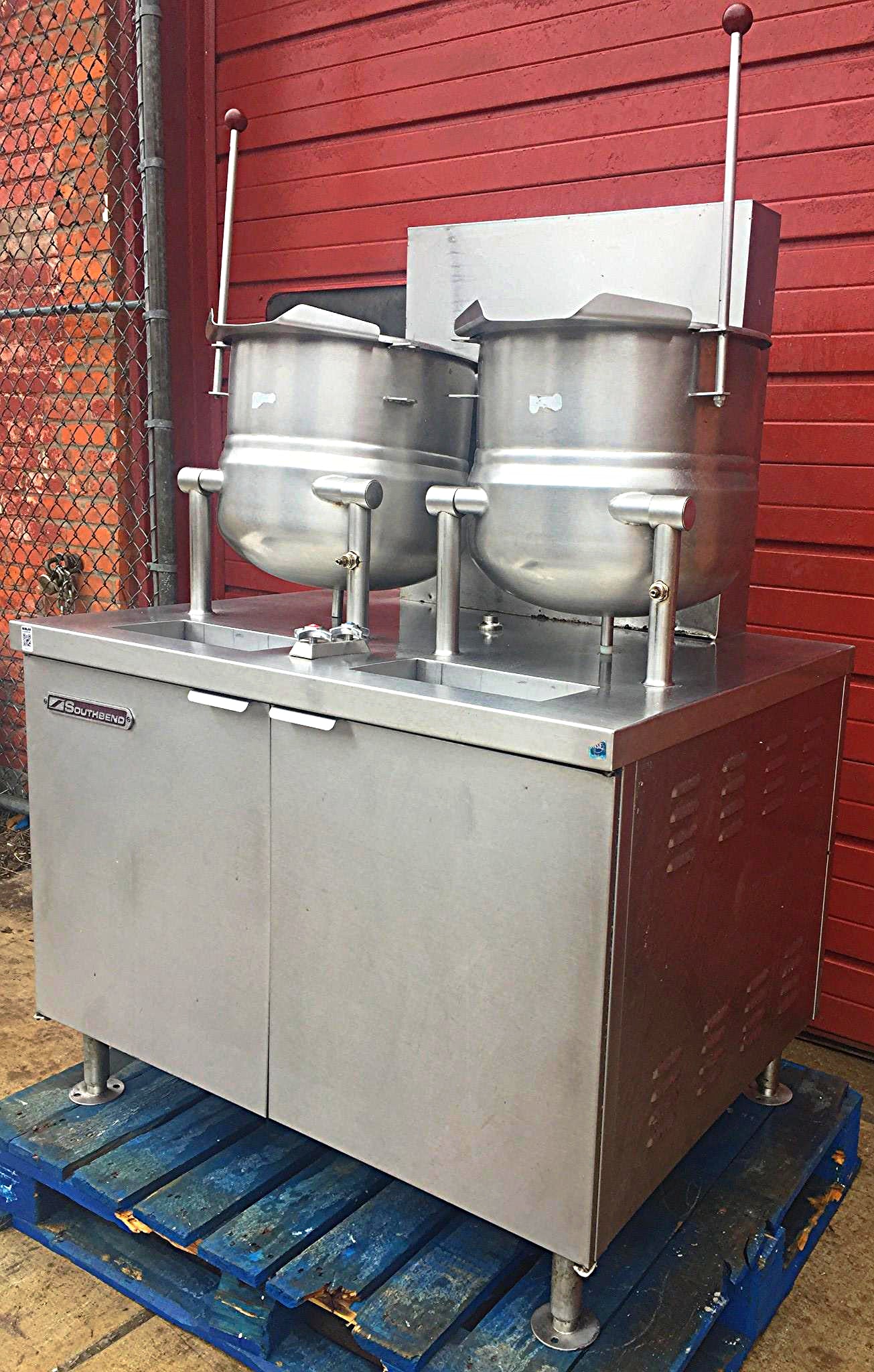

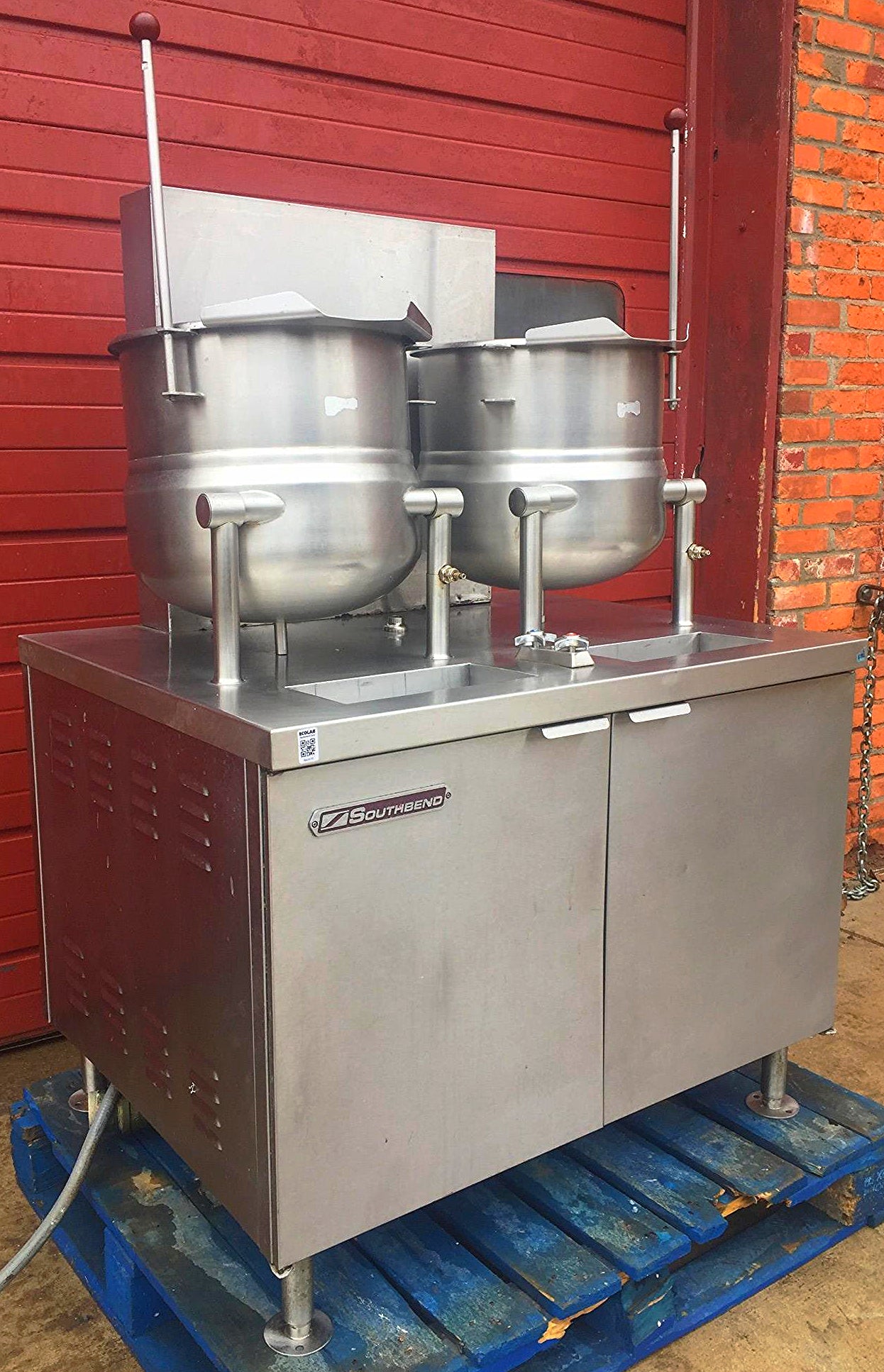

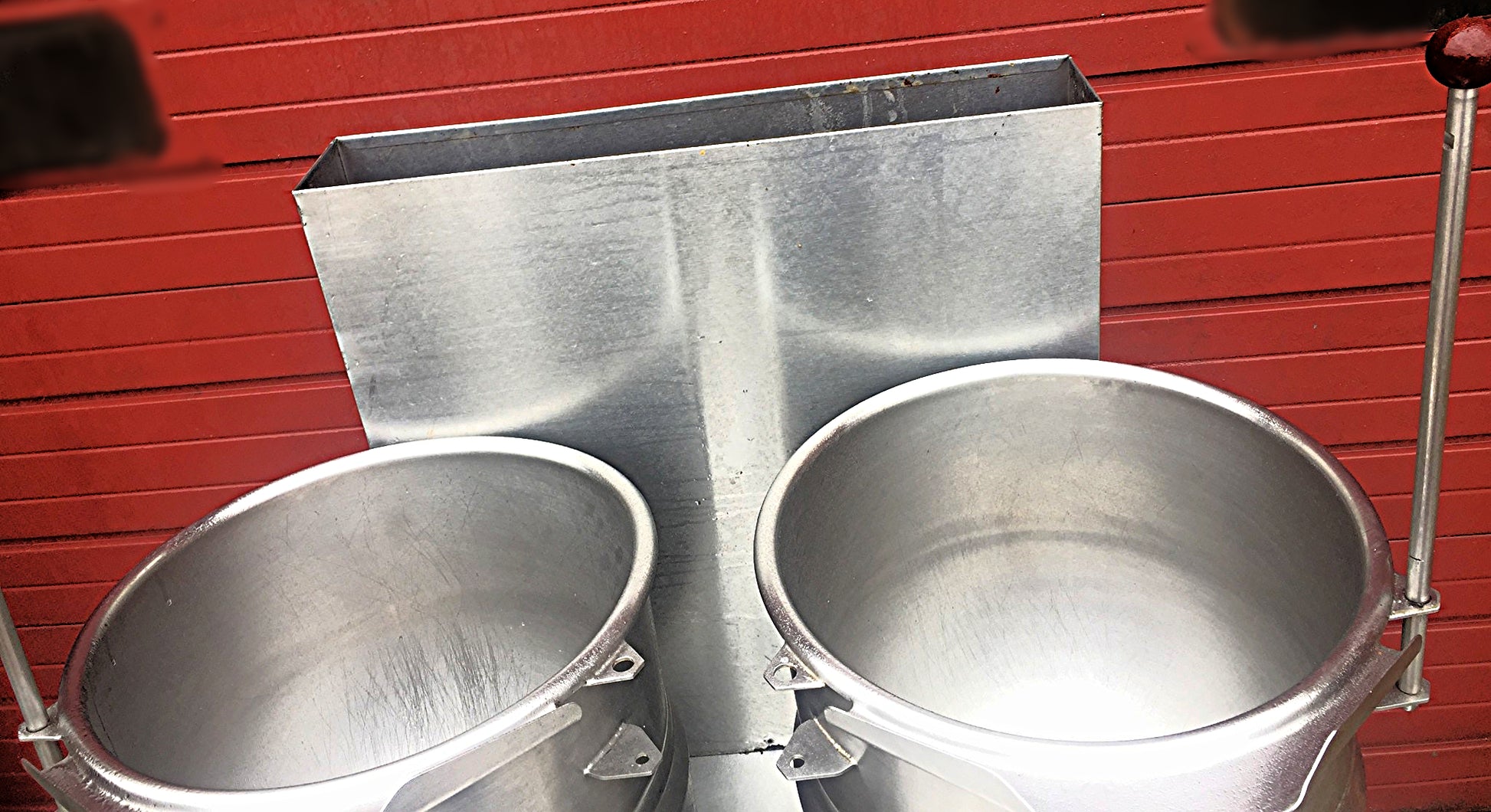

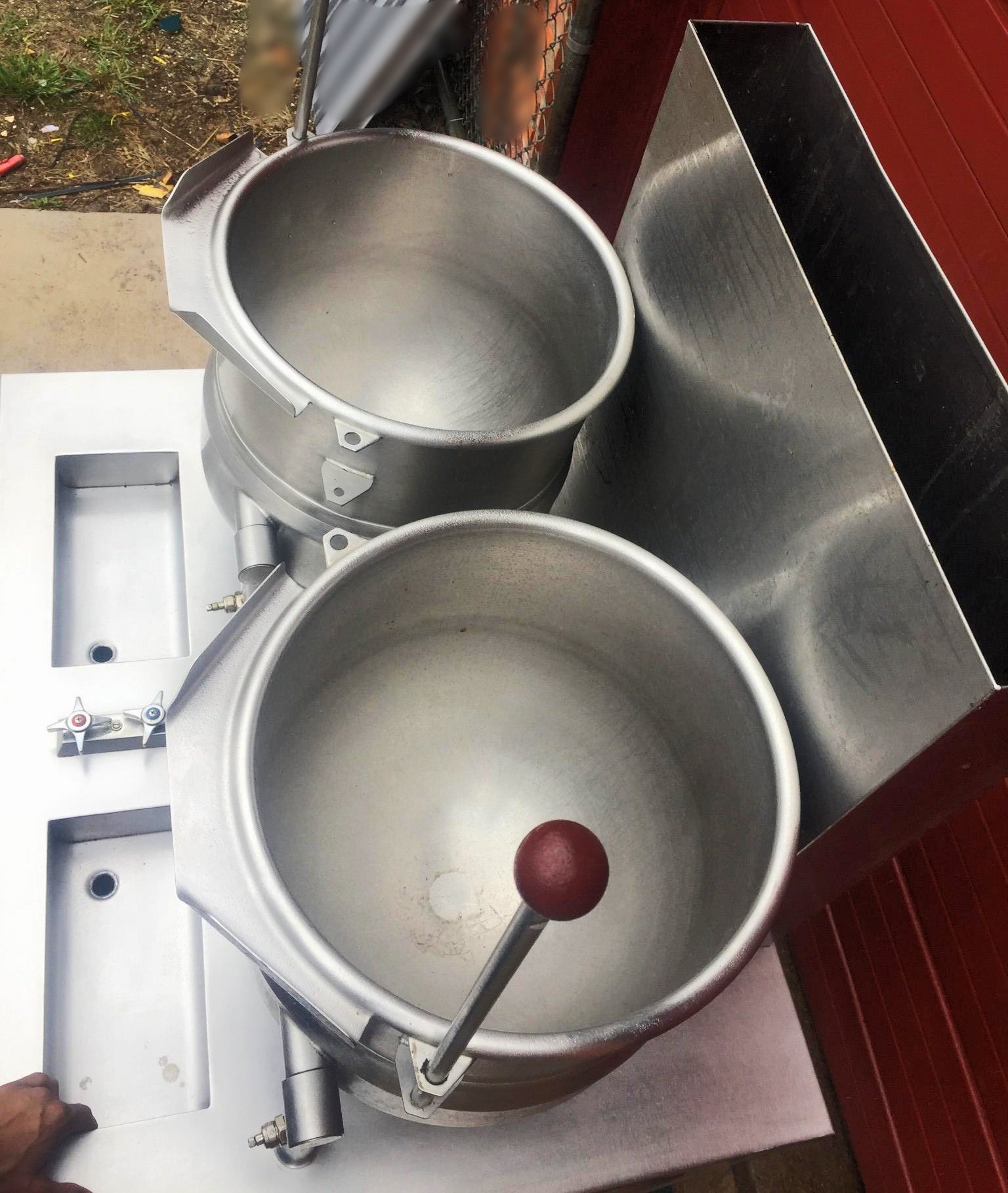

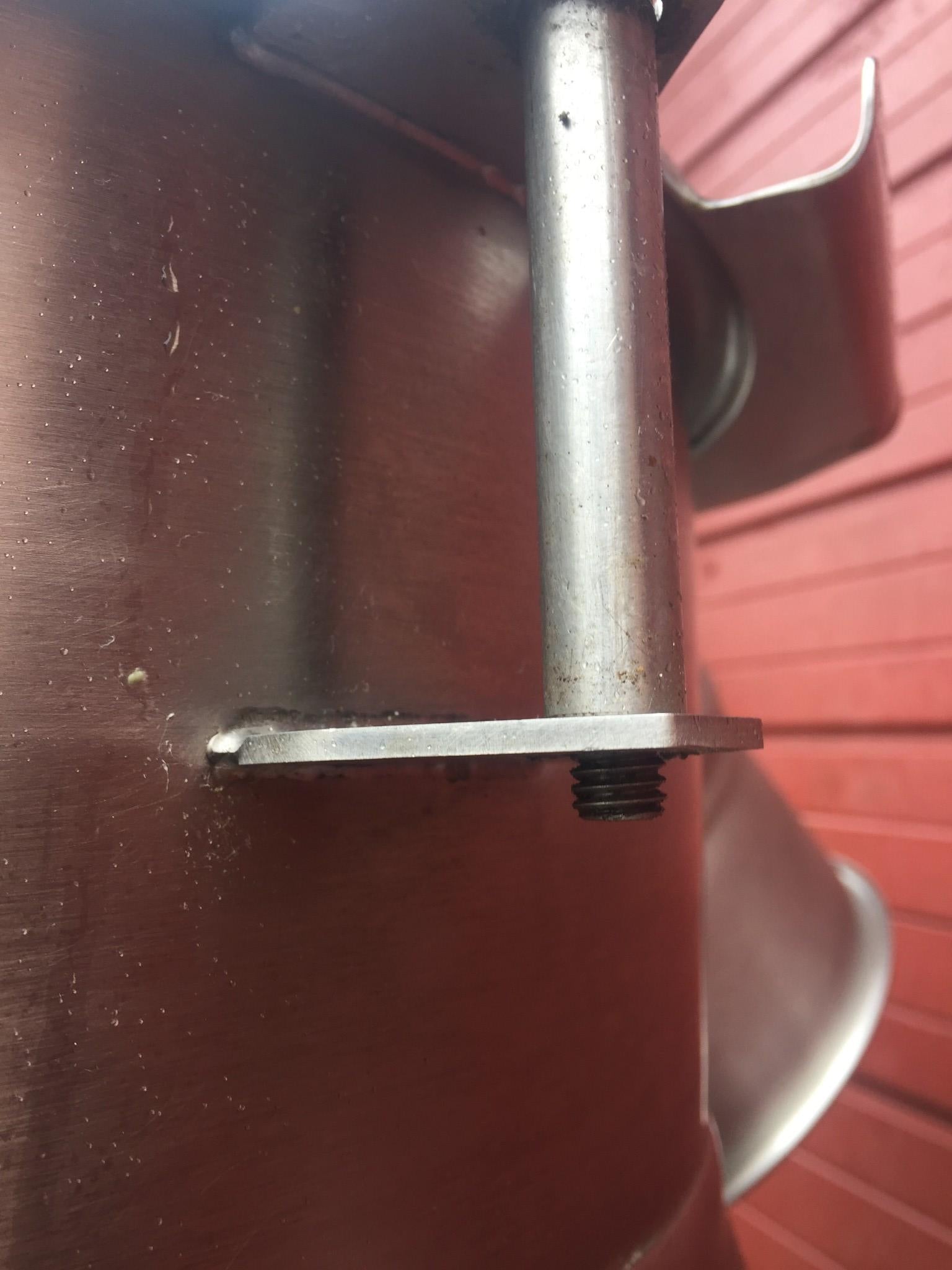

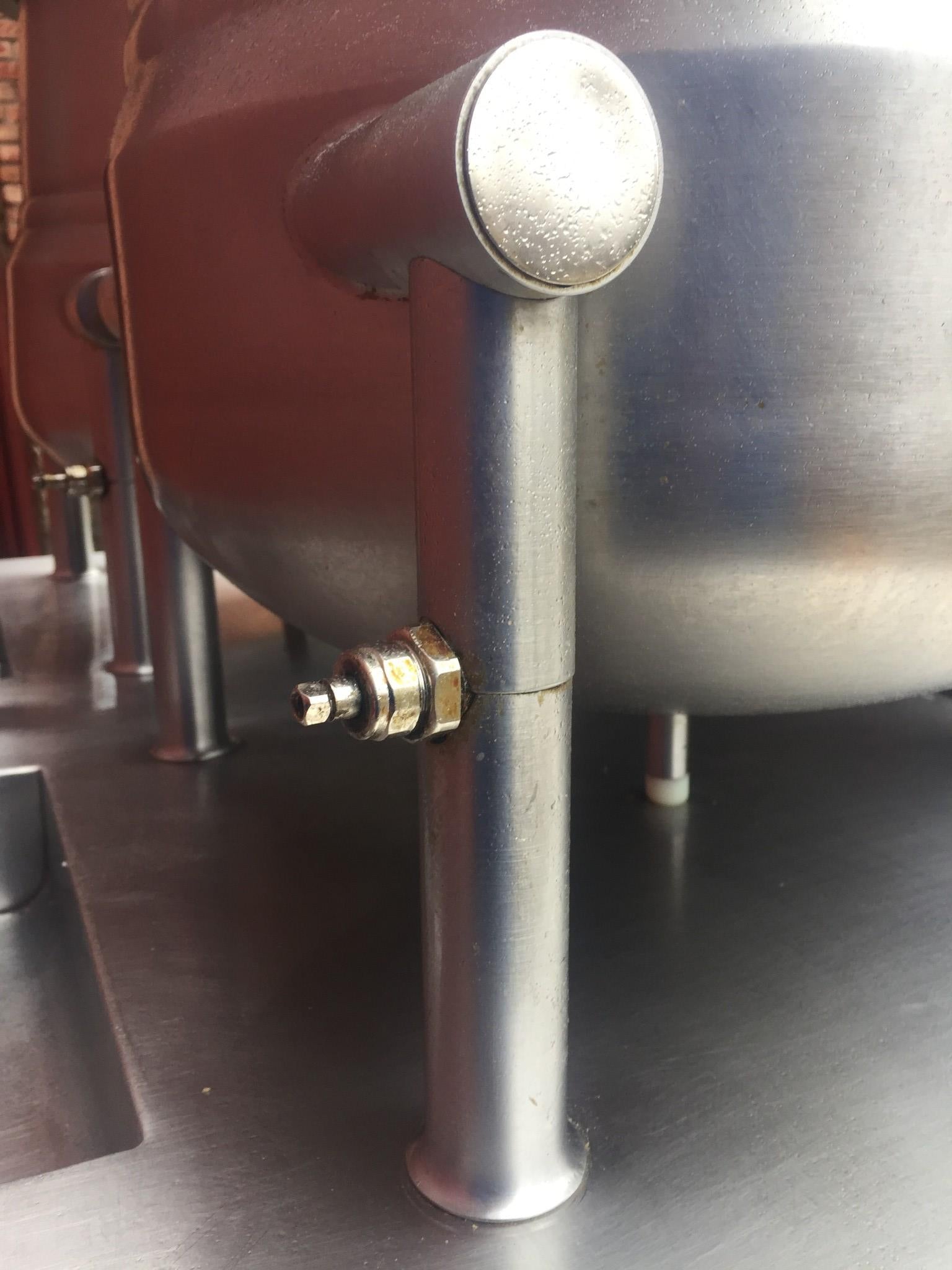

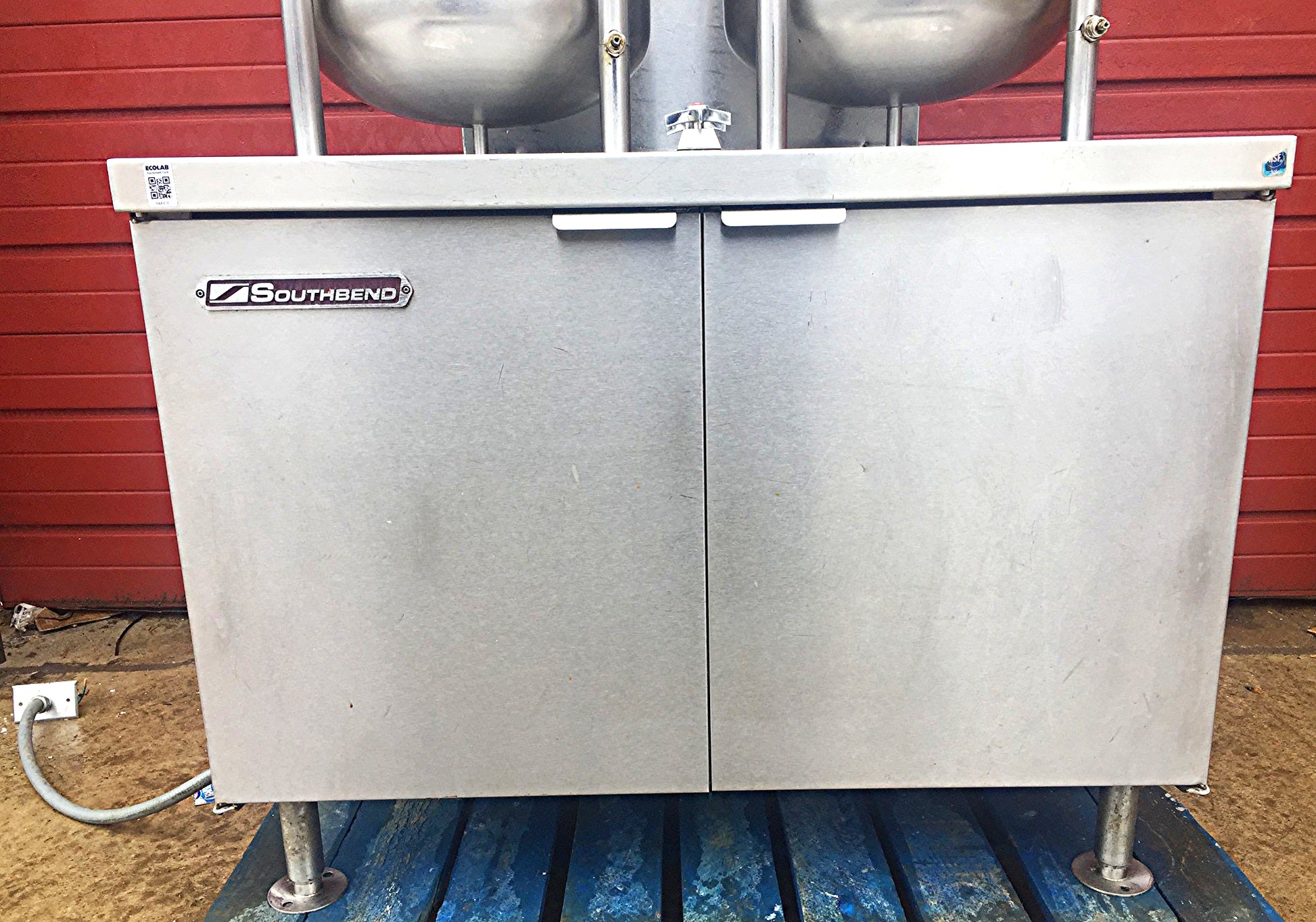

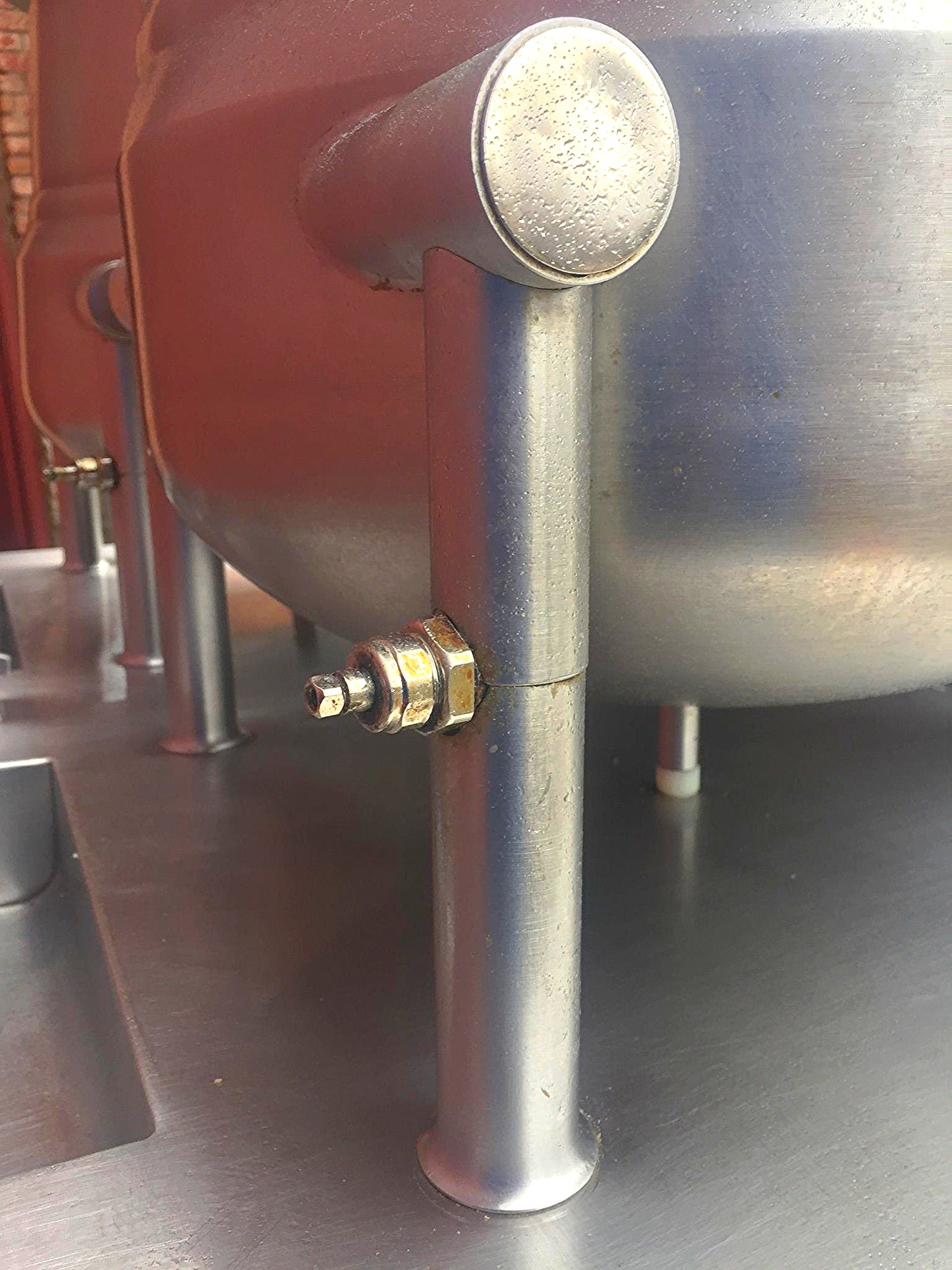

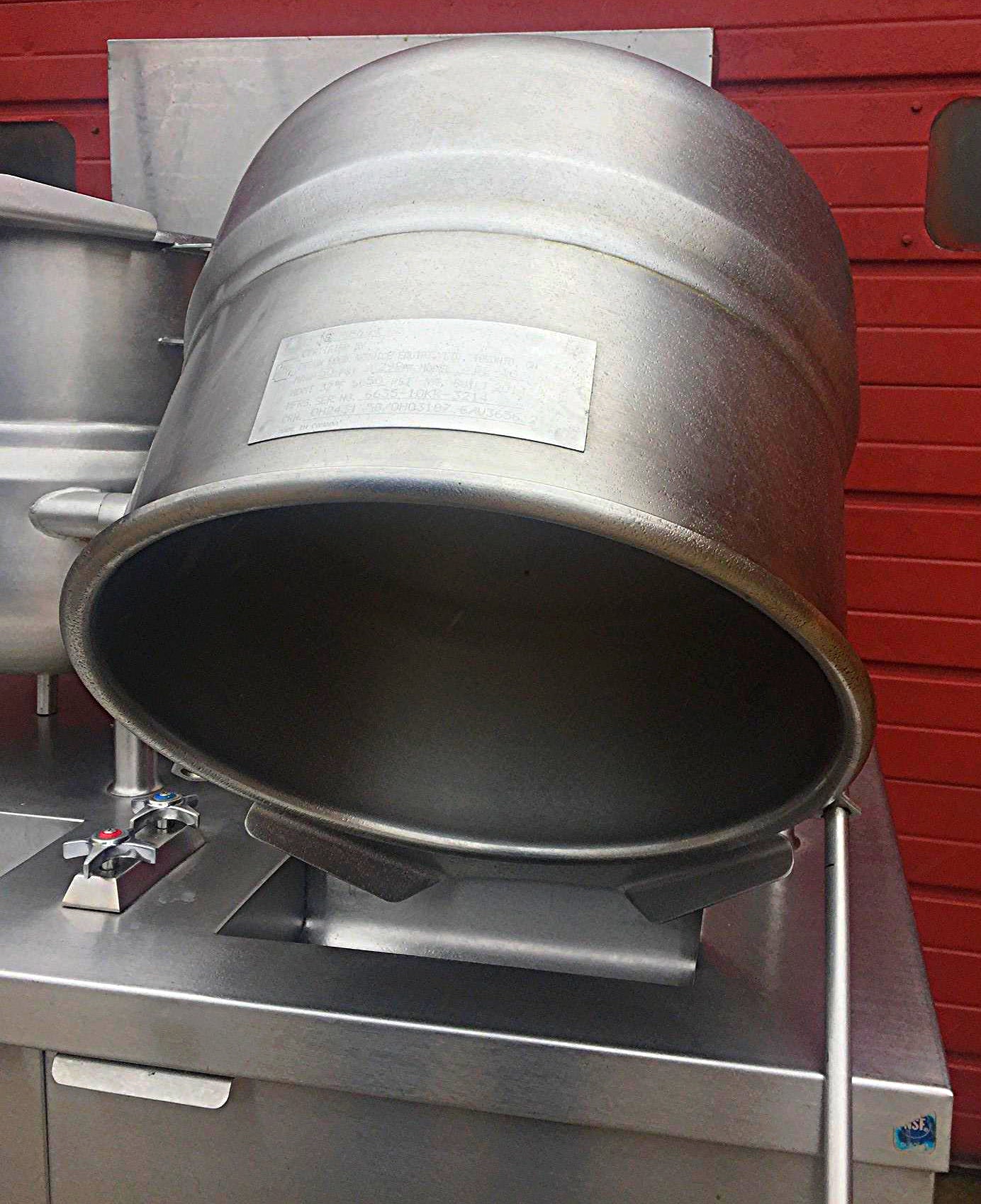

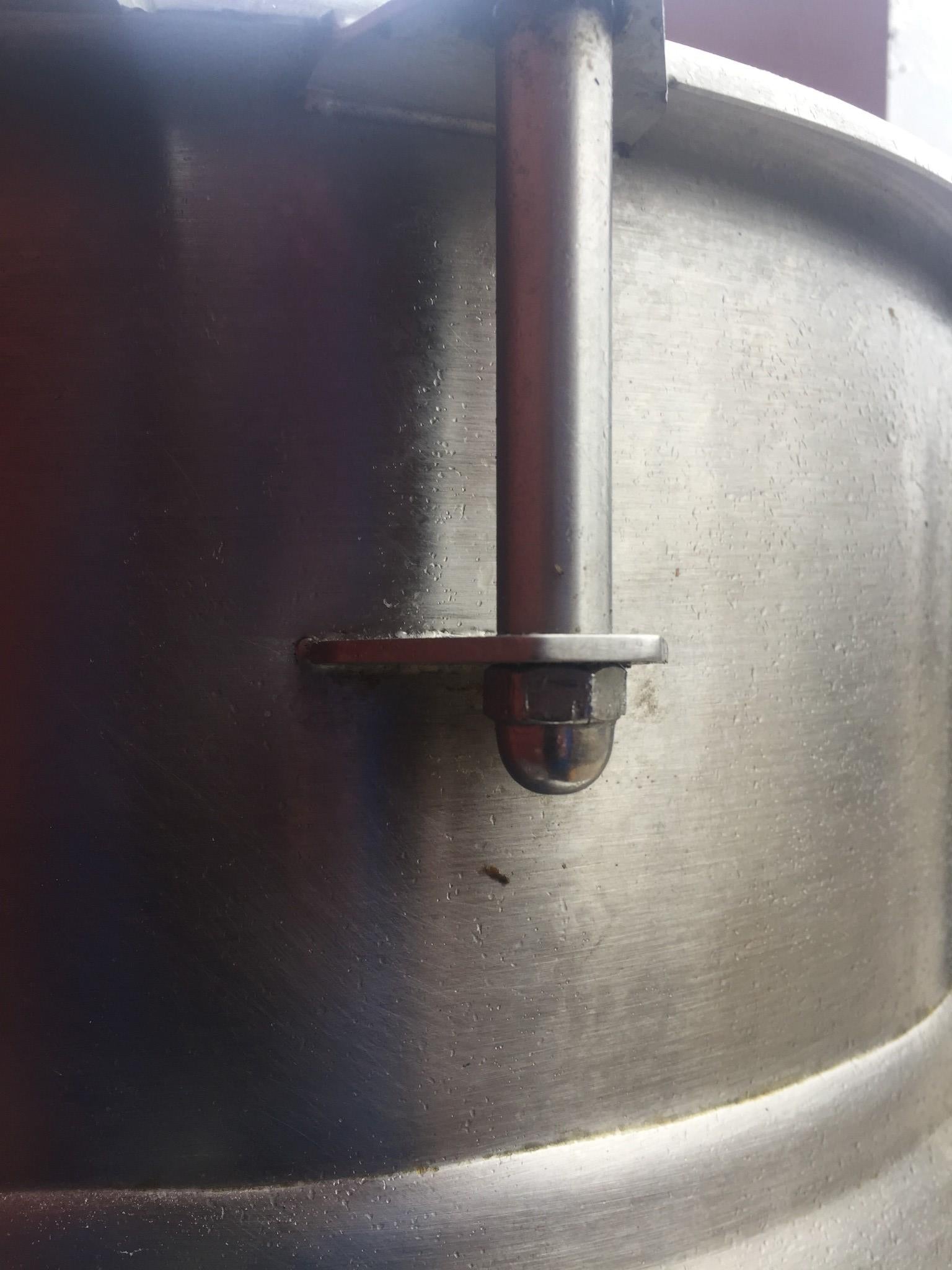

CONSTRUCTION: Kettles shall be Type 304 stainless steel with solid one-piece welded construction, with tubular stainless steel support arms. Rim shall be triple reinforced to resist abuse, with a welded “Butterfly” shaped lip, for easy pouring. Kettles shall have two operating handle lugs so that handle can be attached on right or left side. 36” wide cabinet base shall have stainless steel frame, top deck, double panel access doors, side and rear panels and 6” legs. Front legs shall be adjustable bullet feet while back legs shall have adjustable flanged feet. Cabinet design and trim shall match other HyPLUS™ modular equipment.
FINISH: Cabinet base shall be finished to a #3 uniform finish. Kettle exteriors shall be polished to a bright high buff finish. Accent strip shall be matt finish polyester film ensuring maximum ease in cleaning and maintaining an attractive appearance.

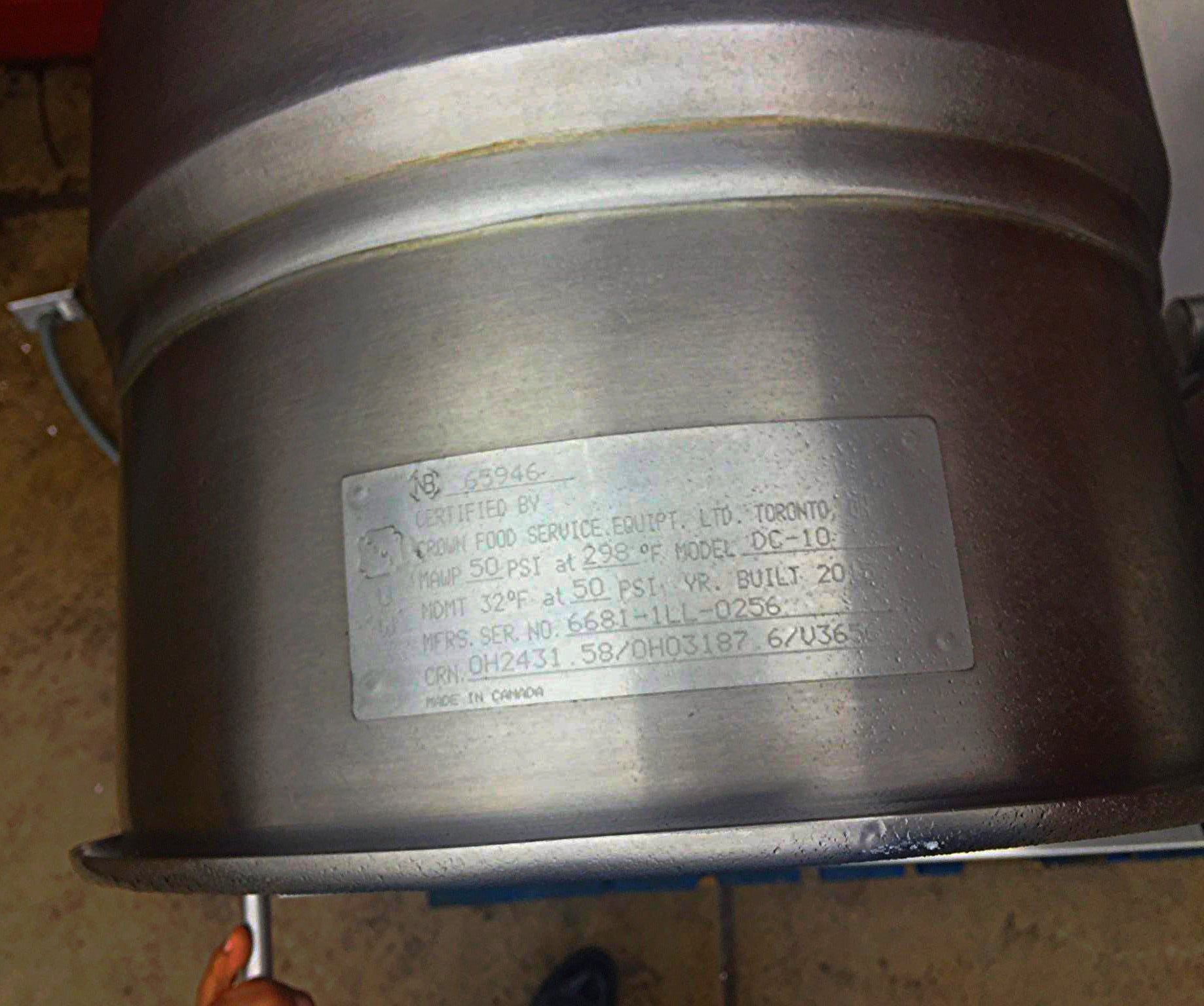

ASME CODE & UL APPROVAL: Cabinet mounted steam generator is ASME Code constructed and National Board registered for operation up to 15 PSI. Kettles are coded and registered for operation up to 55 PSI. Gas boiler is AGA design certified.
SANITATION: Unit is designed and manufactured to meet NSF known health department and sanitation codes and be NSF listed.

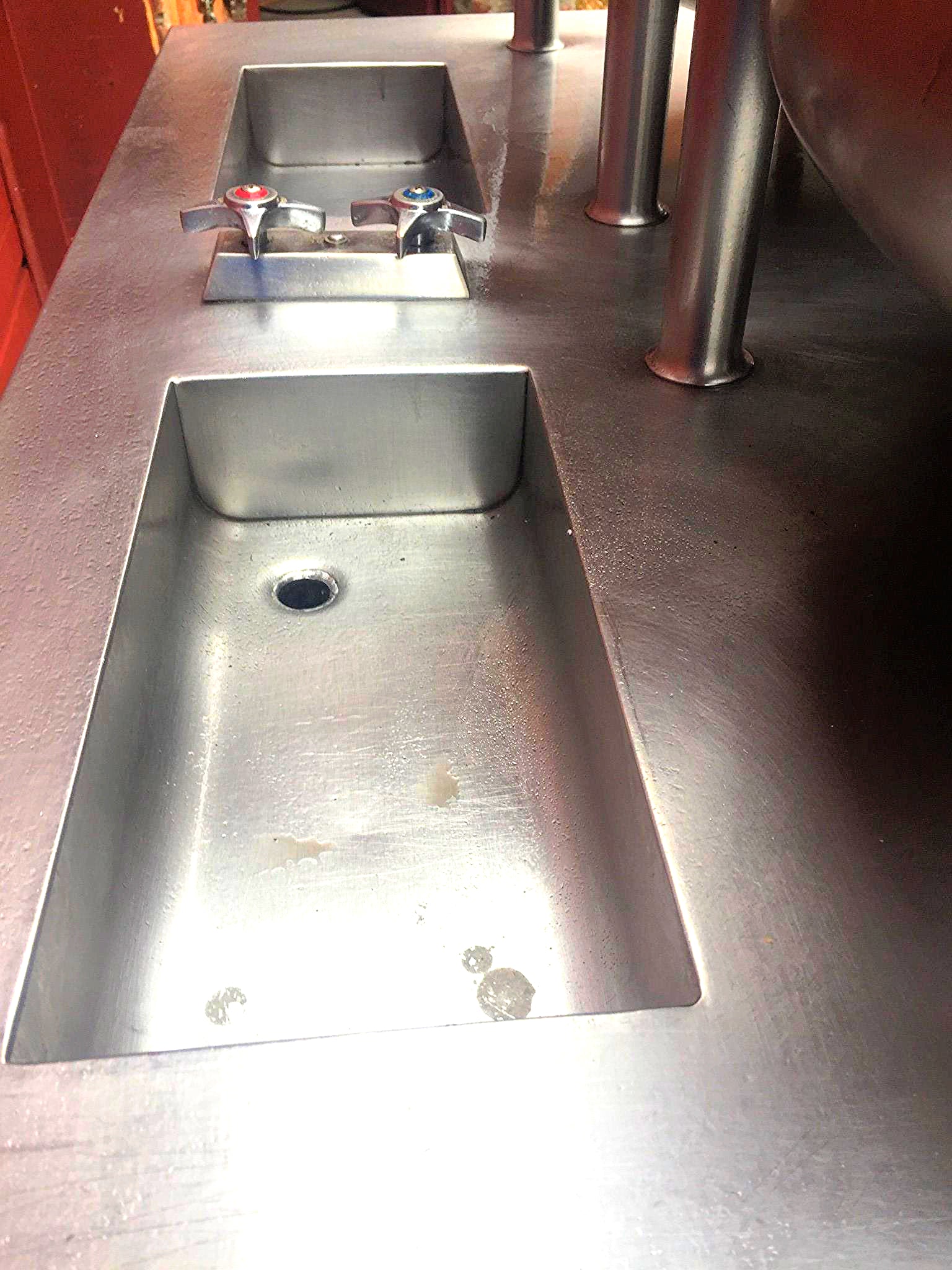

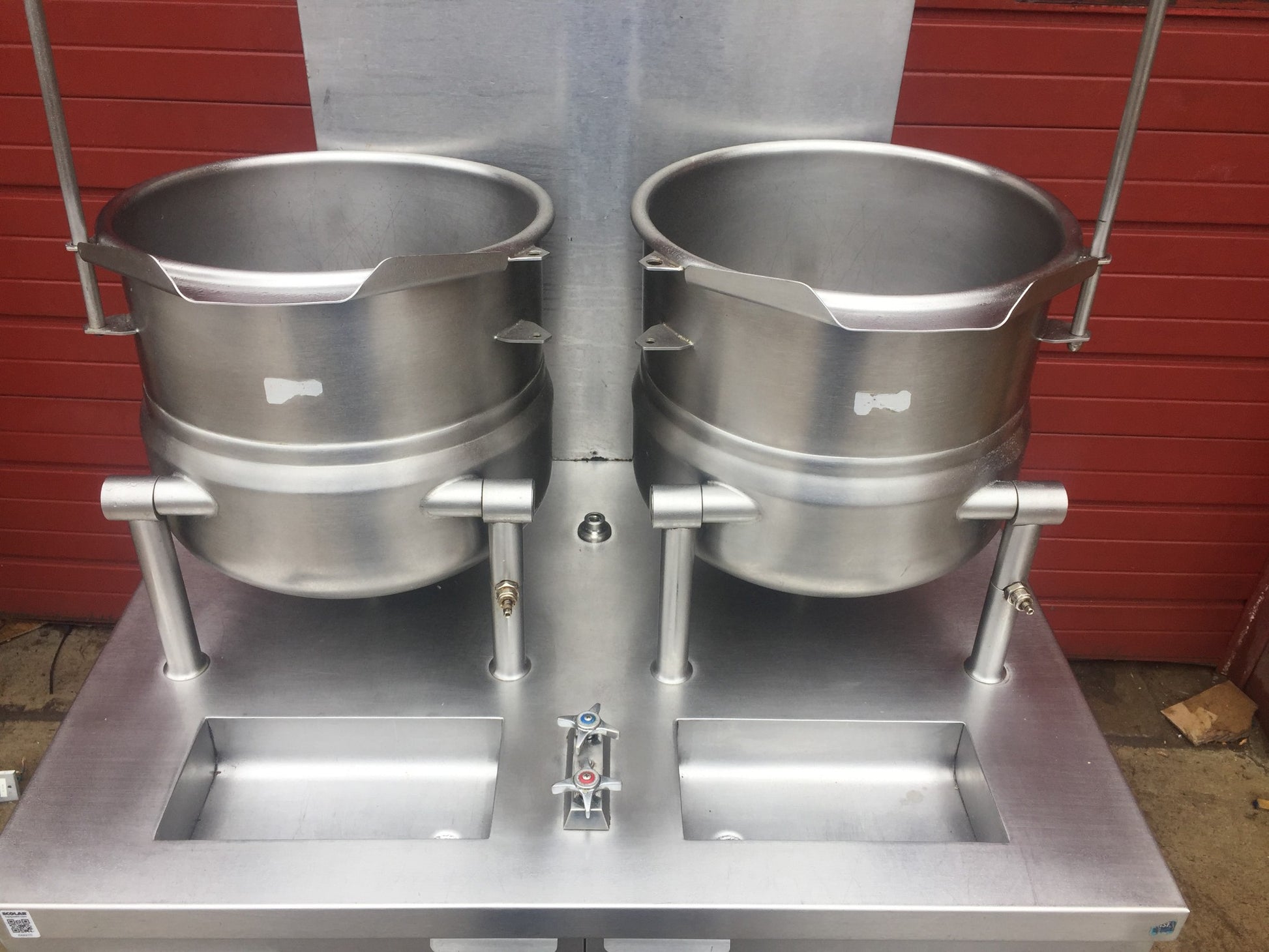

SINKS/FAUCET: Unit has one large flush mounted pouring sink mounted in front of both kettles. Sink is piped to common drain and provided with a removable anti-splash screen. Unit comes standard with hot and cold water faucet with swing spout.

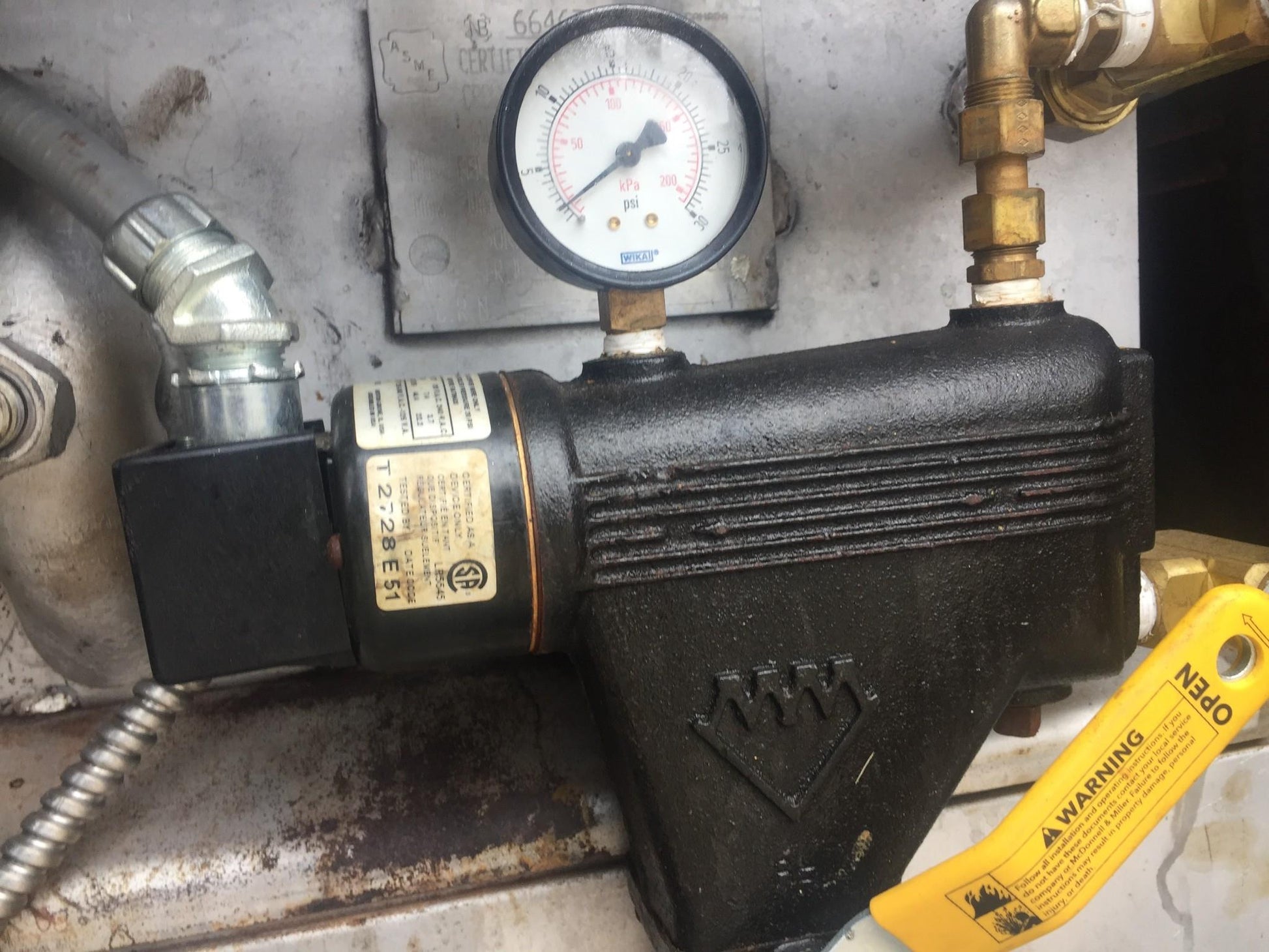

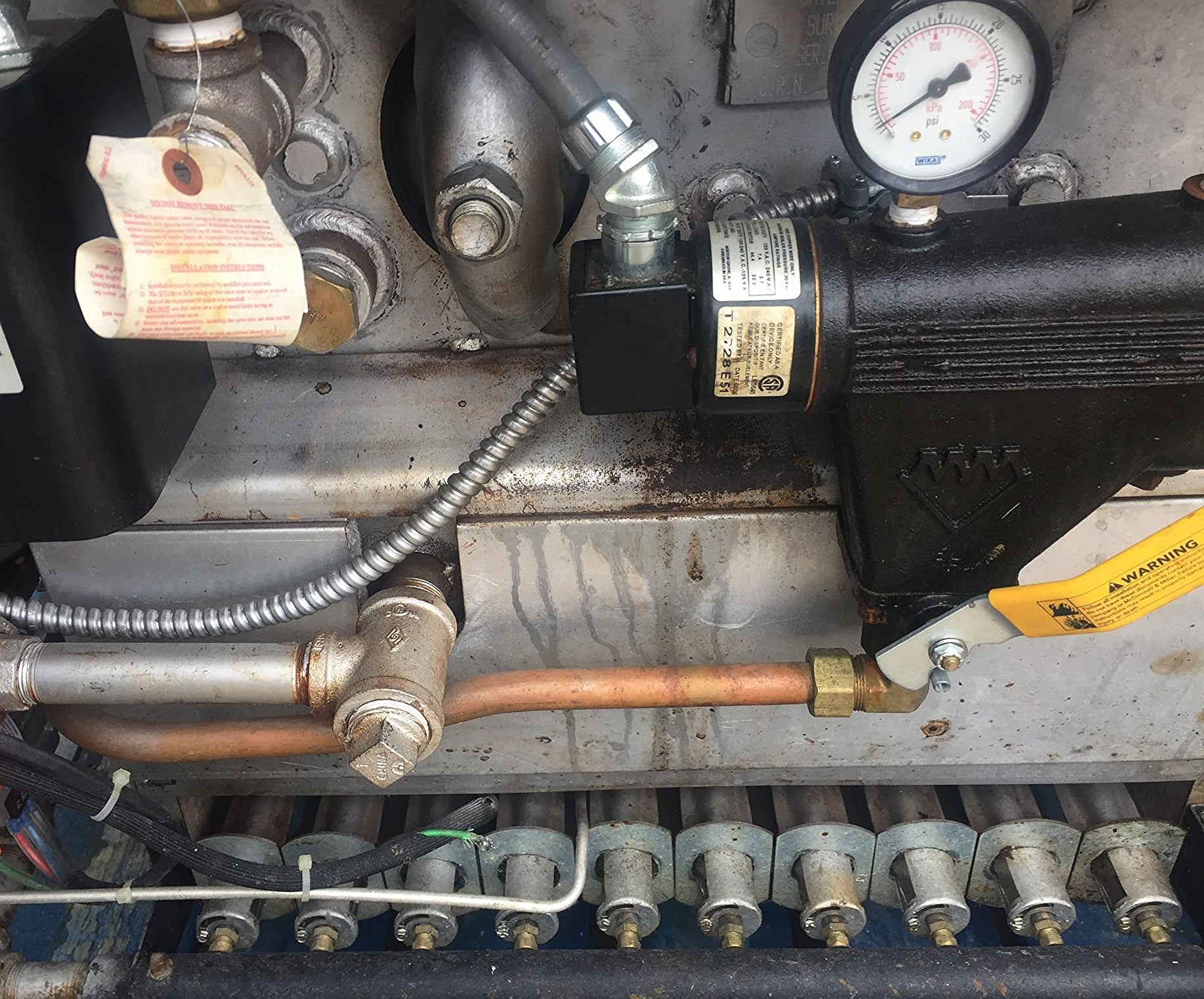

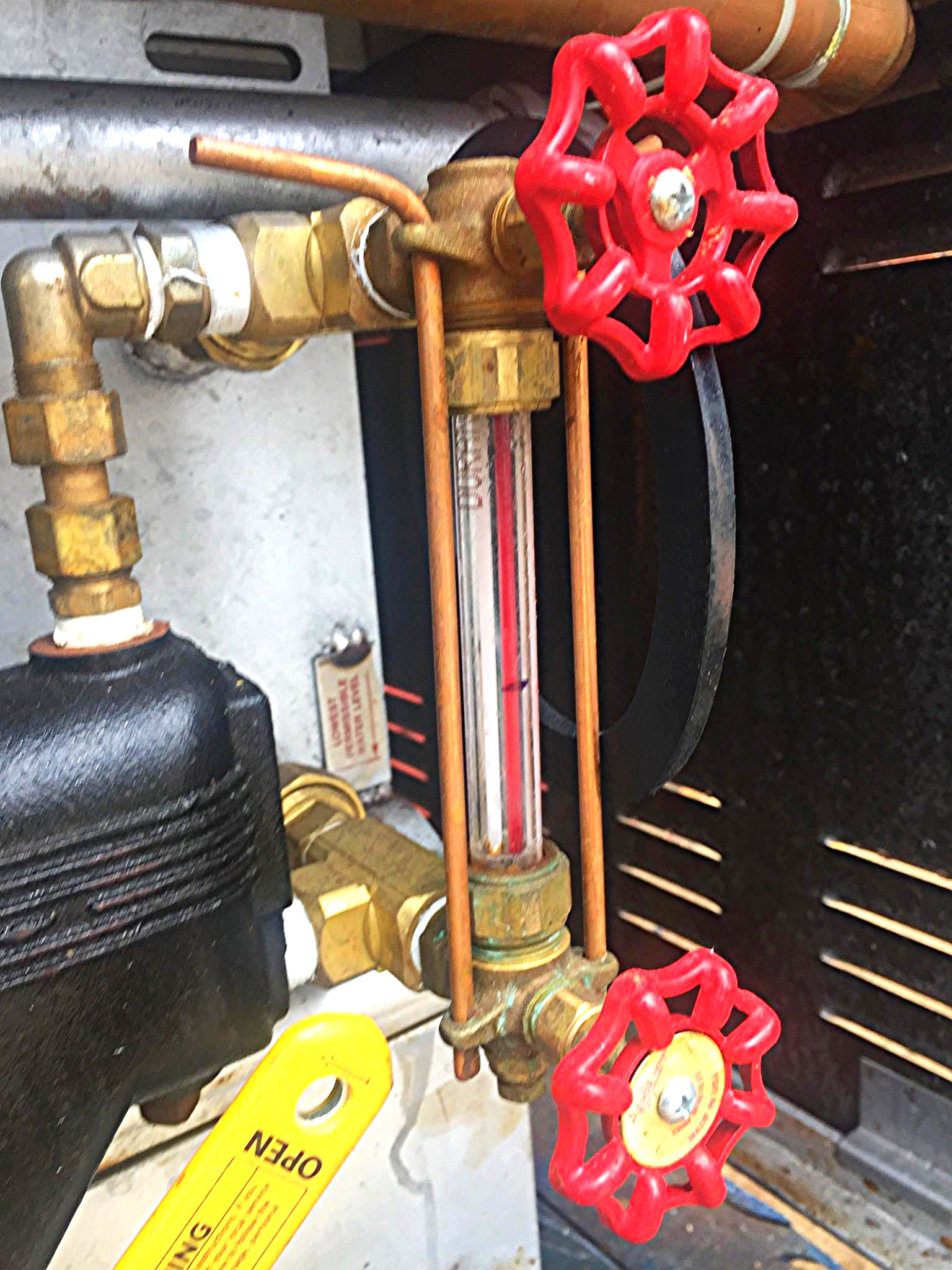

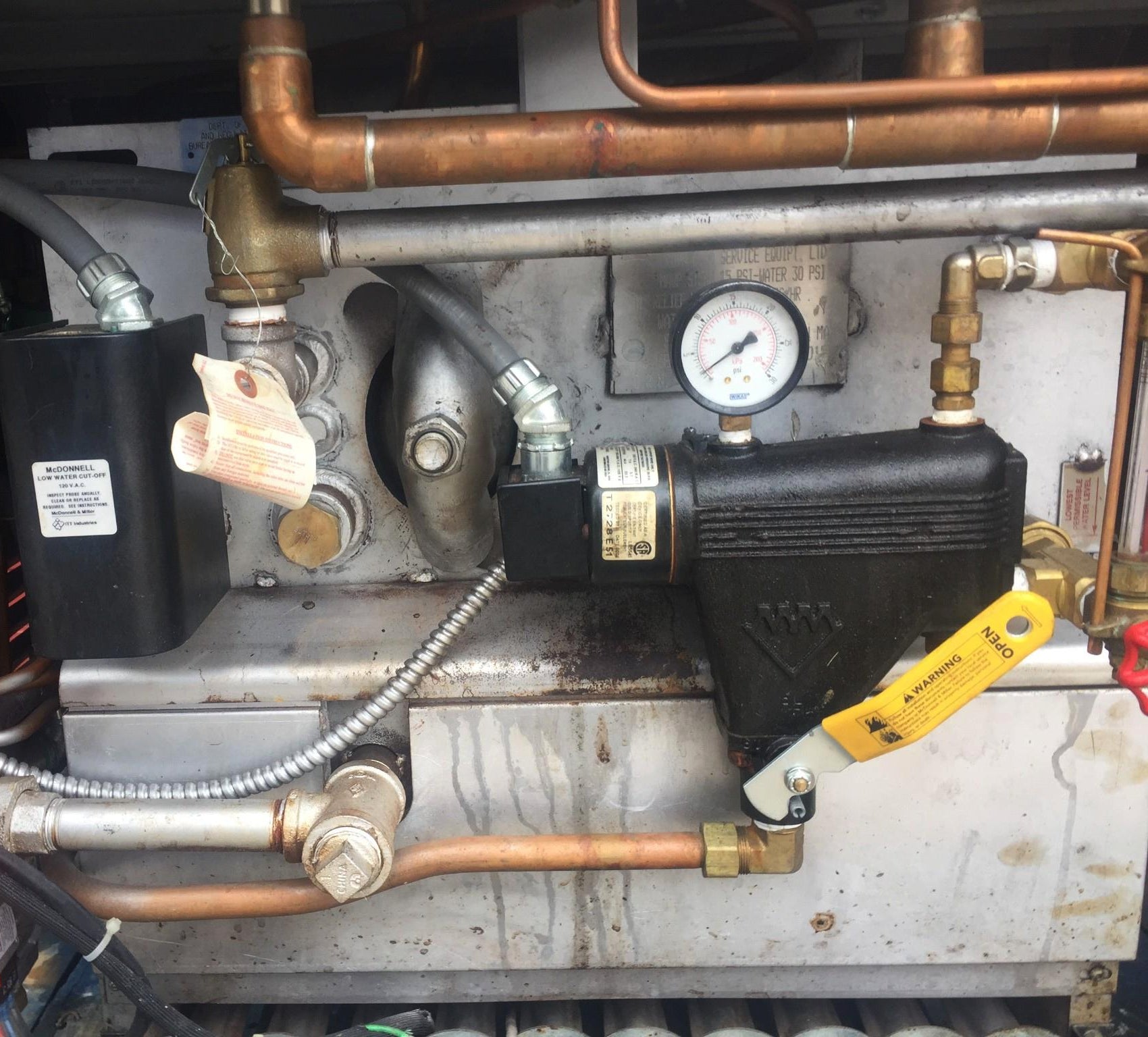

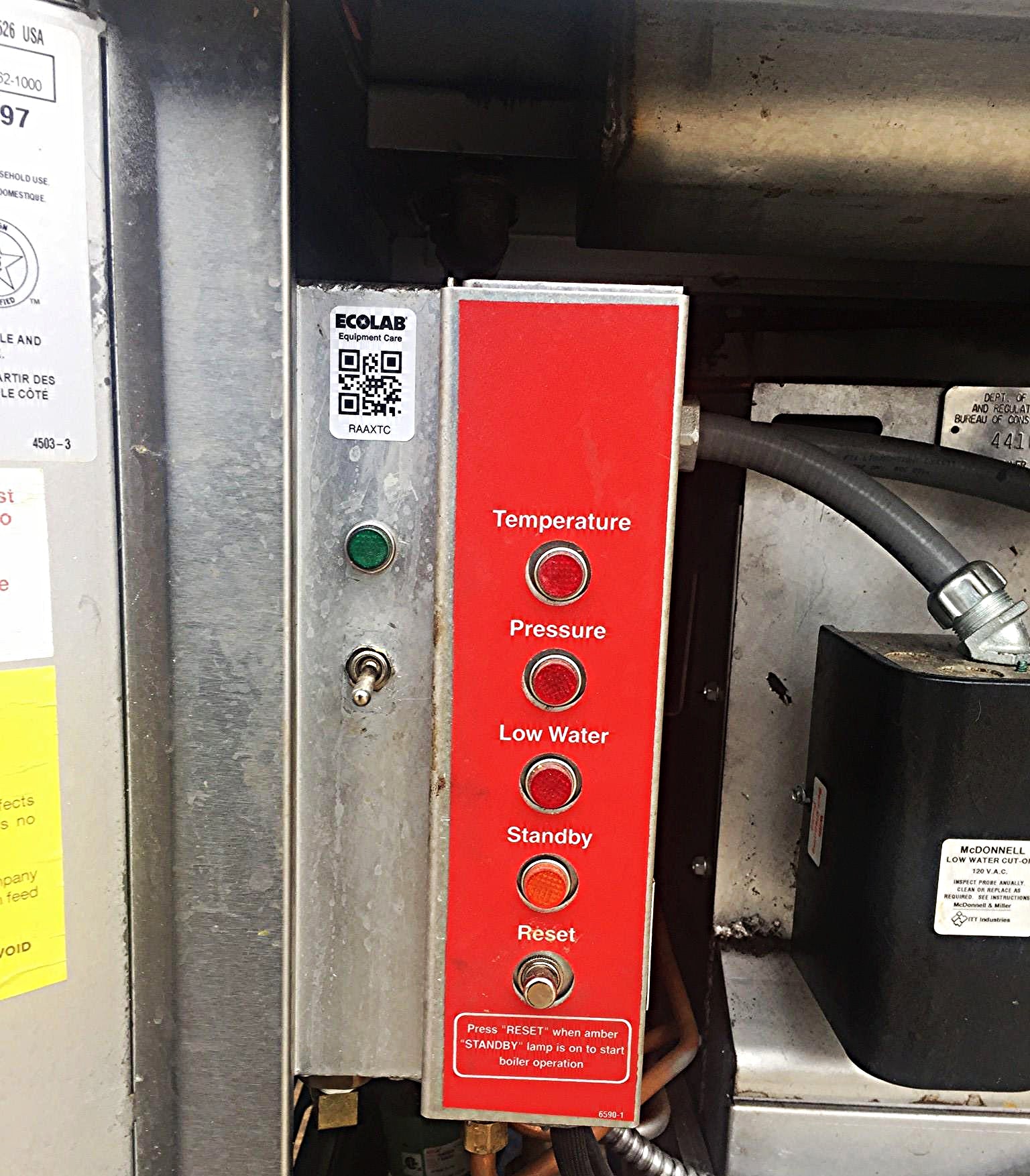

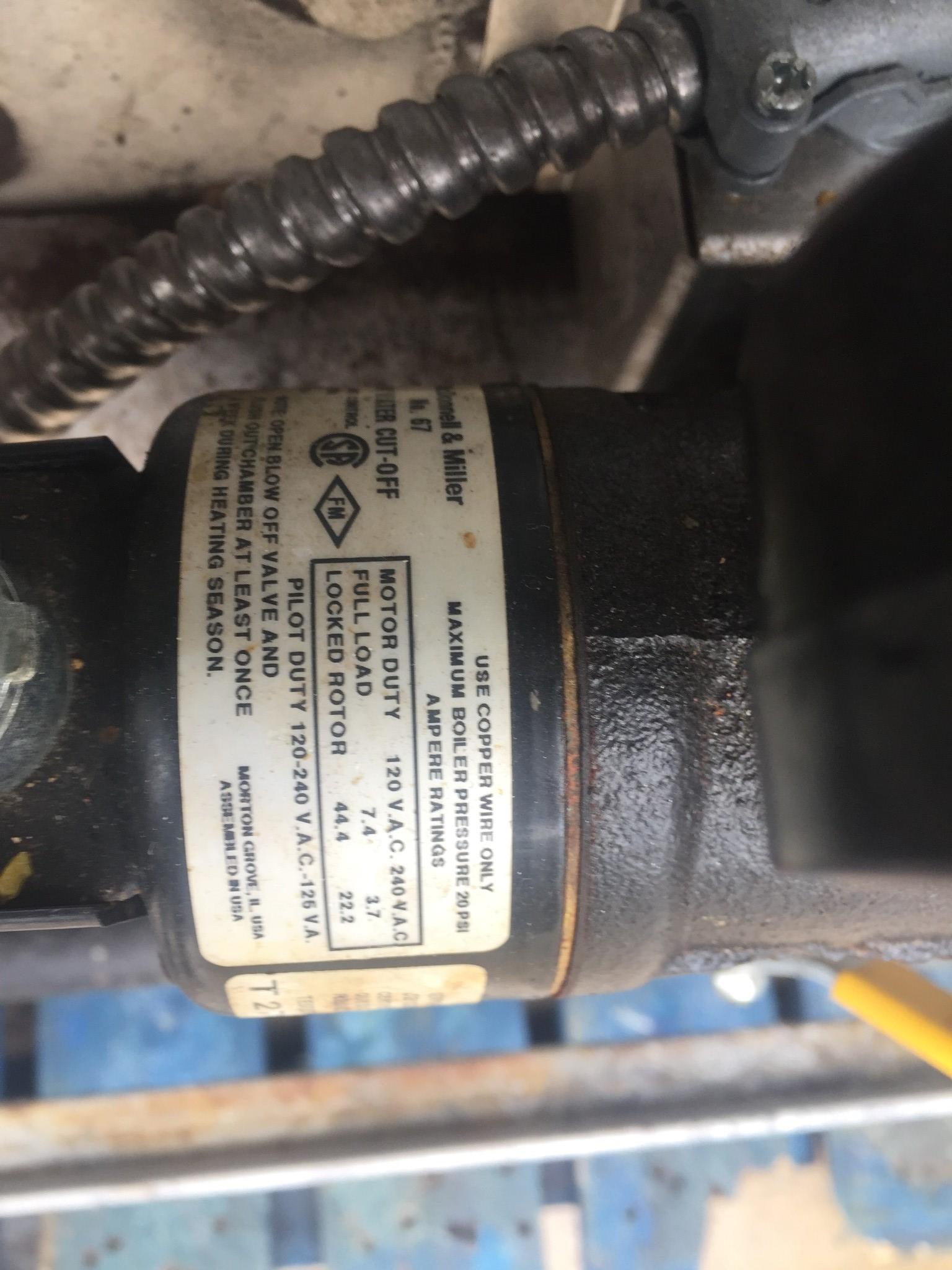

CONTROLS: Gas pressure boiler is provided with a gas control valve, power-ON switch, reset light, start switch, exterior mounted pressure gauge, water level sight glass, low water sensor and pop safety valve. Kettle steam control valves and hot and cold water faucets are front mounted for easy access.
PERFORMANCE FEATURES: Unit will shut off if water level is too low or unit builds too much pressure. When power switch is turned “off,” the boiler automatically drains to reduce sediment build-up, after water has cooled to 170ºF. Kettles shall operate dependably at any steam pressure between 5 and 55 PSI.

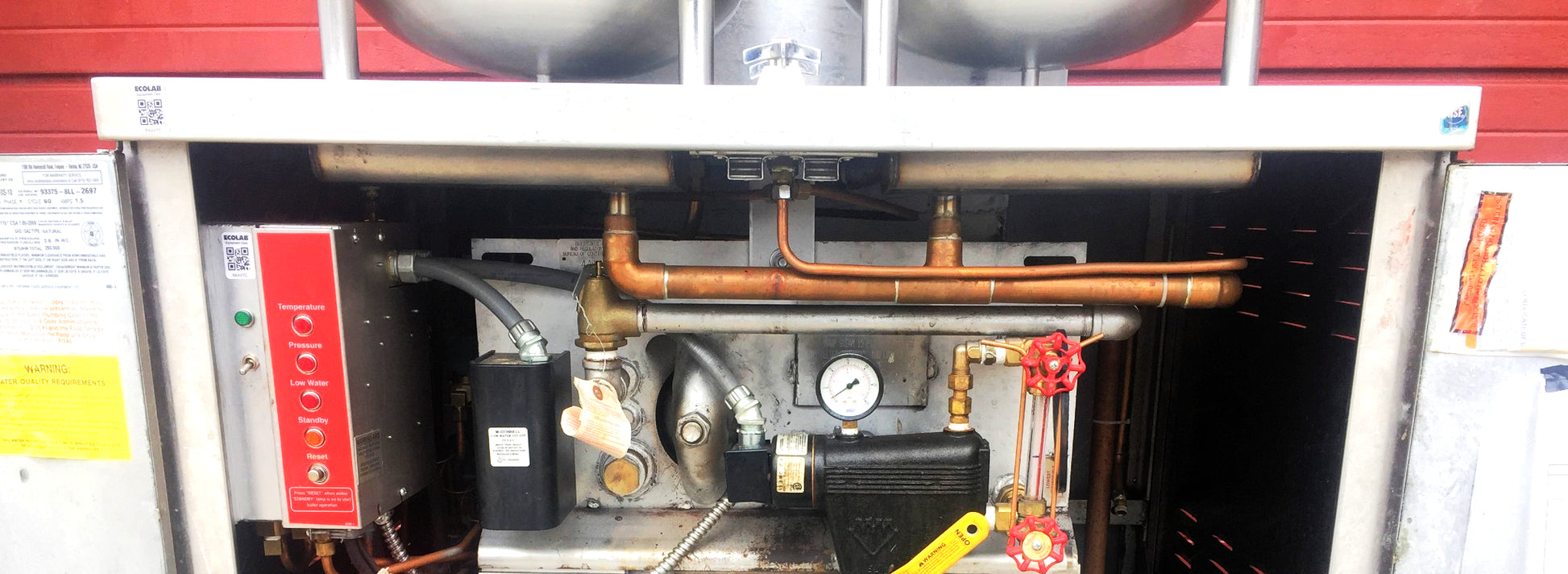

CABINET BASE STEAM SOURCE: Unit has a gas heated cabinet mounted steam boiler to provide approximately 10 PSI steam to the kettles.
ASME Code constructed and National Board registered for operation up to 15 PSI. 200,000 BTU boiler delivers to 120,000 BTU/hr into the product, is 60% efficient and delivers 3.7 boiler horsepower. Unit comes with standing pilot. Auxiliary manual drain valve to simplify maintenance is also included.
INSTALLATION: Unit requires gas service via 1/2” NPT pipe or approved equivalent. Unit requires 3/8” NPT hot and 1/2” NPT cold water supply lines. Requires single free venting 11/4” NPT drain for automatic and manual drain for kettles and sink, and 115 Volt, 60 HZ single phase. 15 AMP electrical service. Kettles are completely pre-piped to gas boiler.
STEAM SOURCE FOR OTHER EQUIPMENT: A power takeoff valve is provided. Boiler is properly sized to meet boiler horsepower requirements of kettles AND additional equipment To ensure proper performance.
WATER SUPPLY REQUIREMENTS: All water boiler systems are subject to contamination and failure due to mineral content found in most water supplies. To minimize service problems, a water treatment (softening) system is recommended when water quality is found to exceed limits stated below and in operator manual. Recommended MINIMUM water quality standards are: total dissolved solids (TDS) content should not exceed 30 parts per million; and the water pH should be 7.0 or higher.
ORIGIN OF MANUFACTURE: Designed and manufactured in the United States.
Stock Number: 1814
