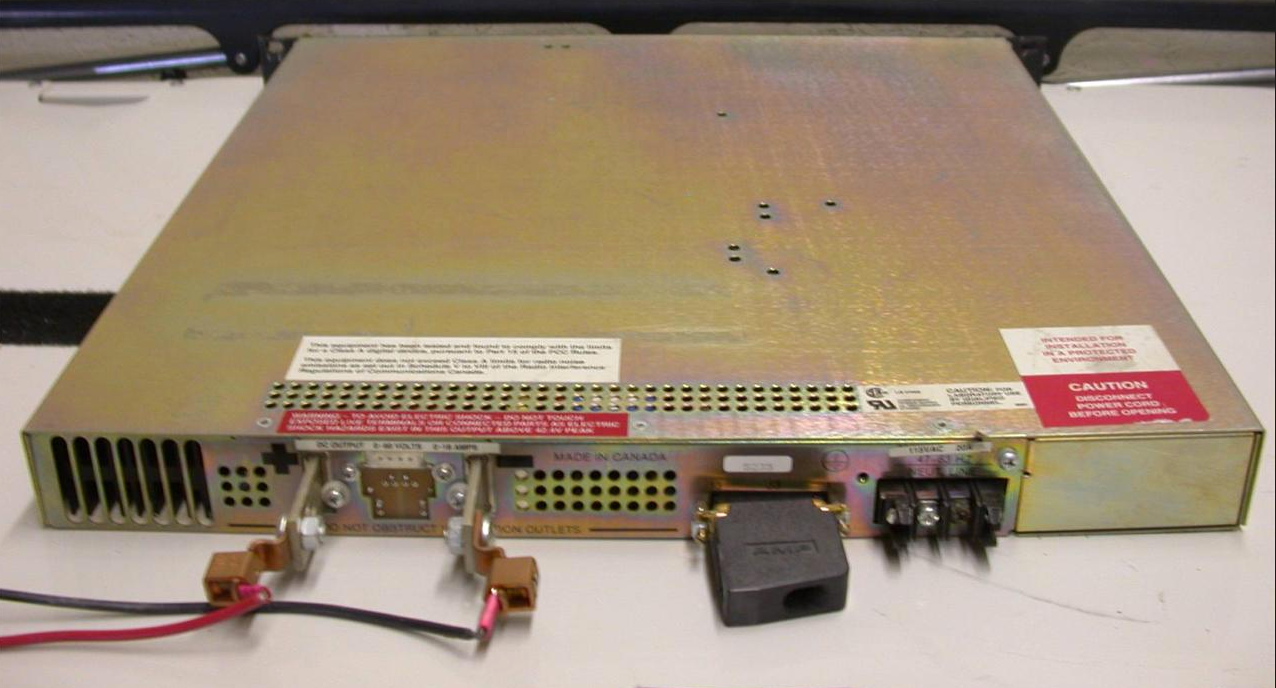

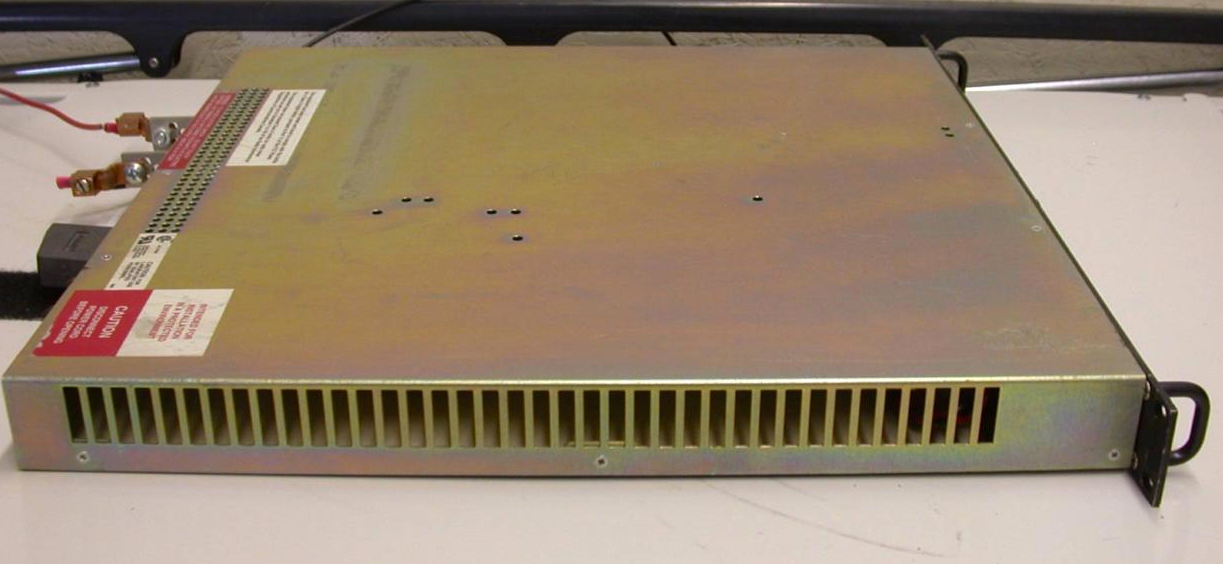

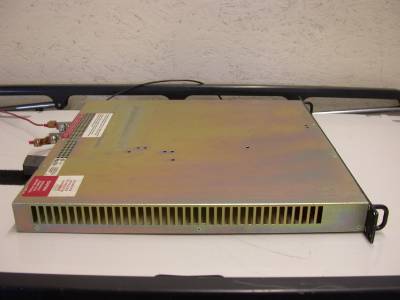

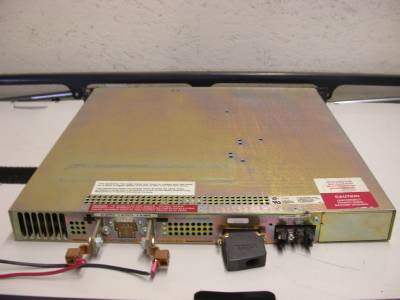

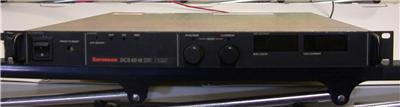

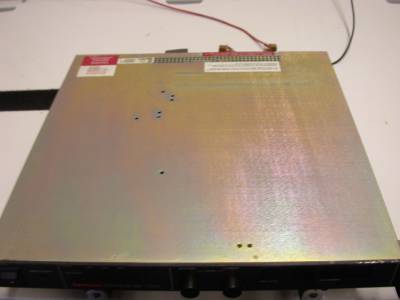

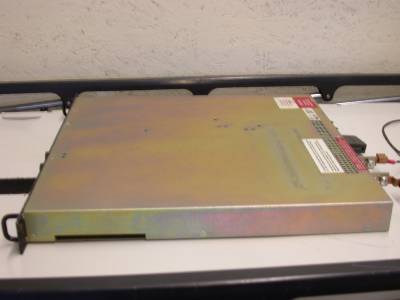

It has very slight scuffs, scratches from previous use. The photos show the exact item(s) the buyer will receive.
-

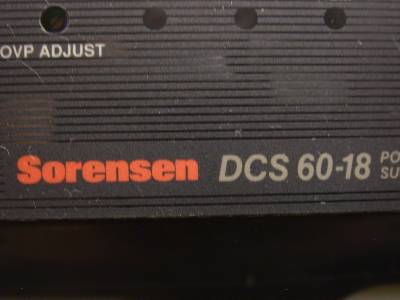

Manufacturer: SORENSEN
Model: DCS 60-18
Condition: Used. Comes in non-original packaging. Cosmetically, this item is in VERY GOOD condition.
Notes: This item was taken from a working lab that upgraded their equipment.
Programmable Power Supply 0-60V, 0-18A

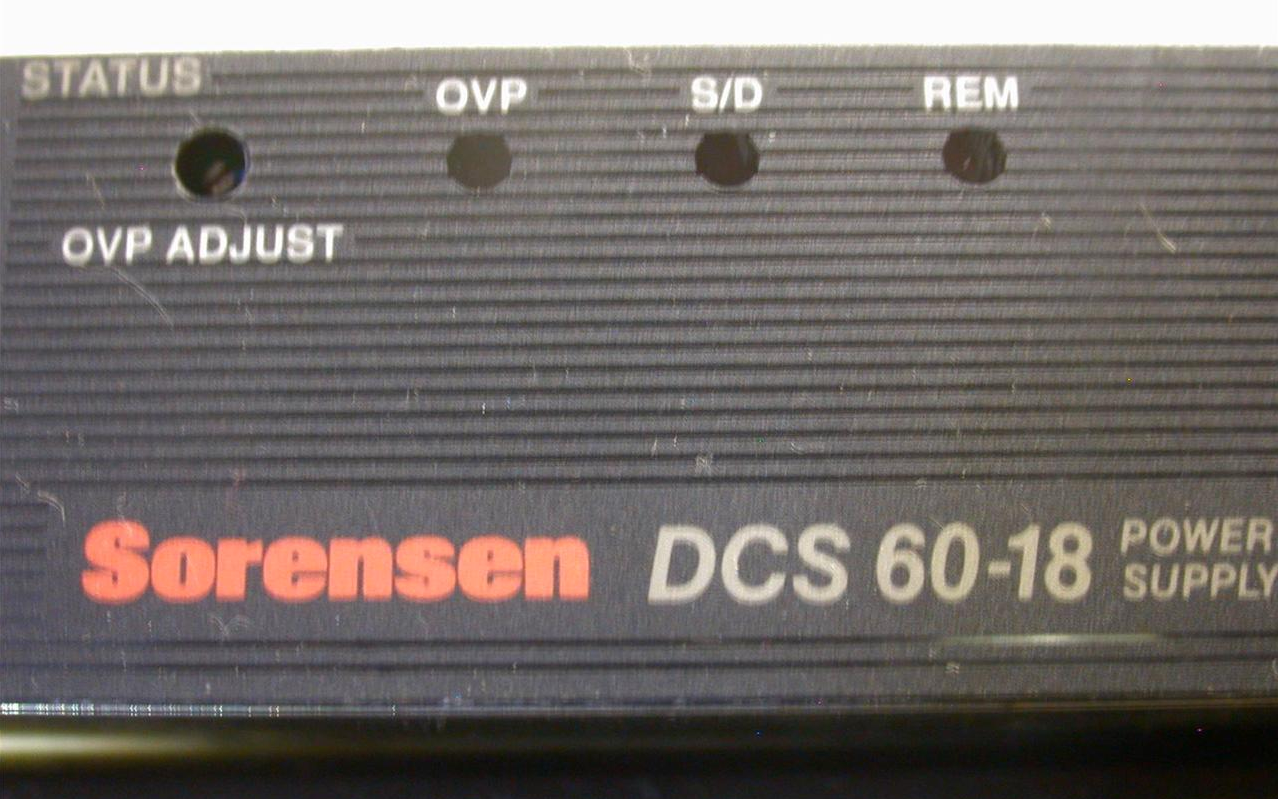

The Sorensen DCS60-18 is a 1 kW DC programmable power supply utilizing switch-mode technology to achieve high power density in a low profile chassis. The DCS60-18 provides continuous full output power in any volt/amp combination within the rated output voltage and current limits. The DCS60-18 has 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and overvoltage protection, status and constant-voltage/current mode operation.
Voltage: 0 to 60 Vdc
Current: 0 to 18 A 1000 W
Ripple and noise (rms peak-peak): 20 mV/100 mV
Line/Load regulation (voltage/current): 60 mV / 18 mA
100-130 Vac, single phase, or 200-250 Vac, single phase; 47-63 Hz operation
The DCS Family of 1 kW, 1.2 kW and 3 kW programmable power supplies utilize switch-mode technology to achieve high power density in a low profile chassis. Utilizing unique packaging techniques, the DCS Family provides continuous full output power (1 kW, 1.2 kW or 3 kW) in any volt/amp combination within the rated output voltage and current limits.

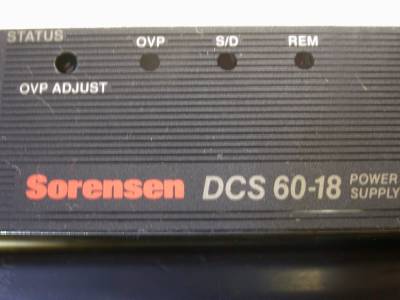

This family has 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming, shutdown and overvoltage protection, status and constant-voltage/current mode operation.
The DCS 3 kW Models have push button control of the output standby mode, OVP reset, remote/local programming and preview status of voltage, current and OVP setpoints.
Options:
M1: Factory configured for 115 VAC input (1 kW and 1.2 kW units only)
M9C: Internal IEEE-488/RS 232 Interface (May not be combined with M51A or M85)
M13: Locking shafts (front panel potentiometers)
M32: Master/slave paralleling cable configured for two or more units
M33: Replace input connector with terminal block (3 kW only)
M47: Provides a fixed 28.5 VDC outpout and no front panel meters
M51: Isolated Analog Programming
M51A: Isolated analog programming control of V/I/OVP and isolated V/I monitor and status outputs up to 500V relative to the supply’s return line (May not be combined with M9C or M85)
M85: Multichannel slave interface allows use of a single GPIB address (using 1 master unit with M9C option) to control multiple units via a standard RS485 connector (3 ft. connector included) (May not be combined with M9C or M51A)
Features:
-Metered
-Regulation: 0.1%-Programmable
Included:
- (1) Sorensen DCS60-18 Power Supply
Specifications:
- Manufacturer: Sorensen
- Model: DCS60-18
- Adjustable DC Power Supply
- Input: 115/230V 50/60Hz 20/10A
- Output: 0-60V DC 0-18A
- LED Current and voltage meters
- 1U Rack mount
Guarantee and Warranty: We Guarantee that you will be 100% satisfied. DIGITAL DISPLAY
POWER SUPPLY

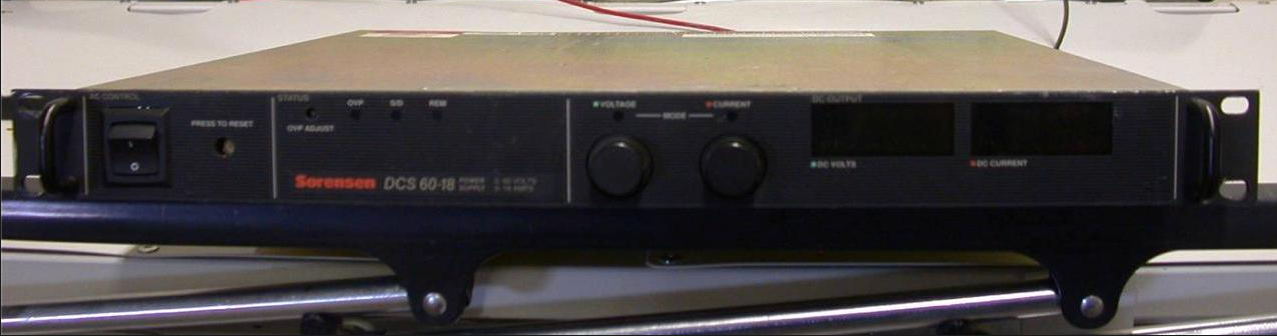

SORENSEN DCS 60-18 DIGITAL DISPLAY POWER SUPPLY
