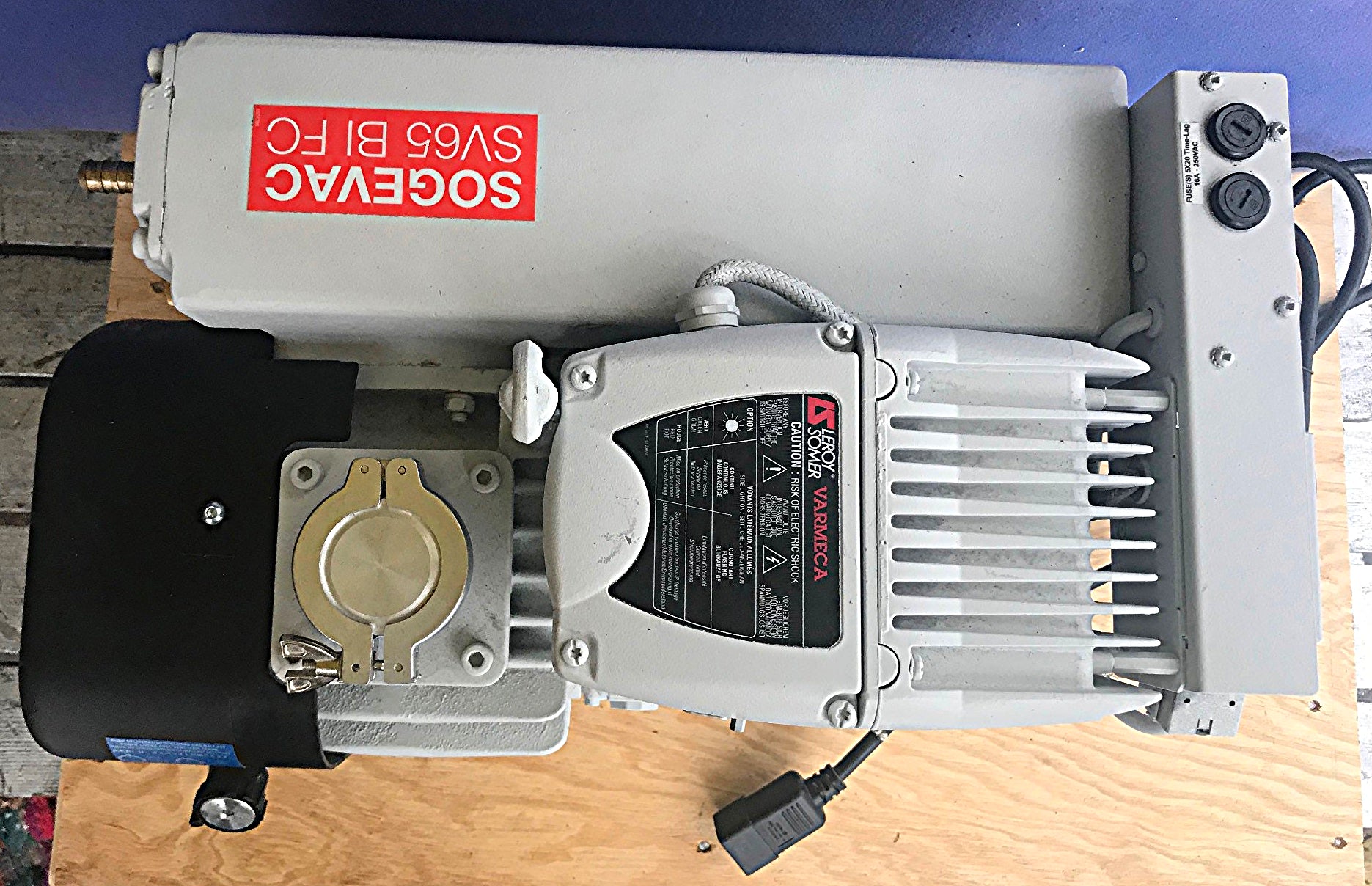

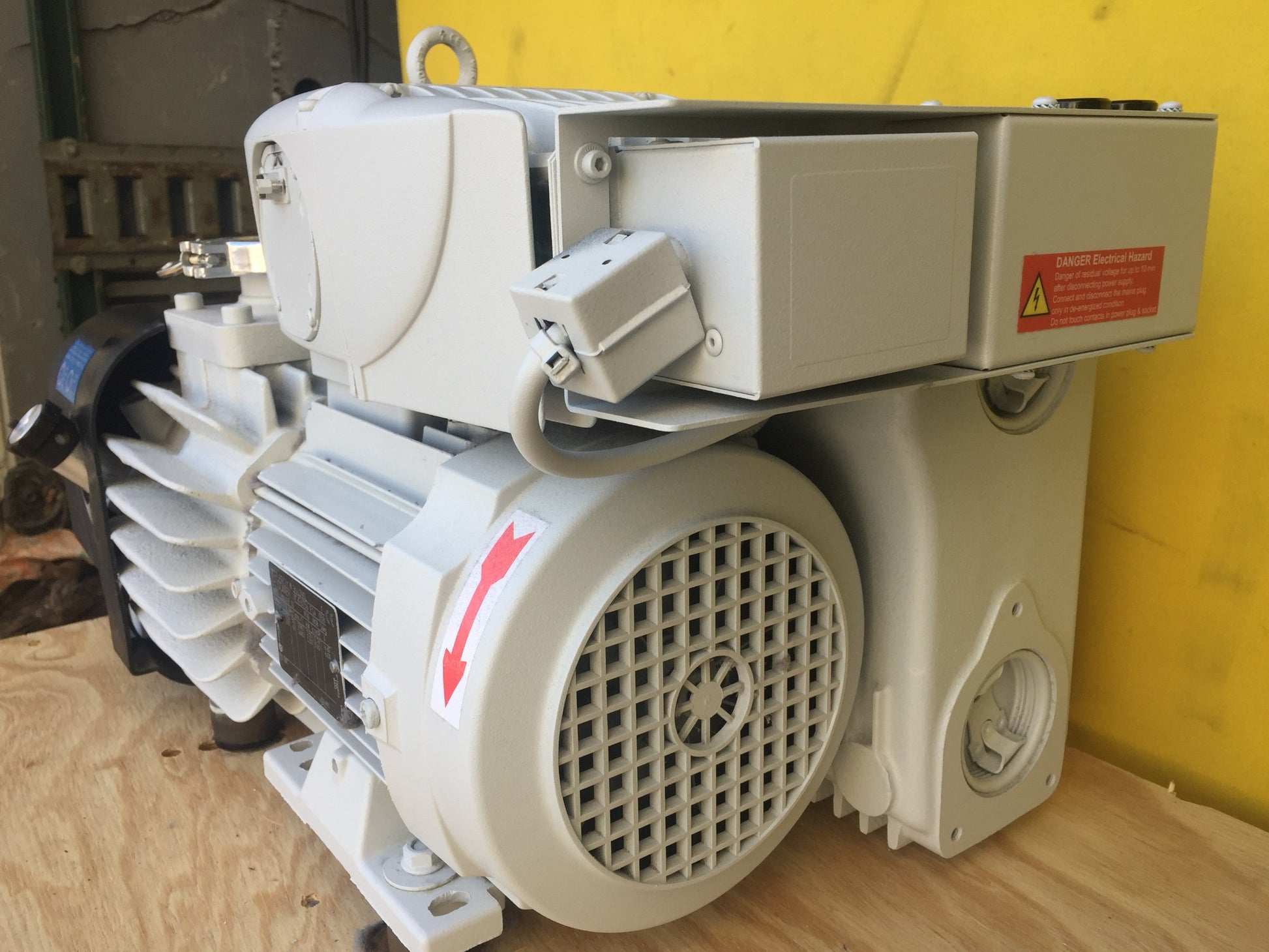

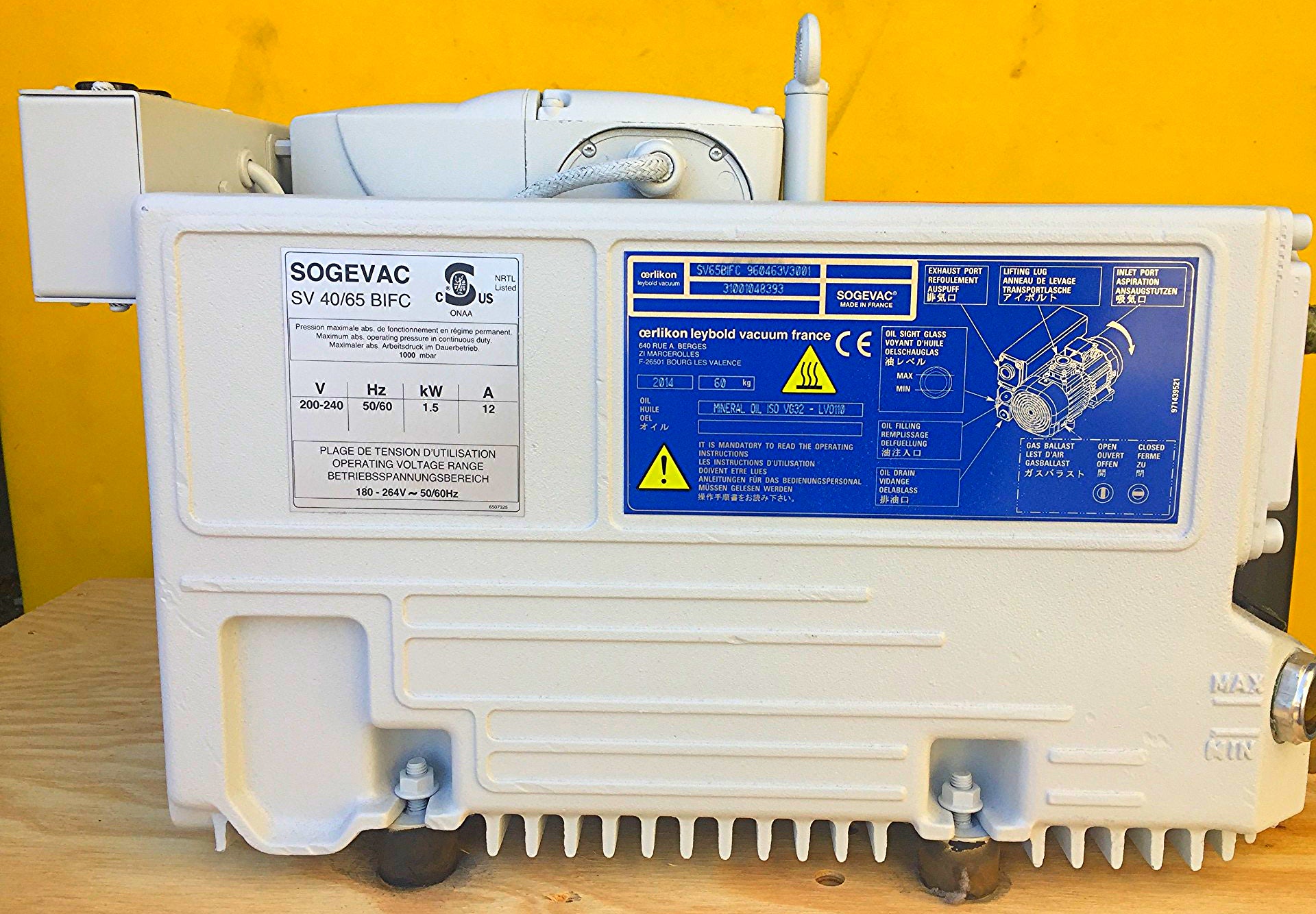

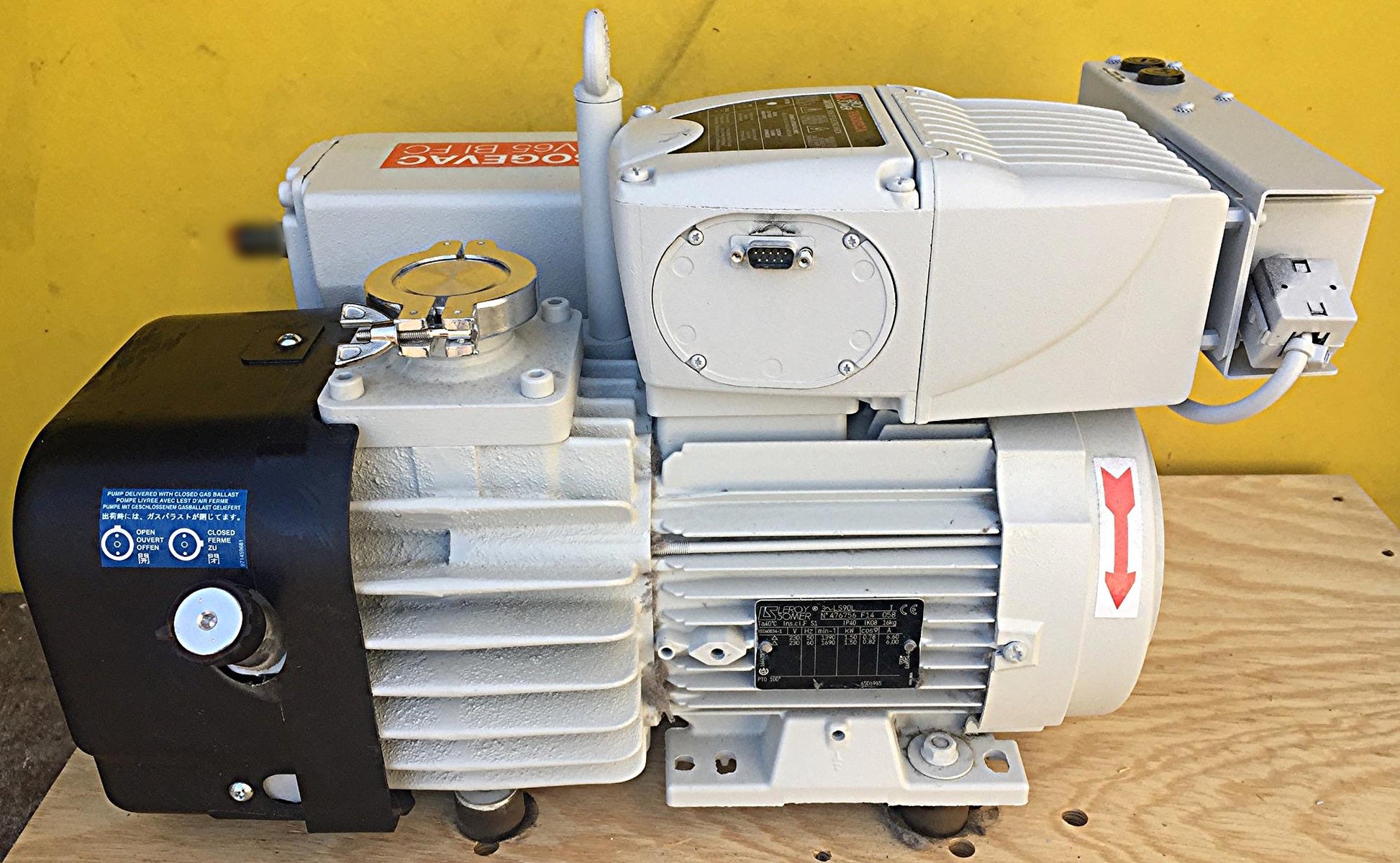

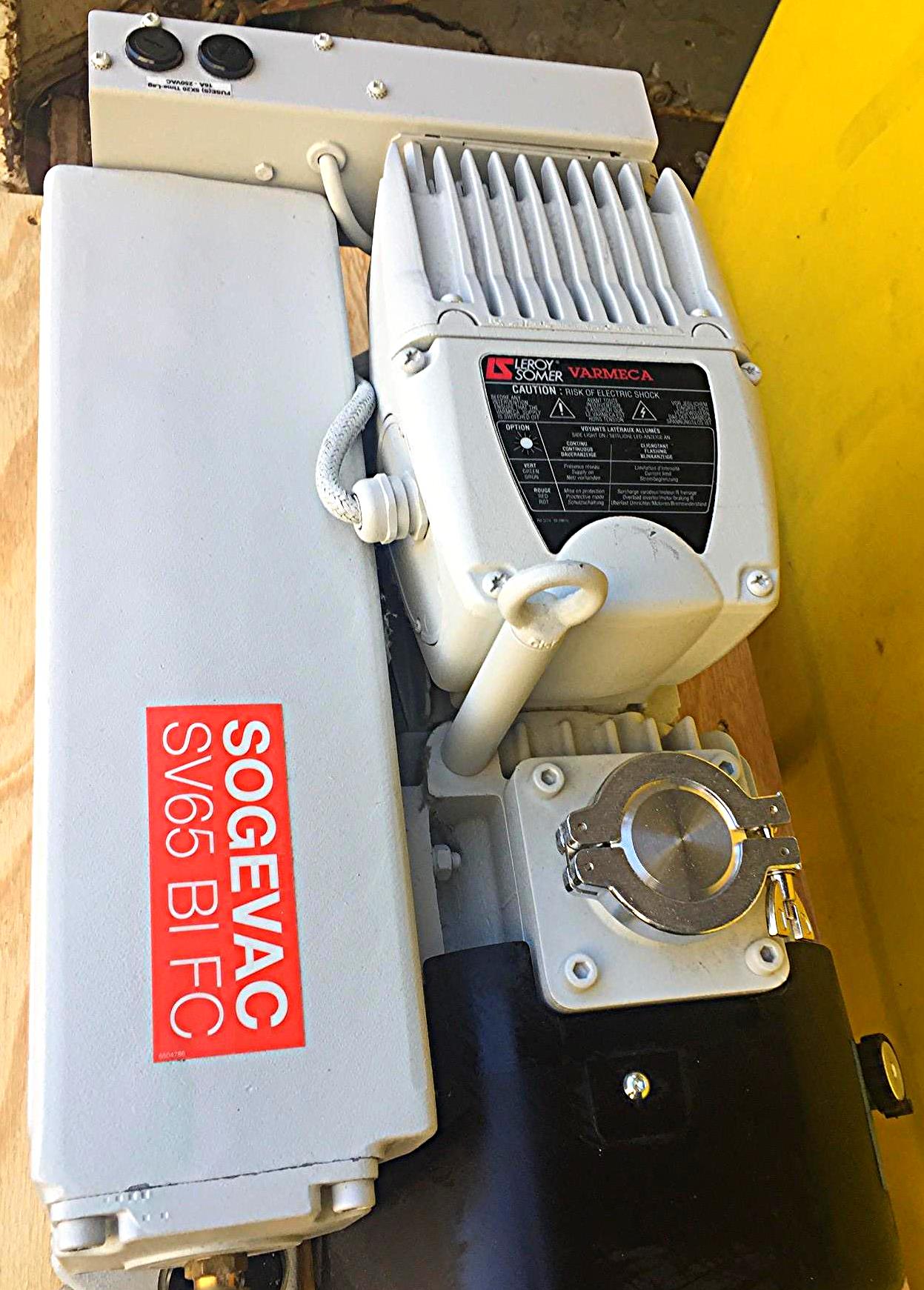

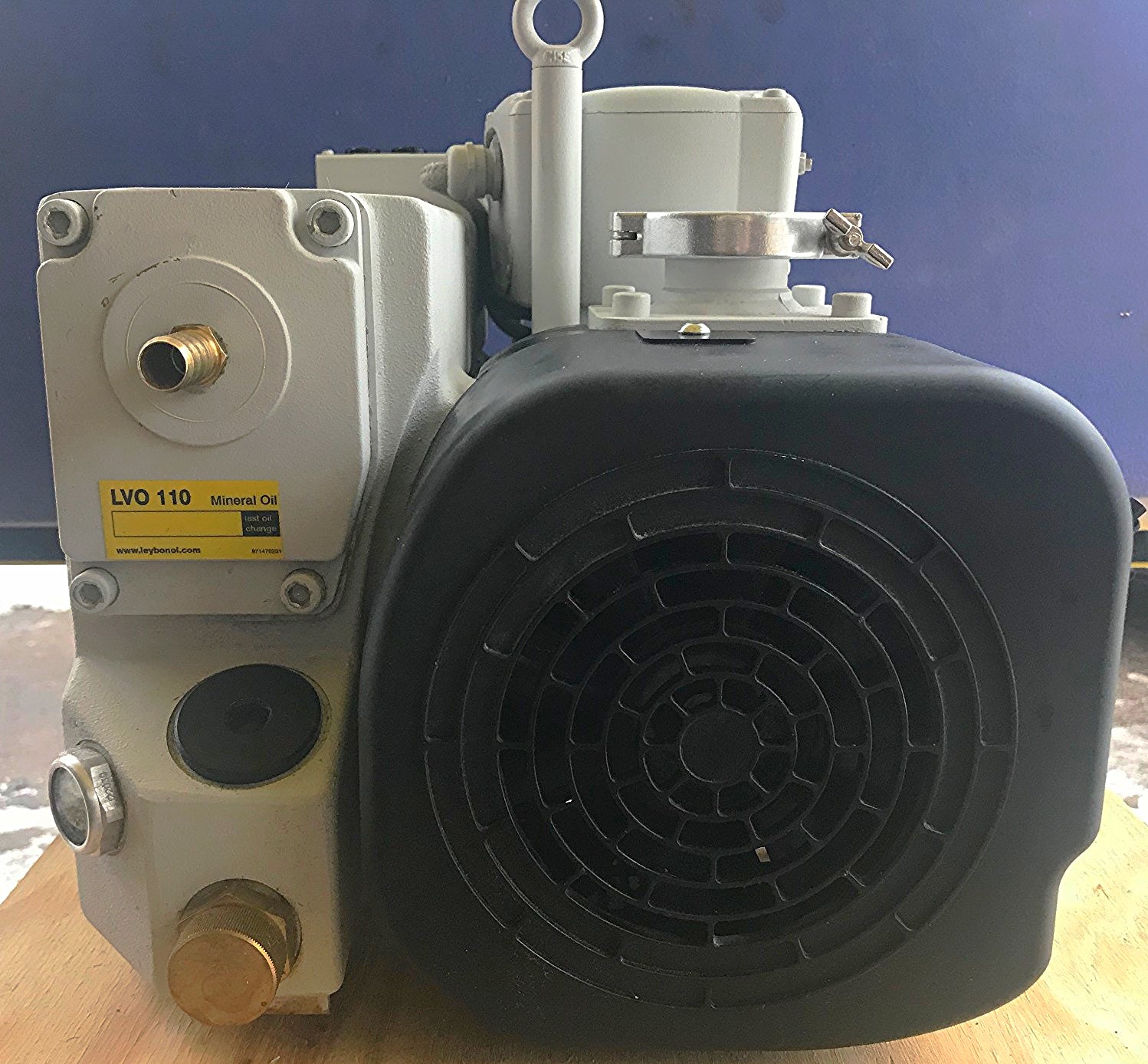

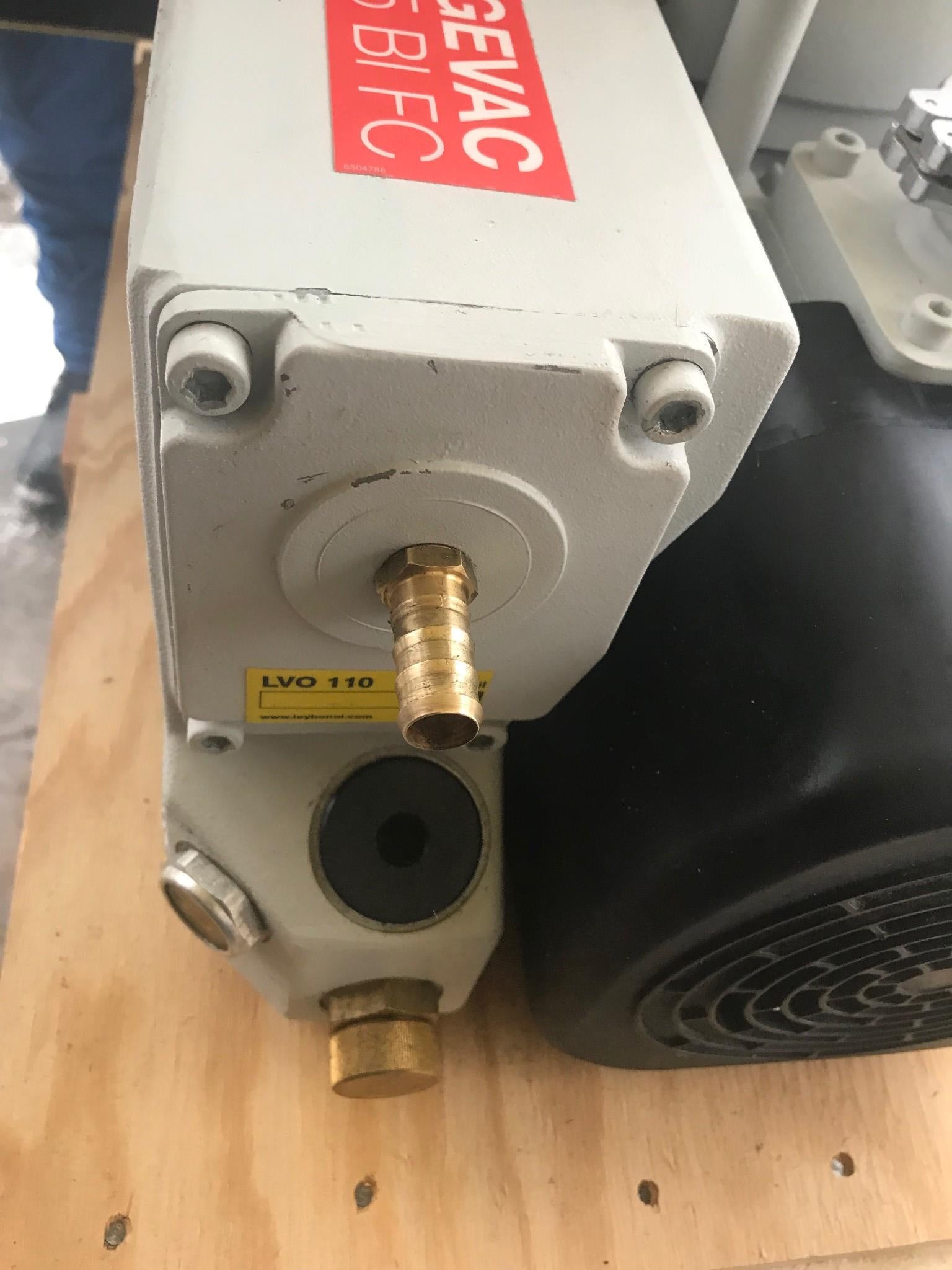

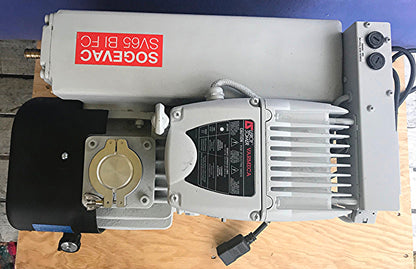

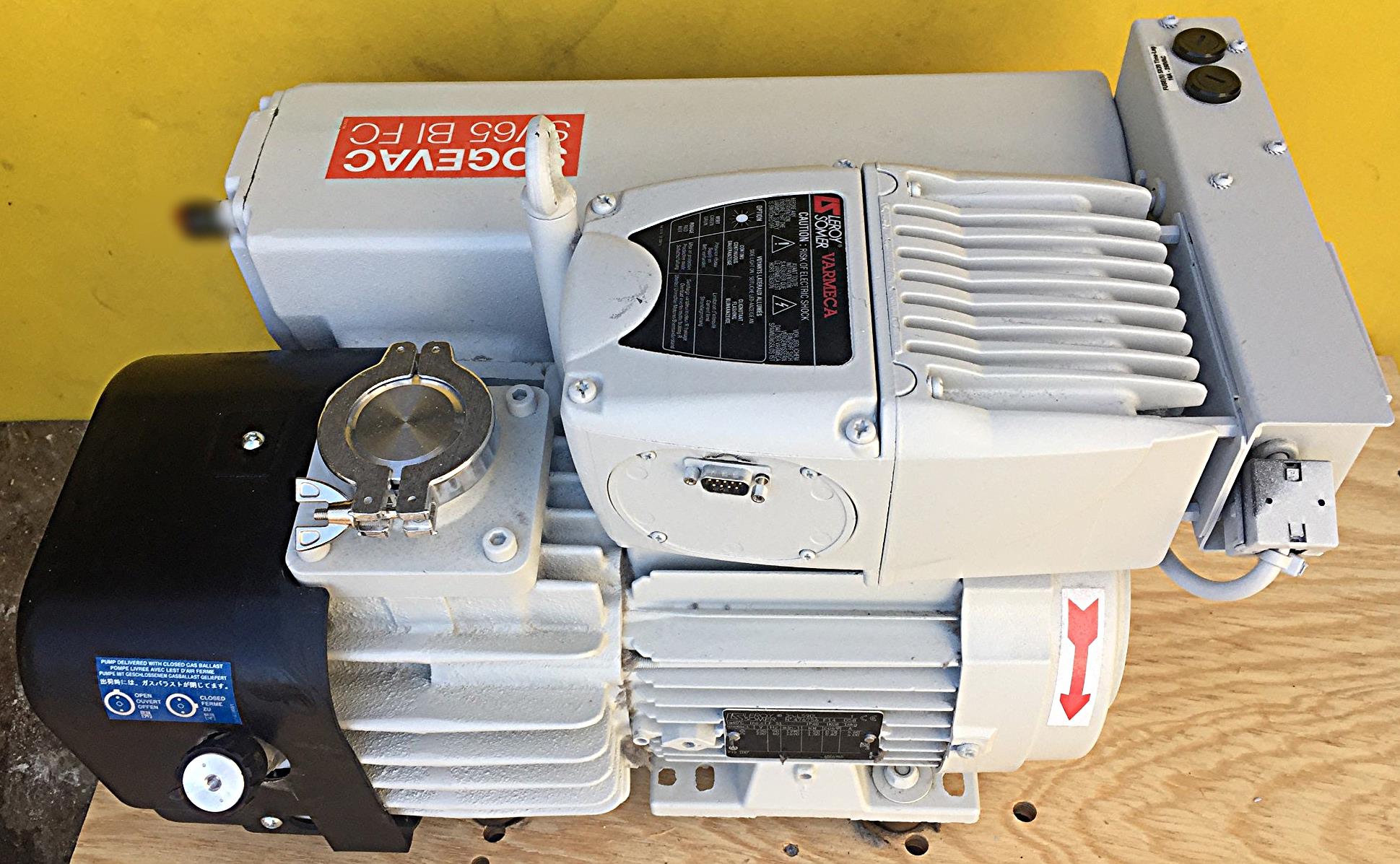

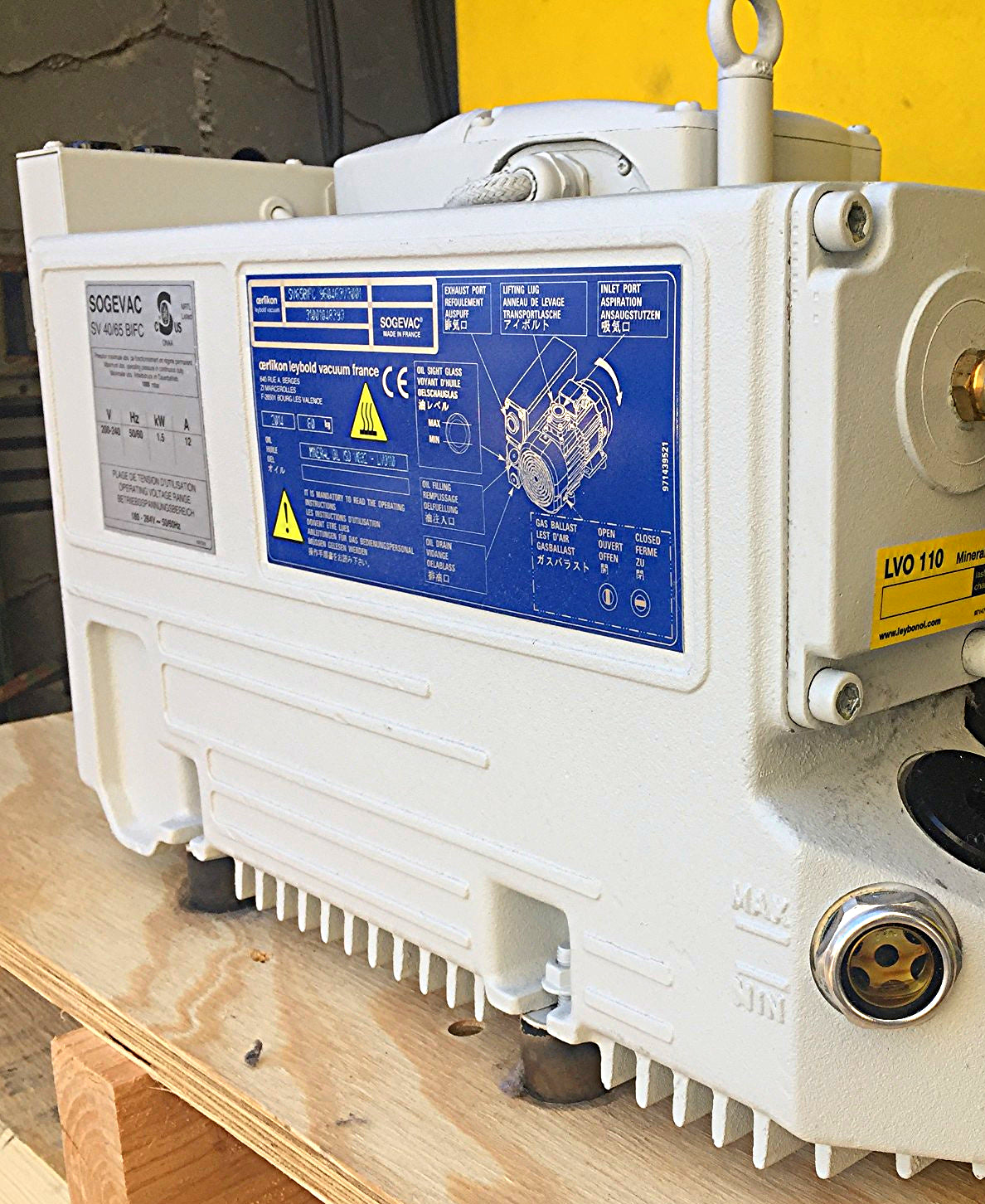

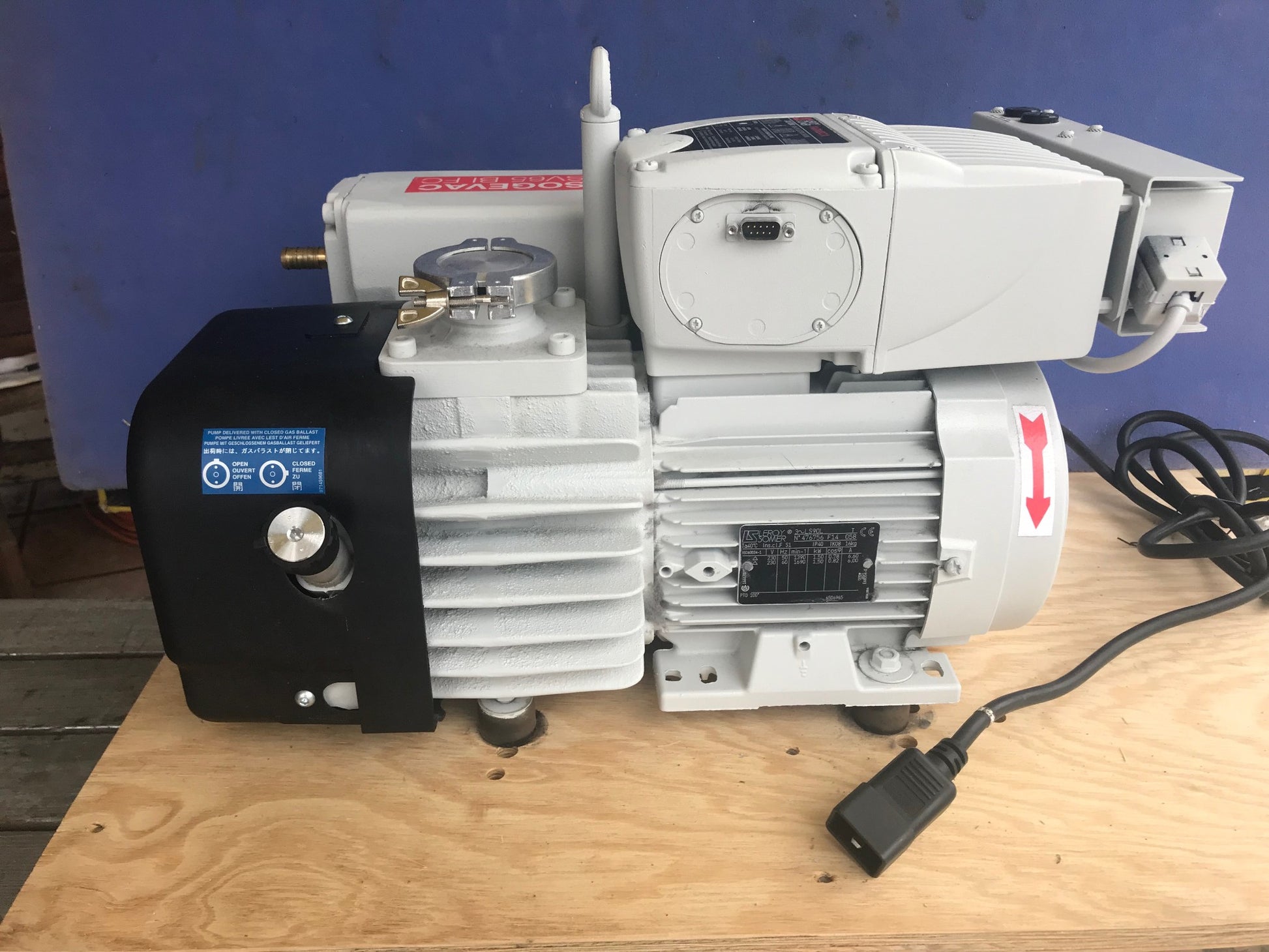

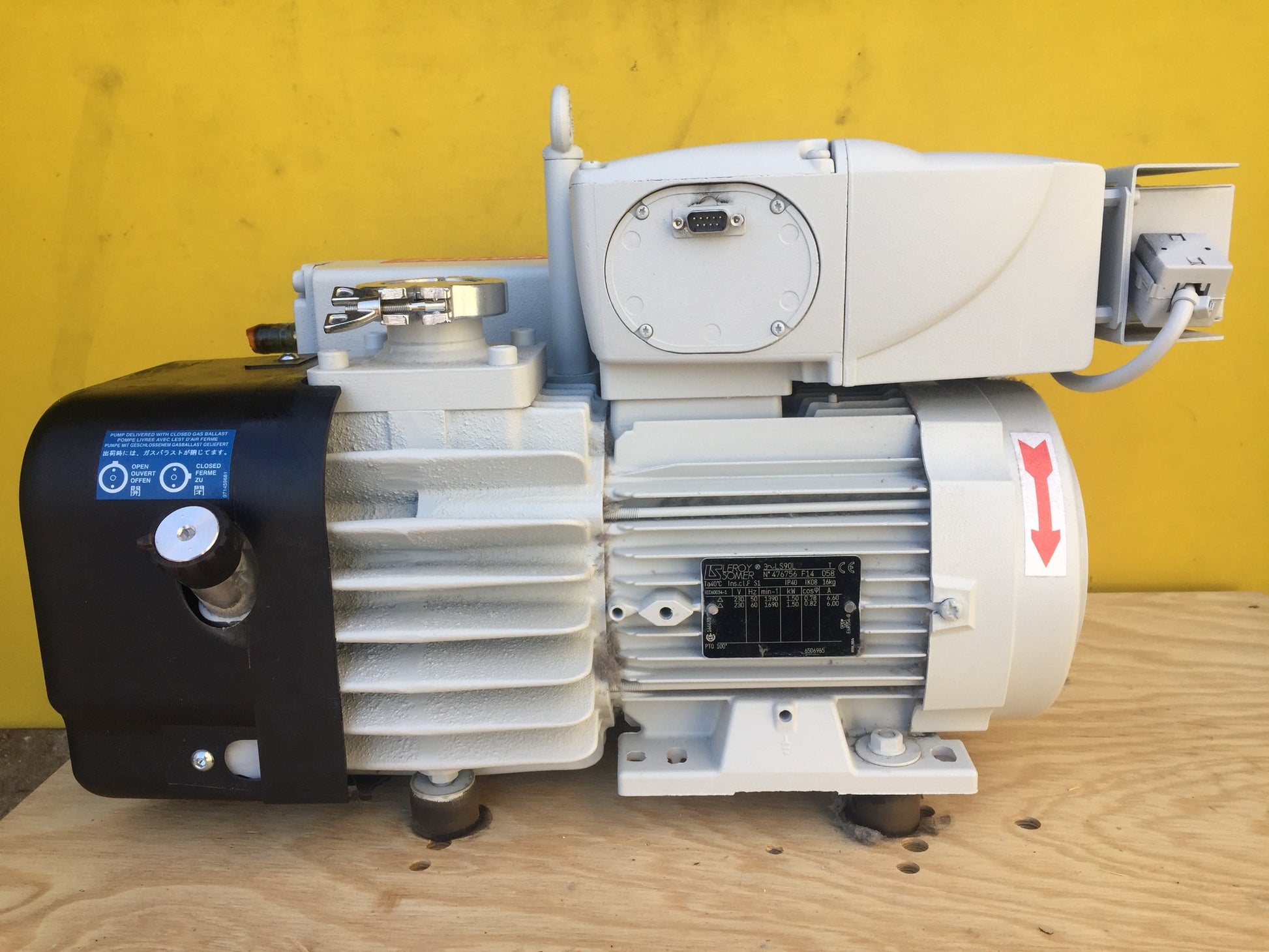

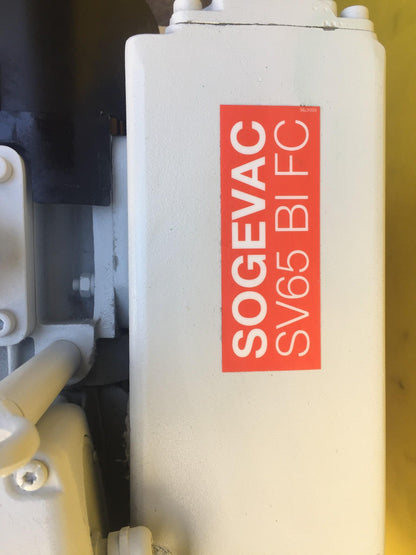

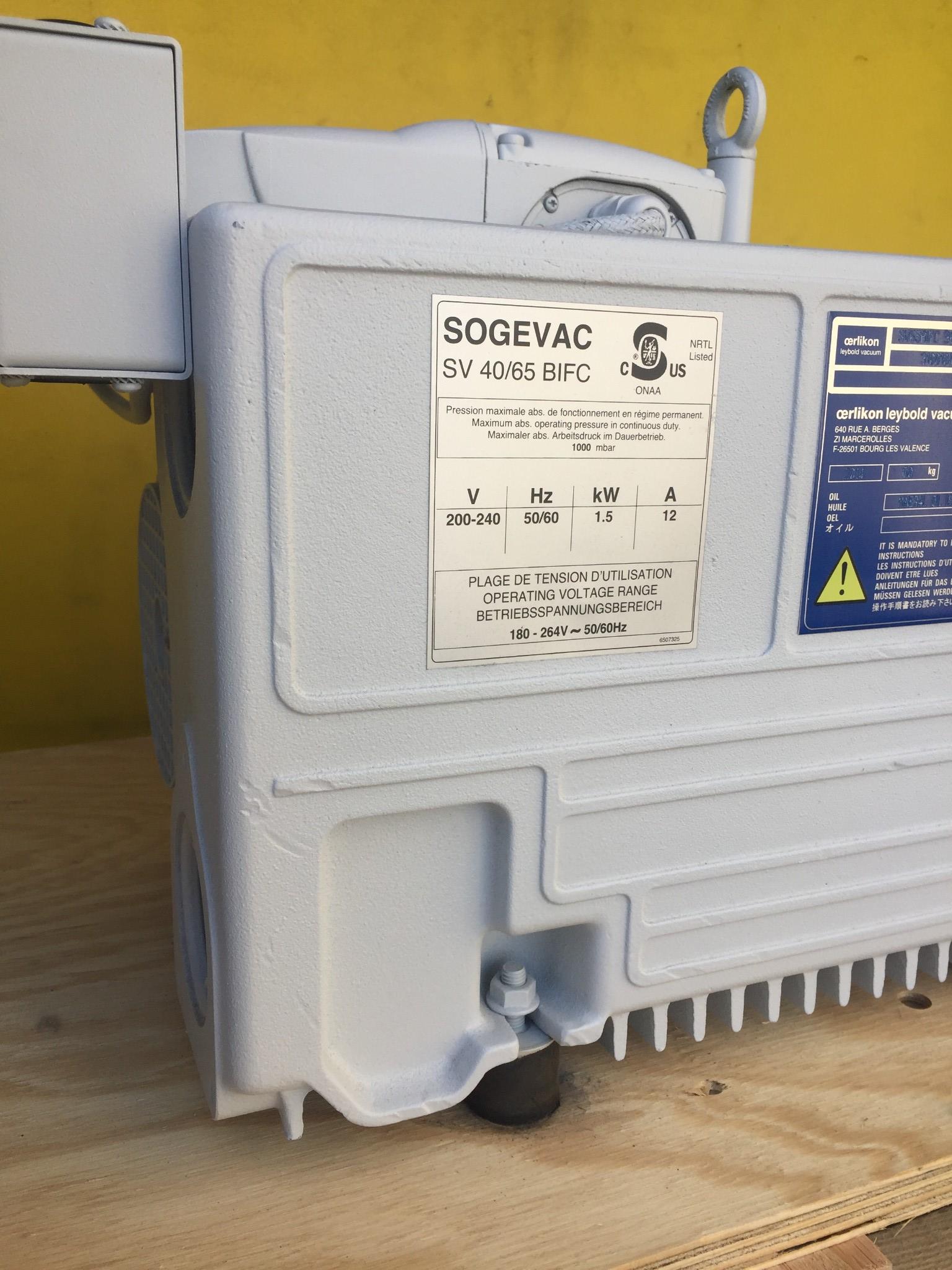

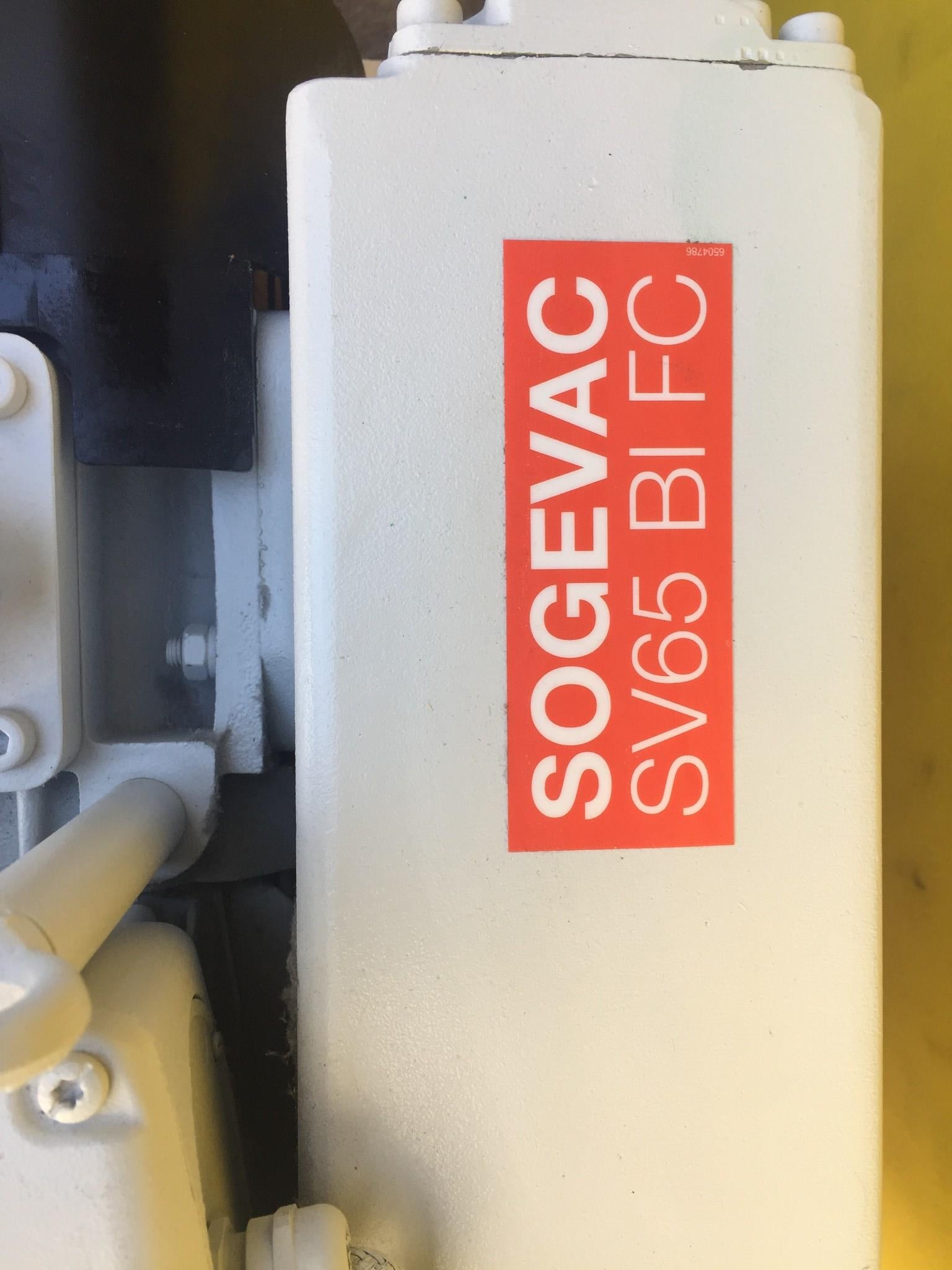

This listing is for an Unknown Operational condition Sogevac® SOGEVAC SV 40/65 BIFC SV40 B - SV65 B - SV100 LEROY SOMER VANE VACUUM PUMP as can be seen in the pictures.

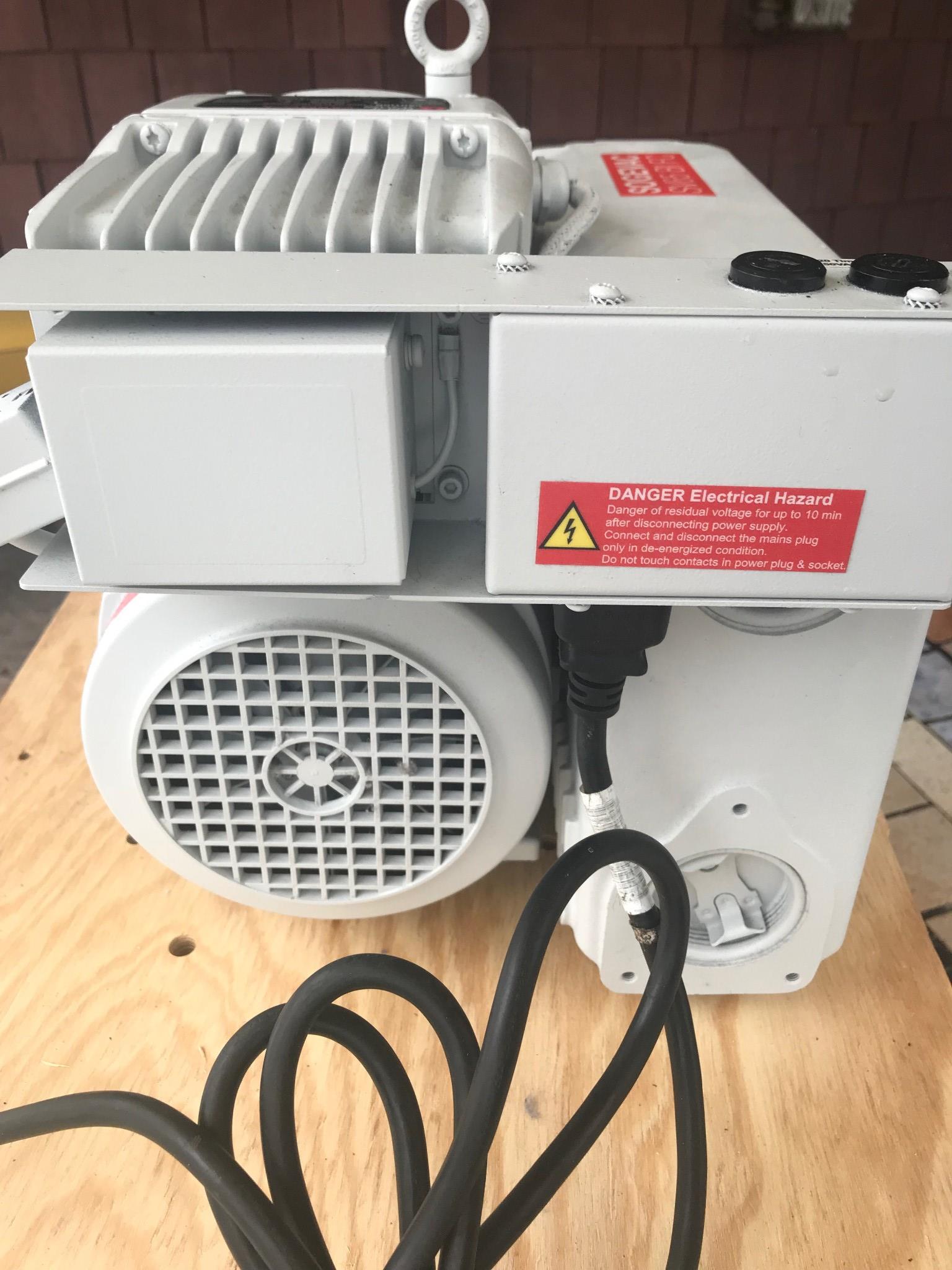

Includes special power cable inside packaging.

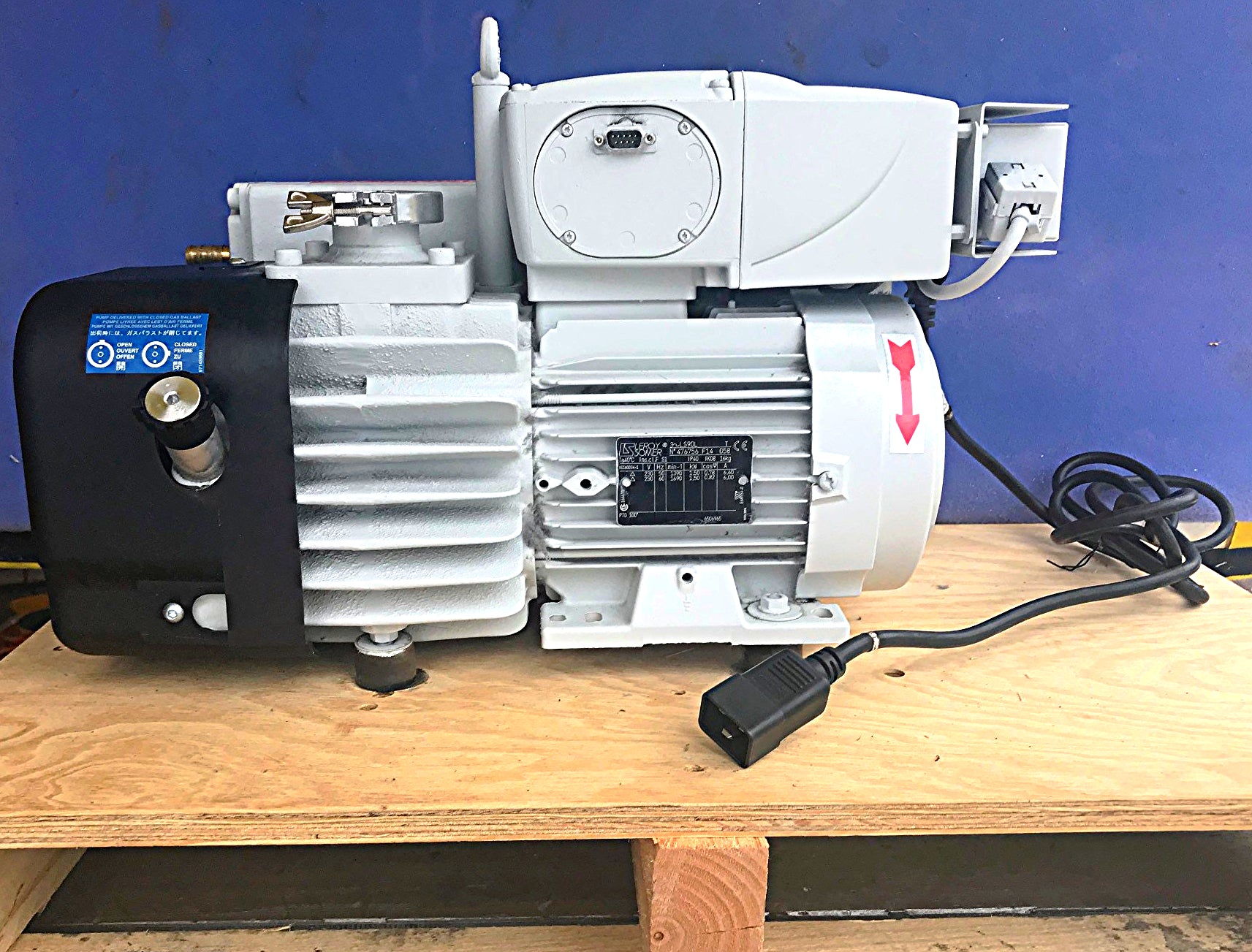

This SOGEVAC SV 40/65 BIFC came from a Federal University and is fixed to the pallet you see in the pictures.

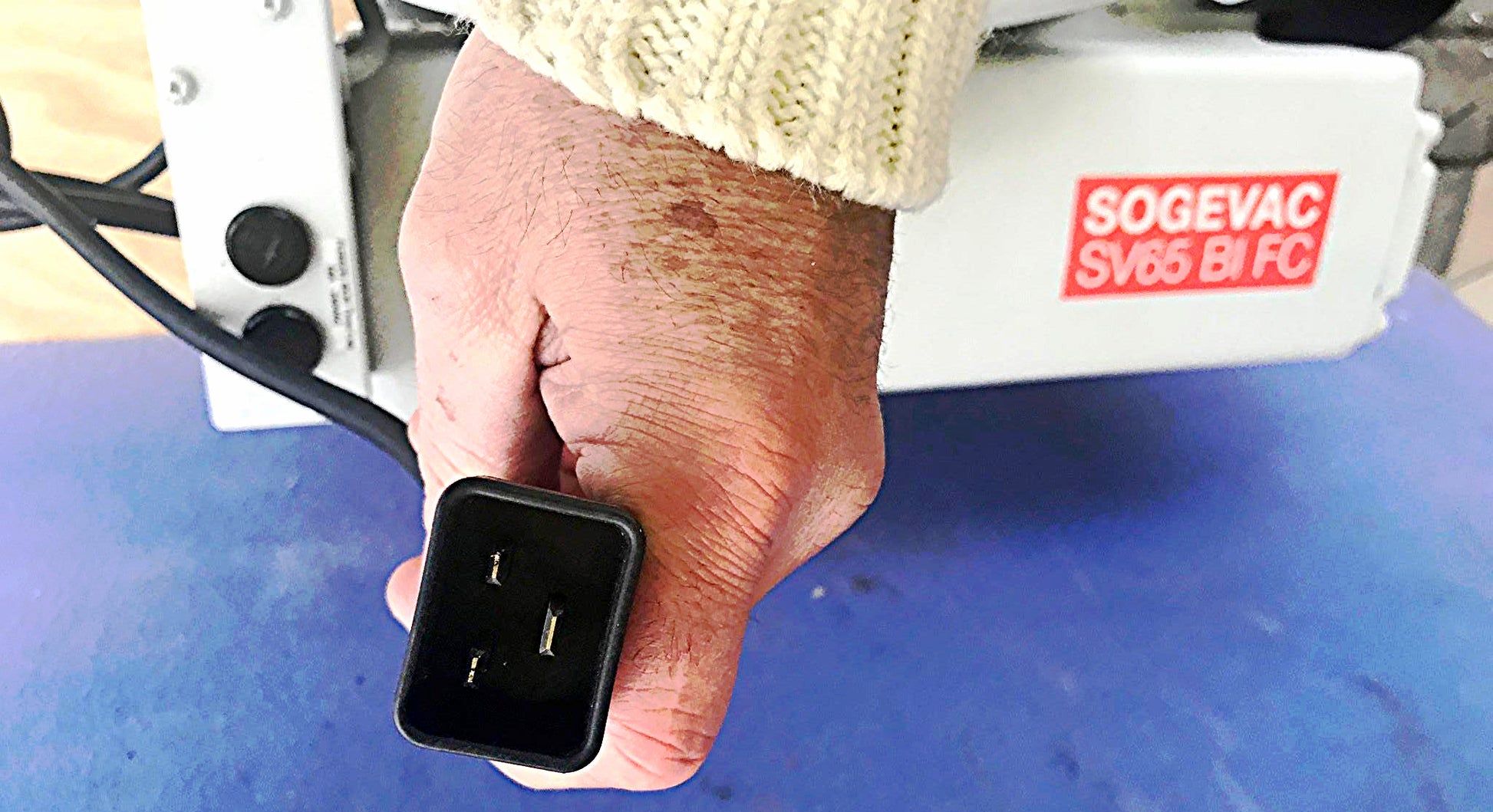

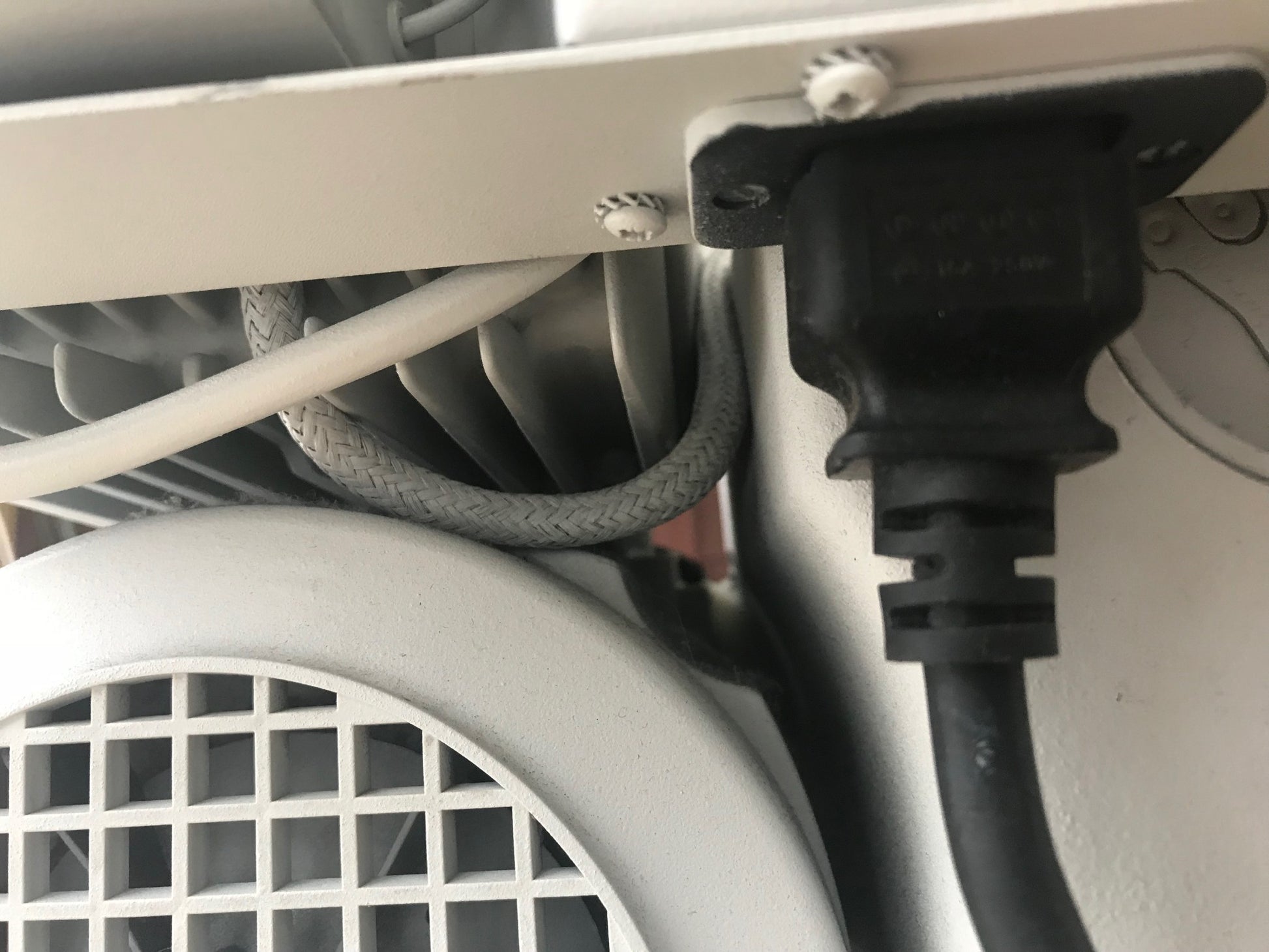

This pump uses a different horizontal cable and since we don't have the plug to power it up we are selling it under an as is no return condition.
Technical information on this pump can be found online by clicking https://www.lesker.com/newweb/vacuum_pumps/pdf/manuals/sv40-100b%20manual.pdf
1 Description
Sogevac® pumps are designed for pumping of inert gases in the range of
rough vacuum, between atmospheric pressure and ultimate pressure of the
pump.

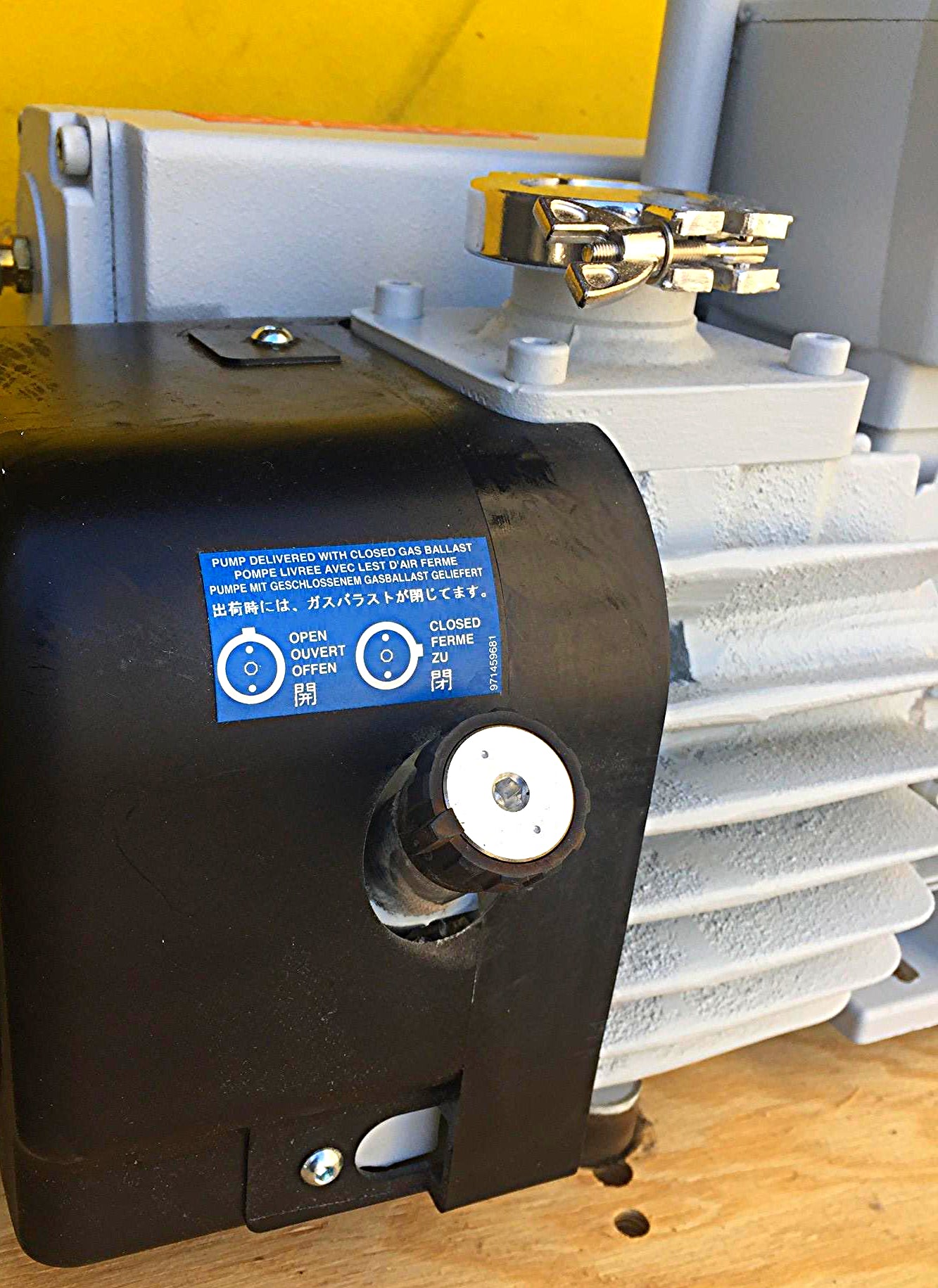

When removing condensable vapours, a gas ballast valve must be installed.
1.1 Principle of operation
The Sogevac® pumps SV40 B, SV65 B and SV100 B are single-stage oilsealed
rotary vane vacuum pumps.
The rotor, having three slots in which the vanes are sliding, is eccentrically
installed in a pump cylinder (stator).
The vanes separate the interior space into 3 chambers. The volume of these
chambers varies with the rotation of the rotor.
The gas sucked into the inlet chamber is compressed and then pushed out
at the exhaust valve.
The oil injected in the inlet chamber guarantees the air-tightness, the
lubrication and cooling of the pump. It is dragged off by the compressed
gases and roughly separated by gravity when entering in the oil sump. A fine
separation is then operated in the exhaust filter. An internal transfer pushes
the collected oil back into the vacuum generator, the transfer is operated by
a float valve to avoid atmospheric air coming from the oil casing to the inlet
of the pump when no oil is present in the recovery system.
The oil circulation functions by differential pressures.

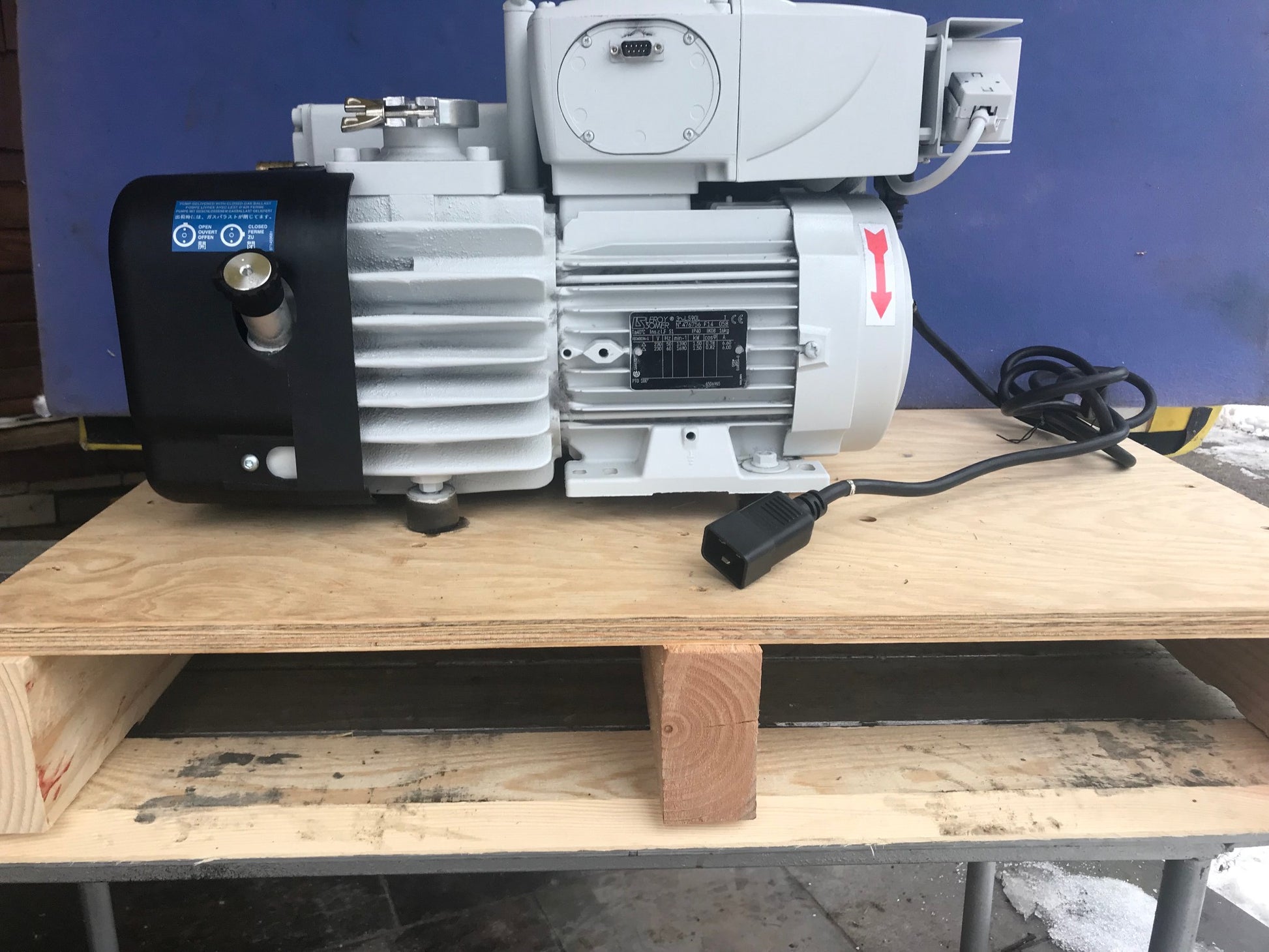

Unit will be shipped in the pallet seen in the pictures and not stacked up for safety reasons so it won't get damaged during Freight Shipment.
Stock # 16181
