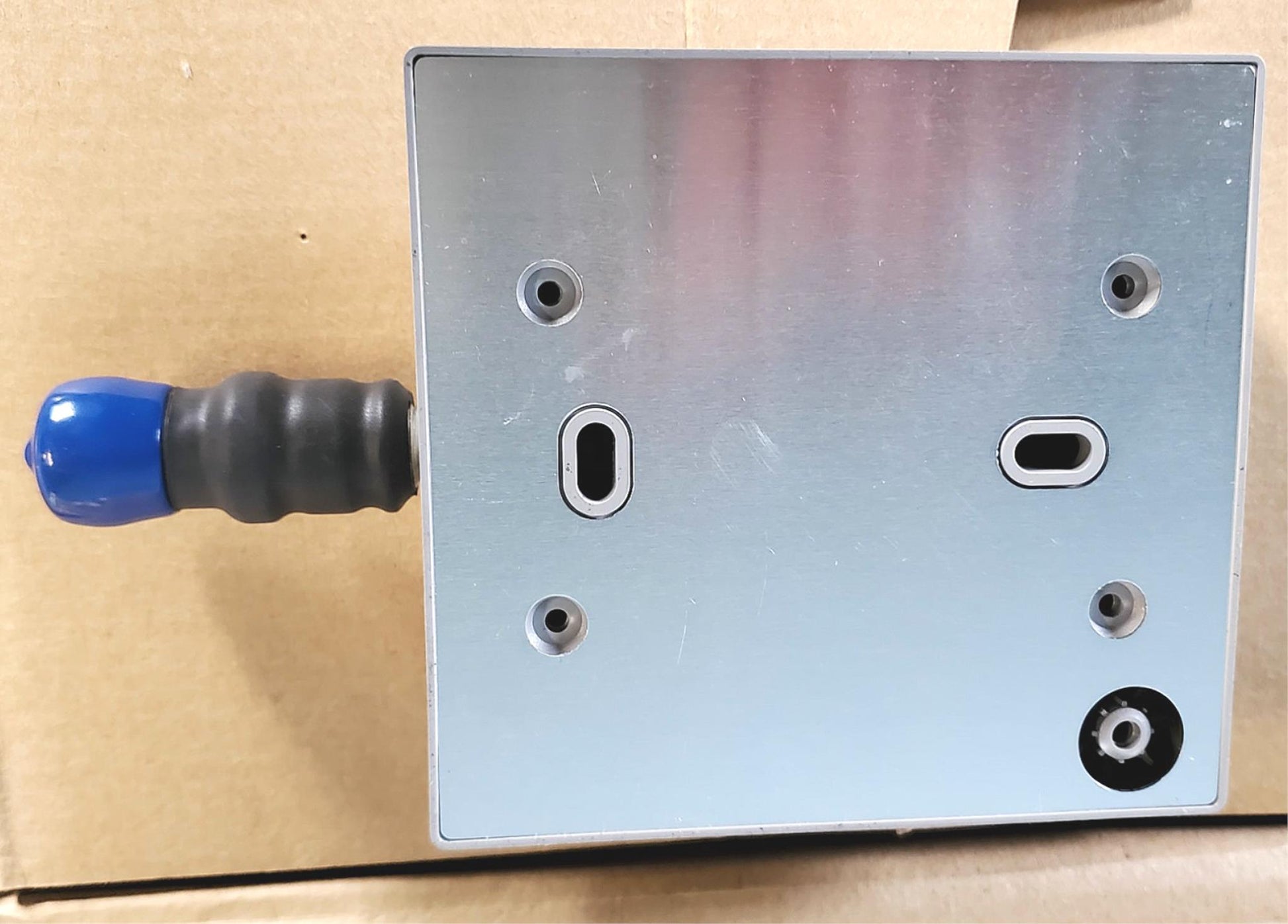

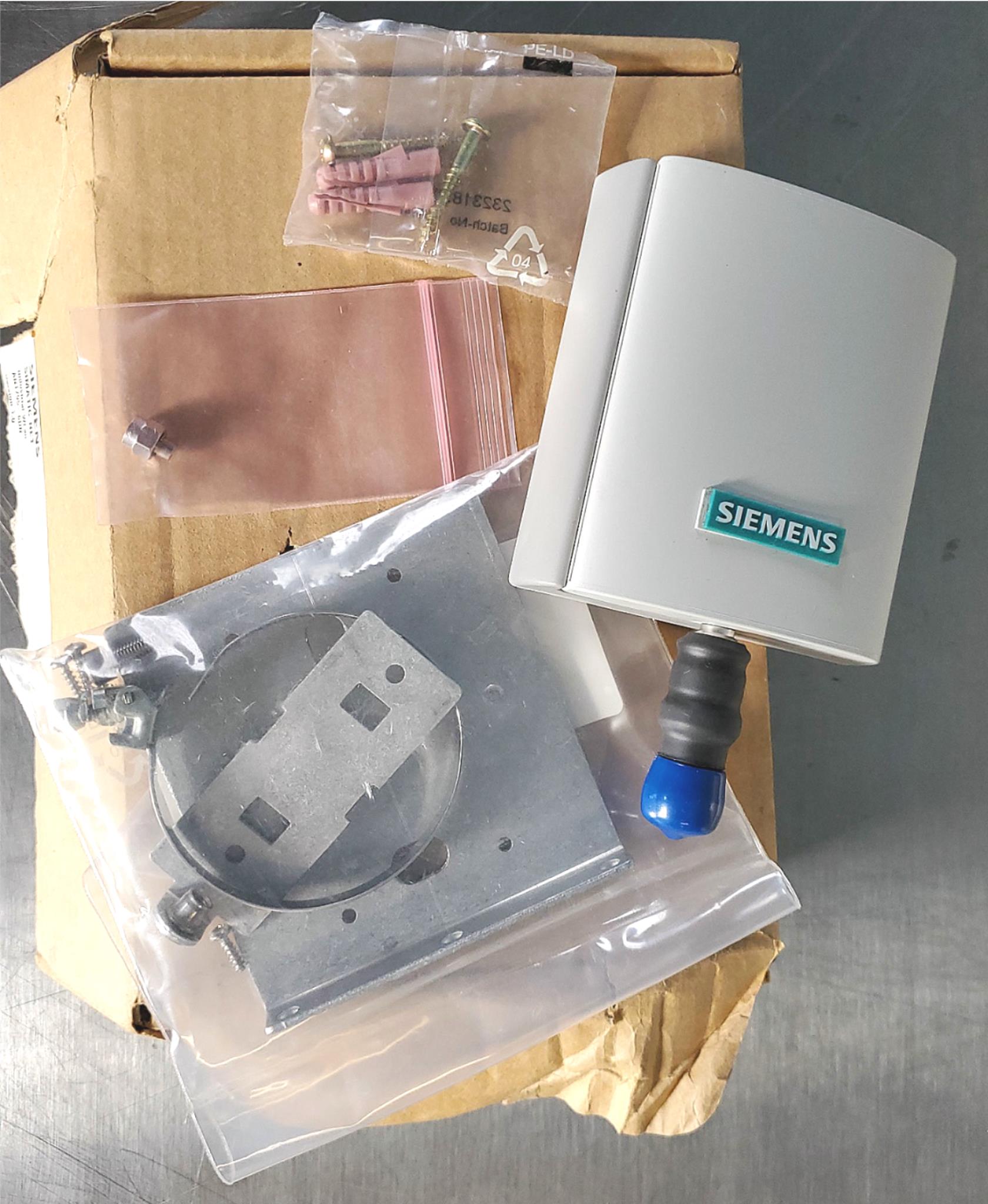

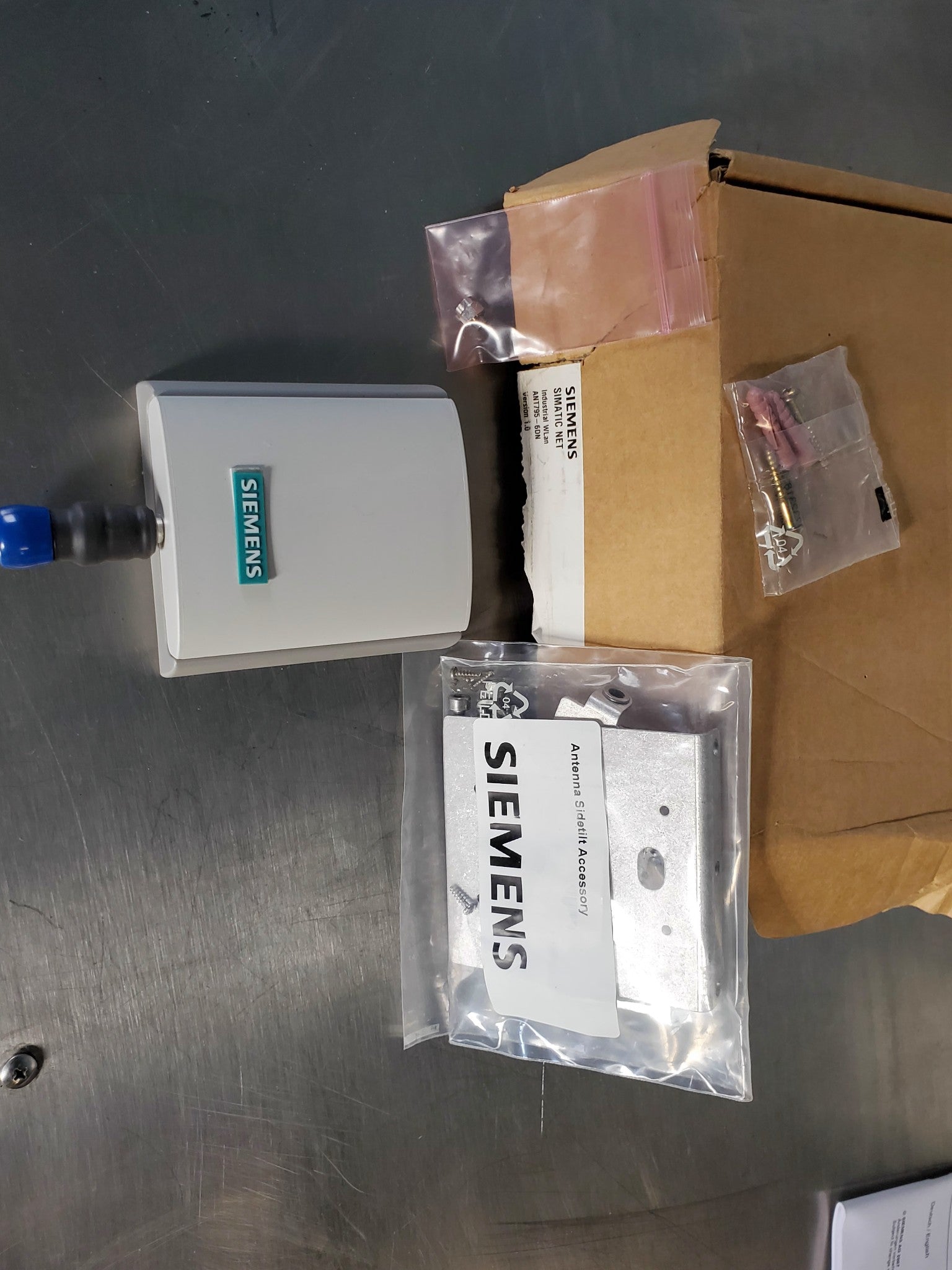

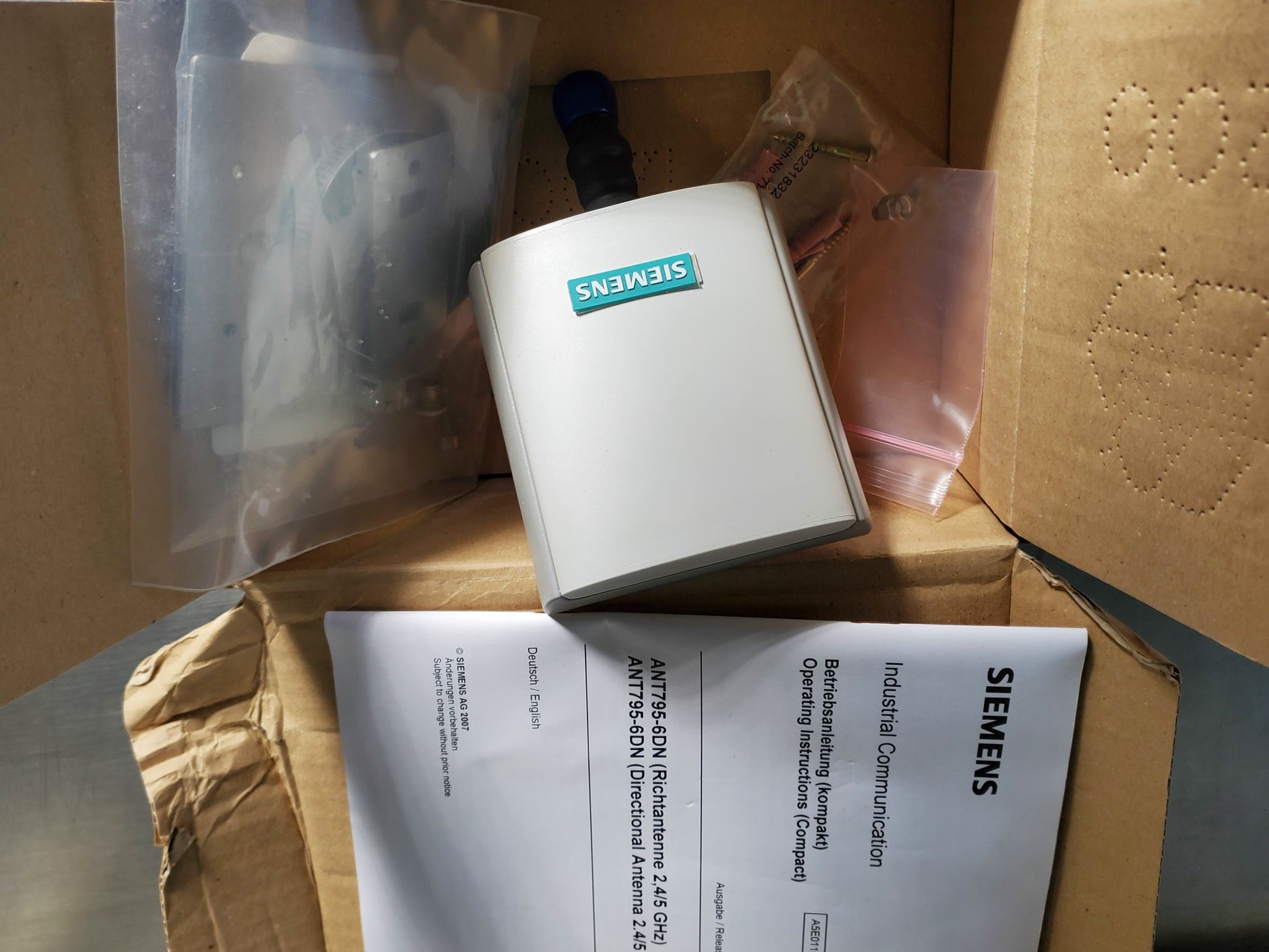

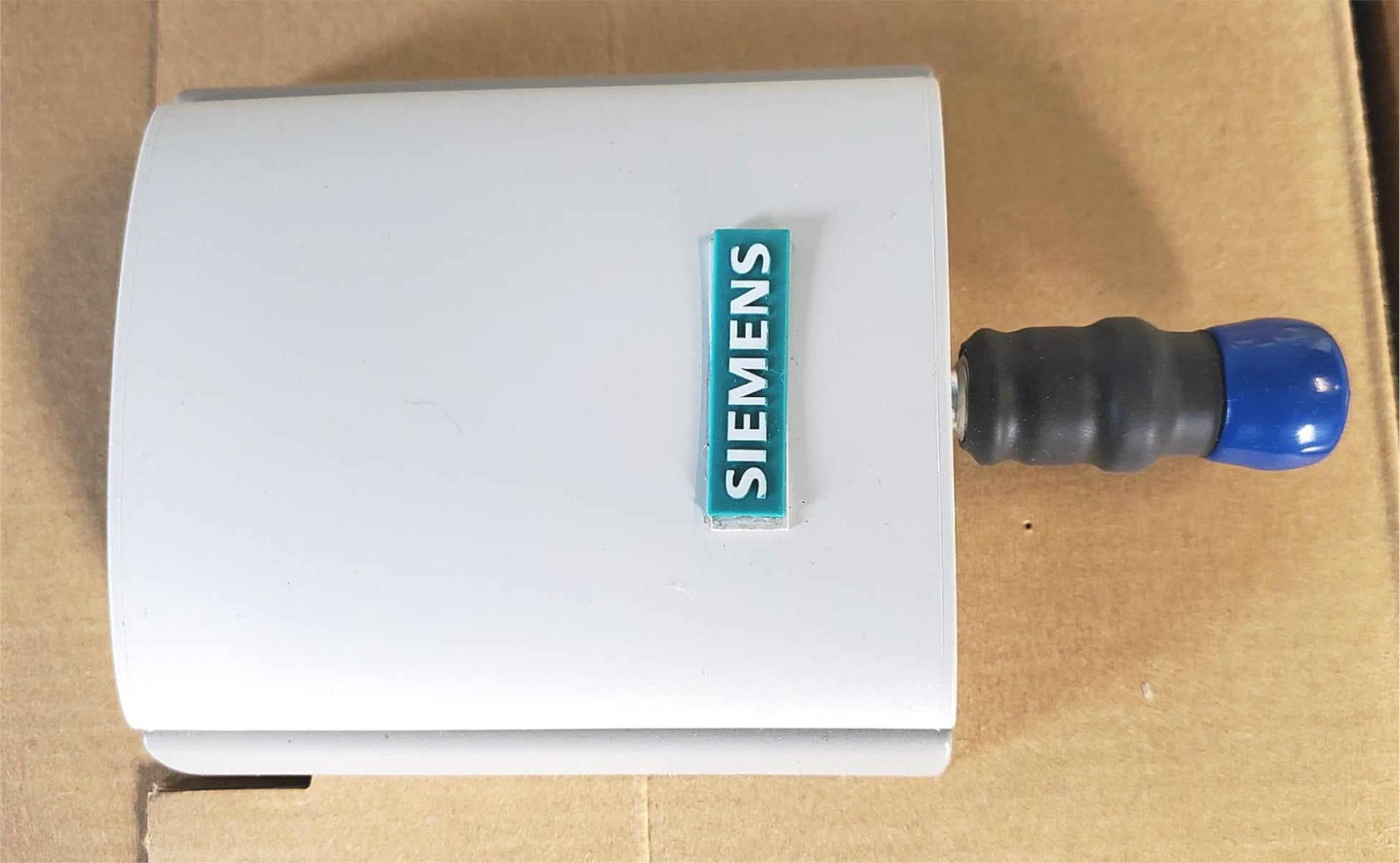

This listing is for a Brand New Opened Box condition SIEMENS SIMATIC NET INDUSTRIAL IWLAN ANTENNA ANT795-6DN 5.0 / 2.4 GHz as can be seen in the pictures.
This unit was purchased by a Federal University and has NEVER BEEN USED, that is why it is in such great NEW condition as can be seen in the pictures!!!
Specifications
FEEL FREE TO CHECK TECHNICAL REVIEWS AND DATA SPECS ON THIS SIEMENS SIMATIC NET INDUSTRIAL IWLAN ANTENNA ANT795-6DN BY GOOGLING THE FOLLOWING LINK: kollewin.com/index.php?route=product/product&product_id=47126
Specifications
Product Code: 6GK5795-6DN00-0AA6
Availability: In Stock
6GK5795-6DN00-0AA6 IWLAN ANTENNA ANT795-6DN
IWLAN ANTENNA ANT 795-6DN WITH DIRECTIONAL EFFICIENCY

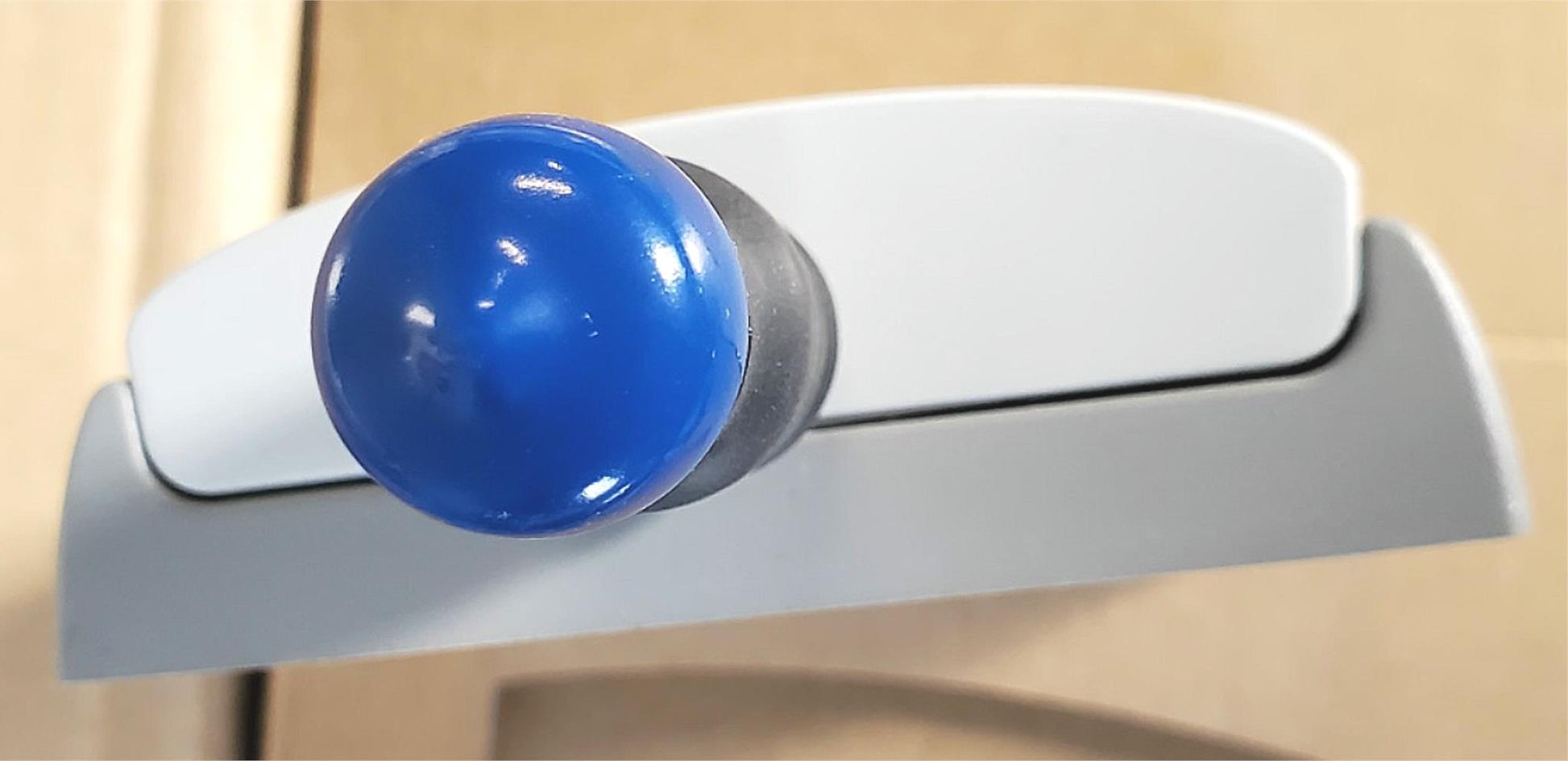

INCLUDES N-FEMALE CONNECTOR
9 DBI IP55 (-40-+70 DGR C)
2.4GHZ/ 5GHZ WI-FI COMPLIANCE AND NATIONAL APPROVALS WALL OR MAST MOUNTING

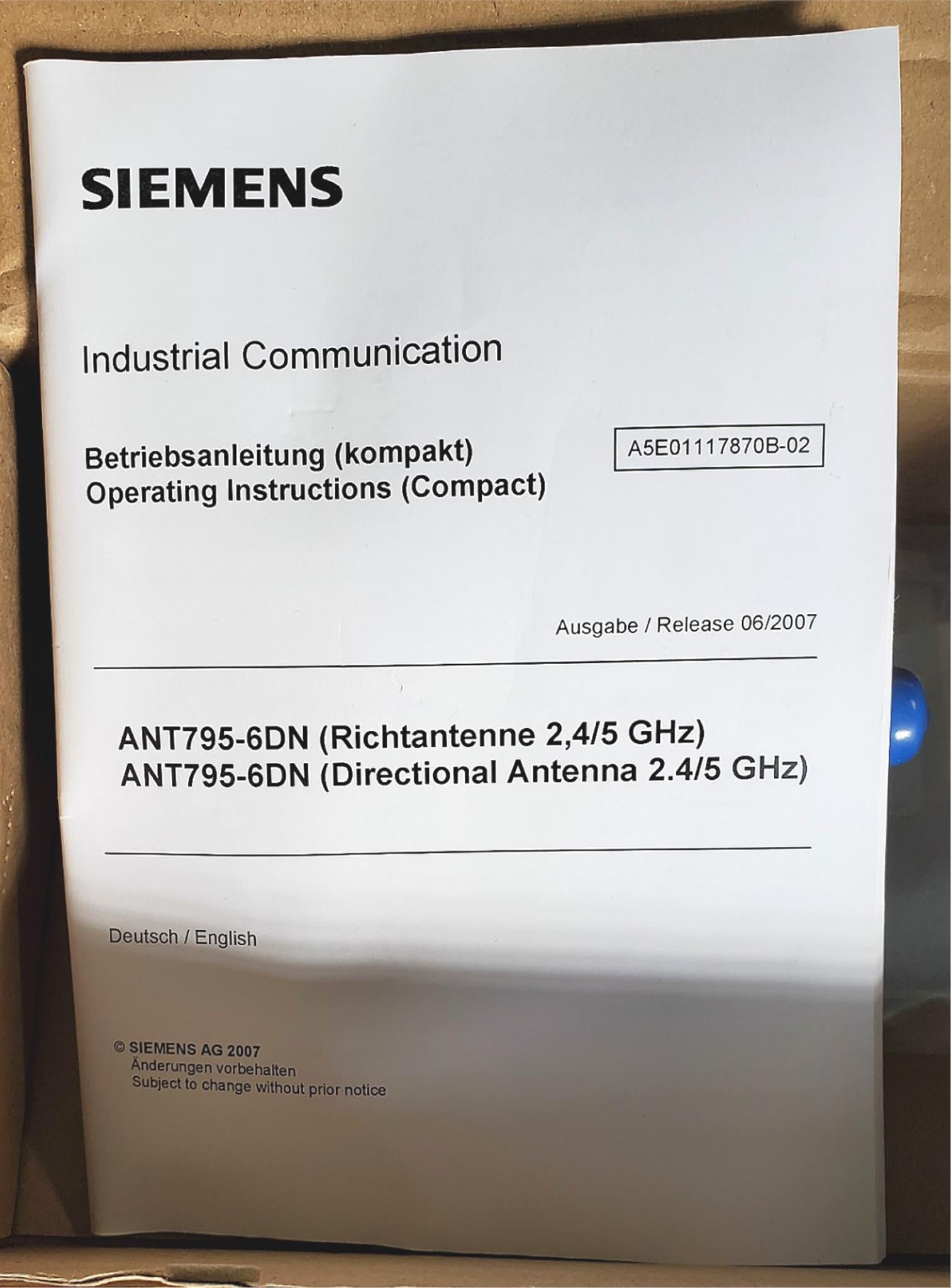

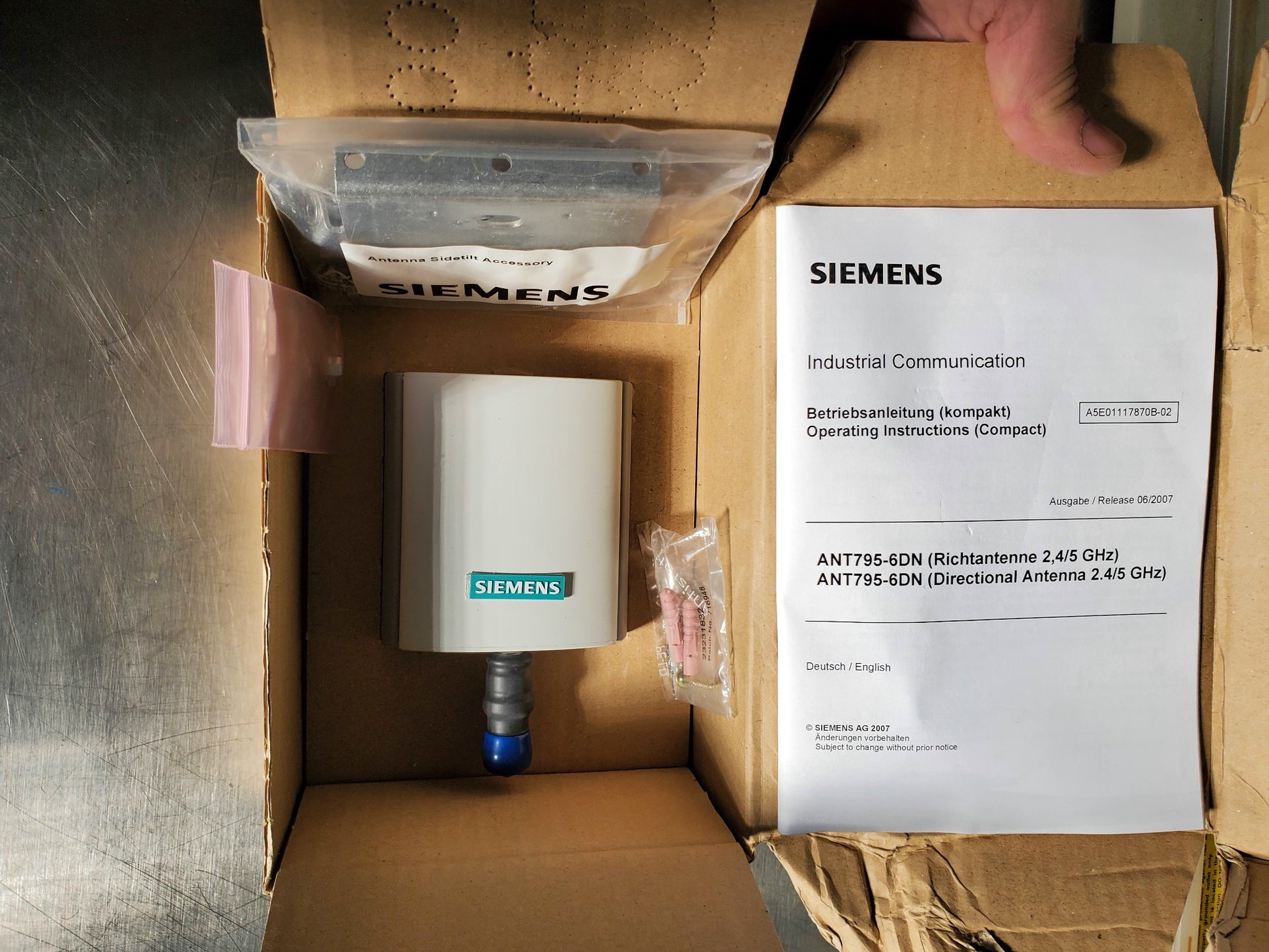

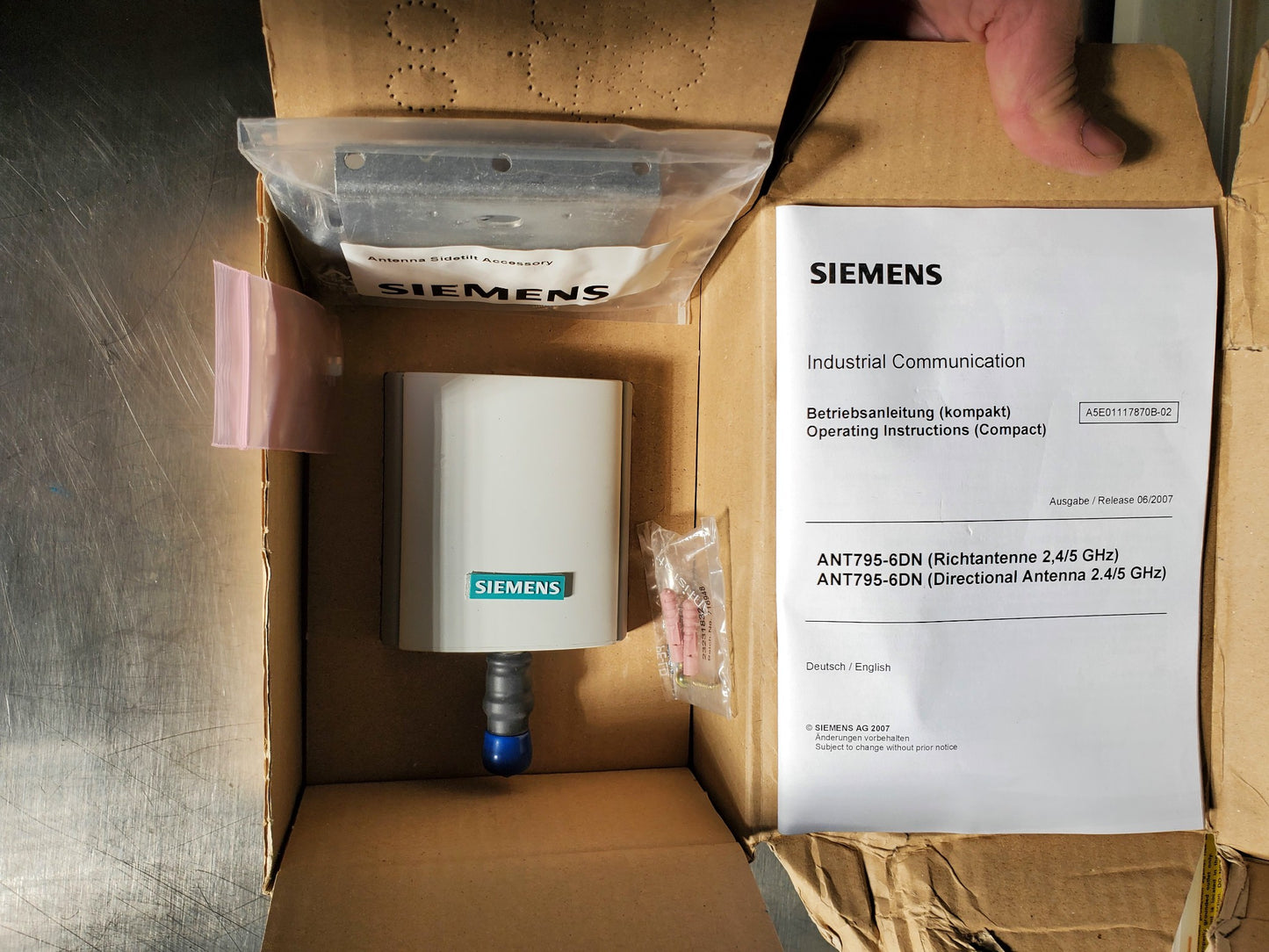

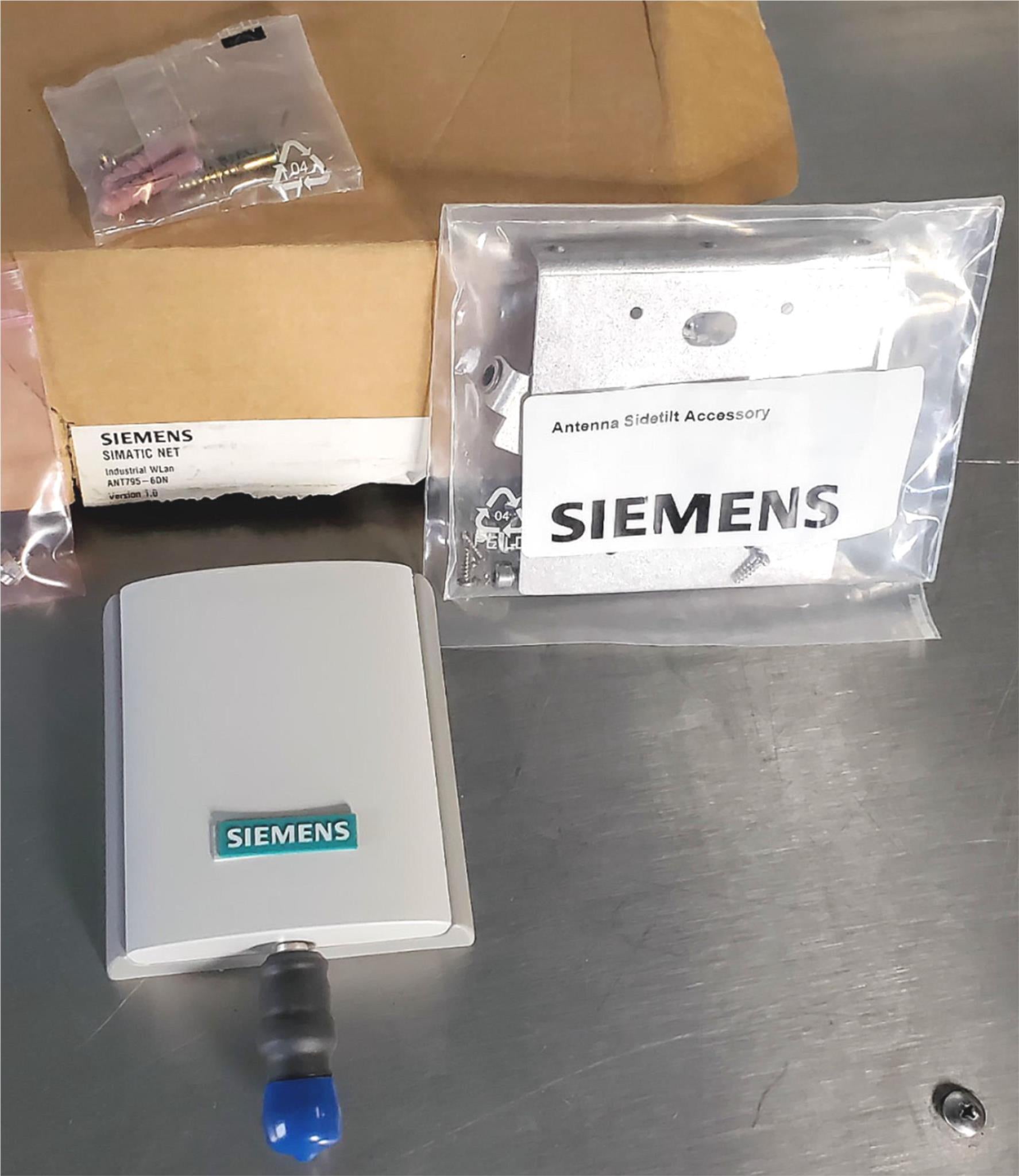

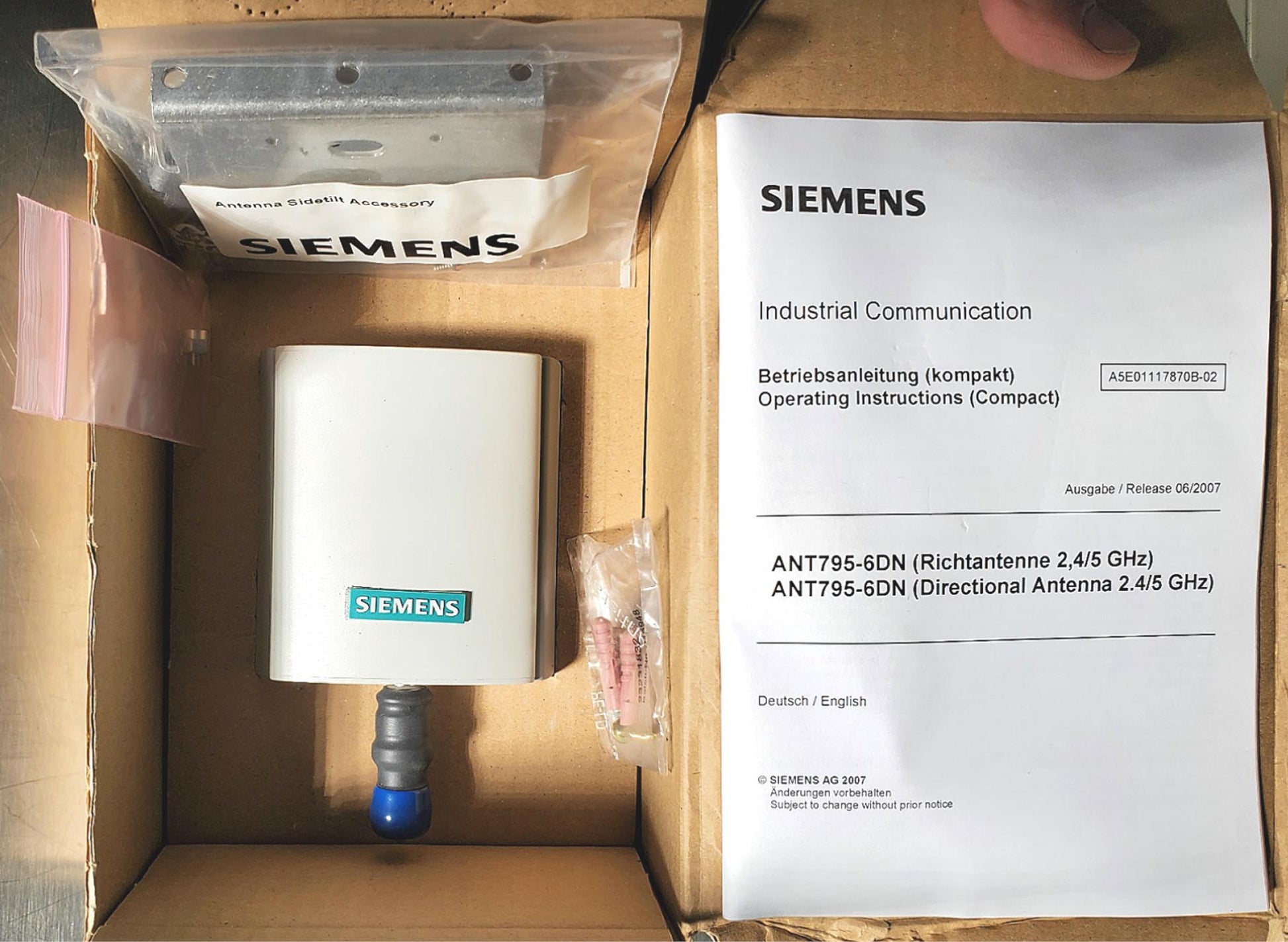

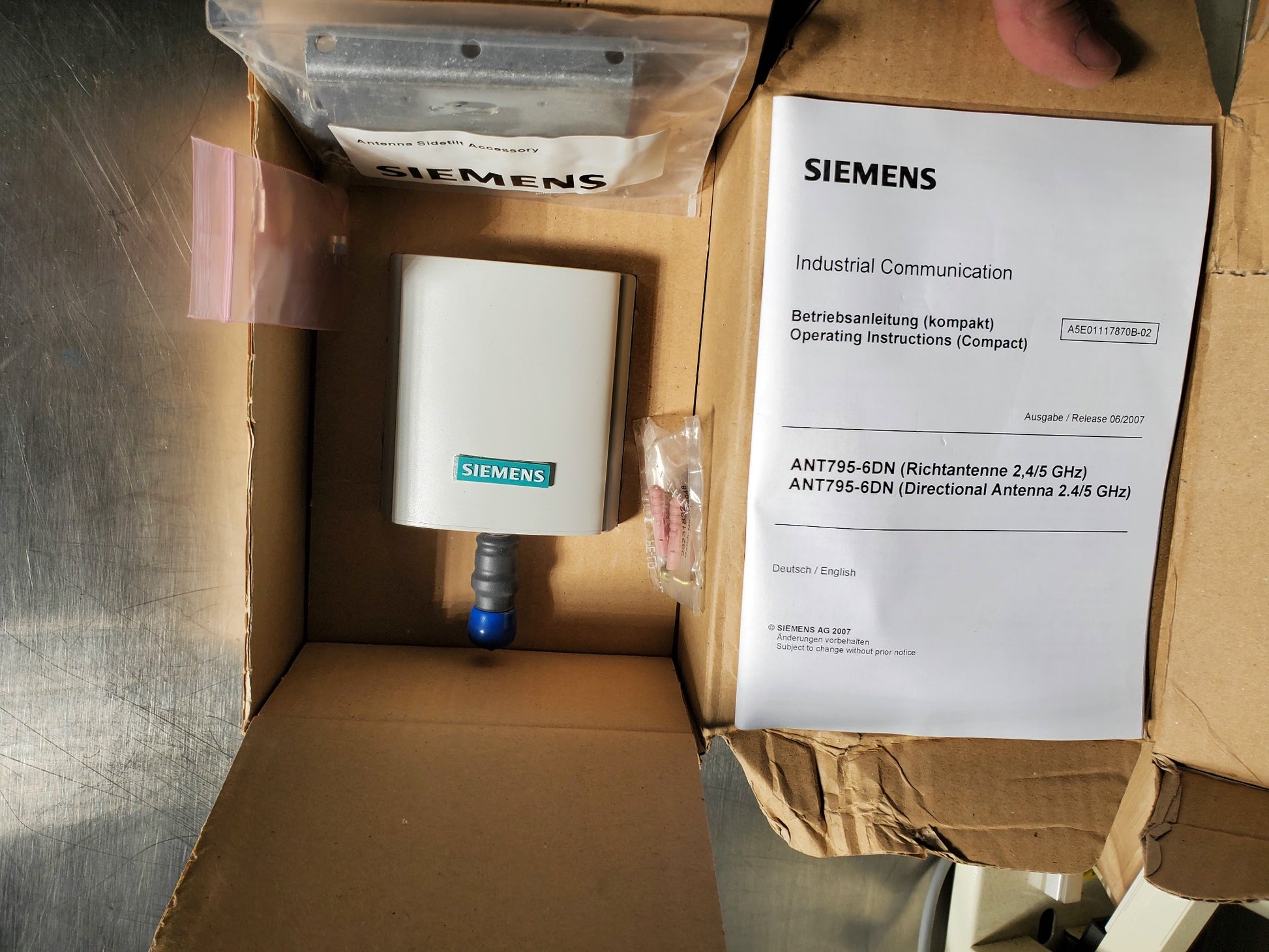

COMPACT MANUAL ON PAPER GERMAN/ENGLISH SCOPE OF SUPPLY: 1X ANT795-6DN, 1X TERMINATING RESISTANCE TI795-1R 1X MOUNTING SUPPORT FOR ADJUSTMENT
Wireless frequencies
Radio frequency
● for WLAN in 2.4 GHz frequency band 2.4 ... 2.5 GHz
● for WLAN in 5 GHz frequency band 1 5.15 ... 5.875 GHz
Electrical data
Impedance 50 Ω
Polarization linear vertical
Radiation characteristic directional
Antenna gain compared to spherical radiator
● of the WLAN antenna / in the 2.4 GHz frequency band 9 dB
● of the WLAN antenna / in the 5 GHz frequency band 9 dB
Standing wave ratio VSWR / maximum 1.5
Beam angle of antenna
● in the 2.4 GHz frequency band / horizontal 75°
● in the 2.4 GHz frequency band / vertical 55°
● in the 5 GHz frequency band / horizontal 55°
● in the 5 GHz frequency band / vertical 55°
Design of the electrical connection / of the antenna N-Connector
Angle of inclination / downward / maximum 0°
Front-to-back ratio 15 dB
Transmit power / maximum 10 W; at 25° ambient temperature
Range / with clear line of sight / without disturbance 200 m; Remark: the distance can be much less and is depending on the space around, on the wireless standard in use, on the data rate and on the antenna installed on the partner station
Mechanical data
Design of plug-in connection female
GUARANTEED WORKING OR YOUR MONEY BACK!!!
Feel free to contact us if you have any questions, we will respond PROMPTLY!
Stock: 20202
