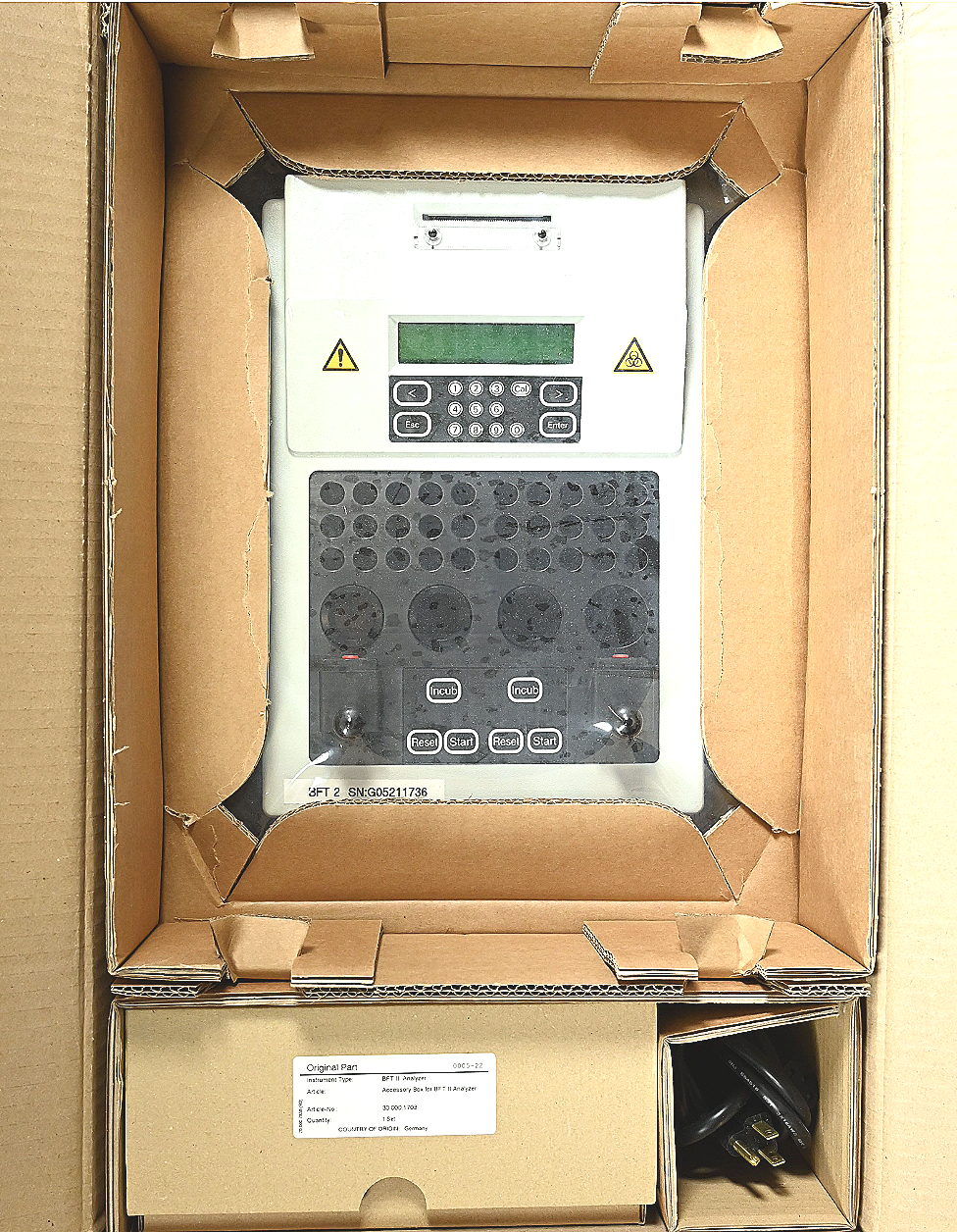

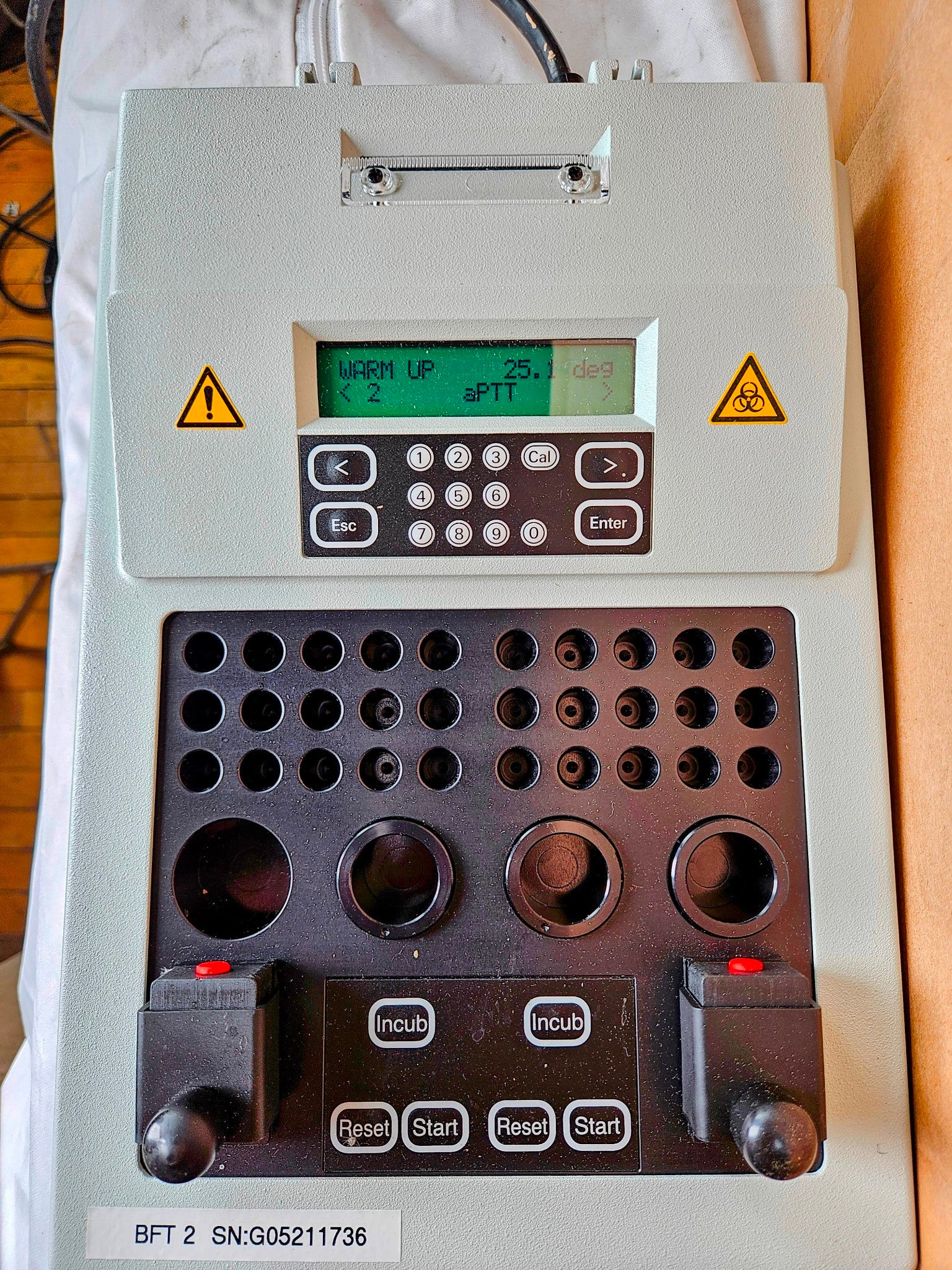

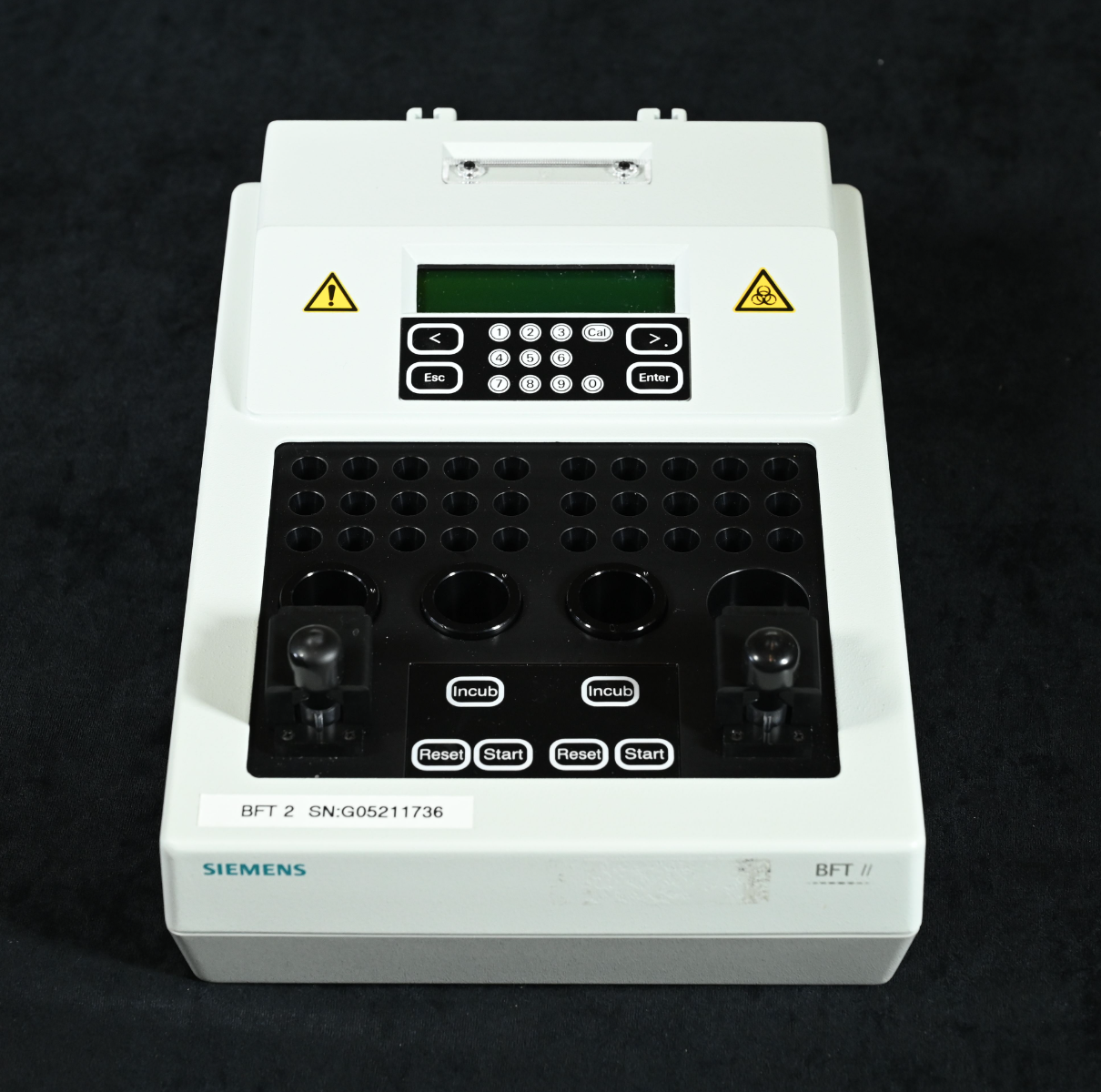

BFT II Analyzer
High-performance analyzer for the low-volume lab
The BFT II Analyzer combines the advantages of mechanical and photo-optical clot-detecting principles by employing a unique turbodensitometric detection device. The semi-automated, dual-channel coagulometer is ideal for low-volume laboratories performing routine coagulation tests.
Light protection cap reduces the risk of user errors by keeping the pipetting channel closed unless a cuvette has been inserted
Pre-defined assays with stored reference curves
Automatic calculation of PT in sec, % of norm, INR, Fibrinogen in mg/dL or g/L

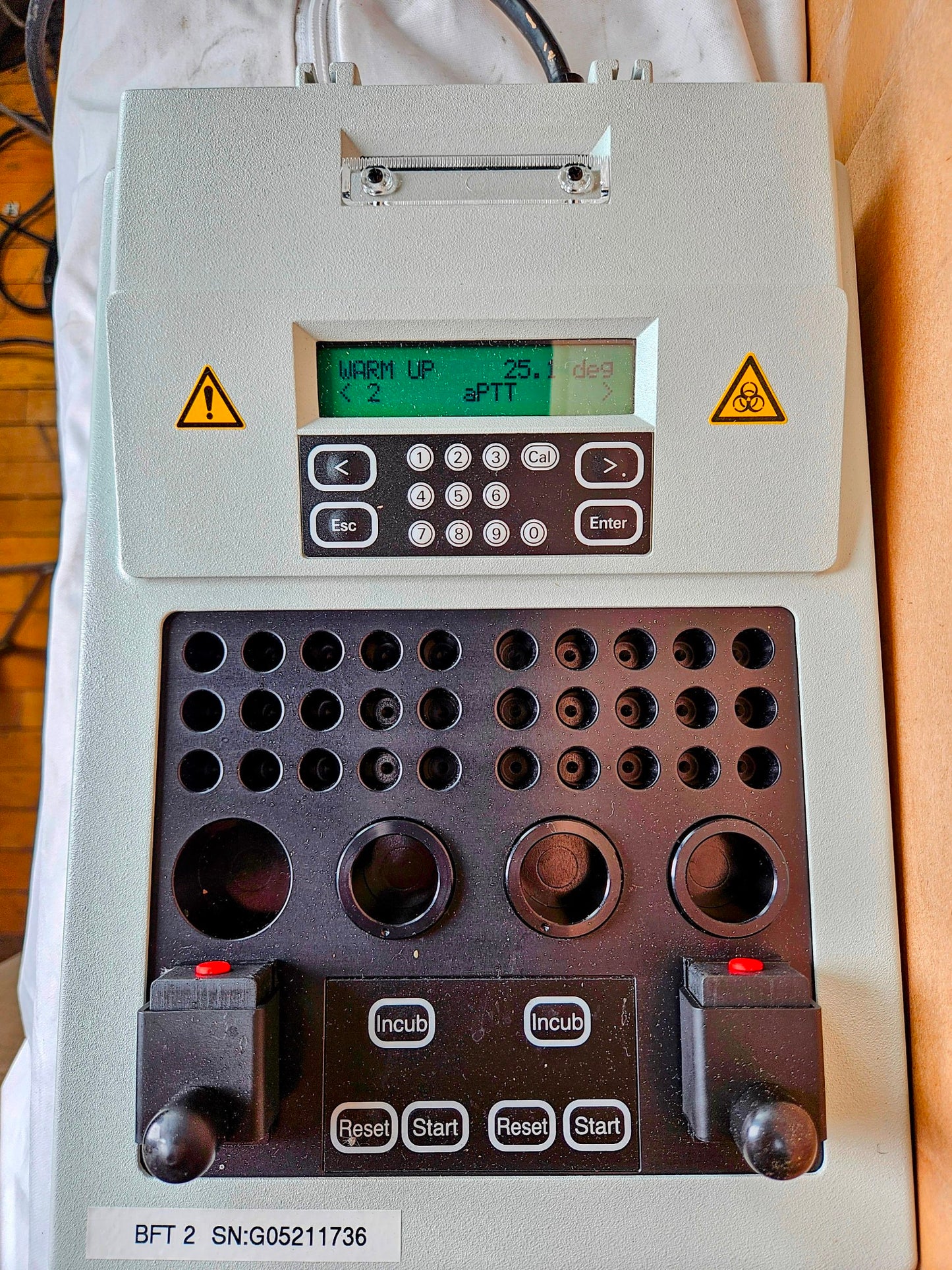

Dual measuring channels allow for simultaneous determinations
Half-volume and single cuvette testing require minimal sample volume

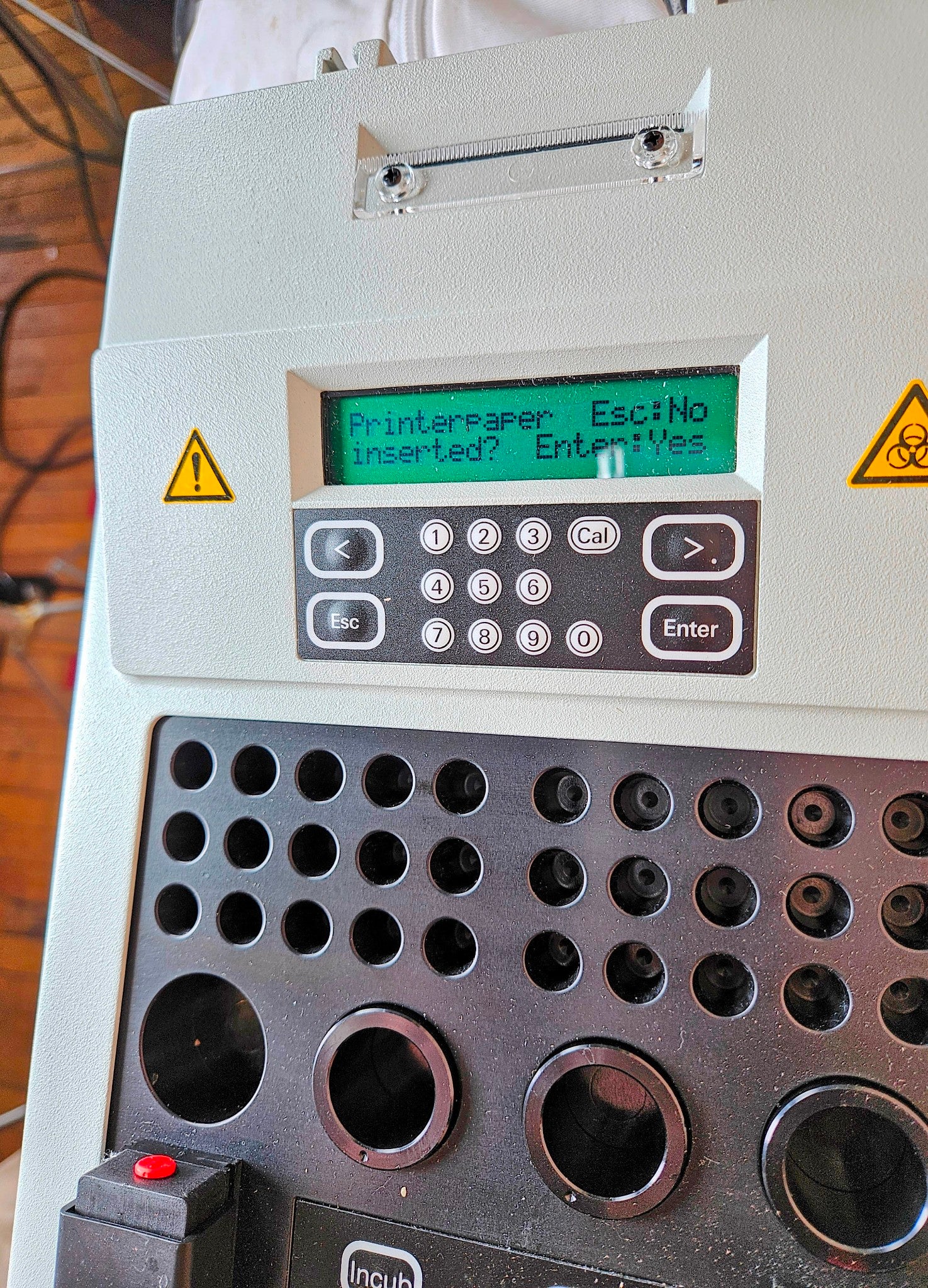

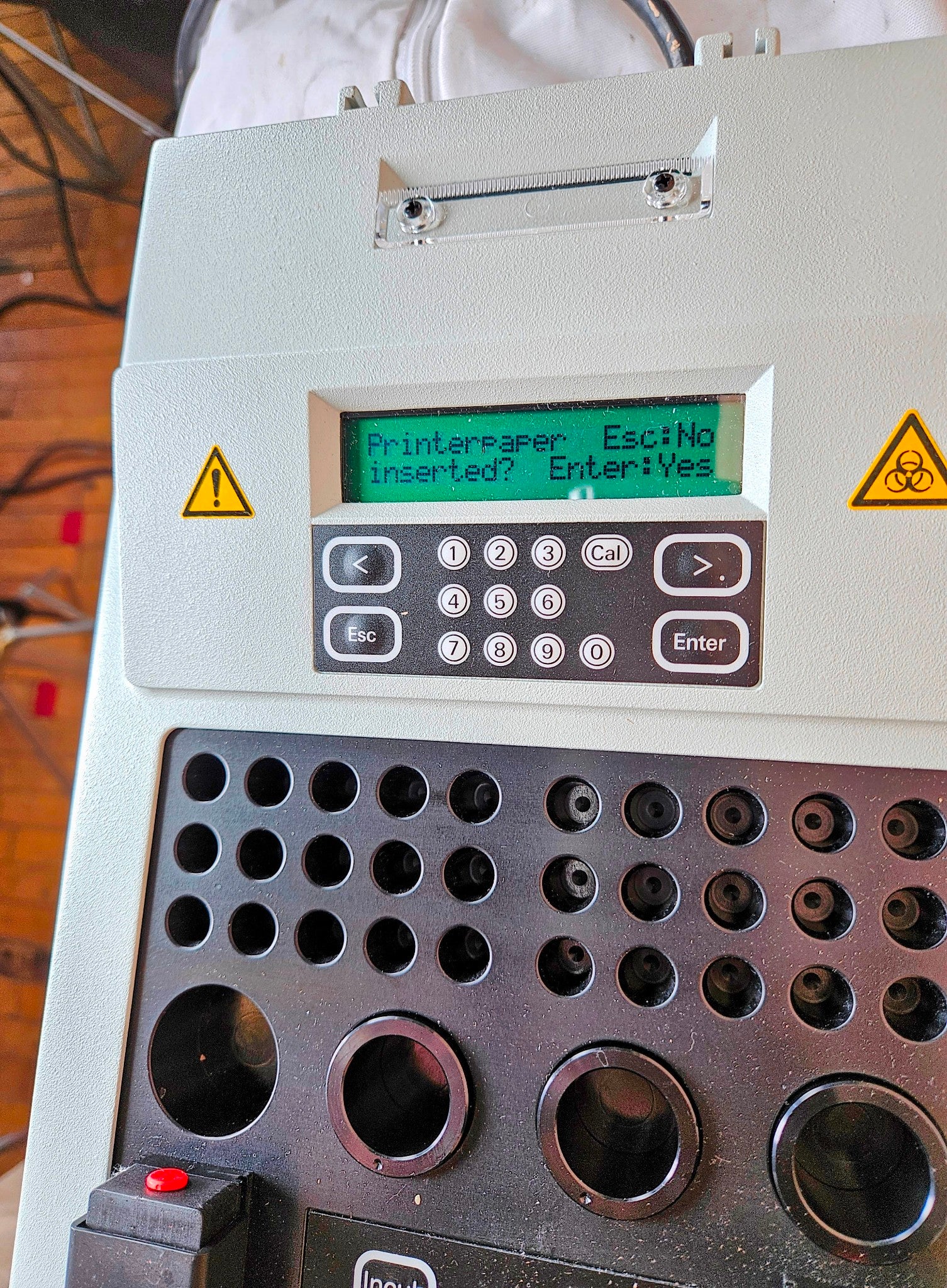

Built-in thermal printer for consolidated result handling
Features & Benefits
The BFT II Analyzer is a dual-channel coagulometer designed for the lowest volume lab. It combines the advantages of mechanical and photo-optical clot detecting principles.
Total efficiency
Stores reference curves
Automatic result calculation, e.g., PT in sec, % of norm/ PR/ INR, Fibrinogen in mg/dL or g/L

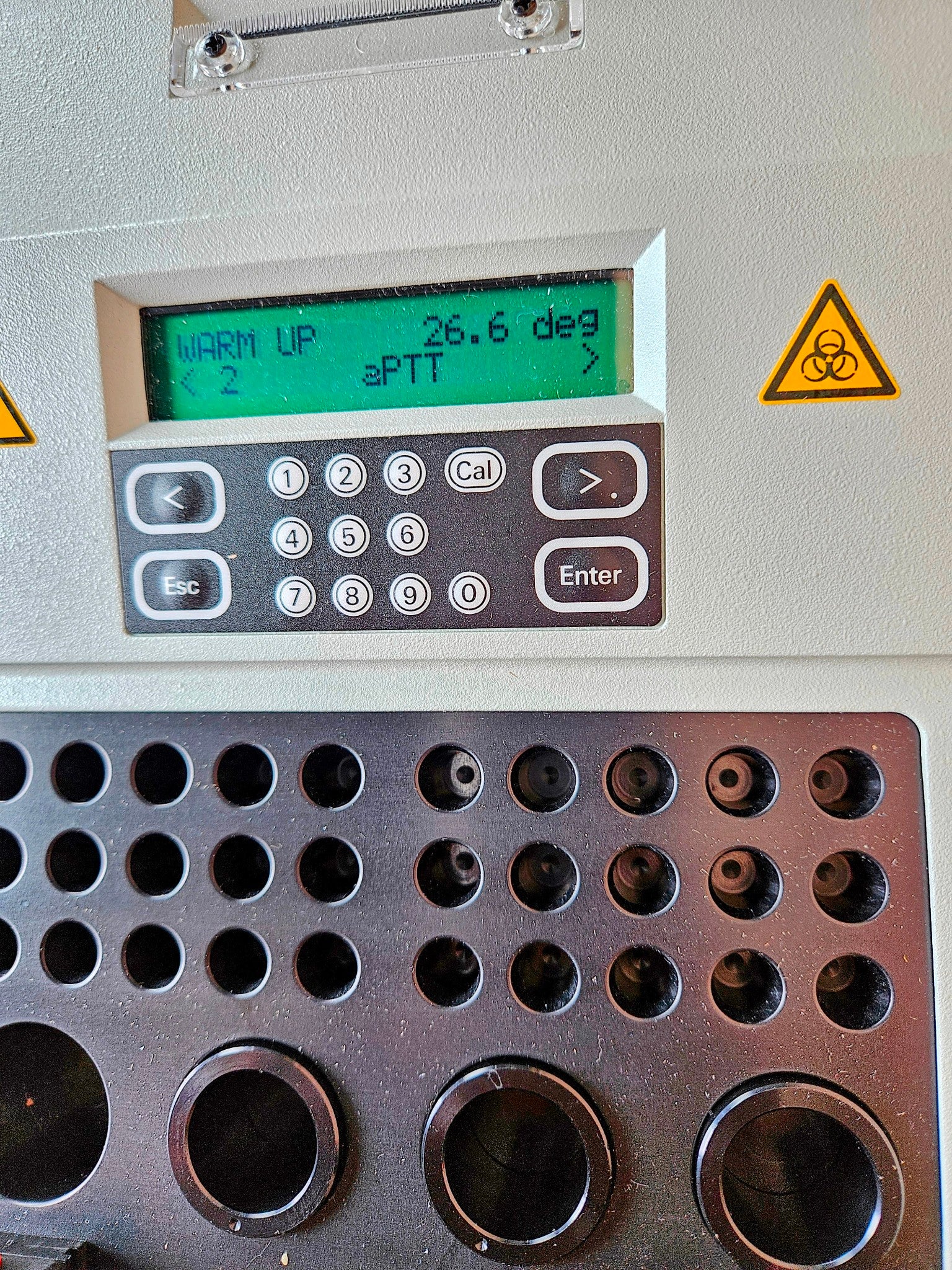

Temperature controlled incubation block for reagents and samples
Sample mixing during measurement
Ease-of-use
Light protection cap reduces the risk of user errors by keeping the pipetting channel closed unless a cuvette has been inserted
Built-in timer for incubation

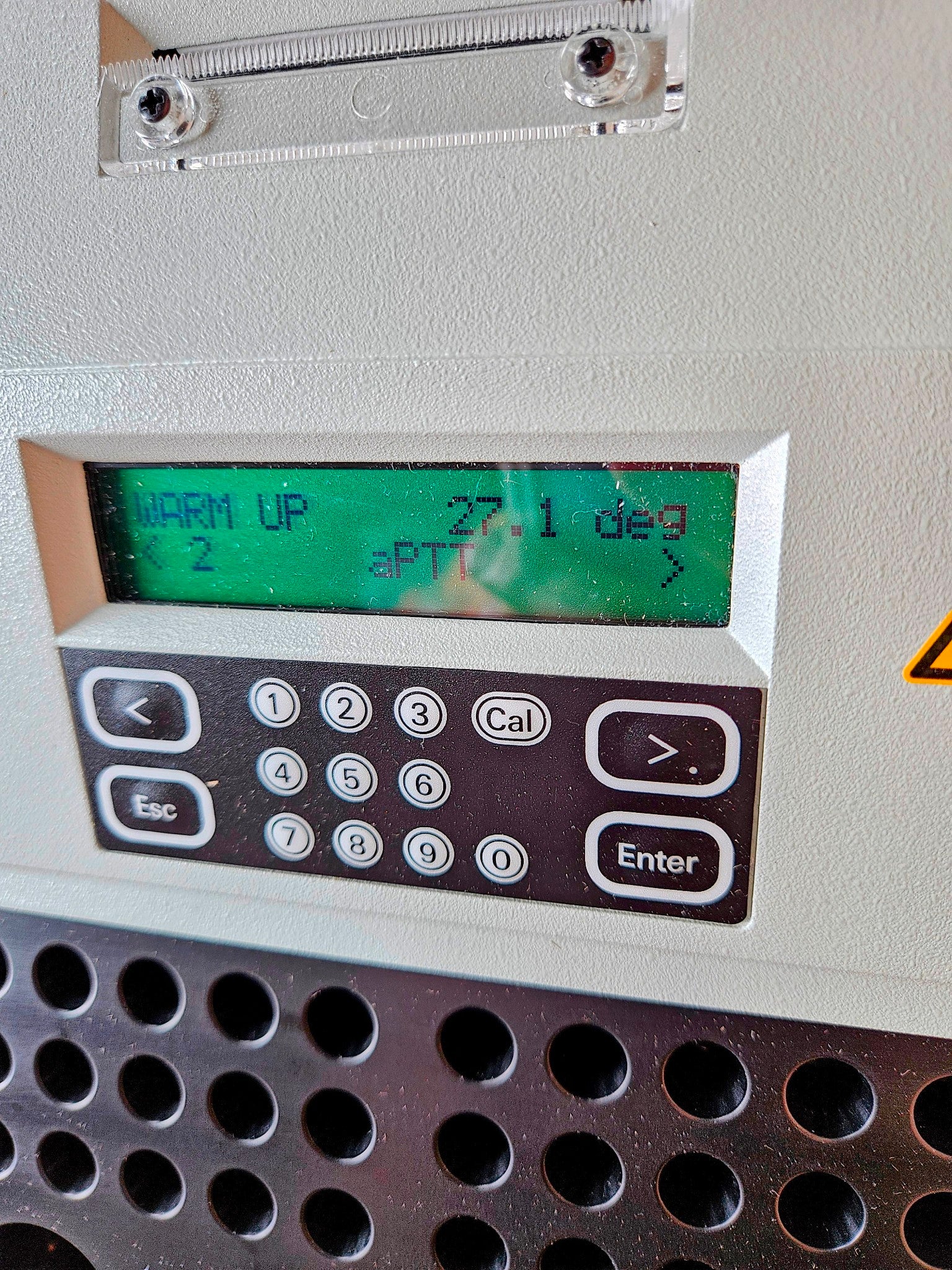

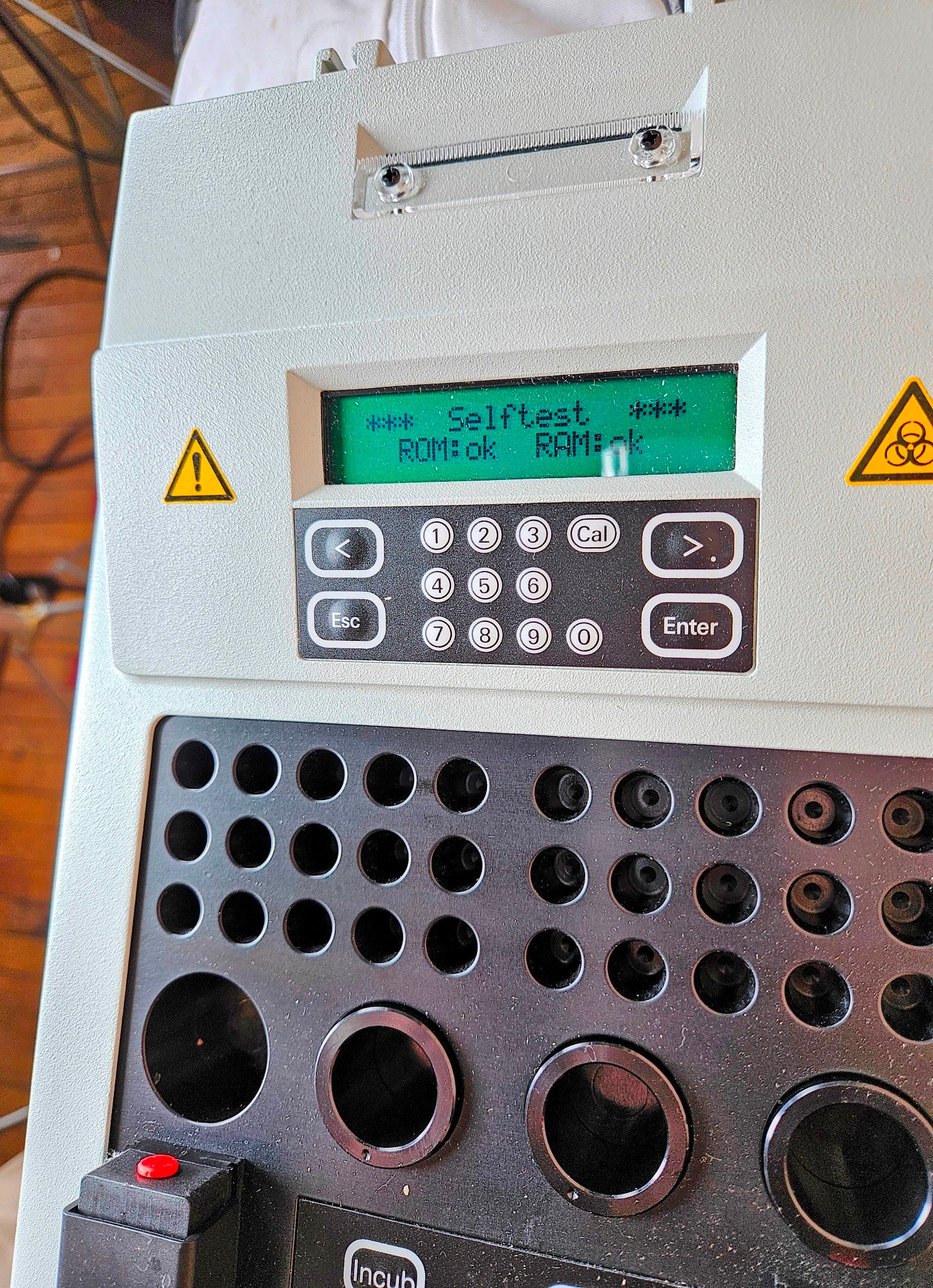

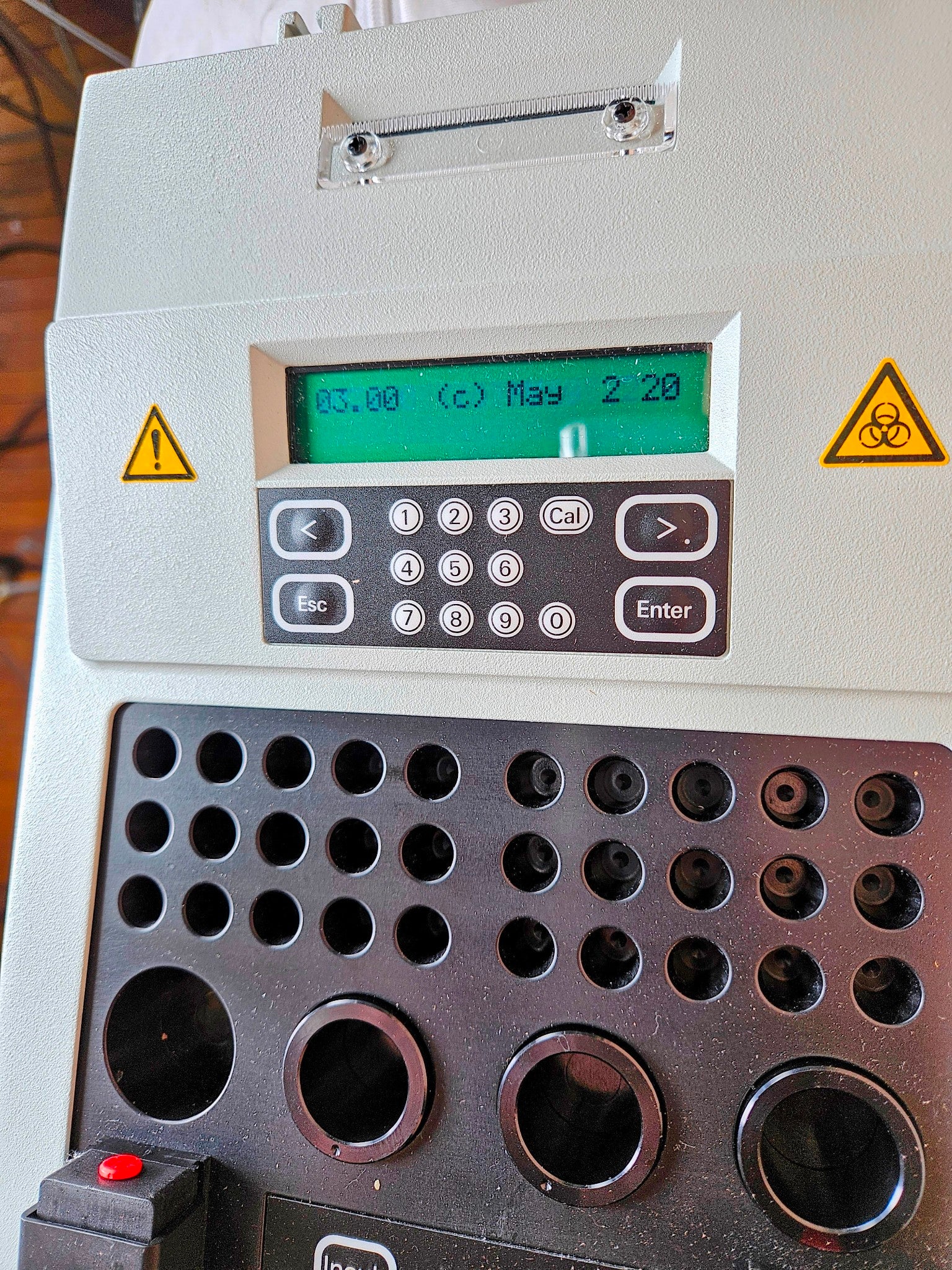

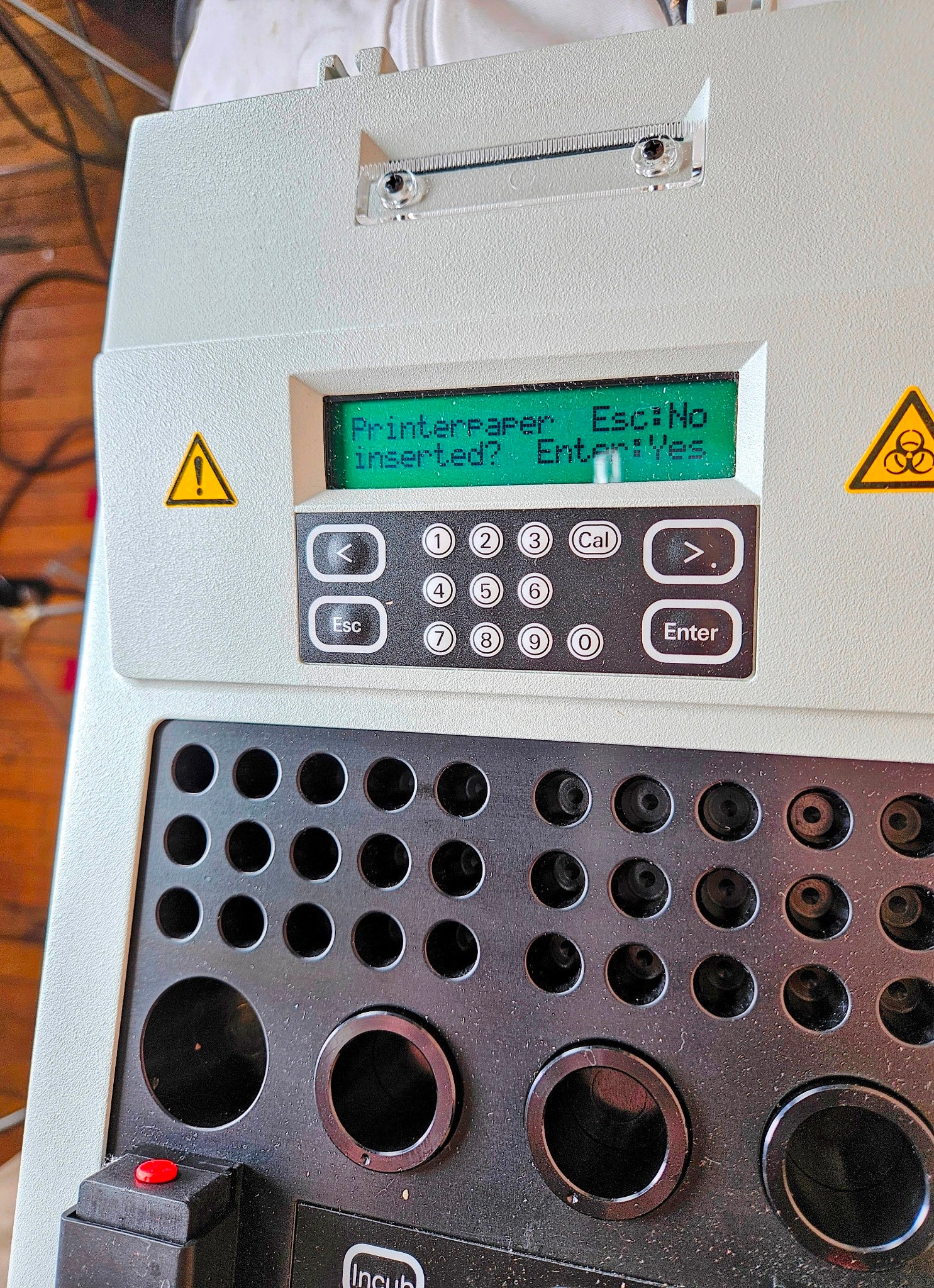

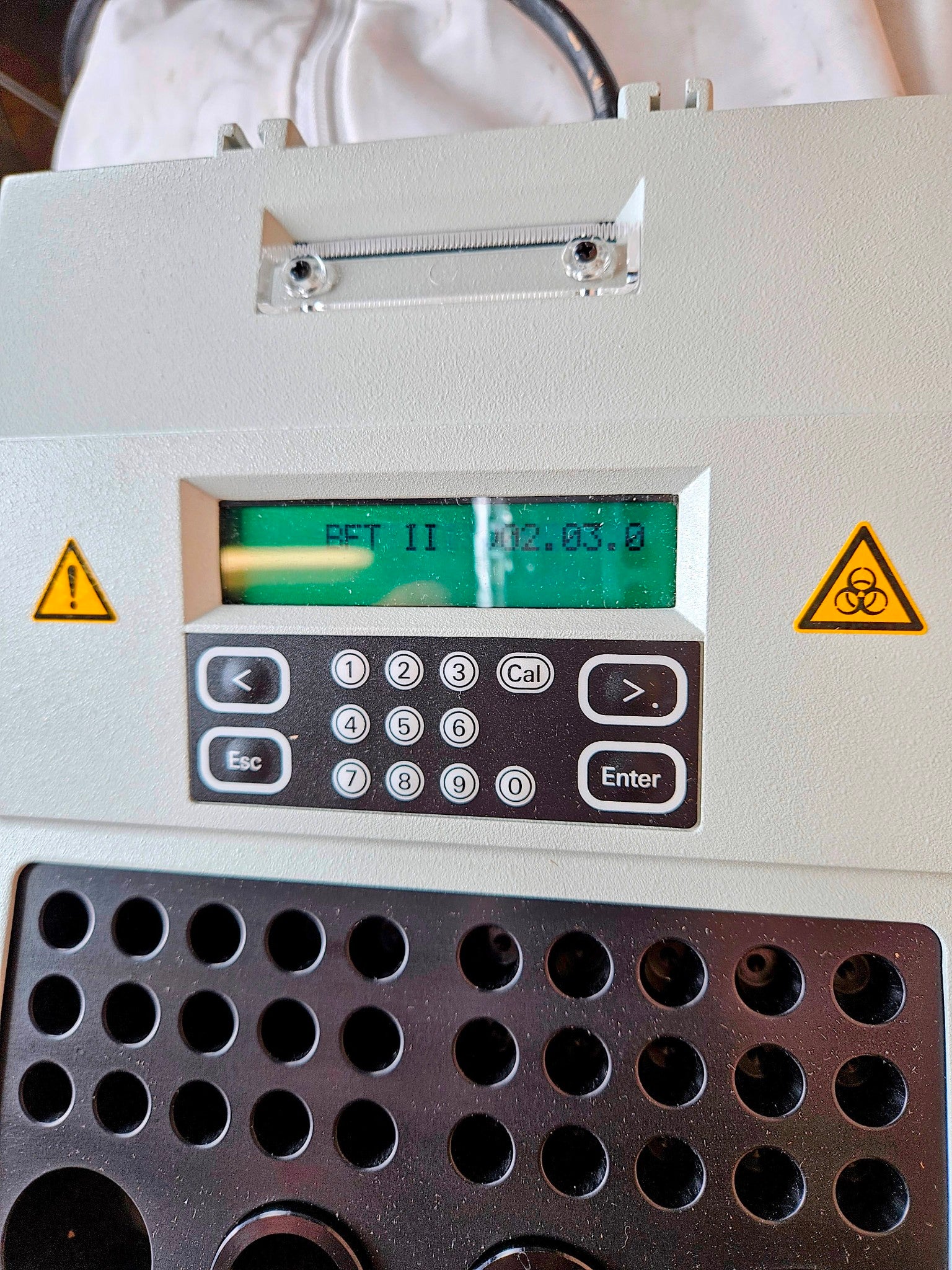

Membrane keypad for easy handling of test processing
Pre-programmed methods
Labor and cost savings
Half-volume and single cuvette testing require minimal sample volume
Memory function for reference curves
As a back-up analyzer, the BFT II provides data comparable to those obtained with other Siemens hemostasis analyzers
Assays
PT Reagents

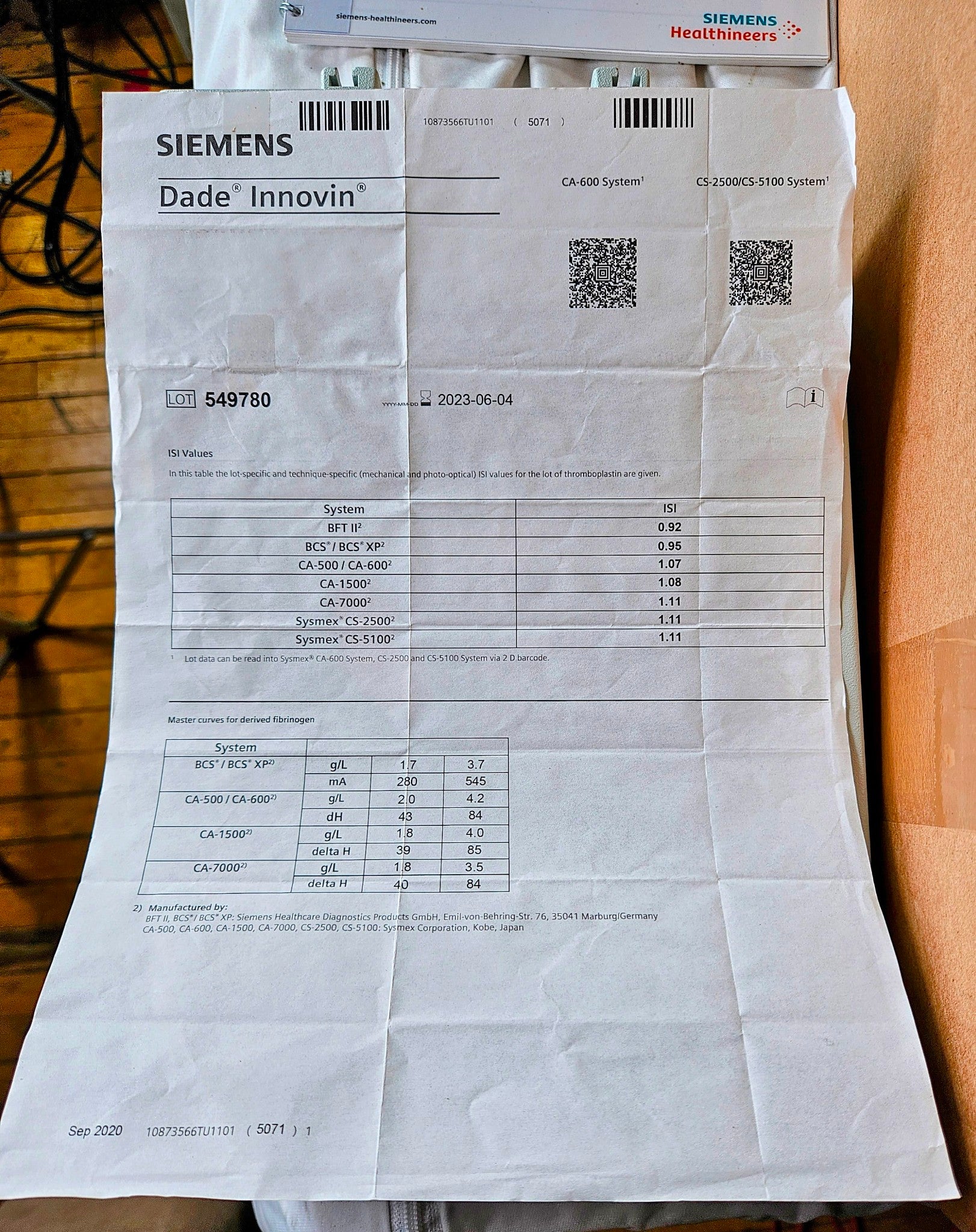

Dade® Innovin® INR
Dade Innovin sec
Dade Innovin %
Thromborel® S INR
Thromborel S sec
Thromborel S %
APTT Reagents
Dade Actin®
Dade Actin FS
Dade Actin FSL
Pathromtin® SL
Fibrinogen Reagents
Multifibren® U
Thrombin Time Reagents
Batroxobin Reagent*
Test Thrombin Reagent*
Thromboclotin®*
Factor Deficient Reagents
Factor II-Dade Innovin*
Factor II-Thromborel S*
Factor V-Dade Innovin*
Factor V-Thromborel S*
Factor VII-Dade Innovin*
Factor VII-Thromborel S*
Factor VIII-Dade Actin*
Factor VIII-Pathromtin SL*
Factor IX-Dade Actin*
Factor IX-Pathromtin SL*
Factor X-Dade Innovin*
Factor X-Thromborel S*
Factor XI-Dade Actin*
Factor XI-Pathromtin SL*
Factor XII-Dade Actin*
Factor XII-Pathromtin SL*
Lupus Anticoagulant Reagents
LA 1 Screening Reagent*
LA 2 Confirmation Reagent*
Thrombosis Risk Reagents
ProC® Global*
ProC Global FV*
Protein C*
Technical Specifications
Dimensions nApprox. 200 mm x 300 mm x 100 mm (W x D x H)
Weight Approx. 3.8 kg
Onboard Capacity
4 reagents including 1 reagent mixer
Incubation block for up to 30 cuvettes
Throughput
Approx. 60 PT tests/hour
Approx. 30 APTT tests/hour
Sample Handling
Manual sample pipetting
Reagent Handling
Manual reagent pipetting
4 positions GW 15 – bottles
GW5 bottles using reducer rings
Operation

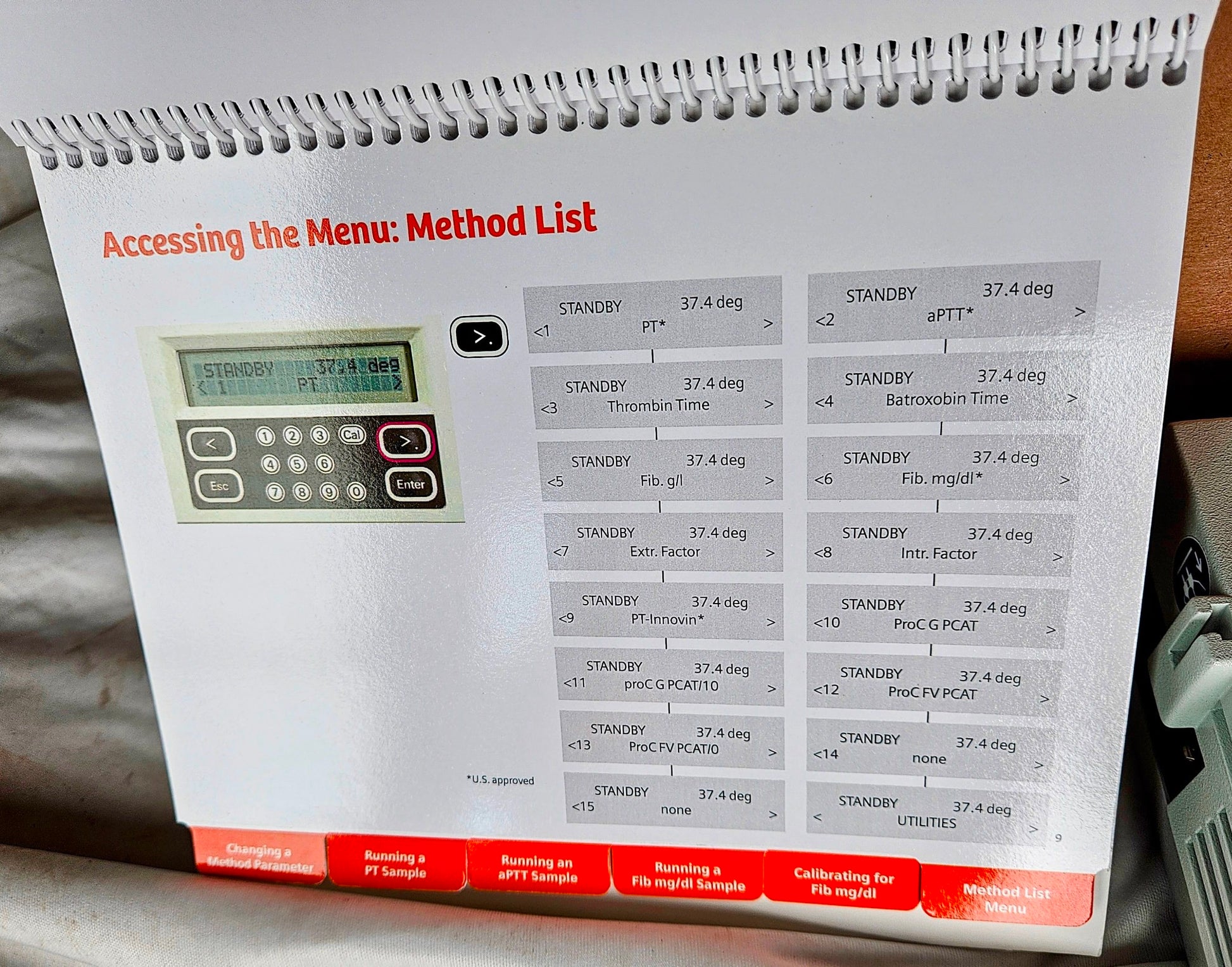

Pre-programmed methods
2 free positions for user-defined methods
Built-in timer
Automatic timer start and stop
