SHIMADZU SPD-M20A PROMINENCE DIODE ARRAY DETECTOR 90-DAY-WARRANTY FREE SHIP

Name: SHIMADZU SPD-M20A PROMINENCE DIODE ARRAY DETECTOR 90-DAY-WARRANTY FREE SHIP
Brand: EachProject
SKU: IF_95C8C2CE-1-2-1-1-1-2-2-1-1-1-2-2-1-1-1-1-1-1--1
Price: 3500.00 USD
Availability: OutOfStock

SHIMADZU SPD-M20A PROMINENCE DIODE ARRAY DETECTOR 90-DAY-WARRANTY FREE SHIP

$3,500.00 USD

Sale Sold out

Taxes included.

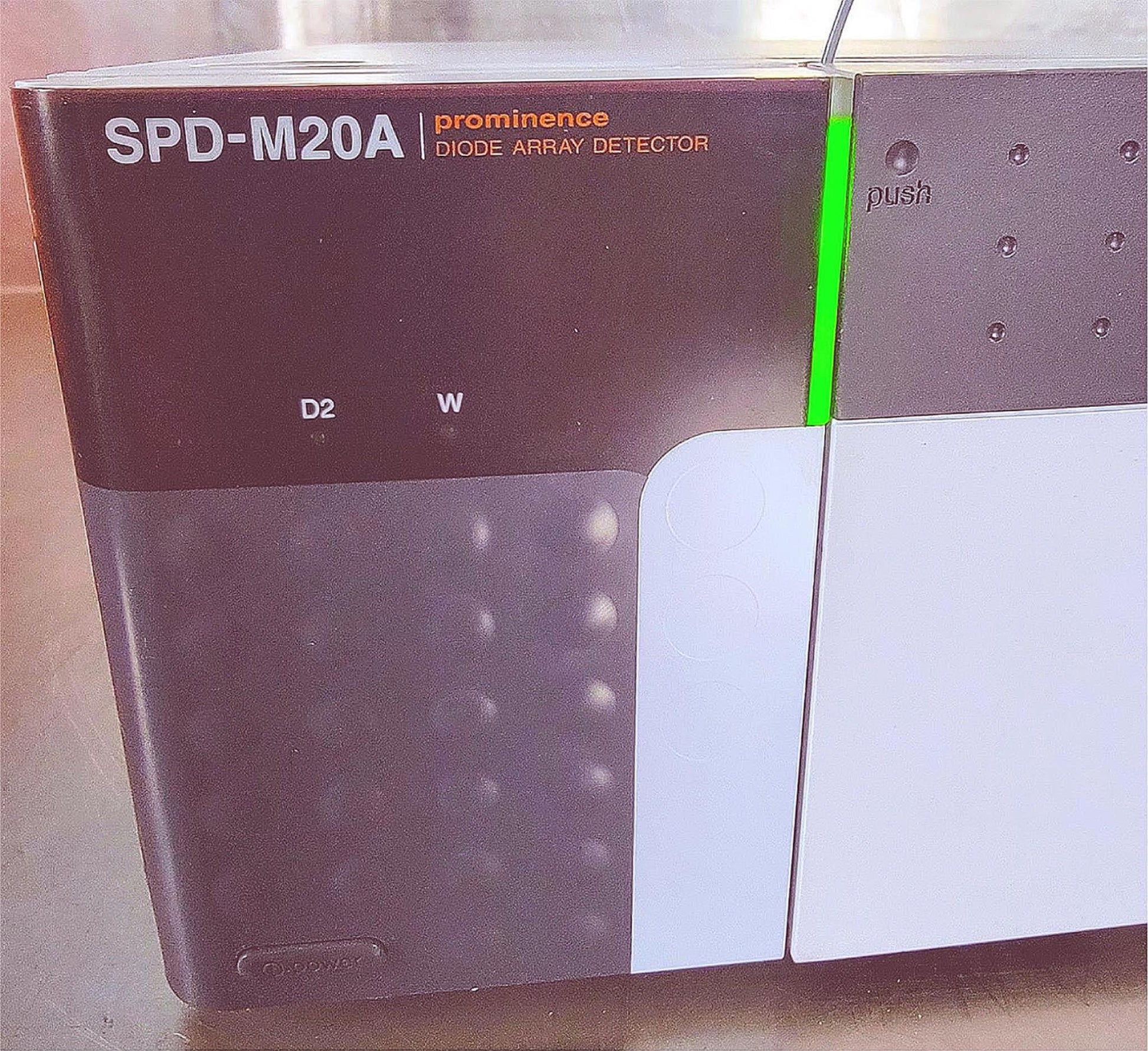

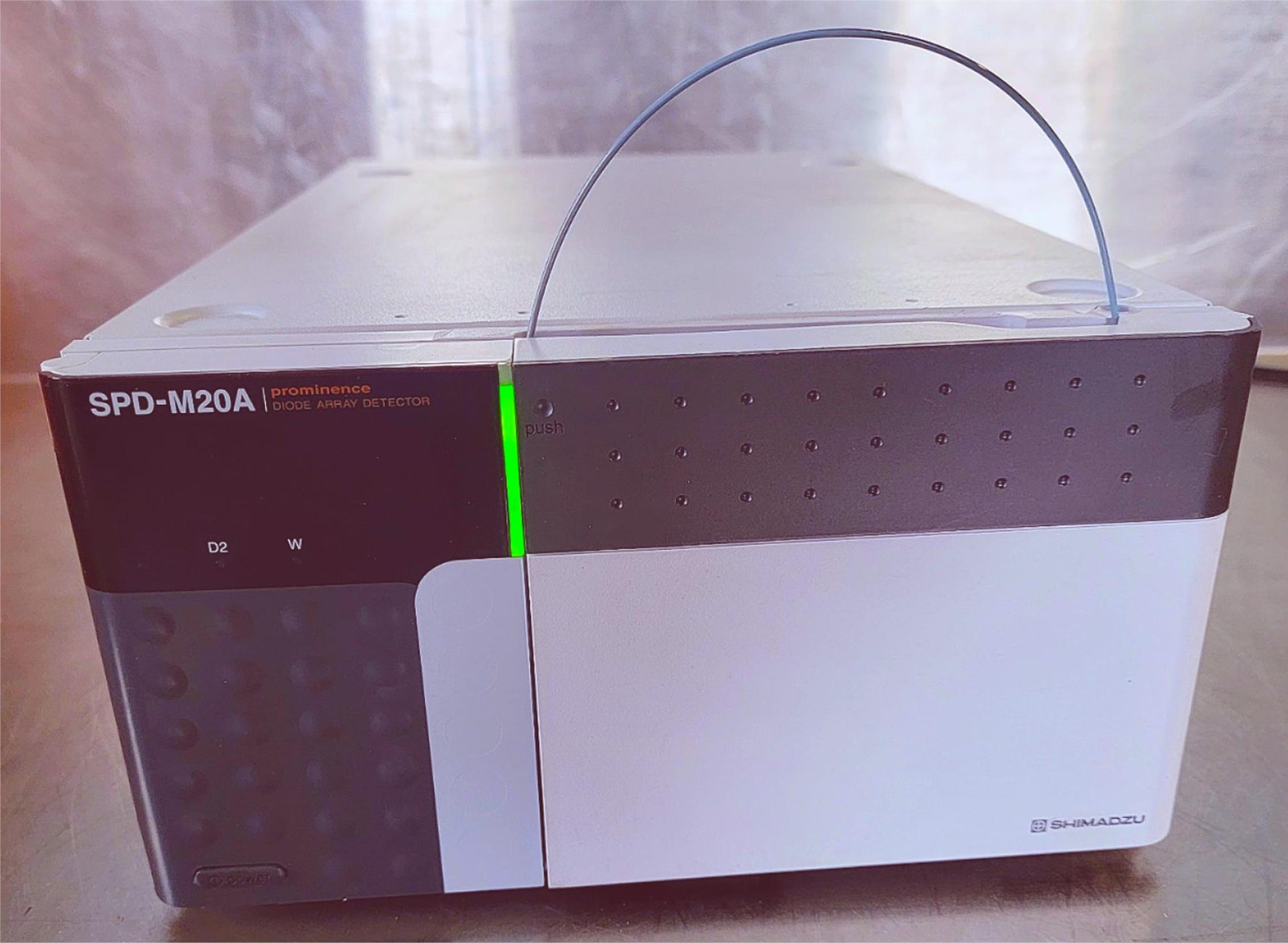

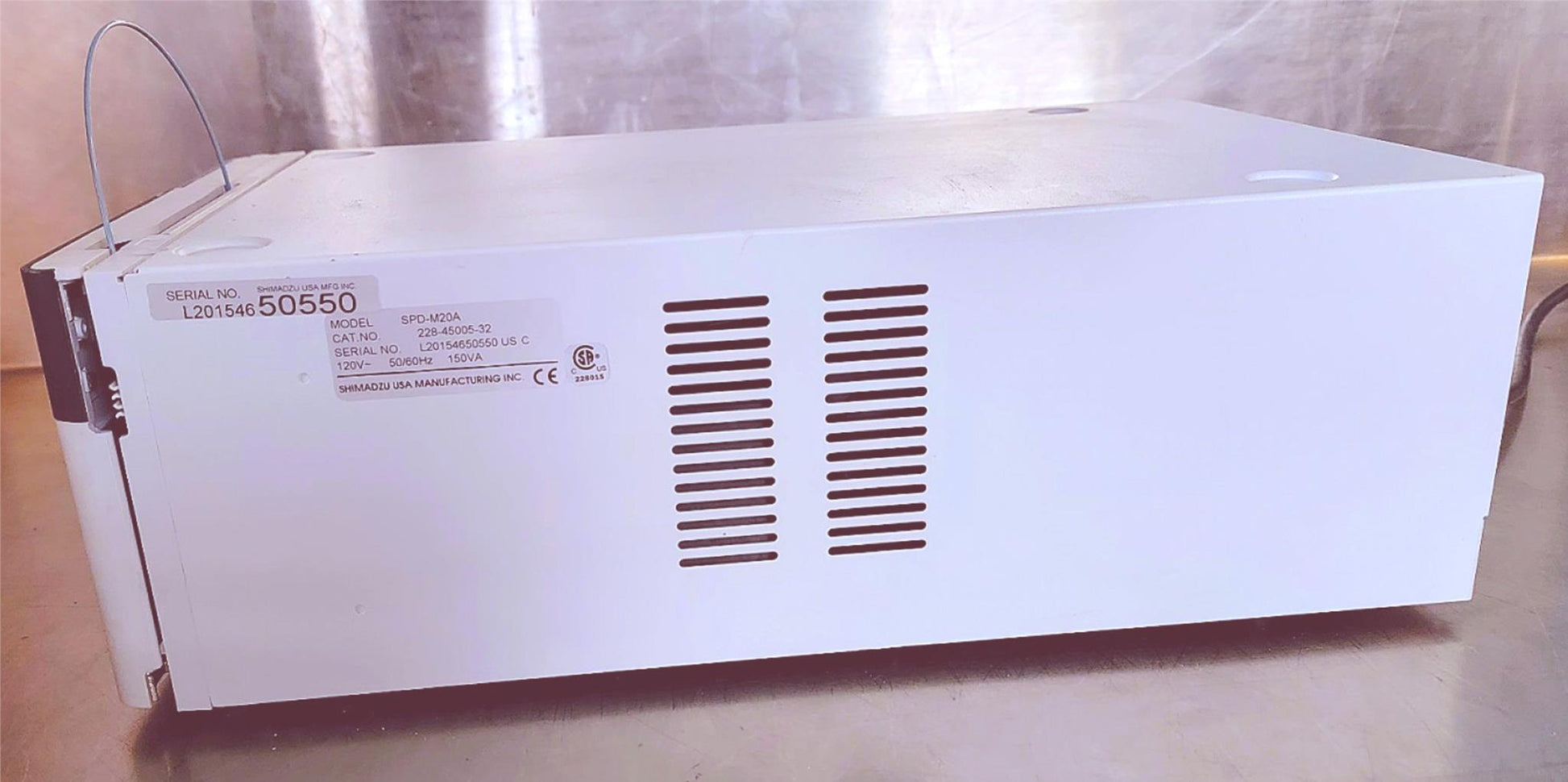

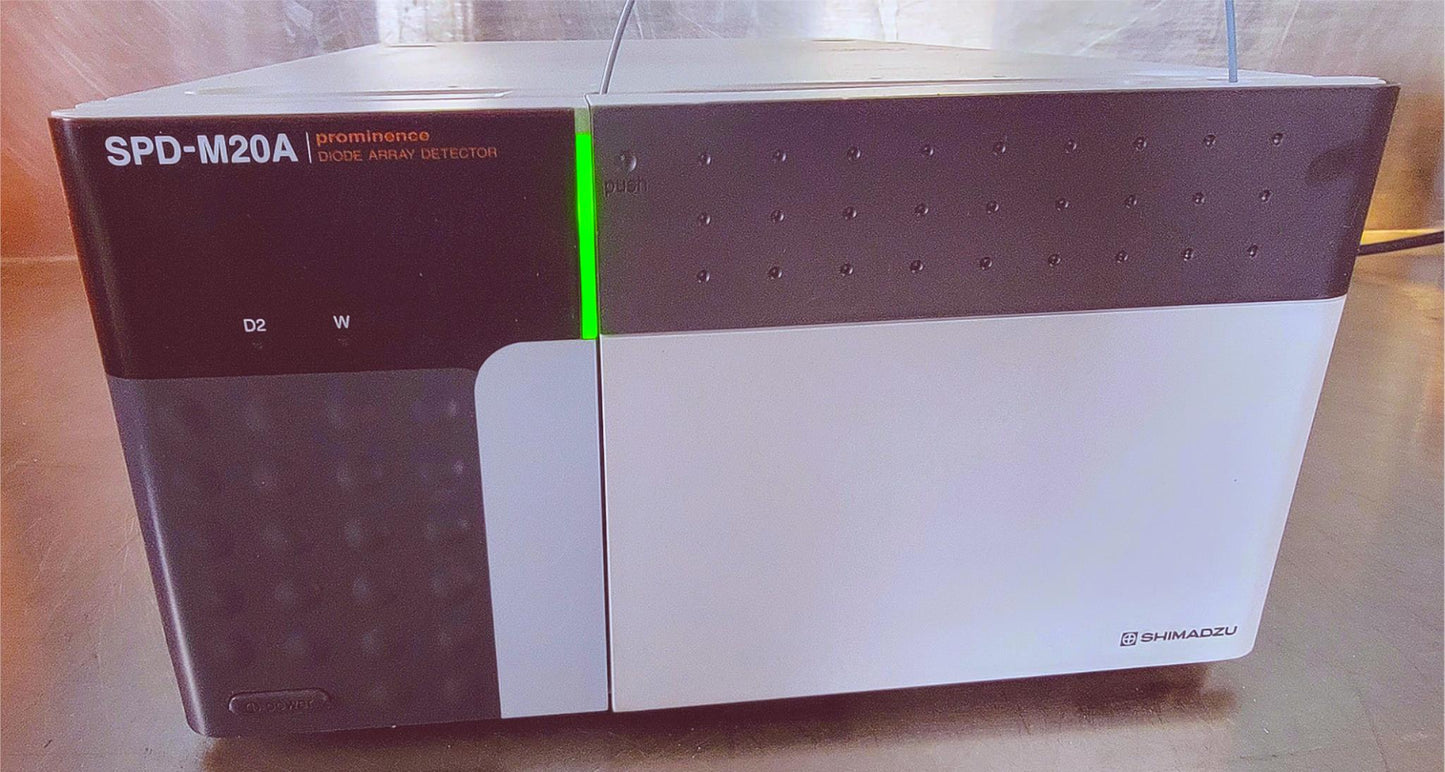

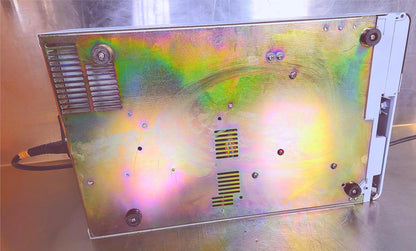

This listing is for a Great Operatinal Condition SHIMADZU SPD-M20A UNIT as can be seen in the pictures.

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

This LCN 4111 LEFT HANDED PARALLEL ARM PUSH SIDE HEAVY DUTY DOOR CLOSER is GUARANTEED to perform at factory specifications and that's why we offer a 90-DAY-WARRANTY on this unit!!!

THIS IS NOT THE USUAL UNIT SOLD ONLINE, THIS ONE IS FULLY TESTED AND PRICED TO SELL, A UNIT IN THIS CONDITION WON'T LAST LONG AT THIS PRICE!!!

Unit came from a Federal University and has ALWAYS been very well taken care of as can be WATCHED IN THE VIDEO and also seen in the pictures.

This fully tested SHIMADZU SPD-M20A PROMINENCE DIODE ARRAY DETECTOR IS GUARANTEED to perform at factory specifications and that's why we offer a 90-DAY-WARRANTY on this unit!!!

All of our equipment is fully tested to perform at factory specifications before being shipped.

Picture is actual item buyer will receive.

FREE USA SHIPPING ALSO!!!

Technical Information below in BLUE ITALICS was taken online from Manufacturer's website:

//speciation.net/Database/Instruments/Shimadzu-Europe/SPDM20A-prominence-Photodiode-Array-Detector-;i2707

The SPD-M20A is the newest product out of a long experience (since 1982) developing photodiodearray detectors. Offering a very low baseline noise of less than 0.35 x 10-5 AU it is comparable or rather more sensitive as common UV detectors. The SPD-M20A is supposed to be the ideal tool for spectral identification and library searches in trace analysis by an optical resolution of 1.2 nm and spectra range of 190-800nm. Variable slit width (1.2 or 8 nm) allows an adaptation according to the application of use. Fast Scan periods and digital filter of higher order lead to a fast detector response and a high data collecting frequency (40Hz).

The SPD-M20A can be used for applications from the micro-LC up to preparative LC by changing the flow cell. The thermostated flow cell stabilizes the baseline and avoid temperature depend effect in eluents which absorbance is temperature dependent. As for an multi-wavelength UV detector, the SPD-M20A offers a 4 channel analogue outlet. The 4 channels can be imported to other data processing system or can be used for as triggers for fraction collection.

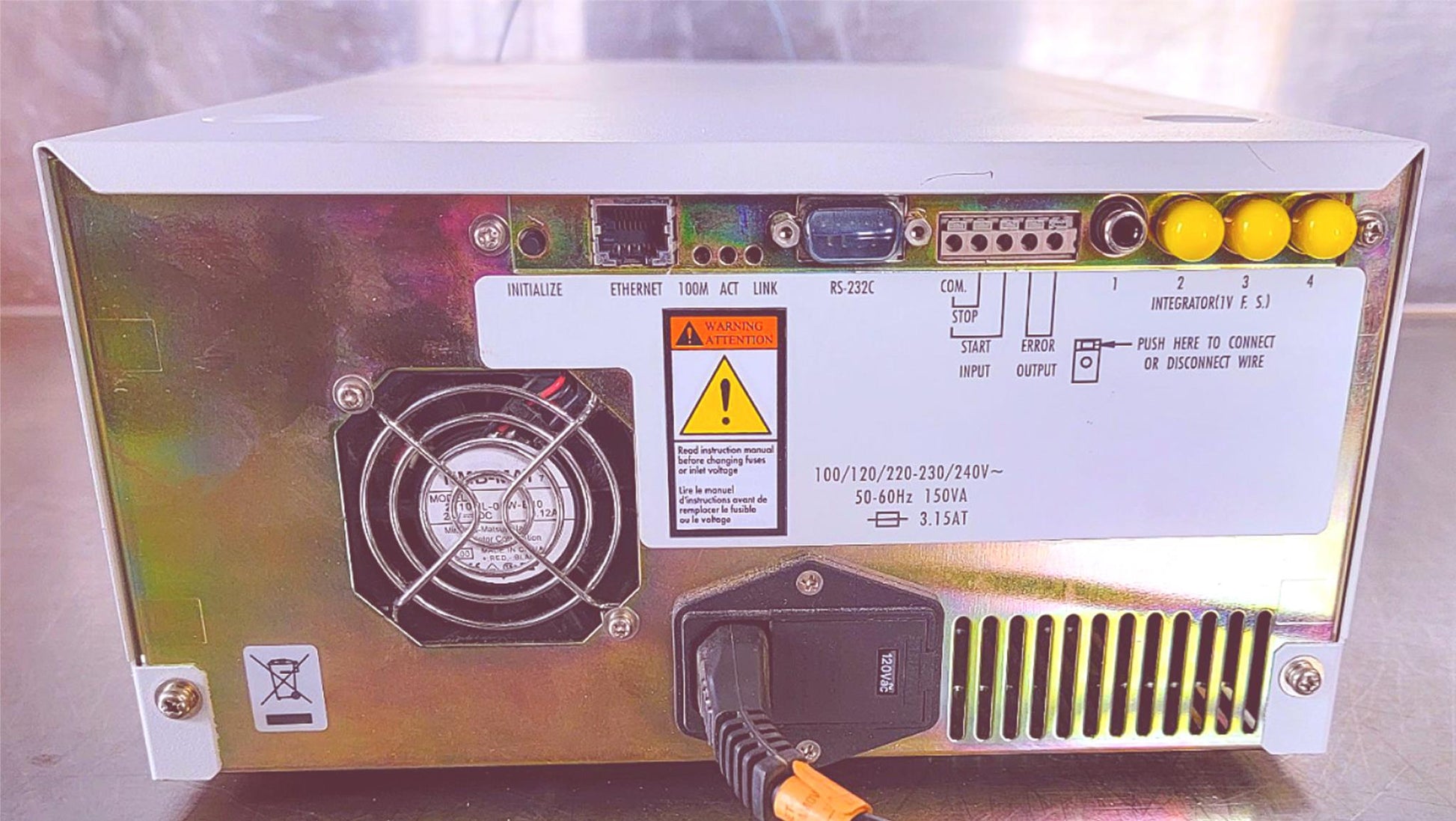

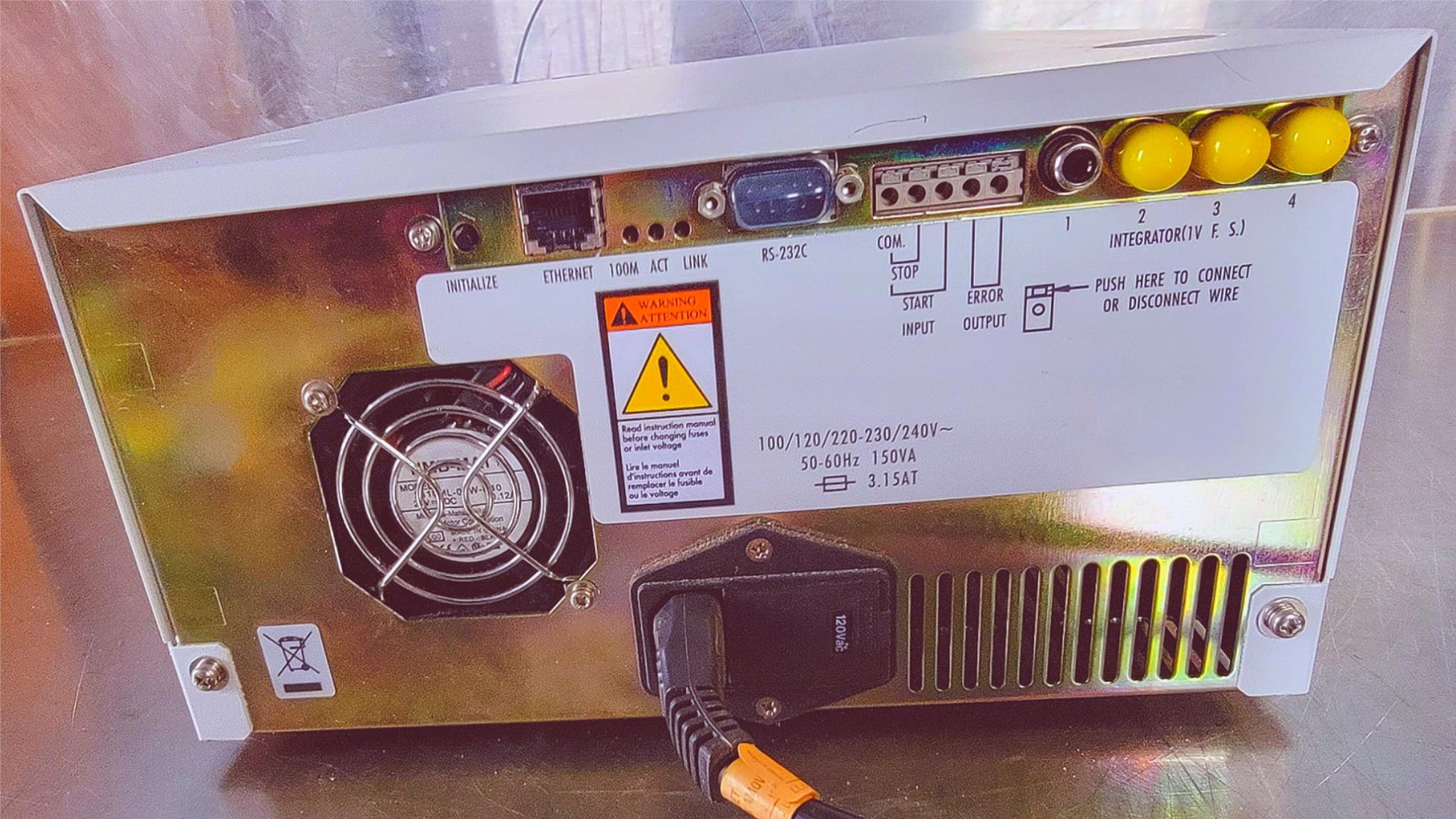

The prominence PDA detector communicates with the network / PC via an Ethernet interface, and is controlled by LabSolution or CLASS VP software. Both software packages allows beside the standard data processing features and instrument control for complete prominence HPLC systems peak purity calculation, library searches and flexible reporting. The integrated web-server allows easy access to the main parameters with Microsoft Internet Explorer®.

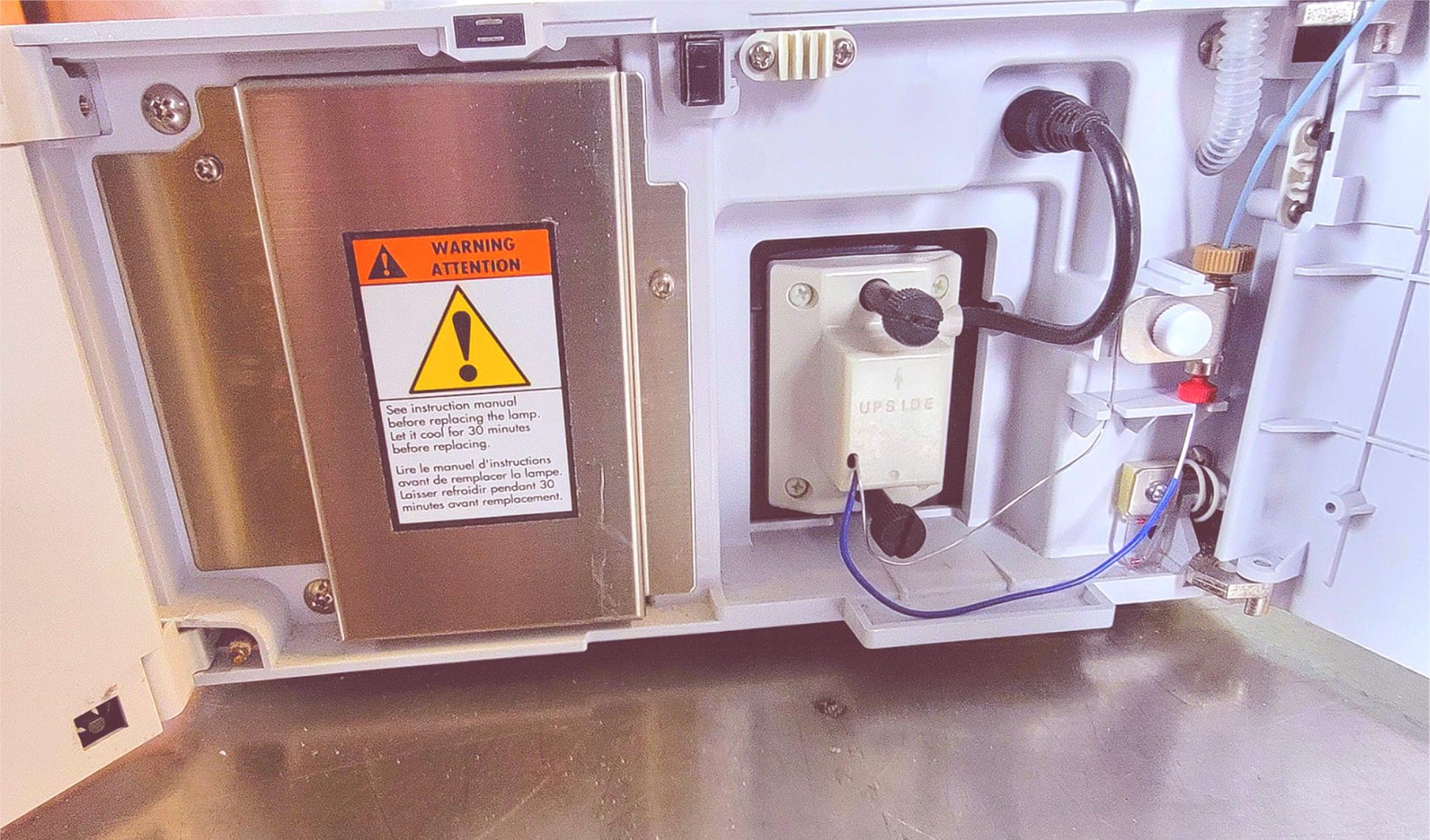

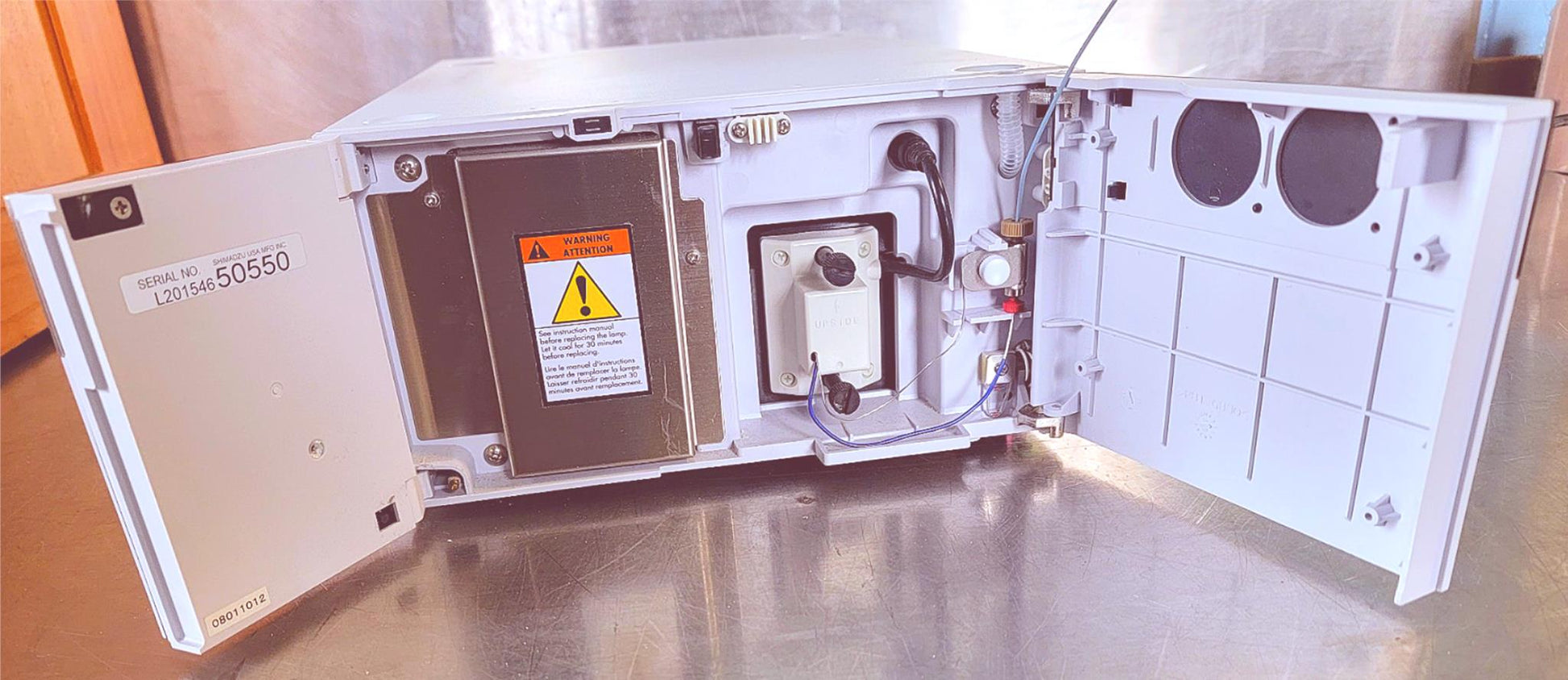

Maintenance work is minimised by simple access to the detector cell and lamps from the front of the instrument. pre-adjusted D2 Lamps avoid time consuming adjustments of the instrument after lamp exchange. The software supports wavelength tests by inbuilt Holmium filter, energy test for optimisation of the data acquisition and logbook functions in order to meet GLP/GMP requirements.

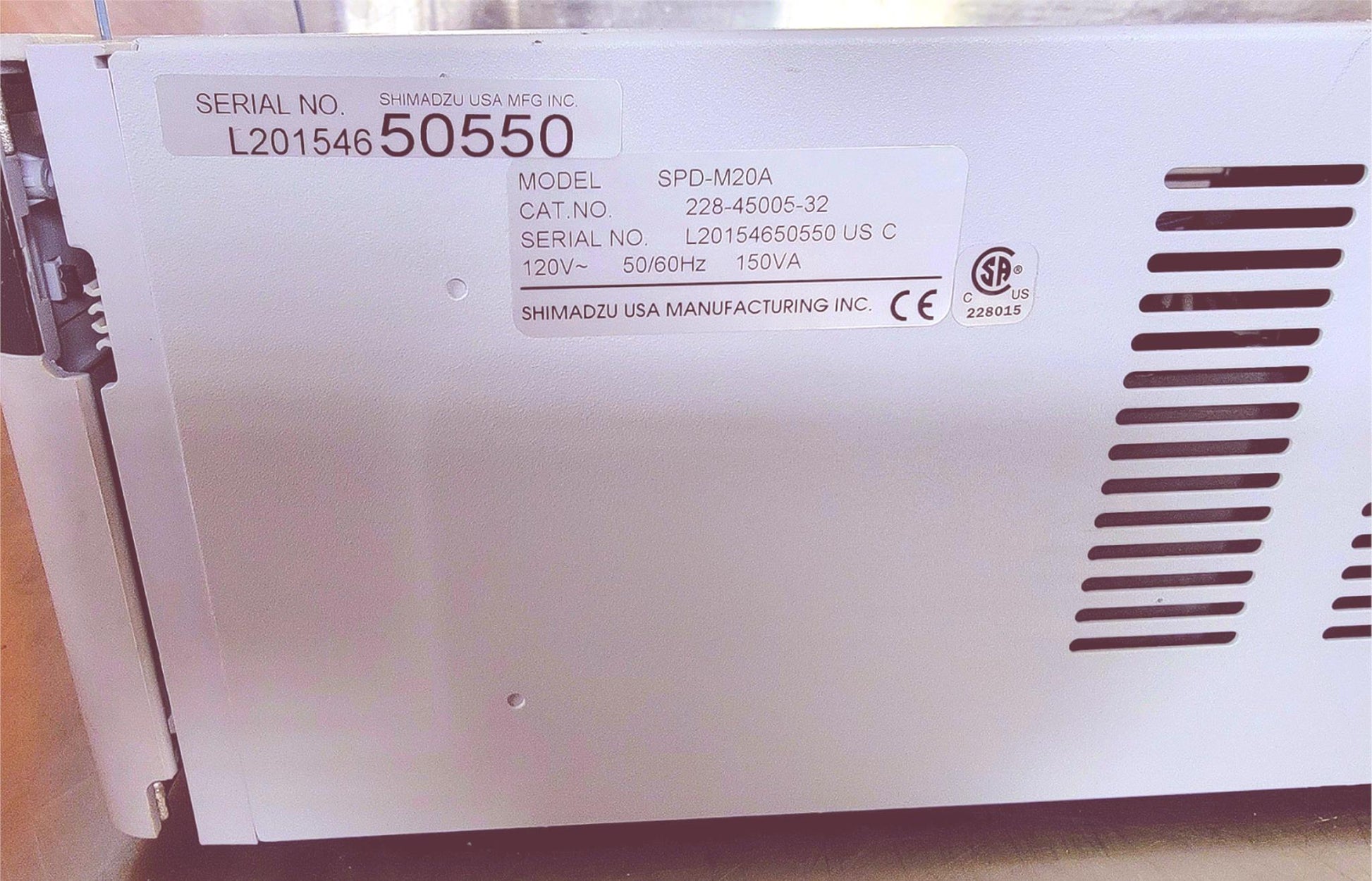

Shimadzu SPD-M20A PDA Detector (available part numbers: 228-45005-32 & 228-45005-28) Wavelength range: 190 to 800 nm

It can be also be configured through a web browser by entering the following IP address 192.168.200.99 and log in or try 192.168.200.98 because PDA cannot be configured through CBM page it has its own page so all one has to do is to set PDA's group name to the same as CBM.

Specifications

The SPD-M20A High Performance Liquid Chromatography PDA detector provides users with the most advanced level of sensitivity and stability found in today's PDA detectors. Sharing many of the qualities of the SPD-20A/20AV UV-Vis Detectors, the SPD-M20A attains sensitivity levels approaching the most advanced UV-Vis detectors. It has a high-sensitivity mode with an 8 nm slit width. Using light-source compensation, it offers a noise level of 0.6×10-5 AU, which is comparable to that of traditional UV-VIS detectors.

Features

Greater Baseline Stability

Supplied as standard, a temperature-controlled flow cell eliminates inconsistencies caused by changes in absorbance due to shifts in room temperature. This helps increase the baseline stability and the analysis reliability.

Superior Linearity - 2.0AU

Using newly developed signal processing technology, the stray-light correction function has been enhanced, and the linearity has been improved. This expanded linearity combines with various noise-reduction technologies to provide users with a wide dynamic range and allow for the analysis of your target compound and minor impurities in a single run.

Web Browser Control

The SPD-M20A is equipped with an Ethernet interface and Web-control functions, allowing devices to be monitored and controlled from PCs in the network. As a standalone high- sensitivity multi-wavelength detector, it can be incorporated into non-Shimadzu HPLC systems.

Specifications

Light source Number of diode elements Wavelength range

Deuterium (D2) lamp, tungsten (W) lamp 512

190 to 800 nm

Bandwidth, slit width Wavelength accuracy Wavelength precision Noise

Drift Linearity Functions Cell

Cell temperature- control range Web control

Buffer memory

Operating temperature range

Dimensions, weight Power requirements

1.2 nm (high-resolution mode), 8 nm (high-sensitivity mode) 1 nm max.

0.1 nm max
