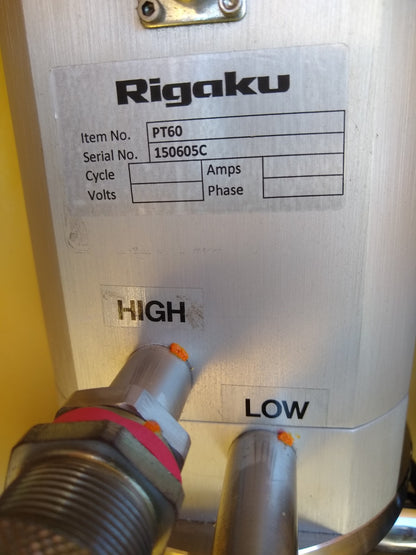

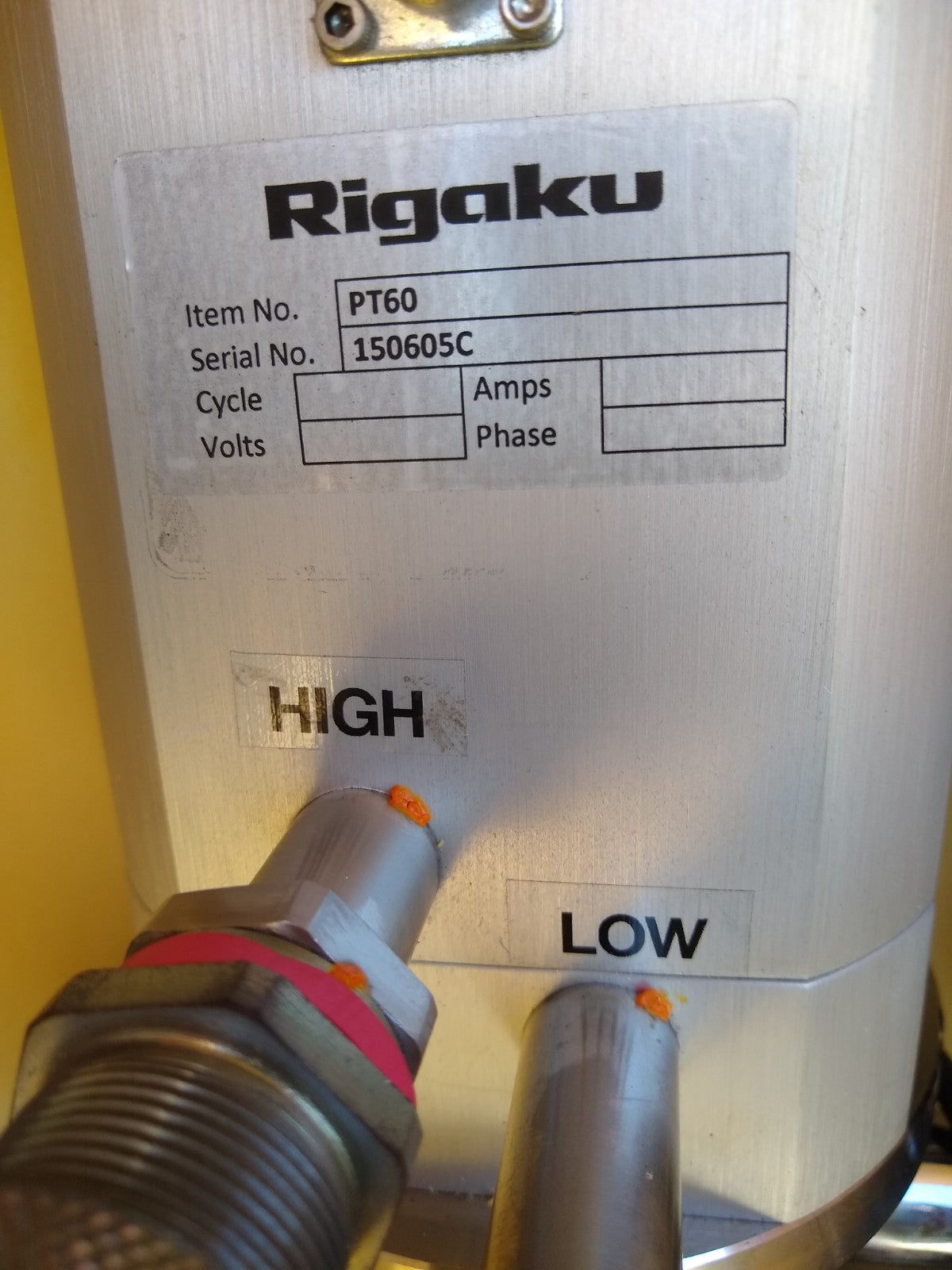

THIS LISTING IS FOR A 100% GREAT OPERATIONAL CONDITION RIGAKU AL60 CRYOGENIC CRYSTAL COOLER SYSTEM WITH COLD HEAD FOR CRYSTALLOGRAPHY SYSTEM XS/CCS-99 as can be seen in the pictures.
This unit Came from a Federal University research lab which ended its research and does not need to use it any longer. It has always been very well taken care of.

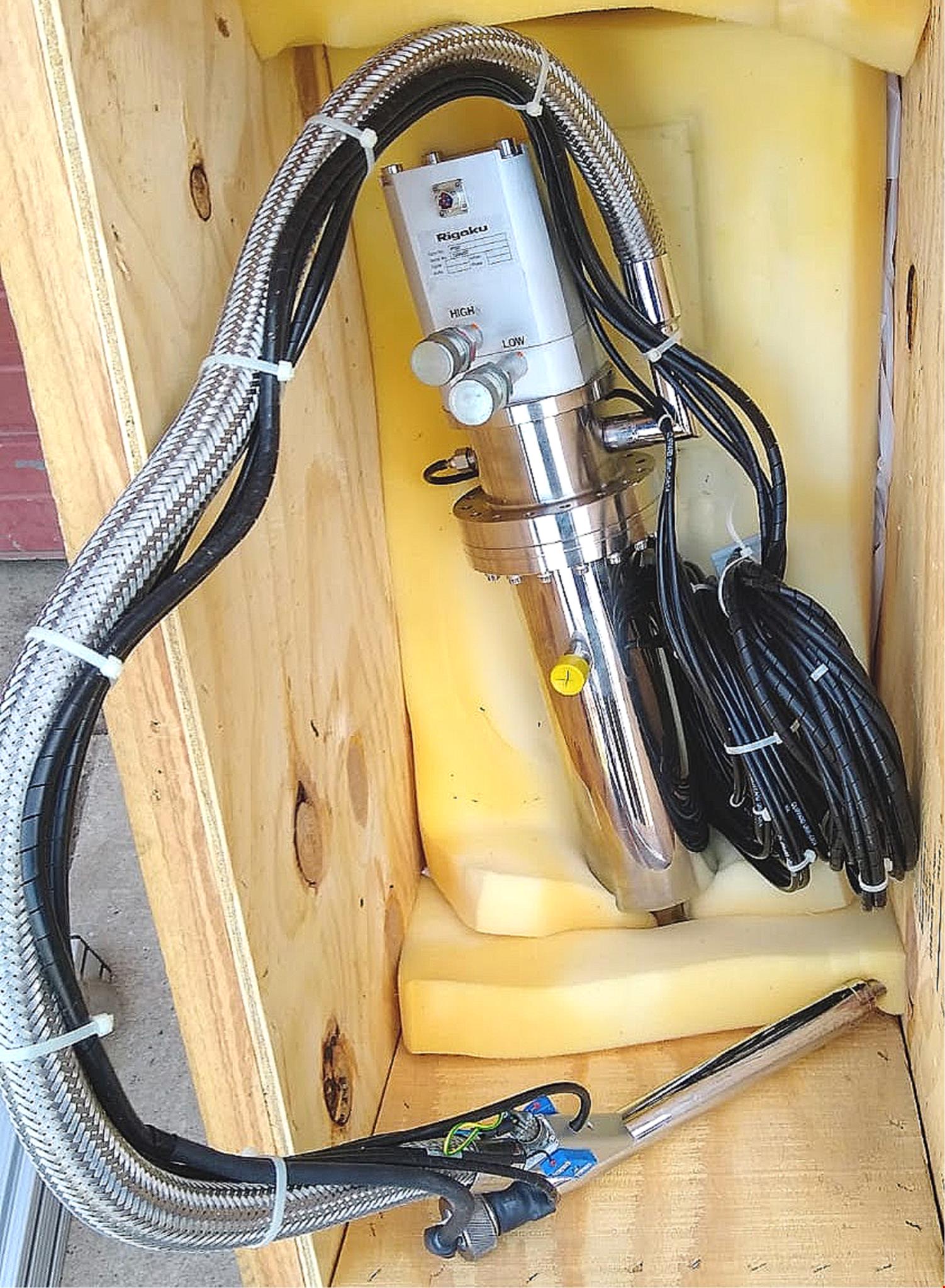

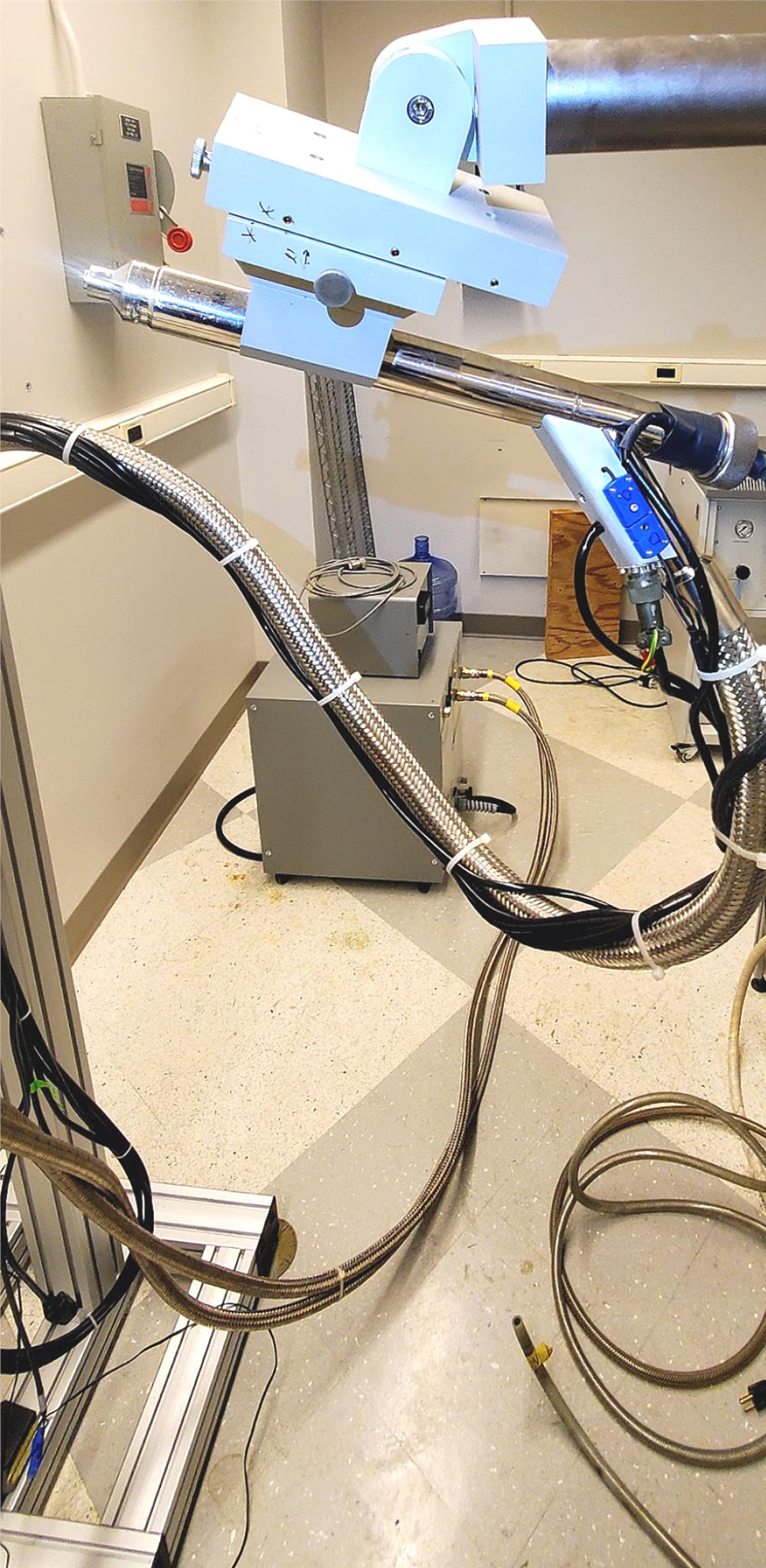

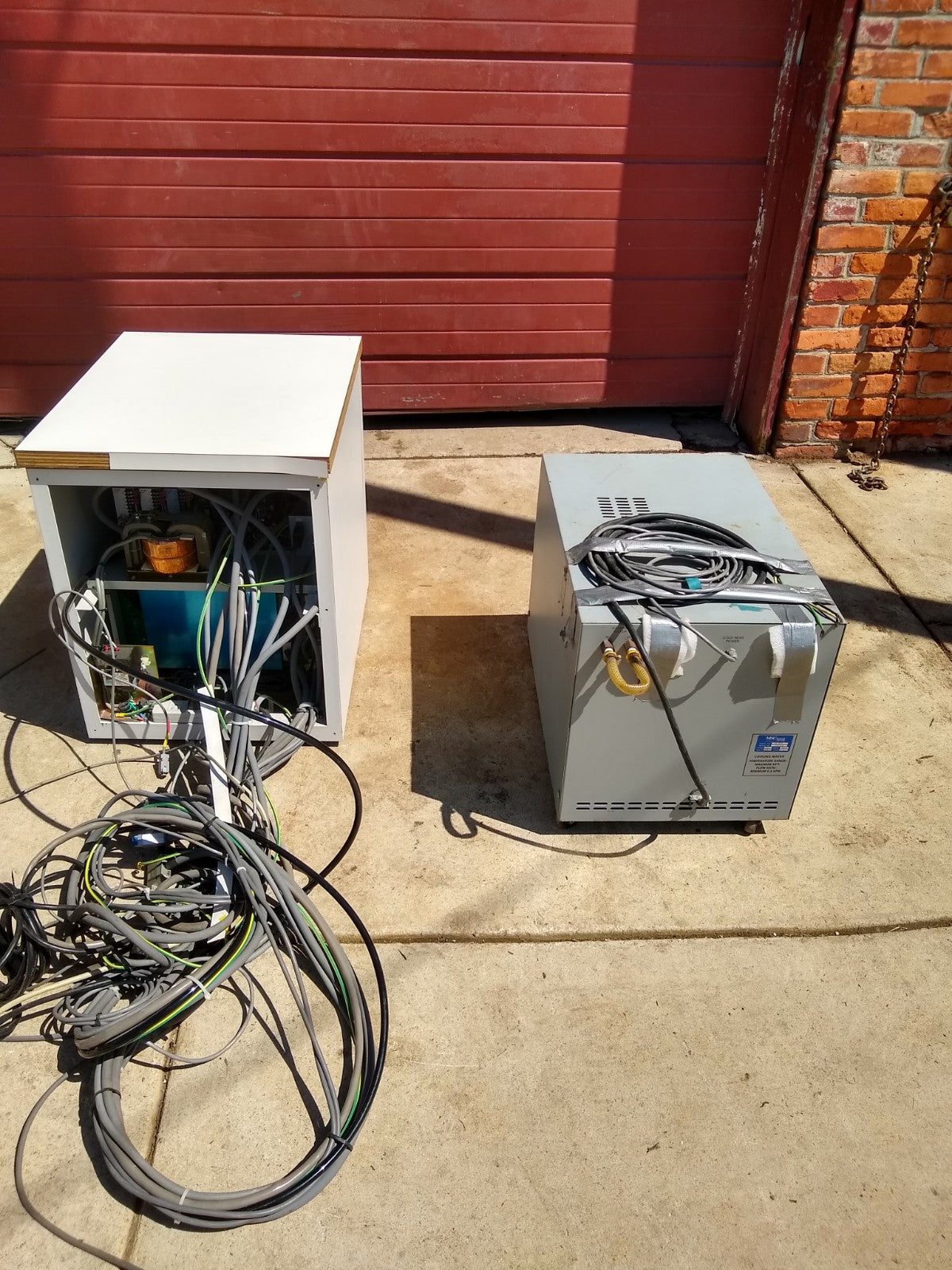

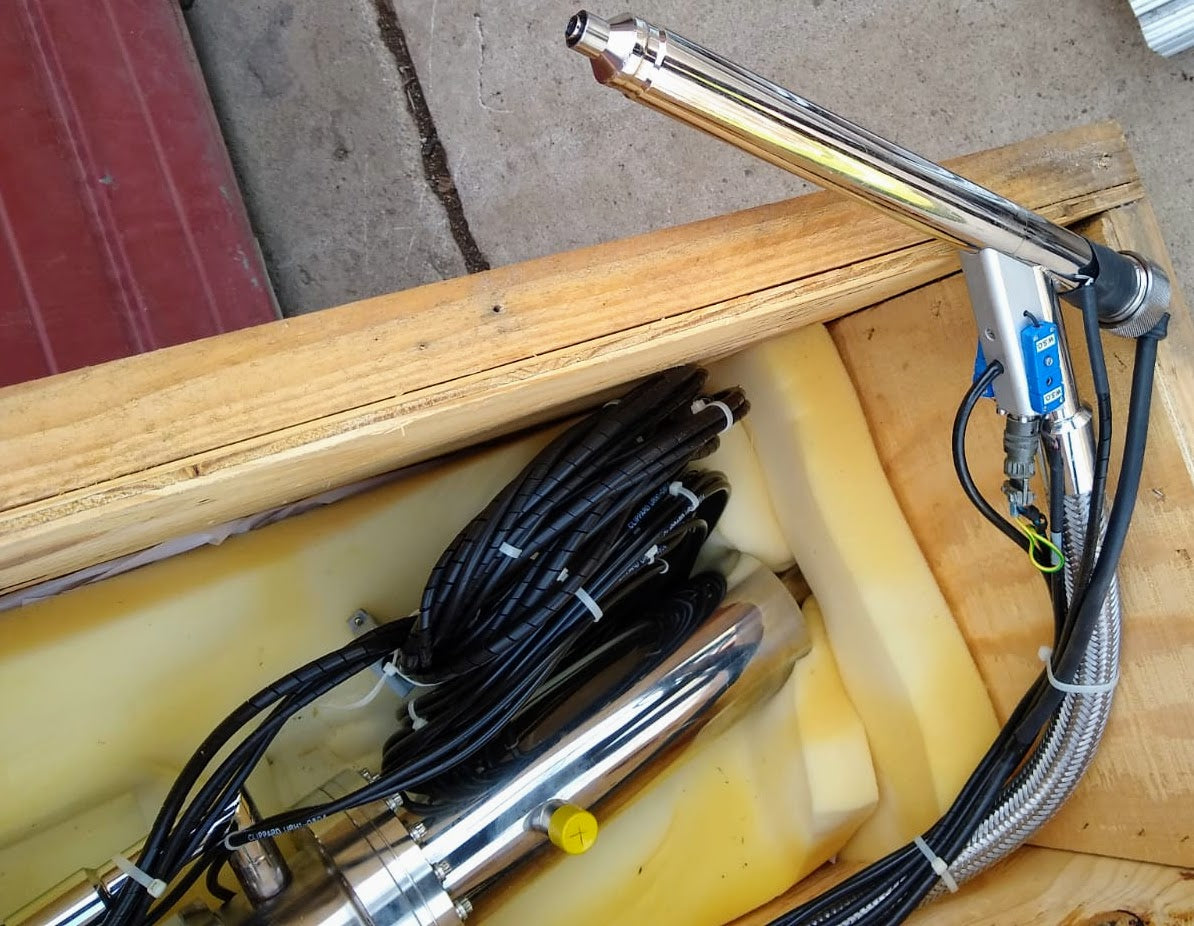

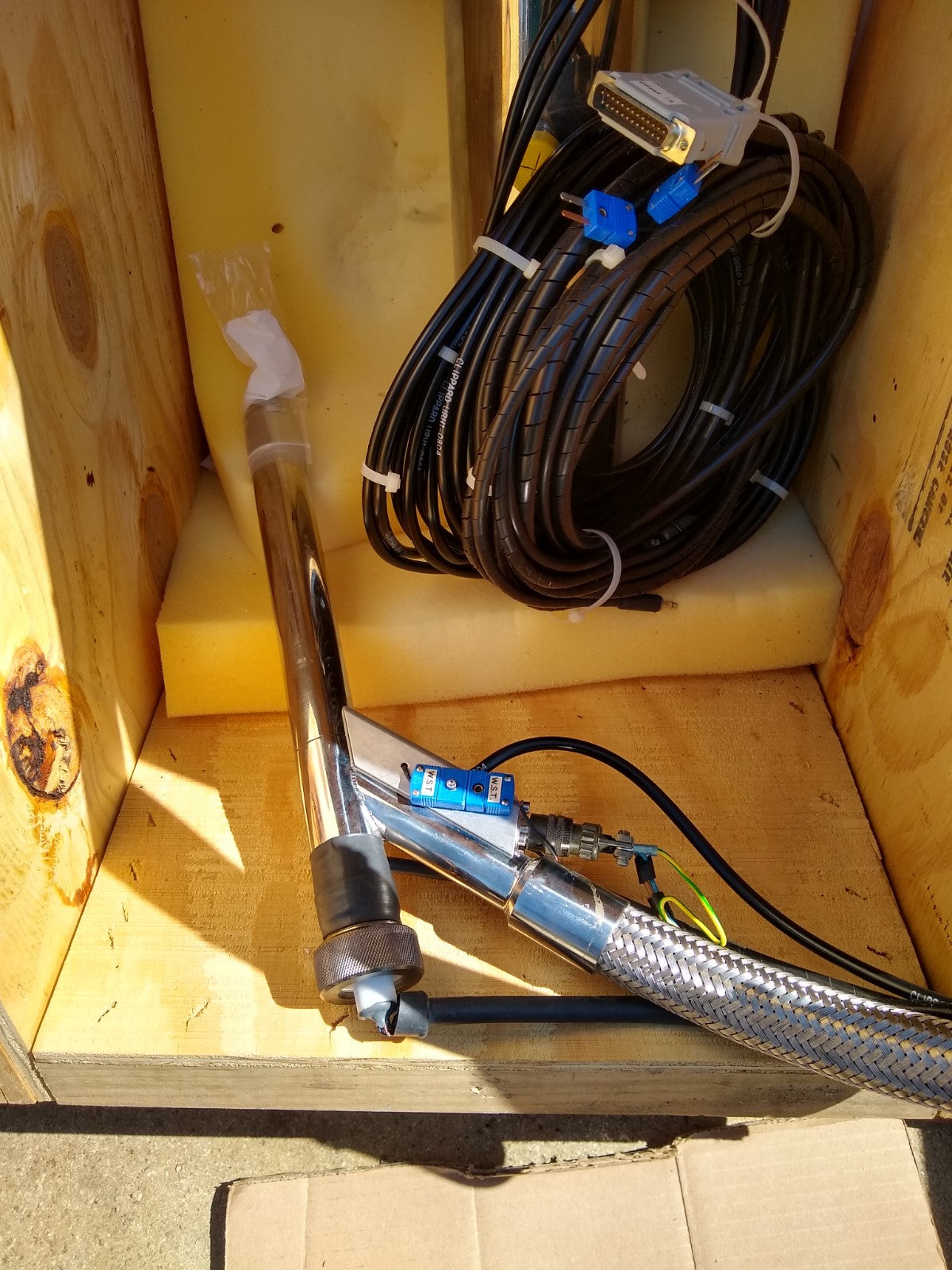

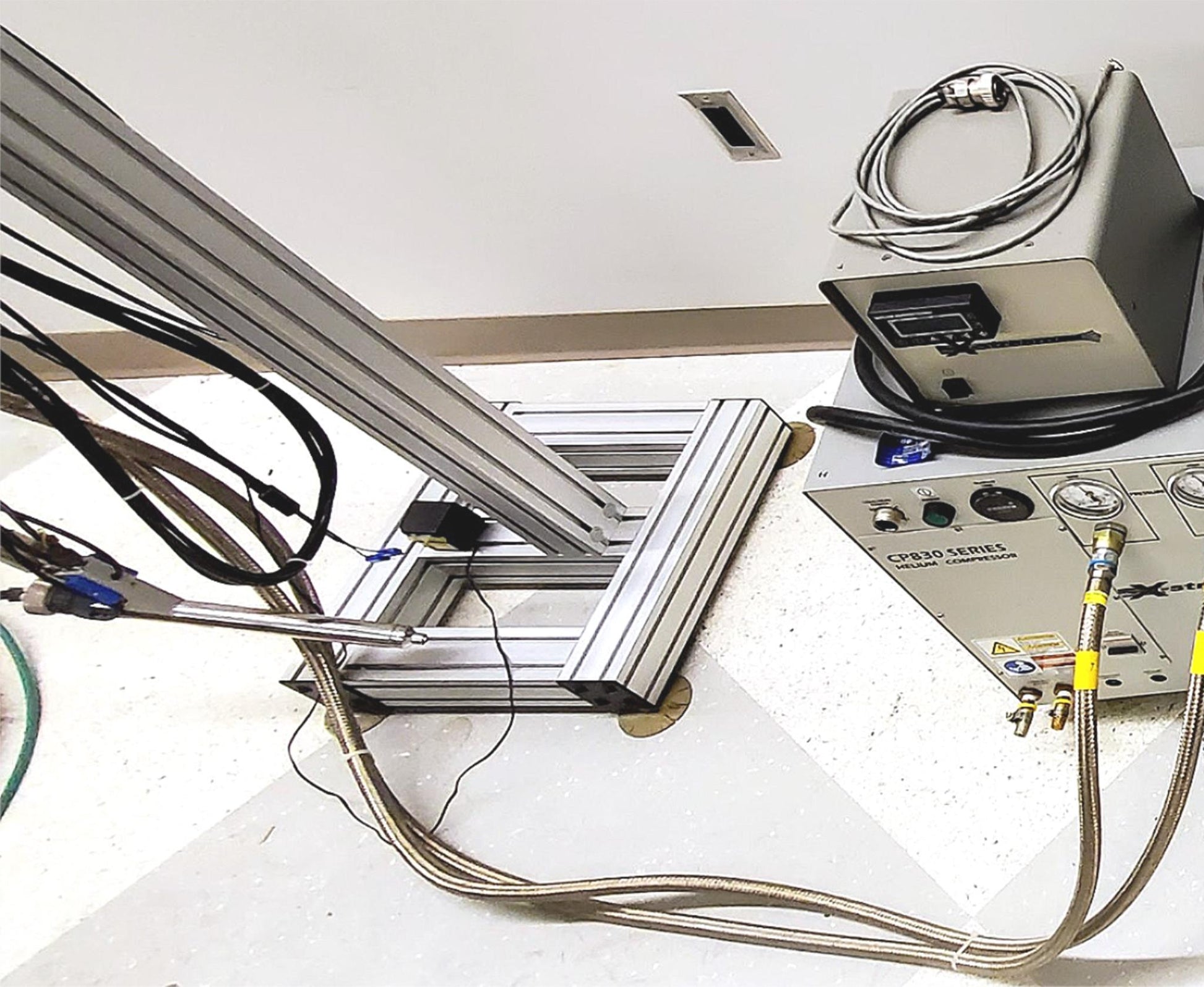

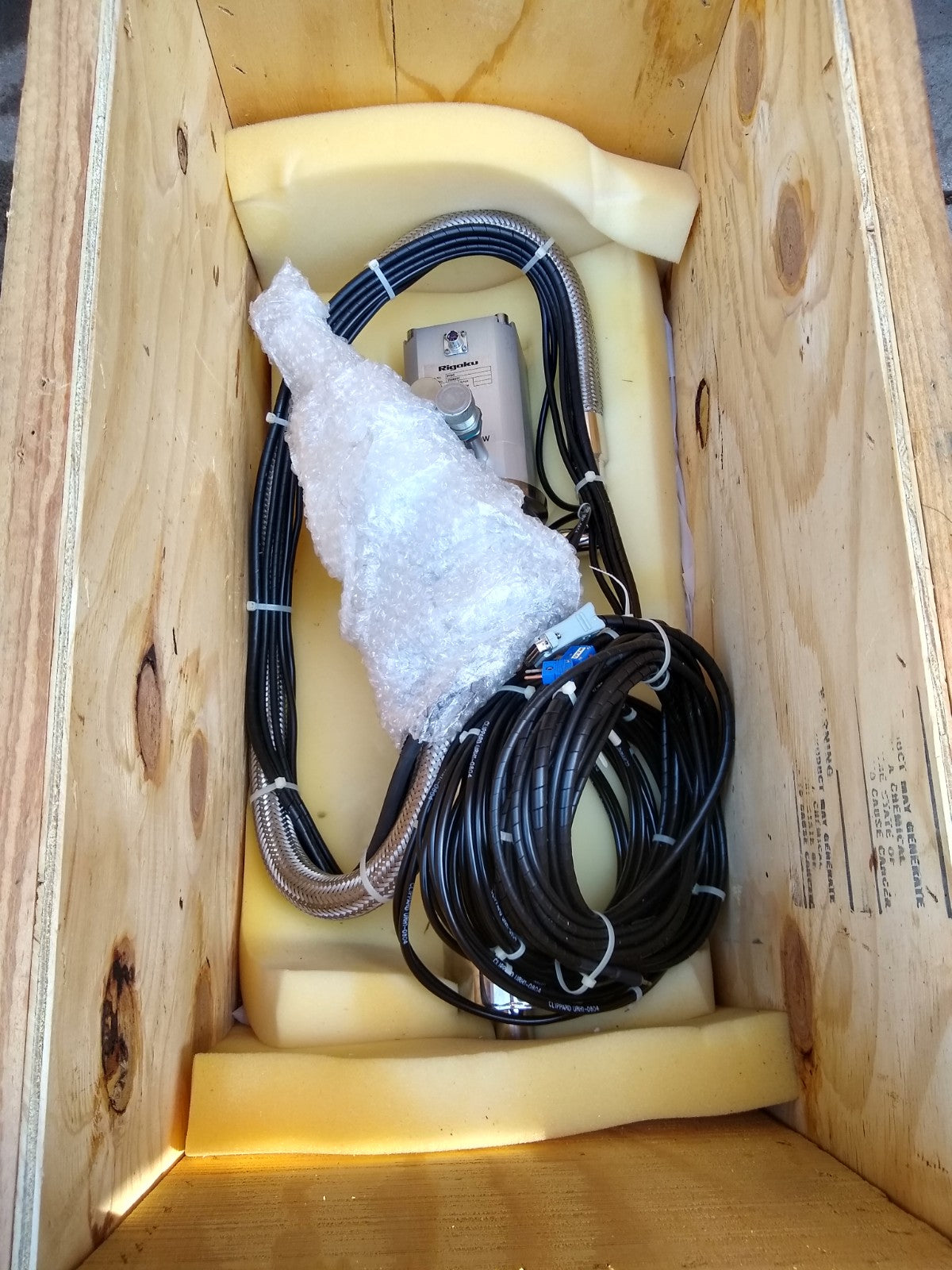

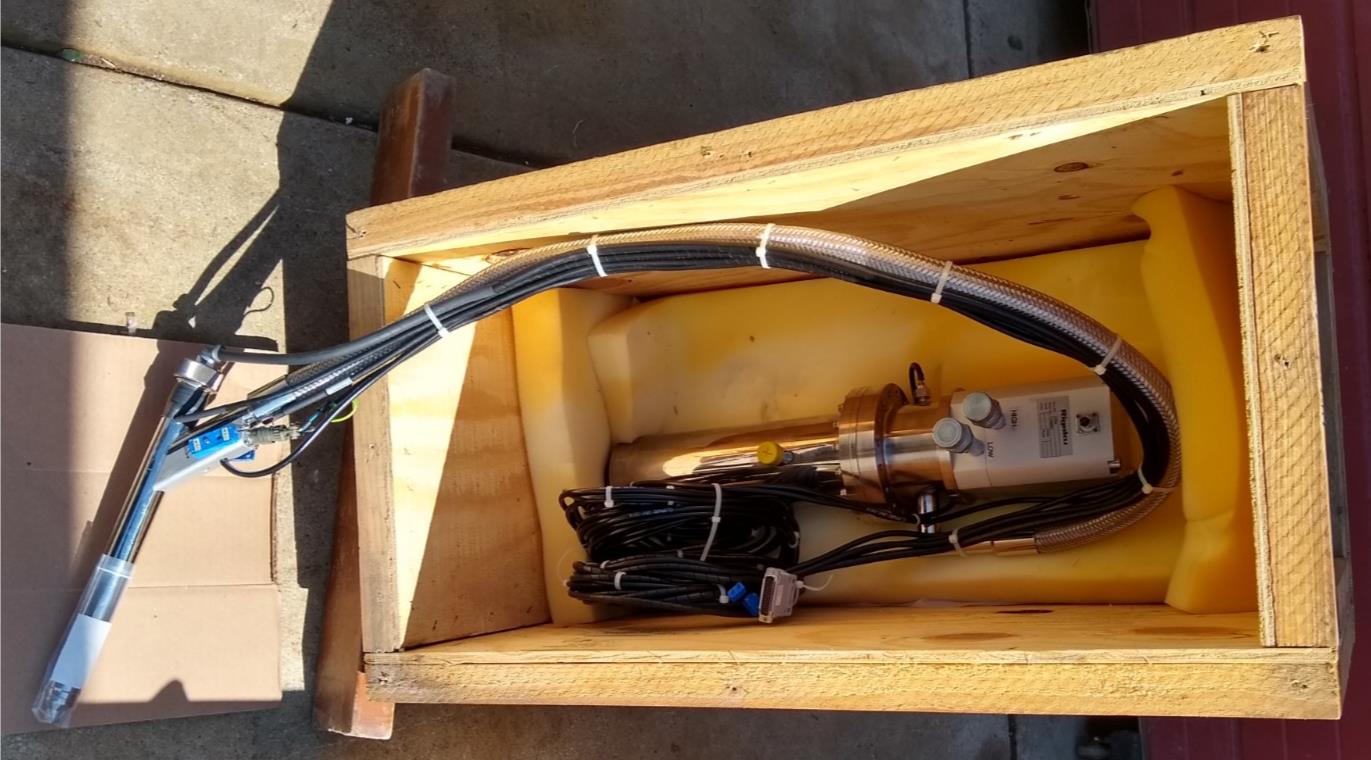

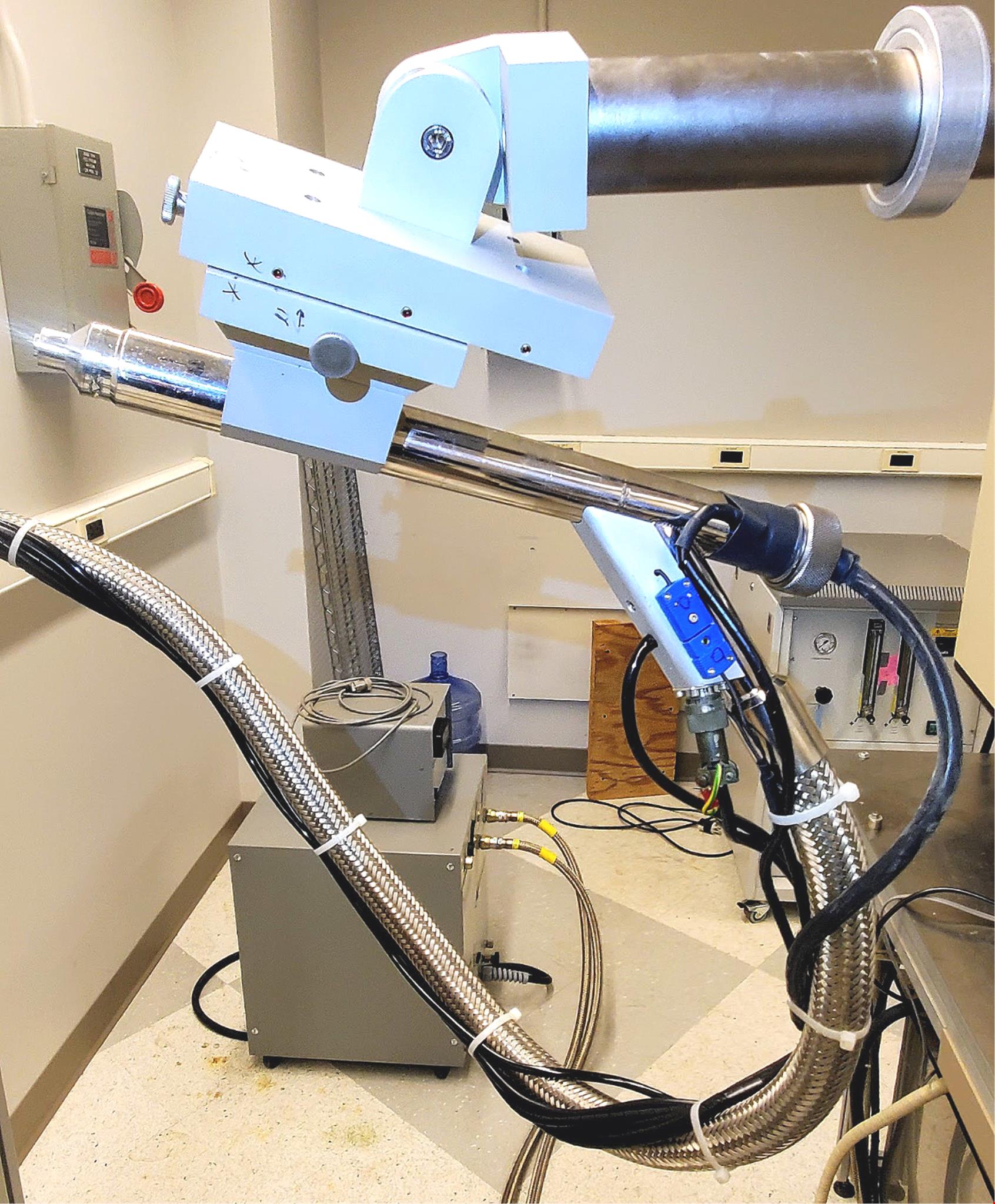

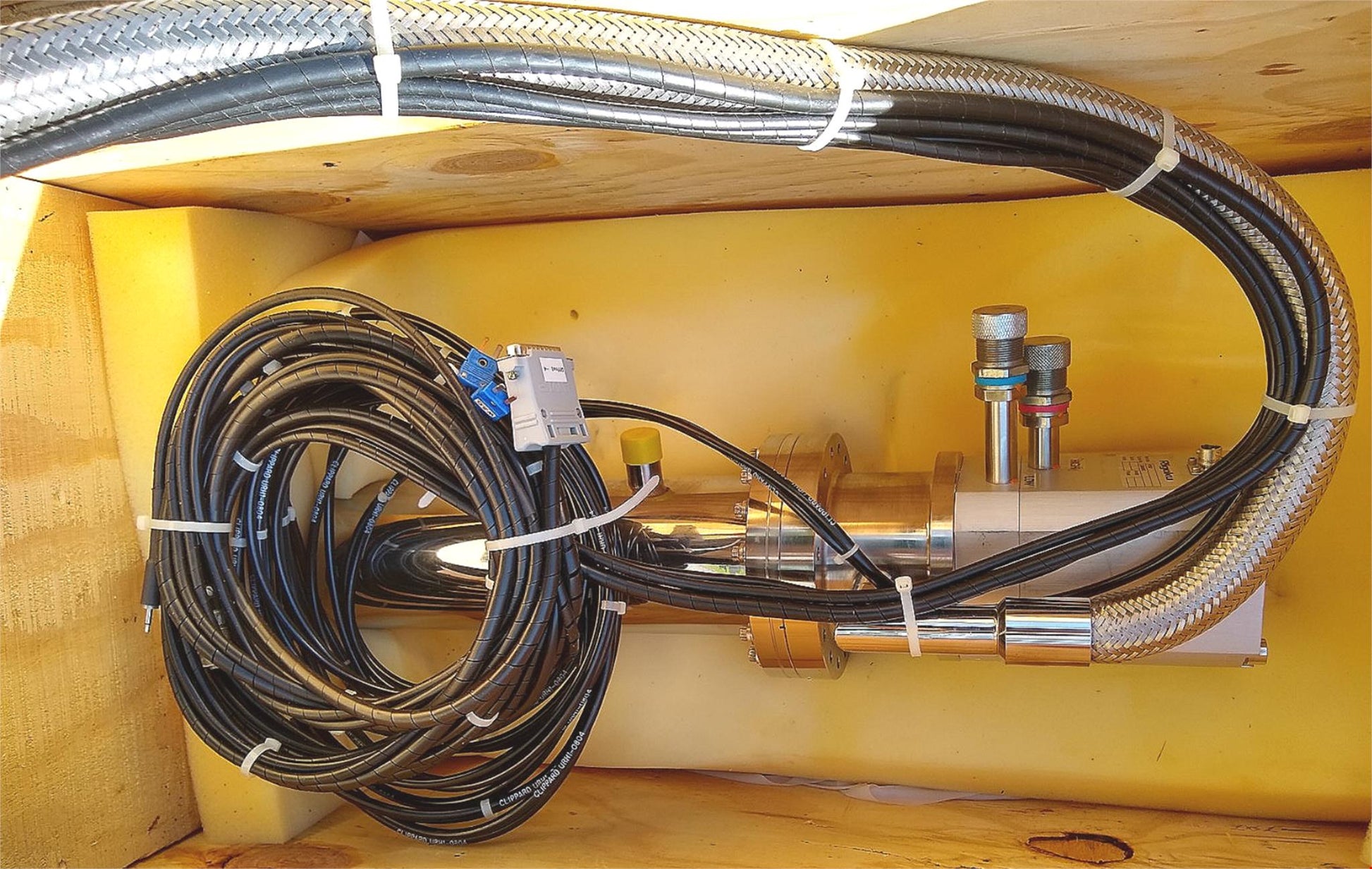

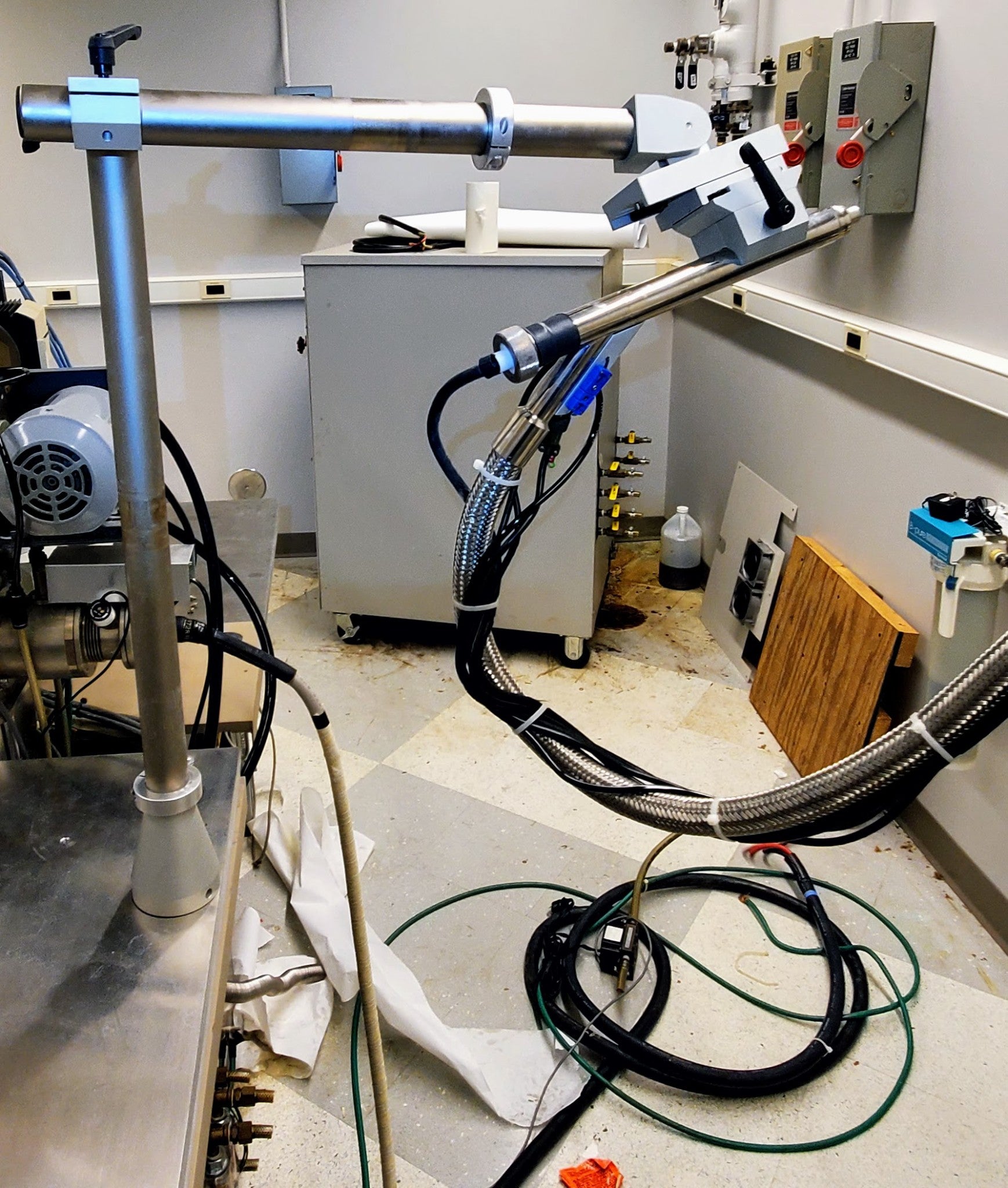

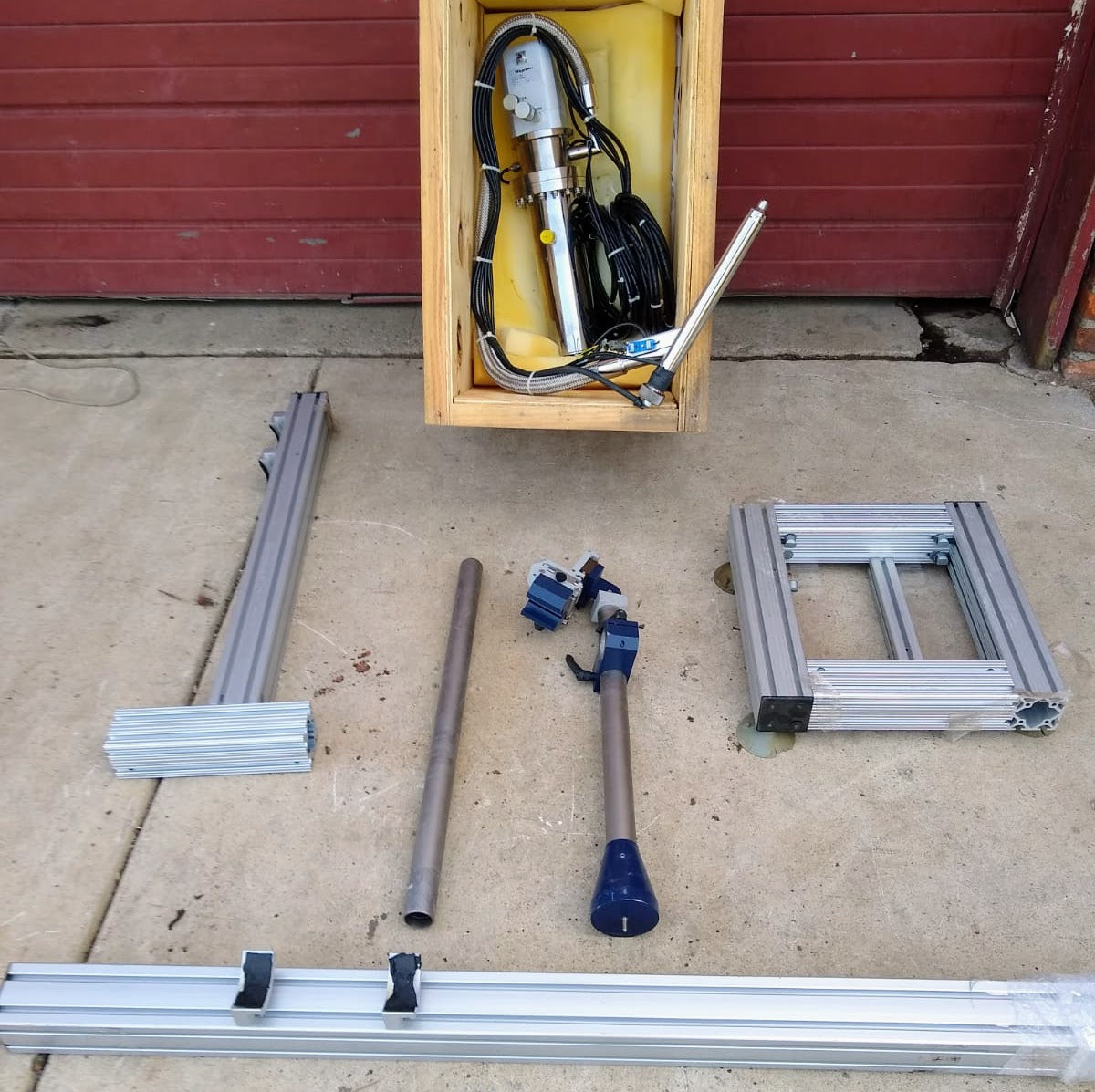

We actually believe it has never been used since it has been kept inside the original crate due to the lab having a second unit which was the one they installed and used, this one was a back up in case they needed it. Please check the pictures of the installed unit which was sold recently, the one you will receive is the one which has not been installed and is inside the original wooden crate.
THAT IS WHY WE OFFER A 90-DAY-WARRANTY!!!
Condition: This RIGAKU AL60 CRYOGENIC CRYSTALLOGRAPHY COOLER is in EXCELLENT overall cosmetic condition.
This listing includes:

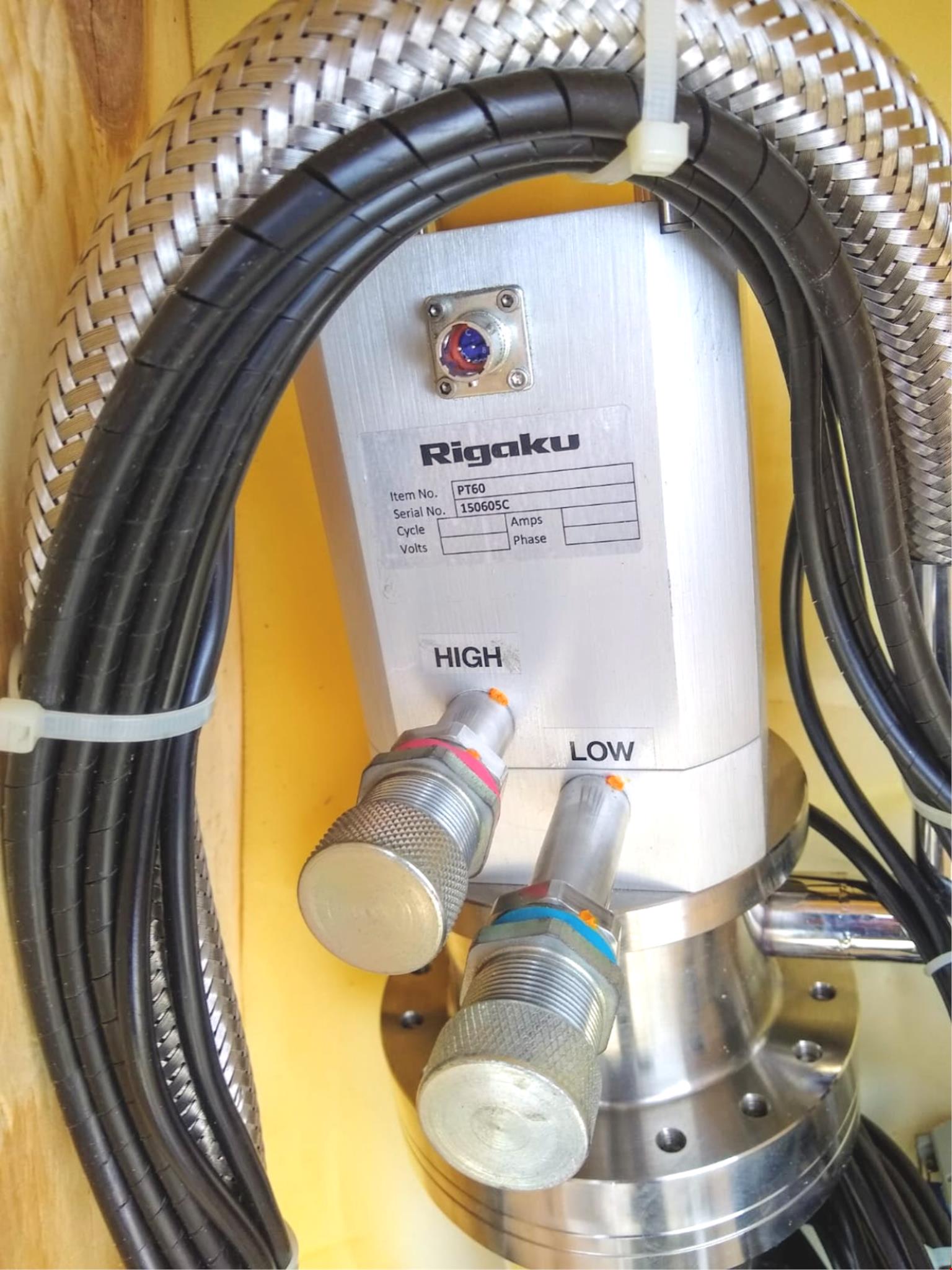

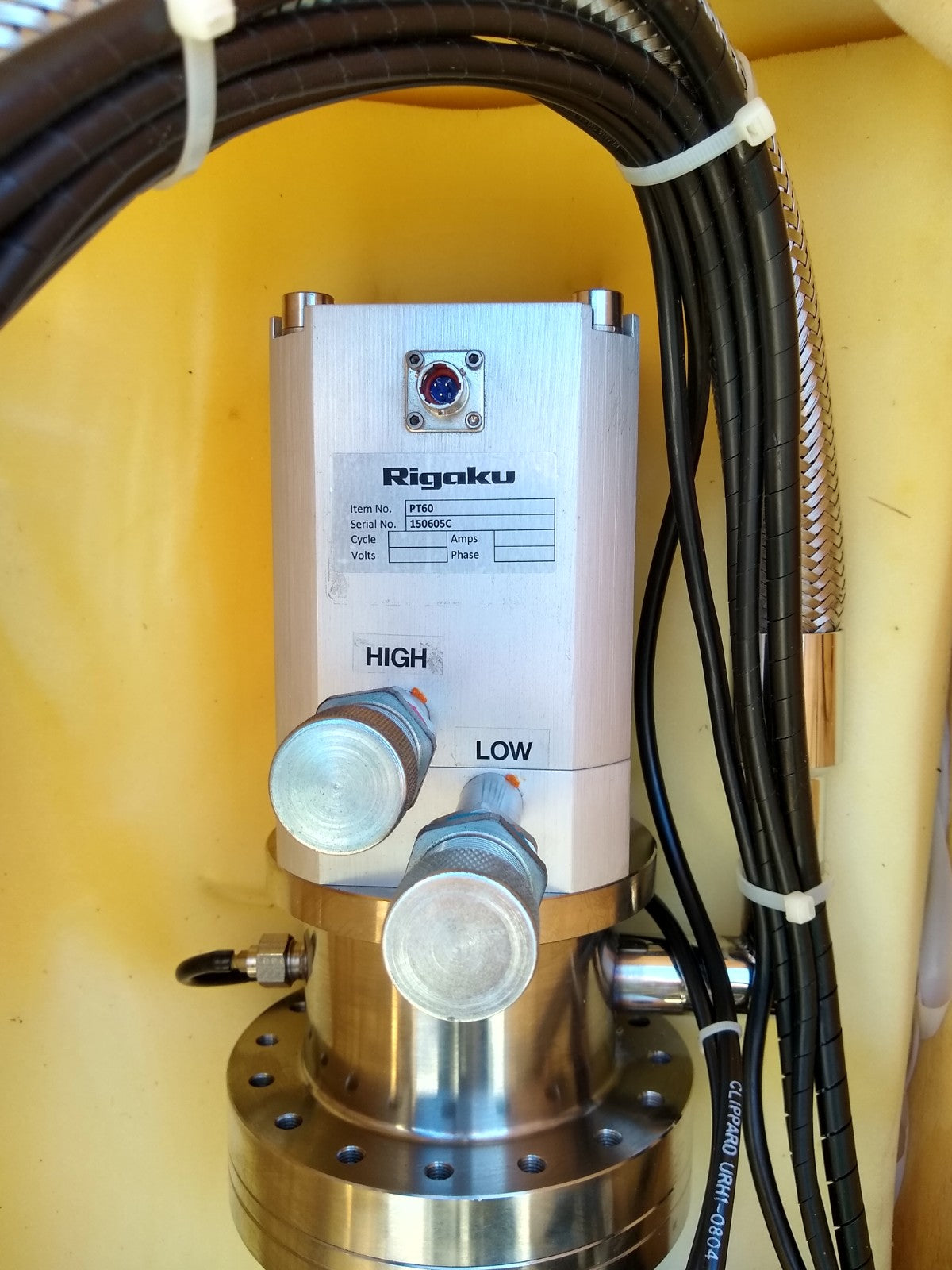

1 unit of AL60 CRYOGENIC CRYSTAL COOLER SYSTEM WITH COLD HEAD FOR CRYSTALLOGRAPHY SYSTEM XS/CCS-99

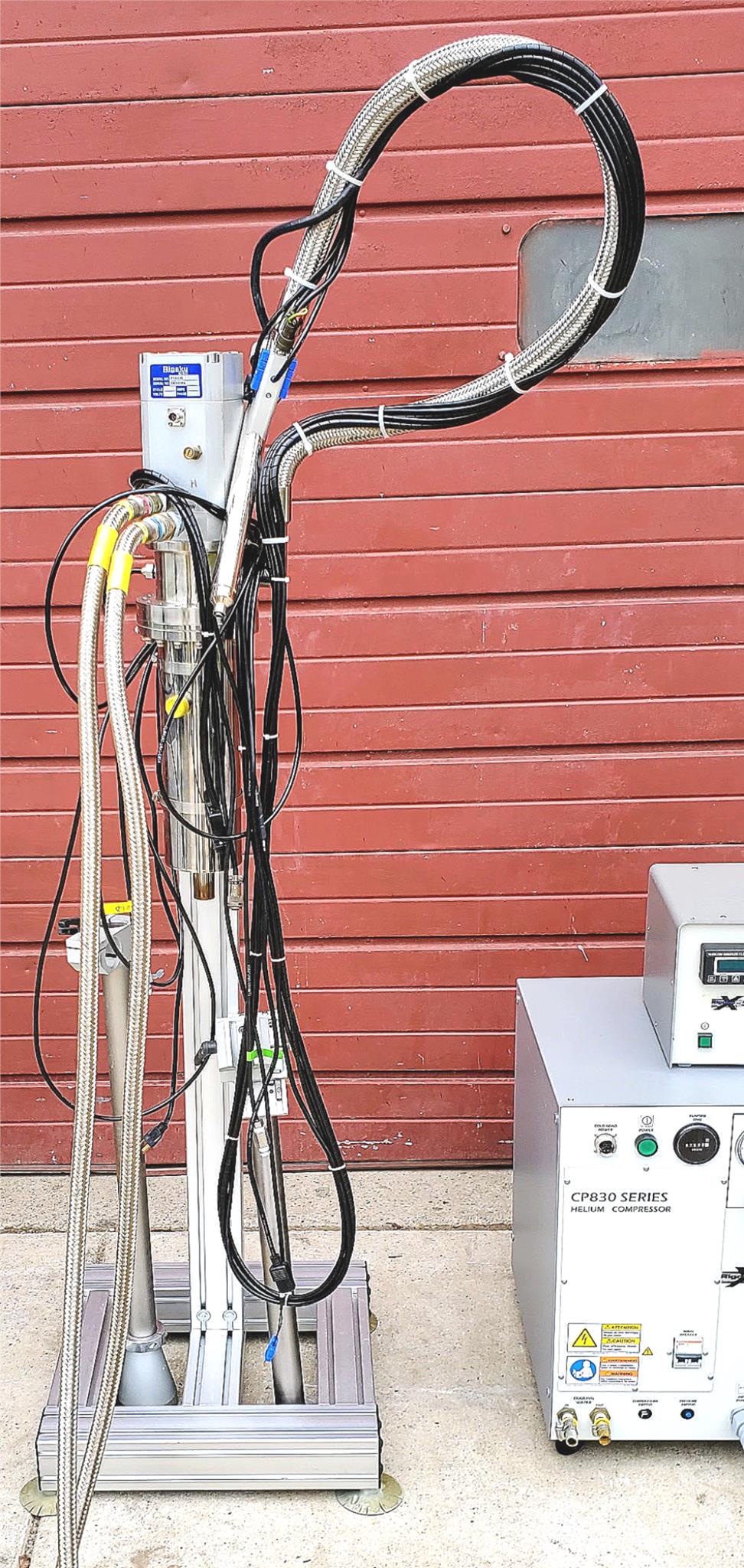

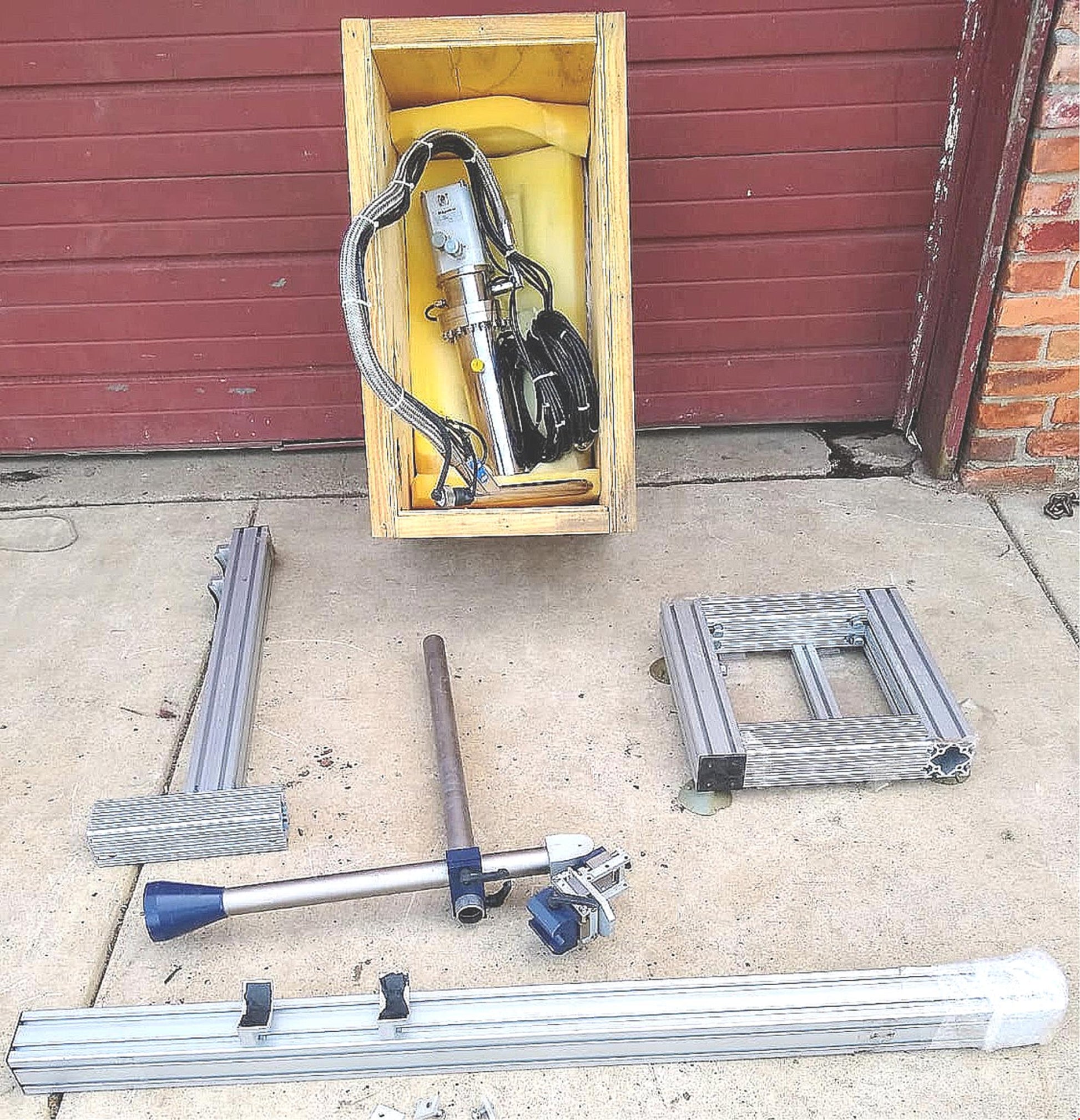

1 ALUMINUM FRAME as can be seen in the pictures.
1 90 Degree Support for the COLD HEAD as can be seen in the pictures

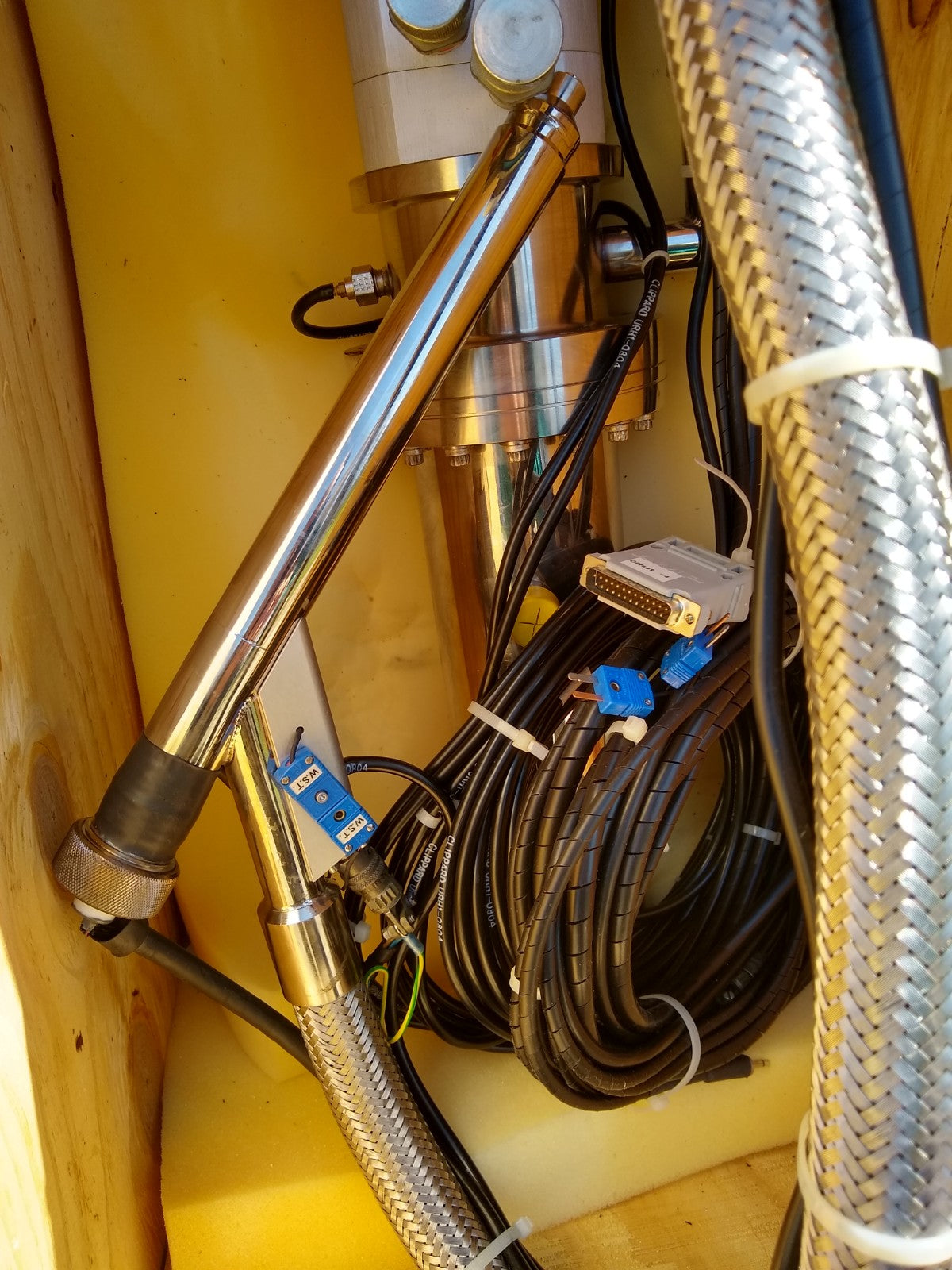

ALL THE CABLING AND WIRING SHOWN IN THE PICTURES
FEEL FREE TO CHECK MANUFACTURER's TECHNICAL INFORMATION BY GOOGLING THE FOLLOWING LINK: cryomech.com/products/pt60/
Cooling Capacity: 60W @ 80K
Base Temperature: <30K
Cool Down Time: 20 MIN TO 80K
Cold Head Weight: 16lb (7.3kg)

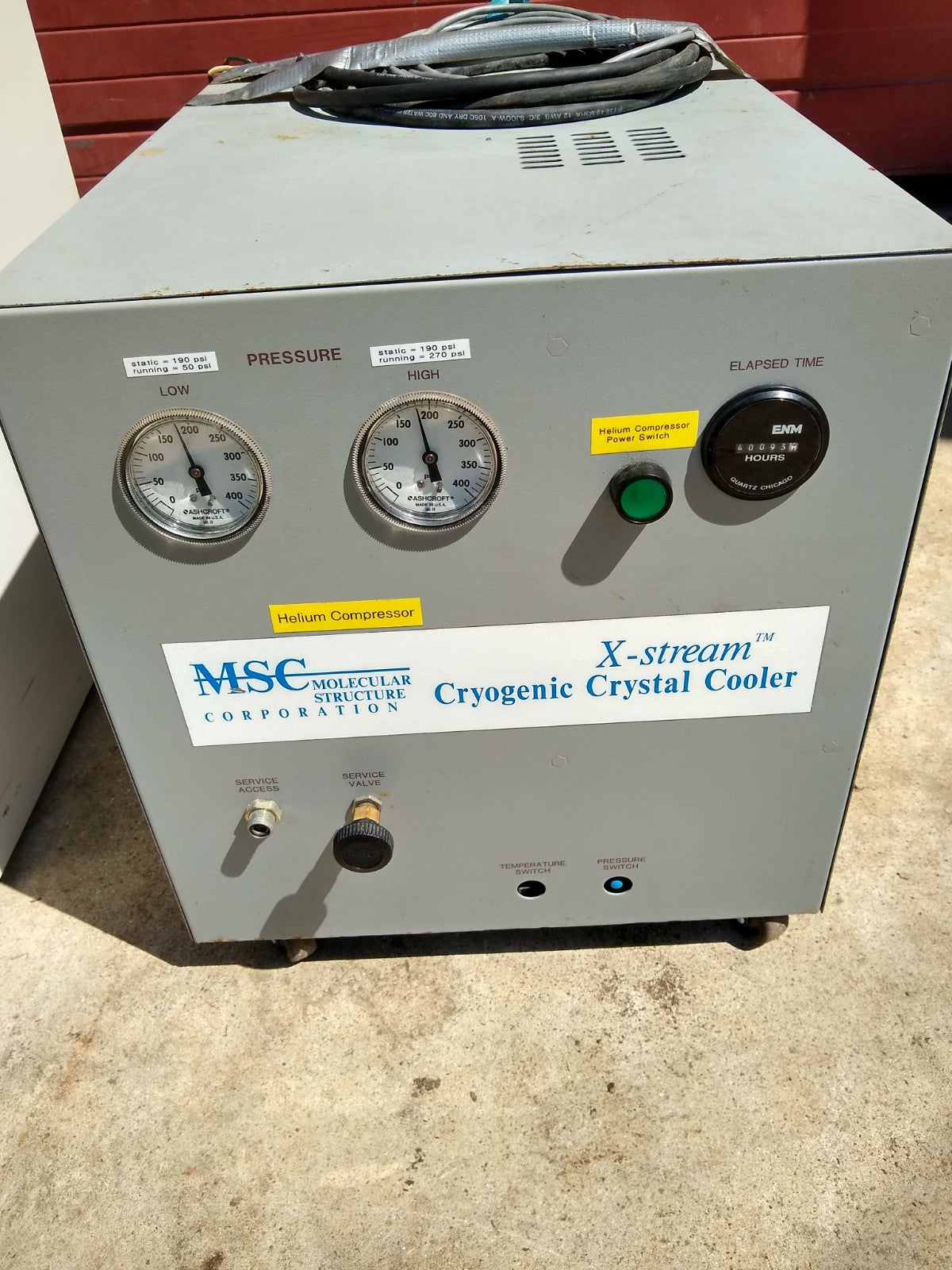

Compressor Package: CP103
Water Cooled Weight: 153lb (69.4kg)
Water Cooled Dimensions: 18 X 18 X 22in (46 X 46 X 56cm)
Air Cooled Weight: 173lb (78.5kg)
Air Cooled Dimensions: 19 X 22 X 22in (48 X 56 X 56cm)
Power Consumption 60Hz (Input Power): 208/230 VAC 1PH / 3.3kW
Power Consumption 50Hz (Input Power): 200/220 VAC 1PH/2.9kW
Cooling Water Requirements: 1.2 GPM (4.5 LPM) @ 80°F (27°C)
Flexible Lines: 10ft_3m
Helium Pressure: 220 ± 5 PSIG (15.2 ± .34 bar) @60/50Hz
Ambient Temperature Range: 45°F TO 100°F (7 TO 38°c)
The Cryogenics X-Stream AL60 generates conditioned nitrogen to cool crystals to a range of -180 degrees C to -4 degrees C as required in protein crystallography applications for systems like the Rigaku X-Ray Crystallography System.
Cools crystals by compressing and purifying room air to produce clean, dry nitrogen that it chills to nearly -196 degrees C before being rewarmed to operating temperatures
Nitrogen generator with a self-contained air compressor sends room air through a pressure swing absorption (PSA) cycle to extract pure nitrogen

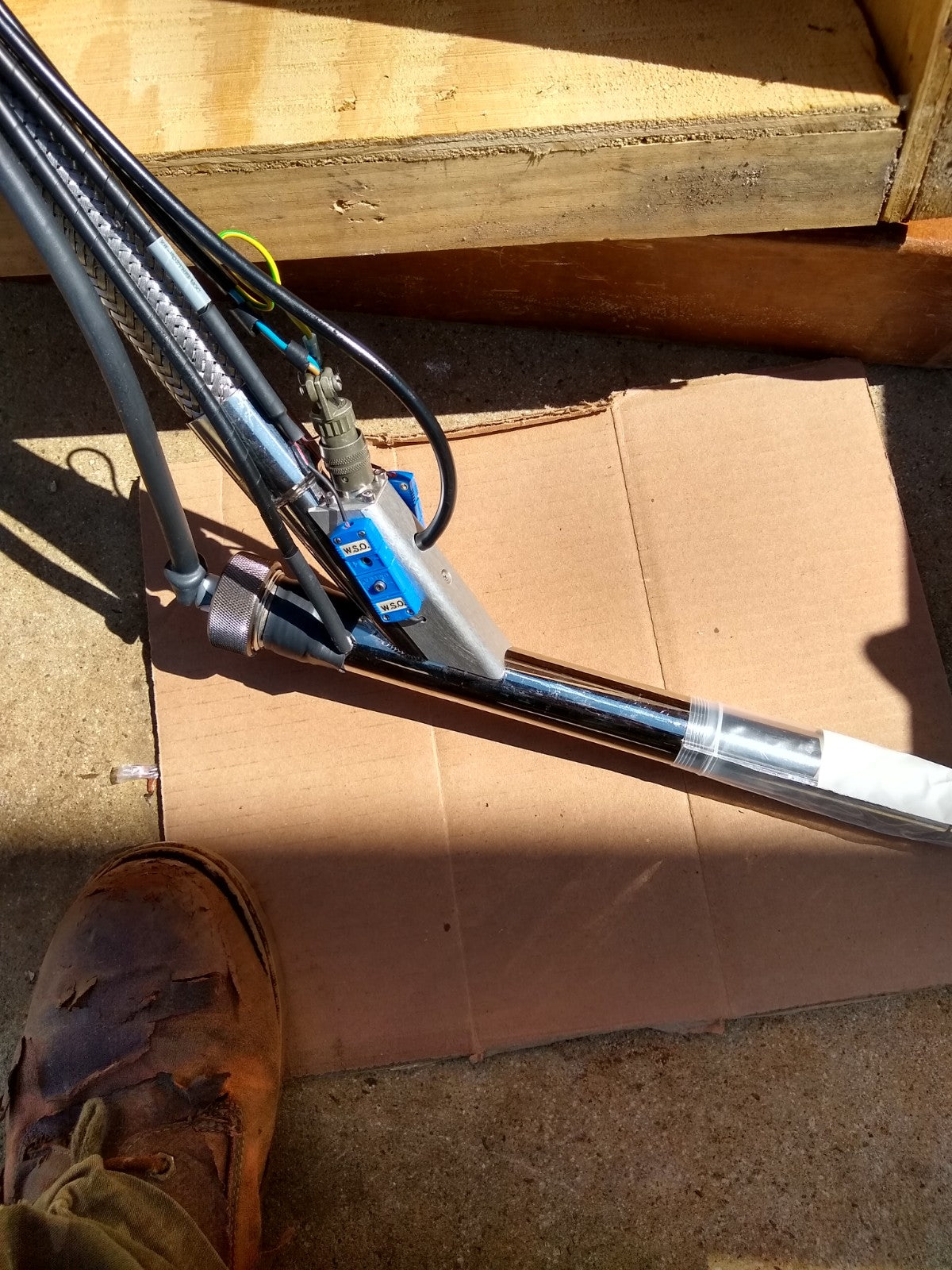

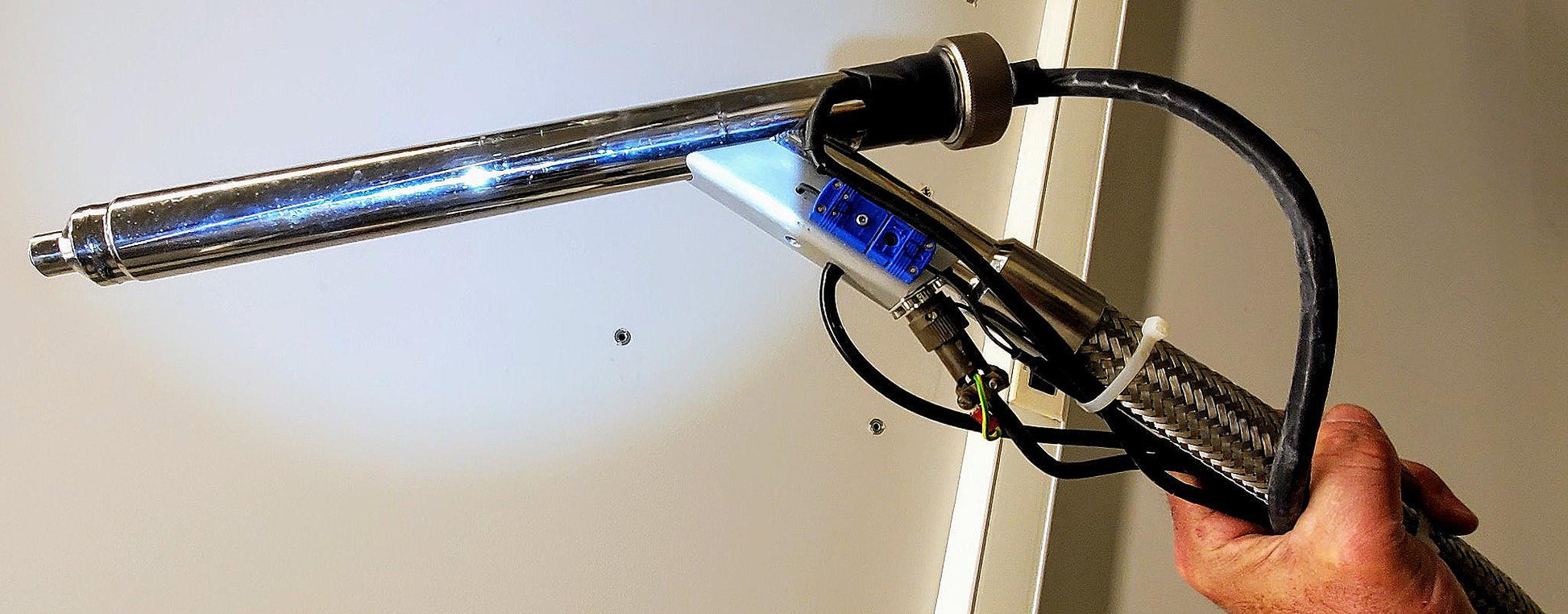

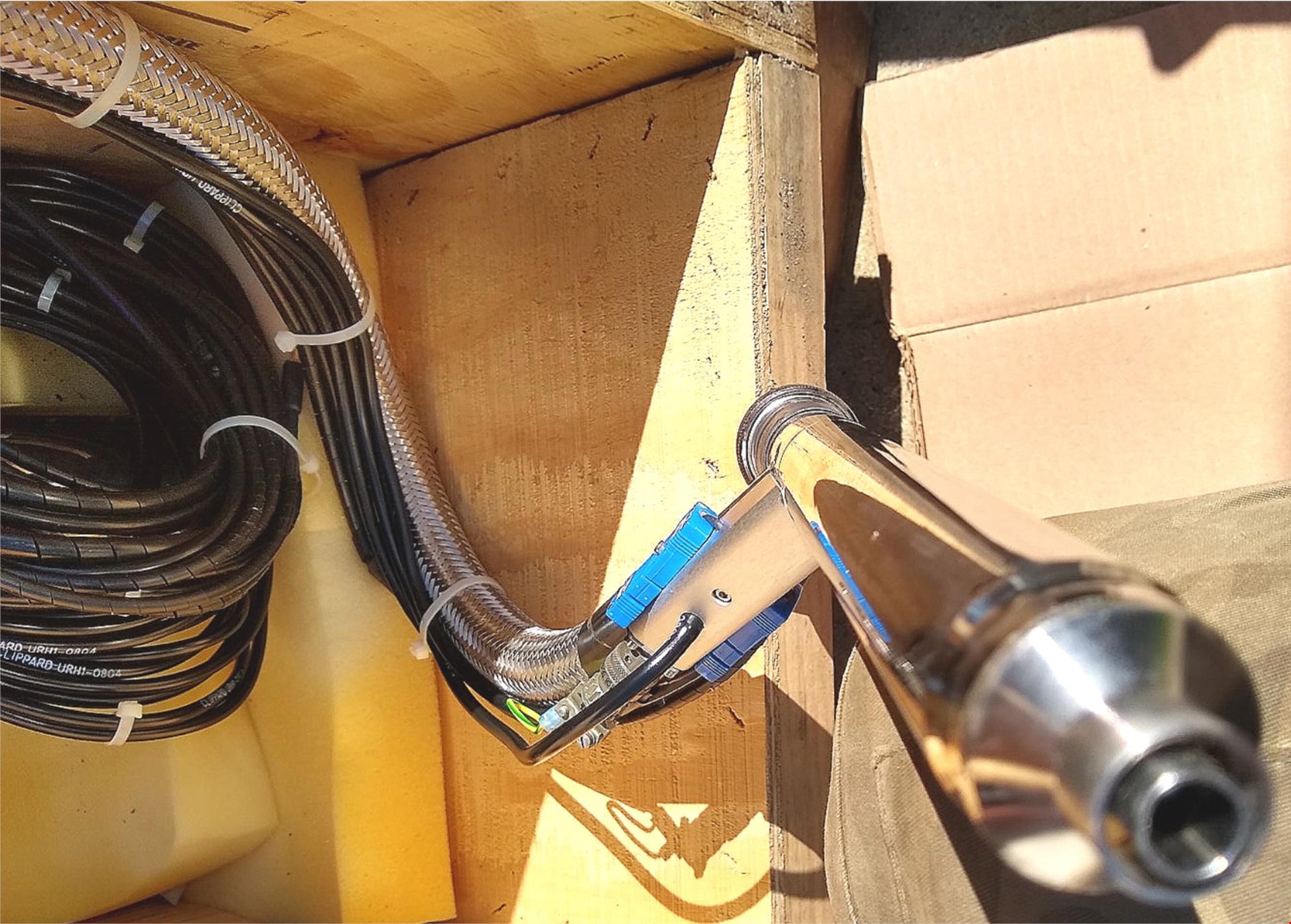

Passes the pure nitrogen through a cold head, a vacuum-jacketed, flexible stainless steel tube and a nozzle assembly that regulates the final temperature and directs the gas to the awaiting crystal.
We have many other accessories like the MSC/Yale mirrors optics system, the Helium (He) Beam Path, the Diaphragm Pumps plus many other spare parts for this unit since we disassembled the whole working unit shown in the pictures. If buyer needs more parts, please do let us know what you need so we can negotiate a more complete package.
Because the φ-axis and the detector are actually one unit onoan-2θ-stage, the alignments for the φ - axis detector for height / tilt, and the detector angle must be accomplished at the same time when being installed. The height and tilt adjustments are made by turning the two feet at the back of the detector and the heighatdjustment nut in front.
THIS IS A VERY NICE WORKING RIGAKU AL60 CRYOGENIC CRYSTALLOGRAPHY COOLER.
STOCK # 222304
