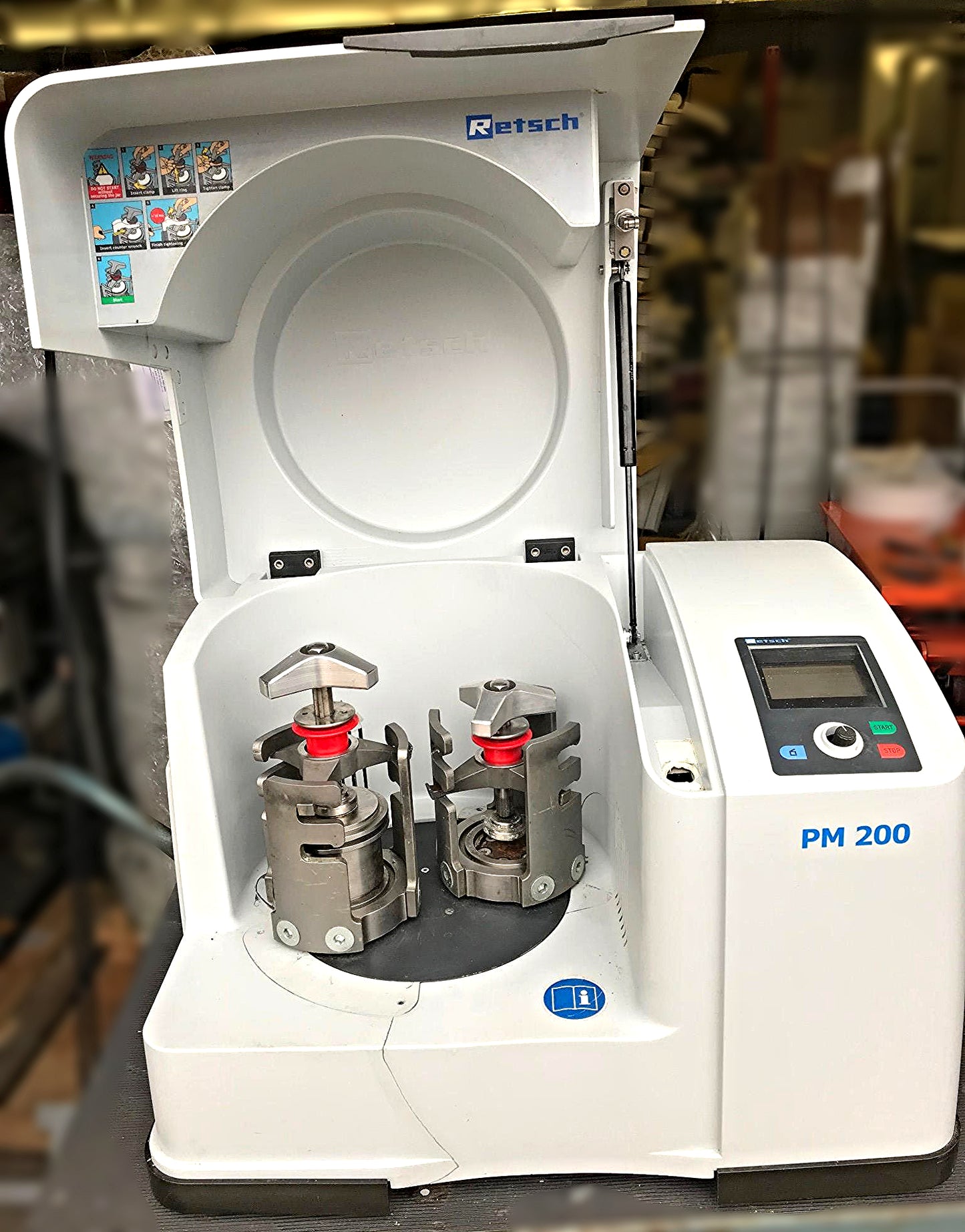

RETSCH PM 200 DOUBLE GRINDER PLANETARY TWO STATION BALL MILL WATCHVIDEO FREESHIP

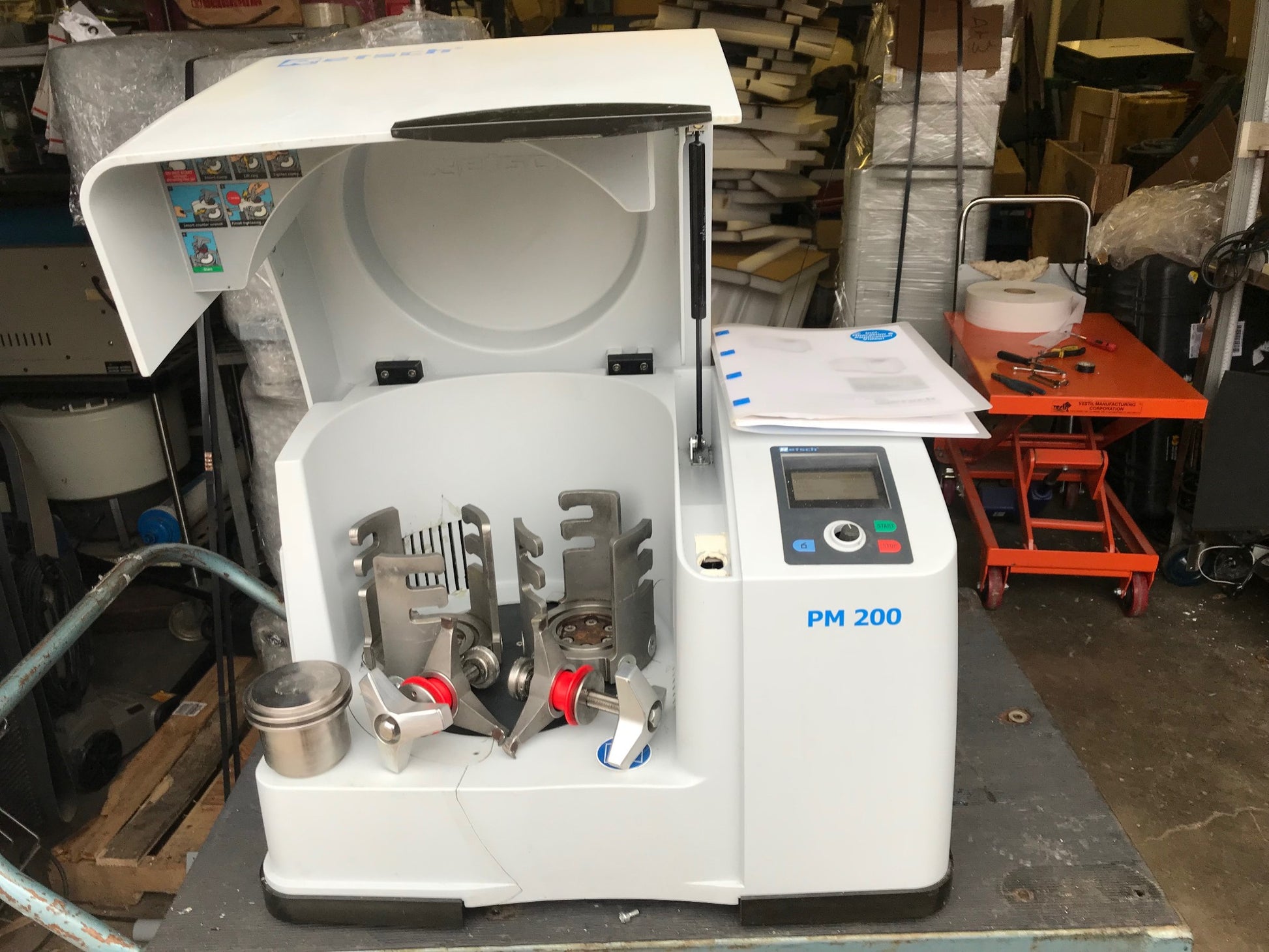

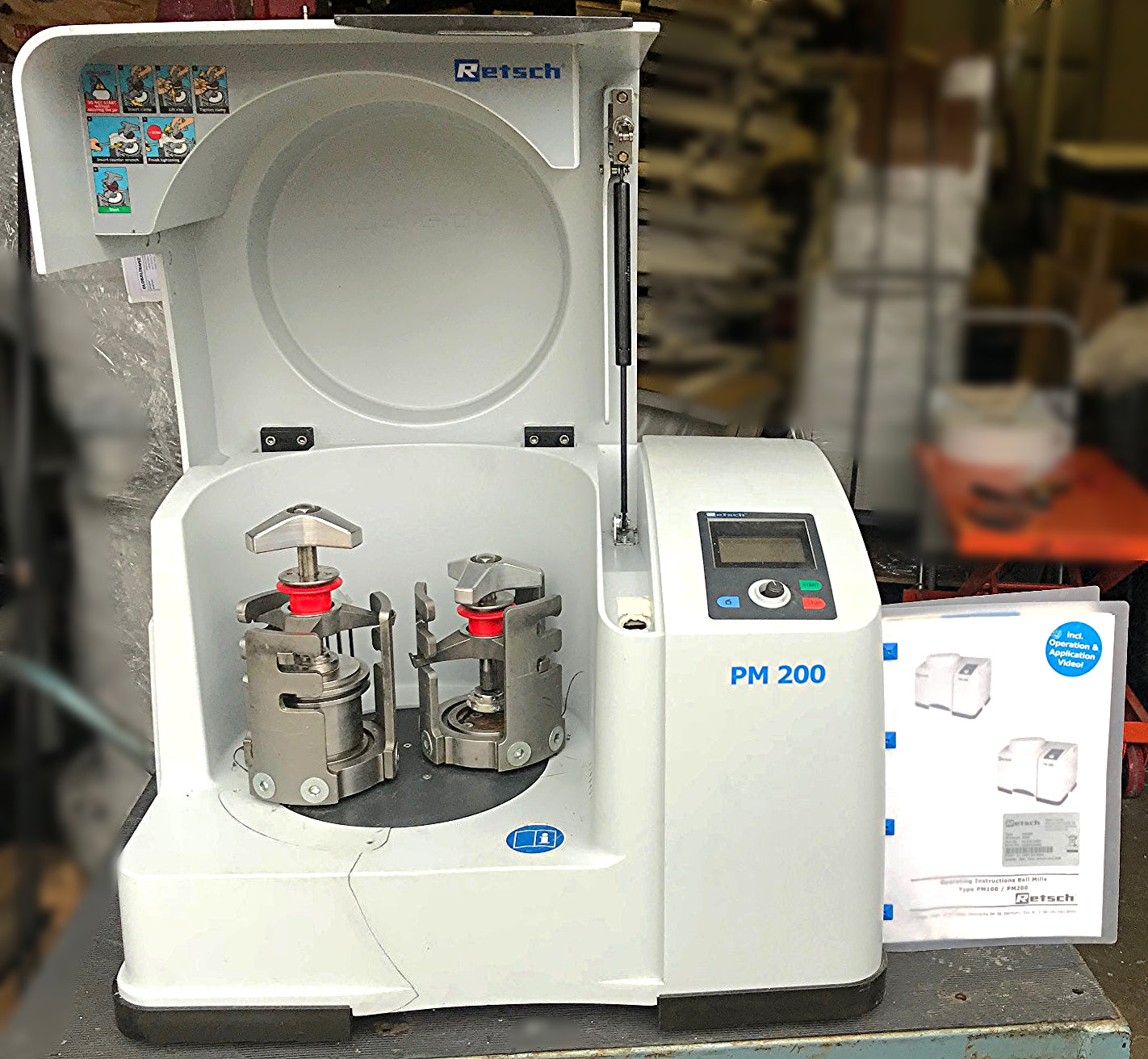

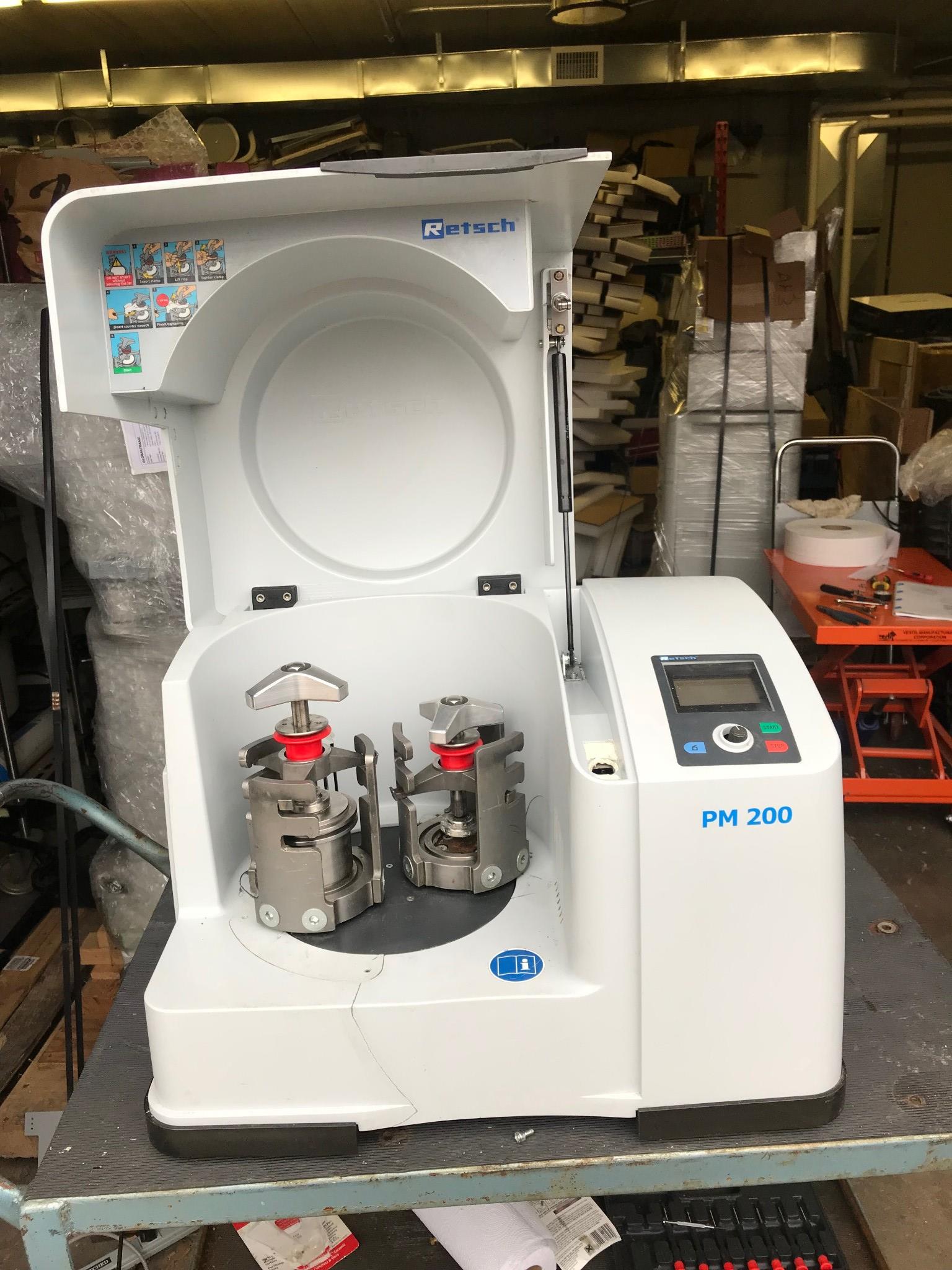

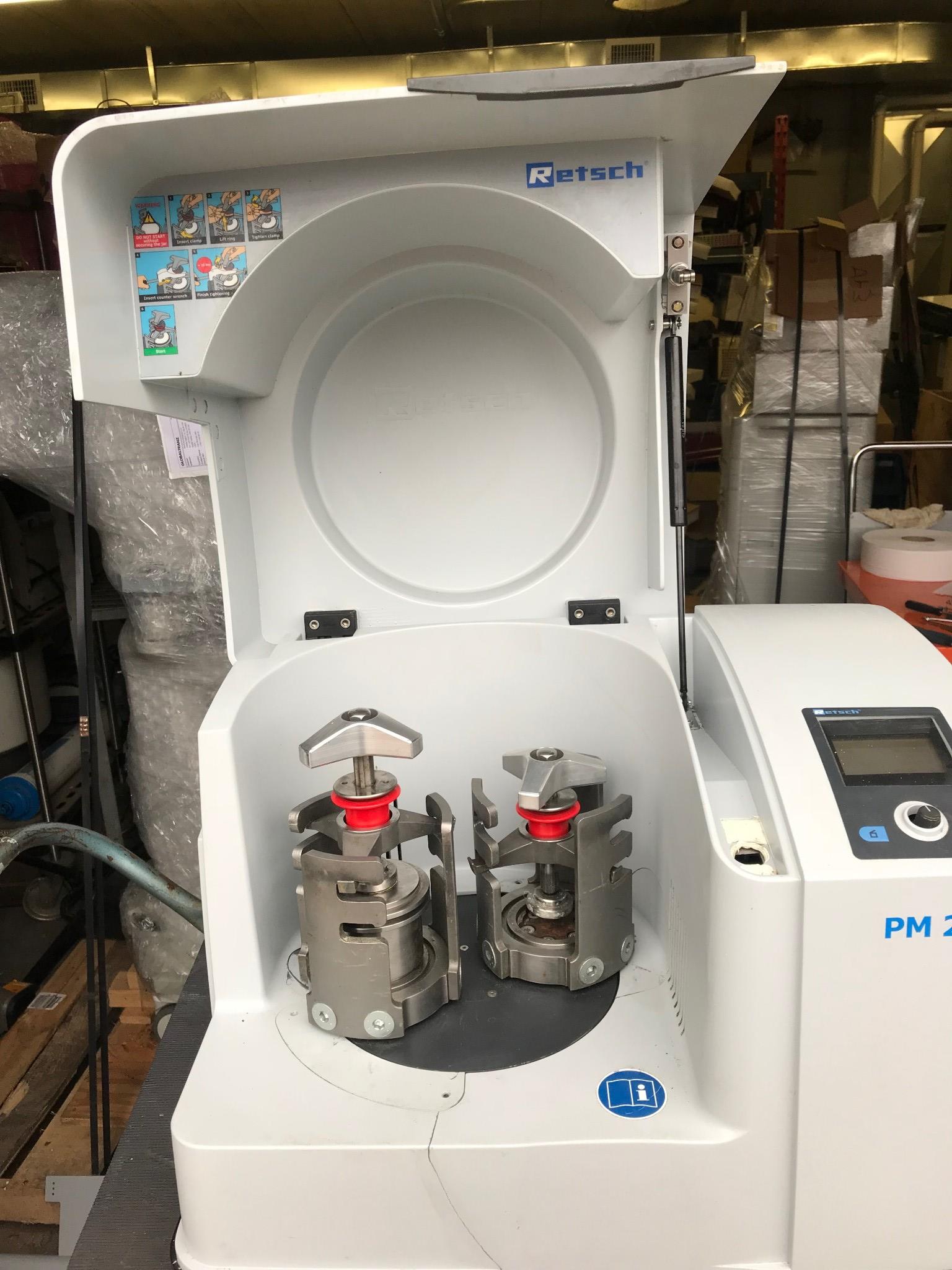

You are bidding on a used and in operational condition RETSCH PM 200 TWO STATION DOUBLE PLANETARY BALL MILL GRINDER as can be WATCHED IN THE VIDEO and also seen in the pictures!

THESE RETSCH PM 200 COST OVER US$ 17.500,00 WHEN NEW AS CAN BE SEEN BY CLICKING https://us.vwr.com/store/product/4784656/planetary-ball-mills-retsch#

The PM 200 is a convenient benchtop model with 2 grinding stations providing Double the Efficiency from the PM 100 model.

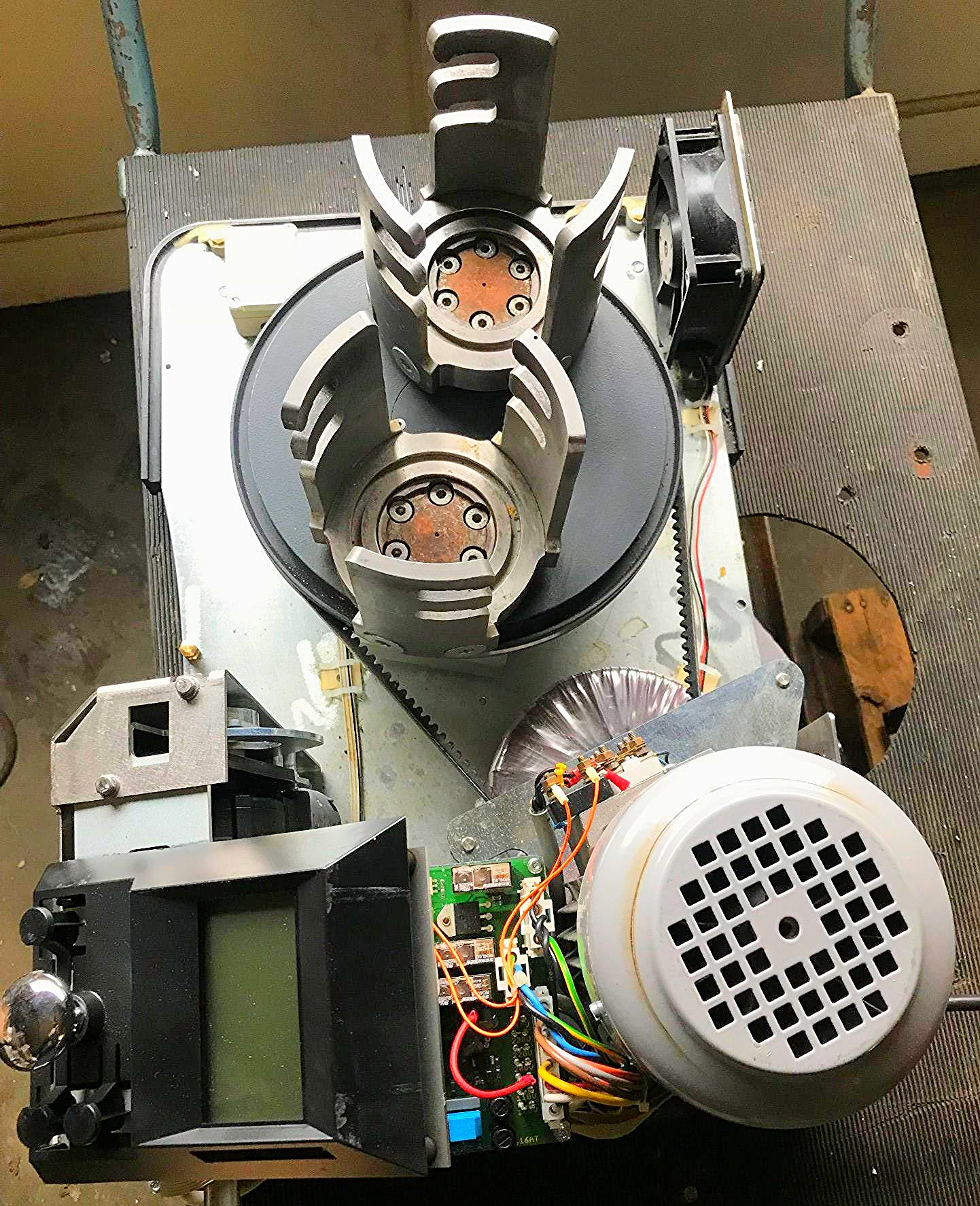

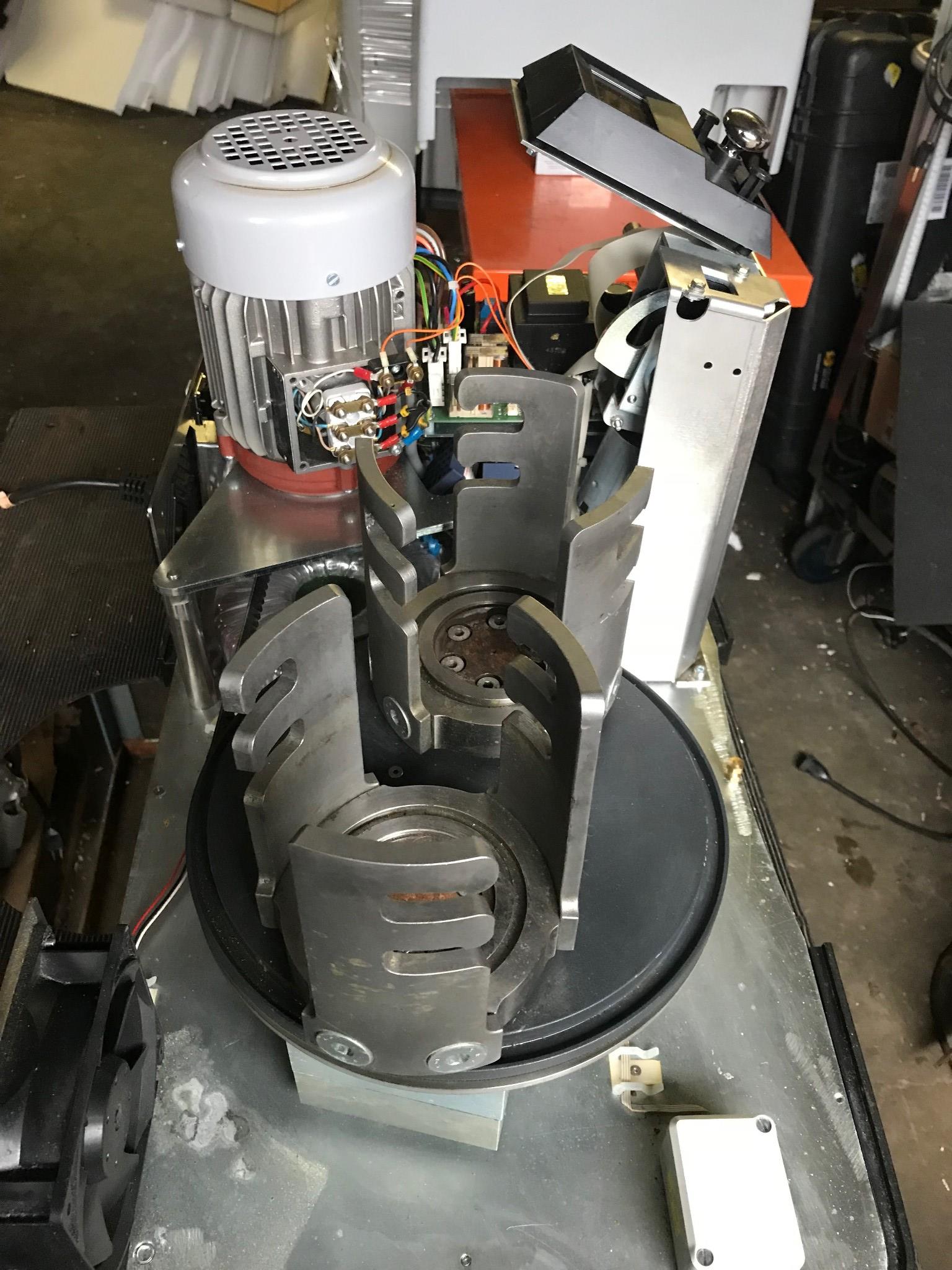

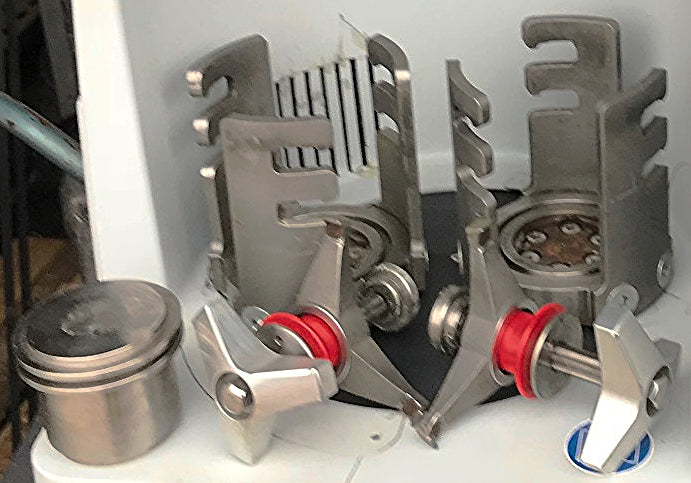

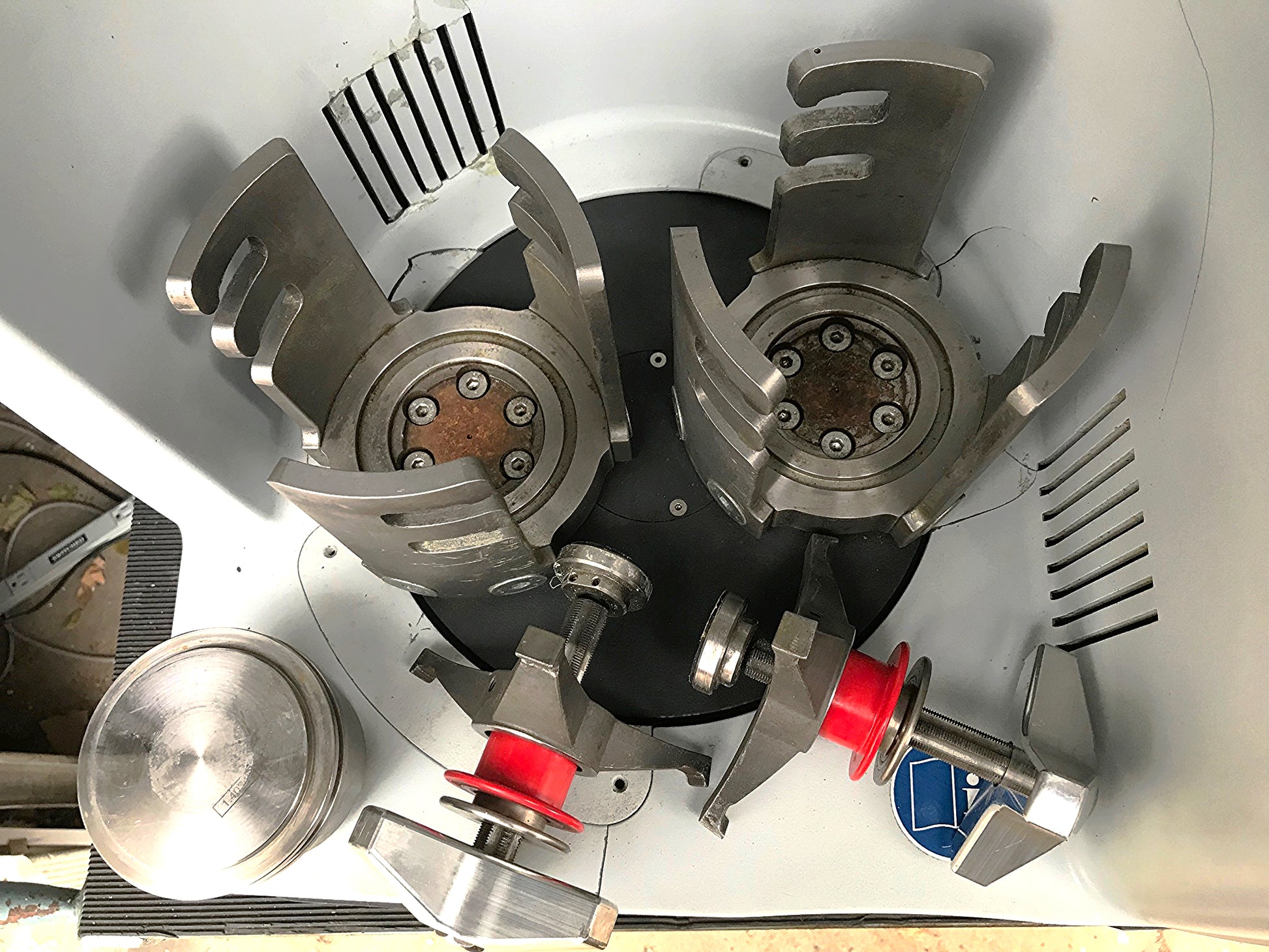

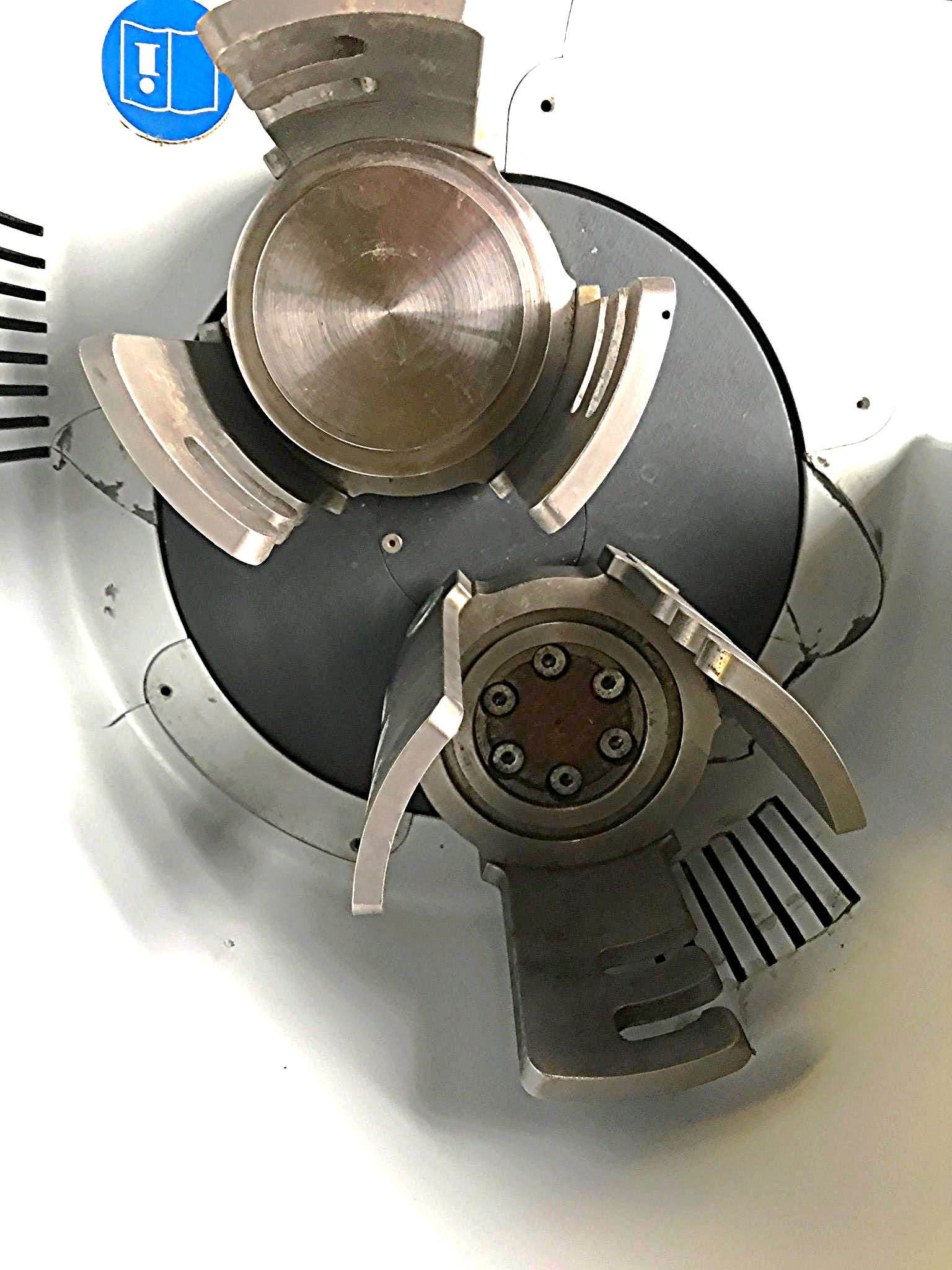

A - COMES WITH TWO JAR CLAMPS ROTOR FASTENERS. Just these two ORIGINAL JAR CLAMPS cost over US$ 4.000,00 new

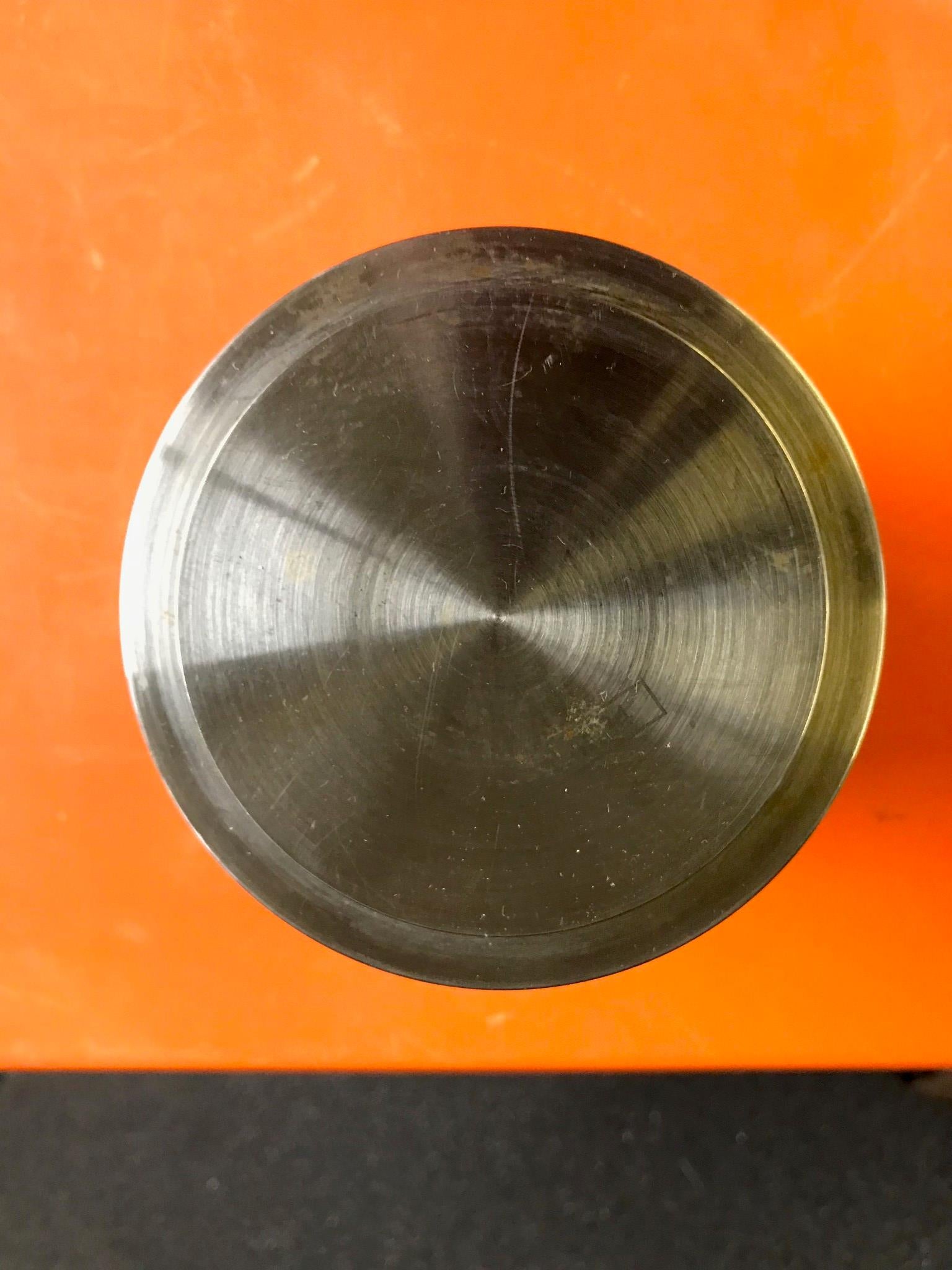

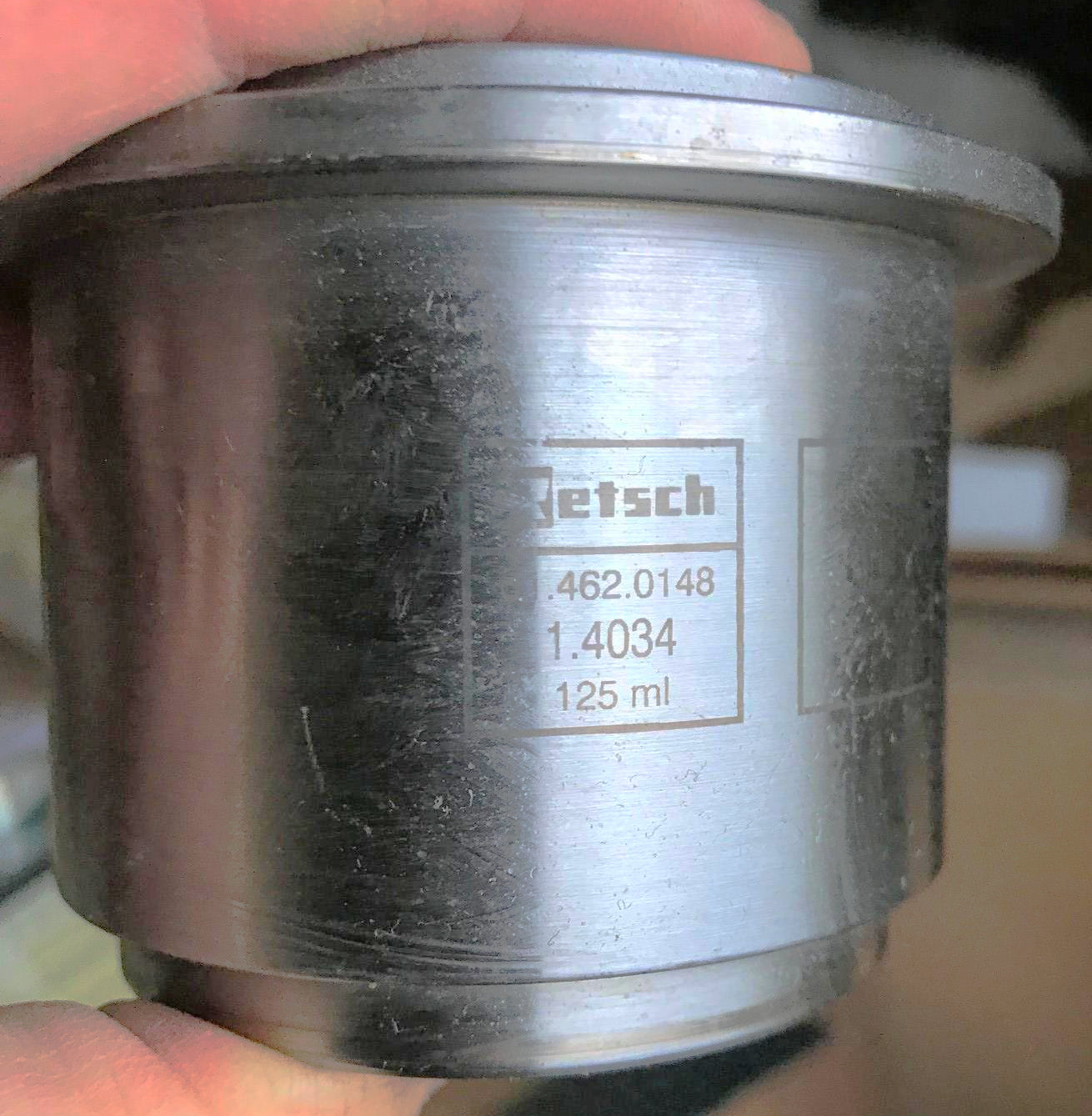

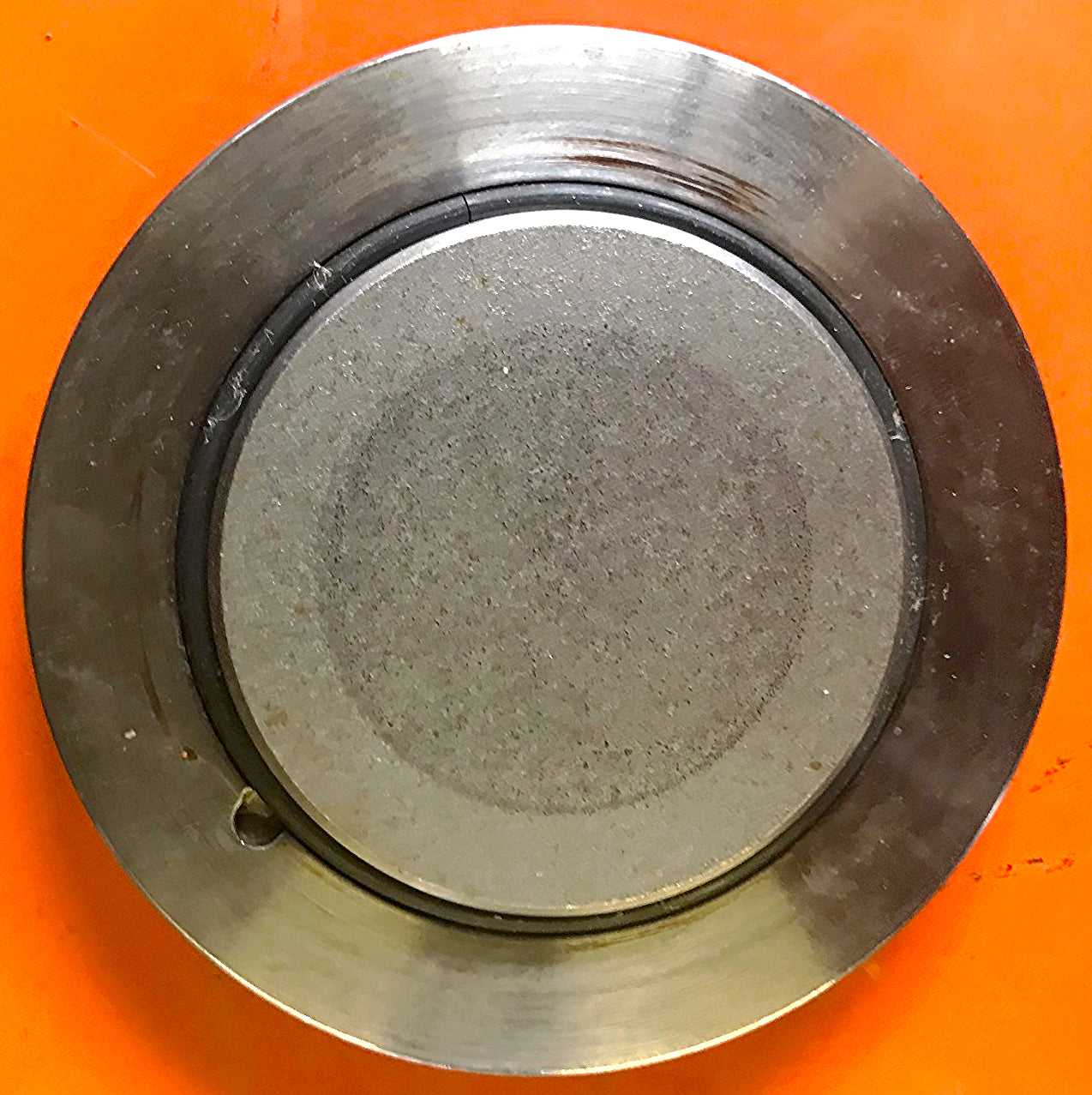

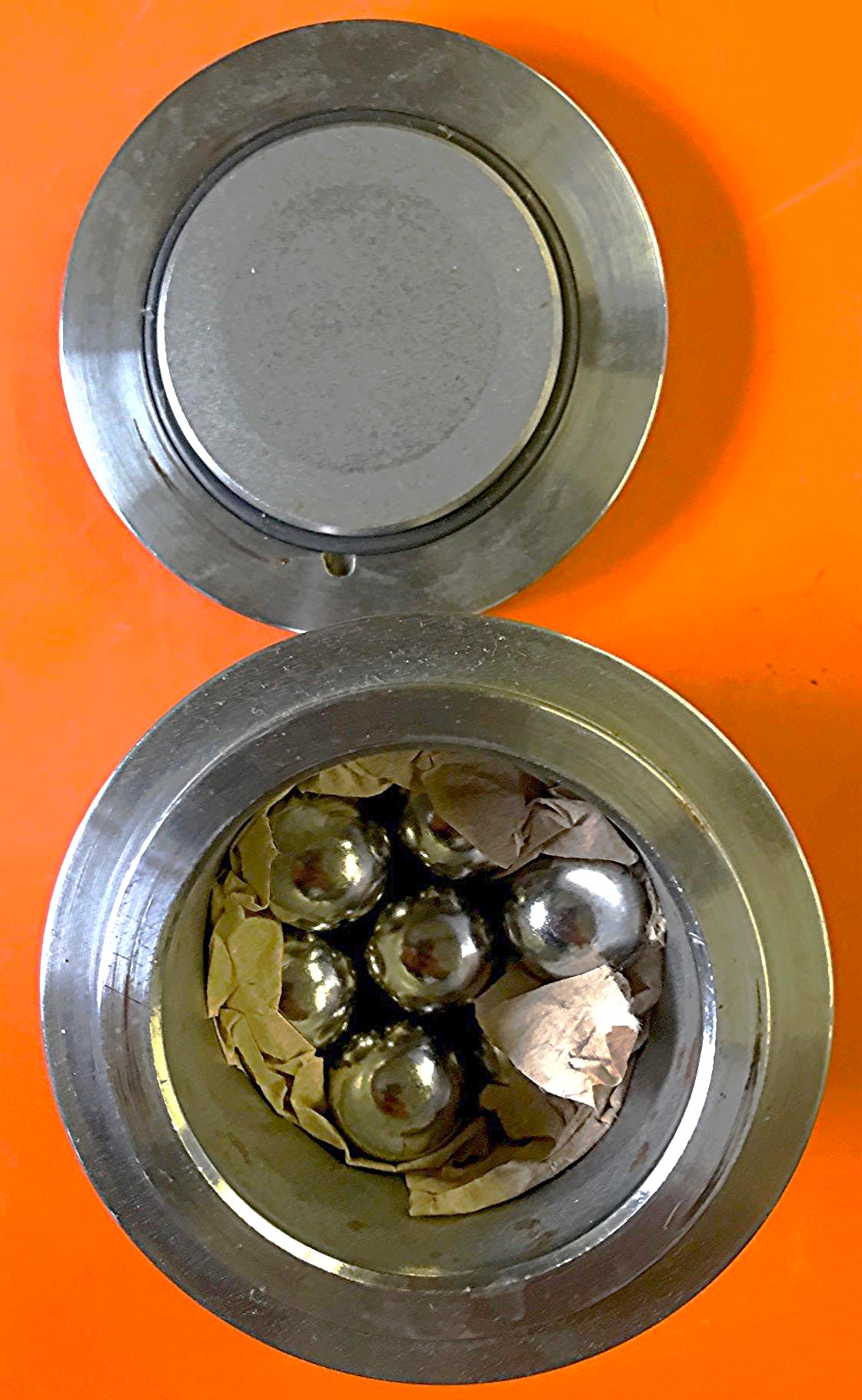

B - COMES WITH ONE 125 ml (1.462.0148) GRINDER JAR WITH LID and BALL MILLS as can be seen in the pictures. Just this Jar sells new for over US$ 2.000,00

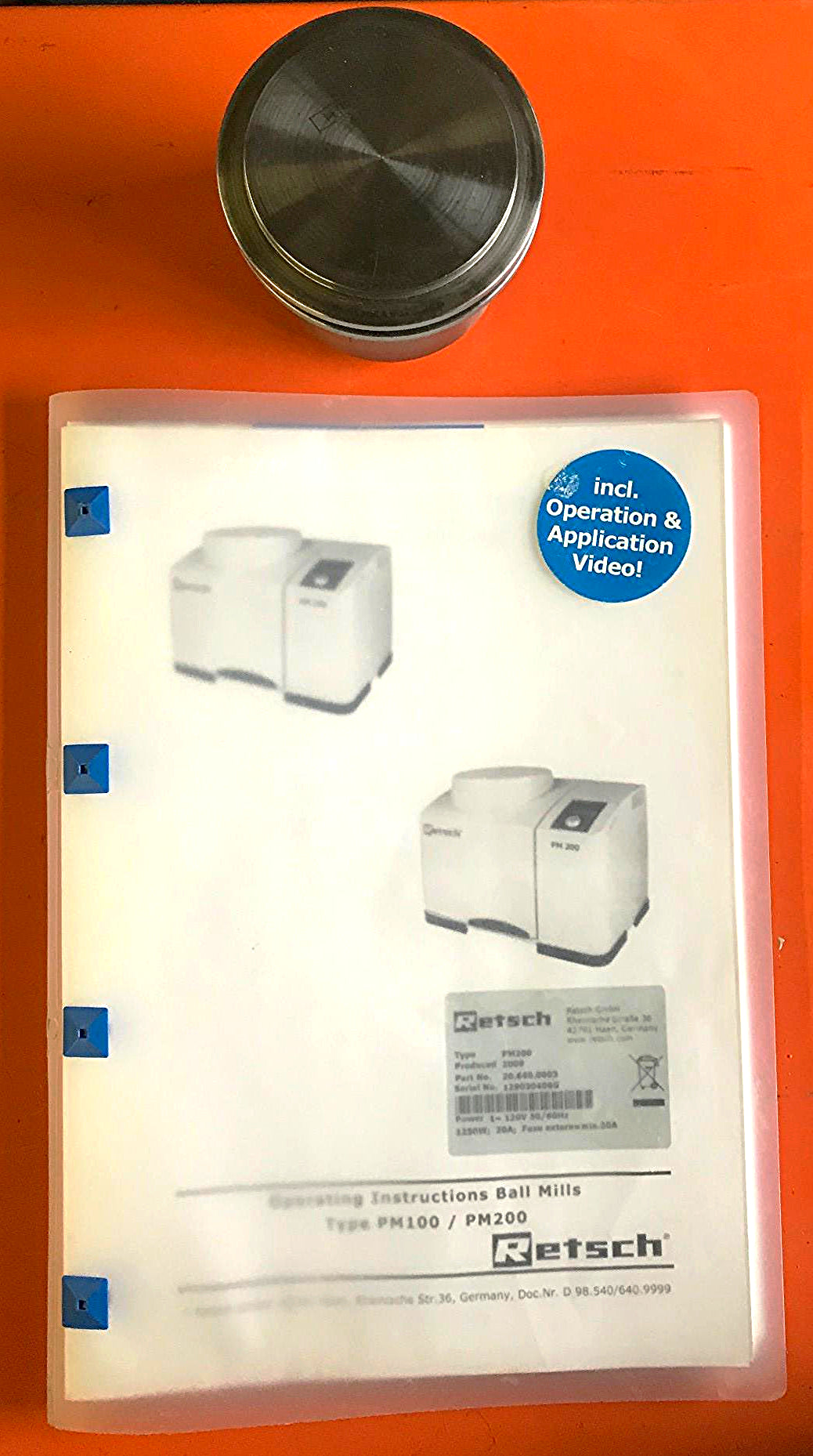

C - COMES WITH THE INSTRUCTIONS TECHNICAL DATA MANUAL

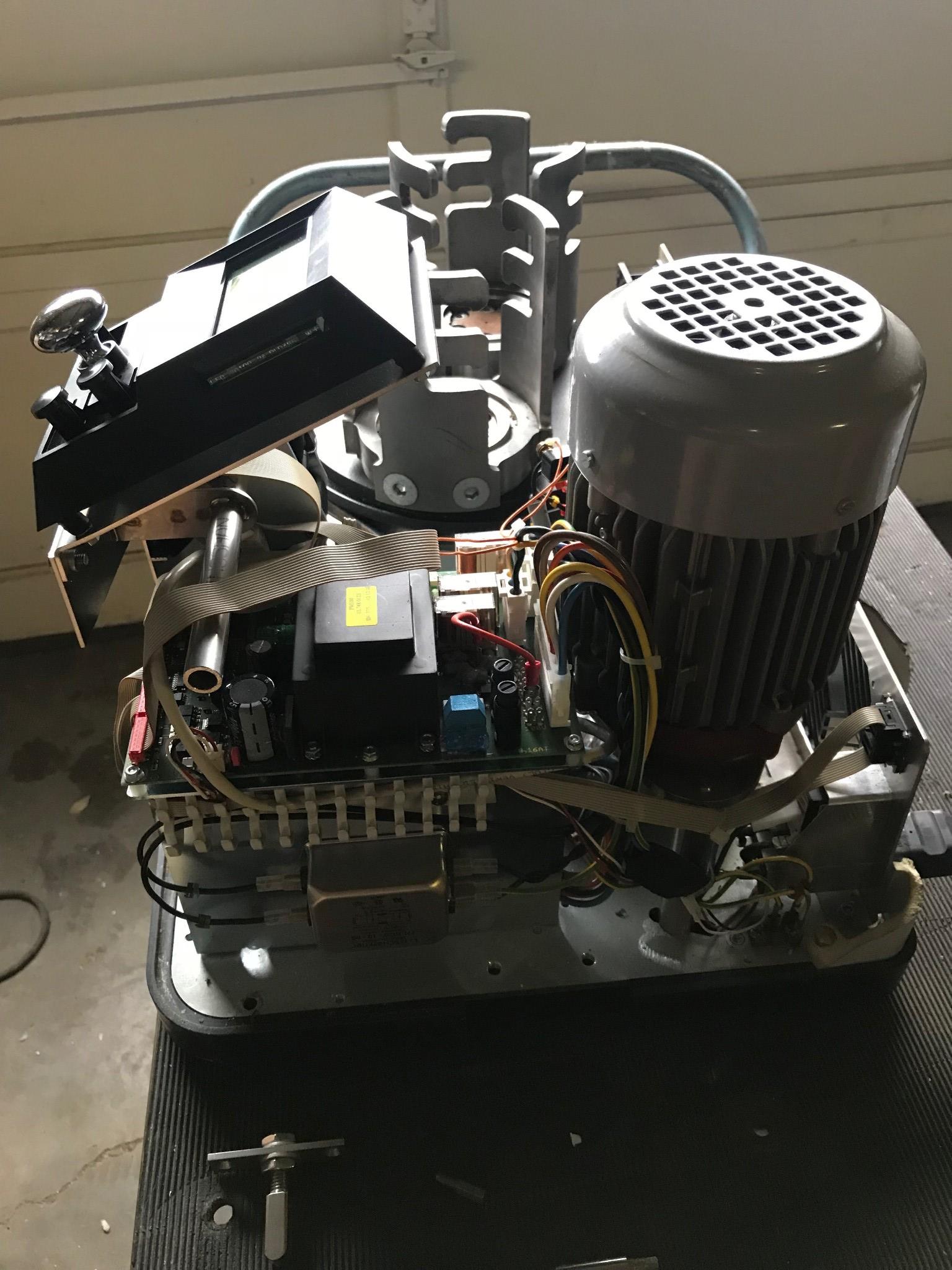

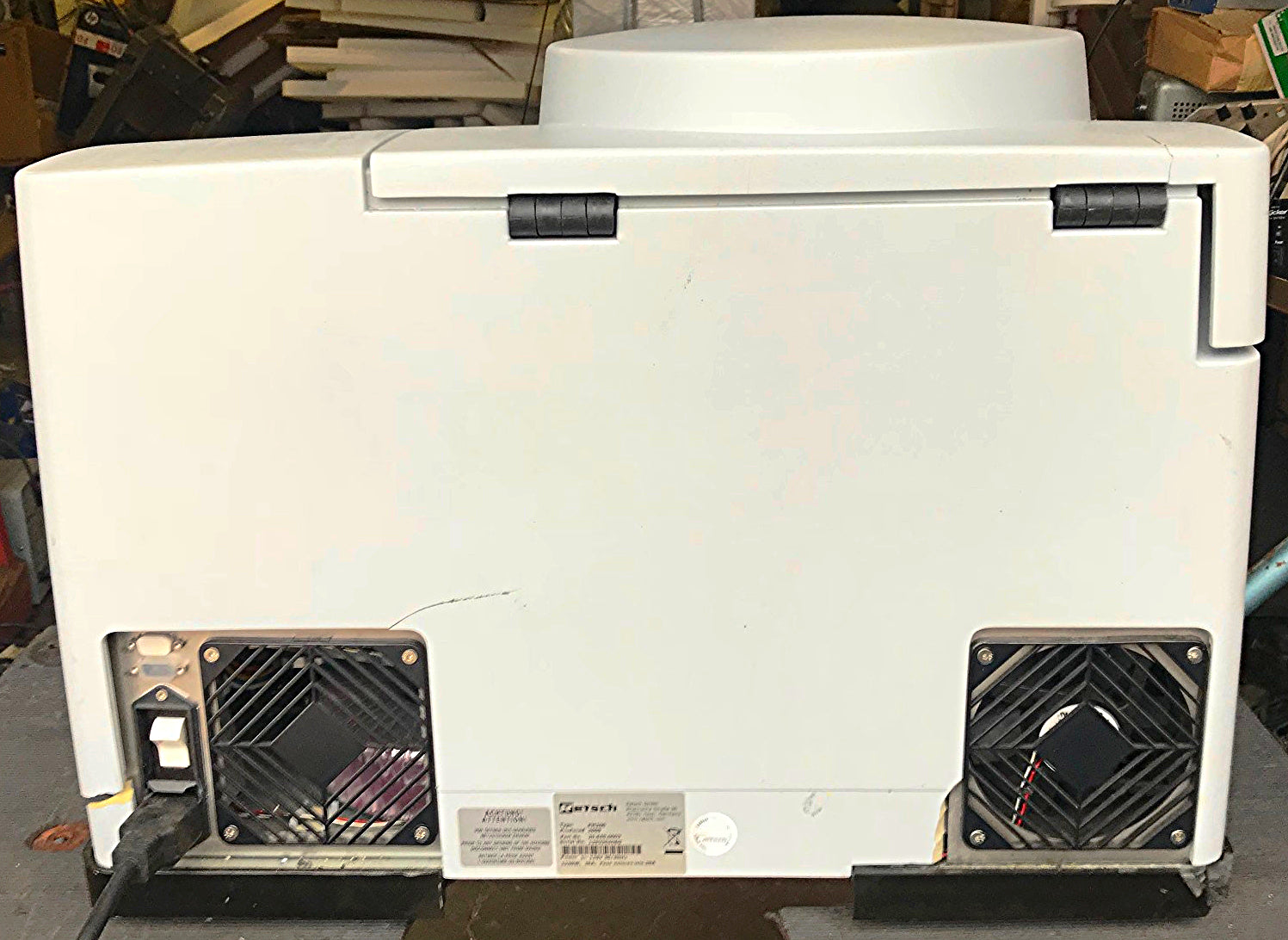

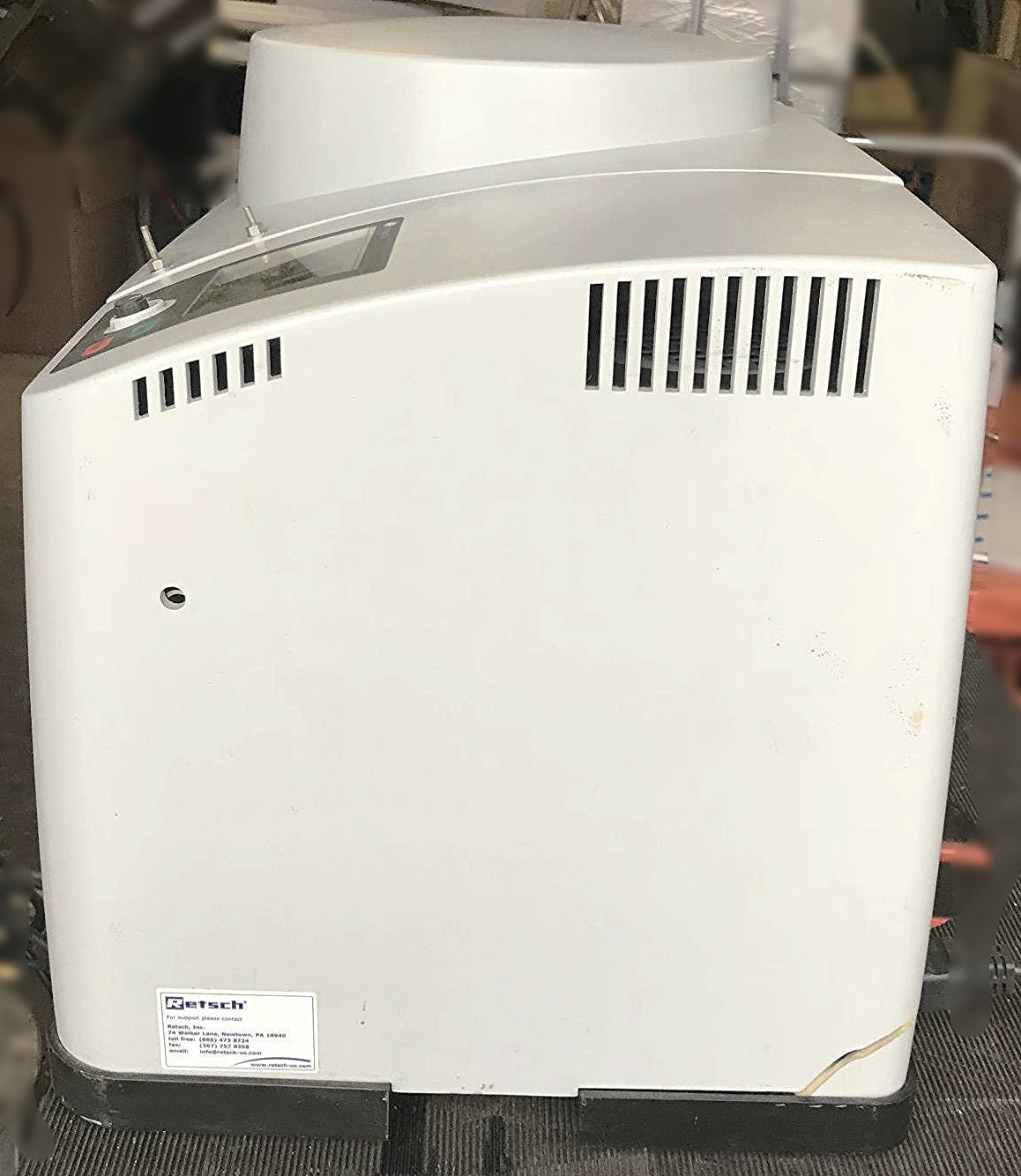

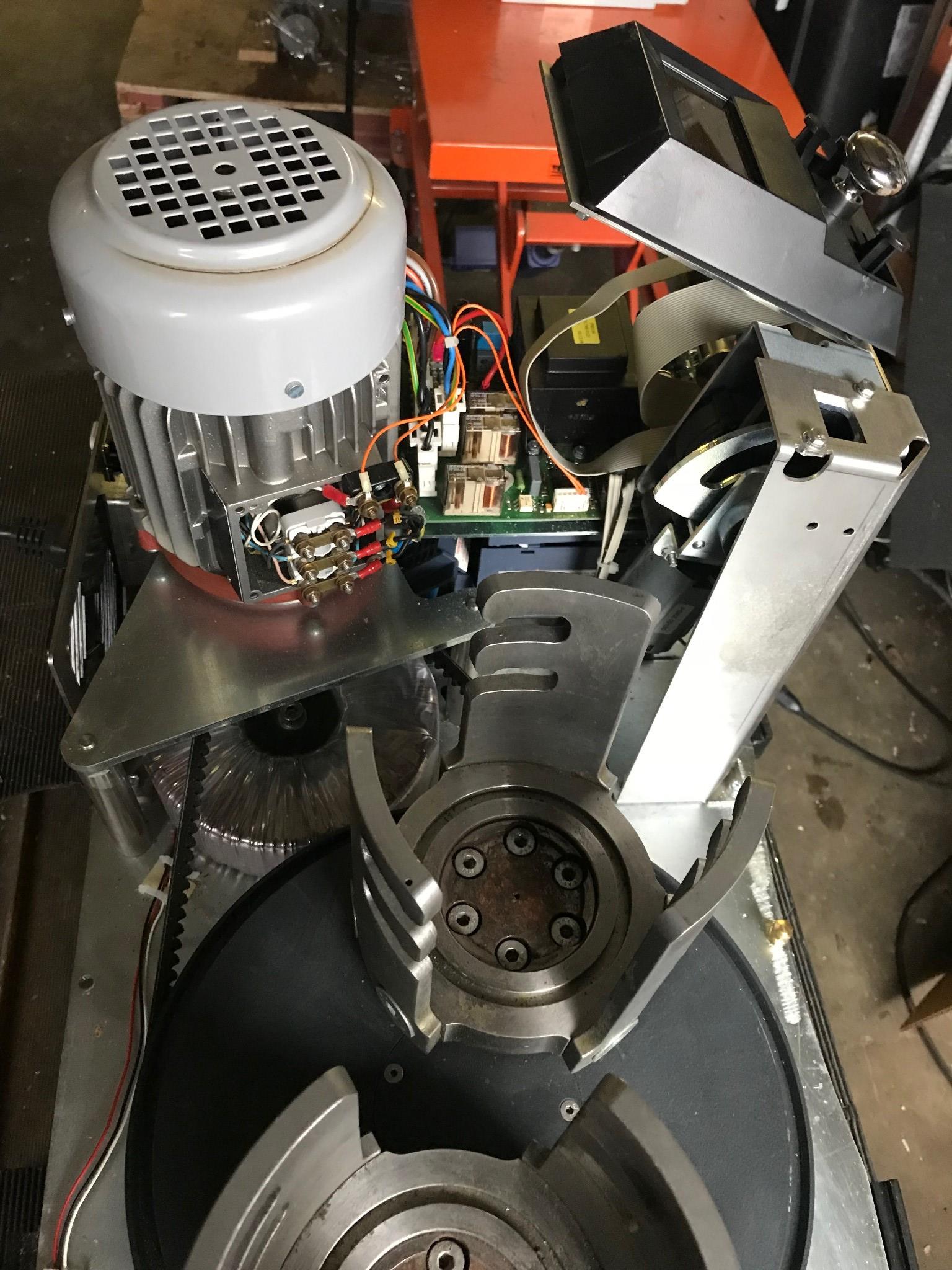

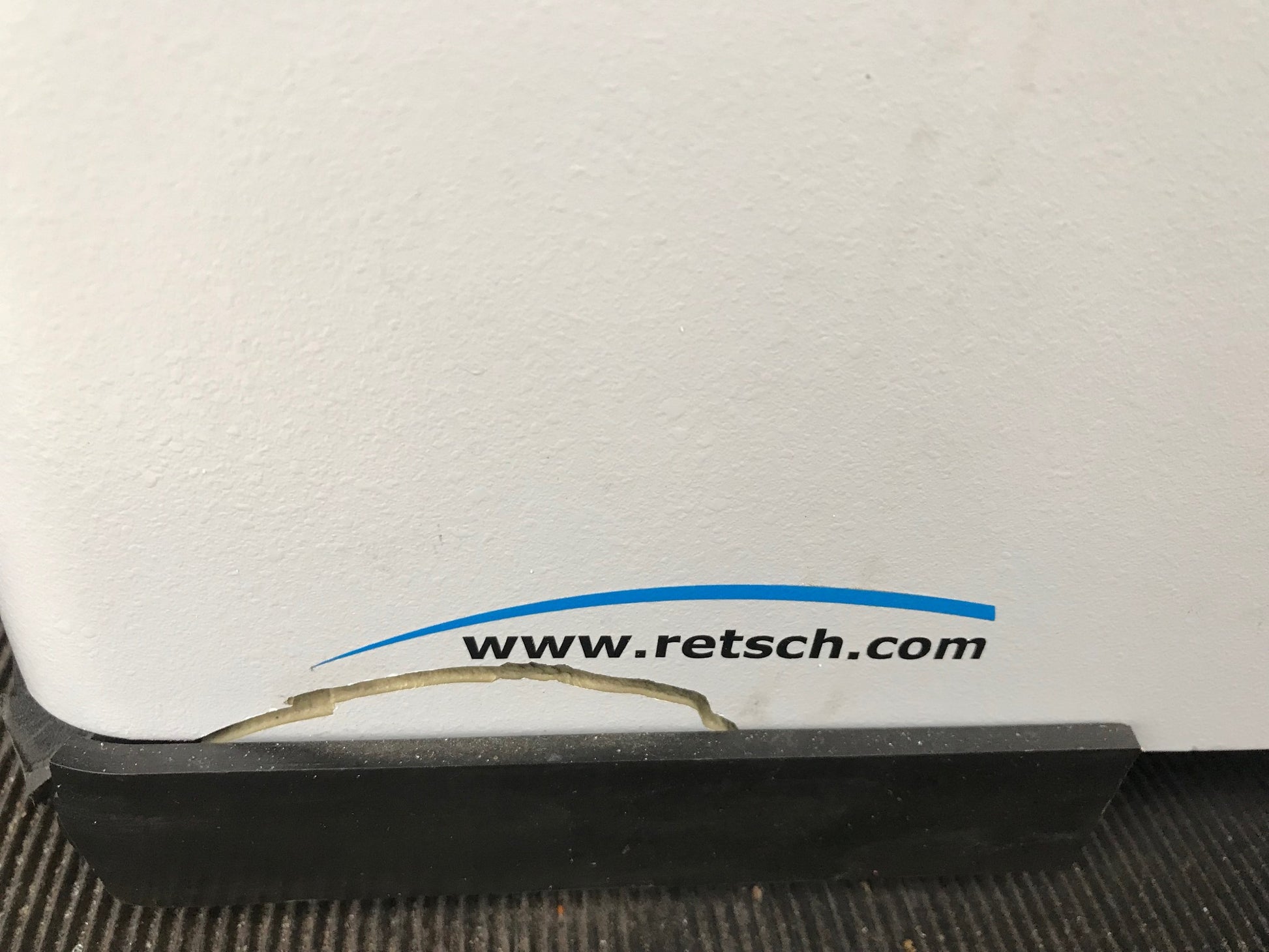

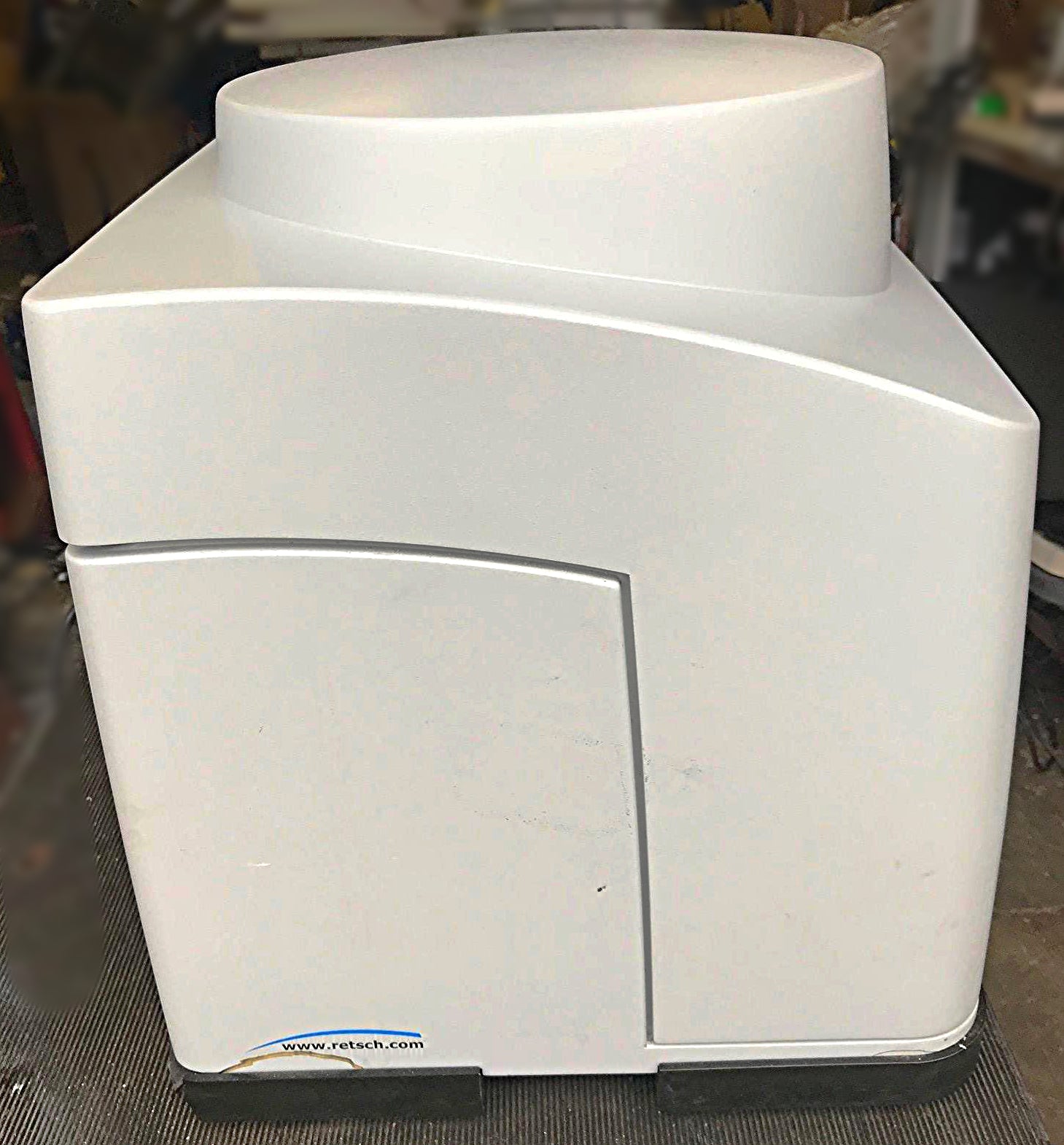

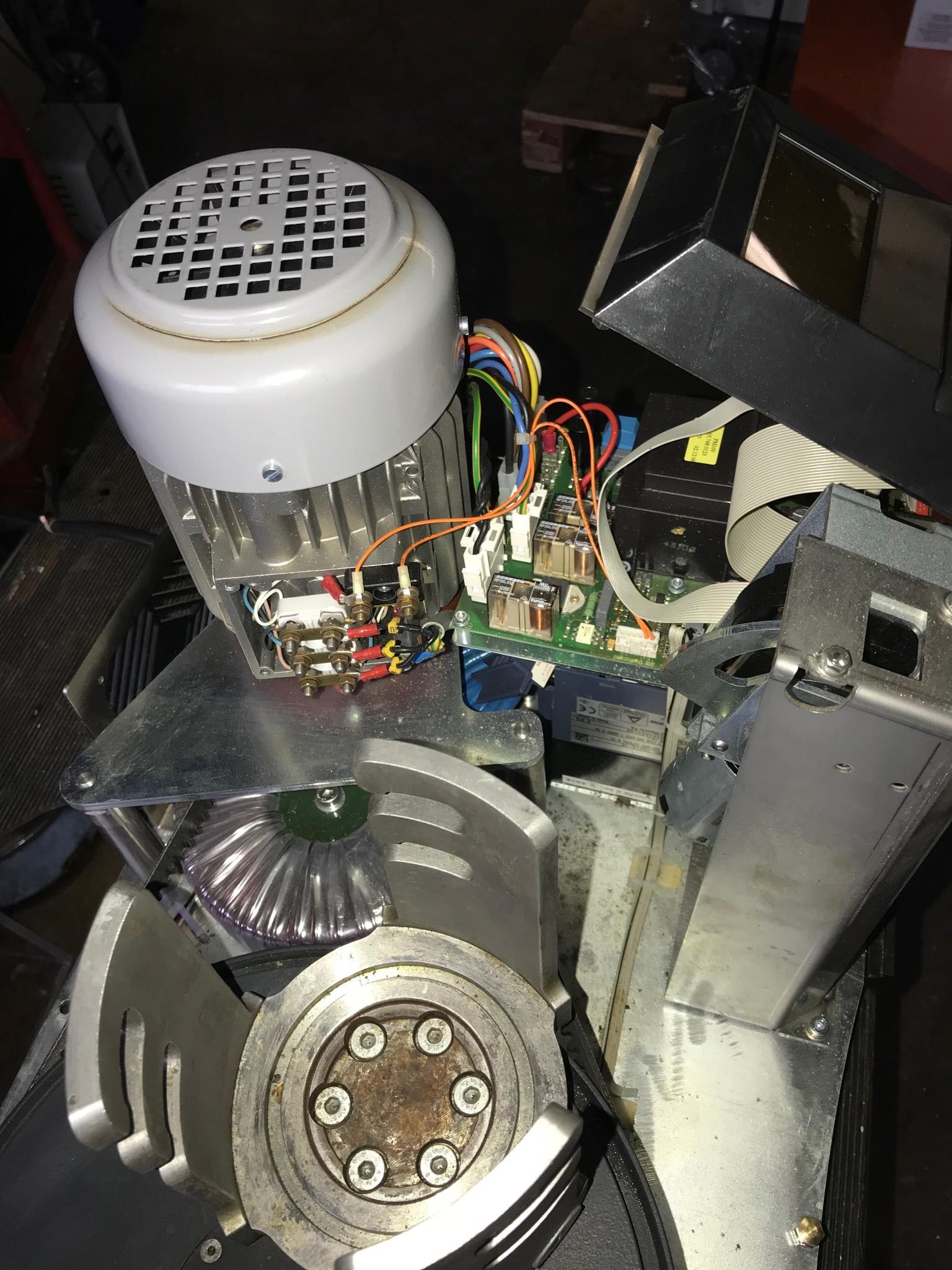

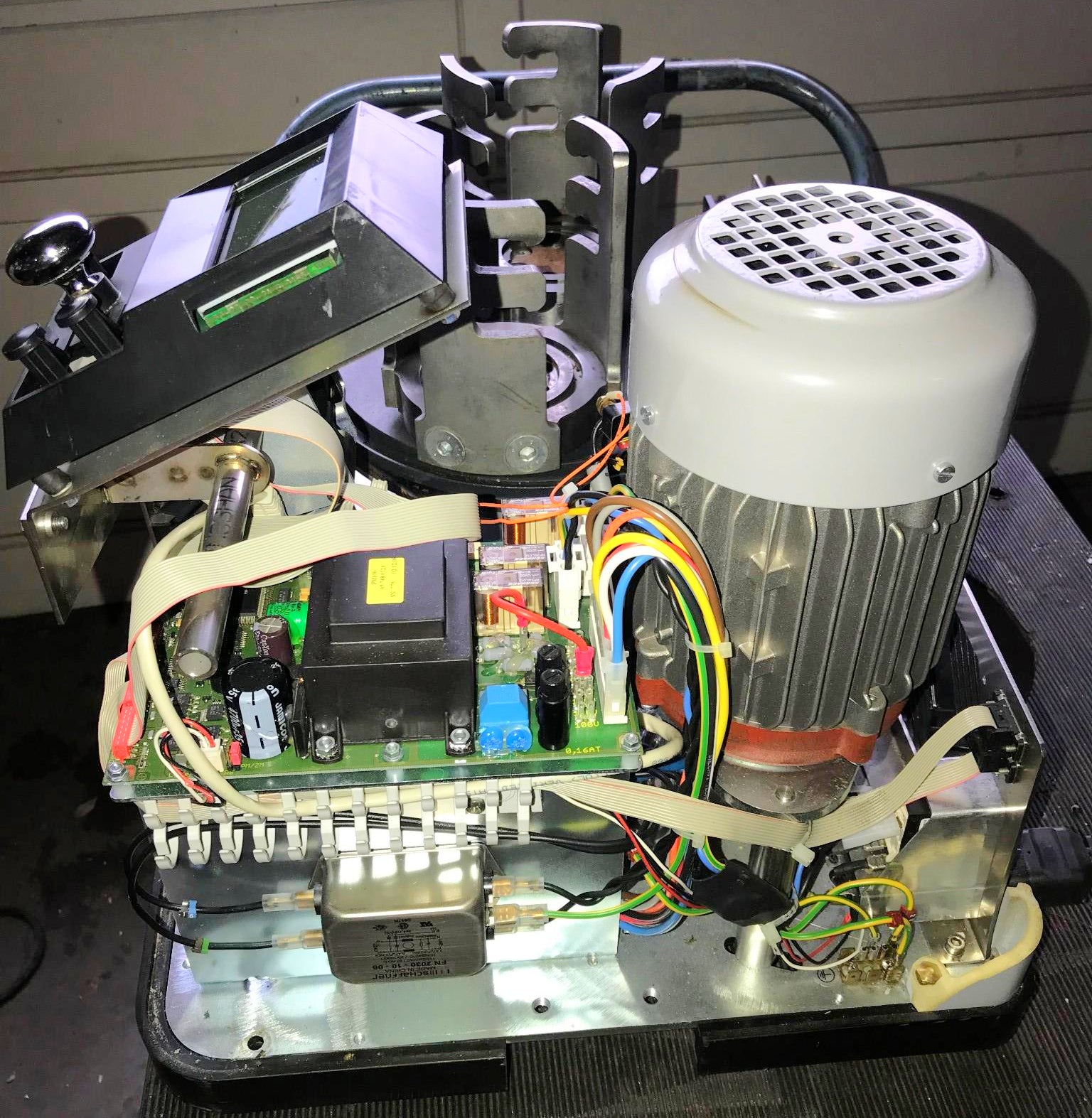

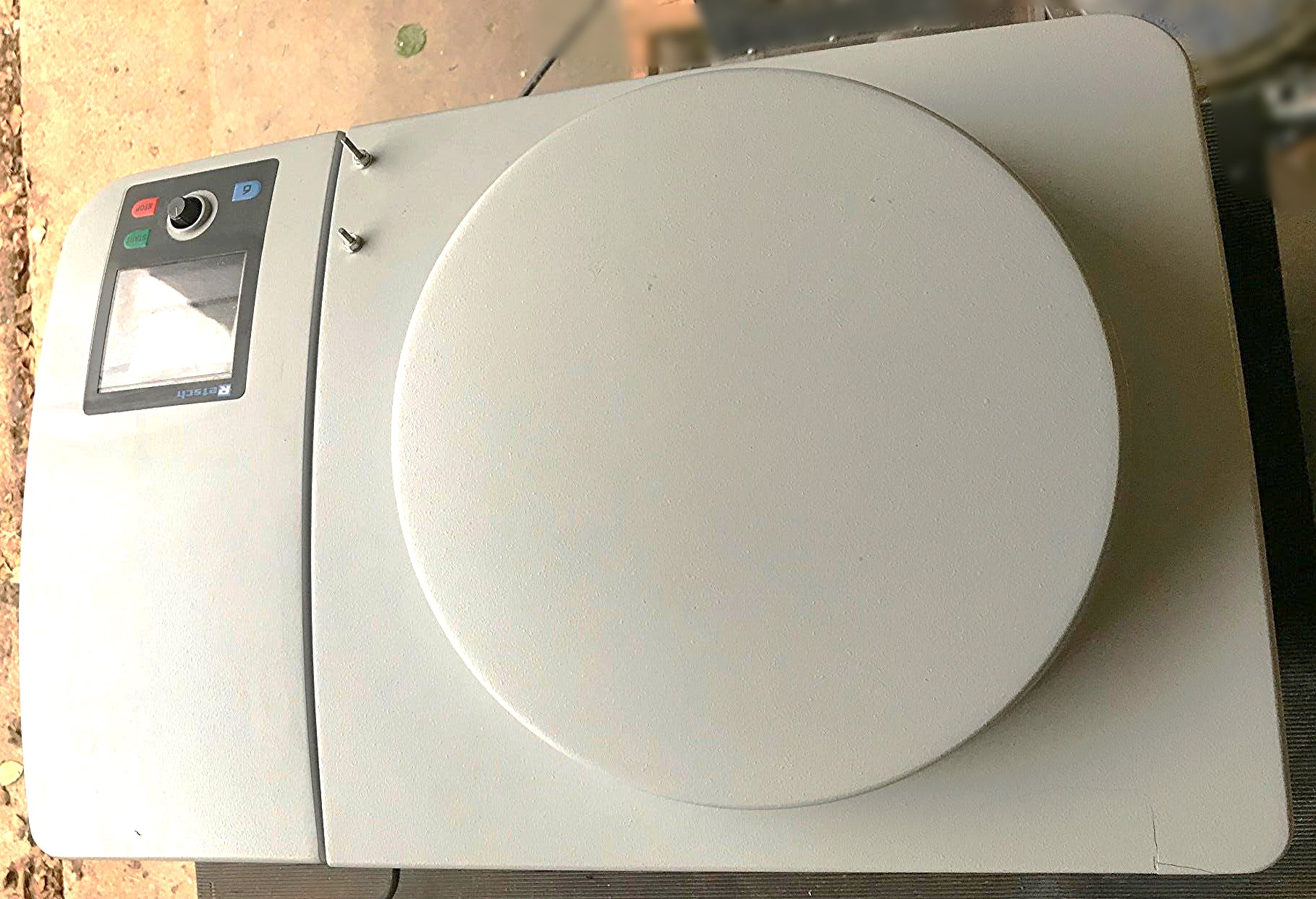

PLEASE READ, VERY IMPORTANT OPERATIONAL AND COSMETIC CONDITION OF THIS UNIT: "Was recently removed from service at a local Federal University where it had always been very well maintained. During transport to our facility, the movers placed it between two heavy crates and when the truck moved the crates squeezed it and cracked it's outer cover as can be seen in the pictures. The mechanism, the motor and the electronic sensors did not suffer any damage whatsoever, the cover indeed is very strong and protected the heart of this unit 100%. Nevertheless it's important to note that we had to re-engineer the cover to try and make it as whole as possible again. We put it back together and glued the parts together with epoxy making it as integral as we could as can be seen in the pictures. Despite the cover still showing the cracks it shows, the unit itself never suffered any problems and does operate normally, the issue is really the cover making the new buyer aware that he may have to tweek with it so as to make the cover lid lock and use this unit to his or her satisfaction. A new cover can be purchased at about $500 new as can be seen even here on eBay and then buyer will have a perfect Operational and Cosmetic RETSCH PM 200 grinder."

THE BEST: THIS UNIT IS WORKING AND THE PRICE IS EXCELLENT!

THE VERY GOOD: THIS UNIT IS WORKING AND THE PRICE IS EXCELLENT!

THE BAD: THERE IS NO BAD, BUYER IS FULLY AWARE OF THIS UNIT's CONDITION, BOTH VIDEOS CLEARLY SHOW HOW OPERATION WITH THIS UNIT SHOULD BE DONE.

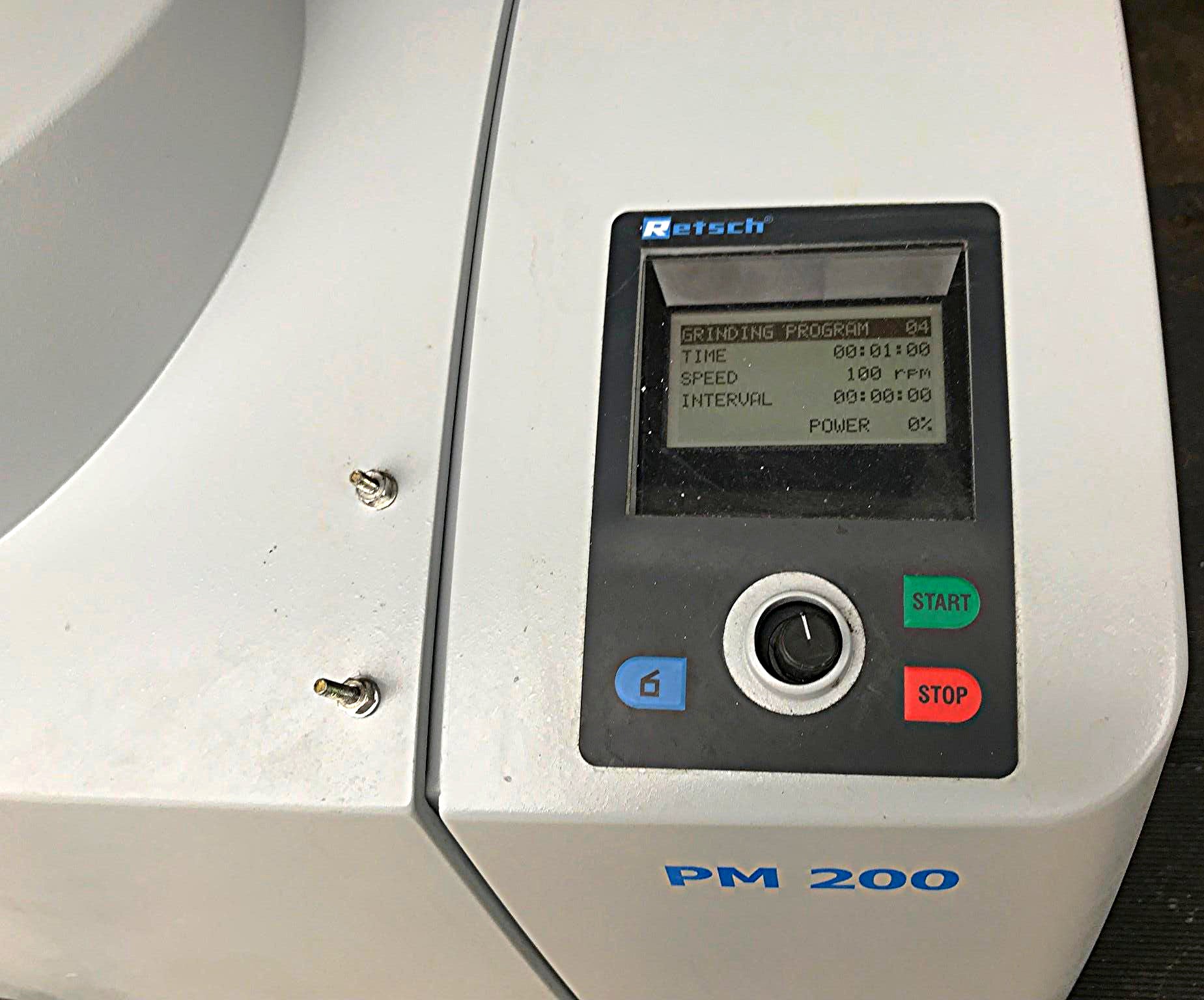

THE OPERATIONAL KNOB IS NOT ORIGINAL, WAS ADAPTED BUT DOES WORK AS CAN BE WATCHED IN THE VIDEO, THIS KNOB CAN BE EASILY REPLACED IF BUYER WANTS TO, WE DID NOT THINK IT NECESSARY SINCE AGAIN IT DOES WORK.

EVEN THOUGH THIS UNIT DOES POWER ON PLEASE DO NOTE THAT IT IS BEING SOLD UNDER AN AS IS NO RETURN CONDITION SINCE WE DO MAKE IT CLEAR ABOUT THIS UNIT's FULL CONDITION.

PLEASE FEEL FREE TO WATCH BOTH VIDEOS AND ALSO TO CHECK ALL THE PICTURES AND SEND US ANY QUESTIONS YOU MAY HAVE BEFORE BUYING IT, WE WILL RESPOND PROMPTLY.

RETSCH's TECHNICAL DATA ON THIS PM 200 CAN BE FOUND BY CLICKING https://www.retsch.com/products/milling/ball-mills/planetary-ball-mill-pm-200/function-features/

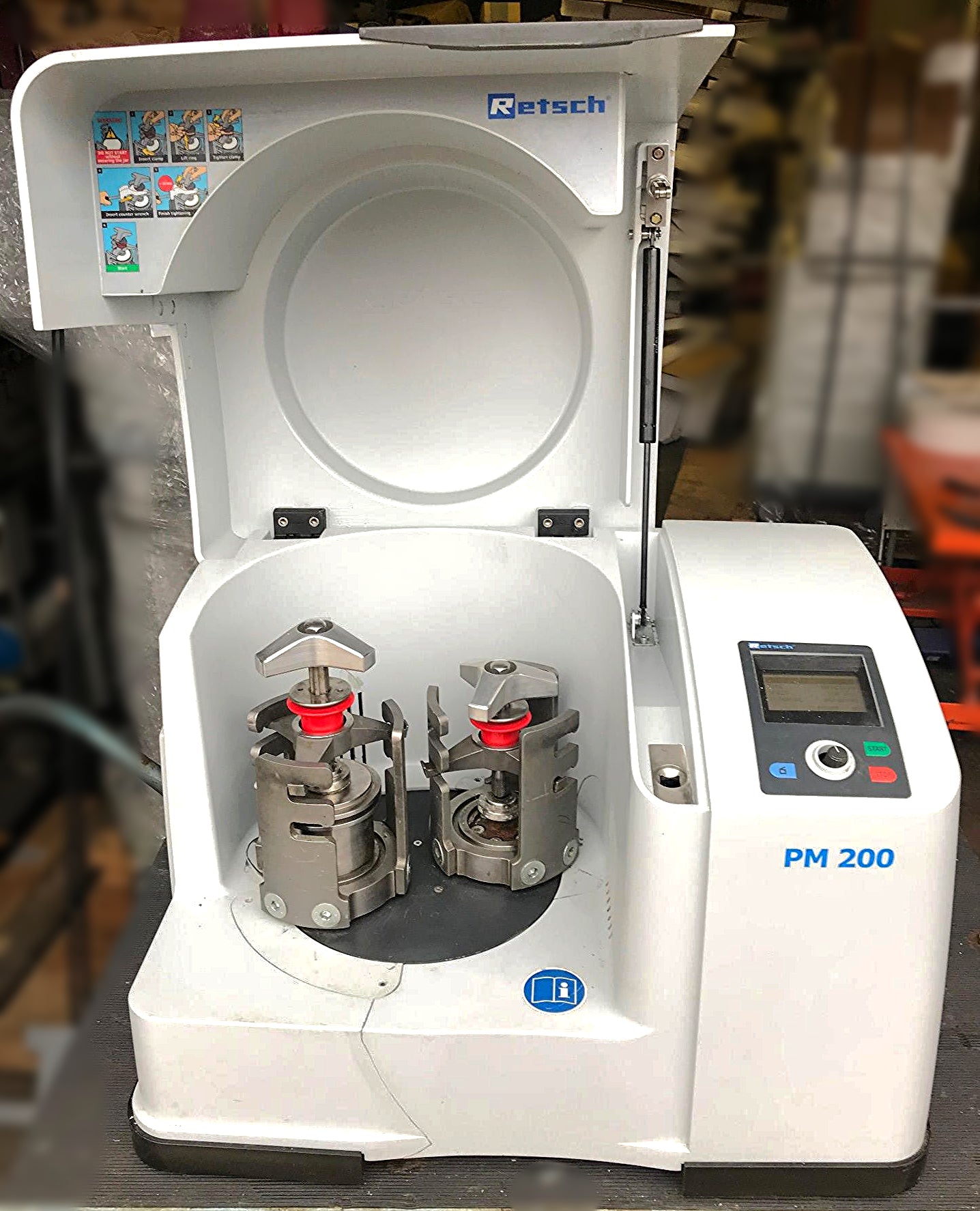

FEEL FREE TO WATCH A VIDEO OF THIS RETSCH PM 200 WITH THE DOOR OPEN WORKING BY CLICKING https://www.youtube.com/watch?v=DFVtgM9-avc

PLEASE WATCH ANOTHER VIDEO OF THIS UNIT WORKING WITH THE DOOR CLOSED BY CLICKING https://www.youtube.com/watch?v=15A7pjovm2o

DESCRIPTION TAKEN FROM MANUFACTURER:

Planetary Ball Mills are used wherever the highest degree of fineness is required.

Apart from the classical mixing and size reduction processes, the mills also meet all the technical requirements for colloidal grinding and have the energy input necessary for mechanical alloying processes.

The extremely high centrifugal forces of a planetary ball mill result in very high pulverization energy and therefore short grinding times.

The PM 200 is a convenient benchtop model with 2 grinding stations.

The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.

Application Examples

alloys, bentonite, bones, carbon fibres, catalysts, cellulose, cement clinker, ceramics, charcoal, chemical products, clay minerals, coal, coke, compost, concrete, electronic scrap, fibres, glass, gypsum, hair, hydroxyapatite, iron ore, kaolin, limestone, metal oxides, minerals, ores, paints and lacquers, paper, pigments, plant materials, polymers, quartz, seeds, semi-precious stones, sewage sludge, slag, soils, tissue, tobacco, waste samples, wood, ... continue to application database

Product Advantages

powerful and quick grinding down to nano range

reproducible results due to energy and speed control

suitable for long-term trials

2 different grinding modes (dry and wet)

wide range of materials for contamination free grinding

Safety Slider for safe operation

comfortable parameter setting via display and ergonomic 1-button operation

automatic grinding chamber ventilation

10 SOPs can be stored

programmable starting time

power failure backup ensures storage of remaining grinding time

jars with O-type sealing for safe operation, pressure tight

Features

Applications pulverizing, mixing, homogenizing, colloidal milling, mechanical alloying

Field of application agriculture, biology, Chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material soft, hard, brittle, fibrous - dry or wet

Size reduction principle impact, friction

Material feed size* < 4 mm

Final fineness* < 1 µm, for colloidal grinding < 0.1 µm

Batch size / feed quantity* max. 2 x 50 ml

No. of grinding stations 2

Speed ratio 1 : -2

Sun wheel speed 100 - 650 min-1

Effective sun wheel diameter 157 mm

G-force 37.1 g

Type of grinding jars "comfort", optional areation covers, safety closure devices

Material of grinding tools hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, silicon nitride, zirconium oxide

Grinding jar sizes 12 ml / 25 ml / 50 ml / 80 ml / 125 ml

Setting of grinding time digital, 00:00:01 to 99:59:59

Interval operation yes, with direction reversal

Interval time 00:00:01 to 99:59:59

Pause time 00:00:01 to 99:59:59

Storable SOPs 10

Measurement of input energy possible yes

Interface RS 232 / RS 485

Drive 3-phase asynchronous motor with frequency converter

Drive power 750 W

Electrical supply data different voltages

Power connection 1-phase

Protection code IP 30

Power consumption ~ 1250 W (VA)

W x H x D closed 640 x 480 (780) x 420 mm

Net weight ~ 72 kg

Standards CE

Patent / Utility patent SafetySlider (DE 202008008473)

Please note:

*depending on feed material and instrument configuration/settings

Function Principle

The grinding jars are arranged eccentrically on the sun wheel of the planetary ball mill. The direction of movement of the sun wheel is opposite to that of the grinding jars in the ratio 1:-2.

The grinding balls in the grinding jars are subjected to superimposed rotational movements, the so-called Coriolis forces.

The difference in speeds between the balls and grinding jars produces an interaction between frictional and impact forces, which releases high dynamic energies.

The interplay between these forces produces the high and very effective degree of size reduction of the planetary ball mill

Tiengo cuenta de SKYPE, conta te-me via el nombre: itibas usando SKYPE sin costo algun.

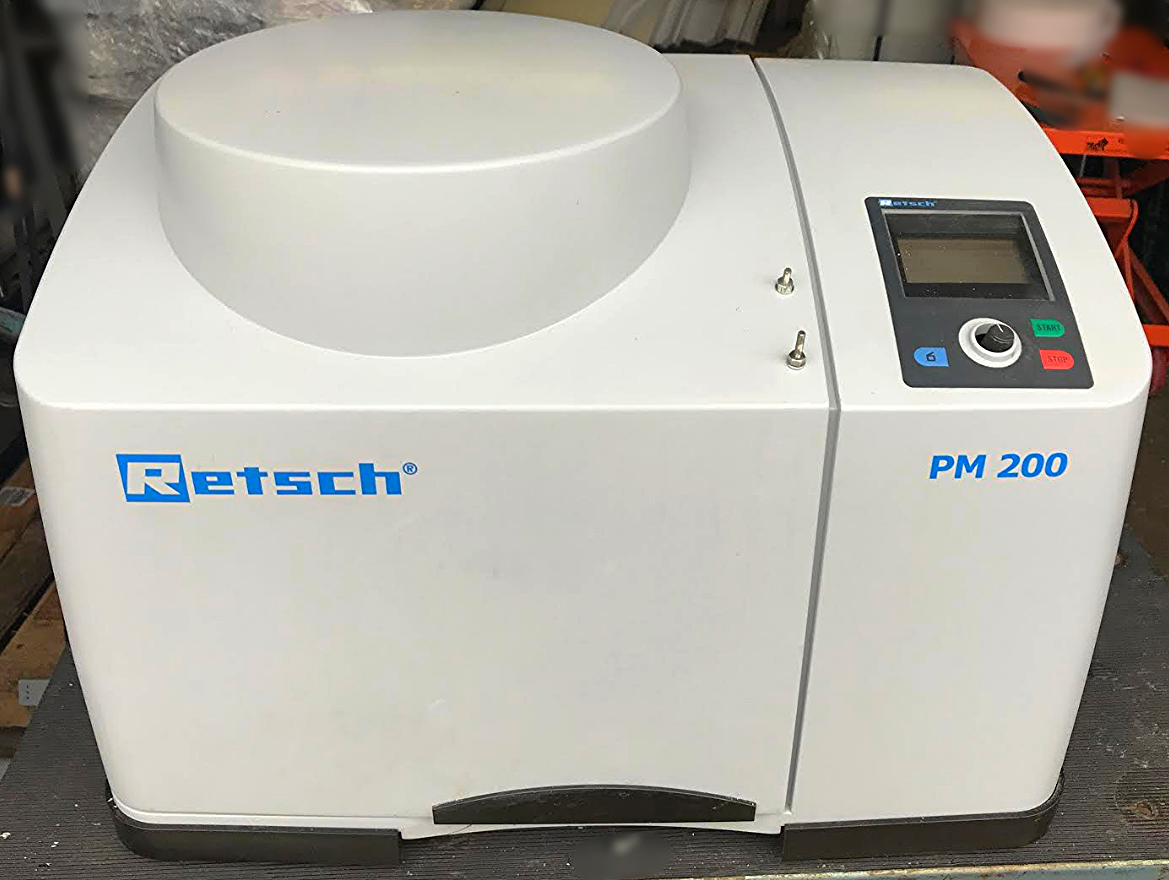

COSMETIC NOTES: GOOD cosmetic condition as can be seen in the pictures.

FEEL FREE TO ASK QUESTIONS, WE'LL RESPOND PROMPTLY!

Stock # 182211
