Rare MEYER SOUND SB-3F 9000W SPEAKER UMichigan BIGHOUSE FootballStadium FREESHIP
Item Description

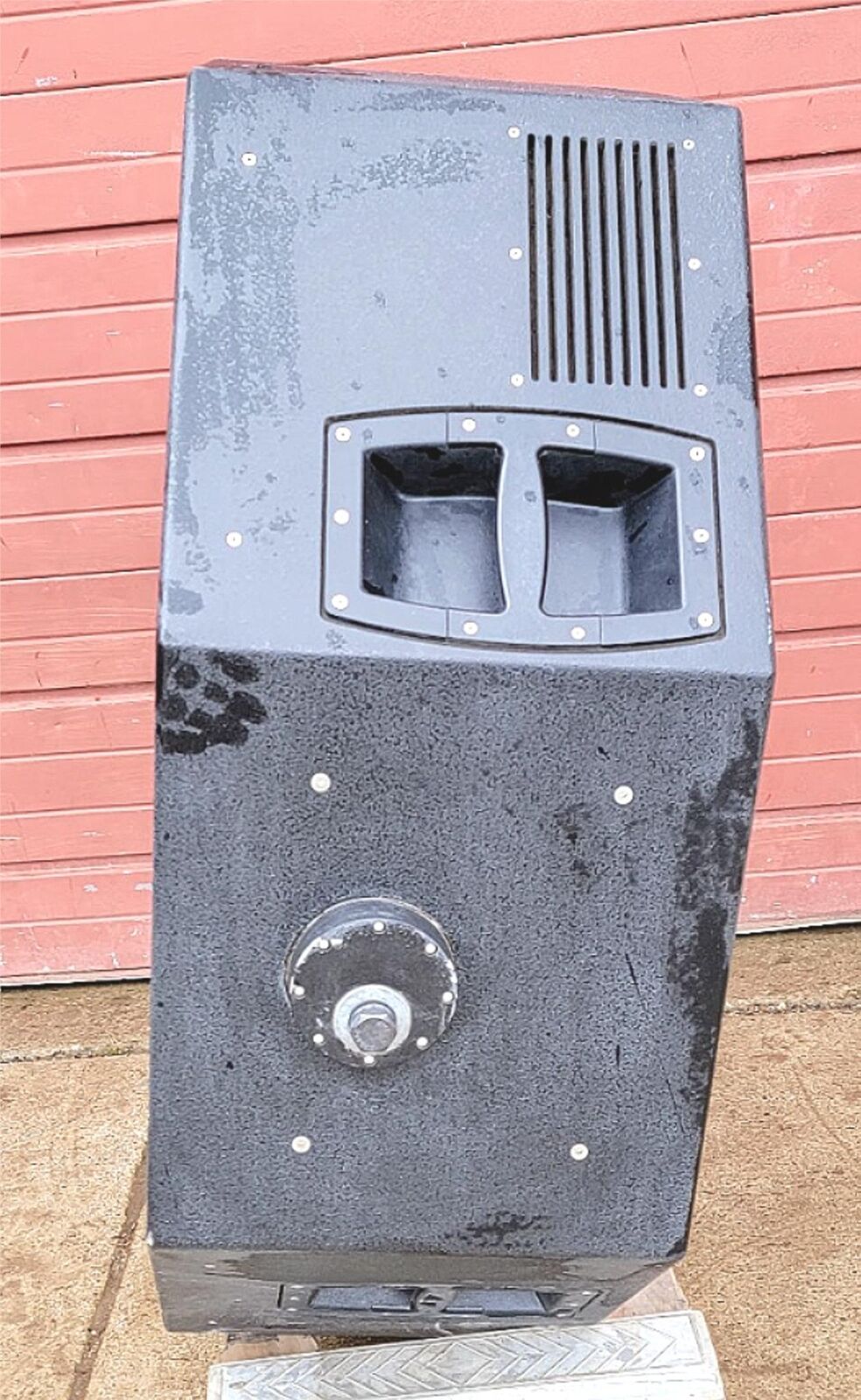

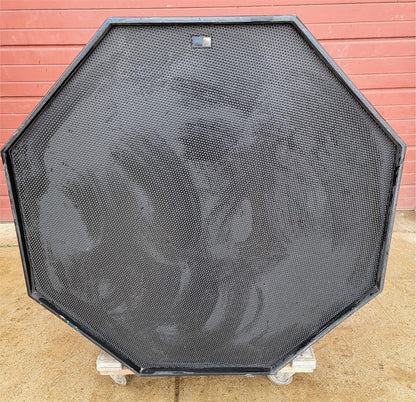

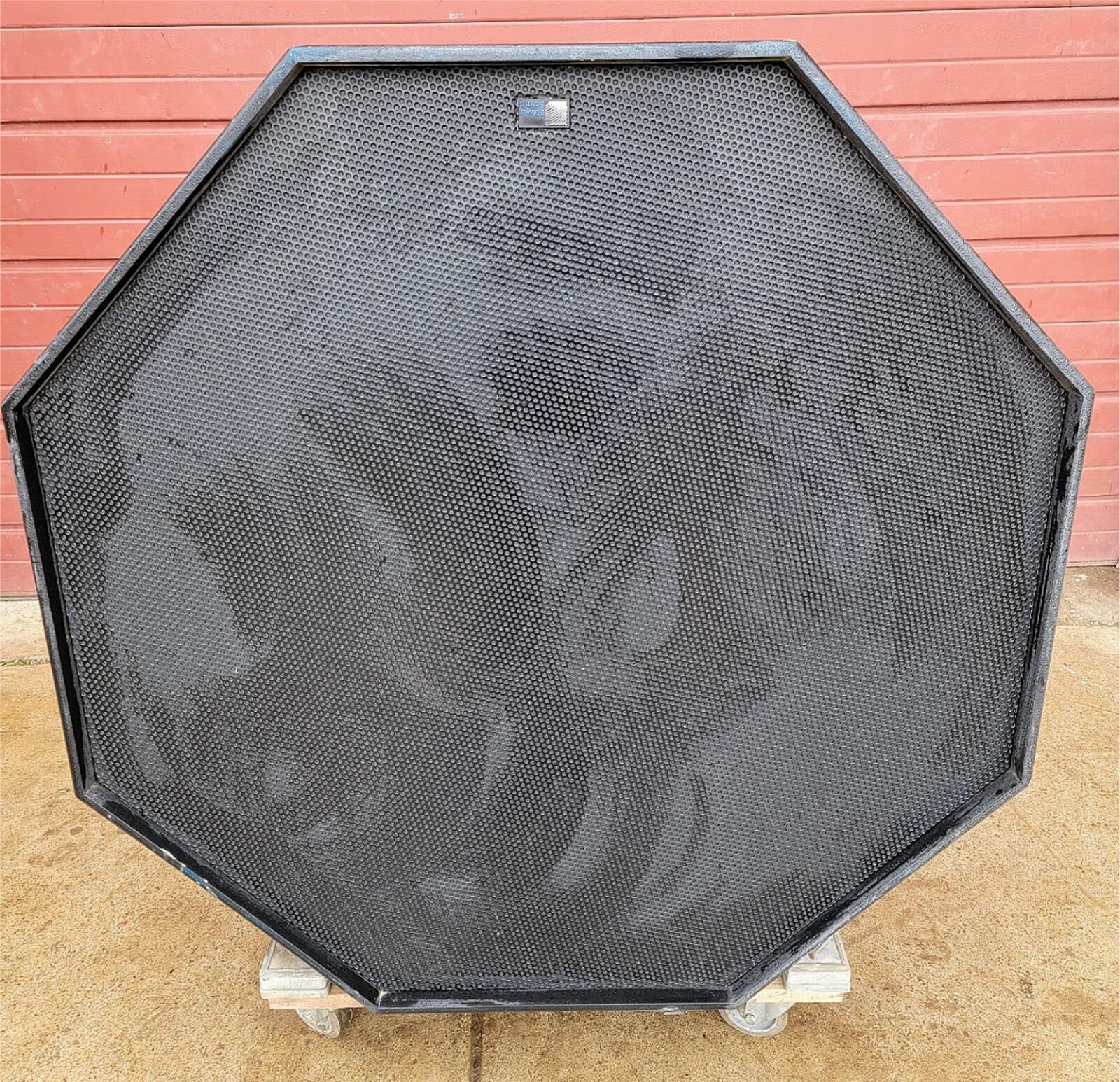

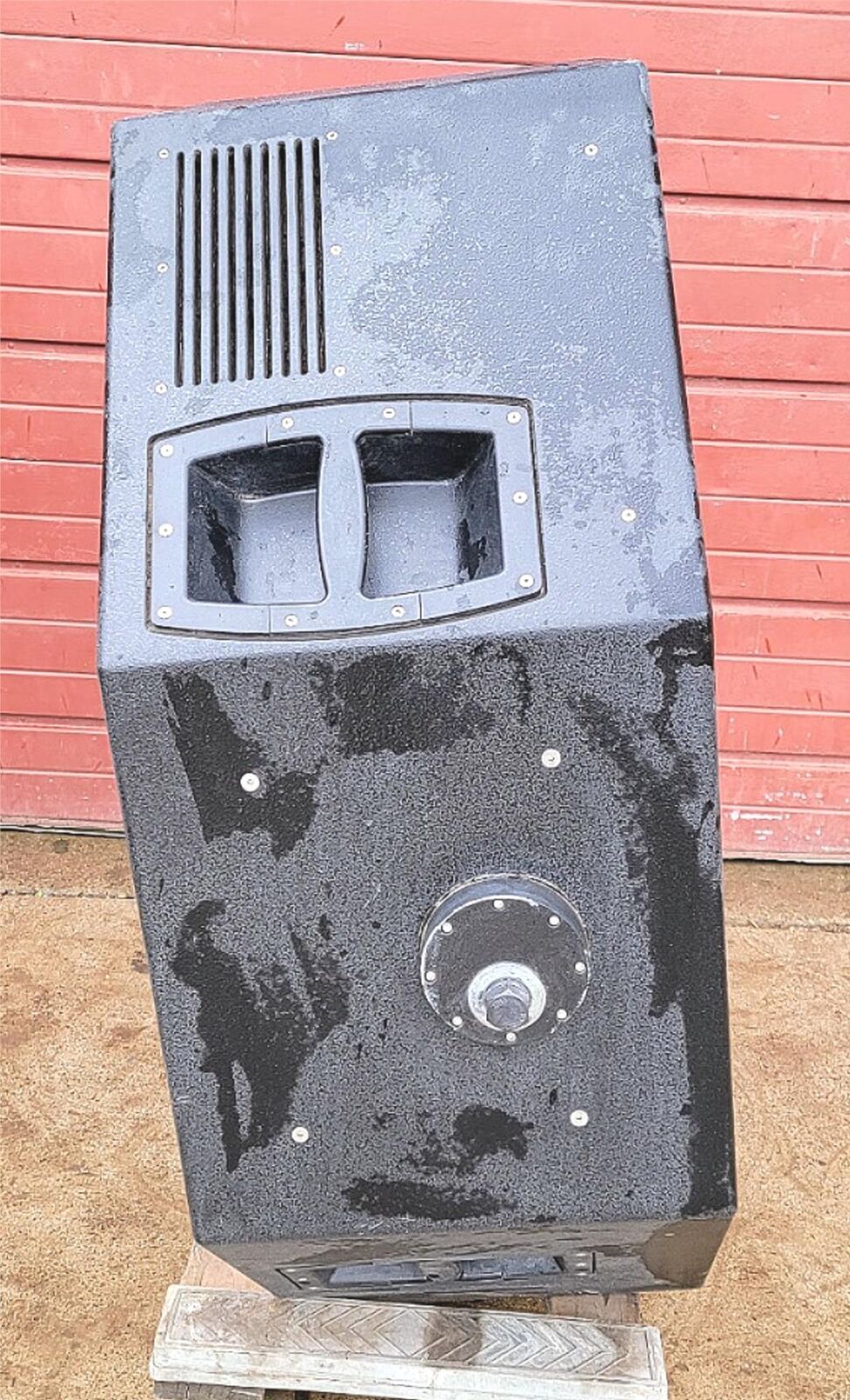

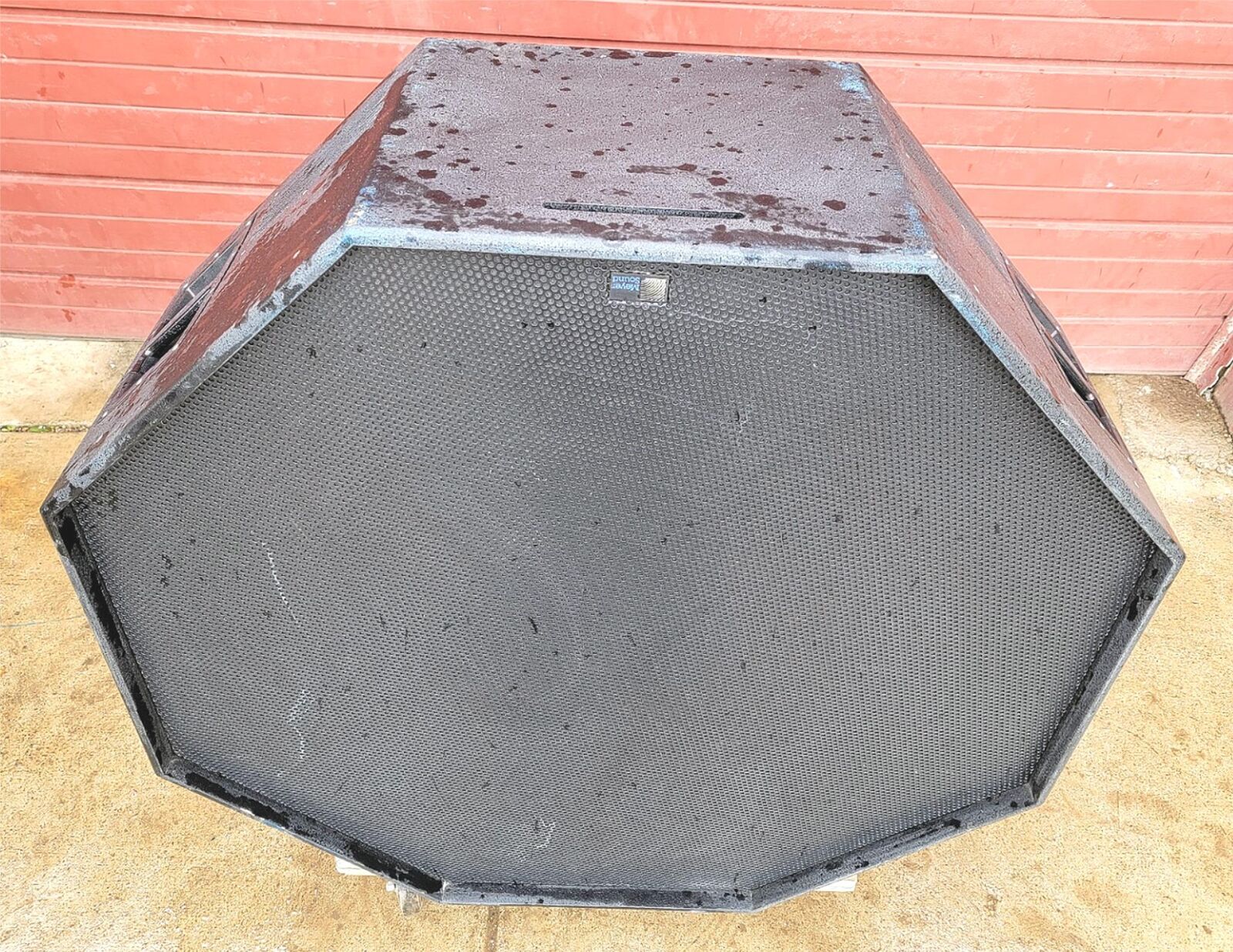

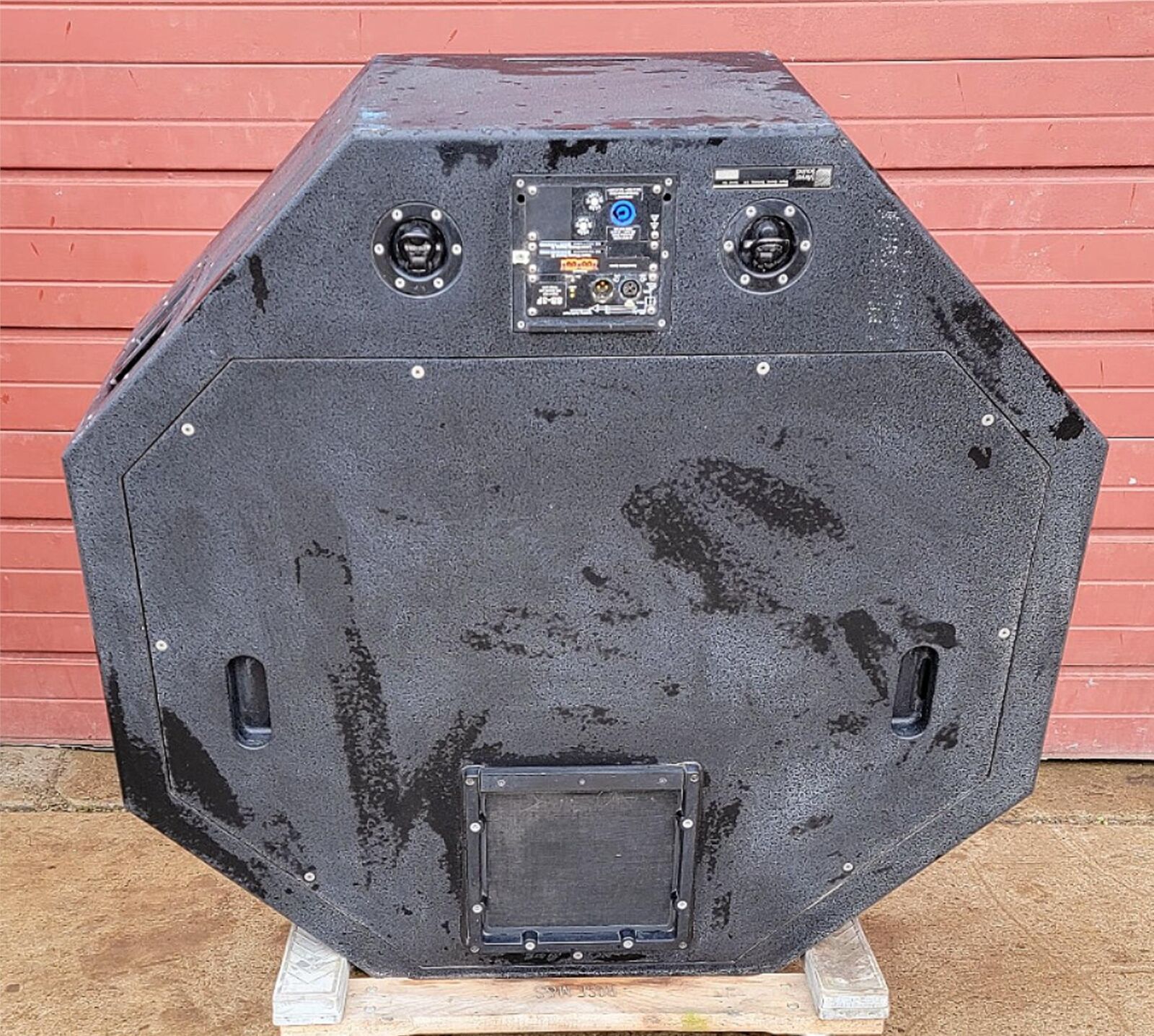

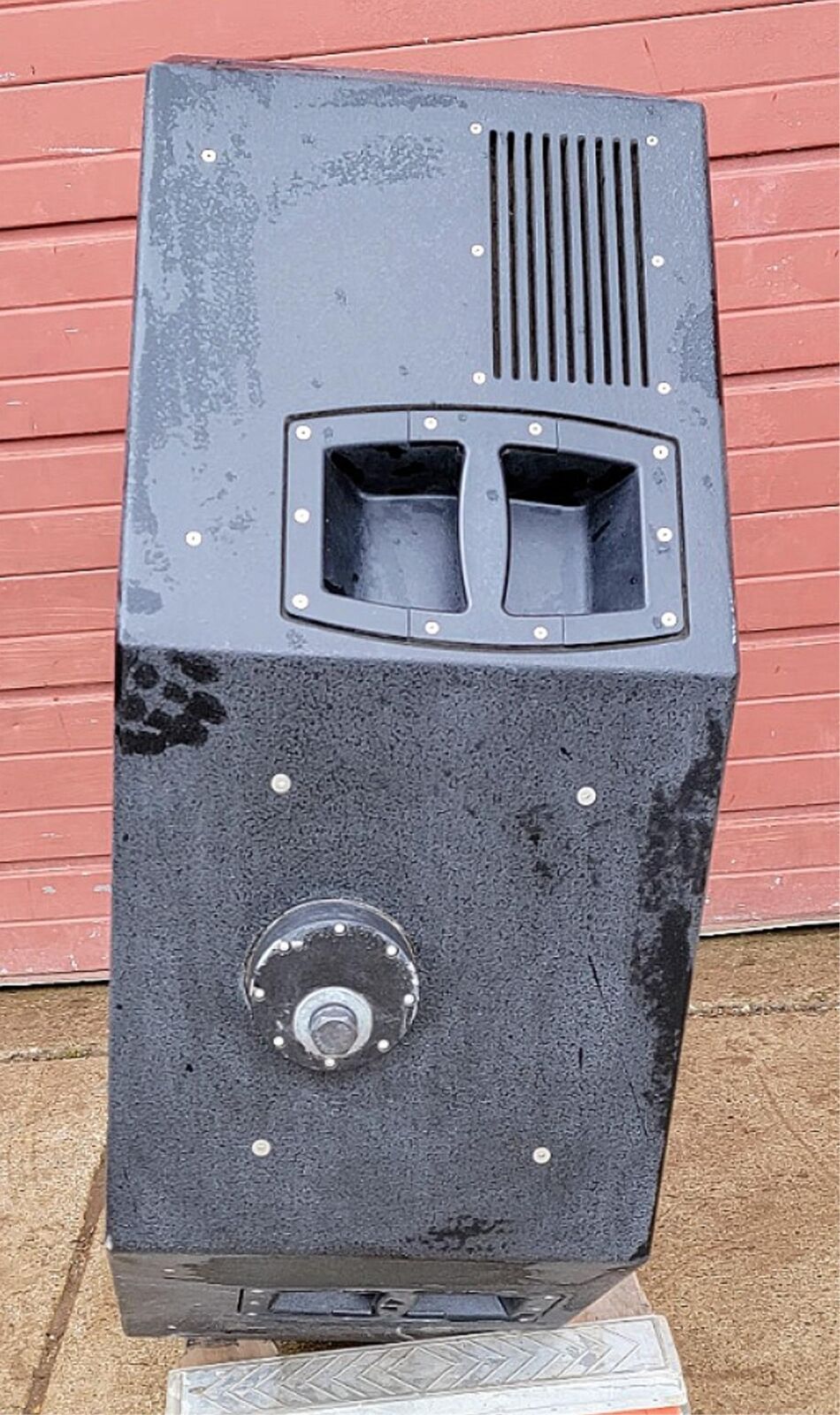

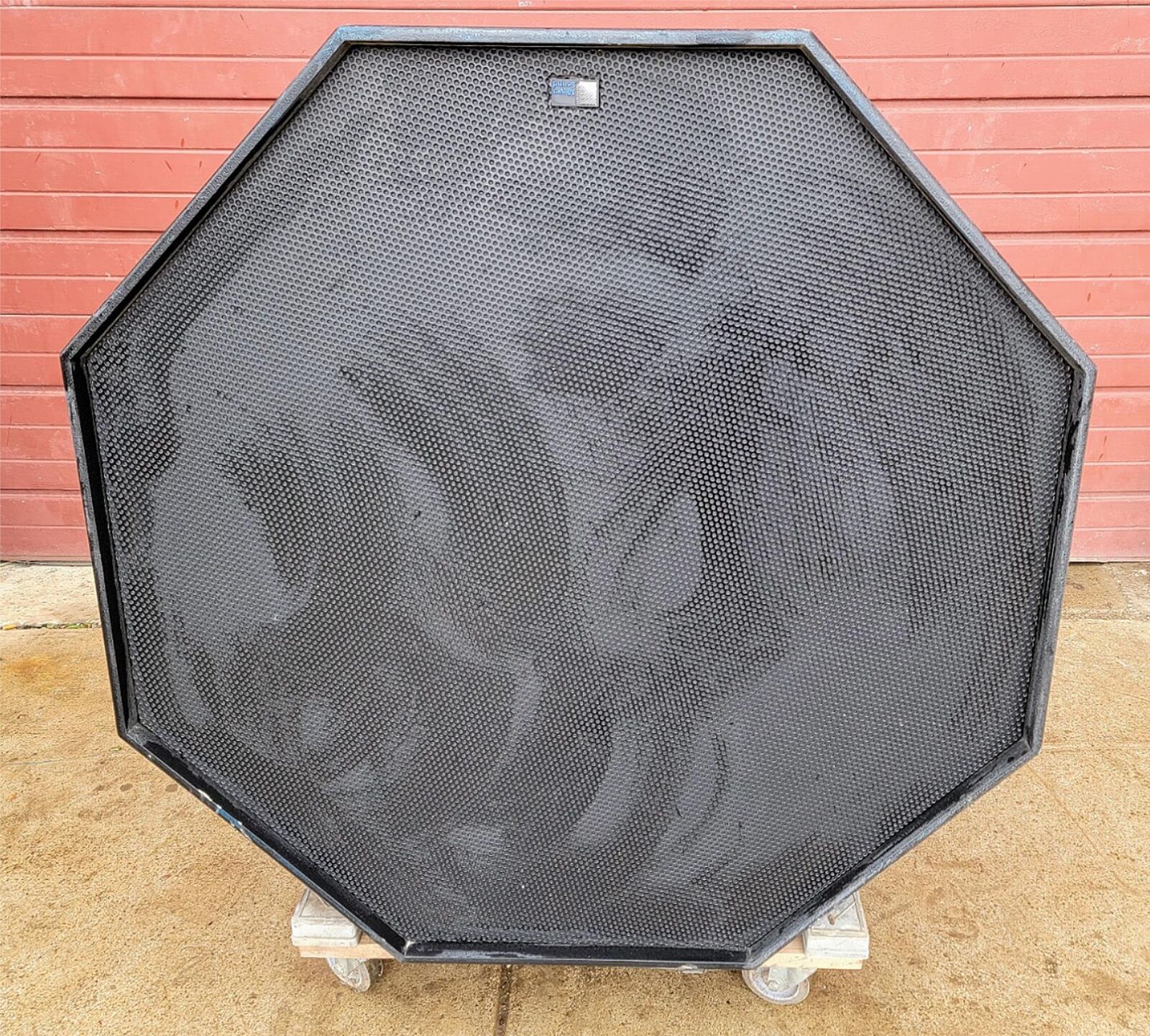

We're proud to offer one Very Rare to find: PROFESSIONAL MEYER SOUND SB-3F 9000W/LOUDSPEAKER from THE UNIVERSITY OF MICHIGAN FOOTBALL STADIUM the "BIG HOUSE" as can be seen in the pictures.
This unit was recently removed from service from THE UNIVERSITY OF MICHIGAN FOOTBALL STADIUM in other words: THE BIG HOUSE which is the largest university stadium in the world with over 100.000 seats!!! The university replaced all their speakers due to an upgrade this year!!!
IMPRESSIVE: The SB-3F's on-board amplifier delivers 9000 W of total burst power.
We have another 7 of these MEYER SOUND SB-3F LOUDSPEAKERs that also came from the UNIVERSITY OF MICHIGAN FOOTBALL stadium, THE "BIG HOUSE"
IMPORTANT: The University of Michigan de-comissioned in November 2023.
This is a Professional Speaker and comes with a built in heavy duty amplifier.
Due to its size, weight and it is being Shipped Free of Charge, this is an as is sale.
Please ask any questions you may have, we will respond promptly!
Meyer Sound SB-3F Loudspeaker Qty:1
Manufacturer: Meyer Sound
Model: SB-3F
Type: Loudspeaker
FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (NO DOCK or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE.
This is the chance to buy this great speaker at Super Deal!!!

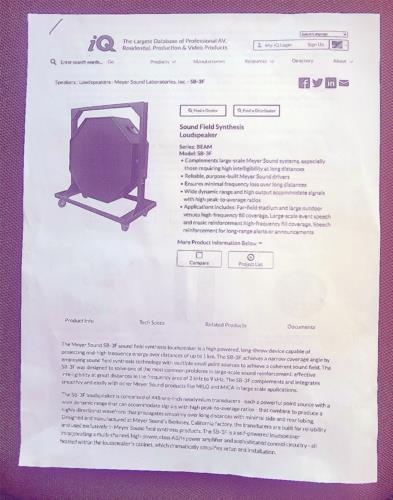

Technical Information in Italics Blue below was taken from Manufacturer's website:
av-iq.com/avcat/ctl1642/index.cfm?manufacturer=meyer-sound-laboratories&product=sb-3f
Sound Field Synthesis Loudspeaker
Series: BEAMModel: SB-3F
Complements large-scale Meyer Sound systems, especially those requiring high intelligibility at long distances
Reliable, purpose-built Meyer Sound drivers
Ensures minimal frequency loss over long distances
Wide dynamic range and high output accommodate signals with high peak-to-average ratios
Applications includes: Far-field stadium and large outdoor venues high-frequency fill coverage, Large-scale event speech and music reinforcement high-frequency fill coverage, Speech reinforcement for long-range alerts or announcements
The Meyer Sound SB-3F sound field synthesis loudspeaker is a high powered, long-throw device capable of projecting mid-high frequency energy over distances of up to 1 km. The SB-3F achieves a narrow coverage angle by employing sound field synthesis technology with multiple small point sources to achieve a coherent sound field. The SB-3F was designed to solve one of the most common problems in large-scale sound reinforcement: effective intelligibility at great distances in the frequency area of 2 kHz to 9 kHz. The SB-3F complements and integrates smoothly and easily with other Meyer Sound products like MILO and MICA in large scale applications.

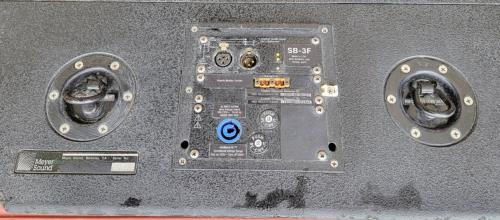

The SB-3F loudspeaker is comprised of 448 one-inch neodymium transducers - each a powerful point source with a wide dynamic range that can accommodate signals with high peak-to-average ratios - that combine to produce a highly directional wavefront that propagates smoothly over long distances with minimal side and rear lobing. Designed and manufactured at Meyer Sound's Berkeley, California factory, the transducers are built for reliability and used exclusively in Meyer Sound field synthesis products. The SB-3F is a self-powered loudspeaker incorporating a multi-channel, high-power, class AB/H power amplifier and sophisticated control circuitry - all housed within the loudspeaker's cabinet, which dramatically simplifies setup and installation.

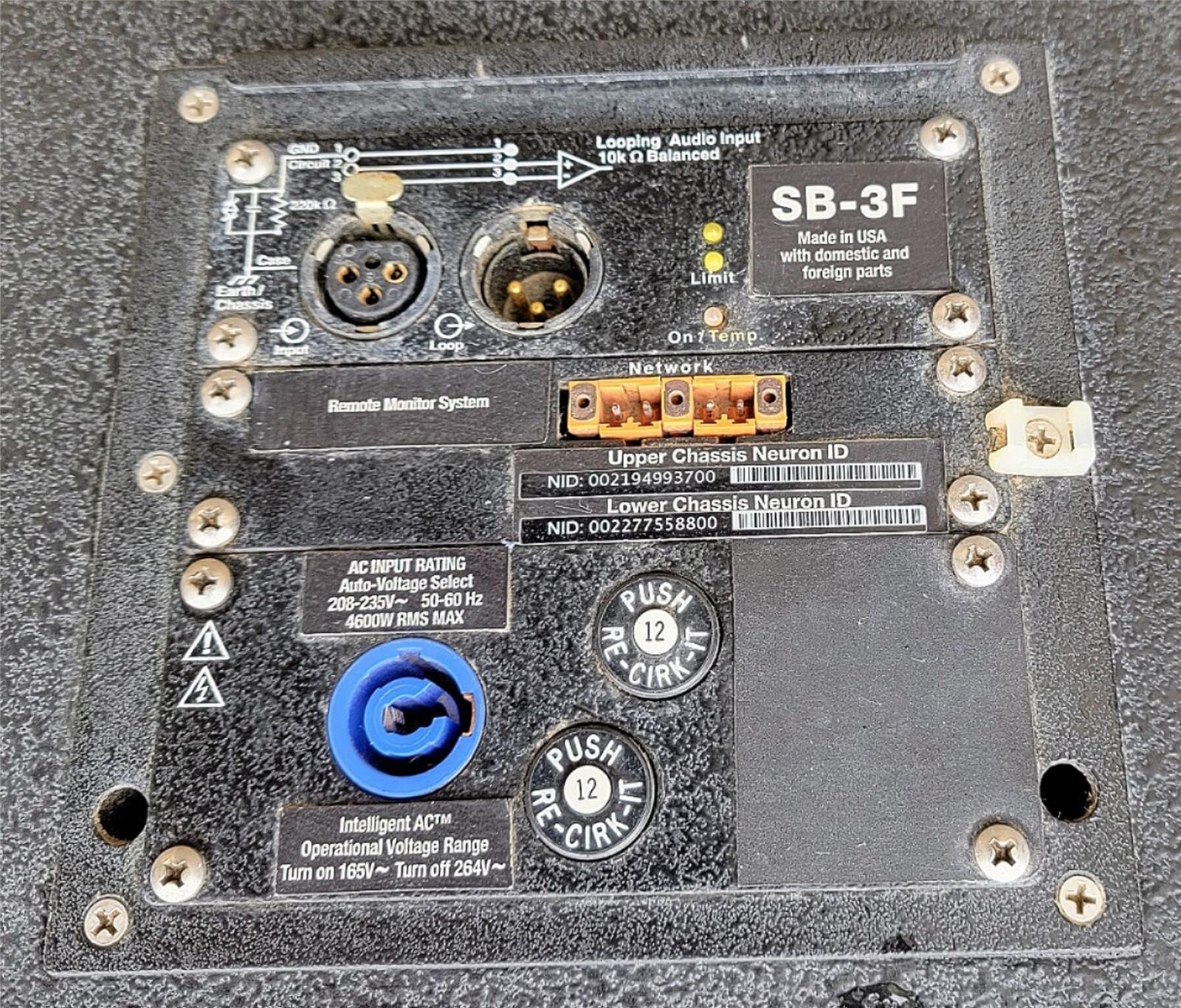

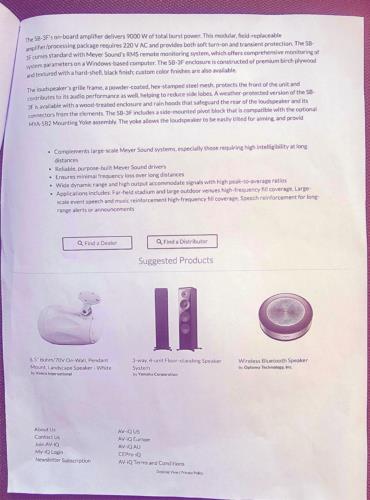

The SB-3F's on-board amplifier delivers 9000 W of total burst power. This modular, field-replaceable amplifier/processing package requires 220 V AC and provides both soft turn-on and transient protection. The SB-3F comes standard with Meyer Sound's RMS remote monitoring system, which offers comprehensive monitoring of system parameters on a Windows-based computer. The SB-3F enclosure is constructed of premium birch plywood and textured with a hard-shell, black finish;
You can also read what and how these Meyer Sound SB-3F Loudspeakers were installed at the BIG HOUSE, The University of Michigan Stadium below also in Italics Blue:
meyersound.com/news/michigan-stadium/

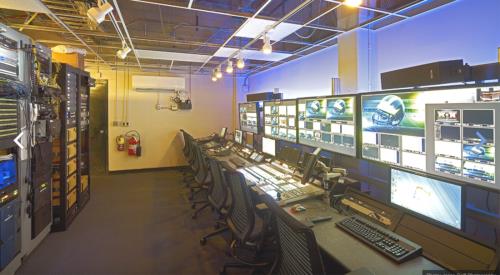

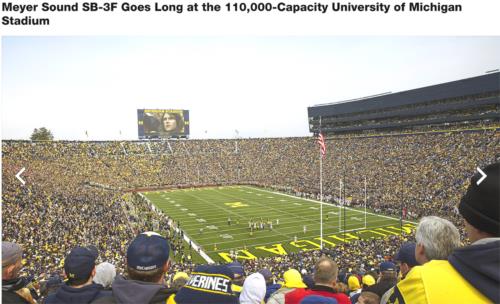

“The Big House,” aka Michigan Stadium, got even bigger in 2011 when the University of Michigan completed an expansion and upgrade that included a large complement of equipment from Meyer Sound.
At a capacity of almost 110,000, Michigan Stadium is the largest sports venue in the United States and third largest in the world. To address the sound reinforcement needs on such a scale, the PA system includes 28 Meyer Sound MILO 60 line array loudspeakers, eight SB-3F sound field synthesis loudspeakers, four MSL-4 loudspeakers, a Galileo loudspeaker management system with two Galileo 408 processors, and an RMS remote monitoring system.
Ann Arbor, Mich.-based TeL Systems and Dallas-based consulting firm WJHW, Inc. were critical to the massive undertaking. TeL Systems’ former systems designer, Peter O’Neil, recalls the importance of selecting Meyer Sound equipment for the success of the expansion and upgrade.
“One of the things that has really stood out about Meyer Sound is how well it performs when it’s pushed hard,” O’Neil says. “That’s not true of all large-format sound reinforcement boxes.”

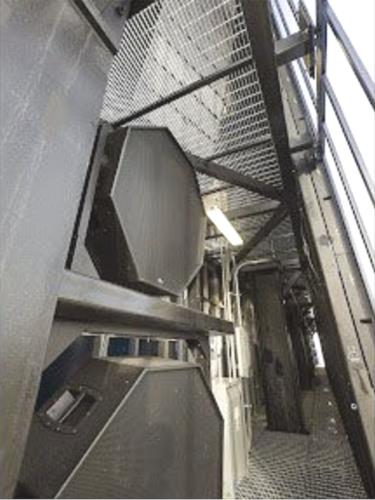

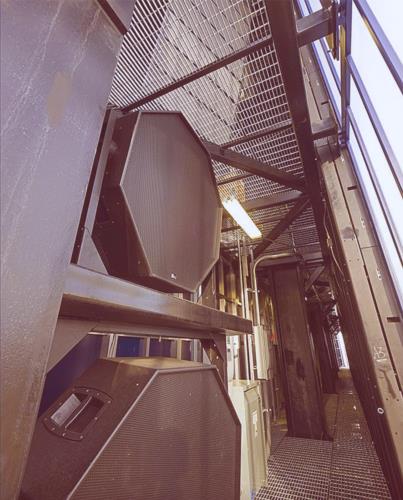

Particularly effective in handling sound for the massive size and scope of the stadium were eight weather-protected SB-3F sound field synthesis loudspeakers. “We had to install a point-source system in one of the end zones and throw sound upwards of 800 feet—in the open-air environment and with the weather changing all the time,” O’Neil explains. “The Meyer [SB-3F] is the only product of its sort that’s designed to throw specifically high-frequency sound at that distance. It’s a level beyond what we had before with horn-based technology. We were fortunate to work with a consultant who knew the product and how to design with it.”
Shipping weights: (340 lbs.) and SHIPPING IS FREE TO BUSINESS LOCATIONS (not home business) with a dock or a forklift to unload it off the truck. If you need a special Liftgated delivery there will be a $150 delivery fee charged. Shipping is also Free if buyer can pick it up at the local Freight Terminal we ship it to.
Additional images are available upon request. All items can be viewed in person at our showroom in Toledo, OH.
