RARE EDWARDS RV8 ROTARY VANE DUALSTAGE 110/220V VACUUM PUMP FREESHIP WATCH VIDEO

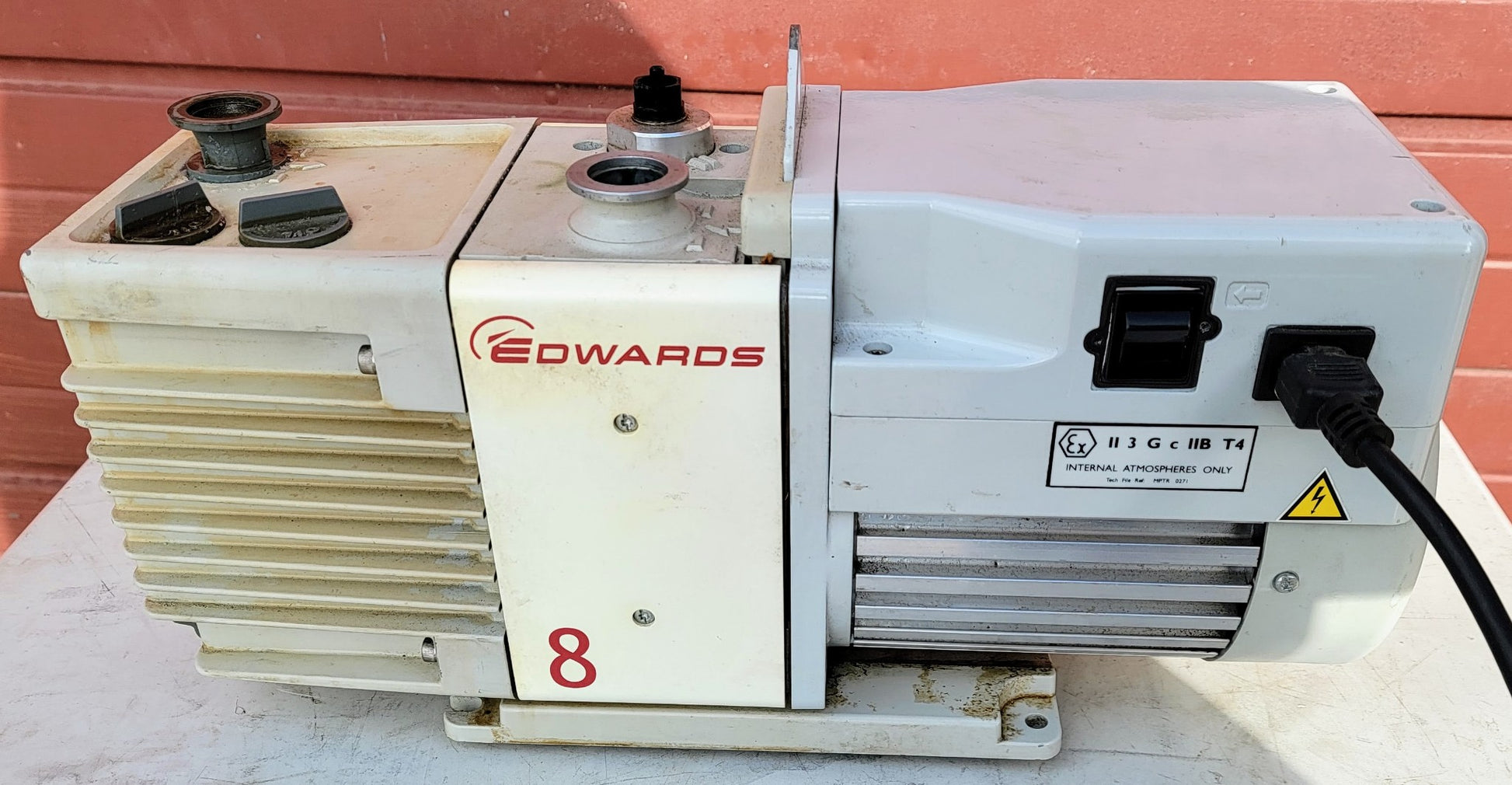

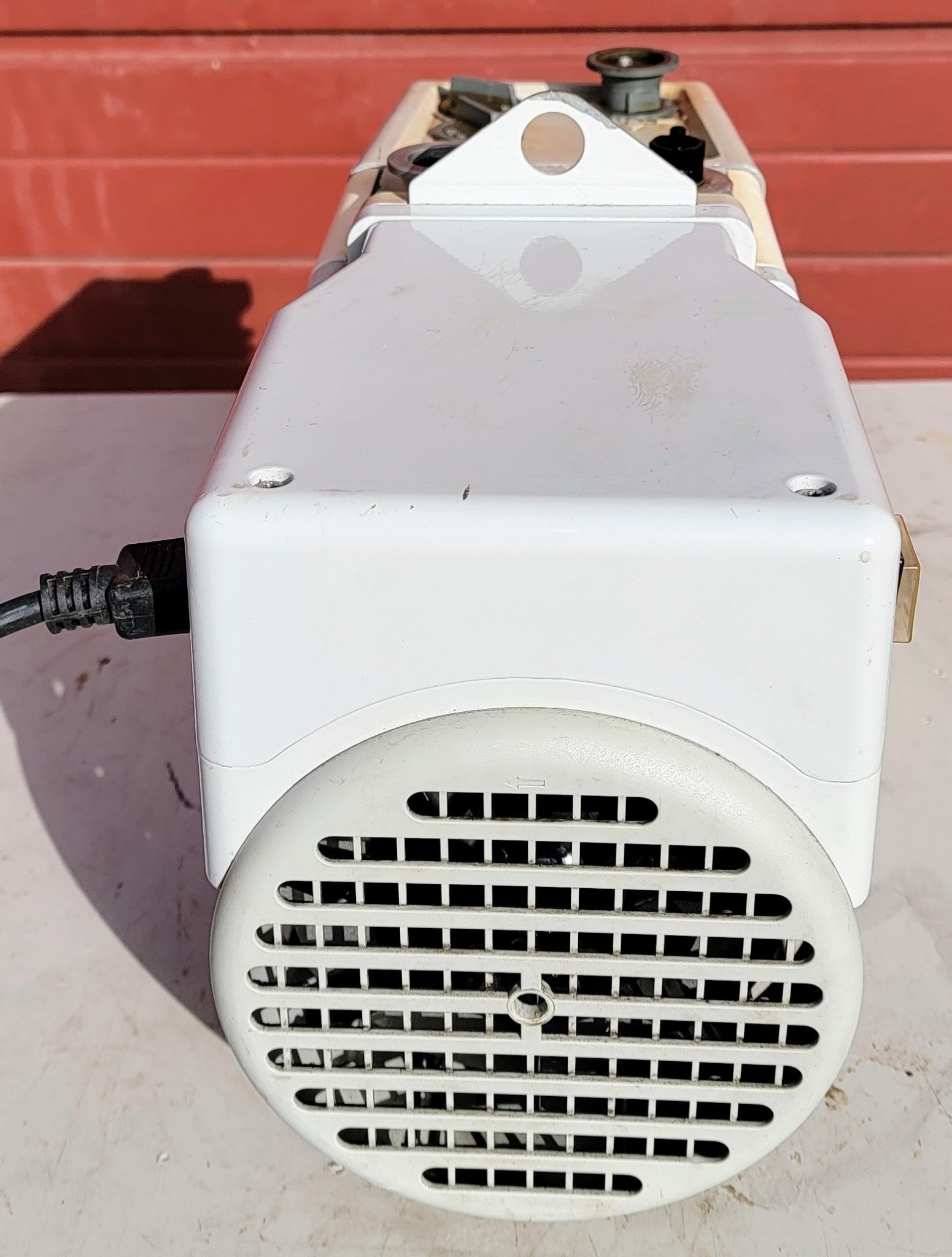

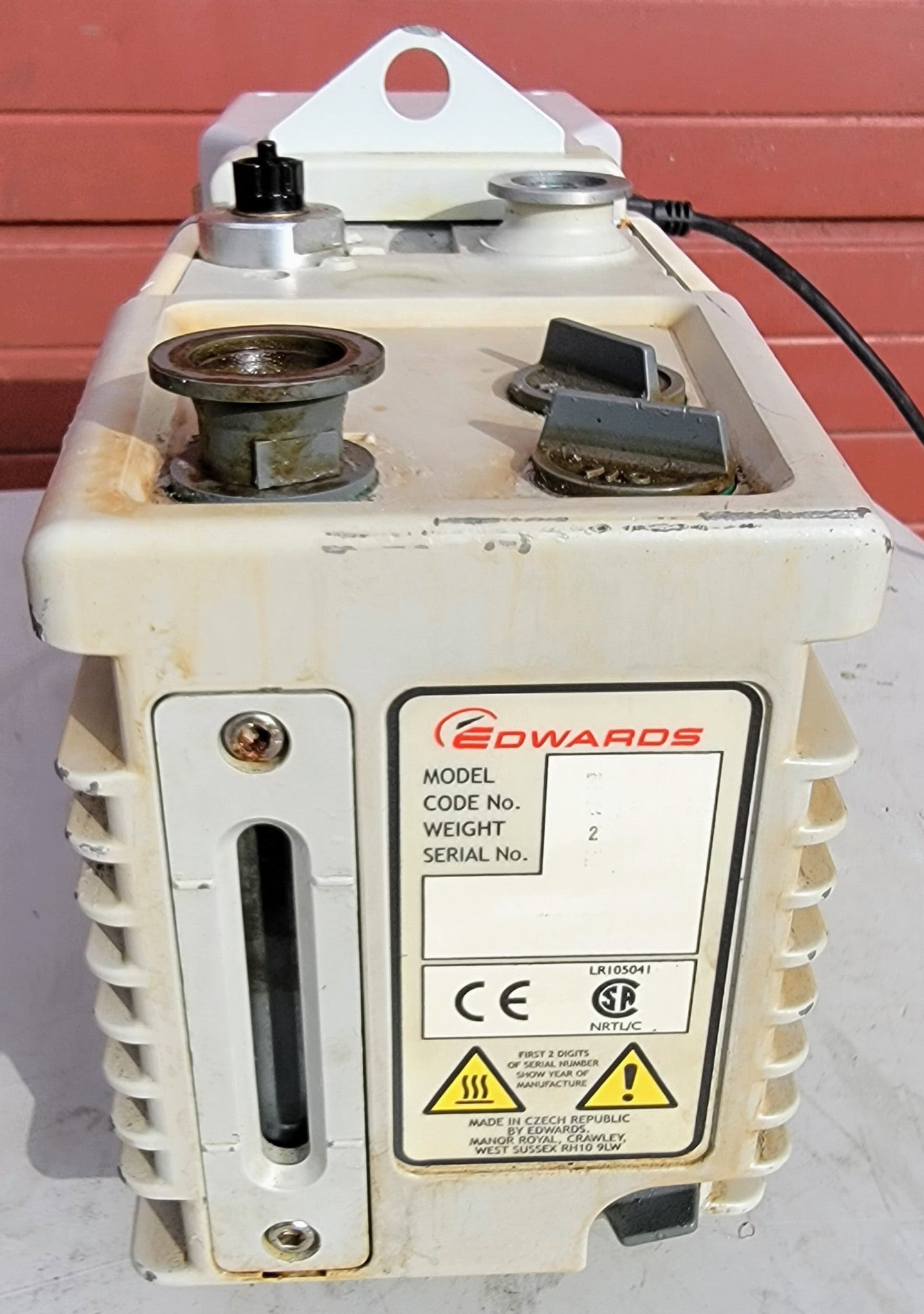

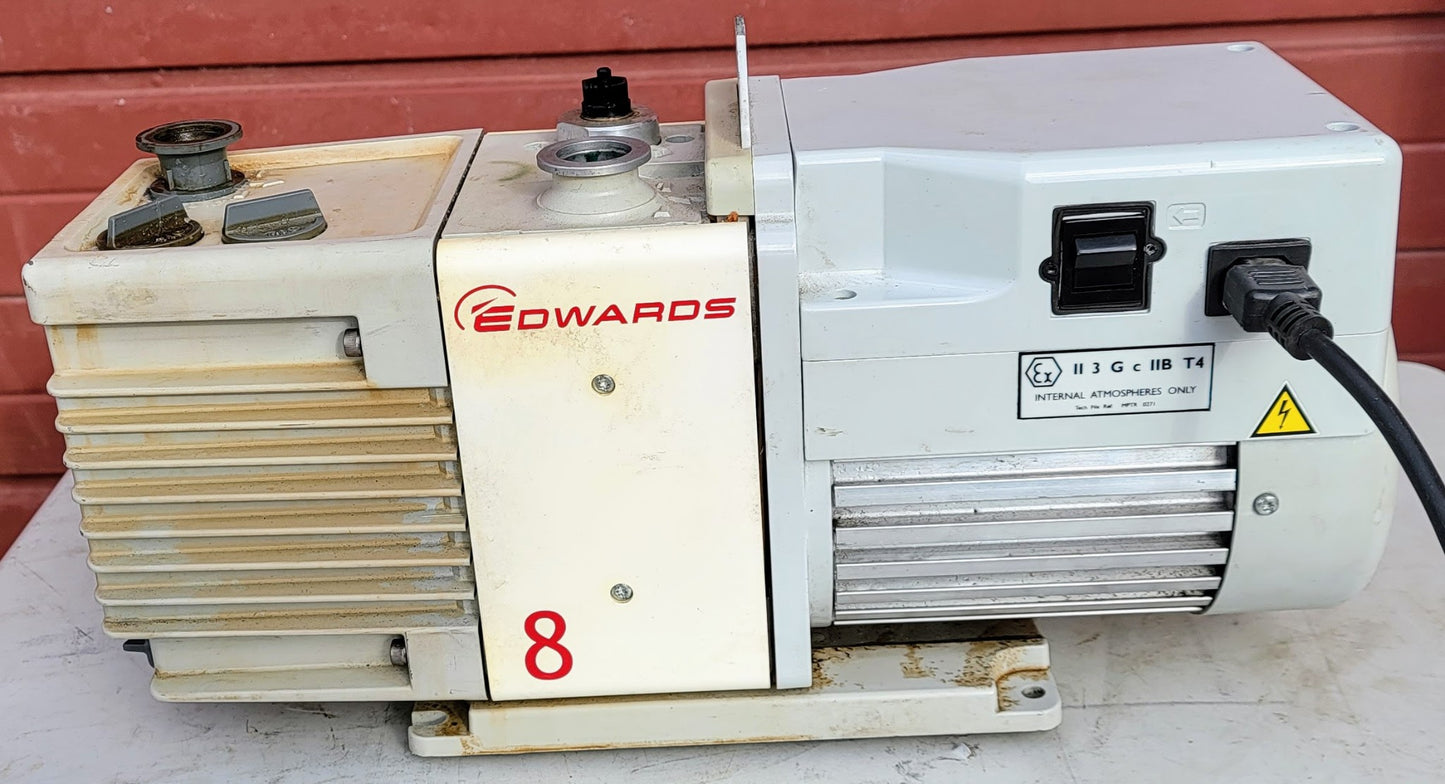

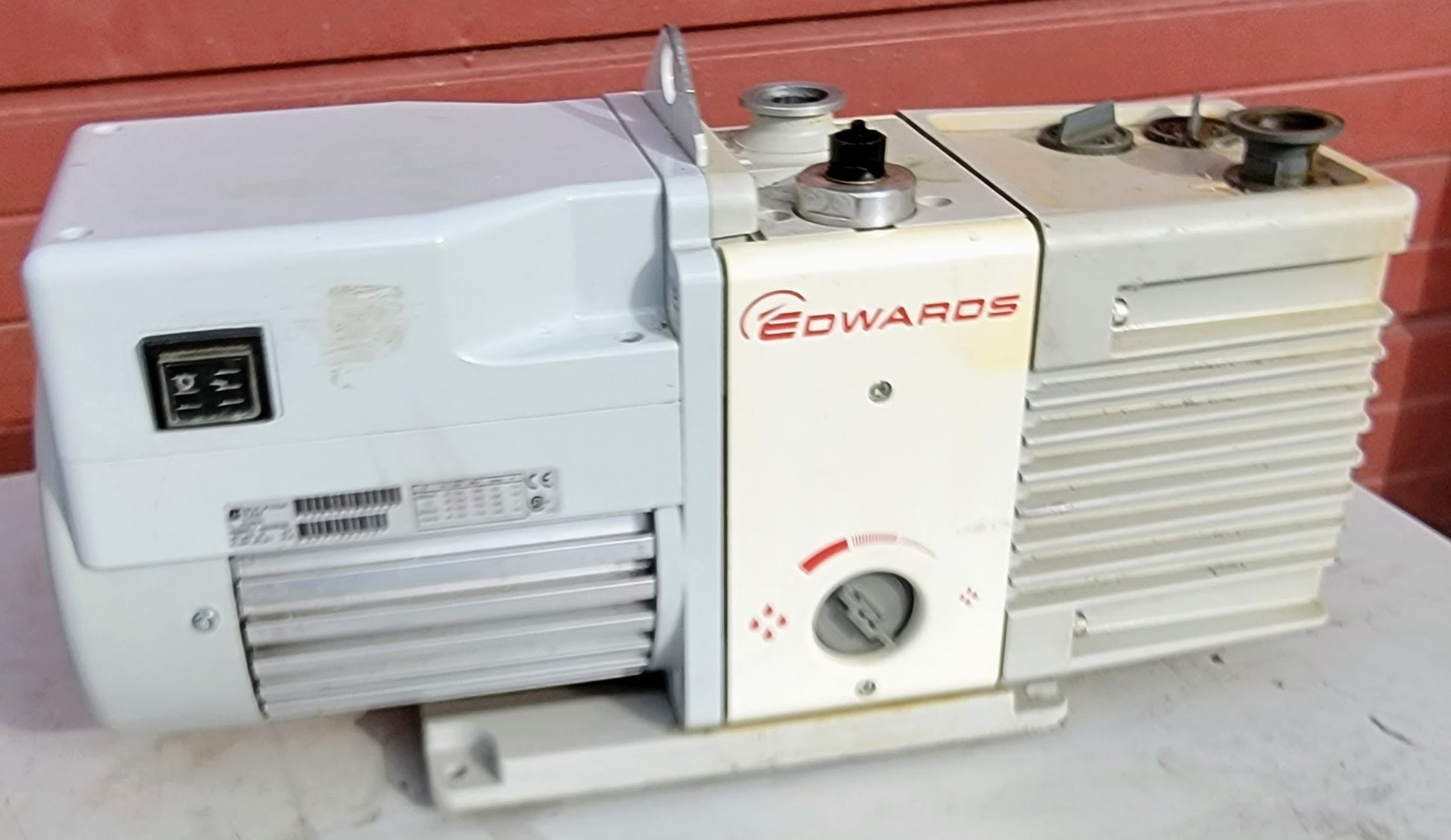

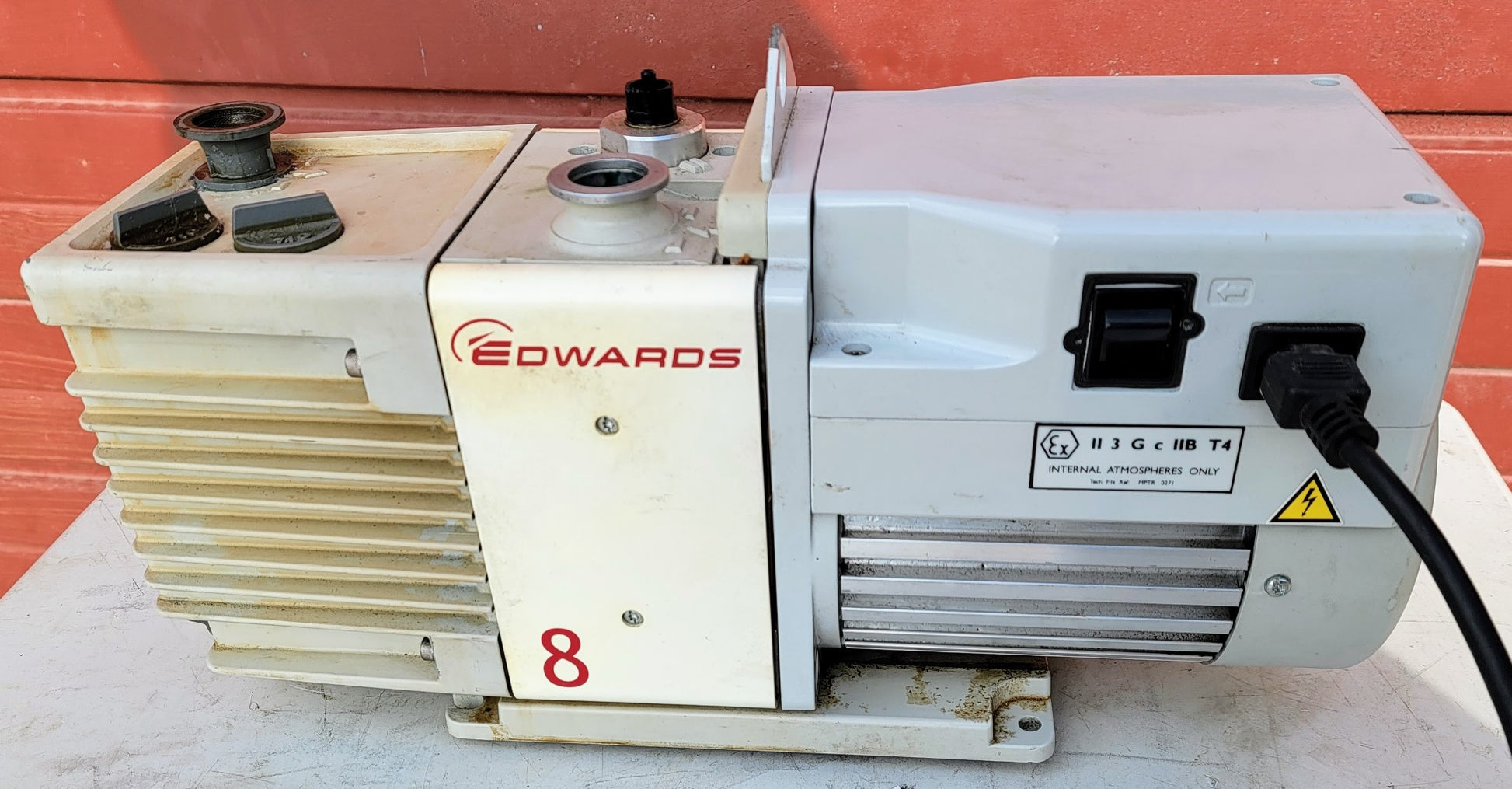

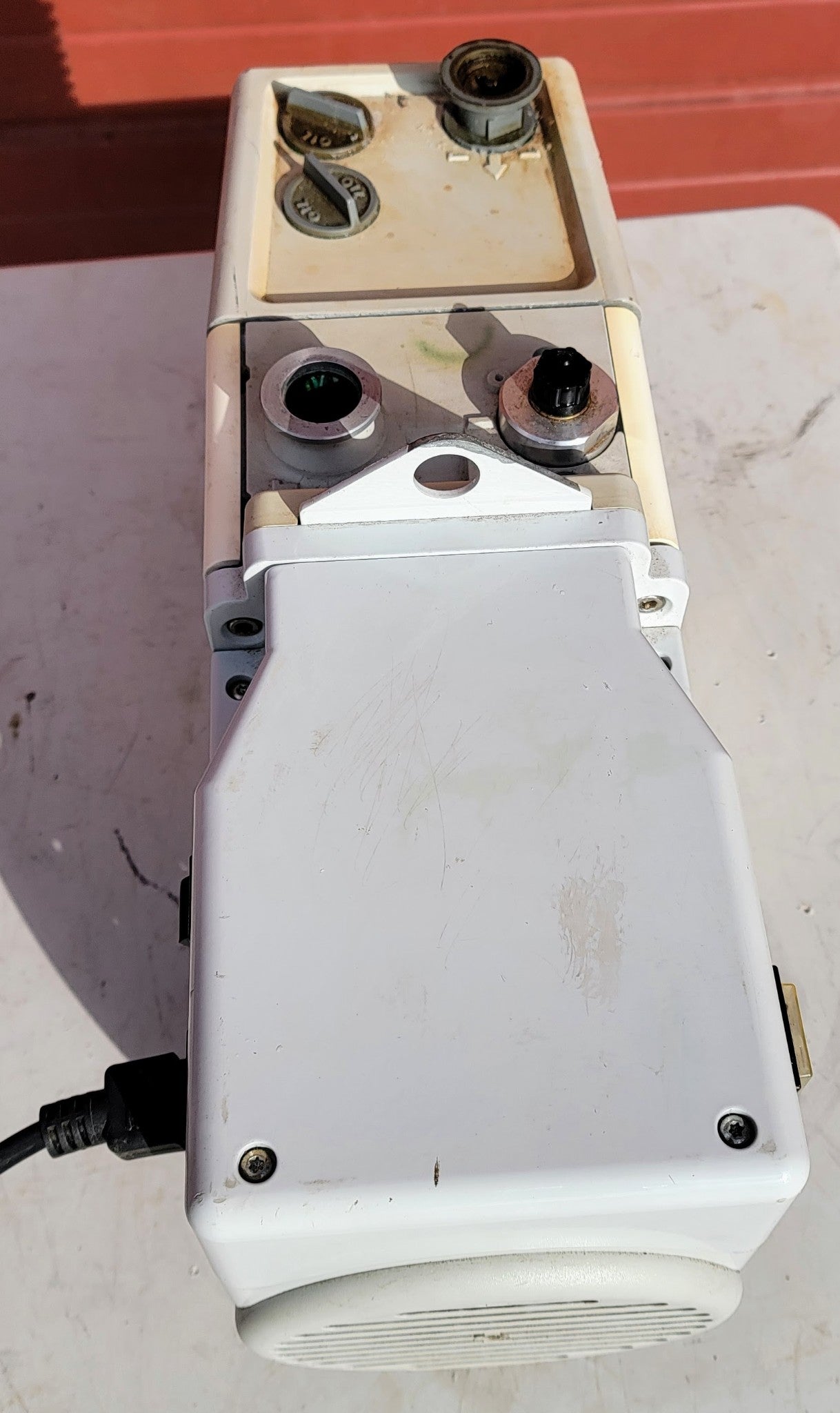

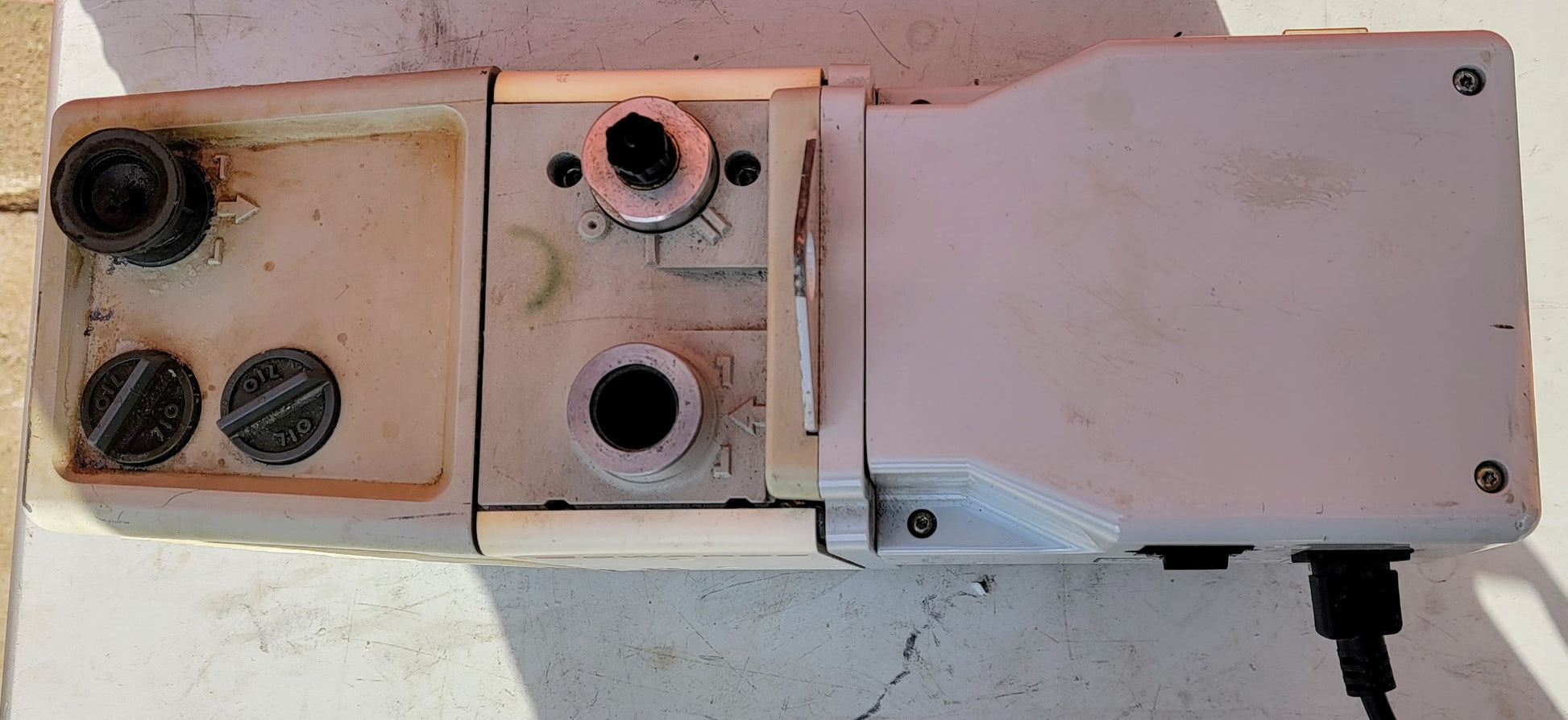

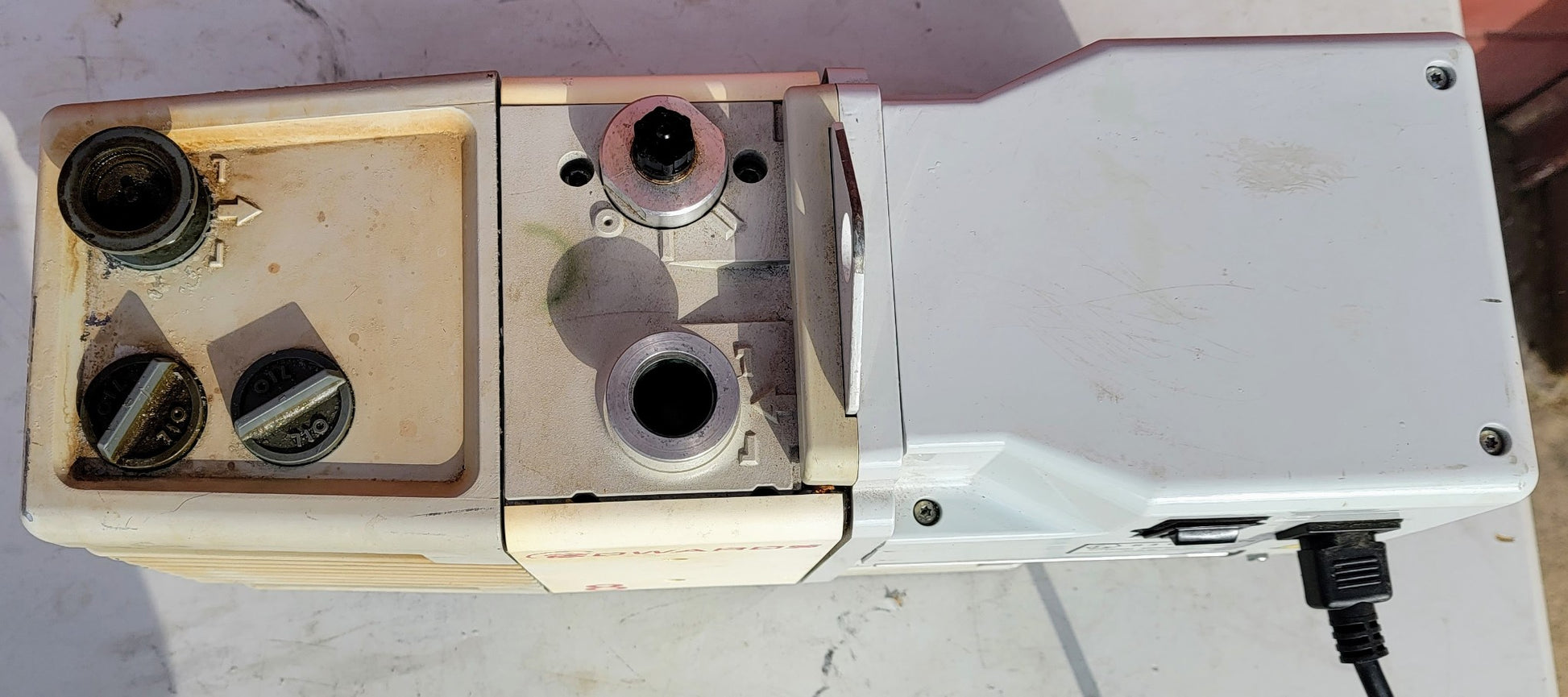

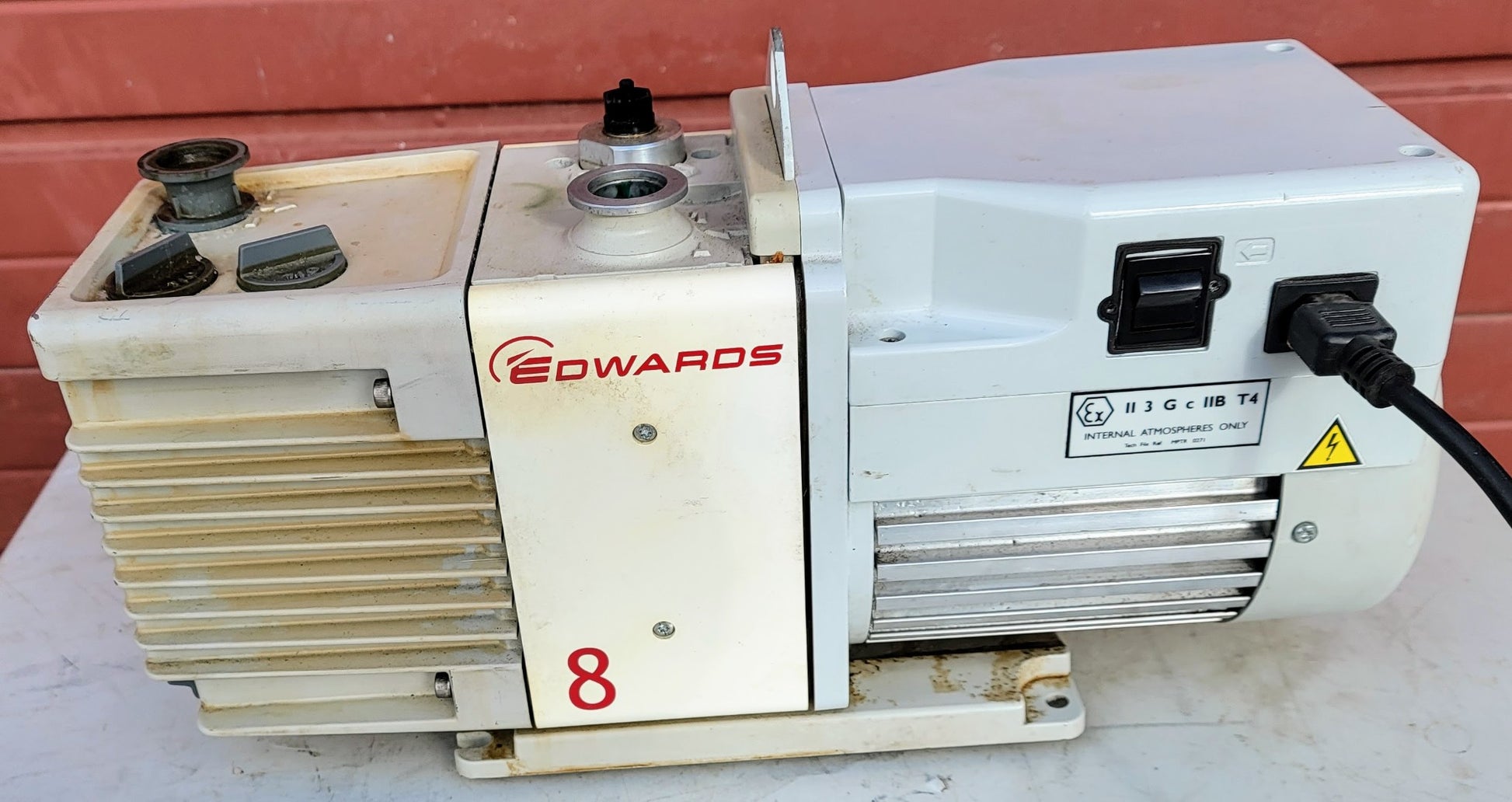

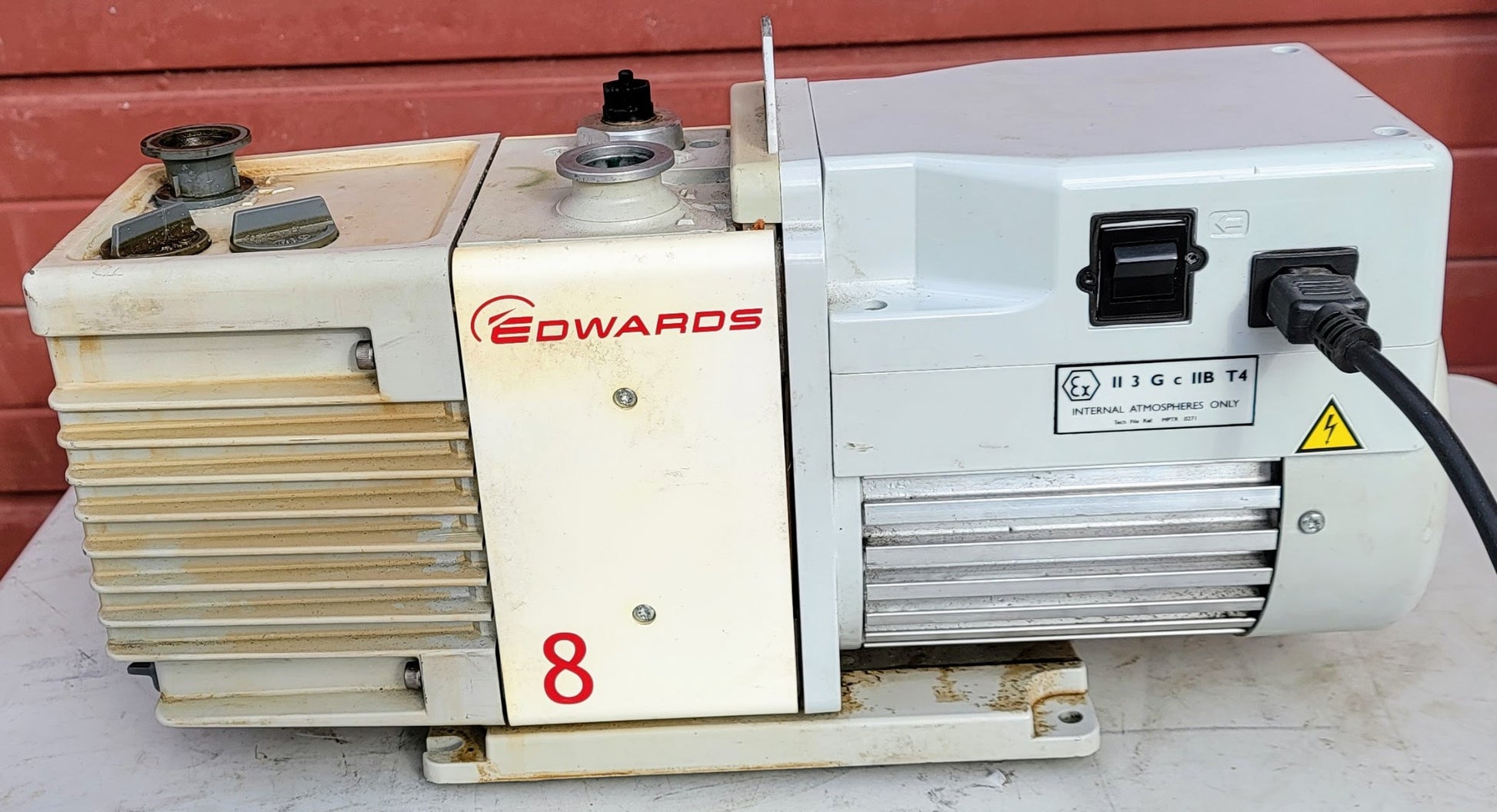

You are bidding on a WONDERFUL OPERATIONAL CONDITION DUAL STAGE 110/220V EDWARDS RV8 ROTARY VANE VACUUM PUMP as can be WATCHED IN THE VIDEO and also seen in the pictures.

Feel free to WATCH A VIDEO of this EDWARDS RV8 pump working by clicking the following link: https://www.youtube.com/watch?v=MZZ9hg5MvHY

THIS UNIT IS IN EXCELLENT OPERATIONAL CONDITION AND THAT'S WHY WE OFFER A 90 DAY WARRANTY!!!

Description

IN GREAT OPERATIONAL CONDITION as can be Watched in the Video and also seen in the pictures.

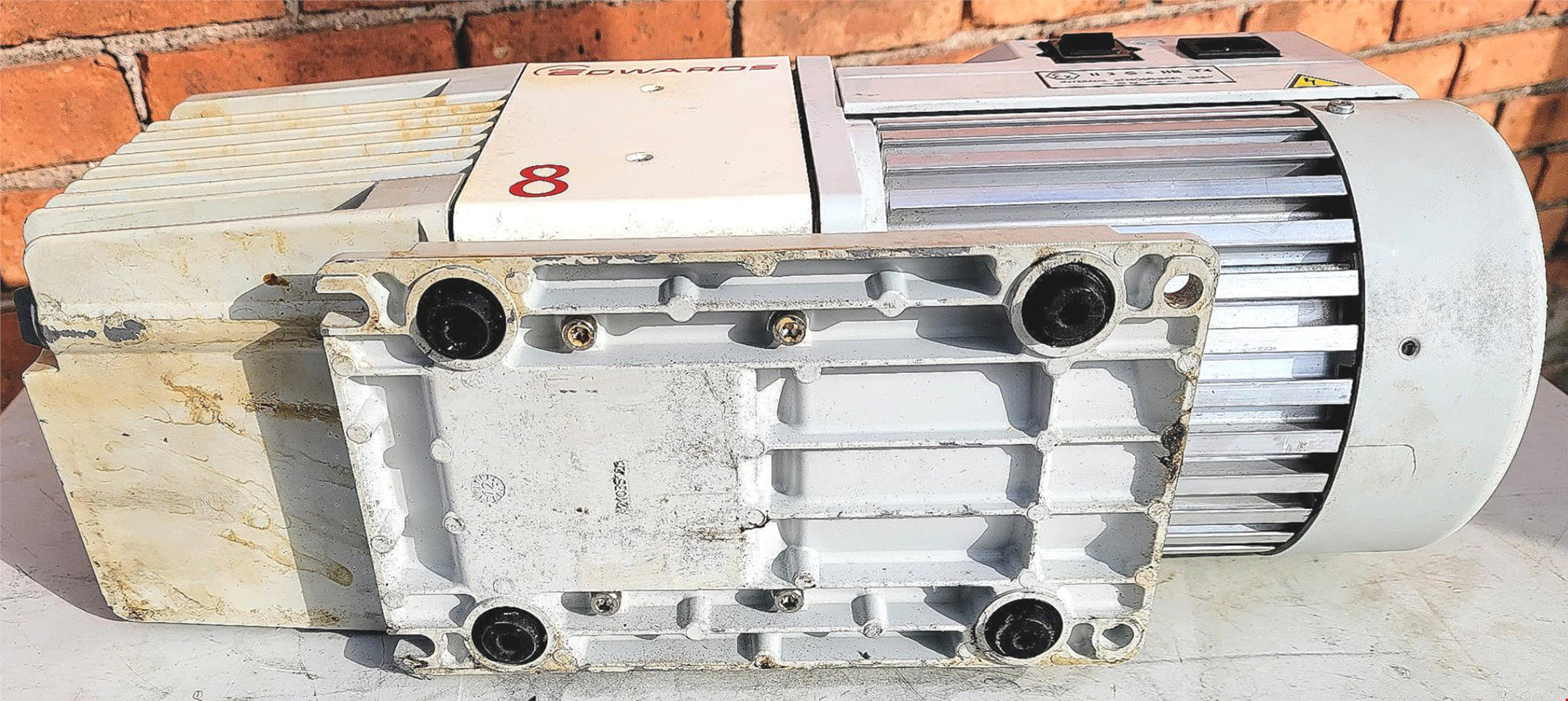

Comes with all Four Rubber Feet Shock Absorbers as can be seen in the pictures, these are important to be present so as to cushion and protect it from excessive trepidation!

Product Description:

Across International RV8 Edwards RV8 Dual Stage High Capacity Vacuum Pump with Fittings, 6.9 cfm, 110/220V, 50/60 Hz

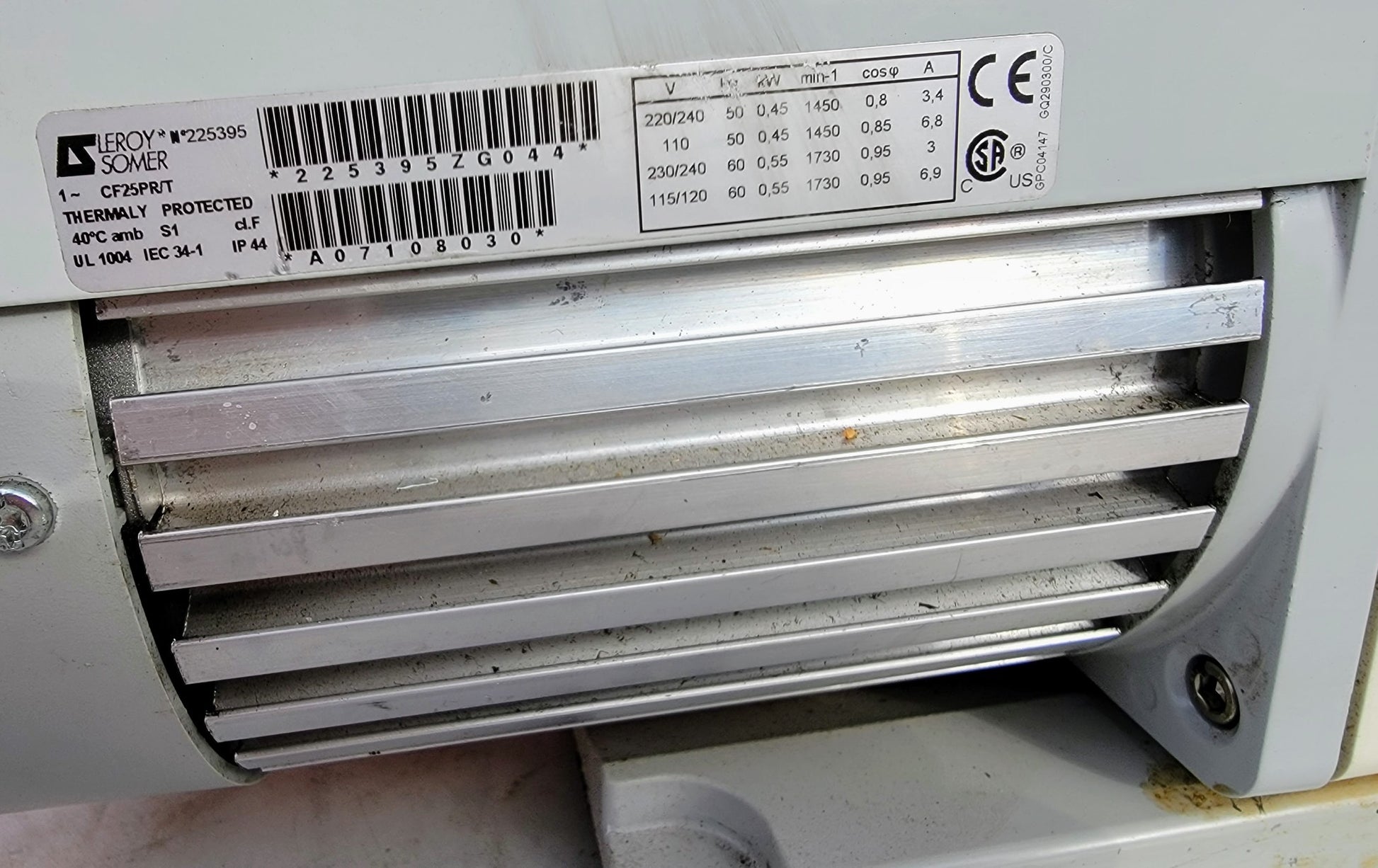

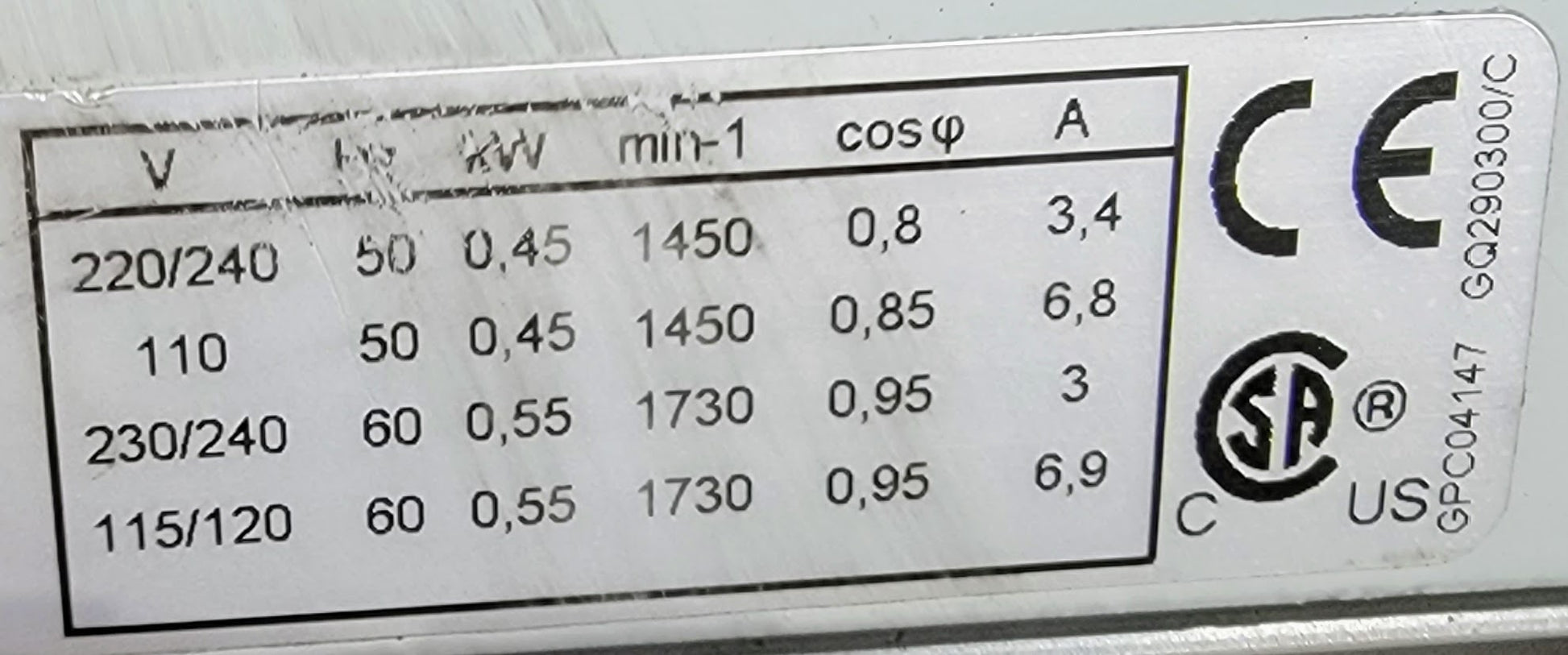

Electrical requirements: 110V 50/60Hz 1-ph 5a (or 220V 50/60Hz 1-ph 2.1a)

Motor power at 60Hz: 550 Watts. Nominal rotation speed: 1500/1800 rpm

Ultimate vacuum without gas ballast: 1.5 micron/millitorr. Inlet/exhaust connection: Nw25/Kf25

Unit / P dimensions (WxDxH): 18.5 x 6.2 x 8.9/ 31 x 11.5 x 19. Unit / P weight 57 lbs / 70 lbs

Oil capacity: minimum 0.48 quart (0.45 L), maximum 0.8 quart (0.75 L)

Operating temperature range: 54°F to 104°F (12°C to 40°C)

Specifications for this item

Brand Name Across International

Color Grey

Ean 0853924003325

Height 6.2 inches

Item Weight 57.0 pounds

Length 18.5 inches

Material Stainless Steel

Measurement System US

Product Description

Edwards RV pumps have become the industry standard for scientific primary pumping applications. Rv pumps are uniquely capable of delivering high or low throughout with high Ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including g cms and other small Bench top Type applications. All pumps are approved to UL and CSA standards by an external Test house. Edwards has a global network, providing world-wide support for product applications and service. Free Kf25 flexible Stainless steel bellow (3.3 ft), clamps and centering Rings set included. Features and benefits * 48 dBA) and intrusive frequencies minimized. * dual mode. Suitable for high throughput and high vacuum applications. * easy-to-use gas ballast. * fast acting Inlet Valve for system protection. * high torque, dual Voltage/dual frequency motor, electronic start relay. * efficient high pressure lubrication. * oil-tight with printed gaskets, effective shaft seals. * clamped-in sight glass. * oil box well contains filling spills. * Hi-Tech polymer blades, large diameter, easy-clean oil passages. * consistent, built-in quality, cast bar construction.

Product details

Package Dimensions ‏ : ‎ 31 x 19 x 11.5 inches; 57 Pounds

Item model number ‏ : ‎ RV8

UNSPSC Code ‏ : ‎ 40151500

Date First Available ‏ : ‎ May 8, 2011

Manufacturer ‏ : ‎ Edwards

ASIN ‏ : ‎ B004ZSPO72

Applications

Analytical instruments

Centrifuges, ultra-high speed

Coating

Degassing/curing - oil, epoxy resin

Distillation/extraction/filtration

Freeze drying

Furnaces

Gas bottle filling/emptying

Gel drying

Glove boxes, ovens

Laboratory bench top vacuum

Leak detectors, Helium

Load locks and transfer chambers

Refrigeration manufacture

Research and development

Rotary, centirfugal evaporators

Scanning electron microscopes - SEM

SEM/FIB (ion beam repair)

Solvent recovery

Surface science instruments

Turbomolecuar backing pumps

Features and Benefits

High reliability – generous lubrication of moving parts.

Safe process and systems – fast acting inlet valve for best in class anti‑suck back protection.

Configured to meet your vacuum needs – mode selector and three position gas ballast

No unplanned downtime – designed for easy maintenance.

Better work environment – quiet running and intrusive frequencies minimised.

Three position gas ballast allows either 60 g/hr or a class leading 220 g/hr (290 g/hr on RV12) of water vapour to be handled.

Universal motor to cover the widest possible voltage and frequency range from a single variant.

Smooth controlled inlet valve opening by oil pressure to eliminate pressure surges.

Rapid closing inlet valve within 0.4 seconds of pump stopping.

Noise level 48 dB(A) @ 50 Hz

Operating temperature range 12 – 40 °C

Stock # 221101
