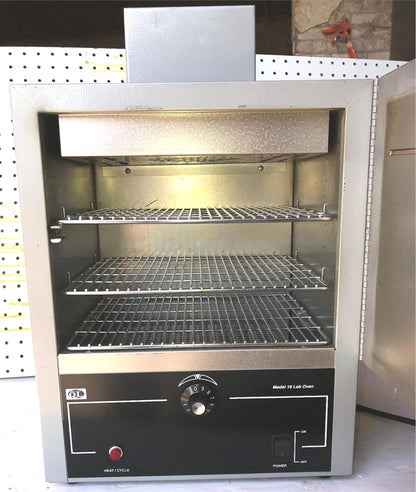

QUINCY LAB 10AF OVEN AIR FORCED 'AF' LAB OVEN & MANUAL GUARANTEED WORKS FREESHIP

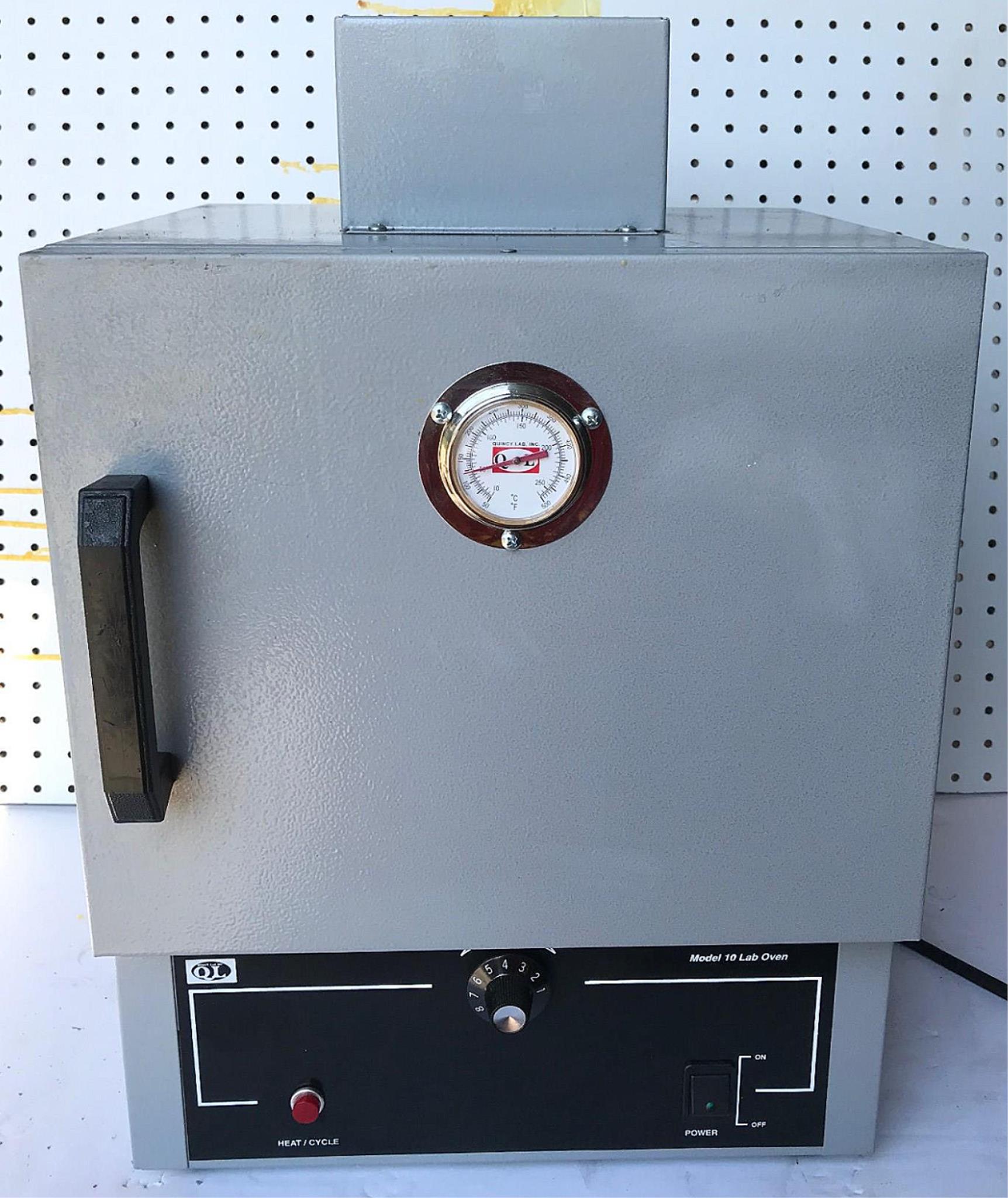

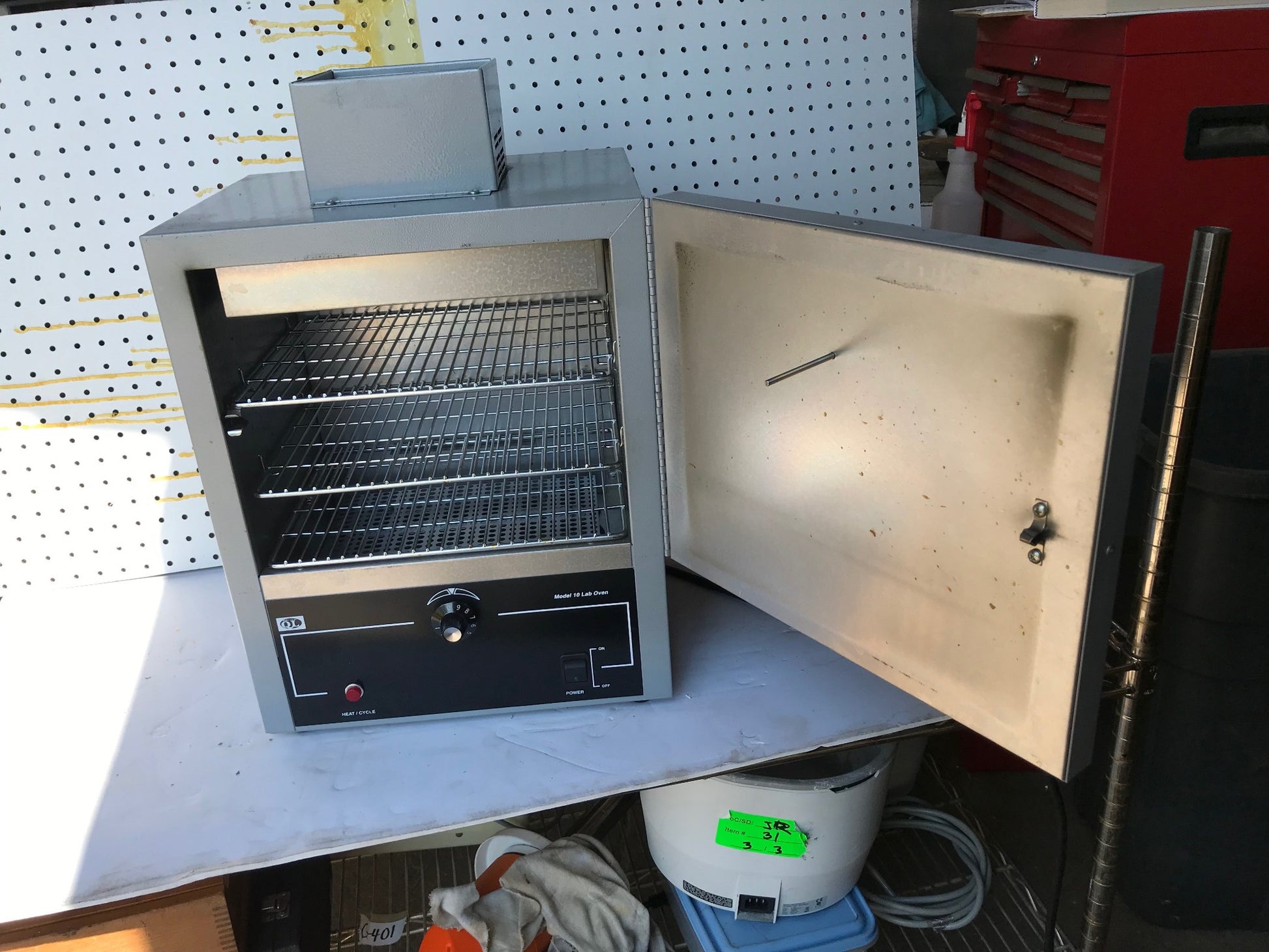

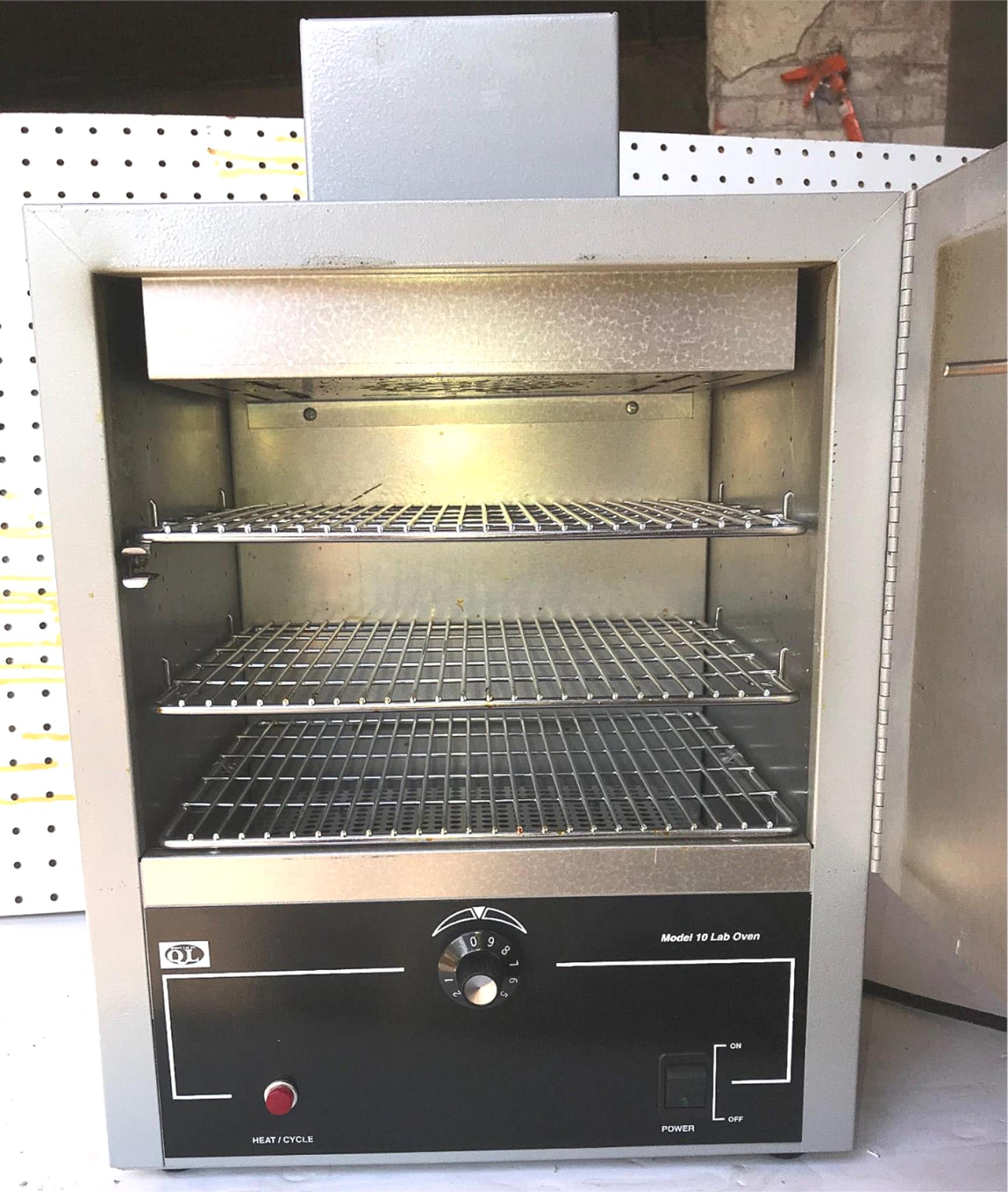

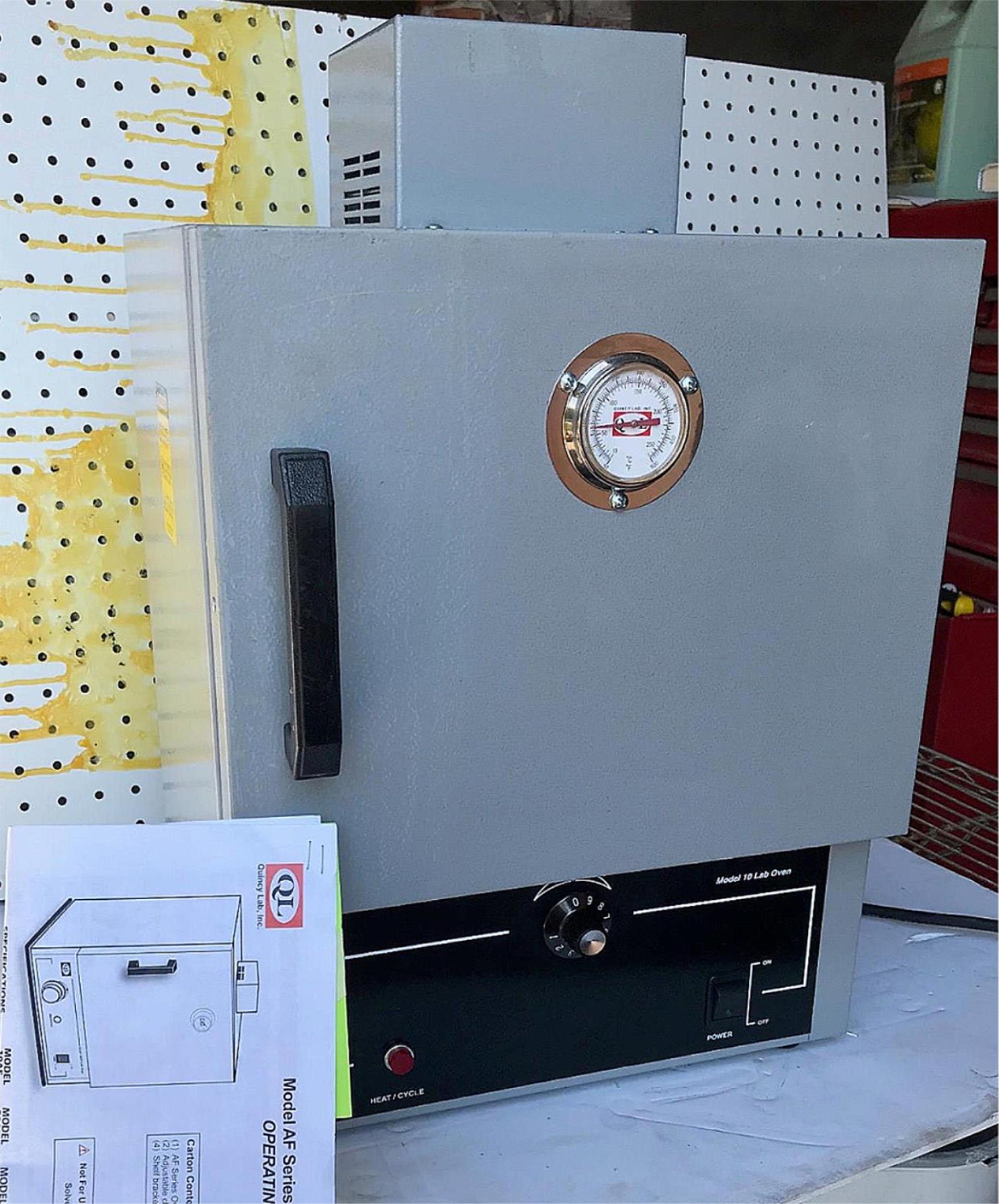

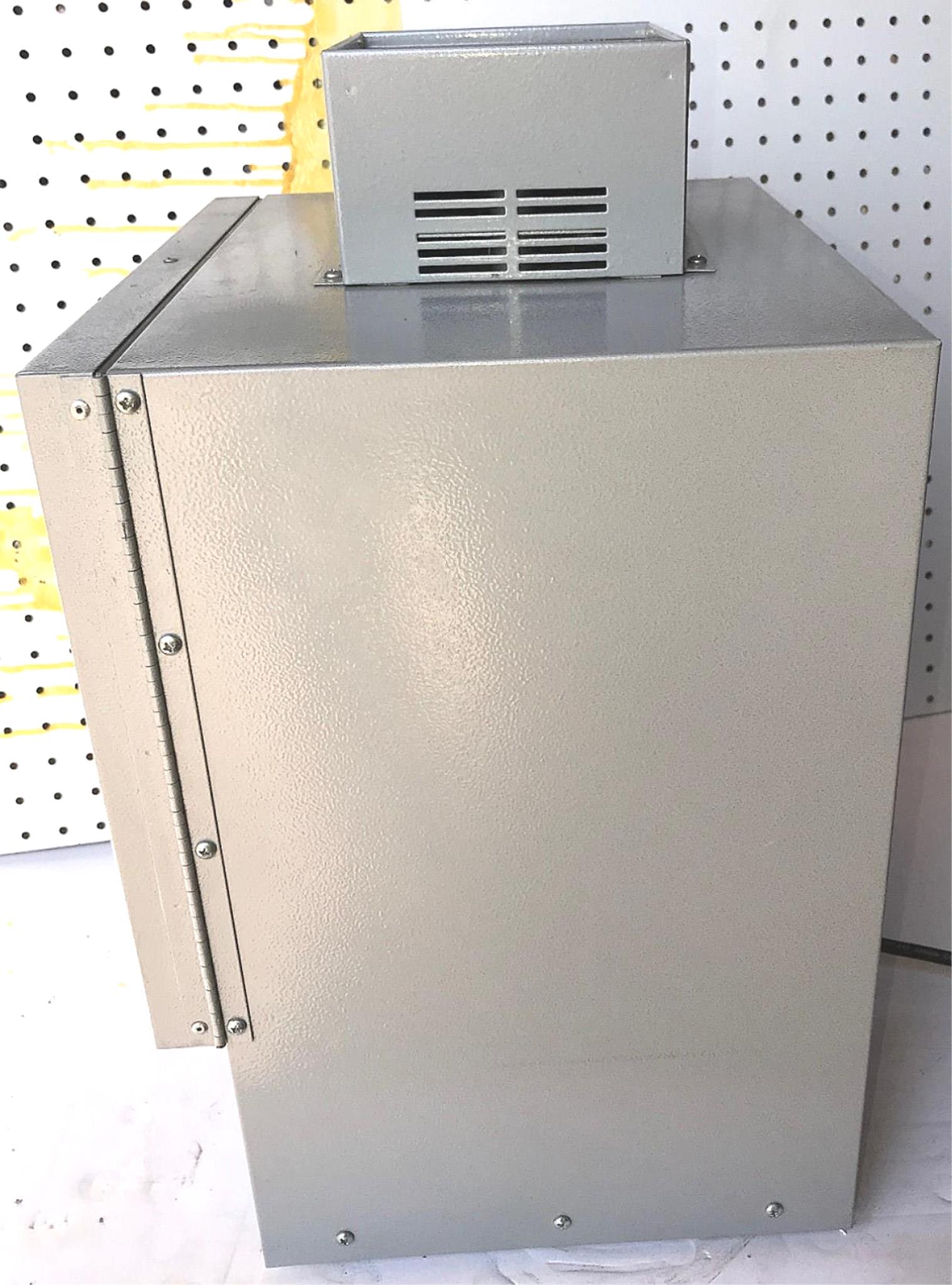

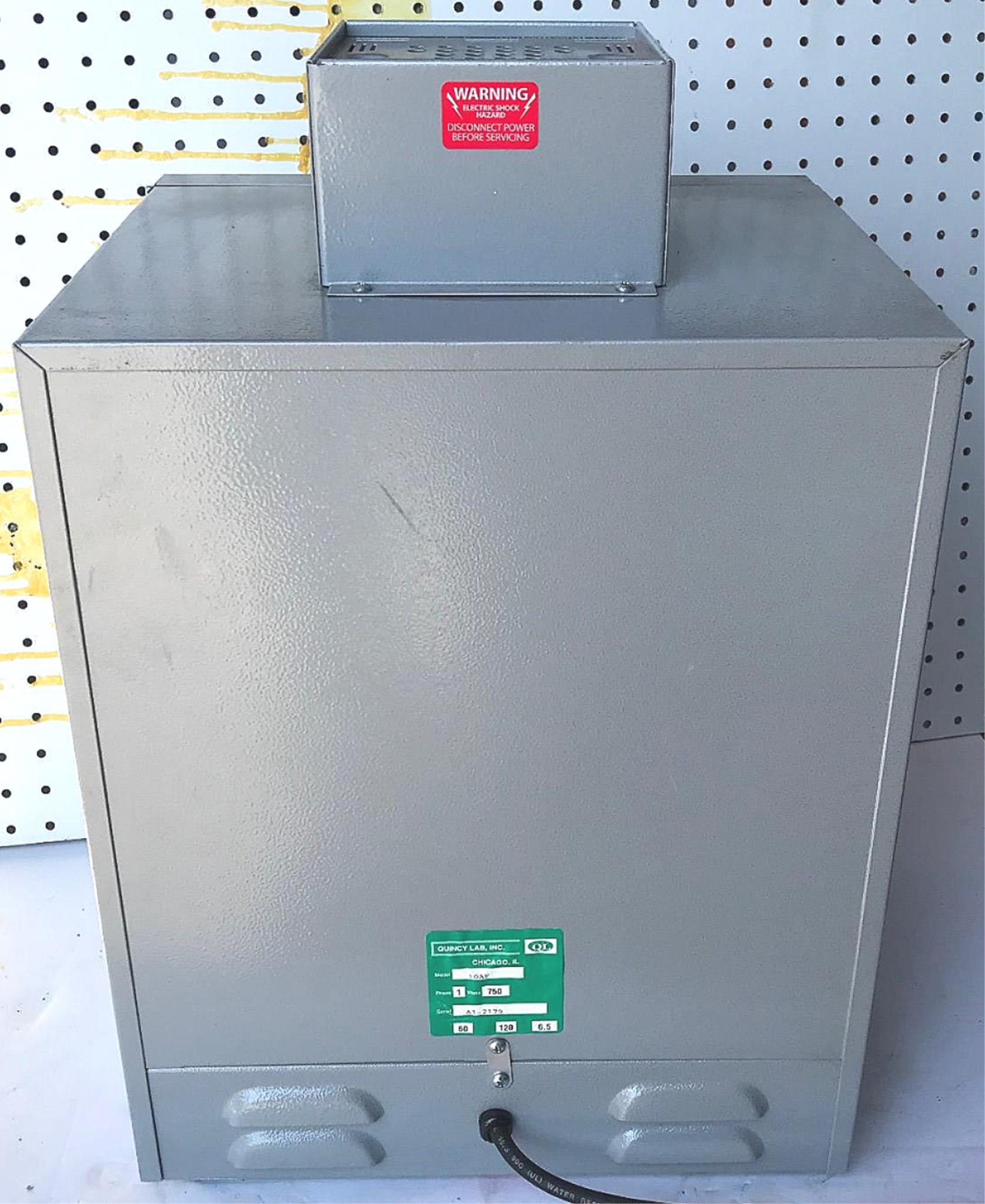

This listing is for a GUARANTEED WORKING condition QUINCY LAB 10AF OVEN AIR FORCED 'AF' LAB OVEN with MANUAL in perfect operational condition as can be seen in the pictures.

THIS UNIT HEATS UP FAST & FURIOUSLY, WORKING PERFECTLY!!!

COSMETICALLY IT IS ALSO IN WONDERFUL CONDITION AS CAN BE SEEN IN THE PICTURES!!!

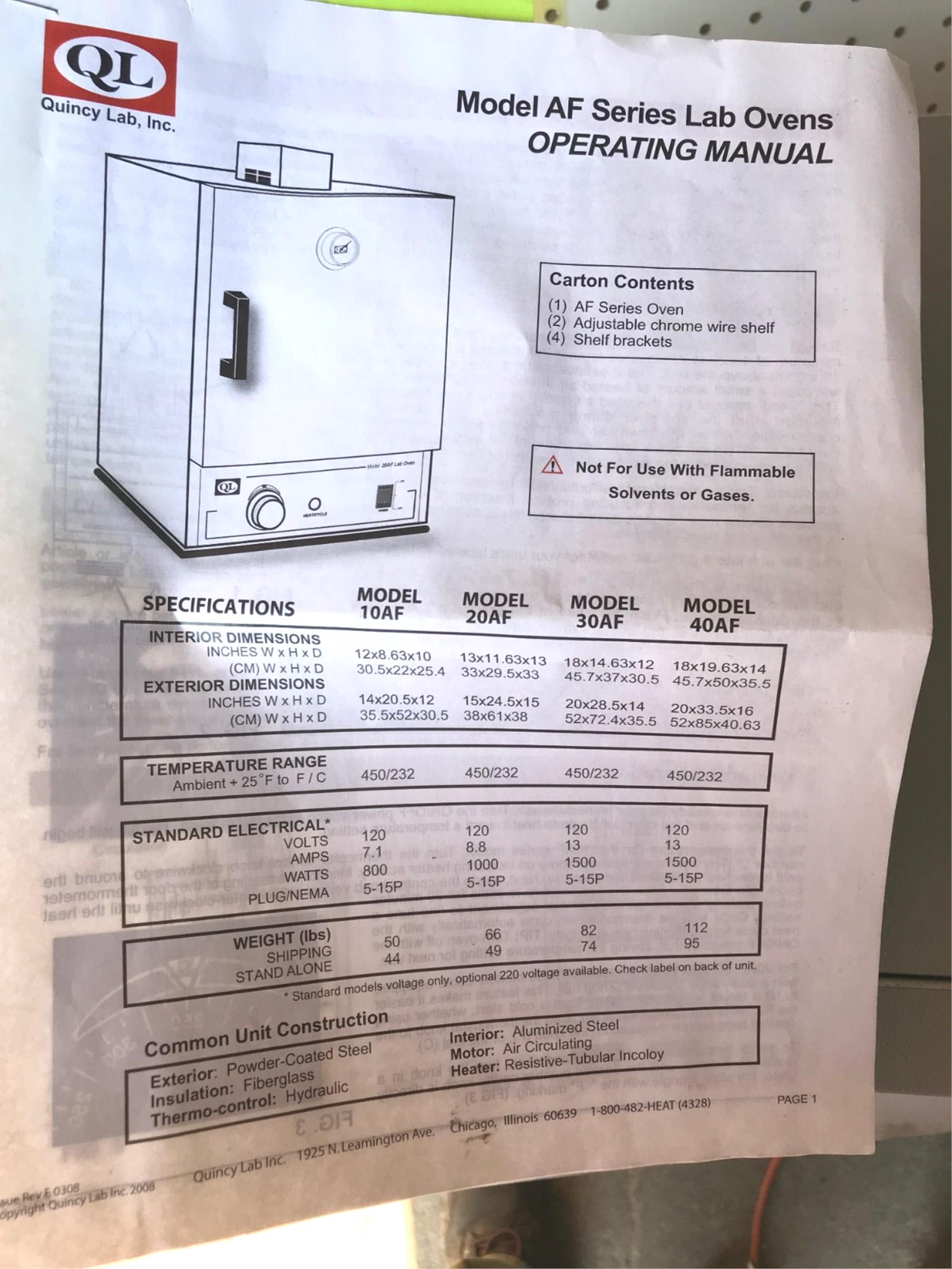

FEEL FREE TO CHECK MANUFACTURER'S OPERATING MANUAL & DATA SHEET ON THIS UNIT BY GOOGLING THE FOLLOWING LINK: //quincylab.com/analog-lab-ovens

Quincy 10AF Bi-Metal Forced-Air Laboratory Oven, 0.6 Cubic Feet/17 Liter Capacity, 450 Degrees F/232 Degrees C Maximum Temperature, 120V

Product features

Forced-air laboratory oven for evaporating, annealing, and testing applications, and drying, baking, curing, heat-treating, and sterilizing parts

Double-wall construction is insulated with high-density mineral wool to maintain constant temperature and keep exterior cool to the touch

Bi-metal thermostat control with control dial and illuminated on/off rocker switch

Low-watt density elements are compact to provide quick run-up and recovery times, and Incoloy-sheaths for high-temperature heating and resistance to corrosive solutions

Scratch-resistant hammered exterior is abrasion and corrosion resistant, and high-impact thermoplastic handles are durable and remain cool

Product description

The Quincy Lab 10AF forced-air laboratory oven has a bi-metal thermostat for evaporating, annealing, and testing applications, and drying, baking, curing, heat-treating, and sterilizing parts.

Forced air ovens provide uniform heat distribution within the chamber, and facilitate drying applications.

The oven has a 0.6 cubic foot/17 liter capacity and a maximum temperature of 450 degrees F/232 degrees C.

The oven has double-wall construction that is insulated with high-density mineral wool to maintain constant temperature and keep exterior cool to the touch.

The bi-metal thermostat is dial-controlled, and the on/off rocker switch is illuminated to indicate power status.

Low-watt density elements are compact to provide quick run-up and recovery times, and are Incoloy-sheathed for high-temperature heating and resistance to corrosive solutions.

A perforated heat shield absorbs radiant heat to provide temperature uniformity and even heat distribution.

The scratch-resistant hammered exterior is abrasion and corrosion resistant, and high-impact thermoplastic handles are durable and remain cool.

Specifications

Maximum temperature (Fahrenheit) 450 degrees

Maximum temperature (Celsius) 232 degrees

Temperature stability (Fahrenheit) +/- 6 degrees F at 300 degrees F

Temperature stability (Celsius) +/- 3 degrees C at 150 degrees C

Capacity 0.6 cubic feet/17 liters

Interior dimensions (H x W x D) 8.25 x 12 x 10 inches/21 x 30.5 x 25.4 cm

Exterior dimensions (H x W x D) 20.5 x 14 x 12.3 inches/52 x 35.6 x 31.2cm

Power requirements 120V/800W; US plug style

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Quincy Lab, Inc. manufactures laboratory incubators and ovens. The company, established in 1973, is located in Chicago, IL.

'AF' (air forced), Lab Series Ovens series are designed  to meet the laboratory needs of  industry, research organizations and schools.

Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing, as well as many more applications.

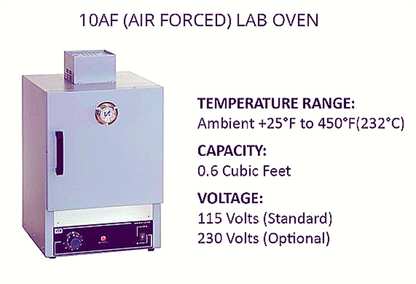

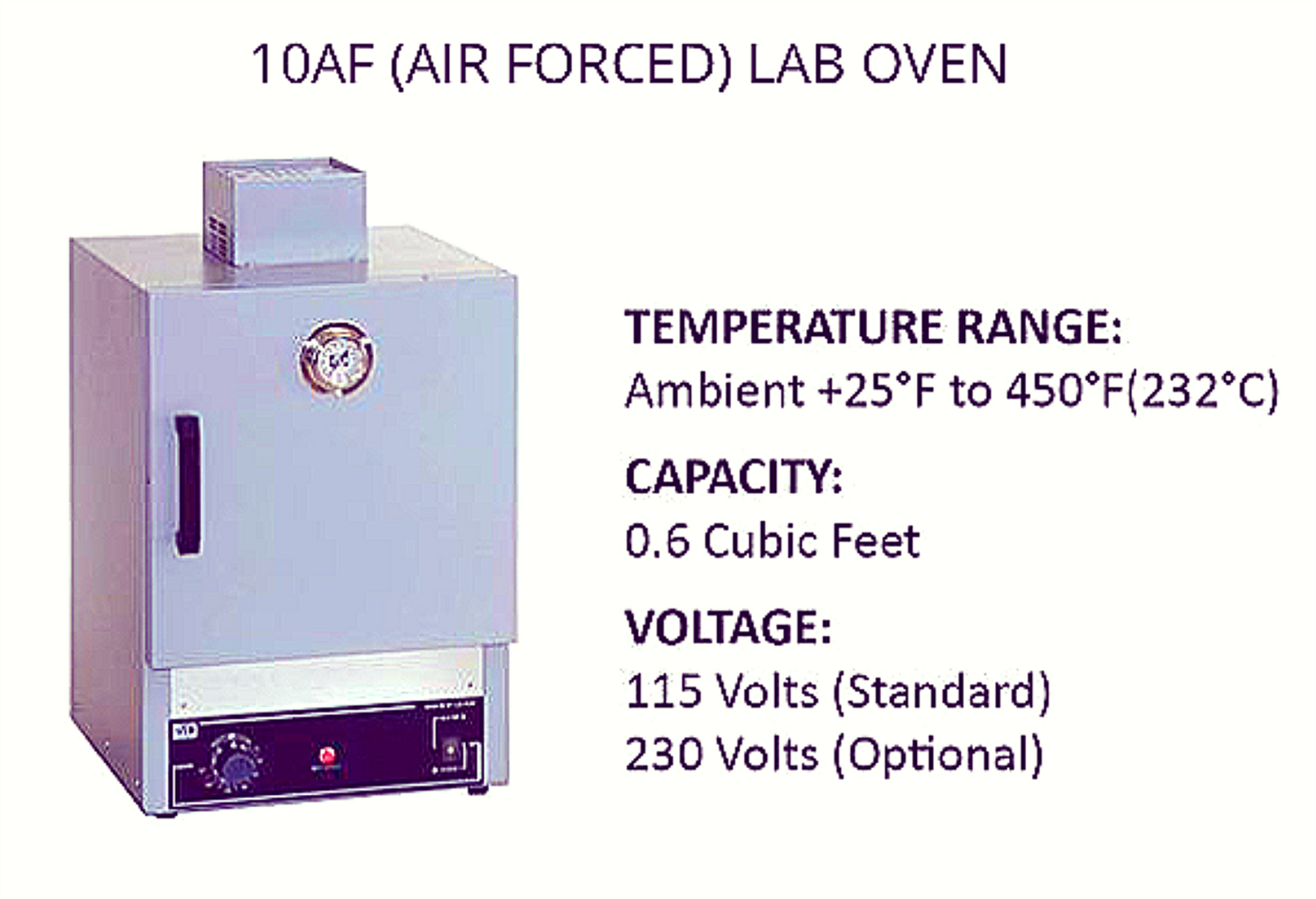

Temperature range

Ambient (room temperature) +25°F minimum to a maximum of 450°F (232°F).

Oven Features

Bi-metal thermostat

Hydraulic thermostat.

Accuracy of ±3°C.

Over-temperature safety feature.

Corrosion resistant aluminized interior.

115 Volts & 230 Volts available.

Resistive-tubular incoloy  heating elements.

1" inch of high density mineral wool insulation.

Insulated Steel Doors with high impact thermoplastic handles.

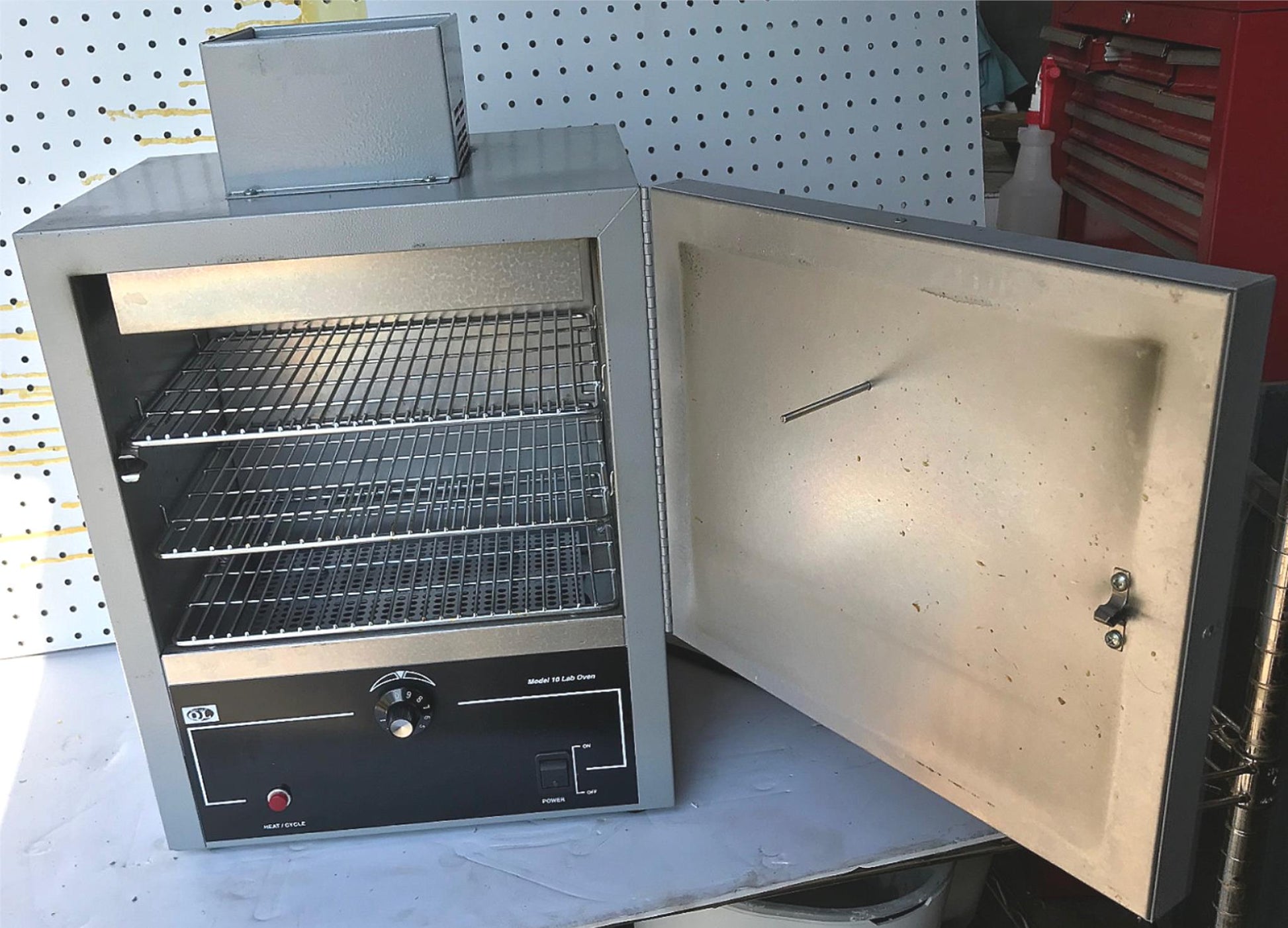

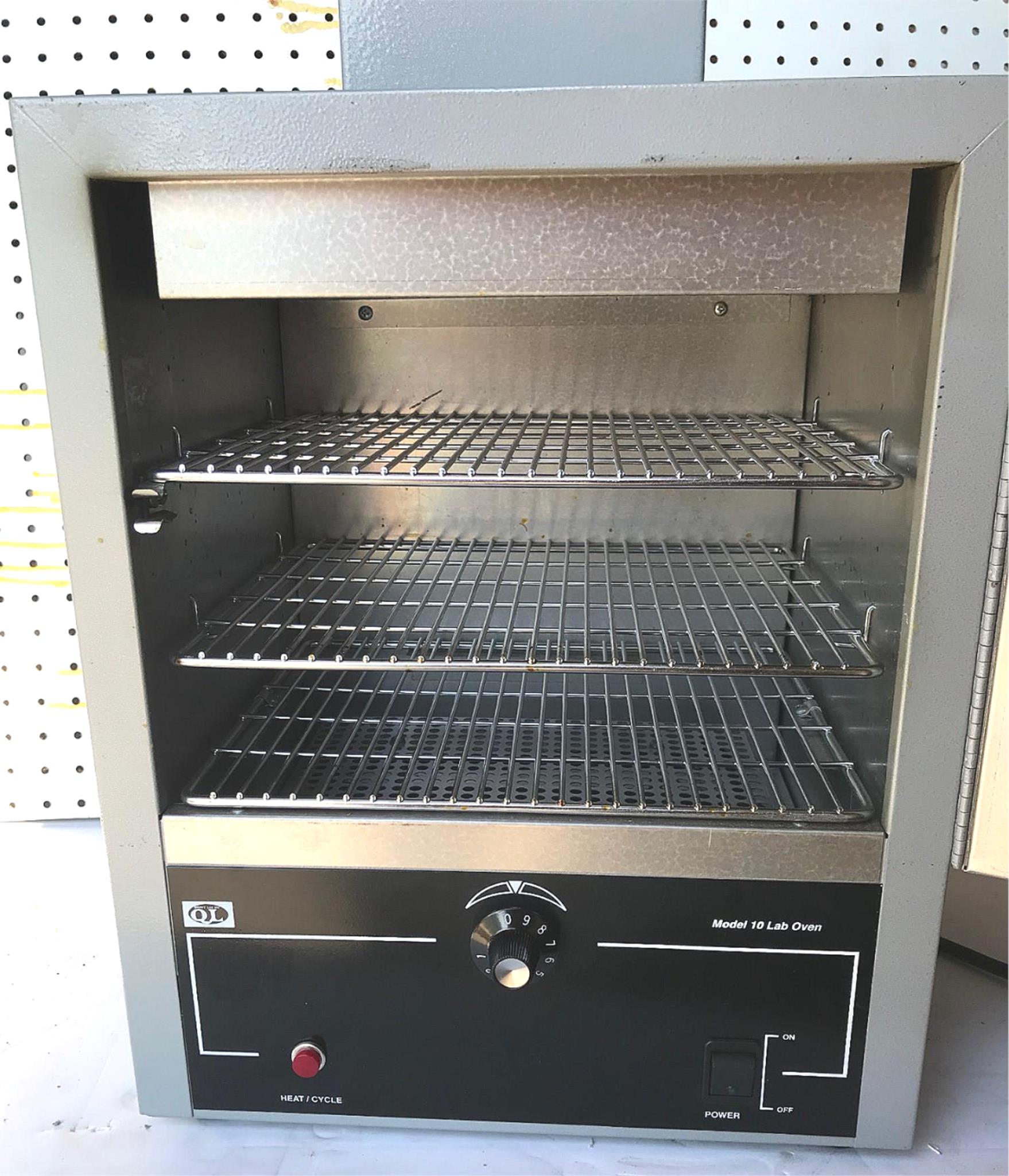

2 adjustable and 1 fixed nickel plated shelves.

Baked in scratch-resistant powder coated finish.

A circulating fan which provides air circulation for improved uniformity (AF Models only).

Product details

Shipping Weight: 53.3 pounds (View shipping rates and policies)

ASIN: B006H8IQ64

Item model number: 10AF

WE USUALLY SHIP WITHIN ONE BUSINESS DAY AFTER PAYMENT CLEARS.

STOCK #192119
