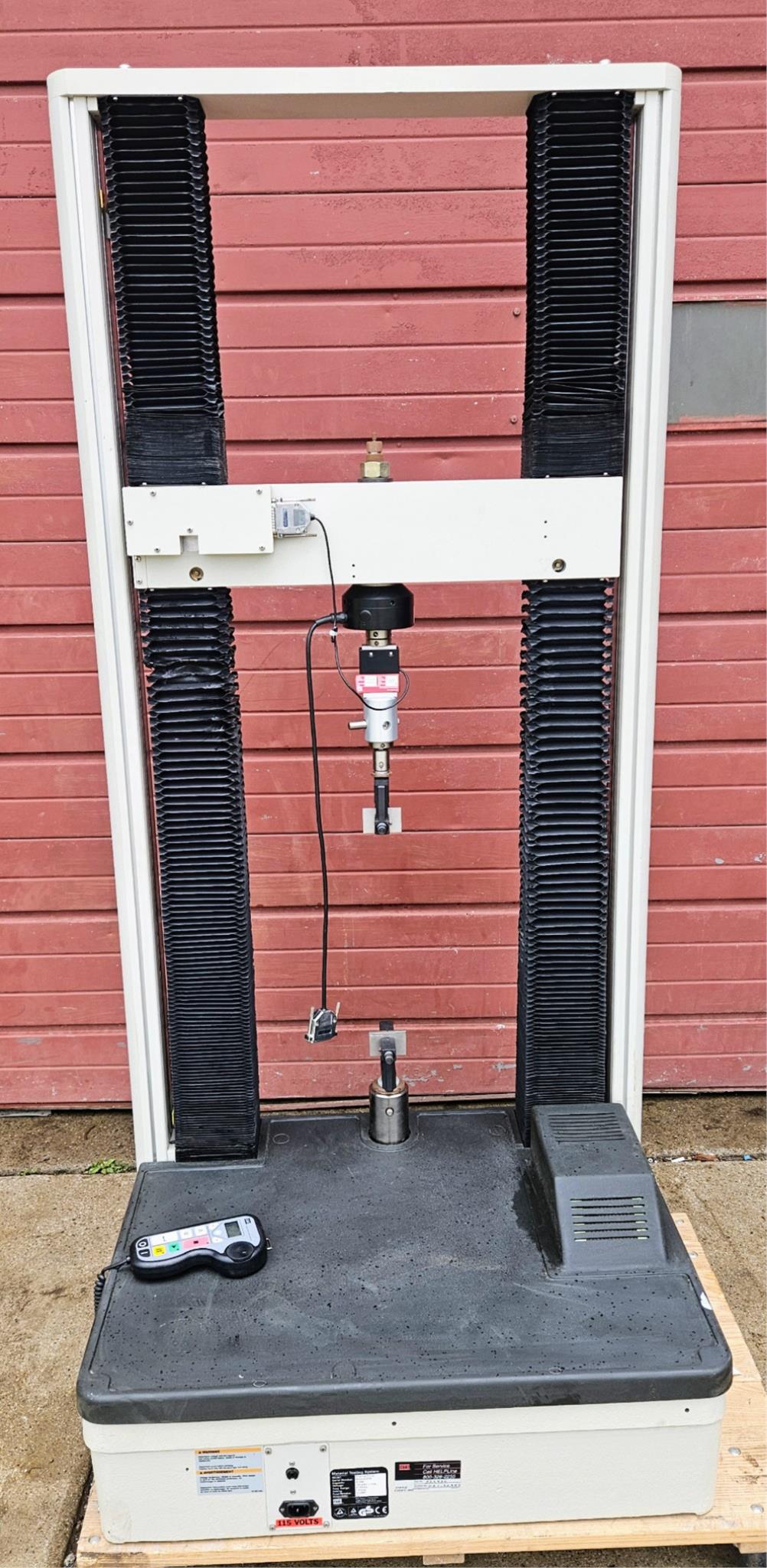

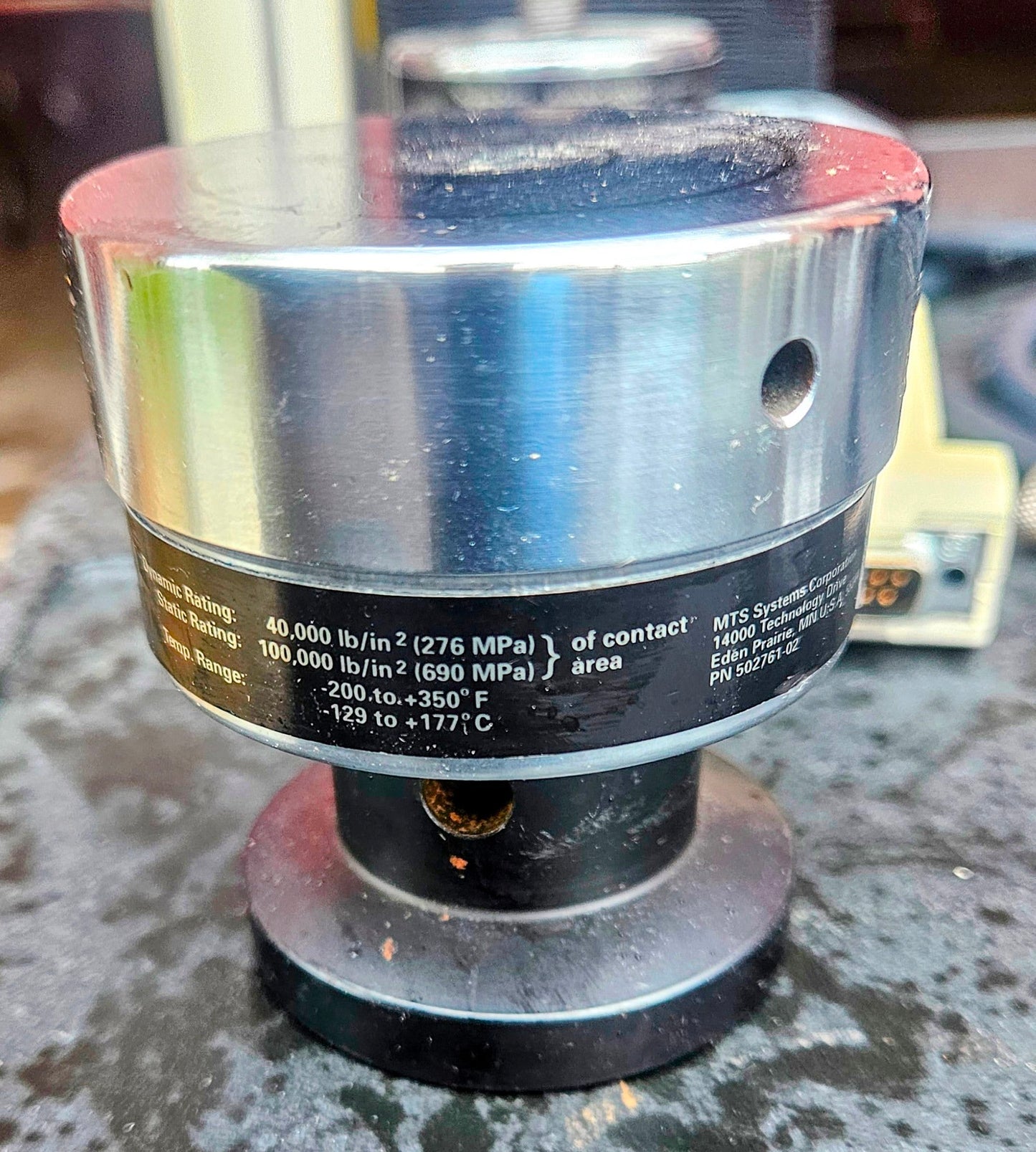

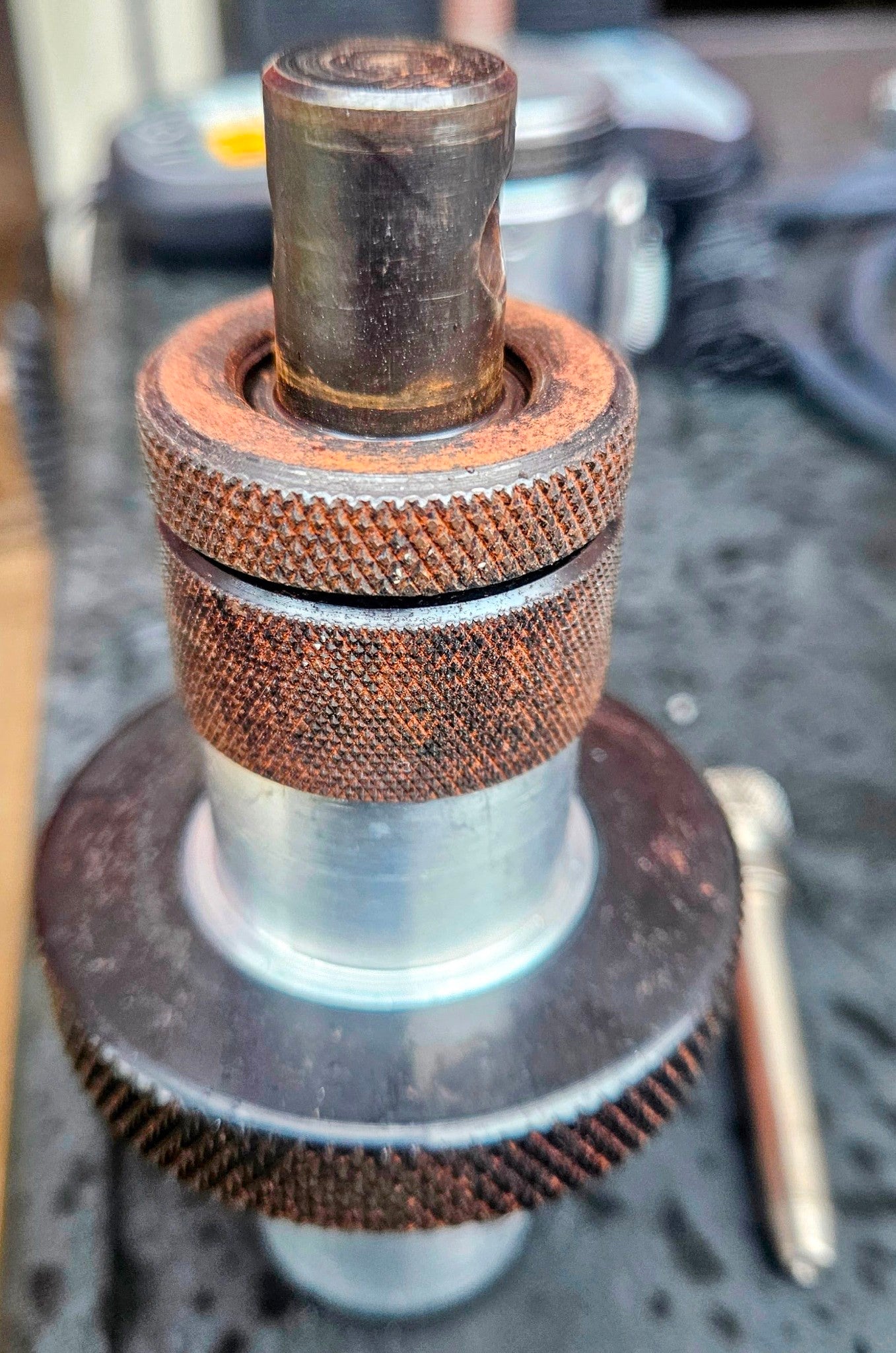

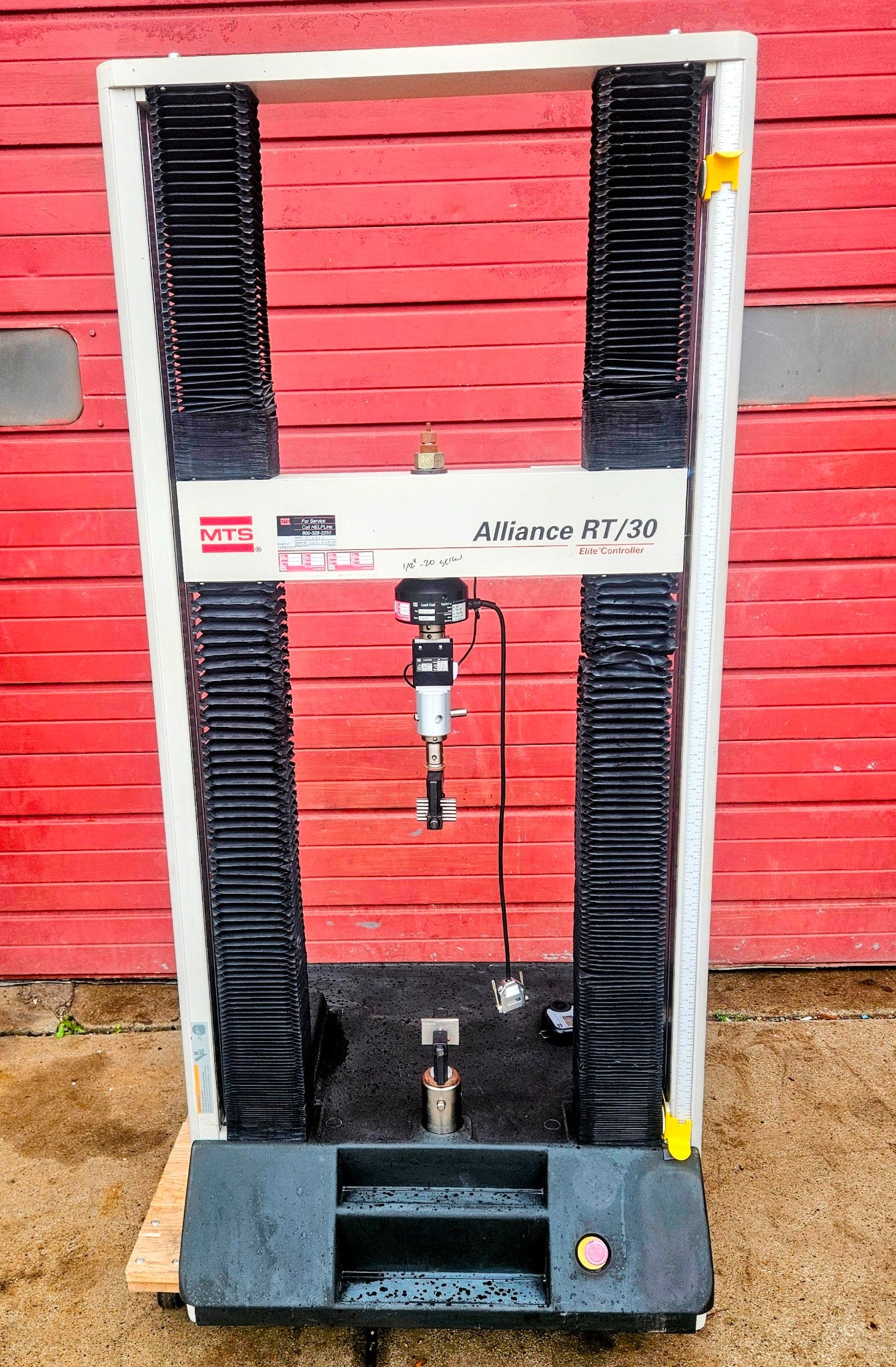

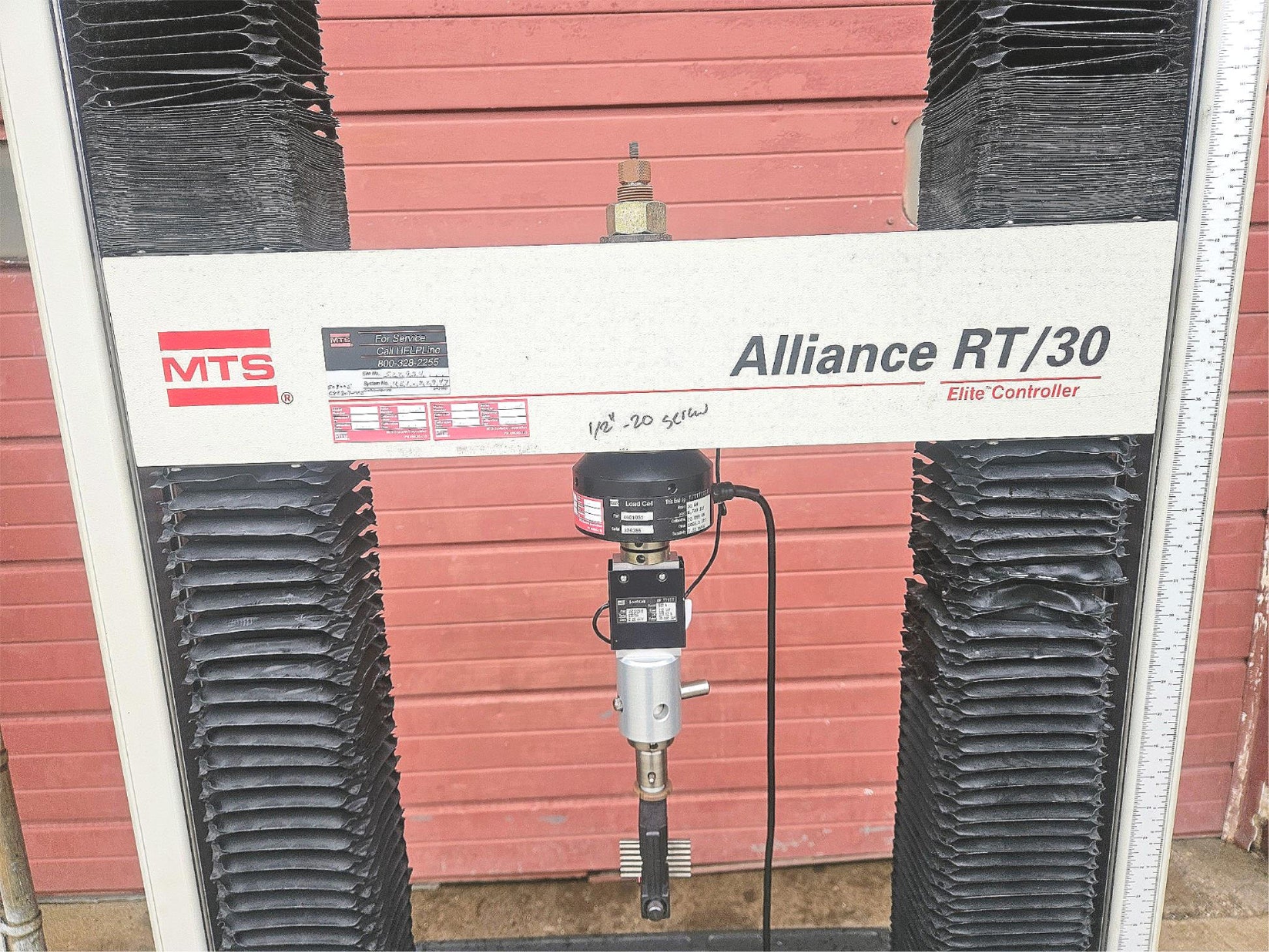

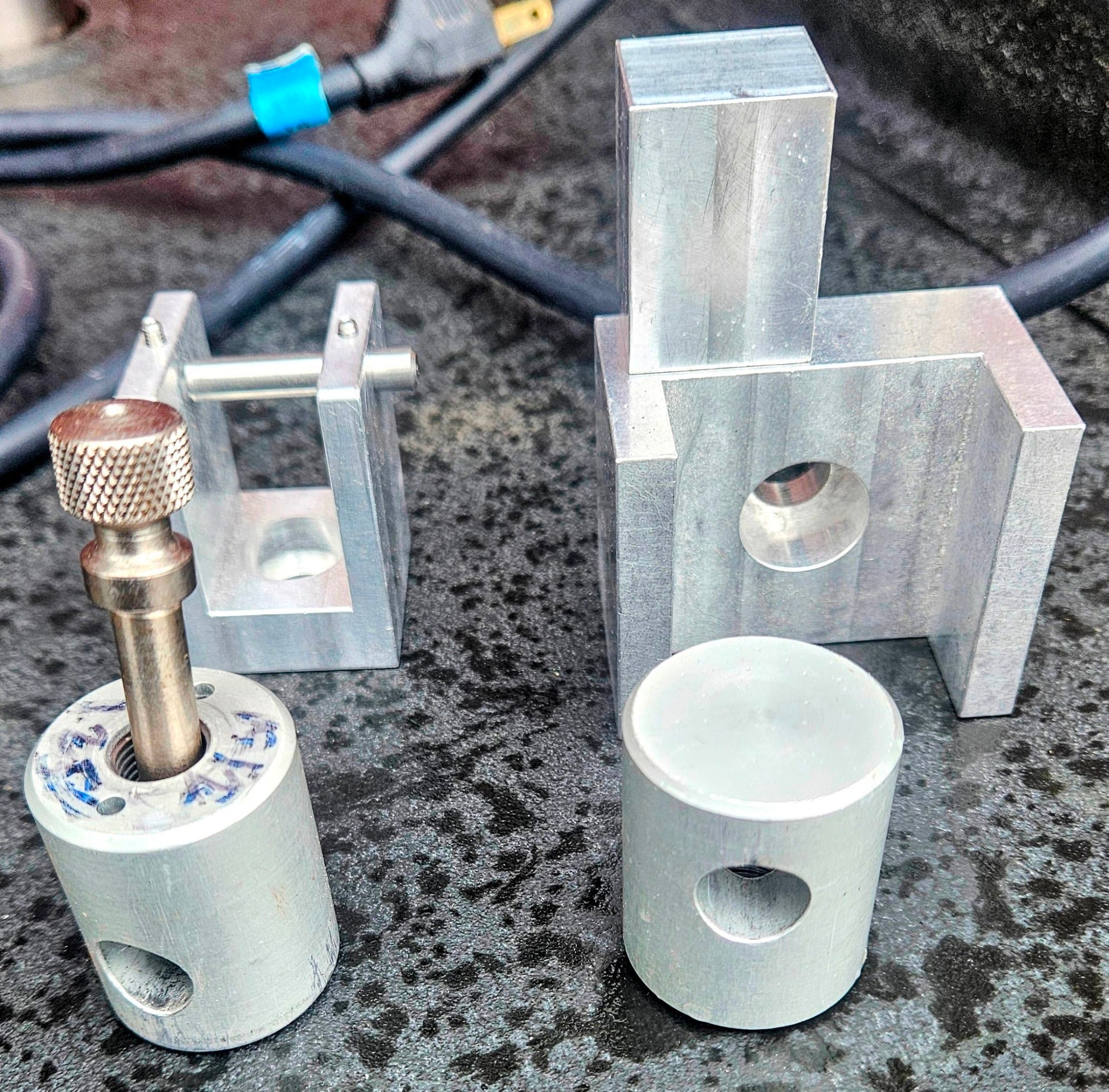

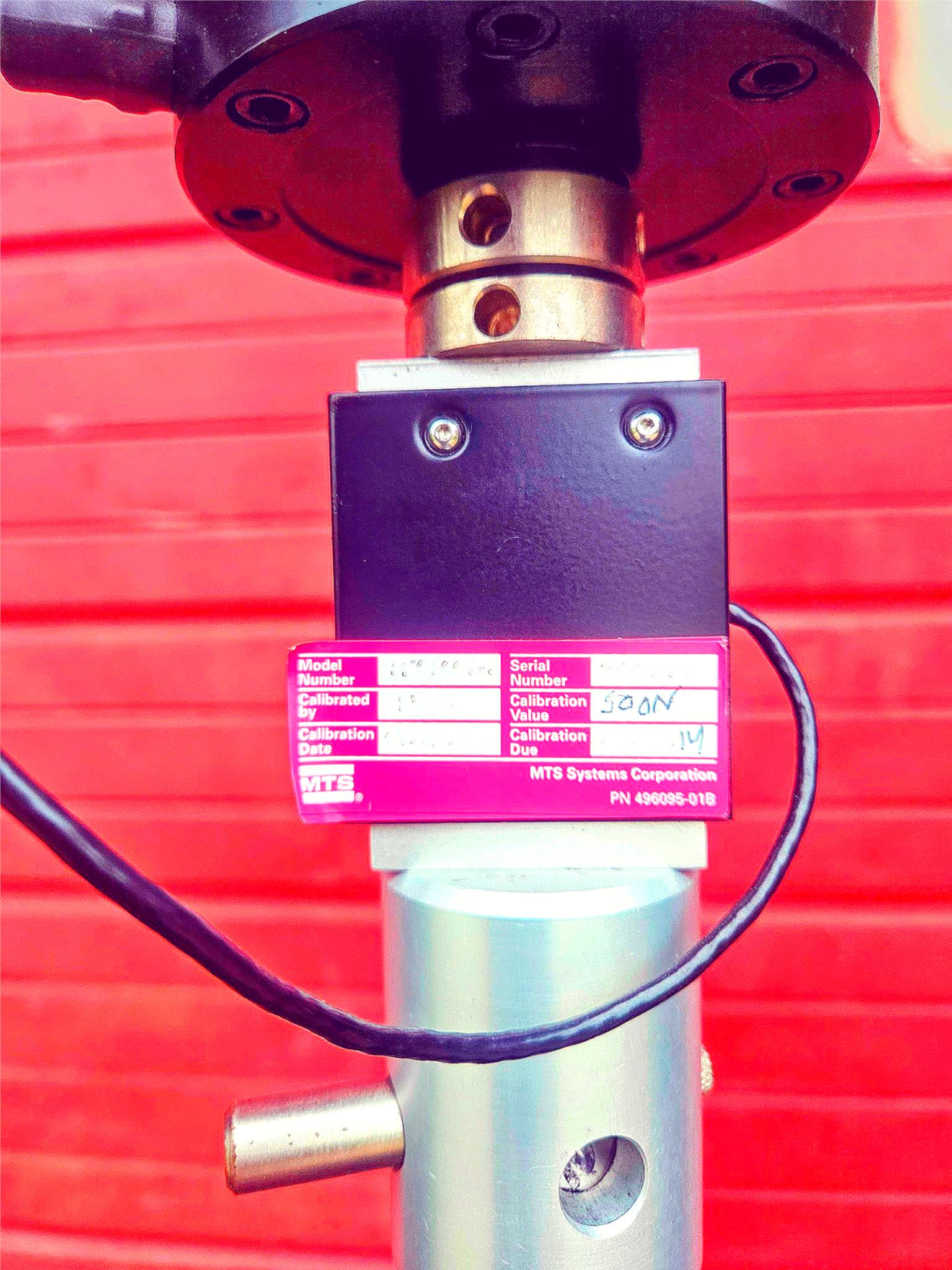

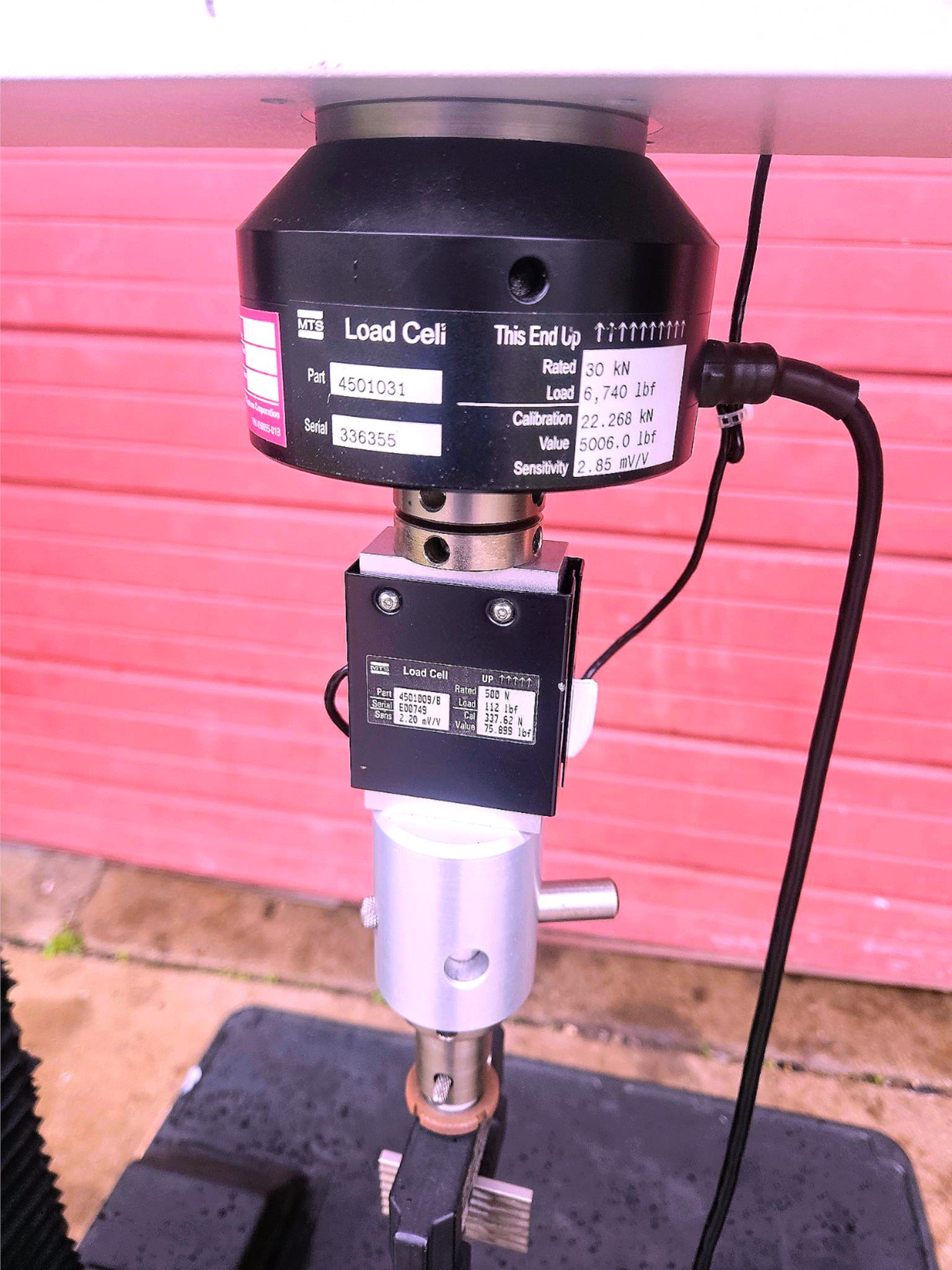

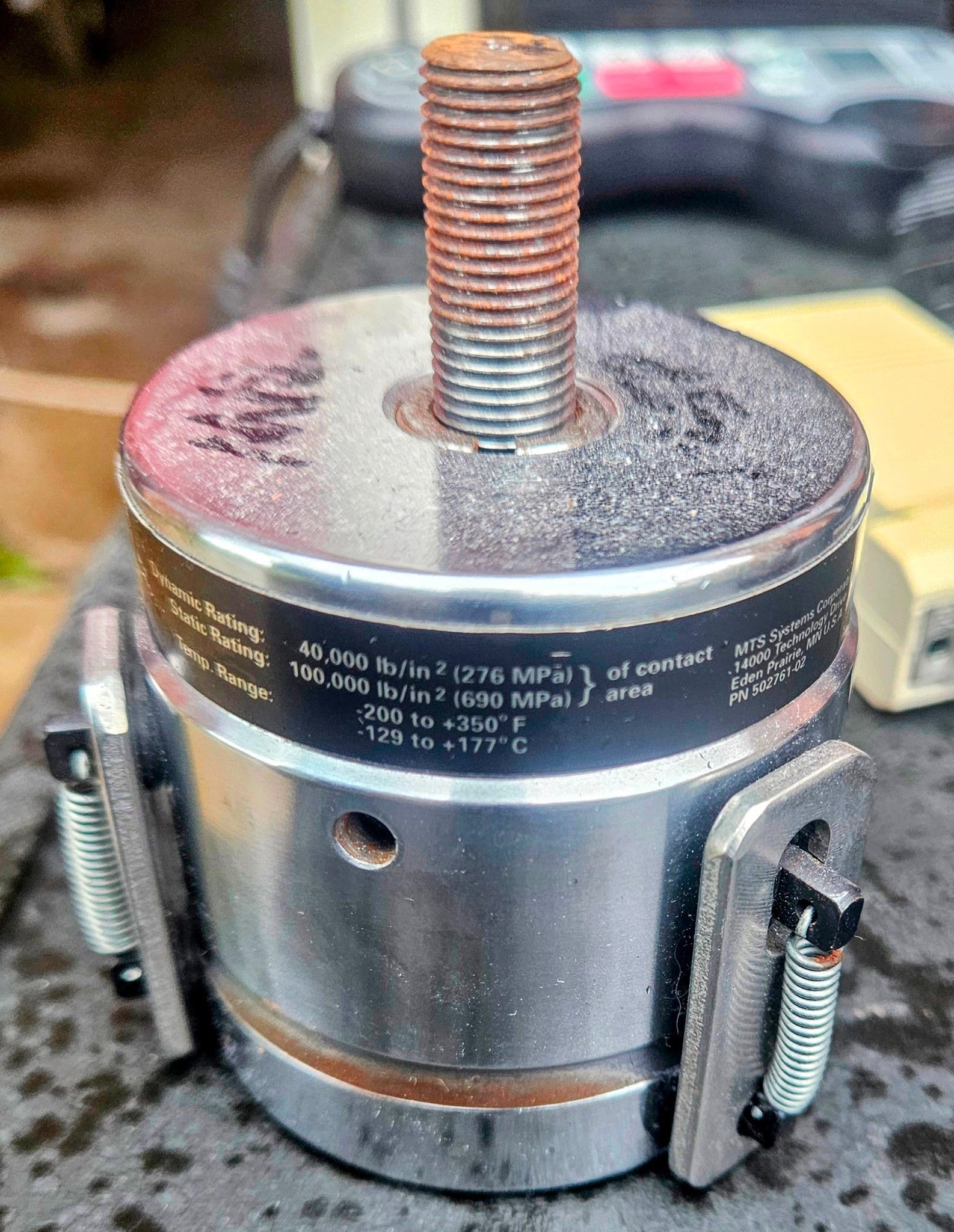

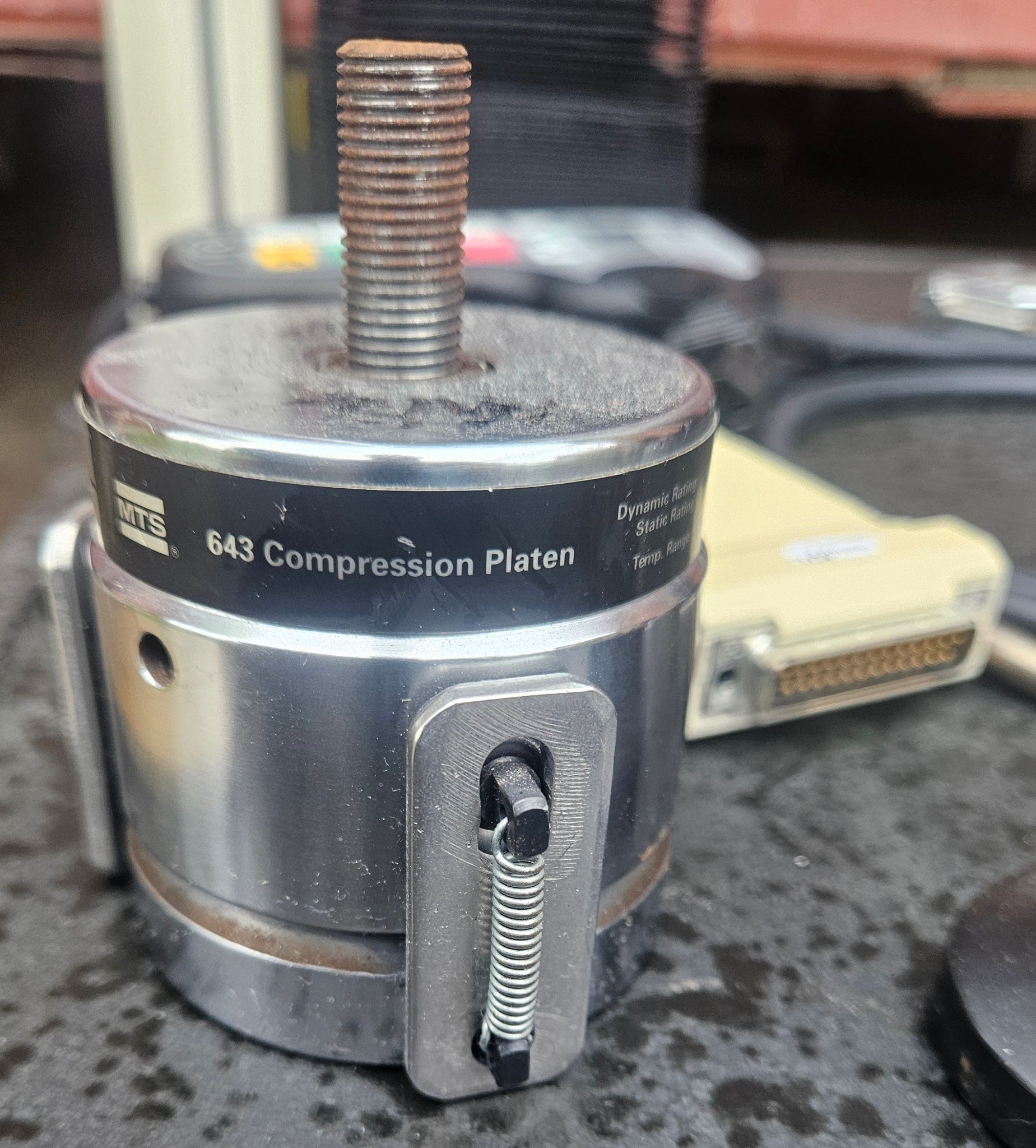

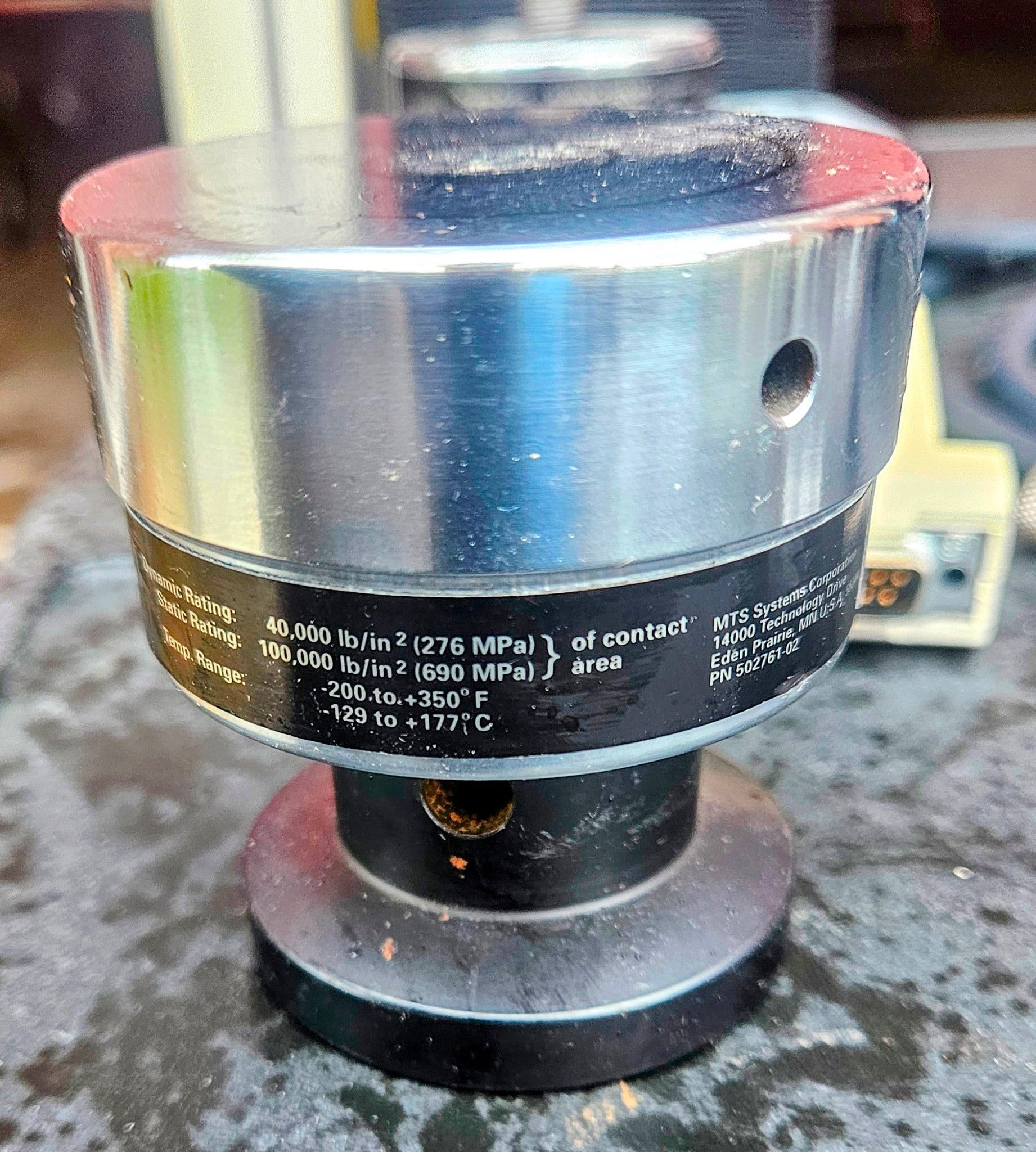

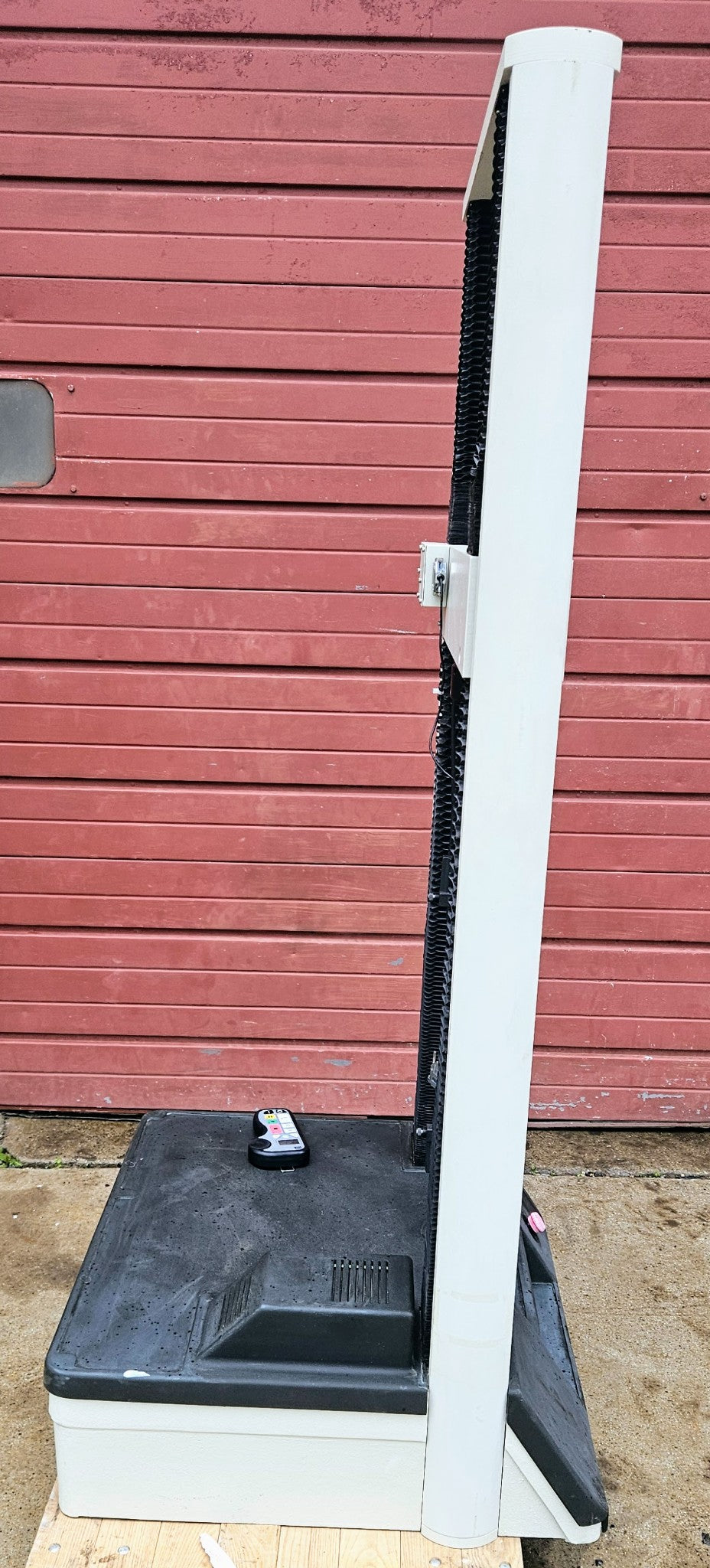

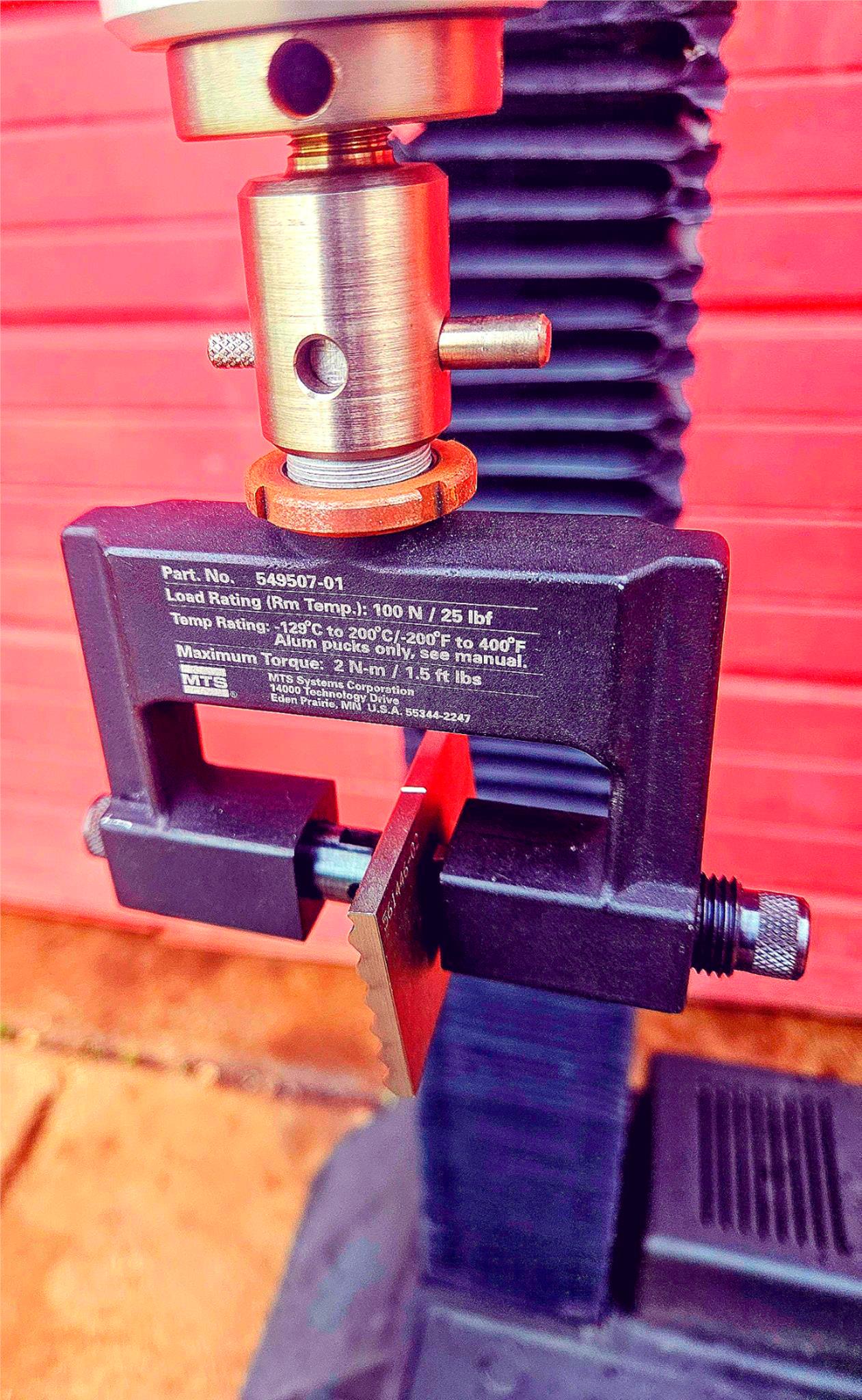

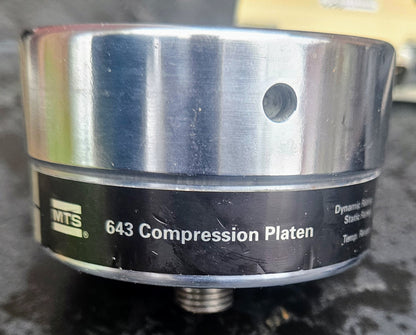

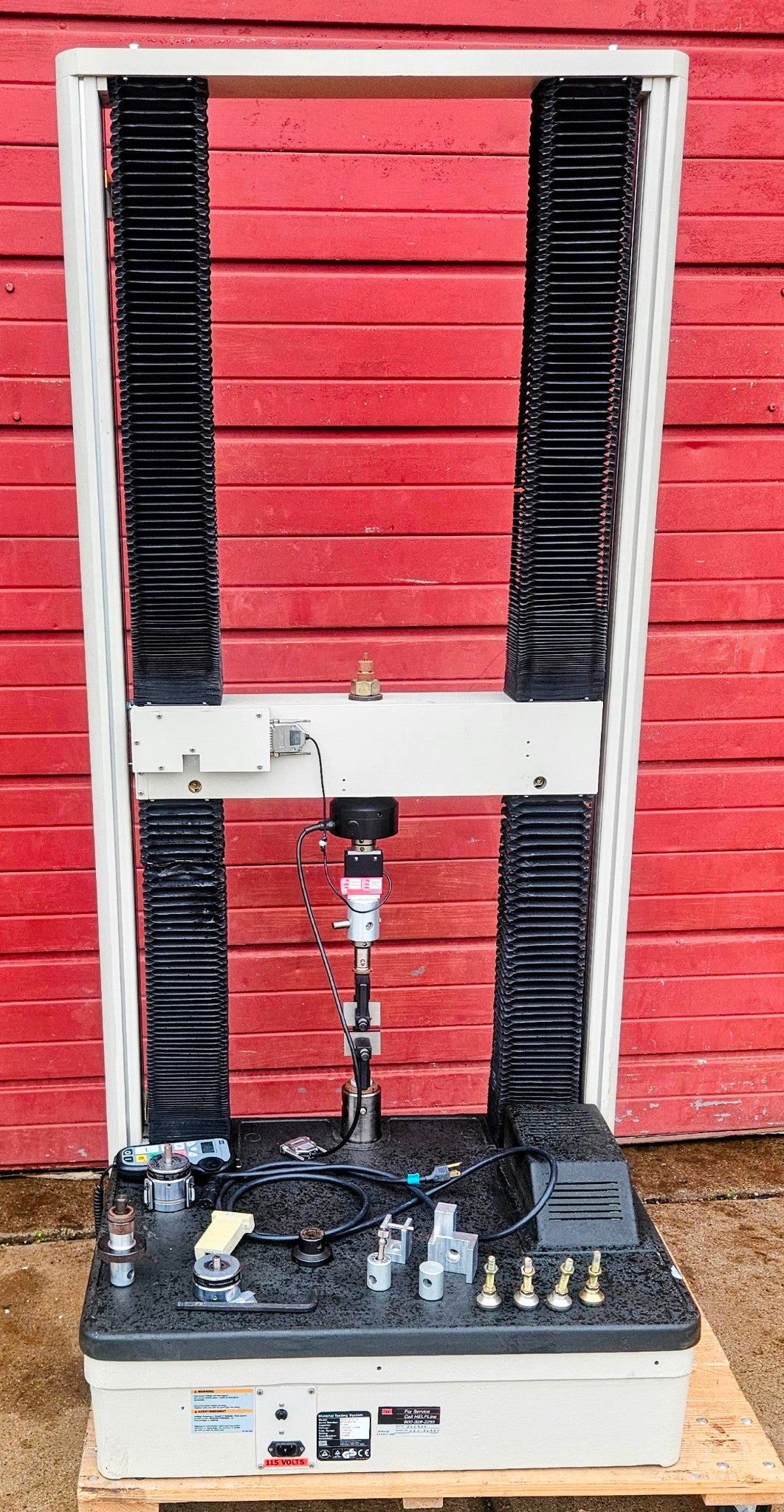

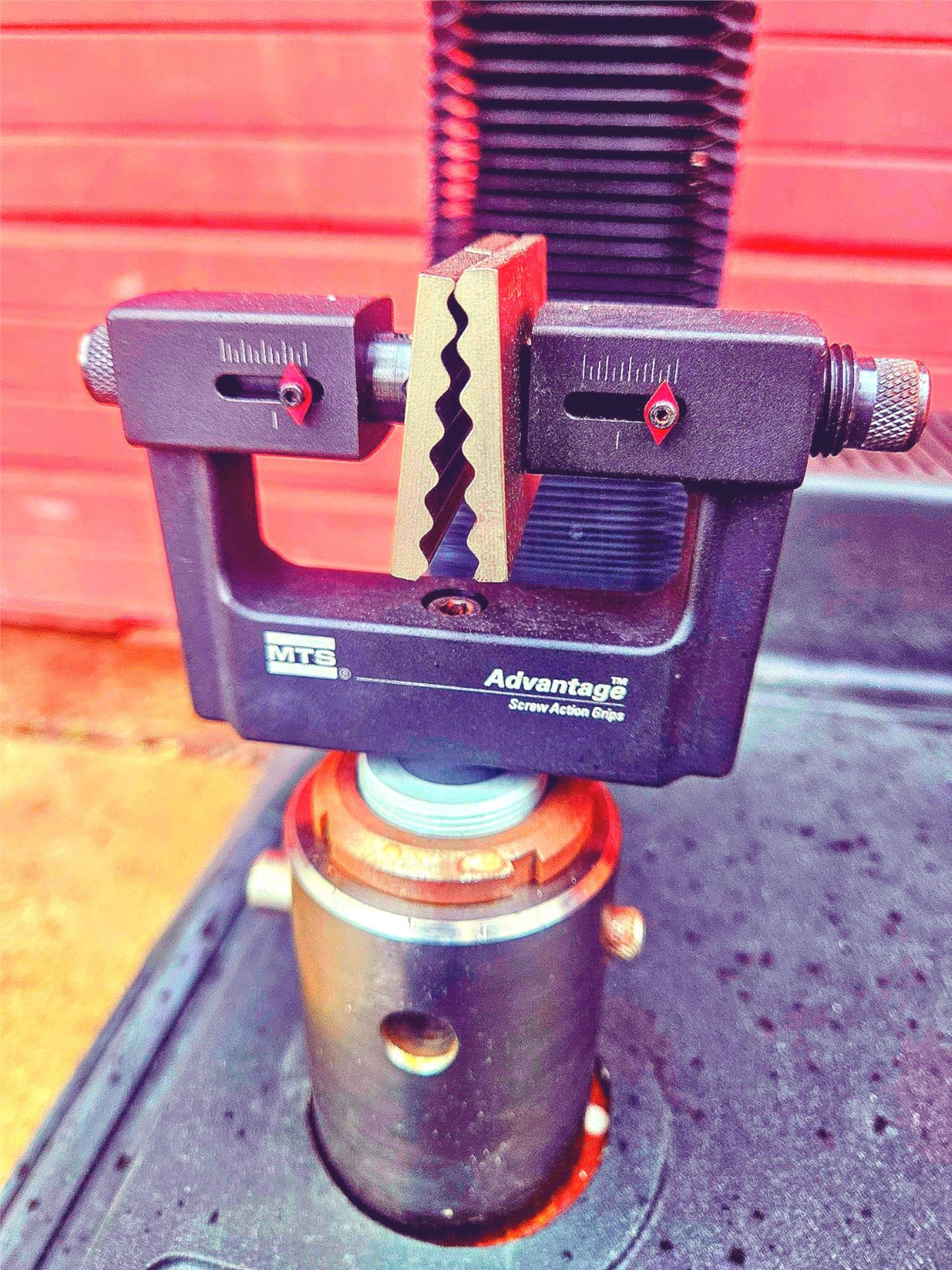

This listing is for a Great Deal on a MTS® RT/30 ELITE CONTROL MATERIAL TESTING FIXTURES LOADCELL as can be WATCHED IN THE VIDEO and alo seen in the pictures.
FEEL FREE TO WATCH A VIDEO OF THIS UNIT WORKING PERFECTLY BY CLICKING: https://www.youtube.com/shorts/857bPWUkPlQ
IMPORTANT: NO SOFTWARE IS INCLUDED WITH THIS UNIT!

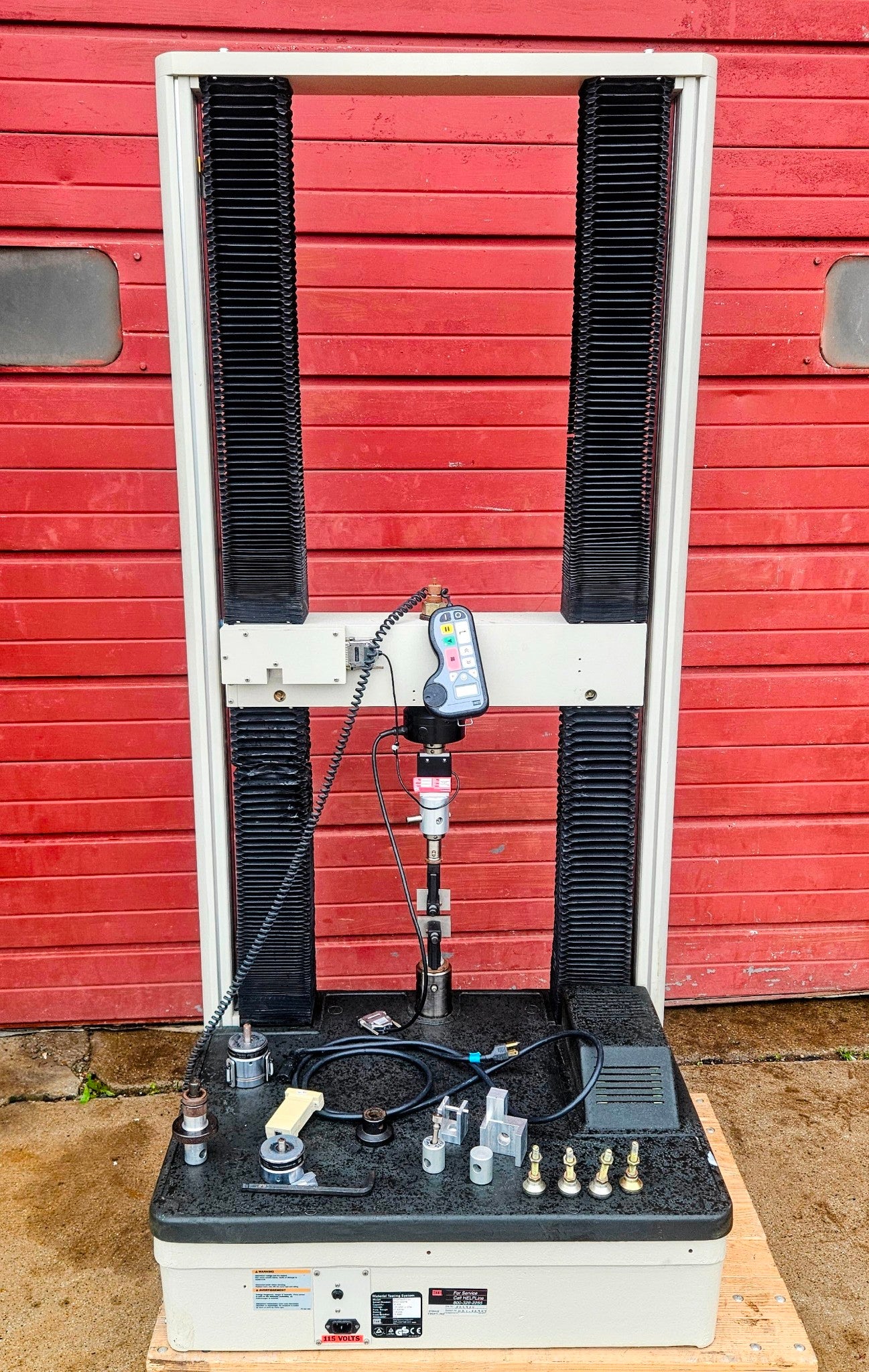

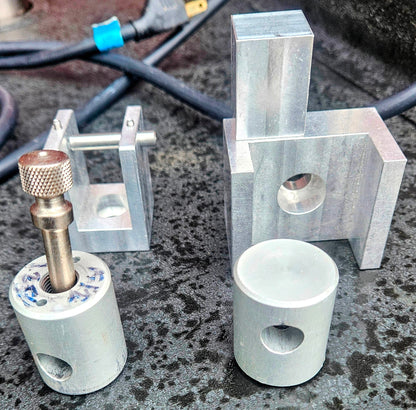

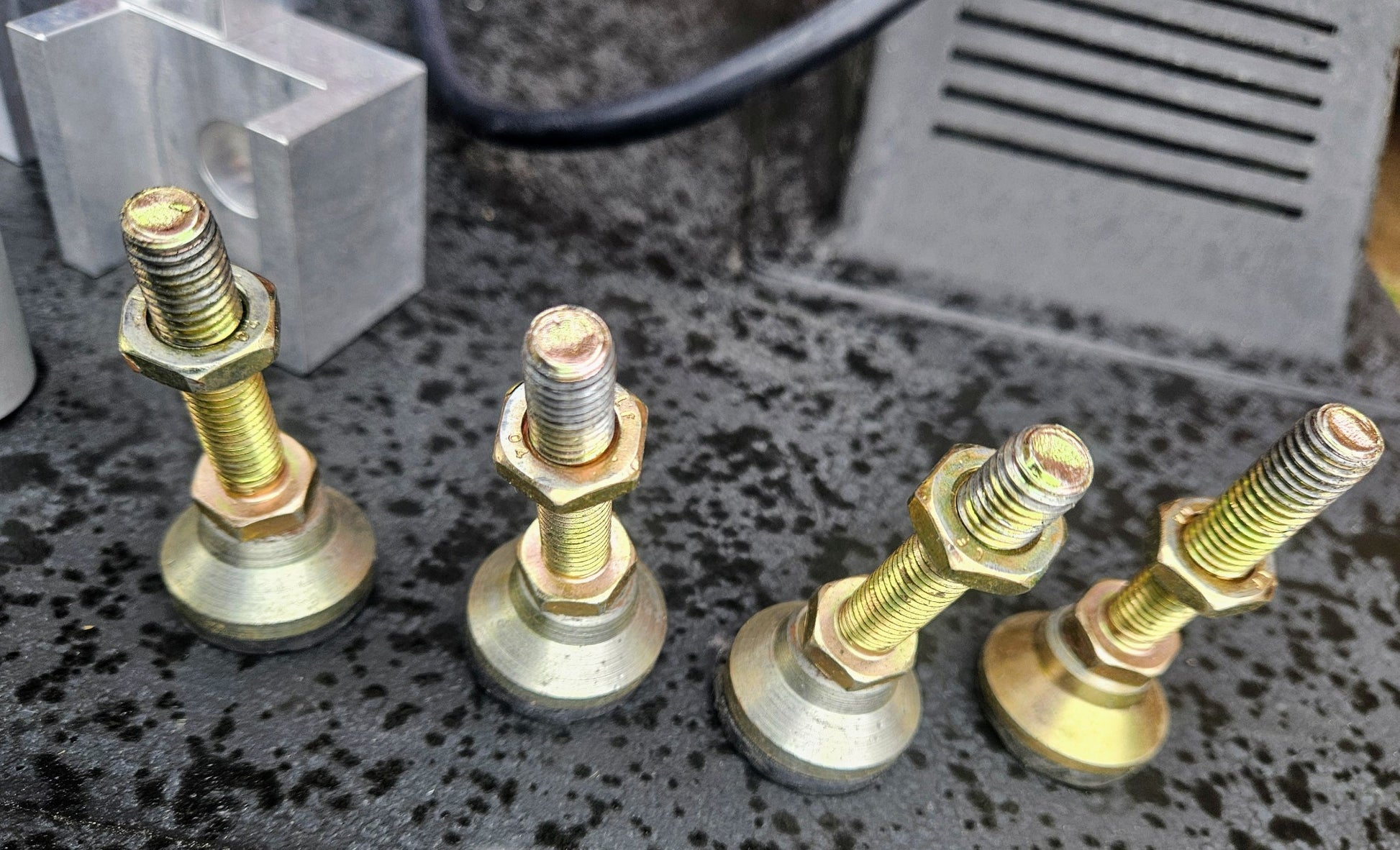

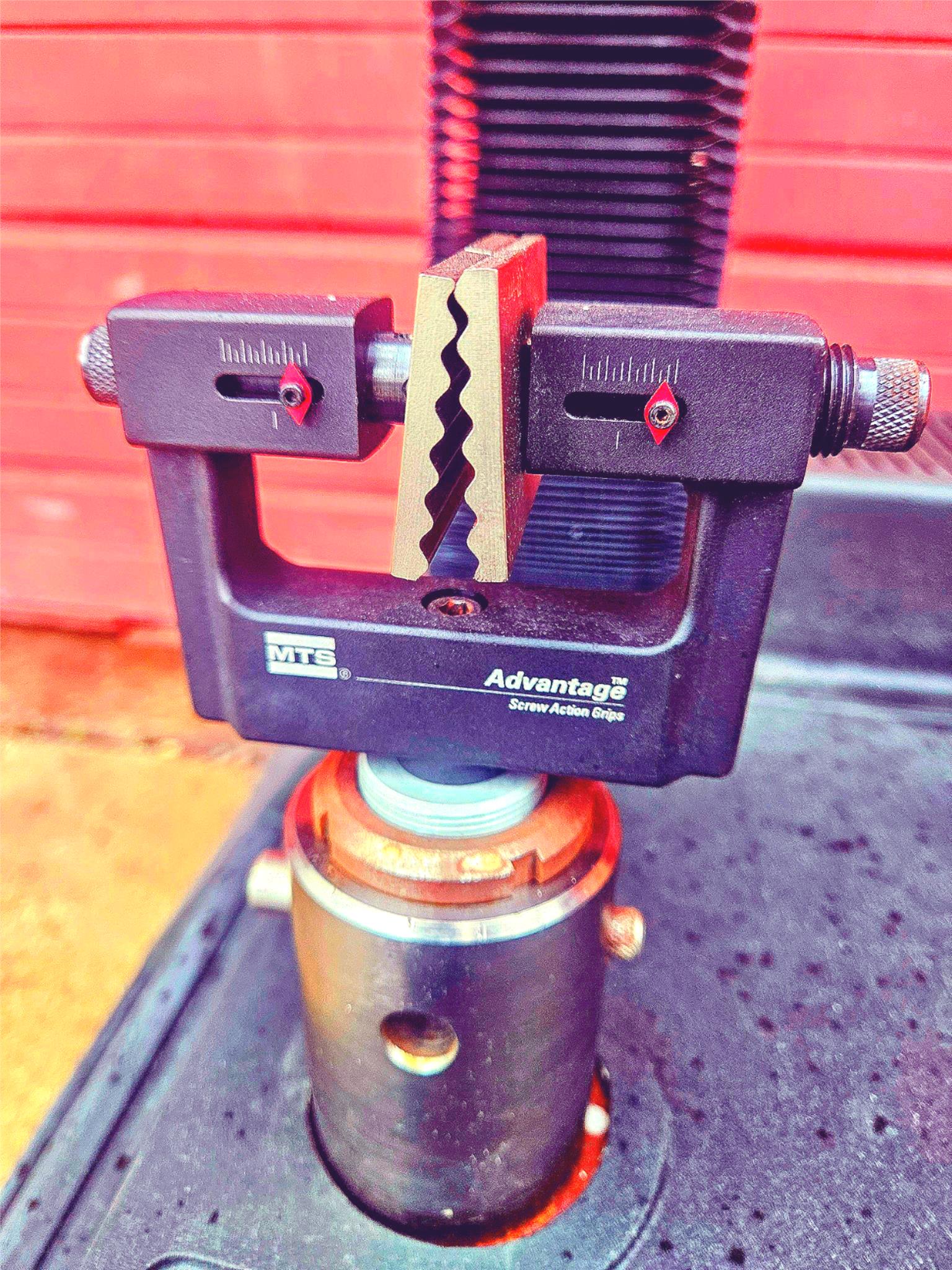

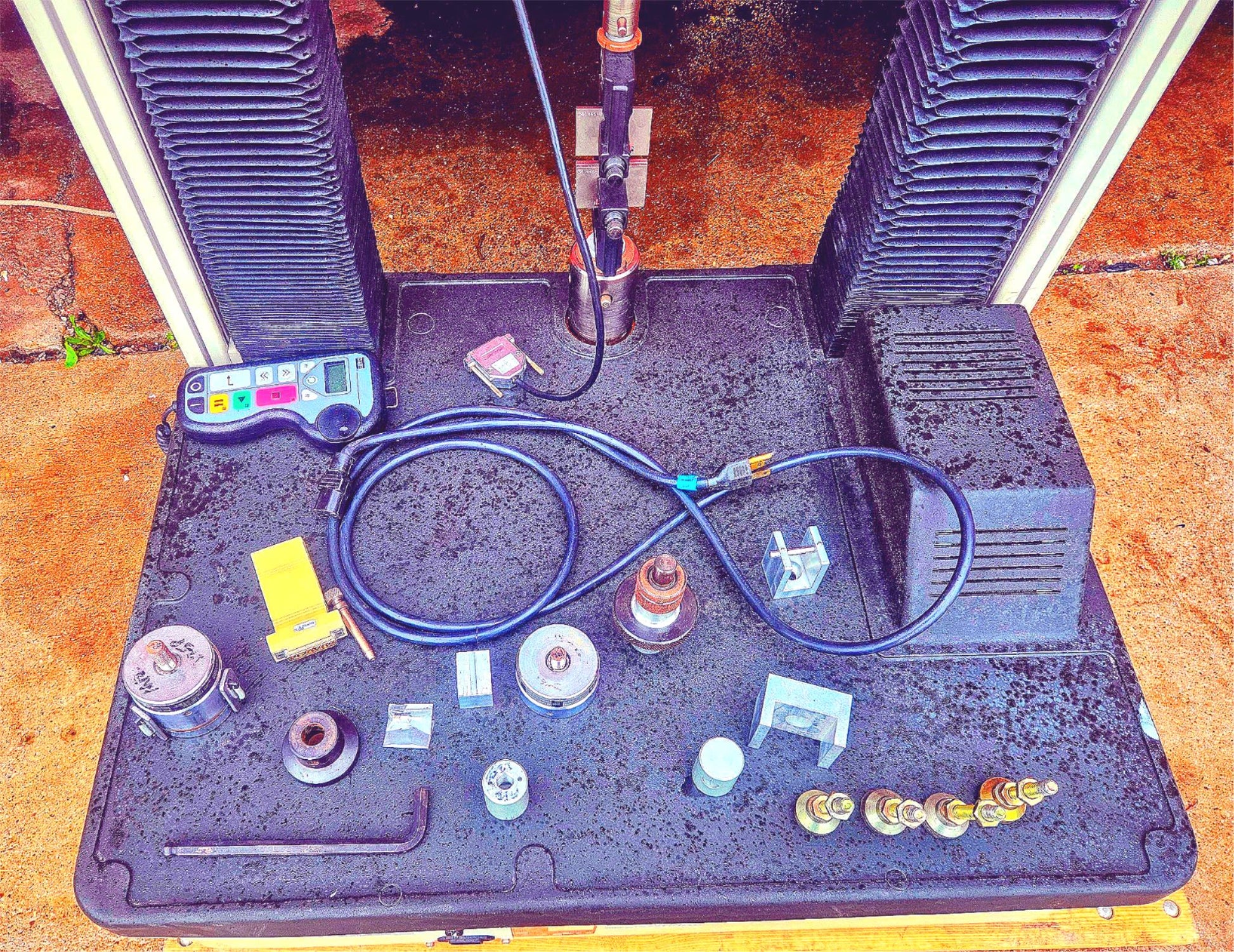

WHAT'SS INCLUDED: EVERYTHING YOU SEE IN THE PICTURES!
This unit was previously in use at a Federal University and has been consistently well cared for.
Cosmetic Condition:

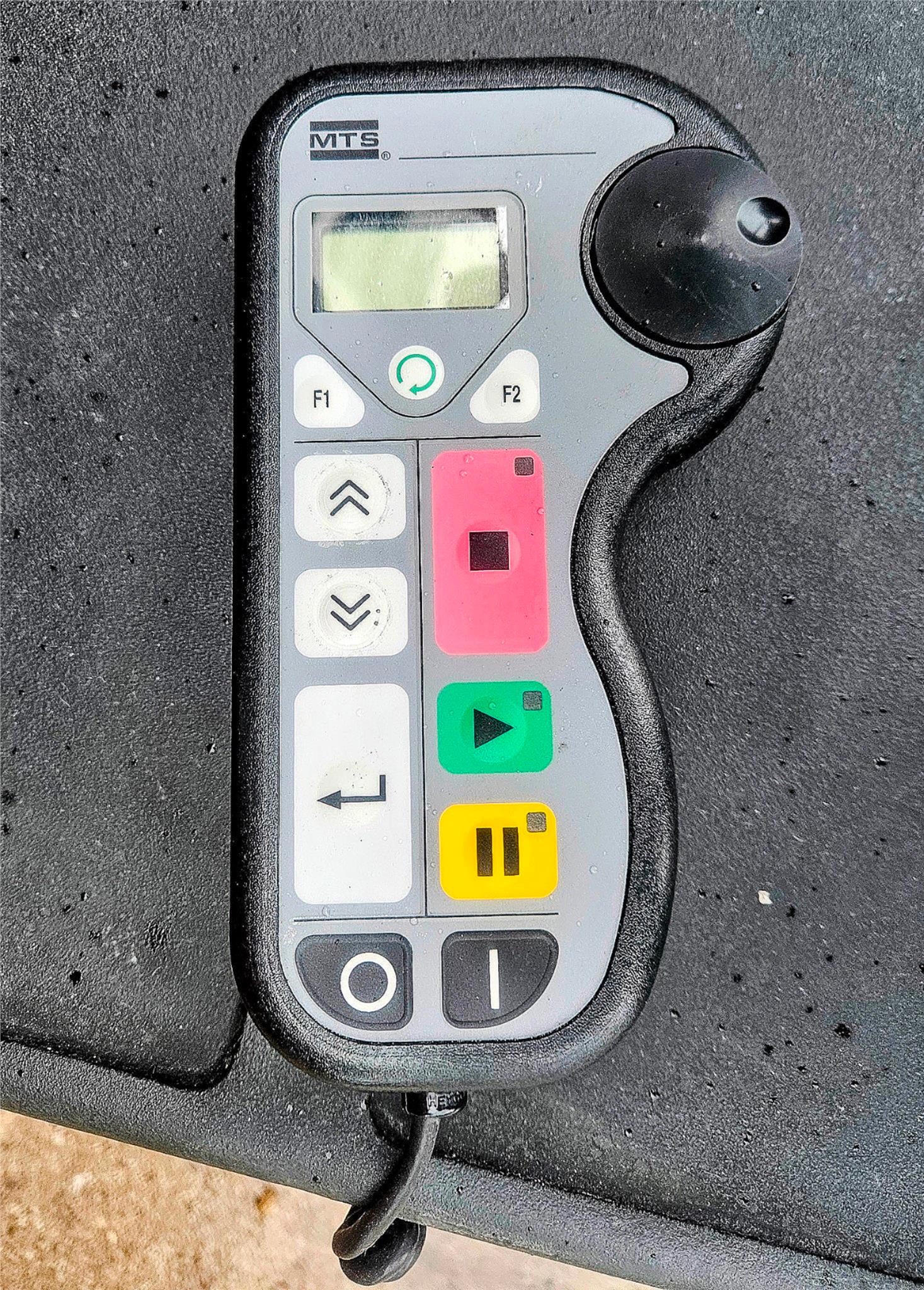

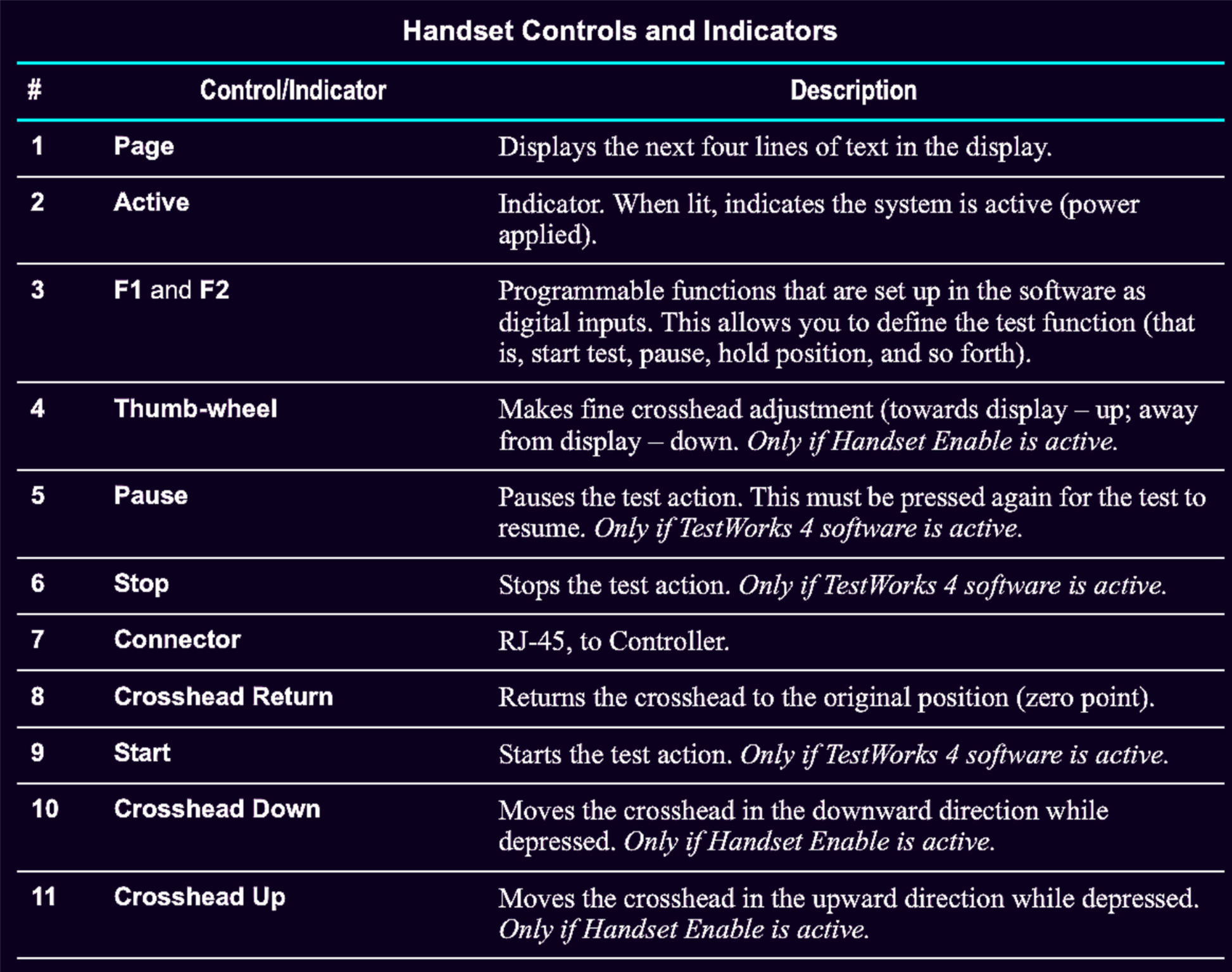

Even though it's in excellent cosmetic condition and that it also responds to the HandSet Control we do not have the software to fully test it and that is why we’re selling it under an AS IS NO RETURN condition. These units seell for a pretty penny so it's a great deal at this price.

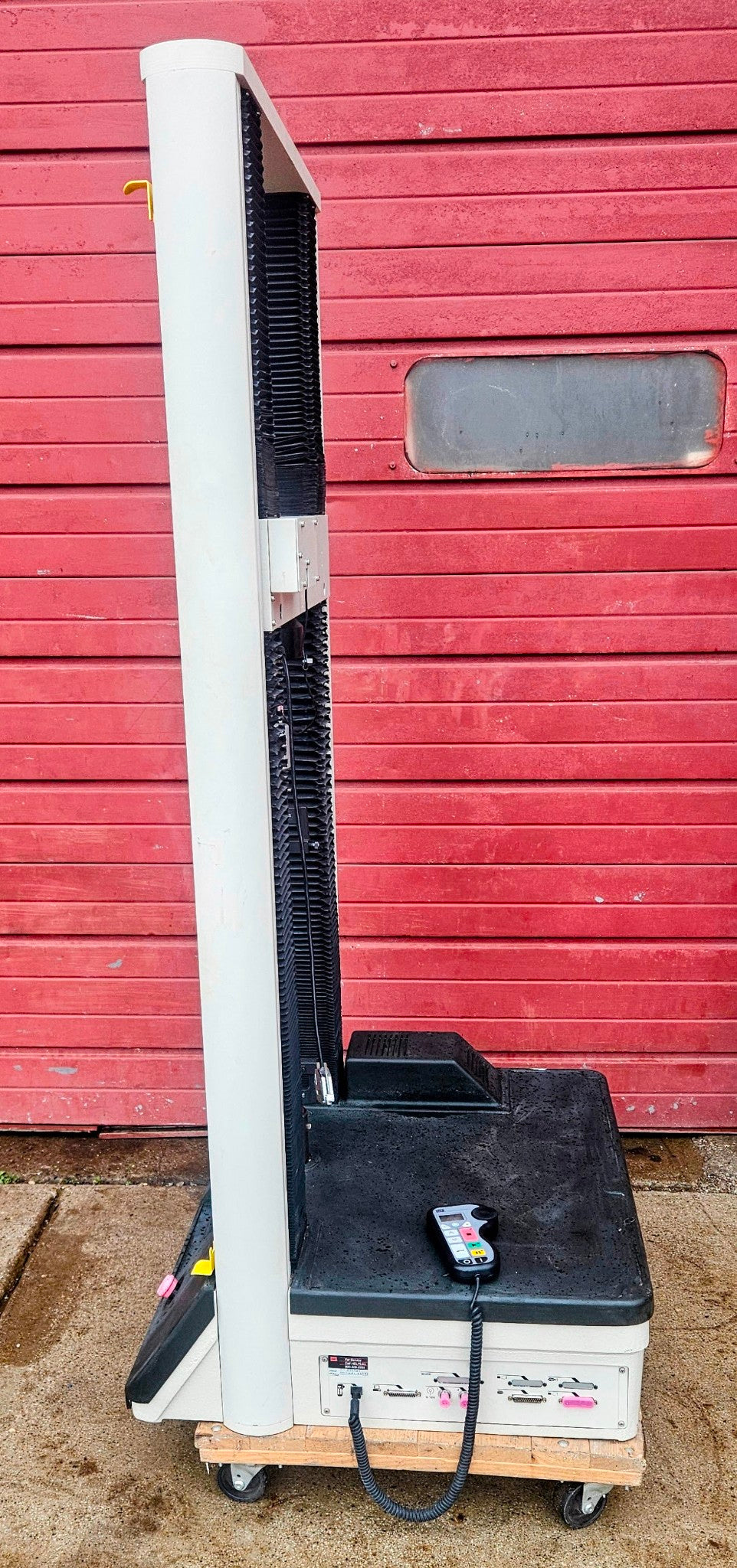

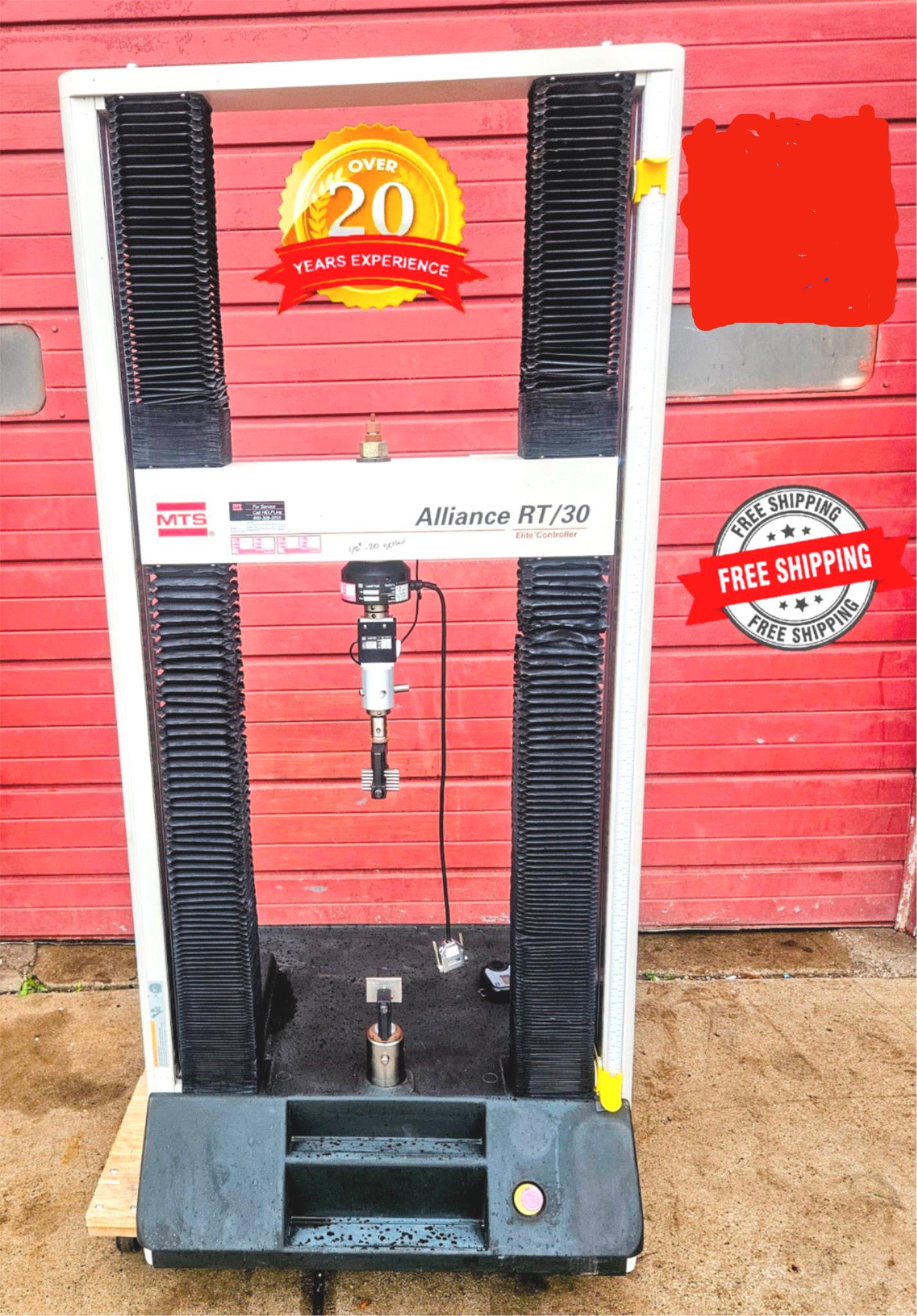

This unit is in excellent cosmetic condition as can be Watched in the Video and also seen in the pictures.

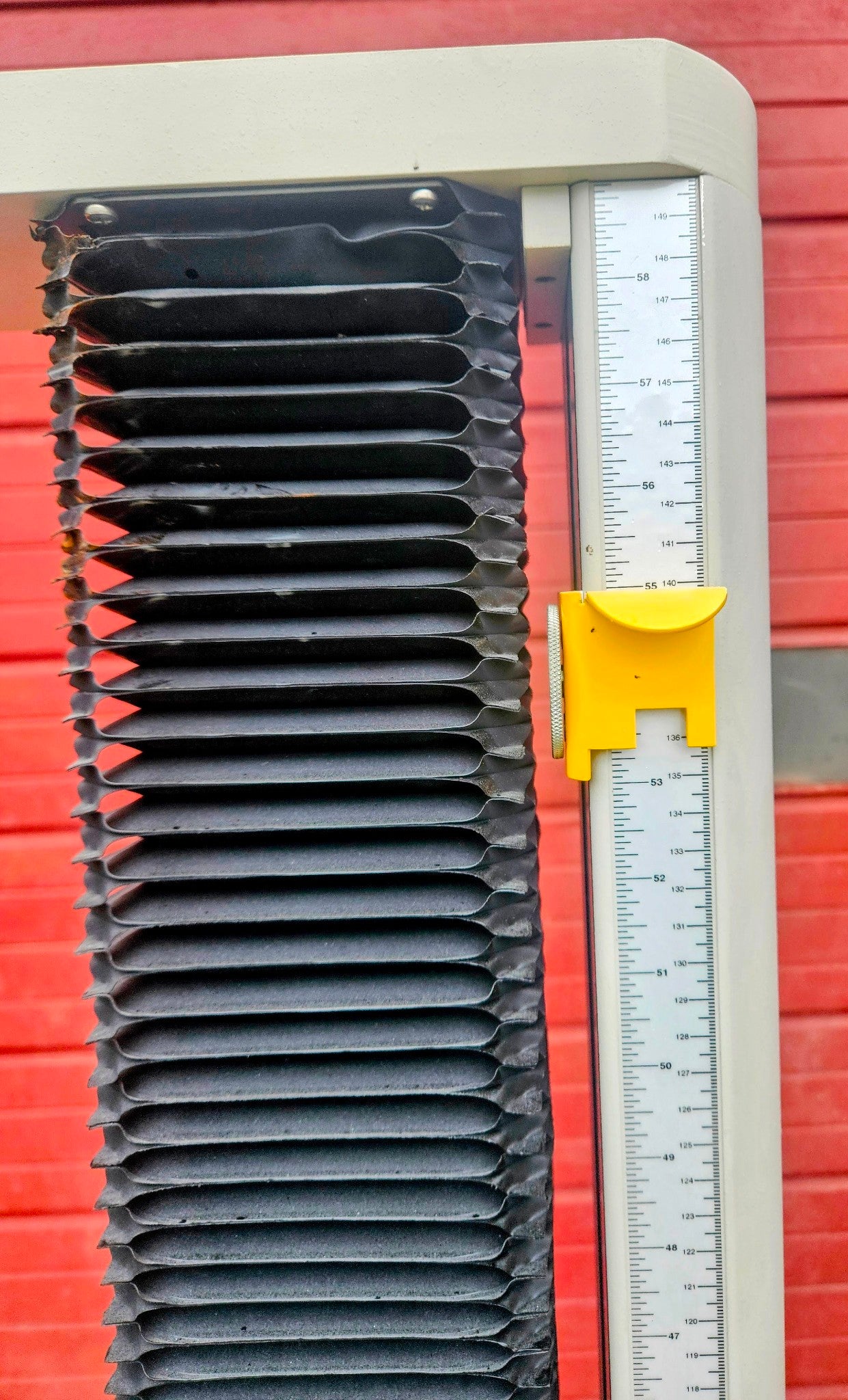

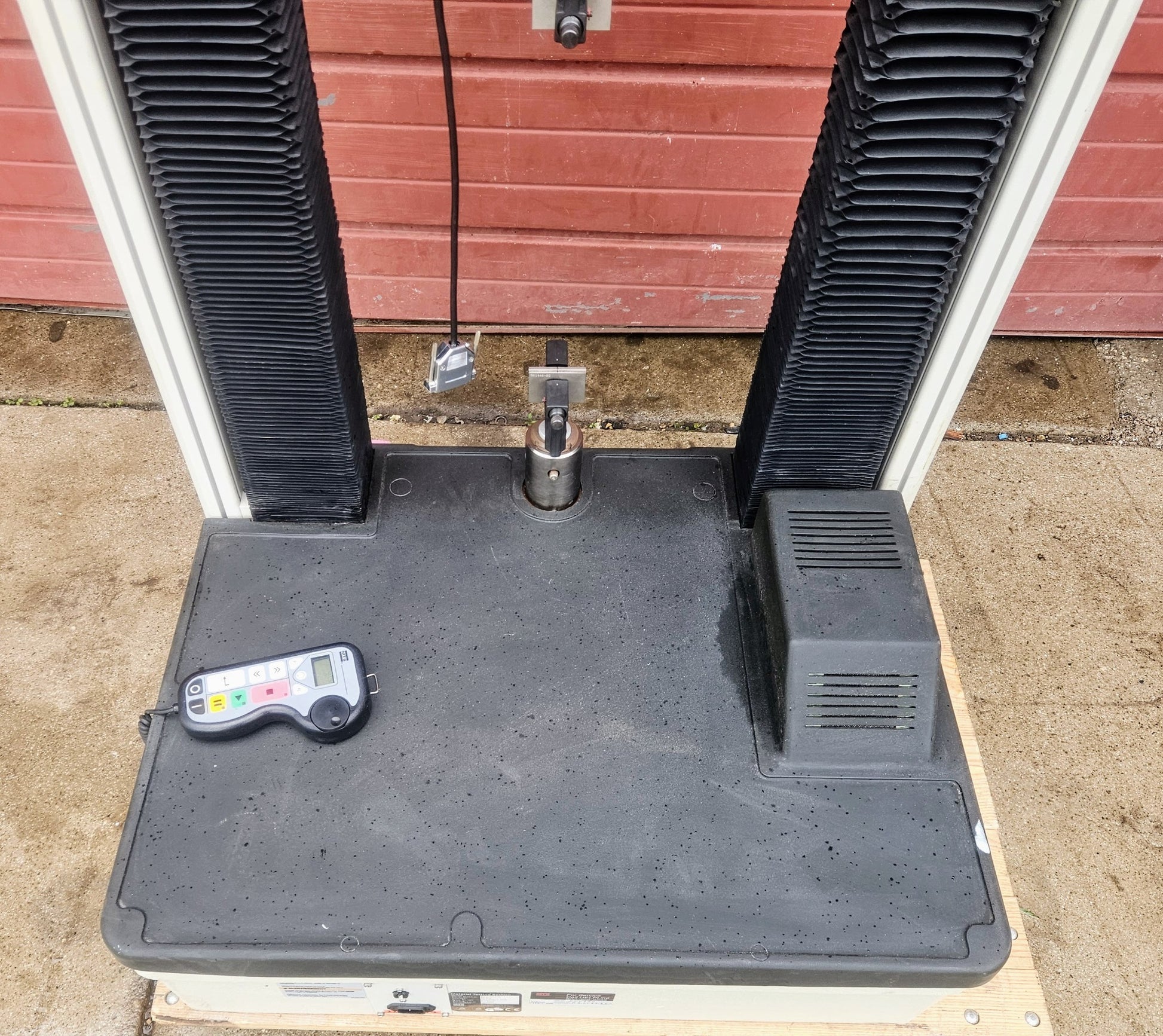

IMPORTANT: THE RIGHT BELLOW WAS STAPLED IN THE MIDDLE PROBABLY BECAUSE IT HAD DISCONNECTED IN THE MIDDLE FROM THE TOP BELLOW, NOTHING THAT AFFECTS OPERATION WHATSOEVER BUT WE THOUGHT IT IMPORTANT TO MENTION!!!
Please review all photos carefully. It has been meticulously maintained, which is why it remains in great cosmetic shape.
These machines are known for their durability and reliability—especially this one, which has been thoroughly cleaned, safely handled, and professionally maintained throughout its lab life, as clearly shown in the video and photos.
Overview
The picture is the actual items buyer will receive. All Controls are in PERFECT CONDITION as can also be seen in the pictures!
Feel free to ask any questions, we will respond promptly!
Country of Origin USA
Technical Information in Italics below was taken from Manufacturer's website, we caannot confirm nor attest to the informaatioon found online below and it is shown here below only for data purposee, again we are not responsible what this equipment is supposed to do or not since we are not experts on this type of equipment:
me.jhu.edu/nguyenlab/lib/exe/fetch.php?media=manual_insight.pdf
Technical Data

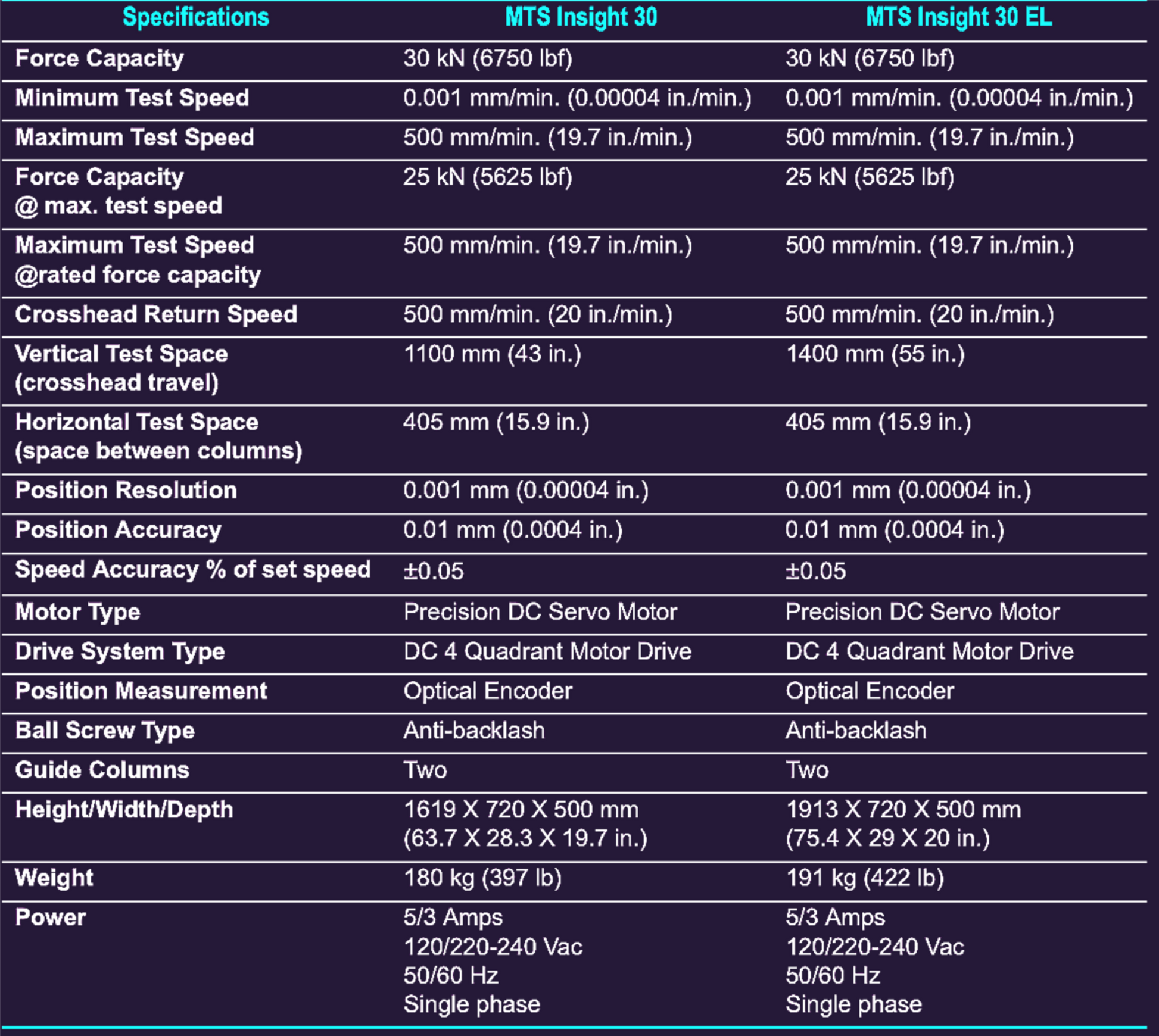

Specifications for MTS Insight 30 and MTS Insight 30 EL
Specifications MTS Insight 30 MTS Insight 30 EL
Force Capacity 30 kN (6750 lbf) 30 kN (6750 lbf)
Minimum Test Speed 0.001 mm/min. (0.00004 in./min.) 0.001 mm/min. (0.00004 in./min.)
Maximum Test Speed 500 mm/min. (19.7 in./min.) 500 mm/min. (19.7 in./min.)
Force Capacity
@ max. test speed
25 kN (5625 lbf) 25 kN (5625 lbf)
Maximum Test Speed
@rated force capacity
500 mm/min. (19.7 in./min.) 500 mm/min. (19.7 in./min.)
Crosshead Return Speed 500 mm/min. (20 in./min.) 500 mm/min. (20 in./min.)
Vertical Test Space
(crosshead travel)
1100 mm (43 in.) 1400 mm (55 in.)
Horizontal Test Space
(space between columns)
405 mm (15.9 in.) 405 mm (15.9 in.)
Position Resolution 0.001 mm (0.00004 in.) 0.001 mm (0.00004 in.)
Position Accuracy 0.01 mm (0.0004 in.) 0.01 mm (0.0004 in.)
Speed Accuracy % of set speed ±0.05 ±0.05
Motor Type Precision DC Servo Motor Precision DC Servo Motor
Drive System Type DC 4 Quadrant Motor Drive DC 4 Quadrant Motor Drive
Position Measurement Optical Encoder Optical Encoder
Ball Screw Type Anti-backlash Anti-backlash
Guide Columns Two Two
Height/Width/Depth 1619 X 720 X 500 mm
(63.7 X 28.3 X 19.7 in.)
1913 X 720 X 500 mm
(75.4 X 29 X 20 in.)
Weight 191 kg (422 lb)

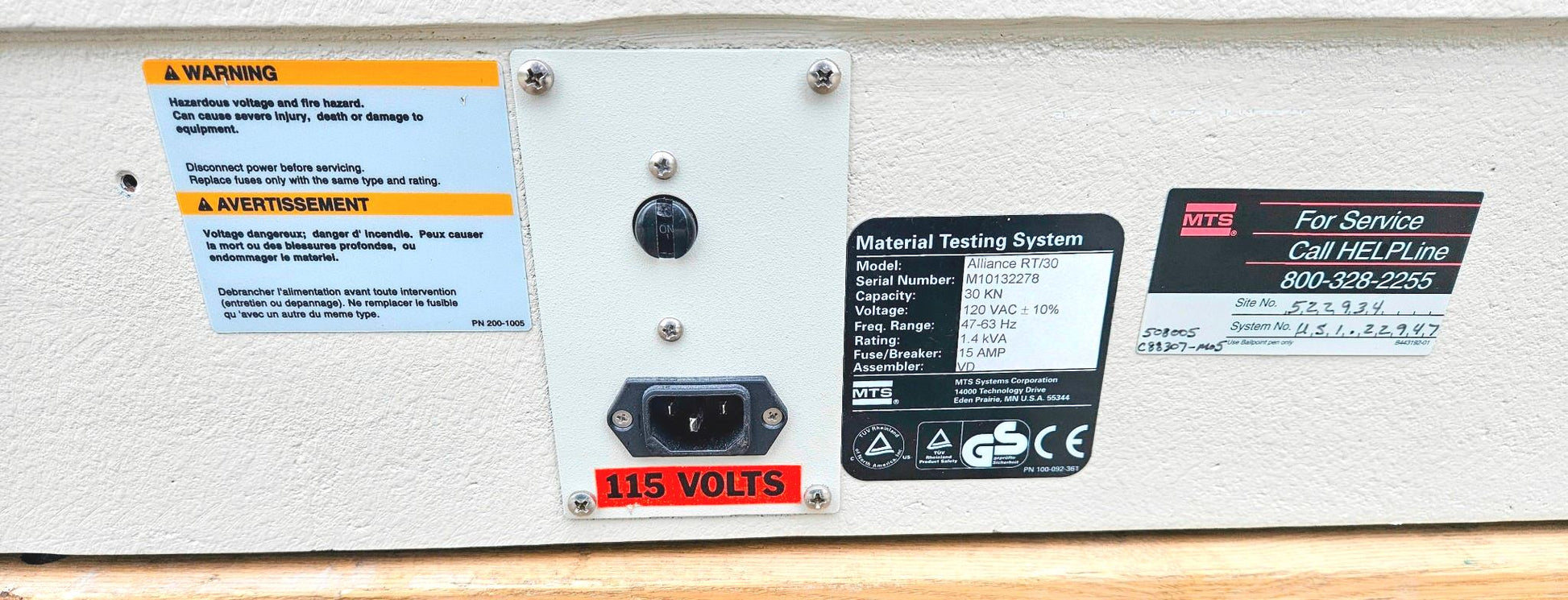

Power 5/3 Amps
120 Vac
50/60 Hz
Single phase
PRODUCT IS LIVE AND IN STOCK AT OUR TOLEDO, OHIO WAREHOUSE.
FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (DOCK, or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE. WE WILL CONTACT BUYER BEFORE ISSUING THE INVOICE SO AS TO MAKE SURE BUYER IS AWARE OF THIS FEE.
PLEASE NOTE THAT SCHOOLS, CHURCHES AND FARMS ARE NOT CONSIDERED BUSINESS LOCATIONS BY THE FREIGHT CARRIERS AND WILL HAVE THE $150 SHIPPING FEE INCLUDED.
Stock # 250705
