PFEFFEIR DUO 2.5 ROTARY VANE MECHANICAL VACUUM PUMP WATCH VIDEO FREE SHIPPING

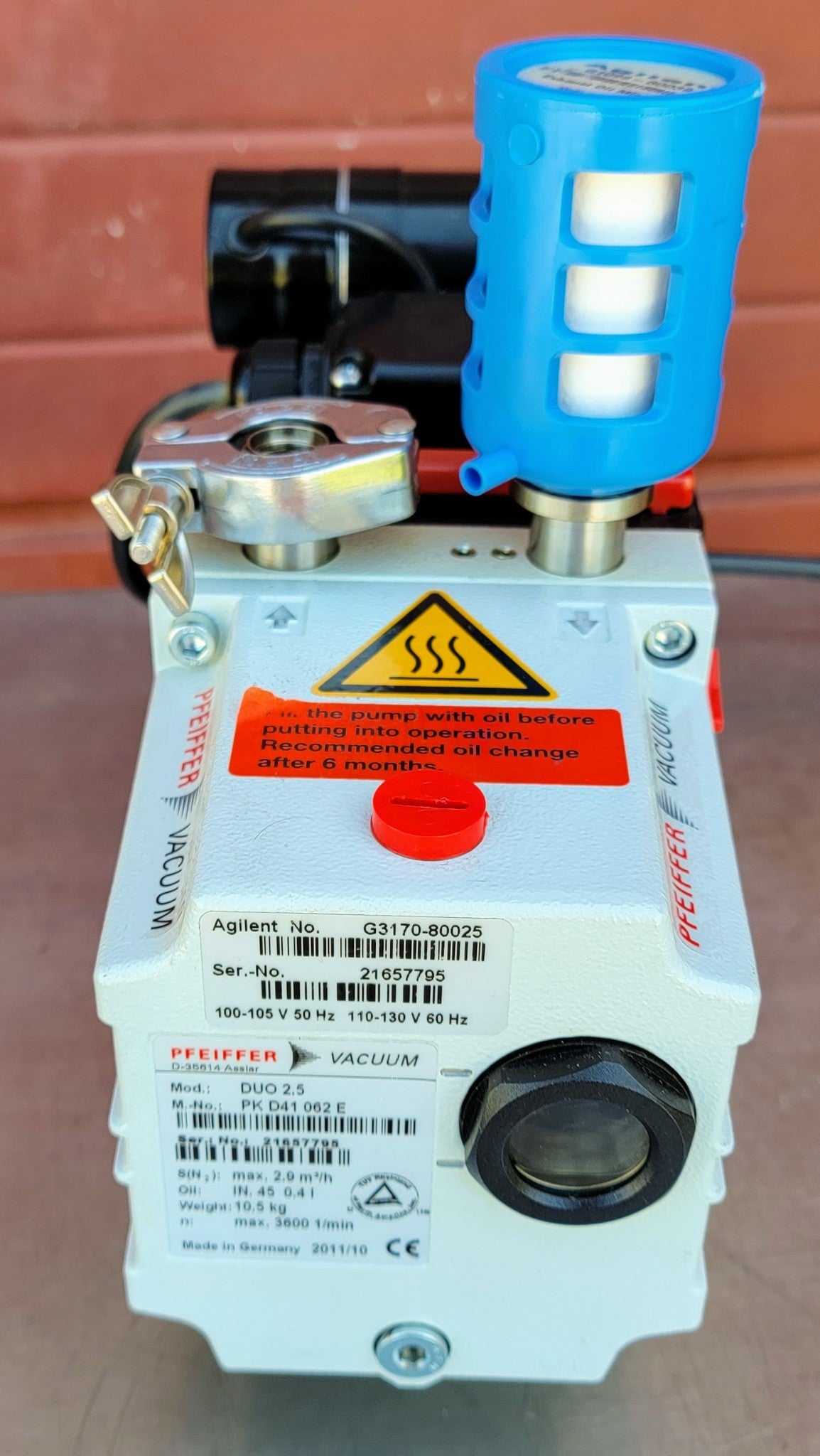

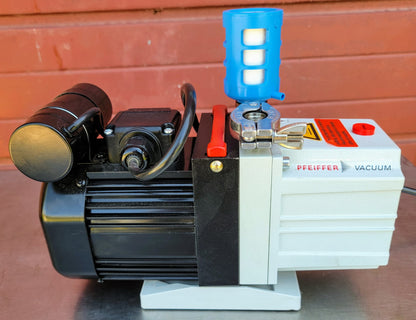

This listing is for a GREAT USED CONDITION PFEIFFER DUO 2.5 ROTARY VANE MECHANICAL VACUUM PUMP as can be Watched in the Video and also Seen in the Pictures.

PLEASE WATCH A VIDEO OF THIS SPECIFIC EDWARDS 12 ROTARY VANE PANE VACUUM PUMP WORKING PERFECTLY BY CLICKING THE FOLLOWING LINK: https://www.youtube.com/watch?v=1RdbNRbkMCY

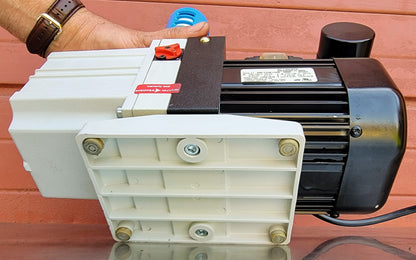

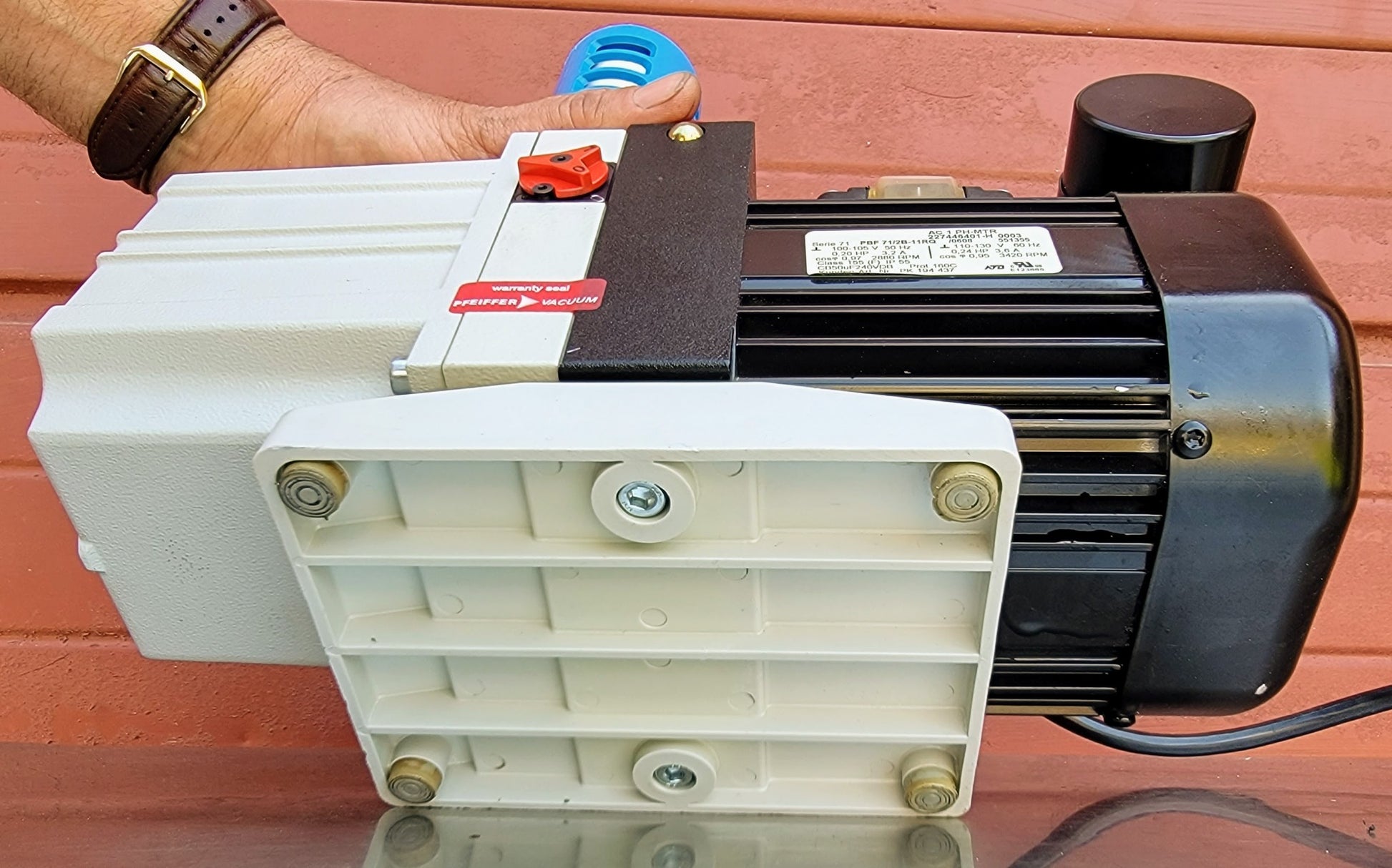

VERY IMPORTANT: AS CAN BE SEEN IN THE PICTURE ALL FOUR RUBBER FEET ARE IN GREAT CONDITION AND ARE ALL INCLUDED WITH THIS UNIT, THIS IS EXTREMELY IMPORTANT SINCE IF THEY ARE MISSING OR IN HALF LIFE THIS UNIT WILL SHAKE AND NOT BE SILENT AND ALSO WILL WEAR OUT FAST!!!

Pfeiffer DUO 2.5 Overview:

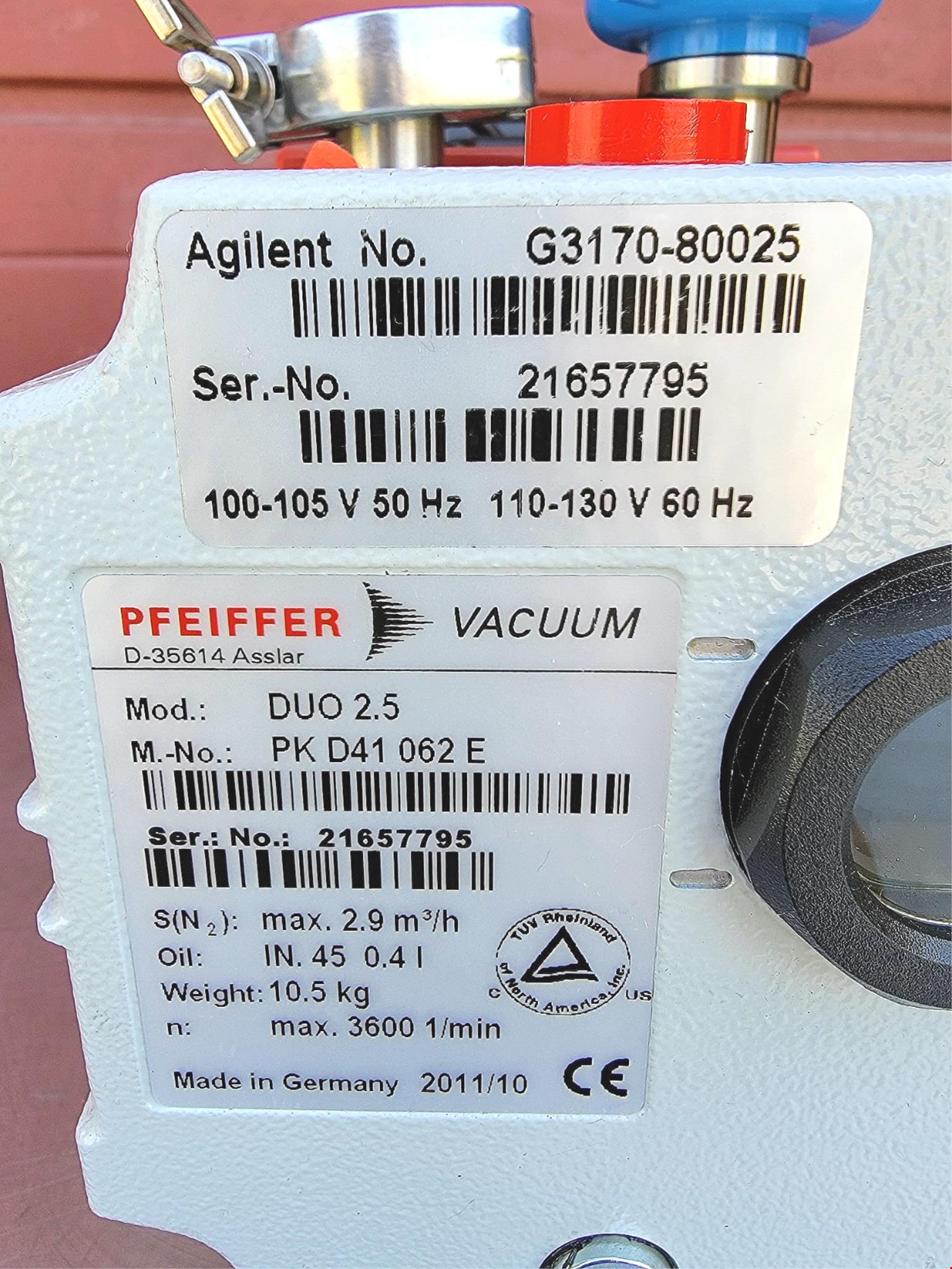

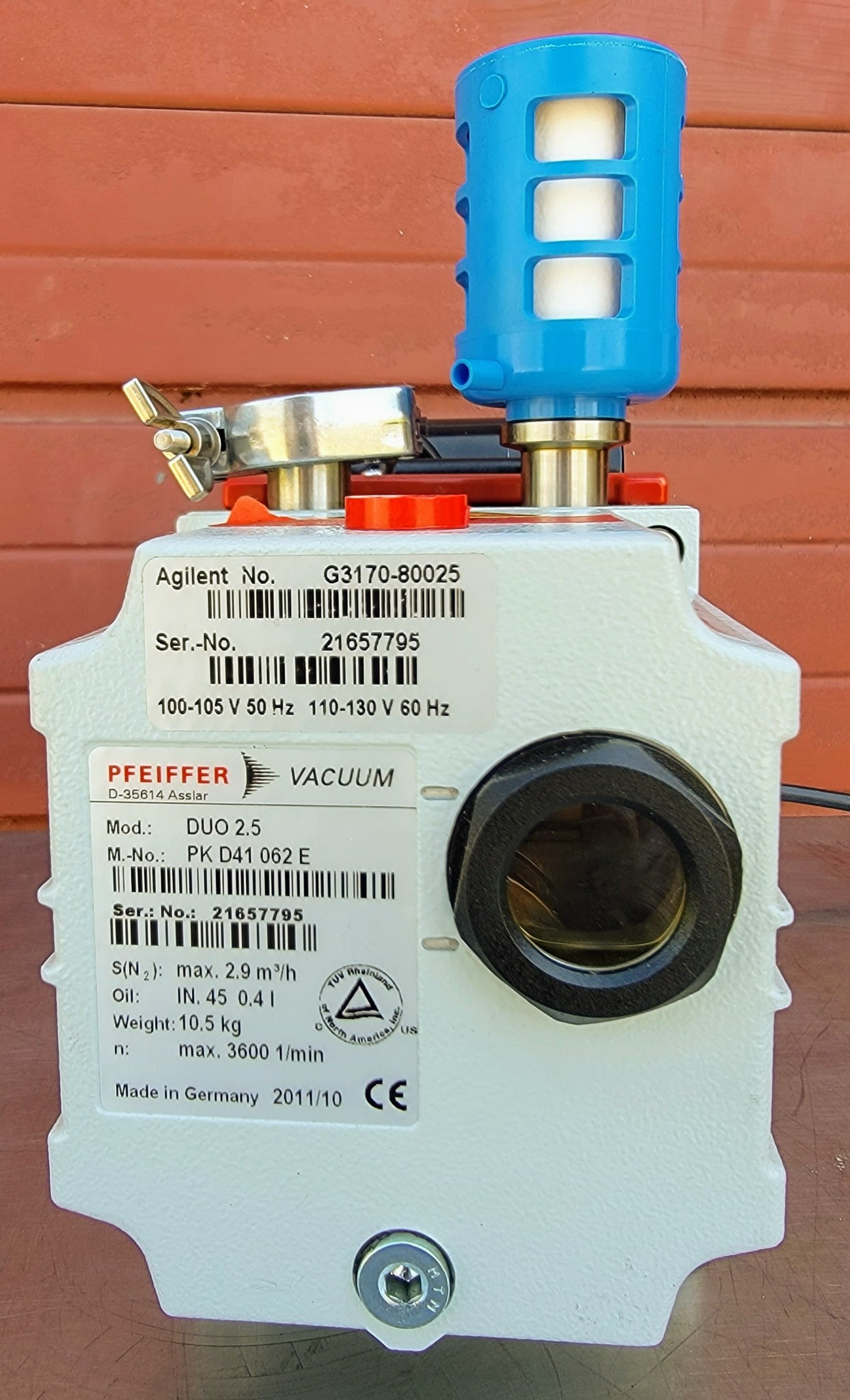

Manufacturer: Pfeiffer Agilent

Model: Duo 2.5 | PK-D41-062-F G3170-80025

S(N2): max 2.9 m3/h

Oil: IN. 45 0.41

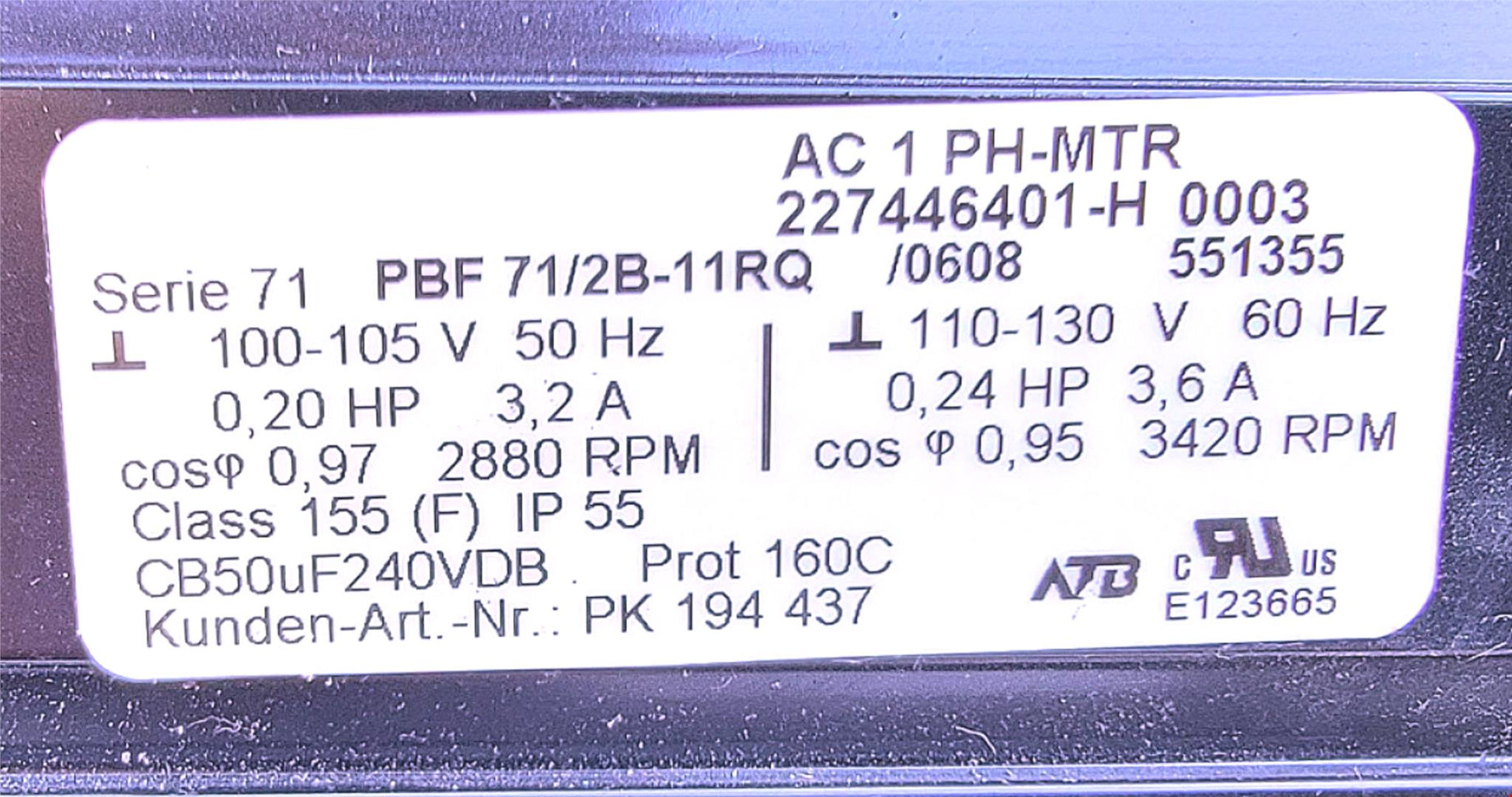

ATB Motor 0.20 HP at 50 Hz Serie 71 AC 1 ph-mtr 230163601-H PBF71/2B11RQ/0704 Induction Motor

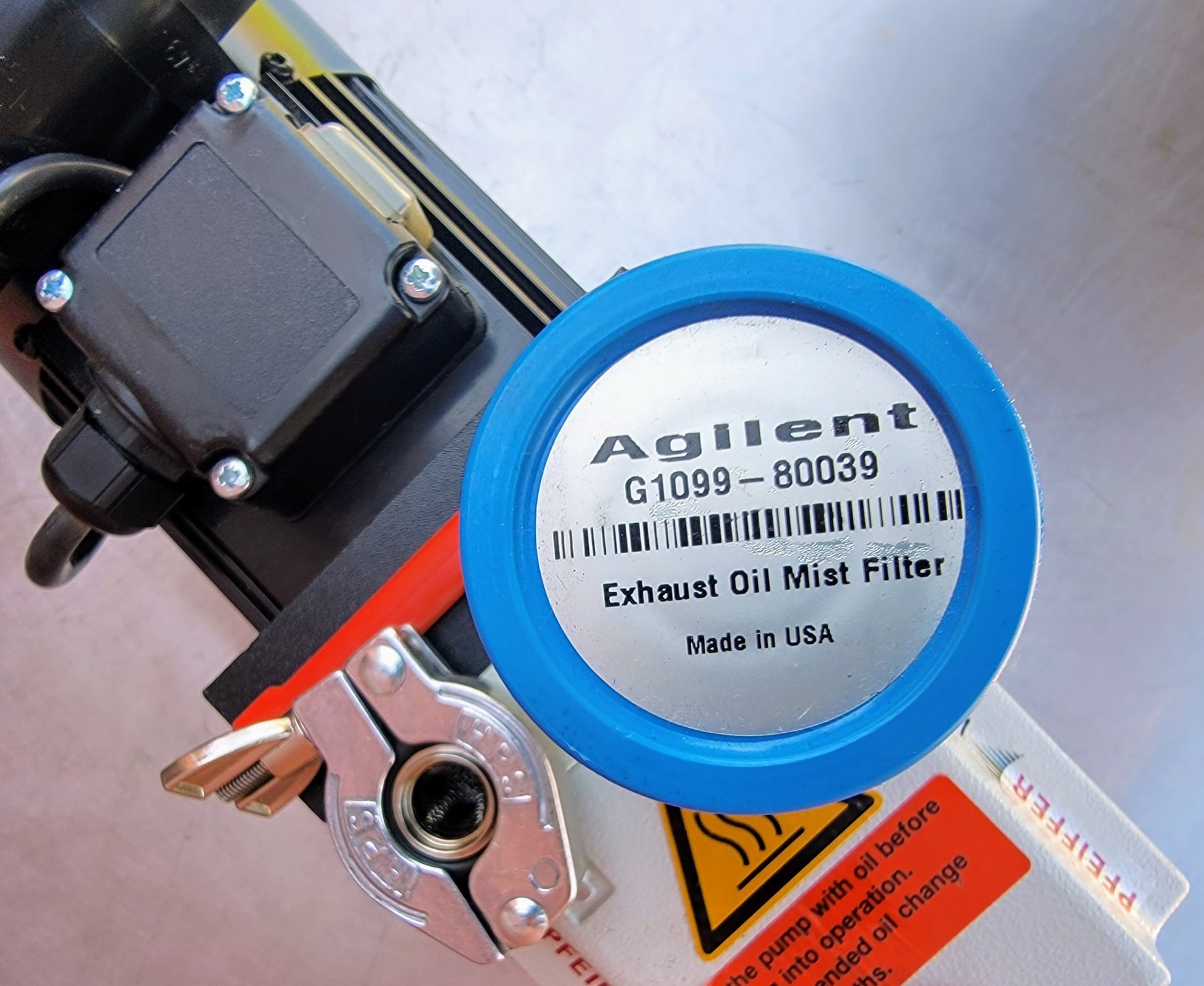

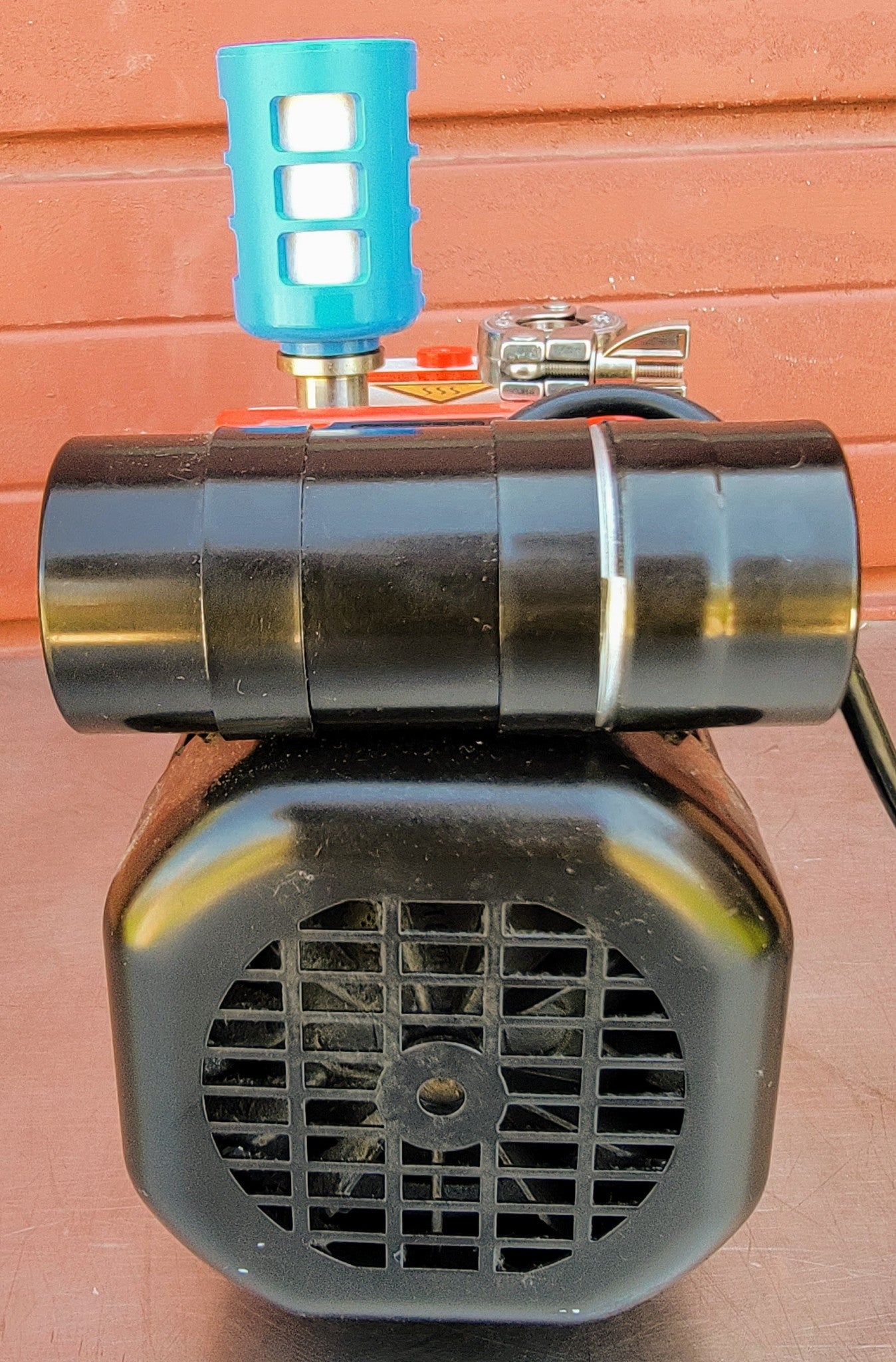

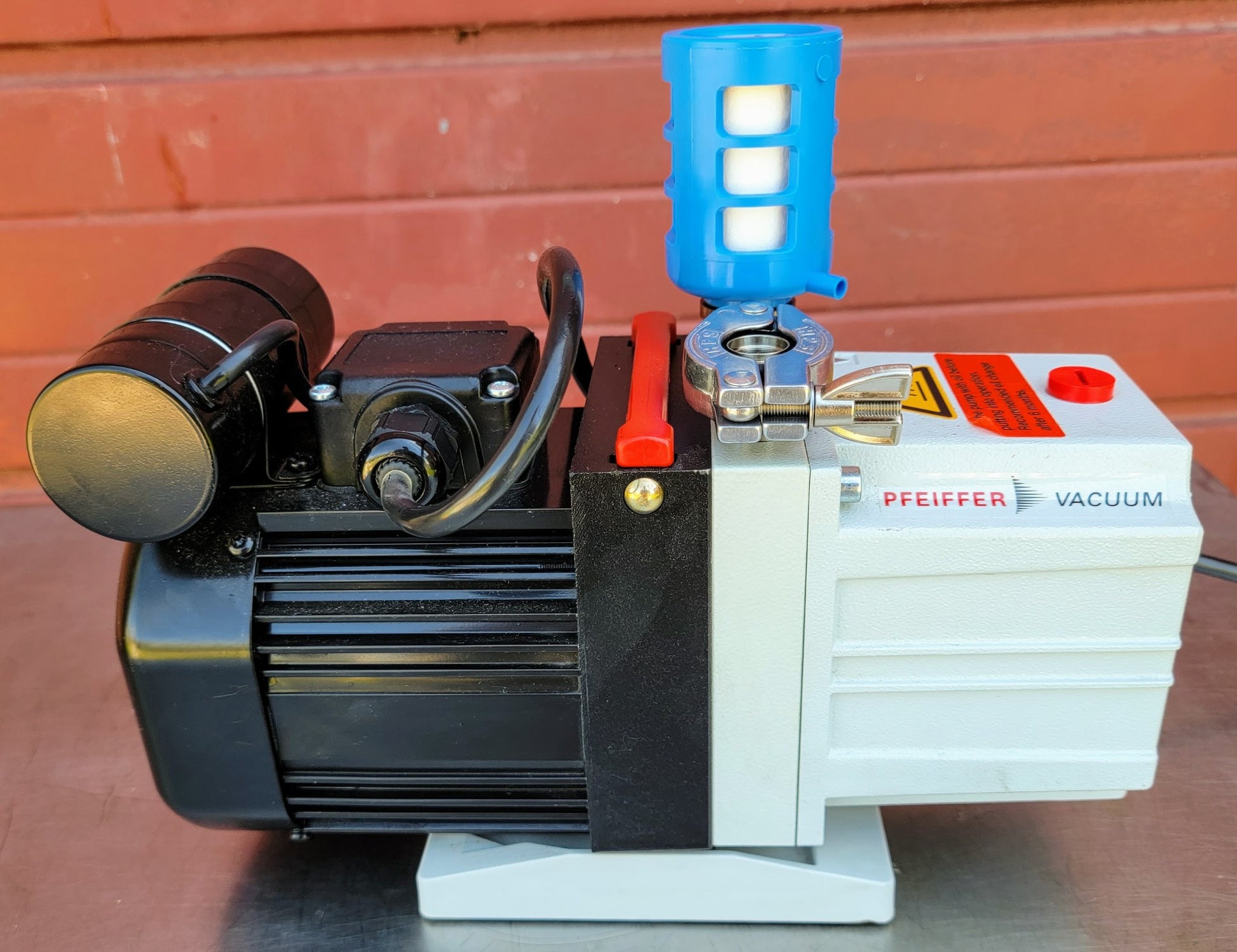

Also Includes: Agilent: G1099-80039 Exhaust Oil Mist Filter

Specifications: (The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.)

Flange(in): DN 16 ISO-KF

Flange (out): DN 16 ISO-KF

Pumping speed at 50 Hz: 2.5 m3/h

Pumping speed at 60 Hz: 2.9 m3/h

Ultimate pressure with gas ballast: 6·10-3 mbar

Ultimate pressure without gas ballast: 6·10-3 mbar

Leakage rate safety valve: 1·10-4 mbar l/s

Water vapor tolerance at 50 Hz: 15 mbar

Water vapor tolerance at 60 Hz: 15 mbar

Water vapor capacity 50 Hz: 30 g/h

Water vapor capacity 60 Hz: 34 g/h

Emission sound pressure level without gas ballast: 53 dB (A)

Pump fluid filling: 0.4 l

Rated power 50 Hz: 0.15 kW

Rated power 60 Hz: 0.18 kW

Rotation speed at 50 Hz: 3000 1/rpm

Rotation speed at 60 Hz: 3600 1/rpm

Dimensions

Actual Dimensions: 12x5x10"

Actual Weight: 26 lbs

DuoLine rotary vane pumps cover all applications in the low and medium vacuum range of up to 10-3 mbar. These pumps offer reliable operation even for such critical industrial applications as drying processes, metallurgical processes or resin potting and casting systems – either as a standalone pump or as a backing pump in our roots pumping stations or turbo pumping stations.

The use of a magnetic coupling minimizes maintenance requirements and leads to considerable cost savings per pump and maintenance interval.

Compact design - Excellent performance data. Integrated safety and gas ballast valve. Contain no non-ferrous metals. Various motor voltages afford worldwide employment. The most compact pumps in this pumping speed class

The PFEIFFER DUO 2.5 ROTARY VANE MECHANICAL VACUUM PUMP is fully tested to perform at factory specifications before being shipped.

Includes: > Mist Filter > Pump Oil > Operator's Guide > Power Cord > Full 90 Day Warranty

PLEASE CHECK MANUFACTURER's TECHNICAL DATA SHEET BY GOOGLING the following link: ajvs.com/library/DUO%202%205%20%20%20%20%20UNO%205.pdf

The PFEIFFER DUO 2.5 ROTARY VANE MECHANICAL VACUUM PUMP rotary vane mechanical vacuum pump offers an excellent ultimate pumping speed.

The PFEIFFER DUO 2.5 ROTARY VANE MECHANICAL VACUUM PUMP has superior vapor handling capabilities, while operating quietly.

They are very reliable and have accessories to match any application.

Applications Include use with Refrigeration dehydration, Brake line evacuation, Epoxy degassing, Sterilization, Mass spectrometry, Vacuum ovens, Lasers, Backing combinations, Thin film coating, Vacuum distillation, Freeze drying, Space research and other vacuum processes.

Type of product: vane pump

Manufacturer: Pfeiffer

Part number: PKD41056C

Inlet: KF16

Exhaust: hose nipple

Motor: 1 Phase, 120V, 50/60Hz

Oil: hydrocarbon

Pumping speed: 1.7 CFM (60Hz)

Ultimate pressure: ≤ 4.5 x 10-3 Torr (without gas ballast)

Weight: 24 lbs

This unit came from a Federal University and has ALWAYS been very well taken care of.
