You are bidding on a WONDERFUL COSMETIC AND OPERATIONAL CONDITION:

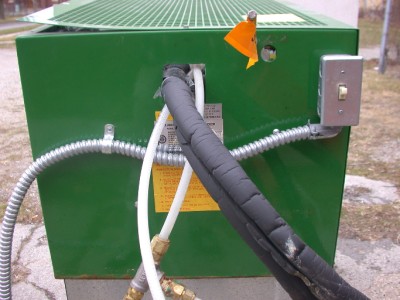

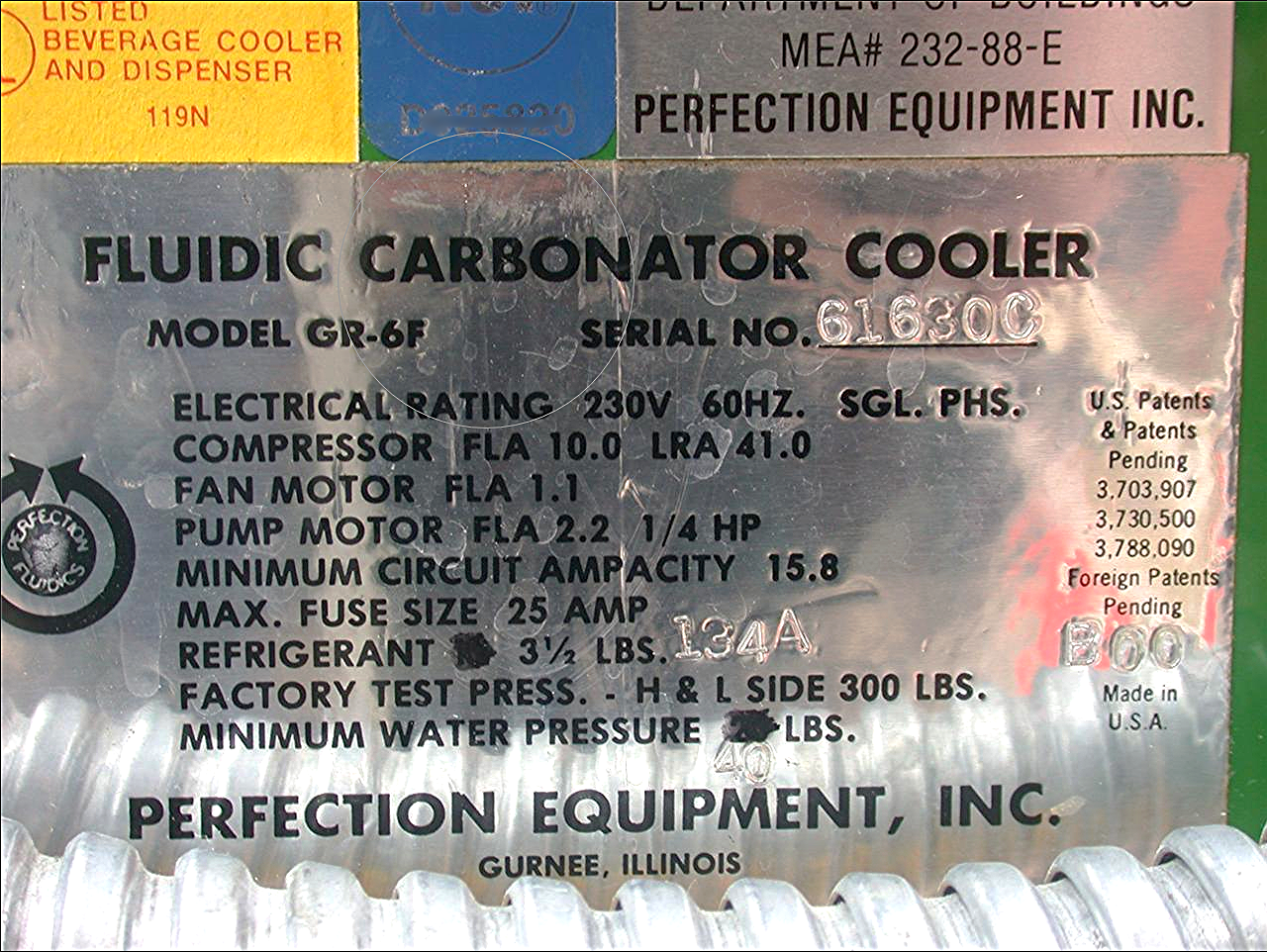

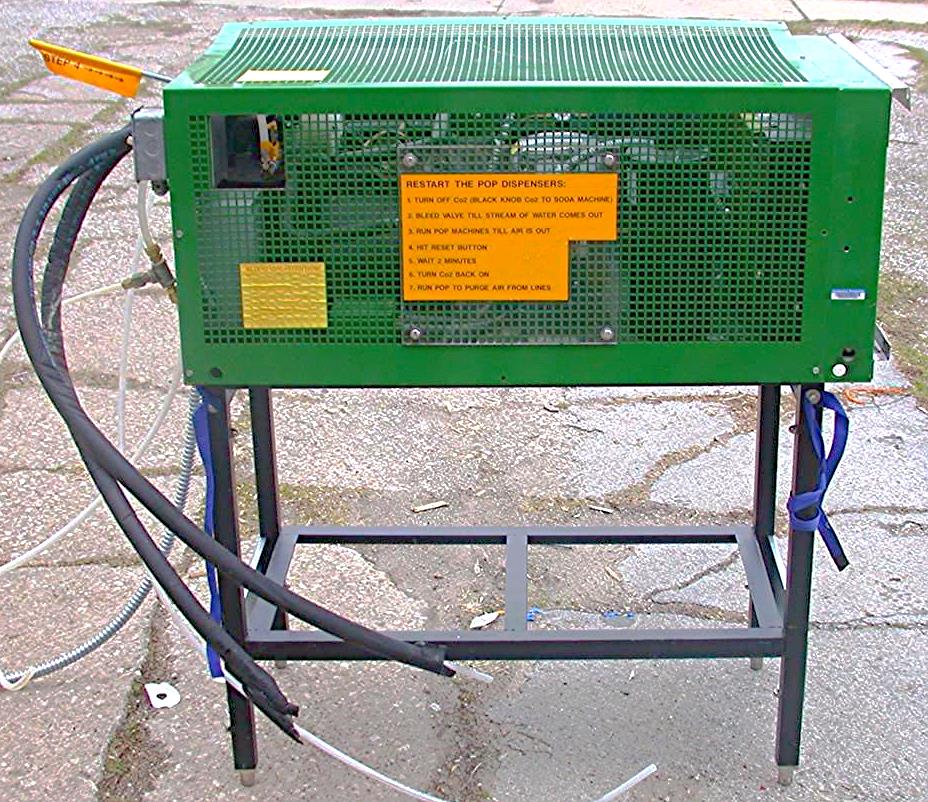

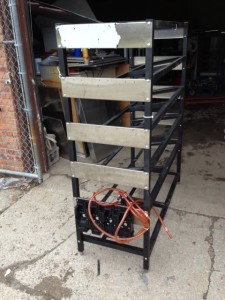

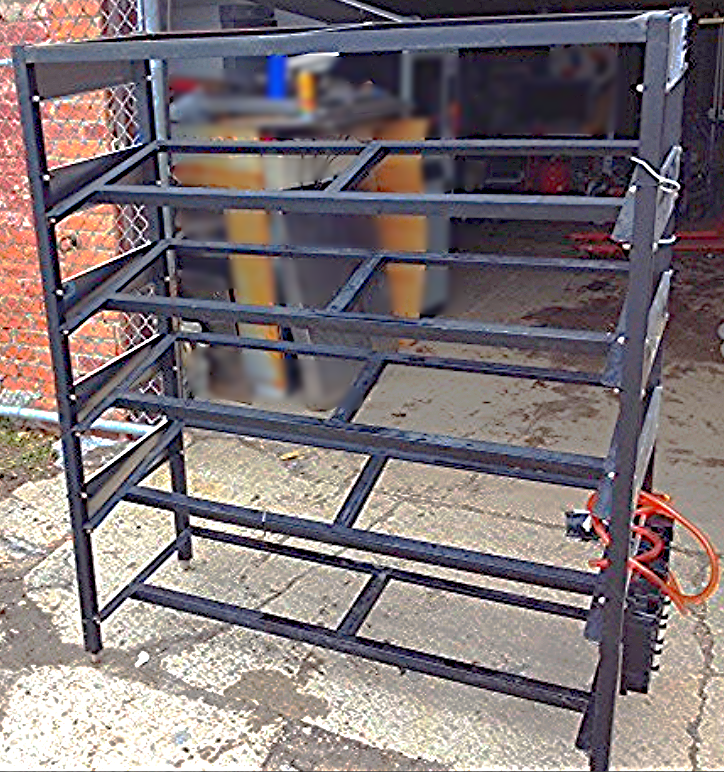

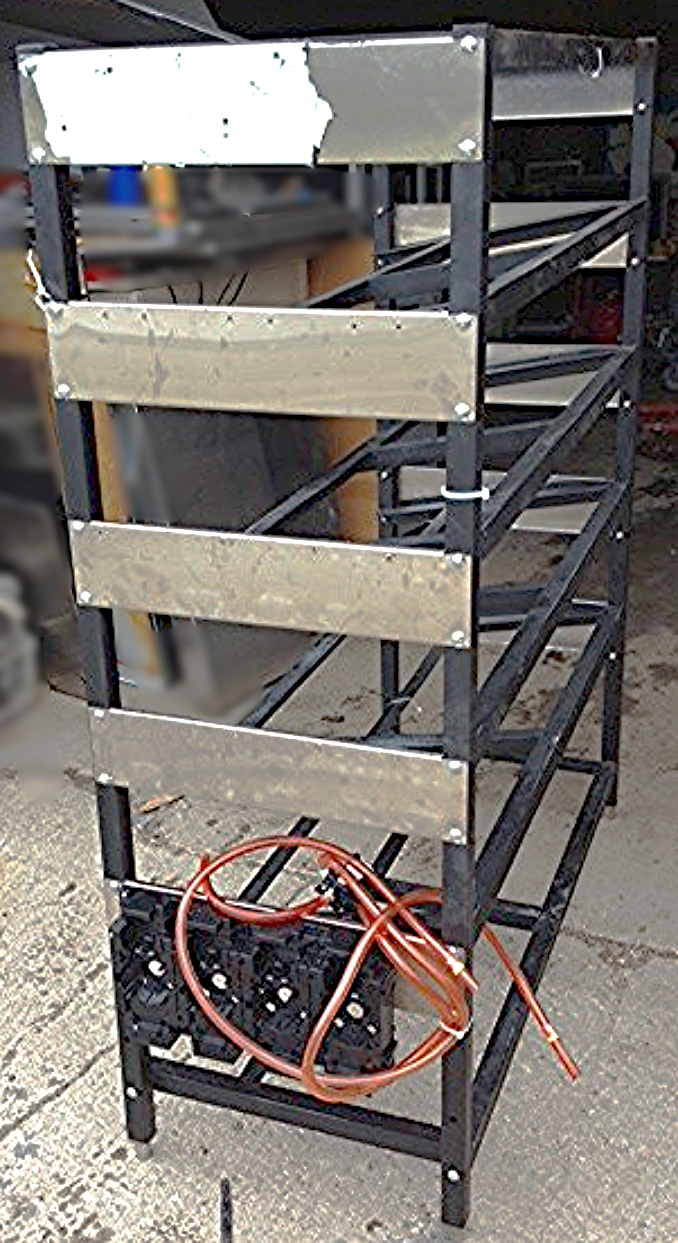

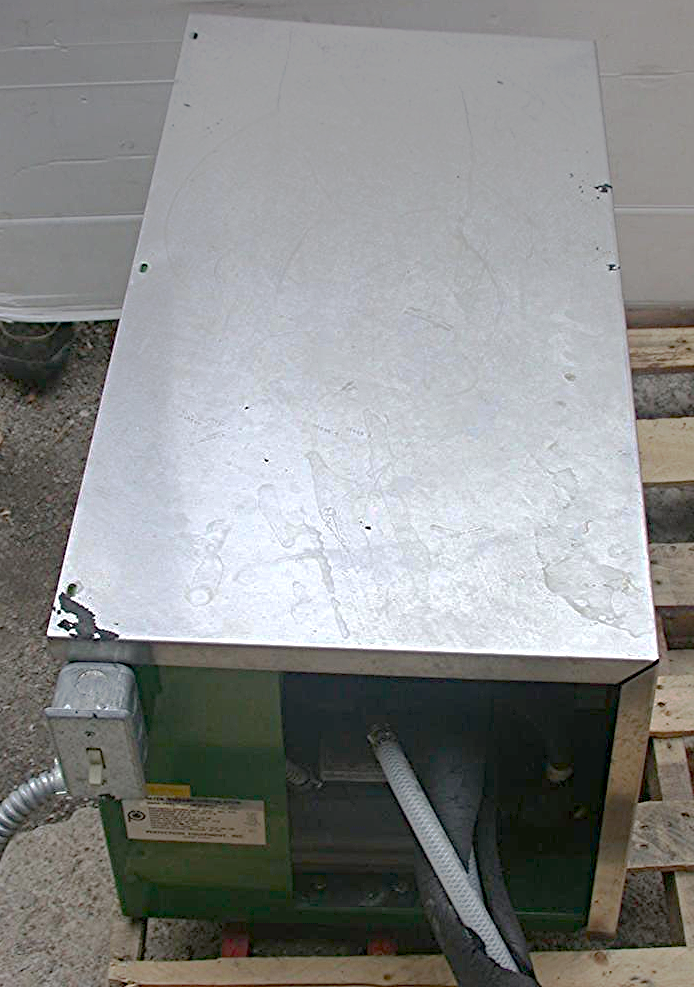

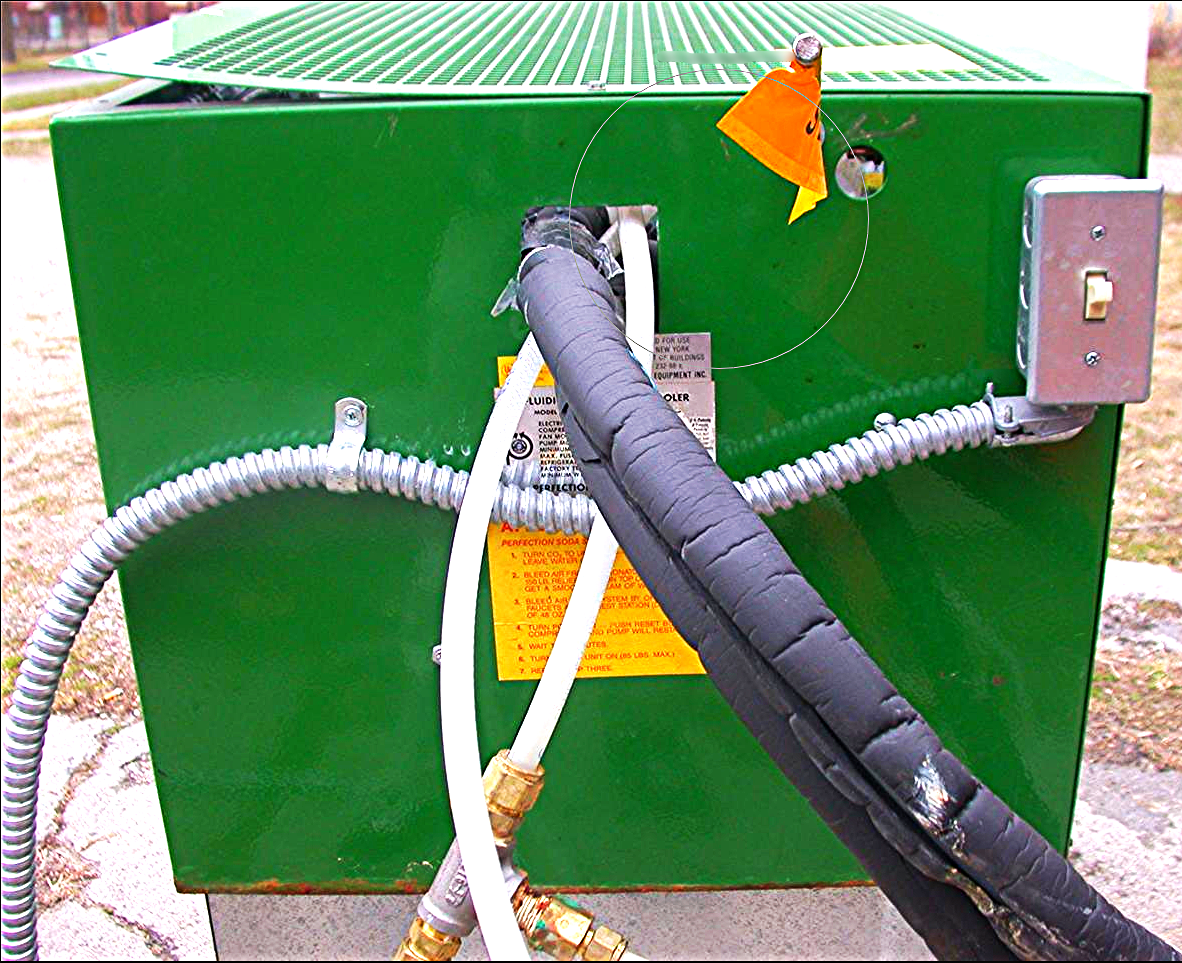

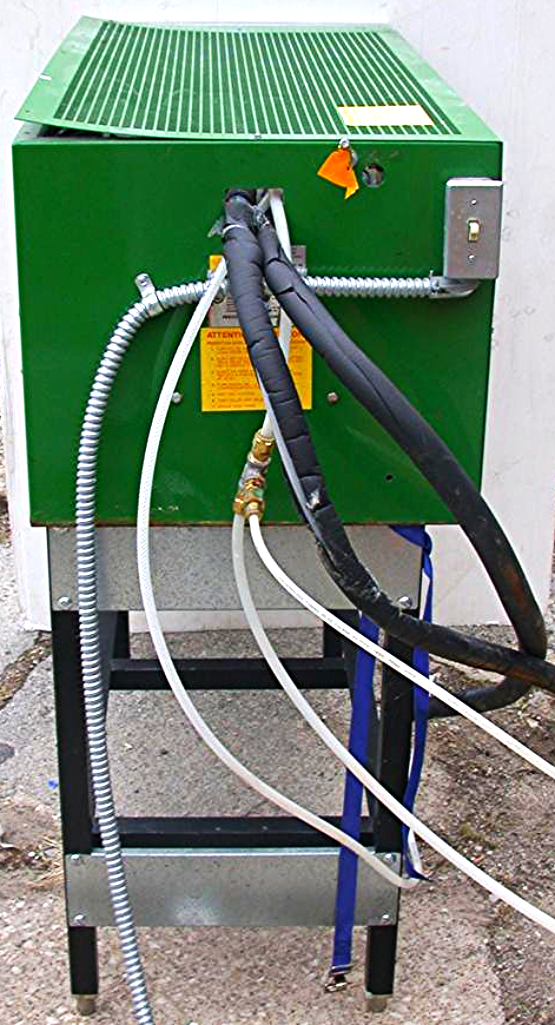

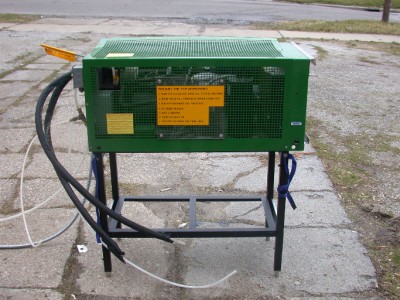

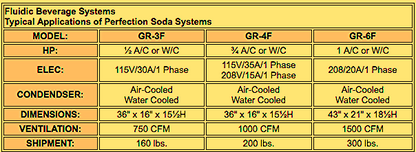

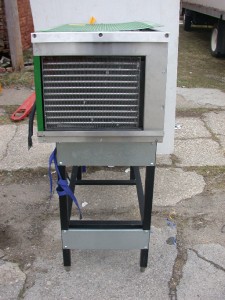

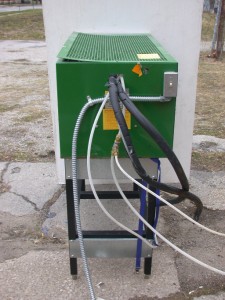

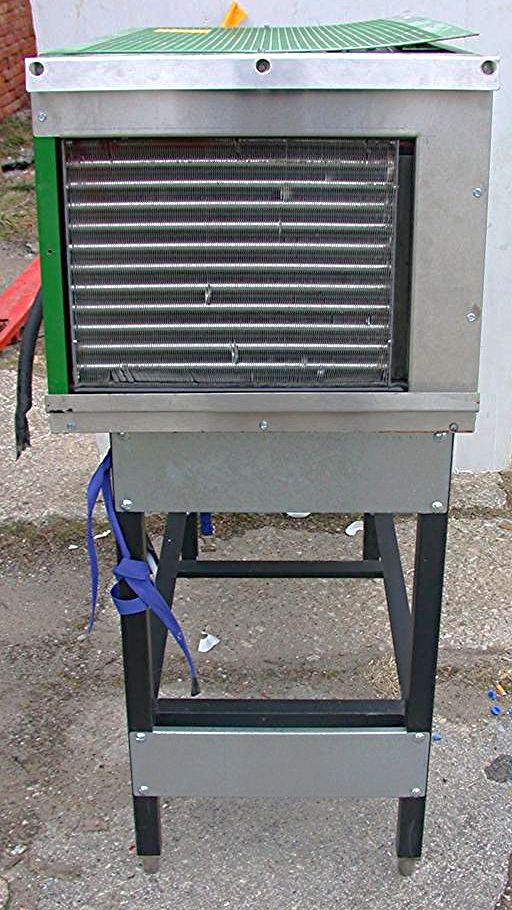

MODEL GR-6F FLUIDIC BEVERAGE SYSTEM WATER COOLED CARBONATOR BY PERFECTION EQUIPMENT, INC. with STAND AND RACK  AS YOU CAN SEE FROM THE PICTURES.

Description below was taken from the manufacturer's website, it looks great and seems to have been very well taken care of.

Manufacturer's  (PERFECTION Equipment, Inc.) description below was taken from PERFECTION Equipment, Inc.'s website:

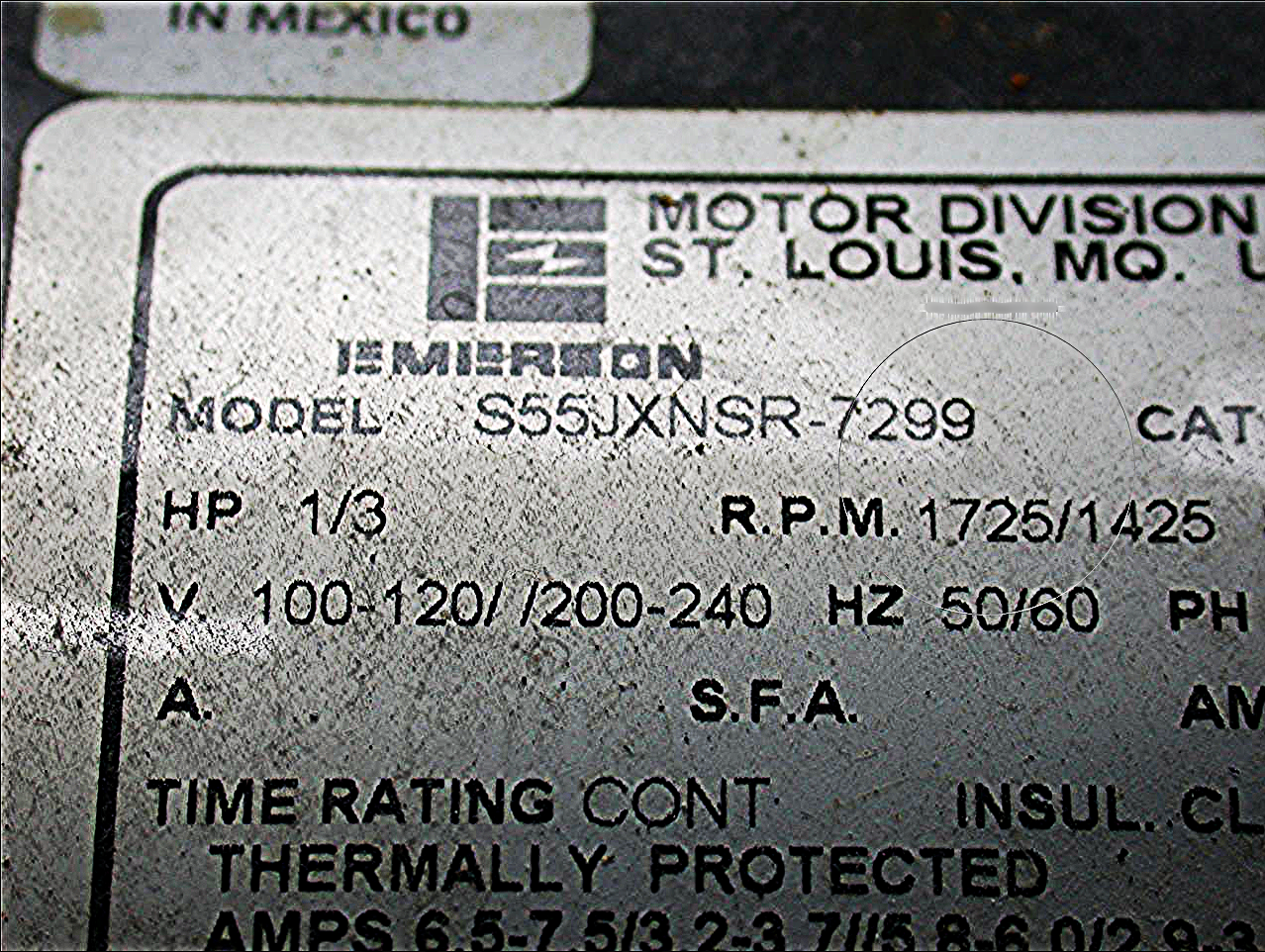

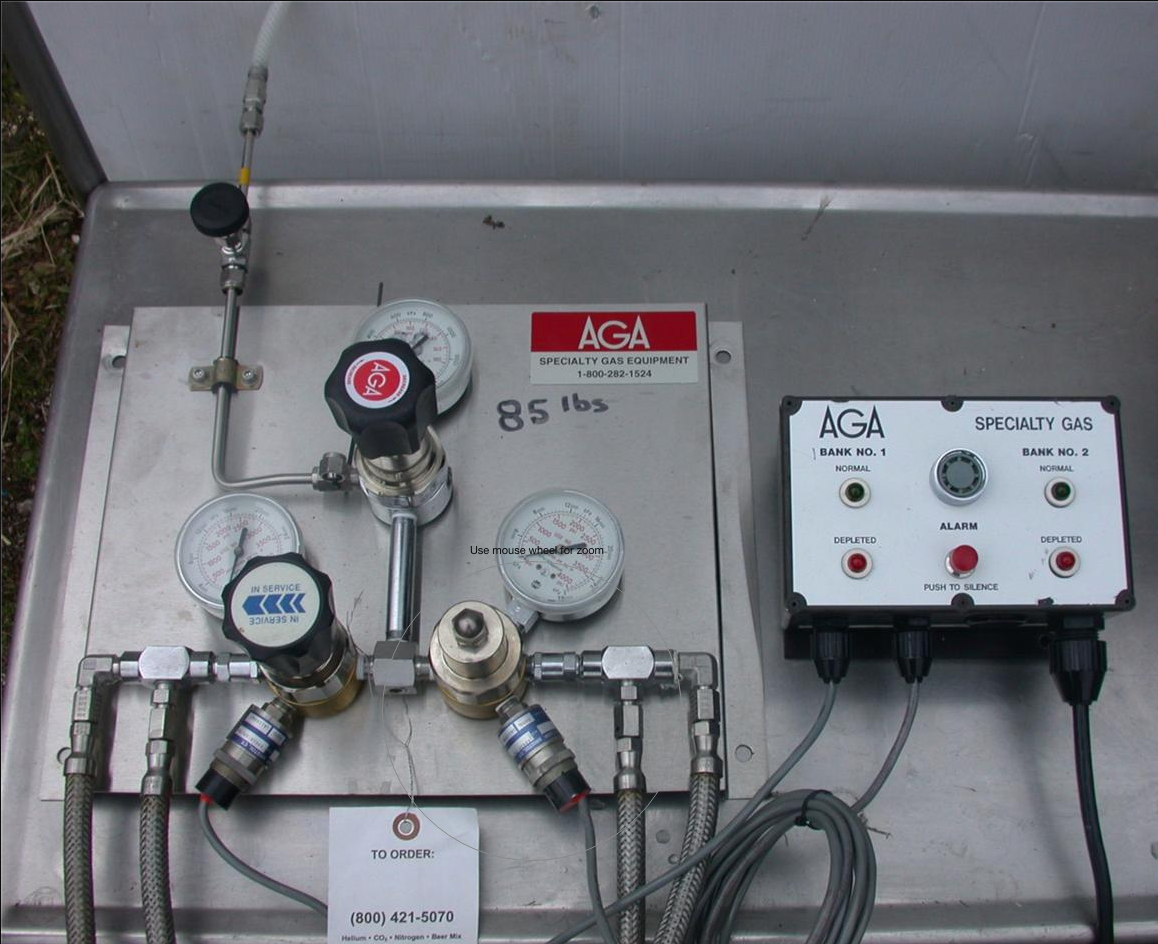

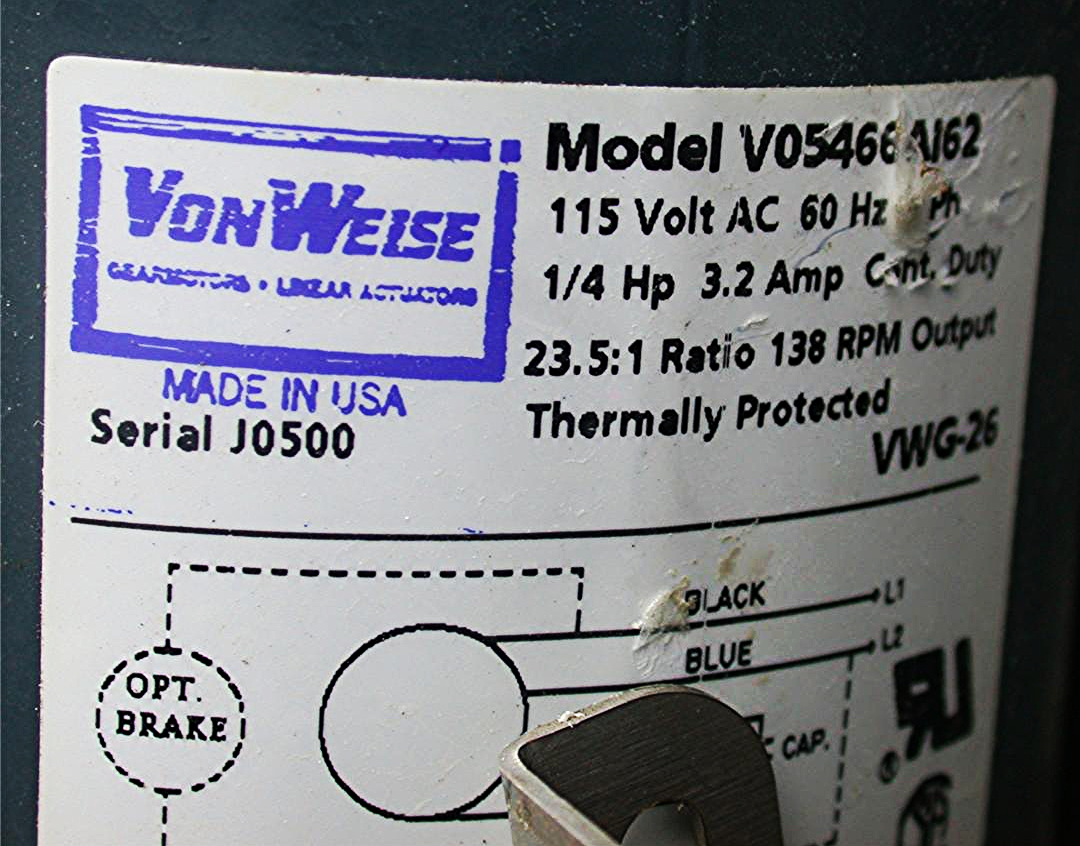

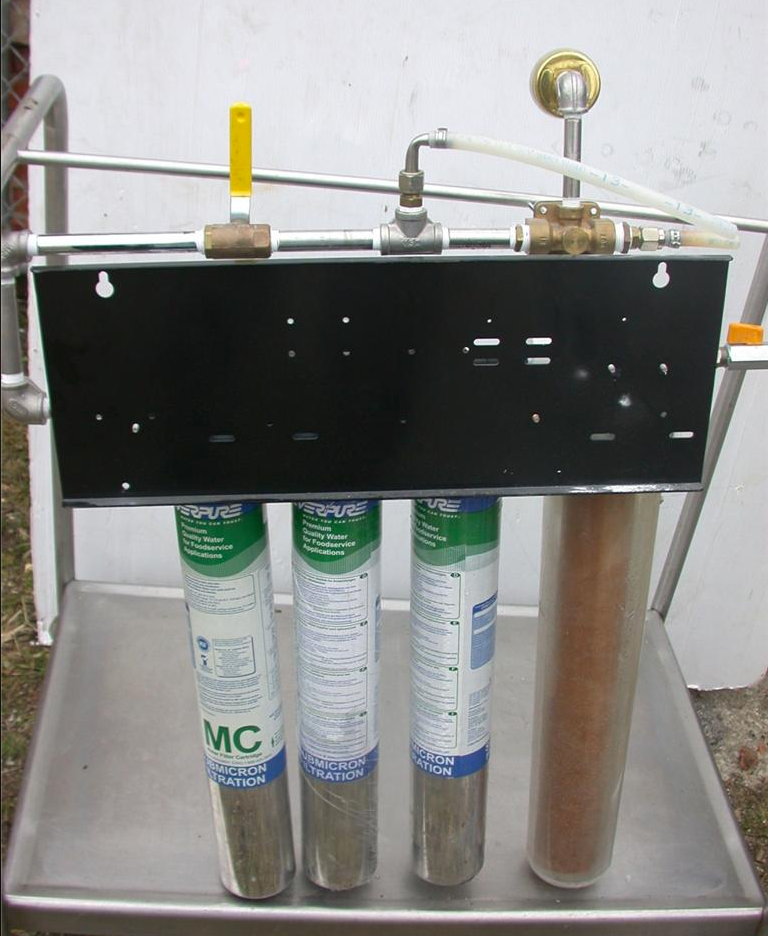

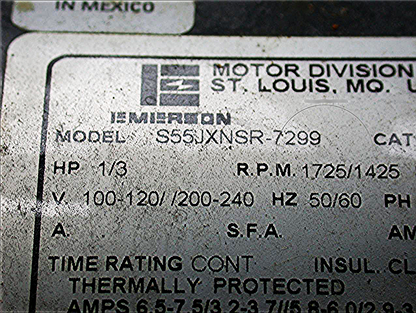

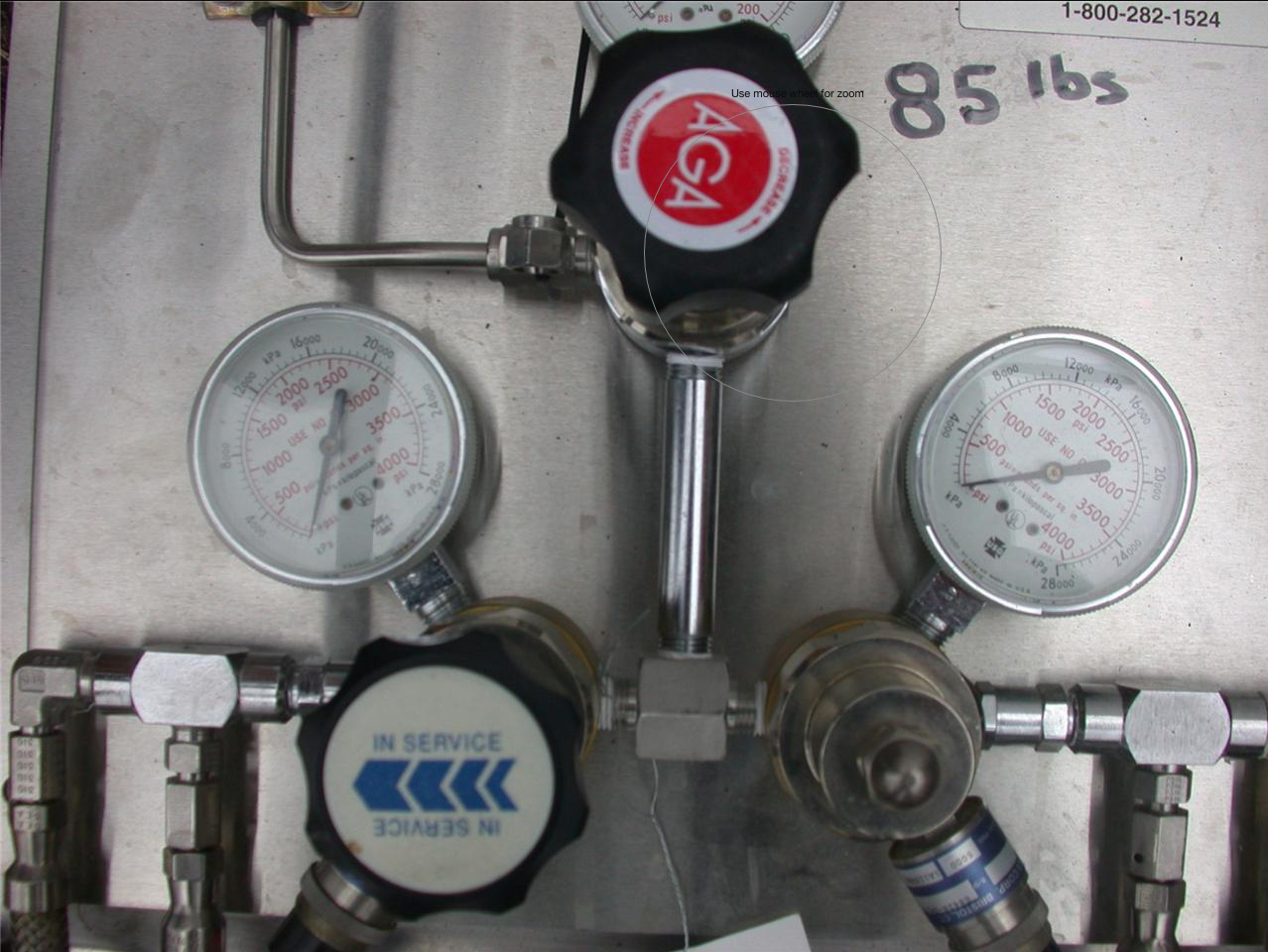

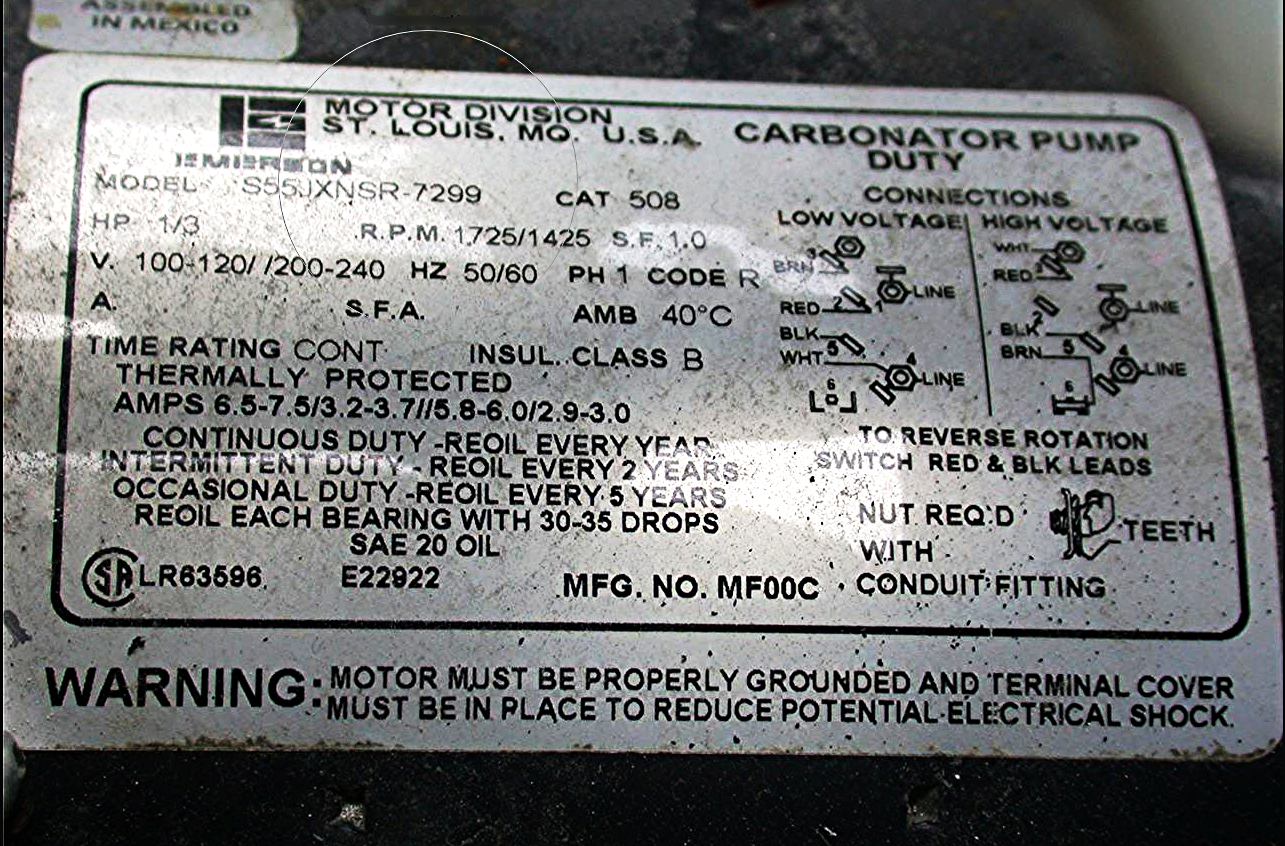

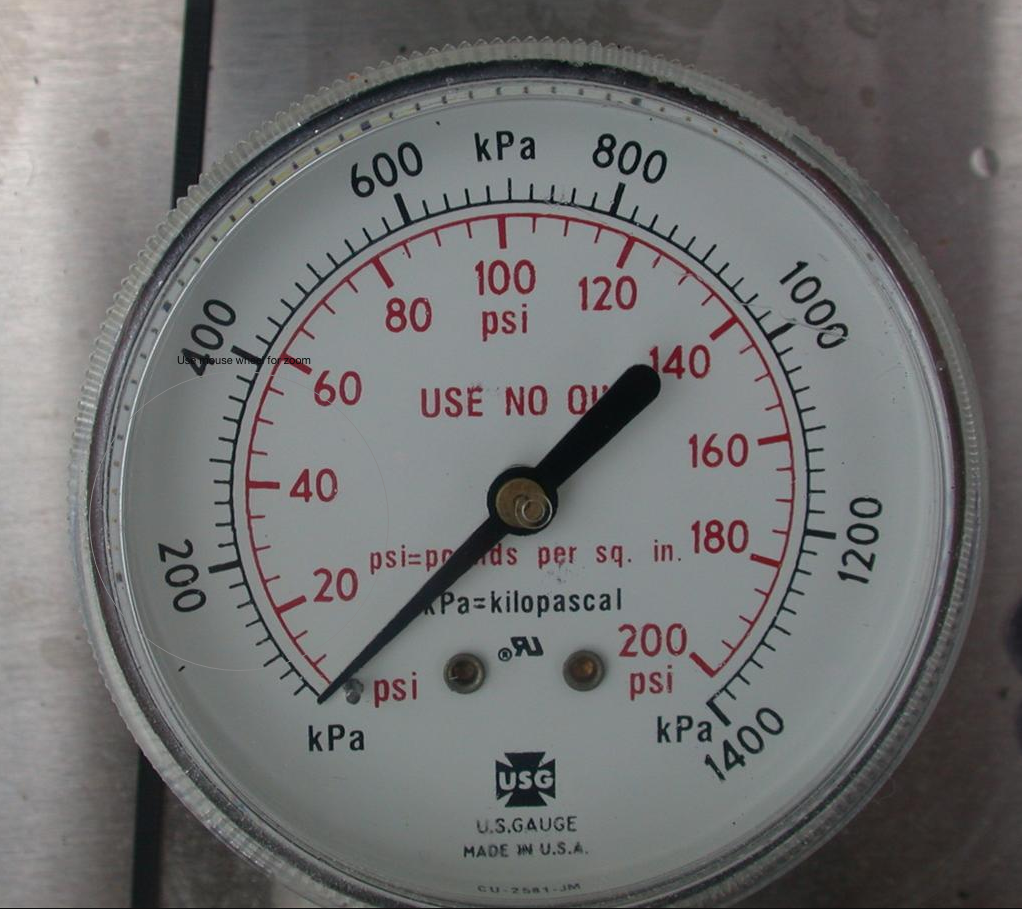

MODEL GR-6F FLUIDIC BEVERAGE SYSTEM / WATER-COOLED UNIT / USG 1400  air valve / USG 4000 PSI GAUGE / ITT BELL & GOSSETT WATER FILTER / VON WEISE V05466A162 SLIDE OUT / EMERSON S55JXNSR

Constant Temperature: .No Differential / . Stable Soda Conditions, no rise and fall in Soda Temperature / . Regulation of Temperature (+ -) 1/8Farenheit

FEATURES:

. Two 100 gallons per hour, stainless steel, dual purpose pump for make-up water and for recirculation soda water

. Capacity: (21), six (6) ounce drinks per minute, or one thousand, two hundred and sixty (1,260), six (6) ounce drinks per hour under 40 degrees Farenheit, with 75 degrees Farenheit syrup, 75 Farenheit in-coming water and 75 Farenheit ambient

. Dry refrigeration: Refrigerant R-134a

. Instantaneous recovery

. One (1), one (1) gallon, instantaneous fill, single-level, stainless steel carbonator tank

. Dual water inlet check valves

. 1.0 HP hermetically sealed refrigeration system utilized for the cooler / carbonator

. Choice of air-cooled or water-cooled

UNIQUE HORSEPOWER FEATURE

The sealed refrigeration system utilizes a unique hot gas by-pass principle the hot gas by-pass valve (HGB) actually senses ice formation in the evaporator, it opens on load decrease and closes on load increase. The unit actually varies its BTU extraction capacity to the load. Even though a 1.0 horsepower compressor is part of the system it is controlled so that it can be applied to a 1/4 horsepower load. The Model GR-6F, assures absolute control and eliminates the need for a thermostat.

REFRIGERATION SYSTEM

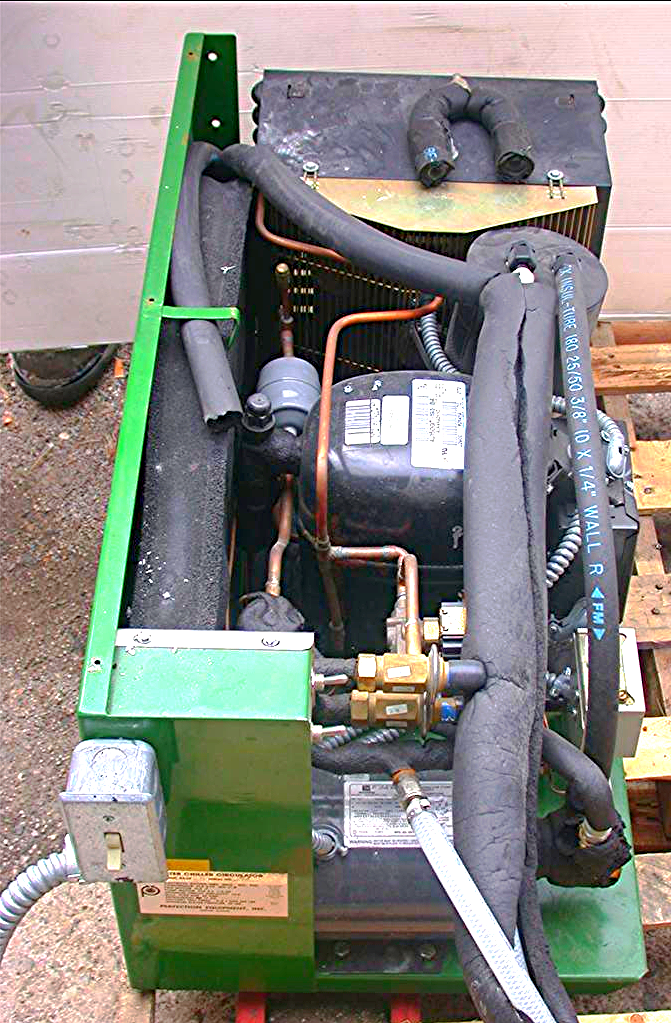

Includes a 1.0 horsepower continuous running compressor. An externally equalized thermostatic expansion valve (TXV) controls the flow of liquid refrigerant into the evaporator. A hot gas bypasss valve (HGB) controls the refrigerant affect and adjusts the unit's horsepower to the load.

Water Usage in G.P.M. for Condenser

Model GR-6

Idle load .98 Gallons, Full load 2.0 Gallon @

45°F. Suction

ELECTRICAL

208 Volt, 60 Cycle, Single Phase

20.0 amp, Breaker, Dedicated Circuit

Product Description

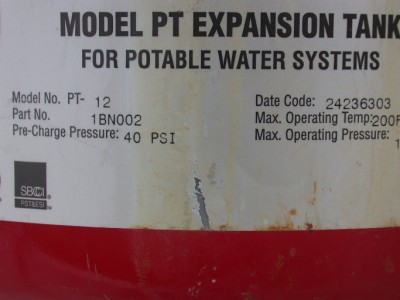

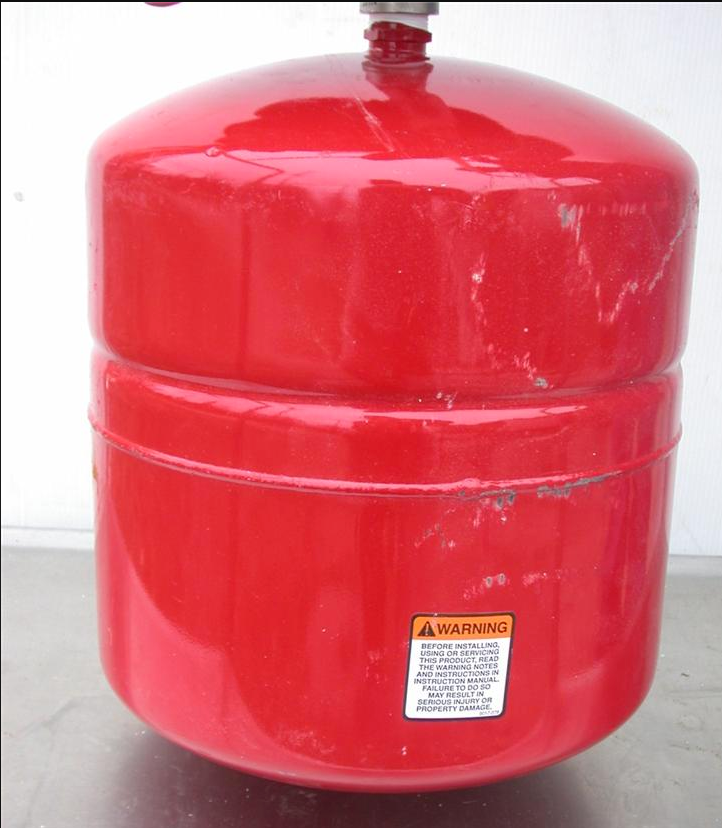

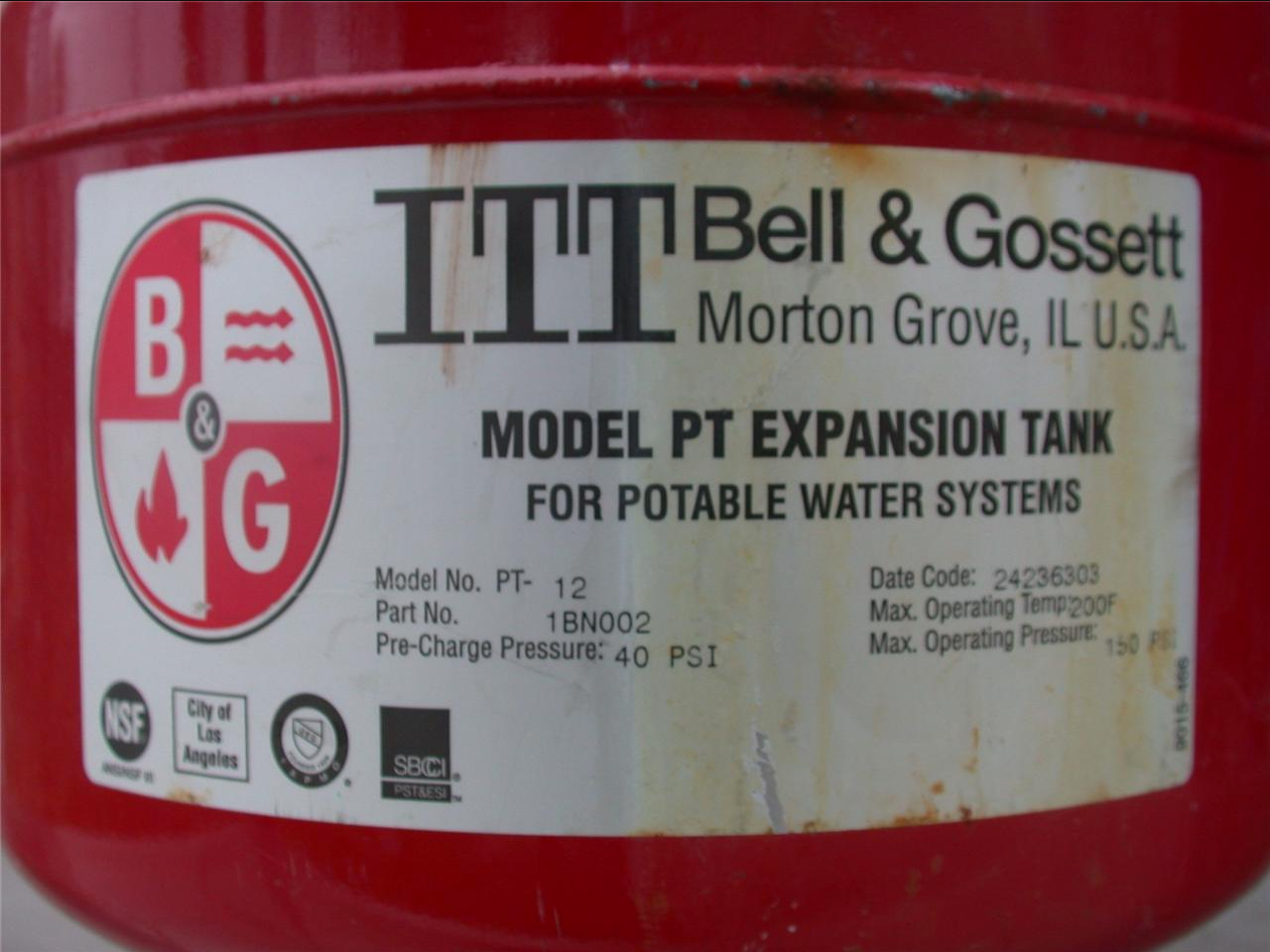

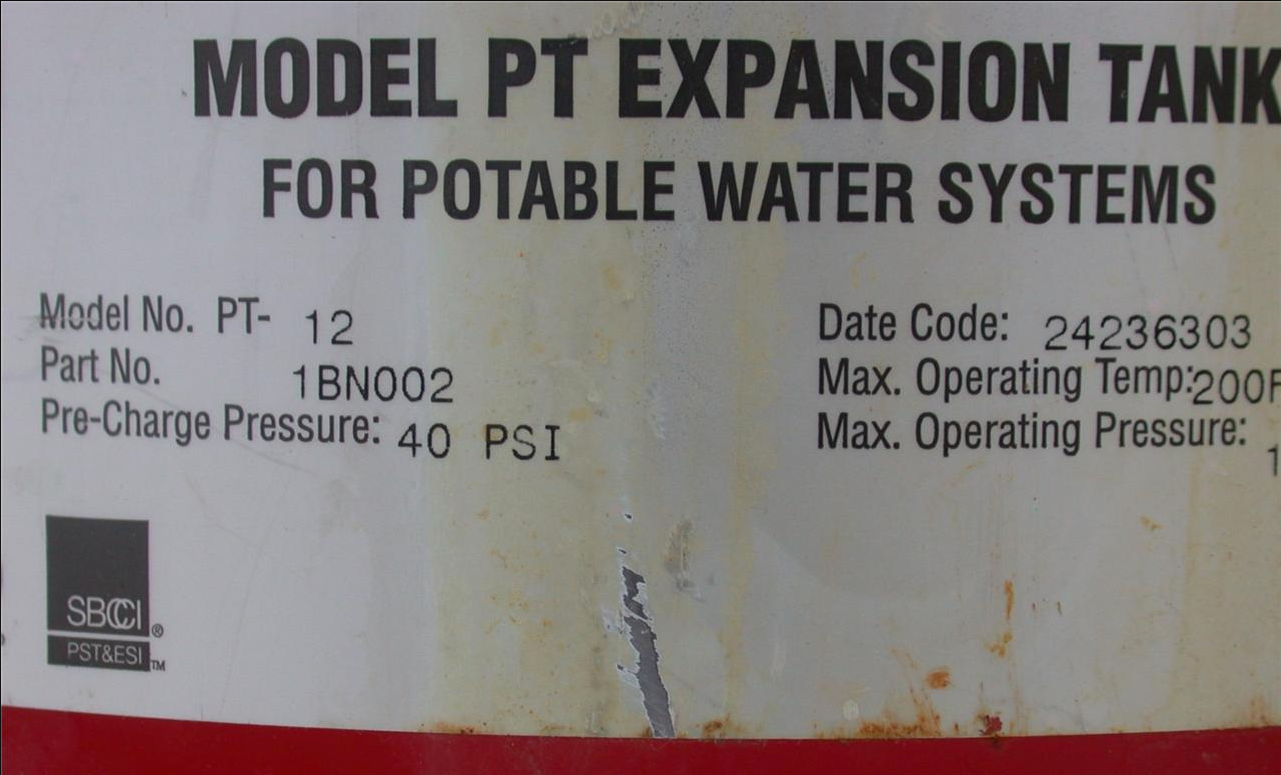

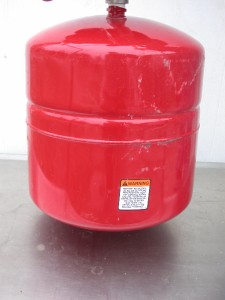

Bell & Gossett PT-12 is a 4.4 gallon diaphragm expansion tank for potable domestic water systems. The tank pipe connection is 3/4" male and is pre-charged to 40 psi. The tank dimensions are 11" diameter x 15" height.

Maximum working pressure is 100 psi. Maximum temperature is 240 degrees F.

This unit is being Sold as pictured, IF YOU DON'T SEE IT, IT'S NOT INCLUDED!
