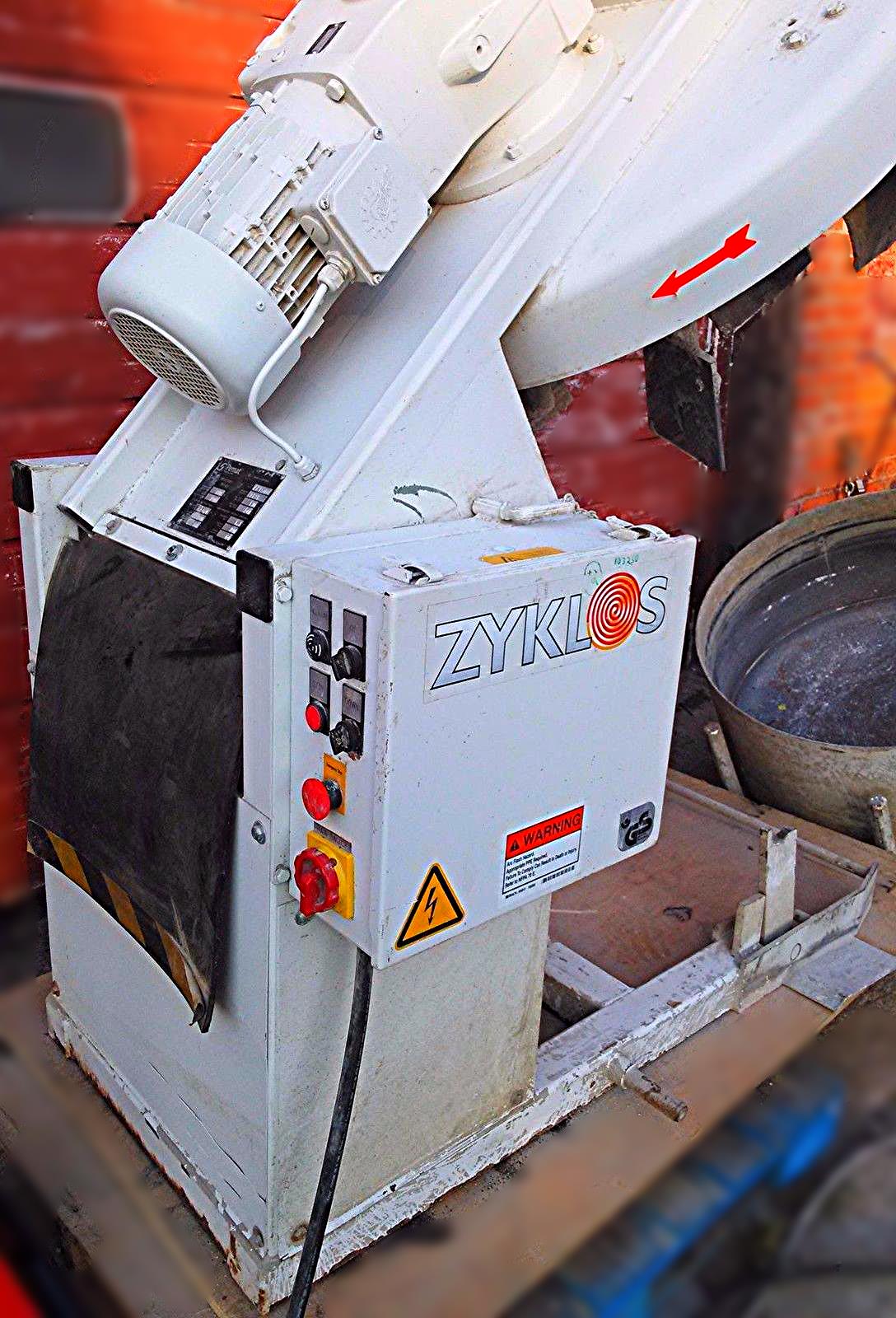

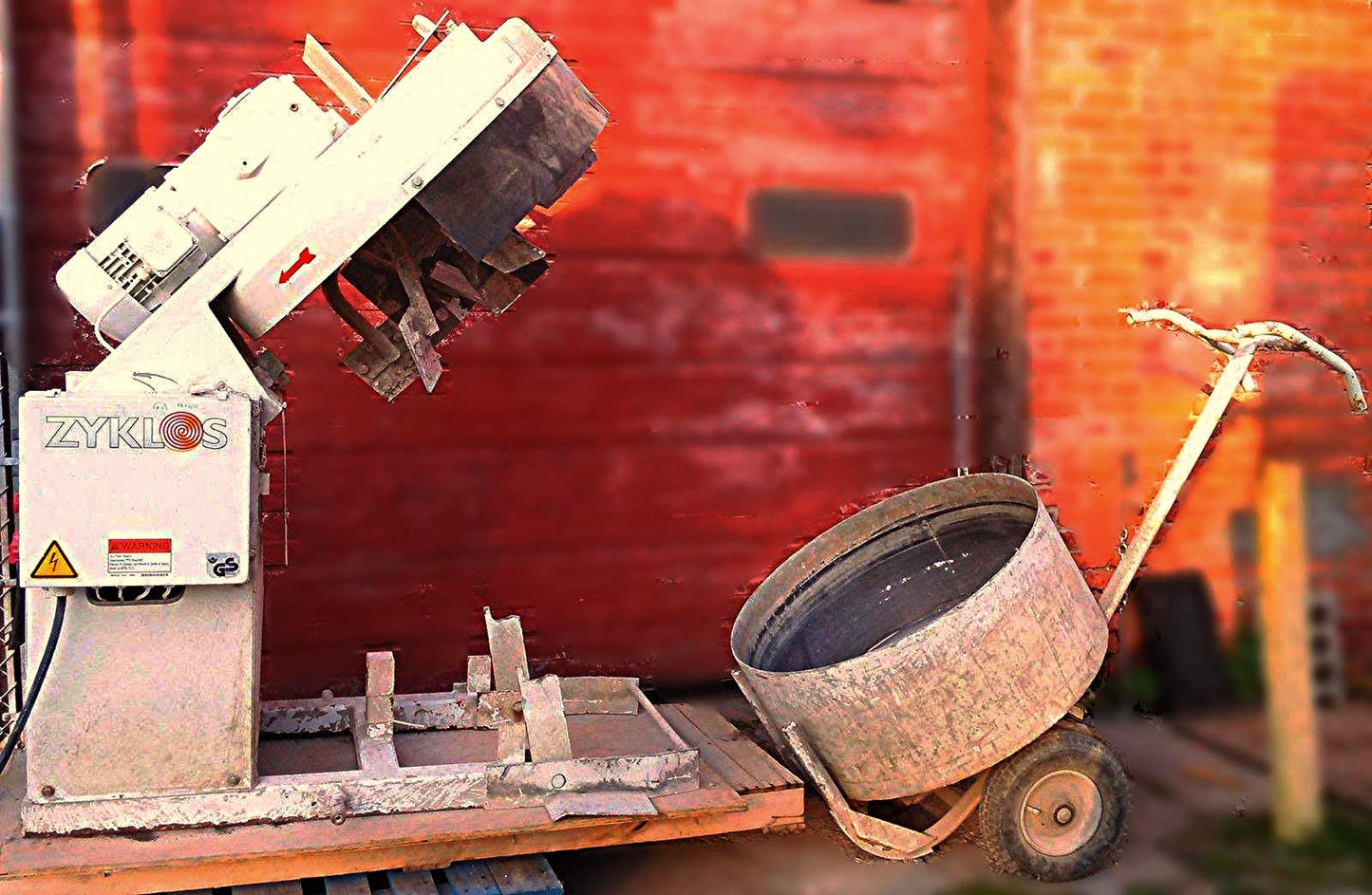

PEMAT ZYKLOS ZZ 150 HE ROTATING PAN CONCRETE INDUSTRIAL ART MIXER with TROLLEY

Name: PEMAT ZYKLOS ZZ 150 HE ROTATING PAN CONCRETE INDUSTRIAL ART MIXER with TROLLEY
Brand: EachProject
SKU: IF_ECBB556B-1
Price: 3500.00 USD
Availability: OutOfStock

PEMAT ZYKLOS ZZ 150 HE ROTATING PAN CONCRETE INDUSTRIAL ART MIXER with TROLLEY

$3,500.00 USD

Sale Sold out

Taxes included.

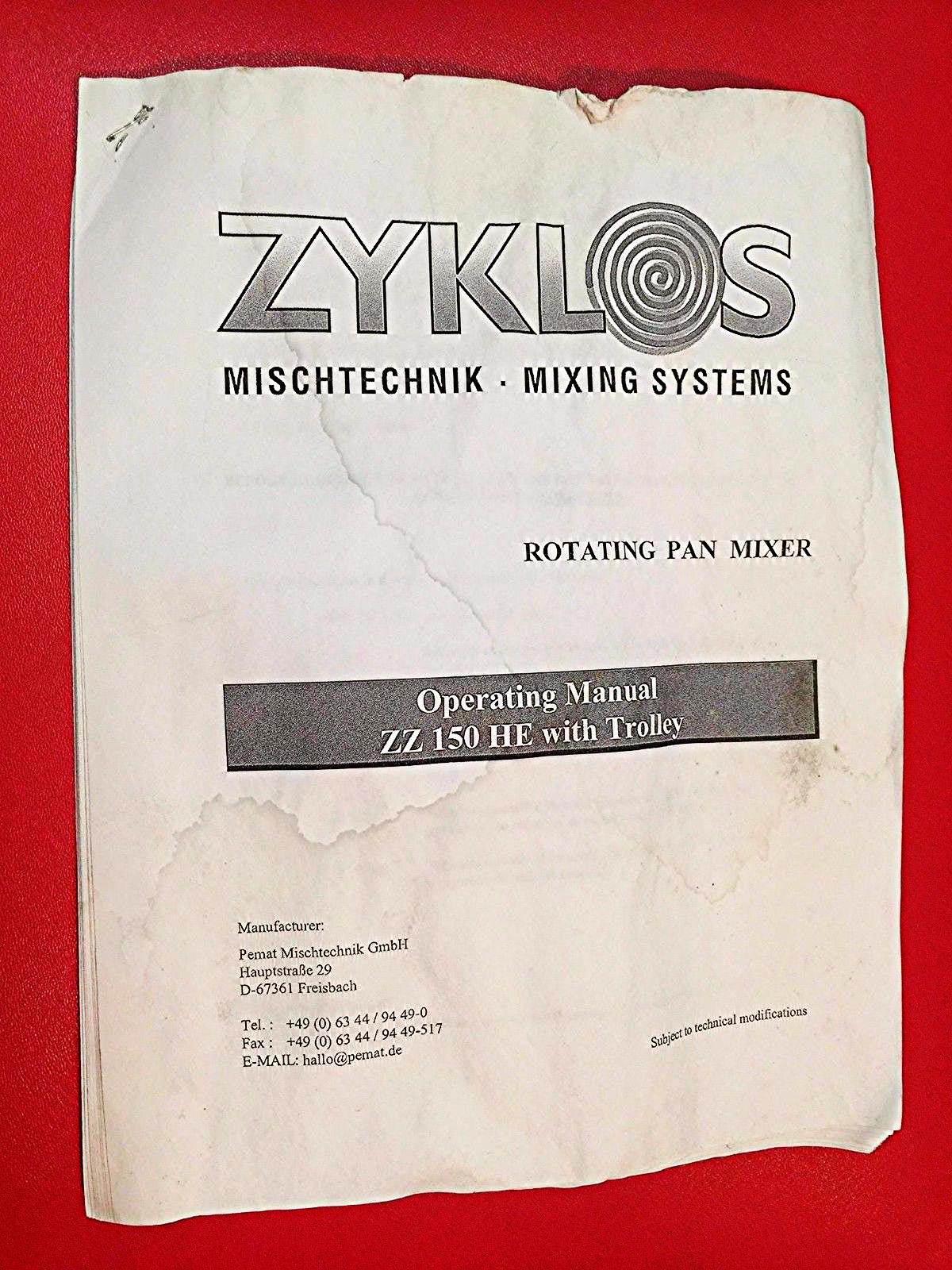

THIS PEMAT ZYKLOS ZZ 150 HE ROTATING PAN CONCRETE INDUSTRIAL ART MIXER with TROLLEY AND WITH OPERATIONAL MANUAL IS IN WONDERFUL OPERATIONAL CONDITION,

TESTED, WORKING PERFECTLY, AMAZING UNIT.

COSTS US$ 23.000,00 (Twenty Three Thousand Dollars) NEW!!! A RARE DEAL AT THIS PRICE!!!!

MADE IN GERMANY!!!! AMAZINGLY EASY TO OPERATE

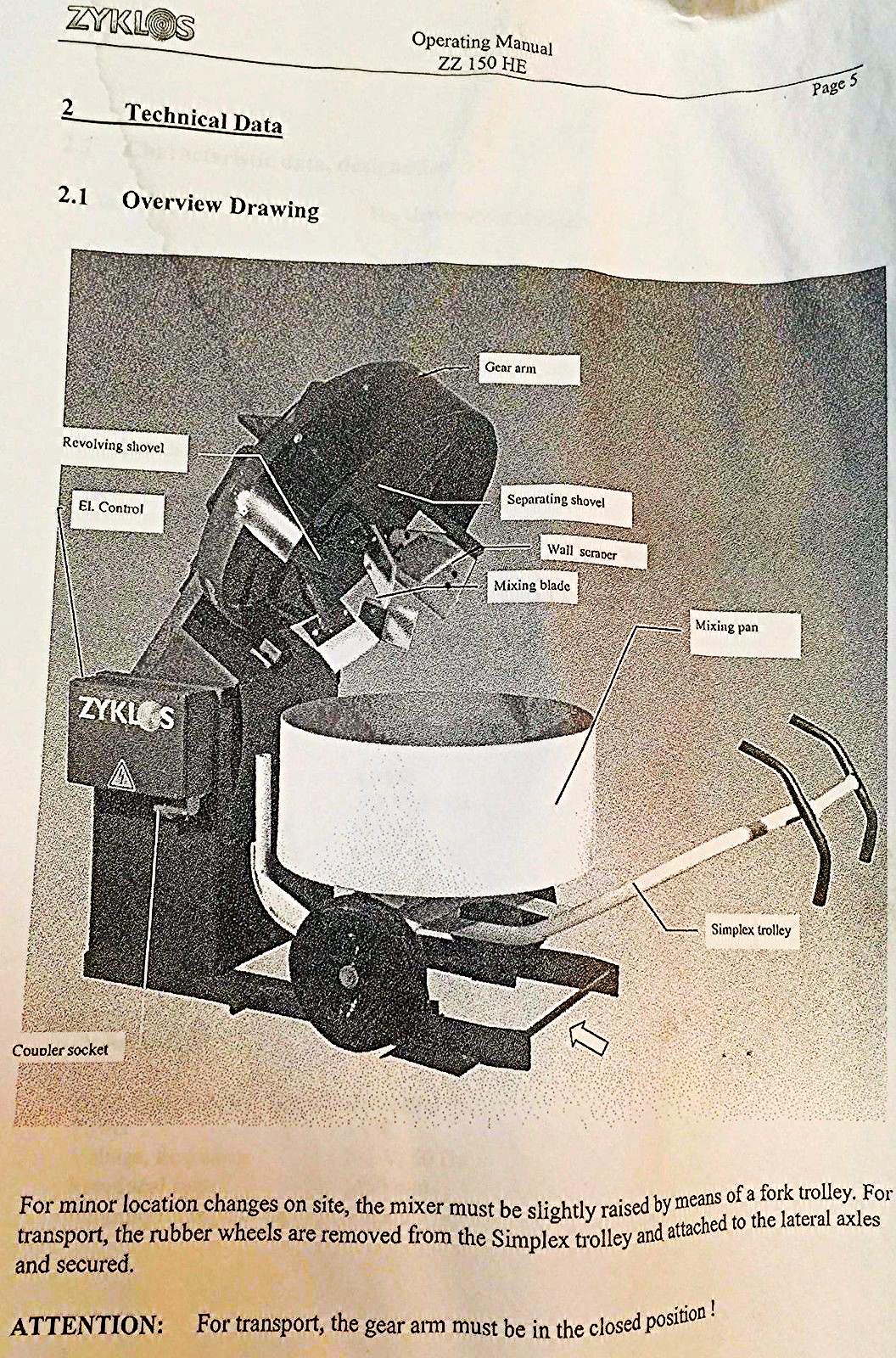

FEEL FREE TO CHECK MANUFACTURER's WEBSITE FACT SHEET OPERATIONAL INSTRUCTIONS BY CLICKING HERE!!!

FEEL FREE TO CONTACT US IF YOU HAVE ANY QUESTIONS BY CLICKING HERE!!!

Areas of application and examples:

All sorts of concrete: ■ Lightweight, fibre, fine, polymer concrete ■ Self compacting and Ultra High Performance Concrete ■ Mortar, plaster ■ Concrete and artificial stones ■ Exposed aggregate concrete ■ Paving slabs ■ Roof tiles ■ Precast concrete parts such as colored U-, L- and manhole stones, window and door lintels, prefabricated garages ■ Internal/external concrete pipes ■ Crane counterbalance weights ■ Machine tool beds ■ Spacer blocks for reinforced concrete

Further applications:

■ Ready mix: Adhesives for tiles ■ Floorings: Industrial or sports ground flooring ■ Refractory and ceramic compounds ■ Furnace linings ■ Commodity goods (flower pots) ■ Expanded clay ■ Porcelain ■ Roof tiles ■ Glass compounds ■ Accumulator fillings ■ Abrasives ■ Foundry sand ■ Insulating materials ■ Cold bitumen and asphalt ■ Fillers ■ Chemical products ■ Waste treatment ■ Binding of dust with cement for disposal or recycling

Depending on material, special executions might be possible, for example explosion protection while mixing severals polymers etc.

Mixing processes ■ Dry mixing ■ Damp mixing ■ Wet mixing ■ Mixing liquid additives to solids ■ Introducing steam or foam ■ Homogenizing ■ Stirring ■ Kneading ■ Mixing with changing material consistencies ■ Mixing batches with varying densities ■ Mixing materials with different grain sizes ■ Mixing materials with different ratio of components

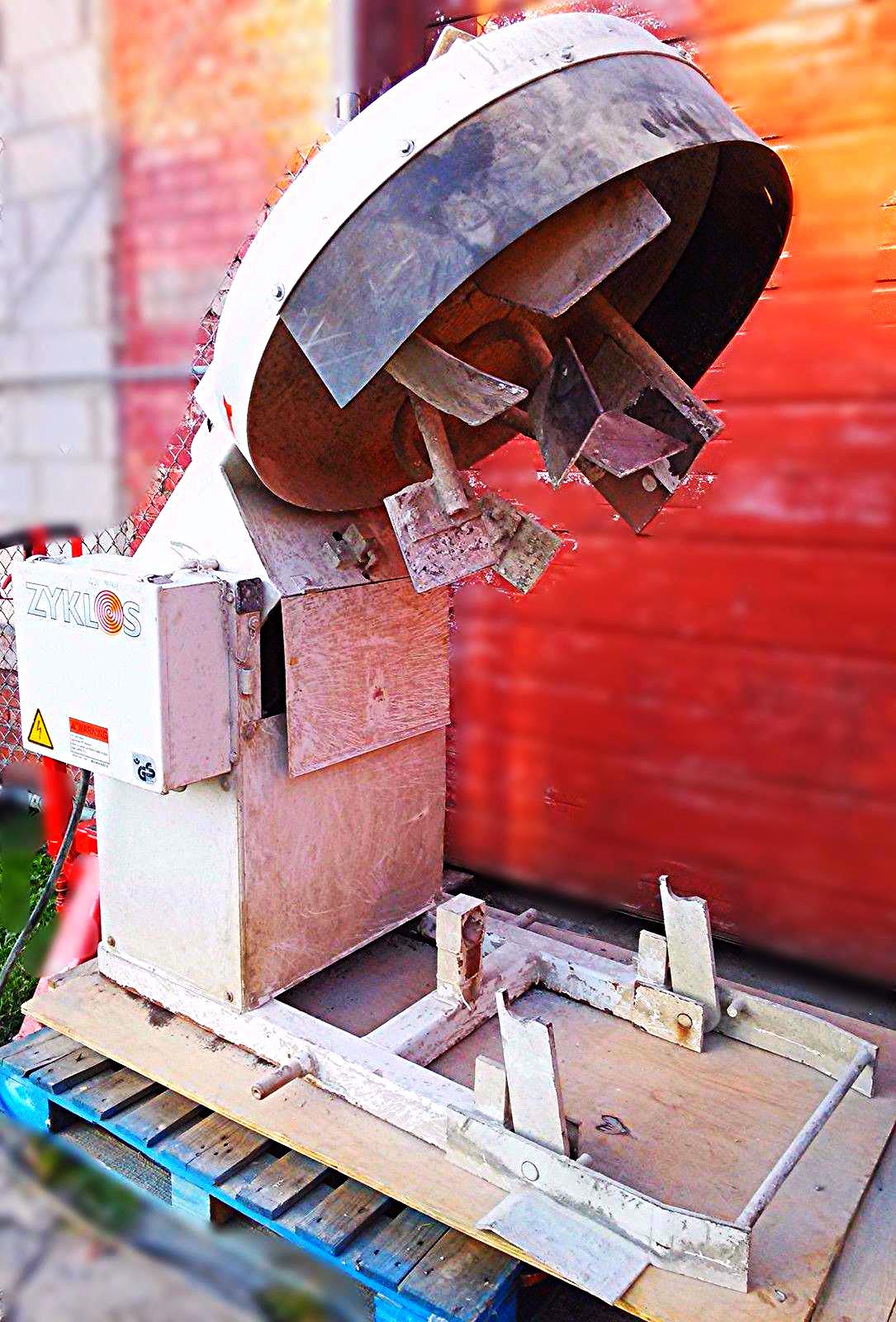

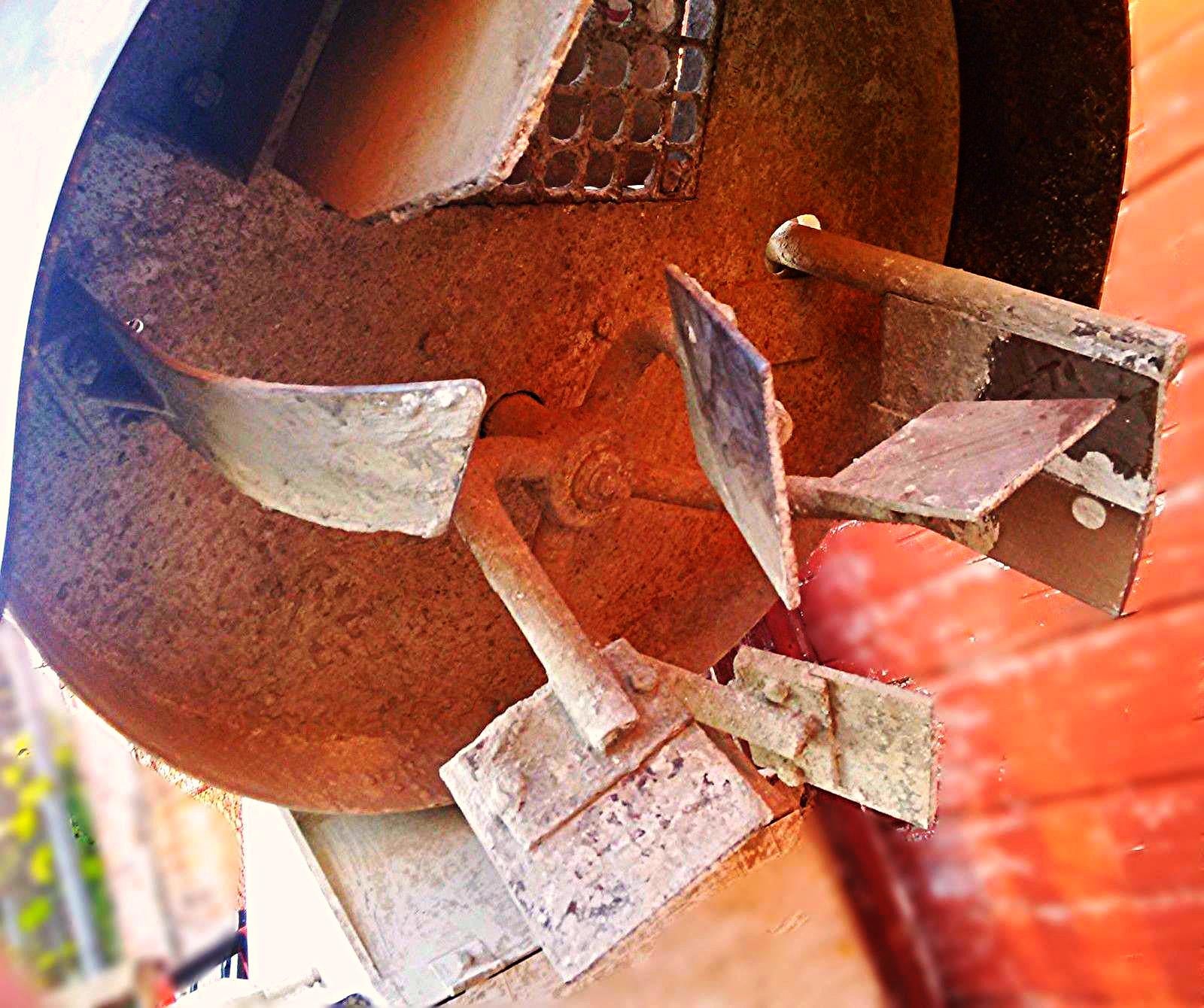

Mixing performance is based on the uniflow system. The offset mixing star 1 rotates synchronously with the mixing pan 2 thus producing high levels of shearing effect and kinetic energy release. Due to the high relative velocity of the batch a homogeneous mixture is quickly achieved. Statically mounted mixing tools 3 4 on the tilting arm effect a horizontal and vertical rearrangement within the batch. A wall scraper 4 continuously removes batch residues from the pan wall and deposits this back into the batch flow stream. The pressure of the batch against the wall and the bottom of the mixing pan, produced by the mixing tools, makes the mixing pan turn co-currently without any extra drive. This rotation can be supported - if necessary - by an additional pan drive.

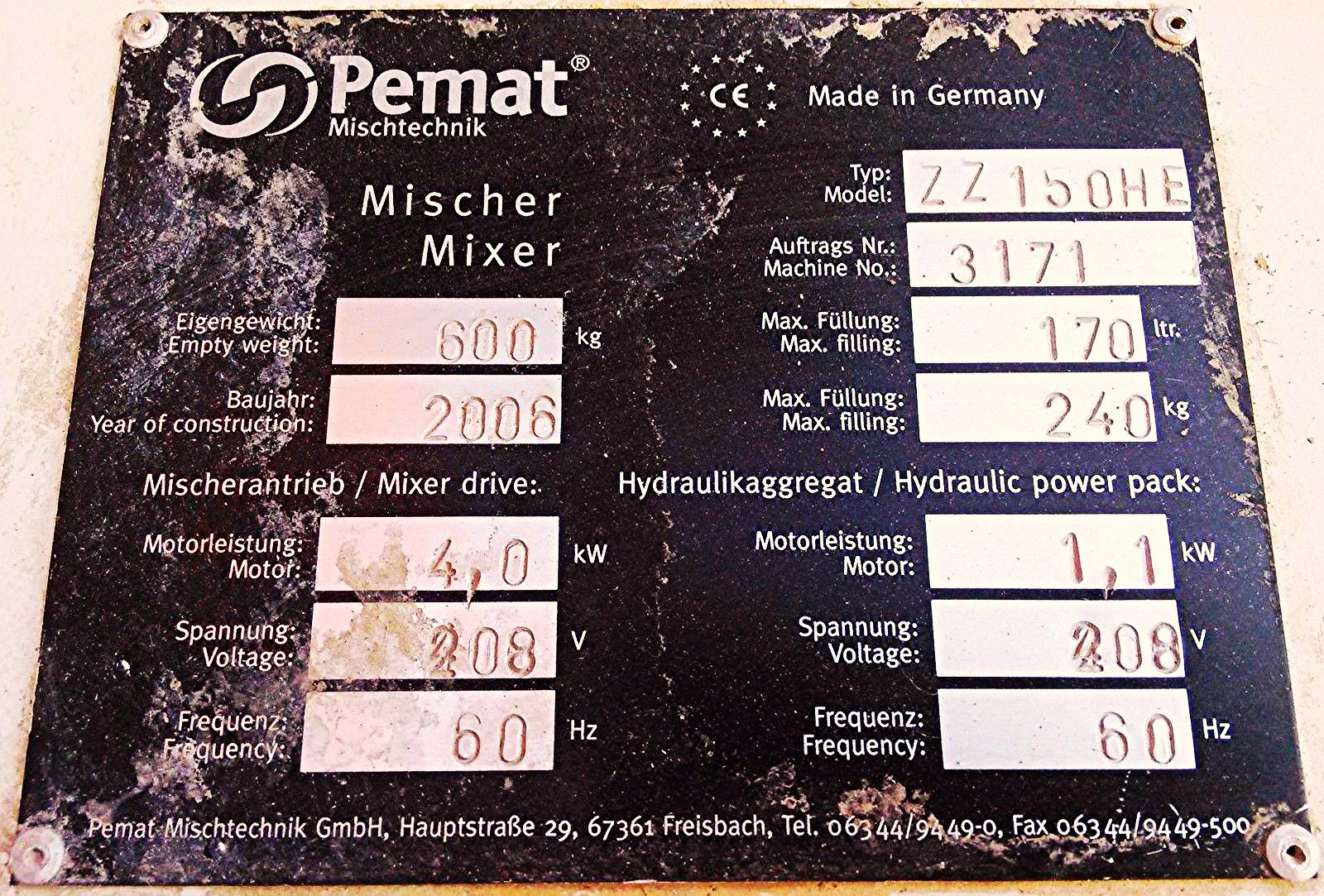

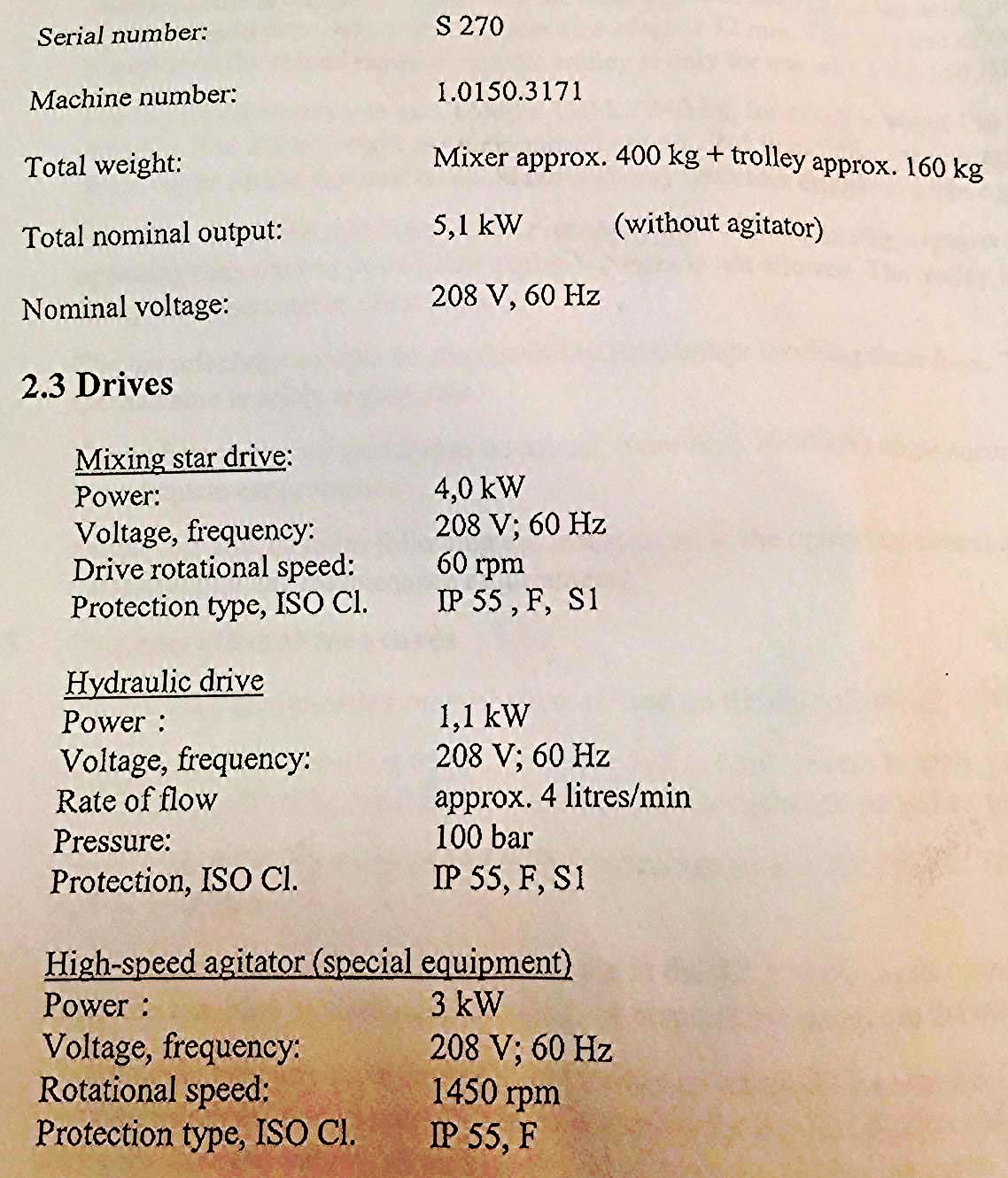

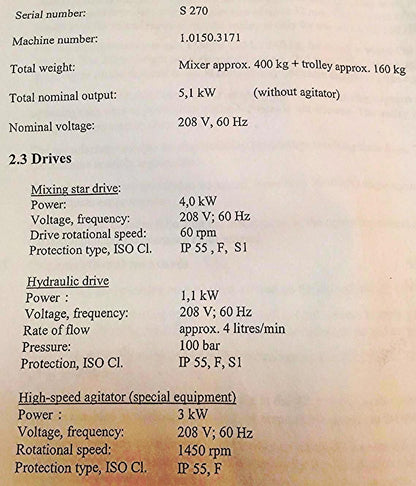

ZYKLOS ZZ 150 HE

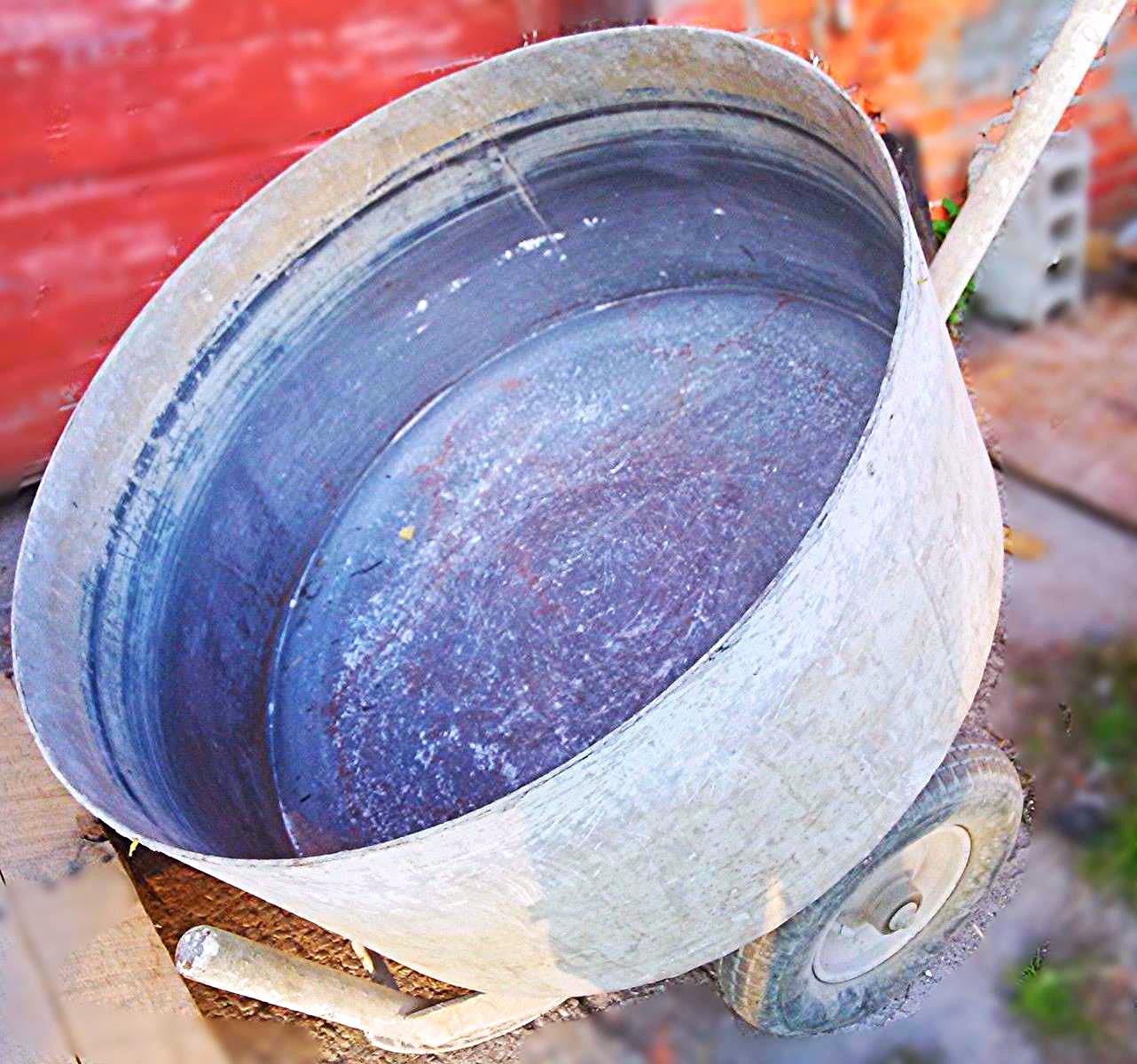

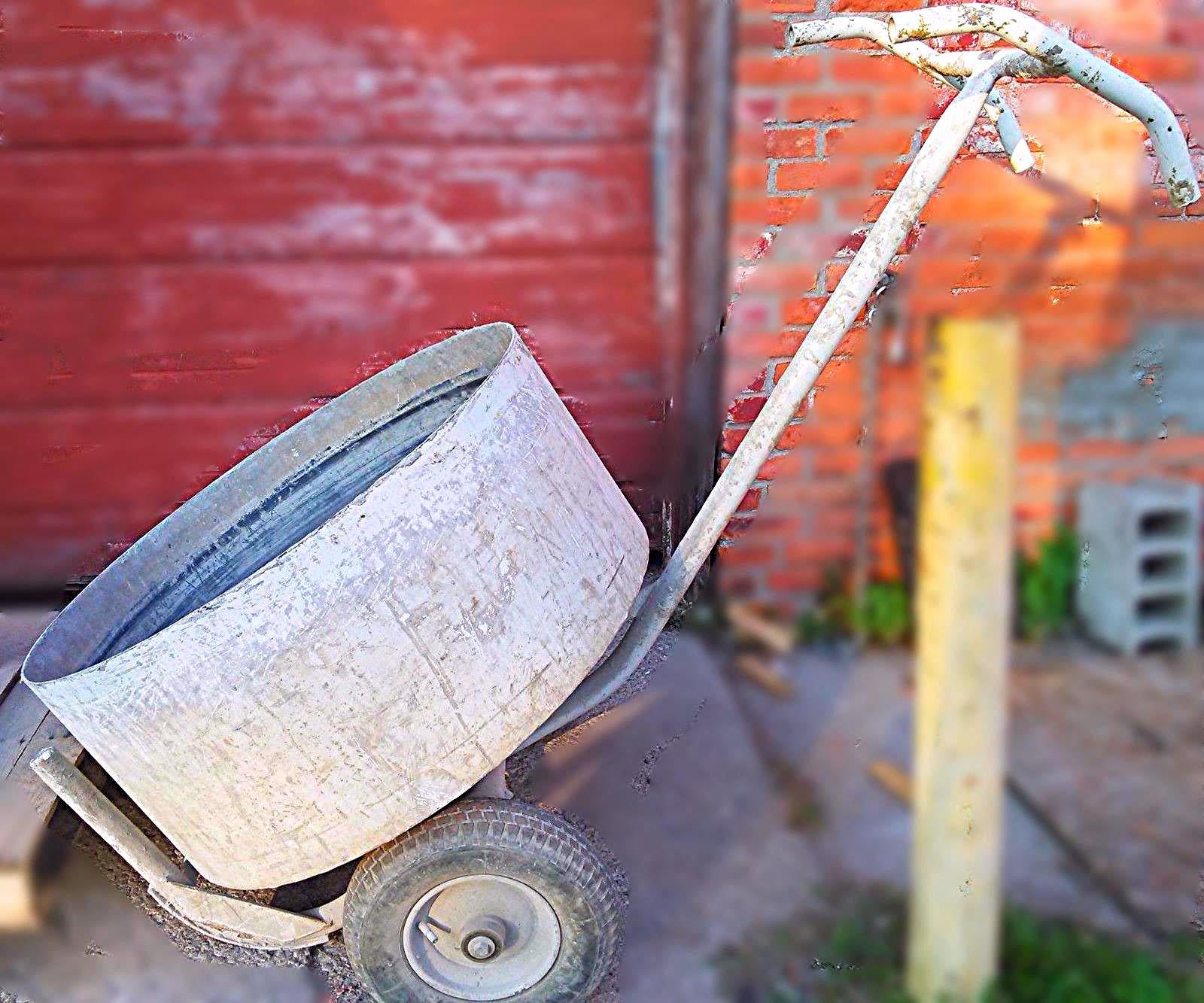

Stationary mixer with mobile mixing pan

Batch capacity (ready-made mix) l 150

Dry charge, max. approx. l 170

Dry charge, max. approx. kg 240
