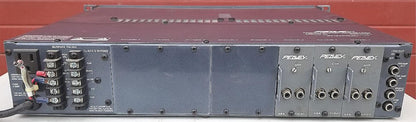

PEAVEY MMA 875T 9-CHANNEL MODULAR MIXER AMPLIFIER 100%WORKING PERFECT FREE SHIP

FEEL FREE TO CHECK MANUFACTURER's TECHNICAL DATA ON THIS UNIT BY GOOGLING THE FOLLOWING LINK: //assets.peavey.com/literature/manuals/80302315.pdf

SPECIFICATIONS:

MMATM 875T Nine-Channel Modular Mixer Amplifier

Output Power:

75 watts RMS

Power Bandwidth:

Direct: 20 - 20 K < 0.5% THD XFMR: 50 - 20 K < 0.5% THD

Frequency Response:

Direct: 20 - 20 K ± 1.0 dB XFMR: 20 - 20 K ± 3 dB

Total Harmonic Distortion:

0.02% at 1 kHz rated power

Output Regulation:

Direct: < 0.5 dB XFMR: < 1.0 dB

Signal To Noise Ratio:

Master Volume Min: 95 dB Master Volume Max: 77 dB Power Amp Only: 95 dB

Tone Controls:

Bass: ± 10 dB @ 100 Hz Treble: ± 10 dB @ 10 kHz

Contour:

+ 6 dB @ 100 Hz + 6 dB @ 10 kHz

Inputs:

Eight input ports, one dedicated program input, bridge in/out

Preamp Out/Power Amp In

1.0 V @ 600 ohms/1.0 V @ 15 K ohms

Outputs:

Direct Out: 4 ohms

Fully Isolated XFMR: 8 ohms, 25 volts,

70 volts (100 V 220/240 Export)

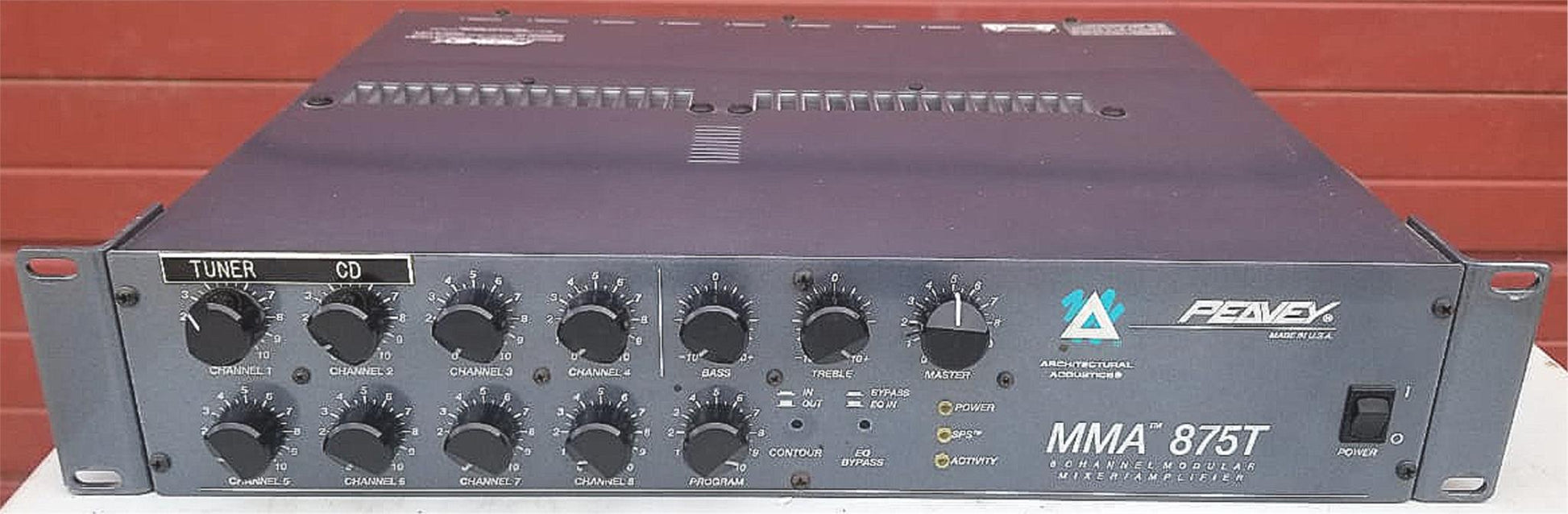

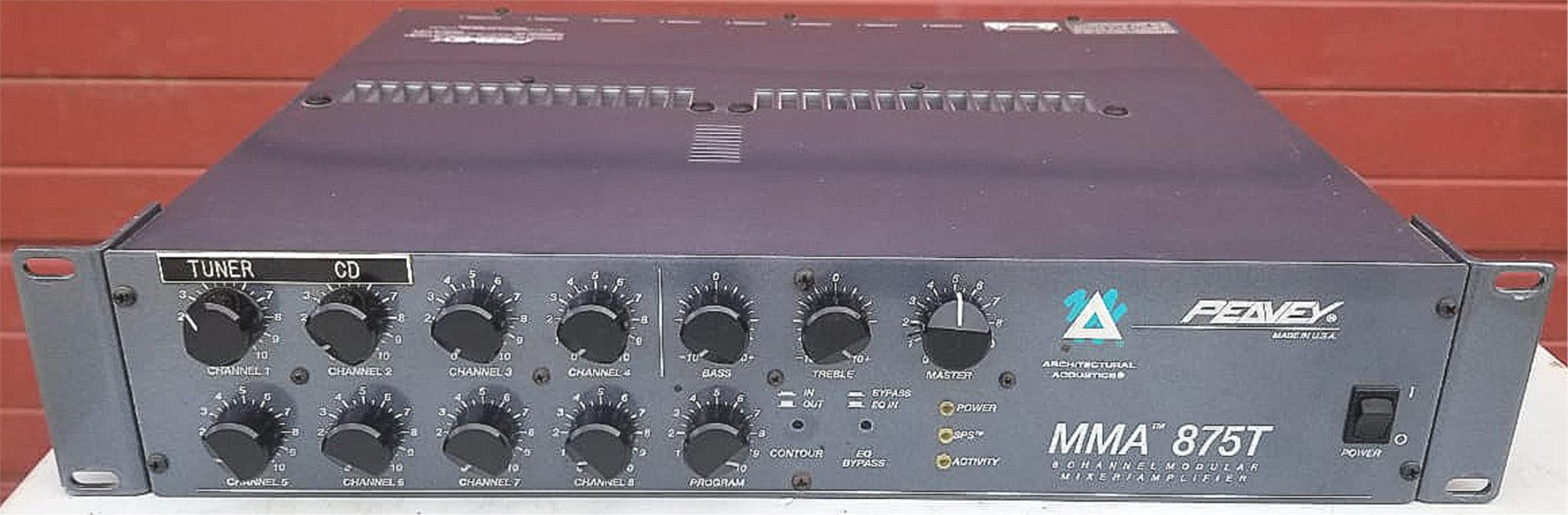

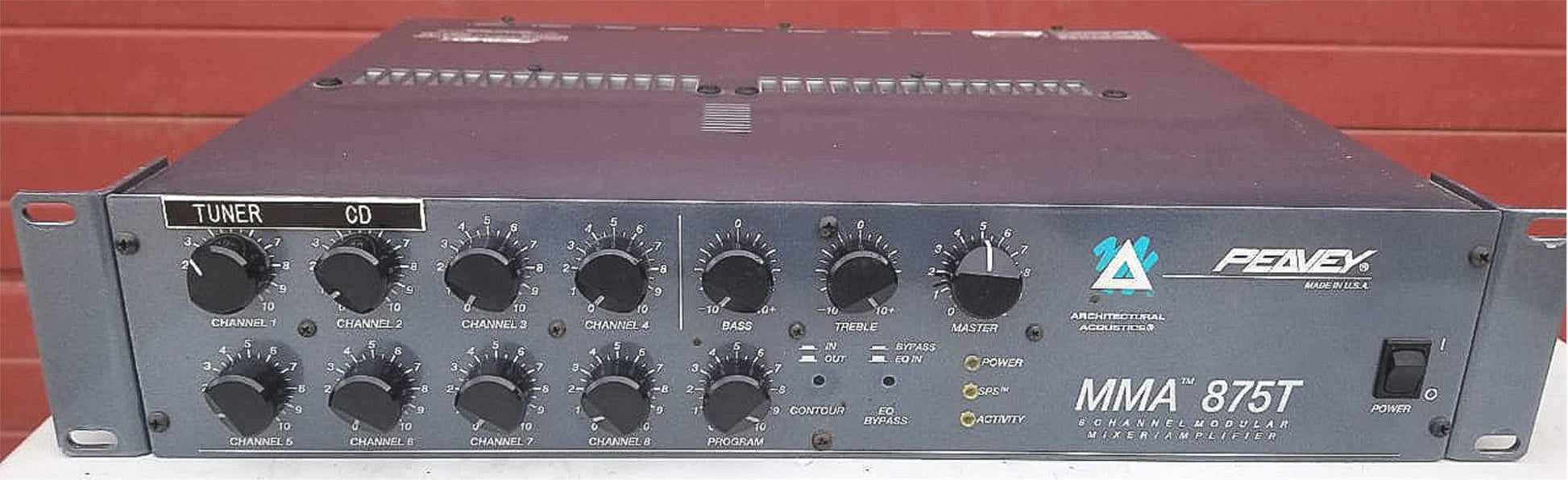

Controls:

9 input gain controls, 1 bass control, 1 treble control, 1 contour switch, 1 mastergain control, 1 power switch, 1 EQ defeat switch, 1 low-cut switch

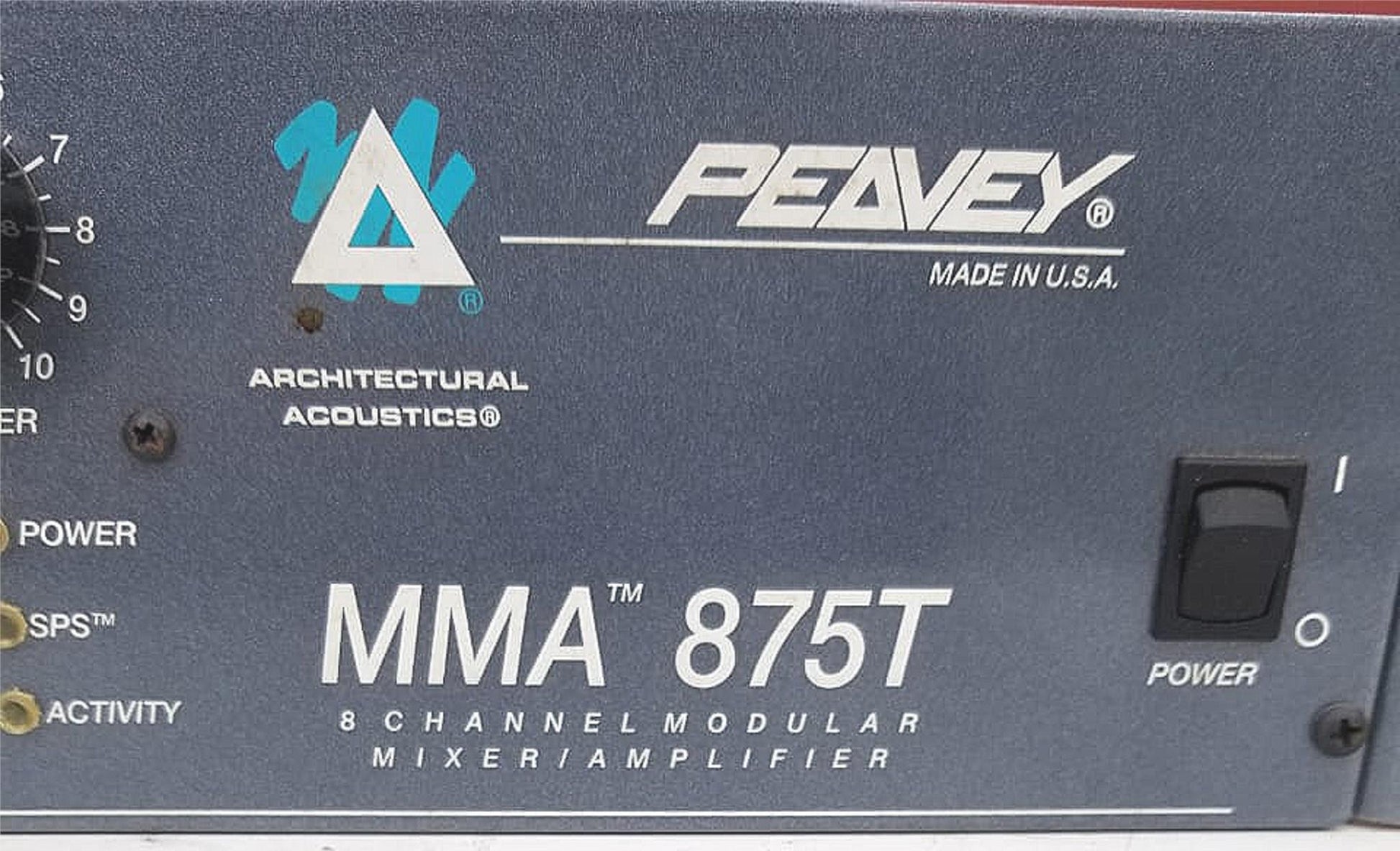

Indicators:

Power LED (red), Activity LED (green), SPSTM Active LED (yellow)

Protection:

Internal current limiting, SPSTM (speaker protection), output relays, 1 line fuse, and 2 internal fuses

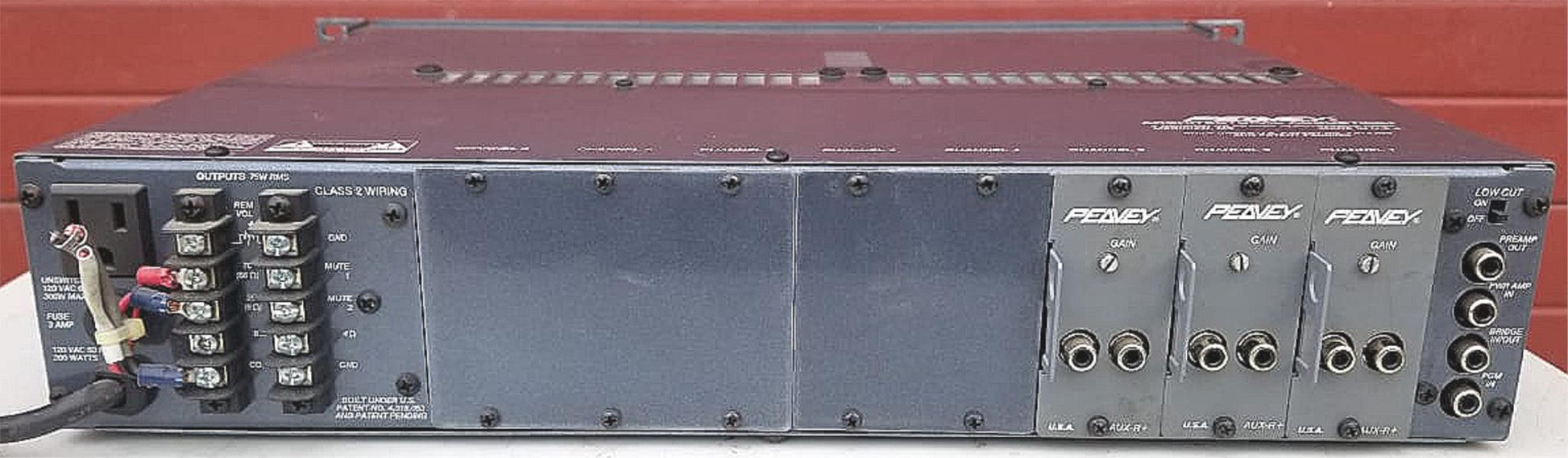

Connectors:

Preamp out/power amp in, PGM input, bridge in/out, RCA phono jacks

Ports 1-8: Card edge connector Outputs: Screw terminals

Mute: Screw terminals AC SJT, 3 prong

Power Consumption:

120 W, 60 Hz, 120 V AC Domestic 120 W, 50/60 Hz, 220/230-240 V AC

Export

Dimensions

3.5" H x 17" W x 15.5" D

Weight & Color:

26 lbs. Gray

Other Features:

Provisions for external master volume control

Power output disconnected for 4 seconds after power on

Level-sensing muting at modular level

FEATURES

• 9 channel mixer/power amplifier system

• 20 - 20 kHz frequency response

• Bridging input/output

• Contour switch (special equalization) • Bass and treble controls

• Preamp output/power amp input

patch capability

• Short circuit and thermal protection

• SPSTM protection circuitry

• External volume control

• Built-in low cut filter (switchable from

rear panel)

• Plug-in module capability

• Output impedance variations:

4 ohms, 8 ohms, 25 V and 70 V (100 V Export)

• Rack-mountable or stand alone package (Rack brackets are optional)

• Two mute lines
