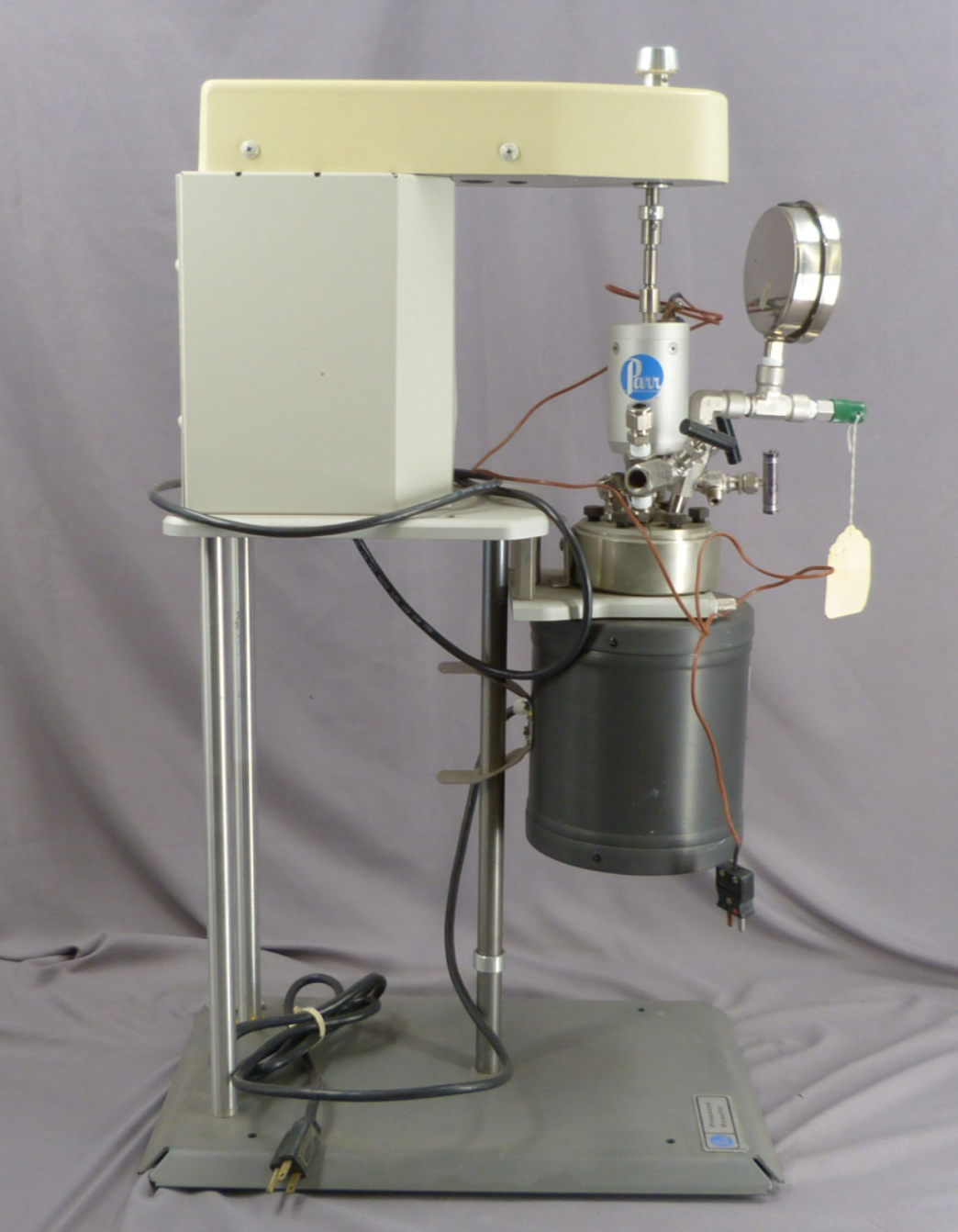

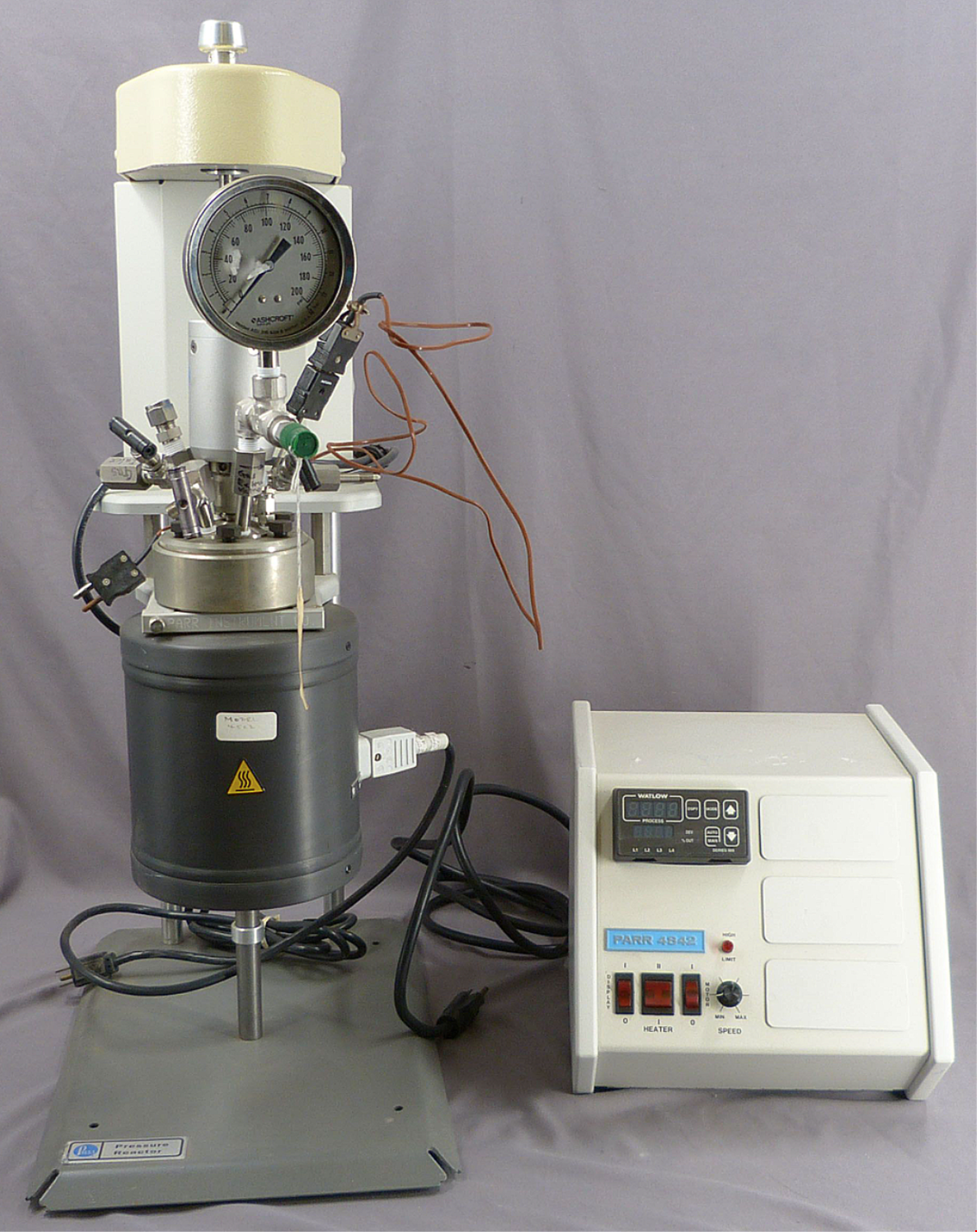

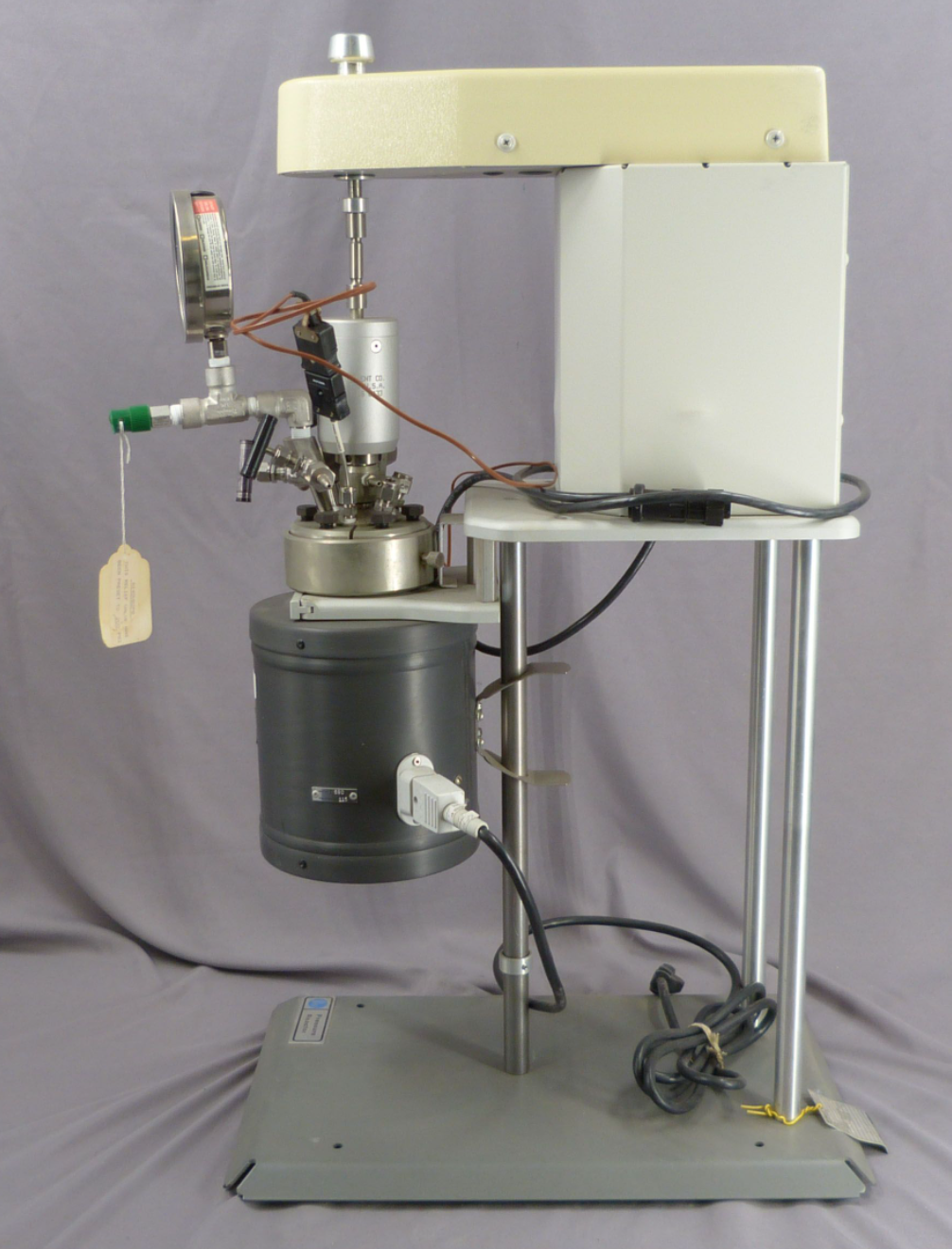

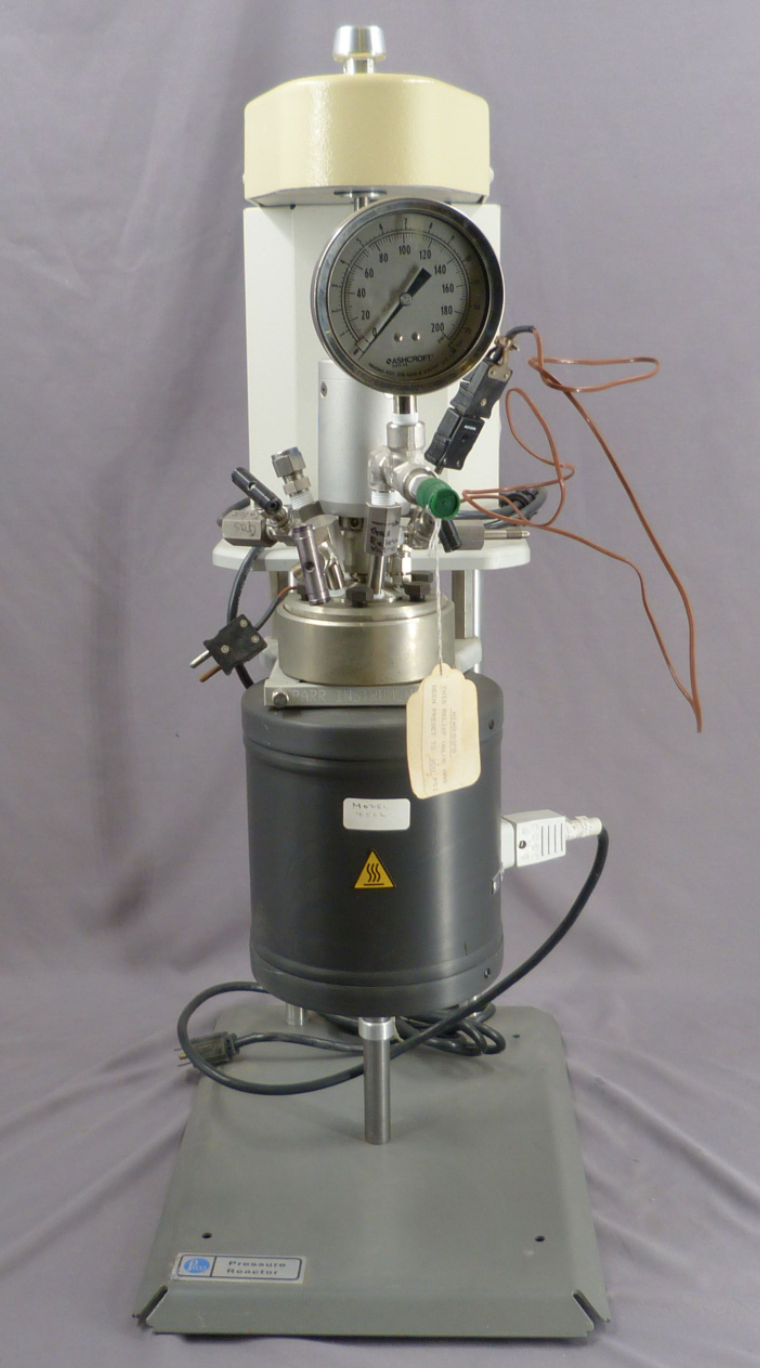

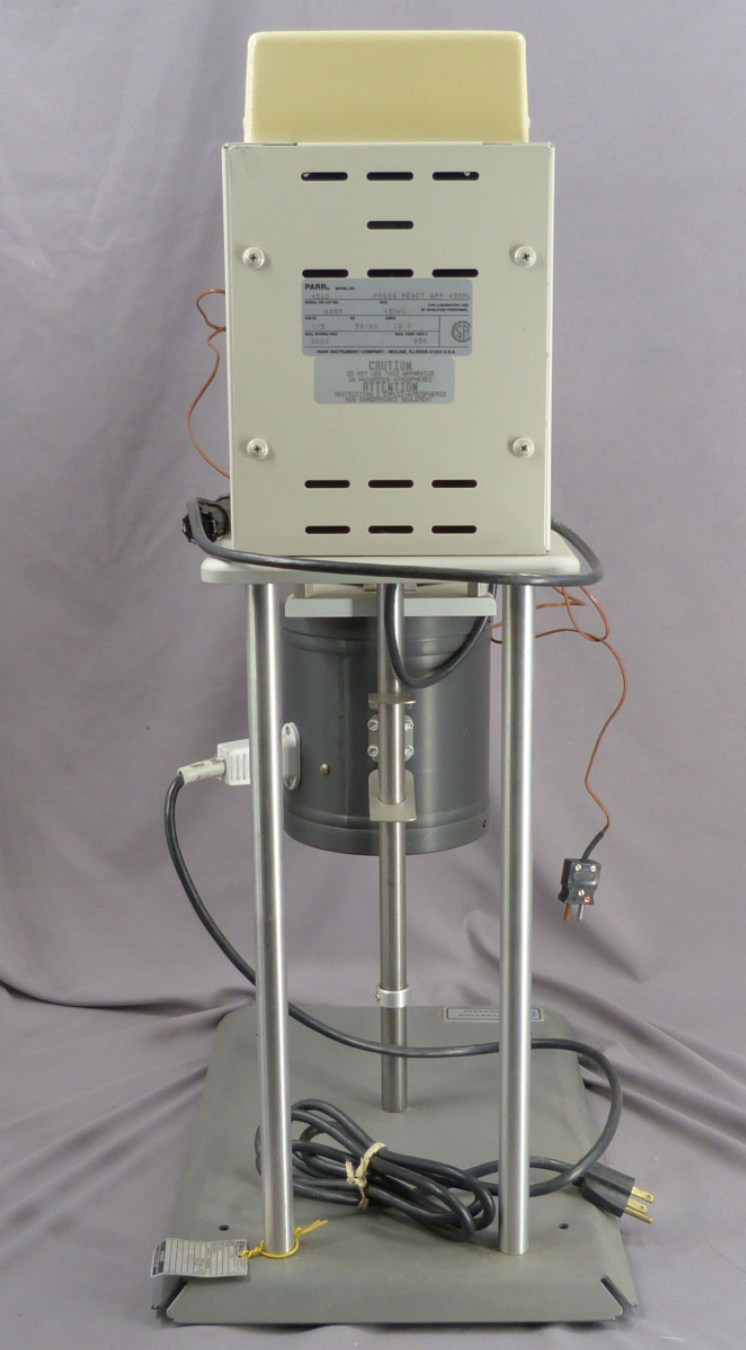

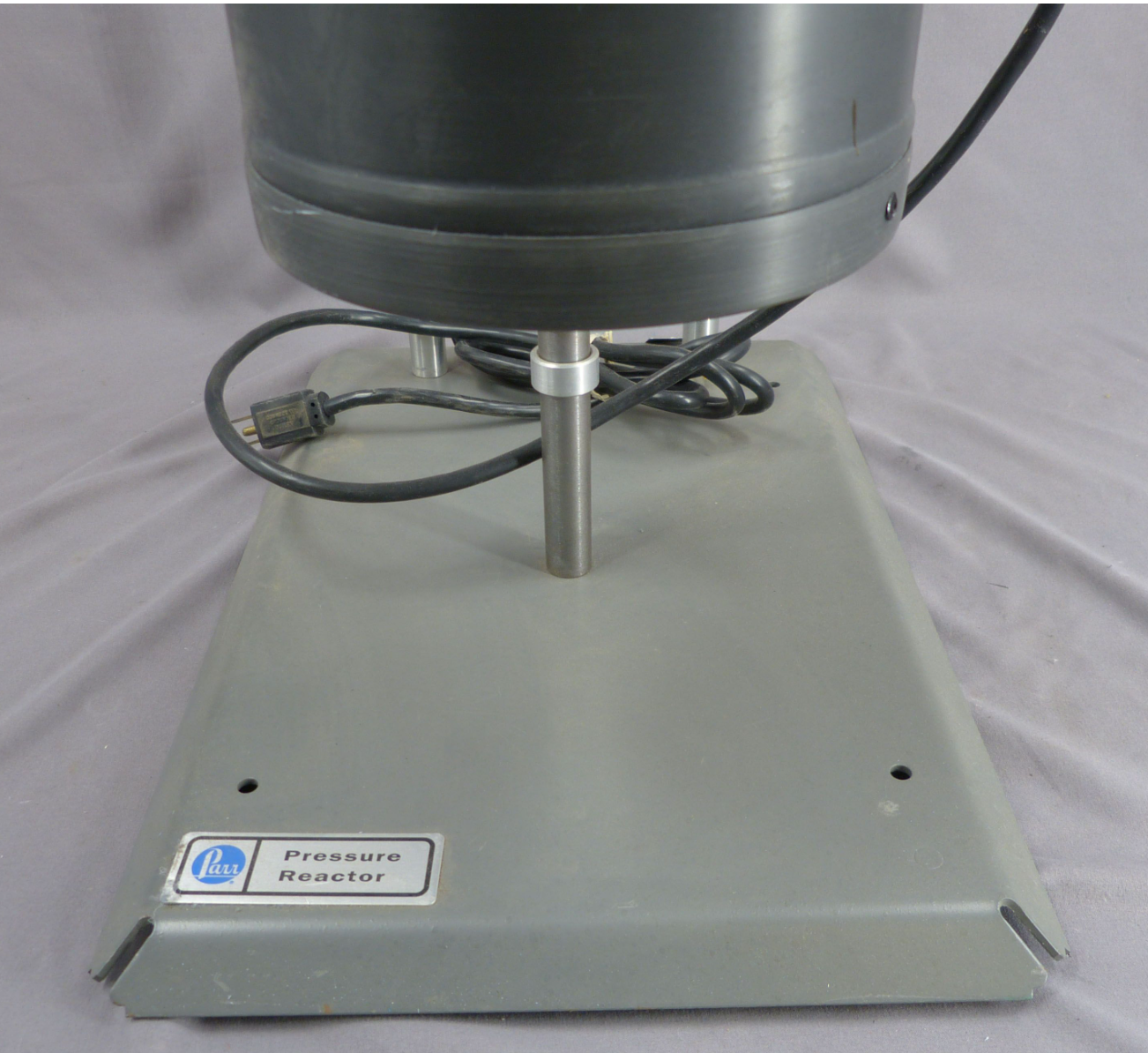

This listing is for a Wonderful Condition PARR 4562 450ml PRESSURE REACTOR + DIGITAL 4842 TEMPERATURE CONTROLLER as can be seen in the pictures.
IMPORTANT TO NOTE: THIS UNIT CAME FROM A FEDERAL UNIVERSITY AND HAS ALWAYS BEEN VERY WELL TAKEN CARE OF.
Technical information in BLUE below was taken from manufacturer's website by GOOGLING the following link: siamzim.com/pdf__/Stirred_Reactors_PDF/4560.pdf
4562 Bench Top Mini Reactor, 450 mL, Moveable Head,
Drop-Band Split-Ring, and a 4848 Controller shown.
Maximum Pressure (MAWP) 3000 psi (207 bar, 200 bar for CE orders)
Maximum Temperature
with FKM O-ring 225 °C
with FFKM O-ring 300 °C
with PTFE Flat Gasket 350 °C
with Flexible Graphite Flat
Gasket (HT) 500 °C
Reactor Details
Mounting Style: Moveable
Stand Type: Bench Top

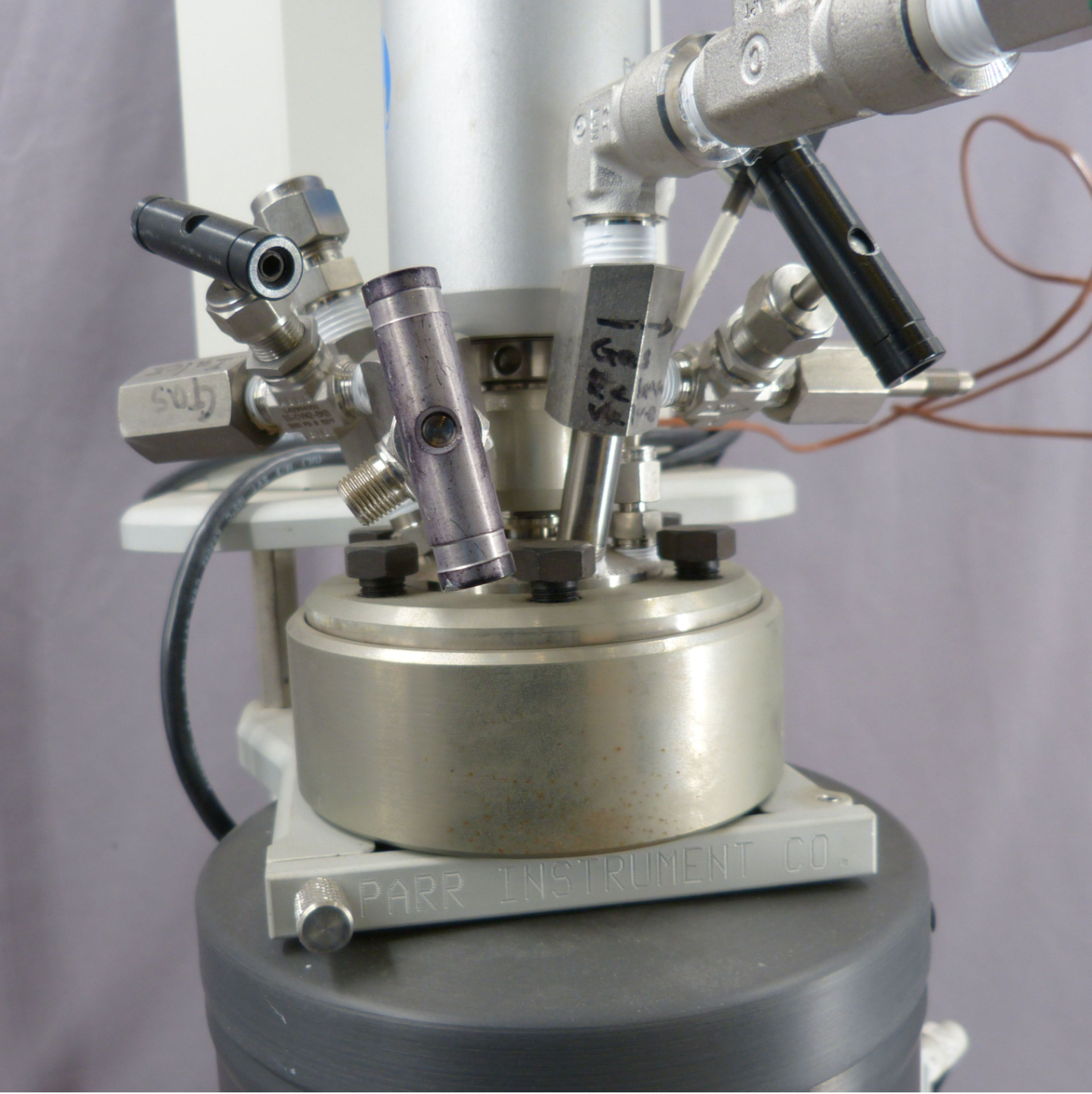

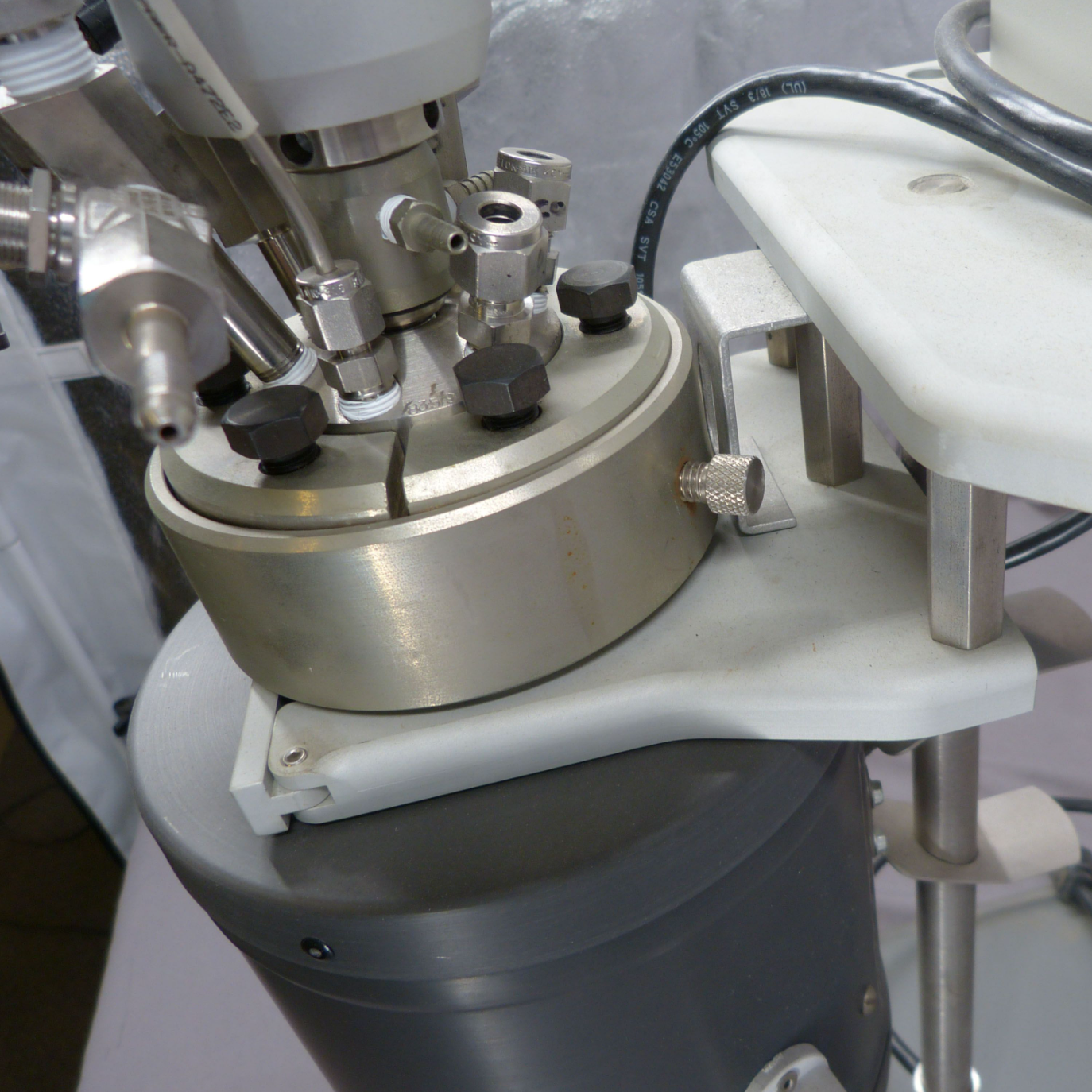

Closure Split-Ring (6 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring)

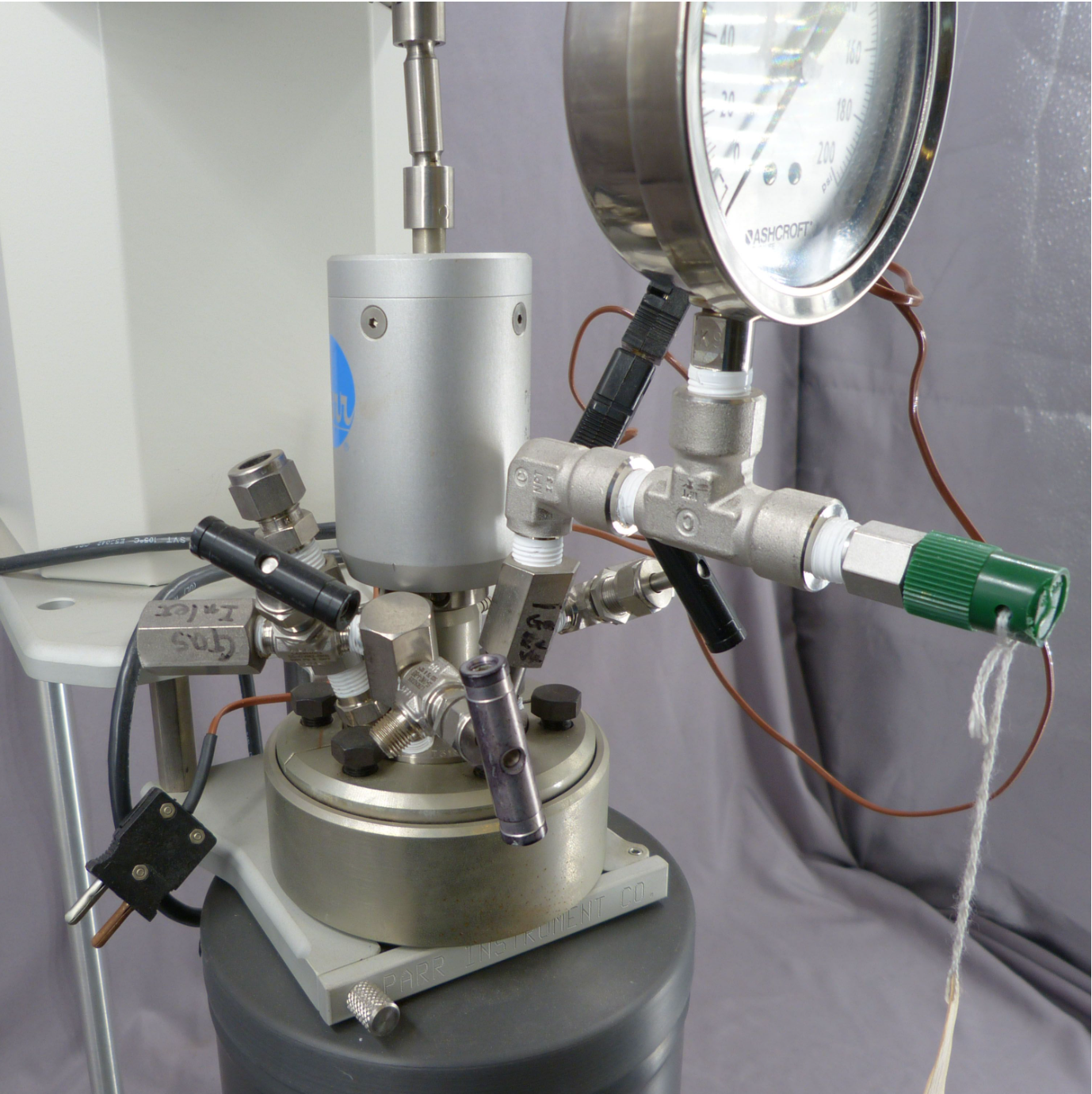

Valve Connections 1/8" NPT Male

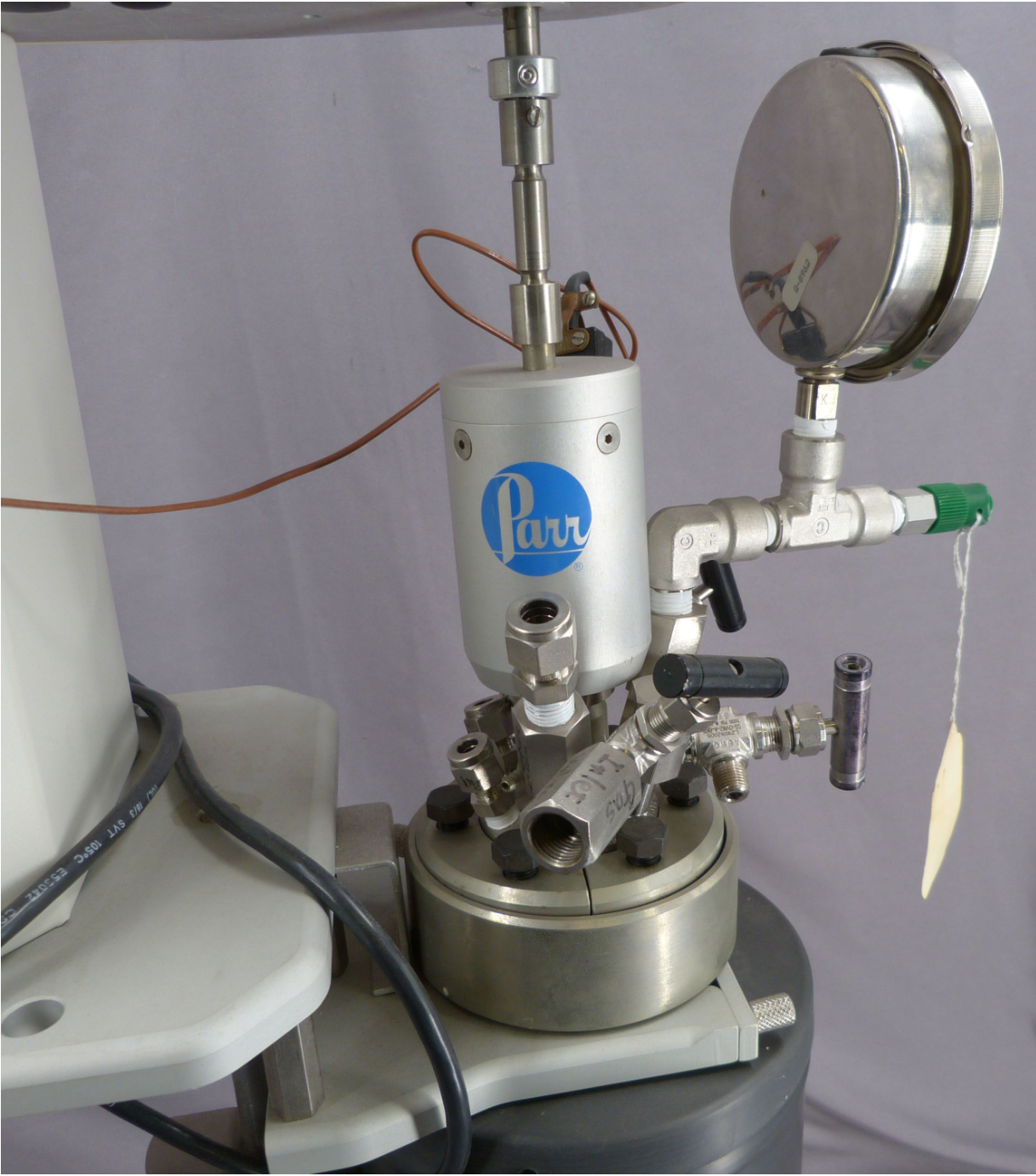

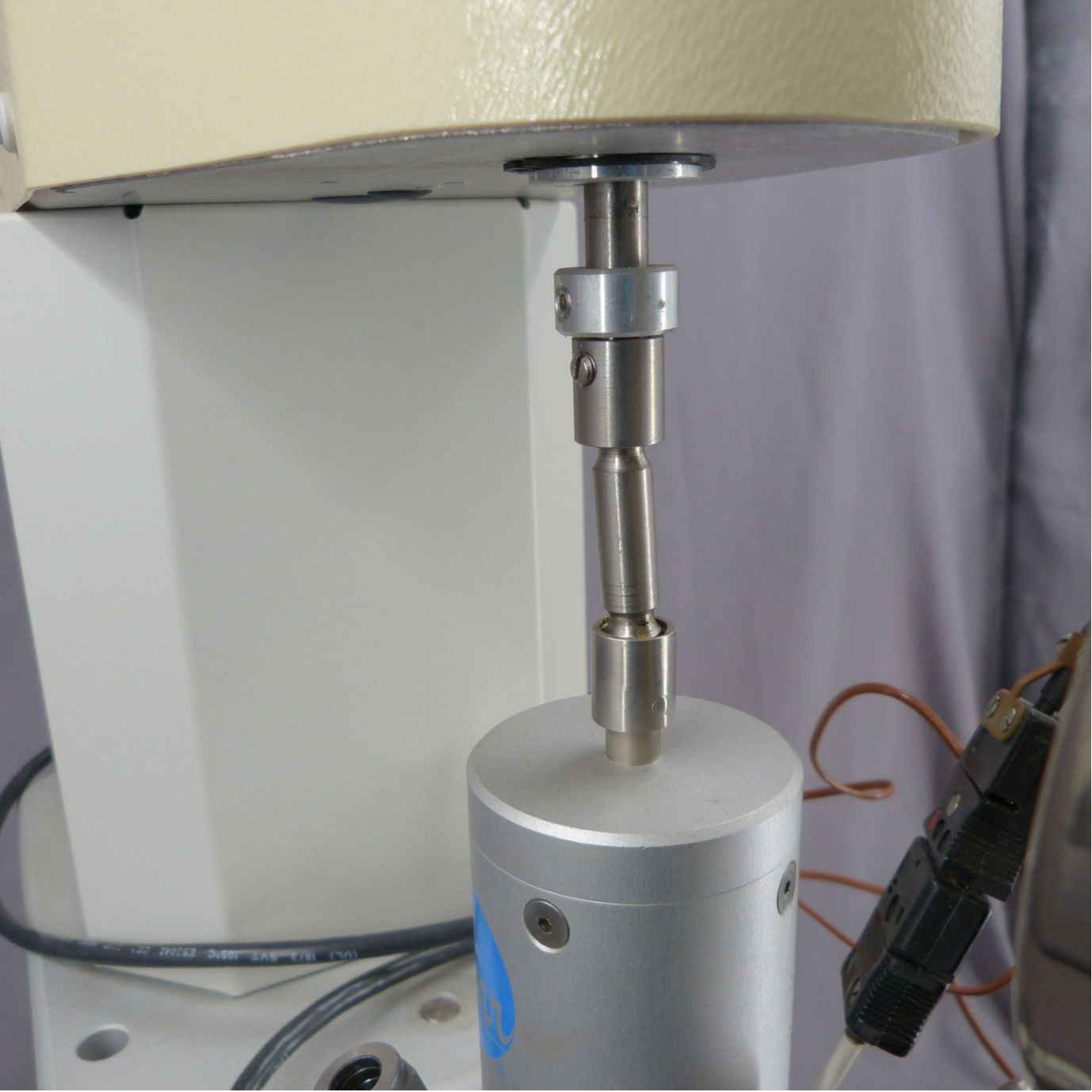

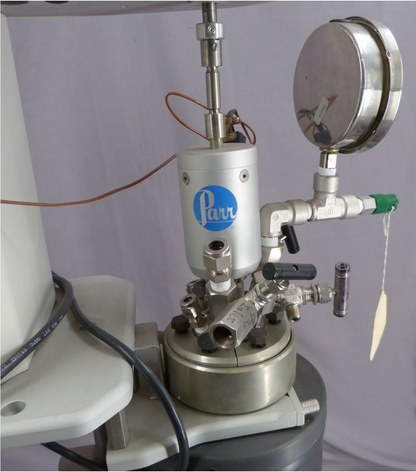

Magnetic Stirrer, Model No. A1120HC6
Maximum Torque 16 Inch-Pounds
Impeller(s), 4-Blade, 1.38" dia.
Stirrer Motor 1/8 hp variable speed

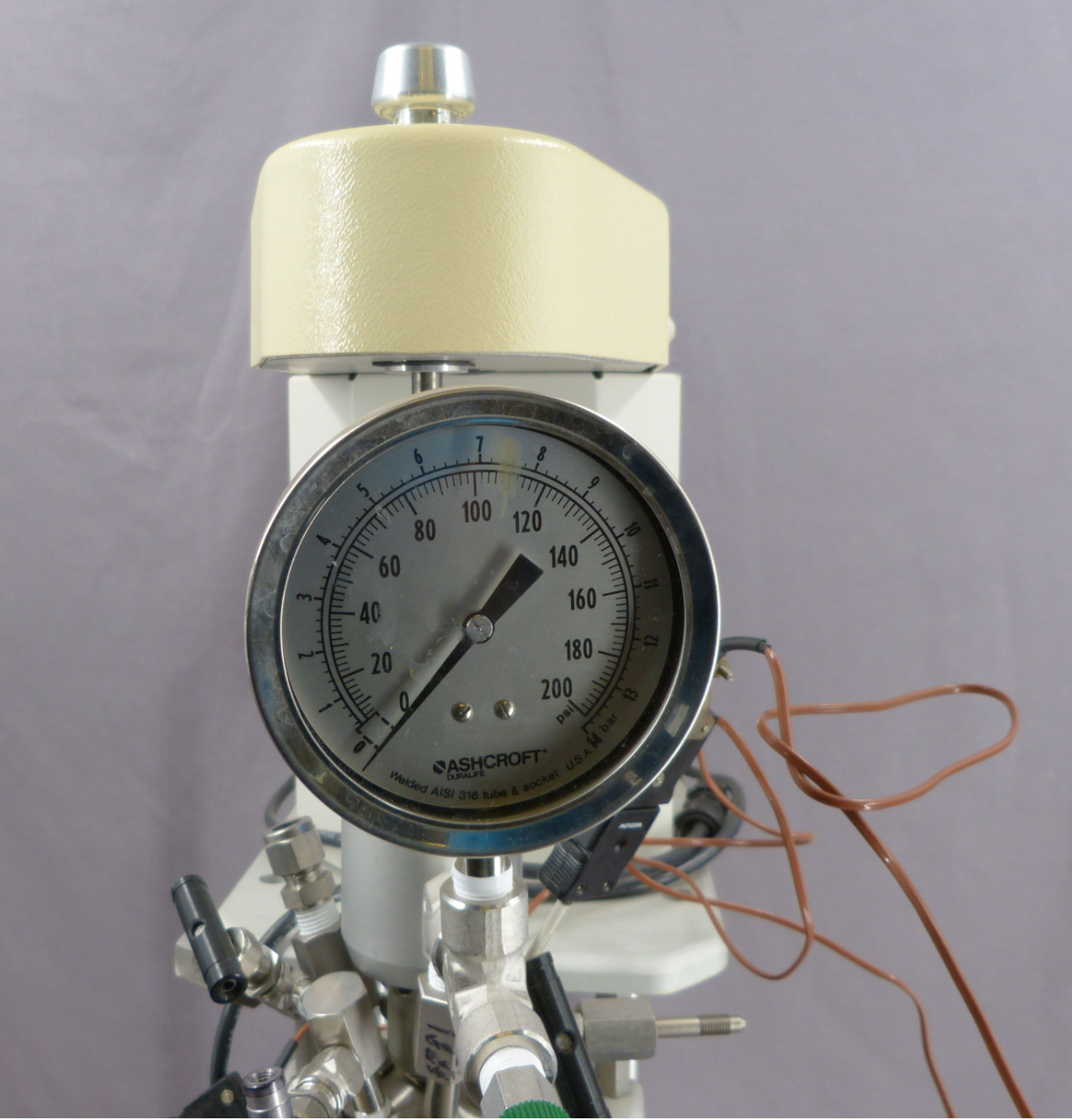

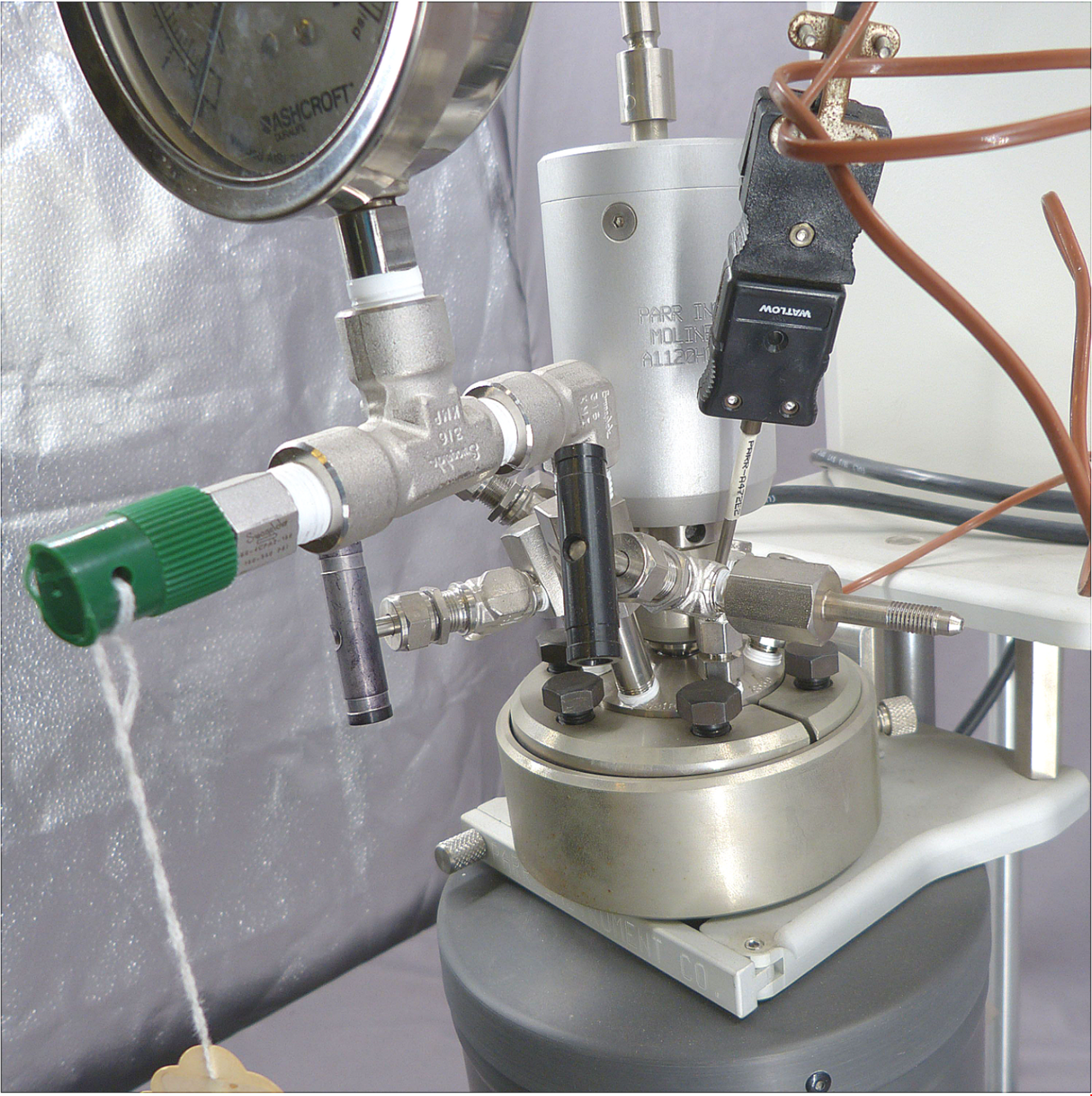

Pressure Gage, Size 3.5 inches
Range, Standard Temperature 0-3000 psi (207 bar)
Range, High Temperature 0-2000 psi (138 bar)

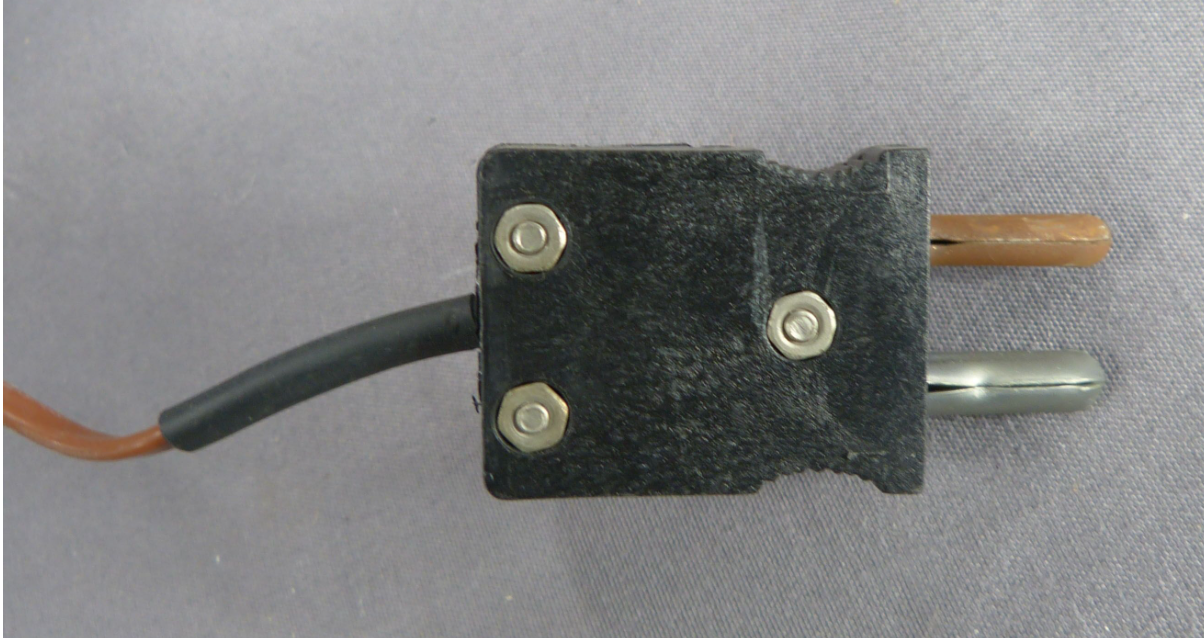

Temperature Measurement Fixed Thermocouple (Thermowell for special alloys)
Cooling Coil Included
Style Single Loop (Optional Serpentine Style)
Bottom Drain Valve, optional 1/4" NPT

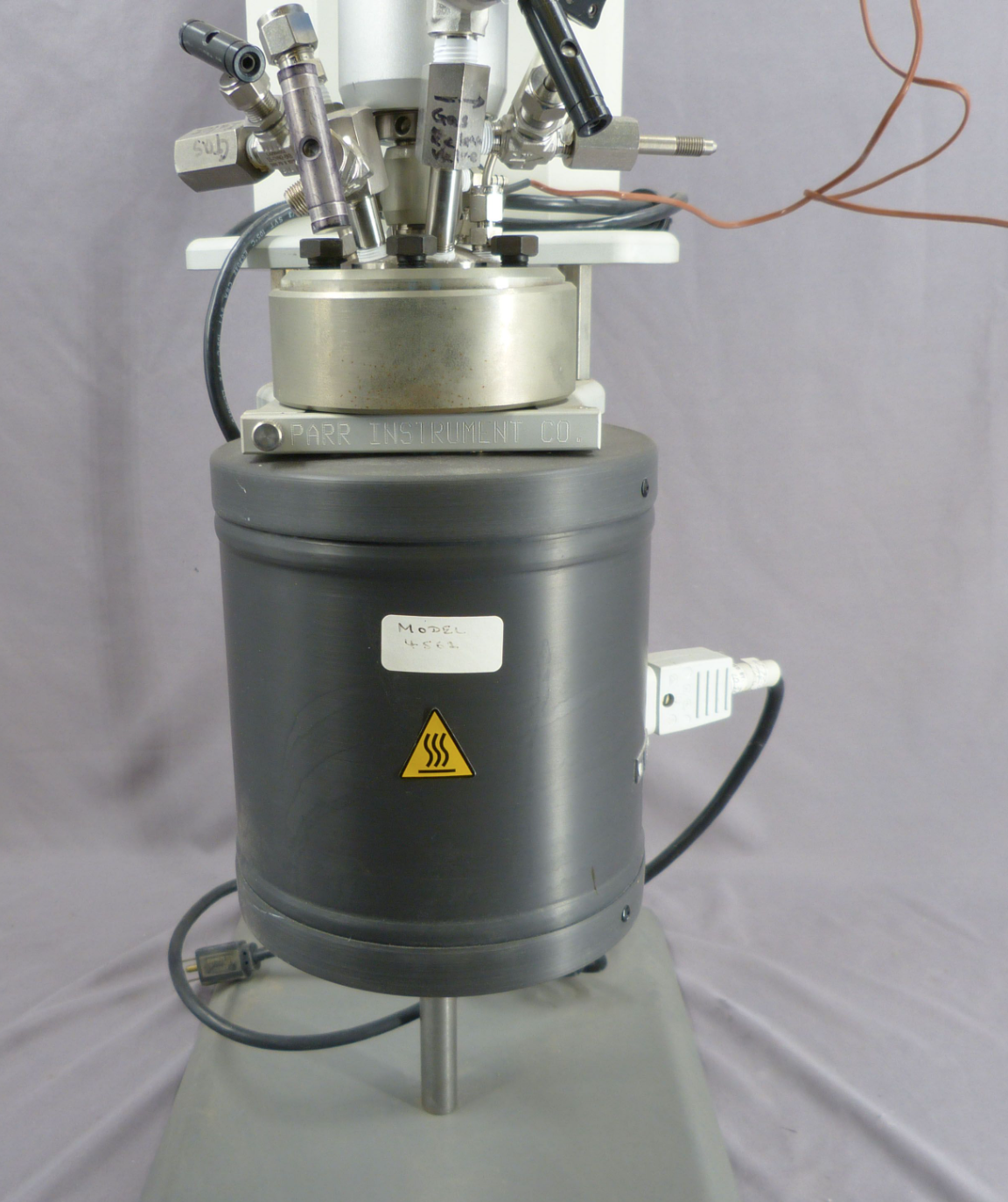

Heater Style: Mantle
Heater Power: Watts 590
Electrical Supply
Volts, AC 115 / 230
Maximum Load: 115 / 230
Amps: 10 / 5
Cylinder Dimensions
I.D x Depth, inches 2.5 x 6.0
Vessel Assembly Weight, 21 Lbs
Weight of Cylinder, pounds 4.9
Reactor Dimensions
Width x Depth w/o Controller, inches 12 x 18
Height, 32" inches
Weight, 63 Lbs
Spare Parts Kit 4569M
STOCK # 220607
