PANORAMA dtv VPOD-6.8 AVM-FLEX Series AUDIO VIDEO MONITOR & CABLES FREE SHIPPING

Description

FEEL FREE TO CHECK MANUFACTURER's TECHNICAL DATA ON THIS UNIT BY GOOGLING THE FOLLOWING LINK: //a2dcorp.us/pdf/wohler/AVMFLEX5W-SA.pdf

VPOD LCD Video Display Specifications

Screen Size (diagonal inches): 6.8"

Active Area (H x V, mm): 138.2 x 103.4

LCD Aspect Ratio: 4:3

Resolution (dots x lines): 1152 x 234

Dot Pitch (mm): 0.120 x 0.442

Contrast Ratio: 150 : 1

Brightness (NITs): 300

Viewing Angle (top/bottom/left/right): 10/30/45/45

Weight (VPOD module w/mount): 1.3 lbs.

Power Consumption (Watts, VPOD): 8W

Height x Width x Depth (inches): 5.18 x 7.5 x 1.22

The AVMFlex-SA Series of audio/video monitors provides the capability to monitor CVBS (composite analog) or SDI (serial digital interface) video on an LCD display with full-fidelity stereo audio monitoring in a single rack space (1U).

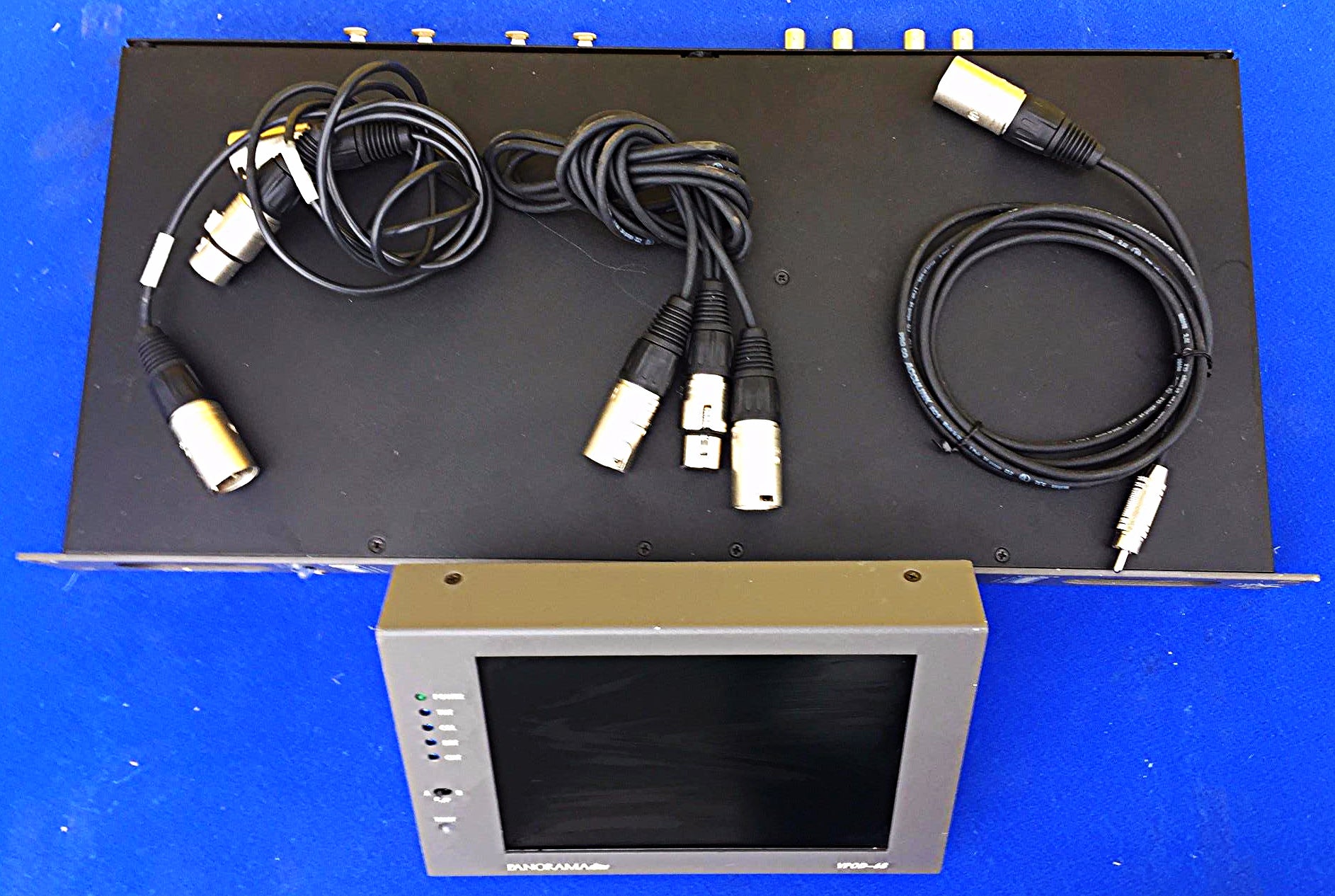

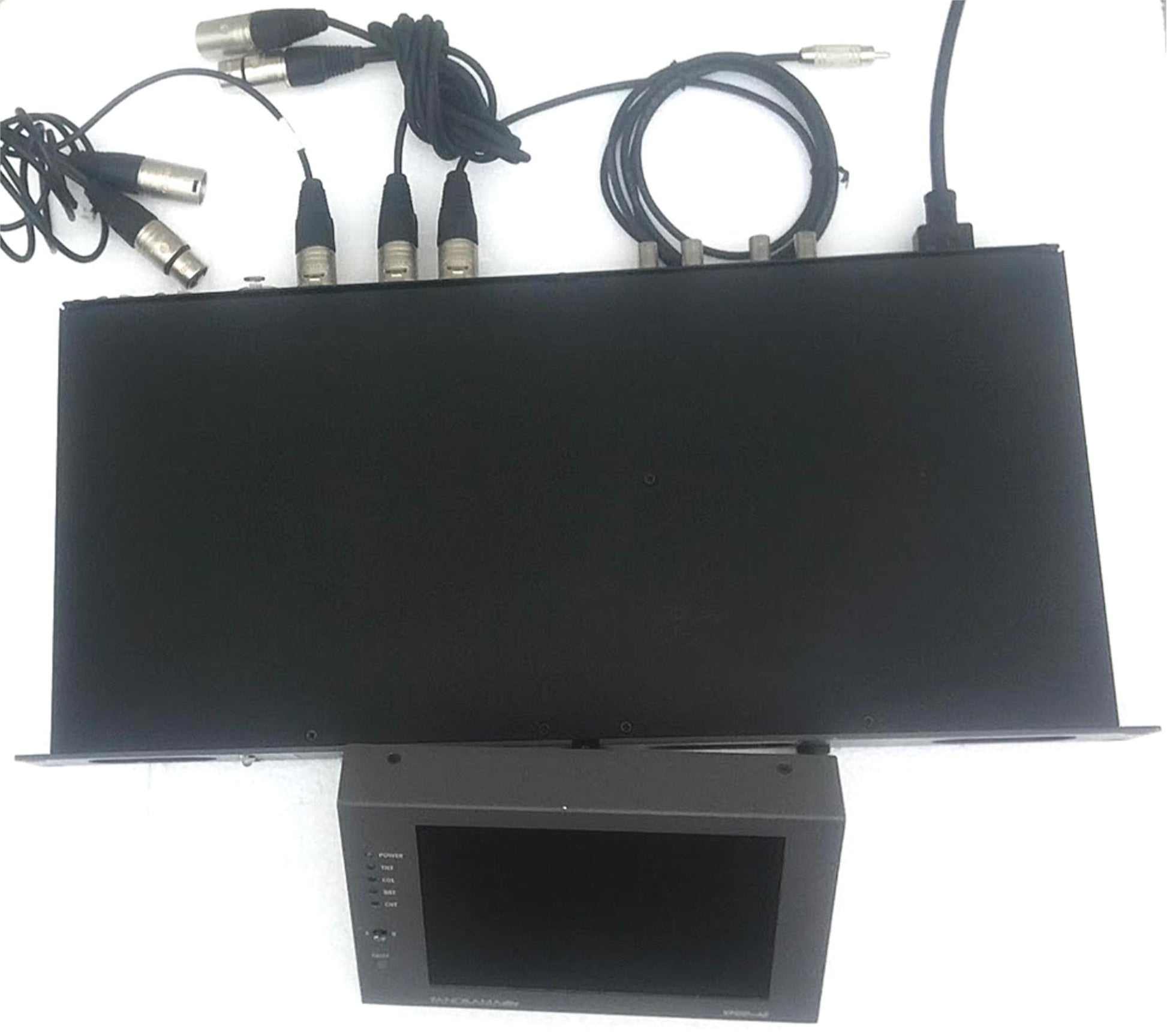

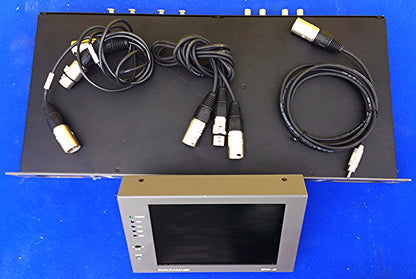

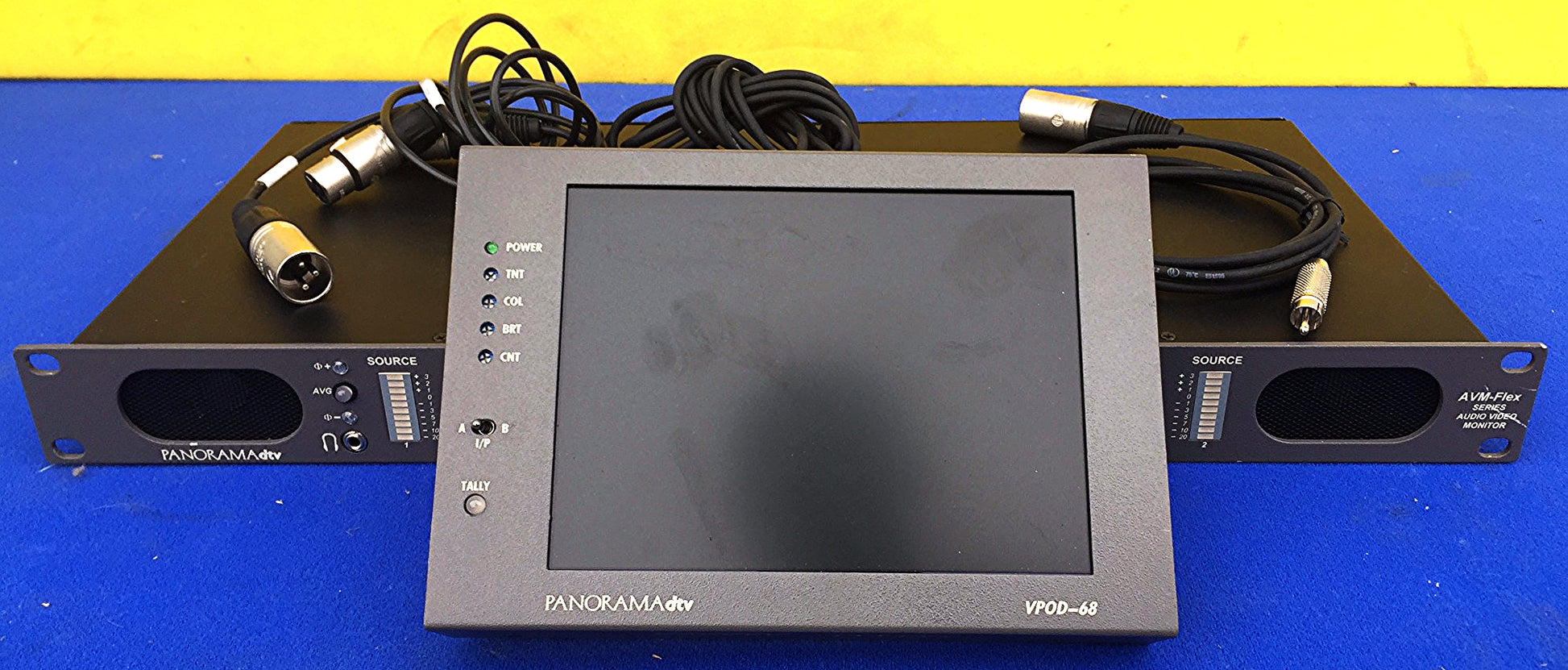

The AVMFlex-SA Series models feature a VPOD LCD video display module mounted to the front panel via a flexible gooseneck allowing for extensive control of the viewing angle.

All models in the AVMFlex-SA Series contain four high performance speakers driven by three power amplifiers: two amplifier/driver combinations handle midrange and high frequency information in stereo, while the third center channel reproduces information below the 500 Hz crossover point.

Output limiter circuits are incorporated to protect the speakers.

The VPOD LCD Video Display is available in 4", 5.6", 5.8" (16:9), 6.8", and 7" (16:9) LCD sizes and features controls for color, tint/hue (NTSC only), contrast, and brightness.

The display also has a power LED of its own and a bi-color (red/green) tally indication LED.

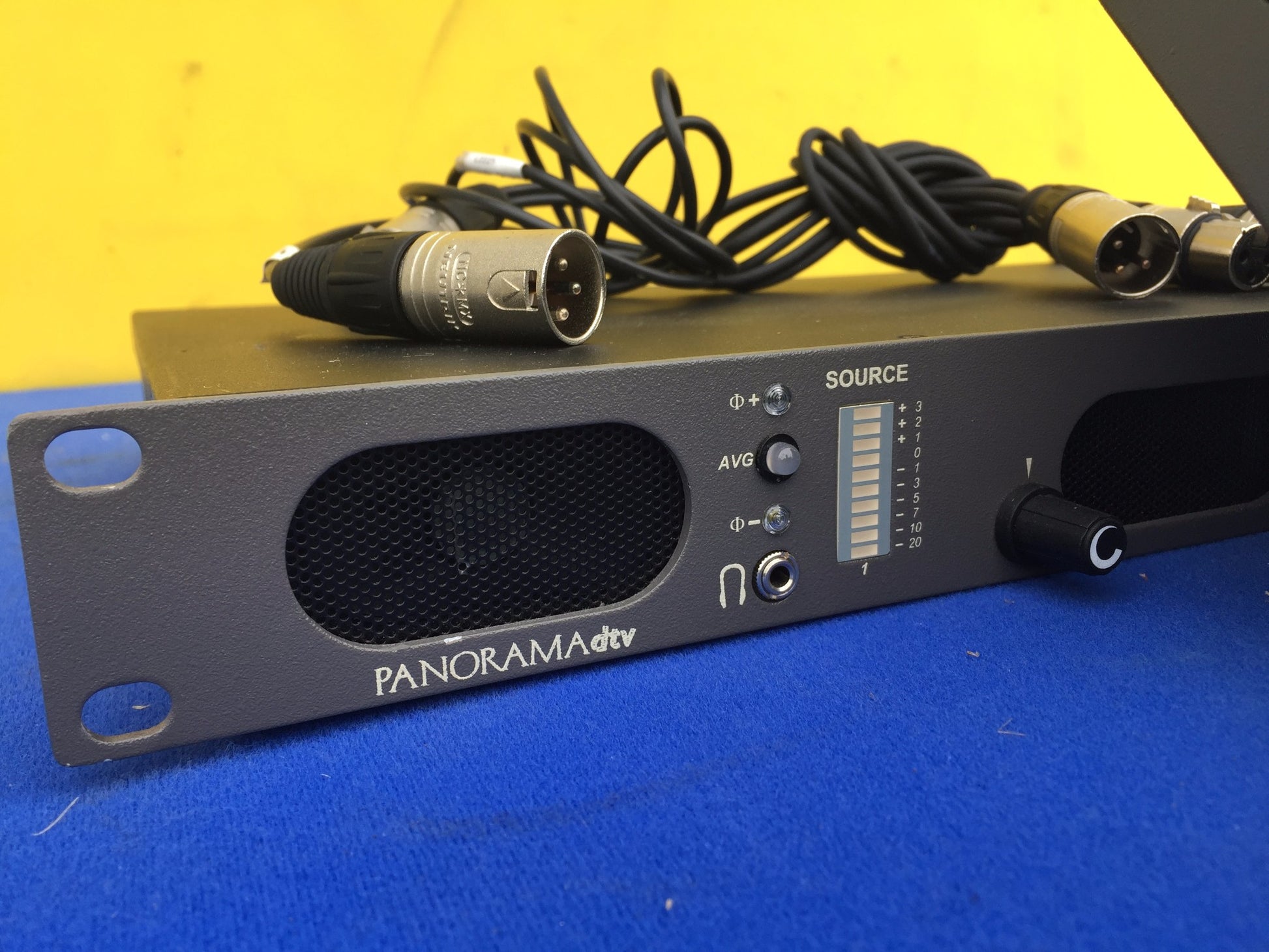

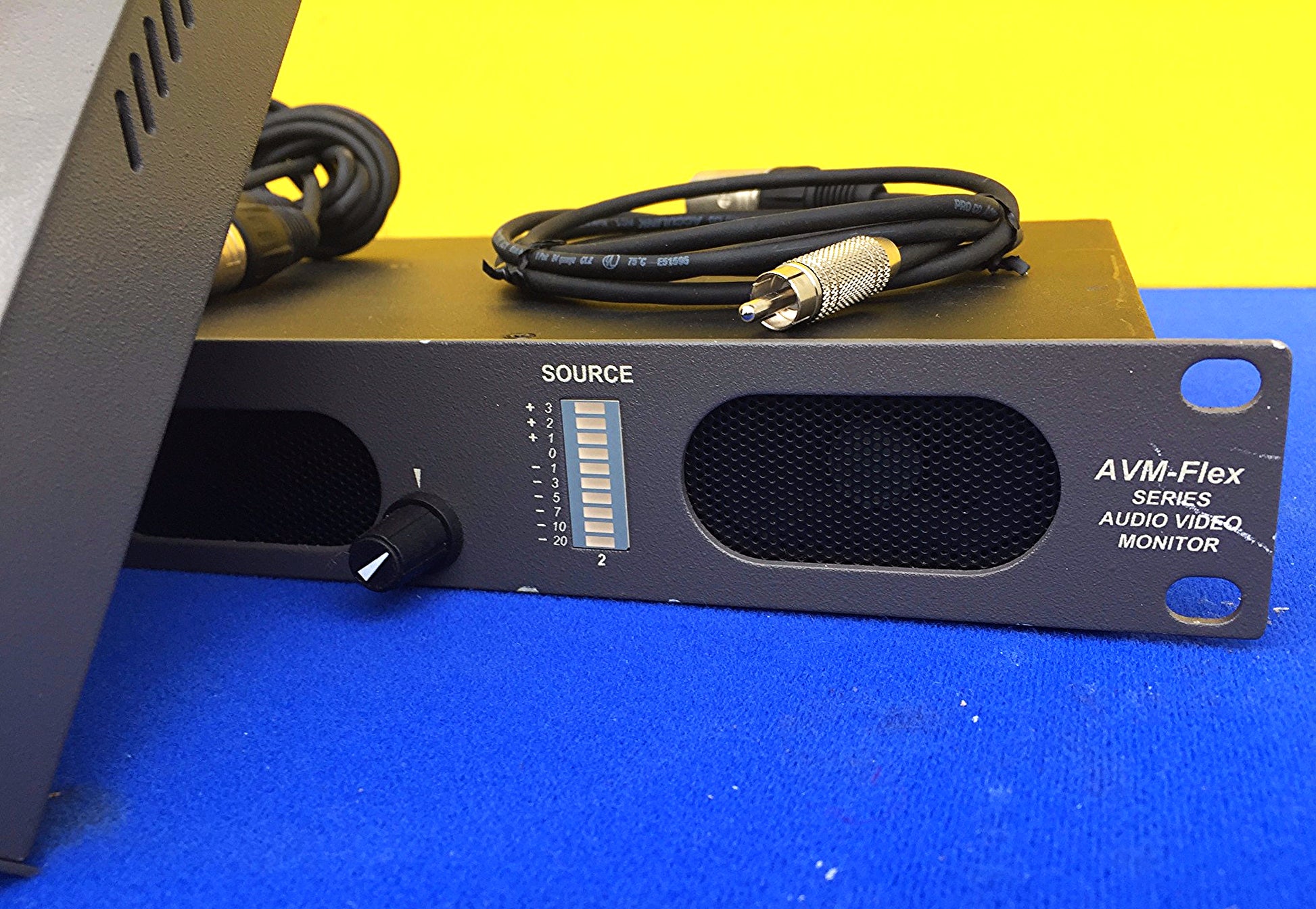

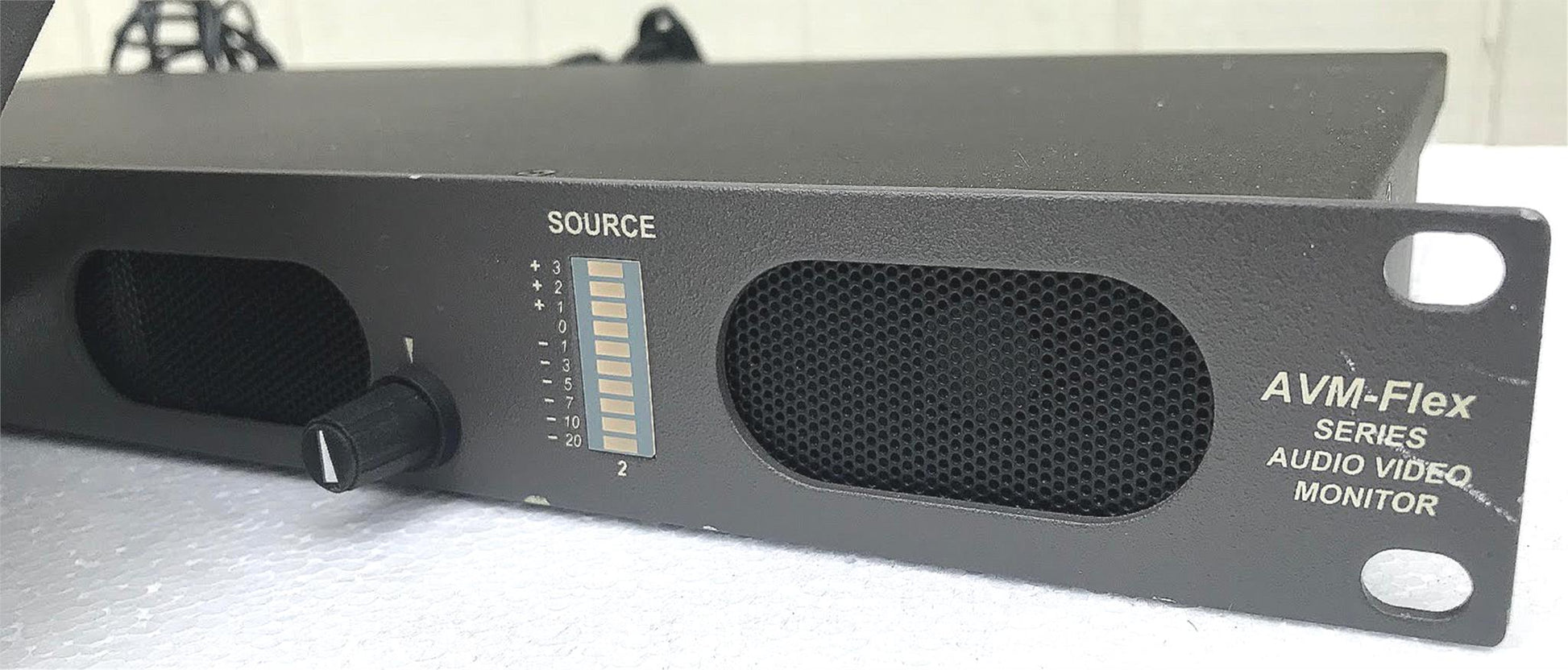

All AVMFlex-SA Series models come equipped with two 10-segment tri-color (red/amber/green) LED bargraph display level meters, separate volume and balance controls, a power indication LED, headphone output, and an SDI lock status LED display, which visually shows the lock status of SDI signals selected for monitoring.

Extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.

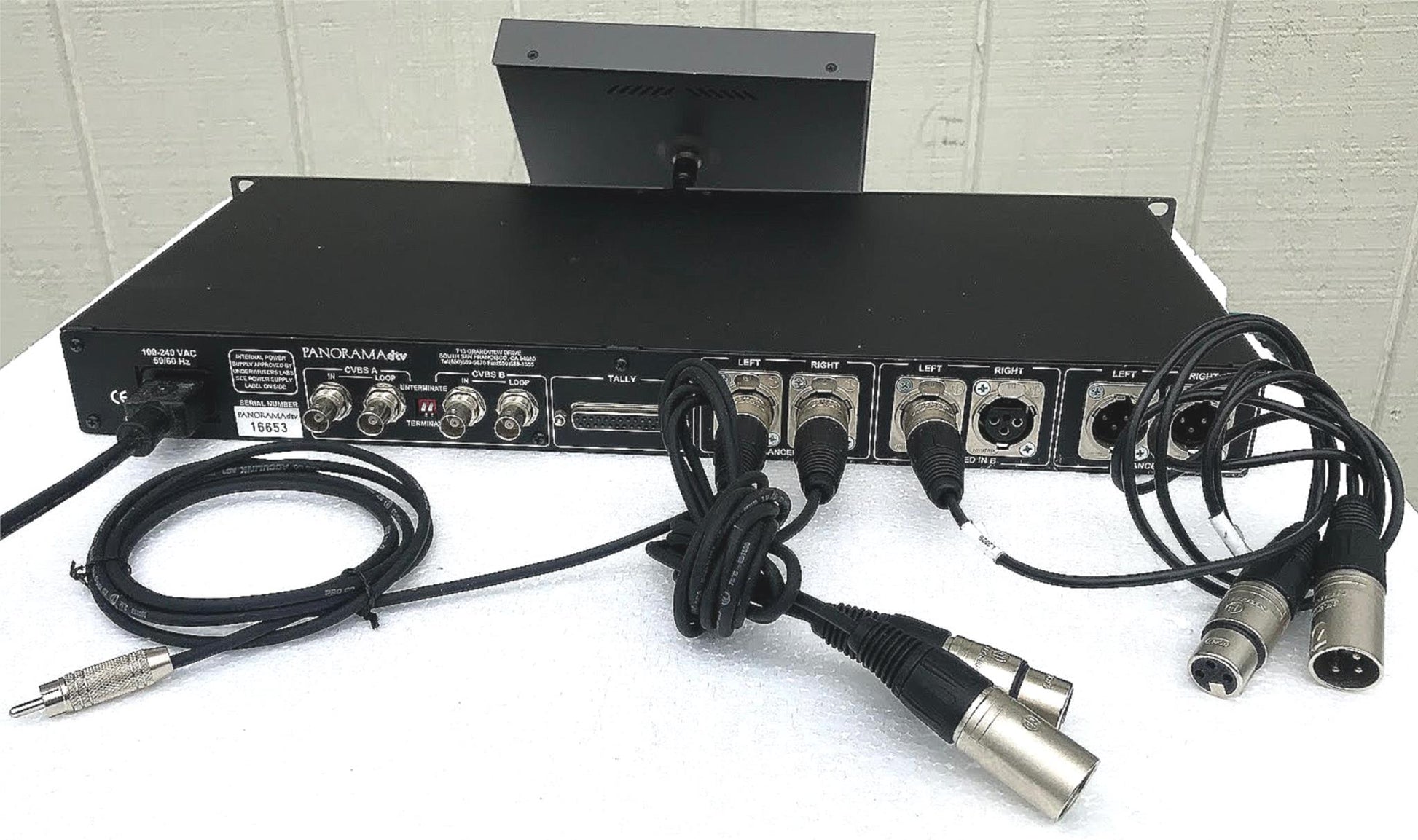

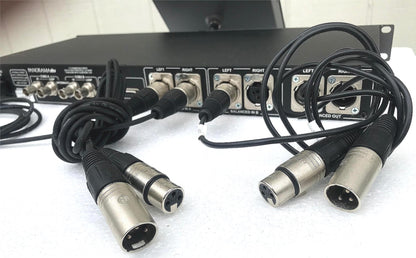

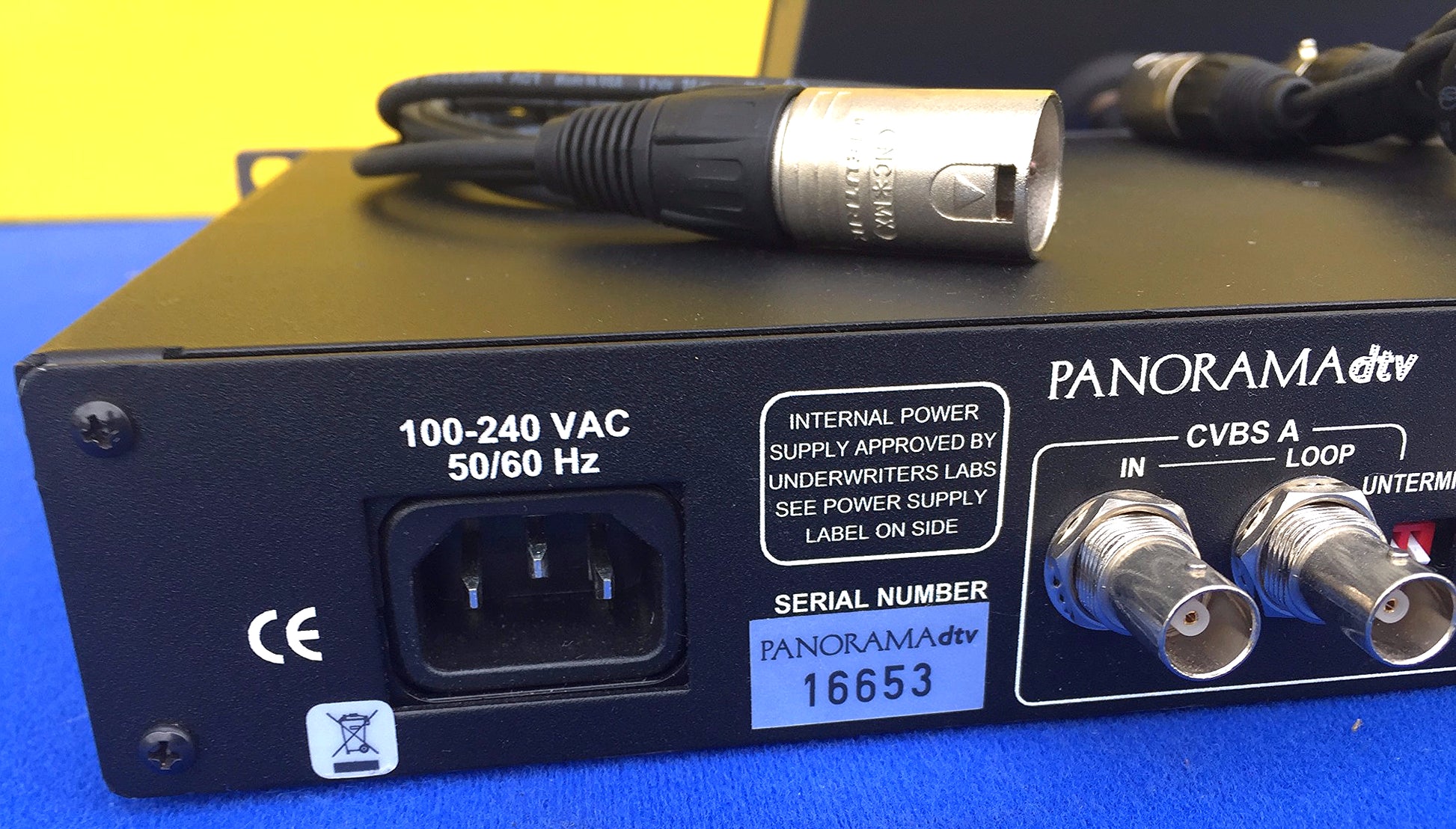

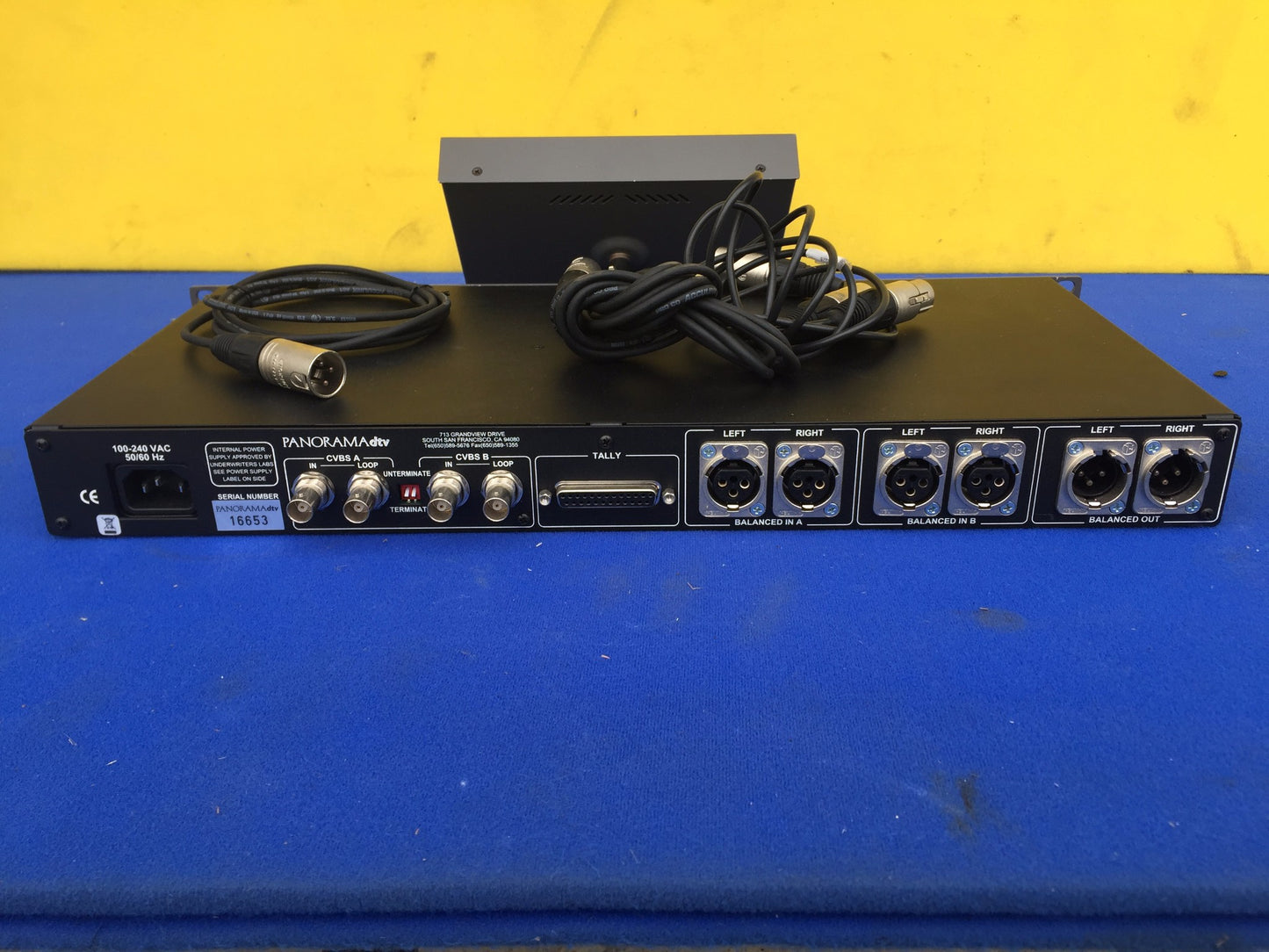

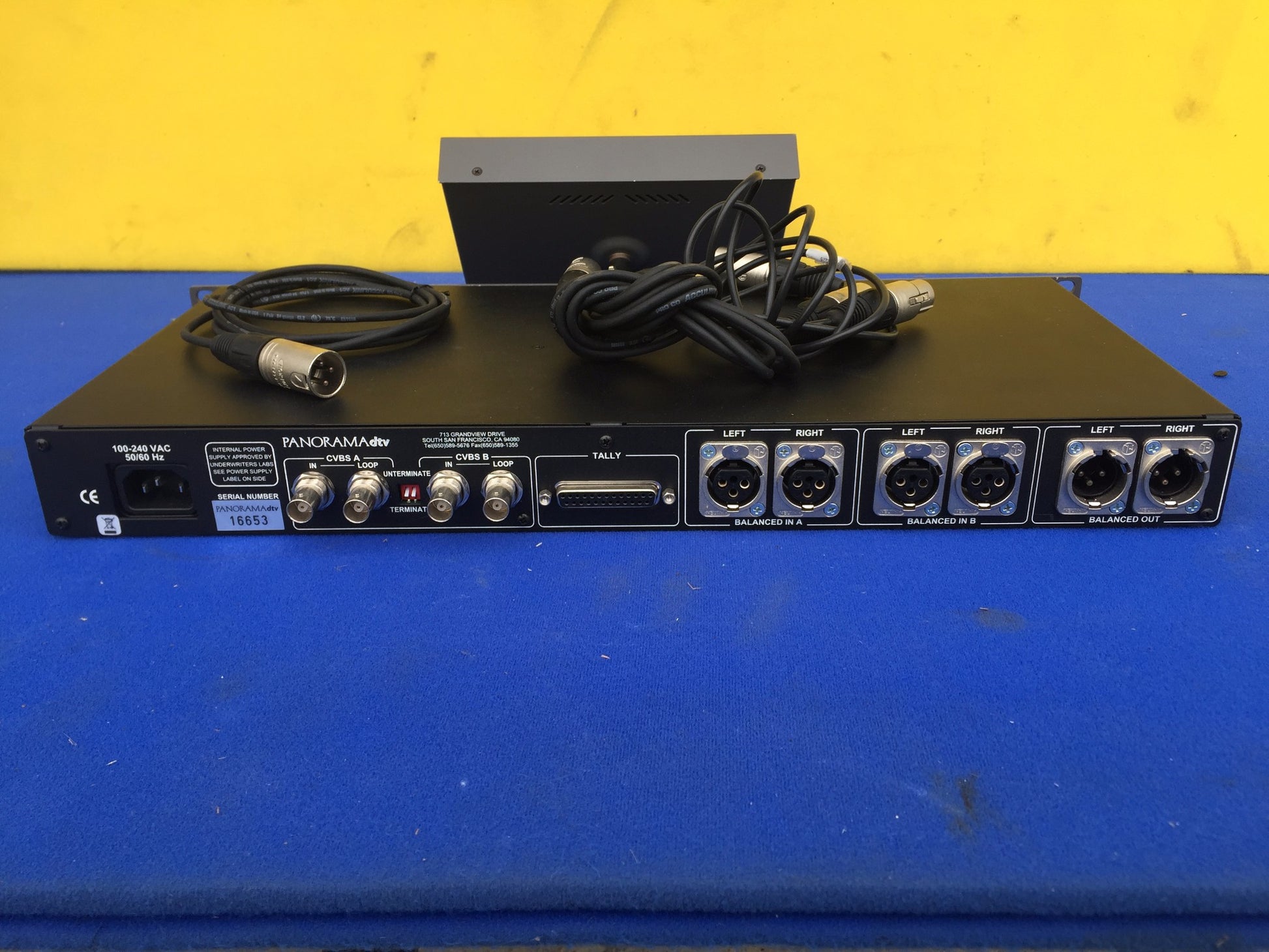

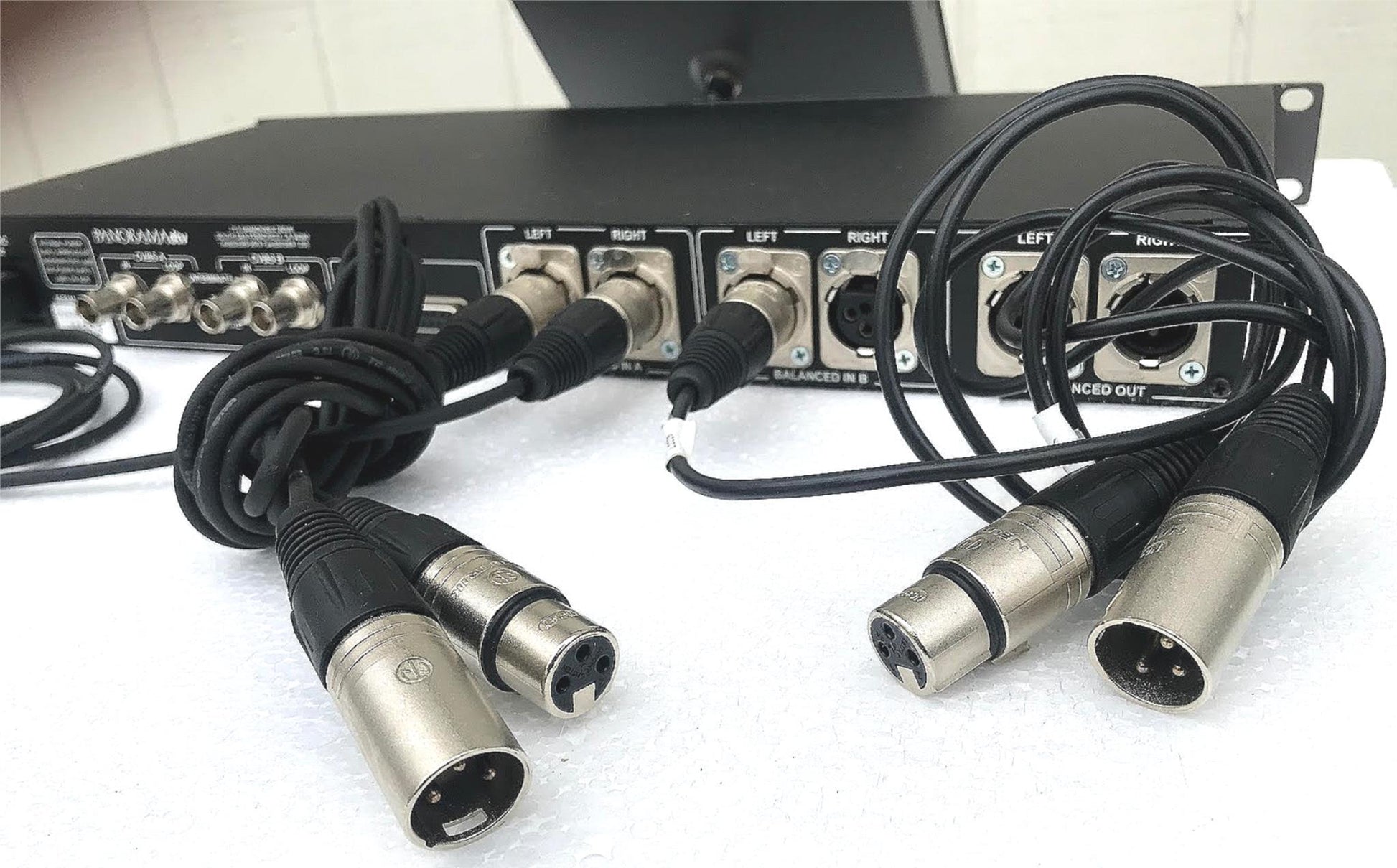

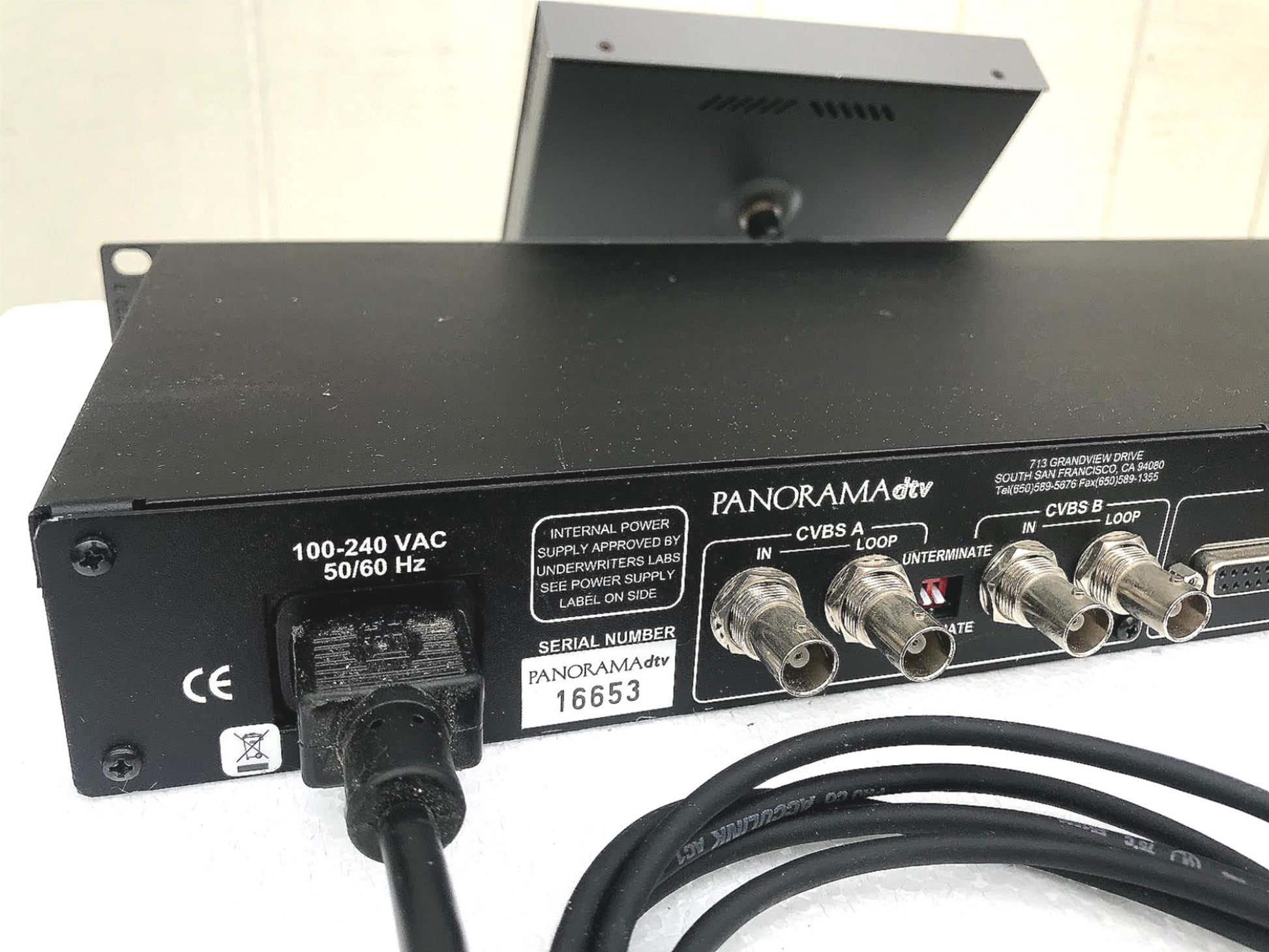

The AVMFlex-SA Series rear panel is configured with one CVBS video input with loop-through output on BNC connectors, one SDI video input and re-clocked output on BNC connectors, one CVBS video output de-embedded from the SDI input on a BNC connector, two balanced (stereo) analog audio inputs on XLR connectors, two balanced analog audio outputs de-embedded from the SDI audio input on XLR connectors, and two analog outputs of the selected audio source on two male XLR connectors.

The audio and video inputs are relayed so that selecting either the CVBS or SDI video source on the VPOD video display module will also select the associated CVBS or SDI audio source.

A DB-25 connector is also provided for tally connections.

Bi-amp sum amplification through high/mid and woofer speakers

• Relatively large LCD video display in a space-saving 1U rack size

• Choice of 4", 5.6", 5.8" (16:9), 6.8", or 7" (16:9) LCD video display sizes

• Flexible gooseneck mounting of video display allows adjustable viewing angle in all directions

• CVBS video inputs and loop-through output on BNC connectors with selectable termination

• SDI video input and re-clocked output on BNC connectors with selectable gain calibration

• SDI lock status LED

• VPOD LCD video display modules feature:

*Adjustment for color, tint/hue (NTSC only), contrast, and brightness

*Dual color (red/green) talley indication LED *Power indication LED

• NTSC/PAL format auto-sensing

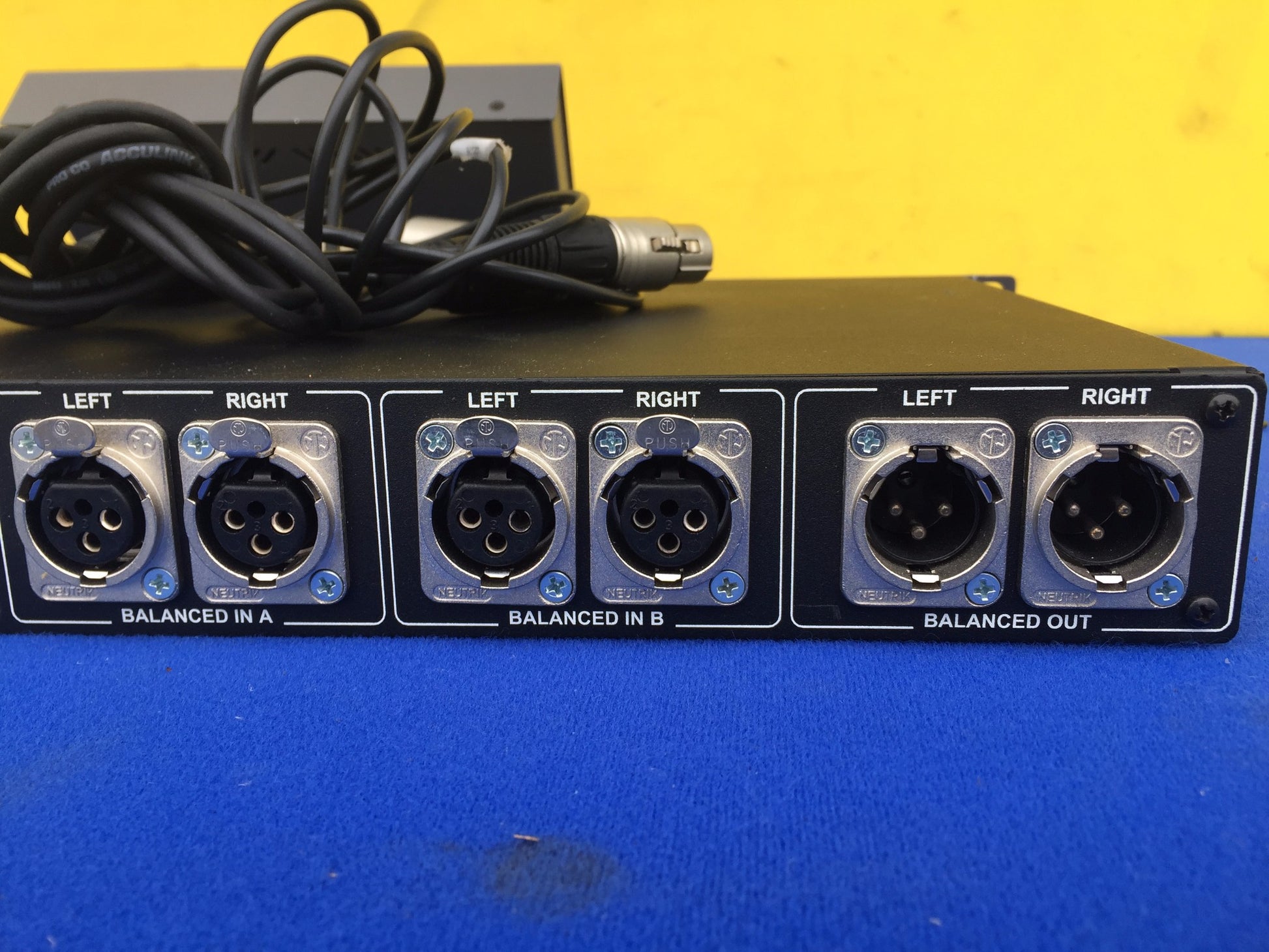

• Two analog audio stereo inputs on balanced female XLR connectors

• Two analog audio outputs de-embedded from the SDI input on balanced female XLR connectors

• Two balanced analog ouputs of the selected audio source on two female XLR connectors

• Two 10-segment tri-color (green/amber/red) LED bargraph display audio level meters

• DB-25 connector on rear panel provided for tally connections

•98dBSPLattwofeet

• Excellent high frequency response for positive detection of background whine and noise

• Thorough magnetic shielding for placement next to video monitors

• Separate volume and balance controls

• Headphone output
