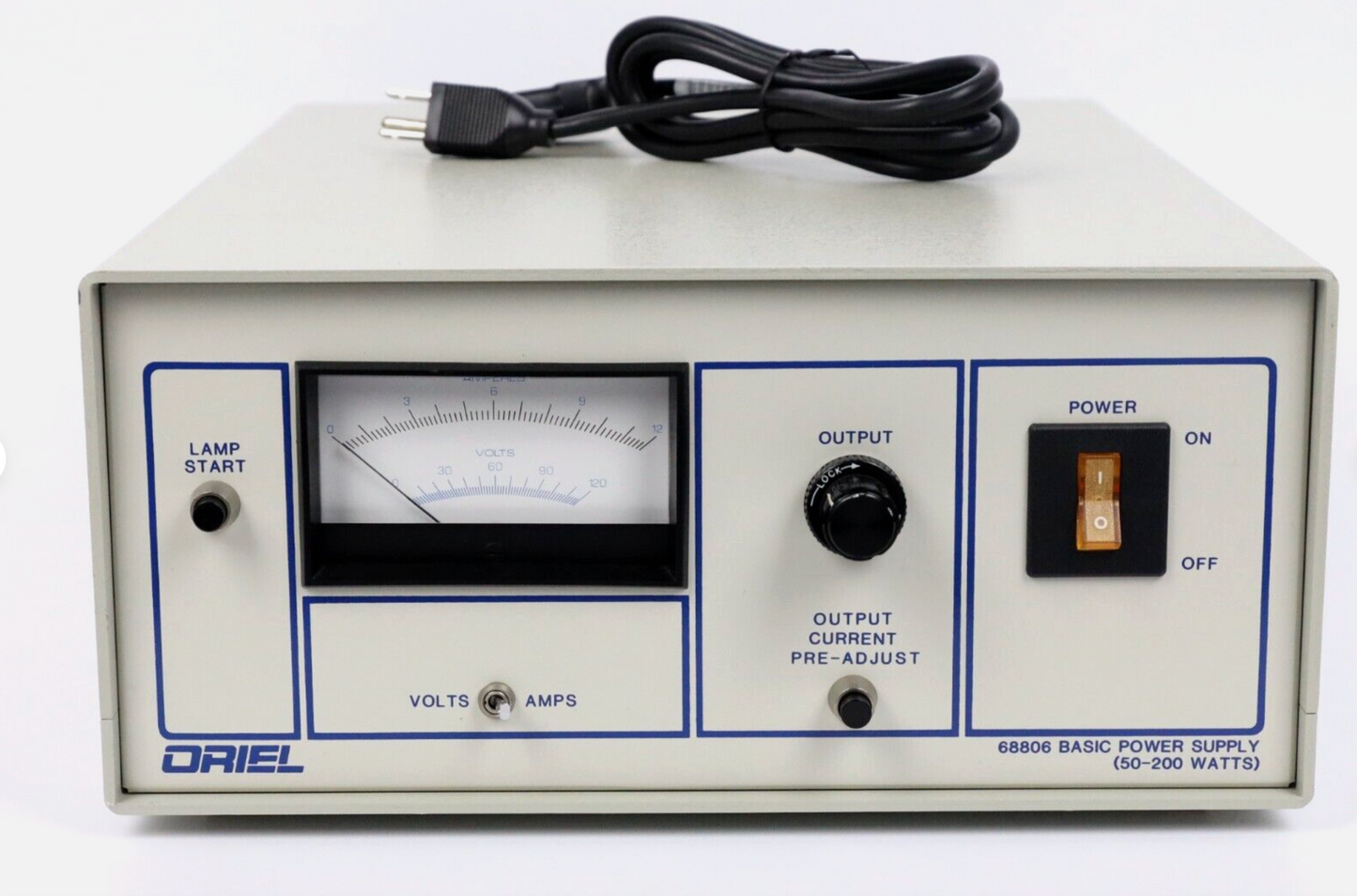

Oriel Model 68806 50-200 Watt Arc Lamp Basic Power Supply 90DAYWARRANTY FREESHIP

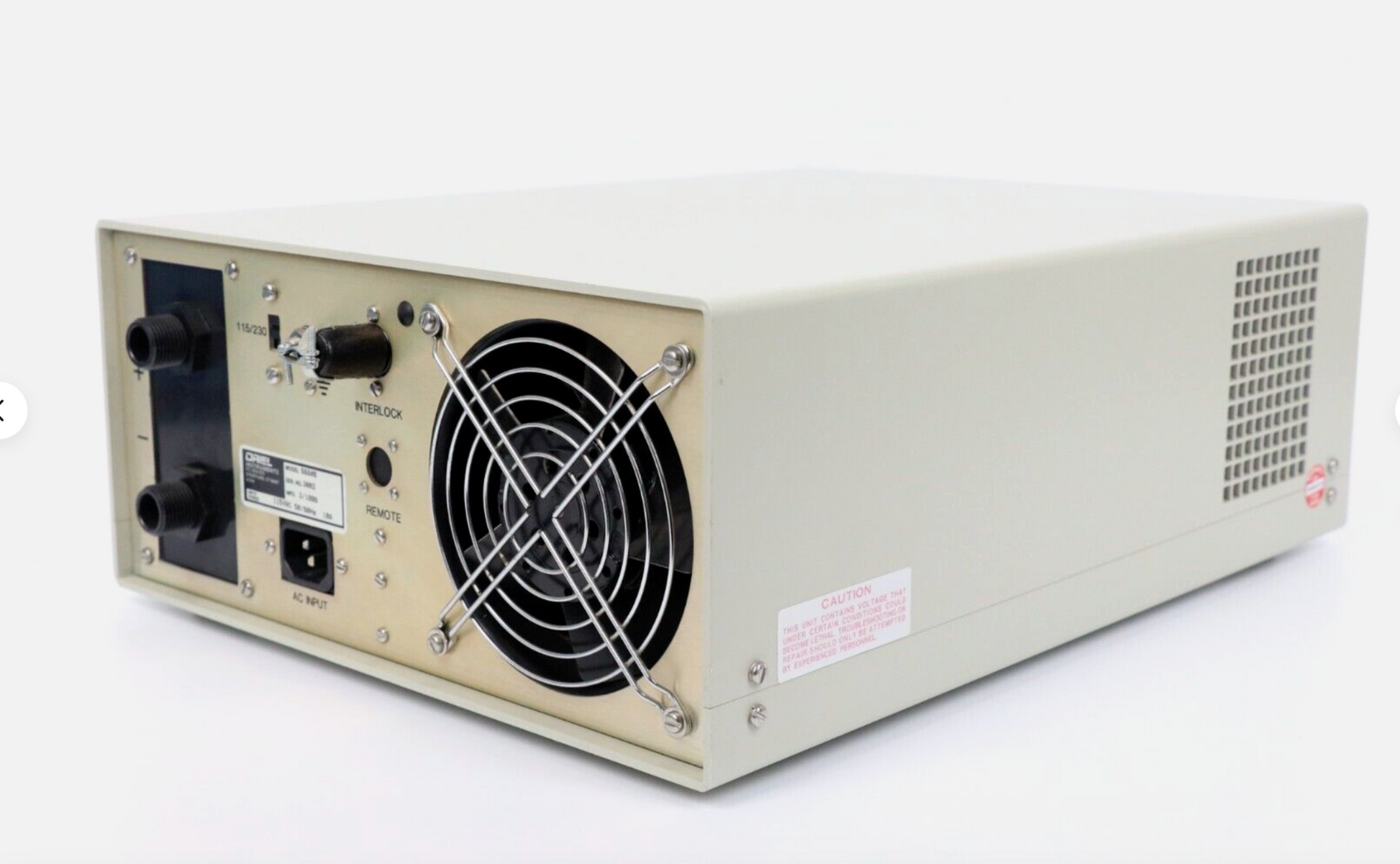

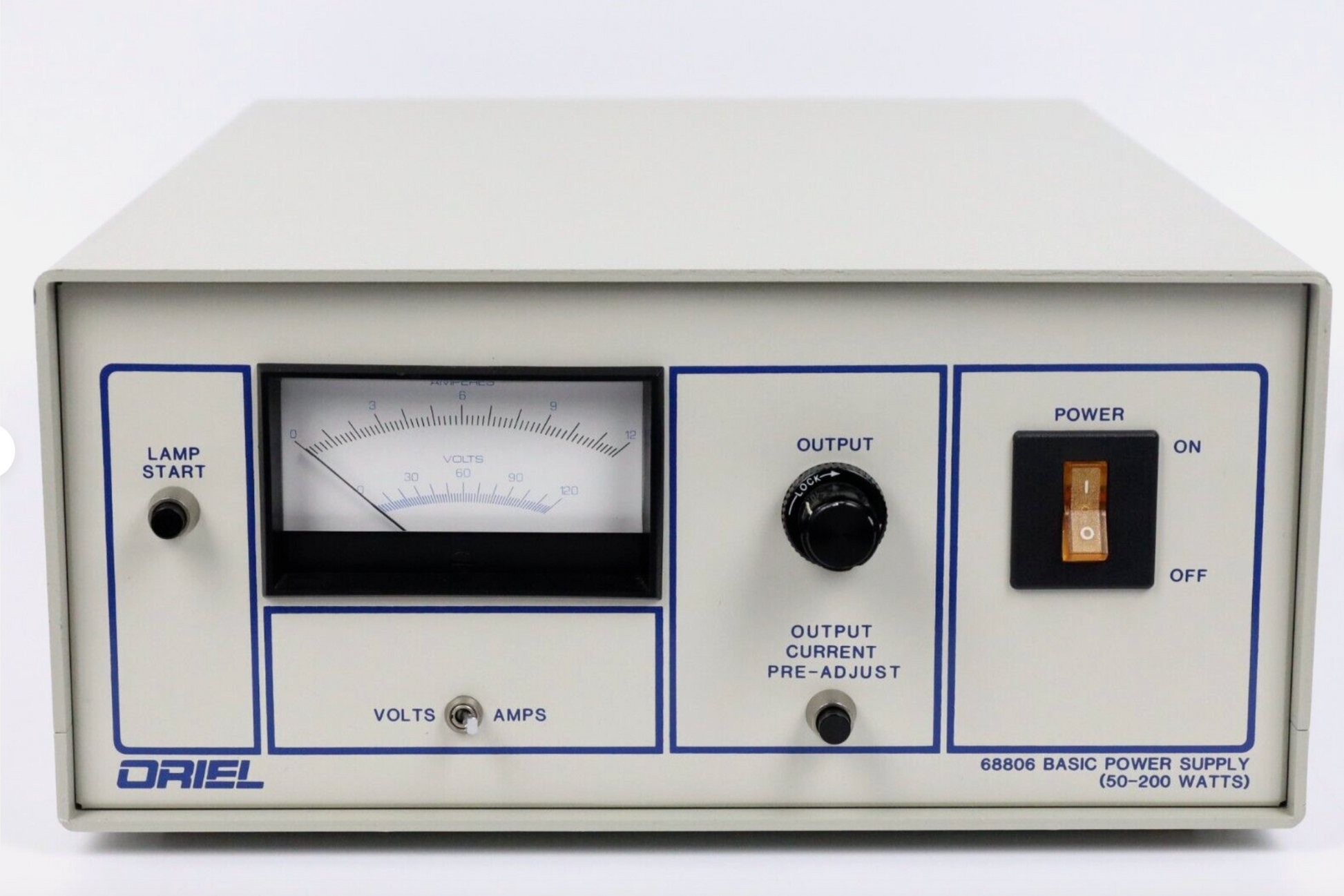

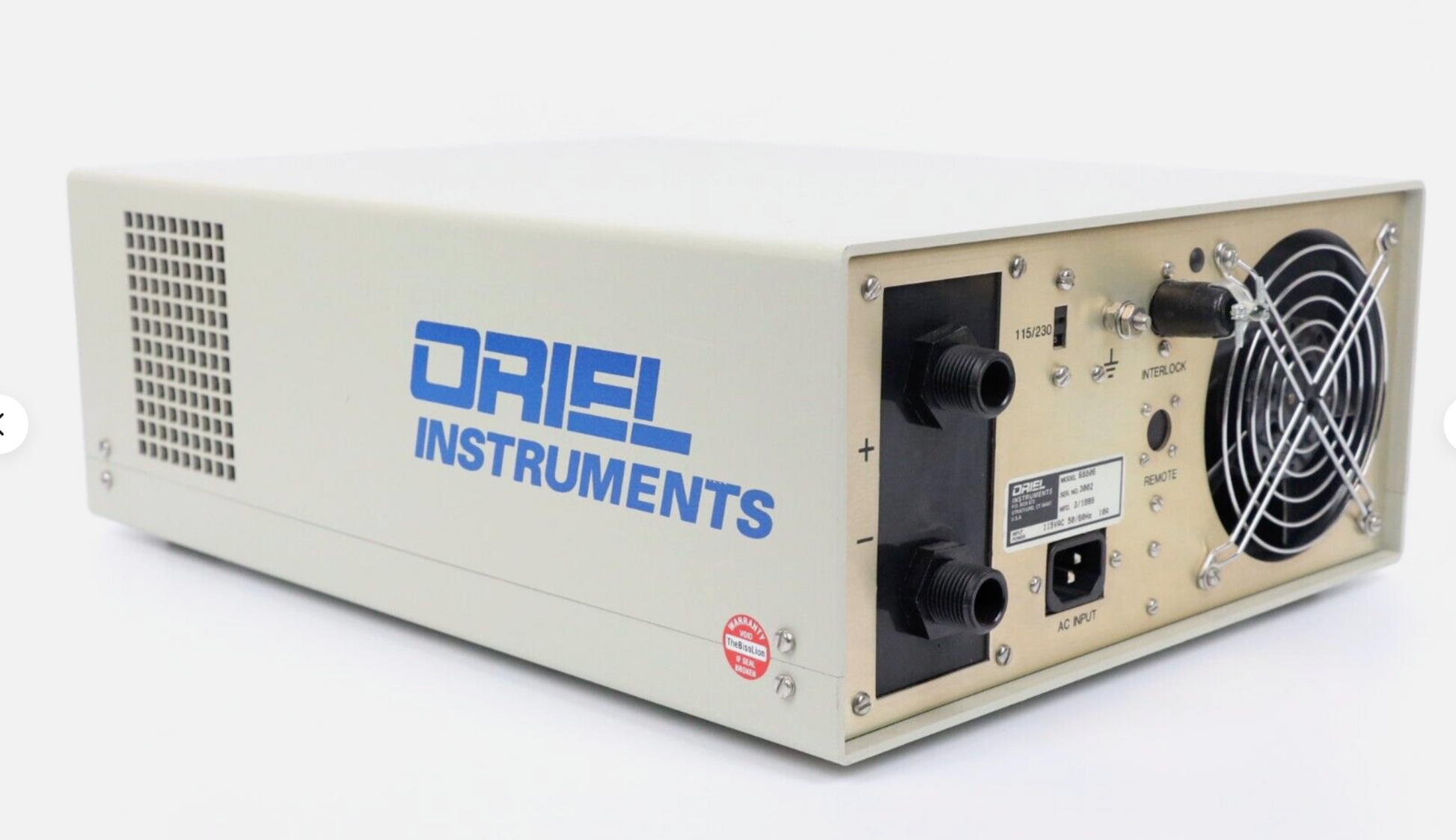

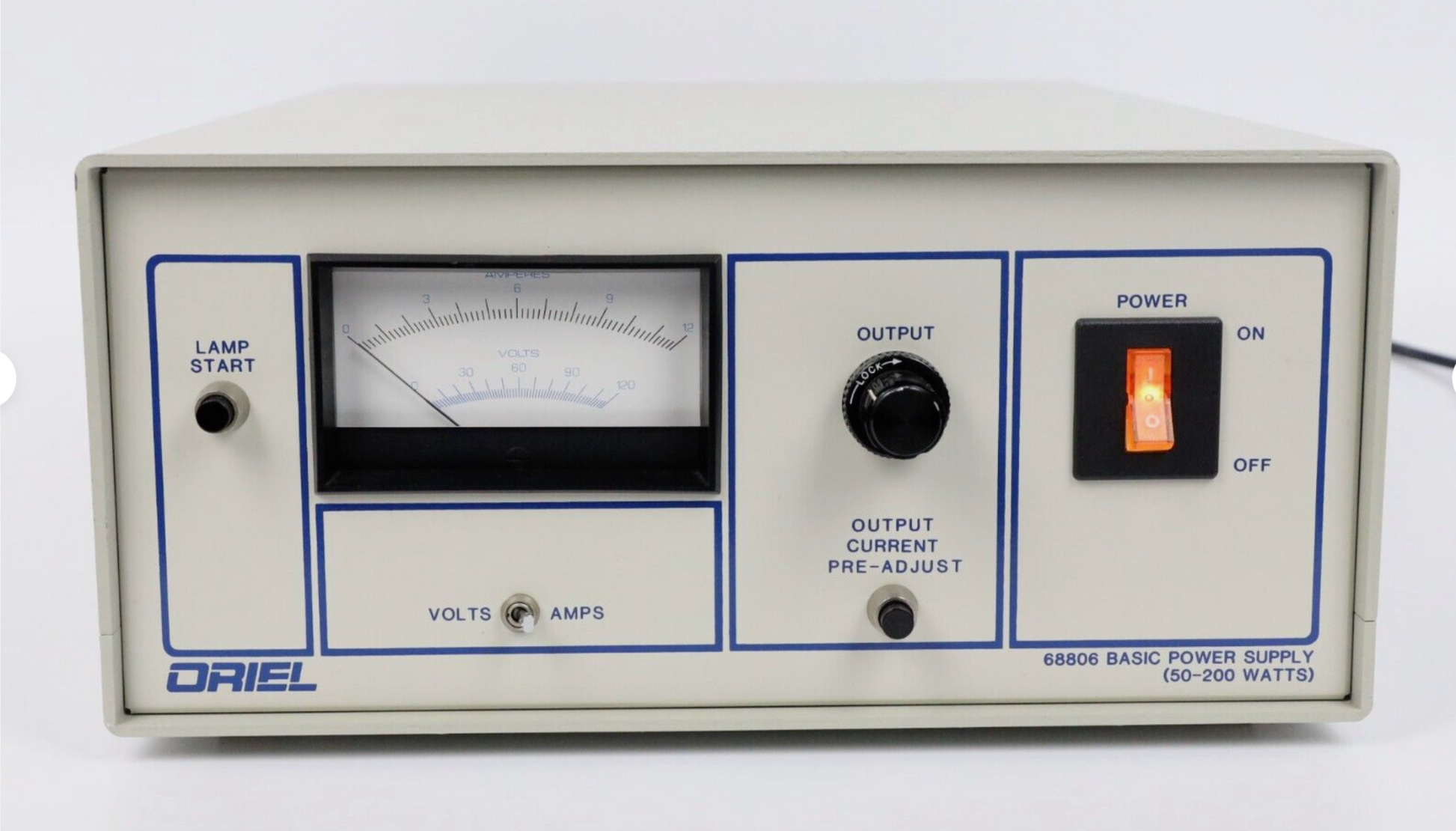

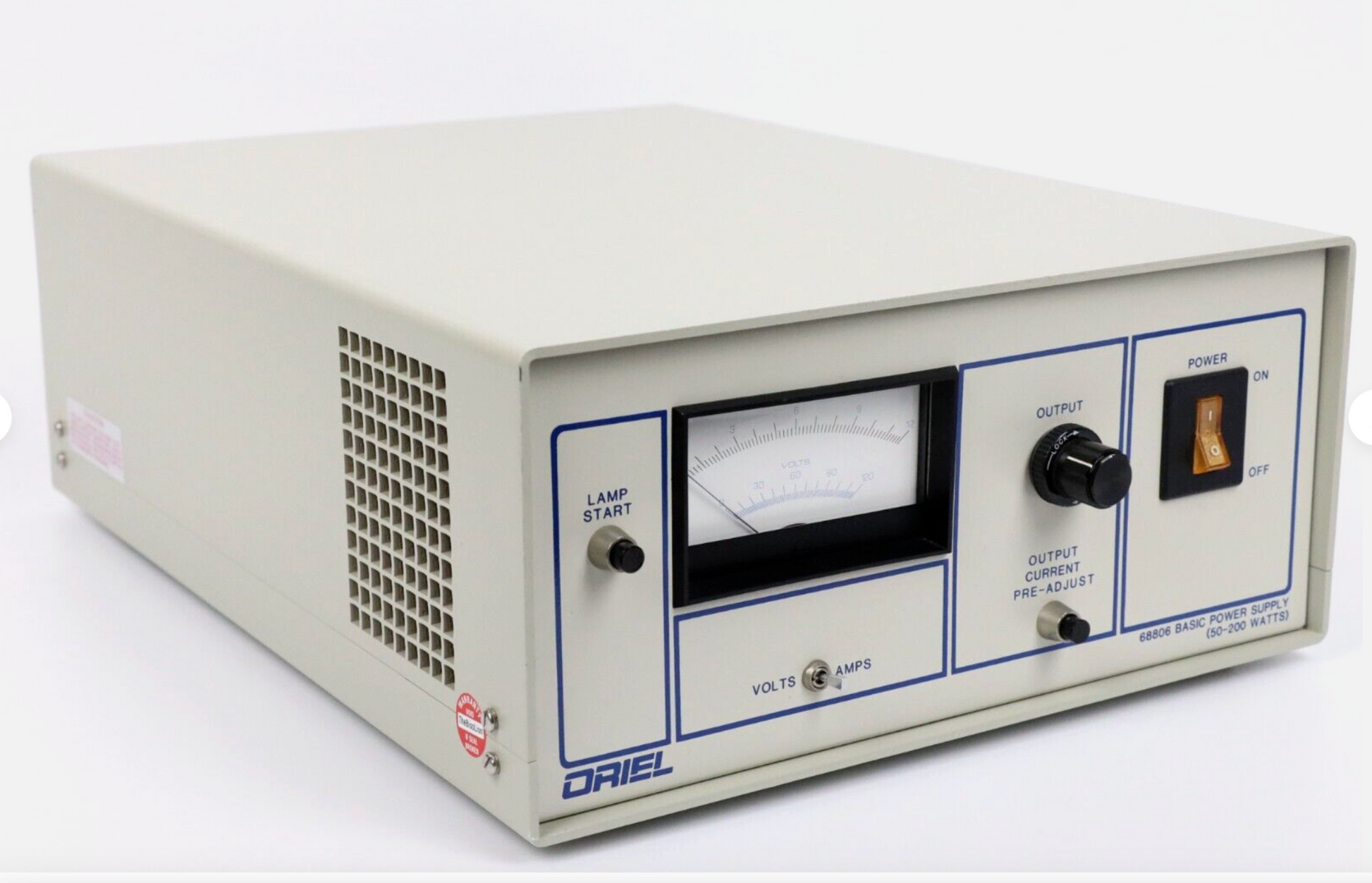

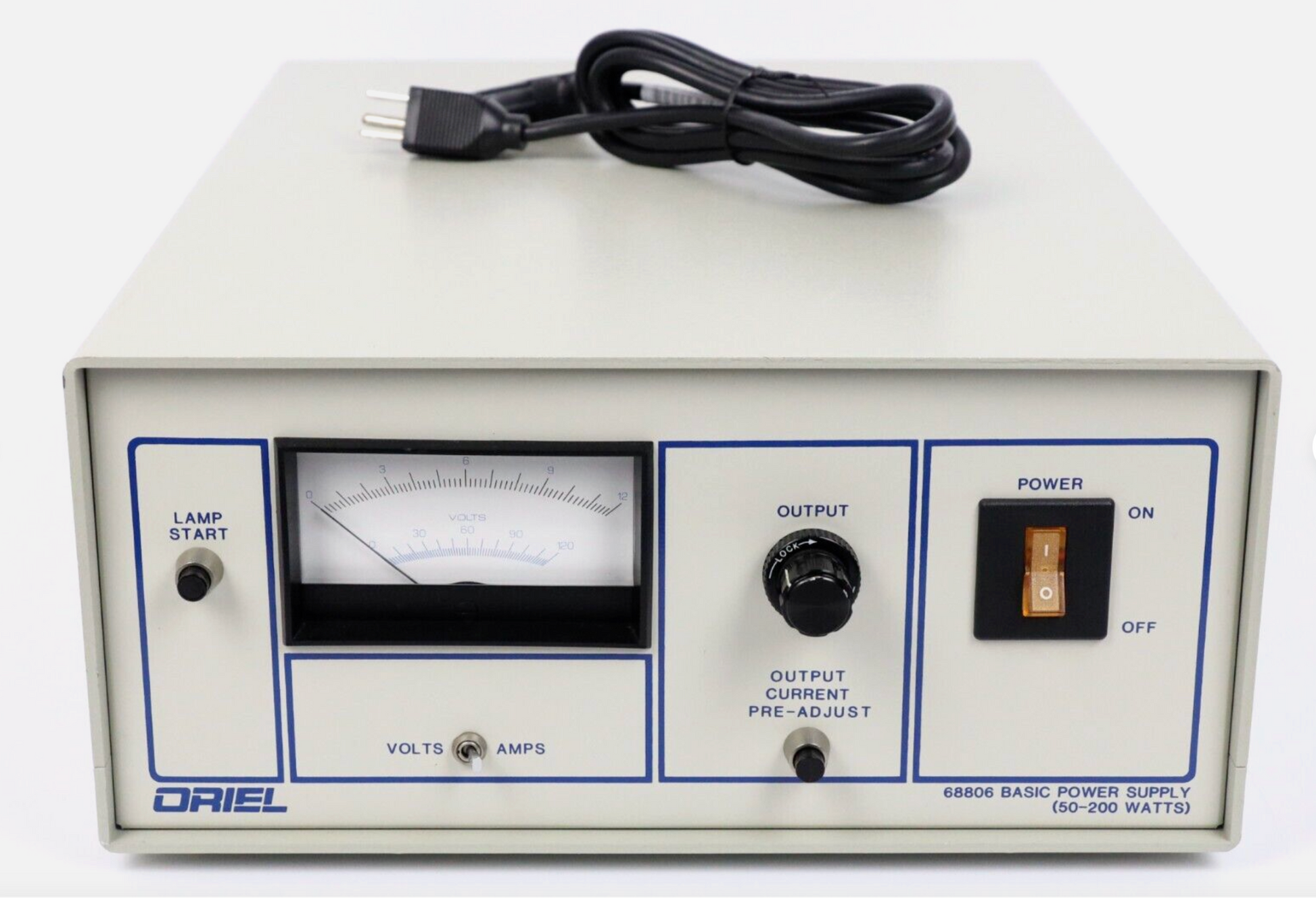

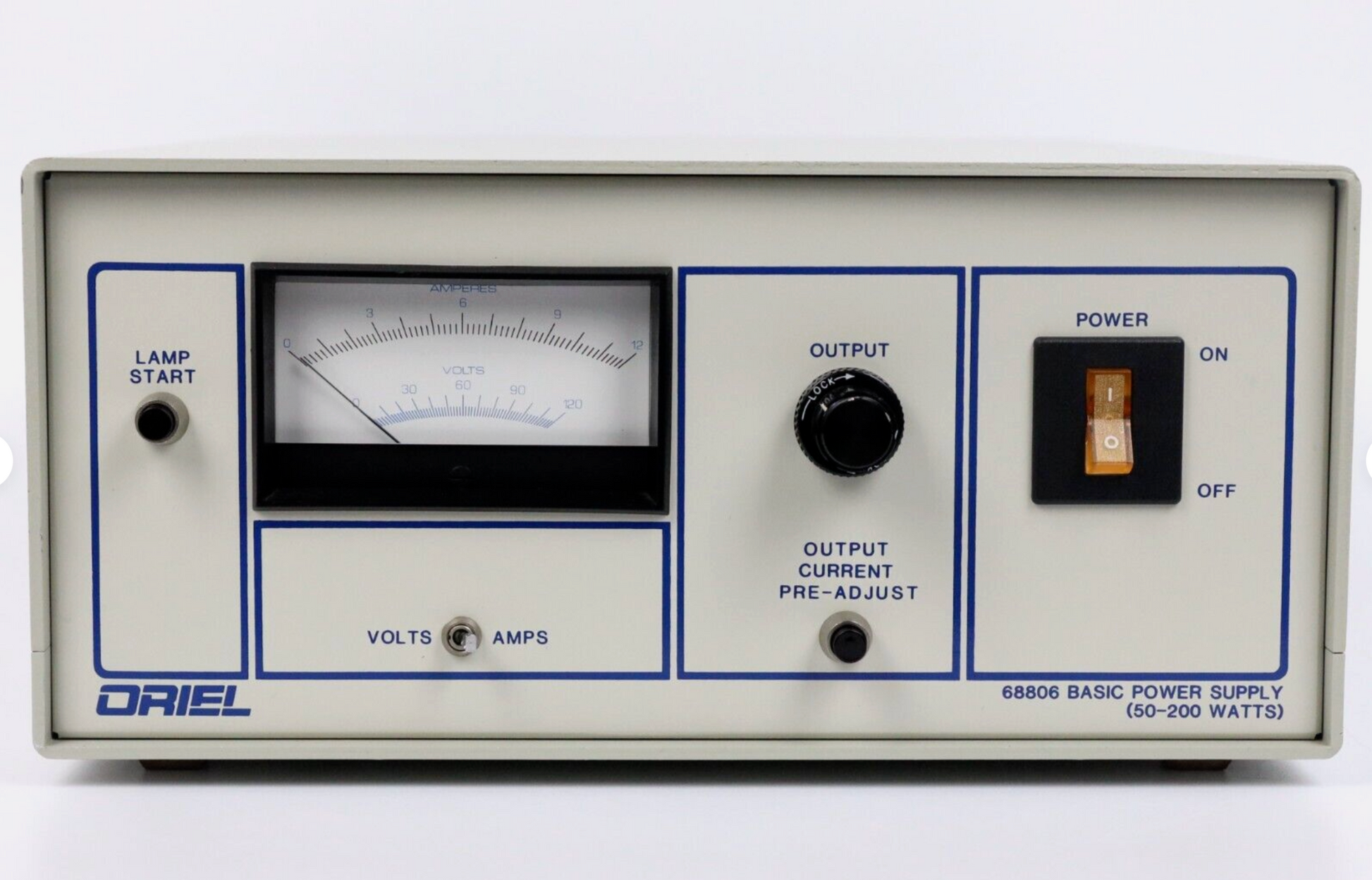

This listing is for PERFECT 100% Tested: Oriel Model 68806 50-200 Watt Arc Lamp Basic Power Supply as can be seen in the pictures.

* 90 - DAY - WARRANTY *

Specifications

Oriel Model 68806 50-200 Watt Arc Lamp Basic Power Supply

Sale Details

  Condition: 100% Perfectly Working unit.

*PLEASE NOTE – INTERNATIONAL CUSTOMERS PAY ACTUAL SHIPPING CHARGES*

Only items pictured are included - If a part is not pictured, or mentioned above, then it is not included in the sale.

WARRANTY: 90-Day Satisfaction Guarantee

THIS IS PRICED TO SELL, UNITS IN THIS CONDITION WON'T LAST LONG AT THIS PRICE!!!

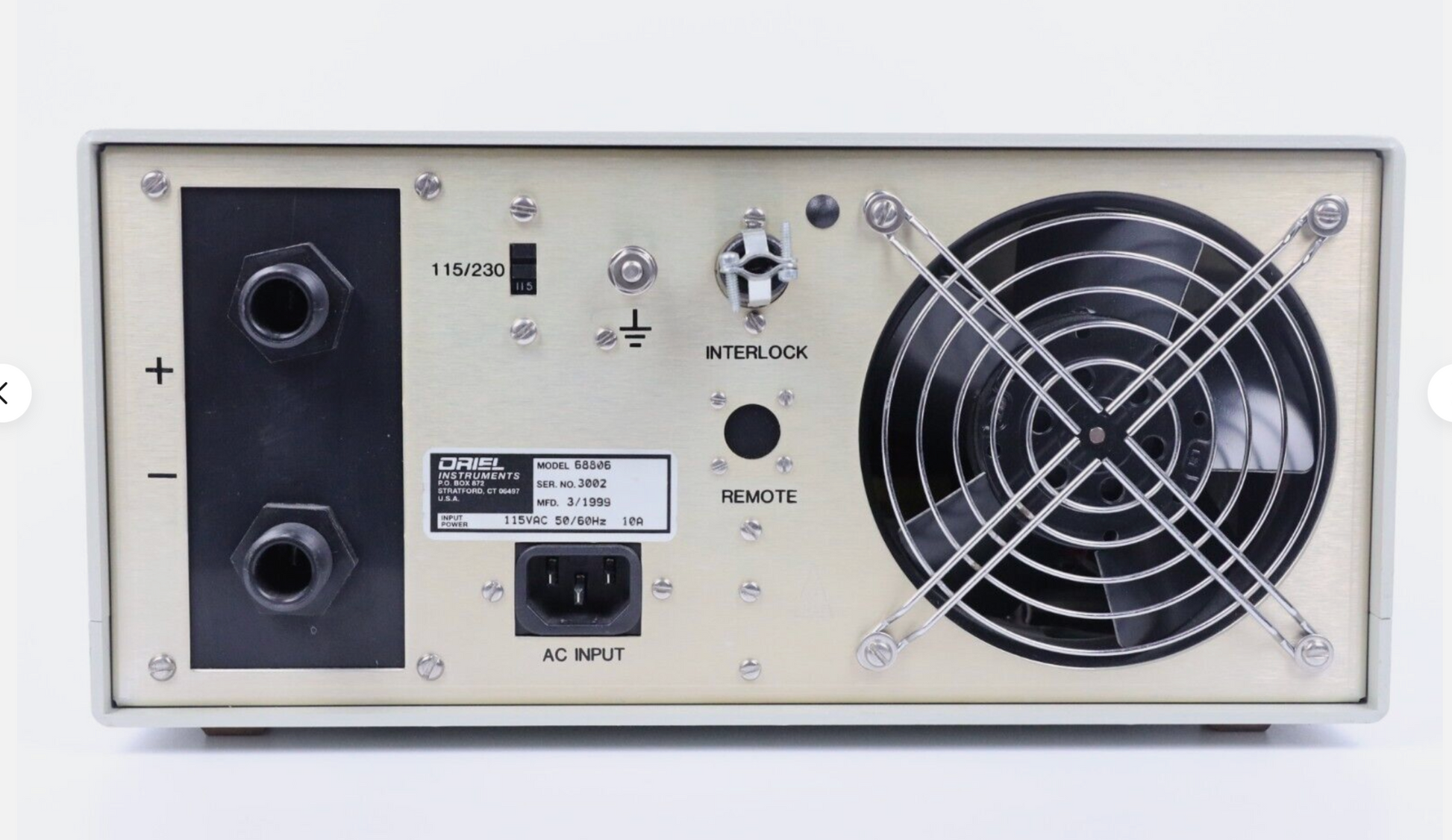

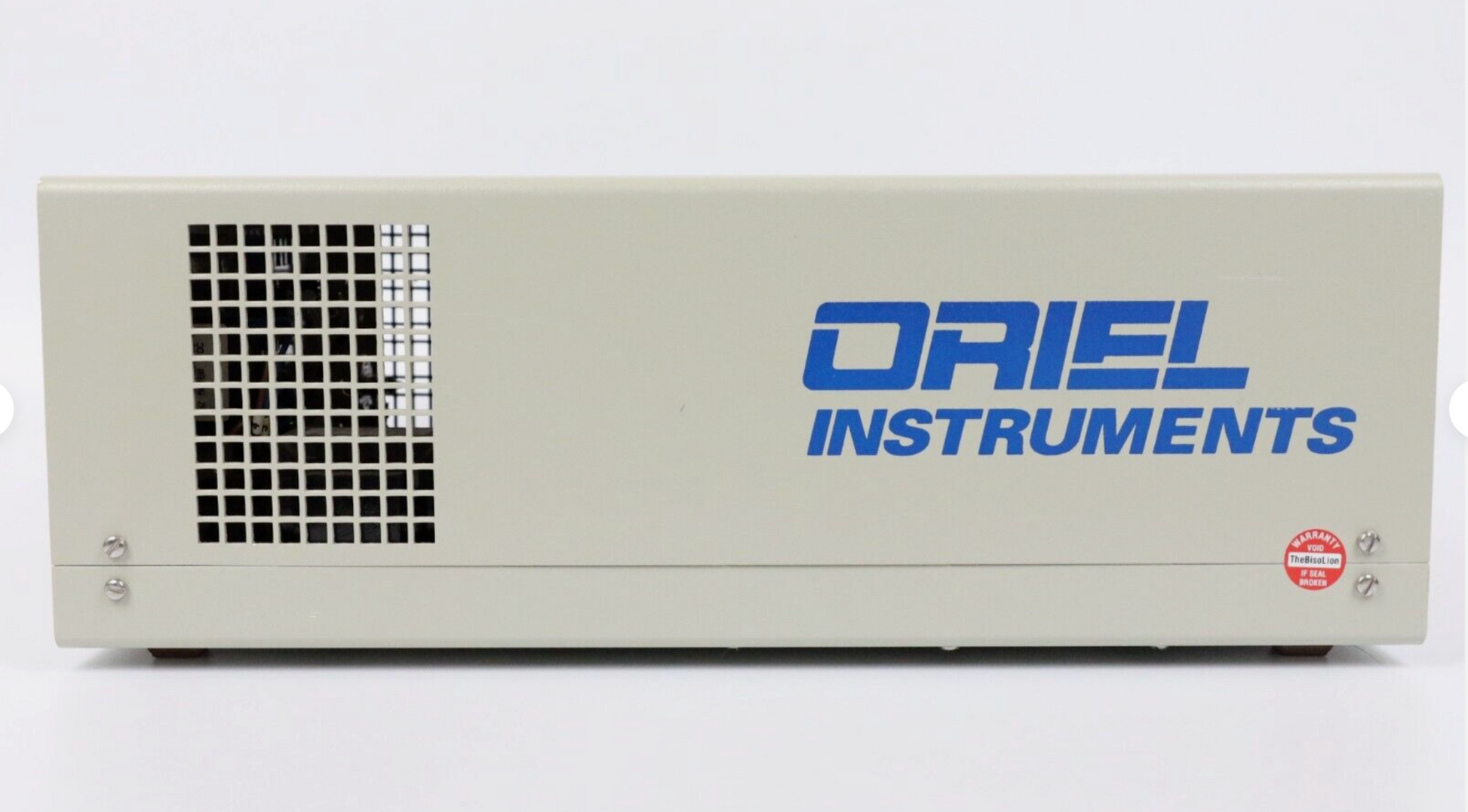

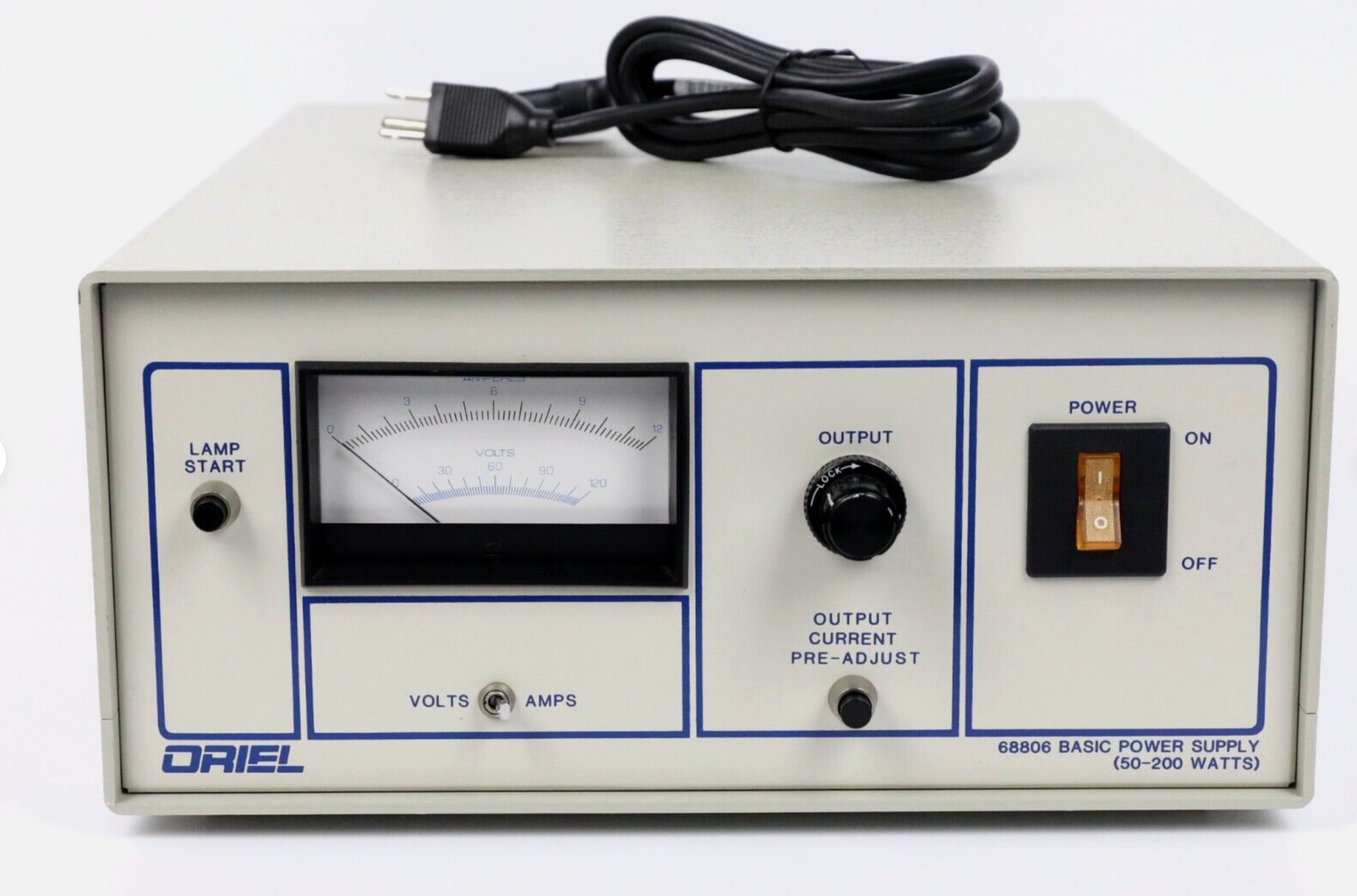

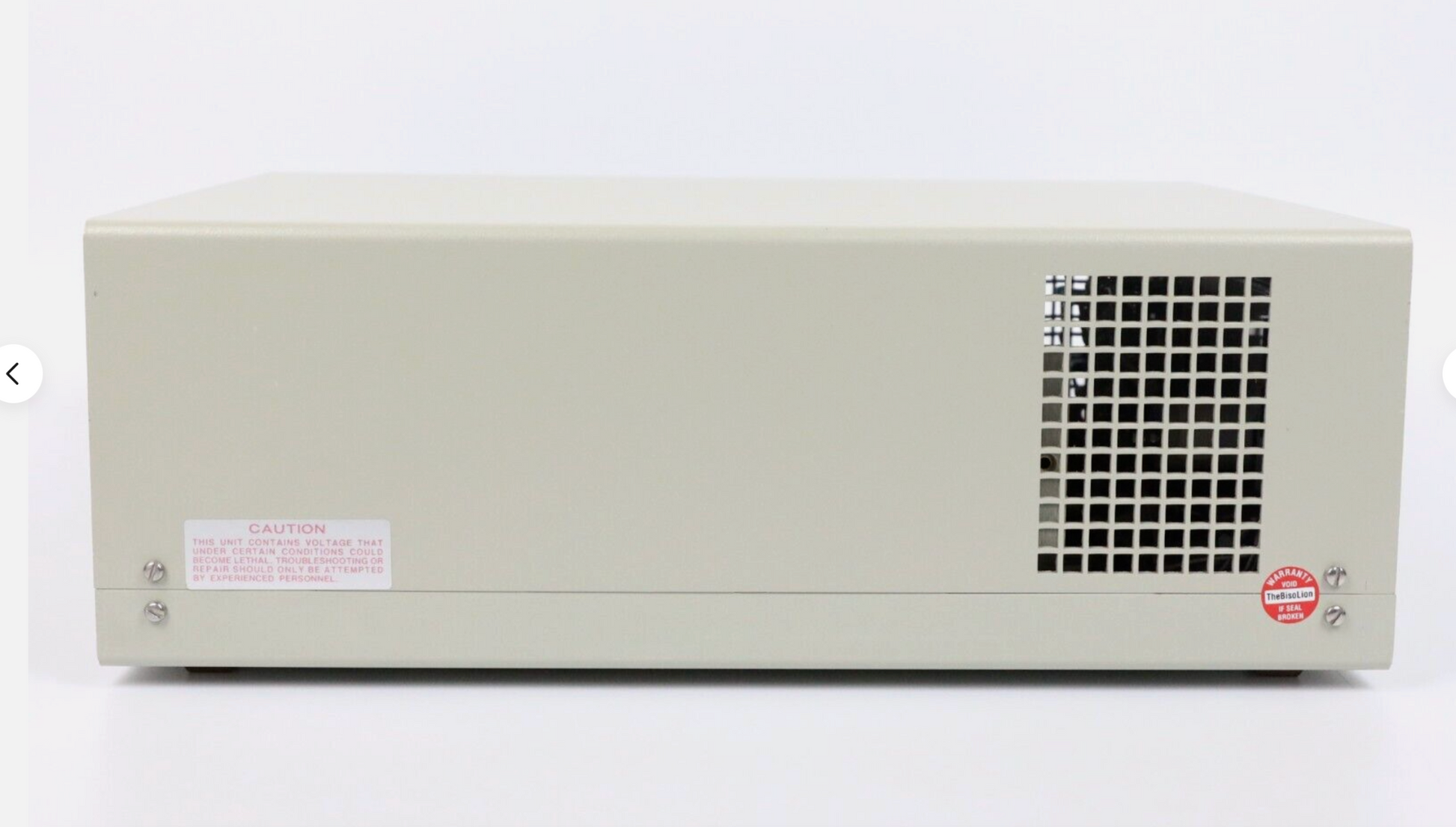

Unit came from a Federal University and has ALWAYS been very well taken care of as can be seen in the pictures.

Technical Information in Italics Blue below was taken from Manufacturer's website:

mmrc.caltech.edu/Oriel/Oriel%20200%20W%20Lamp%20PS%2068806.pdf

DESCRIPTION

68806·M

ARC LAMP POWER SUPPLY

The Oriel model 68806 arc lamp power supply is a highly regulated source of current that maintains

constant light output necessary for proper operation of arc lamps. Constant current operation of these

sources of radiation is required whenever a radiometric measurement is being made or whenever a highly

stable light output is needed.

The 68806 allows arc lamps to operate in constant current mode, with the output voltage being dependent

on the lamp's impedance. The power supply will provide a constant current of up to 11 amperes with a

load voltage range of 0 to 100 volts. A power limit, which limits the product of output voltage and current

to 300 watts, protects the unit from output overloads. A constant current power supply regulates current

even into a short circuit. Lamp current is limited to a maximum of 12 amperes. The reduced inrush

•.. current minimizes electrode erosion when starting the arc lamp. The Oriel model 68806 Arc Lamp Power

Supply includes all of the circuitry to start and power the lamps, and meter the output parameters .

Oriel Model 68806 50-200 Basic Power Supply

50-200 Watt Arc Lamp

SPECIFICATIONS

AC Mains Input:

DC Power Output:

DC Current Output:

DC Voltage Output:

Pre-ignition

Operating

Light Output Ripple:

Resistive Load

Arc Lamp Load

Pre-Adjust Accuracy:

Power Meter Accuracy:

Line Regulation:

190-235 VAC mains input

95-135 VAC @ 8 amperes

135-270 VAC @ 4 amperes

50 or 60 Hertz, 10 ampere inrush

300 watts maximum

Adjustable from 0.5 - 11 amperes

Current limit at 12 amperes

> 150 volts unloaded

68806-M

ARC LAMP POWER SUPPLY

Load dependent. Total output power should not exceed 240 watts.

< 0.25% R.M.S. 40 Hz to 40 kHz

Dependent on lamp, and operating conditions.

Typically < 0.5% R.M.S.

2%

2%

0.1 % change in output current for a 95-135 VAC mains input

Pictures are of the actual items buyer will receive.

FREE USA SHIPPING ALSO!!!

INTERNATIONAL BUYERS PLS CONTACT US FOR SHIPPING QUOTE!!!

Stock # 242102
