ONE JOHNSON CONTROLS D-3153-2 DAMPER PNEUMATIC ACTUATOR FREE SHIPPING

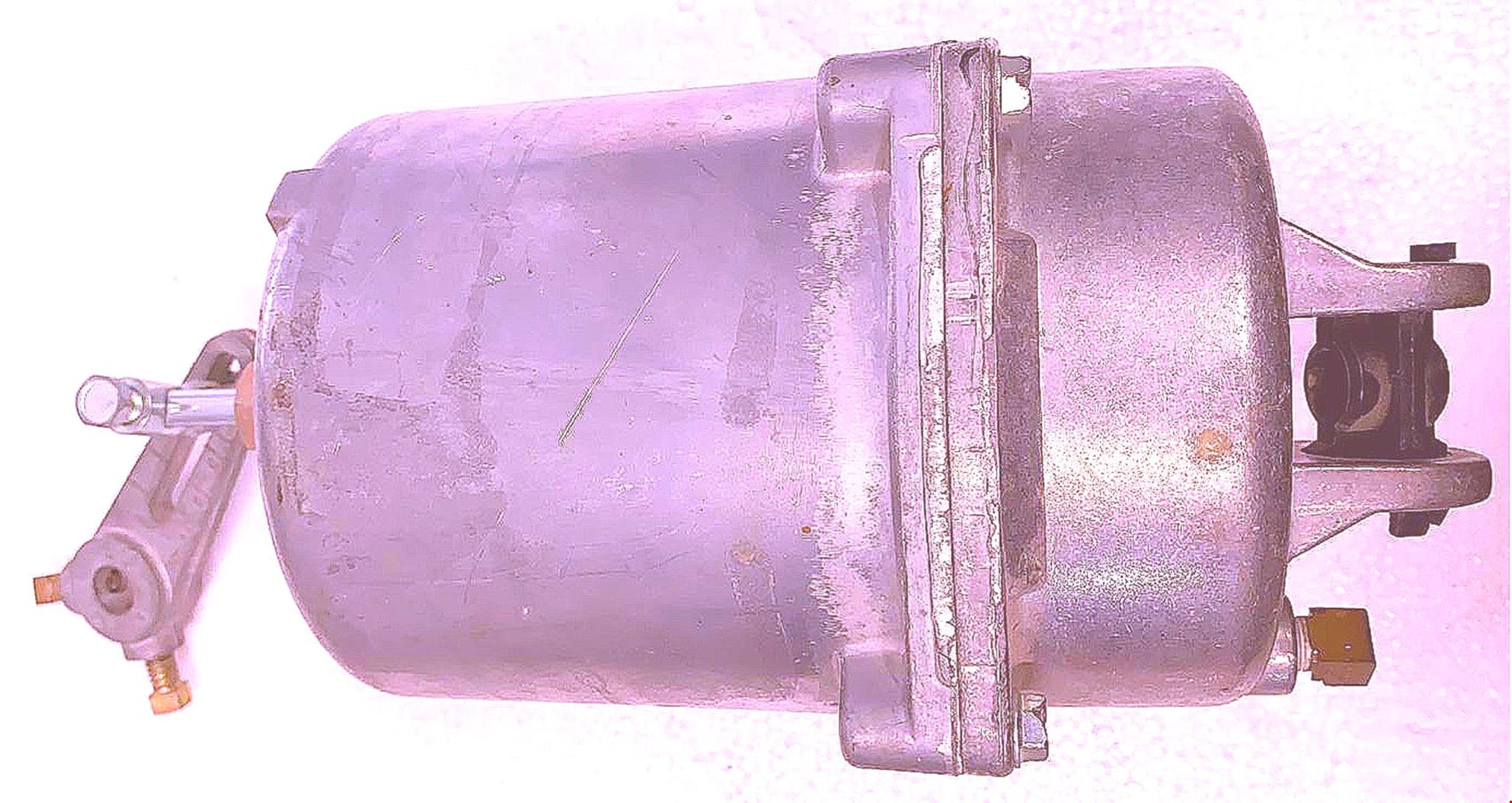

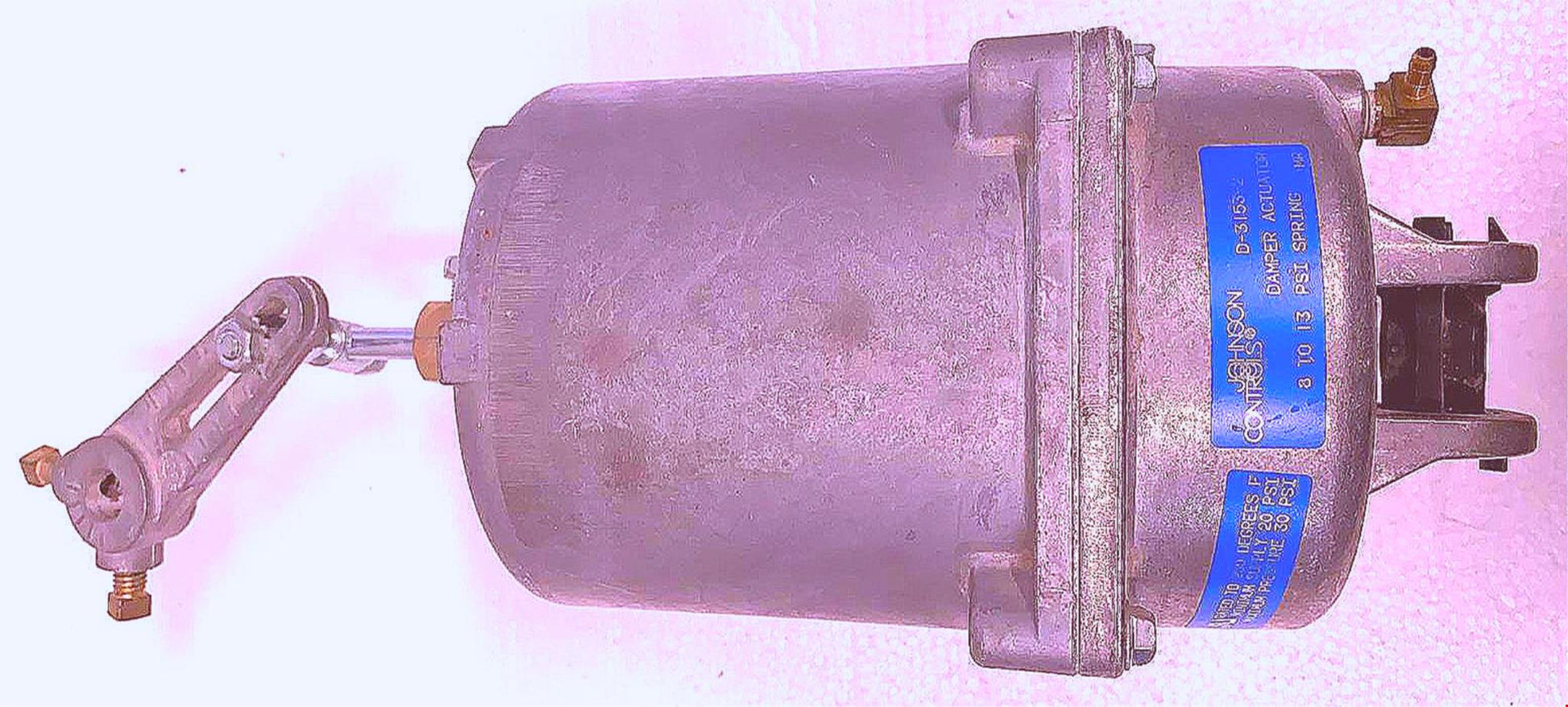

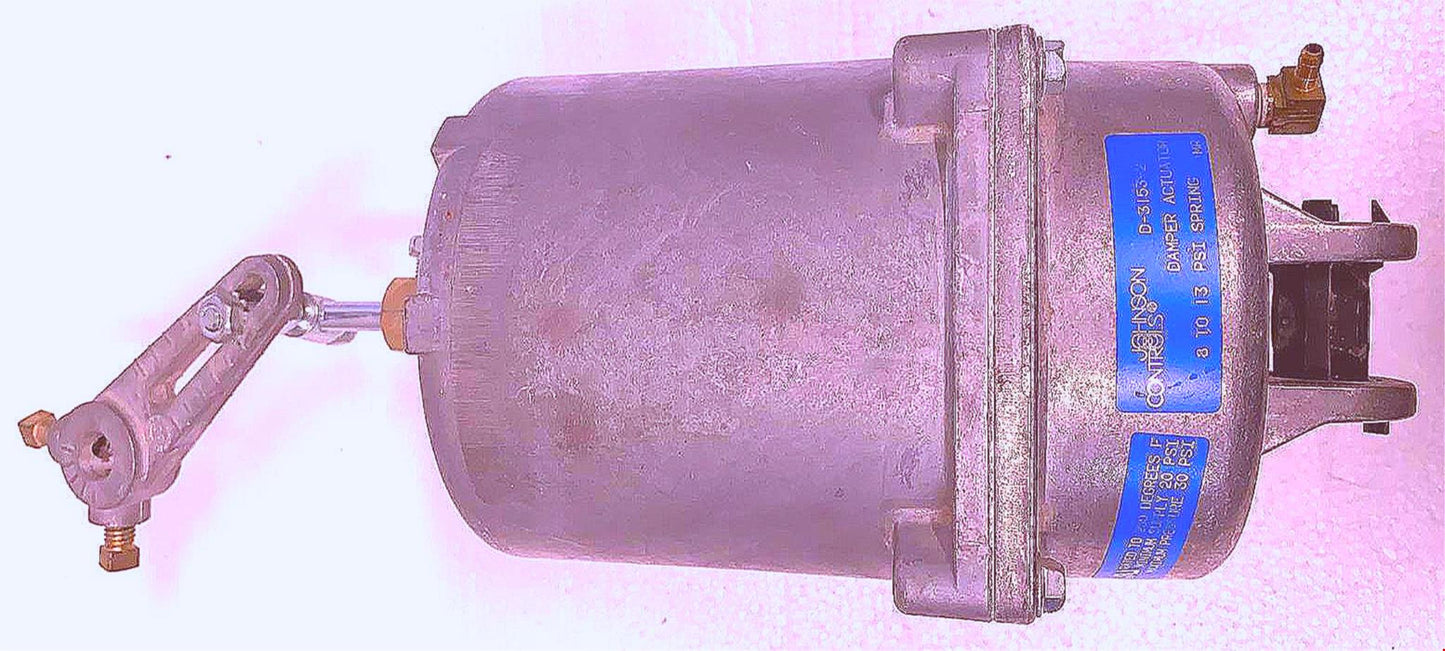

This listing is for One unit of JOHNSON CONTROLS D-3153-2 DAMPER PNEUMATIC ACTUATOR in GREAT Used Condition as can be seen in the pictures.

THIS LISTING IS FOR ONE UNIT BUT WE HAVE TWO OF THEM, IF BUYER NEEDS TWO, PLEASE DO LET US KNOW!

This unit came from a Federal University Lab, has been fully tested, and is guaranteed to be working perfectly or your money back!!!

Pricing (Each Unit costs US$ 371.00 new) and Technical Data on this unit can be found by GOOGLING the following link: industrialcontrolsonline.com/johnson-controls-d-3153

Item Code: D-3153-2

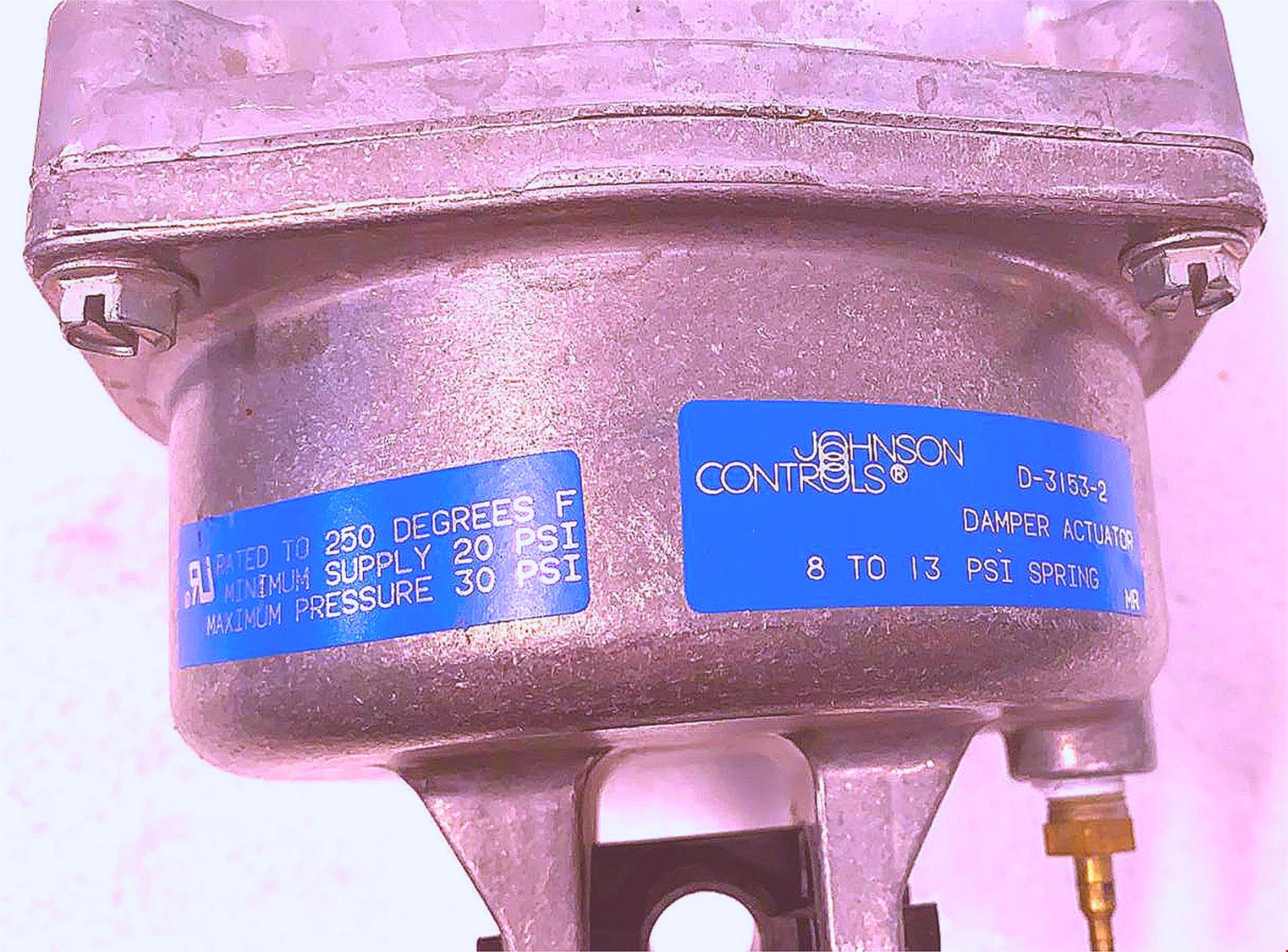

Description: 8-13PSI PNEUMATIC PISTON DAMPER ACTUATOR

The D-3153 Pneumatic Actuator is a multipurpose positioning device used primarily for operating ventilating dampers in response to the output signals of a pneumatic controller or electro-pneumatic transducer.

The D-3153 can be used with dampers up to a maximum area of 16 square feet for proportional volume control and 25 square feet for two position actuation provided that the torque requirements are compatible with the specific application.

The D-3153 is UL component recognized for use on UL classified 555/555S smoke and combination fire/smoke dampers which have been tested and approved to a degradation temperature of 250°F (121°C).

• All-aluminum Housing

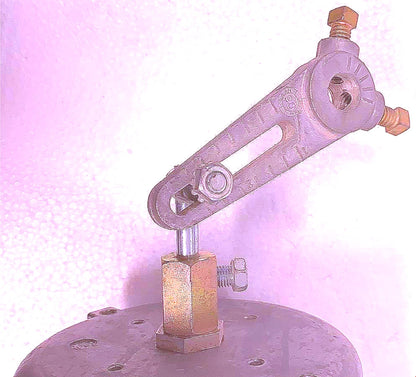

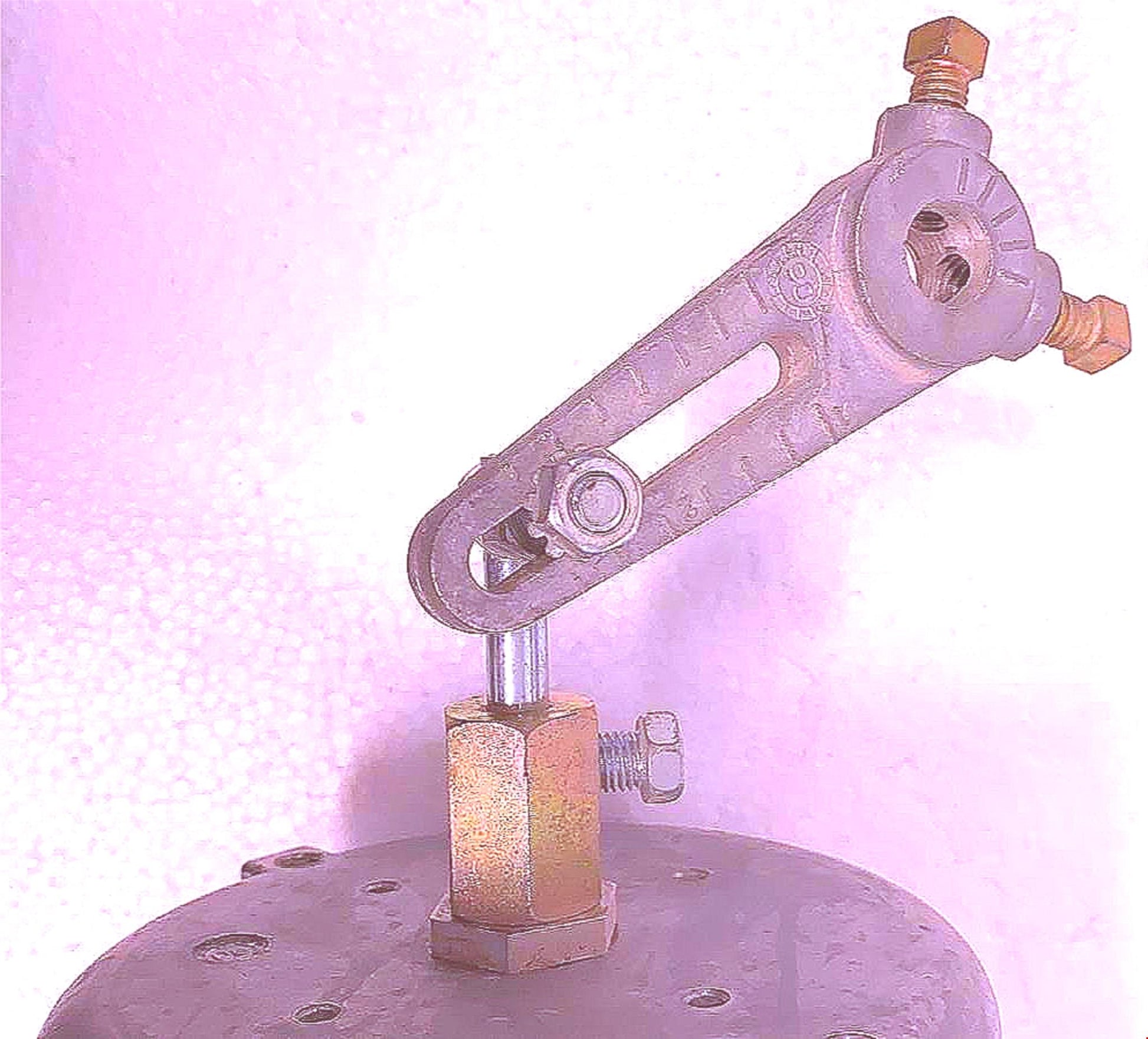

• Telescoping Linkage

• Long Life and Reliable

• 2-way Swivel Head

• Agency Recognized

Stock # 20163
