You are bidding on a USED CONDITION

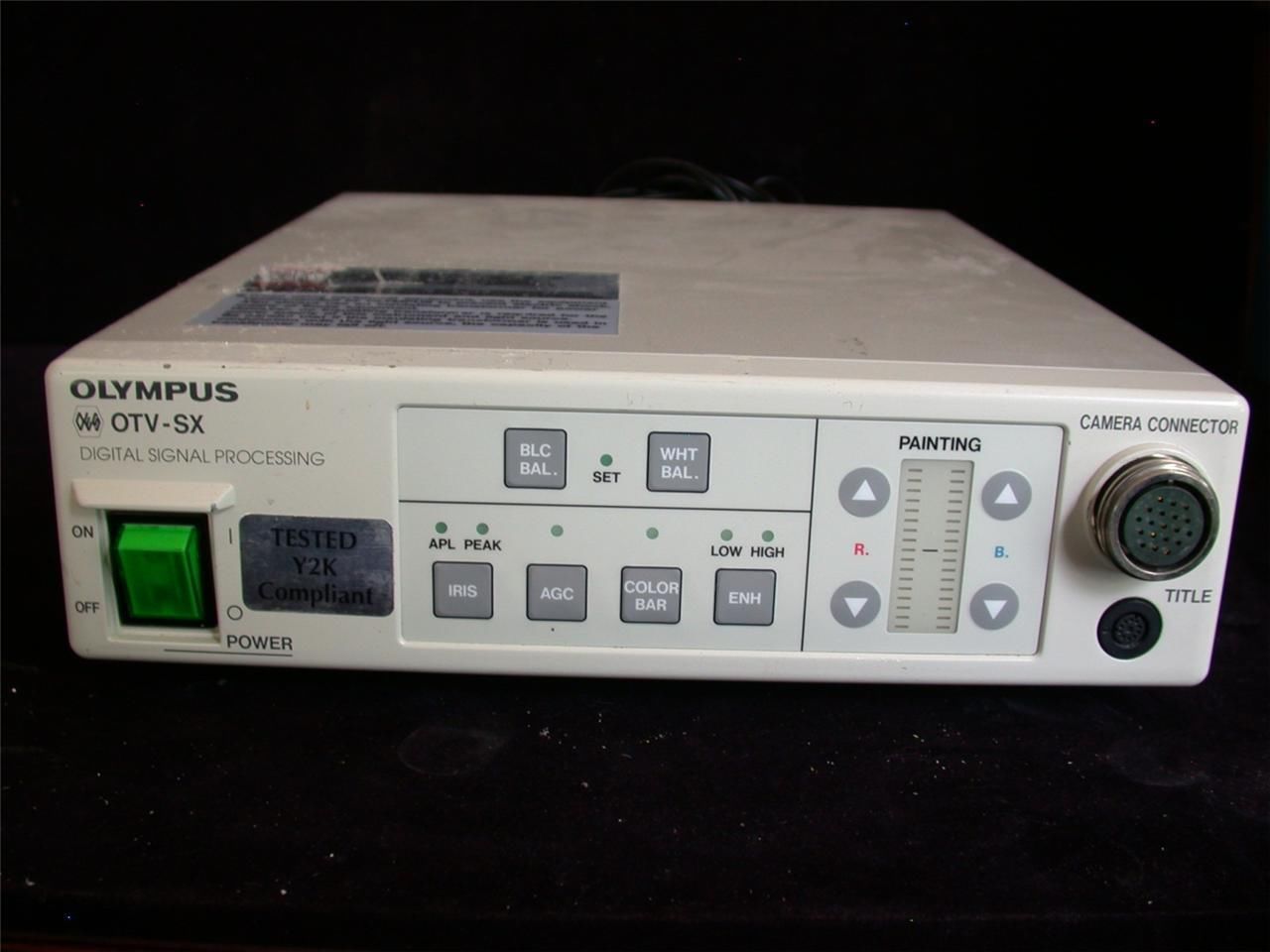

OLYMPUS OTV-SX ENDOSCOPY VIDEO SYSTEM AS YOU CAN SEE FROM THE PICTURES.
All seem to be in very good fully functional condition.
This OLYMPUS OTV-SX ENDOSCOPY VIDEO SYSTEM is a Surplus item from local hospital.
The OTV-SX is a office video system with outstanding brightness and a compact CCU for the clinical environment.
Especially designed to meet the demands for a low-cost video system suitable for endoscopic examinations on an outpatient basis.
The OTV-SX video system provides good resolution and brightness, while focusing on the essential functions to deliver the performance needed in office settings at an affordable price.
Compact, lightweight design assures maximum installation flexibility
Measuring a mere 220mm in width and 290mm in-depth the OTV-SX can be installed just about anywhere.
Lightweight and easy to move around, this compact unit takes up little space and can easily be moved around.
Upgraded signal processing technology
Incorporating a Digital Signal Processing system, the OTV-SX processes images digitally to asure high-quality resolution.
Bright, Large, Easy-to-See Images
Images on the video monitor are 1.5 times brighter than conventional models. Light and sensitivity levels can be adjusted so you will never have to worry about coping with overly bright or dark images. Assures clearer, crisper picture.
Ultra-Compact
LIghtweight and ergonomically designed ensures easy and more comfort of use.

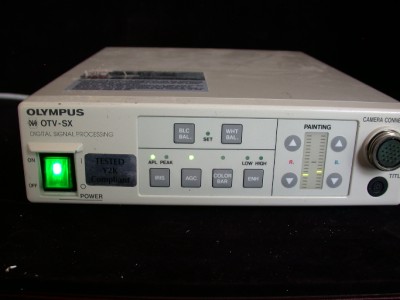

It POWERS UP FAST, FURIOUSLY and seems to be working perfectly as can be seen in the pictures.
We tested it to power up and it seems to function as it should.
The Olympus OTV SX Endoscopy Unit is a three-chip digital camera with a single camera input. The Olympus model uses red and blue hue tuning for its controls. Lighting operation on this Olympus endoscopy camera can be automatic or manual with options for automatic white balance. Other controls include video gain, enhanced sharpness (three levels), and iris adjust (color).
Outputs for the Olympus OTV SX system includes NTSC, Y/C and an optional PAL.
The OTV SX endoscopy camera runs on 120 V AC and uses the OTV SX for digital capture with a 768 px by 494 px matrix.
| MODEL |
OTV-SX |
| VIDEO PROCESSOR |
OTV-SX |
| Camera inputs |
1 |
| Controls avail. |
|
| Hue tuning (Controls avail.) |
Red, blue |
| LIGHTING |
Automatic, manual |
| White balance (Controls avail.) |
Automatic |
| Video gain (Controls avail.) |
On/off |
| Sharpness (Controls avail.) |
Enhanced (3 levels) |
| Additional controls (Controls avail.) |
Iris adjust, color |
| Outputs |
|
| Rgb (Controls avail.) |
1 |
| Y/c (Outputs) |
2 |
| Ntsc (Outputs) |
1 |
| Pal (Outputs) |
Optional |
| Additional (Alarms, high/low) |
Remote control, |
| DIMENSIONS (HXWXD) CM, (IN) (DISPLAY) |
8x 29.5 x 36 |
| WEIGHT, kg (lb) (DISPLAY) |
4(9) |
| POWER NEEDED, VAC (ENERGY) |
120±10% |
|
|
|
|
| Number of ccds (Outputs) |
3 |
| Matrix size, |
|
| pixel array (Matrix size,) |
768x 494 |
| Cable length, |
|
| m (ft) (WORKING RADIUS,) |
4(13.1) |
| Recommended |
|
| REPROCESSING |
EtO |
| LIGHT SOURCE |
CLV-S20 |
| Lamp used (Digital capture) |
300W xenon |
| Duration,hr |
300 |
| Lamp meter (Digital capture) |
Yes |
| Illumination temp (Digital capture) |
6,500K |
| Backup lamp type (Digital capture) |
150W halogen |
| Duration,hr |
500 |
| DIMENSIONS (HXWXD) CM, (IN) (DISPLAY) |
12.5x 29.5 x 37 |
| WEIGHT, kg (lb) (DISPLAY) |
12(26.5) |
| EQUIVALENT ENDOSCOPE |
|
| Flexible (EQUIVALENT ENDOSCOPE) |
All |
| Rigid (EQUIVALENT ENDOSCOPE) |
All |
| OTHER SPECIFICATIONS (AIR SUPPLY) |
Digital signal |
| FDA CLEARANCE (Interference compensation) |
Yes |
| CE MARK (MDD) (Interference compensation) |
Yes |
| MARKETING REGION (Interference compensation) |
Worldwide |
This unit turns on and is in good condition. All in all this is a nice unit.
Esta unidad se enciende y está en buenas condiciones. En definitiva se trata de una unidad agradable.
Please note: Item sold with pieces shown and in apparent working condition.
We try to test everything to make sure it is working and will state the results of the test in the description. Some things we are unable to test and these items are sold “as-is”. There are no warranties which extend beyond the description on the face hereof. We do not sell filthy merchandise but we do not spend hours detailing every crack and crevice of every item, therefore a good cleaning may be in order when you receive a purchase. We will post an adequate number of pictures on an auction to give buyers a good sense of what they are bidding on, please examine the pictures closely.
