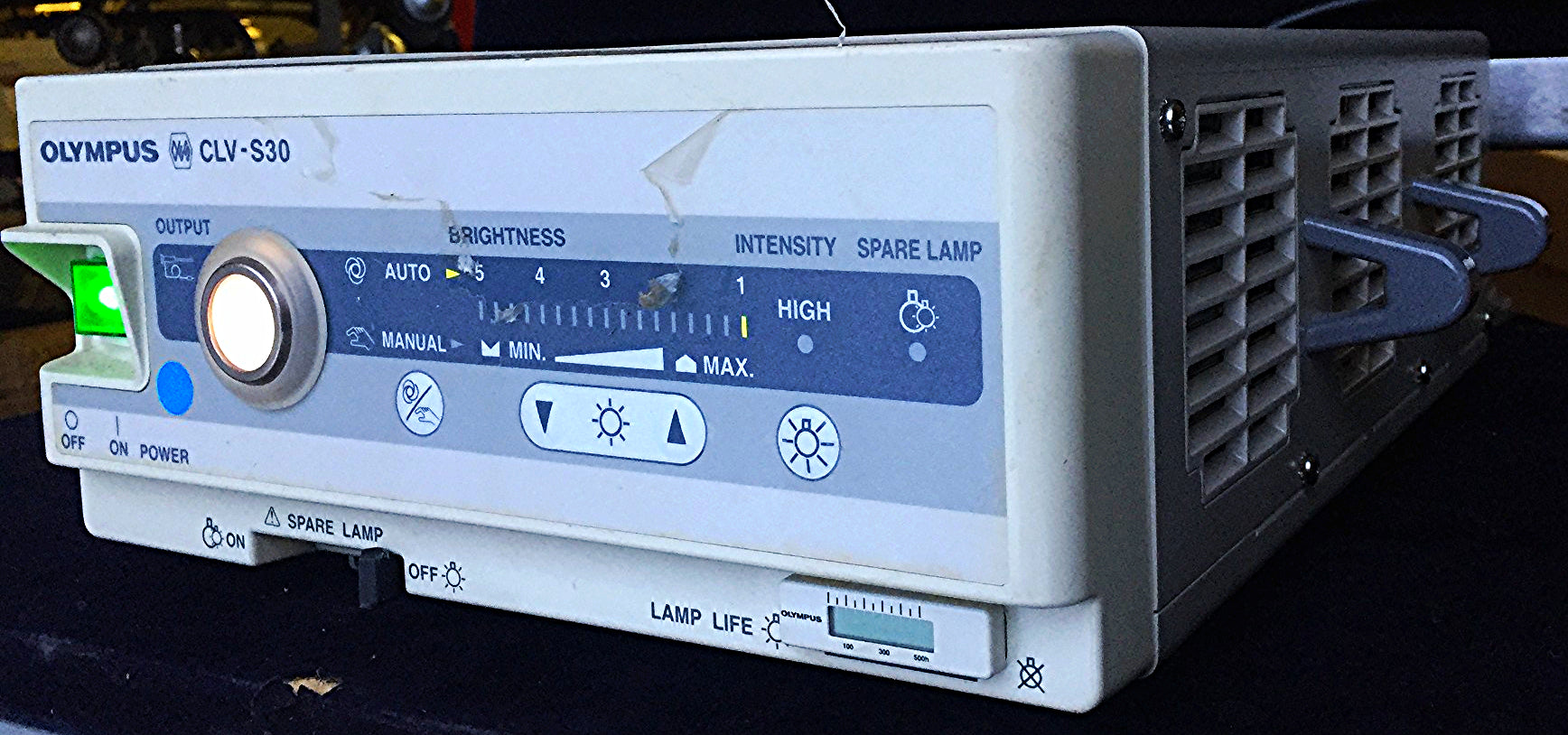

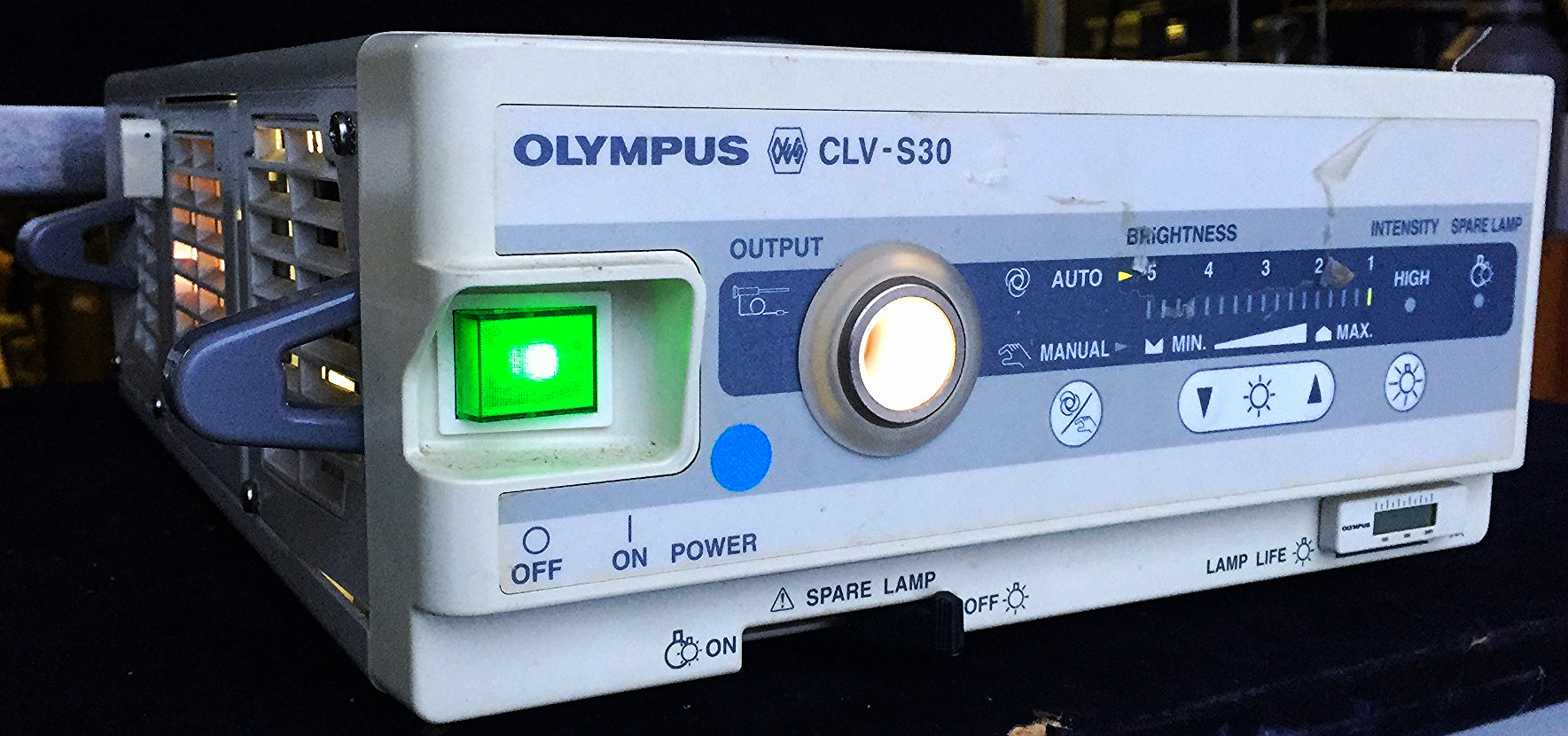

Olympus CLV-S30/S40Features
Ideal for endoscopic TV observation. Connectable with conventional telescopes, fiberscopes, and VISERA videoscopes. Adaptable to all endoscopic procedures -The powerful and convenient CLV-S40 makes endoscopic procedures easier than ever.
Powerful & Long-Life 300-Watt Xenon Lamp - This high-quality xenon lamp provides an illumination which is ideal for endoscopy, allowing observation in deep sites or advanced techniques. Plus, it can be used continuously for 500 hours (in intermittent use, lamp life time may differ slightly).
Automatic Brightness Control - When the CLV-S40 is connected via a light guide cable to video systems such as the Visera system; brightness can be automatically adjusted, saving your time and energy.
Standby - Illumination can be set to standby using a switch on the front panel or a remote switch on the camera head.
Intensity-Mode Memory - With Intensity-Mode Memory, when the CLV-S40 is turned off in the high intensity mode, it will still be in that mode when turned back on. This is also true for the normal intensity mode.
Easy-to-See Front Panel - You can easily adjust brightness and power with buttons and switches on the front panel.
Olympus CLV-S30/S40 Specifications
Dimensions
Size: 295 (W) x 125 (H) x 395.4 (D) mm (maximum)
Weight: 12 kg
Illumination

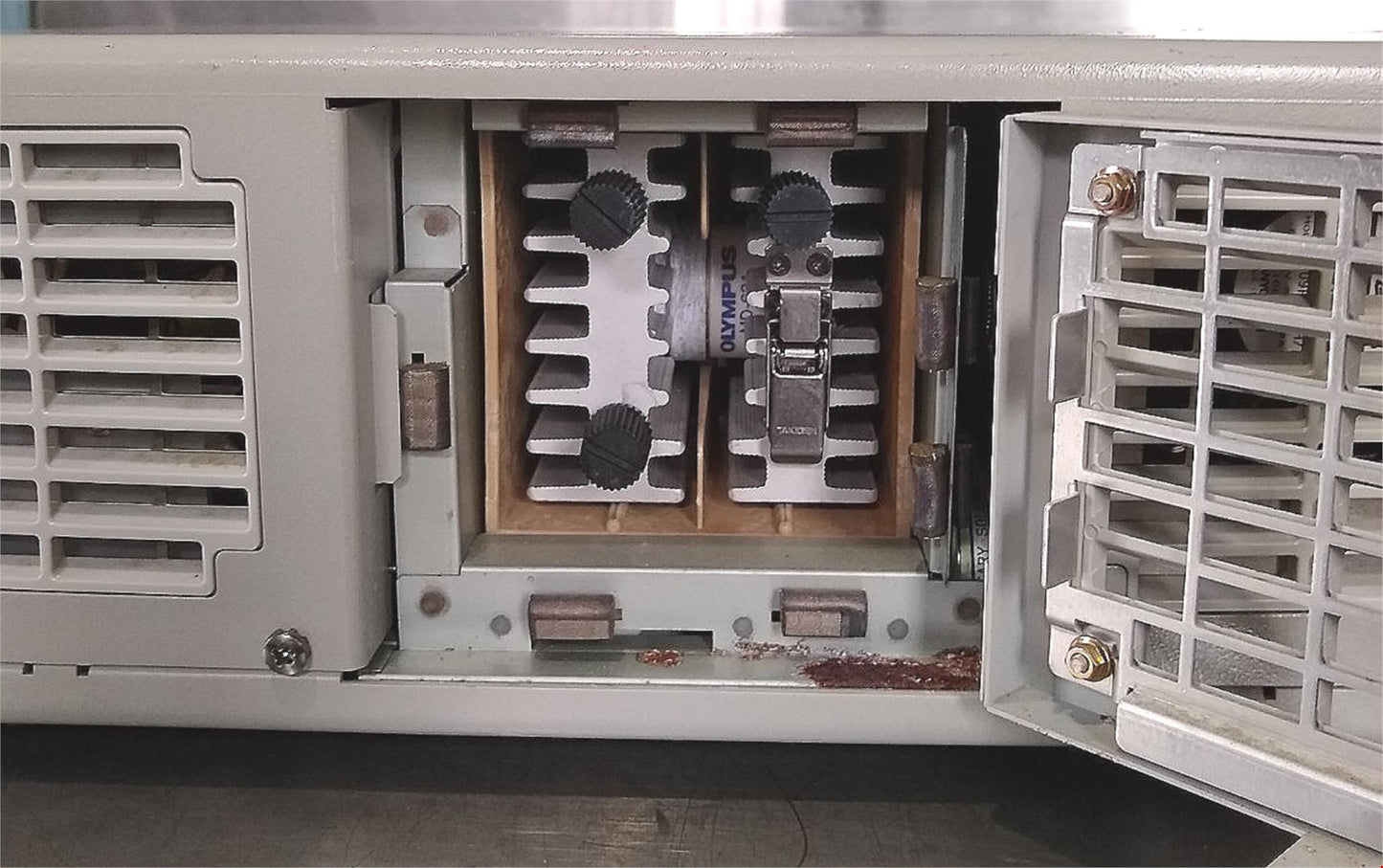

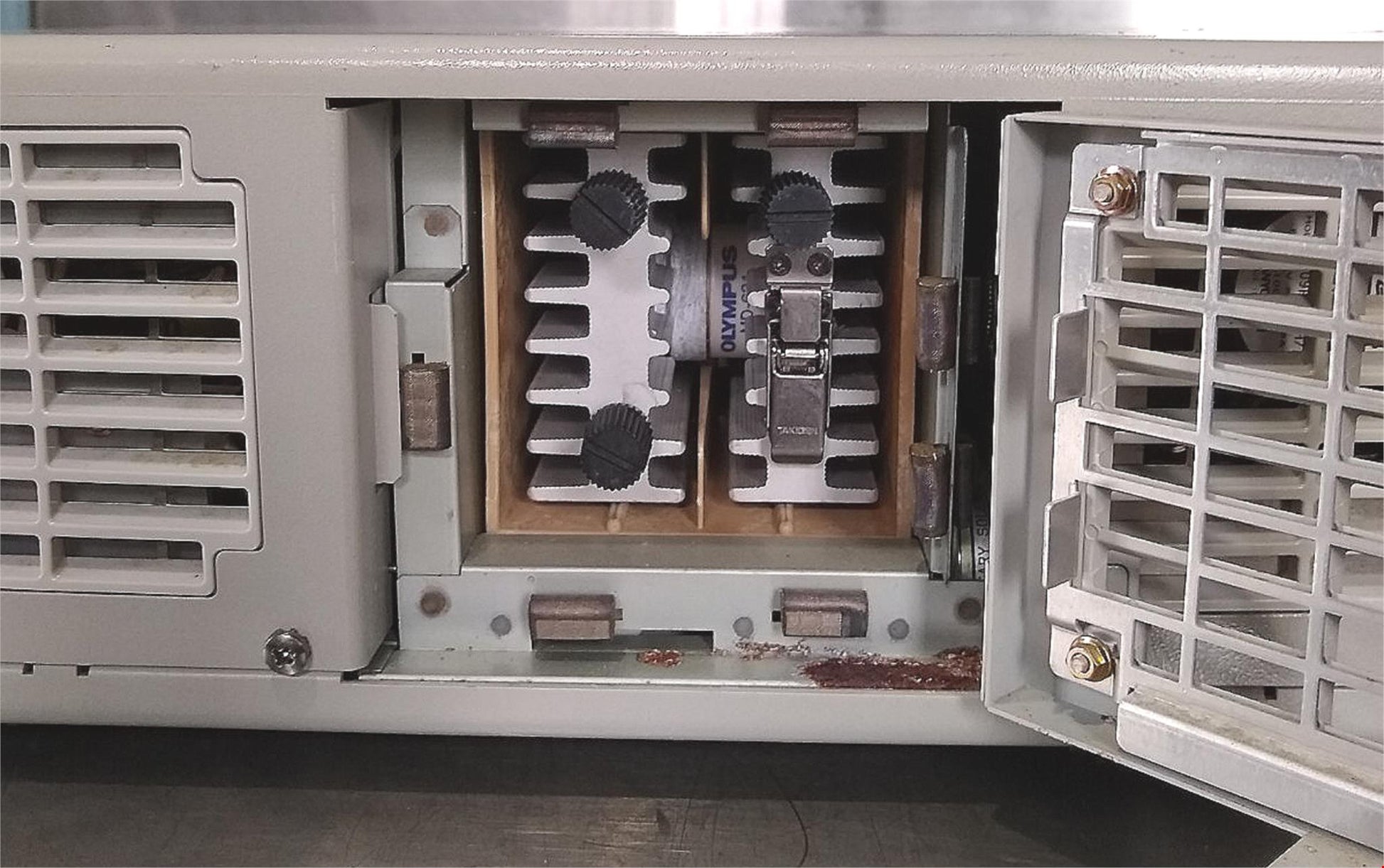

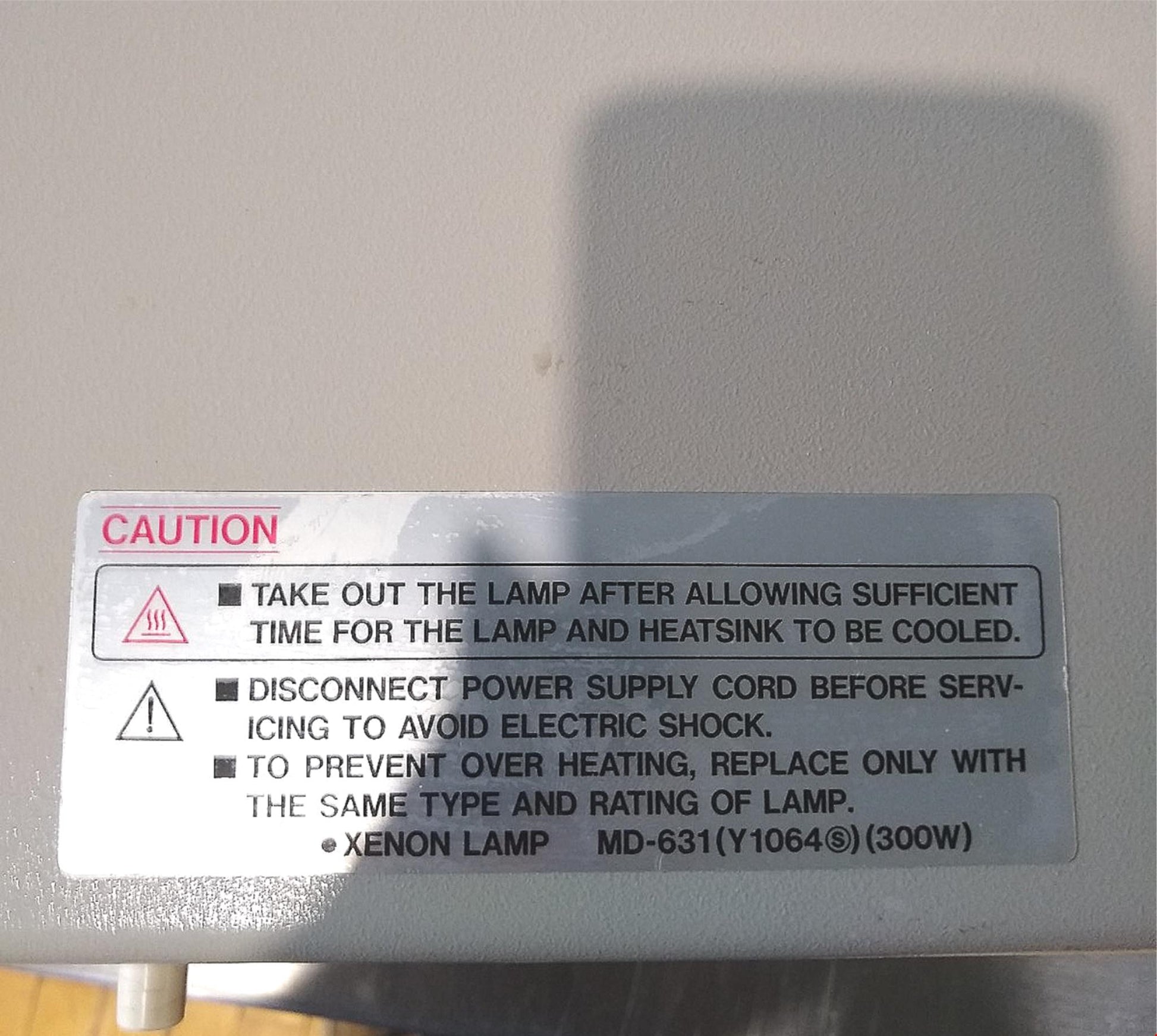

Lamp: Xenon short-arc lamp (ozone-free) 300W

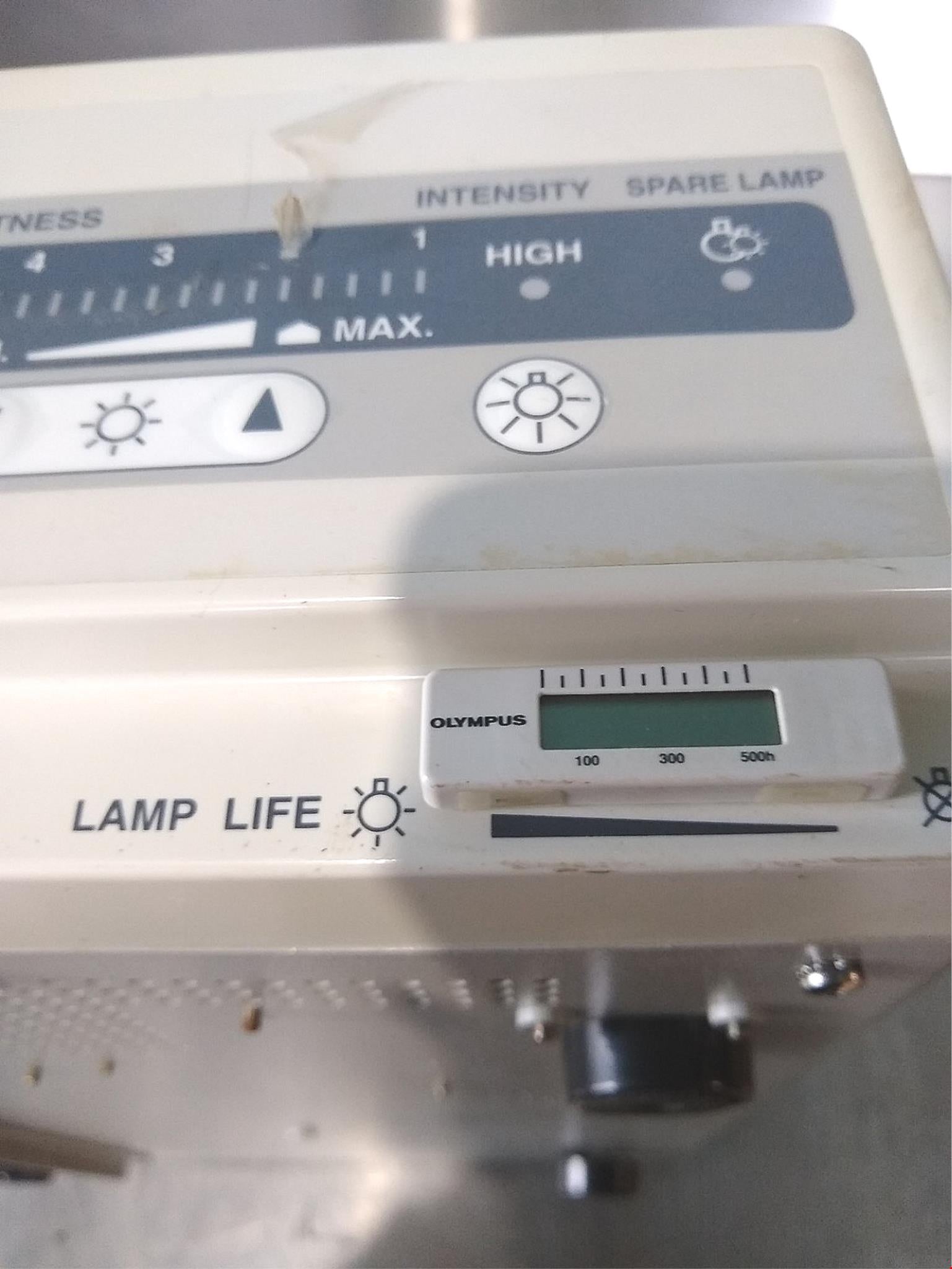

Lamp Life: Approx. 500 hours in continuous use (In intermittent use, lamp life may differ slightly)
Ignition: Switching regulator
Brightness Adjustment: Light-path diaphragm control

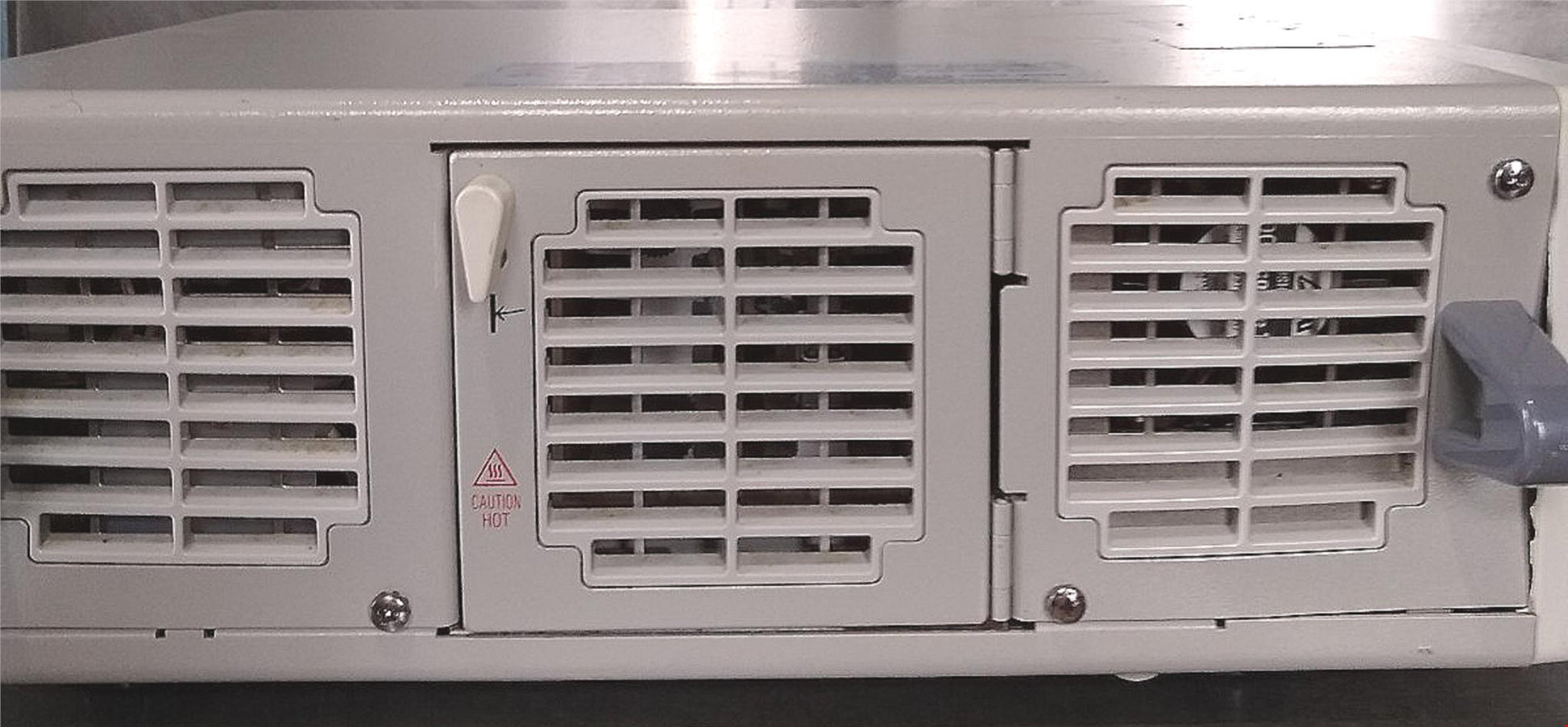

Cooling: Forced-air cooling

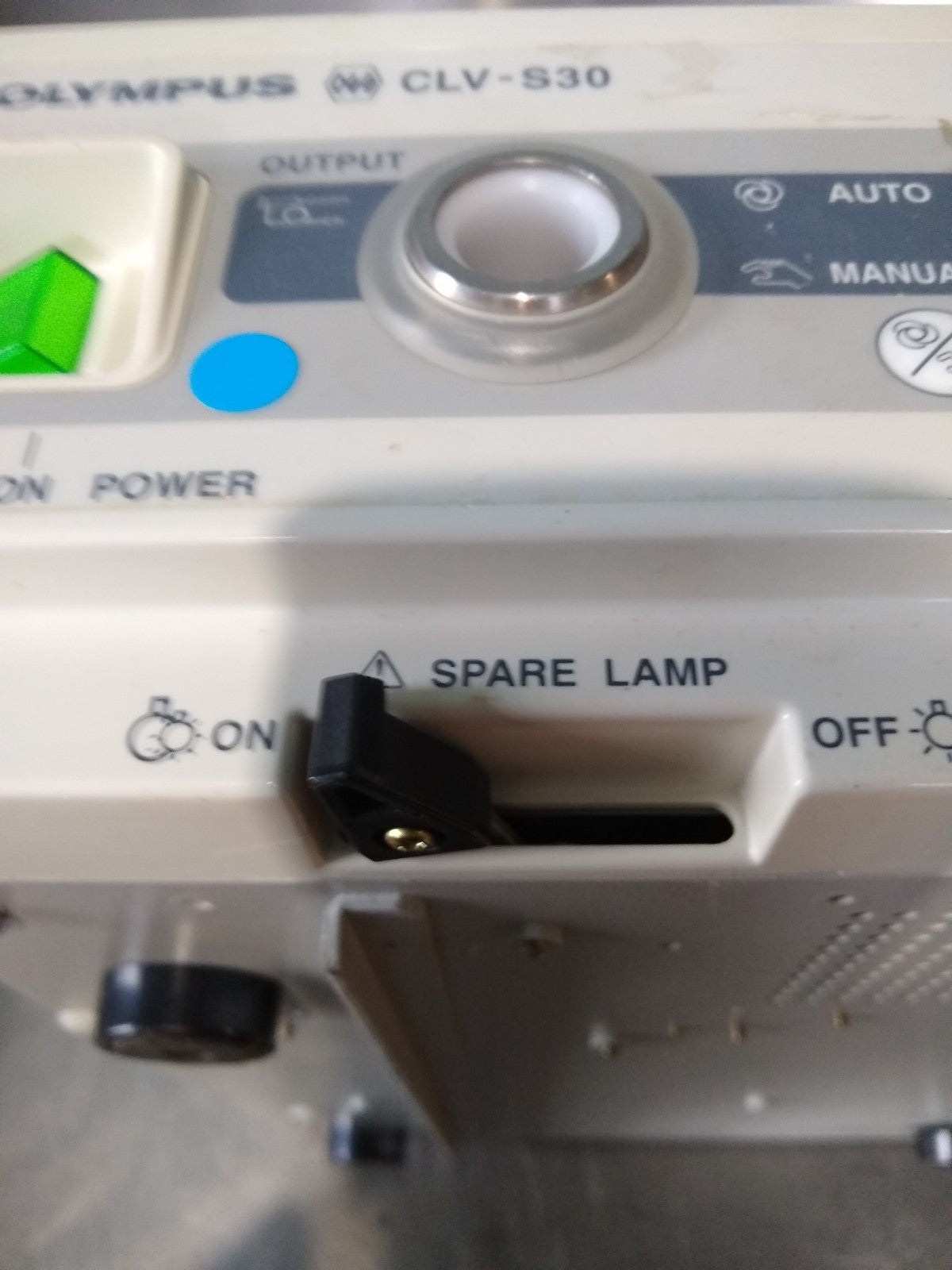

Emergency Lamp: Halogen lamp (without mirror) 24V 150W
Emergency Lamp Life: Approx. 500 hours in continuous use(In intermittent use, lamp life may differ slightly)

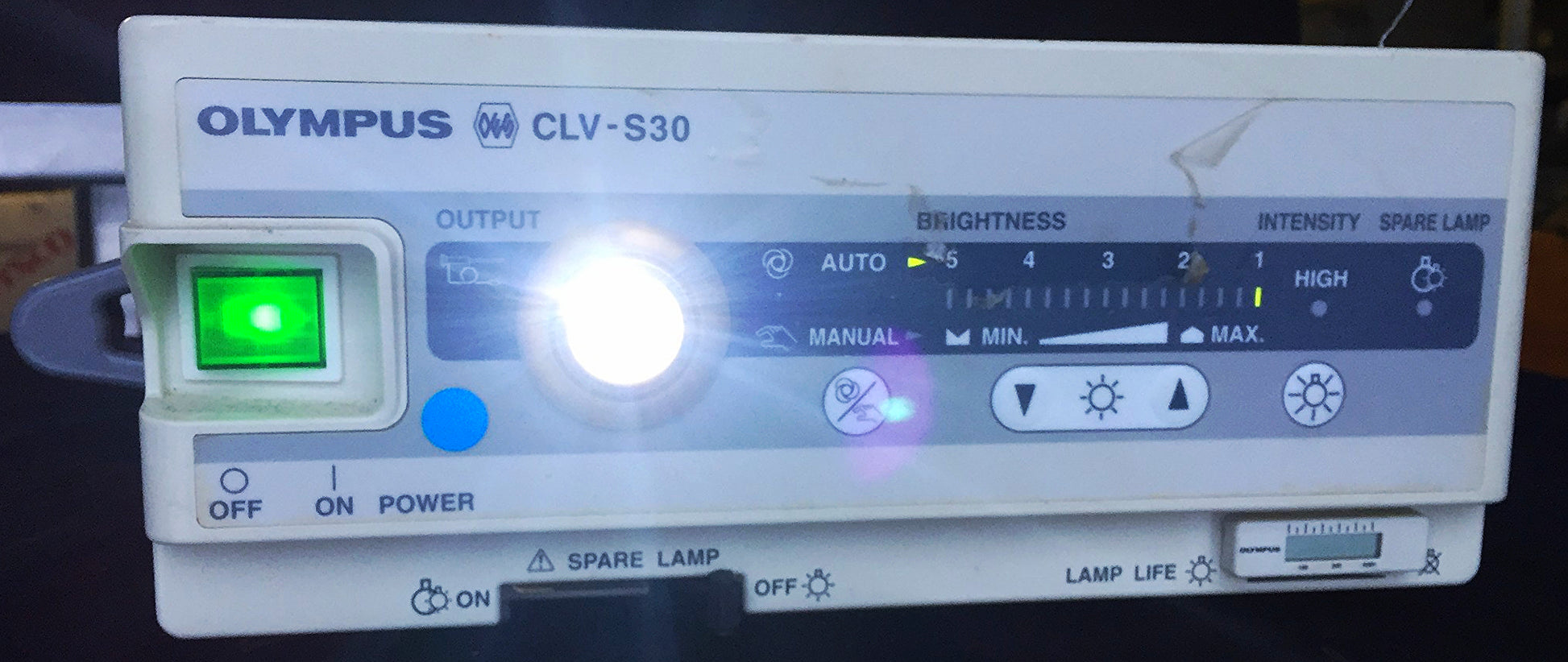

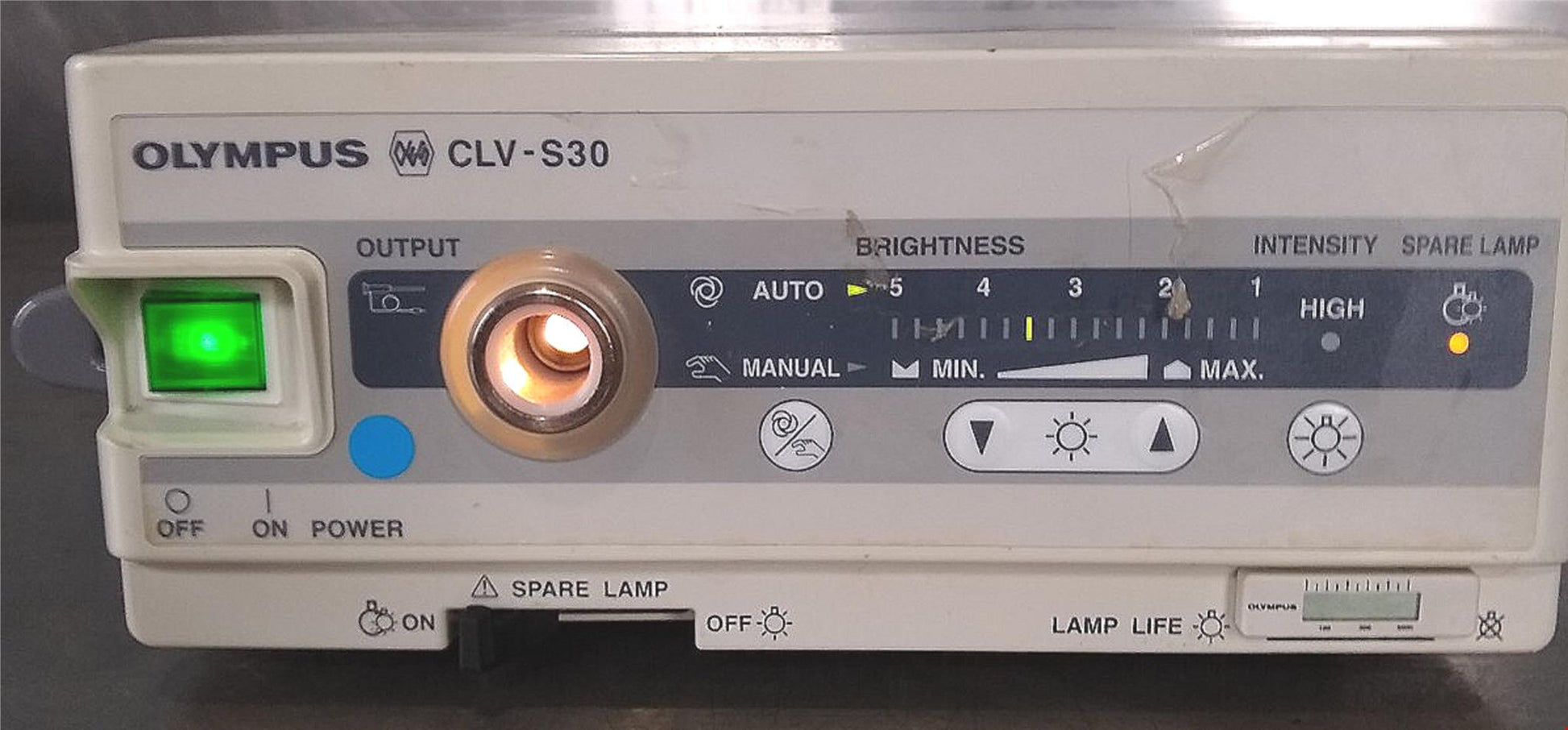

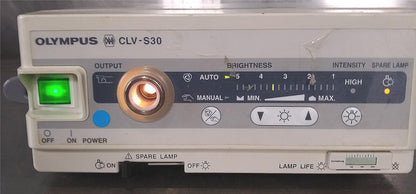

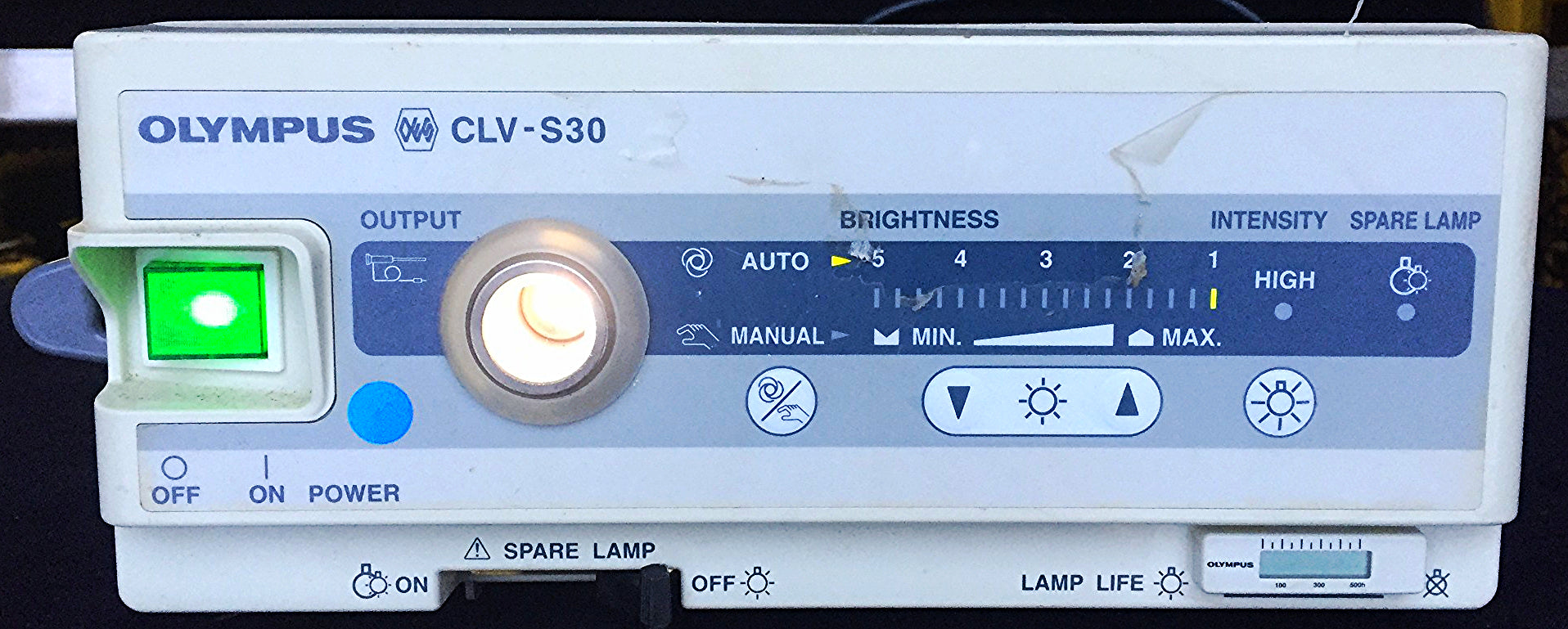

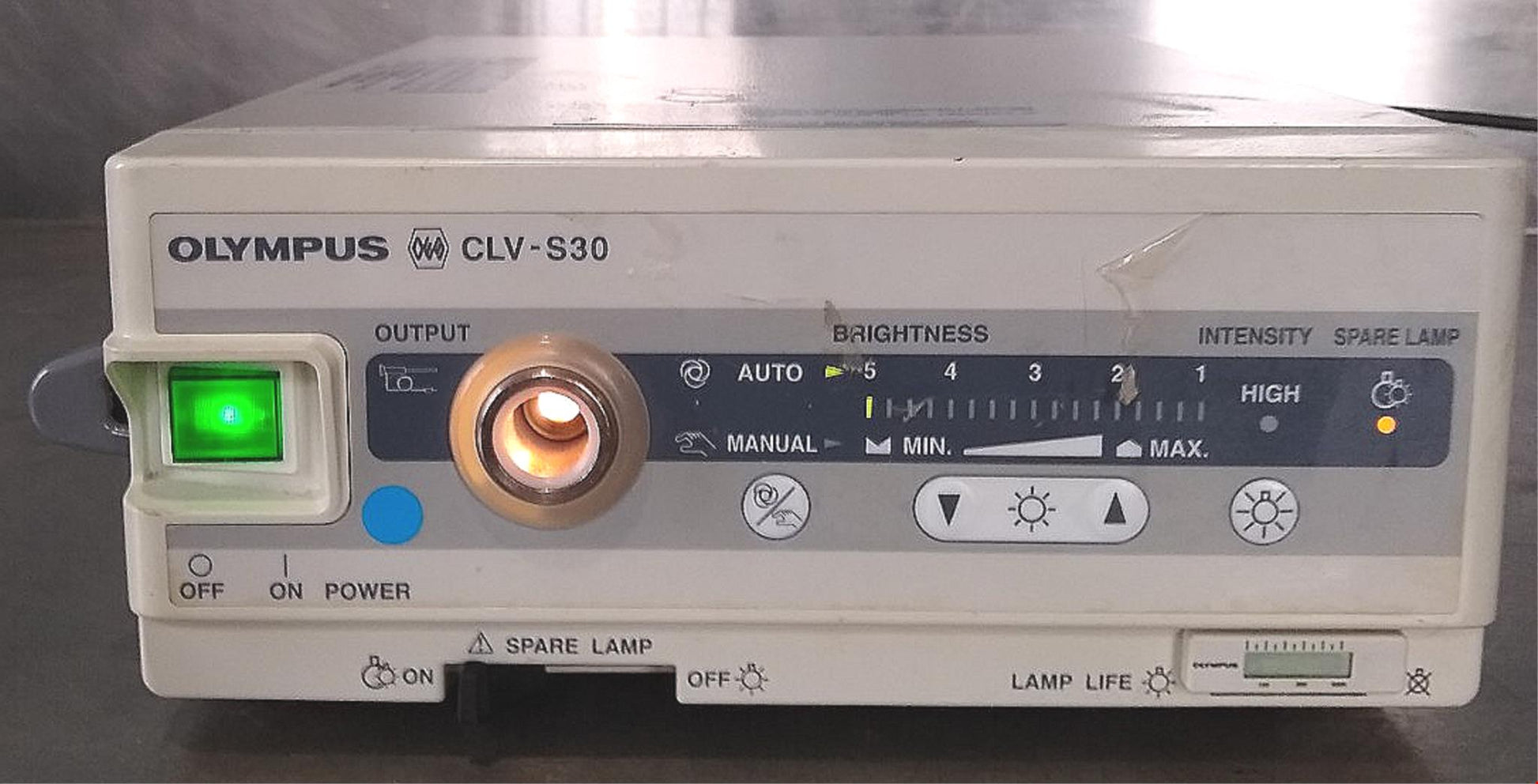

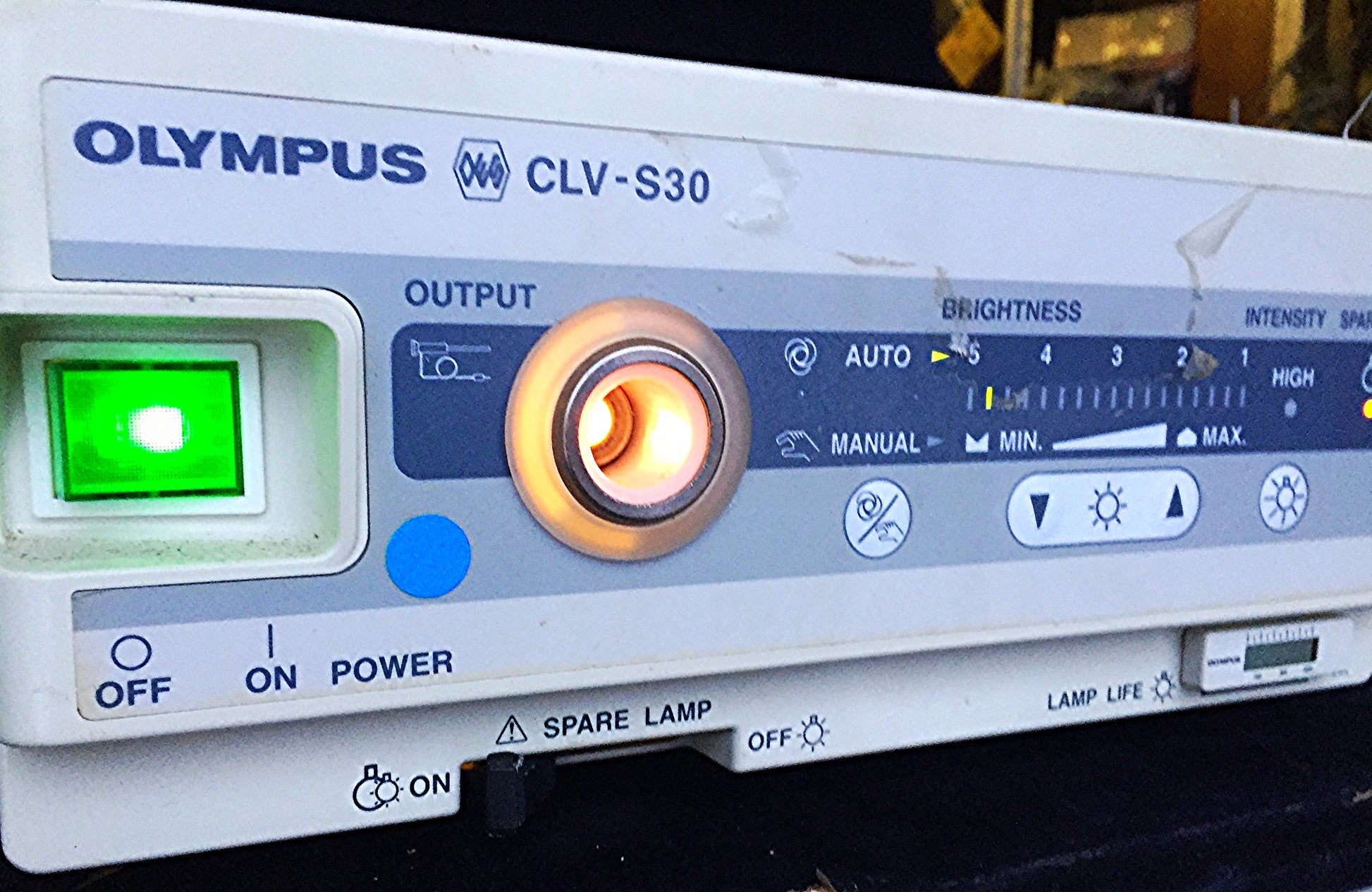

Front Panel
Emergency Lamp Indicator: Indicates that the emergency lamp is operating, and blinks when the emergency lamp is broken
Intensity-Mode Memory Indicator: Indicates that Intensity-Mode Memory is selected
Standby Mode Indicator: Indicates that the standby mode is selected
Setting Retention: Selected settings are retained when the light source is switched off
