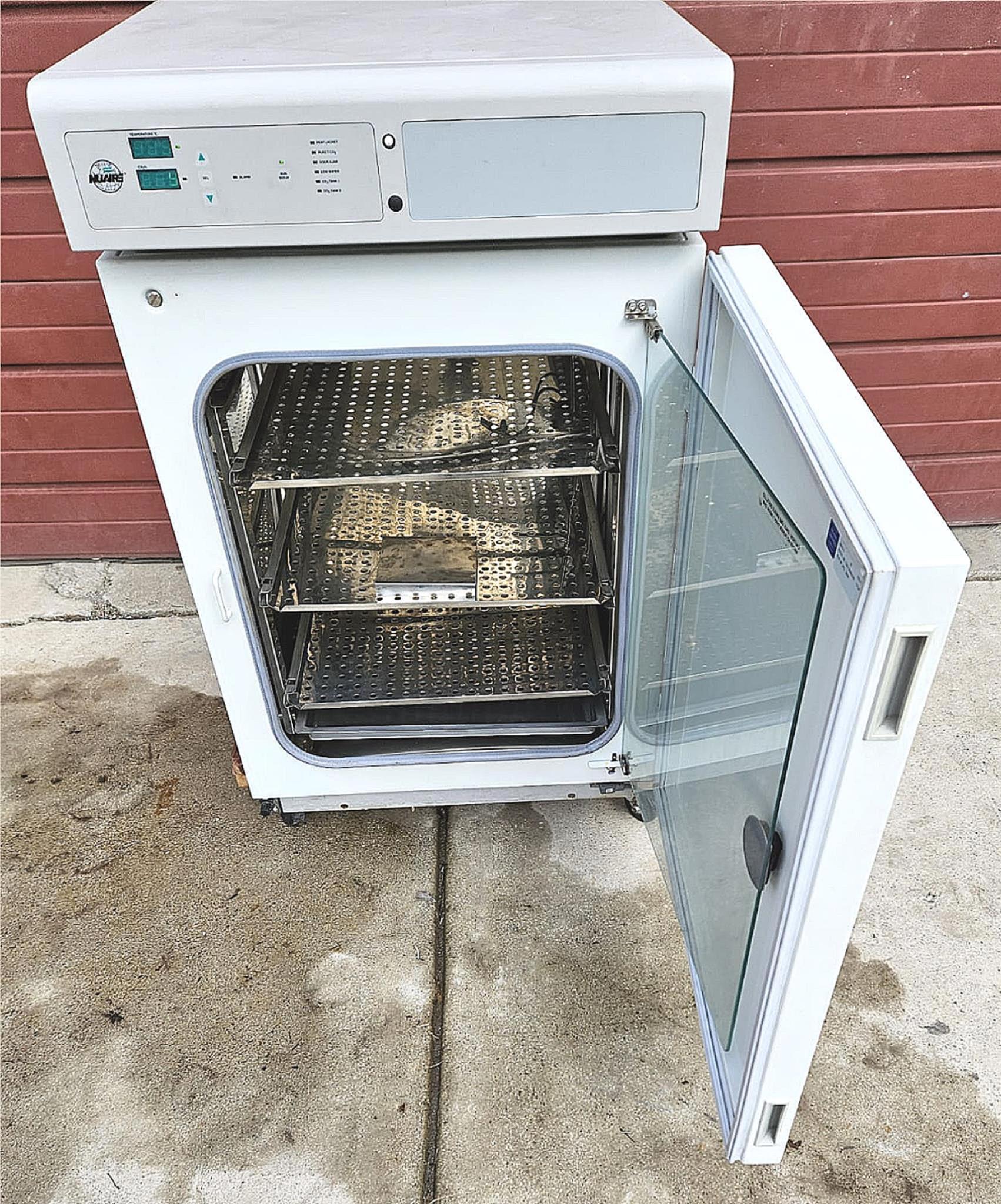

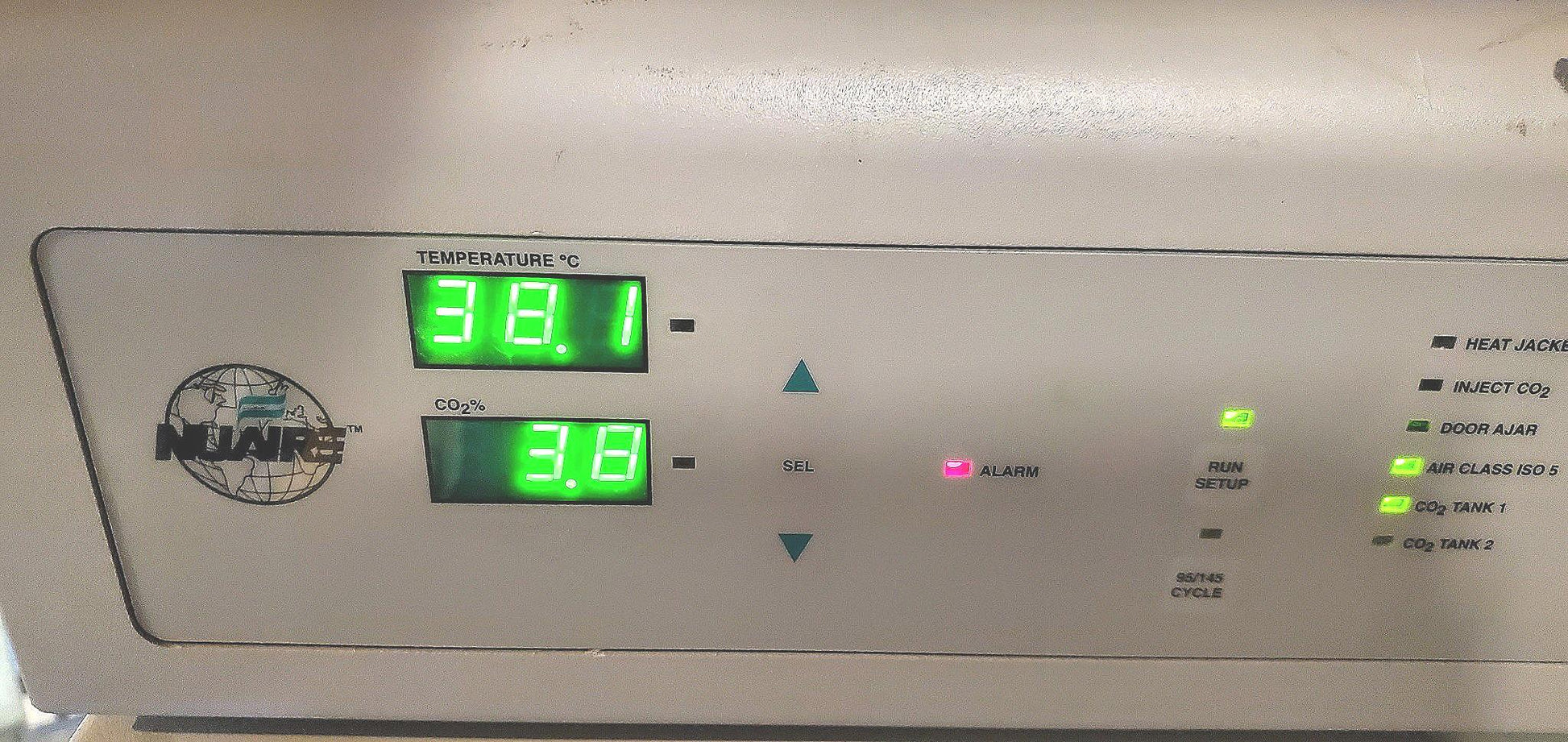

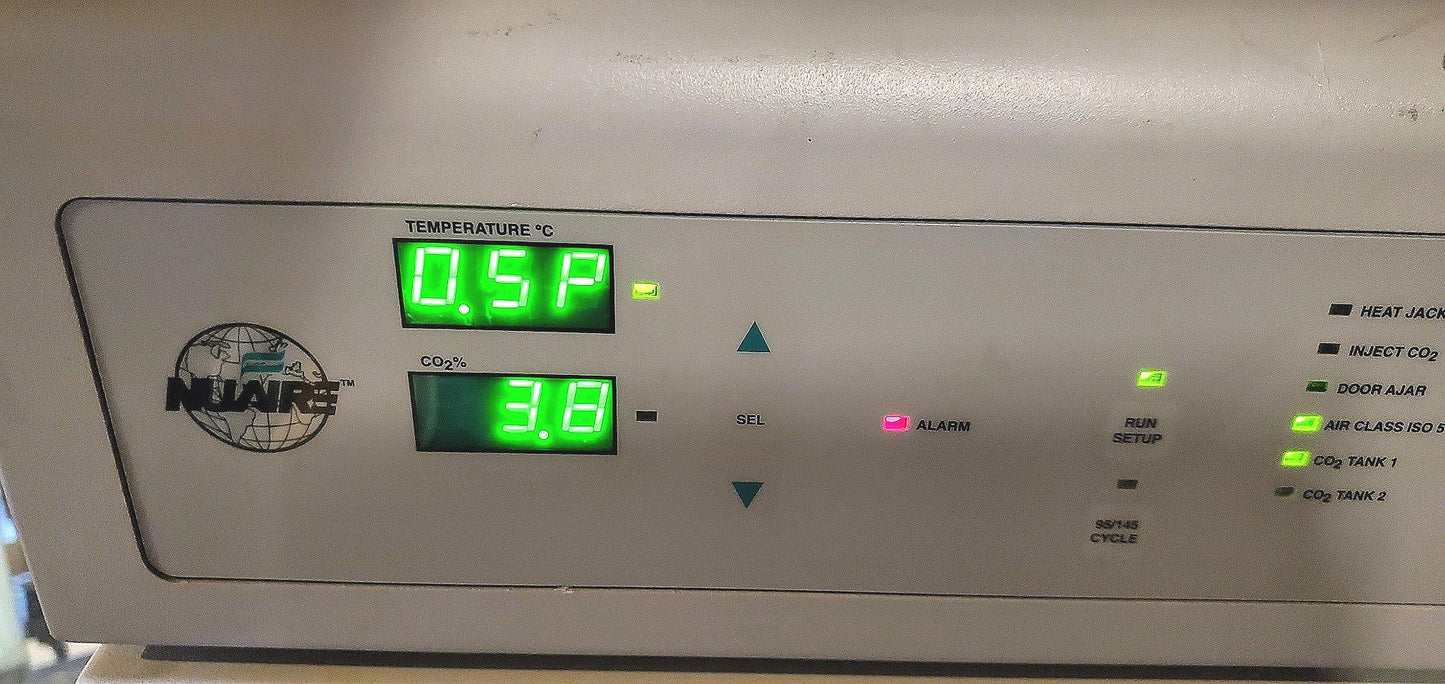

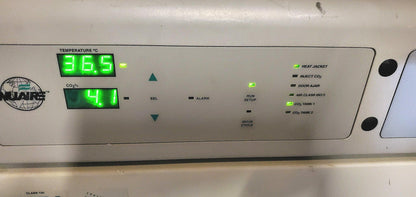

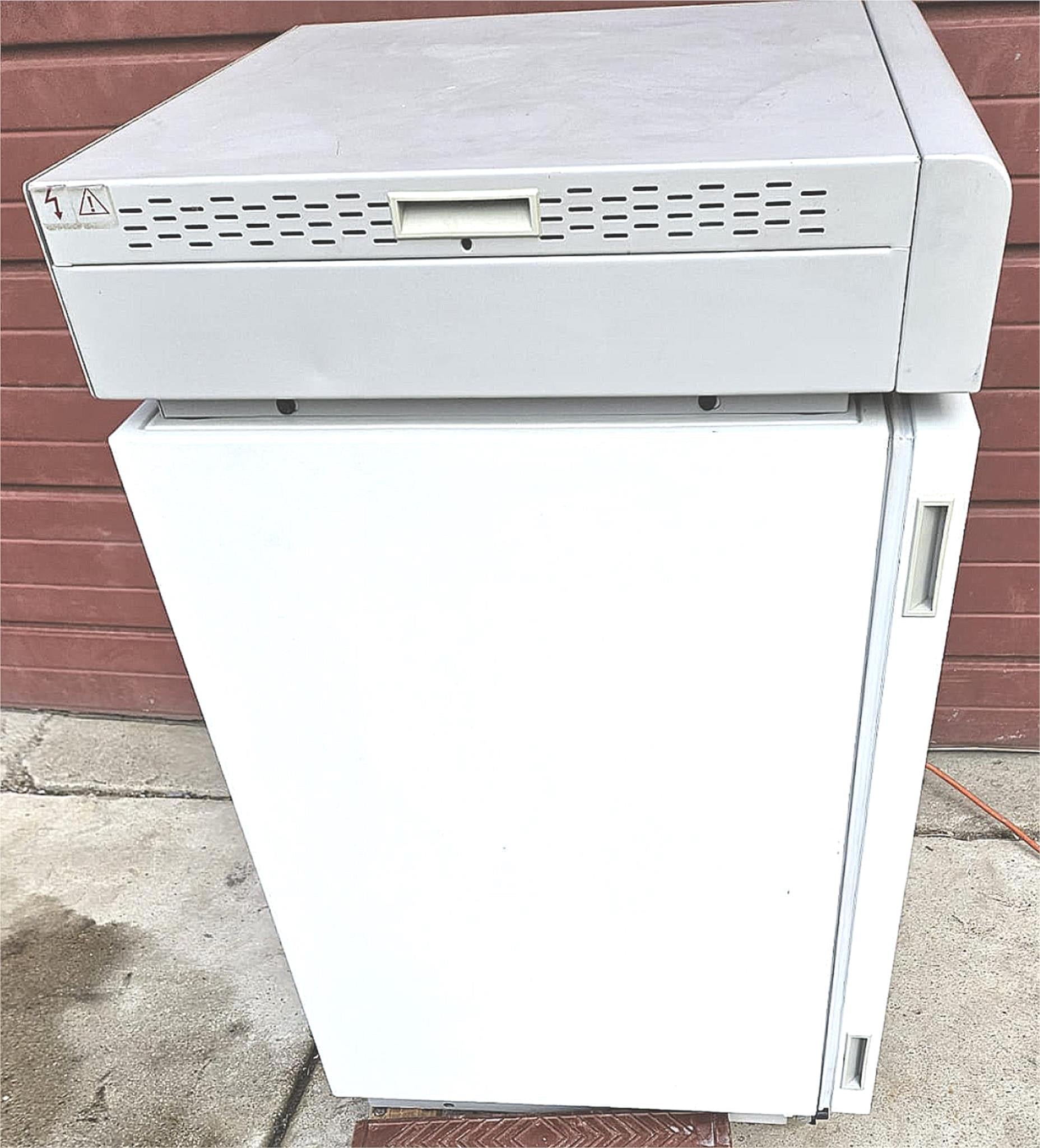

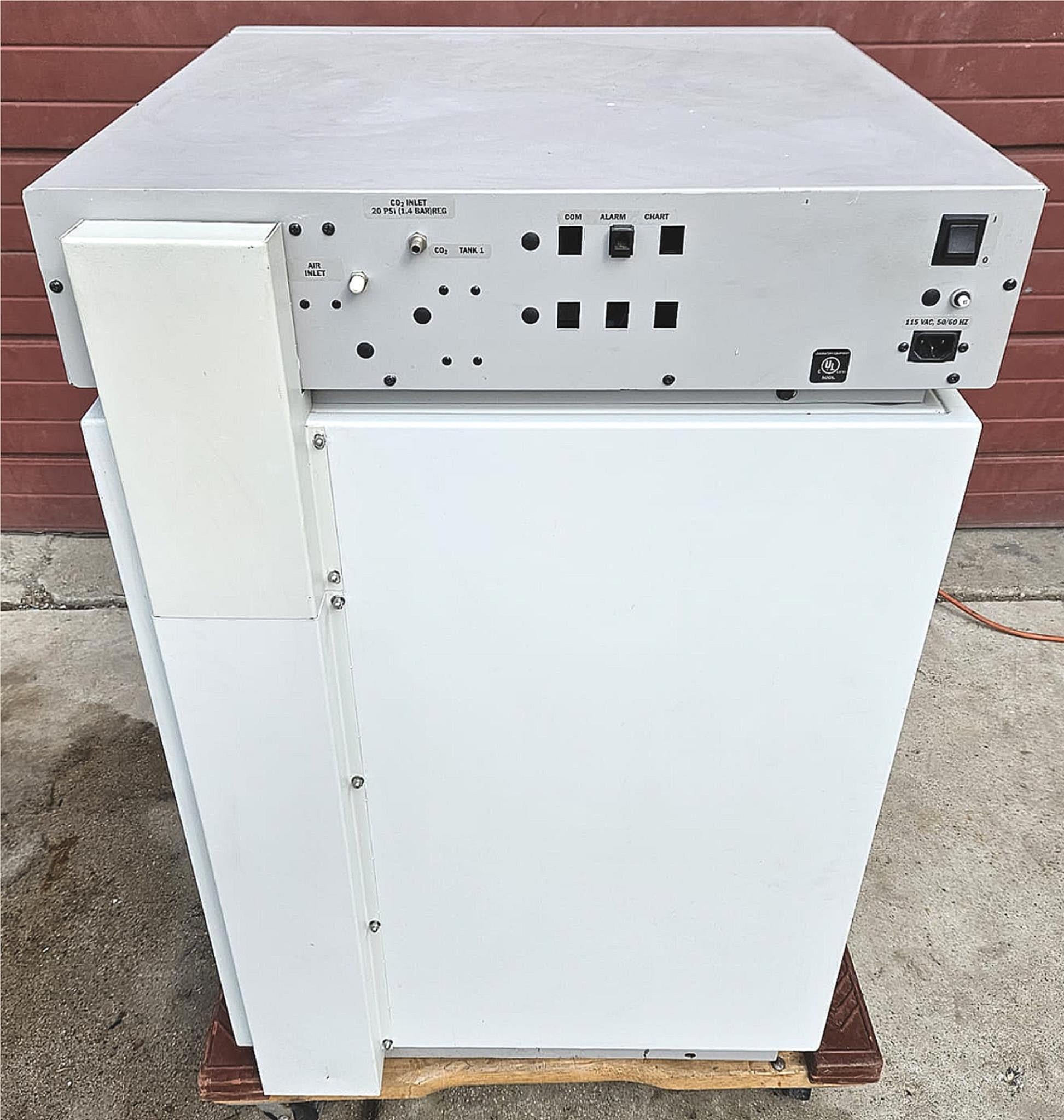

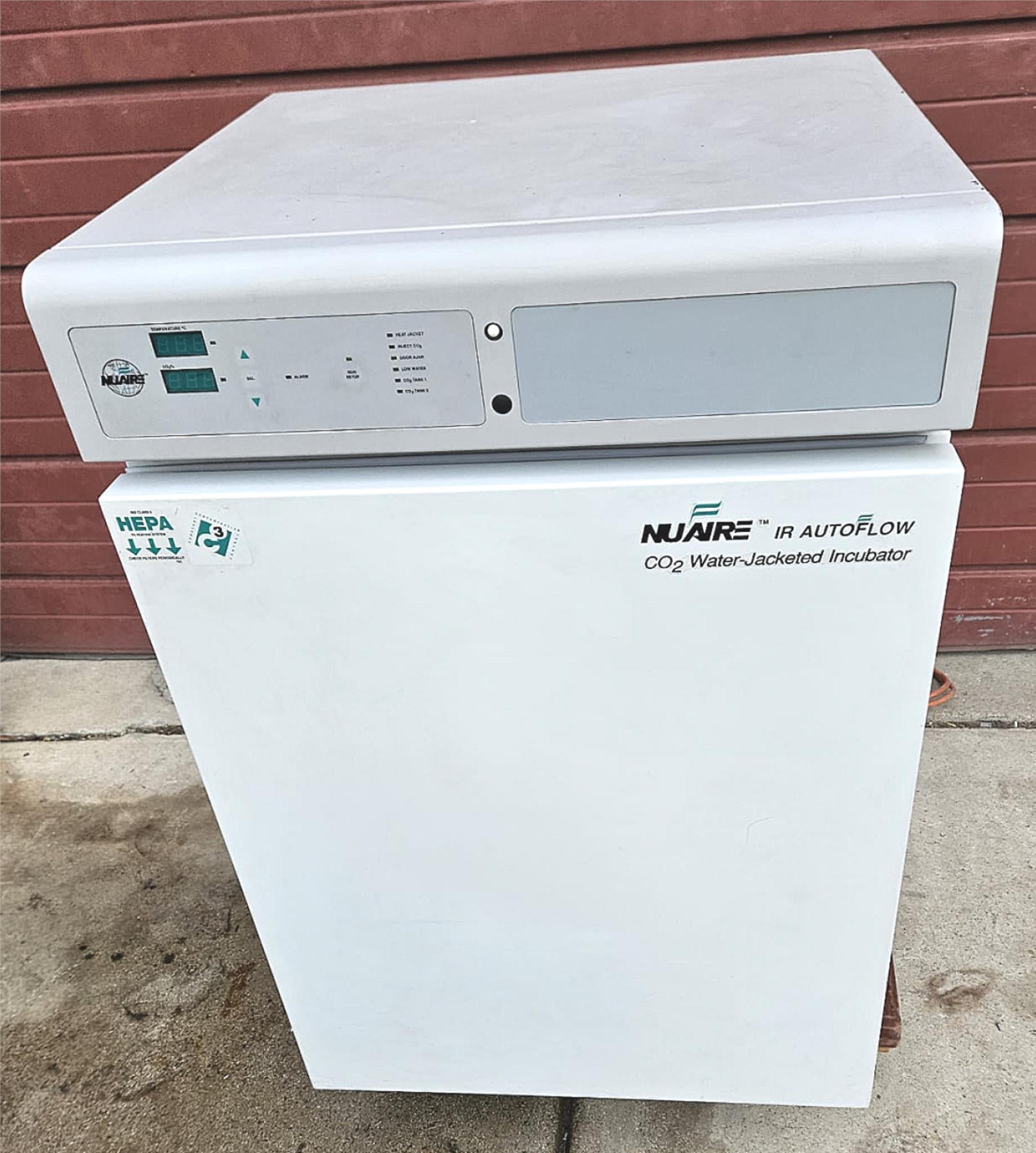

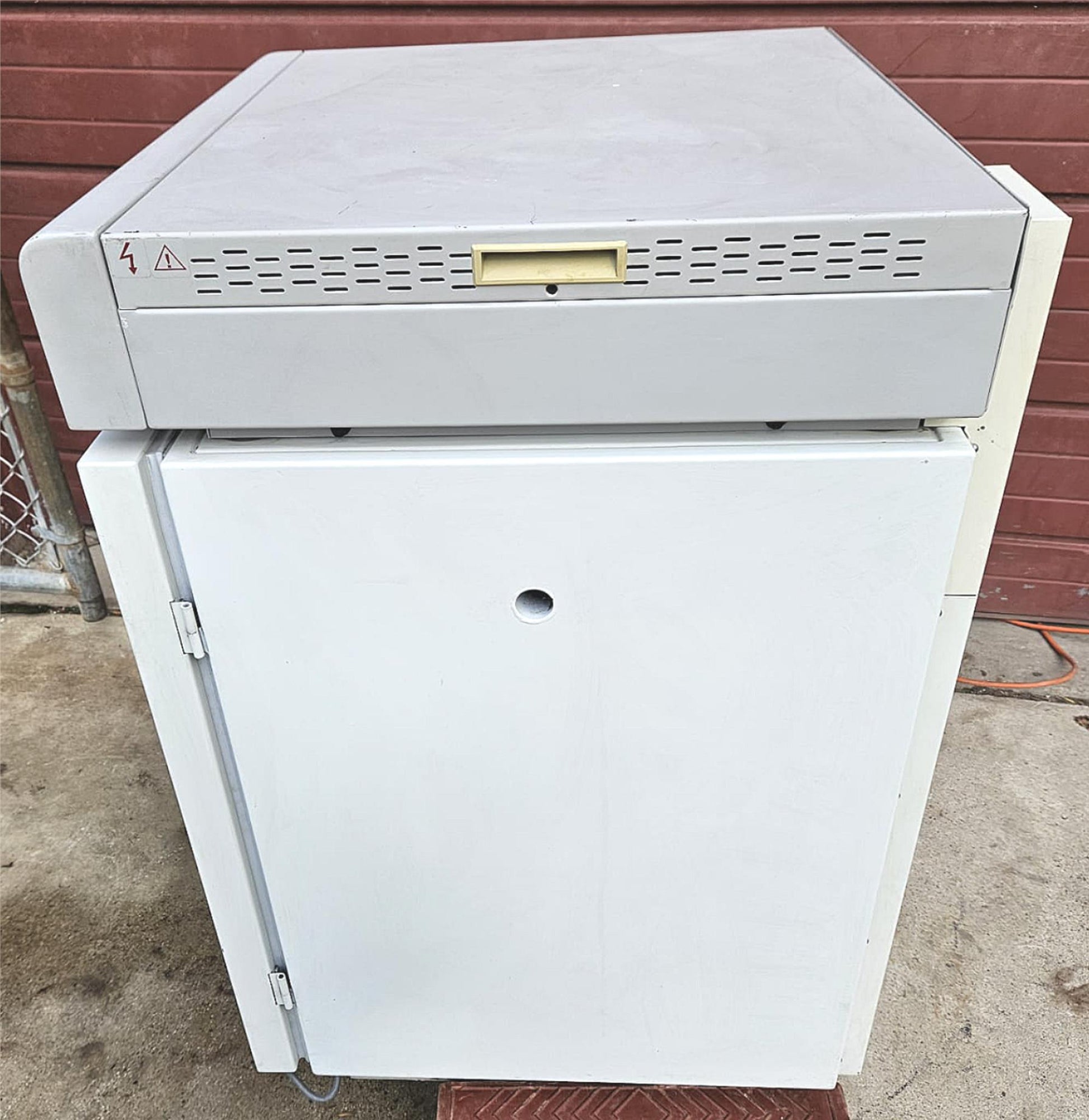

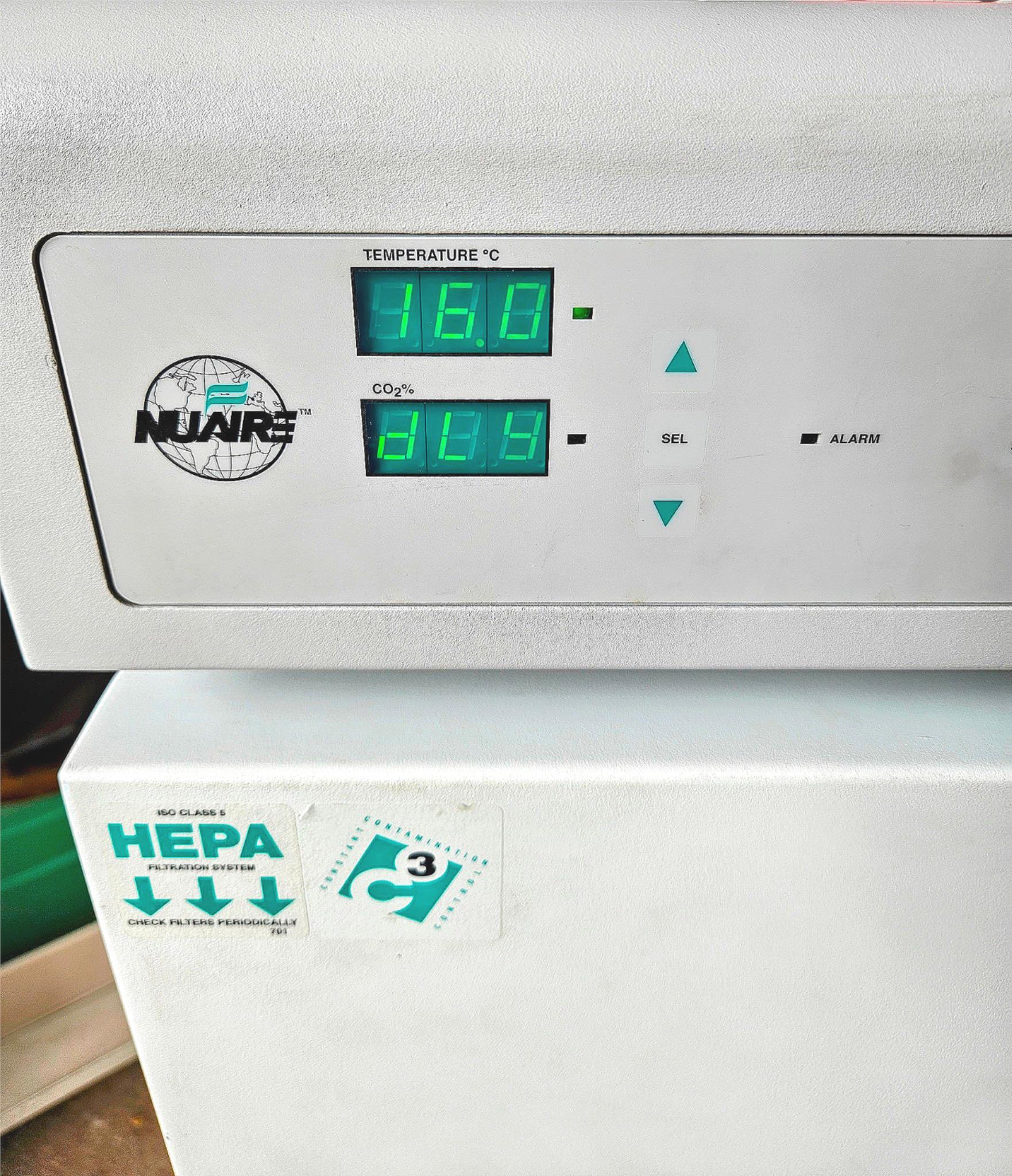

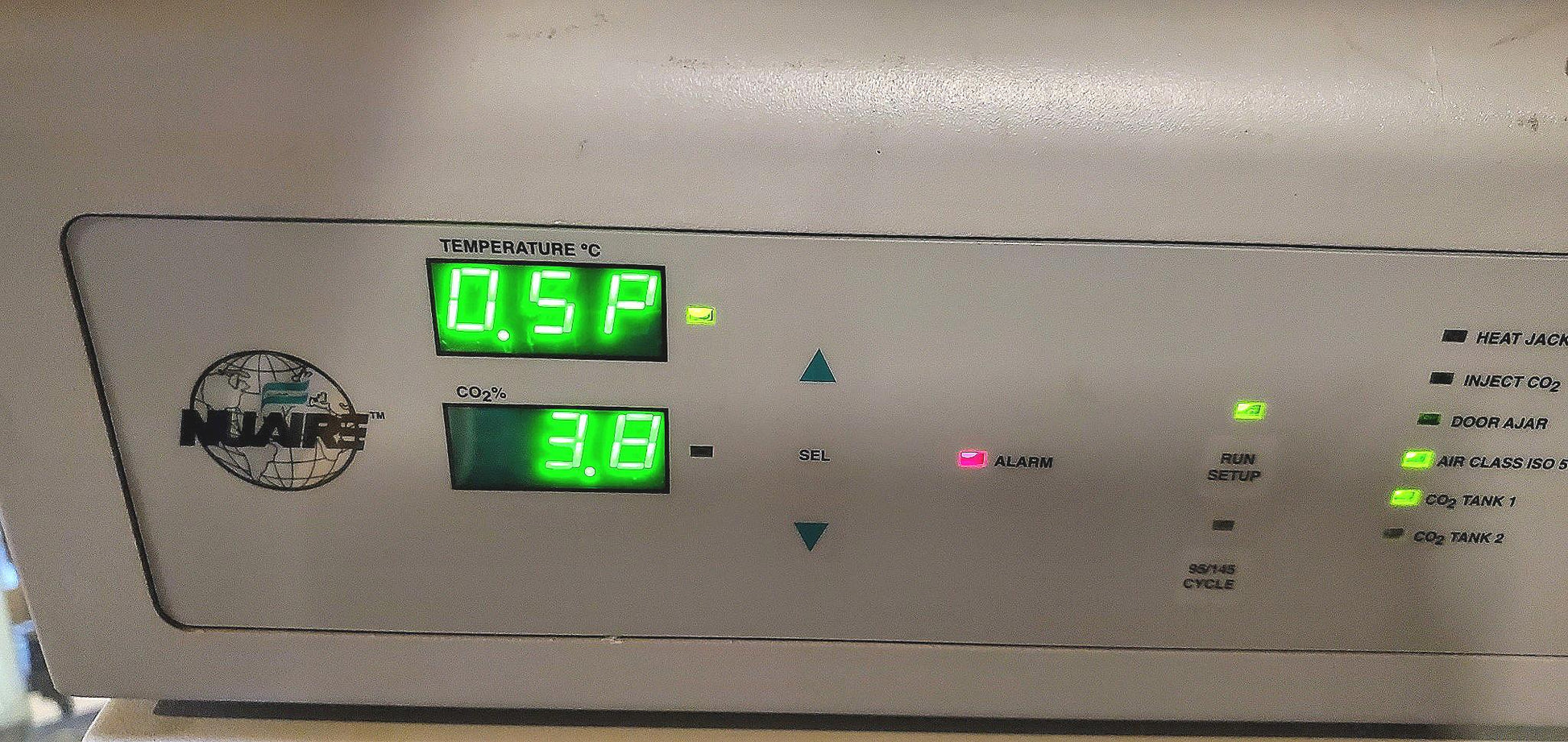

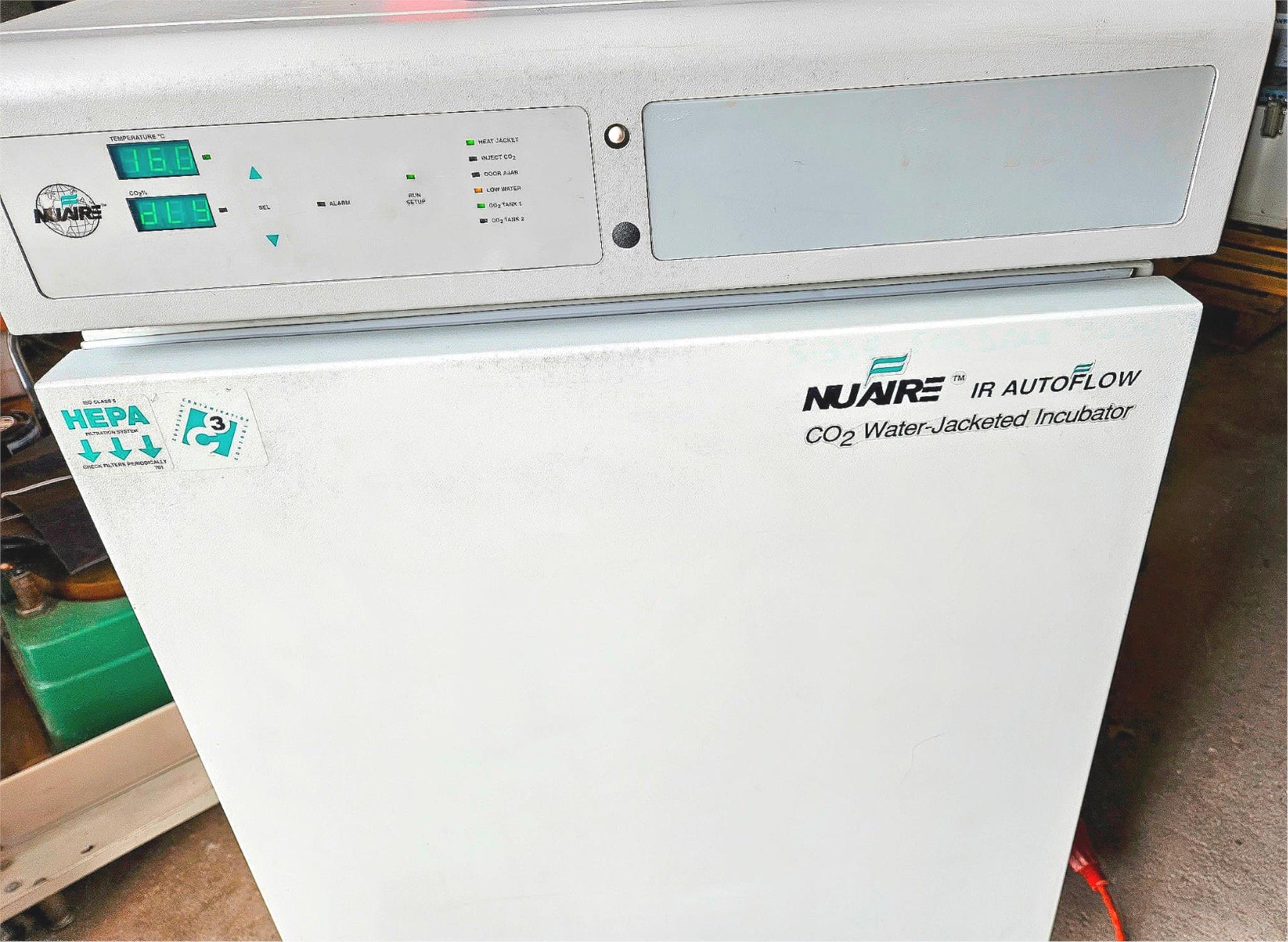

This listing is for a NUAIRE™ NU-8500 CO2 INCUBATOR 4 SHELVES as can be seen in the pictures.
This unit comes complete with 4 Double Wheel Dolly.
This unit does work perfectly, the heat and fan power on and are very silent and that's why we warranty it for 90 Days or your Money Back!!!
Unique Opportunity at this price, these units are very expensive when Guaranteed Working Like This one here! Some cost over US$ 4.000,00 so don't miss it, will not last long!!!
FREE SHIPPING TO ANY CONTINENTAL USA BUSINESS LOCATION WHERE BUYER CAN UNLOAD IT OFF THE DELIVERY FREIGHT TRUCK!
IF BUYER DOES NOT HAVE THE MEANS TO UNLOAD IT AT DELIVERY (NO DOCK or FORKLIFT) THEN THERE WILL BE A $150 SPECIAL LIFTGATED FREIGHT TRUCK DELIVERY FEE.
Technical Information in Italics Blue below was taken from Manufacturer's website:
usf.edu/research-innovation/rf/usf-connect/documents/nuaire-ir-autoflow-nu-8700.pdf
General Description
The NuAire 8500 IR Autoflow Automatic CO2 water-jacketed incubator has been designed to provide a reliable
controlled in vitro environment for optimum tissue cell culture growth. The chamber also provides an
environment for the storage and preservation of embryos, gametes and animal tissue cell cultures at on near
body temperature. Six parameters contribute to optimum growth conditions. These are:
1. Humidity
2. Precise temperature control
3. Precise CO2 control
4. Sterility
5. Reliability
Like all NuAire equipment, the IR Autoflow has been designed to provide the highest quality standards of
performance with matching computer technology, precise temperature control and CO2 gas control system
combining state-of-the-art technology with years of design, quality and manufacturing experience.
In order to accomplish the foregoing objectives, the IR Autoflow features the following:
1.1 Extra Large (20 gallon) Water-Jacket - Each Chamber
The outer stainless steel wall is lined with a space-age insulation providing an R5.0 rating, minimizing heat loss.
The large 20 gallon (75.7 liters) water-jacket utilizes water, one of natures best heat "sinks". Its high capacity to
hold heat makes it the ideal medium to surround a chamber in order to obtain temperature uniformity. In fact,
the ability of materials to hold heat, called the specific heat, uses water as the comparative standard. The large
water-jacket surrounding the chamber permits the water to circulate within the jacket, producing a temperature
uniformity of +0.2°C. The larger the mass, the less susceptible the chamber is to outside environment
fluctuations. It also adds cabinet stability for the growth of vibration-sensitive cells.
Specifications
Weight (lbs./kg - per unit): NU-8500
Dry: 218 / 99
Operational (jacket filled): 385 / 175
Shipping: 287 / 130
Overall Dimensions - inches (mm): NU-8500
Width: 25.5 (647.7)
Height: 40.5 (1028.7)
Depth: 27 (685.8)

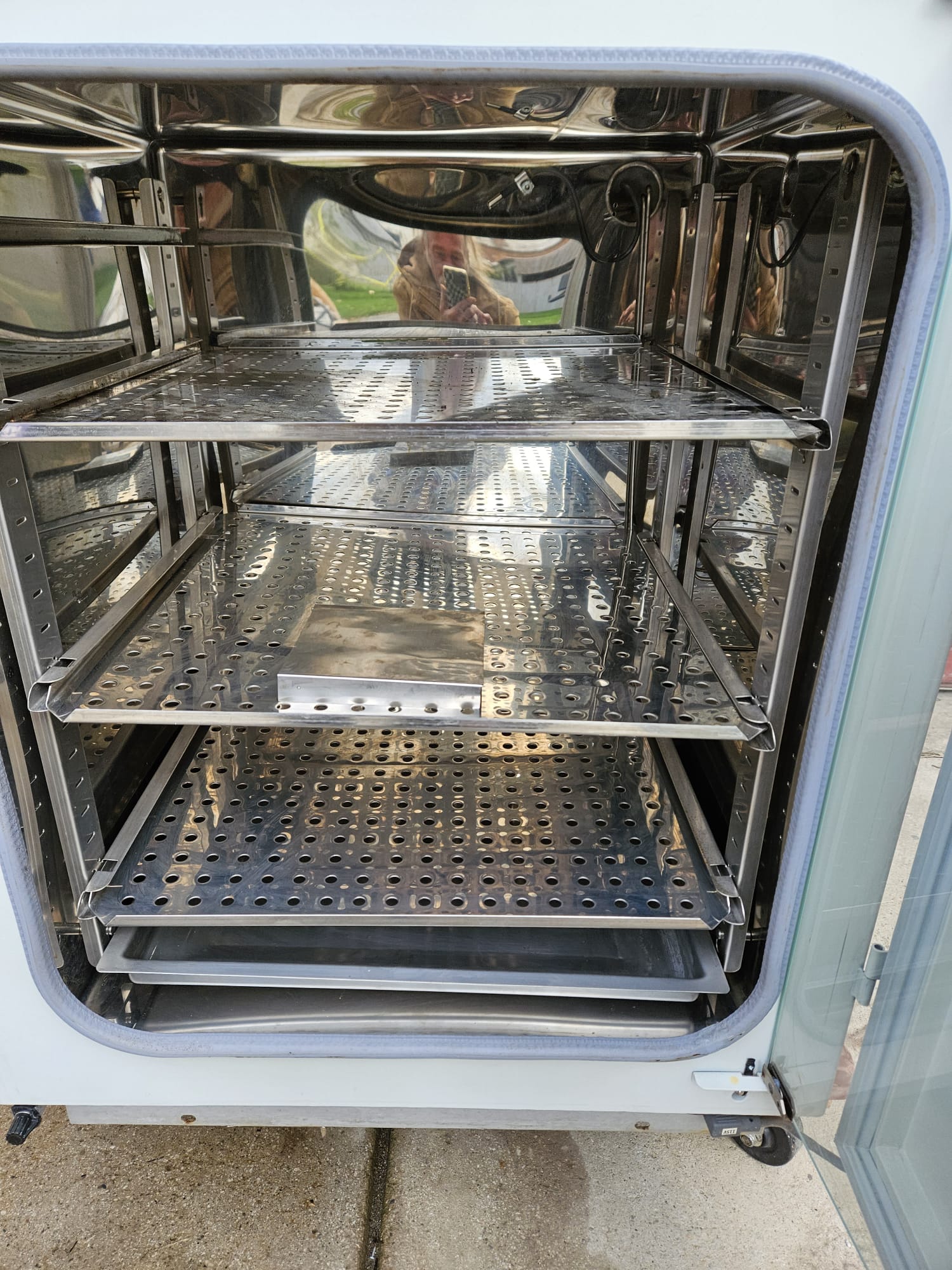

Shelf Capacity: (Do not slide shelf out with more than 20 lbs. on it.

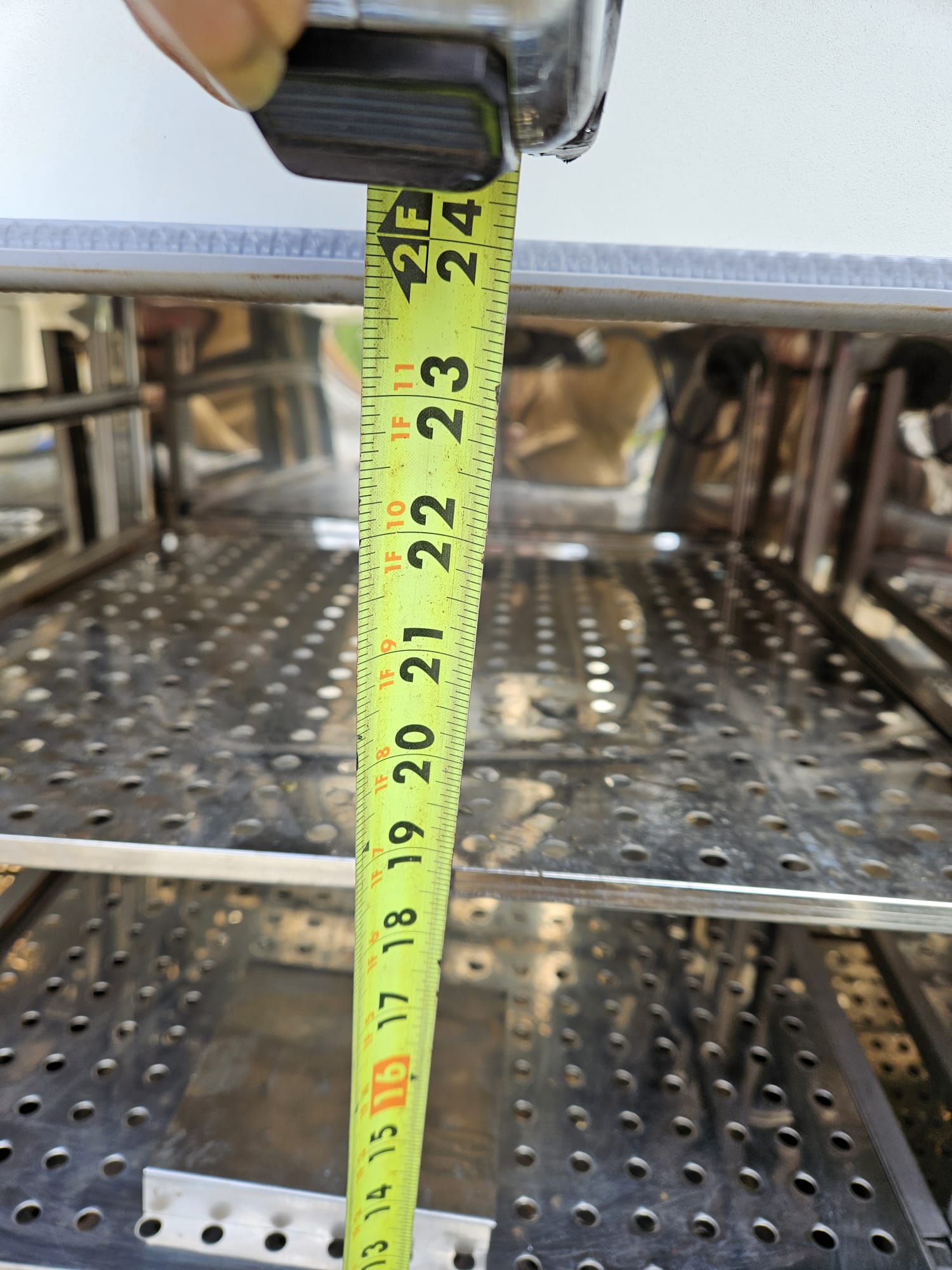

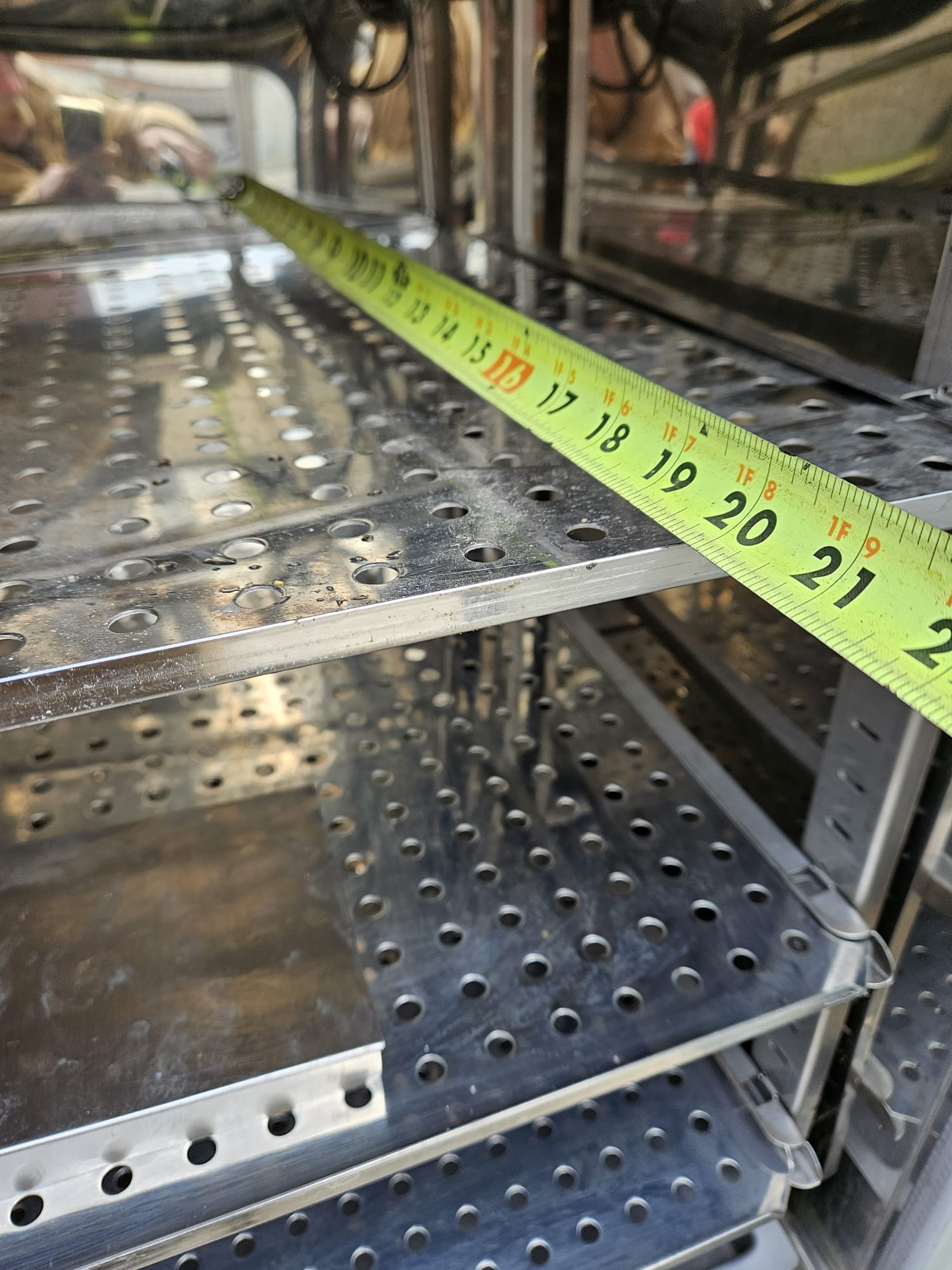

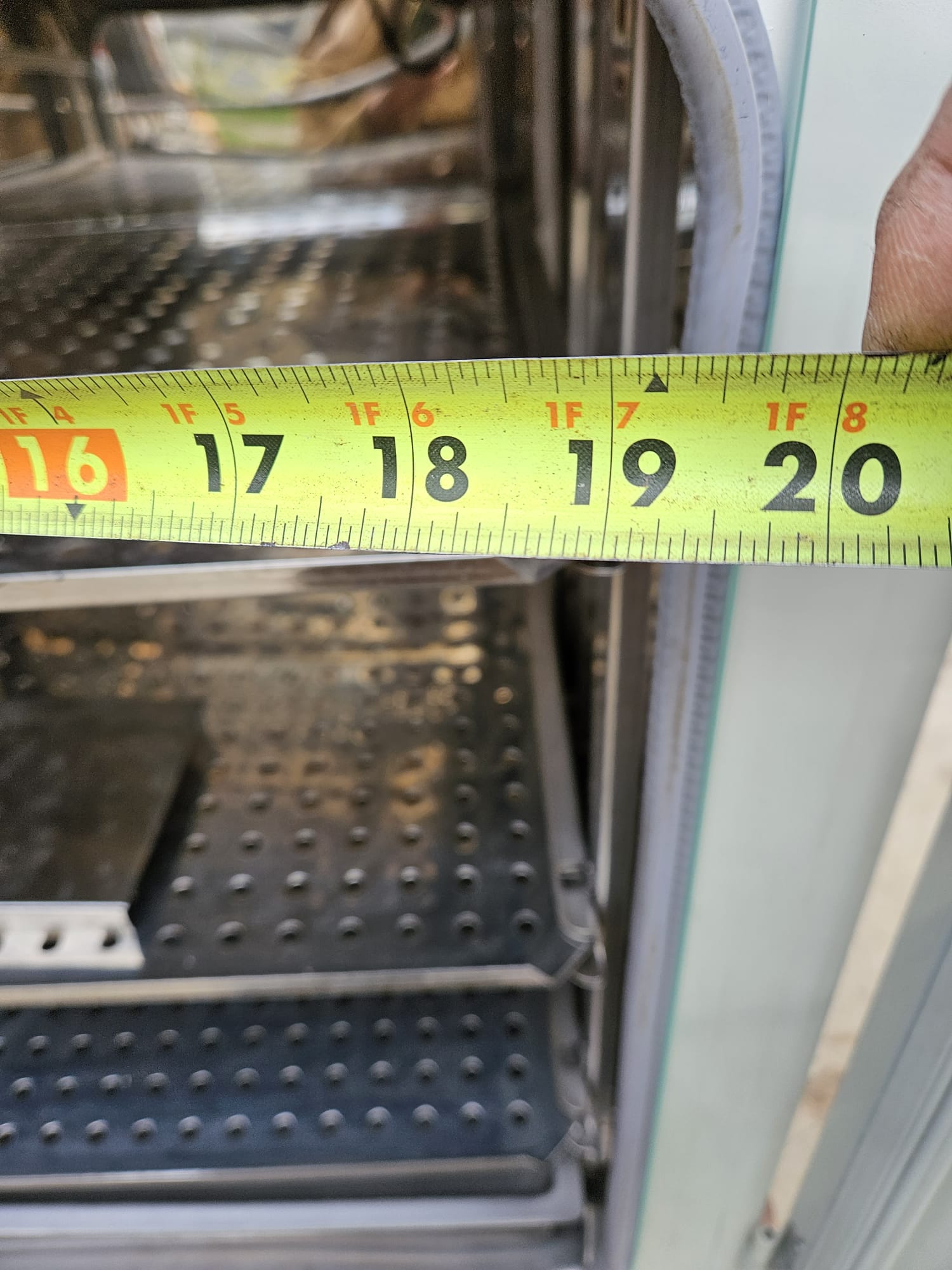

Size: 19.25 Inches (489mm)

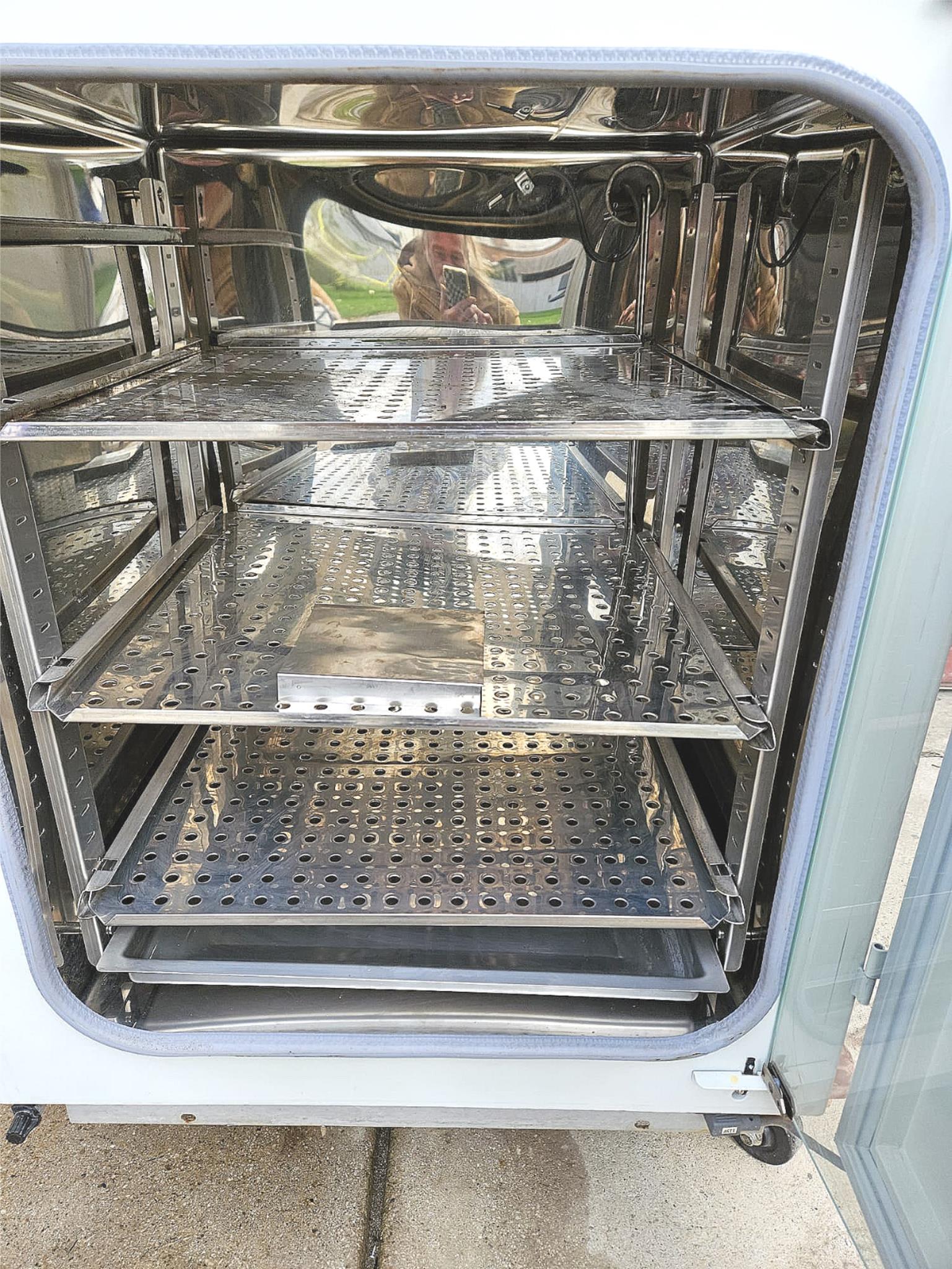

Supplied: 4 Shelves
Max. Capacity: 20 Shelves
Max. Weight Capacity: 30 lbs.
Water Pan:
Dimensions: Mean Length 18.00” (457mm)
Mean Width 18.00” (457mm)
Depth 1.250” (38mm)
Capacity: Maximum Capacity 7.75 Liters
Recommended Fill 6.5 Liters
NU-8500 Standard Features
• 100% stainless steel chamber construction
• Large capacity water-jacket (20 gallon) (75.7liters)

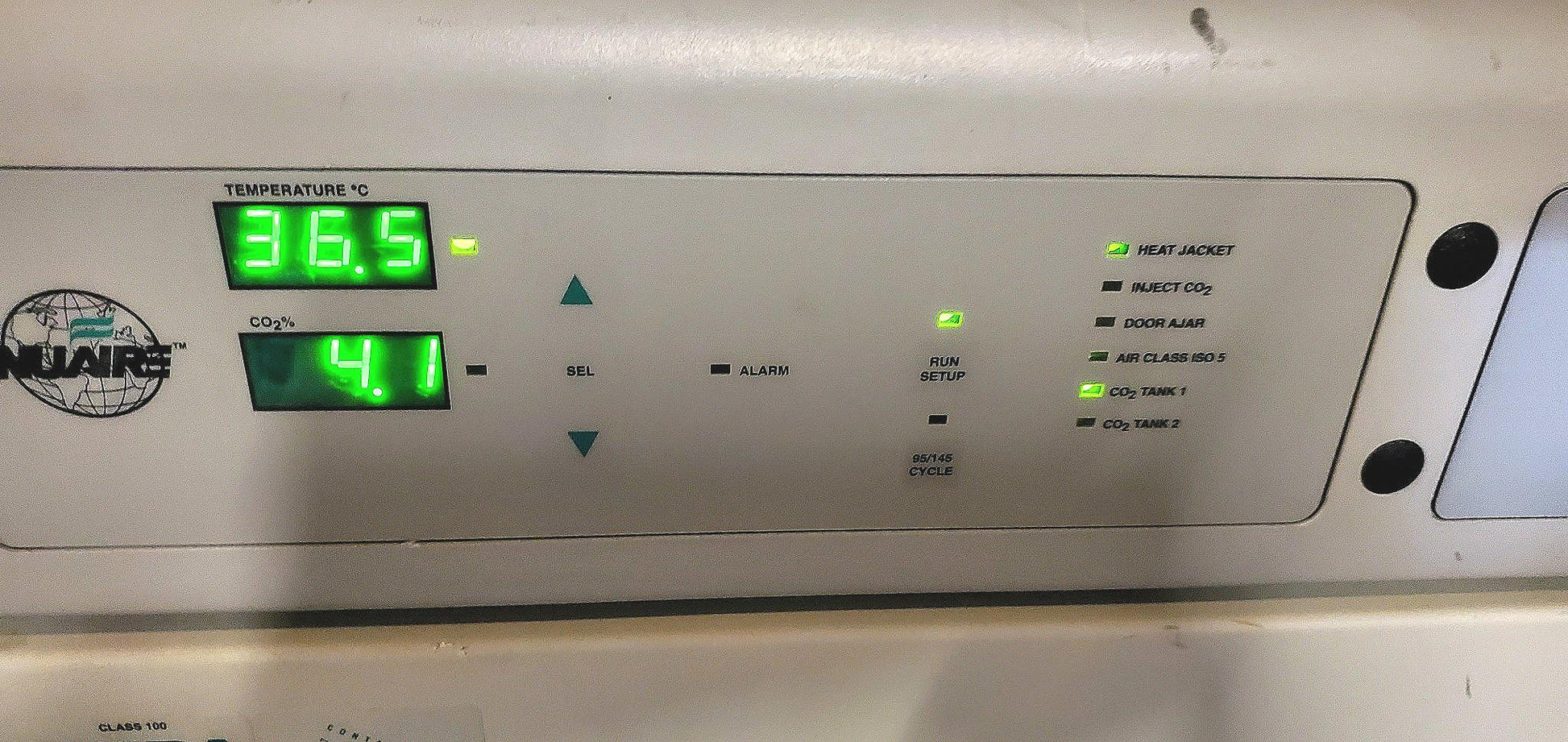

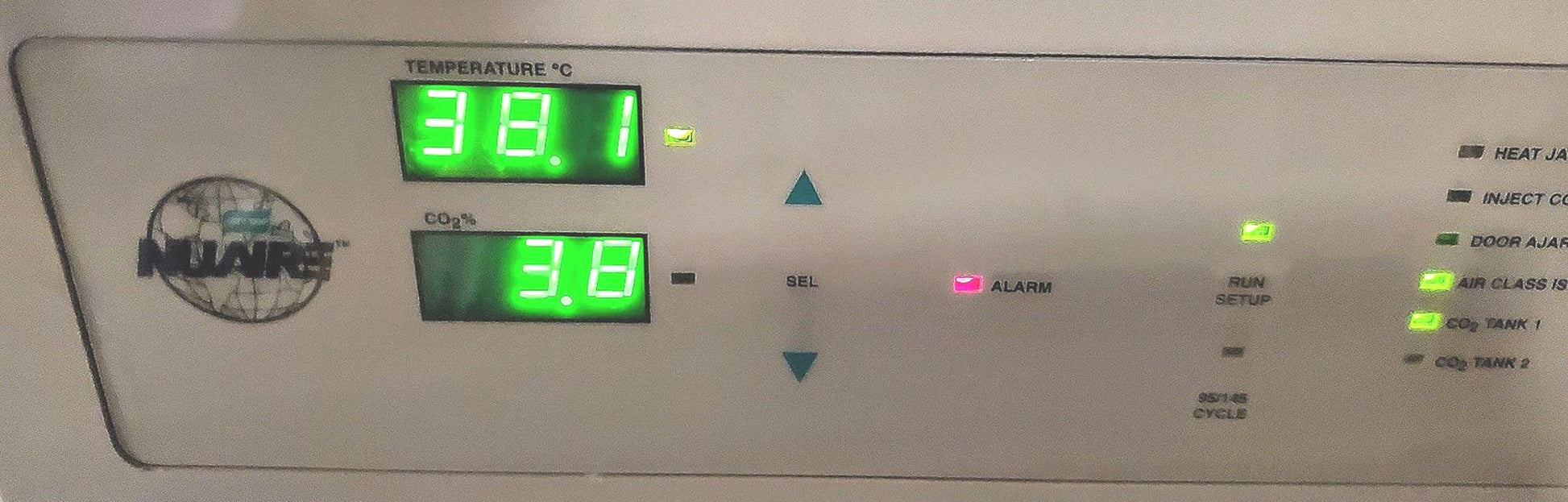

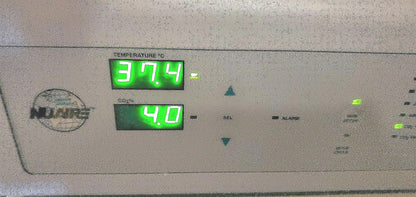

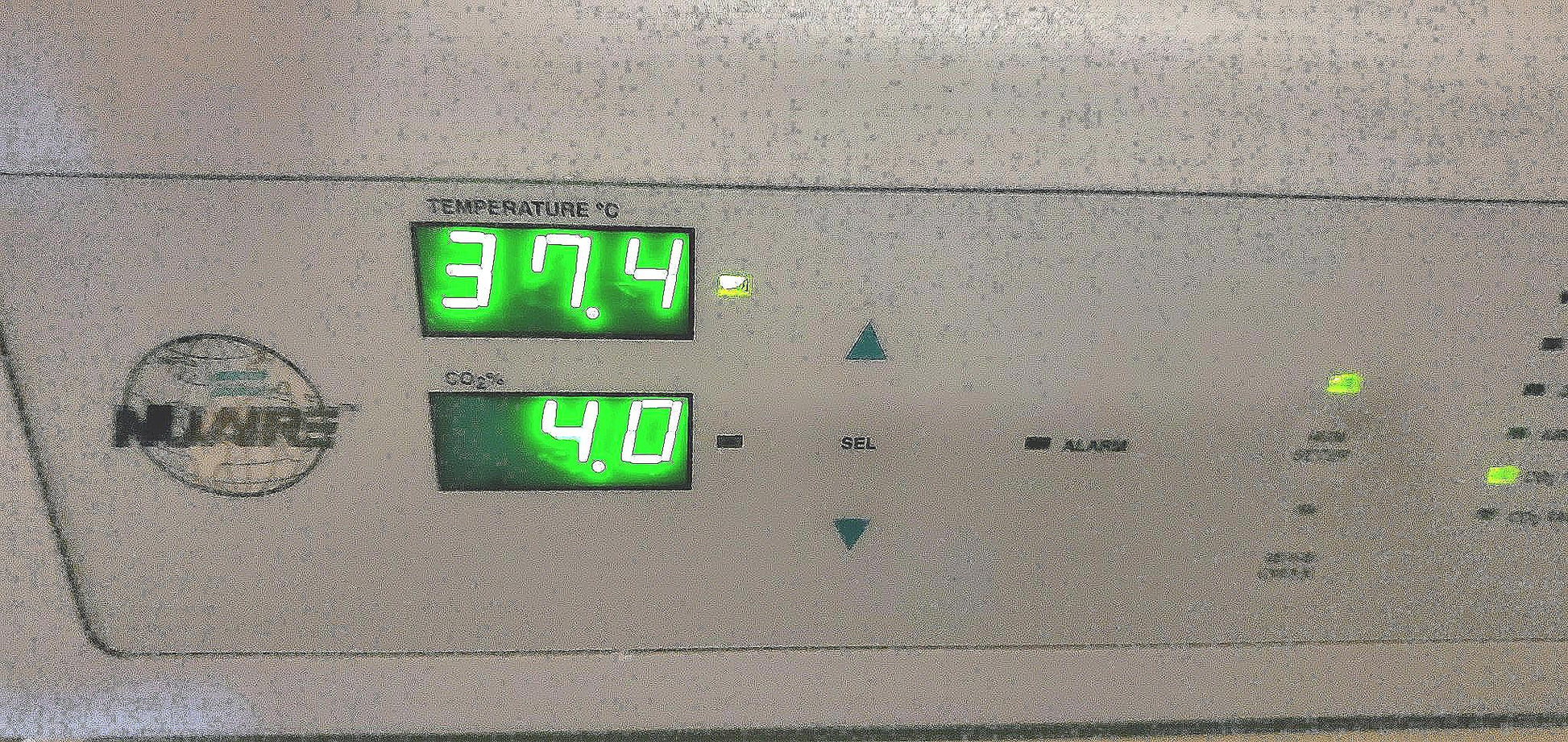

• Temperature Control System (Default Set Point 37.0°C)
• Chamber Temperature Range: 5°C above ambient to +55°C
• Chamber temperature uniformity: ±0.2°C at 37°C
• Temperature sensitivity: ±0.0125°C
• CO2 Control System (Default Set Point 5.0%)
• CO2 Range: 0-20%
• CO2 Accuracy: ±0.1%
• CO2 Recovery to 5.0 ±0.2%: Less than 3-1/2 minutes

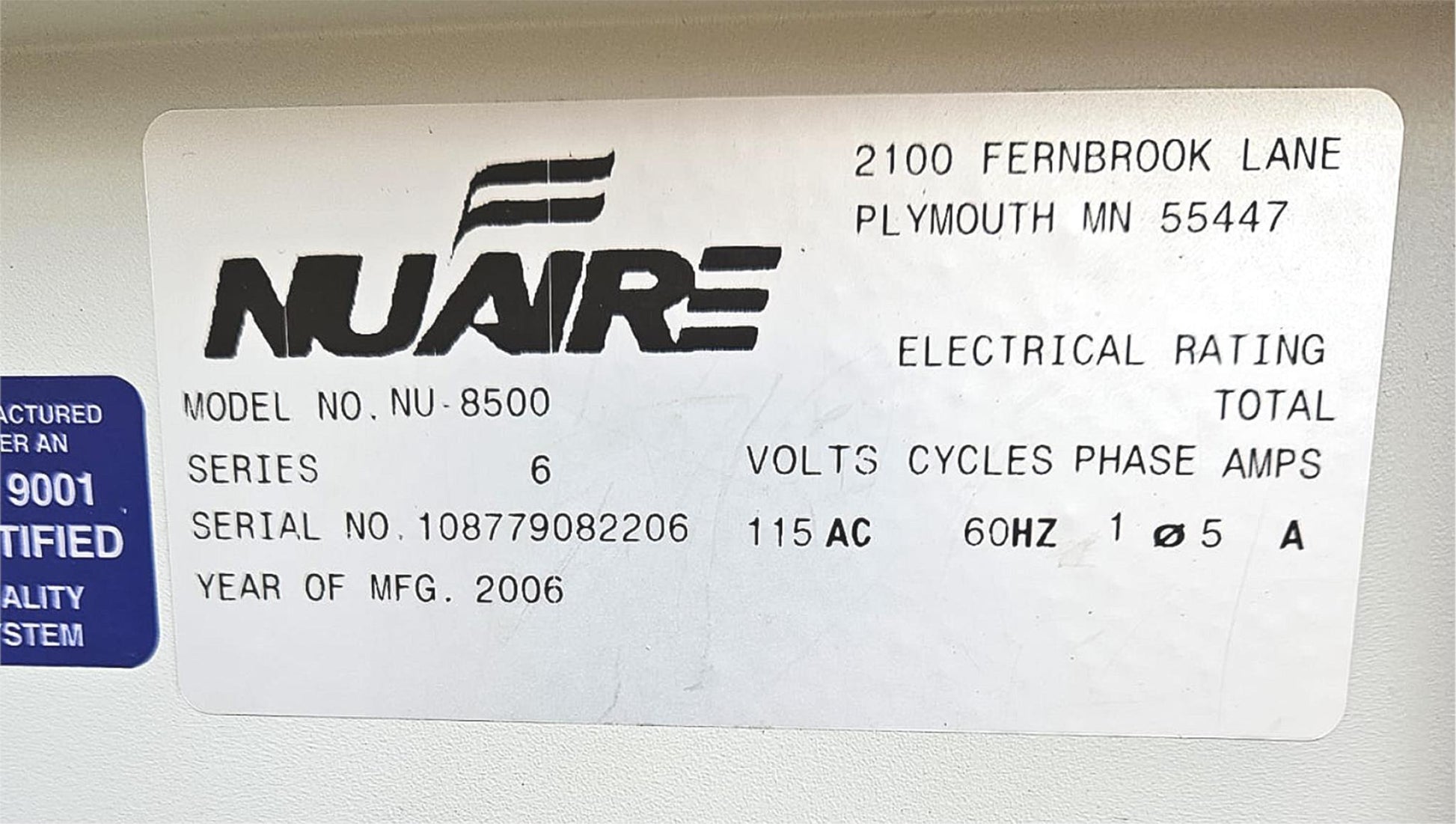

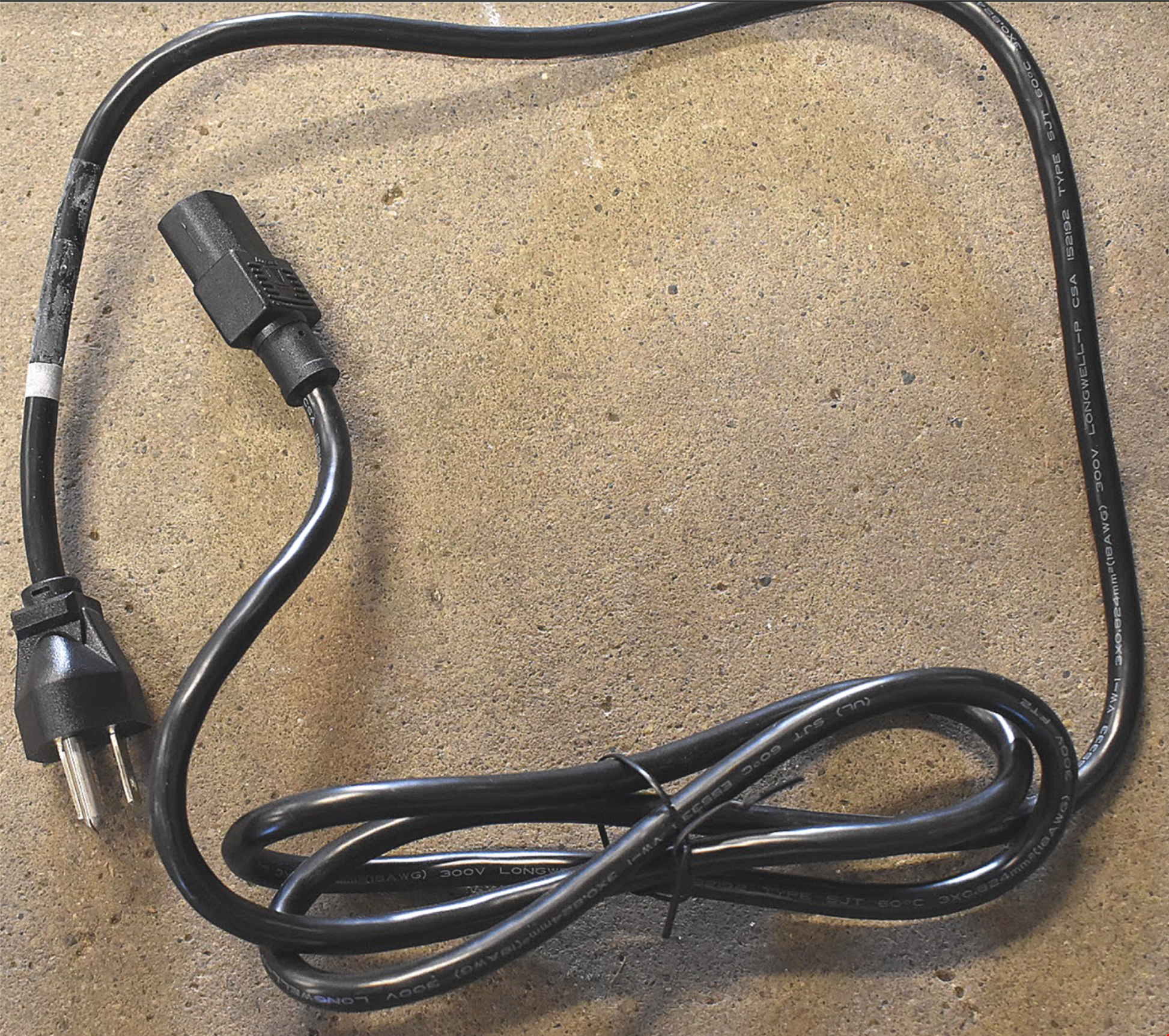

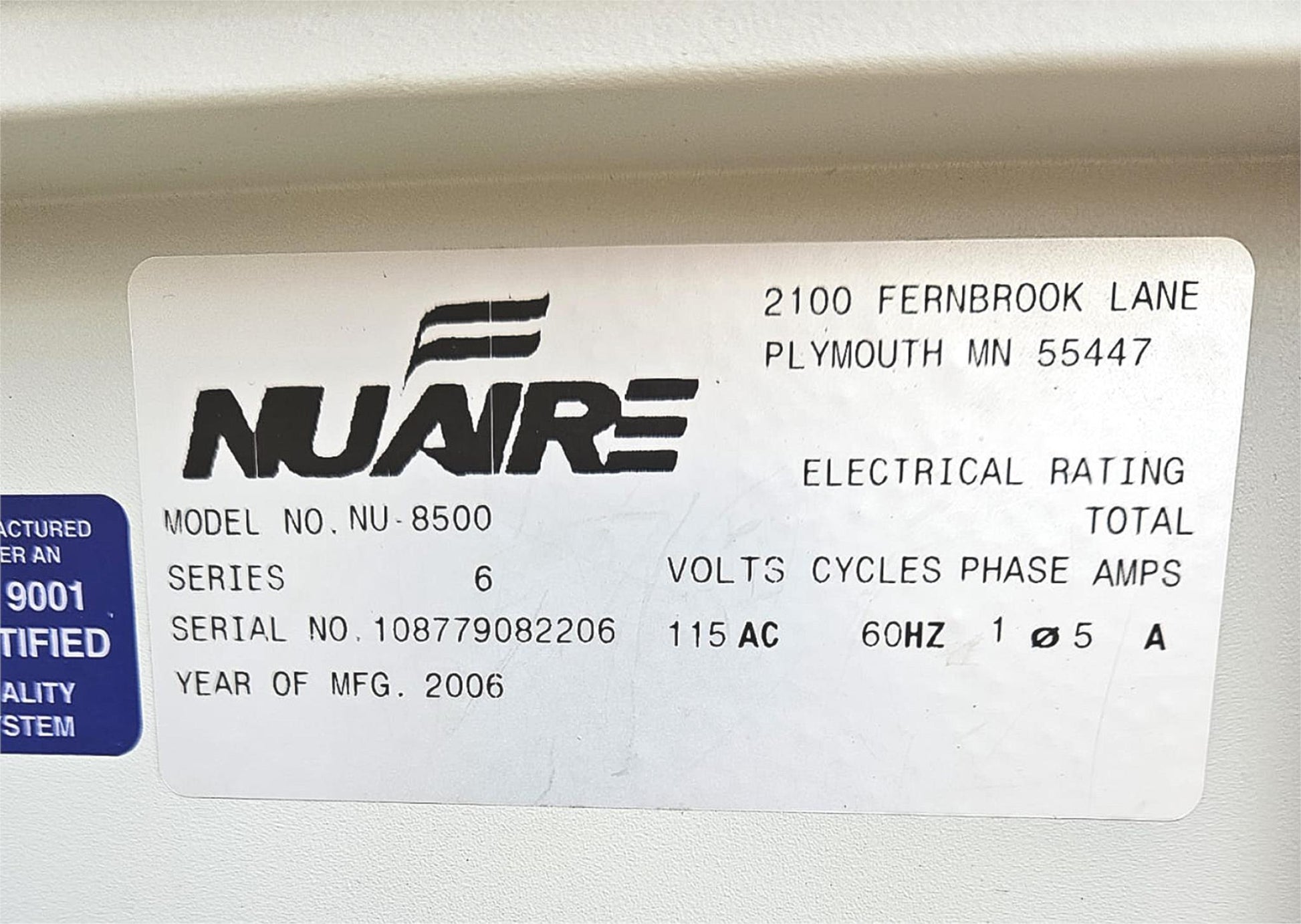

Electrical Requirements: 115V, 50/60Hz, 3A
Stock # 240201
