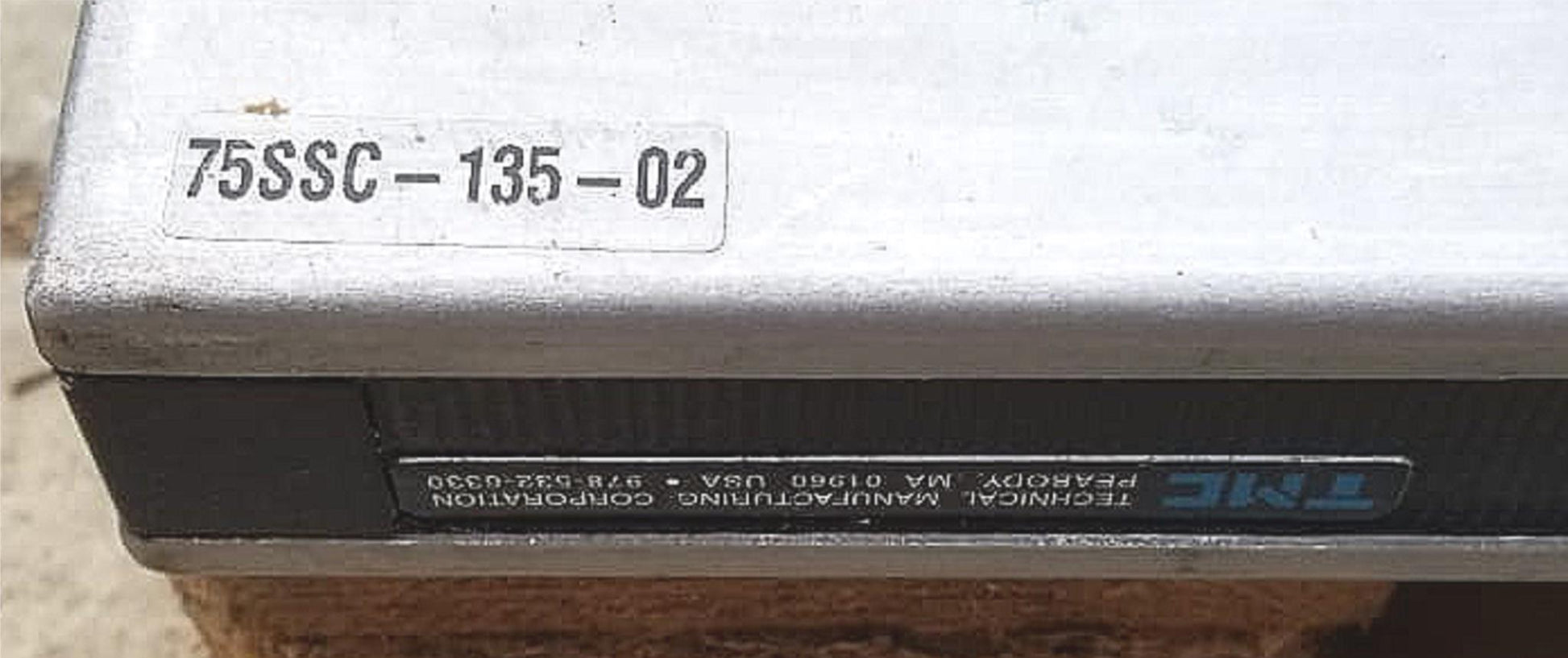

NEWPORT 75SSC-135-02 BENCHTOP TAPPED HOLE VIBRATION OPTICAL ISOLATION TABLE

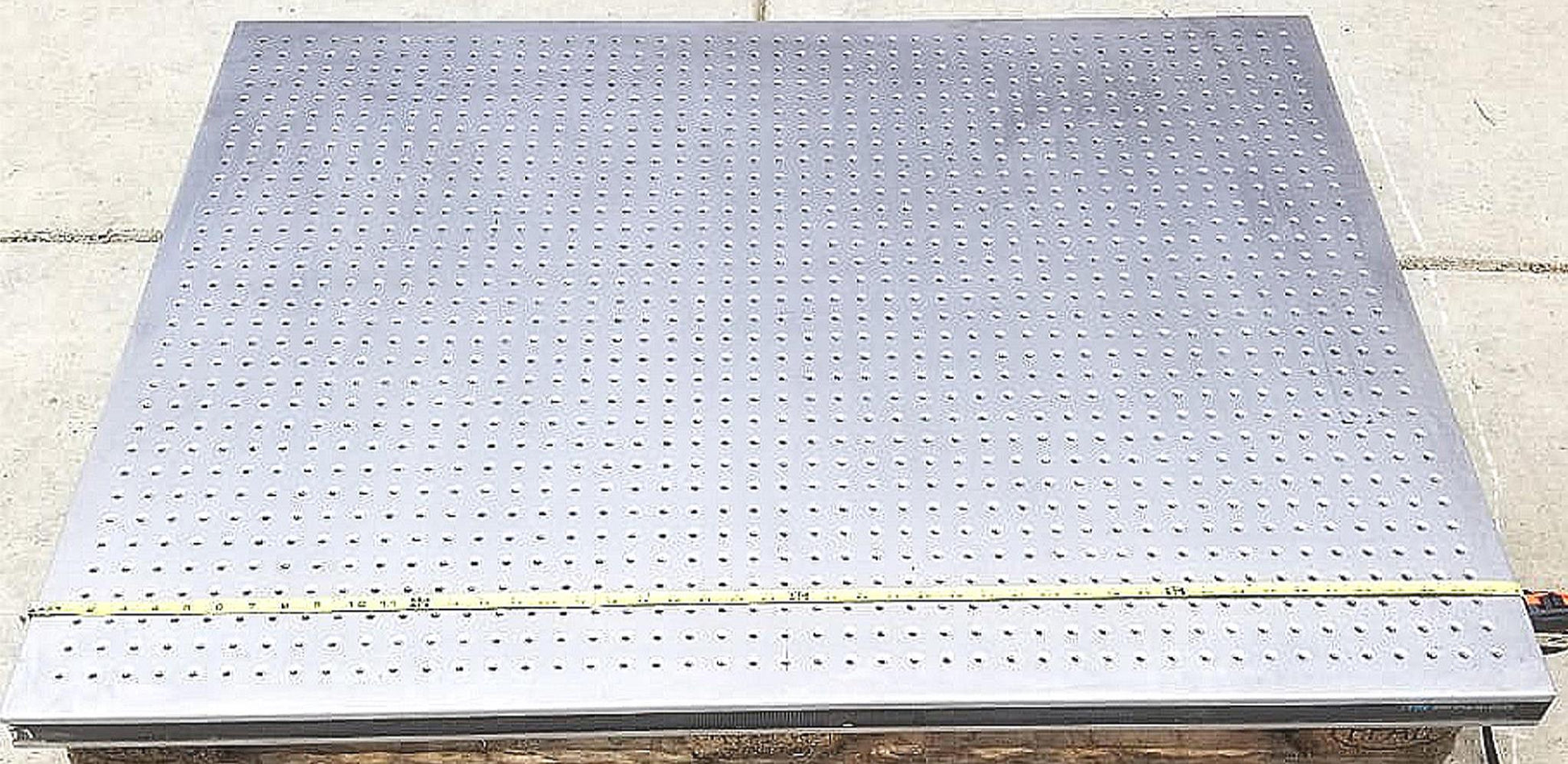

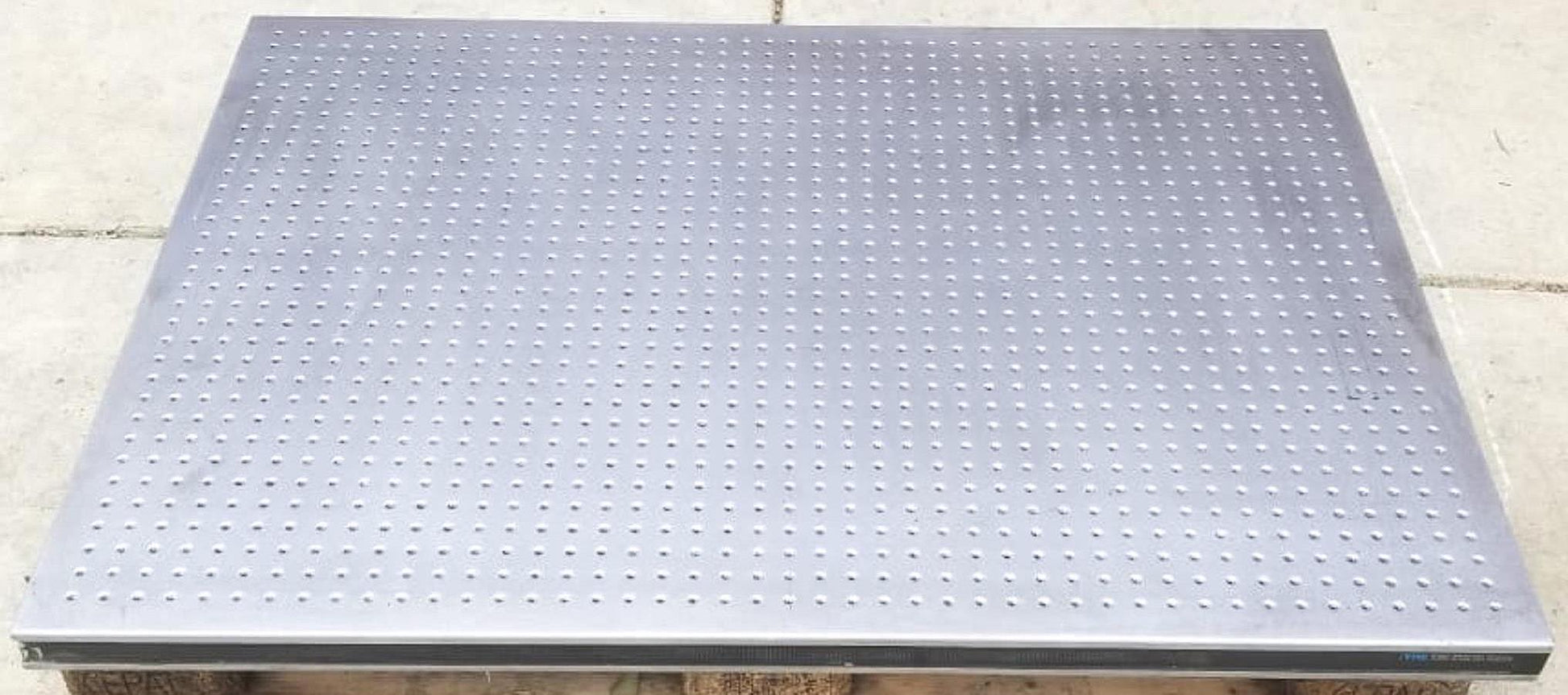

This listing is for 1 (ONE) UNIT OF NEWPORT 75SSC-135-02 BENCHTOP TAPPED HOLE VIBRATION OPTICAL ISOLATION TABLE as can be seen in the pictures.

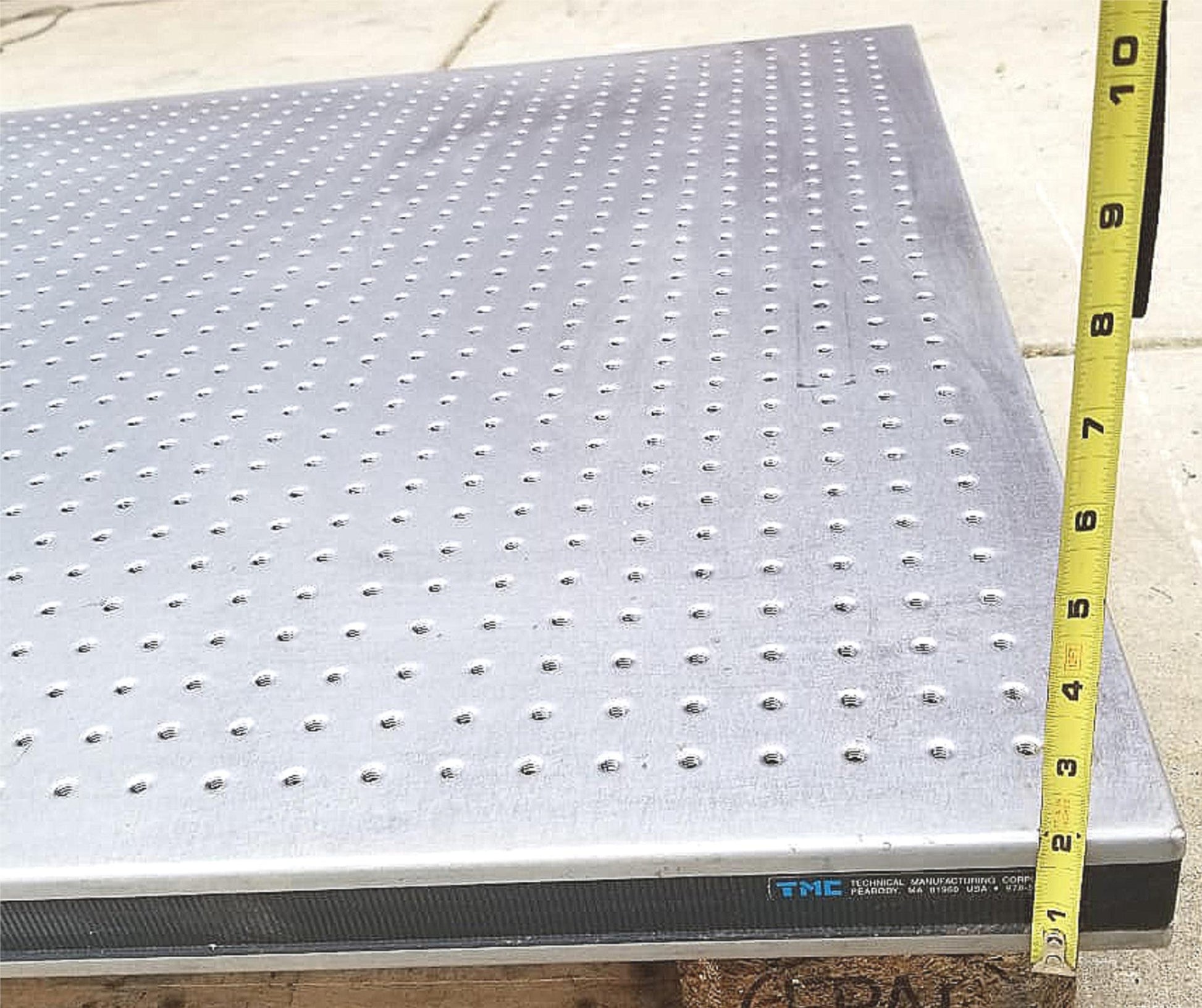

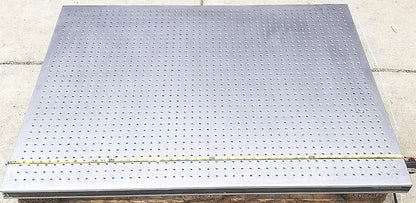

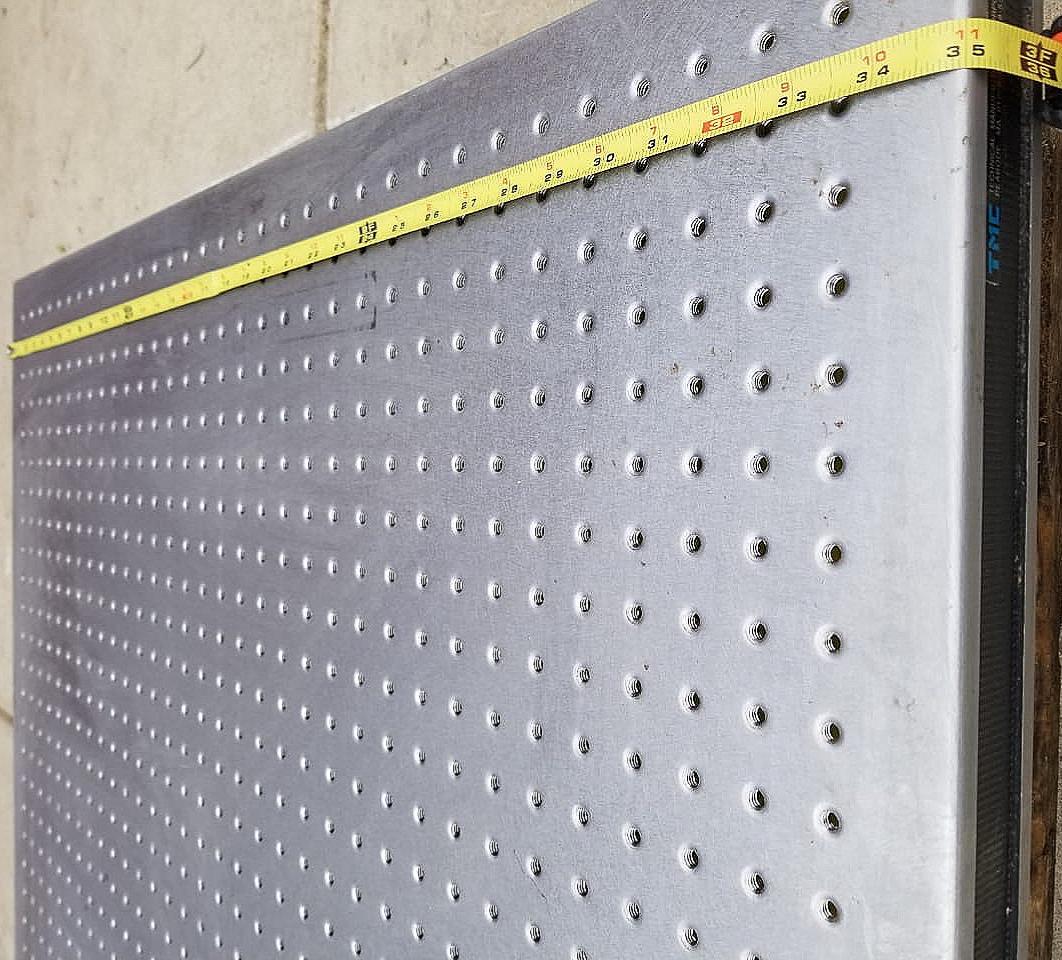

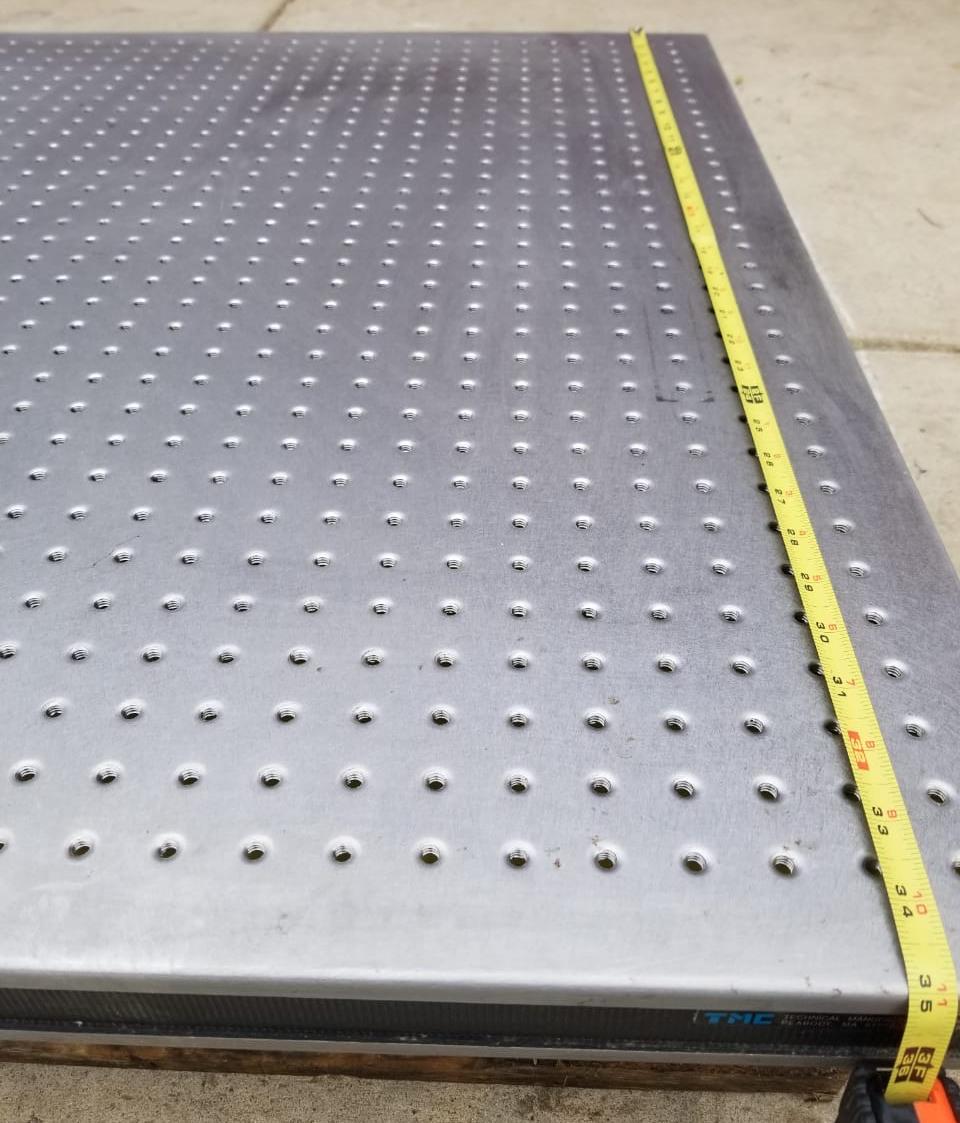

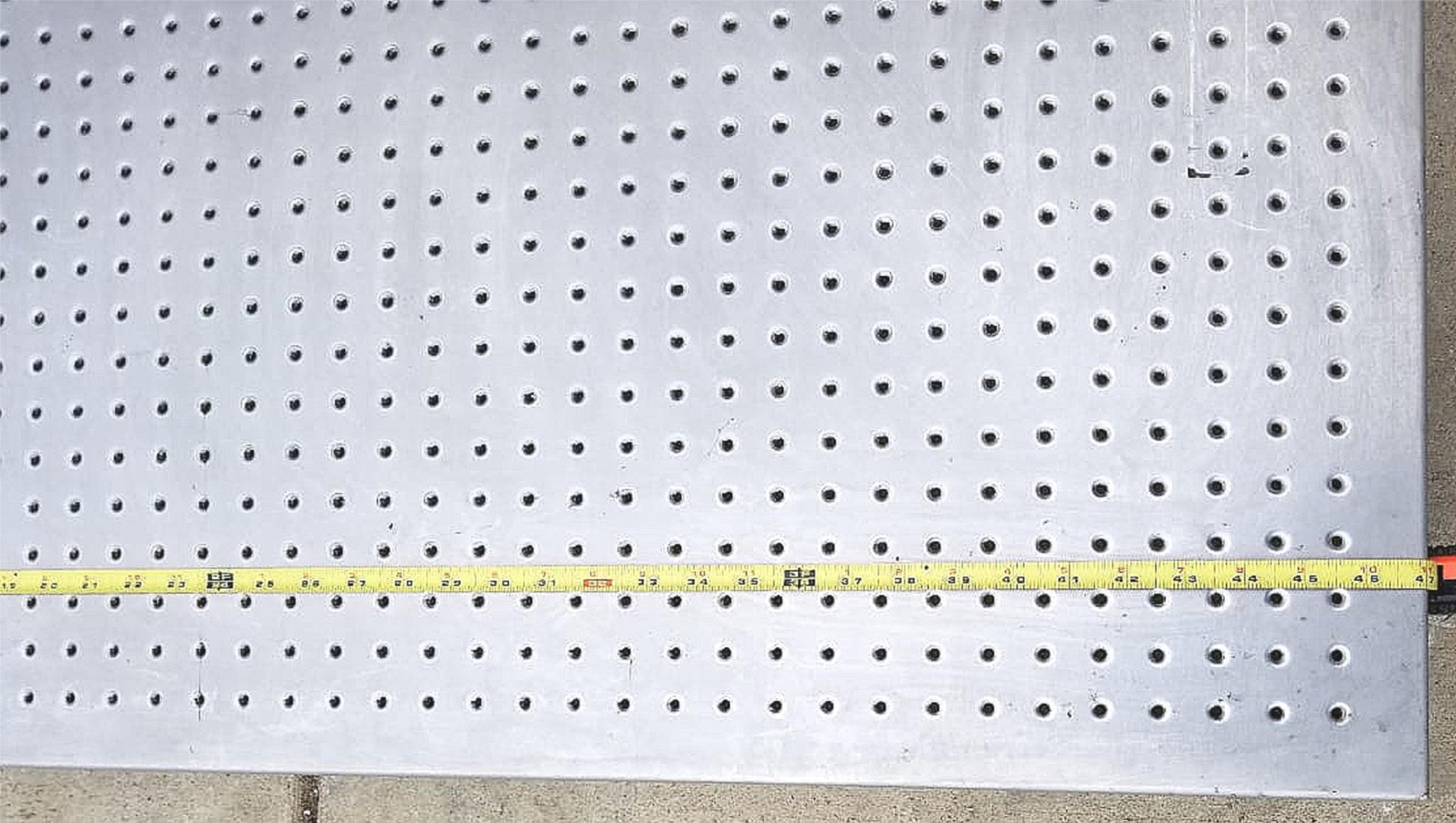

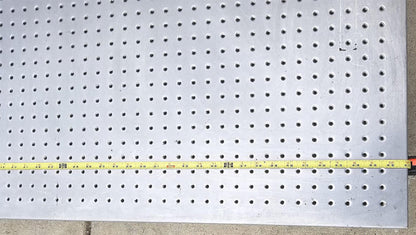

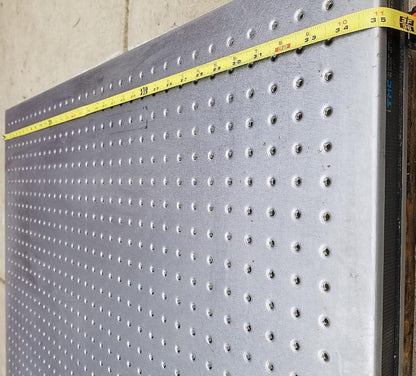

Unit Measures 48" Wide x 35" Deep x 2" High

Here is a used Newport Benchtop Vibration Table.

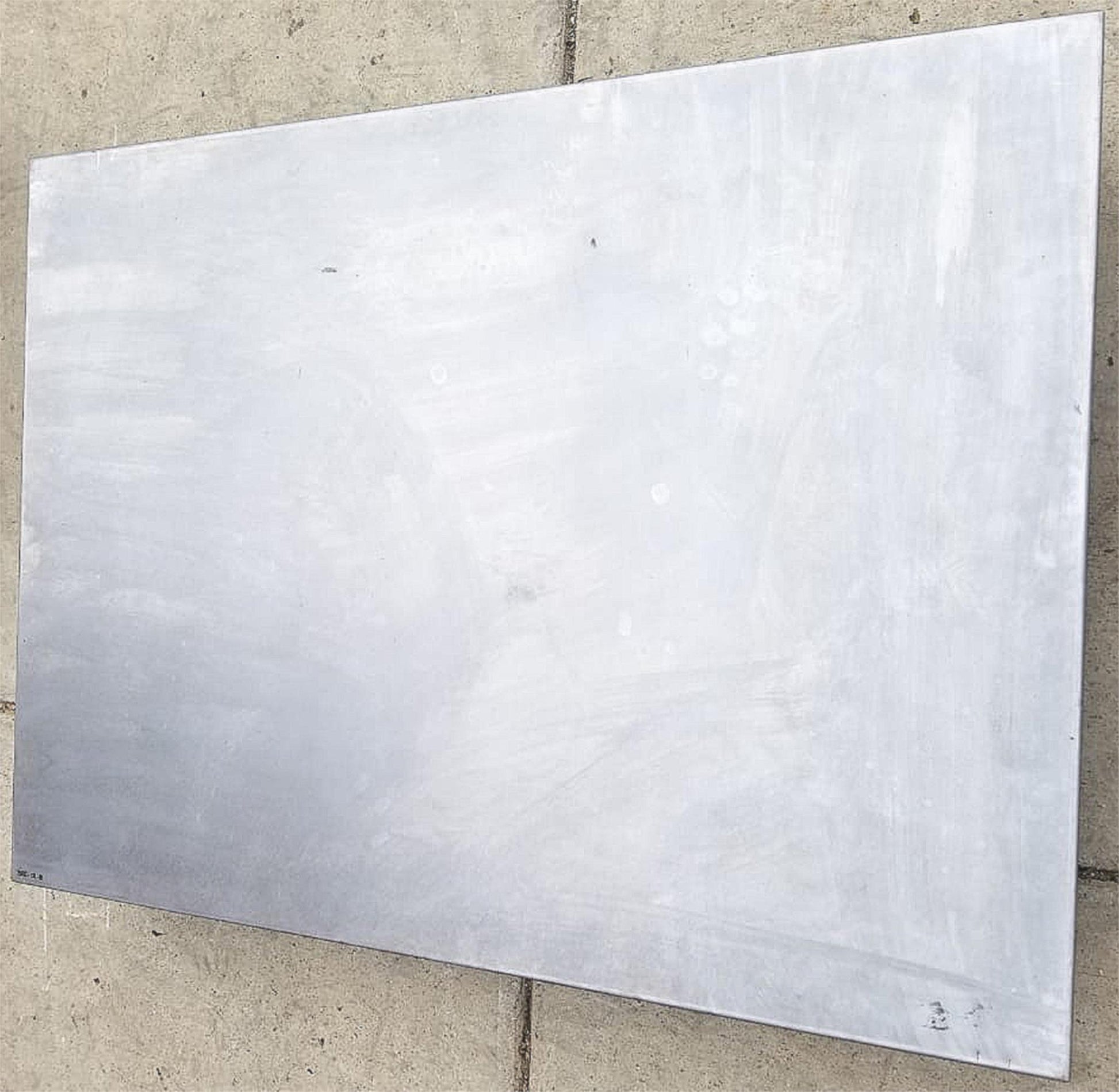

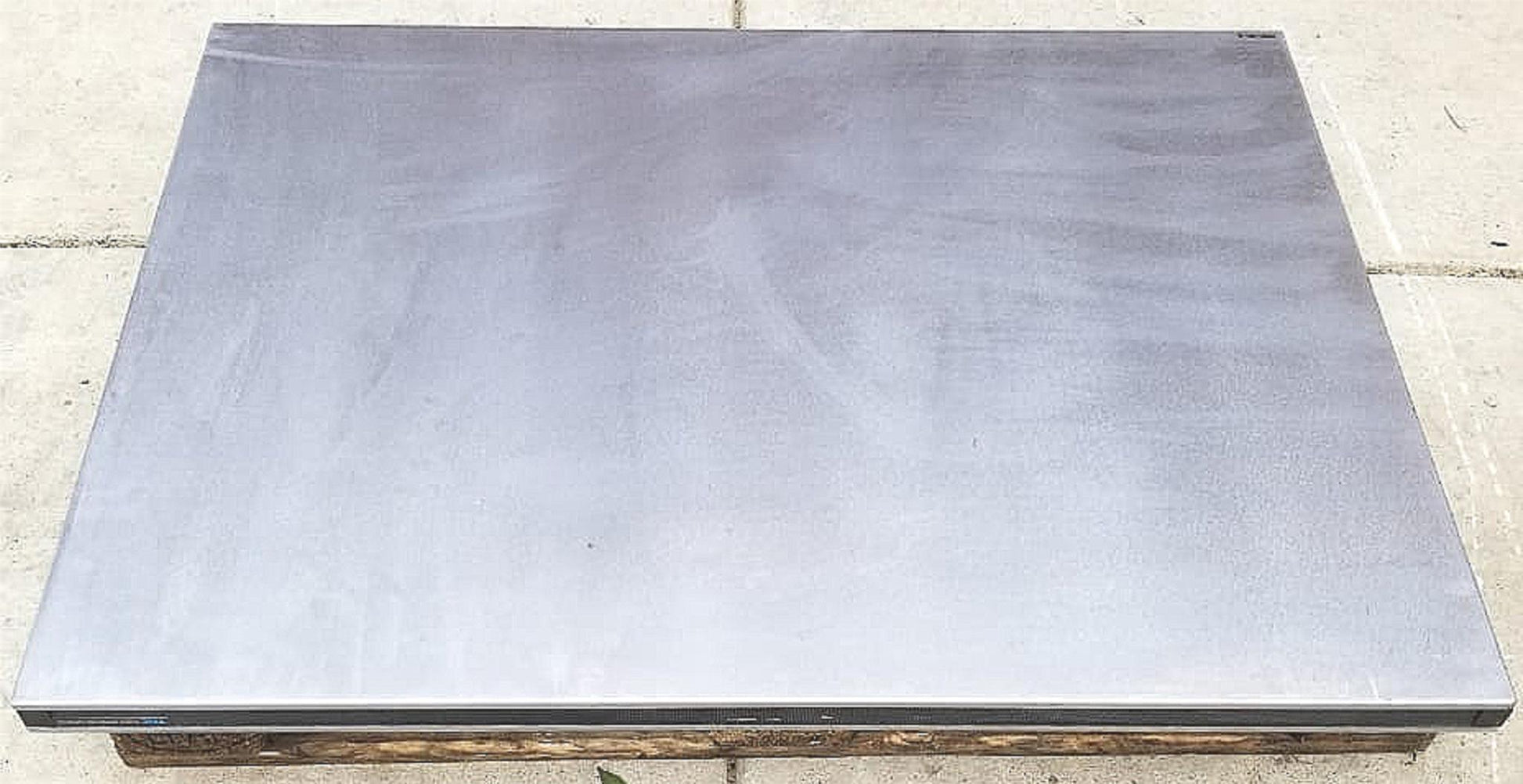

IMPORTANT: Plain Stainless Steel Top.

COSMETICS: This unit is in pretty good shape as can be seen in the pictures and no dents, or stains to the table top. Please see photos for details.

Please check manufacturer's Specification Technical Data Sheet by reading below and also by GOOGLING the following link: artisantg.com/TestMeasurement/68096/TMC_75_Series_CleanTop_Lightweight_Breadboard

TMC 75 Series CleanTop Lightweight Breadboard

Features

Ultra-Lightweight Design Weighs Less than 9 lbs/ft2

Ferromagnetic Stainless steel Top and Bottom Skins

Aluminum and Carbon Steel Versions Available

Formed Holes are Countersunk and Tapped 3 Threads

Formed Holes in Top Skin Add to Rigidity

Configuration:

• Surface Dimensions: 19 x 47 inches (450 x 1200 mm)

• Hole Distribution: 1/4-20 Holes on 1" Centers

• Weight: 62 lbs (28 kg)

Description

The TMC 75 Series CleanTop Lightweight Breadboards minimize both weight and cost.

A patented manufacturing technique allows us to form countersunk, tapped holes in a thin top skin of stainless steel.

The holes are not drilled or punched, but fabricated in a way that effectively “thickens” the skin in a small ring around the threads.

No inserts are used and the tapped holes are 3 threads deep.

Specifications

Core Steel honeycomb, closed-cell, 0.010 in. (0.2mm) thick foil

Core shear modulus 275,000 psi, (19,300 kg/cm2)

Core cell size <0.5 in.2 (3cm2)

Core density 13.3 lb/ft3 (230 kg/m3)

Flatness ± 0.005 in.(0.13mm)

Top skin 430 series stainless steel, 0.075in.(2 mm) thick

Botton Skin 400 series stainless steel, 0.075in.(2 mm) thick

Sidewalls High-pressure laminate

Tapped holes Backed by individual CleanTop II cups; 3 threads

Another in a long line of TMC innovations, our 75 Series Breadboards minimize both weight and cost.

A patented manufacturing technique allows us to form countersunk, tapped holes in a thin top skin of stainless steel.

The holes are not drilled or punched, but fabricated in a way that effectively “thickens” the skin in a small ring around the threads.

No inserts are used and the tapped holes are 3 threads deep.

These tops have relatively high levels of rigidity, as they utilize our standard steel core. However, with their thin top and bottom skins, they cannot have the rigidity and damping properties of our 78 and 77 CleanTop® II Breadboards.

They are ideal when light loads are anticipated and low weight and/or cost are the most crucial factors.

The weight savings - 50% less than our 78 Series Breadboard - is derived only from the lighter gauge skins.

This lightweight design is in stock and ready to be shipped out once payment is confirmed.

Features

Ultra-lightweight design weighs less than 9 lbs/ft2 (44 kg/m2). Ferromagnetic Stainless steel top and bottom skins. Aluminum and carbon steel versions available.

Very low prices, even in low quantity.

Formed holes are countersunk and tapped 3 threads.

Formed holes in top skin add to rigidity.

CleanTop® II individual cups under each hole make the core spill proof.

Product Family: 75SSC-103-02, 75SSC-103-12, 75SSC-104-02, 75SSC-104-12, 75SSC-113-02, 75SSC-113-12, 75SSC-115-02, 75SSC-115-12, 75SSC-119-02, 75SSC-119-02, 75SSC-135-02, 75SSC-135-12 75SSC 103 02, 75SSC 103 12, 75SSC 104 02, 75SSC 104 12, 75SSC 113 02, 75SSC 113 12, 75SSC 115 02, 75SSC 115 12, 75SSC 119 02, 75SSC 119 02, 75SSC 135 02, 75SSC 135 12, Optical Breadboard

If you have any questions, please feel free to inquire BEFORE BUYING, we will respond immediately.
